Mun Ah Plastic Electronic Toys Co., LTD. RC Toy Transmitter CTX 1710 Instruction 01

Manual

CTX-1710 2.4GHz Transmitter
ST.TRIM
TH.TRIM
CTX-1710
Battery
Compartment Tray
Steering Trim Dial
Dual Rate Dial
* In general, user will experience under steer when making a wide turn at
high speed or over steer when making sharp turn at high speed (easy to
spin out). User should practice the throttle and steering approach for
different cornering at different speed or road surface.
Battery Installation
SYNC
Power ON / OFF the Transmitter
ST.TRIM
TH.TRIM

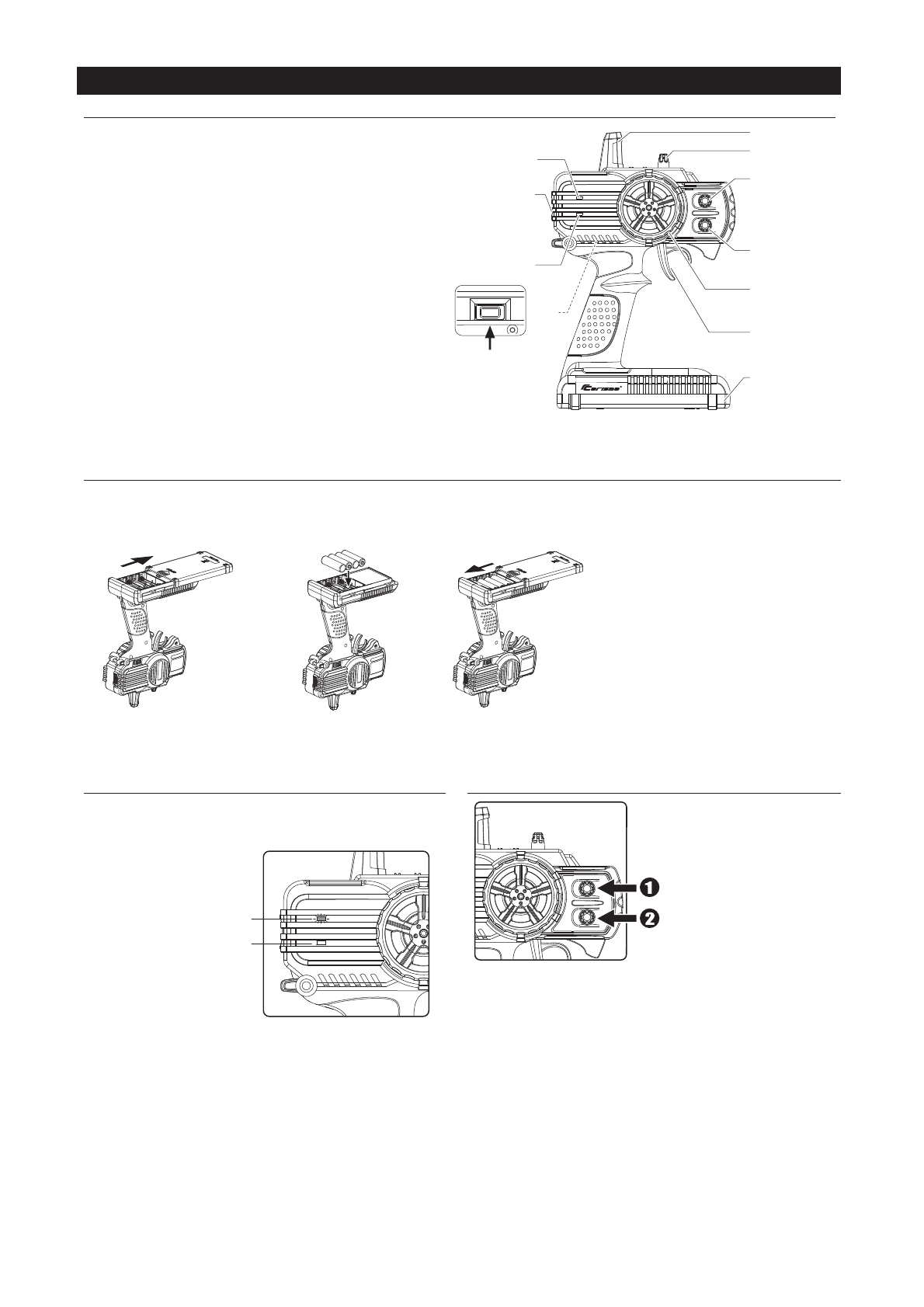

The Transmitter CTX-1710
Steering Wheel : Control direction (Left/Right) of the RC model.
Throttle Trigger : Control speed and direction
(Forward/Brake/Backward)of the driving model.
Antenna : Transmit signal to the model.
Power ON / OFF : Power ON / OFF the transmitter
SYNC & Battery Indicator : Top Green LED light indicates synchronization
status and/or adequate battery power supply.
Power Indicator : Bottom Red LED light indicates power “ON”.
Dual Rate Dial : Adjust the same maximum steering angle on
both sides when model turns Left / Right
ST. Trim Dial : Adjust the neutral position of steering servo
when model wheels are straight ahead.
TH. Trim Dial : Make sure the model stays still when releasing
the throttle trigger.
Battery Compartment Tray : Cover and hold the batteries powering the
transmitter.
Supplied with 4 x 1.5V AA Batteries,
CTX-1710 can be operated a few hours.
Installation: Remove the battery
compartment cover as shown below.
Install the batteries observing
the polarity marked on battery
compartment.
Then reinstall the battery
compartment cover as the
Picture shown below.
Warning :
Never disassemble batteries or put the batteries
in fire, chemical agents, otherwise they may cause
personal injuries or property damages.
Battery Disposal :
Observe corresponding regulations about wasted
battery treatment regulations.
1. After running out of power, dispose of wasted
batteries in designated areas far away from
water supply, household areas and planted areas.
2. Submit the wasted batteries to specific recycling
stations.
Battery LED Indicator
The Green LED indicator located on the front left side of the transmitter indicates
the power supply of batteries. The green LED will go solid on indicating that the
batteries have sufficient power. When batteries voltage drops below 4 volts, the
Green LED will flash, indicating the batteries power is low and should be replaced.
Pre-Run Check
Solid Green :
Sufficient Power supply
Flashing :
Time to replace batteries
Steering Wheel
Throttle Trigger
Throttle Trim Dial
Antenna
SYNC and
Battery
Level Indicator
Power
Indicator
Power
ON / OFF
Green
Red
SYNC
SYNC Button
(Synchronization)
* Always turn on the transmitter first by sliding the switch on the left side from
bottom to top. The small red and green lights above the switch should both
light up. If not, you need to check for low or incorrectly installed batteries.
1. Steering : Adjust the steering trim
to keep the front wheels in straight
line when steering wheel remains
in NEUTRAL position.
2. Throttle : Adjust the throttle trim
to ensure the rear wheels stop
rotating when throttle trigger
remains in NEUTRAL position.

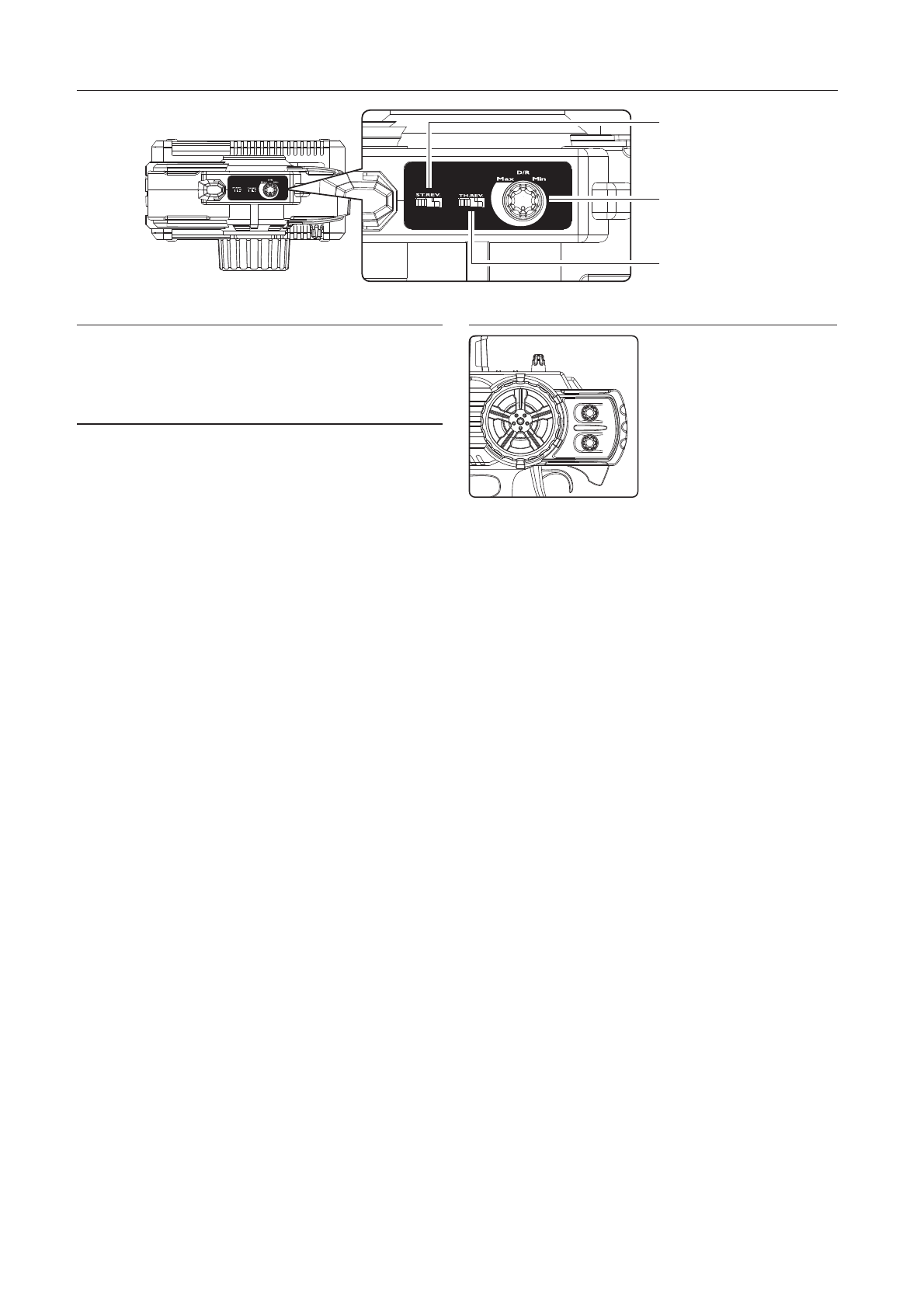

Top Control Panel
Steering Reverse Switch
Dual Rate Dial
Throttle Reverse Switch
Reversing
Reversing is used to change the response direction of steering wheel and throttle
trigger. CTX-1710 Transmitter features 2 reversing functions: Steering Reverse
and Throttle Reverse.
Steering Reverse: Reverse the response direction when operating steering
wheel. Turning left steering wheel, the model turns right while turning right the
model turns left.
Throttle Reverse: Reverse the response direction when operating throttle trigger.
Pushing forward throttle trigger the model moves backward while pulling back,
the model moves forward. If necessary you can just use a small screwdriver to
adjust the orresponding switches.
CTX-1710 features two trimming
functions:
Steering Trim and Throttle Trim.
Steering Trim Dial :
Adjust the neutral position of steering
servo when the wheels are straight ahead.
Normally steering trim is adjusted until the
model can keep straight tracks.
Throttle Trim Dial :
Adjust neutral position of throttle servo.
Make sure the model stays still when
releasing the throttle trigger.
Trimming
Dual Rate Dial enables to adjust the same maximum steering angle of servo on
both sides (Left and Right) when model makes steering. The Dual Rate Dial affects
the sensitivity of servo. Reducing dual rate value can lower the sensitivity of servo
and reduce the same maximum steering angle on both sides. Remember to adjust
the dual rate value within the adjustment range.
Dual Rate Dial
ST.TRIM
TH.TRIM
