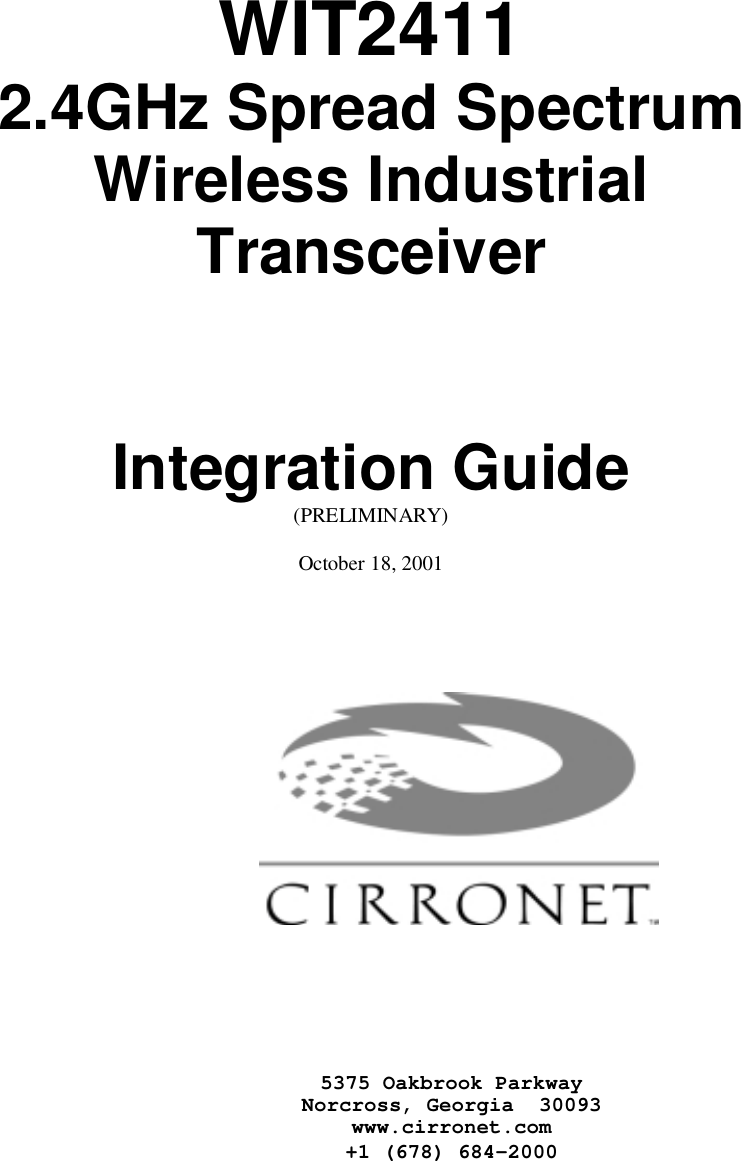

WIT24112.4GHz Spread SpectrumWireless IndustrialTransceiverIntegration Guide(PRELIMINARY)October 18, 20015375 Oakbrook ParkwayNorcross, Georgia 30093www.cirronet.com+1 (678) 684-2000

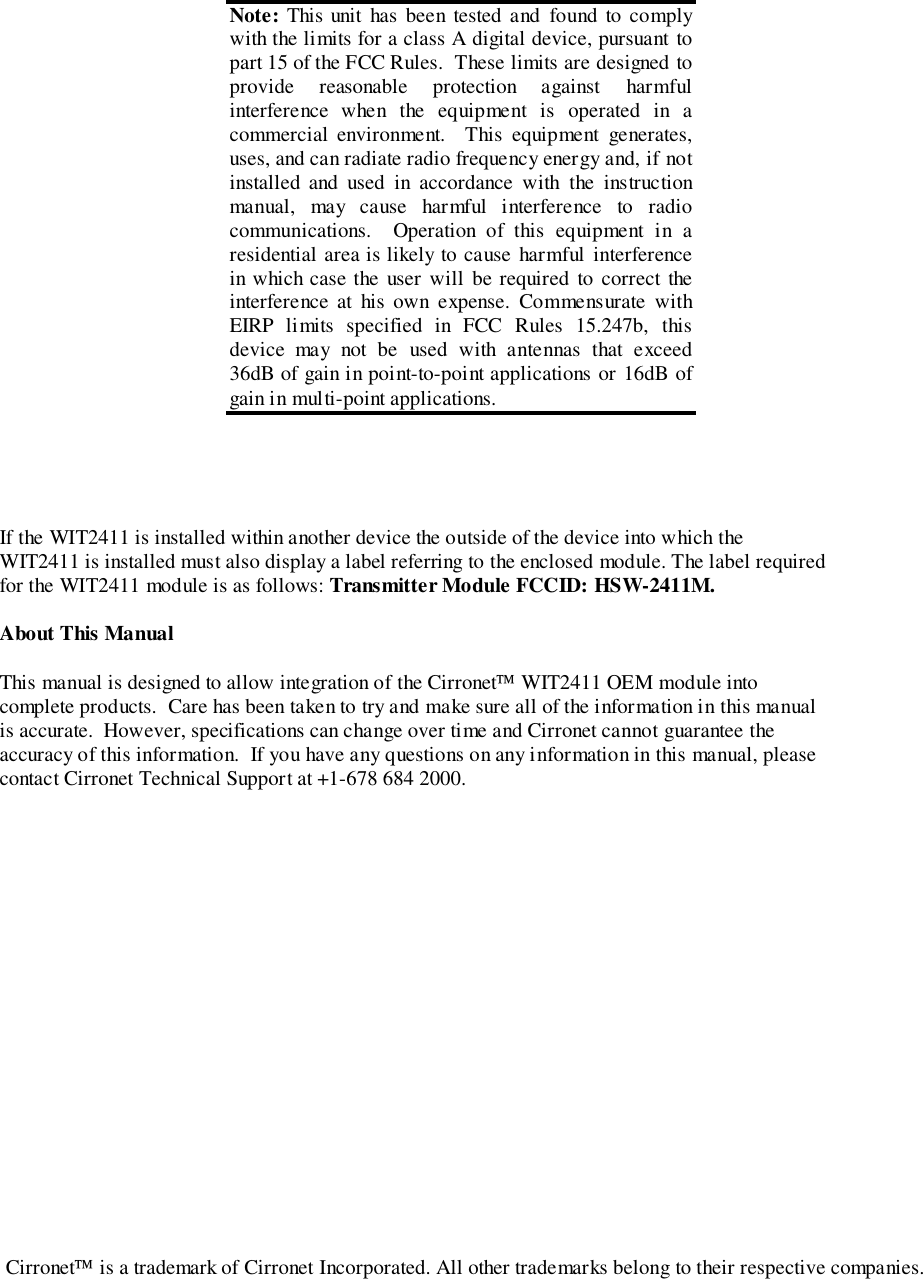

If the WIT2411 is installed within another device the outside of the device into which theWIT2411 is installed must also display a label referring to the enclosed module. The label requiredfor the WIT2411 module is as follows: Transmitter Module FCCID: HSW-2411M.About This ManualThis manual is designed to allow integration of the Cirronet WIT2411 OEM module intocomplete products. Care has been taken to try and make sure all of the information in this manualis accurate. However, specifications can change over time and Cirronet cannot guarantee theaccuracy of this information. If you have any questions on any information in this manual, pleasecontact Cirronet Technical Support at +1-678 684 2000. Note: This unit has been tested and found to complywith the limits for a class A digital device, pursuant topart 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmfulinterference when the equipment is operated in acommercial environment. This equipment generates,uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructionmanual, may cause harmful interference to radiocommunications. Operation of this equipment in aresidential area is likely to cause harmful interferencein which case the user will be required to correct theinterference at his own expense. Commensurate withEIRP limits specified in FCC Rules 15.247b, thisdevice may not be used with antennas that exceed36dB of gain in point-to-point applications or 16dB ofgain in multi-point applications.Cirronet is a trademark of Cirronet Incorporated. All other trademarks belong to their respective companies.
Notice to WIT2411 users/installers using the following fixed antenna:Mobile Mark 9dBi Corner ReflectorThe field strength radiated by this antenna, when connected to a transmitting WIT2411 module,may exceed FCC mandated RF exposure limits. FCC rules require professional installation of thisantenna in such a way that the general public will not be closer than 2 m from the radiatingaperture this antenna. End users of these systems must also be informed that RF exposure limitsmay be exceeded if personnel come closer than 2 m to the aperture of this antenna.Notice to WIT2411 users/installers using the following mobile antennas:Mobile Mark 9dBi omnidirectional,Cirronet 6dBi patch,Ace 2dBi dipole,The field strength radiated by any one of these antennas, when connected to a transmittingWIT2411 module, may exceed FCC mandated RF exposure limits. FCC rules require professionalinstallation of these antennas in such a way that the general public will not be closer than 20 cmfrom the radiating aperture of any of these antennas. End users of these systems must also beinformed that RF exposure limits may be exceeded if personnel come closer than 20 cm to theapertures of any of these antennas.

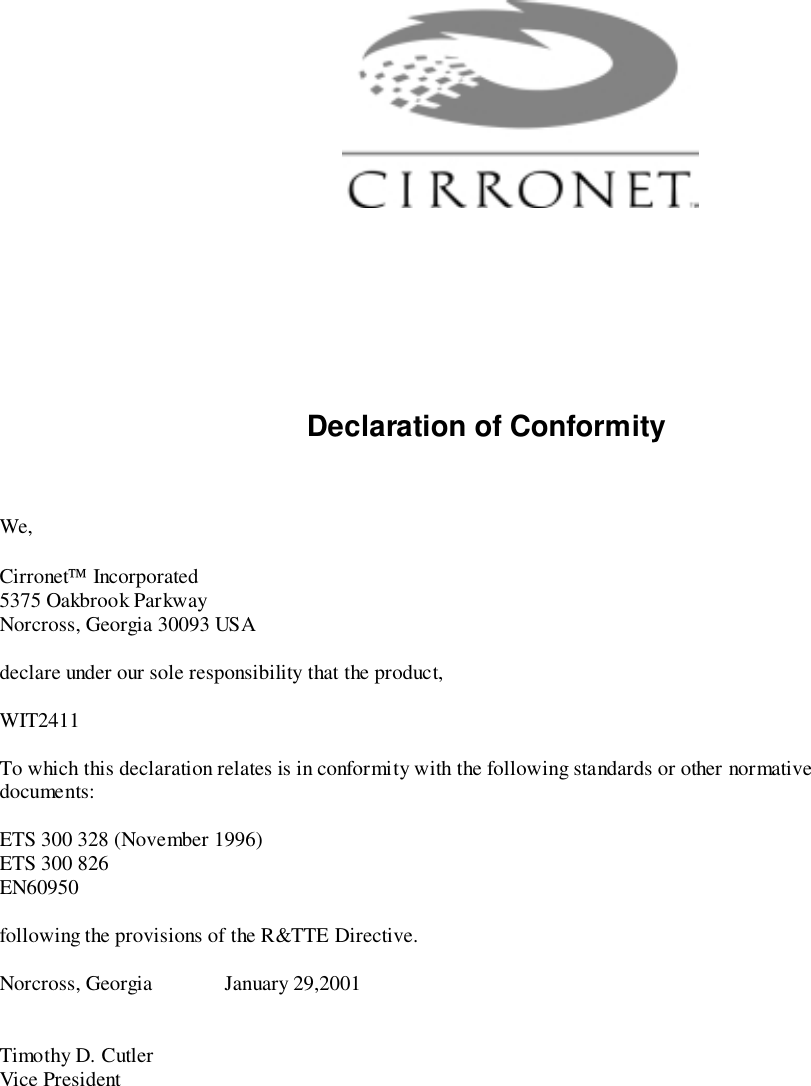

Declaration of ConformityWe,Cirronet Incorporated5375 Oakbrook ParkwayNorcross, Georgia 30093 USAdeclare under our sole responsibility that the product,WIT2411To which this declaration relates is in conformity with the following standards or other normativedocuments:ETS 300 328 (November 1996)ETS 300 826EN60950following the provisions of the R&TTE Directive.Norcross, Georgia January 29,2001Timothy D. CutlerVice President

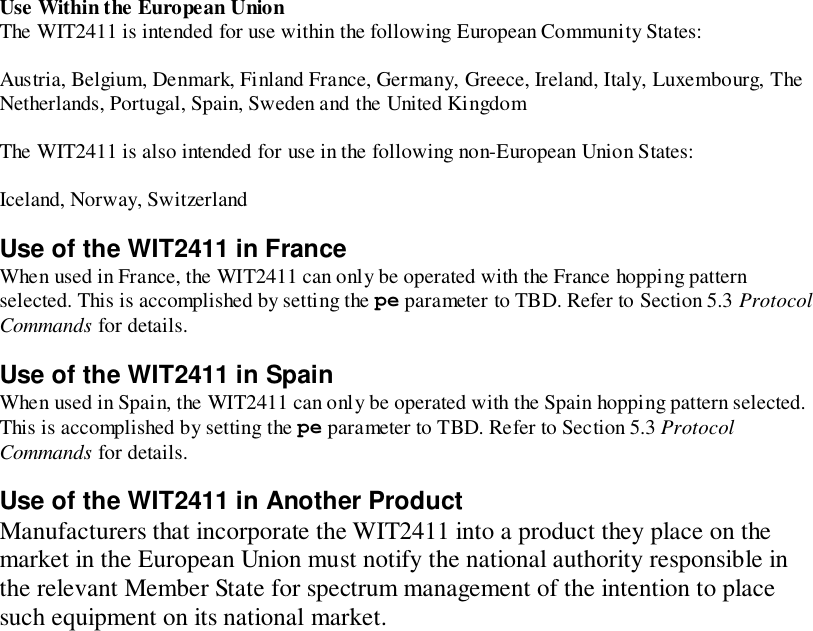

Use Within the European UnionThe WIT2411 is intended for use within the following European Community States:Austria, Belgium, Denmark, Finland France, Germany, Greece, Ireland, Italy, Luxembourg, TheNetherlands, Portugal, Spain, Sweden and the United KingdomThe WIT2411 is also intended for use in the following non-European Union States:Iceland, Norway, SwitzerlandUse of the WIT2411 in FranceWhen used in France, the WIT2411 can only be operated with the France hopping patternselected. This is accomplished by setting the pe parameter to TBD. Refer to Section 5.3 ProtocolCommands for details.Use of the WIT2411 in SpainWhen used in Spain, the WIT2411 can only be operated with the Spain hopping pattern selected.This is accomplished by setting the pe parameter to TBD. Refer to Section 5.3 ProtocolCommands for details.Use of the WIT2411 in Another ProductManufacturers that incorporate the WIT2411 into a product they place on themarket in the European Union must notify the national authority responsible inthe relevant Member State for spectrum management of the intention to placesuch equipment on its national market.
