Murata Electronics North America CX2200 TRANSCEIVER MODULE User Manual cx2200b vp

Murata Electronics North America TRANSCEIVER MODULE cx2200b vp

USERS MANUAL

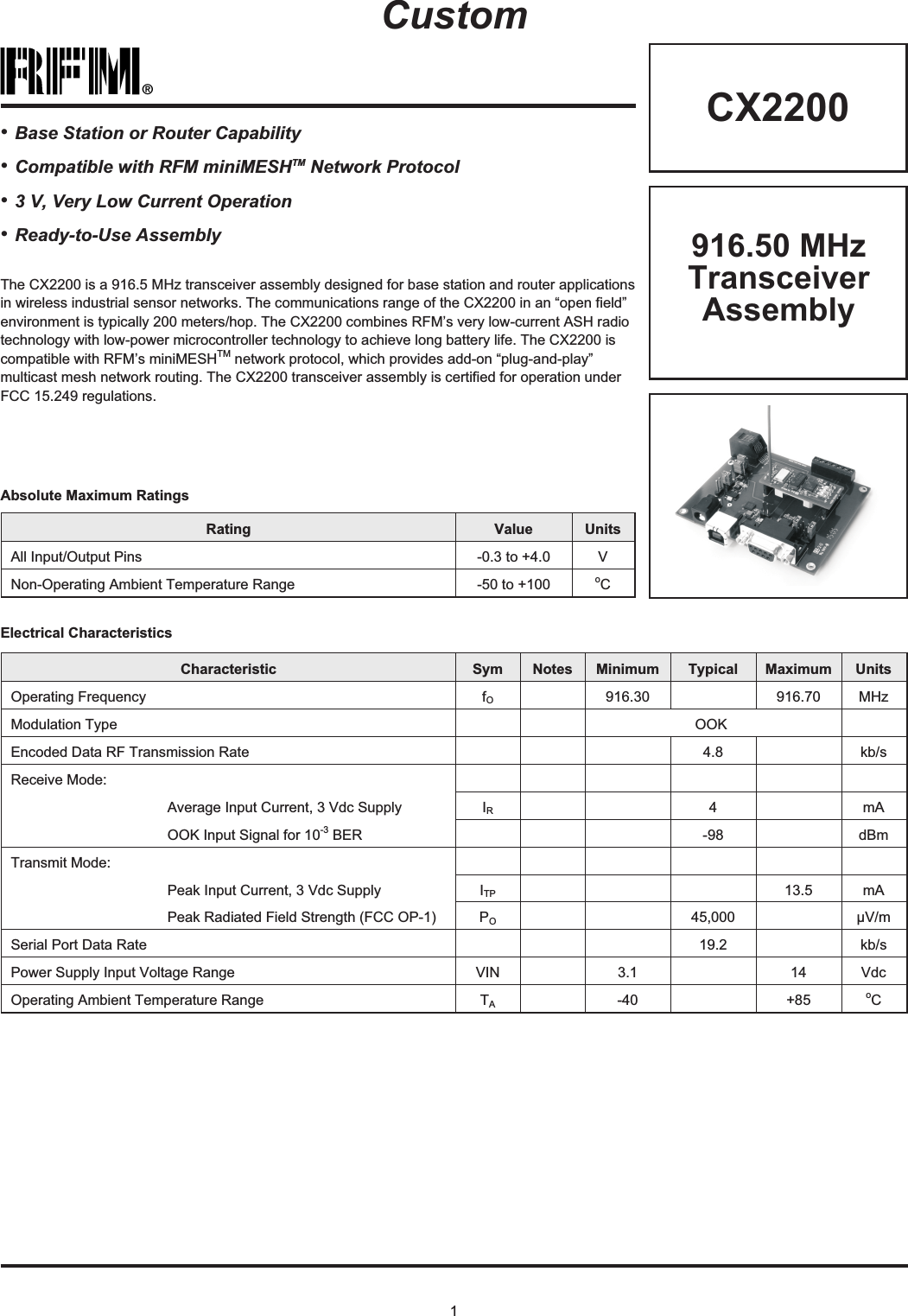

1®CX2200Rating Value UnitsAll Input/Output Pins -0.3 to +4.0 VNon-Operating Ambient Temperature Range -50 to +100 oCAbsolute Maximum RatingsCustomElectrical CharacteristicsCharacteristic Sym Notes Minimum Typical Maximum UnitsOperating Frequency fO916.30 916.70 MHzModulation Type OOKEncoded Data RF Transmission Rate 4.8 kb/sReceive Mode:Average Input Current, 3 Vdc Supply IR4mAOOK Input Signal for 10-3 BER -98 dBmTransmit Mode:Peak Input Current, 3 Vdc Supply ITP 13.5 mAPeak Radiated Field Strength (FCC OP-1) PO45,000 µV/mSerial Port Data Rate 19.2 kb/sPower Supply Input Voltage Range VIN 3.1 14 VdcOperating Ambient Temperature Range TA-40 +85 oC916.50 MHzTransceiverAssemblyThe CX2200 is a 916.5 MHz transceiver assembly designed for base station and router applicationsin wireless industrial sensor networks. The communications range of the CX2200 in an “open field”environment is typically 200 meters/hop. The CX2200 combines RFM’s very low-current ASH radiotechnology with low-power microcontroller technology to achieve long battery life. The CX2200 iscompatible with RFM’s miniMESHTM network protocol, which provides add-on “plug-and-play”multicast mesh network routing. The CX2200 transceiver assembly is certified for operation underFCC 15.249 regulations.•Base Station or Router Capability•Compatible with RFM miniMESHTM Network Protocol•3 V, Very Low Current Operation•Ready-to-Use Assembly

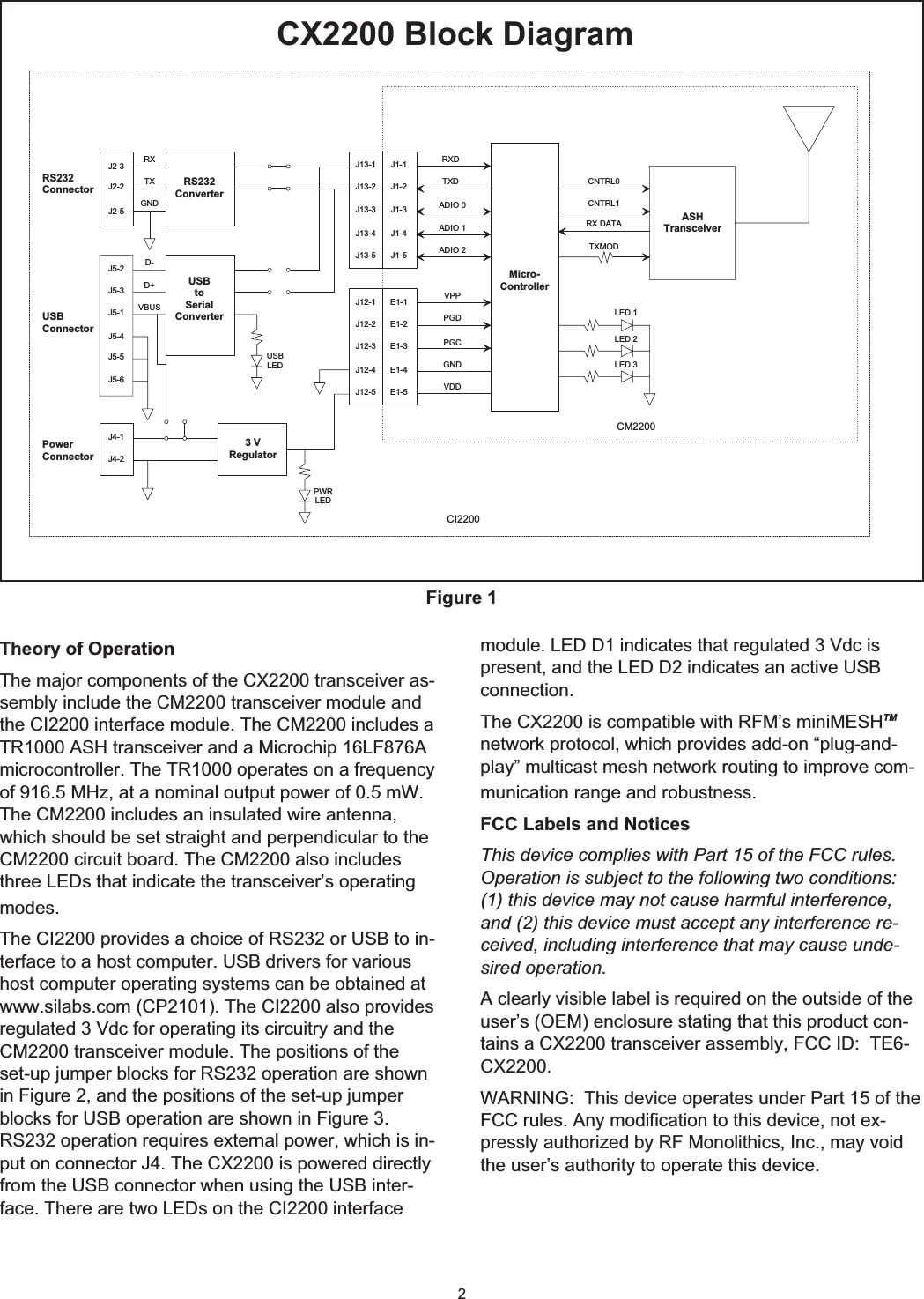

2Theory of OperationThe major components of the CX2200 transceiver as-sembly include the CM2200 transceiver module andthe CI2200 interface module. The CM2200 includes aTR1000 ASH transceiver and a Microchip 16LF876Amicrocontroller. The TR1000 operates on a frequencyof 916.5 MHz, at a nominal output power of 0.5 mW.The CM2200 includes an insulated wire antenna,which should be set straight and perpendicular to theCM2200 circuit board. The CM2200 also includesthree LEDs that indicate the transceiver’s operatingmodes.The CI2200 provides a choice of RS232 or USB to in-terface to a host computer. USB drivers for varioushost computer operating systems can be obtained atwww.silabs.com (CP2101). The CI2200 also providesregulated 3 Vdc for operating its circuitry and theCM2200 transceiver module. The positions of theset-up jumper blocks for RS232 operation are shownin Figure 2, and the positions of the set-up jumperblocks for USB operation are shown in Figure 3.RS232 operation requires external power, which is in-put on connector J4. The CX2200 is powered directlyfrom the USB connector when using the USB inter-face. There are two LEDs on the CI2200 interfacemodule. LED D1 indicates that regulated 3 Vdc ispresent, and the LED D2 indicates an active USBconnection.The CX2200 is compatible with RFM’s miniMESHTMnetwork protocol, which provides add-on “plug-and-play” multicast mesh network routing to improve com-munication range and robustness.FCC Labels and NoticesThis device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference re-ceived, including interference that may cause unde-sired operation.A clearly visible label is required on the outside of theuser’s (OEM) enclosure stating that this product con-tains a CX2200 transceiver assembly, FCC ID: TE6-CX2200.WARNING: This device operates under Part 15 of theFCC rules. Any modification to this device, not ex-pressly authorized by RF Monolithics, Inc., may voidthe user’s authority to operate this device.C X2200 B lock D iagramTXM O DCNTRL0CNTRL1RX DATA ASHTransceiverMicro-ControllerLE D 1LE D 2LE D 3J1-1J1-2J1-3J1-4J1-5E1-1E1-2E1-3E1-4E1-5J13-1J13-2J13-3J13-4J13-5J12-1J12-2J12-3J12-4J12-5RXDTXDADIO 0ADIO 1ADIO 2VDDGNDPG CPG DVPPRS232C onverterJ2-3J2-2J2-5USBtoSerialC onverterJ5-2J5-3J5-1J5-4J5-5J5-6D-D+VBUSRXTXGND3 VRegulatorJ4-1J4-2USBLE DPW RLE DRS232C onnectorUSBC onnectorPow erC onnectorC M 2200C I2200Figure 1

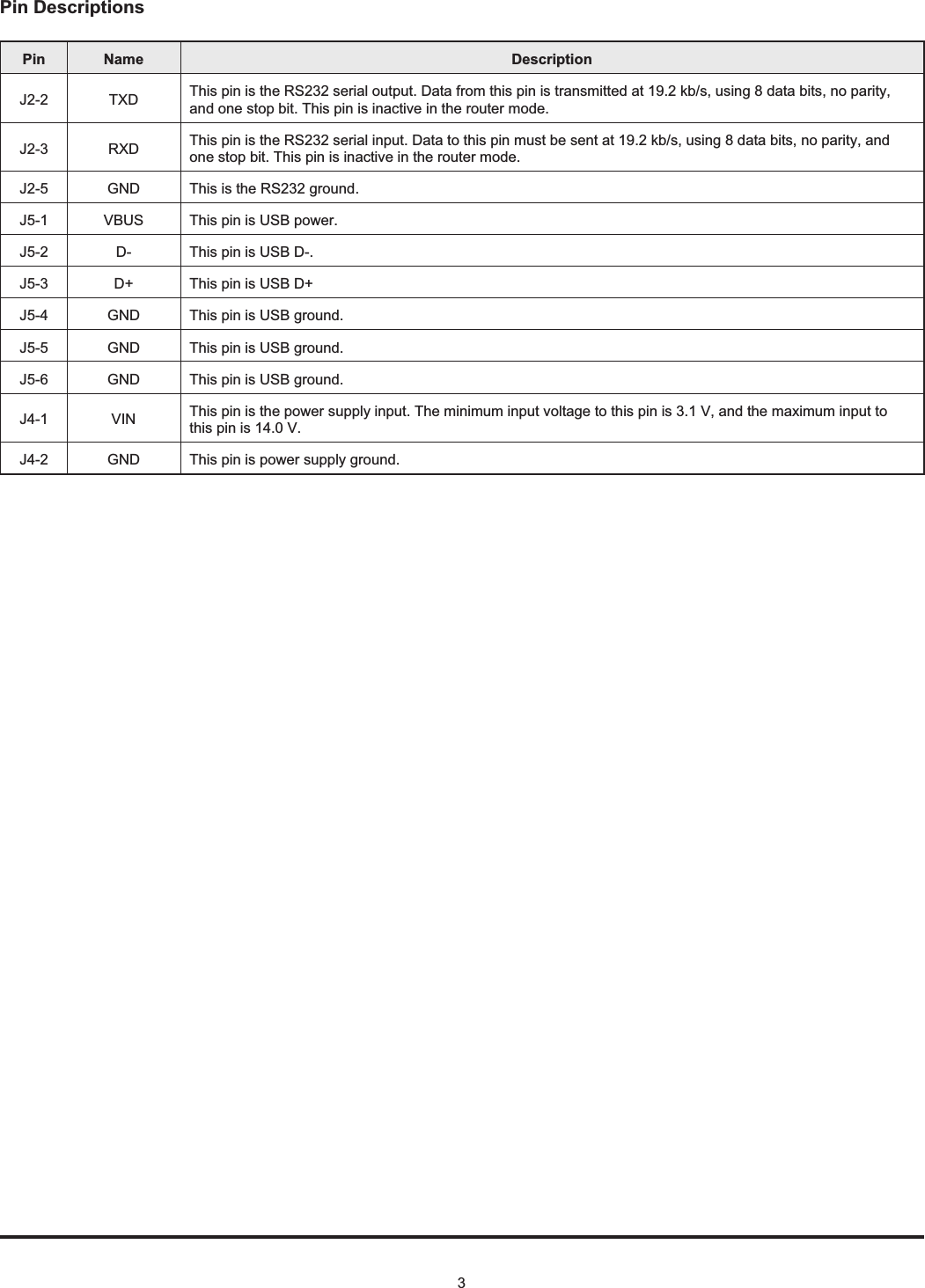

Pin Name DescriptionJ2-2 TXD This pin is the RS232 serial output. Data from this pin is transmitted at 19.2 kb/s, using 8 data bits, no parity,and one stop bit. This pin is inactive in the router mode.J2-3 RXD This pin is the RS232 serial input. Data to this pin must be sent at 19.2 kb/s, using 8 data bits, no parity, andone stop bit. This pin is inactive in the router mode.J2-5 GND This is the RS232 ground.J5-1 VBUS This pin is USB power.J5-2 D- This pin is USB D-.J5-3 D+ This pin is USB D+J5-4 GND This pin is USB ground.J5-5 GND This pin is USB ground.J5-6 GND This pin is USB ground.J4-1 VIN This pin is the power supply input. The minimum input voltage to this pin is 3.1 V, and the maximum input tothis pin is 14.0 V.J4-2 GND This pin is power supply ground.3Pin Descriptions

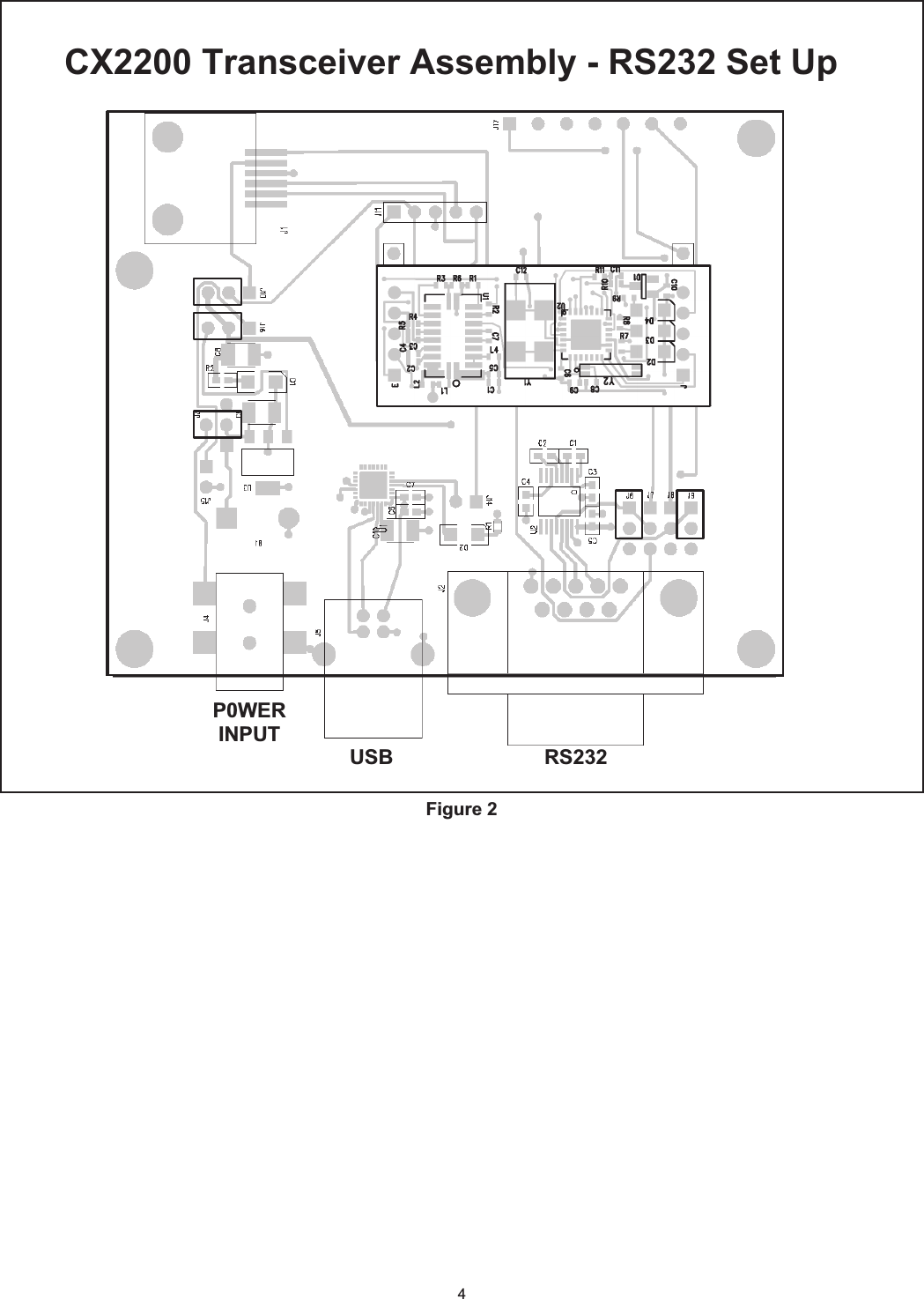

4C X 2200 Transceiver A ssem bly - R S232 S et U pP0W ERIN P U TU SB R S232Figure 2

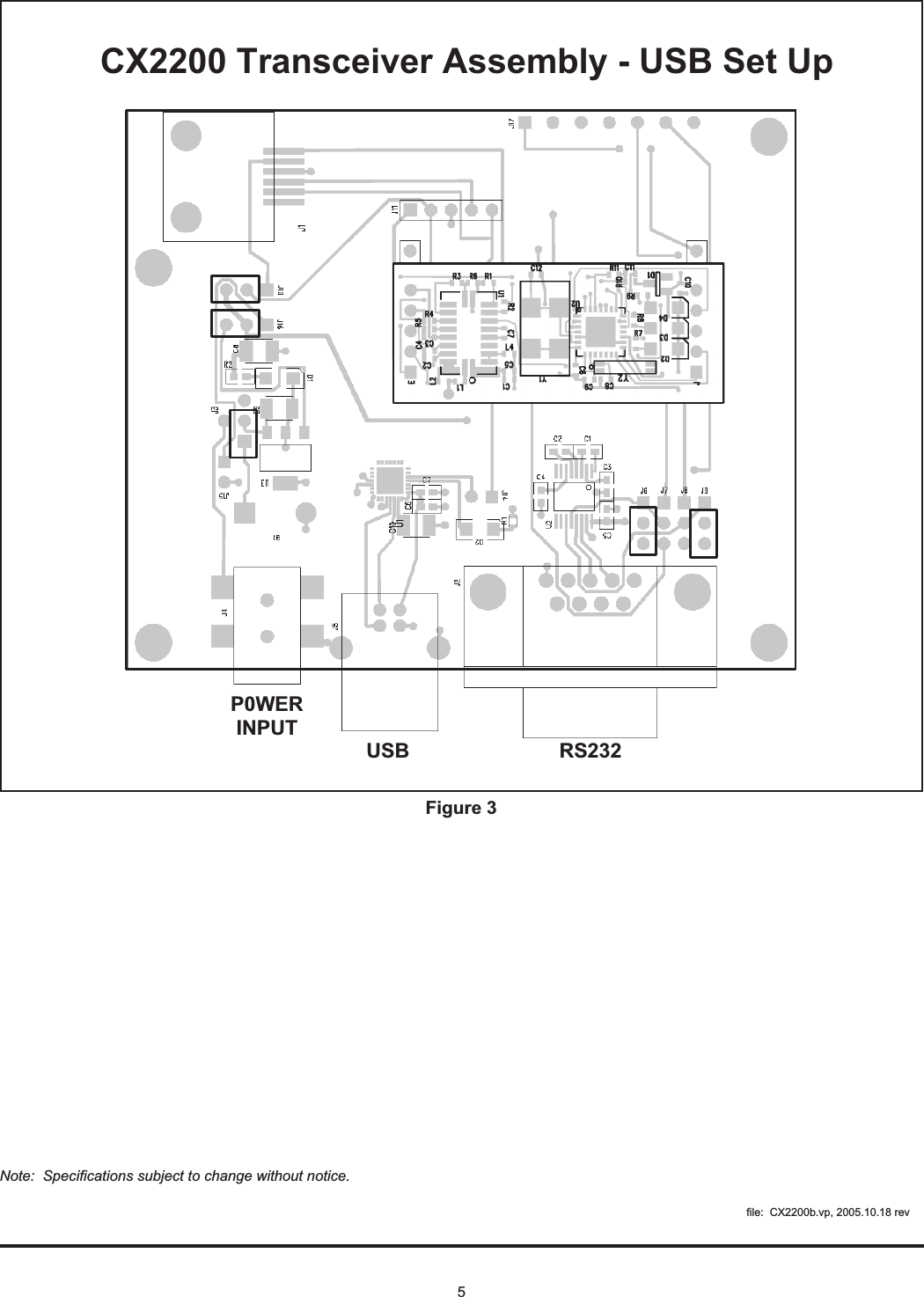

5C X 2200 Transceiver A ssem bly - U S B S et U pP0W ERIN P U TU SB R S232Figure 3Note: Specifications subject to change without notice.file: CX2200b.vp, 2005.10.18 rev
