Murata LB1PR Bluetooth mesh node User Manual

Murata Manufacturing Co., Ltd. Bluetooth mesh node

User Manual

Page 1
1PR-IG Rev. 1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Murata Bluetooth mesh Node
Installation Guide
Shipped Components

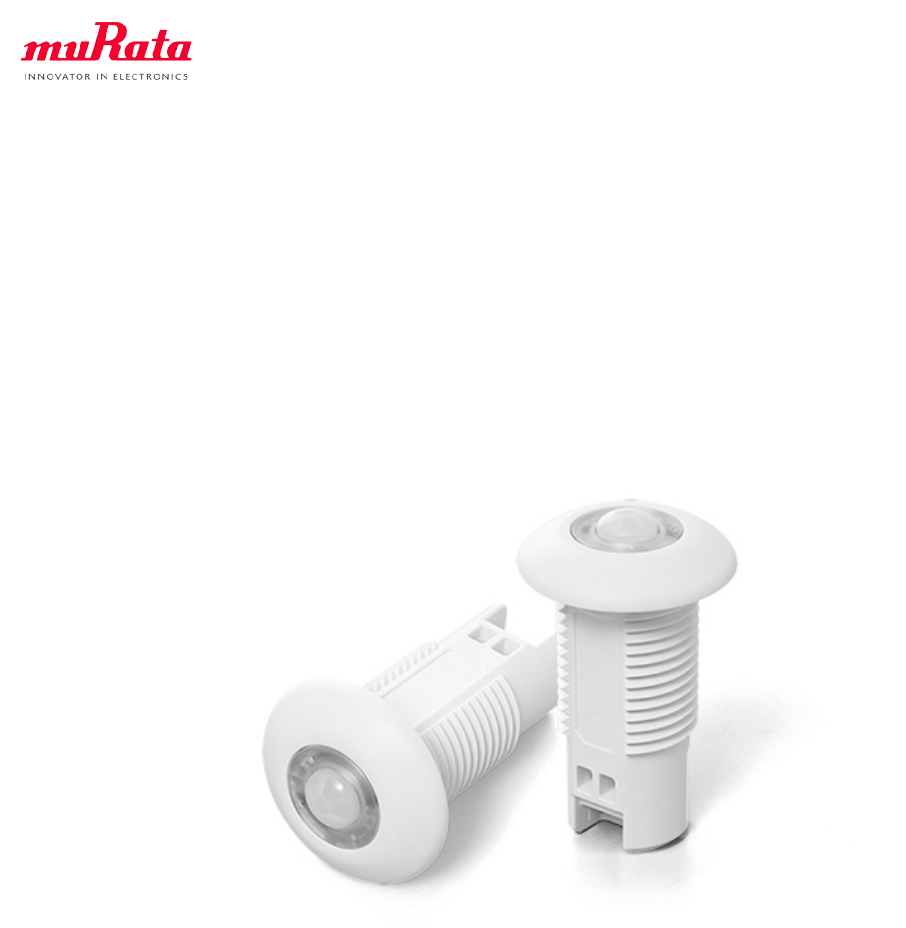

Murata Bluetooth mesh Node (LBCC2ZZ1PR)
Locknut
Page 2
1PR-IG Rev. 1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Caution
Installation and maintenance must be done in accordance with local, state and national electrical codes
(NEC) and requirements.

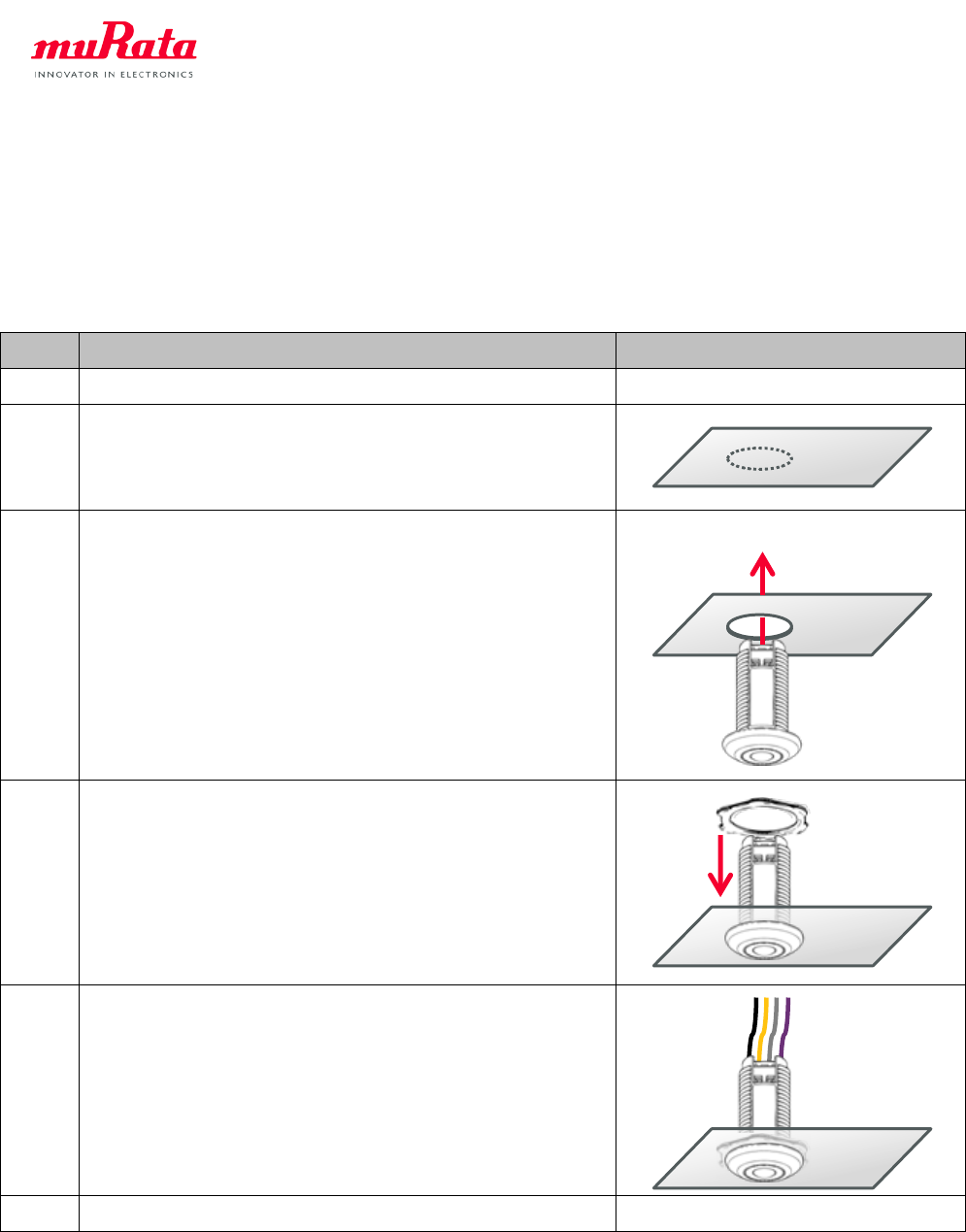

Bluetooth mesh Node Installation
Step Description Figure
1 Make sure the luminaire is de-energized.
2 Determine the location for the Bluetooth mesh Node in
the luminaire and make a 7/8 inch (23 mm) diameter hole
in the luminaire.
3 Insert the Bluetooth mesh Node through the hole.
4 Use the locknut from the rear of the sensor to fix the
Bluetooth mesh Node.
5 Connect the Bluetooth mesh Node with a compatible LED
driver in accordance with Wiring Diagram and Terminal
Assignment.
6 Install the luminaire on the ceiling and energize it.
Page 3
1PR-IG Rev. 1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Wiring Diagram
Auxiliary 12 VDC supply from LED Driver
External Power Supply
L
N
AUX
LED Driver AWG 24-18
(strip 7-9mm)
12V
GND
DC+
DC-
Dim-
Dim+
……
(To LEDs)
L
N
Non-AUX
LED Driver
DC+
DC-
Dim-
Dim+
(To LEDs)
L
N
Non-AUX
LED Driver
DC+
DC-
Dim-
Dim+
(To LEDs)
L
N
External
Power Supply AWG 24-18
(strip 7-9mm)
12V
GND
L
N
Non-AUX
LED Driver
DC+
DC-
Dim-
Dim+
(To LEDs)
Page 4
1PR-IG Rev. 1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
Terminal Assignment
LED Indicators
Green LED (Network Status)
Fast blink (300ms cycle) Unprovisioned
Slow blink (2000ms cycle) Provisioned
Blink twice Mesh packet received
Long blink Factory reset
Red LED (Motion Sensor Status)
Blink once Motion detected
General Information
Model No. LBCC2ZZ1PR
FCC ID VPYLB1PR
IC 772C-LB1PR
12VDC GND
DIM+DIM-
12VDC
GND
DIM +
DIM -
Page 5
1PR-IG Rev. 1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
FCC and Industry Canada Compliance Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Please note that changes or
modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following
two conditions: (1) This device may not cause interference; and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire
de brouillage; (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
CAN ICES-3 (B)/NMB-3(B)
