User Manual_Installation
1
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL
LBEE5HY1MW Installation Manual
FCC ID of this product is as follows.
FCC ID: VPYLBEE5HY1MW
IC No. of this product is as follows.
IC : 772C-LBEE5HY1MW
Contents
1.Land Pattern (Recommended)
2.PIN Layout
3.Supply Voltage
4.Theory of Operation-Channel List
5. Antenna
2
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL

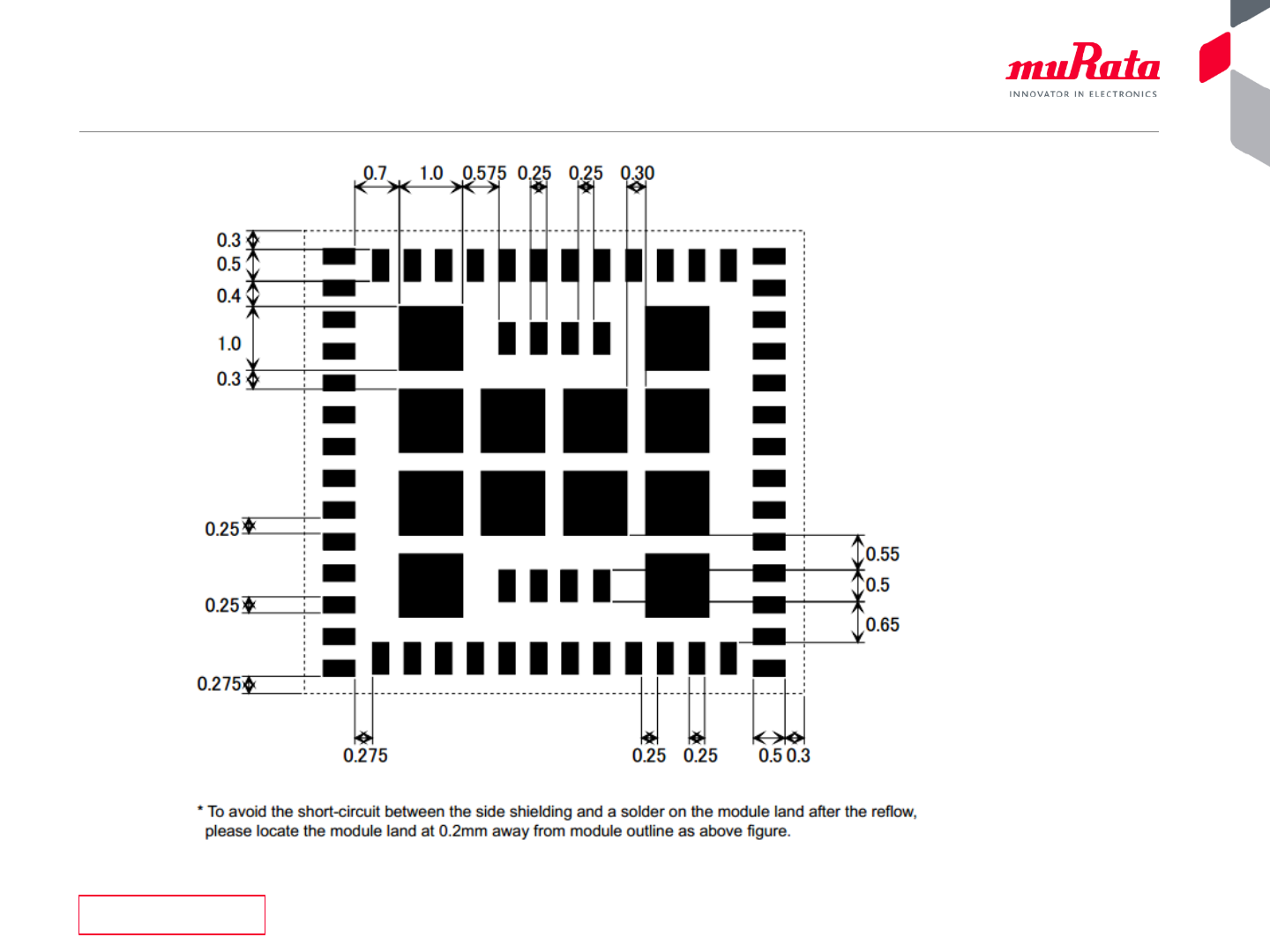

1. Land Pattern TOP View
Unit : mm
3
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL

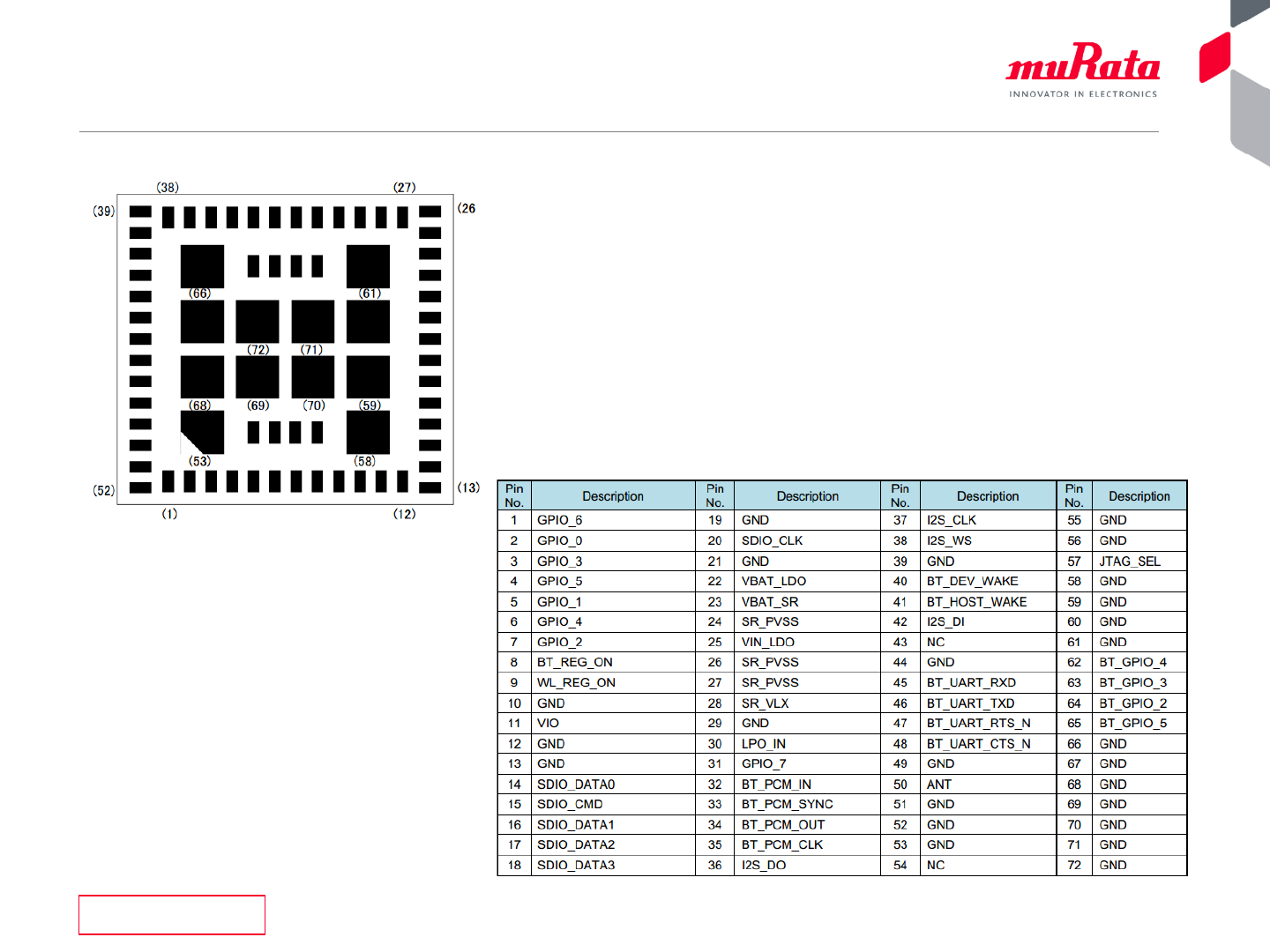

2. PIN Layout
4
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL
3. Supply Voltage
*1: Surface temperature of the shield case
Functionality is guaranteed but specifications require derating at extreme temperatures
*2: VIO don’t influence the RF characteristic. Tolerance of 1.8V and 3.3V is ±10%.
Parameter Min. Typ. Max. Unit
Operating Temperature
*1 -30 25 +85 deg.C
Supply Voltage
VBAT
3.2 3.3 4.8 V
VIO
*2 1.8V/3.3V 1.62 - 3.63 V
5
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL
4. Theory of Operation-Channel List
Frequency of operation Scan Ad-hoc mode
2.4GHz 11b/g/n (HT20) 2412-2462MHz Active Yes
BT 2402-2480MHz N/A N/A
BLE 2402-2480MHz N/A N/A
W52 11a/n/ac ((V)HT20) 5180-5240MHz Active Yes
11n/ac ((V)HT40) 5190-5230MHz Active Yes
11ac (VHT80) 5210MHz Active Yes
W53 11a/n/ac ((V)HT20) 5260-5320MHz Passive No
11n/ac ((V)HT40) 5270-5310MHz Passive No
11ac (VHT80) 5290MHz Passive No
W56 11a/n/ac ((V)HT20) 5500-5720MHz * Passive No
11n/ac ((V)HT40) 5510-5710MHz * Passive No
11ac (VHT80) 5530-5690MHz * Passive No
W58 11a/n/ac ((V)HT20) 5745-5825MHz Active Yes
11n/ac ((V)HT40) 5755-5795MHz Active Yes
11ac (VHT80) 5775MHz Active Yes
* The frequency band 5600MHz-5640MHz (11a/n/ac 20M band), 5590MHz-5630MHz (11n/ac 40M band) and
5610MHz (11ac 80M band) is restricted in ISED.
Notes: End users can not modify the software because F/W & driver are installed in device.
Theory of Operation-Software Security and Channel List
6
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2018
CONFIDENTIAL
5. Antenna
■Please perform the antenna design that followed the specifications of the antenna.
■About the signal line between an antenna and a module
It is a 50-ohm line design.
Fine tuning of return loss etc. can be performed using a matching network.
However, it is required to check "Class1 change" and "Class2 change"
which the authorities define then.
The concrete contents of a check are the following three points.
１）It is the same type as the antenna type of antenna specifications.
２）An antenna gain is lower than a gain given in antenna specifications.
３）The emission level is not getting worse.
■50-ohm line(microstrip line length)
Antenna
Antenna type Monopole pattern antenna
50-ohm feed line length We test it at 0mm as a representative
