Page 1 of 15 www.mysteryvibe.com Mystery Vibe C/O The Studio Hill House Farm Highfield Lane Thursley, Godalming. Surrey. UK Tel: +44(0)1252 444474 www.mysteryvibe.com Title User Manual Author R Weekly Date 13th September 2016 Doc ID 6900-1504-004 Issue 1.6 Project Name Crescendo
Page 2 of 15 www.mysteryvibe.com Revision Change Date 1.0 Original 14/04/2015 1.1 Update operation for release firmware 27/11/2015 1.2 LED & Switch operation update 3/12/2015 1.3 Declarations added. 31/03/2016 1.4 Declarations added for Charge Base 20/04/2016 1.5 Additional declarations added for FCC 01/08/2016 1.6 Removed Confidential. 13/09/2016
Page 3 of 15 www.mysteryvibe.com TABLE OF CONTENTS 1 Introduction ..................................................................................................................................... 5 2 Crescendo Control ......................................................................................................................... 6 2.1 Modes of operation ............................................................................................................... 6 2.2 Standalone Operation ........................................................................................................... 6 2.3 IOS App Control ...................................................................................................................... 6 3 User Interface .................................................................................................................................. 7 3.1 Switch Operation .................................................................................................................... 7 3.2 Full Colour Led Indication ...................................................................................................... 9 3.3 Charging Indication ............................................................................................................. 10 3.4 Charging DOCK Module ..................................................................................................... 10 4 BlueTooth Control ......................................................................................................................... 11 4.1 User APP for IOS ..................................................................................................................... 11 4.2 Engineering APP for IOS ....................................................................................................... 11 5 Device Safety Instructions ........................................................................................................... 12 6 Device Compliance Declaration ............................................................................................... 13 6.1 EMC ........................................................................................................................................ 13 6.1.1 FCC ................................................................................................................................... 14 6.1.1.1 Main Unit ................................................................................................................... 14 6.1.1.2 Charger Base ........................................................................................................... 15

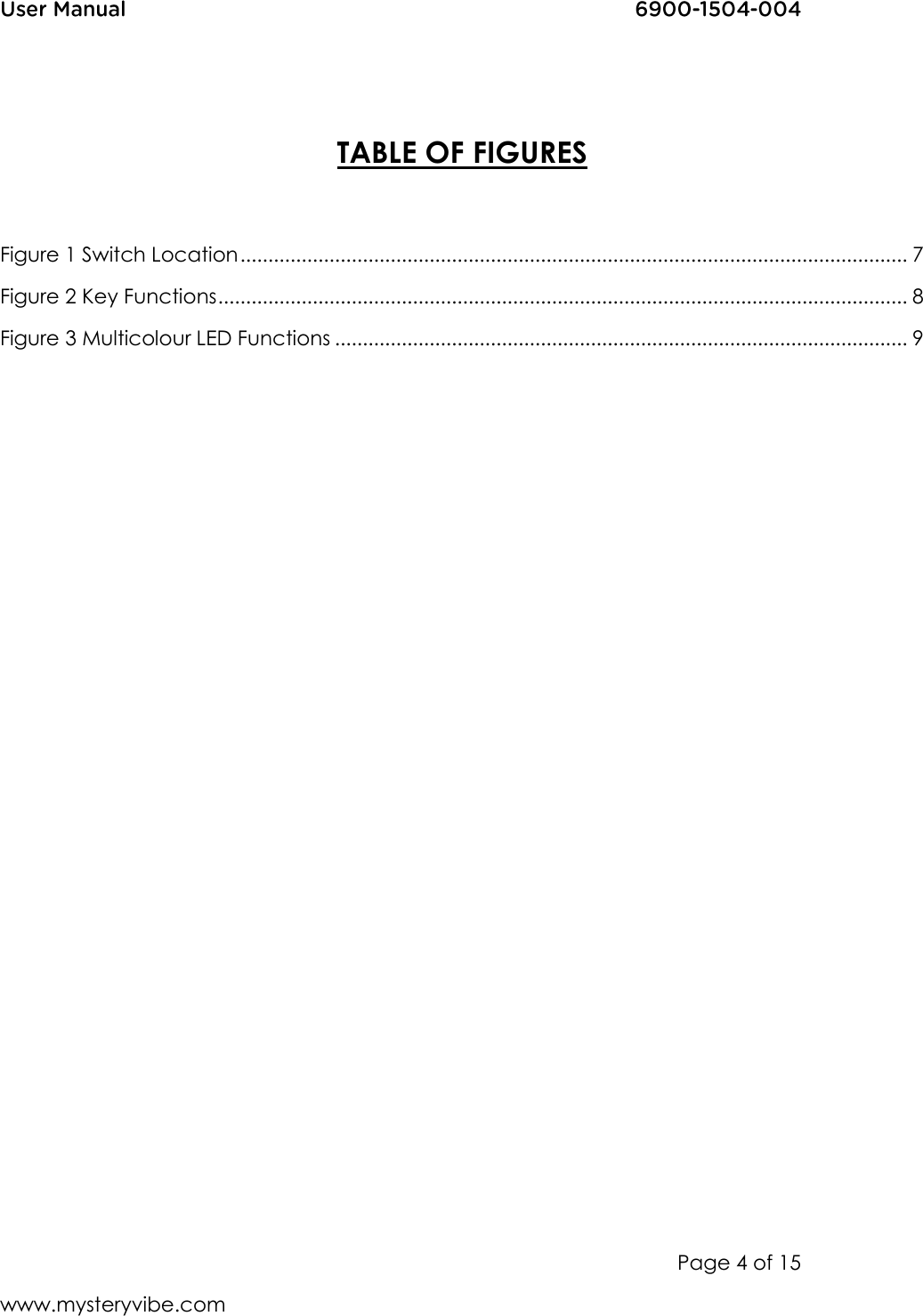

Page 4 of 15 www.mysteryvibe.com TABLE OF FIGURES Figure 1 Switch Location ........................................................................................................................ 7 Figure 2 Key Functions ............................................................................................................................ 8 Figure 3 Multicolour LED Functions ....................................................................................................... 9
Page 5 of 15 www.mysteryvibe.com 1 Introduction This document provides information relating to the prototype design for the Mystery Vibe Crescendo product. The device is an adult toy which utilises enhanced technology features to provide users with an enhanced experience. This document describe basic user operation. All operation and functions described in this document relate to Firmware 3.2 Beta.
Page 6 of 15 www.mysteryvibe.com 2 Crescendo Control 2.1 Modes of operation The device can be controlled in two modes.  Stand Alone Mode – whereby control is solely by the buttons on the device and the device only runs vibes pre-installed – or vibes last configured via the IOS APP.  IOS APP Control – whereby control is achieved via BlueTooth Interface and using an IOS device with the APP installed. 2.2 Standalone Operation During standard mode operation the user can switch on / off the device, selected 1 of 6 preset vibes which are stored on the internal SD Card and increase / decrease intensity. 2.3 IOS App Control

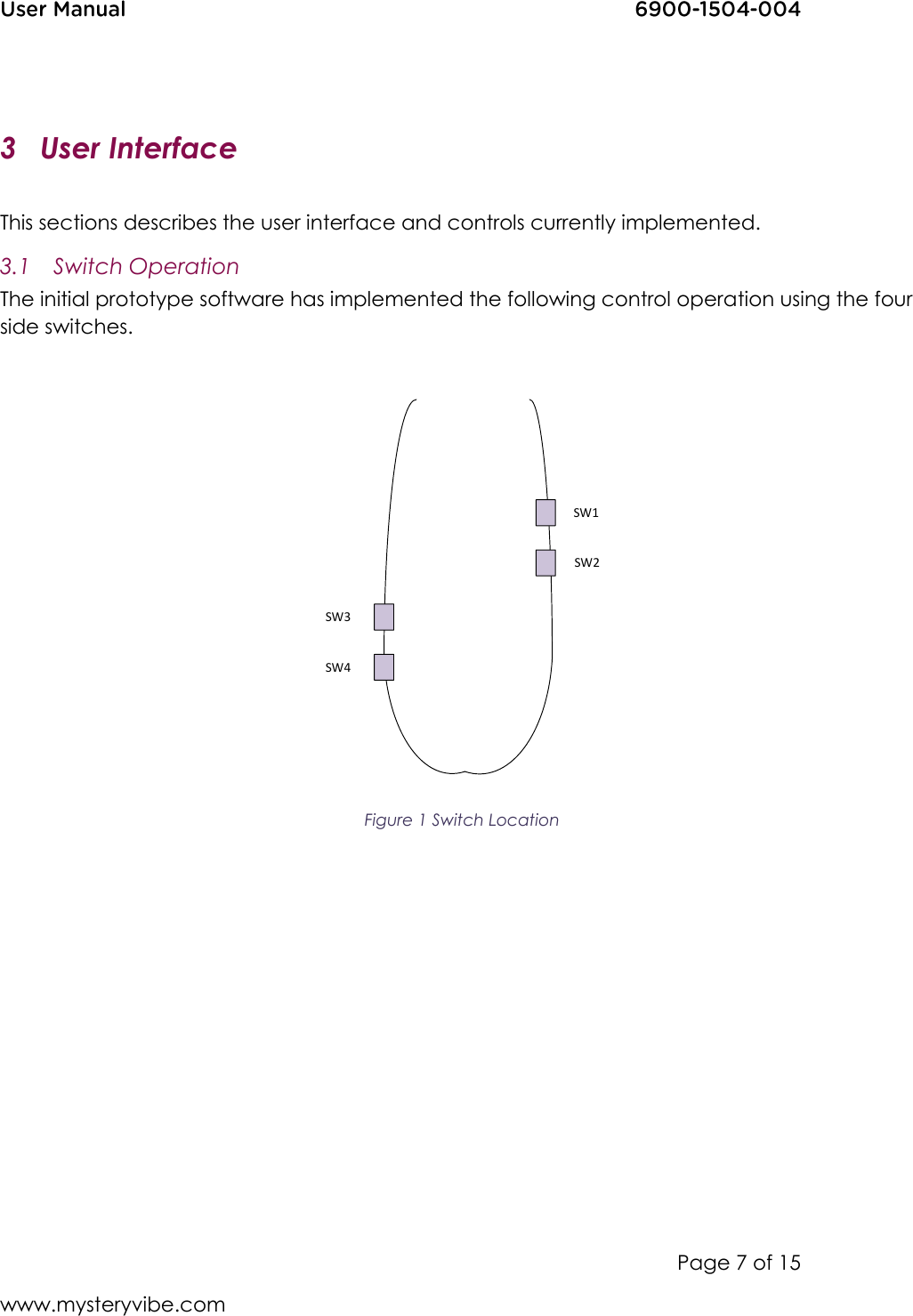

Page 7 of 15 www.mysteryvibe.com 3 User Interface This sections describes the user interface and controls currently implemented. 3.1 Switch Operation The initial prototype software has implemented the following control operation using the four side switches. SW1SW2SW3SW4 Figure 1 Switch Location

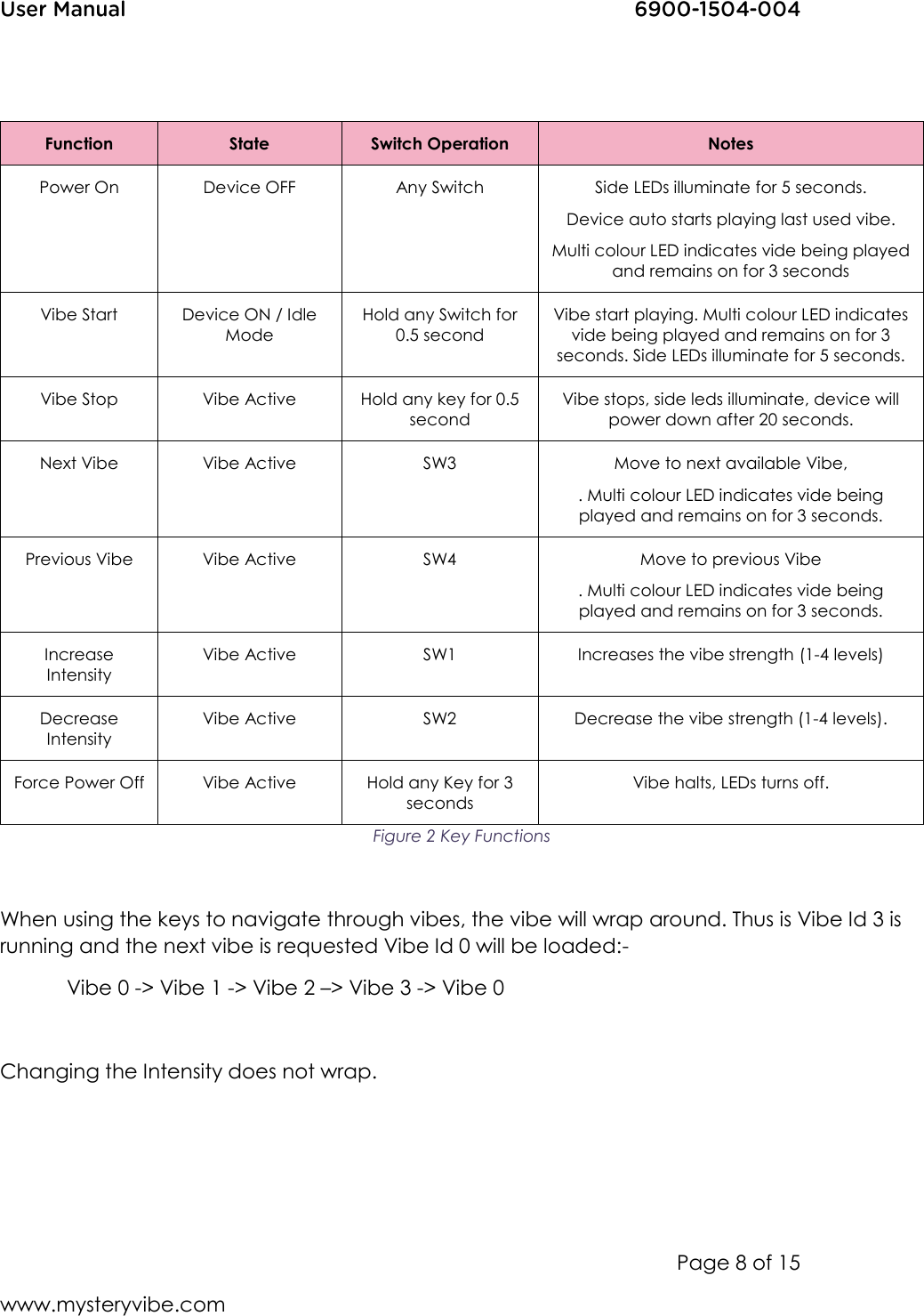

Page 8 of 15 www.mysteryvibe.com Function State Switch Operation Notes Power On Device OFF Any Switch Side LEDs illuminate for 5 seconds. Device auto starts playing last used vibe. Multi colour LED indicates vide being played and remains on for 3 seconds Vibe Start Device ON / Idle Mode Hold any Switch for 0.5 second Vibe start playing. Multi colour LED indicates vide being played and remains on for 3 seconds. Side LEDs illuminate for 5 seconds. Vibe Stop Vibe Active Hold any key for 0.5 second Vibe stops, side leds illuminate, device will power down after 20 seconds. Next Vibe Vibe Active SW3 Move to next available Vibe, . Multi colour LED indicates vide being played and remains on for 3 seconds. Previous Vibe Vibe Active SW4 Move to previous Vibe . Multi colour LED indicates vide being played and remains on for 3 seconds. Increase Intensity Vibe Active SW1 Increases the vibe strength (1-4 levels) Decrease Intensity Vibe Active SW2 Decrease the vibe strength (1-4 levels). Force Power Off Vibe Active Hold any Key for 3 seconds Vibe halts, LEDs turns off. Figure 2 Key Functions When using the keys to navigate through vibes, the vibe will wrap around. Thus is Vibe Id 3 is running and the next vibe is requested Vibe Id 0 will be loaded:- Vibe 0 -> Vibe 1 -> Vibe 2 –> Vibe 3 -> Vibe 0 Changing the Intensity does not wrap.

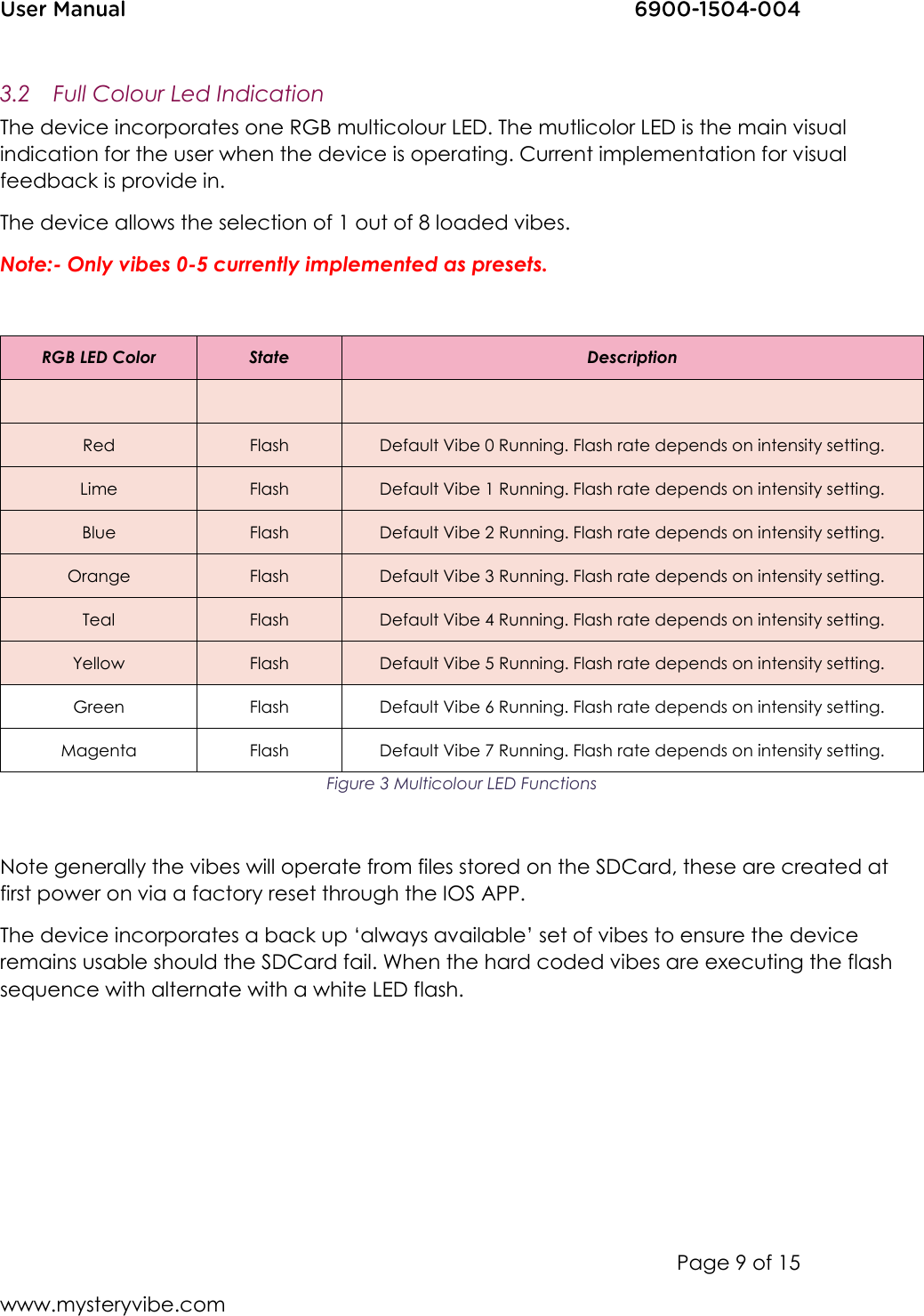

Page 9 of 15 www.mysteryvibe.com 3.2 Full Colour Led Indication The device incorporates one RGB multicolour LED. The mutlicolor LED is the main visual indication for the user when the device is operating. Current implementation for visual feedback is provide in. The device allows the selection of 1 out of 8 loaded vibes. Note:- Only vibes 0-5 currently implemented as presets. RGB LED Color State Description Red Flash Default Vibe 0 Running. Flash rate depends on intensity setting. Lime Flash Default Vibe 1 Running. Flash rate depends on intensity setting. Blue Flash Default Vibe 2 Running. Flash rate depends on intensity setting. Orange Flash Default Vibe 3 Running. Flash rate depends on intensity setting. Teal Flash Default Vibe 4 Running. Flash rate depends on intensity setting. Yellow Flash Default Vibe 5 Running. Flash rate depends on intensity setting. Green Flash Default Vibe 6 Running. Flash rate depends on intensity setting. Magenta Flash Default Vibe 7 Running. Flash rate depends on intensity setting. Figure 3 Multicolour LED Functions Note generally the vibes will operate from files stored on the SDCard, these are created at first power on via a factory reset through the IOS APP. The device incorporates a back up ‘always available’ set of vibes to ensure the device remains usable should the SDCard fail. When the hard coded vibes are executing the flash sequence with alternate with a white LED flash.
Page 10 of 15 www.mysteryvibe.com 3.3 Charging Indication When the device is placed on the charging dock unit and charging is initiated and actively running vibe shall immediately be terminated and the device shall enter charging state. During this mode the side LED’s will flash to indicate charging. If the device is placed on the charger unit while active the Bluetooth can continue to operate with the exception off switch on / off vibes. However removing the device from the charger will immediately shut down the device and disconnect the Bluetooth. 3.4 Charging DOCK Module When the DOCK module is first powered up (USB power supplied), the LEDs shall flash in the following sequence:-  RED  GREEN  RED + GREEN When charging the GREEN LED on the charging dock will flash. A RED LED on the charger module indicates error and foreign object detection. The RED leds flashes FAST and then SLOW. All object around the charger must be completely removed including Crescendo until the Dock module resets from the error state – approximately 5 seconds. When the DOCK is not charging all LED’s shall be off. When the battery is fully charged the GREEN LED on the charger DOCK will remain active.

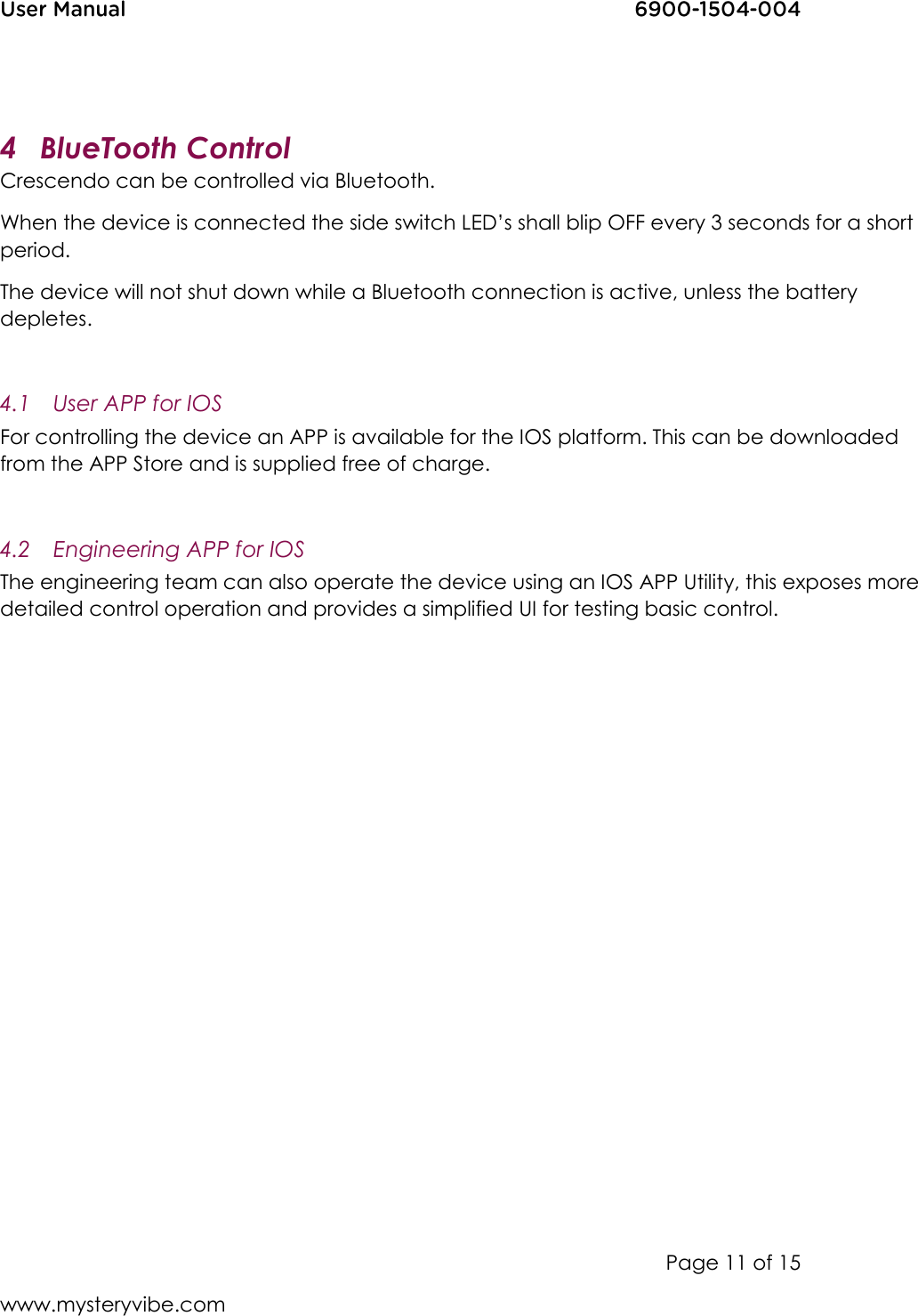

Page 11 of 15 www.mysteryvibe.com 4 BlueTooth Control Crescendo can be controlled via Bluetooth. When the device is connected the side switch LED’s shall blip OFF every 3 seconds for a short period. The device will not shut down while a Bluetooth connection is active, unless the battery depletes. 4.1 User APP for IOS For controlling the device an APP is available for the IOS platform. This can be downloaded from the APP Store and is supplied free of charge. 4.2 Engineering APP for IOS The engineering team can also operate the device using an IOS APP Utility, this exposes more detailed control operation and provides a simplified UI for testing basic control.

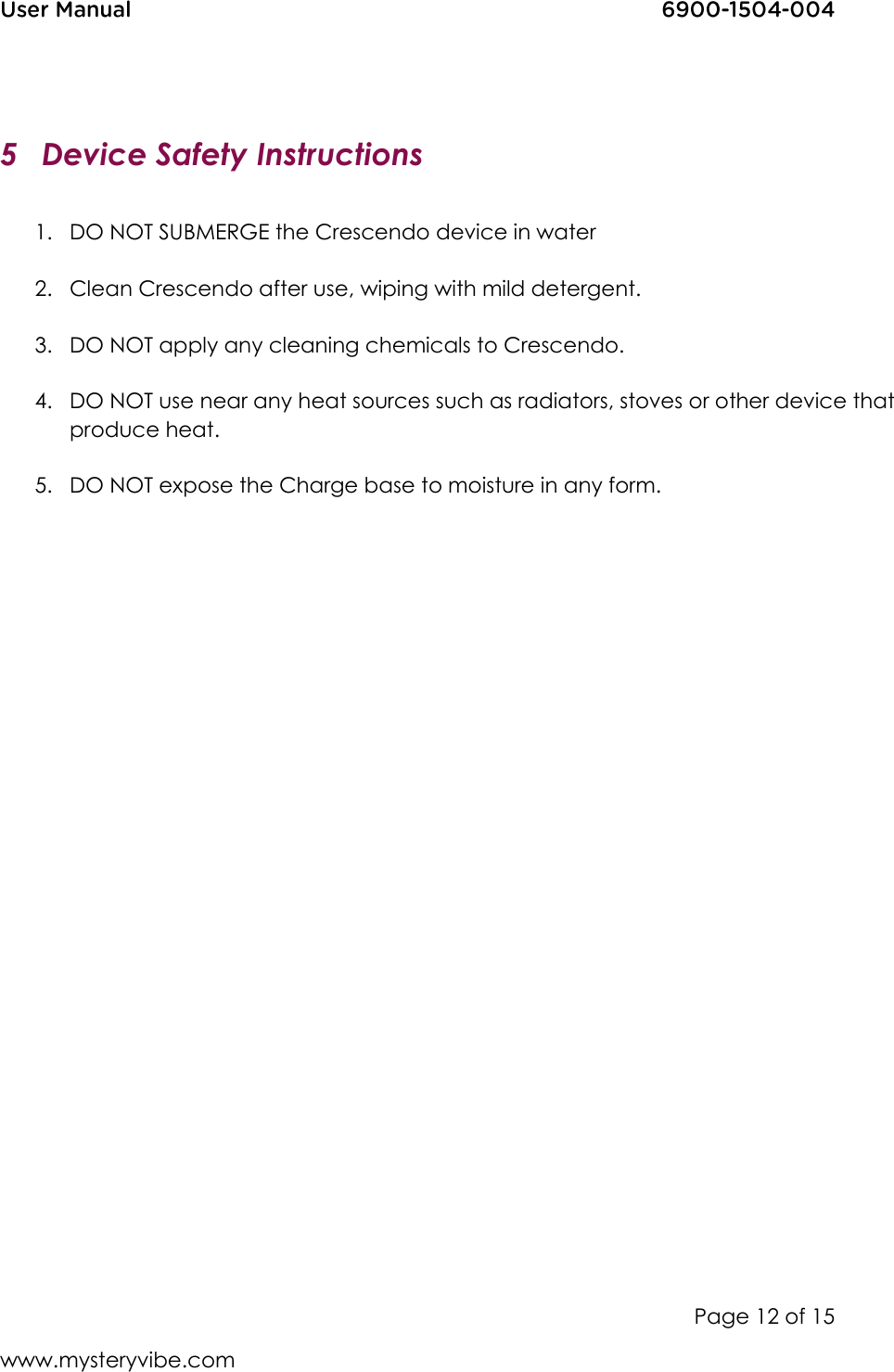

Page 12 of 15 www.mysteryvibe.com 5 Device Safety Instructions 1. DO NOT SUBMERGE the Crescendo device in water 2. Clean Crescendo after use, wiping with mild detergent. 3. DO NOT apply any cleaning chemicals to Crescendo. 4. DO NOT use near any heat sources such as radiators, stoves or other device that produce heat. 5. DO NOT expose the Charge base to moisture in any form.
Page 13 of 15 www.mysteryvibe.com 6 Device Compliance Declaration 6.1 EMC This product has been tested and evaluated by an independent accredited test lab and found in compliant with all the applicable EMC, RF and safety requirements per standards: EN 55014-1:2006 + A1/2009 + A2/2011 EN 301489-3 V1.6.1 EN 301 389-17 V2.2.1 EN 55014-2:1997 + A2/2009 EN 55014-2:2015

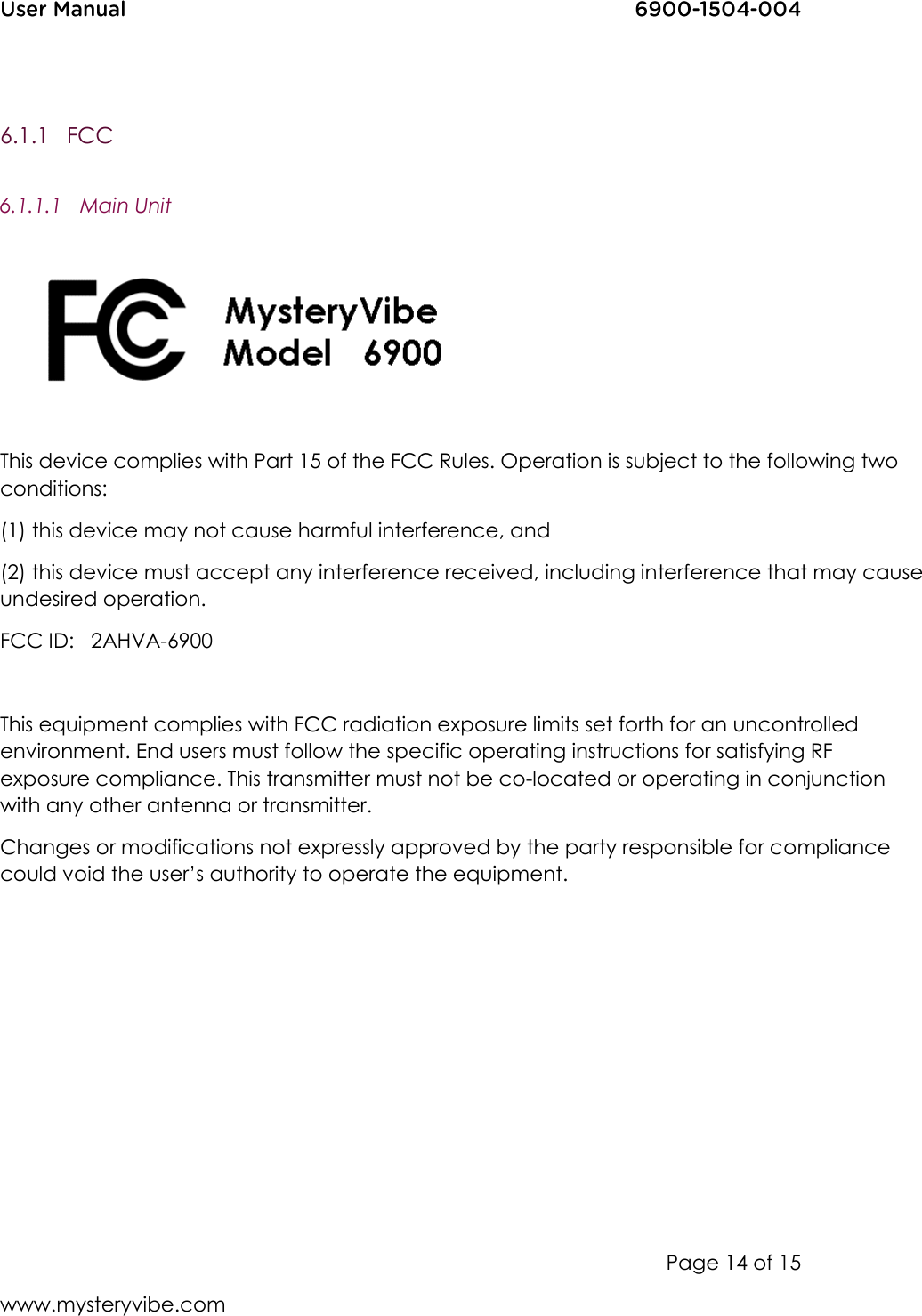

Page 14 of 15 www.mysteryvibe.com 6.1.1 FCC 6.1.1.1 Main Unit This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AHVA-6900 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 15 of 15 www.mysteryvibe.com 6.1.1.2 Charger Base This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AHVA-6900DK This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The charger should not be used within 20cm of the human body with RF enabled. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
