MysteryVibe 6900 Crescendo 6900-001-A Novalty toy User Manual

MysteryVibe Ltd Crescendo 6900-001-A Novalty toy

User Manual

Page 1 of 15
www.mysteryvibe.com
Mystery Vibe
C/O The Studio
Hill House Farm
Highfield Lane
Thursley, Godalming.
Surrey. UK
Tel: +44(0)1252 444474
www.mysteryvibe.com
Title
User Manual
Author
R Weekly
Date
13th September 2016
Doc ID
6900-1504-004
Issue
1.6
Project Name
Crescendo
Page 2 of 15
www.mysteryvibe.com
Revision
Change
Date
1.0
Original
14/04/2015
1.1
Update operation for release firmware
27/11/2015
1.2
LED & Switch operation update
3/12/2015
1.3
Declarations added.
31/03/2016
1.4
Declarations added for Charge Base
20/04/2016
1.5
Additional declarations added for FCC
01/08/2016
1.6
Removed Confidential.
13/09/2016
Page 3 of 15
www.mysteryvibe.com
TABLE OF CONTENTS
1 Introduction ..................................................................................................................................... 5
2 Crescendo Control ......................................................................................................................... 6
2.1 Modes of operation ............................................................................................................... 6
2.2 Standalone Operation ........................................................................................................... 6
2.3 IOS App Control ...................................................................................................................... 6
3 User Interface .................................................................................................................................. 7
3.1 Switch Operation .................................................................................................................... 7
3.2 Full Colour Led Indication ...................................................................................................... 9
3.3 Charging Indication ............................................................................................................. 10
3.4 Charging DOCK Module ..................................................................................................... 10
4 BlueTooth Control ......................................................................................................................... 11
4.1 User APP for IOS ..................................................................................................................... 11
4.2 Engineering APP for IOS ....................................................................................................... 11
5 Device Safety Instructions ........................................................................................................... 12
6 Device Compliance Declaration ............................................................................................... 13
6.1 EMC ........................................................................................................................................ 13
6.1.1 FCC ................................................................................................................................... 14
6.1.1.1 Main Unit ................................................................................................................... 14
6.1.1.2 Charger Base ........................................................................................................... 15
Page 4 of 15
www.mysteryvibe.com
TABLE OF FIGURES
Figure 1 Switch Location ........................................................................................................................ 7
Figure 2 Key Functions ............................................................................................................................ 8
Figure 3 Multicolour LED Functions ....................................................................................................... 9
Page 5 of 15
www.mysteryvibe.com
1 Introduction
This document provides information relating to the prototype design for the Mystery Vibe
Crescendo product. The device is an adult toy which utilises enhanced technology features
to provide users with an enhanced experience.
This document describe basic user operation.
All operation and functions described in this document relate to Firmware 3.2 Beta.
Page 6 of 15
www.mysteryvibe.com
2 Crescendo Control
2.1 Modes of operation
The device can be controlled in two modes.
Stand Alone Mode – whereby control is solely by the buttons on the device and the
device only runs vibes pre-installed – or vibes last configured via the IOS APP.
IOS APP Control – whereby control is achieved via BlueTooth Interface and using an
IOS device with the APP installed.
2.2 Standalone Operation
During standard mode operation the user can switch on / off the device, selected 1 of 6
preset vibes which are stored on the internal SD Card and increase / decrease intensity.
2.3 IOS App Control
Page 7 of 15
www.mysteryvibe.com
3 User Interface
This sections describes the user interface and controls currently implemented.
3.1 Switch Operation
The initial prototype software has implemented the following control operation using the four
side switches.
SW1
SW2
SW3
SW4

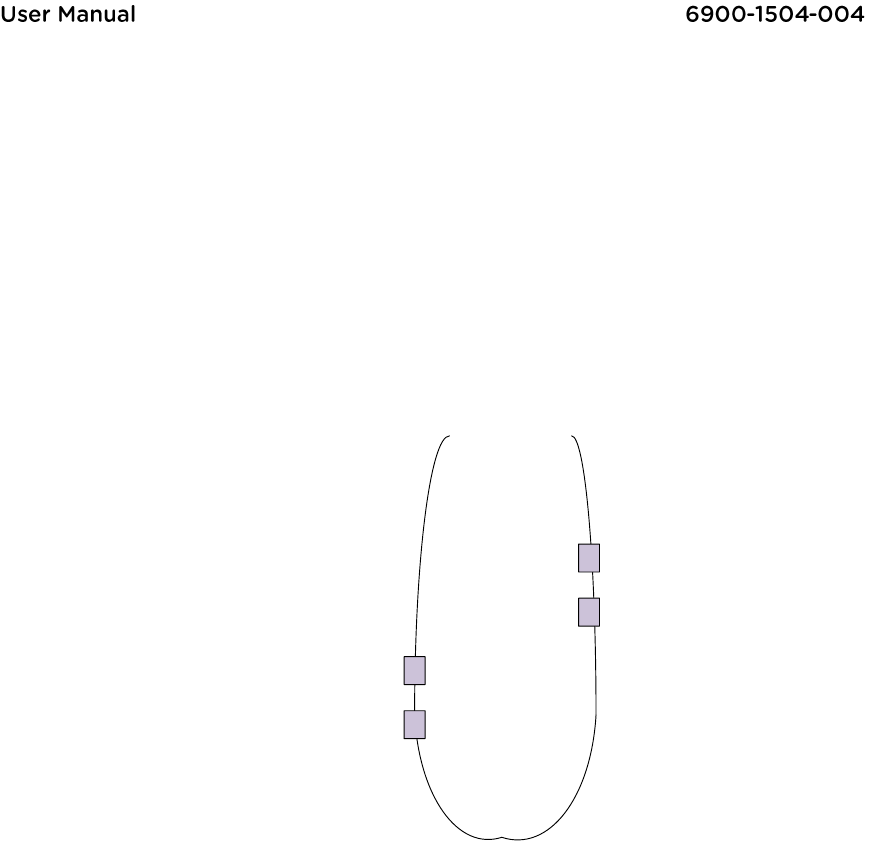

Figure 1 Switch Location
Page 8 of 15
www.mysteryvibe.com
State
Switch Operation
Notes
Device OFF
Any Switch
Side LEDs illuminate for 5 seconds.
Device auto starts playing last used vibe.
Multi colour LED indicates vide being played
and remains on for 3 seconds
Device ON / Idle
Mode
Hold any Switch for
0.5 second
Vibe start playing. Multi colour LED indicates
vide being played and remains on for 3
seconds. Side LEDs illuminate for 5 seconds.
Vibe Active
Hold any key for 0.5
second
Vibe stops, side leds illuminate, device will
power down after 20 seconds.
Vibe Active
SW3
Move to next available Vibe,
. Multi colour LED indicates vide being
played and remains on for 3 seconds.
Vibe Active
SW4
Move to previous Vibe
. Multi colour LED indicates vide being
played and remains on for 3 seconds.
Vibe Active
SW1
Increases the vibe strength (1-4 levels)
Vibe Active
SW2
Decrease the vibe strength (1-4 levels).
Vibe Active
Hold any Key for 3
seconds
Vibe halts, LEDs turns off.
Figure 2 Key Functions
When using the keys to navigate through vibes, the vibe will wrap around. Thus is Vibe Id 3 is
running and the next vibe is requested Vibe Id 0 will be loaded:-
Vibe 0 -> Vibe 1 -> Vibe 2 –> Vibe 3 -> Vibe 0
Changing the Intensity does not wrap.
Page 9 of 15
www.mysteryvibe.com
3.2 Full Colour Led Indication
The device incorporates one RGB multicolour LED. The mutlicolor LED is the main visual
indication for the user when the device is operating. Current implementation for visual
feedback is provide in.
The device allows the selection of 1 out of 8 loaded vibes.
Note:- Only vibes 0-5 currently implemented as presets.
RGB LED Color
State
Description
Red
Flash
Default Vibe 0 Running. Flash rate depends on intensity setting.
Lime
Flash
Default Vibe 1 Running. Flash rate depends on intensity setting.
Blue
Flash
Default Vibe 2 Running. Flash rate depends on intensity setting.
Orange
Flash
Default Vibe 3 Running. Flash rate depends on intensity setting.
Teal
Flash
Default Vibe 4 Running. Flash rate depends on intensity setting.
Yellow
Flash
Default Vibe 5 Running. Flash rate depends on intensity setting.
Green
Flash
Default Vibe 6 Running. Flash rate depends on intensity setting.
Magenta
Flash
Default Vibe 7 Running. Flash rate depends on intensity setting.
Figure 3 Multicolour LED Functions
Note generally the vibes will operate from files stored on the SDCard, these are created at
first power on via a factory reset through the IOS APP.
The device incorporates a back up ‘always available’ set of vibes to ensure the device
remains usable should the SDCard fail. When the hard coded vibes are executing the flash
sequence with alternate with a white LED flash.
Page 10 of 15
www.mysteryvibe.com
3.3 Charging Indication
When the device is placed on the charging dock unit and charging is initiated and actively
running vibe shall immediately be terminated and the device shall enter charging state.
During this mode the side LED’s will flash to indicate charging.
If the device is placed on the charger unit while active the Bluetooth can continue to
operate with the exception off switch on / off vibes. However removing the device from the
charger will immediately shut down the device and disconnect the Bluetooth.
3.4 Charging DOCK Module
When the DOCK module is first powered up (USB power supplied), the LEDs shall flash in the
following sequence:-
RED
GREEN
RED + GREEN
When charging the GREEN LED on the charging dock will flash.
A RED LED on the charger module indicates error and foreign object detection. The RED leds
flashes FAST and then SLOW. All object around the charger must be completely removed
including Crescendo until the Dock module resets from the error state – approximately 5
seconds.
When the DOCK is not charging all LED’s shall be off.
When the battery is fully charged the GREEN LED on the charger DOCK will remain active.
Page 11 of 15
www.mysteryvibe.com
4 BlueTooth Control
Crescendo can be controlled via Bluetooth.
When the device is connected the side switch LED’s shall blip OFF every 3 seconds for a short
period.
The device will not shut down while a Bluetooth connection is active, unless the battery
depletes.
4.1 User APP for IOS
For controlling the device an APP is available for the IOS platform. This can be downloaded
from the APP Store and is supplied free of charge.
4.2 Engineering APP for IOS
The engineering team can also operate the device using an IOS APP Utility, this exposes more
detailed control operation and provides a simplified UI for testing basic control.
Page 12 of 15
www.mysteryvibe.com
5 Device Safety Instructions
1. DO NOT SUBMERGE the Crescendo device in water
2. Clean Crescendo after use, wiping with mild detergent.
3. DO NOT apply any cleaning chemicals to Crescendo.
4. DO NOT use near any heat sources such as radiators, stoves or other device that
produce heat.
5. DO NOT expose the Charge base to moisture in any form.
Page 13 of 15
www.mysteryvibe.com
6 Device Compliance Declaration
6.1 EMC
This product has been tested and evaluated by an independent accredited test lab and
found in compliant with all the applicable EMC, RF and safety requirements per standards:
EN 55014-1:2006 + A1/2009 + A2/2011
EN 301489-3 V1.6.1
EN 301 389-17 V2.2.1
EN 55014-2:1997 + A2/2009
EN 55014-2:2015
Page 14 of 15
www.mysteryvibe.com
6.1.1 FCC
6.1.1.1 Main Unit
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC ID: 2AHVA-6900
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Page 15 of 15
www.mysteryvibe.com
6.1.1.2 Charger Base
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC ID: 2AHVA-6900DK
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The charger should not be used within 20cm of the human body with RF enabled.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
