NCW NCW18T LCD Monitor User Manual TM181 Manual ENG 0715

NCW CO., LTD. LCD Monitor TM181 Manual ENG 0715

users manual

Color TFT-LCD Monitor User’s ManualTM181 ... SXGATM181 ... SXGA

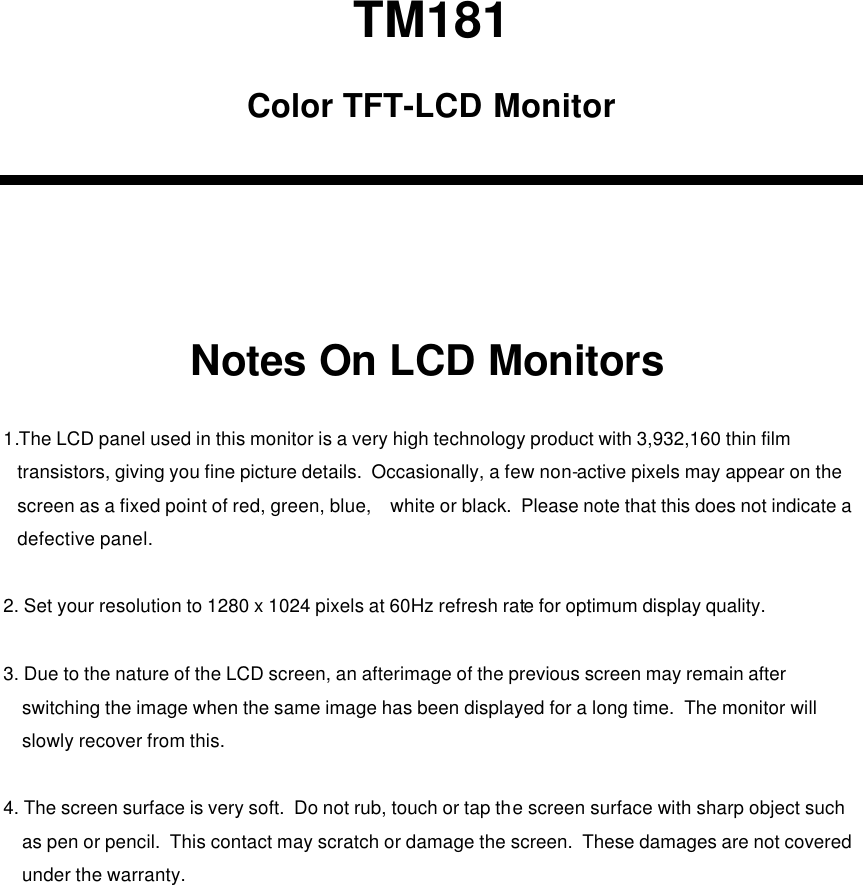

TM181Notes On LCD MonitorsColor TFT-LCD Monitor1.The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate adefective panel.2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality.3. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image when the same image has been displayed for a long time. The monitor will slowly recover from this.4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not coveredunder the warranty.

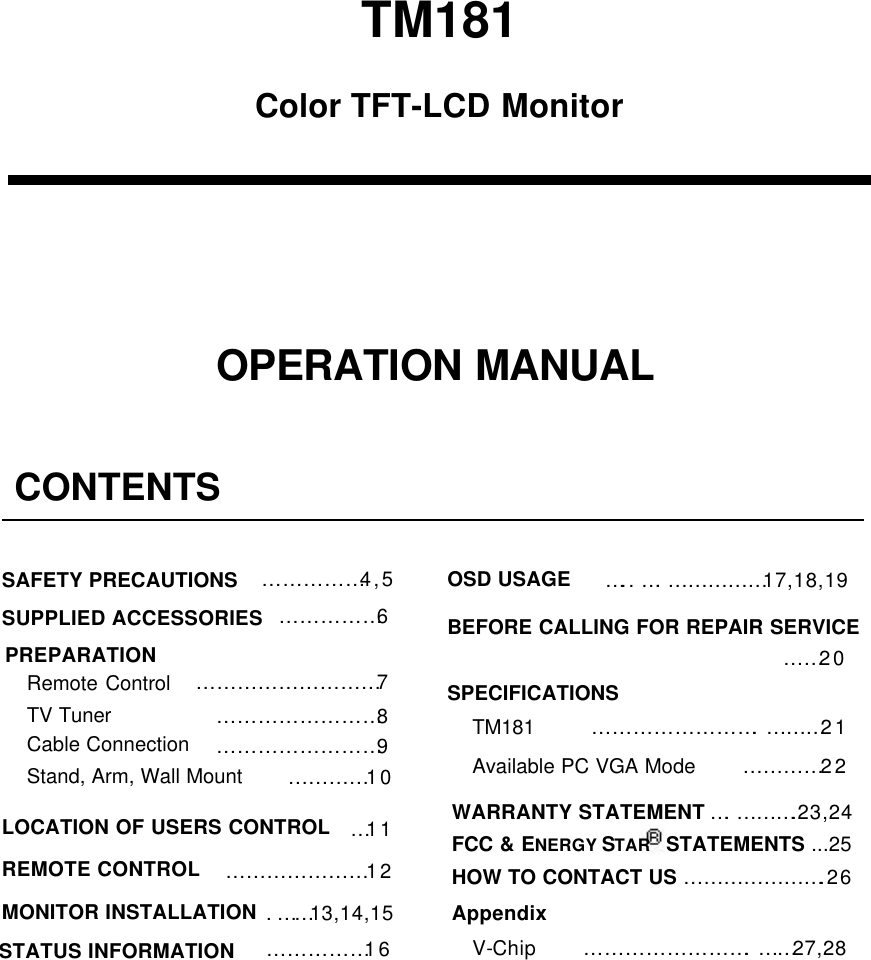

TM181OPERATION MANUALColor TFT-LCD MonitorCONTENTS……………4,5……………6………………………7……………………8…11…………………12.……13,14,15……………16SAFETY PRECAUTIONSSUPPLIED ACCESSORIESPREPARATIONRemote ControlTV TunerLOCATION OF USERS CONTROLREMOTE CONTROLMONITOR INSTALLATIONSTATUS INFORMATION……………………9Cable Connection…………10Stand, Arm, Wall MountOSD USAGE……20…………………….………21BEFORE CALLING FOR REPAIR SERVICETM181Available PC VGA ModeSPECIFICATIONS….. ….……………17,18,19…………22WARRANTY STATEMENT ….……….23,24FCC & ENERGY STAR STATEMENTS ...25HOW TO CONTACT US ………………….26…………………….……27,28V-ChipAppendix

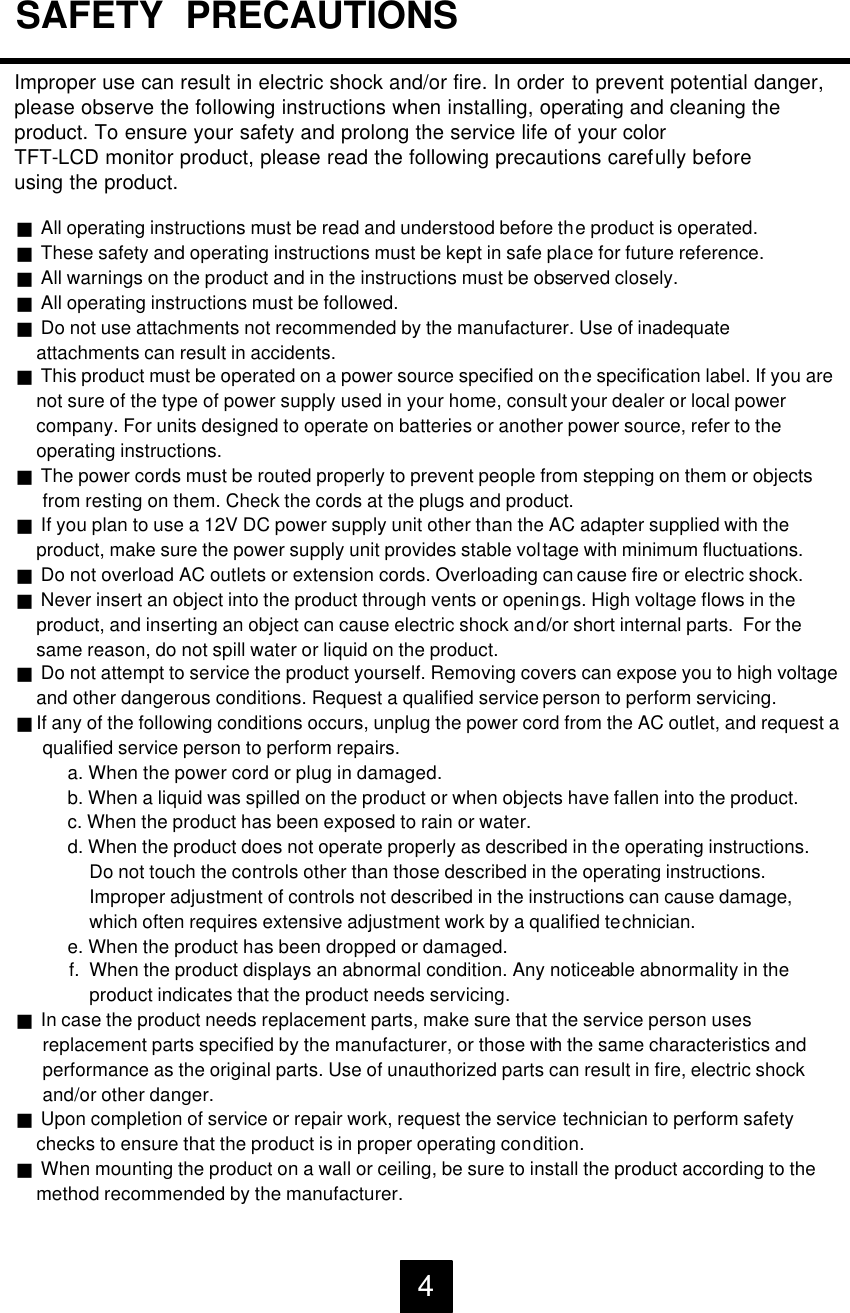

Improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your colorTFT-LCD monitor product, please read the following precautions carefully beforeusing the product.gAll operating instructions must be read and understood before the product is operated.gThese safety and operating instructions must be kept in safe place for future reference.gAll warnings on the product and in the instructions must be observed closely.gAll operating instructions must be followed.gDo not use attachments not recommended by the manufacturer. Use of inadequateattachments can result in accidents.gThis product must be operated on a power source specified on the specification label. If you arenot sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to theoperating instructions.gThe power cords must be routed properly to prevent people from stepping on them or objectsfrom resting on them. Check the cords at the plugs and product.gIf you plan to use a 12V DC power supply unit other than the AC adapter supplied with theproduct, make sure the power supply unit provides stable voltage with minimum fluctuations.gDo not overload AC outlets or extension cords. Overloading can cause fire or electric shock.gNever insert an object into the product through vents or openings. High voltage flows in theproduct, and inserting an object can cause electric shock and/or short internal parts. For thesame reason, do not spill water or liquid on the product.gDo not attempt to service the product yourself. Removing covers can expose you to high voltageand other dangerous conditions. Request a qualified service person to perform servicing.gIf any of the following conditions occurs, unplug the power cord from the AC outlet, and request aqualified service person to perform repairs.a. When the power cord or plug in damaged.b. When a liquid was spilled on the product or when objects have fallen into the product.c. When the product has been exposed to rain or water.d. When the product does not operate properly as described in the operating instructions.Do not touch the controls other than those described in the operating instructions.Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged.f. When the product displays an abnormal condition. Any noticeable abnormality in theproduct indicates that the product needs servicing.gIn case the product needs replacement parts, make sure that the service person usesreplacement parts specified by the manufacturer, or those with the same characteristics andperformance as the original parts. Use of unauthorized parts can result in fire, electric shockand/or other danger.gUpon completion of service or repair work, request the service technician to perform safetychecks to ensure that the product is in proper operating condition.gWhen mounting the product on a wall or ceiling, be sure to install the product according to themethod recommended by the manufacturer.SAFETY PRECAUTIONS4

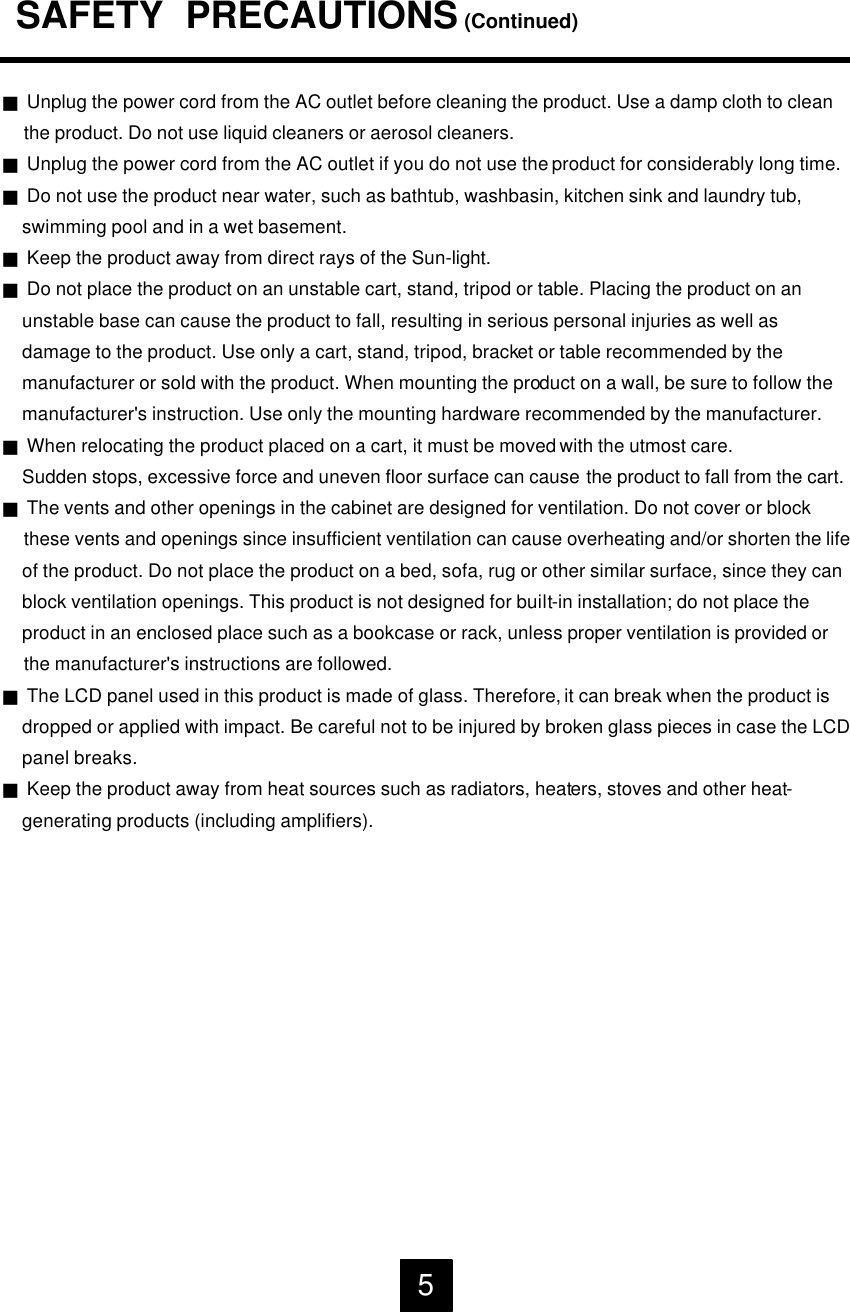

gUnplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to cleanthe product. Do not use liquid cleaners or aerosol cleaners.gUnplug the power cord from the AC outlet if you do not use the product for considerably long time.gDo not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.gKeep the product away from direct rays of the Sun-light.gDo not place the product on an unstable cart, stand, tripod or table. Placing the product on anunstable base can cause the product to fall, resulting in serious personal injuries as well asdamage to the product. Use only a cart, stand, tripod, bracket or table recommended by themanufacturer or sold with the product. When mounting the product on a wall, be sure to follow themanufacturer's instruction. Use only the mounting hardware recommended by the manufacturer.gWhen relocating the product placed on a cart, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.gThe vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the lifeof the product. Do not place the product on a bed, sofa, rug or other similar surface, since they canblock ventilation openings. This product is not designed for built-in installation; do not place theproduct in an enclosed place such as a bookcase or rack, unless proper ventilation is provided orthe manufacturer's instructions are followed.gThe LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCDpanel breaks.gKeep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).SAFETY PRECAUTIONS (Continued)5

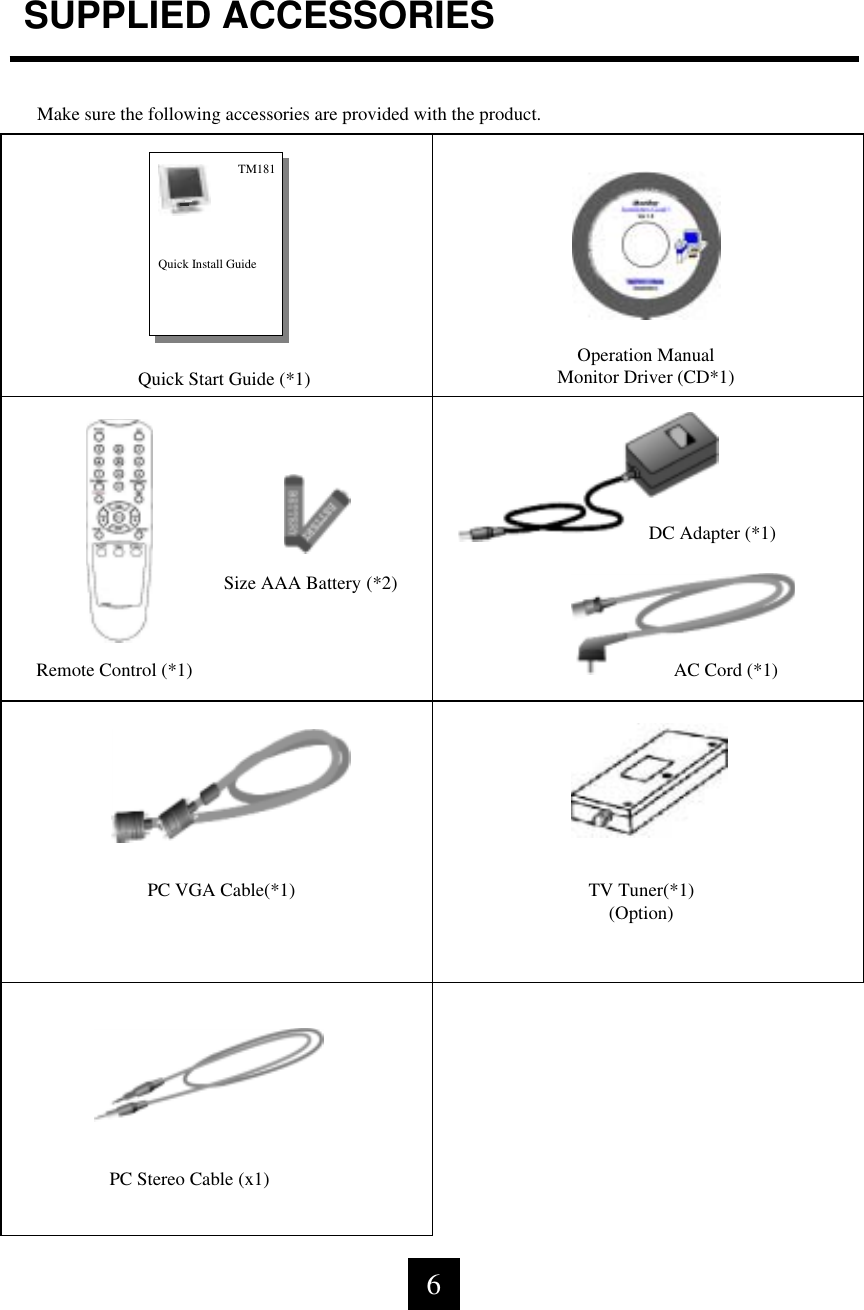

SUPPLIED ACCESSORIESMake sure the following accessories are provided with the product. Quick Start Guide (*1)Operation ManualMonitor Driver (CD*1)Remote Control (*1)DC Adapter (*1)AC Cord (*1)Size AAA Battery (*2)PC VGA Cable(*1) TV Tuner(*1)(Option)Quick Install GuideTM181PC Stereo Cable (x1)6

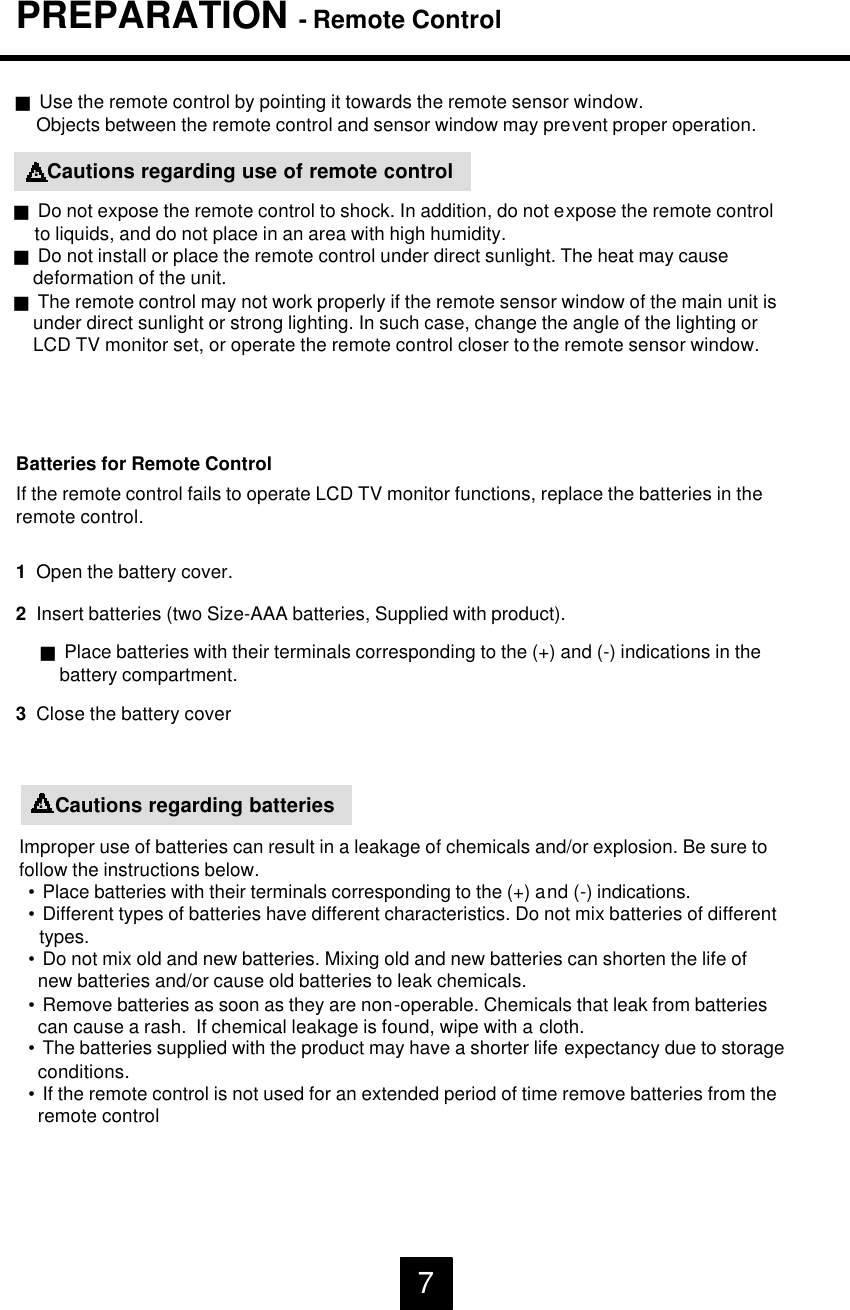

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure tofollow the instructions below.•Place batteries with their terminals corresponding to the (+) and (-) indications.•Different types of batteries have different characteristics. Do not mix batteries of differenttypes.•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.•Remove batteries as soon as they are non-operable. Chemicals that leak from batteriescan cause a rash. If chemical leakage is found, wipe with a cloth.•The batteries supplied with the product may have a shorter life expectancy due to storageconditions.•If the remote control is not used for an extended period of time remove batteries from theremote control1 Open the battery cover.Batteries for Remote ControlIf the remote control fails to operate LCD TV monitor functions, replace the batteries in theremote control.2 Insert batteries (two Size-AAA batteries, Supplied with product).3Close the battery covergPlace batteries with their terminals corresponding to the (+) and (-) indications in thebattery compartment.gUse the remote control by pointing it towards the remote sensor window.Objects between the remote control and sensor window may prevent proper operation.Cautions regarding batteries!Cautions regarding use of remote controlgDo not expose the remote control to shock. In addition, do not expose the remote controlto liquids, and do not place in an area with high humidity.gDo not install or place the remote control under direct sunlight. The heat may causedeformation of the unit.gThe remote control may not work properly if the remote sensor window of the main unit isunder direct sunlight or strong lighting. In such case, change the angle of the lighting orLCD TV monitor set, or operate the remote control closer to the remote sensor window.!PREPARATION -Remote Control7

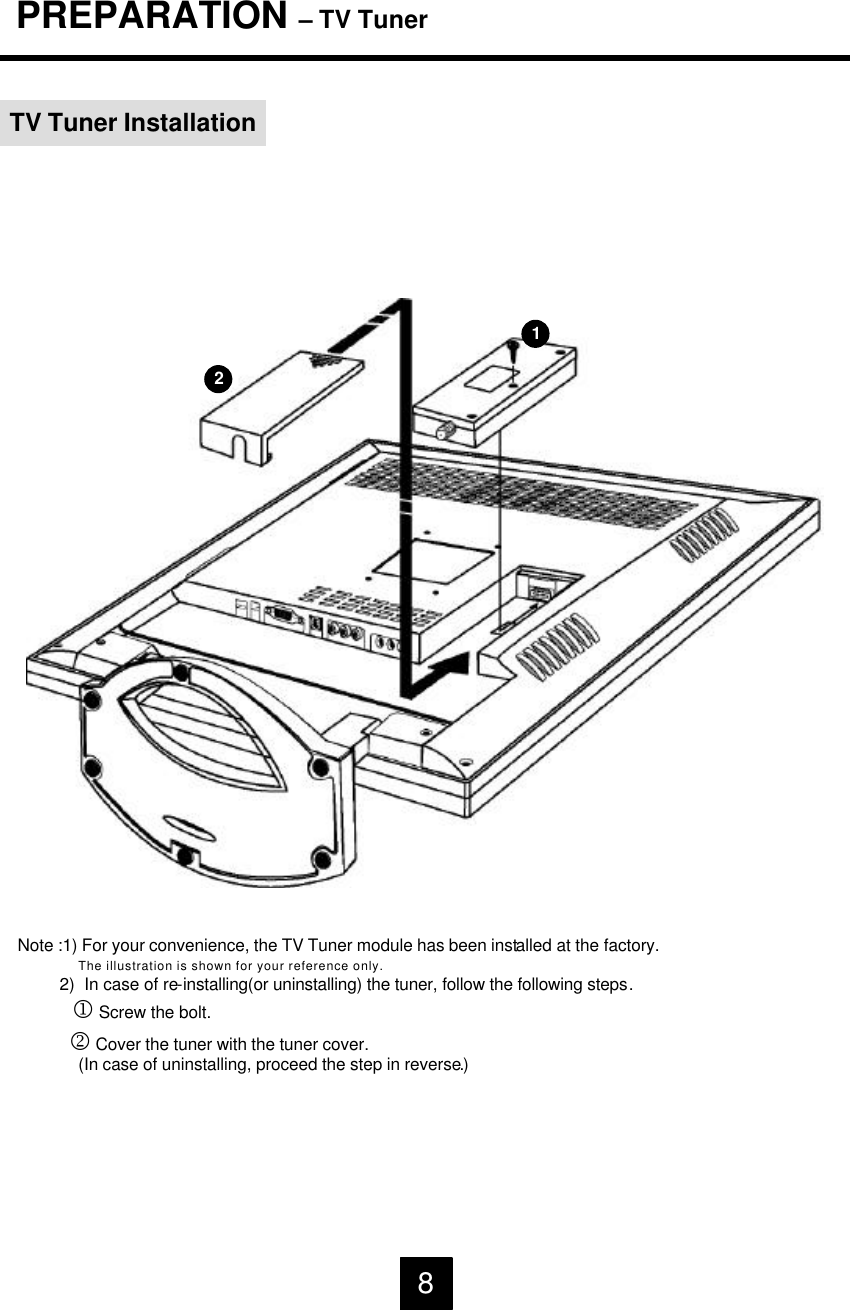

TV Tuner InstallationPREPARATION –TV Tuner12Note :1) For your convenience, the TV Tuner module has been installed at the factory.The illustration is shown for your reference only. 2) In case of re-installing(or uninstalling) the tuner, follow the following steps.jScrew the bolt.kCover the tuner with the tuner cover.(In case of uninstalling, proceed the step in reverse.)8

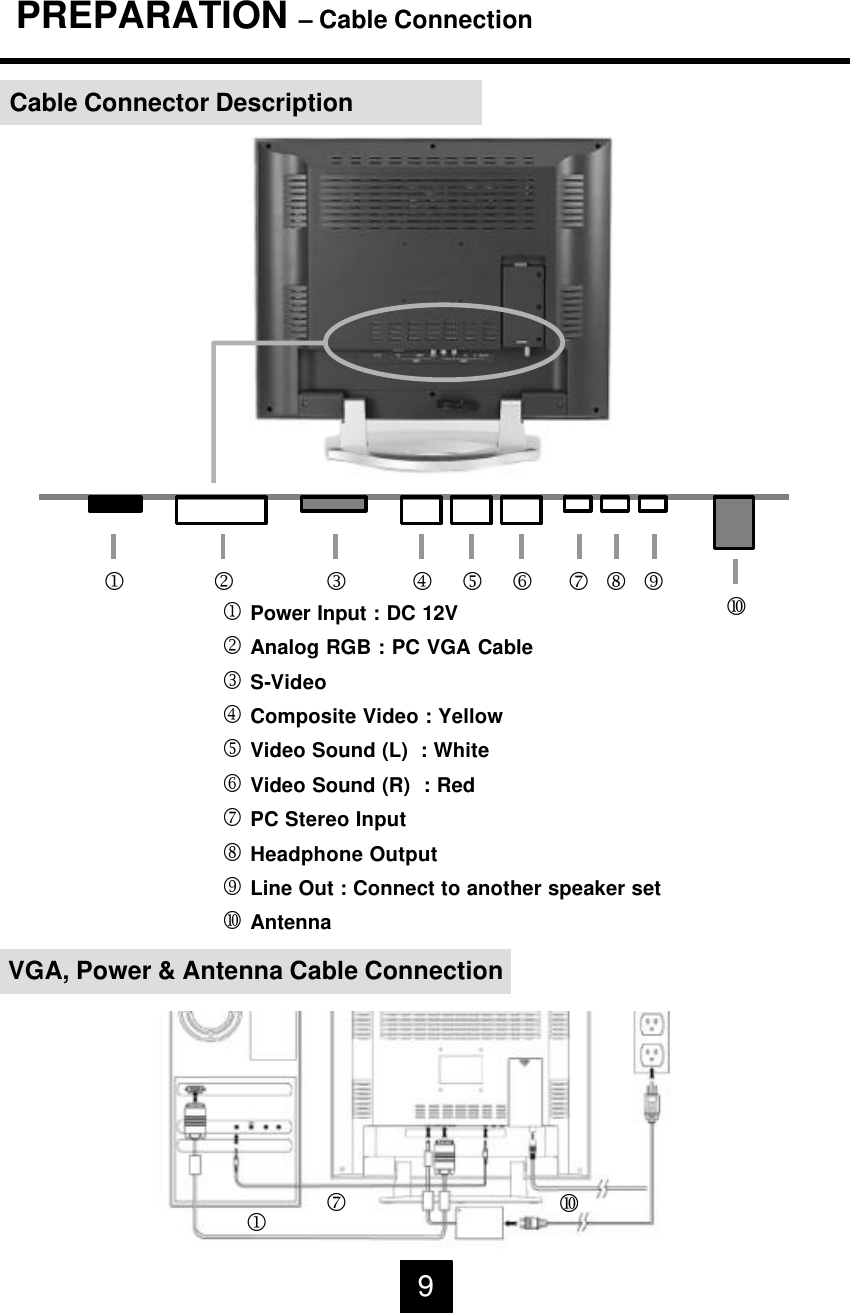

PREPARATION –Cable ConnectionjPower Input : DC 12VkAnalog RGB : PC VGA CablelS-VideomComposite Video : YellownVideo Sound (L) : WhiteoVideo Sound (R) : RedpPC Stereo InputqHeadphone OutputrLine Out : Connect to another speaker setsAntennaCable Connector Descriptionj k l m n o p q rsVGA, Power & Antenna Cable Connection9jps

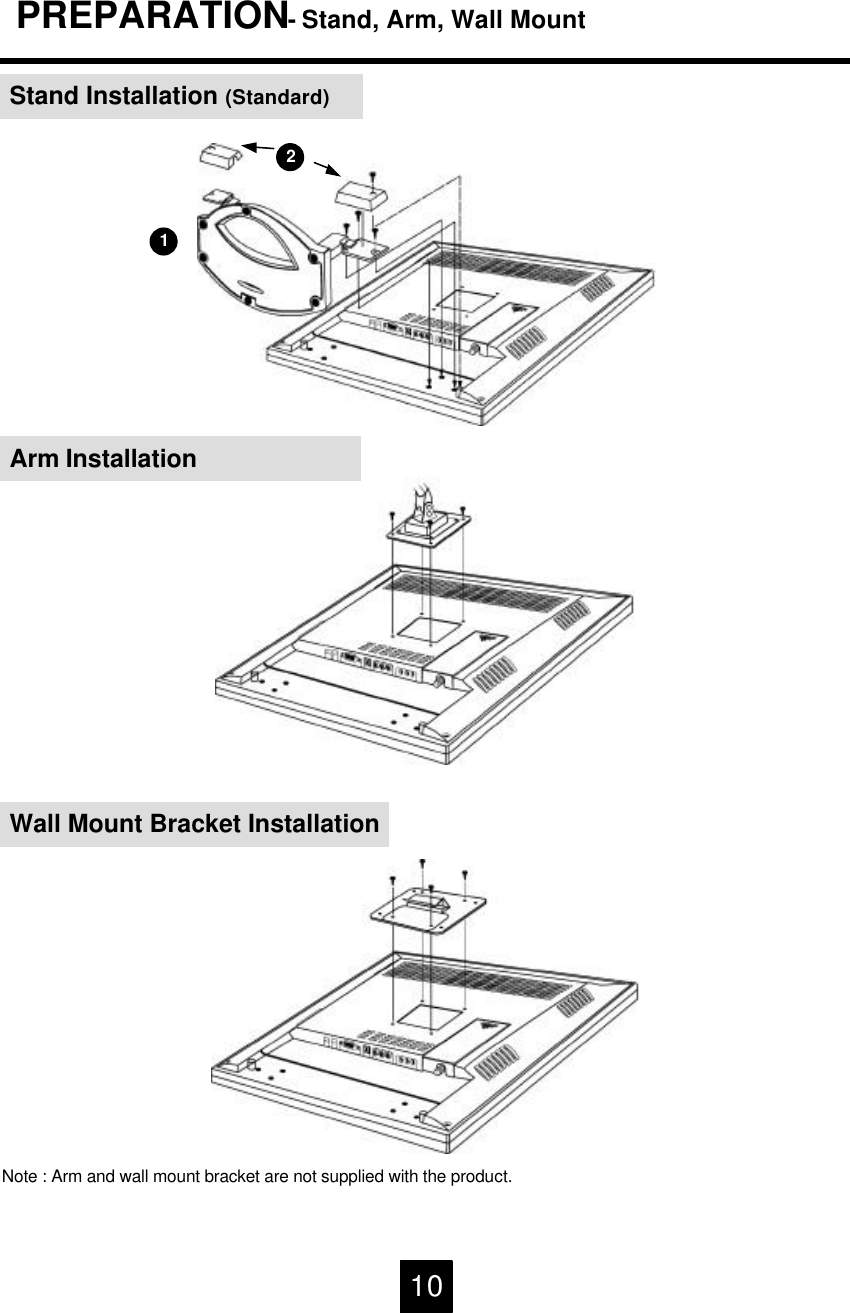

PREPARATION-Stand, Arm, Wall MountStand Installation (Standard)Arm InstallationWall Mount Bracket InstallationNote : Arm and wall mount bracket are not supplied with the product. 1210

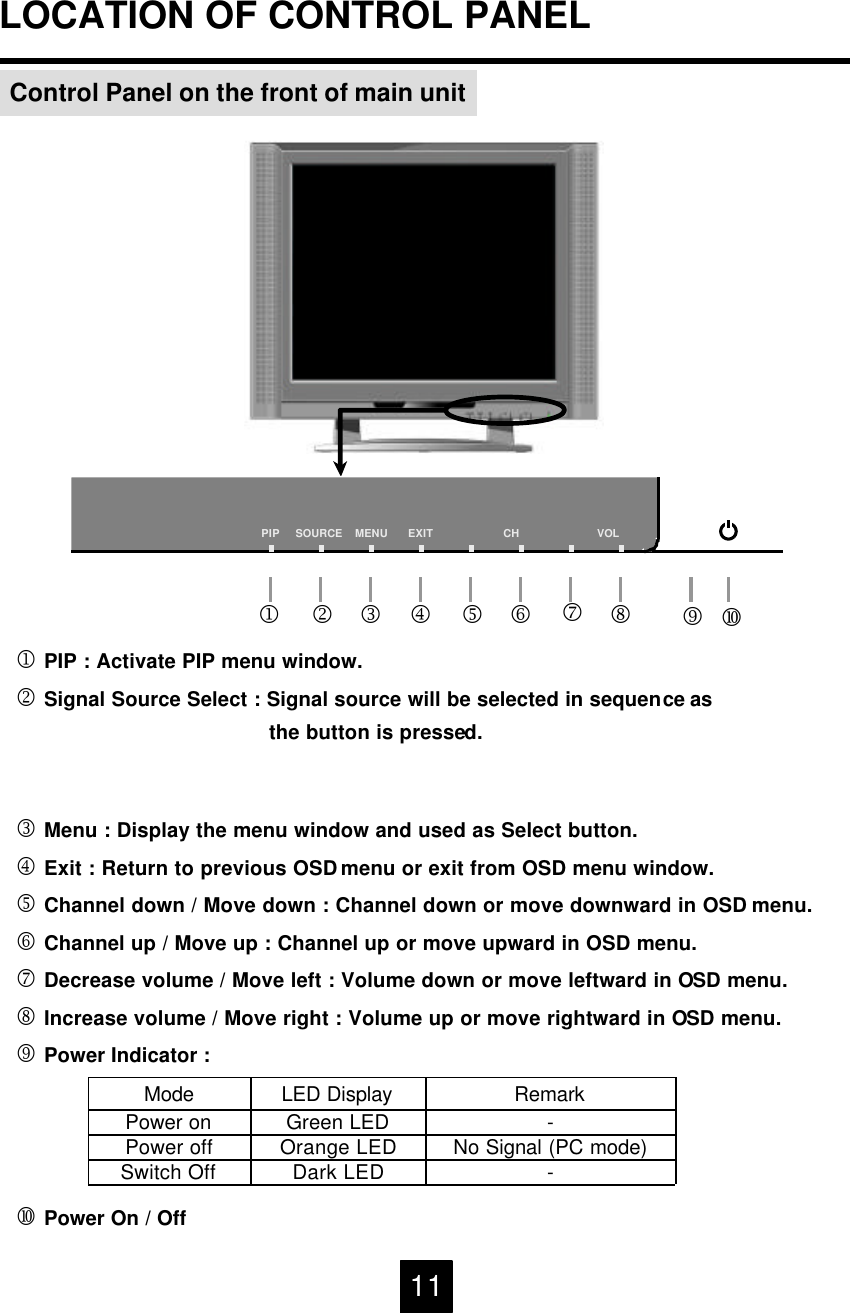

LOCATION OF CONTROL PANELControl Panel on the front of main unitjPIP : Activate PIP menu window.kSignal Source Select : Signal source will be selected in sequence as the button is pressed.lMenu : Display the menu window and used as Select button.mExit : Return to previous OSDmenu or exit from OSD menu window.nChannel down / Move down : Channel down or move downward in OSD menu.oChannel up / Move up : Channel up or move upward in OSD menu.pDecrease volume / Move left : Volume down or move leftward in OSD menu.qIncrease volume / Move right : Volume up or move rightward in OSD menu.rPower Indicator : sPower On / OffVOL CH EXITMENUSOURCEPIPDark LEDOrange LEDGreen LEDLED Display-No Signal (PC mode)-RemarkPower offPower onModeSwitch Off11j k l m n o pqrs

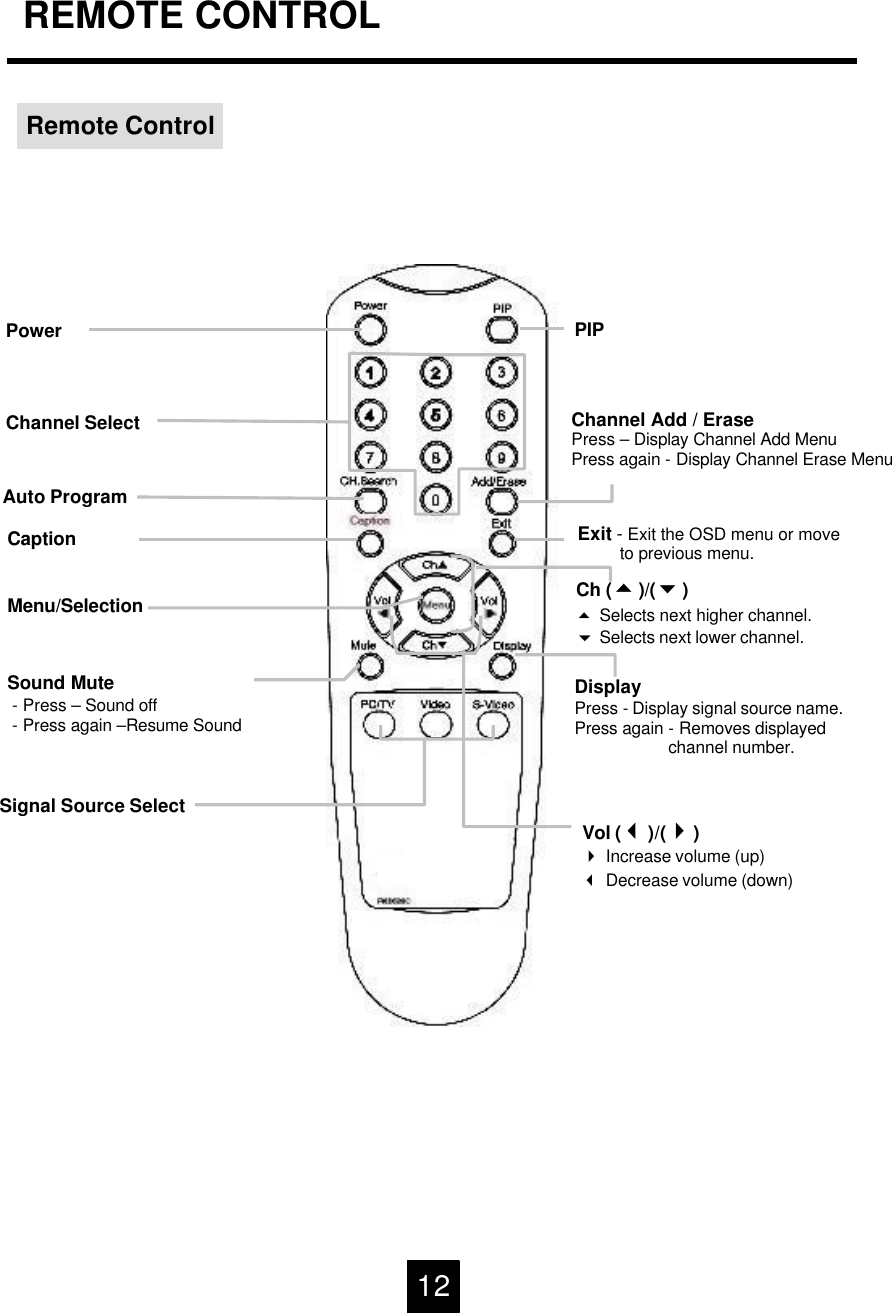

REMOTE CONTROLRemote ControlPowerChannel SelectAuto ProgramCaptionSound Mute -Press –Sound off-Press again –Resume SoundSignal Source SelectMenu/SelectionDisplayPress -Display signal source name.Press again -Removes displayedchannel number.Exit -Exit the OSD menu or moveto previous menu.Ch (5)/(6)5Selects next higher channel.6Selects next lower channel.Vol (3)/(4)4Increase volume (up)3Decrease volume (down)Channel Add / ErasePress –Display Channel Add MenuPress again -Display Channel Erase MenuPIP12

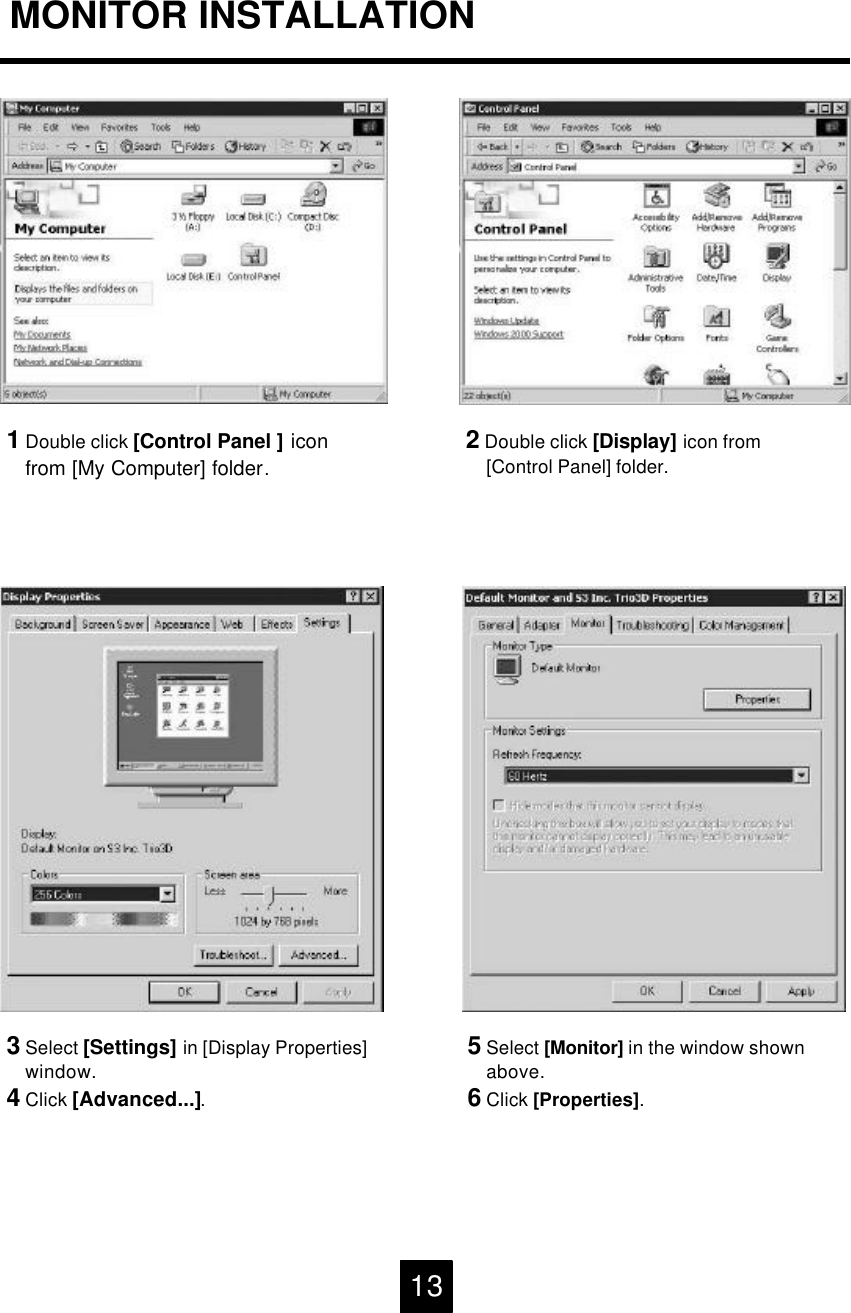

3Select [Settings] in [Display Properties]window.4Click [Advanced...].5Select [Monitor] in the window shownabove.6Click [Properties].1Double click [Control Panel ] iconfrom [My Computer] folder.2Double click [Display] icon from[Control Panel] folder.MONITOR INSTALLATION13

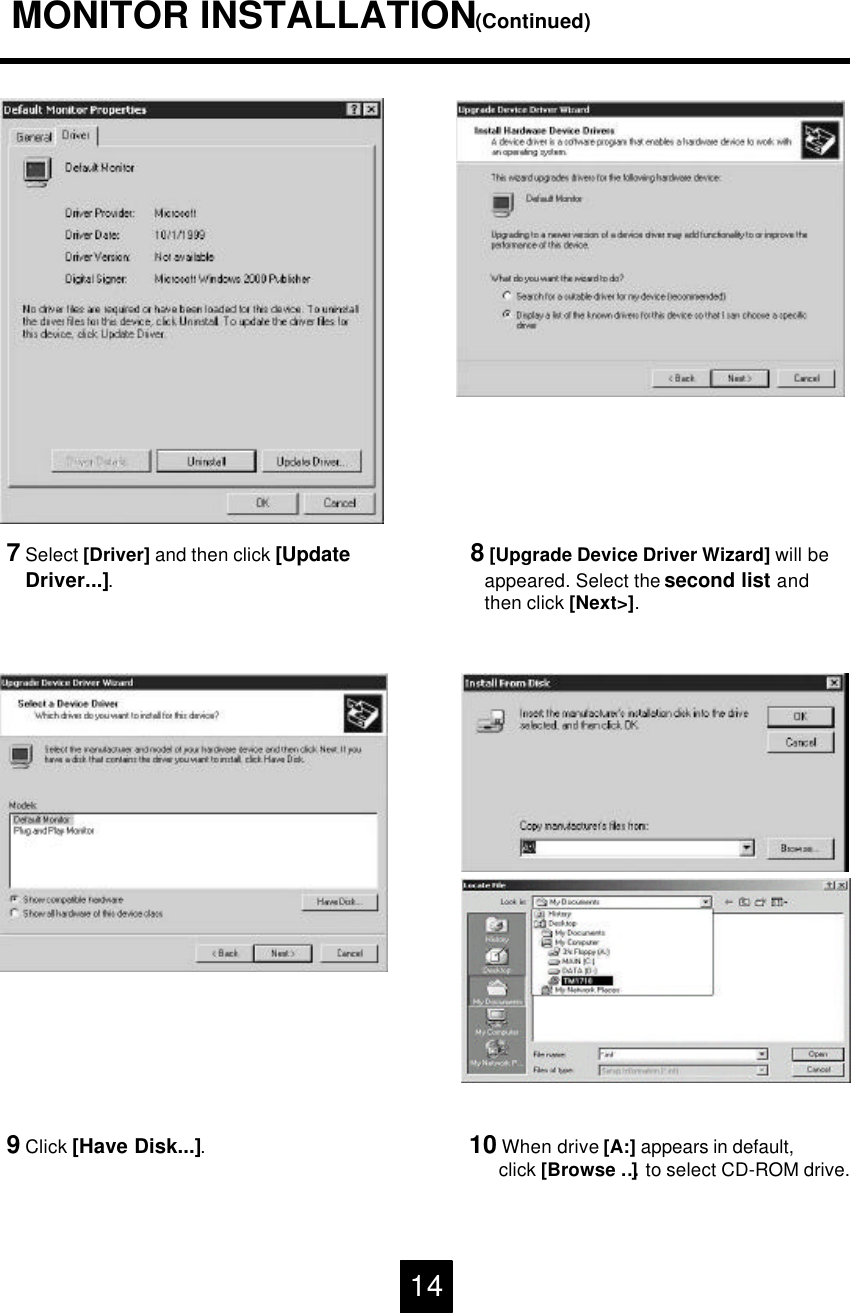

7Select [Driver] and then click [UpdateDriver...].8[Upgrade Device Driver Wizard] will be appeared. Select the second list andthen click [Next>].9Click [Have Disk...].10 When drive [A:] appears in default,click [Browse …]to select CD-ROM drive. MONITOR INSTALLATION(Continued)14

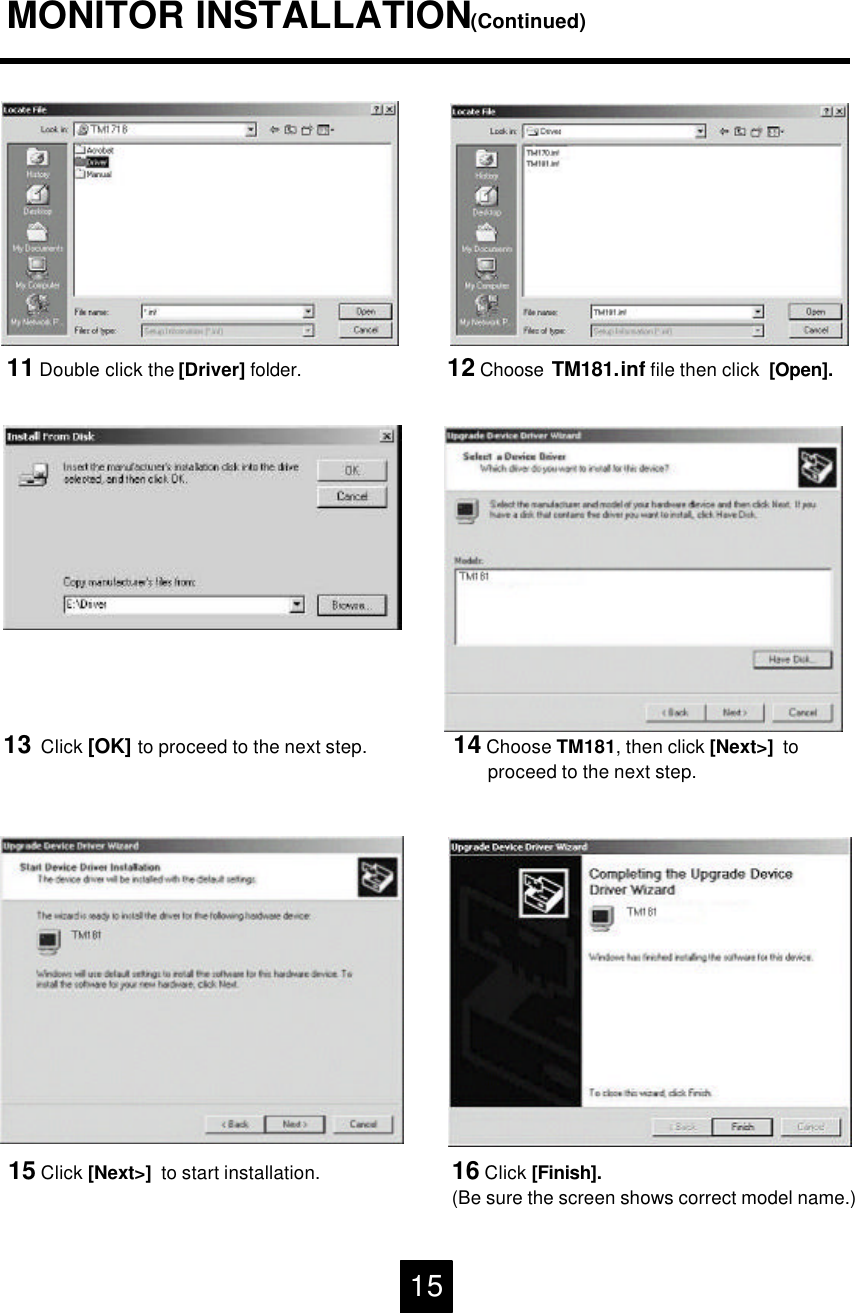

13 Click [OK] to proceed to the next step. 14 Choose TM181, then click [Next>] to proceed to the next step.11 Double click the [Driver] folder.MONITOR INSTALLATION(Continued)12 Choose TM181.inf file then click [Open].15 Click [Next>] to start installation. 16 Click [Finish].(Be sure the screen shows correct model name.)15

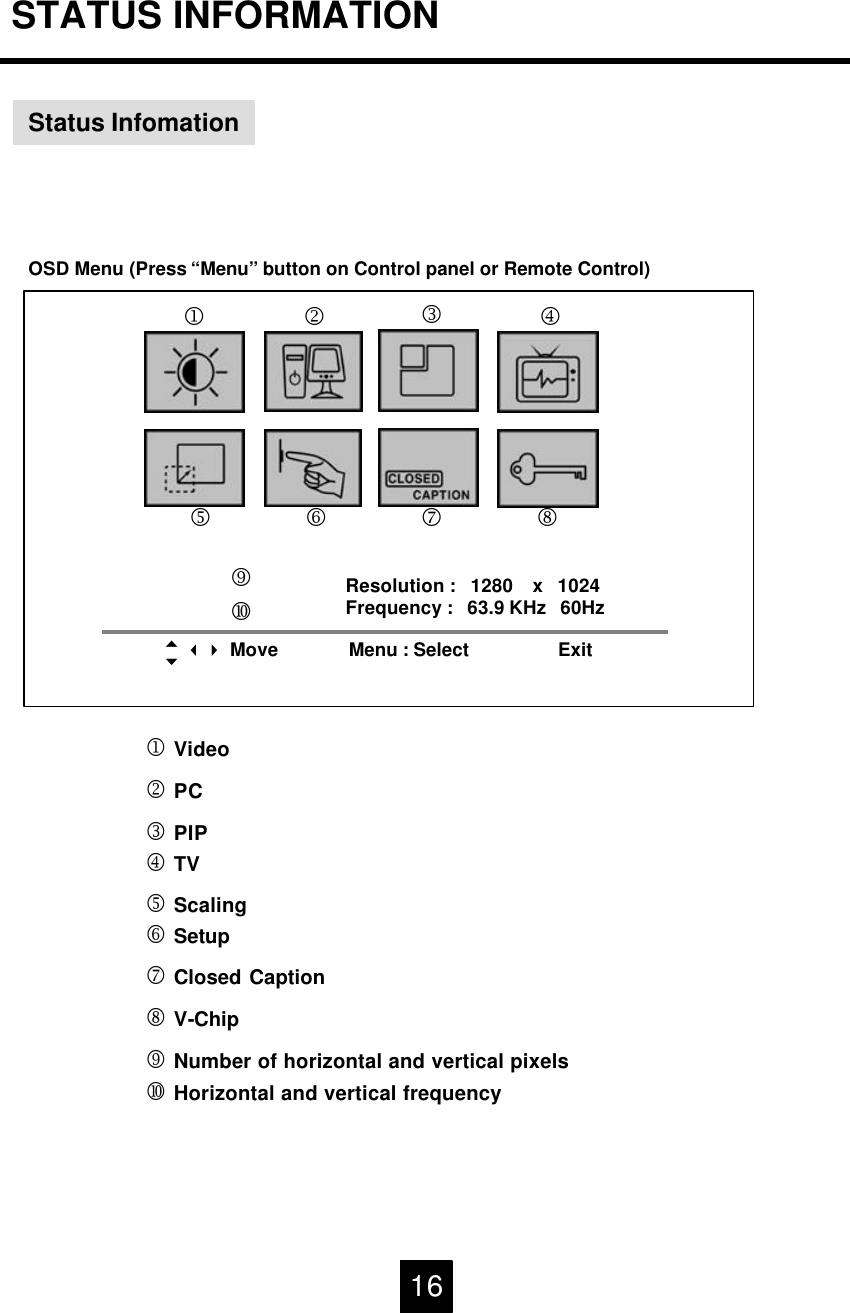

Status InfomationOSD Menu (Press “Menu”button on Control panel or Remote Control)STATUS INFORMATIONjVideo kPClPIPmTVnScalingoSetuppClosed CaptionqV-ChiprNumber of horizontal and vertical pixelssHorizontal and vertical frequencyj k lmnopqrs16Resolution : 1280 x 1024Frequency : 63.9 KHz 60Hz5634Move Menu : Select Exit

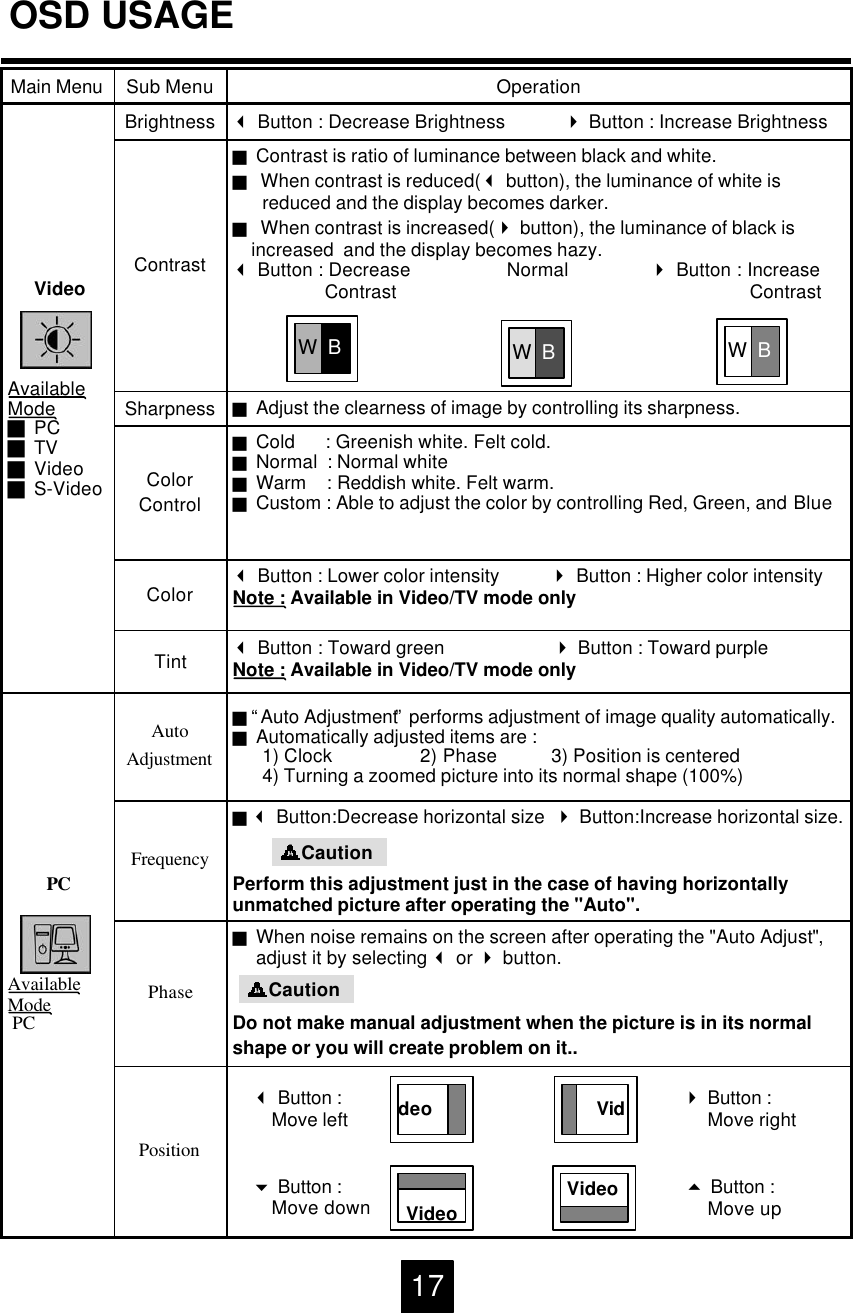

OSD USAGEgContrast is ratio of luminance between black and white.gWhen contrast is reduced(3button), the luminance of white is reduced and the display becomes darker.gWhen contrast is increased(4button), the luminance of black is increased and the display becomes hazy.3Button : Decrease Normal 4Button : IncreaseContrast ContrastContrast3Button : Toward green 4Button : Toward purpleNote : Available in Video/TV mode onlyTint3Button : Lower color intensity 4Button : Higher color intensityNote : Available in Video/TV mode onlyColorgCold : Greenish white. Felt cold.gNormal : Normal whitegWarm : Reddish white. Felt warm.gCustom : Able to adjust the color by controlling Red, Green, and BlueColorControlgAdjust the clearness of image by controlling its sharpness.Sharpness3Button : Decrease Brightness 4Button : Increase BrightnessBrightnessVideoAvailableModegPCgTVgVideogS-VideoOperationSub MenuMain MenuWBWBWBg“Auto Adjustment”performs adjustment of image quality automatically.gAutomatically adjusted items are :1) Clock 2) Phase 3) Position is centered4) Turning a zoomed picture into its normal shape (100%)AutoAdjustmentPCAvailableModePCg3Button:Decrease horizontal size 4Button:Increase horizontal size.Perform this adjustment just in the case of having horizontally unmatched picture after operating the "Auto".FrequencyPositiongWhen noise remains on the screen after operating the "Auto Adjust",adjust it by selecting 3or 4button.Do not make manual adjustment when the picture is in its normal shape or you will create problem on it..PhasedeoVideoVideoCaution!3Button :Move left 4Button : Move right 6Button : Move down 5Button : Move up Caution!17Vid

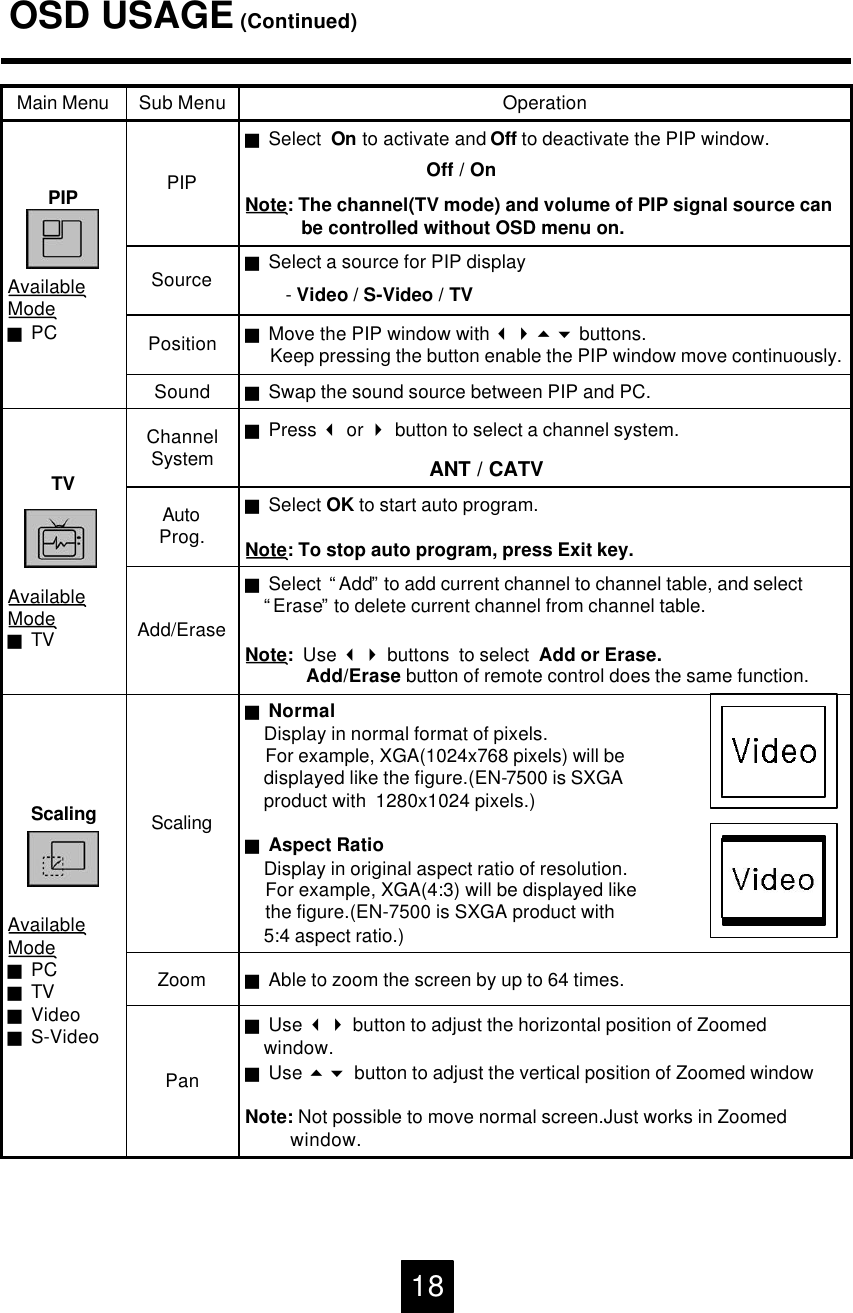

OSD USAGE (Continued)gNormalDisplay in normal format of pixels. For example, XGA(1024x768 pixels) will bedisplayed like the figure.(EN-7500 is SXGA product with 1280x1024 pixels.)gAspect RatioDisplay in original aspect ratio of resolution. For example, XGA(4:3) will be displayed like the figure.(EN-7500 is SXGA product with 5:4 aspect ratio.)ScalingScalingAvailableModegPCgTVgVideogS-VideogAble to zoom the screen by up to 64 times.ZoomgUse 34button to adjust the horizontal position of Zoomedwindow. gUse 56button to adjust the vertical position of Zoomed windowNote: Not possible to move normal screen.Just works in Zoomed window.PangPress 3or 4button to select a channel system.ANT / CATVChannelSystemTVAvailableModegTVgSelect OK to start auto program.Note: To stop auto program, press Exit key. AutoProg.gSelect “Add”to add current channel to channel table, and select“Erase”to delete current channel from channel table.Note: Use 34buttons to select Add or Erase. Add/Erase button of remote control does the same function. Add/ErasegSwap the sound source between PIP and PC.SoundgMove the PIP window with 3456buttons.Keep pressing the button enable the PIP window move continuously. PositiongSelect a source for PIP display-Video / S-Video / TVSourcegSelect On to activate and Off to deactivate the PIP window.Off / OnNote: The channel(TV mode) and volume of PIP signal source canbe controlled without OSD menu on. PIPPIPAvailableModegPCOperationSub MenuMain Menu18

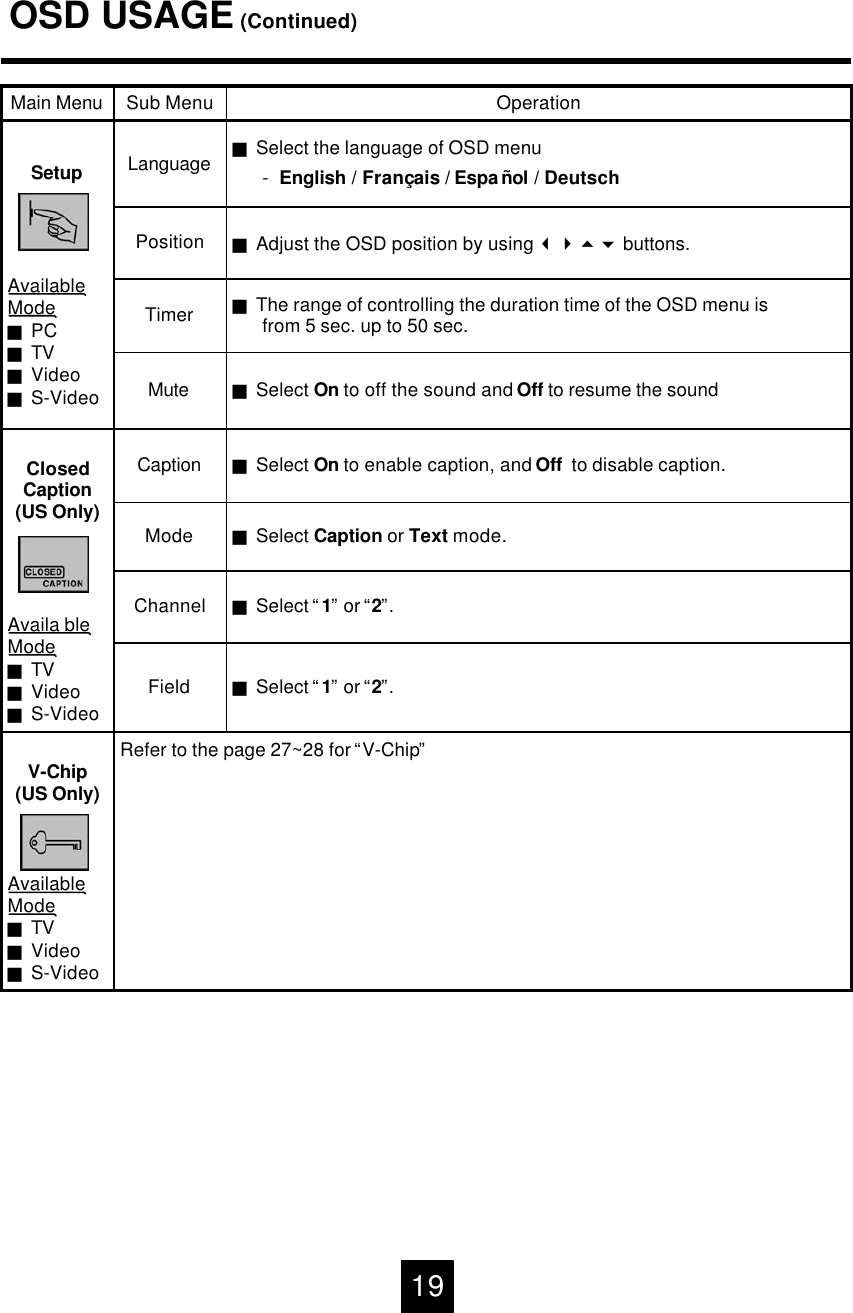

OSD USAGE (Continued)gSelect “1”or “2”.FieldgSelect “1”or “2”.ChannelgSelect Caption or Text mode.ModeRefer to the page 27~28 for “V-Chip”V-Chip(US Only)AvailableModegTVgVideogS-VideogThe range of controlling the duration time of the OSD menu is from 5 sec. up to 50 sec.TimergSelect the language of OSD menu-English / Français /Espa ñol / DeutschLanguageSetupAvailableModegPCgTVgVideogS-VideogAdjust the OSD position by using 3456buttons.PositiongSelect On to off the sound and Off to resume the soundMutegSelect On to enable caption, and Off to disable caption.CaptionClosedCaption(US Only)Availa bleModegTVgVideogS-VideoOperationSub MenuMain Menu19

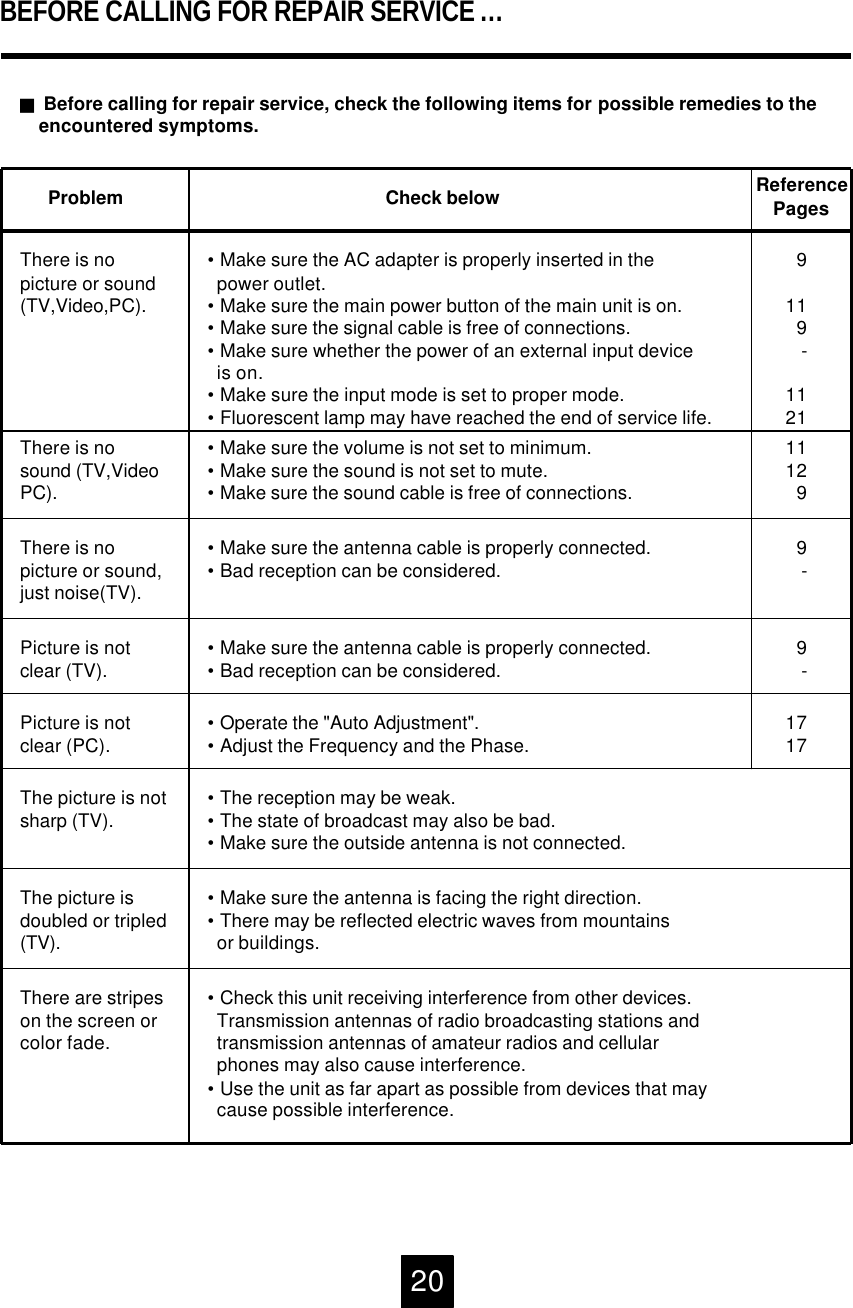

gBefore calling for repair service, check the following items for possible remedies to theencountered symptoms.Problem Check belowThere is nopicture or sound(TV,Video,PC).•Make sure the AC adapter is properly inserted in thepower outlet.•Make sure the main power button of the main unit is on.•Make sure the signal cable is free of connections.•Make sure whether the power of an external input device is on.•Make sure the input mode is set to proper mode.•Fluorescent lamp may have reached the end of service life.There is nosound (TV,VideoPC).•Make sure the volume is not set to minimum.•Make sure the sound is not set to mute.•Make sure the sound cable is free of connections.There is nopicture or sound,just noise(TV).•Make sure the antenna cable is properly connected.•Bad reception can be considered.ReferencePages9119-1121Picture is notclear (TV).•Make sure the antenna cable is properly connected.•Bad reception can be considered.Picture is notclear (PC).•Operate the "Auto Adjustment".•Adjust the Frequency and the Phase.The picture is notsharp (TV).•The reception may be weak.•The state of broadcast may also be bad.•Make sure the outside antenna is not connected.The picture isdoubled or tripled(TV).•Make sure the antenna is facing the right direction.•There may be reflected electric waves from mountainsor buildings.There are stripeson the screen orcolor fade.•Check this unit receiving interference from other devices.Transmission antennas of radio broadcasting stations andtransmission antennas of amateur radios and cellularphones may also cause interference.•Use the unit as far apart as possible from devices that may cause possible interference.111299-9-1717BEFORE CALLING FOR REPAIR SERVICE…20

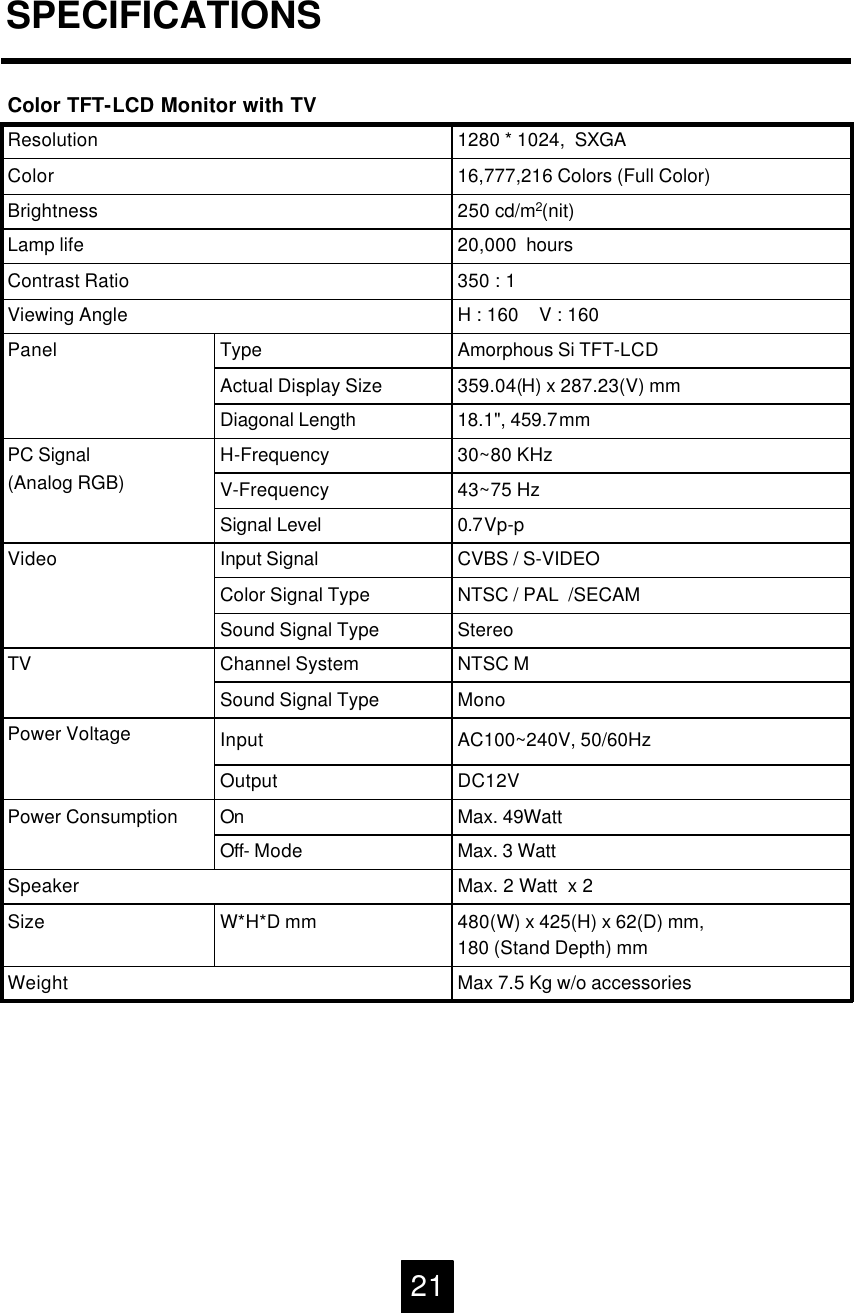

DC12VOutputInputNTSC / PAL /SECAMColor Signal TypeStereoSound Signal TypeVideo20,000 hoursLamp lifeMax 7.5 Kg w/o accessoriesWeight30~80 KHzH-FrequencyPC Signal(Analog RGB) 43~75 HzV-Frequency0.7Vp-pSignal Level1280 * 1024, SXGAResolution480(W) x 425(H) x 62(D) mm,180 (Stand Depth) mmW*H*D mmSizeMax. 2 Watt x 2 SpeakerMax. 3 WattOff-ModeMax. 49WattOnPower ConsumptionAC100~240V, 50/60HzPower VoltageMonoSound Signal TypeNTSC MChannel SystemCVBS / S-VIDEOInput SignalTV 18.1", 459.7mmDiagonal Length359.04(H) x 287.23(V) mmActual Display SizeAmorphous Si TFT-LCDTypePanelH : 160 V : 160 Viewing Angle350 : 1 Contrast Ratio250 cd/m2(nit)Brightness16,777,216 Colors (Full Color)ColorColor TFT-LCD Monitor with TVSPECIFICATIONS21

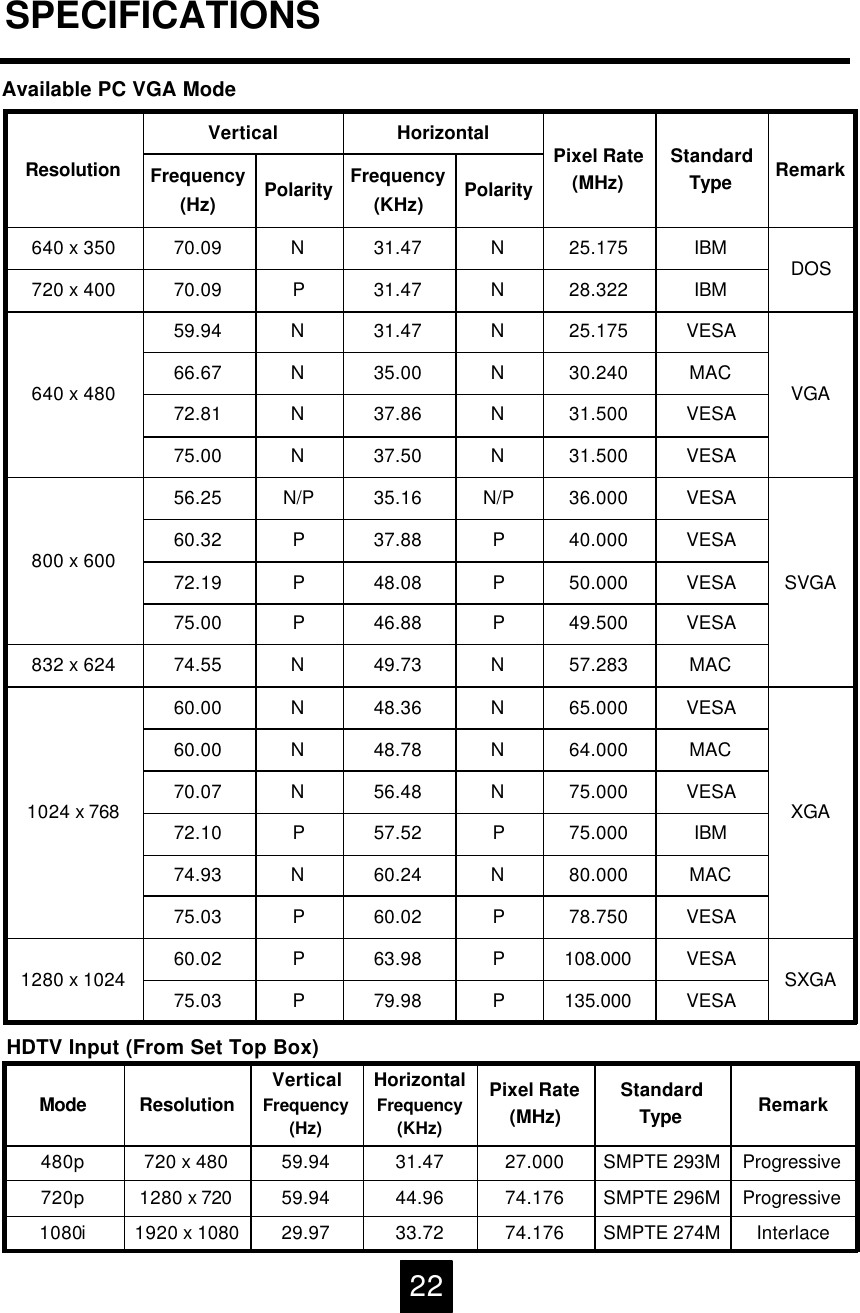

SPECIFICATIONS22Available PC VGA ModeVESA78.750P60.02P75.03IBM75.000P57.52P72.10MAC64.000N48.78N60.00PolarityFrequency(KHz)PolarityFrequency(Hz)SXGAXGASVGAVGADOSRemarkVESAVESAMACVESAVESAMACVESAVESAVESAVESAVESAVESAMACVESAIBMIBMStandardType25.175N31.47N70.09640 x 35028.322N31.47P70.09720 x 40025.175N31.47N59.94640 x 480 30.240N35.00N66.6731.500N37.86N72.8131.500N37.50N75.0036.000N/P35.16N/P56.25800 x 600 40.000P37.88P60.3250.000P48.08P72.1949.500P46.88P75.0057.283N49.73N74.55832 x 62465.000N48.36N60.001024 x 768 75.000N56.48N70.0780.000N60.24N74.93108.000P63.98P60.021280 x 1024 135.000P79.98P75.03Horizontal Pixel Rate(MHz)VerticalResolutionHDTV Input (From Set Top Box)1920 x 10801280 x 720720 x 480ResolutionProgressiveSMPTE 293M27.00031.4759.94480pInterlaceProgressiveRemarkSMPTE 274MSMPTE 296MStandardType74.17644.9659.94720p74.17633.7229.971080iHorizontalFrequency(KHz)Pixel Rate(MHz)VerticalFrequency(Hz)Mode

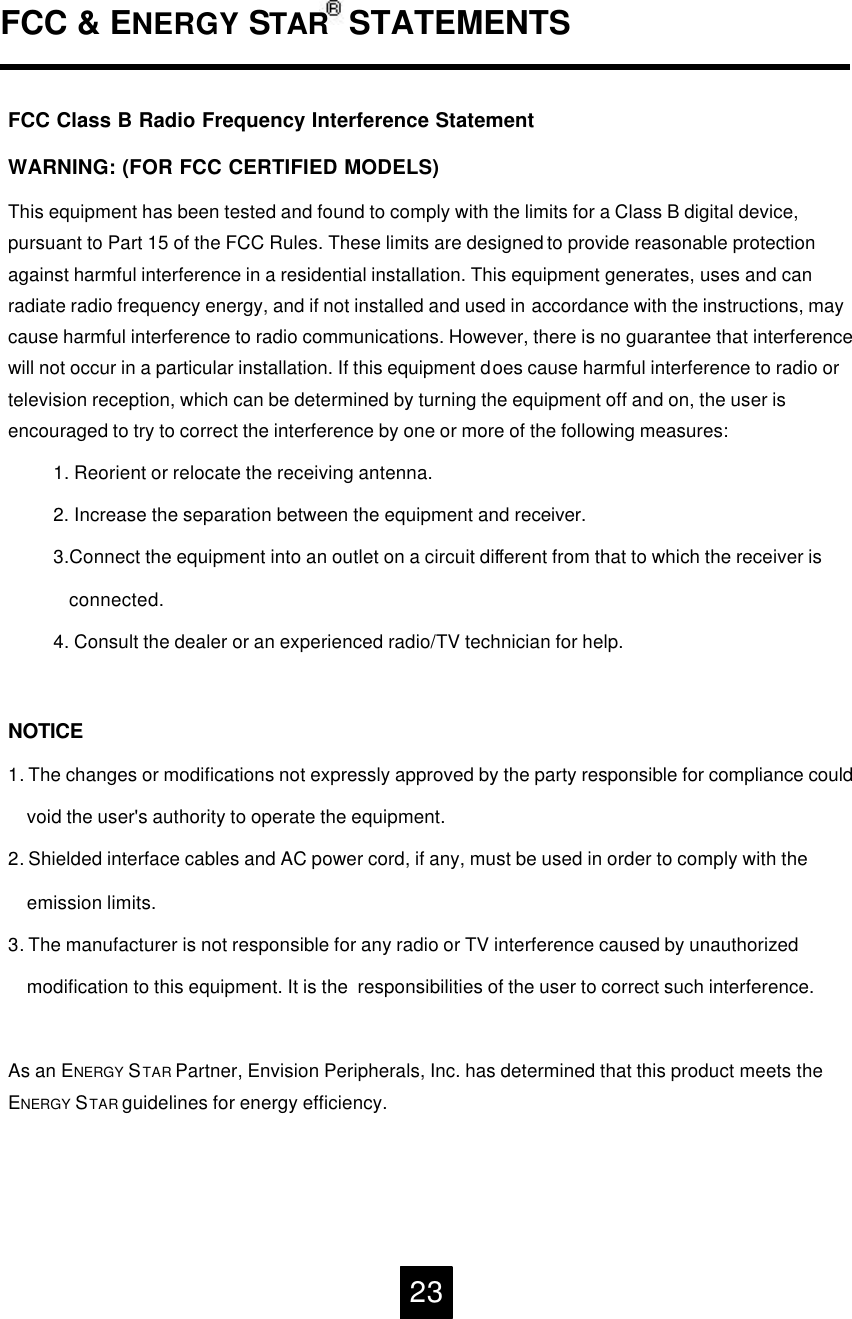

FCC & ENERGY STAR STATEMENTS23FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3.Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.4. Consult the dealer or an experienced radio/TV technician for help.NOTICE1. The changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.3. The manufacturer is not responsible for any radio or TV interference caused by unauthorizedmodification to this equipment. It is the responsibilities of the user to correct such interference.As an ENERGY STAR Partner, Envision Peripherals, Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

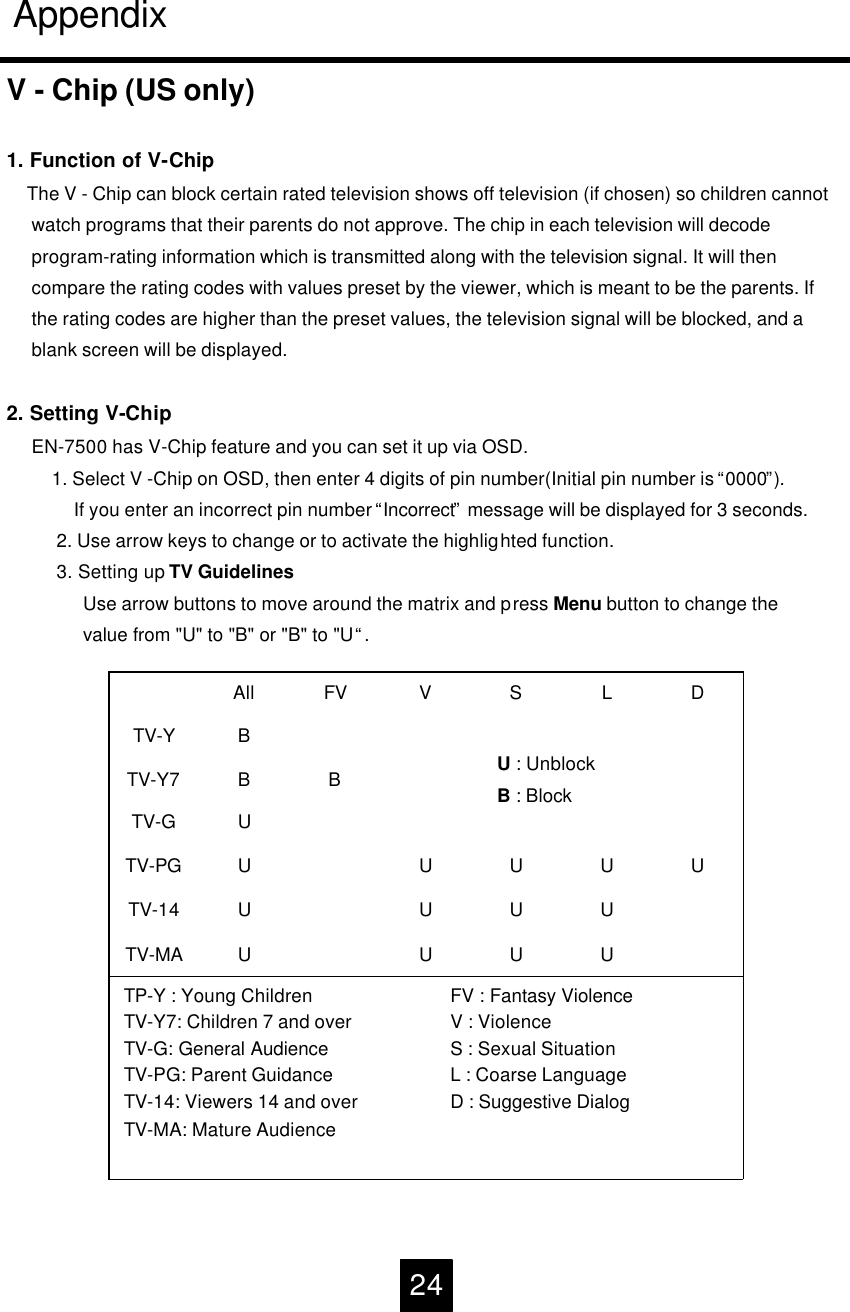

V -Chip (US only)1. Function of V-ChipThe V -Chip can block certain rated television shows off television (if chosen) so children cannot watch programs that their parents do not approve. The chip in each television will decodeprogram-rating information which is transmitted along with the television signal. It will thencompare the rating codes with values preset by the viewer, which is meant to be the parents. Ifthe rating codes are higher than the preset values, the television signal will be blocked, and ablank screen will be displayed.2. Setting V-ChipEN-7500 has V-Chip feature and you can set it up via OSD.1. Select V -Chip on OSD, then enter 4 digits of pin number(Initial pin number is “0000”).If you enter an incorrect pin number “Incorrect”message will be displayed for 3 seconds.2. Use arrow keys to change or to activate the highlighted function.3. Setting up TV GuidelinesUse arrow buttons to move around the matrix and press Menu button to change thevalue from "U" to "B" or "B" to "U“.AppendixFV : Fantasy ViolenceV : ViolenceS : Sexual SituationL : Coarse LanguageD : Suggestive DialogTP-Y : Young ChildrenTV-Y7: Children 7 and overTV-G: General AudienceTV-PG: Parent GuidanceTV-14: Viewers 14 and overTV-MA: Mature AudienceUUUUTV-MAUUUUTV-14UUUUUTV-PGUTV-GBBTV-Y7DLSVFVBAllTV-Y24U : UnblockB : Block

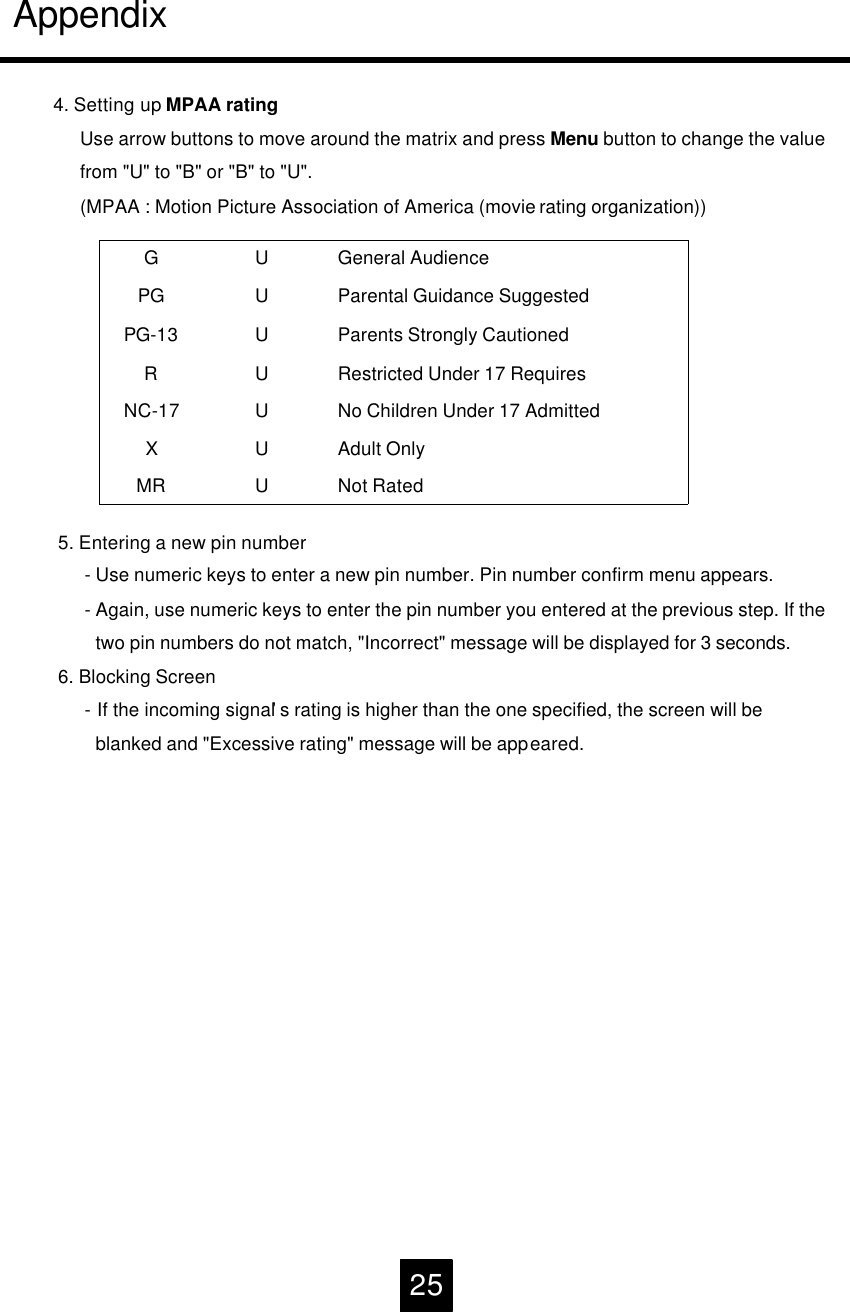

4. Setting up MPAA ratingUse arrow buttons to move around the matrix and press Menu button to change the valuefrom "U" to "B" or "B" to "U".(MPAA : Motion Picture Association of America (movie rating organization))5. Entering a new pin number-Use numeric keys to enter a new pin number. Pin number confirm menu appears. -Again, use numeric keys to enter the pin number you entered at the previous step. If thetwo pin numbers do not match, "Incorrect" message will be displayed for 3 seconds.6. Blocking Screen-If the incoming signal’s rating is higher than the one specified, the screen will be blanked and "Excessive rating" message will be appeared.AppendixAdult OnlyUXNot RatedUMRNo Children Under 17 AdmittedUNC-17Restricted Under 17 RequiresURParents Strongly CautionedUPG-13Parental Guidance SuggestedUPGGeneral AudienceUG25
