Notes On LCD Monitors
Color TFT-LCD Monitor
1.The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film
transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the
screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate a
defective panel.
2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality.
3. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after
switching the image when the same image has been displayed for a long time. The monitor will
slowly recover from this.
4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such
as pen or pencil. This contact may scratch or damage the screen. These damages are not covered
under the warranty.
TM181
OPERATION MANUAL
Color TFT-LCD Monitor
CONTENTS
……………4,5
……………6
………………………7
……………………8
…11
…………………12
.……13,14,15
……………16
SAFETY PRECAUTIONS
SUPPLIED ACCESSORIES
PREPARATION
Remote Control
TV Tuner
LOCATION OF USERS CONTROL
REMOTE CONTROL
MONITOR INSTALLATION
STATUS INFORMATION
……………………9
Cable Connection
…………10
Stand, Arm, Wall Mount

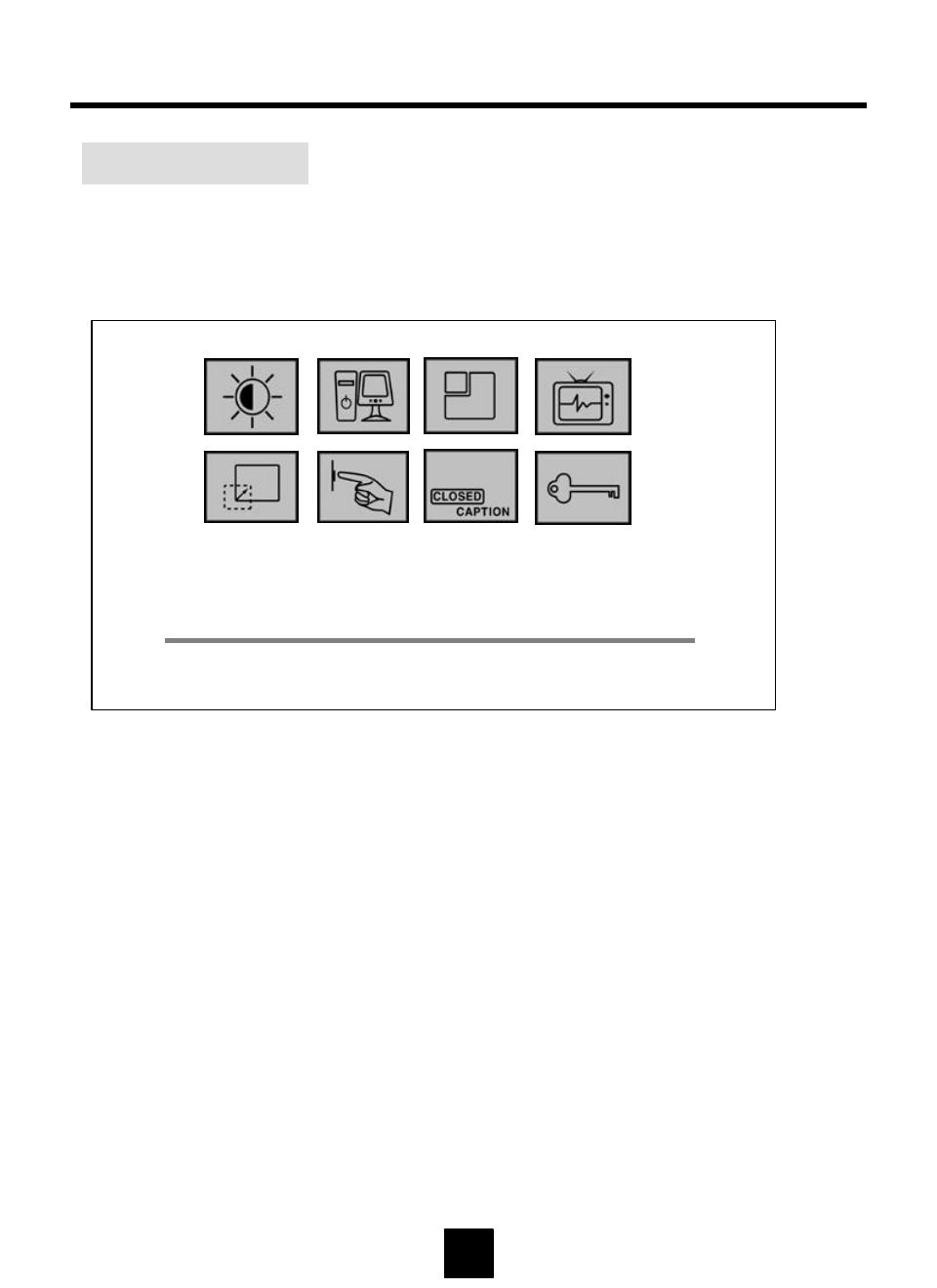

OSD USAGE
……20
…………………….………21
BEFORE CALLING FOR REPAIR SERVICE
TM181
Available PC VGA Mode
SPECIFICATIONS
….. ….……………17,18,19
…………22
WARRANTY STATEMENT ….……….23,24
FCC & ENERGY STAR STATEMENTS ...25
HOW TO CONTACT US ………………….26
…………………….……27,28V-Chip
Appendix
Improper use can result in electric shock and/or fire. In order to prevent potential danger,
please observe the following instructions when installing, operating and cleaning the
product. To ensure your safety and prolong the service life of your color
TFT-LCD monitor product, please read the following precautions carefully before
using the product.
gAll operating instructions must be read and understood before the product is operated.
gThese safety and operating instructions must be kept in safe place for future reference.
gAll warnings on the product and in the instructions must be observed closely.
gAll operating instructions must be followed.
gDo not use attachments not recommended by the manufacturer. Use of inadequate
attachments can result in accidents.
gThis product must be operated on a power source specified on the specification label. If you are
not sure of the type of power supply used in your home, consult your dealer or local power
company. For units designed to operate on batteries or another power source, refer to the
operating instructions.
gThe power cords must be routed properly to prevent people from stepping on them or objects
from resting on them. Check the cords at the plugs and product.
gIf you plan to use a 12V DC power supply unit other than the AC adapter supplied with the
product, make sure the power supply unit provides stable voltage with minimum fluctuations.
gDo not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
gNever insert an object into the product through vents or openings. High voltage flows in the
product, and inserting an object can cause electric shock and/or short internal parts. For the
same reason, do not spill water or liquid on the product.
gDo not attempt to service the product yourself. Removing covers can expose you to high voltage
and other dangerous conditions. Request a qualified service person to perform servicing.
gIf any of the following conditions occurs, unplug the power cord from the AC outlet, and request a
qualified service person to perform repairs.
a. When the power cord or plug in damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions.
Improper adjustment of controls not described in the instructions can cause damage,
which often requires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the
product indicates that the product needs servicing.
gIn case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and
performance as the original parts. Use of unauthorized parts can result in fire, electric shock
and/or other danger.
gUpon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.
gWhen mounting the product on a wall or ceiling, be sure to install the product according to the
method recommended by the manufacturer.
SAFETY PRECAUTIONS
4
gUnplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean
the product. Do not use liquid cleaners or aerosol cleaners.
gUnplug the power cord from the AC outlet if you do not use the product for considerably long time.
gDo not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub,
swimming pool and in a wet basement.
gKeep the product away from direct rays of the Sun-light.
gDo not place the product on an unstable cart, stand, tripod or table. Placing the product on an
unstable base can cause the product to fall, resulting in serious personal injuries as well as
damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer's instruction. Use only the mounting hardware recommended by the manufacturer.
gWhen relocating the product placed on a cart, it must be moved with the utmost care.
Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.
gThe vents and other openings in the cabinet are designed for ventilation. Do not cover or block
these vents and openings since insufficient ventilation can cause overheating and/or shorten the life
of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings. This product is not designed for built-in installation; do not place the
product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or
the manufacturer's instructions are followed.
gThe LCD panel used in this product is made of glass. Therefore, it can break when the product is
dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD
panel breaks.
gKeep the product away from heat sources such as radiators, heaters, stoves and other heat-
generating products (including amplifiers).
SAFETY PRECAUTIONS (Continued)
5

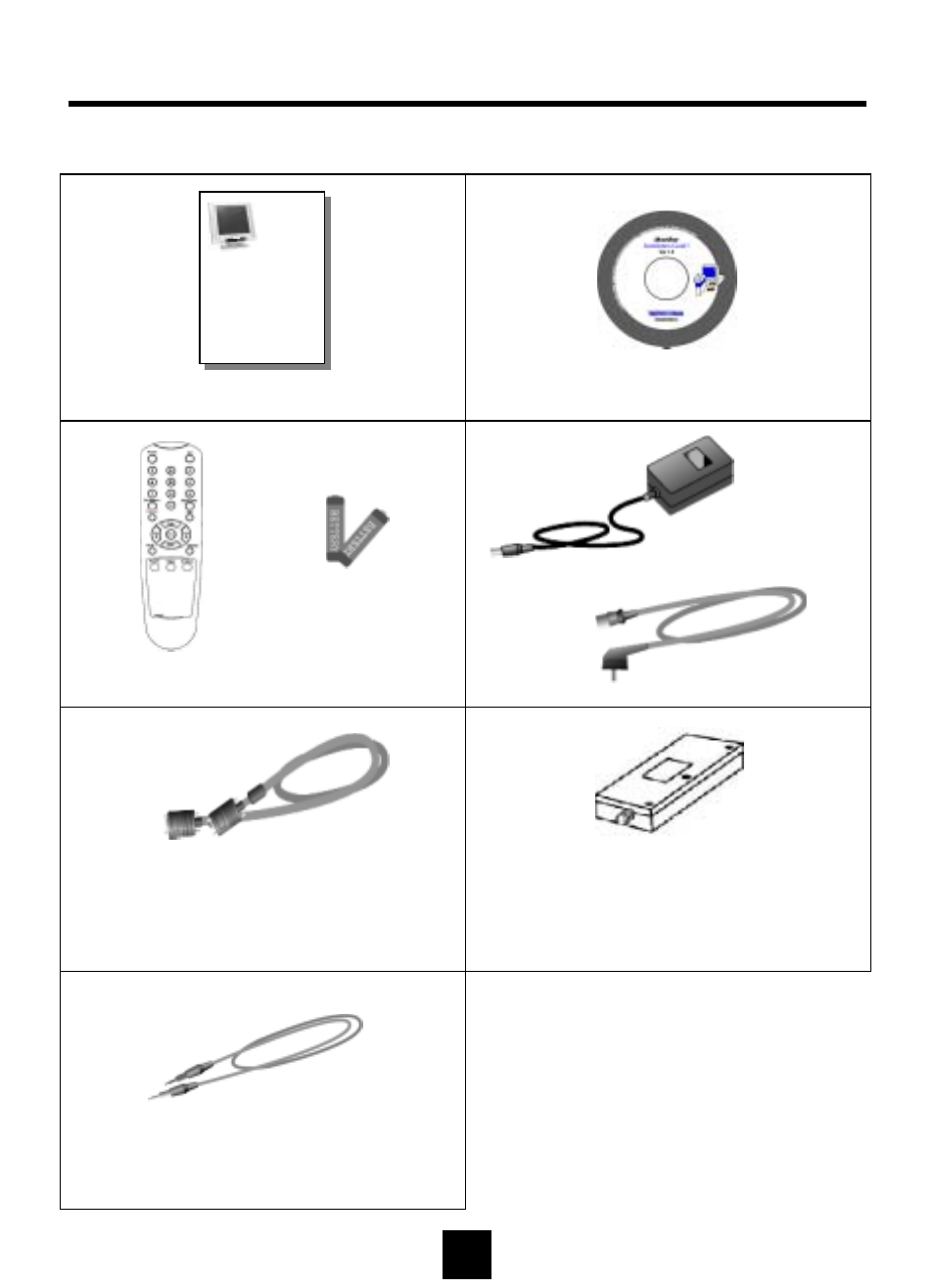

SUPPLIED ACCESSORIES
Make sure the following accessories are provided with the product.
Quick Start Guide (*1)
Operation Manual
Monitor Driver (CD*1)
Remote Control (*1)
DC Adapter (*1)
AC Cord (*1)
Size AAA Battery (*2)
PC VGA Cable(*1) TV Tuner(*1)
(Option)
Quick Install Guide
TM181
PC Stereo Cable (x1)
6
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to
follow the instructions below.
•Place batteries with their terminals corresponding to the (+) and (-) indications.
•Different types of batteries have different characteristics. Do not mix batteries of different
types.
•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of
new batteries and/or cause old batteries to leak chemicals.
•Remove batteries as soon as they are non-operable. Chemicals that leak from batteries
can cause a rash. If chemical leakage is found, wipe with a cloth.
•The batteries supplied with the product may have a shorter life expectancy due to storage
conditions.
•If the remote control is not used for an extended period of time remove batteries from the
remote control
1 Open the battery cover.
Batteries for Remote Control
If the remote control fails to operate LCD TV monitor functions, replace the batteries in the
remote control.
2 Insert batteries (two Size-AAA batteries, Supplied with product).
3Close the battery cover
gPlace batteries with their terminals corresponding to the (+) and (-) indications in the
battery compartment.
gUse the remote control by pointing it towards the remote sensor window.
Objects between the remote control and sensor window may prevent proper operation.
Cautions regarding batteries
!
Cautions regarding use of remote control
gDo not expose the remote control to shock. In addition, do not expose the remote control
to liquids, and do not place in an area with high humidity.
gDo not install or place the remote control under direct sunlight. The heat may cause
deformation of the unit.
gThe remote control may not work properly if the remote sensor window of the main unit is
under direct sunlight or strong lighting. In such case, change the angle of the lighting or
LCD TV monitor set, or operate the remote control closer to the remote sensor window.
!
PREPARATION -Remote Control
7

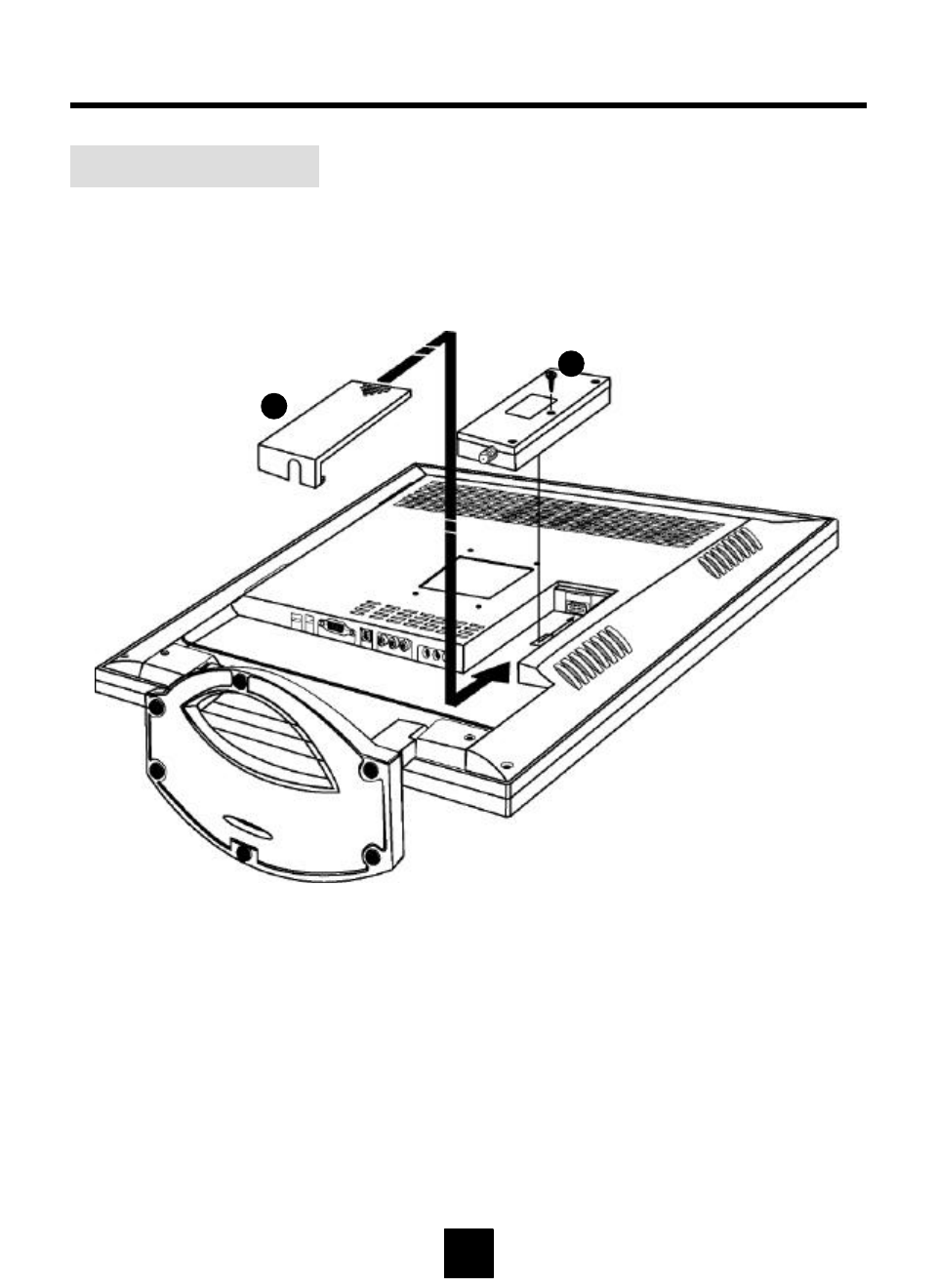

TV Tuner Installation
PREPARATION –TV Tuner
1
2
Note :1) For your convenience, the TV Tuner module has been installed at the factory.
The illustration is shown for your reference only.
2) In case of re-installing(or uninstalling) the tuner, follow the following steps.
jScrew the bolt.
kCover the tuner with the tuner cover.
(In case of uninstalling, proceed the step in reverse.)
8
PREPARATION –Cable Connection
j
Power Input : DC 12V
k
Analog RGB : PC VGA Cable
l
S-Video
m
Composite Video : Yellow
n
Video Sound (L) : White
o
Video Sound (R) : Red
p
PC Stereo Input
q
Headphone Output
r
Line Out : Connect to another speaker set
s
Antenna

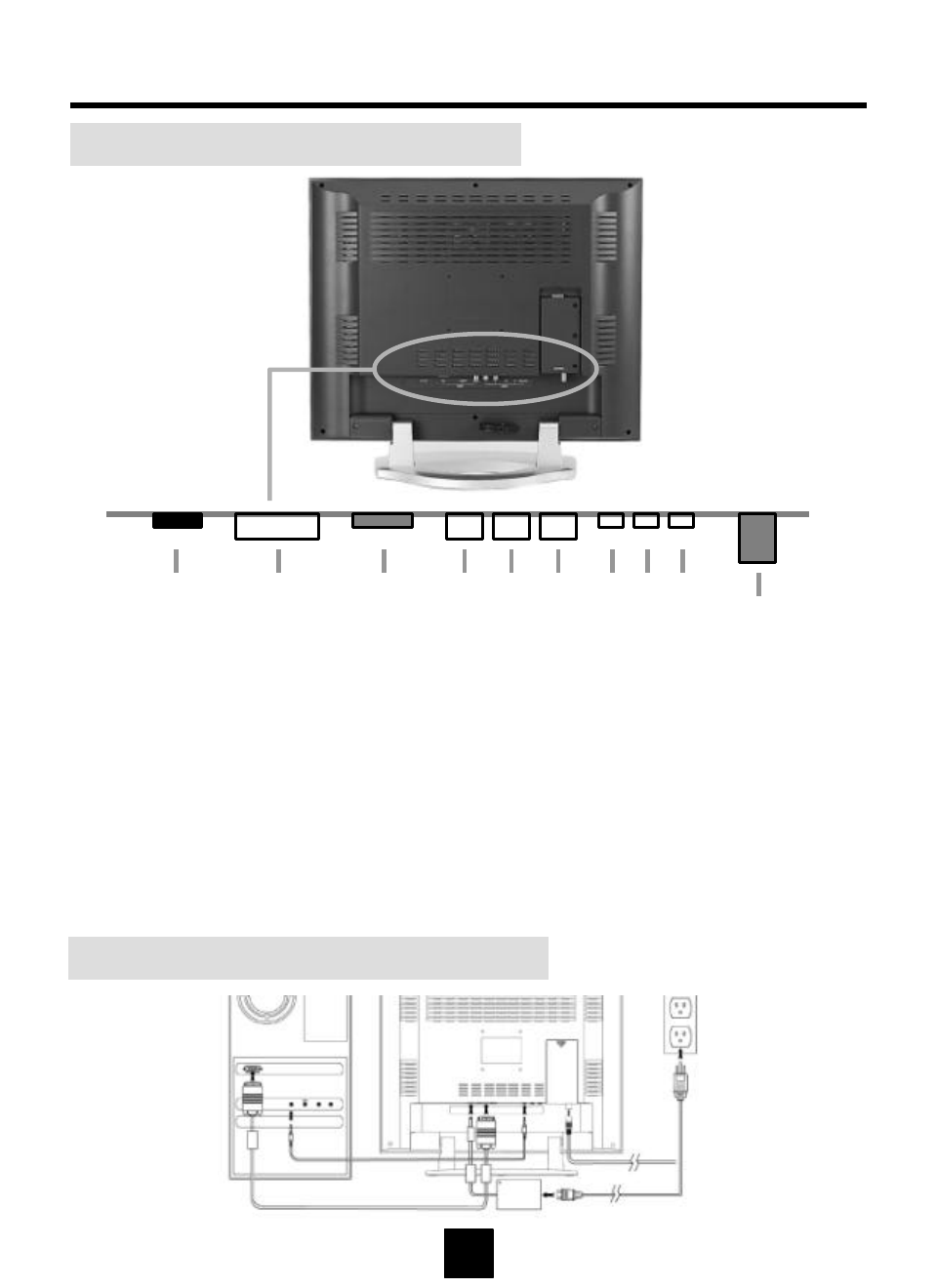

Cable Connector Description
j k l m n o p q r
s
VGA, Power & Antenna Cable Connection
9
j
ps

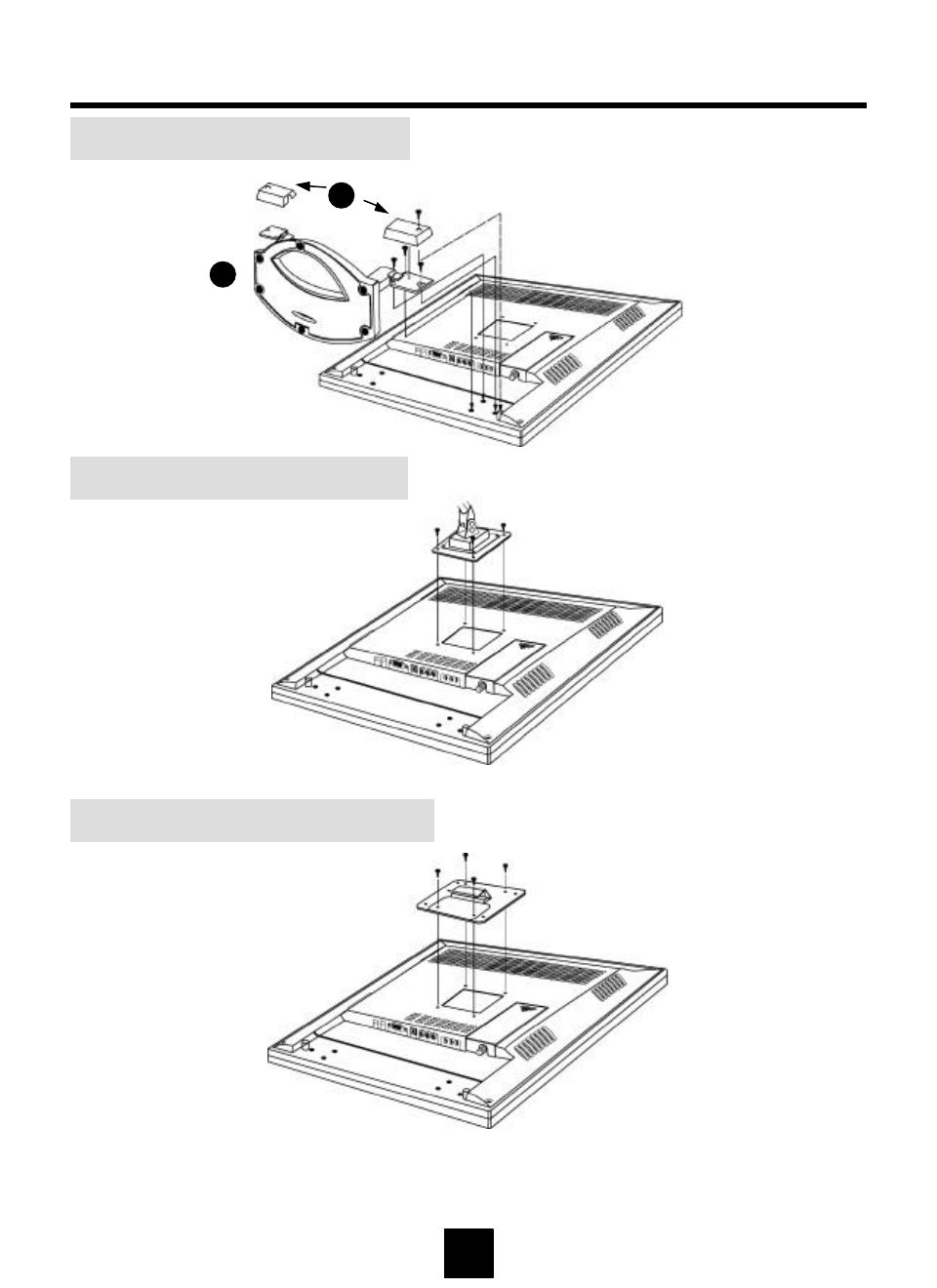

PREPARATION-Stand, Arm, Wall Mount
Stand Installation (Standard)
Arm Installation
Wall Mount Bracket Installation
Note : Arm and wall mount bracket are not supplied with the product.
1
2
10

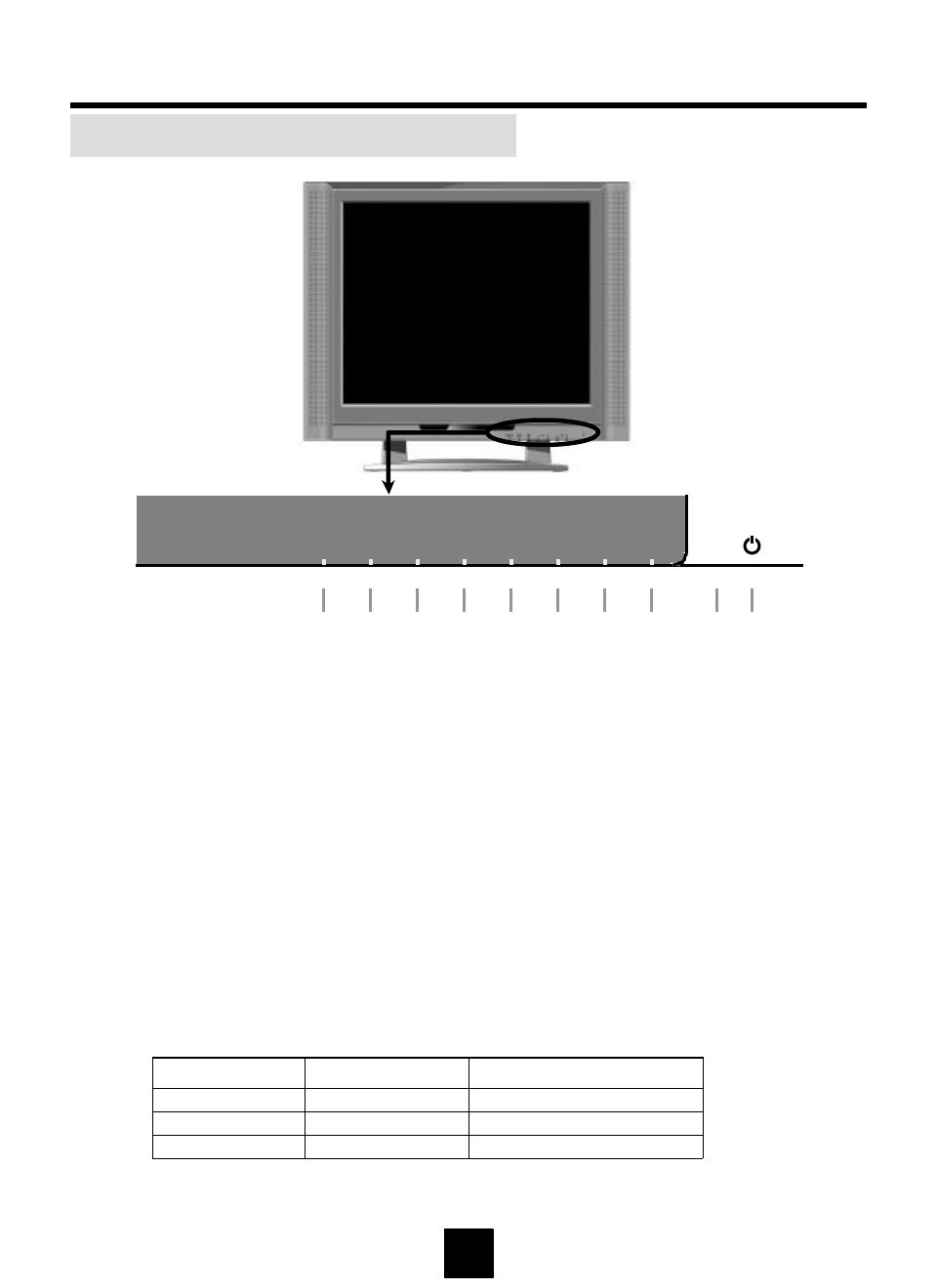

LOCATION OF CONTROL PANEL
Control Panel on the front of main unit
j
PIP : Activate PIP menu window.
k
Signal Source Select : Signal source will be selected in sequence as
the button is pressed.
l
Menu : Display the menu window and used as Select button.
m
Exit : Return to previous OSDmenu or exit from OSD menu window.
n
Channel down / Move down : Channel down or move downward in OSD menu.
o
Channel up / Move up : Channel up or move upward in OSD menu.
p
Decrease volume / Move left : Volume down or move leftward in OSD menu.
q
Increase volume / Move right : Volume up or move rightward in OSD menu.
r
Power Indicator :
s
Power On / Off
VOL CH EXITMENUSOURCEPIP
Dark LED
Orange LED
Green LED
LED Display
-
No Signal (PC mode)
-
Remark
Power off
Power on
Mode
Switch Off
11
j k l m n o pqrs

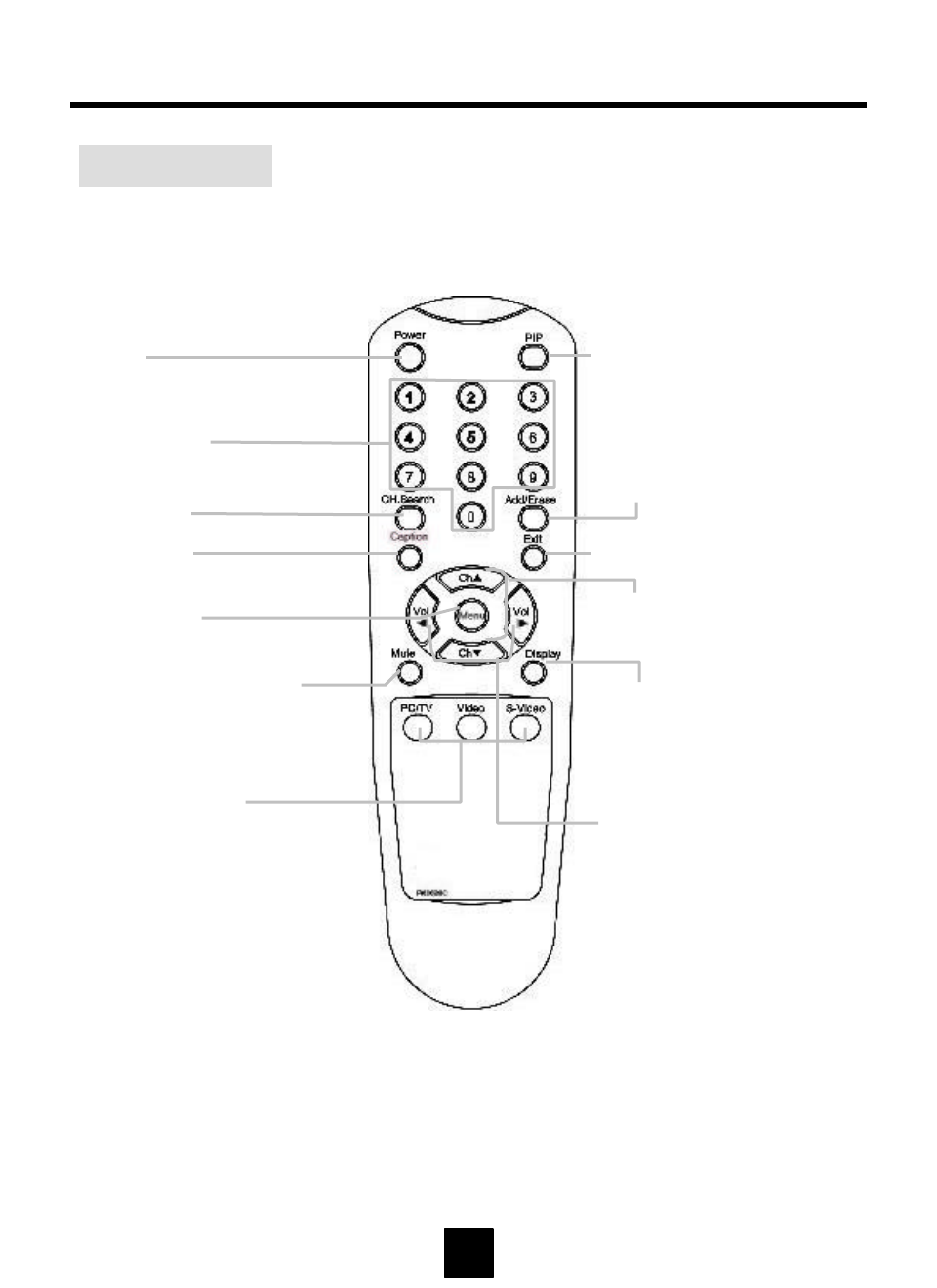

REMOTE CONTROL
Remote Control
Power
Channel Select
Auto Program
Caption
Sound Mute
-Press –Sound off
-Press again –Resume Sound
Signal Source Select
Menu/Selection
Display
Press -Display signal source name.
Press again -Removes displayed
channel number.
Exit -Exit the OSD menu or move
to previous menu.
Ch (
5
)/(
6
)
5
Selects next higher channel.
6Selects next lower channel.
Vol (
3
)/(
4
)
4
Increase volume (up)
3
Decrease volume (down)
Channel Add / Erase
Press –Display Channel Add Menu
Press again -Display Channel Erase Menu
PIP
12

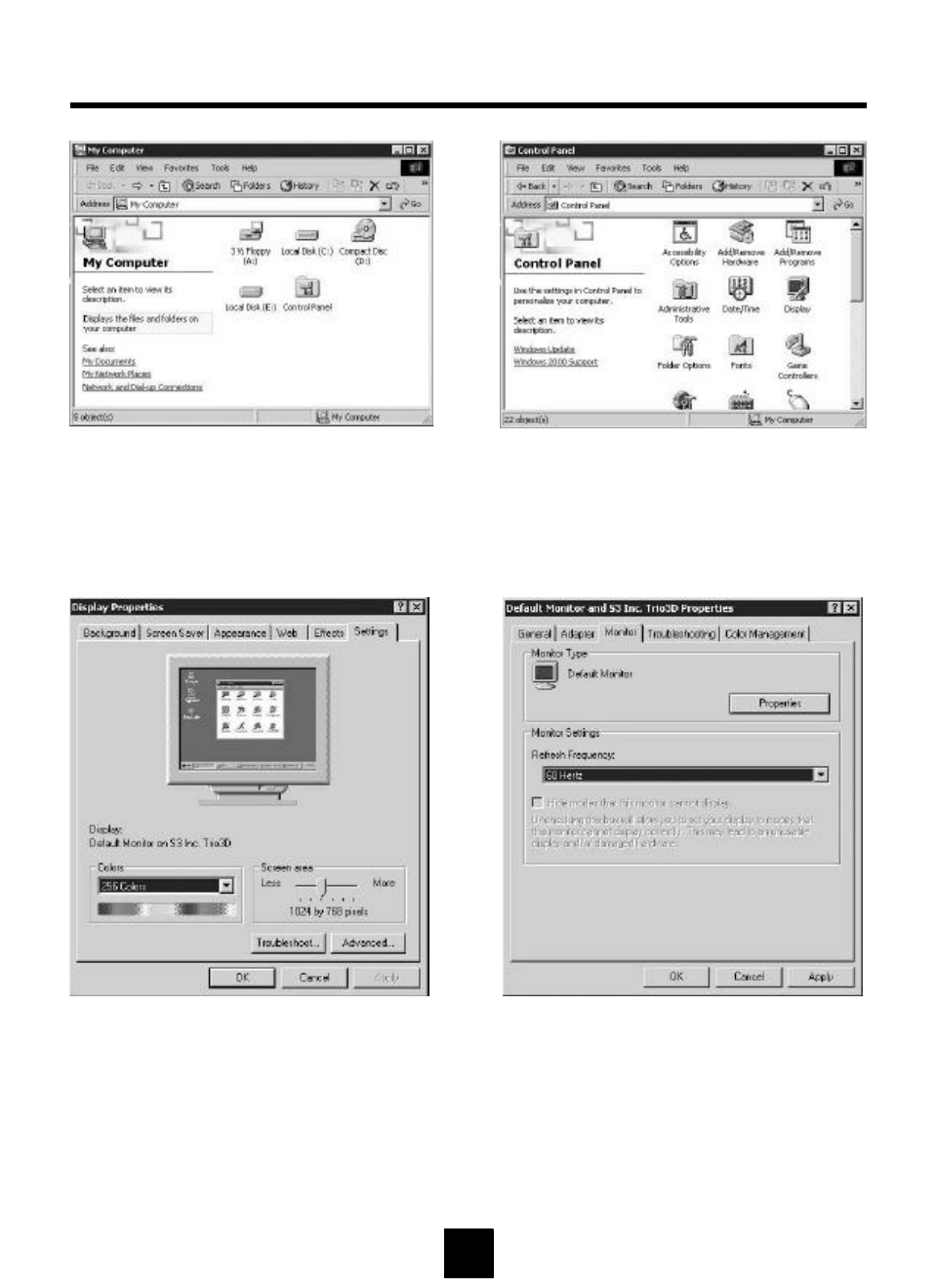

3Select [Settings] in [Display Properties]
window.
4Click [Advanced...].
5Select [Monitor] in the window shown
above.
6Click [Properties].
1Double click [Control Panel ] icon
from [My Computer] folder.
2Double click [Display] icon from
[Control Panel] folder.
MONITOR INSTALLATION
13

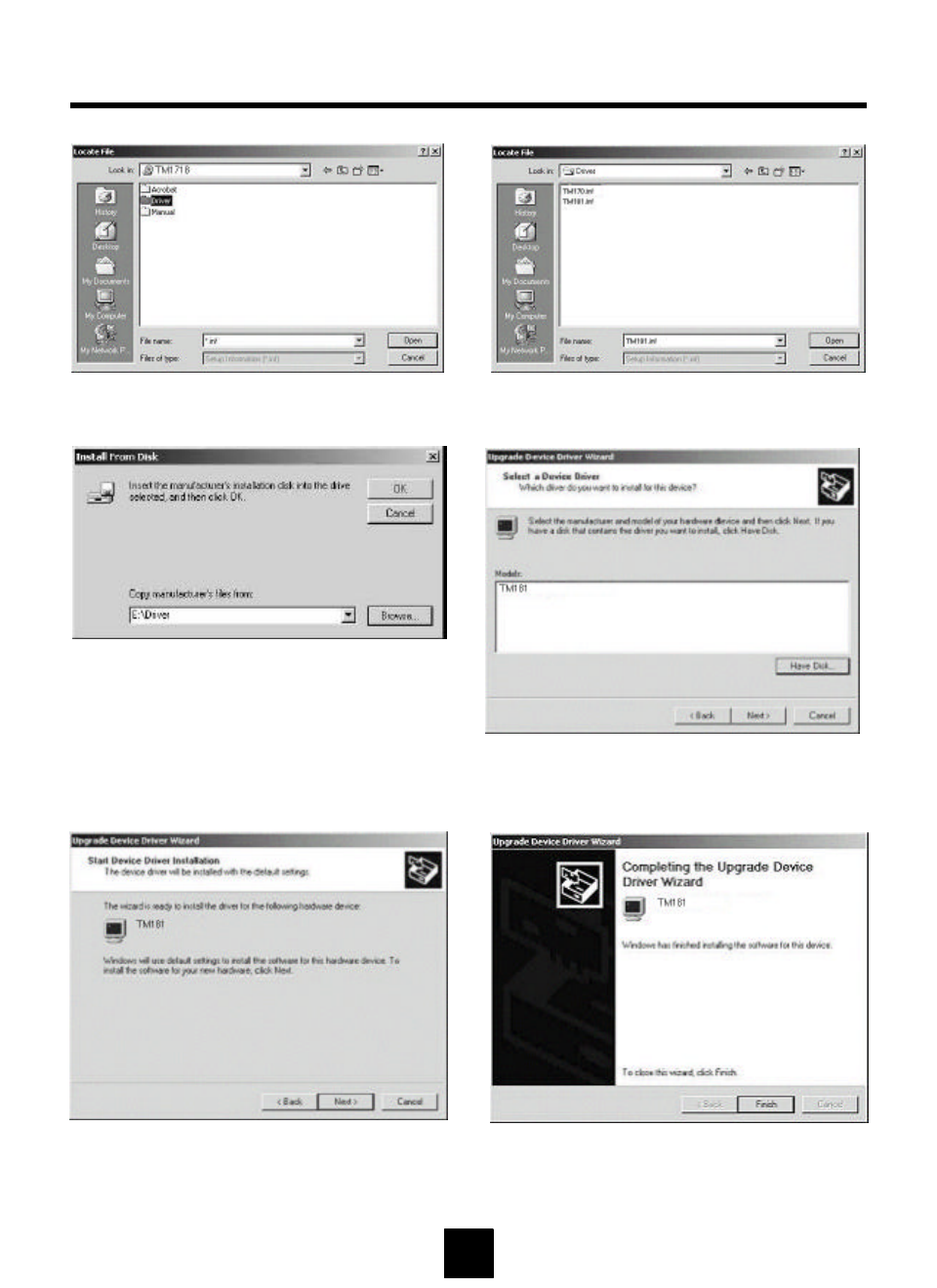

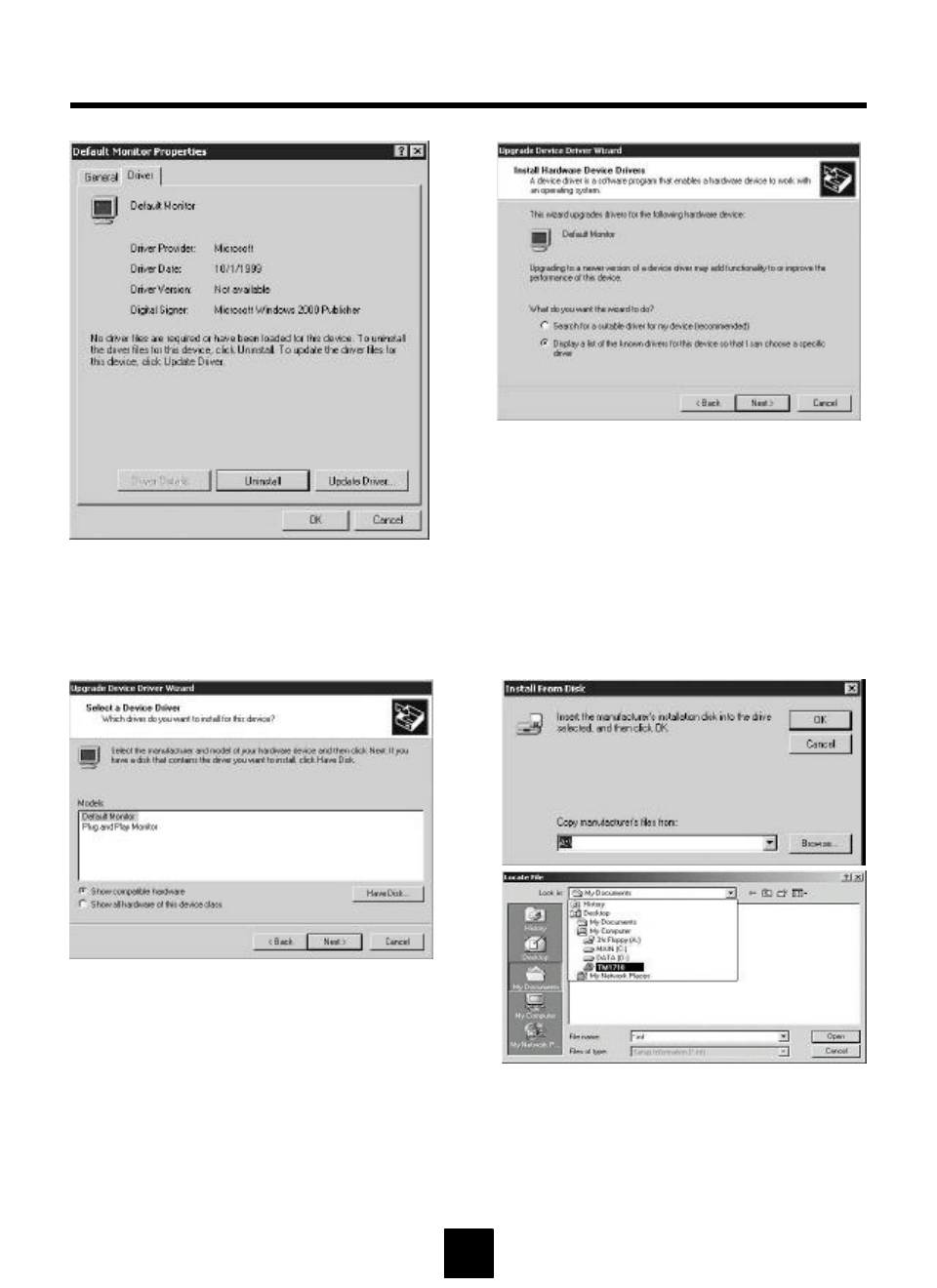

7Select [Driver] and then click [Update
Driver...].
8[Upgrade Device Driver Wizard] will be
appeared. Select the second list and
then click [Next>].
9Click [Have Disk...].10 When drive [A:] appears in default,
click [Browse …]to select CD-ROM drive.
MONITOR INSTALLATION(Continued)
14
13 Click [OK] to proceed to the next step. 14 Choose TM181, then click [Next>] to
proceed to the next step.
11 Double click the [Driver] folder.
MONITOR INSTALLATION(Continued)
12 Choose TM181.inf file then click [Open].
15 Click [Next>] to start installation. 16 Click [Finish].
(Be sure the screen shows correct model name.)
15
Status Infomation
OSD Menu (Press “Menu”button on Control panel or Remote Control)
STATUS INFORMATION
j
Video
k
PC
l
PIP
m
TV
n
Scaling
o
Setup
p
Closed Caption
q
V-Chip
r
Number of horizontal and vertical pixels
s
Horizontal and vertical frequency
j k lm
nopq
r
s
16
Resolution : 1280 x 1024
Frequency : 63.9 KHz 60Hz
5
6
34
Move Menu : Select Exit

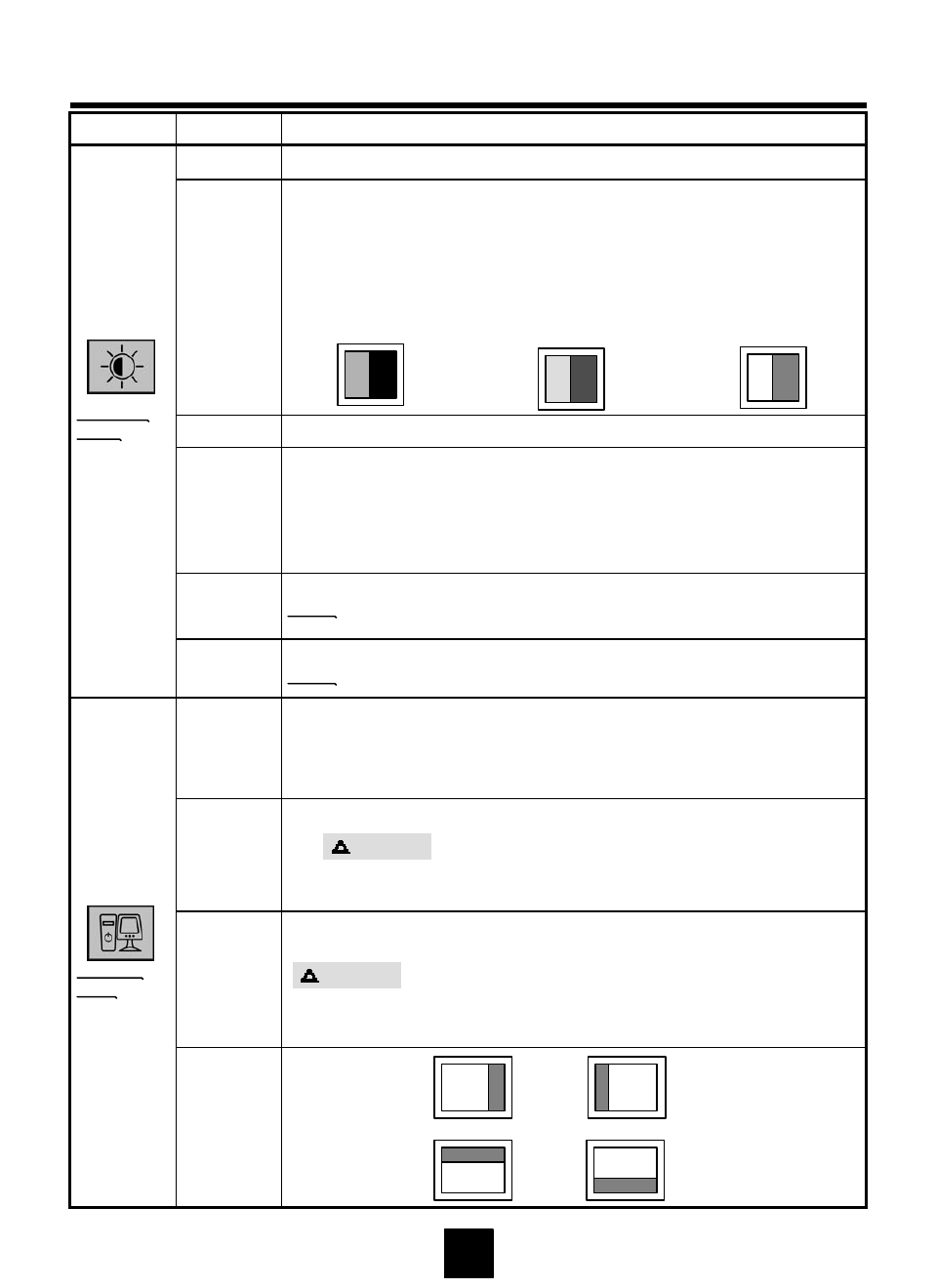

OSD USAGE
gContrast is ratio of luminance between black and white.
gWhen contrast is reduced(
3
button), the luminance of white is
reduced and the display becomes darker.
gWhen contrast is increased(
4
button), the luminance of black is
increased and the display becomes hazy.
3
Button : Decrease Normal
4
Button : Increase
Contrast Contrast
Contrast
3
Button : Toward green
4
Button : Toward purple
Note : Available in Video/TV mode only
Tint
3
Button : Lower color intensity
4
Button : Higher color intensity
Note : Available in Video/TV mode only
Color
gCold : Greenish white. Felt cold.
gNormal : Normal white
gWarm : Reddish white. Felt warm.
gCustom : Able to adjust the color by controlling Red, Green, and Blue
Color
Control
gAdjust the clearness of image by controlling its sharpness.
Sharpness
3
Button : Decrease Brightness
4
Button : Increase BrightnessBrightness
Video
Available
Mode
gPC
gTV
gVideo
gS-Video
OperationSub MenuMain Menu
WBWBWB
g“Auto Adjustment”performs adjustment of image quality automatically.
gAutomatically adjusted items are :
1) Clock 2) Phase 3) Position is centered
4) Turning a zoomed picture into its normal shape (100%)
Auto
Adjustment
PC
Available
Mode
PC
g
3
Button:Decrease horizontal size
4
Button:Increase horizontal size.
Perform this adjustment just in the case of having horizontally
unmatched picture after operating the "Auto".
Frequency
Position
gWhen noise remains on the screen after operating the "Auto Adjust",
adjust it by selecting
3
or
4
button.
Do not make manual adjustment when the picture is in its normal
shape or you will create problem on it..
Phase
deo
Video
Video
Caution
!
3
Button :
Move left
4
Button :
Move right
6
Button :
Move down
5
Button :
Move up
Caution
!
17
Vid

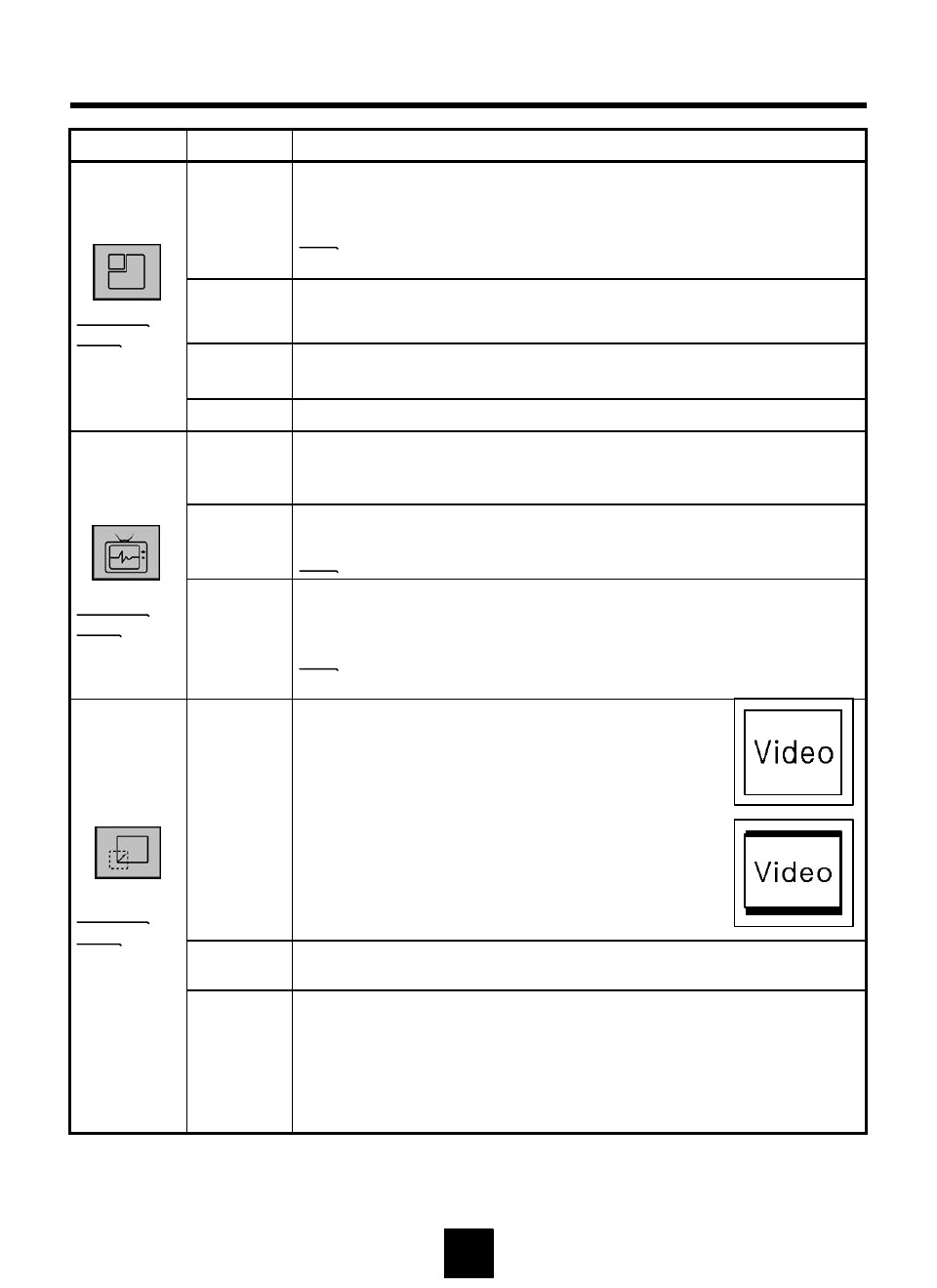

OSD USAGE (Continued)
gNormal
Display in normal format of pixels.
For example, XGA(1024x768 pixels) will be
displayed like the figure.(EN-7500 is SXGA
product with 1280x1024 pixels.)
gAspect Ratio
Display in original aspect ratio of resolution.
For example, XGA(4:3) will be displayed like
the figure.(EN-7500 is SXGA product with
5:4 aspect ratio.)
Scaling
Scaling
Available
Mode
gPC
gTV
gVideo
gS-Video
gAble to zoom the screen by up to 64 times.Zoom
gUse
34
button to adjust the horizontal position of Zoomed
window.
gUse
56
button to adjust the vertical position of Zoomed window
Note: Not possible to move normal screen.Just works in Zoomed
window.
Pan
gPress
3
or
4
button to select a channel system.
ANT / CATV
Channel
System
TV
Available
Mode
gTV
gSelect OK to start auto program.
Note: To stop auto program, press Exit key.
Auto
Prog.
gSelect “Add”to add current channel to channel table, and select
“Erase”to delete current channel from channel table.
Note: Use
34
buttons to select Add or Erase.
Add/Erase button of remote control does the same function.
Add/Erase
gSwap the sound source between PIP and PC.Sound
gMove the PIP window with
3456
buttons.
Keep pressing the button enable the PIP window move continuously.
Position
gSelect a source for PIP display
-Video / S-Video / TV
Source
gSelect On to activate and Off to deactivate the PIP window.
Off / On
Note: The channel(TV mode) and volume of PIP signal source can
be controlled without OSD menu on.
PIP
PIP
Available
Mode
gPC
OperationSub MenuMain Menu
18

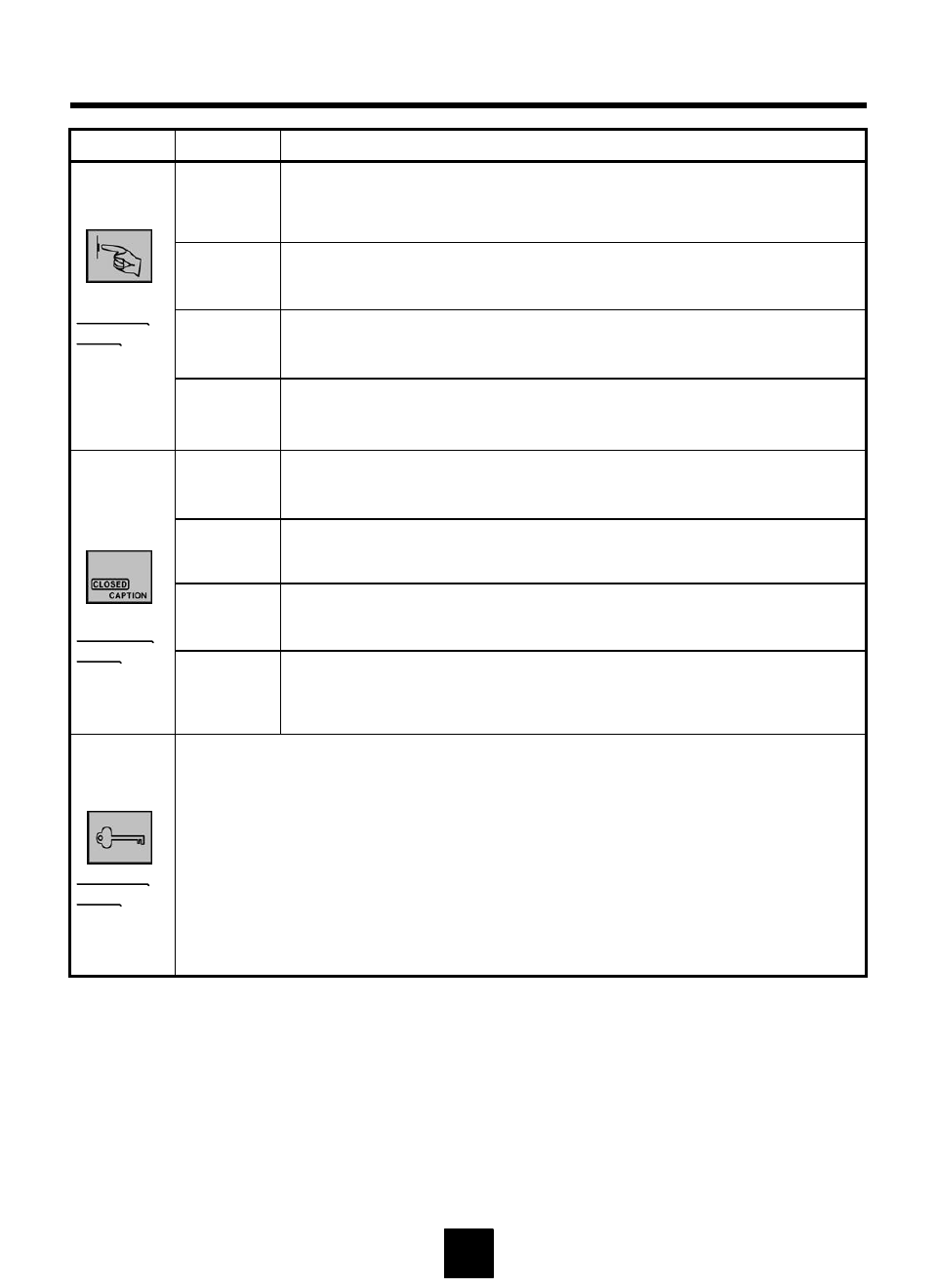

OSD USAGE (Continued)
gSelect “1”or “2”.Field
gSelect “1”or “2”.Channel
gSelect Caption or Text mode.Mode
Refer to the page 27~28 for “V-Chip”
V-Chip
(US Only)
Available
Mode
gTV
gVideo
gS-Video
gThe range of controlling the duration time of the OSD menu is
from 5 sec. up to 50 sec.
Timer
gSelect the language of OSD menu
-English / Français /Espa ñol / Deutsch
Language
Setup
Available
Mode
gPC
gTV
gVideo
gS-Video
gAdjust the OSD position by using
3456
buttons.
Position
gSelect On to off the sound and Off to resume the soundMute
gSelect On to enable caption, and Off to disable caption.Caption
Closed
Caption
(US Only)
Availa ble
Mode
gTV
gVideo
gS-Video
OperationSub MenuMain Menu
19
gBefore calling for repair service, check the following items for possible remedies to the
encountered symptoms.
Problem Check below
There is no
picture or sound
(TV,Video,PC).
•Make sure the AC adapter is properly inserted in the
power outlet.
•Make sure the main power button of the main unit is on.
•Make sure the signal cable is free of connections.
•Make sure whether the power of an external input device
is on.
•Make sure the input mode is set to proper mode.
•Fluorescent lamp may have reached the end of service life.
There is no
sound (TV,Video
PC).
•Make sure the volume is not set to minimum.
•Make sure the sound is not set to mute.
•Make sure the sound cable is free of connections.
There is no
picture or sound,
just noise(TV).
•Make sure the antenna cable is properly connected.
•Bad reception can be considered.
Reference
Pages
9
11
9
-
11
21
Picture is not
clear (TV).
•Make sure the antenna cable is properly connected.
•Bad reception can be considered.
Picture is not
clear (PC).
•Operate the "Auto Adjustment".
•Adjust the Frequency and the Phase.
The picture is not
sharp (TV).
•The reception may be weak.
•The state of broadcast may also be bad.
•Make sure the outside antenna is not connected.
The picture is
doubled or tripled
(TV).
•Make sure the antenna is facing the right direction.
•There may be reflected electric waves from mountains
or buildings.
There are stripes
on the screen or
color fade.
•Check this unit receiving interference from other devices.
Transmission antennas of radio broadcasting stations and
transmission antennas of amateur radios and cellular
phones may also cause interference.
•Use the unit as far apart as possible from devices that may
cause possible interference.
11
12
9
9
-
9
-
17
17
BEFORE CALLING FOR REPAIR SERVICE…
20
DC12VOutput
Input
NTSC / PAL /SECAMColor Signal Type
StereoSound Signal Type
Video
20,000 hoursLamp life
Max 7.5 Kg w/o accessoriesWeight
30~80 KHzH-FrequencyPC Signal
(Analog RGB) 43~75 HzV-Frequency
0.7Vp-pSignal Level
1280 * 1024, SXGAResolution
480(W) x 425(H) x 62(D) mm,
180 (Stand Depth) mm
W*H*D mmSize
Max. 2 Watt x 2 Speaker
Max. 3 WattOff-Mode
Max. 49WattOnPower Consumption
AC100~240V, 50/60Hz
Power Voltage
MonoSound Signal Type
NTSC MChannel System
CVBS / S-VIDEOInput Signal
TV
18.1", 459.7mmDiagonal Length
359.04(H) x 287.23(V) mmActual Display Size
Amorphous Si TFT-LCDTypePanel
H : 160 V : 160 Viewing Angle
350 : 1 Contrast Ratio
250 cd/m2(nit)Brightness
16,777,216 Colors (Full Color)Color
Color TFT-LCD Monitor with TV
SPECIFICATIONS
21
SPECIFICATIONS
22
Available PC VGA Mode
VESA78.750P60.02P75.03
IBM75.000P57.52P72.10
MAC64.000N48.78N60.00
Polarity
Frequency
(KHz)
Polarity
Frequency
(Hz)
SXGA
XGA
SVGA
VGA
DOS
Remark
VESA
VESA
MAC
VESA
VESA
MAC
VESA
VESA
VESA
VESA
VESA
VESA
MAC
VESA
IBM
IBM
Standard
Type
25.175N31.47N70.09640 x 350
28.322N31.47P70.09720 x 400
25.175N31.47N59.94
640 x 480 30.240N35.00N66.67
31.500N37.86N72.81
31.500N37.50N75.00
36.000N/P35.16N/P56.25
800 x 600 40.000P37.88P60.32
50.000P48.08P72.19
49.500P46.88P75.00
57.283N49.73N74.55832 x 624
65.000N48.36N60.00
1024 x 768 75.000N56.48N70.07
80.000N60.24N74.93
108.000P63.98P60.02
1280 x 1024 135.000P79.98P75.03
Horizontal Pixel Rate
(MHz)
Vertical
Resolution
HDTV Input (From Set Top Box)
1920 x 1080
1280 x 720
720 x 480
Resolution
ProgressiveSMPTE 293M27.00031.4759.94480p
Interlace
Progressive
Remark
SMPTE 274M
SMPTE 296M
Standard
Type
74.17644.9659.94720p
74.17633.7229.971080i
Horizontal
Frequency
(KHz)
Pixel Rate
(MHz)
Vertical
Frequency
(Hz)
Mode
FCC & ENERGY STAR STATEMENTS
23
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3.Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE
1. The changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the
emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsibilities of the user to correct such interference.
As an ENERGY STAR Partner, Envision Peripherals, Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
V -Chip (US only)
1. Function of V-Chip
The V -Chip can block certain rated television shows off television (if chosen) so children cannot
watch programs that their parents do not approve. The chip in each television will decode
program-rating information which is transmitted along with the television signal. It will then
compare the rating codes with values preset by the viewer, which is meant to be the parents. If
the rating codes are higher than the preset values, the television signal will be blocked, and a
blank screen will be displayed.
2. Setting V-Chip
EN-7500 has V-Chip feature and you can set it up via OSD.
1. Select V -Chip on OSD, then enter 4 digits of pin number(Initial pin number is “0000”).
If you enter an incorrect pin number “Incorrect”message will be displayed for 3 seconds.
2. Use arrow keys to change or to activate the highlighted function.
3. Setting up TV Guidelines
Use arrow buttons to move around the matrix and press Menu button to change the
value from "U" to "B" or "B" to "U“.
Appendix
FV : Fantasy Violence
V : Violence
S : Sexual Situation
L : Coarse Language
D : Suggestive Dialog
TP-Y : Young Children
TV-Y7: Children 7 and over
TV-G: General Audience
TV-PG: Parent Guidance
TV-14: Viewers 14 and over
TV-MA: Mature Audience
UUUUTV-MA
UUUUTV-14
UUUUUTV-PG
UTV-G
BBTV-Y7
DLSVFV
B
All
TV-Y
24
U : Unblock
B : Block
4. Setting up MPAA rating
Use arrow buttons to move around the matrix and press Menu button to change the value
from "U" to "B" or "B" to "U".
(MPAA : Motion Picture Association of America (movie rating organization))
5. Entering a new pin number
-Use numeric keys to enter a new pin number. Pin number confirm menu appears.
-Again, use numeric keys to enter the pin number you entered at the previous step. If the
two pin numbers do not match, "Incorrect" message will be displayed for 3 seconds.
6. Blocking Screen
-If the incoming signal’s rating is higher than the one specified, the screen will be
blanked and "Excessive rating" message will be appeared.
Appendix
Adult OnlyUX
Not RatedUMR
No Children Under 17 AdmittedUNC-17
Restricted Under 17 RequiresUR
Parents Strongly CautionedUPG-13
Parental Guidance SuggestedUPG
General AudienceUG
25
