NEAT Electronics 1400304 Radio Pendant User Manual SMILE 100x106
NEAT Electronics AB Radio Pendant SMILE 100x106
User manual
Dra
Draft, not for public use Output date: 2015-12-14

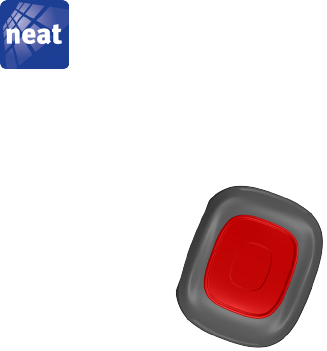

Portable transmitter
User manual
SMILE
NE41 14002-02 v1.0
Dra
Dra
Draft, not for public use Output date: 2015-12-14
Draft, not for public use Output date: 2015-12-14
2 3SMILE User manual NE41 14002-02 v1.0 SMILE User manual NE41 14002-02 v1.0
Intended use 3
General funcons 3
SMILE Parts 4
Handling and operaon 4
Mounng 4
Mounng/unmounng the PIN/necklace 4
Mounng the wristband 4
Mounng the CLIP 5
Mounng the HAPA 5
Important 5
Safety Notes 5
Use 5
Cleaning 6
Disposal 6
Technical Data
Intended use
SMILE is intended for use in homes
and wardens to provide a feeling
of security with the possibility to
dispatch alarms in the event of an
accident.
General funcons
SMILE is a portable trigger which must
be connected to a receiver (e.g. NEO
Homecare Phone, TREX2G Portable
Transceiver, D-TECT and D-SERVER
System) to be able to send alarms.
The alarm is trigged by a light touch
on the red alarm buon and the
alarm is acknowledged by blinking
green.
EU Notes
NEAT Electronics declares that this mobile device, type SMILE, is in compli-
ance with the essenal requirements and other relevant provisions:
Direcve:
1999/5/CE (RTTE), 2004/108/EC (EMC), 2006/95/EC (LVD)
Standards:
EMC:
EN 301 489-1 V1.8.1 (2008)
EN 301 489-3 V1.4.1 (2002)
Radio:
EN 300 220-2 V2.3.1 Category III
Low Voltage:
EN 60950-1:2006+A11:2010
US Notes
FCC ID: 2AGLF1400304
Changes or modicaons not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operaon is subject to
the following two condions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operaon.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protecon against harmful interference
in a residenal installaon. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a
parcular installaon. If this equipment does cause harmful interference to
radio or television recepon, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Ulrik Lundberg
Managing director
Informaon in this User manual is subject to change without noce.
NEAT Electronics AB reserves the right to change or improve their products
and to make changes to the content without obligaon to nofy any person
or organizaon of such changes or improvements.
NEAT Electronics AB is not responsible for any loss of data, income or any
consequenal damage whatsoever caused.
For more informaon, details and descripons, visit our web site:
www. neat-group.com/se/en
© NEAT Electronics AB 2015
All rights reserved.
Document number: NE41 14002-02 v1.0
Revision date: 2015-12-14
NEAT Electronics AB
Varuvägen 2
SE-24642 Löddeköpinge
Sweden
Phone:+46 (0)46 707065
Fax: +46 (0)46 707087
www.neat-group.com/se/en
infosweden@neat-group.com
Contents
Dra
Dra
Draft, not for public use Output date: 2015-12-14
Draft, not for public use Output date: 2015-12-14
45SMILE User manual NE41 14002-02 v1.0 SMILE User manual NE41 14002-02 v1.0
SMILE Parts
④① ② ③
#Denominaon
①SMILE Unit (with red alarm
buon)
②SMILE PIN (with latch and
necklace)
③SMILE CLIP (Oponal)
④SMILE Handicap Adaptor
(Oponal)
SMILE Wristband (not displayed)
SMILE Berlock
The SMILE Unit, Wristband and Pin
are included in a standard SMILE Kit
while the CLIP and HAPA are oponal
accessories.
Handling and operaon
Press the red alarm buon to transmit
an alarm.
Mounng
Mounng/unmounng the PIN/
necklace
②
①
Thread the pin into the holes and press
unl the latch clicks into place.
Release the pin by pressing the latch
① and then pulling it upwards ②.
Mounng the wristband
Thread the wristband through the
holes and aach on arm.
Mounng the CLIP
Fix CLIP on the back of the SMILE,
thread the PIN trough the holes on the
SMILE unl the latch clicks in place.
To detach the CLIP, press the PIN latch
and remove the PIN.
Mounng the HAPA
Gently press the HAPA to the front of
the SMILE.
To detach, use a thin blade (e.g. a
table knife or similar) insert under the
HAPA and gently bend the hooks from
SMILE.
Do not use excessive force or the hooks
may break.
This secon intenonally le blank
Dra
Draft, not for public use Output date: 2015-12-14
Dra
Draft, not for public use Output date: 2015-12-14
6SMILE User manual NE41 14002-02 v1.0
Important
Safety Notes
• Read instrucons prior to use
• Always test the system per instrucons prior to
use and always check the funcon of the product
aer making adjustmentsThis product may not be
suitable for all persons.
• This product should not be a substute for the
roune visual monitoring
protocol by caregiver and must not be used in
situaons where a delay in the arrival of ap-
propriate medical care, could lead to a potenally
life-threatening situaon.
• Our units are NOT intended for any life support
device, thus intending a device whose malfunc-
on may result in damage to a life.
• Check the device regularly and replace when
necessary.
• Do not integrate to other systems other than
those specied in this document.
• The product will not cause electromagnec
disturbances under normal working
condions.
• The product can be placed near other products
or devices as long as mechanical vibraon is not
present.
Use
• Use only original parts.
• Keep away from dust, moist and dirt.
• Do not drop, knock, twist or shake the device.
• Do not warm up the device or use it near re.
• The product may not be painted.
• For repairs, contact a NEAT dealer.
Cleaning
• All parts in the product kit can be cleaned with
a mild soap soluon and a damp cloth. Dry with
a dry cloth.
• Strong chemicals, grease and other harsh
substances must not be used when cleaning or
handling the parts in the product kit.
• Aer cleaning, control that the product works
properly by sending a test alarm to the alarm
receiver/central.
Disposal
At the end of the product’s use life, please dispose
of it at appropriate collecon points provided in
your country. For disposal or recycling informa-
on, please contact your local authories or the
Electronic Industries Alliance (EIA, www.eiae.org). In
the European Union, the bin label indicates that this
product should not be disposed of with household
waste. It should be deposited at an appropriate
facility to enable recovery and recycling or returned
to NEAT Electronics.
Technical Data
Measure 34 x 42 x 15 mm
Weight (incl. baery) 14 g
RF Frequency EU US
869.2 MHz
(Social alarms)
916.2 MHz
Baery life TBD
IP Class TBD
Temperature range +5 - +55 °C
Approvals TBD
