Users manual
MODEL：LO（BTCP）
●Mountin
g
Procedure

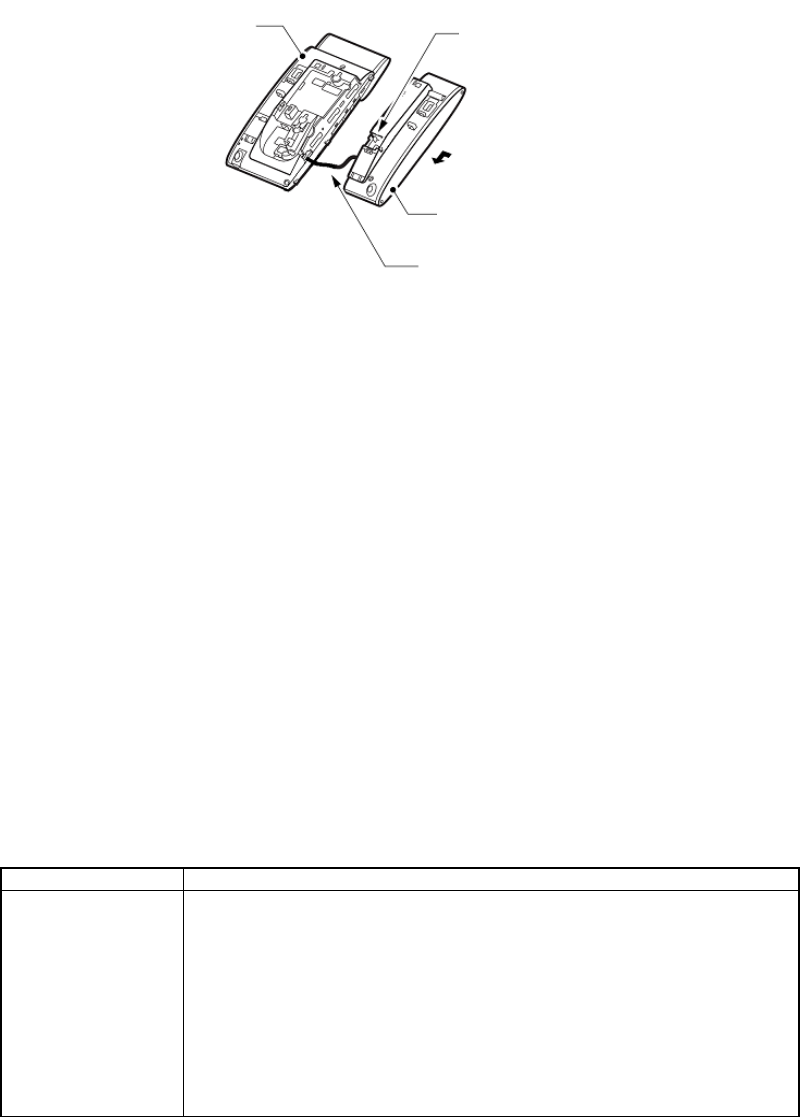

Insert the lug on the Multifunctional telephone unit into the hole in the BT-CRADLE ASSY(LB)BK.
Slide the BT-CRADLE ASSY(LB)BK unit the stopper clicks into position.
Insert the cradle connecting cable of the BT-CRADLE ASSY(LB)BK into the telephone unit connector.
●Usa
g
e
○ How to turn on/turn off the power supply of the BT-CRADLE ASSY(LB).
・ Multifunctional telephone is turned on.
・ The "Pair" button of a multifunctional telephone is pushed (for 2.5 to 7.5 seconds).
Then,the power supply of the BT-CRADLE ASSY(LB) turns on.
If the power supply of the BT-CRADLE ASSY(LB) turns on,
Pair LED will blink in a cycle of 1 second.
・ When the BT-CRADLE ASSY(LB) is the power supply on.－
The "Pair" button is pushed (2.5 seconds or more).
Then, the BT-CRADLE ASSY(LB) turns oｆｆ.
○ PairingMode
・ The BT-CRADLE ASSY(LB) is turned off－ The "Pair" button is pushed (for 2.5 to 7.5 second).
Then, it shifts to PairingMode.
・ If it shift to PairingMode, "Pair" LED will blink in a cycle of 0.2 second.
Item Specification
Destination Multifunctional telephone
Radio interface Bluetooth® version 2.0 +EDR Class1(1 to 2.5mW)
Installed profiles ･HSP : Headset Profile･HFP : Hands Free Profile
Power consumption About 1 W (excluding the telephone)
Power feeding +2.97 to +3.6V（Power feeding from the multifunctional telephone）
Dimensions (L×W × H) 220mm × 60mm × 90mm (excluding projections)
Mass About 1kg
Operating environment Temperature: 0 to 40℃ , Relative humidity: 10 to 90% (no dew condensing)
Restrictions Keep the BT-CRADLE ASSY(LB)BK at least 1m apart from other
BT-CRADLE ASSY(LB)BK UNITs and at least 3m apart from other radio equipment.
※The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
BT-CRADLE ASSY(LB)BK Connecting Manual
Connecting cable
Stopper
BT-CRADLE ASSY(LB)BK
Multifunction
al telephone
a. FCC portion
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
Caution:
Any changes or modifications not expressly approved by the party responsible for product
compliance could void the user's authority to operate the equipment.
Caution: RF Exposure to radio frequency radiation
To comply with FCC RF exposure compliance requirements, a separation distance of at least
20 cm must be maintained between the antenna of this device and all persons. This device
must not be co-located or operating in conjunction with any other antenna or transmitter.
b. Industry Canada Portion
Canada Regulatory Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du
Canada.
For Customers in Canada
This device complies with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Caution: RF Exposure to radio frequency radiation
To comply with IC RF exposure compliance requirements, a separation distance of at least 20
cm must be maintained between the antenna of this device and all persons. This device must
not be co-located or operating in conjunction with any other antenna or transmitter.
