NEOSEN ENERGY NEO-0002 ChargeSpot User Manual 15 NEO 0002 UserMan
NEOSEN ENERGY ChargeSpot 15 NEO 0002 UserMan
15_NEO-0002 UserMan
All#rights#reserved#by#Neosen#Energy#LLC,#2016#
ChargeSpot#-#Quick#Start#Guide##
Review#safety#information#in#manual#before#installation!#
#
Step#1/7#

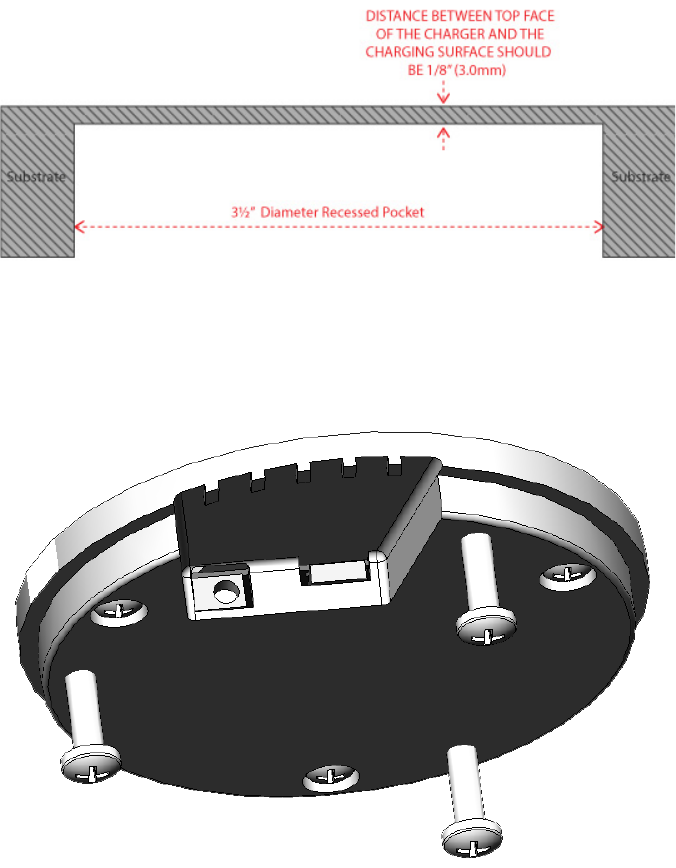

Mill#a#recessed#hole#that#is#3½”#in#diameter#from#the#underside#of#the#substrate#to#
within#1/8”#of#the#surface.#
#
Step#2/7#
Attach#the#three#appropriate#no.8#screws#to#the#bottom#of#the#charger#as#seen.#Ensure#
that#the#screws#are#not#tightly#fastened#to#leave#room#for#depth#adjustment.##
#
All#rights#reserved#by#Neosen#Energy#LLC,#2016#
Step#3/7#
With#the#no.8#screws#attached,#place#the#charger#on#top#of#the#mounting#plate#so#that#
the#screws#are#aligned#with#the#sockets#on#the#mounting#plate.#
#
Step#4/7#

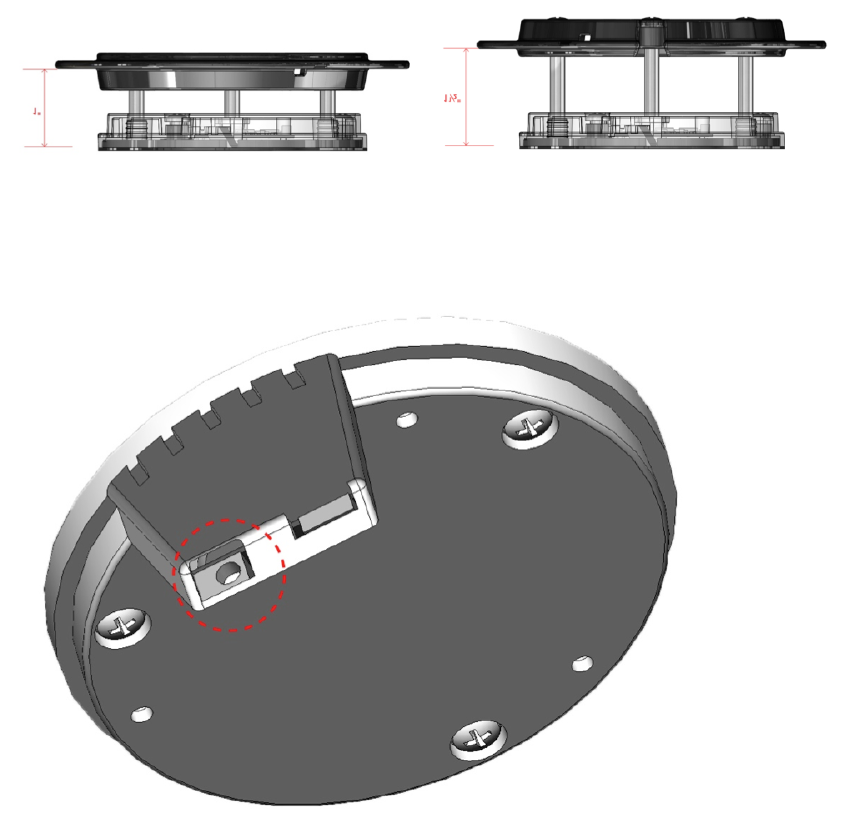

Connect#the#provided#power#supply#to#the#socket#at#the#terminal#point#circled#below.#
#
Step#5/7#
From#the#underside#of#the#substrate,#place#the#charger#with#the#attached#mounting#
plate#into#the#recessed#hole.#If#the#mounting#plate#is#not#flush#against#the#underside,#use#
a#Philips#head#screwdriver#to#loosen#the#no.8#screws#until#flush.#Note#that#the#
transmitter#MUST#sit#flush#against#the#underside#to#operate#properly.##
All#rights#reserved#by#Neosen#Energy#LLC,#2016#
#
Step#6/7#
Secure#the#mounting#plate#to#the#substrate#with#three#no.6#screws#(provided).#Ensure#
that#the#screws#do#not#penetrate#the#substrate#surface.#
#
Step#7/7#

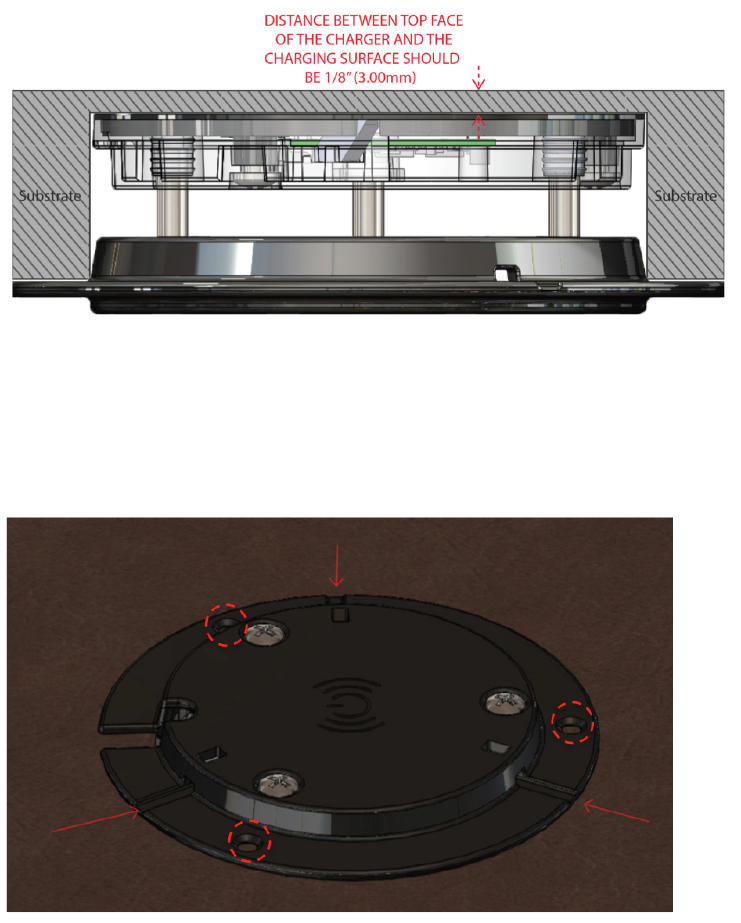

Place#the#decal#directly#on#top#of#where#the#charger#was#installed#to#mark#the#
designated#charging#area.##
Optional#
Zip#ties#can#be#applied#at#three#(3)#points#on#the#mounting#plate#to#tether#excess#cable#
to#the#device#(see#arrows#above).##
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
