NIDEC MOBILITY G8D-365M Tire Pressure Monitor Receiver User Manual 1
OMRON Automotive Electronics Co. Ltd. Tire Pressure Monitor Receiver 1
User Manual
FCC ID:OUCG8D-365M
G8D-365M
Receiver, Tire Pressure Monitoring System
FCC ID:OUCG8D-365M
Table of contents
1. Constitution of the Tire Pressure Monitoring System for vehicle....................... 2
2. User’s manual (provisionally) .......................................................................... 3
3. Block diagram ................................................................................................ 4
4. Specification ................................................................................................... 5
5. Features .......................................................................................................... 6
6. PCB
6.1 Circuit diagram ........................................................................................... 7
6.2 Parts layout (front)...................................................................................... 8
6.3 Pattern layout (front).................................................................................... 9
6.4 Parts layout (back).................................................................................... 10
6.4 Pattern layout (back).................................................................................... 11
6.5 Parts list ...................................................................................................... 12
7. Connector ..................................................…................................................. 16
8. Photographs .................................................................................................... 17
- 1 -
FCC ID:OUCG8D-365M
1. Constitution of the Tire Pressure Monitoring System
for vehicle
Tire Pressure Monitoring System is the system that receives the information, from transmitters installed at
each tire, about the inflation pressure or temperature of tires detected by the sensor, so that the system can
detect the abnormality of tires like fallen inflation pressure. This system consists of transmitter, receiving
antenna, and receiver. The transmitter sends information of tire, read by the sensor, in the form of radio
wave at constant intervals. The receiver is fixed inside the vehicle. If IG is OFF, it works intermittently to
prevent the battery exhaustion. When the receiver detects the synchronous code and IG is ON, it runs
continuously to receive the signals completely. If the received code is normal, the system will not inform
the user. As shown below, in the case that the transmitter sends information that the tire is in abnormal
condition, and that the receiver system has a trouble, the system will inform the user with lighting up
Warning bulb.
TPMS Warning bulb is lit by the following situations.
Bulb disconnection detection output（The warning light is On for 3 sec. when IG=OFF→ON）
Tire air pressure warning output (Warning light is ON)
System warning output (Warning light is blinking)
Pressure sensor 1
CPU
Receiving circuit
CPU
EEPROM
Transmission circui
t
Receiver
Transmitter 1 Antenna
Transmitter SP
Transmitter 2
Transmitter 3
Transmitter 4
Tire
Bulb

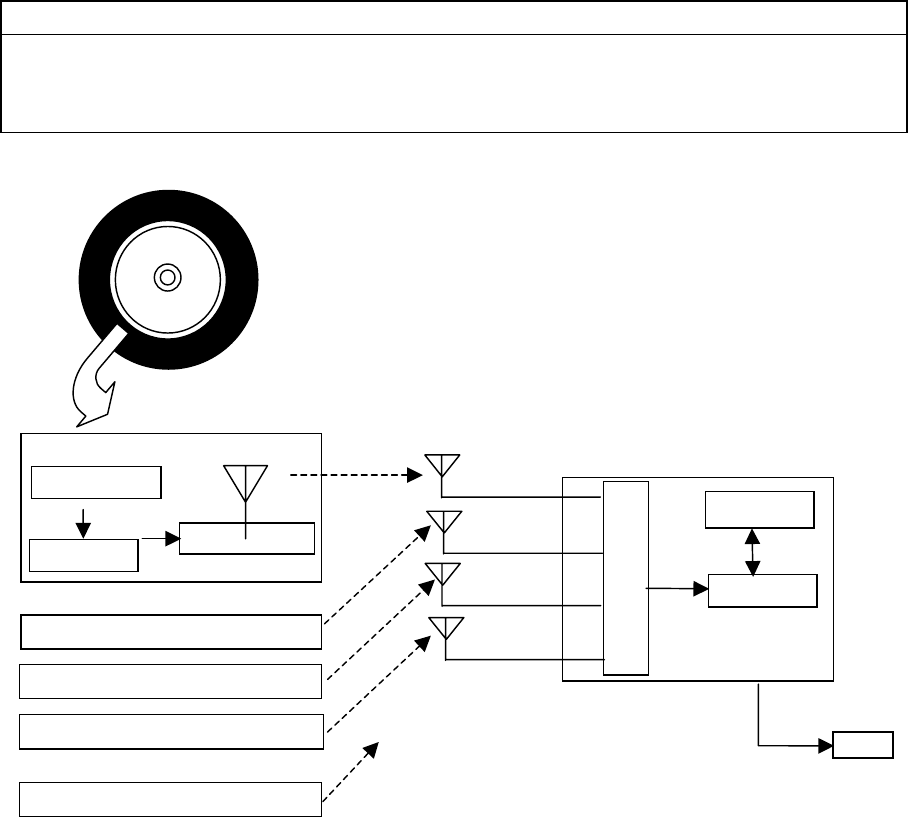

Figure 2-1 System Architecture
- 2 -
FCC ID:OUCG8D-365M
2. User’s manual (provisionally)

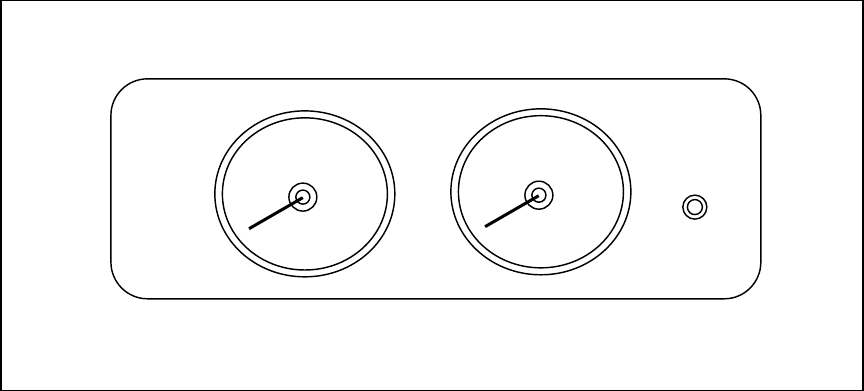

ＭＥＴＥＲ ＰＡＮＥＬ
Warning
light
Tire inflation pressure warning light
This light illuminates if the inflation pressure of any tire (except for compact spare tire) drops while the
ignition key is in the “ON” position. It normally illuminates when the ignition key is turned to the “ON”
position and goes off a few seconds later.
If the warning light illuminates while driving
Avoiding hard braking, hard steering, and high speeds, drive to the nearest gas station or authorize car dealer
and adjust the tire inflation pressures.(except for compact spare tire)
If the warning light blinking while driving
It is thought abnormality of the device, go to the check to the nearest car dealer as soon as possible.
Whenever the tires and wheels are replaced with new ones
Tire inflation pressure sensors must be fitted on the new wheels and their ID codes must be programmed into
the system. Have tire and wheel replacement performed by an authorized car dealer to avoid the risk of
damaging the tire inflation pressure sensors.
ＣＡＵＴＩＯＮ
・ If the tire inflation pressure warning-light does not illuminate when the ignition key is turned to the “ON”
position the system may be faulty.
・ If the tire inflation pressure warning light illuminates while you are driving, avoid hard braking, hard
steering, and high speeds. Otherwise, you could make the vehicle unstable and have a serious accident.
・ The tire inflation pressure warning light may not illuminate immediately in the event of a tire blowout or
rapid leak..
- 3 -
FCC ID:OUCG8D-365M
3. Block diagram
This is the block diagram concerning to the receiver.
16BIT
CPU
RECEIVING
MODULE
EEPROM
POWER
SOURCE
(
5V
)
data
OUTPUT
CIRCUIT
Signal of vehicle status
input
output
12V (car battery)
IG1
bu
l
b

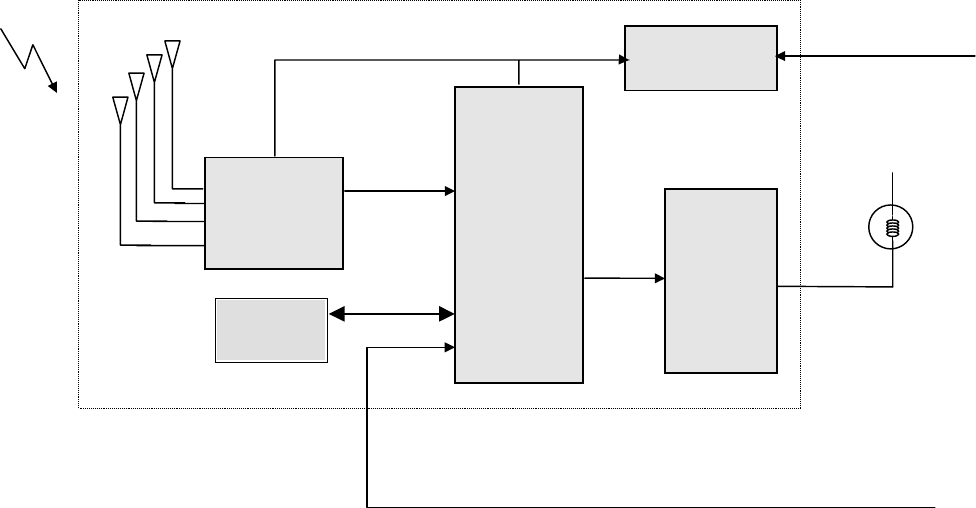

Figure 3.1 block diagram of the receiver
- 4 -
FCC ID:OUCG8D-365M
4. Specification
4.1 CPU
Type M30102(16bit)
Manufacturer: MITSUBISHI
ROM 24K bytes
RAM 1Kytes
Clock frequency 8.00MHz
Clock frequency generation Crystal oscillator
Package 48pin QFP
4.2 RF block
Local clock frequency 325.7MHz
Frequency generation Crystal resonator
Modulation Single Superheterodyne
Bandwidth ±200KHz
Sensitivity 30dBuV
4.3 Others
Dimension 83mm×64mm×31mm
Weight 120g
Battery Car Battery (DC 12V)
Operation Voltage DC 12V, 20mA
Operation temperature -30℃ ~ +80℃
- 5 -
FCC ID:OUCG8D-365M
5. Features
Battery saving
The receiver works intermittently to reduce the battery consumption. The microcomupter embedded
on the receiver controlls the power supply for the RF circuit. In case of the microcomputer detects the
wake-up signal during the power supplied, the microcomputer continue supplying the power until the data
frame will be received.
- 6 -
FCC ID:OUCG8D-365M
6. PCB
6.1 Circuit diagram
Figure 6.1 Circuit diagrams
- 7 -
FCC ID:OUCG8D-365M
6.2 Parts layout (front)

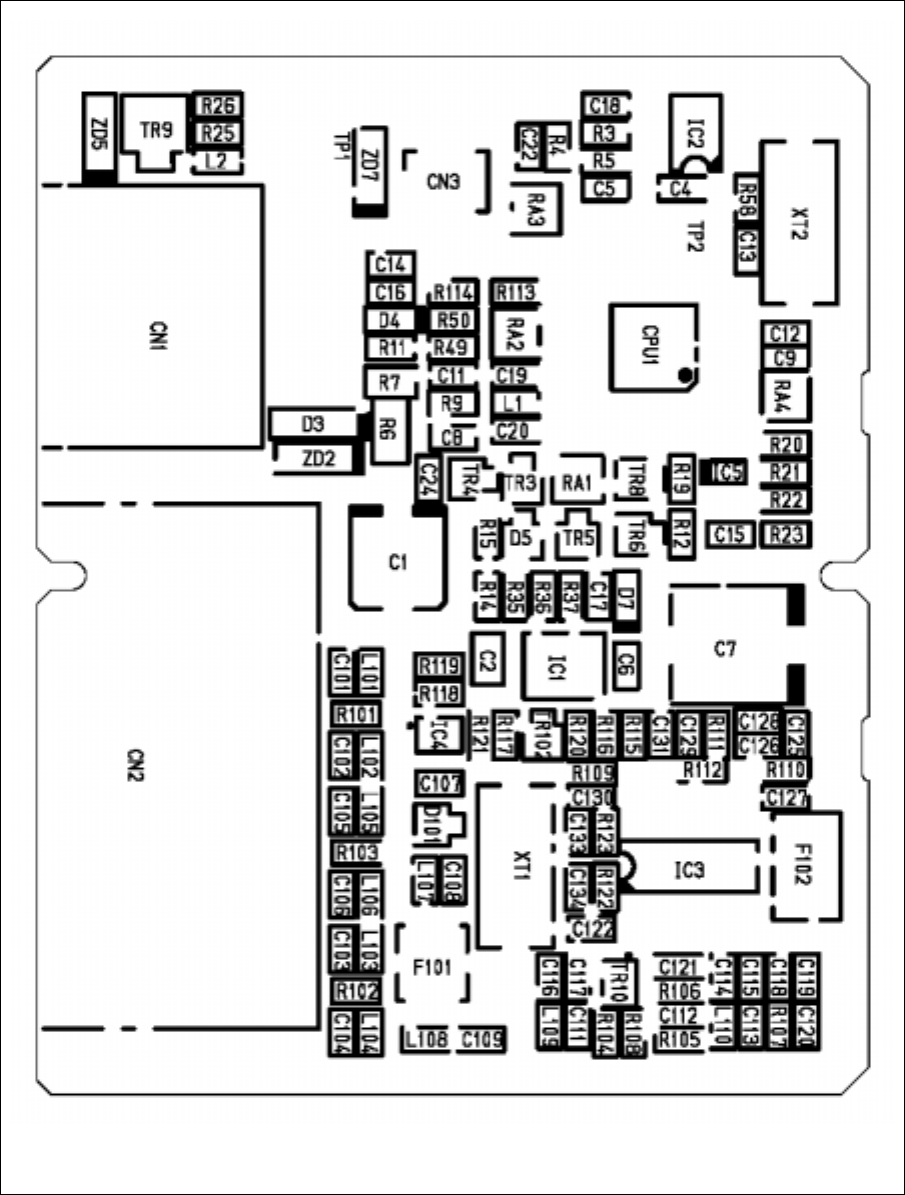

Figure 6.2 Parts layout (front)
- 8 -
FCC ID:OUCG8D-365M
6.3 Pattern layout (front)
Figure 6.3 Pattern layout (front)
- 9 -
FCC ID:OUCG8D-365M

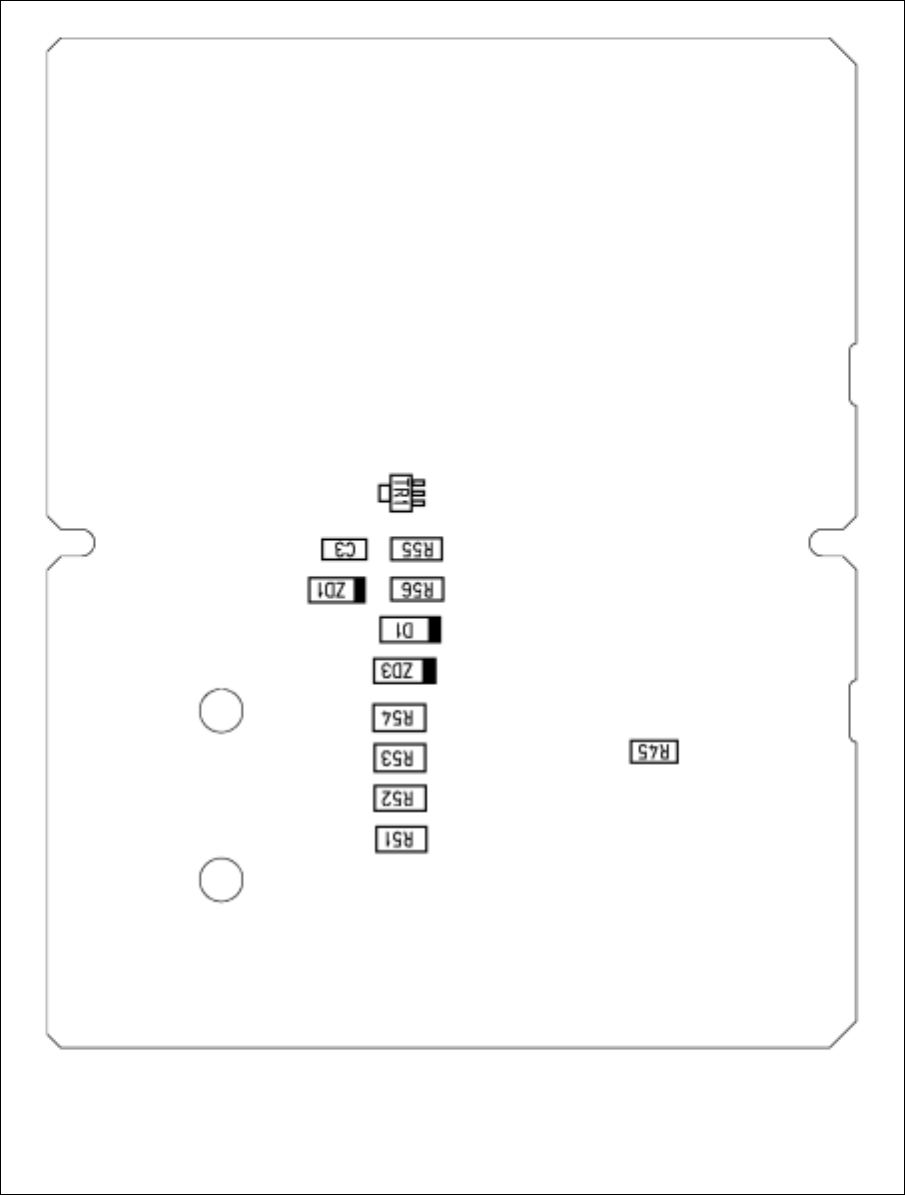

6.4 Parts layout (back)
- 10 -
FCC ID:OUCG8D-365M
6.5 Pattern layout (back)
Figure 6.4 pattern layout (back)
- 11 -
FCC ID:OUCG8D-365M
6.6 Parts List
№ PART NAME MANUFACTURE QTY TYPE SPECIFICATION REMARKS
1 CPU Mitsubishi 1 M30102F3TFP CPU1
2 Regulator IC SEIKO Ins 1 S-875039BUP-ABD-T2 IC1
3 EEPROM IC SEIKO Ins 1 S-93C66AMFN-TB 4K IC5
4 OP-AMP TOSHIBA 1 TC75S55FU-TE85L IC4
5 Reception IC Infinion
technologies 1 TDA5211GEG IC3
6 Reset IC Mitsumi 1 MM1185AFFE IC2
7 Resistor array KOA 4 CN1J4TTD473J 47k RA1,RA2,RA3,RA4
8 Chip resistor * 5 RK16CAY100J-T1 100 R106,R101,R102,
R103,R105
9 Chip resistor * 6 RK16CAY100KJ-T1 100k R104,R110,R115,
R117,R122,R123
10 Chip resistor * 2 RK16CAY10KJ-T1 10k R12,R25
11 Chip resistor * 1 RK16CAY160KJ-T1 160k R14
12 Chip resistor * 4 RK16CAY1KJ-T1 1k R108,R109,R113,
R114
13 Chip resistor * 1 RK16CAY1MJ-T1 1M R121
14 Chip resistor * 1 RK16CAY15KJ-T1 15k R15
15 Chip resistor * 2 RK16CAY22KJ-T1 22k R4,R26
16 Chip resistor Matsushita 1 ERJ3EKF3303V 330k R118
17 Chip resistor * 1 RK16CAY39KJ-T1 39k R111
18 Chip resistor * 1 RK16CAY4.7KJ-T1 4.7k R9
19 Chip resistor * 2 RK16CAY470KJ-T1 470k R35,R120
20 Chip resistor * 11 RK16CAY47KJ-T1 47k R3,R5,R11,R19,R20,
R21,R22,R23,R37,
R49,R58
21 Chip resistor * 2 RK16CAY5.1KJ-T1 5.1k R45,R107
22 Chip resistor * 1 RK16CAY5.6KJ-T1 5.6k R50
23 Chip resistor * 1 RK16CAY560KJ-T1 560k R112
- 12 -
FCC ID:OUCG8D-365M
№ PART NAME MANUFACTURE QTY TYPE SPECIFICATION REMARKS
24 Chip resistor * 1 RK16CAY75KJ-T1 75k R36
25 Chip resistor * 1 RK16CAY820KJ-T1 820k R116
26 Chip resistor * 1 RK32CAY1.5KJ-T1 1.5k R6
27 Chip resistor * 2 RK32CAY22KJ-T1 22k R55,R56
28 Chip resistor * 4 RK32CAY390J-T1 390 R51,R52,R53,R54
29 Multi-layer ceramic
capacitor
Murata 1 GRK39CH101J50PT 100p C14
30 Multi-layer ceramic
capacitor
Murata 1 GRK39CH221J50PT 220p C126
31 Multi-layer ceramic
capacitor
Murata 2 GRK39CH270J50PT 27p C133,C134
32 Multi-layer ceramic
capacitor
Murata 4 GRK39R103K50PT 0.01u C112,118,119,C121
33 Multi-layer ceramic
capacitor
Murata 2 GRK39CH471J50PT 470p C18,C128
34 Multi-layer ceramic
capacitor
Murata 4 GRK39CH040C50PT 4p
C101,C102,C103,
C104,
35 Multi-layer ceramic
capacitor
Murata 4 GRK39CH080D50PT 8p
C105,C106,C107,
C108
36 Multi-layer ceramic
capacitor
Murata 2 GRK39CH220J50PT 22p C12,C13
37 Multi-layer ceramic
capacitor
Murata 9 GRK39R102K50PT 1000p
C6,C15,C17,C22,C24
C116,C117,C120,
C130
38 Multi-layer ceramic
capacitor
Murata 2 GRK40R104K50PT 0.1u C2,C3
39 Multi-layer ceramic
capacitor
Murata 8 GRK39R104K16PT 0.1u
C4,C5,C8,C9,C19,
C20,C122,C127
40 Multi-layer ceramic
capacitor
Murata 1 GRK39R223K50PT 0.022u C11
41 Multi-layer ceramic
capacitor
Murata 2 GRK39R473K25PT 0.047u C129,C131
42 Multi-layer ceramic
capacitor
Murata 1 GRK39R683K16PT 0.068u C16
43 Multi-layer ceramic
capacitor
Murata 1 GRK39R472K50PT 4700p C125
44 Electrolytic capacitor Nihon Chemikon 1 MVA35VC100MF80 100U C1
45 Electrolytic capacitor Nihon Chemikon 1 MVA16VC470MH10 470U C7
46 Diode Rohm 2 1SS355TE-17 D4,D7
47 Diode Shindengen 1 D1F60-4063 D1
- 13 -
FCC ID:OUCG8D-365M
№ PART NAME MANUFACTURE QTY TYPE SPECIFICATION REMARKS
48 Diode Rohm 1 DAN202UT106 D5
49 Diode Shindengen 1 M1F60-4063 D3
50 Transistor Sanyo 1 2SC3651-TD TR1
51 Transistor Rohm 1 2SD1834T100 TR9
52 Digital transistor Rohm 2 DTA114EUAT106 TR3,TR5
53 Digital transistor Rohm 1 DTA114YUAT106 TR8
54 Digital transistor Rohm 2 DTC114EUAT106 TR6,TR102
55 Digital transistor Rohm 1 DTC123EUAT106 TR4
56 Transistor NEC 1 uPA801T-T1 TR101
57 Zener diode ONSEMICONDUC
TOR 2 MMSZ4689-T1 ZD2,ZD7
58 Zener diode ONSEMICONDUC
TOR 1 MMSZ4704-T1 ZD1
59 Zener diode ONSEMICONDUC
TOR 2 MMSZ5252B-T1 ZD3,ZD5
60 SAW filter Seiko Epson 1 FF-585 315MHZ F101
61 Ceramic filter Murata 1 SFECV10M7DF00-R0 F102
62 Inductor Murata 2 LQP11A33NG00 33n L107,L108
63 Inductor Murata 7 LQP11A68NG00 68n L101,L102.L103,
L104,L105,L106,
L110
64 Ferrite beads Murata 1 BLM11A102SPT L1
65 Crystal oscillator Japan Radio 1 AT-51CD2 (8.00MHZ) XT2
66 Crystal oscillator Japan Radio 1 AT-51CD2 (10.176MHZ) XT1
67 Connector Yazaki 1 7382-5668 CN1
68 Connector Hirose 1 GT13-1/1/1/1P-DS 4p CN2
69 Connector Molex 1 53307-1091 10p CN3
70 Tapping screw 2 SWCH MFSN-PB M3×6 Screw for CN1
71 PWB 1 CEM3
- 14 -
FCC ID:OUCG8D-365M
№ PART NAME MANUFACTURE QTY TYPE SPECIFICATION REMARKS
72 Label 1
73 Case 1
74 Cover 1
75 Bracket 1 SECC
76 ELEP coat
77 Chip resistor * 1 RK16CAY00-T1 0 C109
78 Multi-layer ceramic
capacitor
Murata 1 GRK39CH060D50 6p C111
79 Multi-layer ceramic
capacitor
Murata 1 GRK39CJ030C50 3p C114
80 Chip resistor Matsushita 1 ERJ6GEYJ473V 47k R7
81 Chip resistor Matsushita 1 ERJ3EKF1603V 160k R119
- 15 -
FCC ID:OUCG8D-365M
7. Connector
This is the pin assignment of the connector.
No. I/O Assignment Memorandum
１ INPUT Battery 12V
２ INPUT TEST MODE Active High
３ INPUT Velocity Signal
４ (not used)
５ IN／OUT K-line Communication Line
６ INPUT Ignition switch Active High
７ (not used)
８ (not used)
９ OUTPUT Indicator Active Low
10 Ground GND
- 16 -
FCC ID:OUCG8D-365M
8. Photographs
Figure 8.1 appearance (front view)
Figure 8.2 appearance (back view)
- 17 -
FCC ID:OUCG8D-365M
Figure 8.3 PCB assy (front view)

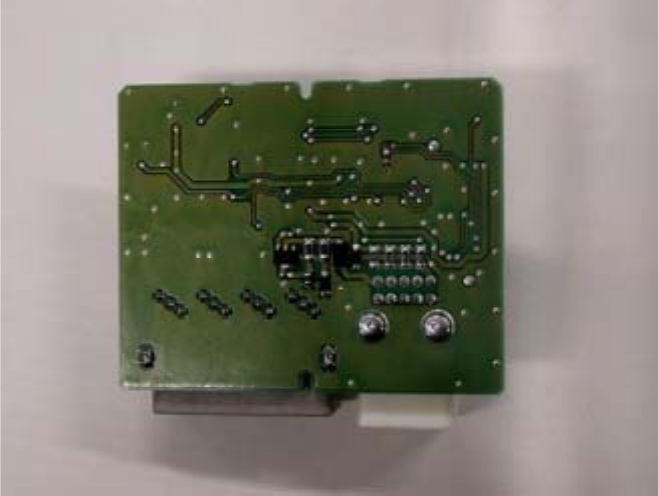

Figure 8.4 PCB assy (back view)
- 18 -
1. For USA
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
2. For Canada
This device complies with Industry Canada Standard RSS-210.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device
The term “IC:” before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
