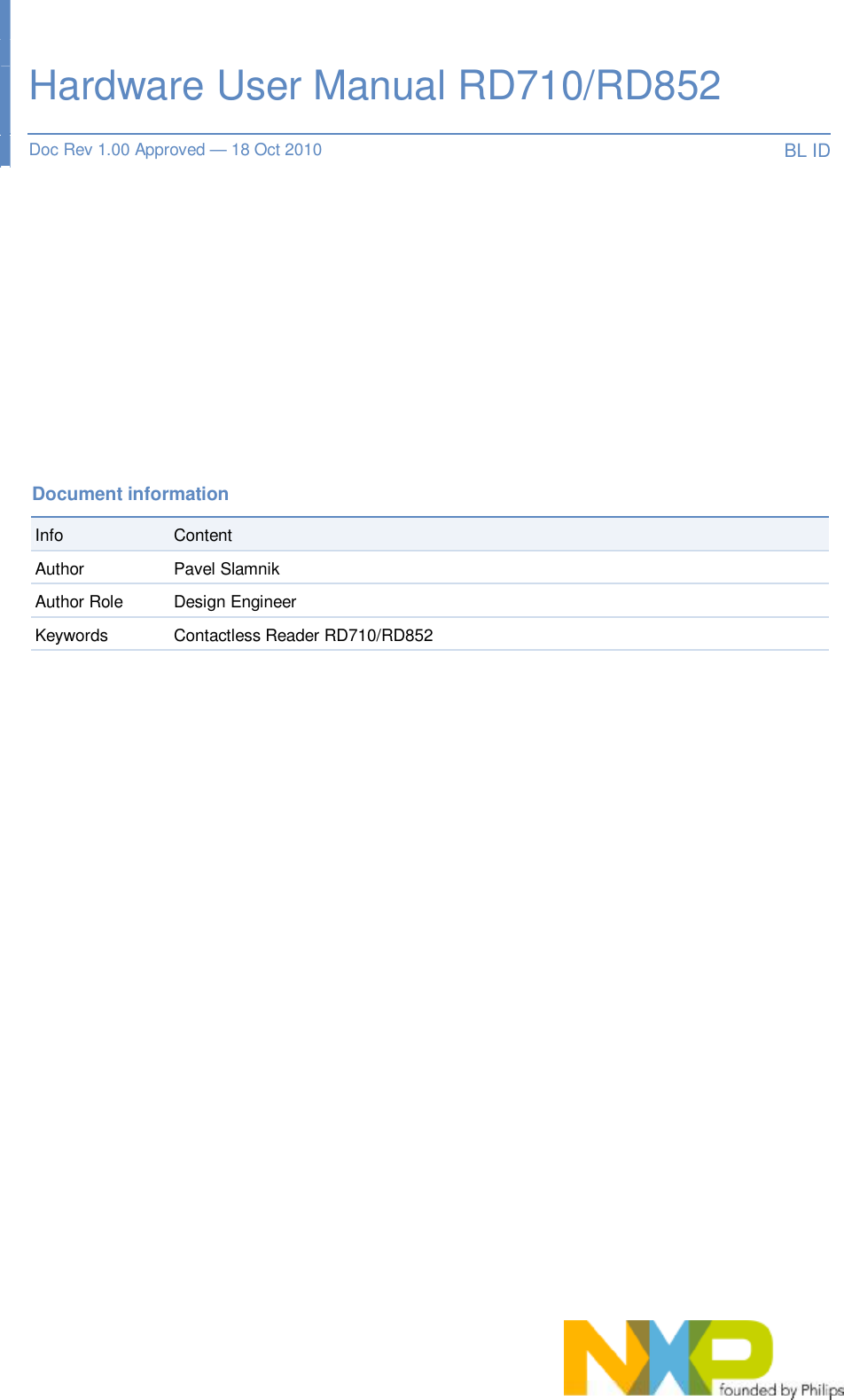

Document information Info Content Author Pavel Slamnik Author Role Design Engineer Keywords Contactless Reader RD710/RD852 Hardware User Manual RD710/RD852 Doc Rev 1.00 Approved — 18 Oct 2010 BL ID

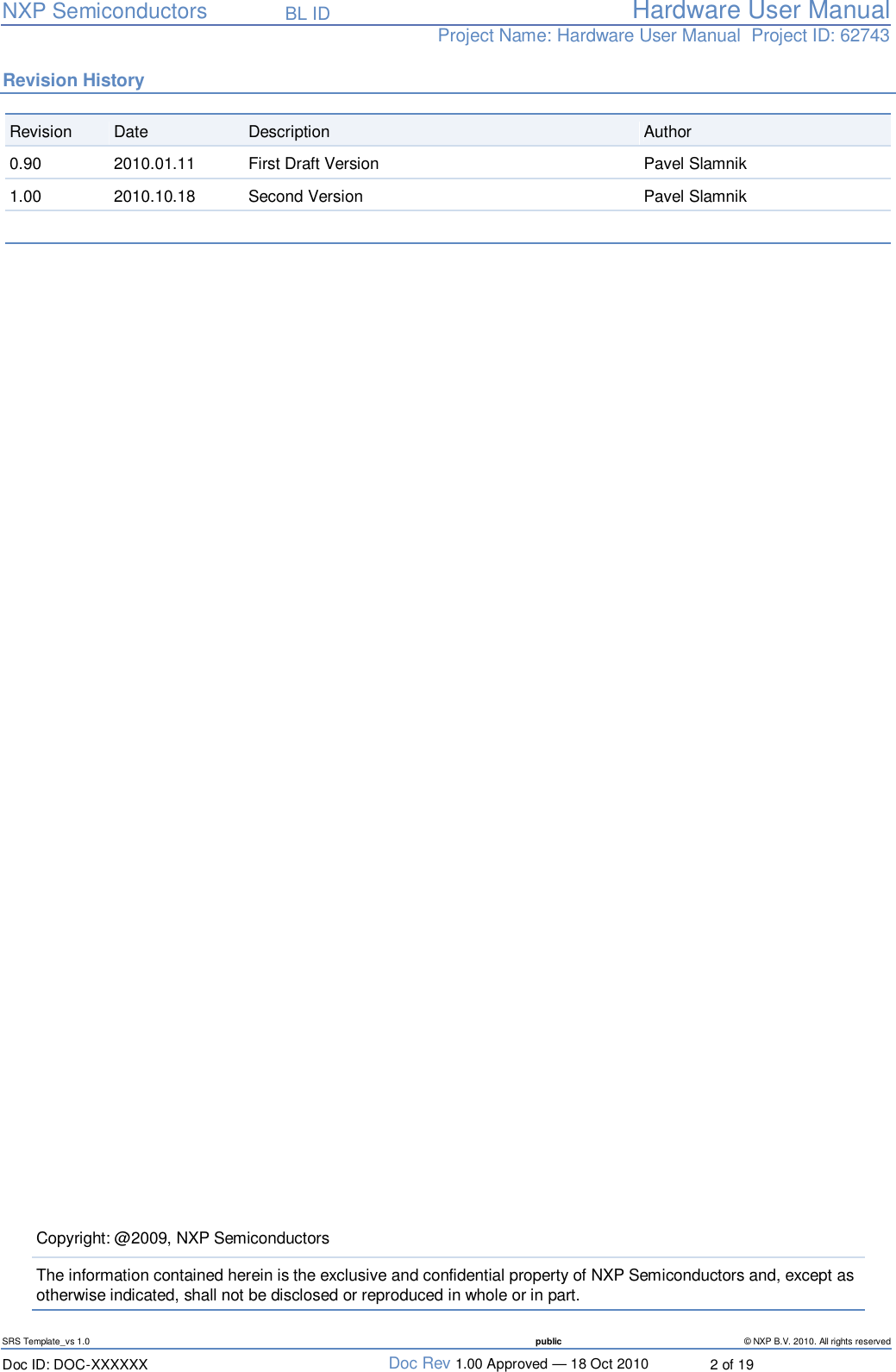

NXP Semiconductors BL ID Hardware User ManualProject Name: Hardware User Manual Project ID: 62743 SRS Template_vs 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 2 of 19 Copyright: @2009, NXP Semiconductors The information contained herein is the exclusive and confidential property of NXP Semiconductors and, except as otherwise indicated, shall not be disclosed or reproduced in whole or in part. Revision HistoryRevision Date Description Author 0.90 2010.01.11 First Draft Version Pavel Slamnik 1.00 2010.10.18 Second Version Pavel Slamnik

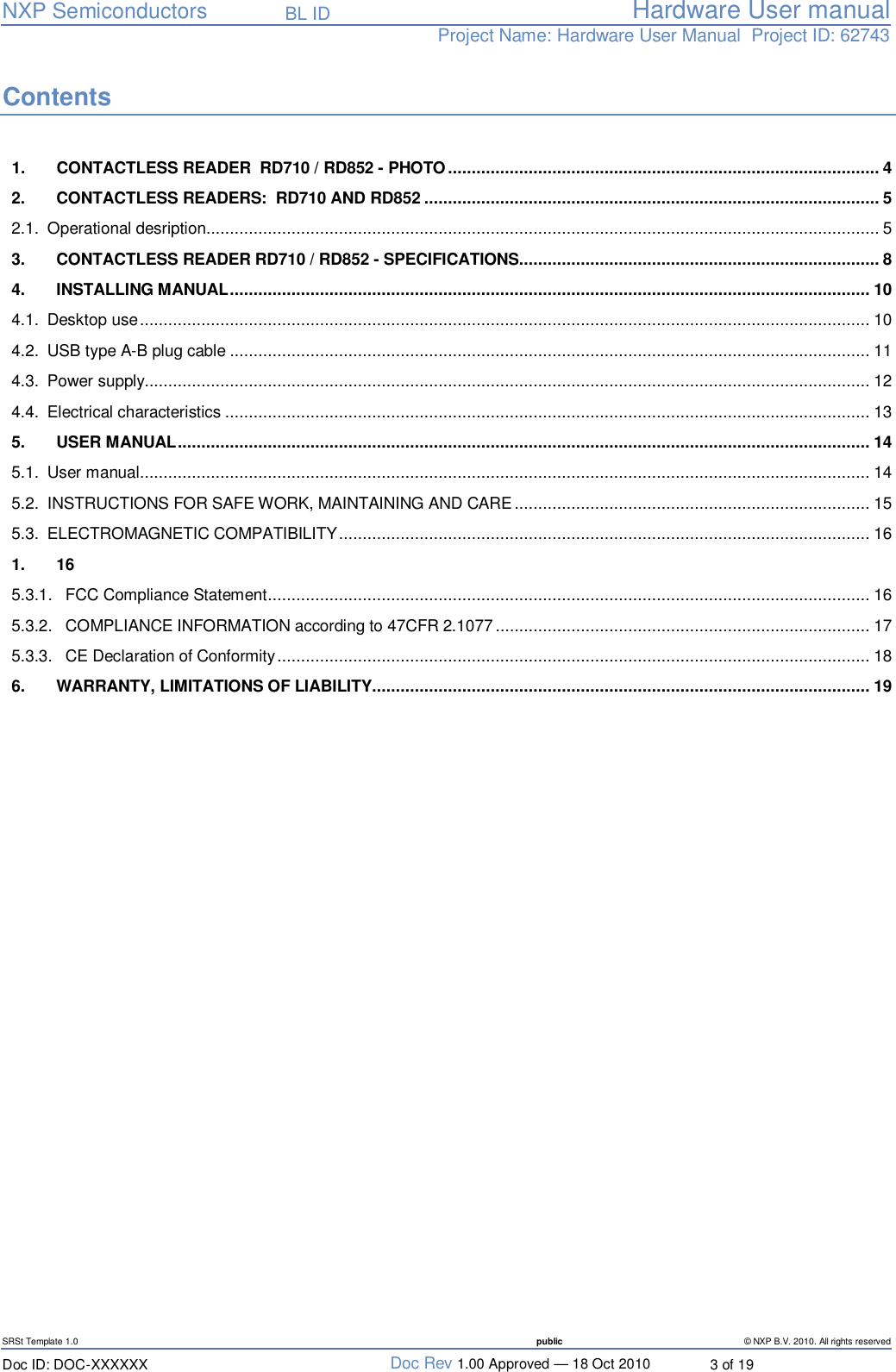

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 SRSt Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 3 of 19 Contents 1. CONTACTLESS READER RD710 / RD852 - PHOTO...........................................................................................4 2. CONTACTLESS READERS: RD710 AND RD852................................................................................................5 2.1. Operational desription..............................................................................................................................................5 3. CONTACTLESS READER RD710 / RD852 - SPECIFICATIONS............................................................................8 4. INSTALLING MANUAL.......................................................................................................................................10 4.1. Desktop use..........................................................................................................................................................10 4.2. USB type A-B plug cable.......................................................................................................................................11 4.3. Power supply.........................................................................................................................................................12 4.4. Electrical characteristics........................................................................................................................................13 5. USER MANUAL..................................................................................................................................................14 5.1. User manual..........................................................................................................................................................14 5.2. INSTRUCTIONS FOR SAFE WORK, MAINTAINING AND CARE...........................................................................15 5.3. ELECTROMAGNETIC COMPATIBILITY................................................................................................................16 1. 16 5.3.1. FCC Compliance Statement...............................................................................................................................16 5.3.2. COMPLIANCE INFORMATION according to 47CFR 2.1077...............................................................................17 5.3.3. CE Declaration of Conformity.............................................................................................................................18 6. WARRANTY, LIMITATIONS OF LIABILITY.........................................................................................................19

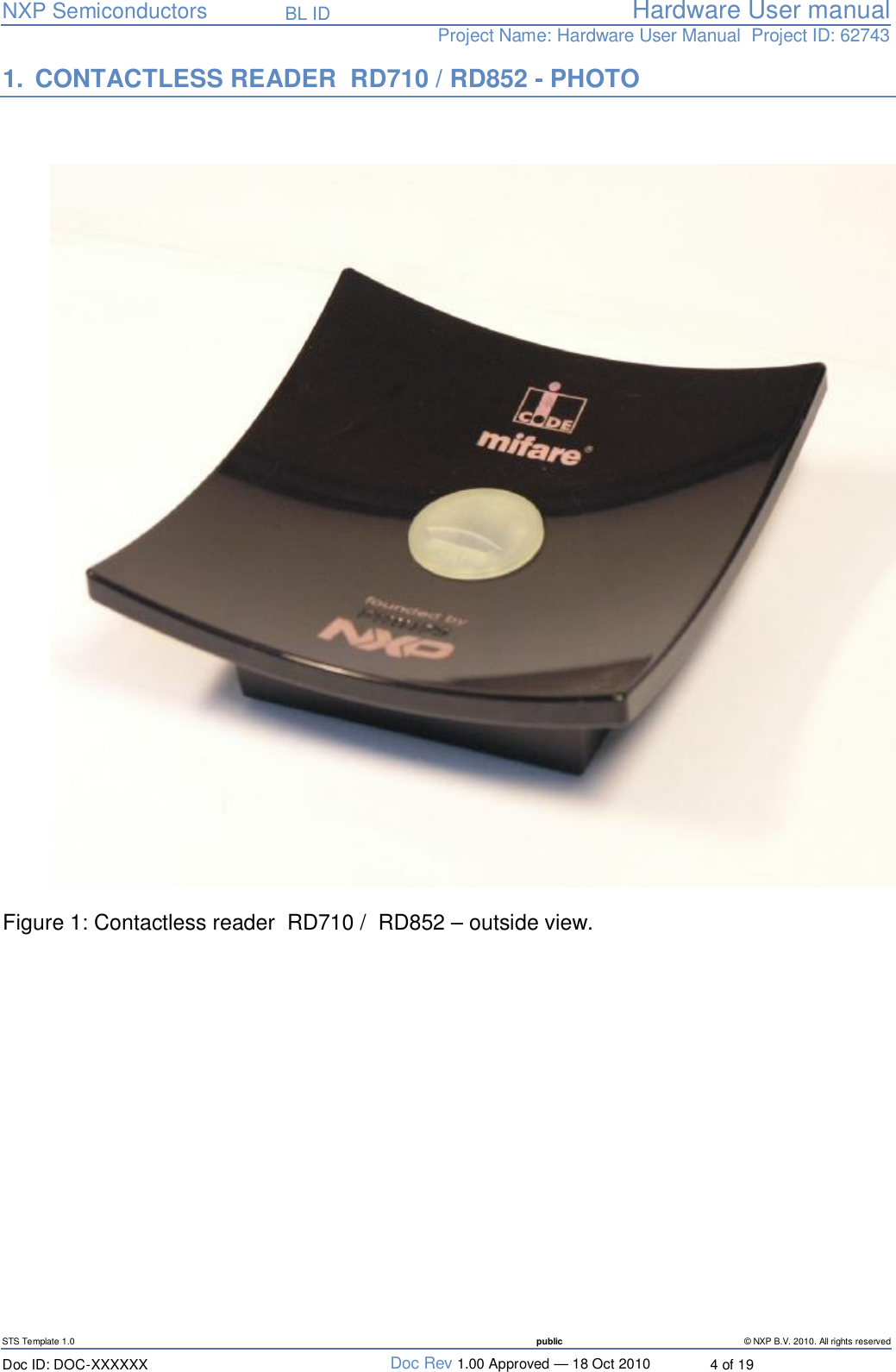

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 4 of 19 1. CONTACTLESS READER RD710 / RD852 - PHOTO Figure 1: Contactless reader RD710 / RD852 – outside view.

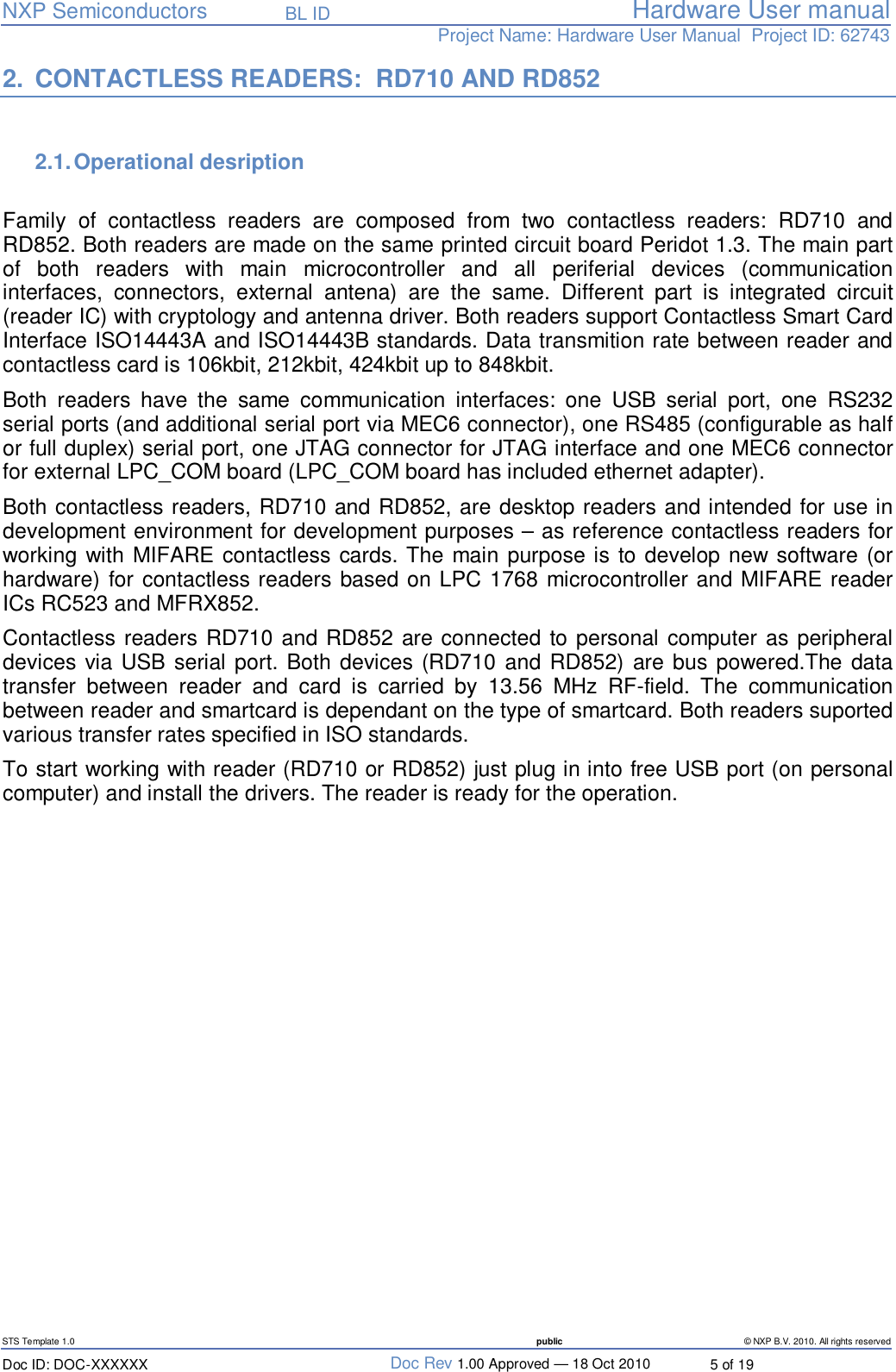

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 5 of 19 2. CONTACTLESS READERS: RD710 AND RD852 2.1. Operational desription Family of contactless readers are composed from two contactless readers: RD710 and RD852. Both readers are made on the same printed circuit board Peridot 1.3. The main part of both readers with main microcontroller and all periferial devices (communication interfaces, connectors, external antena) are the same. Different part is integrated circuit (reader IC) with cryptology and antenna driver. Both readers support Contactless Smart Card Interface ISO14443A and ISO14443B standards. Data transmition rate between reader and contactless card is 106kbit, 212kbit, 424kbit up to 848kbit. Both readers have the same communication interfaces: one USB serial port, one RS232 serial ports (and additional serial port via MEC6 connector), one RS485 (configurable as half or full duplex) serial port, one JTAG connector for JTAG interface and one MEC6 connector for external LPC_COM board (LPC_COM board has included ethernet adapter). Both contactless readers, RD710 and RD852, are desktop readers and intended for use in development environment for development purposes – as reference contactless readers for working with MIFARE contactless cards. The main purpose is to develop new software (or hardware) for contactless readers based on LPC 1768 microcontroller and MIFARE reader ICs RC523 and MFRX852. Contactless readers RD710 and RD852 are connected to personal computer as peripheral devices via USB serial port. Both devices (RD710 and RD852) are bus powered.The data transfer between reader and card is carried by 13.56 MHz RF-field. The communication between reader and smartcard is dependant on the type of smartcard. Both readers suported various transfer rates specified in ISO standards. To start working with reader (RD710 or RD852) just plug in into free USB port (on personal computer) and install the drivers. The reader is ready for the operation.

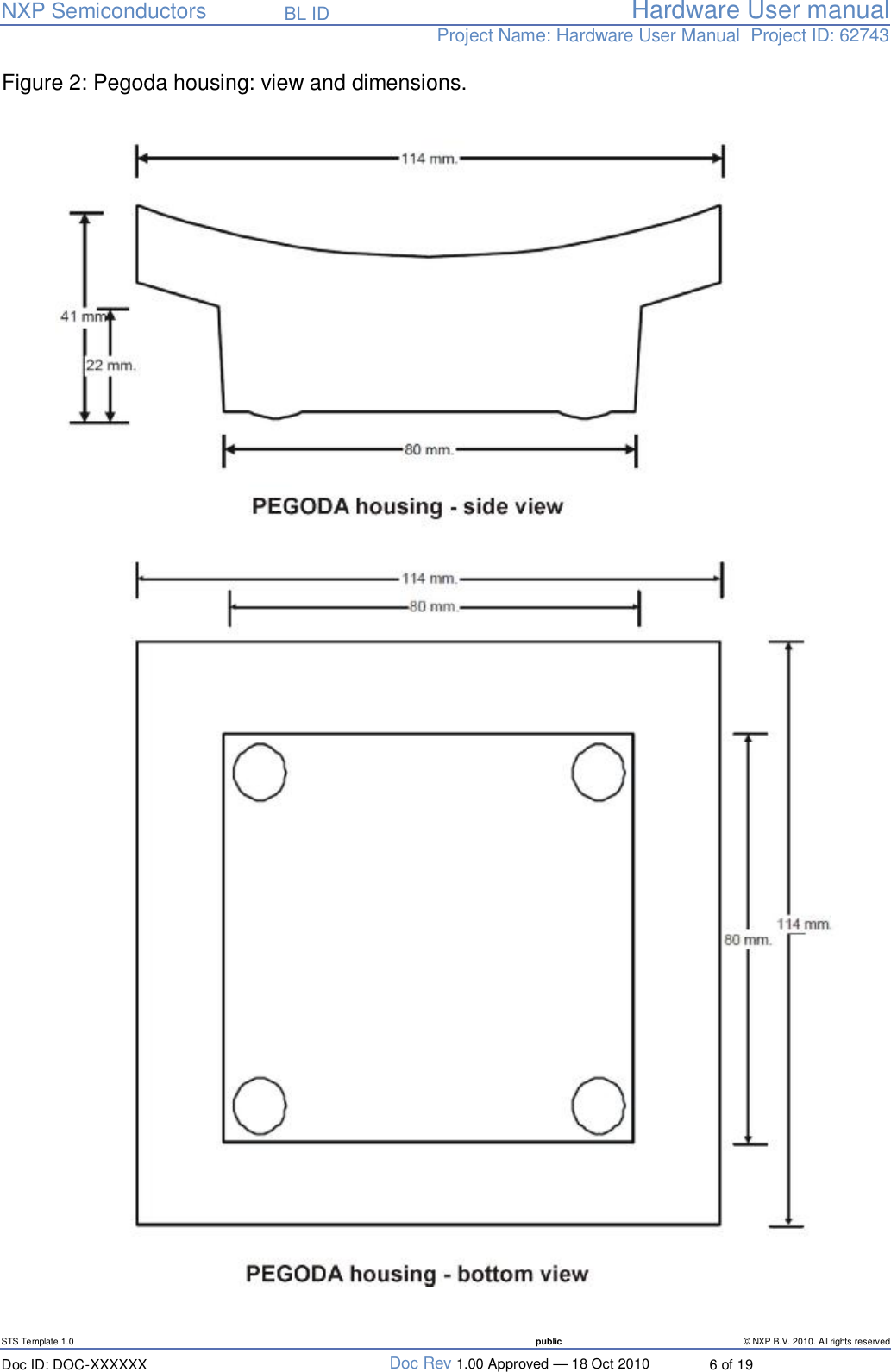

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 6 of 19 Figure 2: Pegoda housing: view and dimensions.

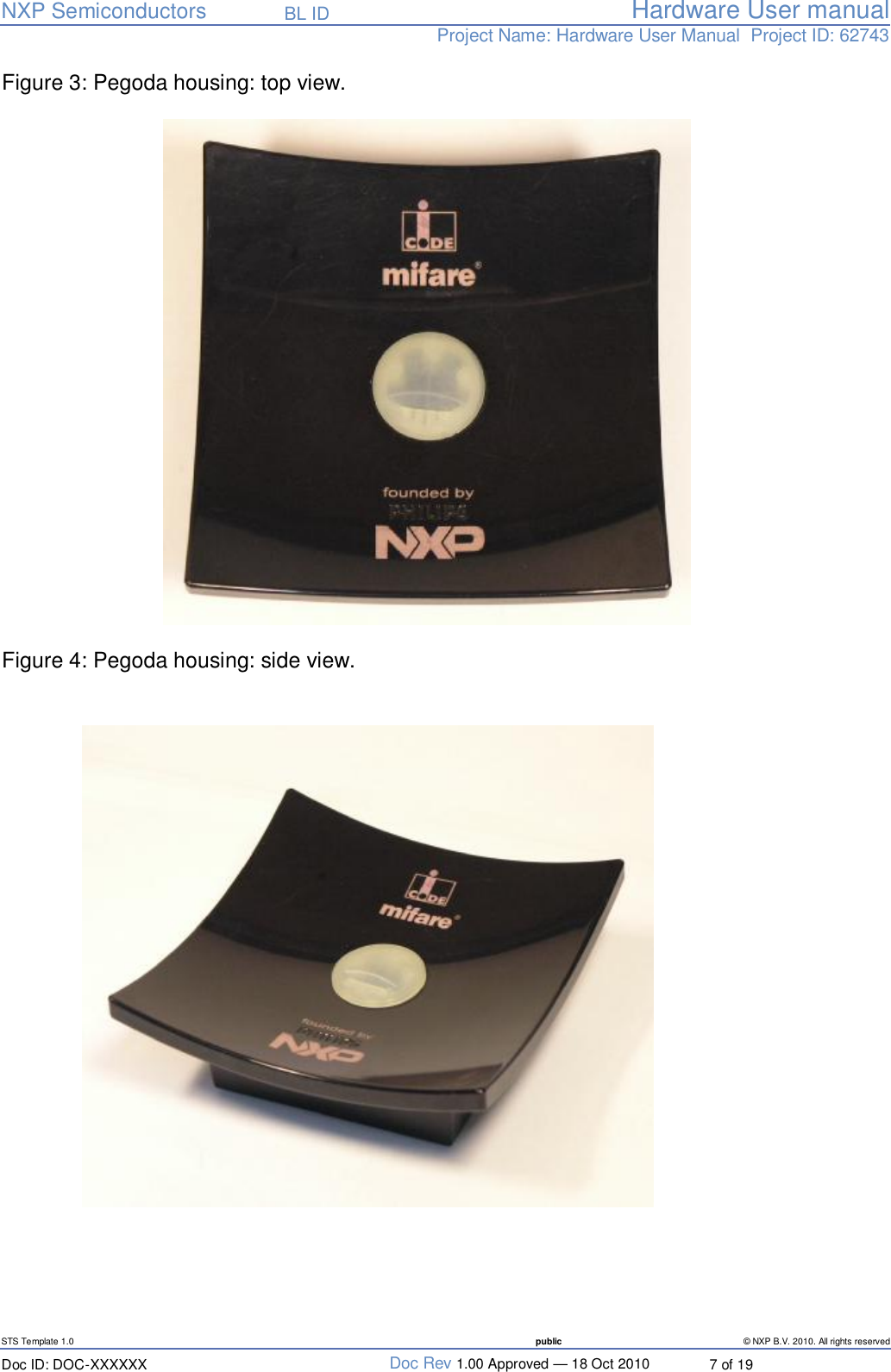

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 7 of 19 Figure 3: Pegoda housing: top view. Figure 4: Pegoda housing: side view.

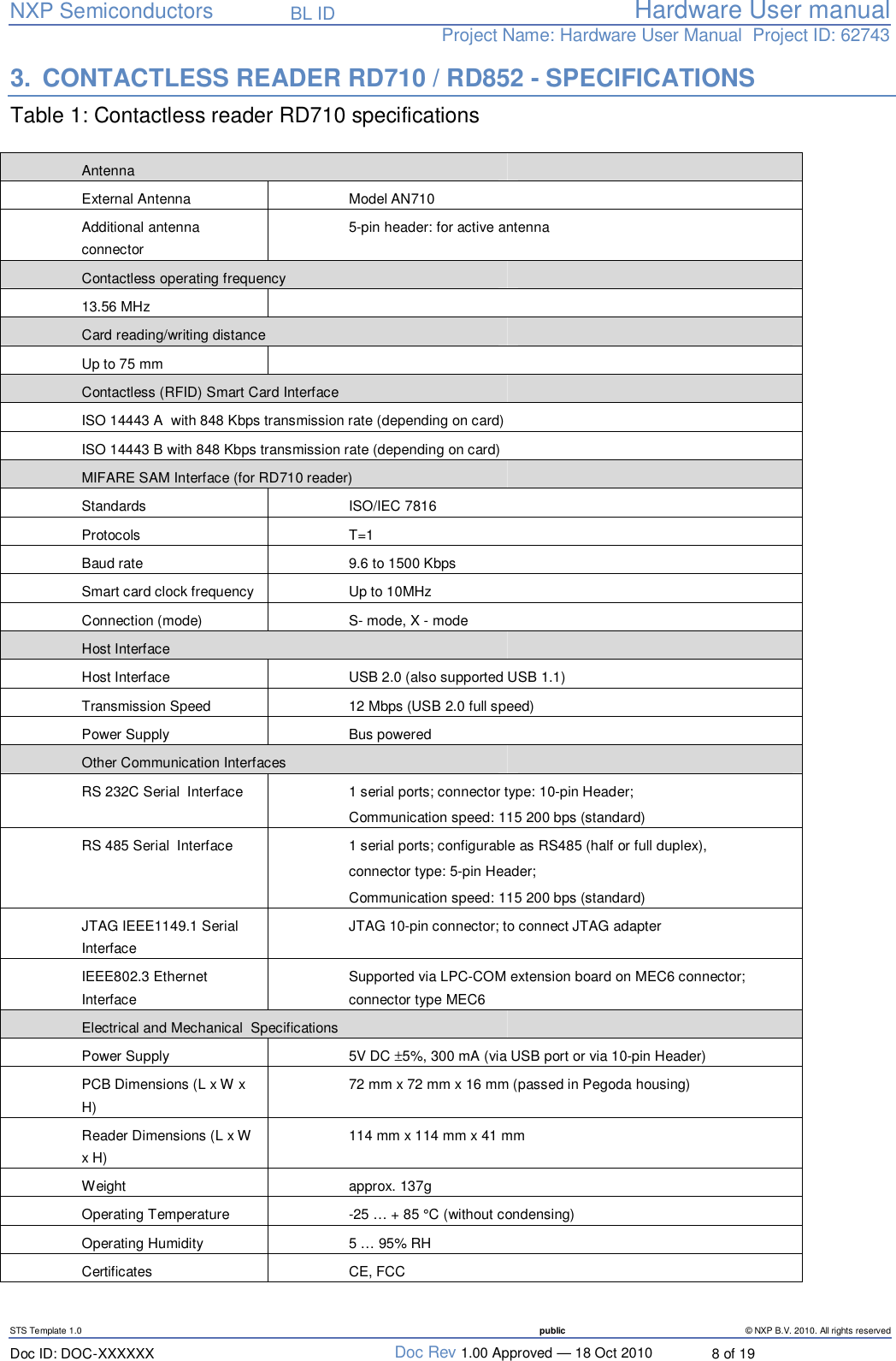

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 8 of 19 3. CONTACTLESS READER RD710 / RD852 - SPECIFICATIONS Table 1: Contactless reader RD710 specifications Antenna External Antenna Model AN710 Additional antenna connector 5-pin header: for active antenna Contactless operating frequency 13.56 MHz Card reading/writing distance Up to 75 mm Contactless (RFID) Smart Card Interface ISO 14443 A with 848 Kbps transmission rate (depending on card) ISO 14443 B with 848 Kbps transmission rate (depending on card) MIFARE SAM Interface (for RD710 reader) Standards ISO/IEC 7816 Protocols T=1 Baud rate 9.6 to 1500 Kbps Smart card clock frequency Up to 10MHz Connection (mode) S- mode, X - mode Host Interface Host Interface USB 2.0 (also supported USB 1.1) Transmission Speed 12 Mbps (USB 2.0 full speed) Power Supply Bus powered Other Communication Interfaces RS 232C Serial Interface 1 serial ports; connector type: 10-pin Header; Communication speed: 115 200 bps (standard) RS 485 Serial Interface 1 serial ports; configurable as RS485 (half or full duplex), connector type: 5-pin Header; Communication speed: 115 200 bps (standard) JTAG IEEE1149.1 Serial Interface JTAG 10-pin connector; to connect JTAG adapter IEEE802.3 Ethernet Interface Supported via LPC-COM extension board on MEC6 connector; connector type MEC6 Electrical and Mechanical Specifications Power Supply 5V DC ±5%, 300 mA (via USB port or via 10-pin Header) PCB Dimensions (L x W x H) 72 mm x 72 mm x 16 mm (passed in Pegoda housing) Reader Dimensions (L x W x H) 114 mm x 114 mm x 41 mm Weight approx. 137g Operating Temperature -25 … + 85 °C (without condensing) Operating Humidity 5 … 95% RH Certificates CE, FCC

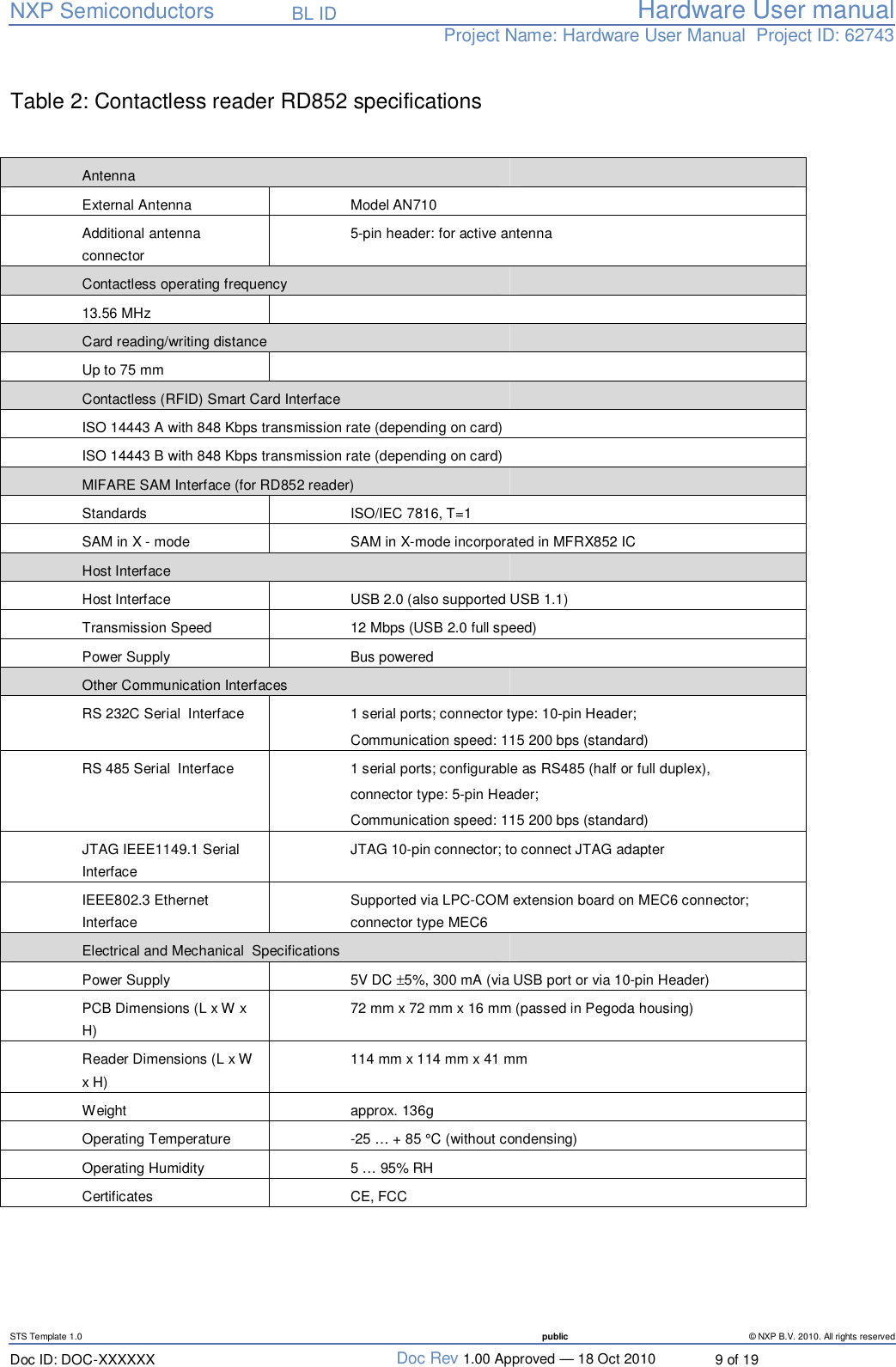

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 9 of 19 Table 2: Contactless reader RD852 specifications Antenna External Antenna Model AN710 Additional antenna connector 5-pin header: for active antenna Contactless operating frequency 13.56 MHz Card reading/writing distance Up to 75 mm Contactless (RFID) Smart Card Interface ISO 14443 A with 848 Kbps transmission rate (depending on card) ISO 14443 B with 848 Kbps transmission rate (depending on card) MIFARE SAM Interface (for RD852 reader) Standards ISO/IEC 7816, T=1 SAM in X - mode SAM in X-mode incorporated in MFRX852 IC Host Interface Host Interface USB 2.0 (also supported USB 1.1) Transmission Speed 12 Mbps (USB 2.0 full speed) Power Supply Bus powered Other Communication Interfaces RS 232C Serial Interface 1 serial ports; connector type: 10-pin Header; Communication speed: 115 200 bps (standard) RS 485 Serial Interface 1 serial ports; configurable as RS485 (half or full duplex), connector type: 5-pin Header; Communication speed: 115 200 bps (standard) JTAG IEEE1149.1 Serial Interface JTAG 10-pin connector; to connect JTAG adapter IEEE802.3 Ethernet Interface Supported via LPC-COM extension board on MEC6 connector; connector type MEC6 Electrical and Mechanical Specifications Power Supply 5V DC ±5%, 300 mA (via USB port or via 10-pin Header) PCB Dimensions (L x W x H) 72 mm x 72 mm x 16 mm (passed in Pegoda housing) Reader Dimensions (L x W x H) 114 mm x 114 mm x 41 mm Weight approx. 136g Operating Temperature -25 … + 85 °C (without condensing) Operating Humidity 5 … 95% RH Certificates CE, FCC

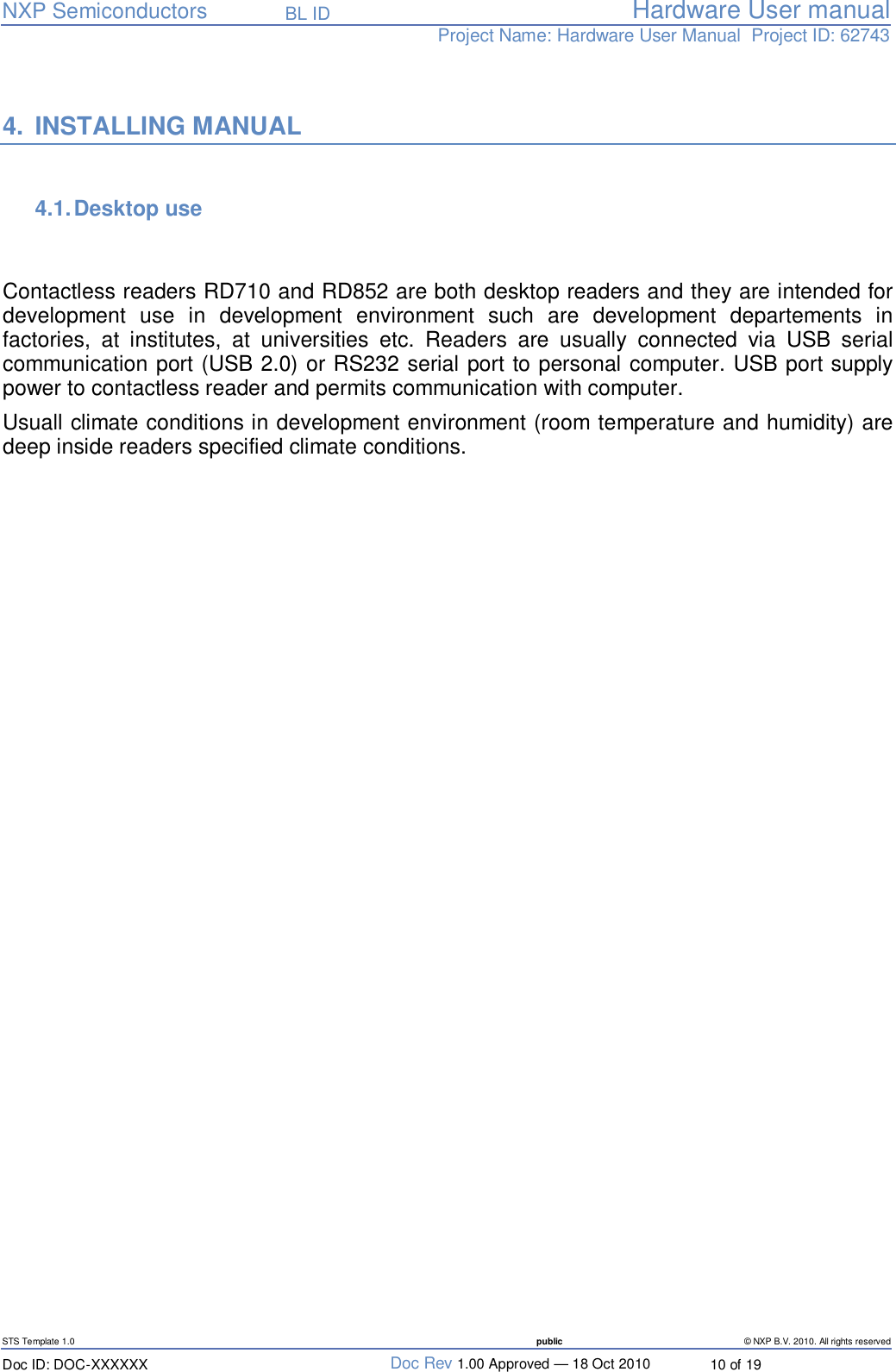

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 10 of 19 4. INSTALLING MANUAL 4.1. Desktop use Contactless readers RD710 and RD852 are both desktop readers and they are intended for development use in development environment such are development departements in factories, at institutes, at universities etc. Readers are usually connected via USB serial communication port (USB 2.0) or RS232 serial port to personal computer. USB port supply power to contactless reader and permits communication with computer. Usuall climate conditions in development environment (room temperature and humidity) are deep inside readers specified climate conditions.

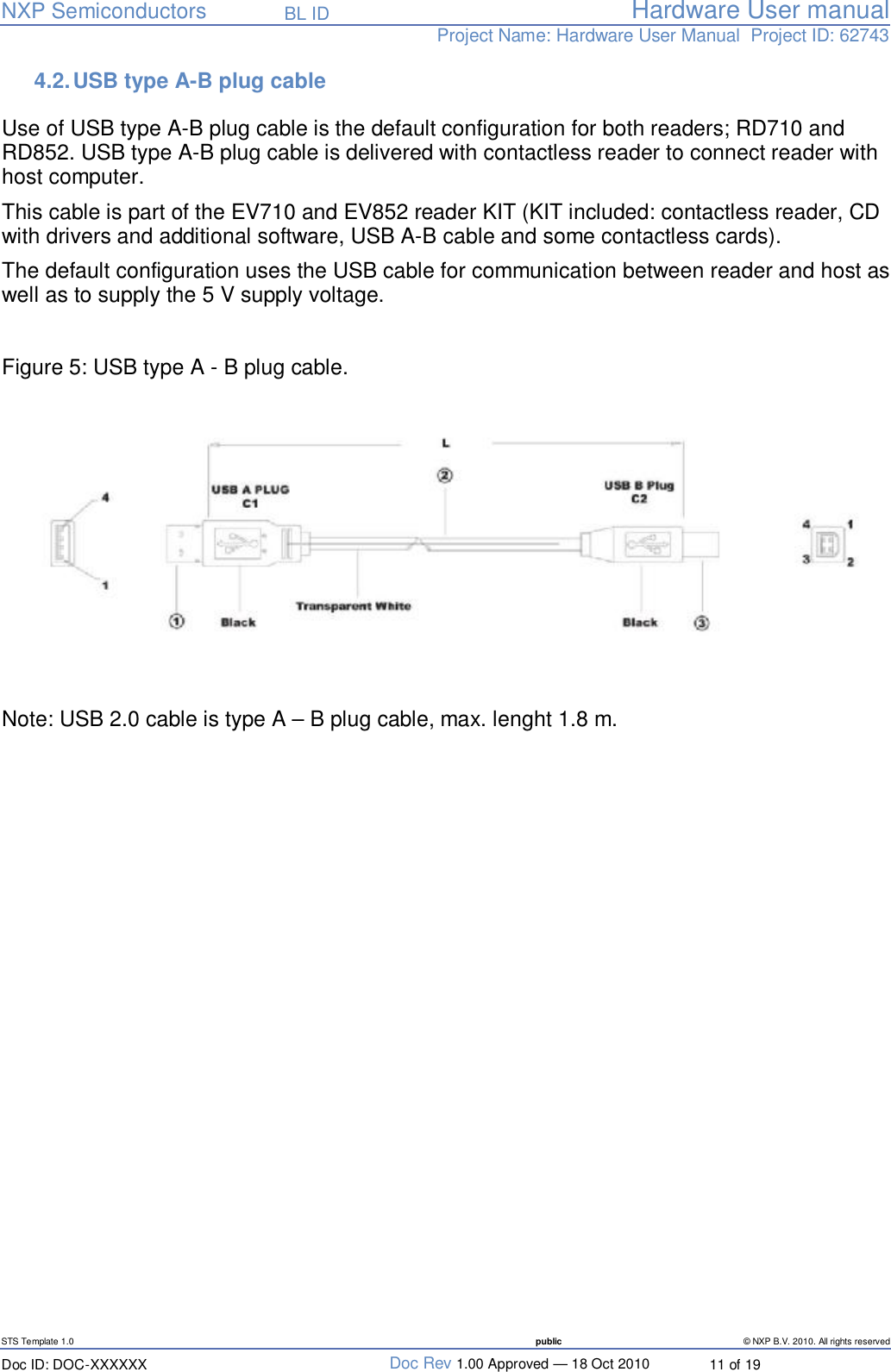

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 11 of 19 4.2. USB type A-B plug cable Use of USB type A-B plug cable is the default configuration for both readers; RD710 and RD852. USB type A-B plug cable is delivered with contactless reader to connect reader with host computer. This cable is part of the EV710 and EV852 reader KIT (KIT included: contactless reader, CD with drivers and additional software, USB A-B cable and some contactless cards). The default configuration uses the USB cable for communication between reader and host as well as to supply the 5 V supply voltage. Figure 5: USB type A - B plug cable. Note: USB 2.0 cable is type A – B plug cable, max. lenght 1.8 m.

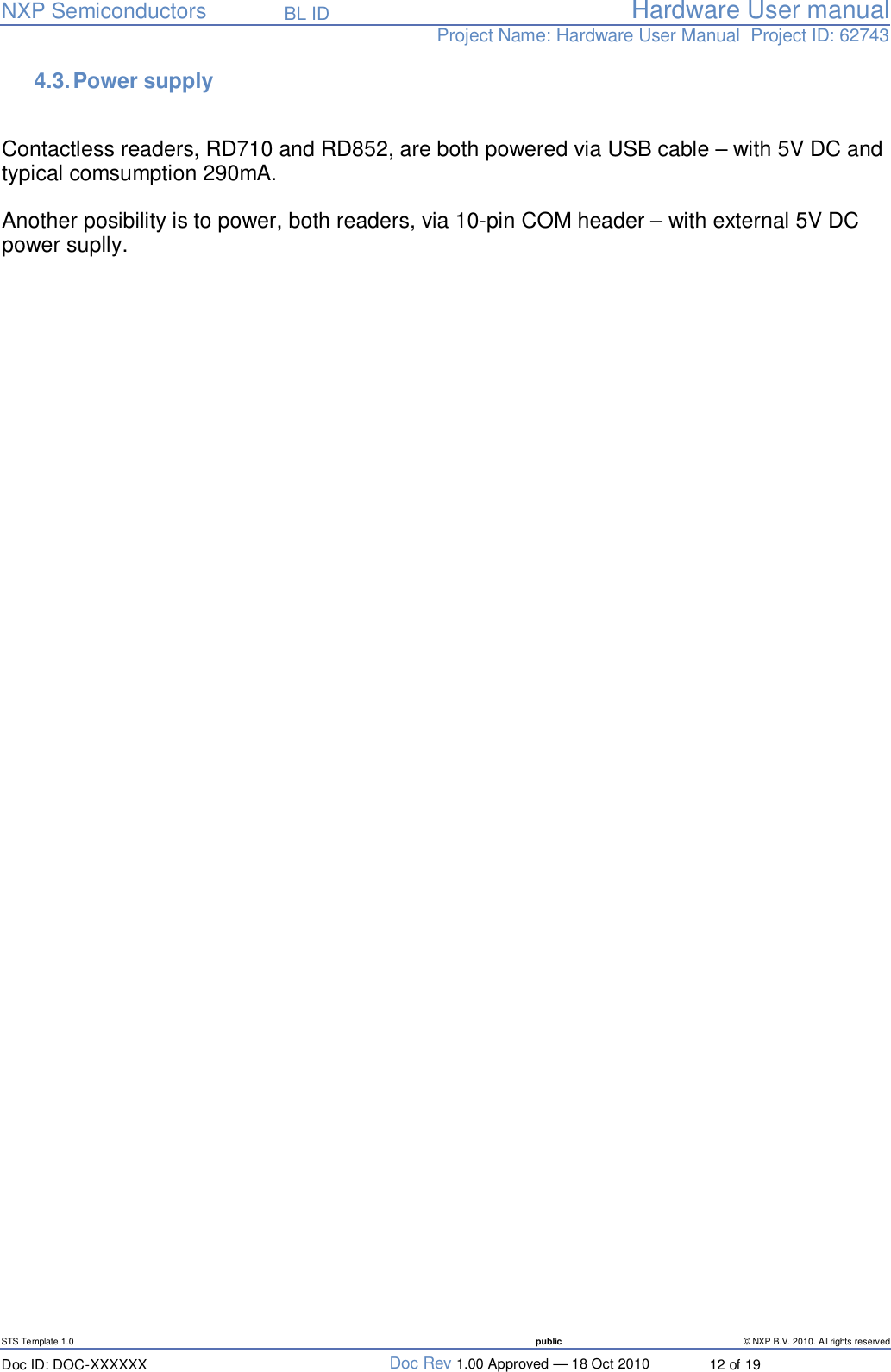

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 12 of 19 4.3. Power supply Contactless readers, RD710 and RD852, are both powered via USB cable – with 5V DC and typical comsumption 290mA. Another posibility is to power, both readers, via 10-pin COM header – with external 5V DC power suplly.

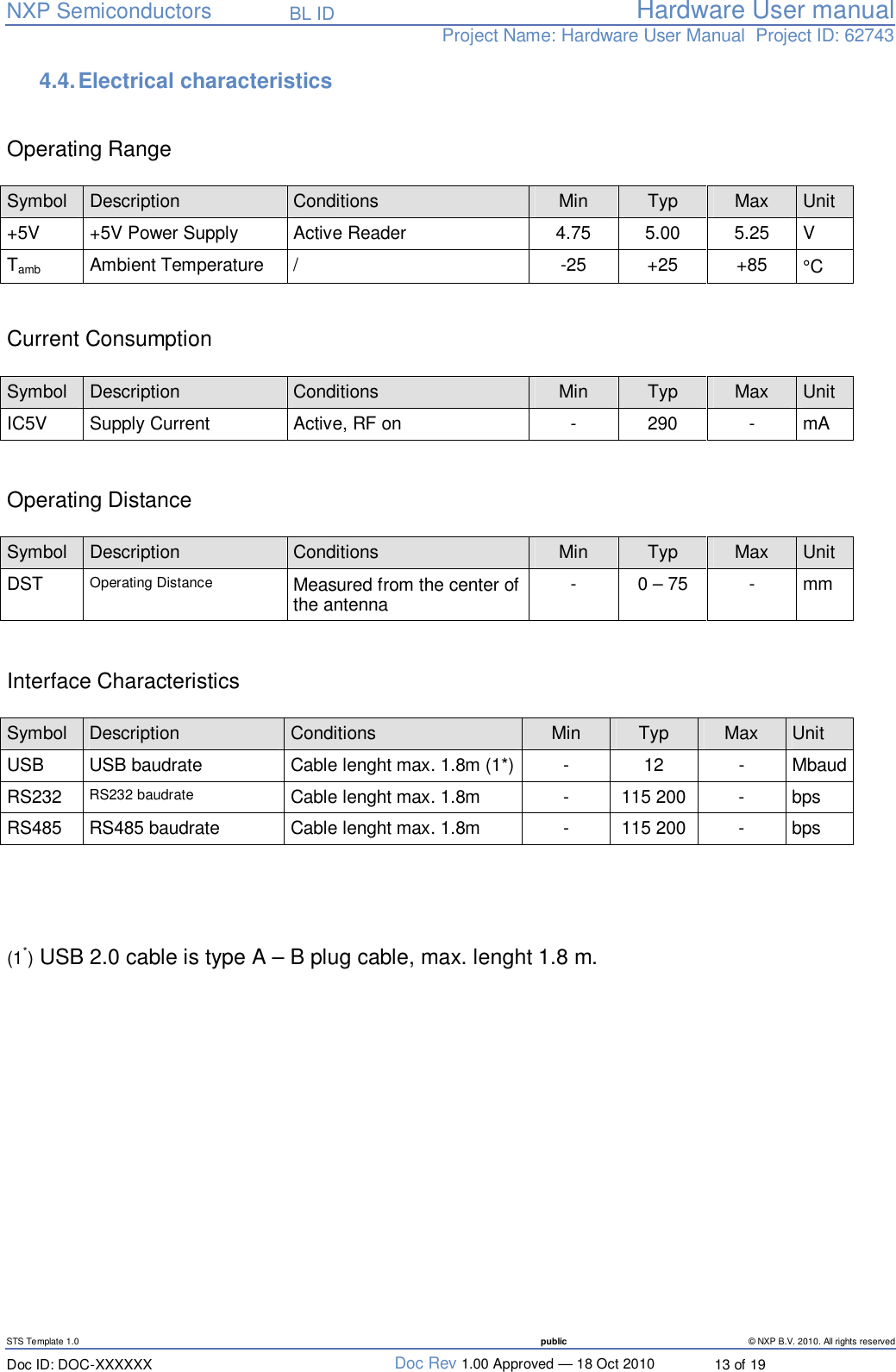

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 13 of 19 4.4. Electrical characteristics Operating Range Symbol Description Conditions Min Typ Max Unit +5V +5V Power Supply Active Reader 4.75 5.00 5.25 V Tamb Ambient Temperature / -25 +25 +85 °C Current Consumption Symbol Description Conditions Min Typ Max Unit IC5V Supply Current Active, RF on - 290 - mA Operating Distance Symbol Description Conditions Min Typ Max Unit DST Operating Distance Measured from the center of the antenna - 0 – 75 - mm Interface Characteristics Symbol Description Conditions Min Typ Max Unit USB USB baudrate Cable lenght max. 1.8m (1*) - 12 - Mbaud RS232 RS232 baudrate Cable lenght max. 1.8m - 115 200 - bps RS485 RS485 baudrate Cable lenght max. 1.8m - 115 200 - bps (1*) USB 2.0 cable is type A – B plug cable, max. lenght 1.8 m.

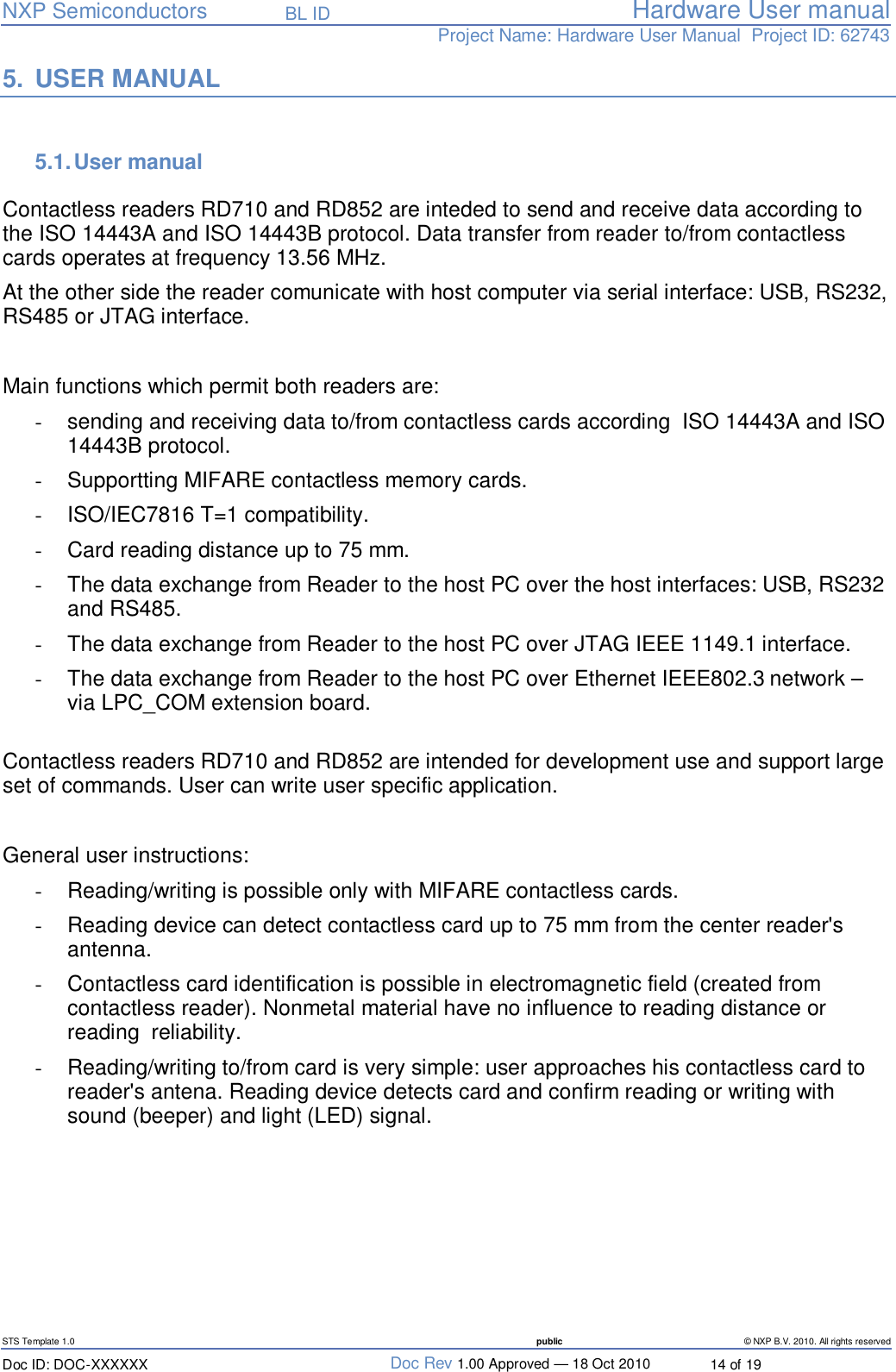

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 14 of 19 5. USER MANUAL 5.1. User manual Contactless readers RD710 and RD852 are inteded to send and receive data according to the ISO 14443A and ISO 14443B protocol. Data transfer from reader to/from contactless cards operates at frequency 13.56 MHz. At the other side the reader comunicate with host computer via serial interface: USB, RS232, RS485 or JTAG interface. Main functions which permit both readers are: - sending and receiving data to/from contactless cards according ISO 14443A and ISO 14443B protocol. - Supportting MIFARE contactless memory cards. - ISO/IEC7816 T=1 compatibility. - Card reading distance up to 75 mm. - The data exchange from Reader to the host PC over the host interfaces: USB, RS232 and RS485. - The data exchange from Reader to the host PC over JTAG IEEE 1149.1 interface. - The data exchange from Reader to the host PC over Ethernet IEEE802.3 network – via LPC_COM extension board. Contactless readers RD710 and RD852 are intended for development use and support large set of commands. User can write user specific application. General user instructions: - Reading/writing is possible only with MIFARE contactless cards. - Reading device can detect contactless card up to 75 mm from the center reader's antenna. - Contactless card identification is possible in electromagnetic field (created from contactless reader). Nonmetal material have no influence to reading distance or reading reliability. - Reading/writing to/from card is very simple: user approaches his contactless card to reader's antena. Reading device detects card and confirm reading or writing with sound (beeper) and light (LED) signal.

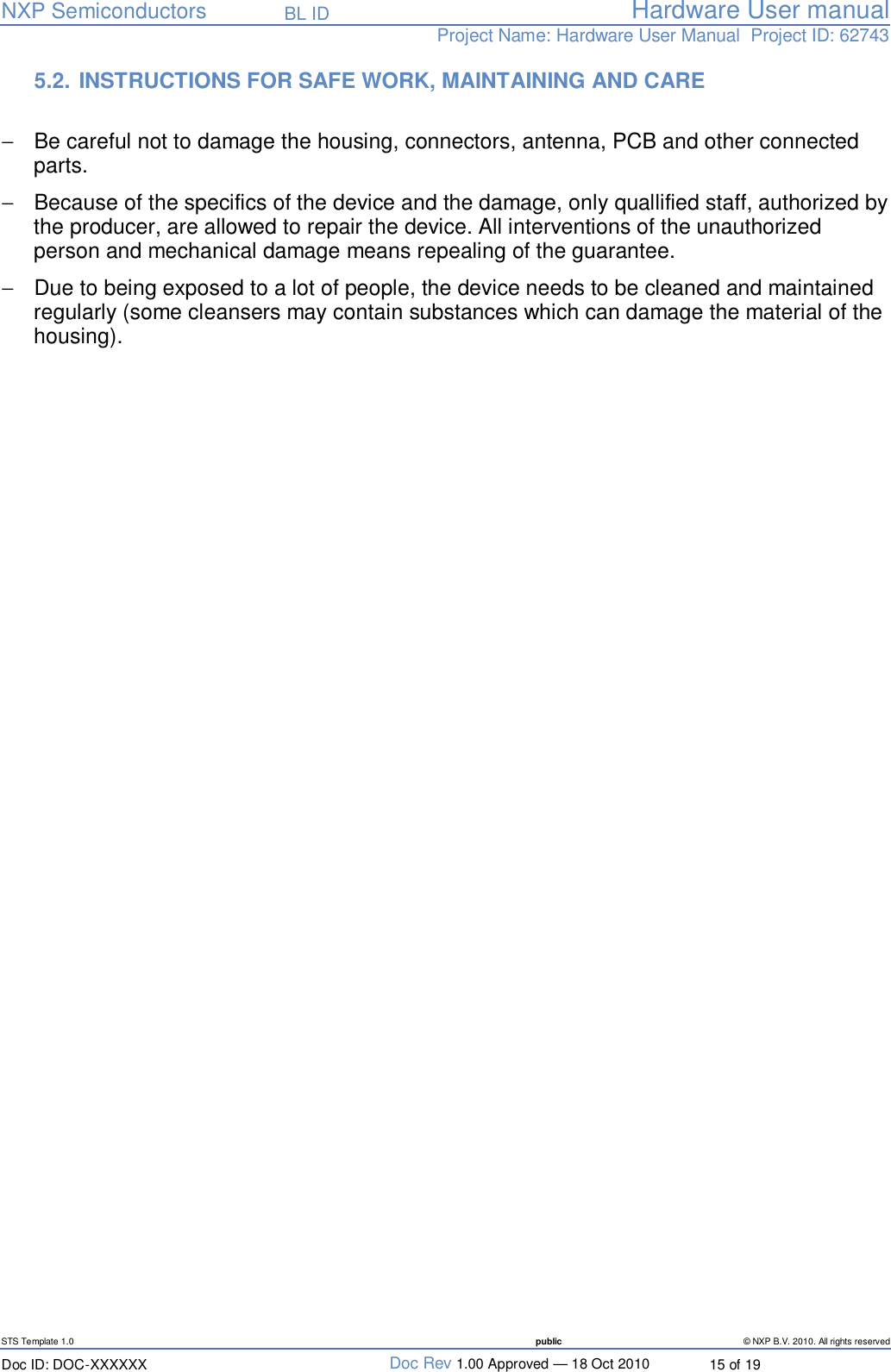

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 15 of 19 5.2. INSTRUCTIONS FOR SAFE WORK, MAINTAINING AND CARE − Be careful not to damage the housing, connectors, antenna, PCB and other connected parts. − Because of the specifics of the device and the damage, only quallified staff, authorized by the producer, are allowed to repair the device. All interventions of the unauthorized person and mechanical damage means repealing of the guarantee. − Due to being exposed to a lot of people, the device needs to be cleaned and maintained regularly (some cleansers may contain substances which can damage the material of the housing).

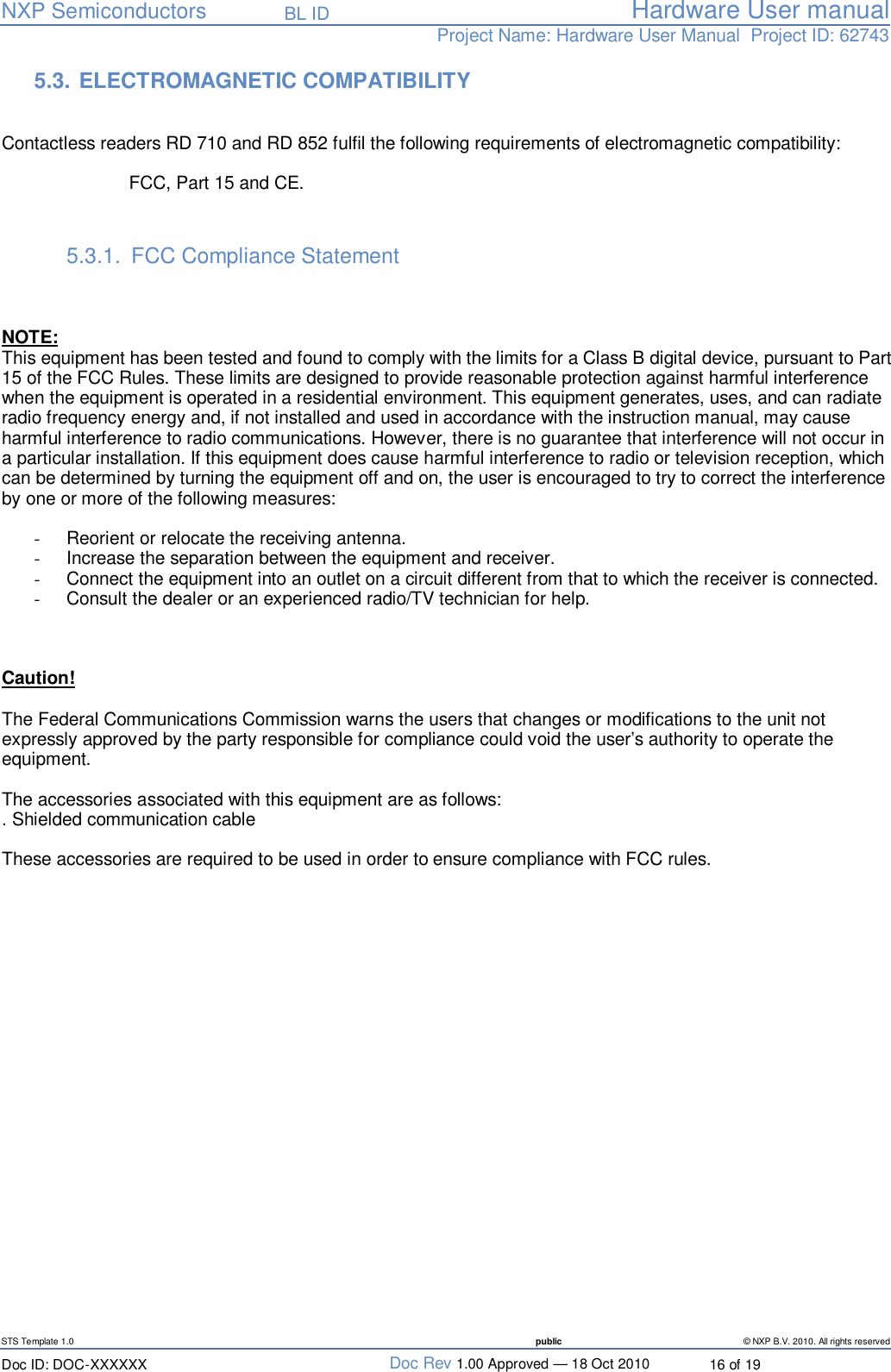

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 16 of 19 5.3. ELECTROMAGNETIC COMPATIBILITY Contactless readers RD 710 and RD 852 fulfil the following requirements of electromagnetic compatibility: FCC, Part 15 and CE. 5.3.1. FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution! The Federal Communications Commission warns the users that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The accessories associated with this equipment are as follows: . Shielded communication cable These accessories are required to be used in order to ensure compliance with FCC rules.

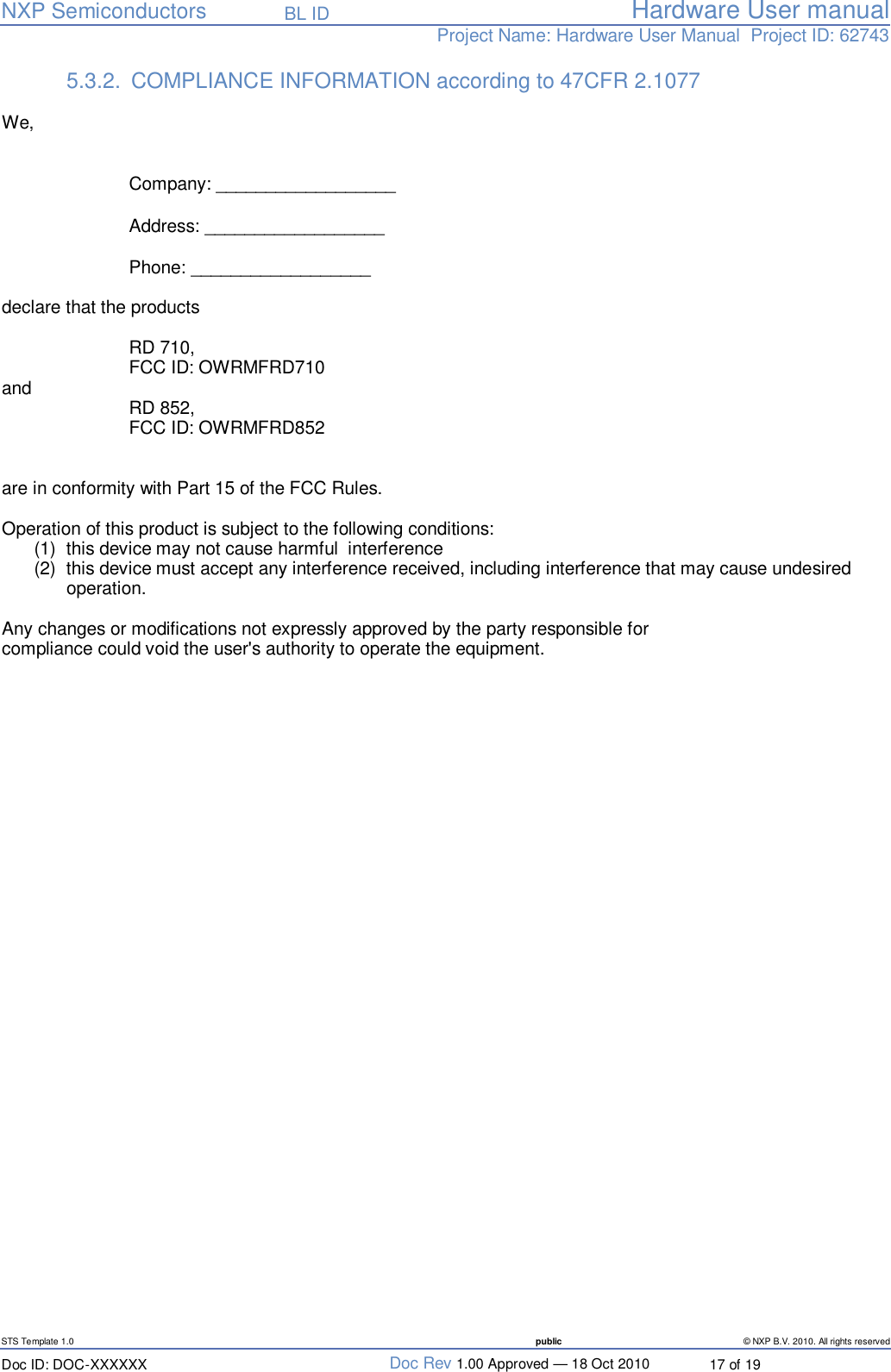

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 17 of 19 5.3.2. COMPLIANCE INFORMATION according to 47CFR 2.1077 We, Company: __________________ Address: __________________ Phone: __________________ declare that the products RD 710, FCC ID: OWRMFRD710 and RD 852, FCC ID: OWRMFRD852 are in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

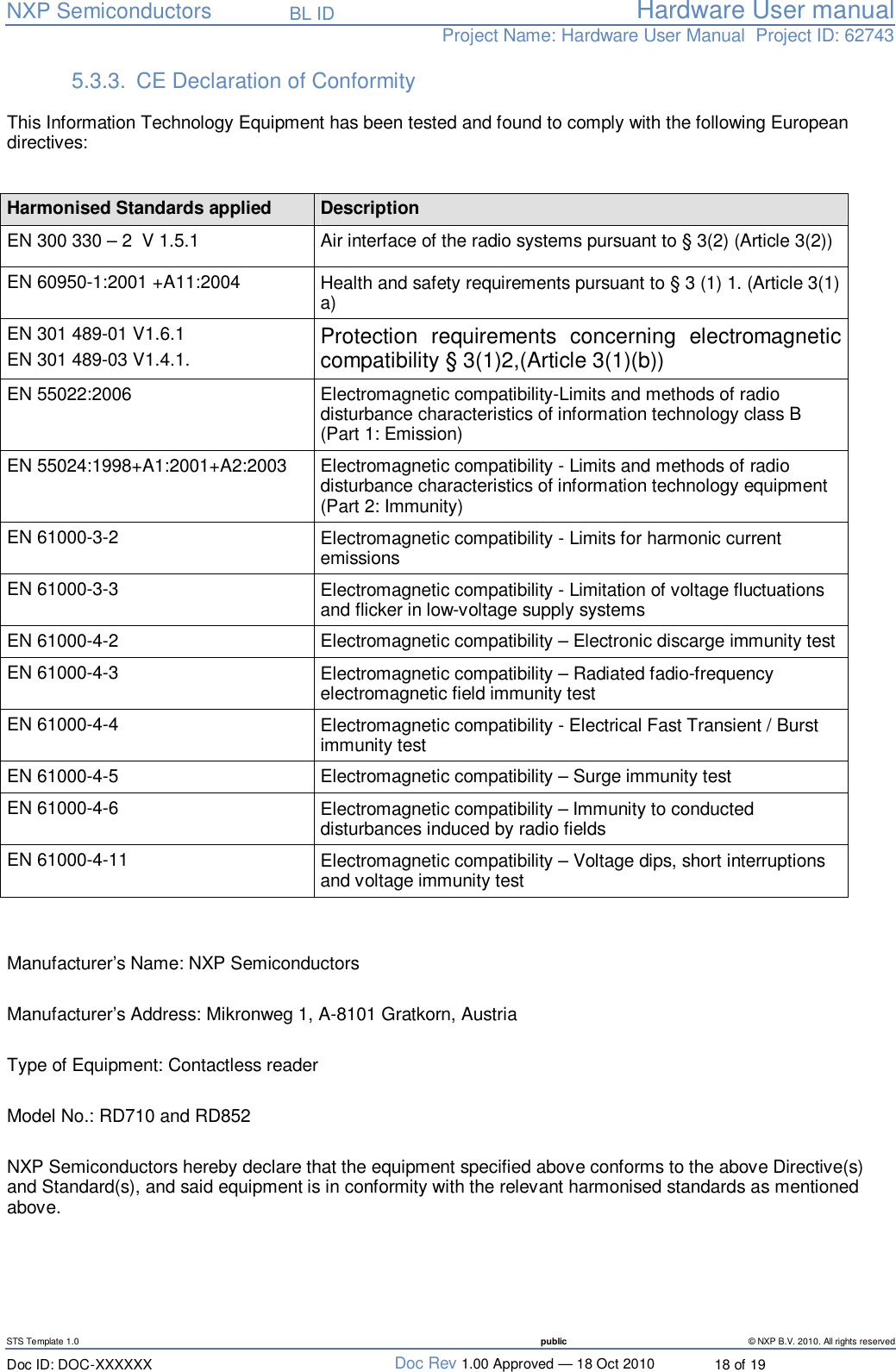

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 18 of 19 5.3.3. CE Declaration of Conformity This Information Technology Equipment has been tested and found to comply with the following European directives: Harmonised Standards applied Description EN 300 330 – 2 V 1.5.1 Air interface of the radio systems pursuant to § 3(2) (Article 3(2)) EN 60950-1:2001 +A11:2004 Health and safety requirements pursuant to § 3 (1) 1. (Article 3(1) a) EN 301 489-01 V1.6.1 EN 301 489-03 V1.4.1. Protection requirements concerning electromagnetic compatibility § 3(1)2,(Article 3(1)(b)) EN 55022:2006 Electromagnetic compatibility-Limits and methods of radio disturbance characteristics of information technology class B (Part 1: Emission) EN 55024:1998+A1:2001+A2:2003 Electromagnetic compatibility - Limits and methods of radio disturbance characteristics of information technology equipment (Part 2: Immunity) EN 61000-3-2 Electromagnetic compatibility - Limits for harmonic current emissions EN 61000-3-3 Electromagnetic compatibility - Limitation of voltage fluctuations and flicker in low-voltage supply systems EN 61000-4-2 Electromagnetic compatibility – Electronic discarge immunity test EN 61000-4-3 Electromagnetic compatibility – Radiated fadio-frequency electromagnetic field immunity test EN 61000-4-4 Electromagnetic compatibility - Electrical Fast Transient / Burst immunity test EN 61000-4-5 Electromagnetic compatibility – Surge immunity test EN 61000-4-6 Electromagnetic compatibility – Immunity to conducted disturbances induced by radio fields EN 61000-4-11 Electromagnetic compatibility – Voltage dips, short interruptions and voltage immunity test Manufacturer’s Name: NXP Semiconductors Manufacturer’s Address: Mikronweg 1, A-8101 Gratkorn, Austria Type of Equipment: Contactless reader Model No.: RD710 and RD852 NXP Semiconductors hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s), and said equipment is in conformity with the relevant harmonised standards as mentioned above.

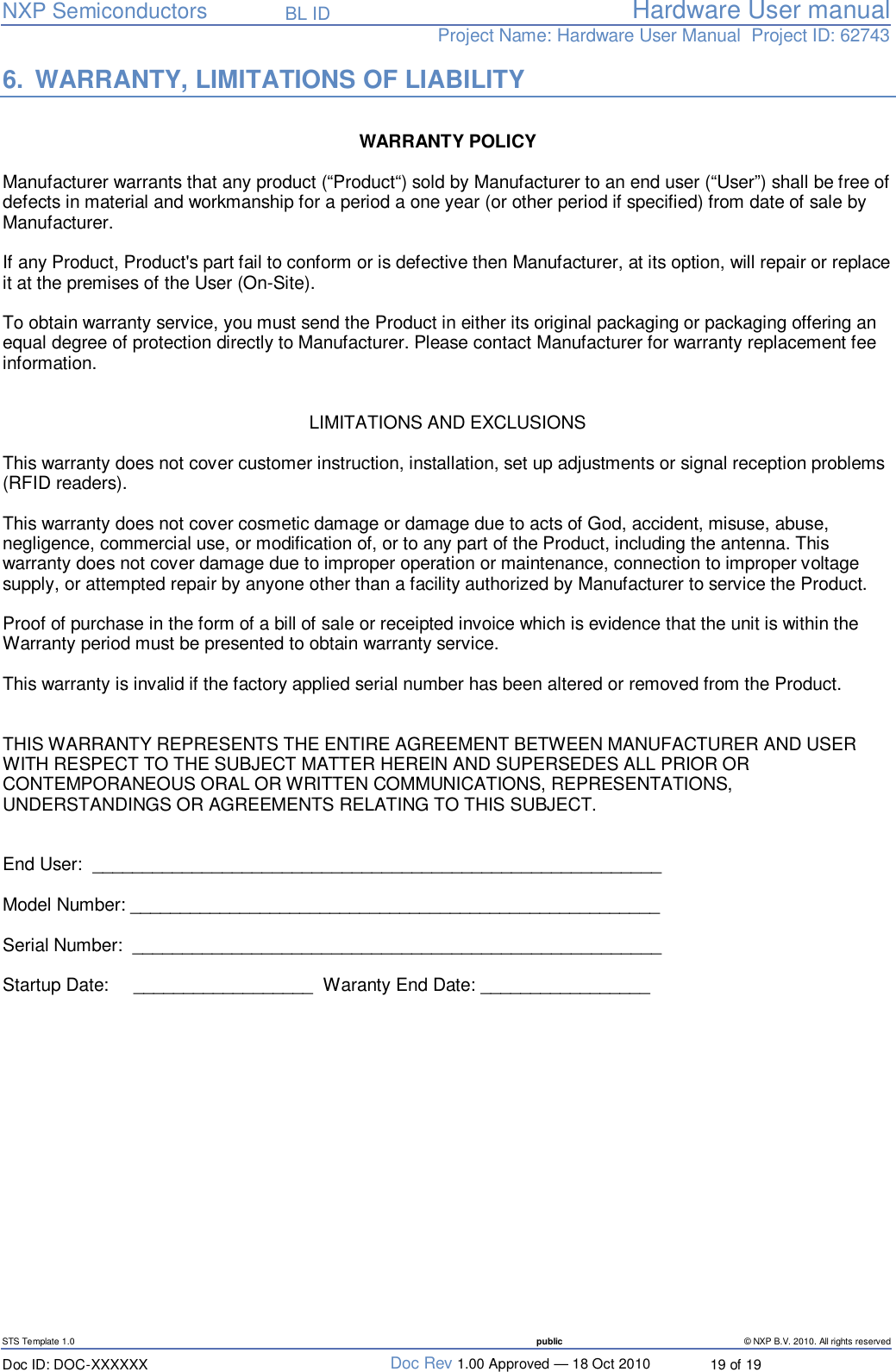

NXP Semiconductors BL ID Hardware User manualProject Name: Hardware User Manual Project ID: 62743 STS Template 1.0 public © NXP B.V. 2010. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 19 of 19 6. WARRANTY, LIMITATIONS OF LIABILITY WARRANTY POLICY Manufacturer warrants that any product (“Product“) sold by Manufacturer to an end user (“User”) shall be free of defects in material and workmanship for a period a one year (or other period if specified) from date of sale by Manufacturer. If any Product, Product's part fail to conform or is defective then Manufacturer, at its option, will repair or replace it at the premises of the User (On-Site). To obtain warranty service, you must send the Product in either its original packaging or packaging offering an equal degree of protection directly to Manufacturer. Please contact Manufacturer for warranty replacement fee information. LIMITATIONS AND EXCLUSIONS This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems (RFID readers). This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone other than a facility authorized by Manufacturer to service the Product. Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Warranty period must be presented to obtain warranty service. This warranty is invalid if the factory applied serial number has been altered or removed from the Product. THIS WARRANTY REPRESENTS THE ENTIRE AGREEMENT BETWEEN MANUFACTURER AND USER WITH RESPECT TO THE SUBJECT MATTER HEREIN AND SUPERSEDES ALL PRIOR OR CONTEMPORANEOUS ORAL OR WRITTEN COMMUNICATIONS, REPRESENTATIONS, UNDERSTANDINGS OR AGREEMENTS RELATING TO THIS SUBJECT. End User: _________________________________________________________ Model Number: _____________________________________________________ Serial Number: _____________________________________________________ Startup Date: __________________ Waranty End Date: _________________
