NXP Austria MFRD710 Contactless Reader User Manual Hardware User Manual RD710 RD852
NXP Austria GmbH Contactless Reader Hardware User Manual RD710 RD852
user manual
Document information
Info Content
Author Pavel Slamnik
Author Role Design Engineer
Keywords Contactless Reader RD710/RD852
Hardware User Manual RD710/RD852
Doc Rev 1.00 Approved — 18 Oct 2010 BL ID
NXP Semiconductors
BL ID Hardware User Manual
Project Name: Hardware User Manual Project ID: 62743
SRS Template_vs 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 2 of 19
Copyright: @2009, NXP Semiconductors
The information contained herein is the exclusive and confidential property of NXP Semiconductors and, except as
otherwise indicated, shall not be disclosed or reproduced in whole or in part.
Revision History
Revision Date Description Author
0.90 2010.01.11 First Draft Version Pavel Slamnik
1.00 2010.10.18 Second Version Pavel Slamnik
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
SRSt Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 3 of 19
Contents
1. CONTACTLESS READER RD710 / RD852 - PHOTO...........................................................................................4
2. CONTACTLESS READERS: RD710 AND RD852................................................................................................5
2.1. Operational desription..............................................................................................................................................5
3. CONTACTLESS READER RD710 / RD852 - SPECIFICATIONS............................................................................8
4. INSTALLING MANUAL.......................................................................................................................................10
4.1. Desktop use..........................................................................................................................................................10
4.2. USB type A-B plug cable.......................................................................................................................................11
4.3. Power supply.........................................................................................................................................................12
4.4. Electrical characteristics........................................................................................................................................13
5. USER MANUAL..................................................................................................................................................14
5.1. User manual..........................................................................................................................................................14
5.2. INSTRUCTIONS FOR SAFE WORK, MAINTAINING AND CARE...........................................................................15
5.3. ELECTROMAGNETIC COMPATIBILITY................................................................................................................16
1. 16
5.3.1. FCC Compliance Statement...............................................................................................................................16
5.3.2. COMPLIANCE INFORMATION according to 47CFR 2.1077...............................................................................17
5.3.3. CE Declaration of Conformity.............................................................................................................................18
6. WARRANTY, LIMITATIONS OF LIABILITY.........................................................................................................19
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 4 of 19
1. CONTACTLESS READER RD710 / RD852 - PHOTO

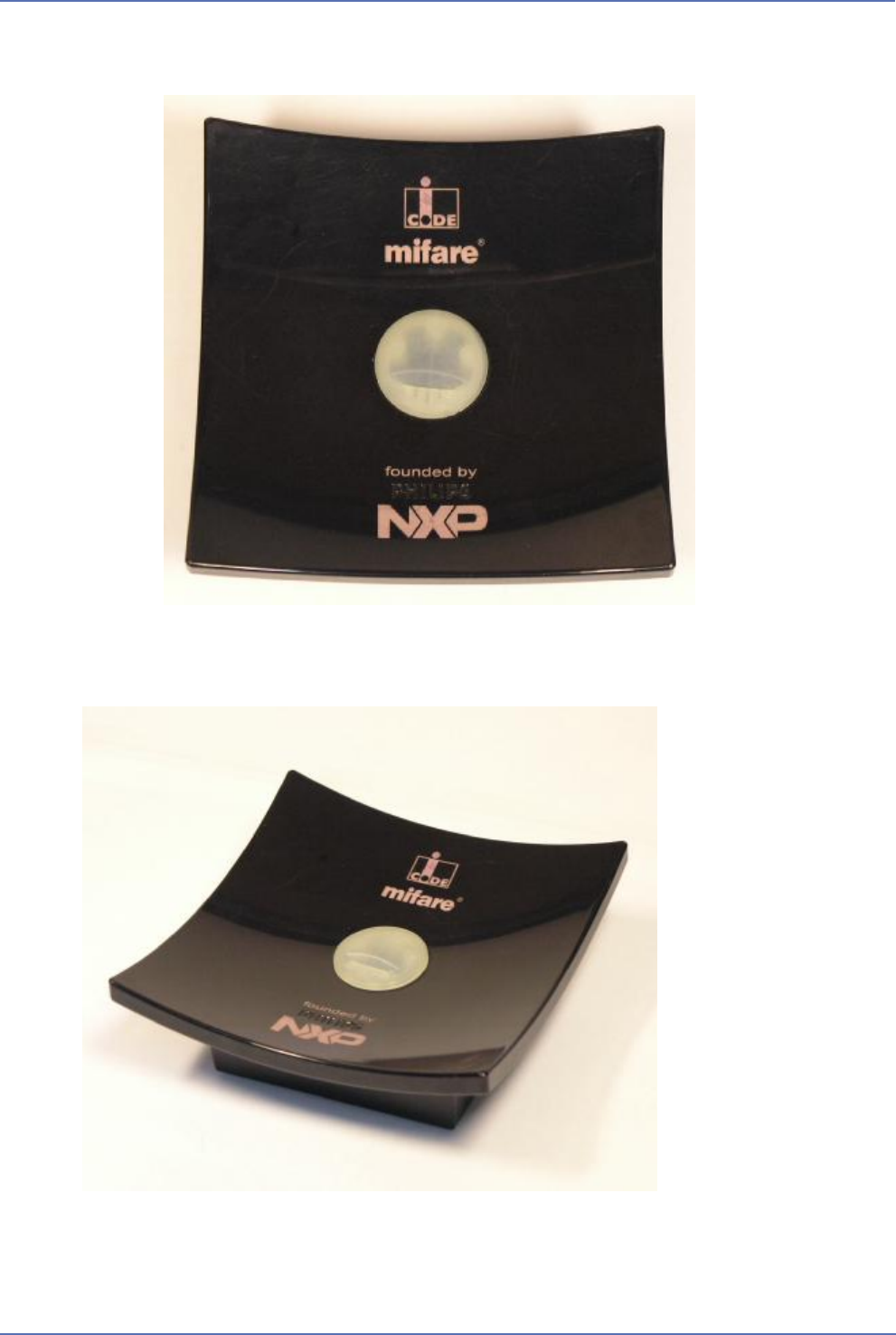

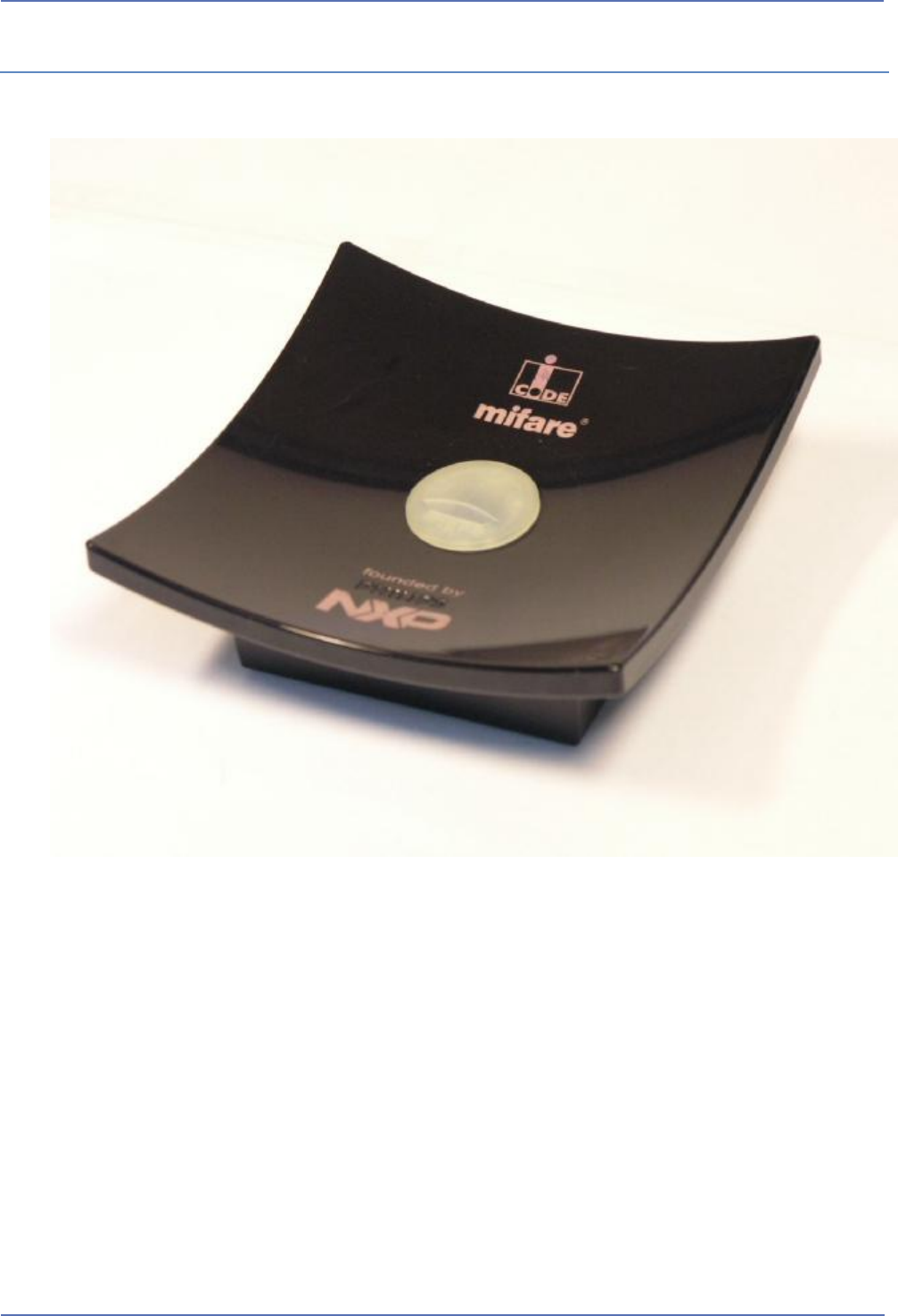

Figure 1: Contactless reader RD710 / RD852 – outside view.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 5 of 19
2. CONTACTLESS READERS: RD710 AND RD852
2.1. Operational desription
Family of contactless readers are composed from two contactless readers: RD710 and
RD852. Both readers are made on the same printed circuit board Peridot 1.3. The main part
of both readers with main microcontroller and all periferial devices (communication
interfaces, connectors, external antena) are the same. Different part is integrated circuit
(reader IC) with cryptology and antenna driver. Both readers support Contactless Smart Card
Interface ISO14443A and ISO14443B standards. Data transmition rate between reader and
contactless card is 106kbit, 212kbit, 424kbit up to 848kbit.
Both readers have the same communication interfaces: one USB serial port, one RS232
serial ports (and additional serial port via MEC6 connector), one RS485 (configurable as half
or full duplex) serial port, one JTAG connector for JTAG interface and one MEC6 connector
for external LPC_COM board (LPC_COM board has included ethernet adapter).
Both contactless readers, RD710 and RD852, are desktop readers and intended for use in
development environment for development purposes – as reference contactless readers for
working with MIFARE contactless cards. The main purpose is to develop new software (or
hardware) for contactless readers based on LPC 1768 microcontroller and MIFARE reader
ICs RC523 and MFRX852.
Contactless readers RD710 and RD852 are connected to personal computer as peripheral
devices via USB serial port. Both devices (RD710 and RD852) are bus powered.The data
transfer between reader and card is carried by 13.56 MHz RF-field. The communication
between reader and smartcard is dependant on the type of smartcard. Both readers suported
various transfer rates specified in ISO standards.
To start working with reader (RD710 or RD852) just plug in into free USB port (on personal
computer) and install the drivers. The reader is ready for the operation.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 6 of 19

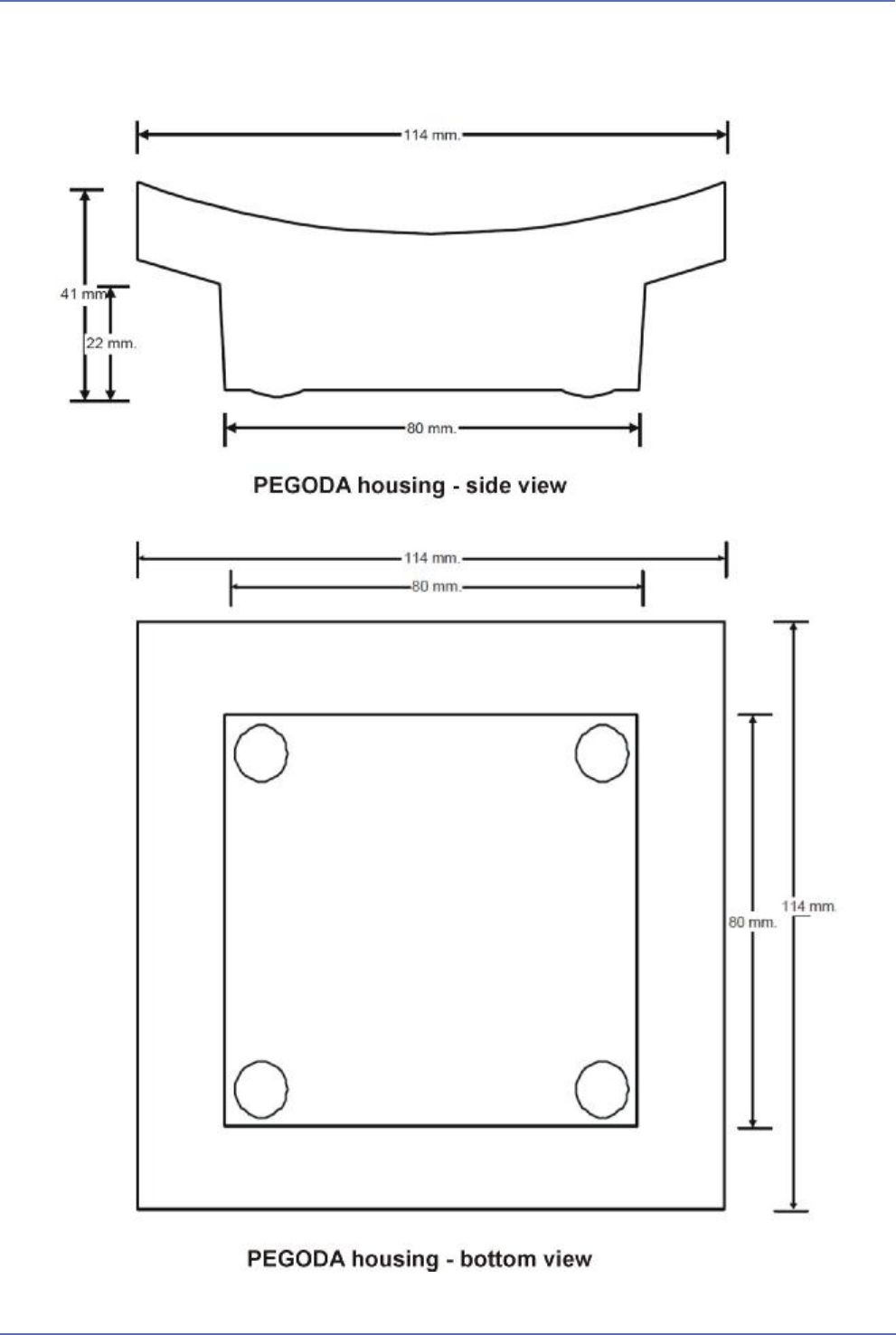

Figure 2: Pegoda housing: view and dimensions.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 7 of 19
Figure 3: Pegoda housing: top view.
Figure 4: Pegoda housing: side view.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 8 of 19
3. CONTACTLESS READER RD710 / RD852 - SPECIFICATIONS
Table 1: Contactless reader RD710 specifications
Antenna
External Antenna Model AN710
Additional antenna
connector
5-pin header: for active antenna
Contactless operating frequency
13.56 MHz
Card reading/writing distance
Up to 75 mm
Contactless (RFID) Smart Card Interface
ISO 14443 A with 848 Kbps transmission rate (depending on card)
ISO 14443 B with 848 Kbps transmission rate (depending on card)
MIFARE SAM Interface (for RD710 reader)
Standards ISO/IEC 7816
Protocols T=1
Baud rate 9.6 to 1500 Kbps
Smart card clock frequency Up to 10MHz
Connection (mode) S- mode, X - mode
Host Interface
Host Interface USB 2.0 (also supported USB 1.1)
Transmission Speed 12 Mbps (USB 2.0 full speed)
Power Supply Bus powered
Other Communication Interfaces
RS 232C Serial Interface 1 serial ports; connector type: 10-pin Header;
Communication speed: 115 200 bps (standard)
RS 485 Serial Interface 1 serial ports; configurable as RS485 (half or full duplex),
connector type: 5-pin Header;
Communication speed: 115 200 bps (standard)
JTAG IEEE1149.1 Serial
Interface
JTAG 10-pin connector; to connect JTAG adapter
IEEE802.3 Ethernet
Interface
Supported via LPC-COM extension board on MEC6 connector;
connector type MEC6
Electrical and Mechanical Specifications
Power Supply 5V DC ±5%, 300 mA (via USB port or via 10-pin Header)
PCB Dimensions (L x W x
H)
72 mm x 72 mm x 16 mm (passed in Pegoda housing)
Reader Dimensions (L x W
x H)
114 mm x 114 mm x 41 mm
Weight approx. 137g
Operating Temperature -25 … + 85 °C (without condensing)
Operating Humidity 5 … 95% RH
Certificates CE, FCC
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 9 of 19
Table 2: Contactless reader RD852 specifications
Antenna
External Antenna Model AN710
Additional antenna
connector
5-pin header: for active antenna
Contactless operating frequency
13.56 MHz
Card reading/writing distance
Up to 75 mm
Contactless (RFID) Smart Card Interface
ISO 14443 A with 848 Kbps transmission rate (depending on card)
ISO 14443 B with 848 Kbps transmission rate (depending on card)
MIFARE SAM Interface (for RD852 reader)
Standards ISO/IEC 7816, T=1
SAM in X - mode SAM in X-mode incorporated in MFRX852 IC
Host Interface
Host Interface USB 2.0 (also supported USB 1.1)
Transmission Speed 12 Mbps (USB 2.0 full speed)
Power Supply Bus powered
Other Communication Interfaces
RS 232C Serial Interface 1 serial ports; connector type: 10-pin Header;
Communication speed: 115 200 bps (standard)
RS 485 Serial Interface 1 serial ports; configurable as RS485 (half or full duplex),
connector type: 5-pin Header;
Communication speed: 115 200 bps (standard)
JTAG IEEE1149.1 Serial
Interface
JTAG 10-pin connector; to connect JTAG adapter
IEEE802.3 Ethernet
Interface
Supported via LPC-COM extension board on MEC6 connector;
connector type MEC6
Electrical and Mechanical Specifications
Power Supply 5V DC ±5%, 300 mA (via USB port or via 10-pin Header)
PCB Dimensions (L x W x
H)
72 mm x 72 mm x 16 mm (passed in Pegoda housing)
Reader Dimensions (L x W
x H)
114 mm x 114 mm x 41 mm
Weight approx. 136g
Operating Temperature -25 … + 85 °C (without condensing)
Operating Humidity 5 … 95% RH
Certificates CE, FCC
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 10 of 19
4. INSTALLING MANUAL
4.1. Desktop use
Contactless readers RD710 and RD852 are both desktop readers and they are intended for
development use in development environment such are development departements in
factories, at institutes, at universities etc. Readers are usually connected via USB serial
communication port (USB 2.0) or RS232 serial port to personal computer. USB port supply
power to contactless reader and permits communication with computer.
Usuall climate conditions in development environment (room temperature and humidity) are
deep inside readers specified climate conditions.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 11 of 19
4.2. USB type A-B plug cable
Use of USB type A-B plug cable is the default configuration for both readers; RD710 and
RD852. USB type A-B plug cable is delivered with contactless reader to connect reader with
host computer.
This cable is part of the EV710 and EV852 reader KIT (KIT included: contactless reader, CD
with drivers and additional software, USB A-B cable and some contactless cards).
The default configuration uses the USB cable for communication between reader and host as
well as to supply the 5 V supply voltage.

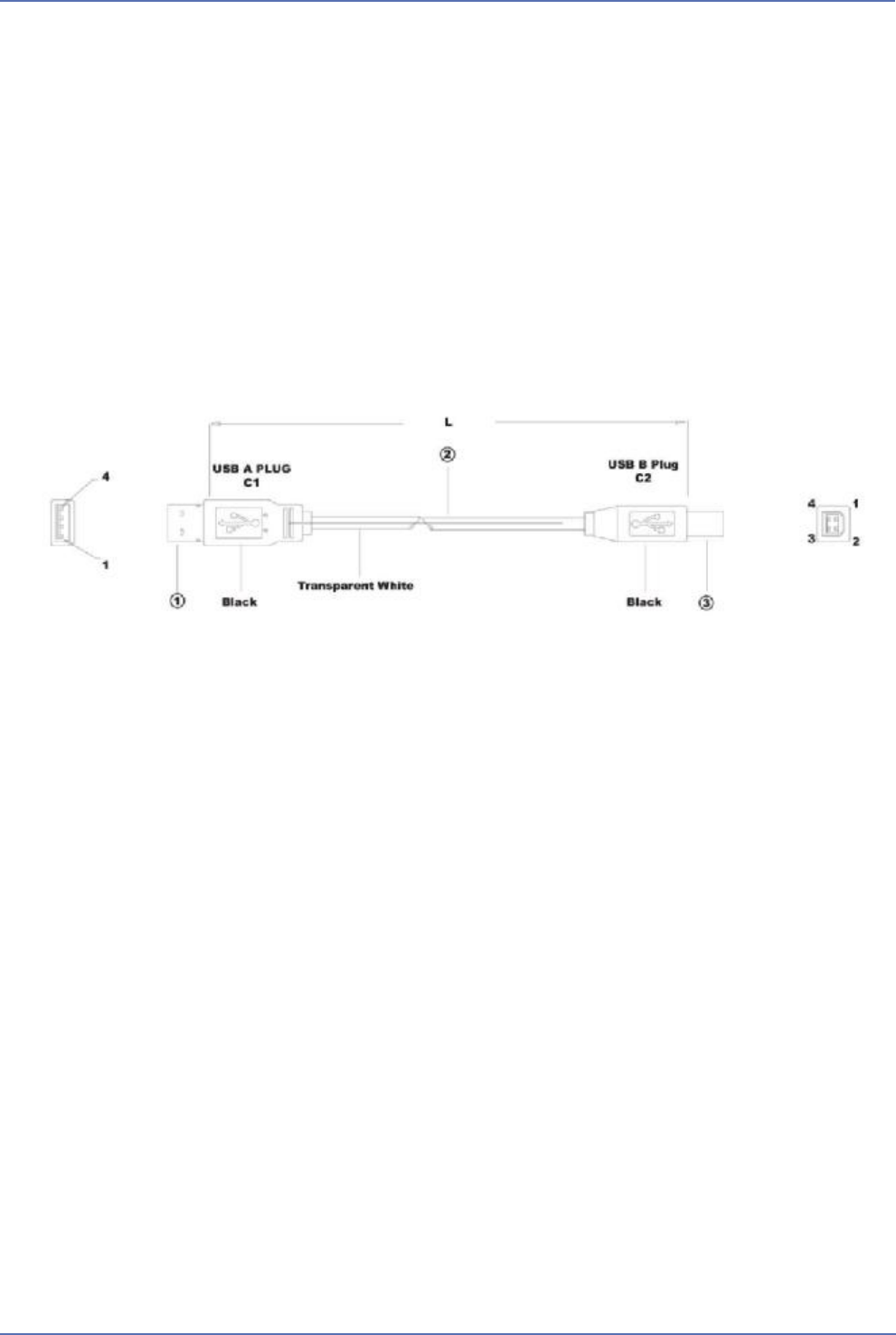

Figure 5: USB type A - B plug cable.
Note: USB 2.0 cable is type A – B plug cable, max. lenght 1.8 m.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 12 of 19
4.3. Power supply
Contactless readers, RD710 and RD852, are both powered via USB cable – with 5V DC and
typical comsumption 290mA.
Another posibility is to power, both readers, via 10-pin COM header – with external 5V DC
power suplly.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 13 of 19
4.4. Electrical characteristics
Operating Range
Symbol Description Conditions Min Typ Max Unit
+5V +5V Power Supply Active Reader 4.75 5.00 5.25 V
Tamb Ambient Temperature / -25 +25 +85 °C
Current Consumption
Symbol Description Conditions Min Typ Max Unit
IC5V Supply Current Active, RF on - 290 - mA
Operating Distance
Symbol Description Conditions Min Typ Max Unit
DST Operating Distance Measured from the center of
the antenna - 0 – 75 - mm
Interface Characteristics
Symbol Description Conditions Min Typ Max Unit
USB USB baudrate Cable lenght max. 1.8m (1*)
- 12 - Mbaud
RS232 RS232 baudrate Cable lenght max. 1.8m - 115 200 - bps
RS485 RS485 baudrate Cable lenght max. 1.8m - 115 200 - bps
(1*) USB 2.0 cable is type A – B plug cable, max. lenght 1.8 m.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 14 of 19
5. USER MANUAL
5.1. User manual
Contactless readers RD710 and RD852 are inteded to send and receive data according to
the ISO 14443A and ISO 14443B protocol. Data transfer from reader to/from contactless
cards operates at frequency 13.56 MHz.
At the other side the reader comunicate with host computer via serial interface: USB, RS232,
RS485 or JTAG interface.
Main functions which permit both readers are:
- sending and receiving data to/from contactless cards according ISO 14443A and ISO
14443B protocol.
- Supportting MIFARE contactless memory cards.
- ISO/IEC7816 T=1 compatibility.
- Card reading distance up to 75 mm.
- The data exchange from Reader to the host PC over the host interfaces: USB, RS232
and RS485.
- The data exchange from Reader to the host PC over JTAG IEEE 1149.1 interface.
- The data exchange from Reader to the host PC over Ethernet IEEE802.3 network –
via LPC_COM extension board.
Contactless readers RD710 and RD852 are intended for development use and support large
set of commands. User can write user specific application.
General user instructions:
- Reading/writing is possible only with MIFARE contactless cards.
- Reading device can detect contactless card up to 75 mm from the center reader's
antenna.
- Contactless card identification is possible in electromagnetic field (created from
contactless reader). Nonmetal material have no influence to reading distance or
reading reliability.
- Reading/writing to/from card is very simple: user approaches his contactless card to
reader's antena. Reading device detects card and confirm reading or writing with
sound (beeper) and light (LED) signal.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 15 of 19
5.2. INSTRUCTIONS FOR SAFE WORK, MAINTAINING AND CARE
− Be careful not to damage the housing, connectors, antenna, PCB and other connected
parts.
− Because of the specifics of the device and the damage, only quallified staff, authorized by
the producer, are allowed to repair the device. All interventions of the unauthorized
person and mechanical damage means repealing of the guarantee.
− Due to being exposed to a lot of people, the device needs to be cleaned and maintained
regularly (some cleansers may contain substances which can damage the material of the
housing).
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 16 of 19
5.3. ELECTROMAGNETIC COMPATIBILITY
Contactless readers RD 710 and RD 852 fulfil the following requirements of electromagnetic compatibility:
FCC, Part 15 and CE.
5.3.1. FCC Compliance Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution!
The Federal Communications Commission warns the users that changes or modifications to the unit not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
The accessories associated with this equipment are as follows:
. Shielded communication cable
These accessories are required to be used in order to ensure compliance with FCC rules.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 17 of 19
5.3.2. COMPLIANCE INFORMATION according to 47CFR 2.1077
We,
Company: __________________
Address: __________________
Phone: __________________
declare that the products
RD 710,
FCC ID: OWRMFRD710
and RD 852,
FCC ID: OWRMFRD852
are in conformity with Part 15 of the FCC Rules.
Operation of this product is subject to the following conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 18 of 19
5.3.3. CE Declaration of Conformity
This Information Technology Equipment has been tested and found to comply with the following European
directives:
Harmonised Standards applied Description
EN 300 330 – 2 V 1.5.1 Air interface of the radio systems pursuant to § 3(2) (Article 3(2))
EN 60950-1:2001 +A11:2004 Health and safety requirements pursuant to § 3 (1) 1. (Article 3(1)
a)
EN 301 489-01 V1.6.1
EN 301 489-03 V1.4.1. Protection requirements concerning electromagnetic
compatibility § 3(1)2,(Article 3(1)(b))
EN 55022:2006 Electromagnetic compatibility-Limits and methods of radio
disturbance characteristics of information technology class B
(Part 1: Emission)
EN 55024:1998+A1:2001+A2:2003 Electromagnetic compatibility - Limits and methods of radio
disturbance characteristics of information technology equipment
(Part 2: Immunity)
EN 61000-3-2 Electromagnetic compatibility - Limits for harmonic current
emissions
EN 61000-3-3 Electromagnetic compatibility - Limitation of voltage fluctuations
and flicker in low-voltage supply systems
EN 61000-4-2 Electromagnetic compatibility – Electronic discarge immunity test
EN 61000-4-3 Electromagnetic compatibility – Radiated fadio-frequency
electromagnetic field immunity test
EN 61000-4-4 Electromagnetic compatibility - Electrical Fast Transient / Burst
immunity test
EN 61000-4-5 Electromagnetic compatibility – Surge immunity test
EN 61000-4-6 Electromagnetic compatibility – Immunity to conducted
disturbances induced by radio fields
EN 61000-4-11 Electromagnetic compatibility – Voltage dips, short interruptions
and voltage immunity test
Manufacturer’s Name: NXP Semiconductors
Manufacturer’s Address: Mikronweg 1, A-8101 Gratkorn, Austria
Type of Equipment: Contactless reader
Model No.: RD710 and RD852
NXP Semiconductors hereby declare that the equipment specified above conforms to the above Directive(s)
and Standard(s), and said equipment is in conformity with the relevant harmonised standards as mentioned
above.
NXP Semiconductors
BL ID Hardware User manual
Project Name: Hardware User Manual Project ID: 62743
STS Template 1.0
public
©
NXP B.V.
2010
. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 18 Oct 2010 19 of 19
6. WARRANTY, LIMITATIONS OF LIABILITY
WARRANTY POLICY
Manufacturer warrants that any product (“Product“) sold by Manufacturer to an end user (“User”) shall be free of
defects in material and workmanship for a period a one year (or other period if specified) from date of sale by
Manufacturer.
If any Product, Product's part fail to conform or is defective then Manufacturer, at its option, will repair or replace
it at the premises of the User (On-Site).
To obtain warranty service, you must send the Product in either its original packaging or packaging offering an
equal degree of protection directly to Manufacturer. Please contact Manufacturer for warranty replacement fee
information.
LIMITATIONS AND EXCLUSIONS
This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems
(RFID readers).
This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or modification of, or to any part of the Product, including the antenna. This
warranty does not cover damage due to improper operation or maintenance, connection to improper voltage
supply, or attempted repair by anyone other than a facility authorized by Manufacturer to service the Product.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the
Warranty period must be presented to obtain warranty service.
This warranty is invalid if the factory applied serial number has been altered or removed from the Product.
THIS WARRANTY REPRESENTS THE ENTIRE AGREEMENT BETWEEN MANUFACTURER AND USER
WITH RESPECT TO THE SUBJECT MATTER HEREIN AND SUPERSEDES ALL PRIOR OR
CONTEMPORANEOUS ORAL OR WRITTEN COMMUNICATIONS, REPRESENTATIONS,
UNDERSTANDINGS OR AGREEMENTS RELATING TO THIS SUBJECT.
End User: _________________________________________________________
Model Number: _____________________________________________________
Serial Number: _____________________________________________________
Startup Date: __________________ Waranty End Date: _________________
