NXP Austria OM25180TWR 13.56 MHz RFID Module User Manual AN11806

NXP Austria GmbH 13.56 MHz RFID Module AN11806

User Manual

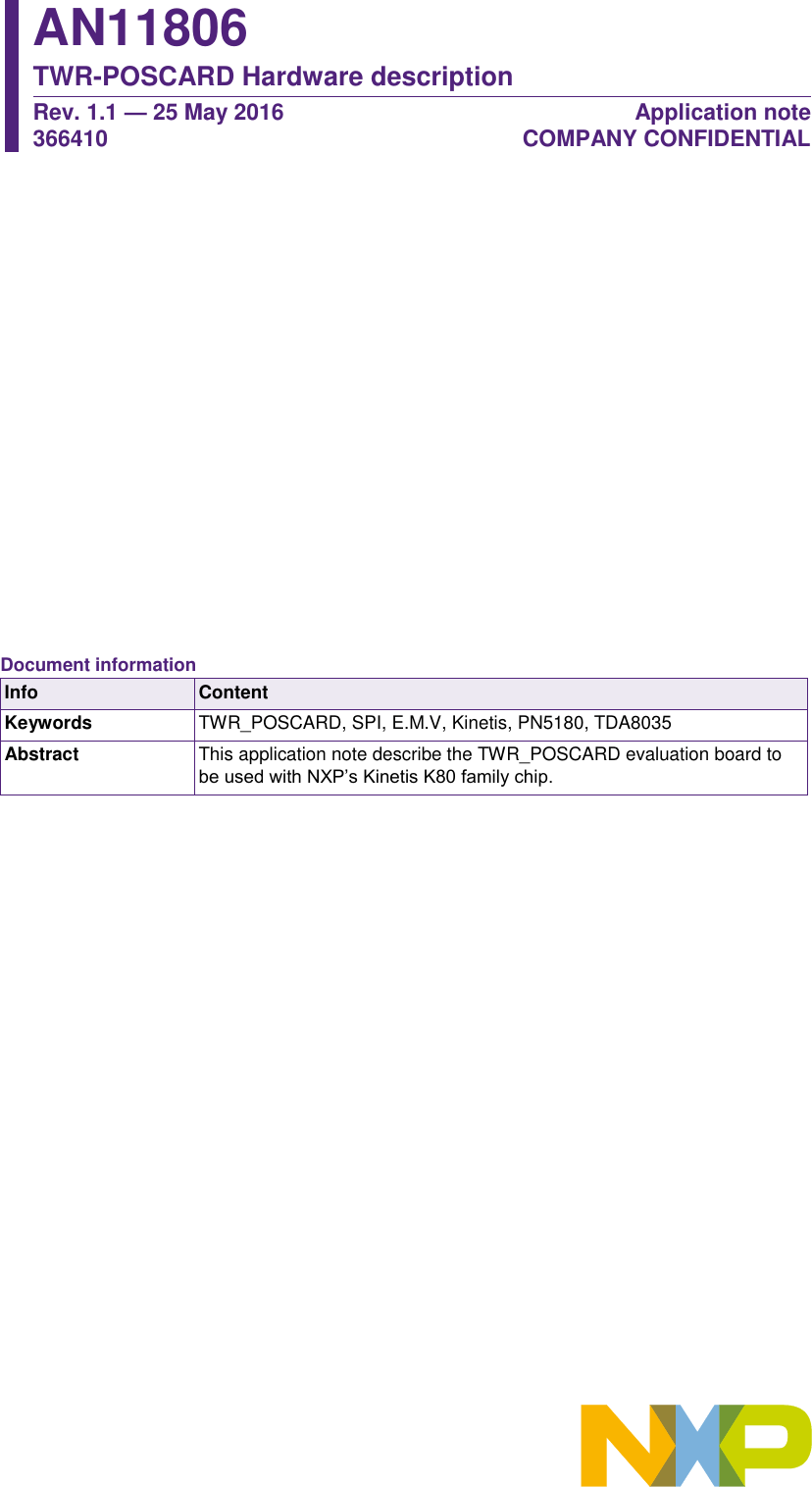

AN11806 TWR-POSCARD Hardware description Rev. 1.1 — 25 May 2016 366410 Application note COMPANY CONFIDENTIAL Document information Info Content Keywords TWR_POSCARD, SPI, E.M.V, Kinetis, PN5180, TDA8035 Abstract This application note describe the TWR_POSCARD evaluation board to be used with NXP’s Kinetis K80 family chip.

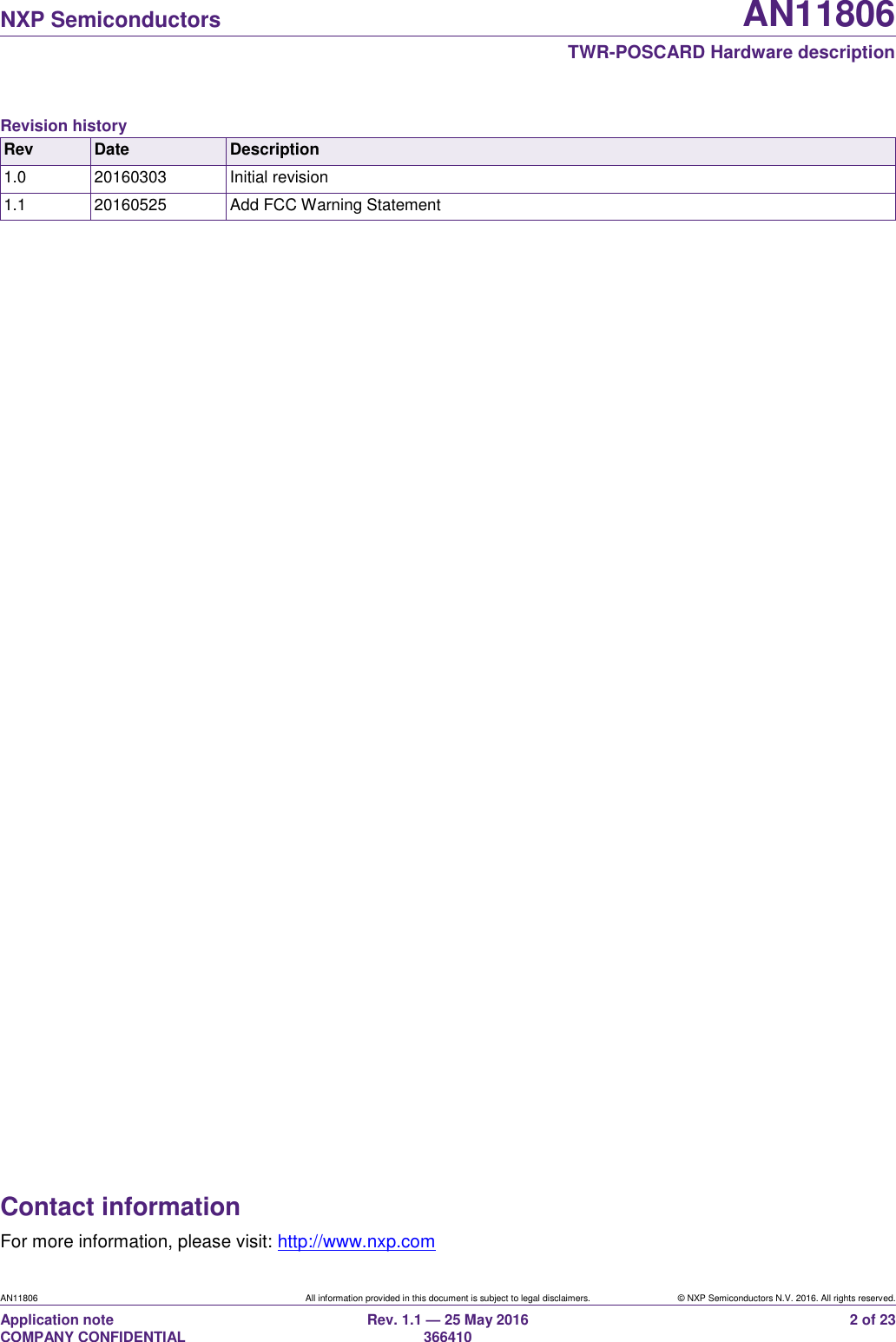

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 2 of 23 Contact information For more information, please visit: http://www.nxp.com Revision history Rev Date Description 1.0 20160303 Initial revision 1.1 20160525 Add FCC Warning Statement

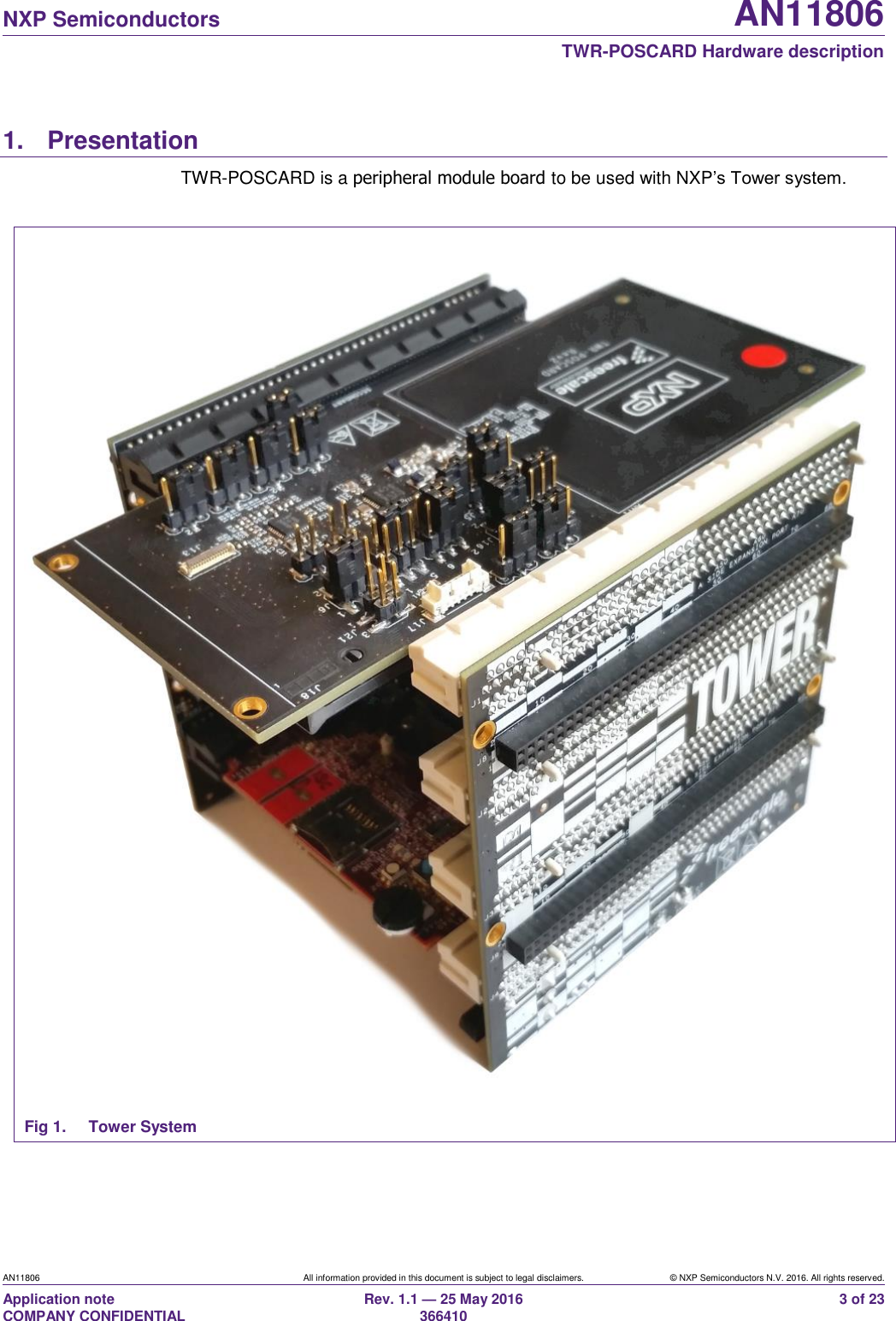

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 3 of 23 1. Presentation TWR-POSCARD is a peripheral module board to be used with NXP’s Tower system. Fig 1. Tower System

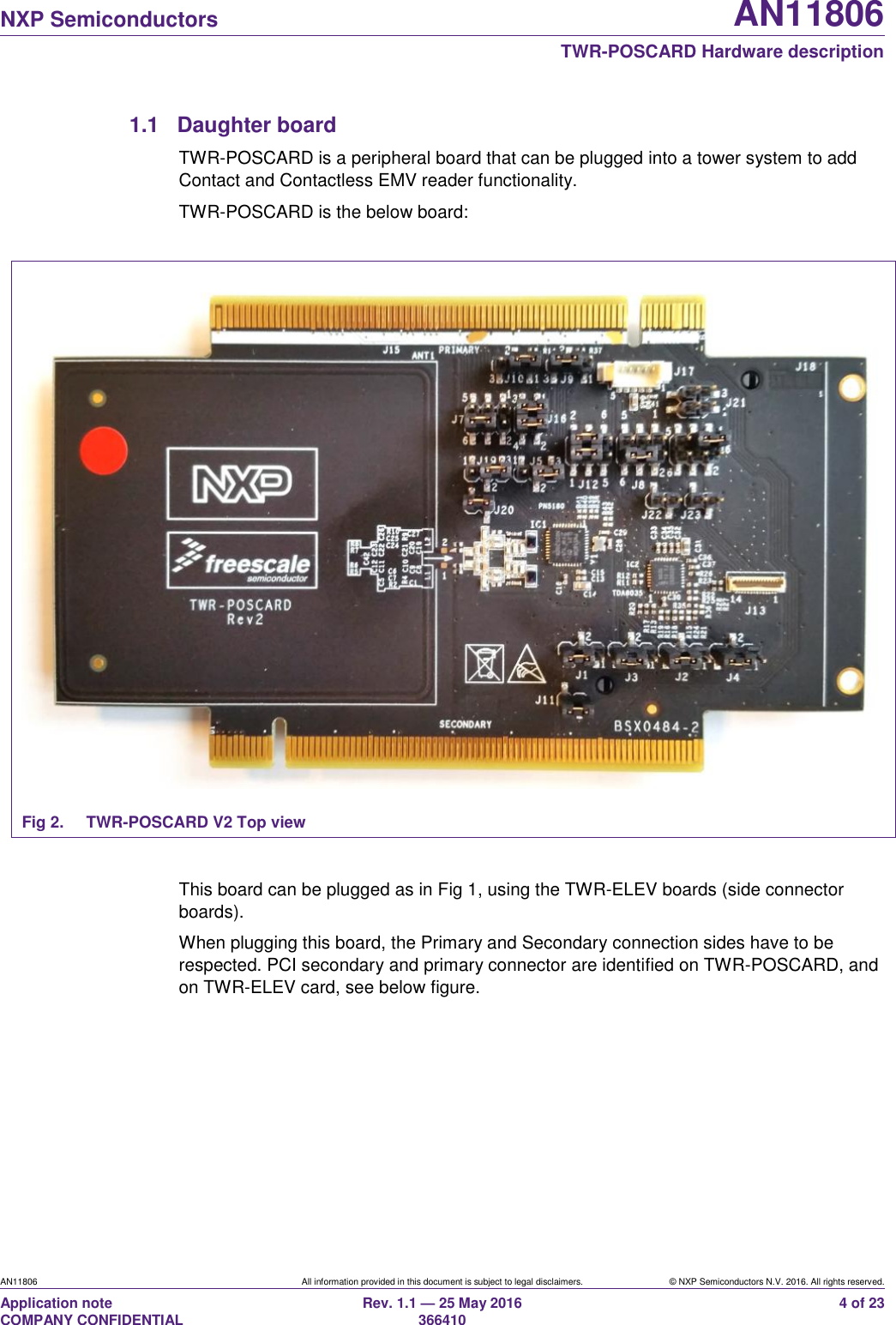

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 4 of 23 1.1 Daughter board TWR-POSCARD is a peripheral board that can be plugged into a tower system to add Contact and Contactless EMV reader functionality. TWR-POSCARD is the below board: Fig 2. TWR-POSCARD V2 Top view This board can be plugged as in Fig 1, using the TWR-ELEV boards (side connector boards). When plugging this board, the Primary and Secondary connection sides have to be respected. PCI secondary and primary connector are identified on TWR-POSCARD, and on TWR-ELEV card, see below figure.

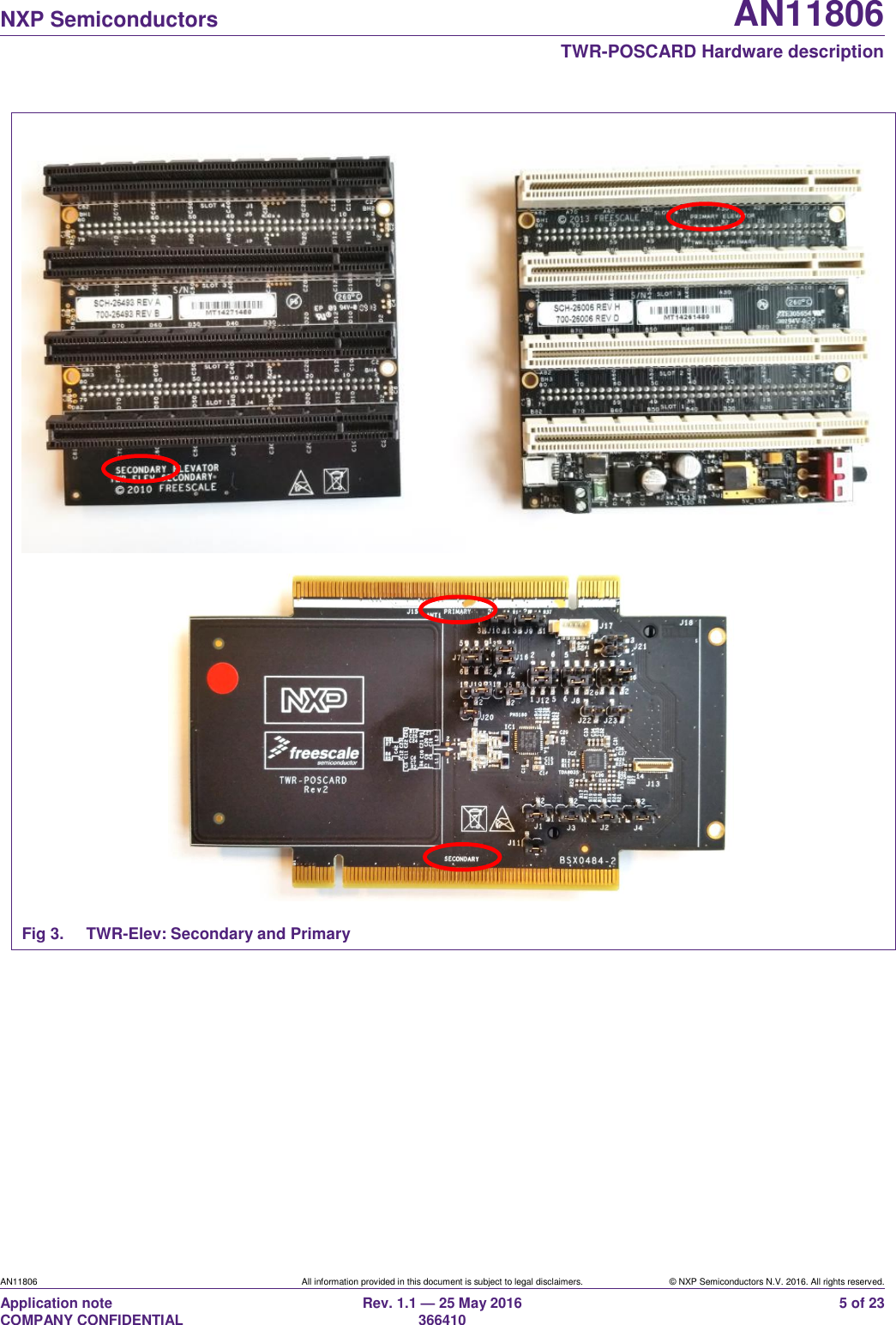

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 5 of 23 Fig 3. TWR-Elev: Secondary and Primary

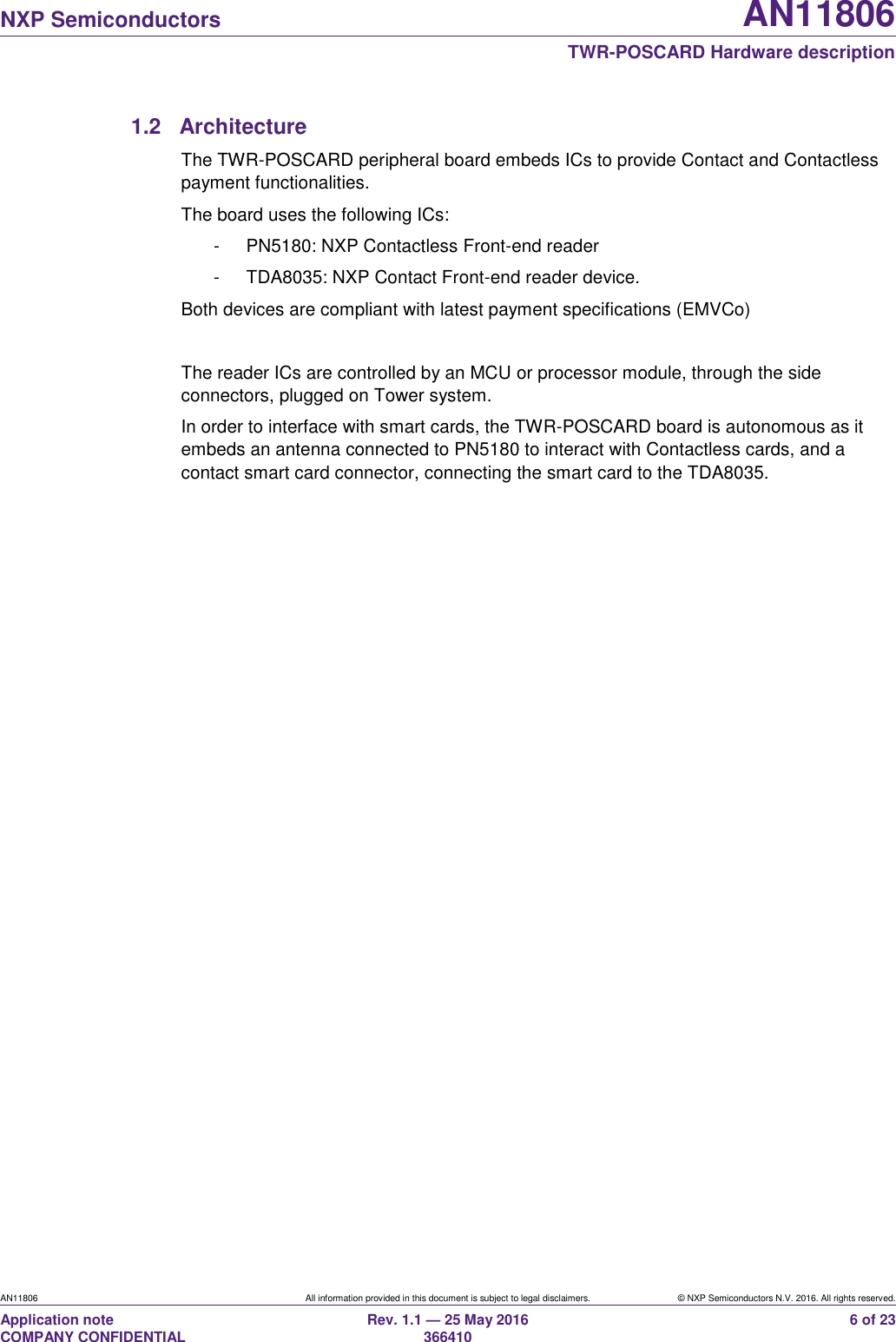

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 6 of 23 1.2 Architecture The TWR-POSCARD peripheral board embeds ICs to provide Contact and Contactless payment functionalities. The board uses the following ICs: - PN5180: NXP Contactless Front-end reader - TDA8035: NXP Contact Front-end reader device. Both devices are compliant with latest payment specifications (EMVCo) The reader ICs are controlled by an MCU or processor module, through the side connectors, plugged on Tower system. In order to interface with smart cards, the TWR-POSCARD board is autonomous as it embeds an antenna connected to PN5180 to interact with Contactless cards, and a contact smart card connector, connecting the smart card to the TDA8035.

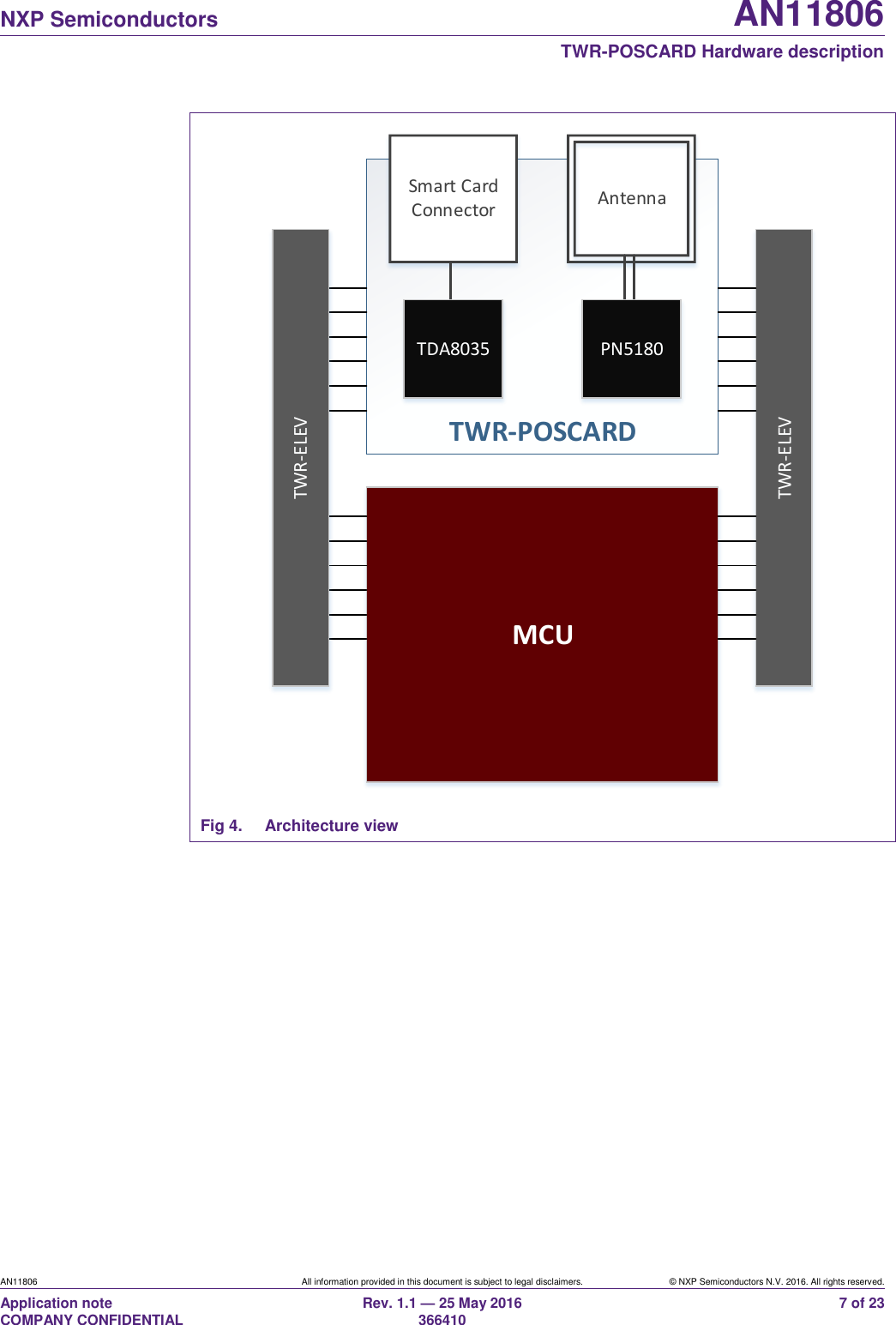

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 7 of 23 TWR-ELEVTWR-POSCARDMCUTWR-ELEVSmart CardConnector AntennaTDA8035 PN5180 Fig 4. Architecture view

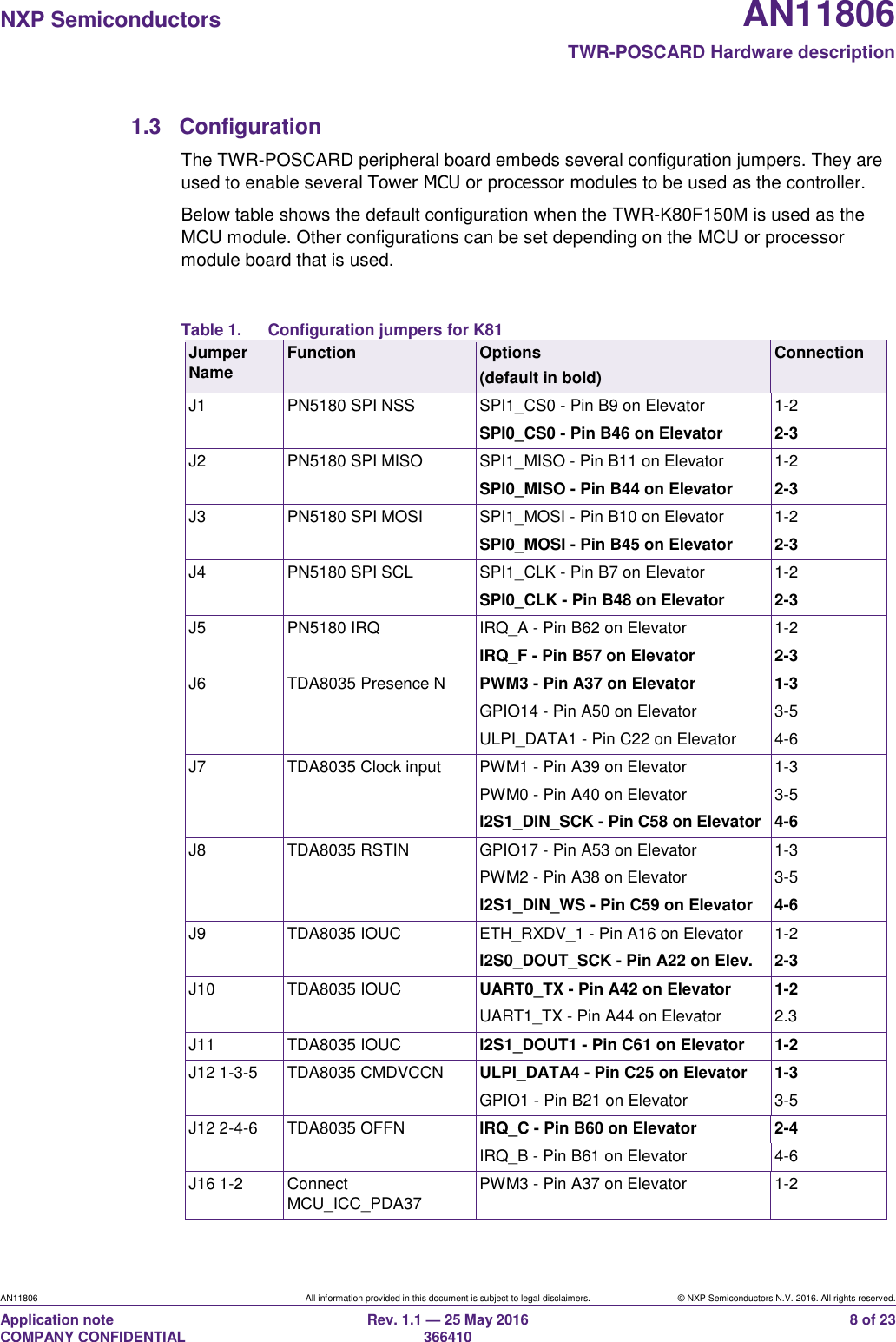

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 8 of 23 1.3 Configuration The TWR-POSCARD peripheral board embeds several configuration jumpers. They are used to enable several Tower MCU or processor modules to be used as the controller. Below table shows the default configuration when the TWR-K80F150M is used as the MCU module. Other configurations can be set depending on the MCU or processor module board that is used. Table 1. Configuration jumpers for K81 Jumper Name Function Options (default in bold) Connection J1 PN5180 SPI NSS SPI1_CS0 - Pin B9 on Elevator 1-2 SPI0_CS0 - Pin B46 on Elevator 2-3 J2 PN5180 SPI MISO SPI1_MISO - Pin B11 on Elevator 1-2 SPI0_MISO - Pin B44 on Elevator 2-3 J3 PN5180 SPI MOSI SPI1_MOSI - Pin B10 on Elevator 1-2 SPI0_MOSI - Pin B45 on Elevator 2-3 J4 PN5180 SPI SCL SPI1_CLK - Pin B7 on Elevator 1-2 SPI0_CLK - Pin B48 on Elevator 2-3 J5 PN5180 IRQ IRQ_A - Pin B62 on Elevator 1-2 IRQ_F - Pin B57 on Elevator 2-3 J6 TDA8035 Presence N PWM3 - Pin A37 on Elevator 1-3 GPIO14 - Pin A50 on Elevator 3-5 ULPI_DATA1 - Pin C22 on Elevator 4-6 J7 TDA8035 Clock input PWM1 - Pin A39 on Elevator 1-3 PWM0 - Pin A40 on Elevator 3-5 I2S1_DIN_SCK - Pin C58 on Elevator 4-6 J8 TDA8035 RSTIN GPIO17 - Pin A53 on Elevator 1-3 PWM2 - Pin A38 on Elevator 3-5 I2S1_DIN_WS - Pin C59 on Elevator 4-6 J9 TDA8035 IOUC ETH_RXDV_1 - Pin A16 on Elevator 1-2 I2S0_DOUT_SCK - Pin A22 on Elev. 2-3 J10 TDA8035 IOUC UART0_TX - Pin A42 on Elevator 1-2 UART1_TX - Pin A44 on Elevator 2.3 J11 TDA8035 IOUC I2S1_DOUT1 - Pin C61 on Elevator 1-2 J12 1-3-5 TDA8035 CMDVCCN ULPI_DATA4 - Pin C25 on Elevator 1-3 GPIO1 - Pin B21 on Elevator 3-5 J12 2-4-6 TDA8035 OFFN IRQ_C - Pin B60 on Elevator 2-4 IRQ_B - Pin B61 on Elevator 4-6 J16 1-2 Connect MCU_ICC_PDA37 PWM3 - Pin A37 on Elevator 1-2

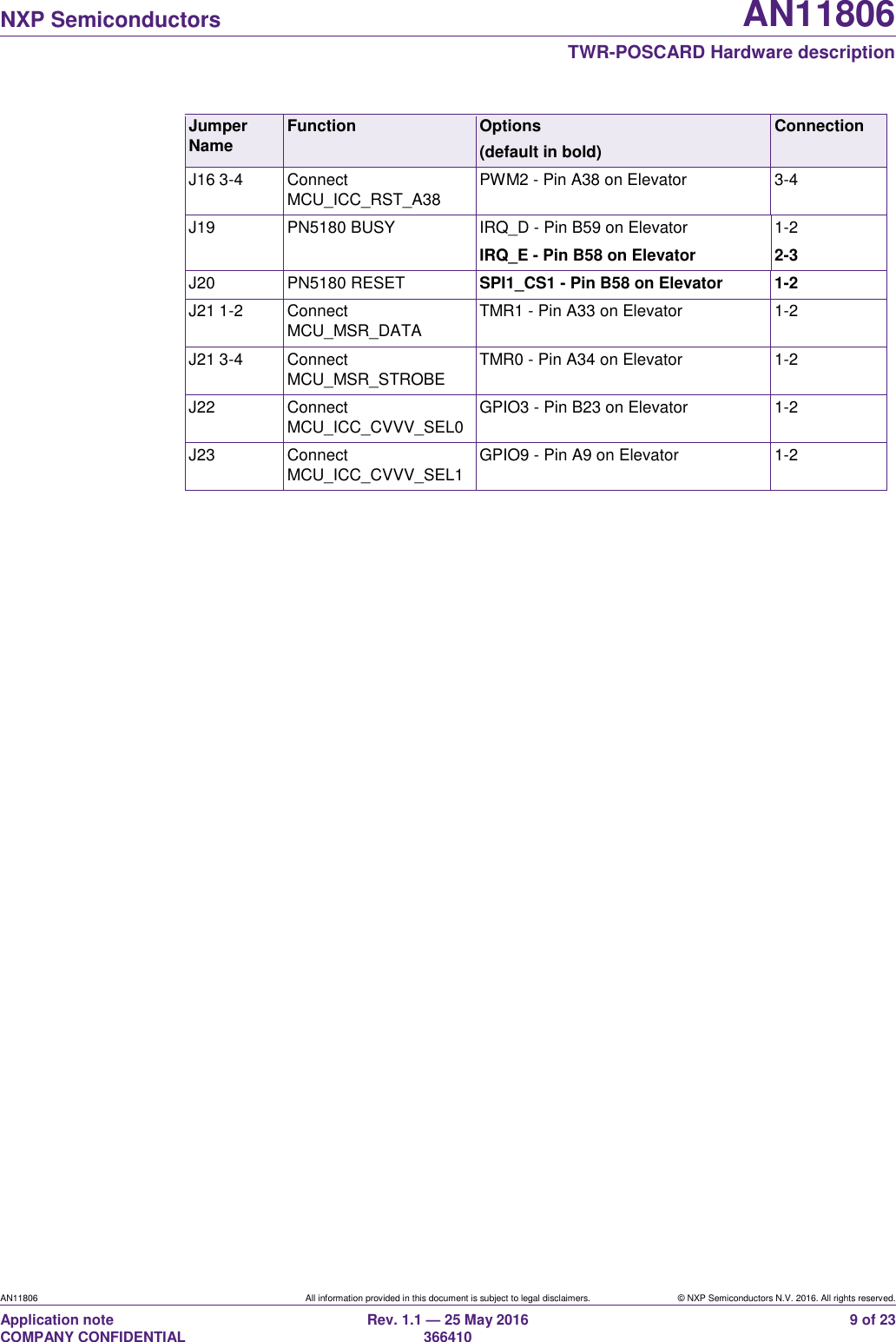

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 9 of 23 Jumper Name Function Options (default in bold) Connection J16 3-4 Connect MCU_ICC_RST_A38 PWM2 - Pin A38 on Elevator 3-4 J19 PN5180 BUSY IRQ_D - Pin B59 on Elevator 1-2 IRQ_E - Pin B58 on Elevator 2-3 J20 PN5180 RESET SPI1_CS1 - Pin B58 on Elevator 1-2 J21 1-2 Connect MCU_MSR_DATA TMR1 - Pin A33 on Elevator 1-2 J21 3-4 Connect MCU_MSR_STROBE TMR0 - Pin A34 on Elevator 1-2 J22 Connect MCU_ICC_CVVV_SEL0 GPIO3 - Pin B23 on Elevator 1-2 J23 Connect MCU_ICC_CVVV_SEL1 GPIO9 - Pin A9 on Elevator 1-2

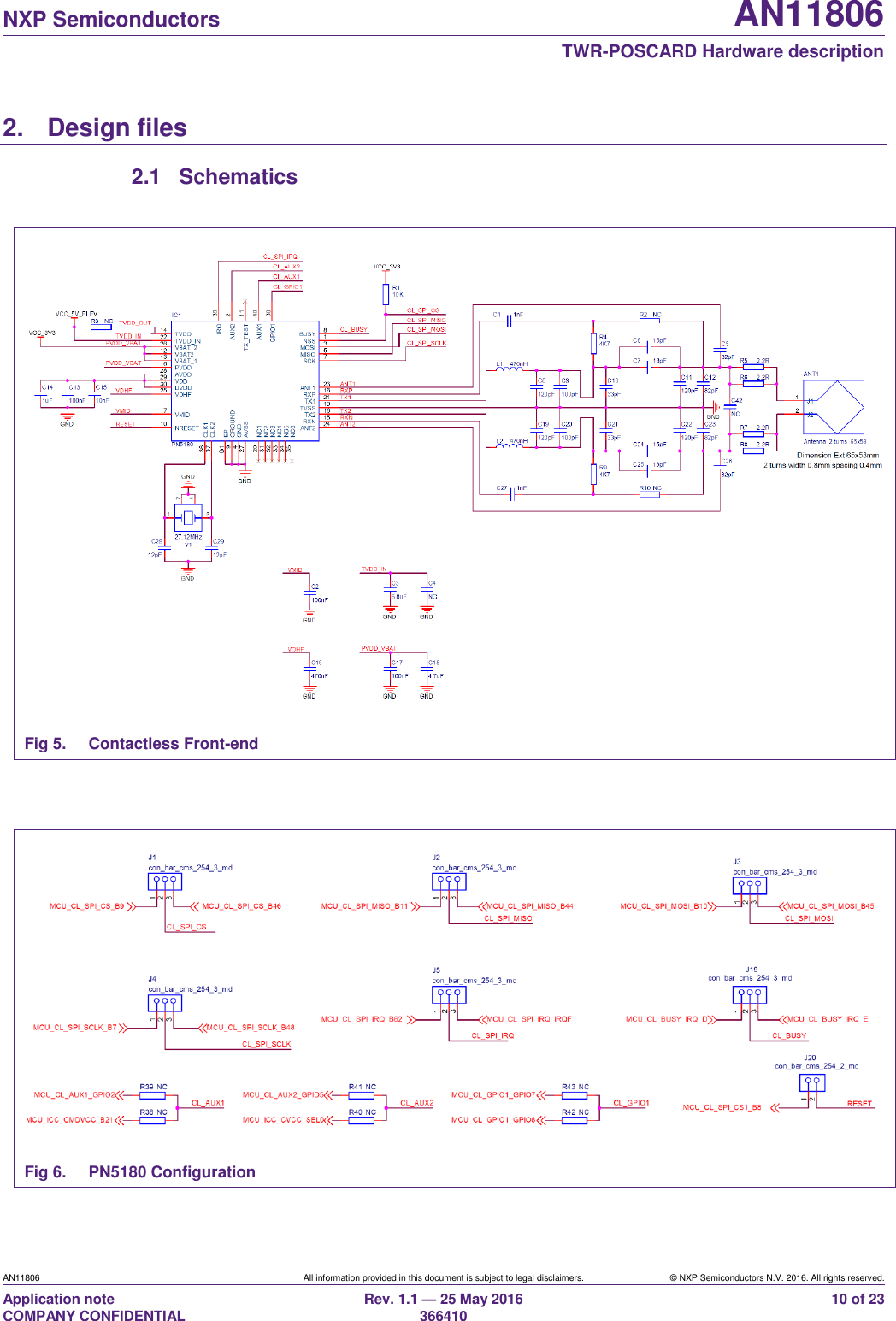

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 10 of 23 2. Design files 2.1 Schematics Fig 5. Contactless Front-end Fig 6. PN5180 Configuration

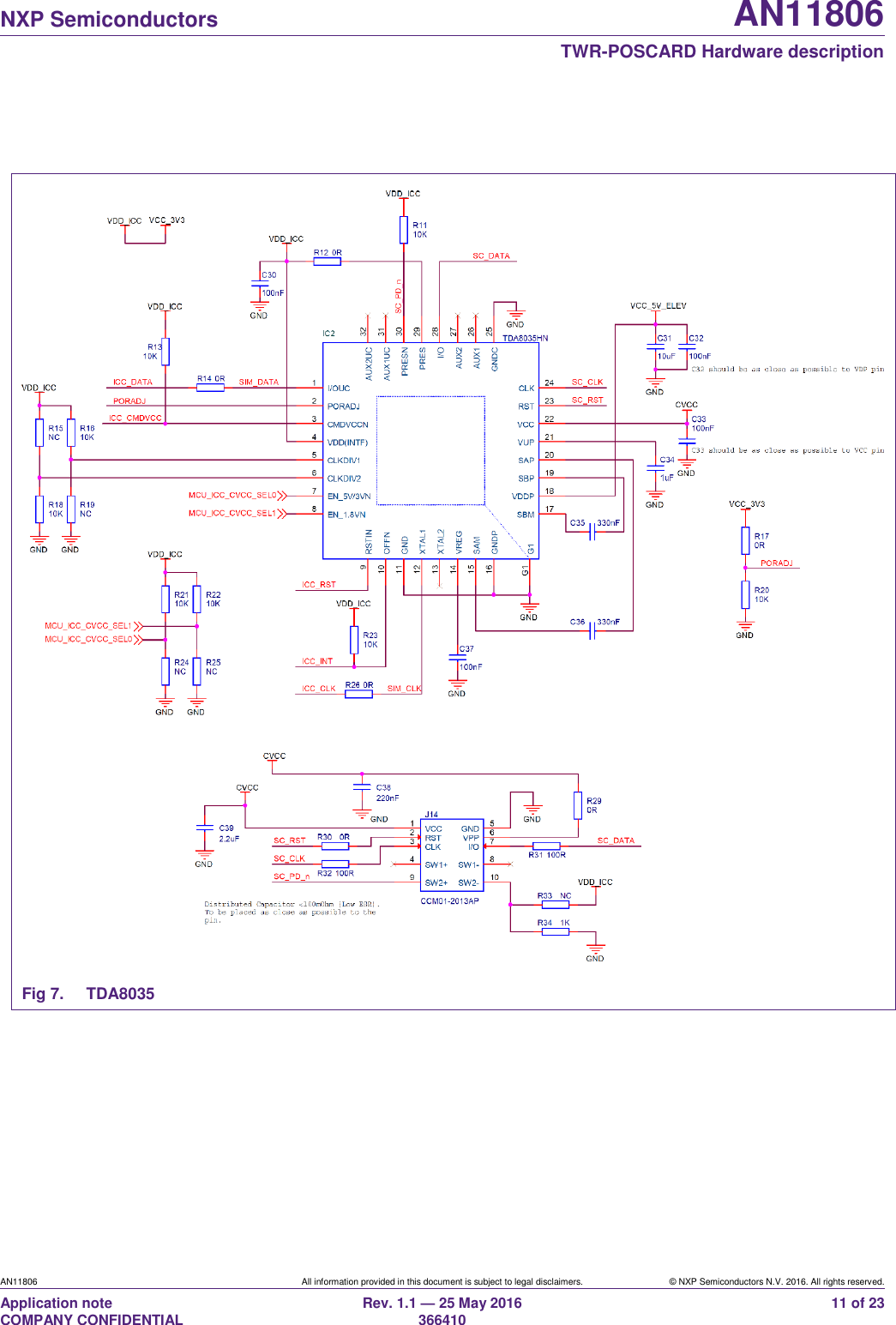

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 11 of 23 Fig 7. TDA8035

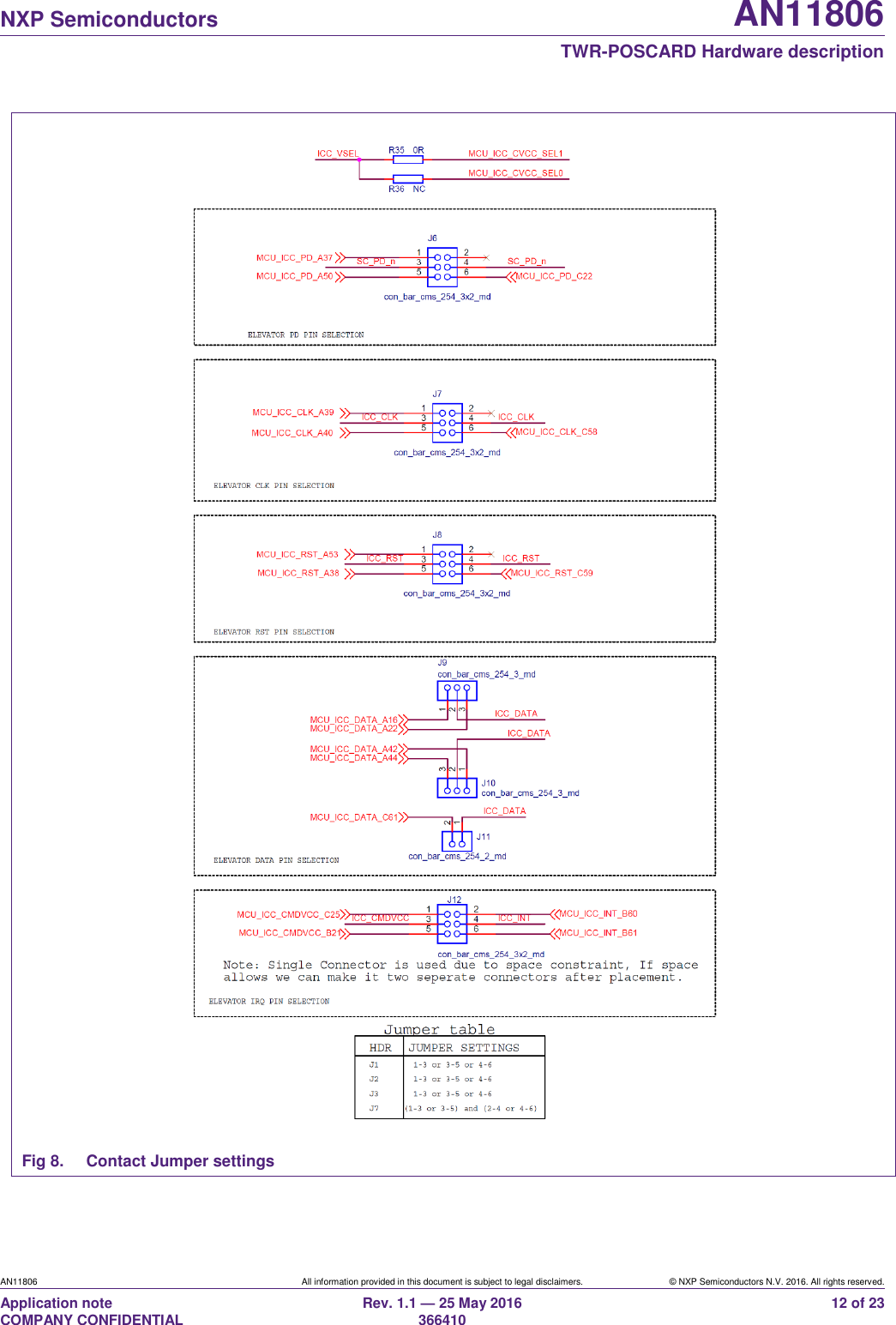

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 12 of 23 Fig 8. Contact Jumper settings

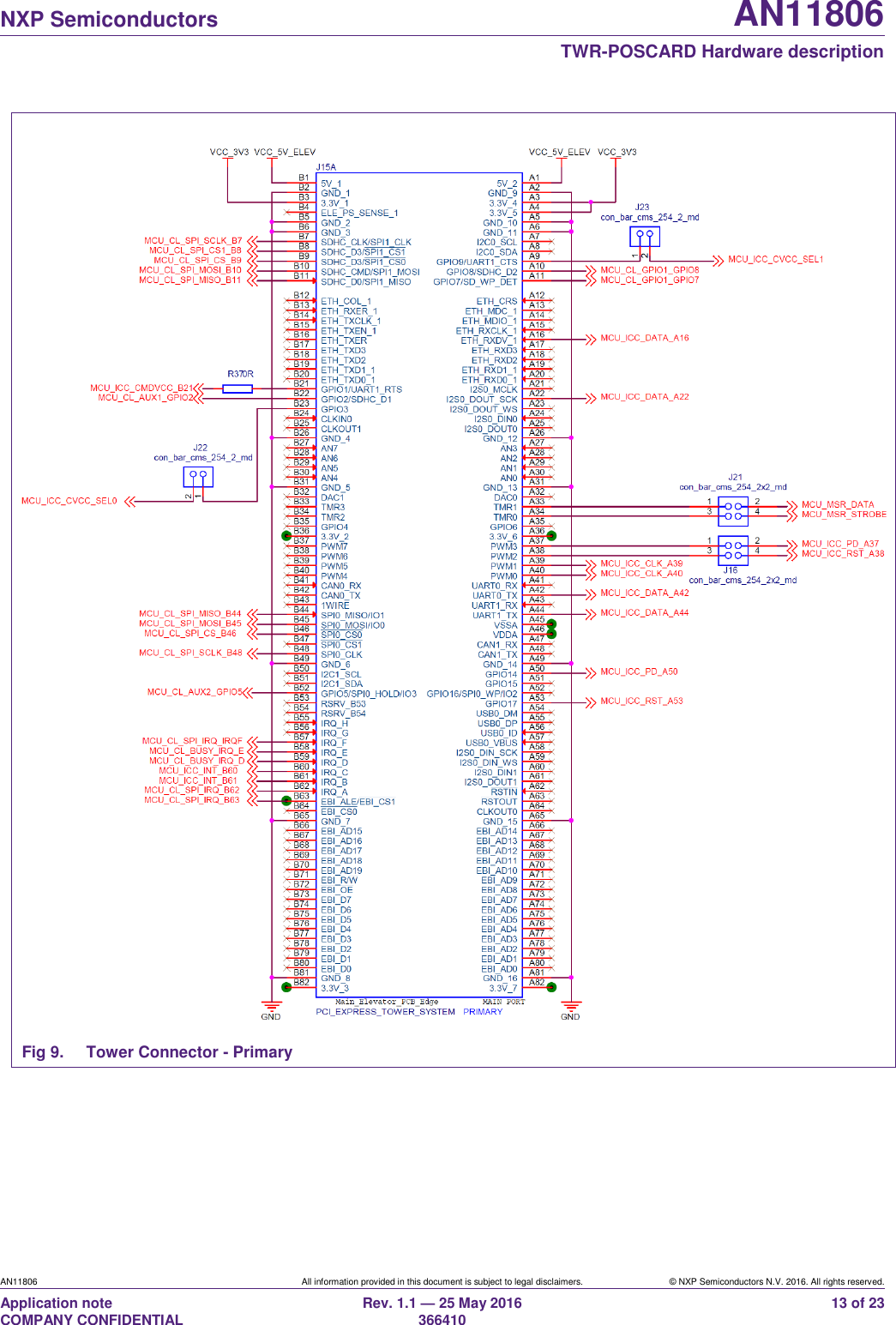

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 13 of 23 Fig 9. Tower Connector - Primary

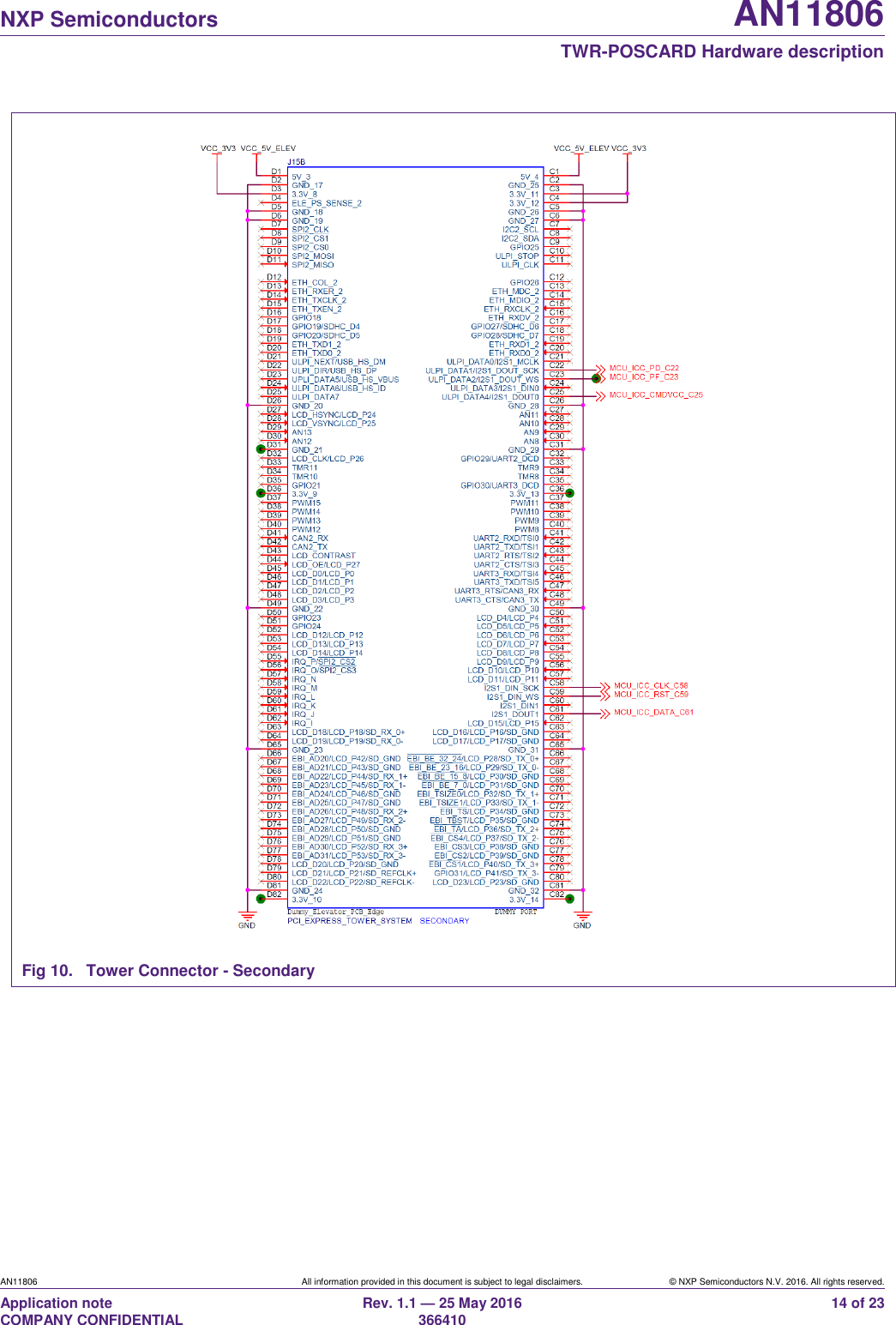

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 14 of 23 Fig 10. Tower Connector - Secondary

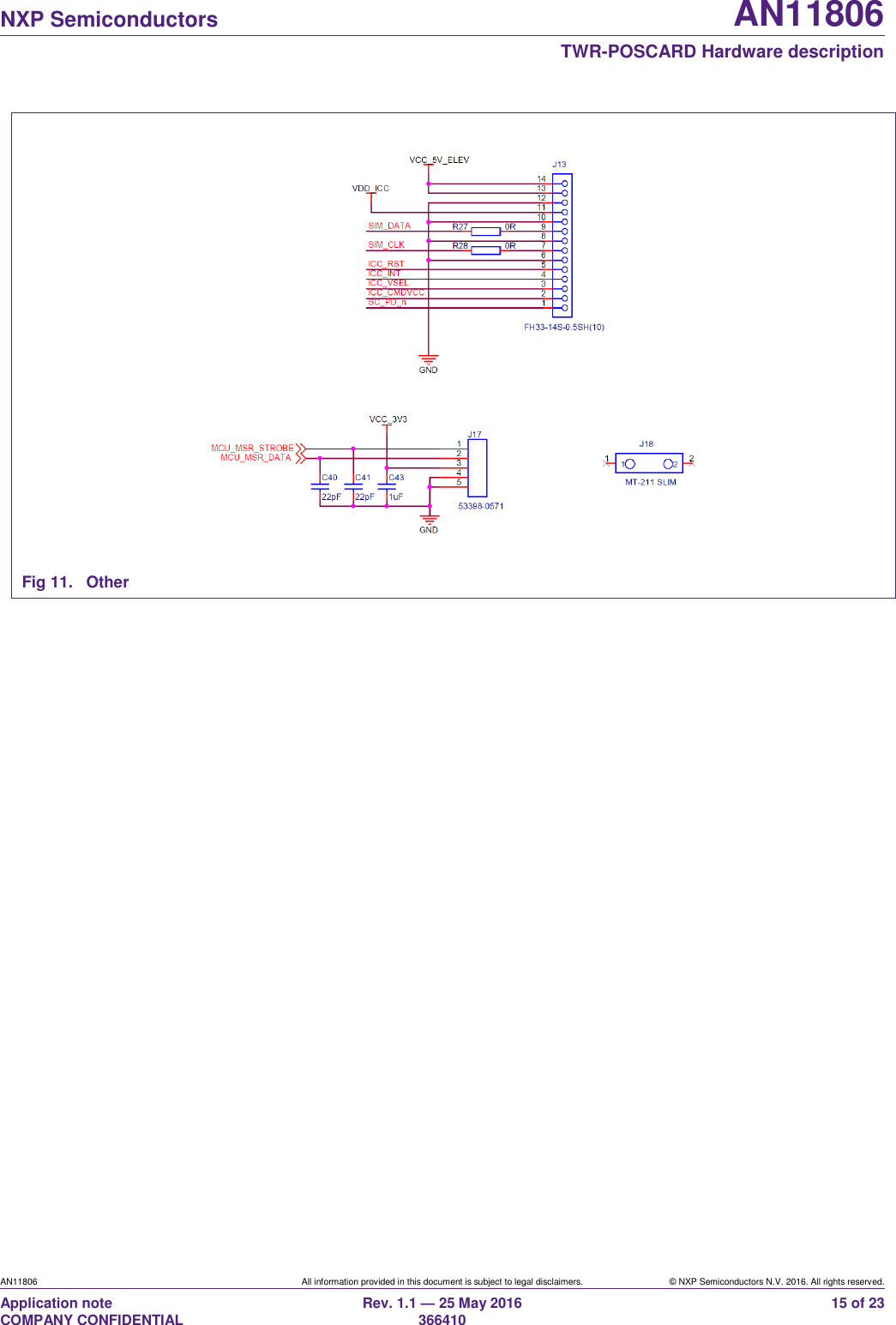

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 15 of 23 Fig 11. Other

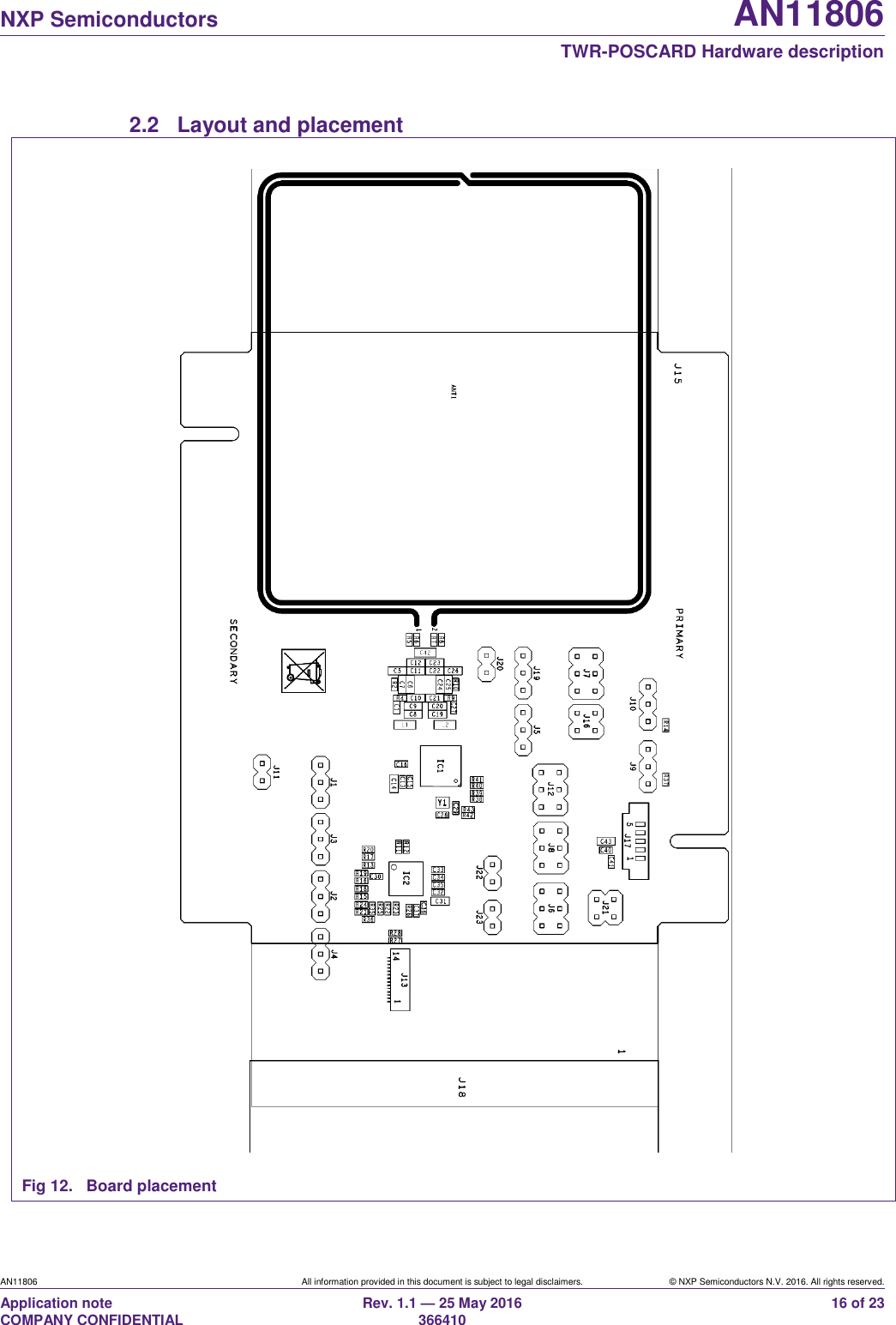

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 16 of 23 2.2 Layout and placement Fig 12. Board placement

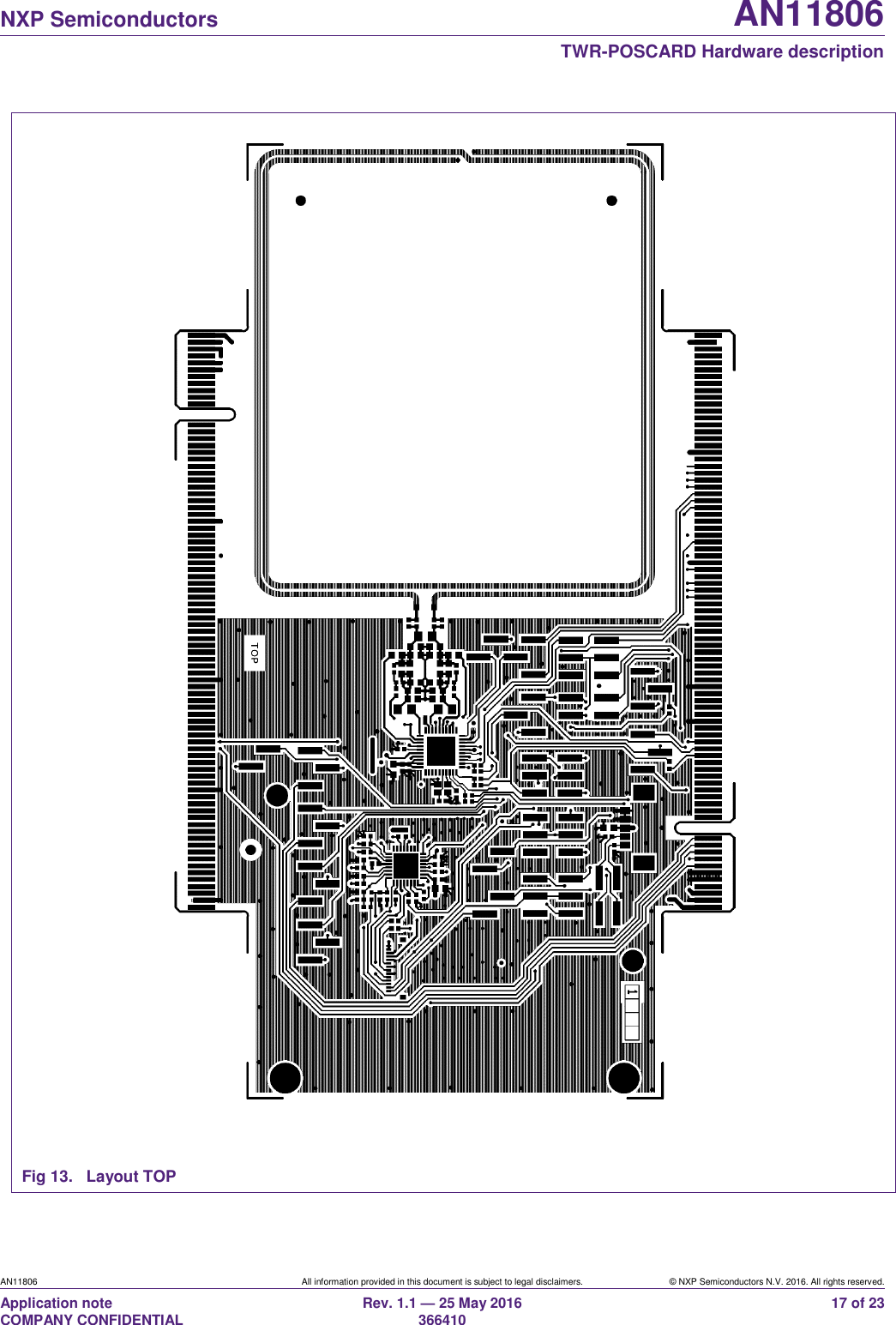

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 17 of 23 Fig 13. Layout TOP

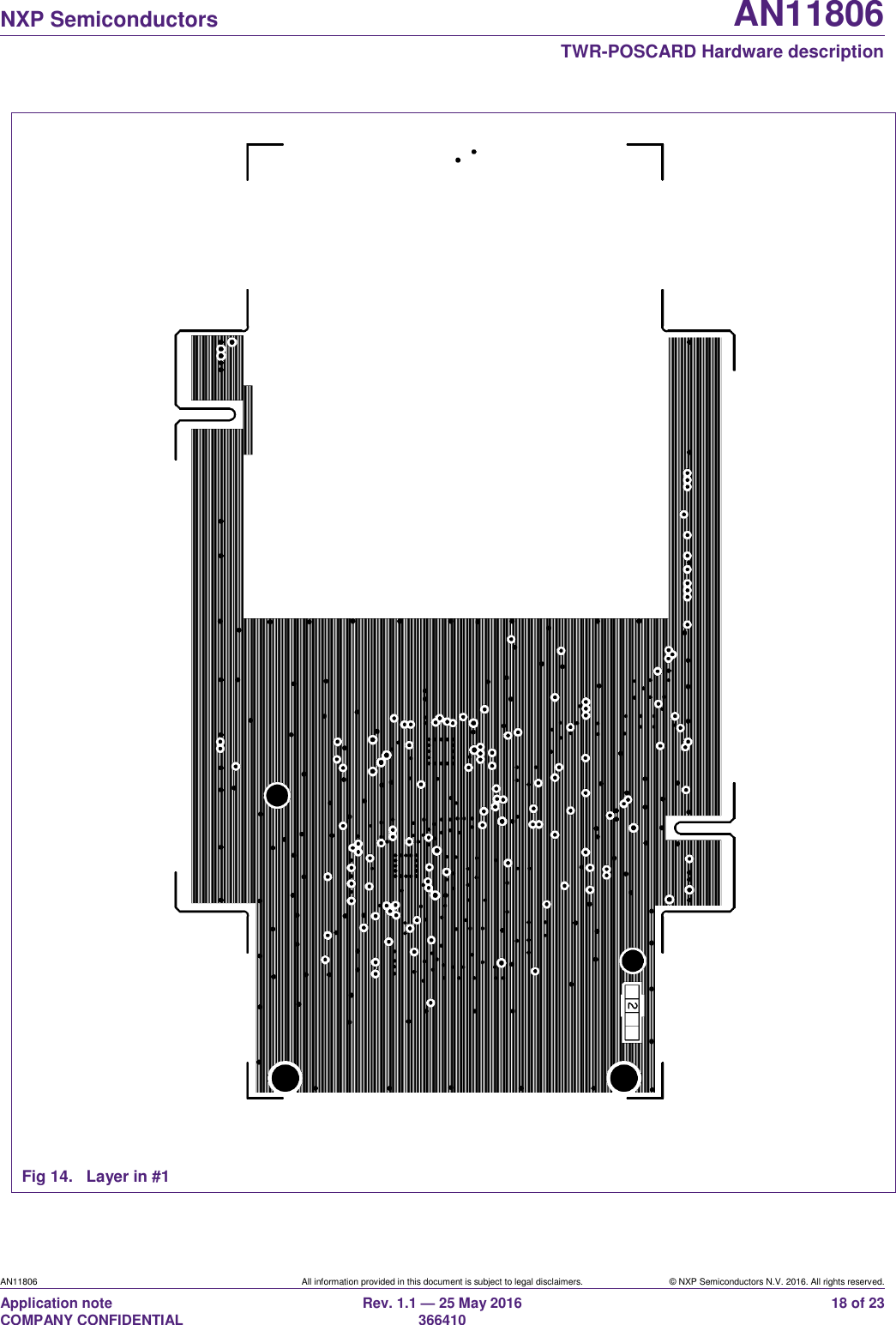

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 18 of 23 Fig 14. Layer in #1

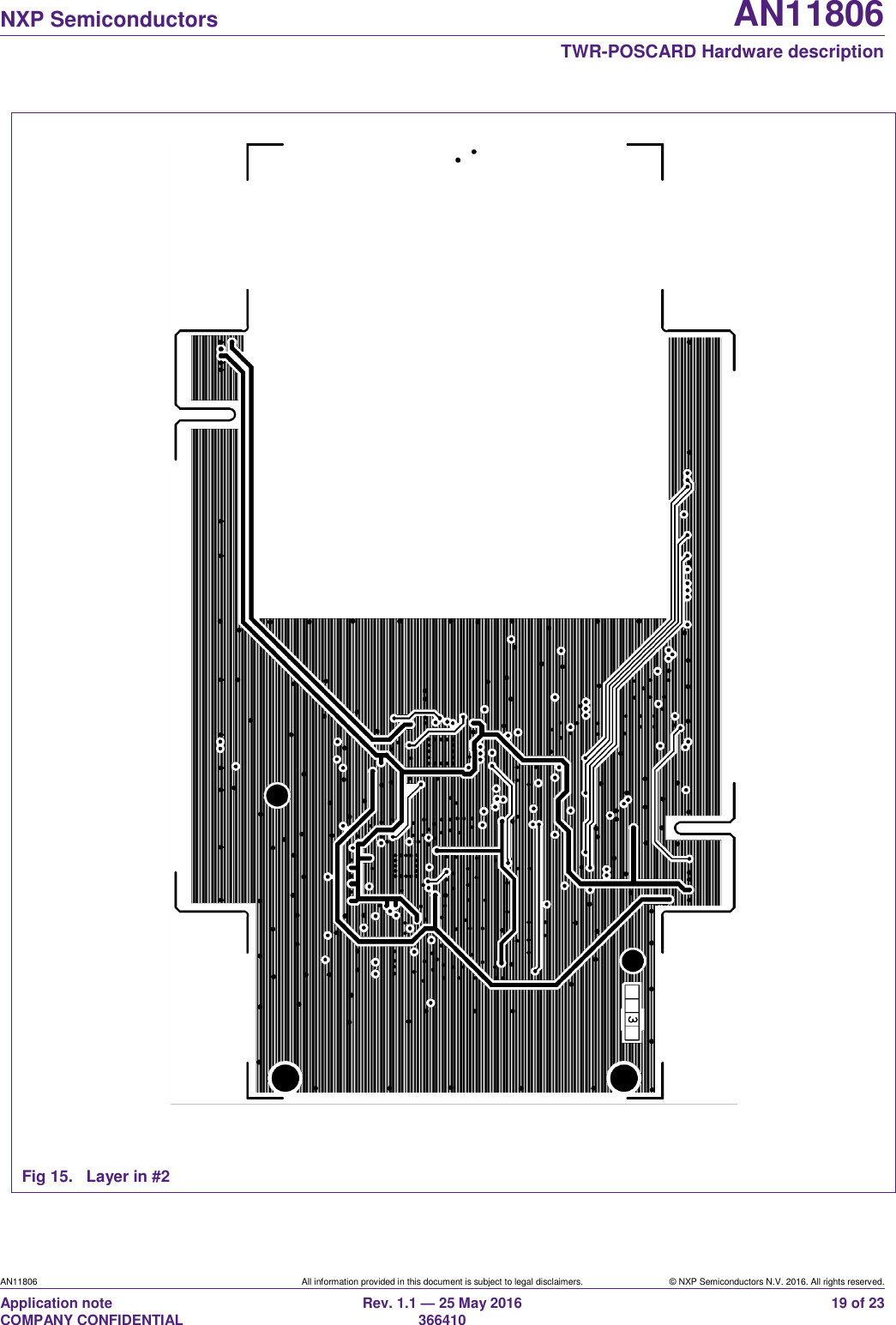

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 19 of 23 Fig 15. Layer in #2

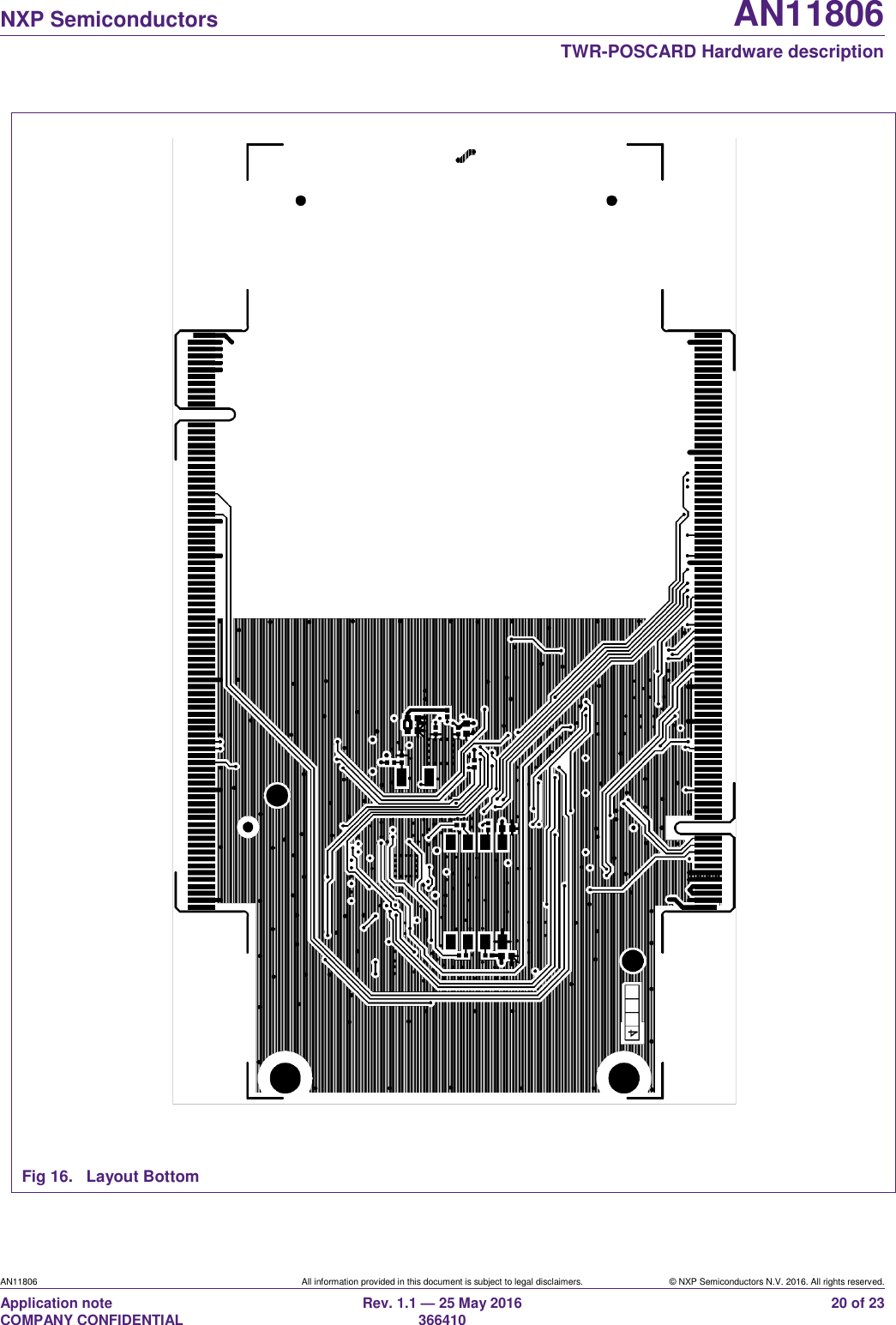

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 20 of 23 Fig 16. Layout Bottom

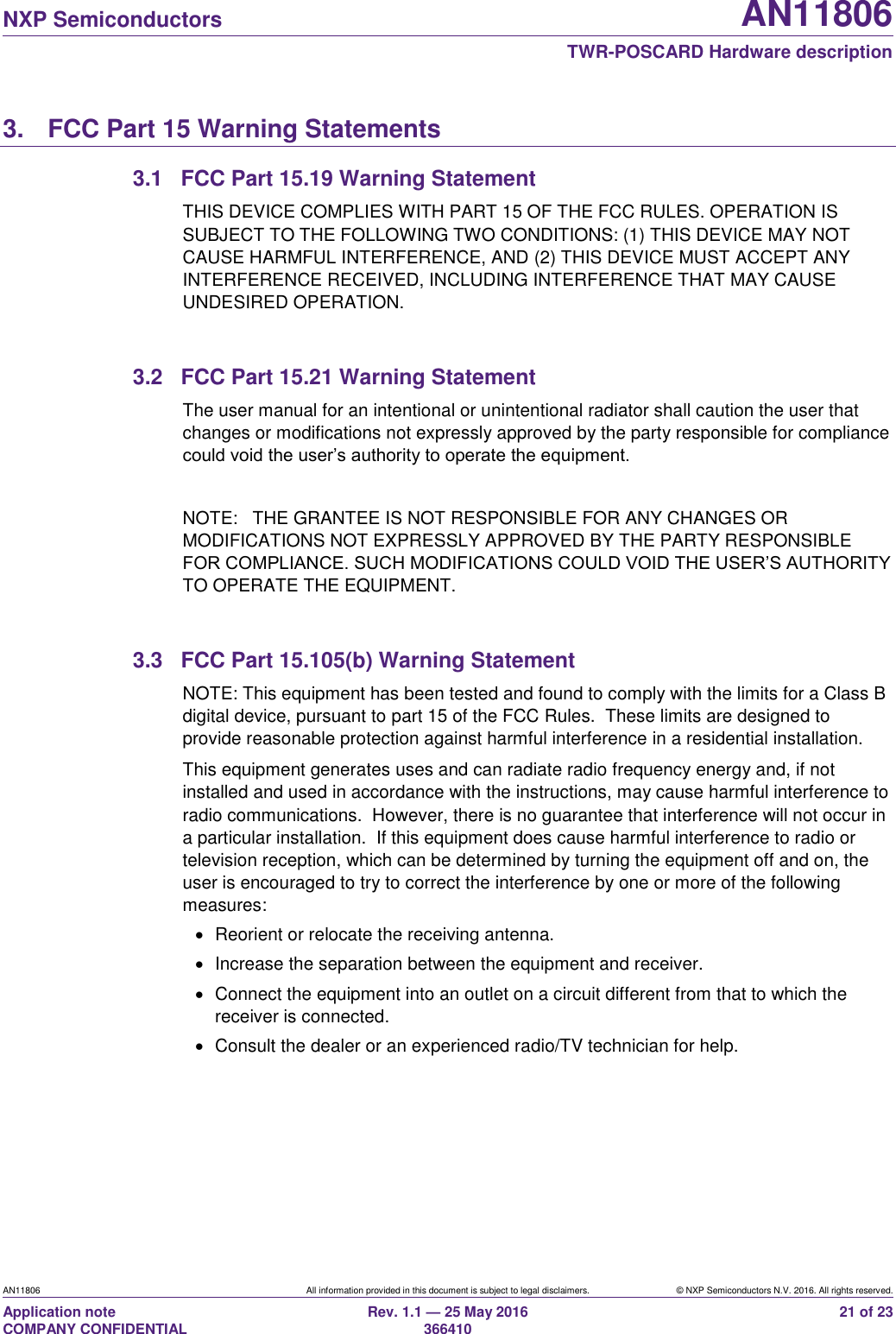

NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 21 of 23 3. FCC Part 15 Warning Statements 3.1 FCC Part 15.19 Warning Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 3.2 FCC Part 15.21 Warning Statement The user manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 3.3 FCC Part 15.105(b) Warning Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

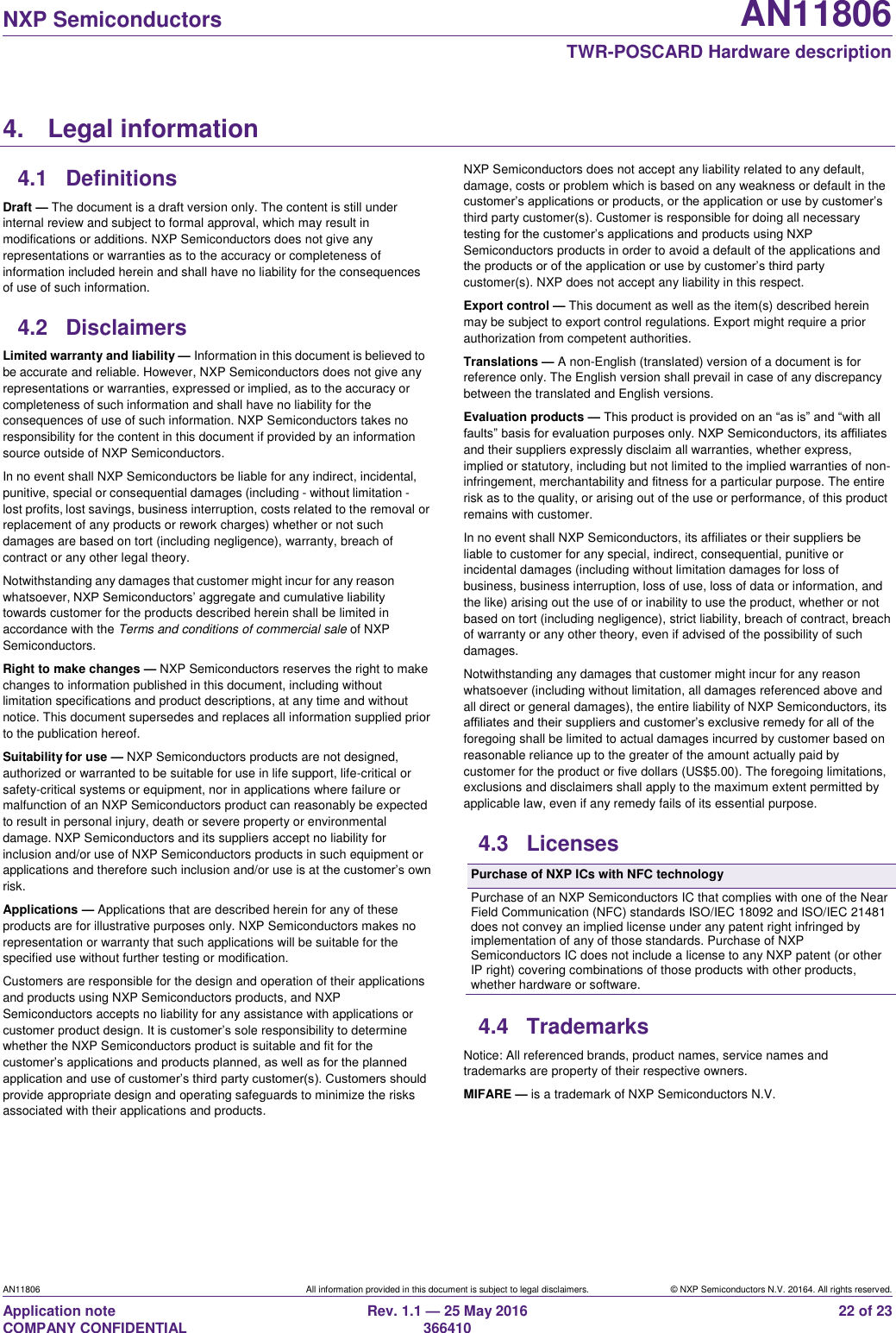

Error! Unknown document property name. Error! Unknown document property name. Error! Unknown document property name. NXP Semiconductors AN11806 TWR-POSCARD Hardware description AN11806 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 20164. All rights reserved. Application note COMPANY CONFIDENTIAL Rev. 1.1 — 25 May 2016 366410 22 of 23 4. Legal information4.1 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. 4.2 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. NXP Semiconductors takes no responsibility for the content in this document if provided by an information source outside of NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of NXP Semiconductors. Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors and its suppliers accept no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using NXP Semiconductors products, and NXP Semiconductors accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the NXP Semiconductors product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). NXP does not accept any liability in this respect. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Evaluation products — This product is provided on an “as is” and “with all faults” basis for evaluation purposes only. NXP Semiconductors, its affiliates and their suppliers expressly disclaim all warranties, whether express, implied or statutory, including but not limited to the implied warranties of non-infringement, merchantability and fitness for a particular purpose. The entire risk as to the quality, or arising out of the use or performance, of this product remains with customer. In no event shall NXP Semiconductors, its affiliates or their suppliers be liable to customer for any special, indirect, consequential, punitive or incidental damages (including without limitation damages for loss of business, business interruption, loss of use, loss of data or information, and the like) arising out the use of or inability to use the product, whether or not based on tort (including negligence), strict liability, breach of contract, breach of warranty or any other theory, even if advised of the possibility of such damages. Notwithstanding any damages that customer might incur for any reason whatsoever (including without limitation, all damages referenced above and all direct or general damages), the entire liability of NXP Semiconductors, its affiliates and their suppliers and customer’s exclusive remedy for all of the foregoing shall be limited to actual damages incurred by customer based on reasonable reliance up to the greater of the amount actually paid by customer for the product or five dollars (US$5.00). The foregoing limitations, exclusions and disclaimers shall apply to the maximum extent permitted by applicable law, even if any remedy fails of its essential purpose. 4.3 Licenses Purchase of NXP ICs with NFC technology Purchase of an NXP Semiconductors IC that complies with one of the Near Field Communication (NFC) standards ISO/IEC 18092 and ISO/IEC 21481 does not convey an implied license under any patent right infringed by implementation of any of those standards. Purchase of NXP Semiconductors IC does not include a license to any NXP patent (or other IP right) covering combinations of those products with other products, whether hardware or software. 4.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are property of their respective owners. MIFARE — is a trademark of NXP Semiconductors N.V.

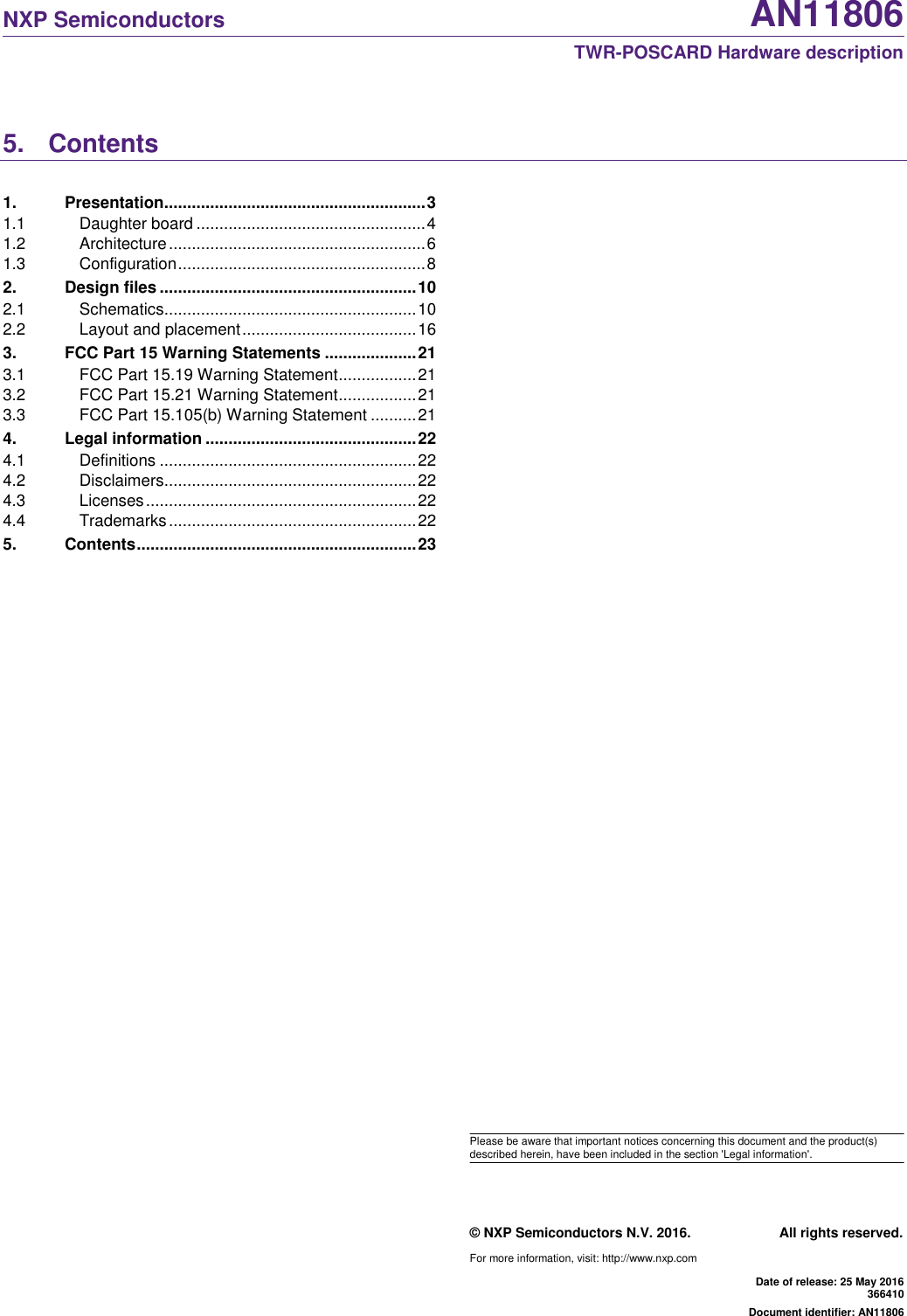

NXP Semiconductors AN11806 TWR-POSCARD Hardware description Please be aware that important notices concerning this document and the product(s) described herein, have been included in the section 'Legal information'. © NXP Semiconductors N.V. 2016. All rights reserved. For more information, visit: http://www.nxp.com Date of release: 25 May 2016 366410 Document identifier: AN11806 5. Contents1. Presentation ......................................................... 3 1.1 Daughter board .................................................. 4 1.2 Architecture ........................................................ 6 1.3 Configuration ...................................................... 8 2. Design files ........................................................ 10 2.1 Schematics....................................................... 10 2.2 Layout and placement ...................................... 16 3. FCC Part 15 Warning Statements .................... 21 3.1 FCC Part 15.19 Warning Statement ................. 21 3.2 FCC Part 15.21 Warning Statement ................. 21 3.3 FCC Part 15.105(b) Warning Statement .......... 21 4. Legal information .............................................. 22 4.1 Definitions ........................................................ 22 4.2 Disclaimers....................................................... 22 4.3 Licenses ........................................................... 22 4.4 Trademarks ...................................................... 22 5. Contents ............................................................. 23
