NXP Austria OM5578-PN7150S 13.56 MHz RFID Module User Manual UM10935

NXP Austria GmbH 13.56 MHz RFID Module UM10935

User Manual

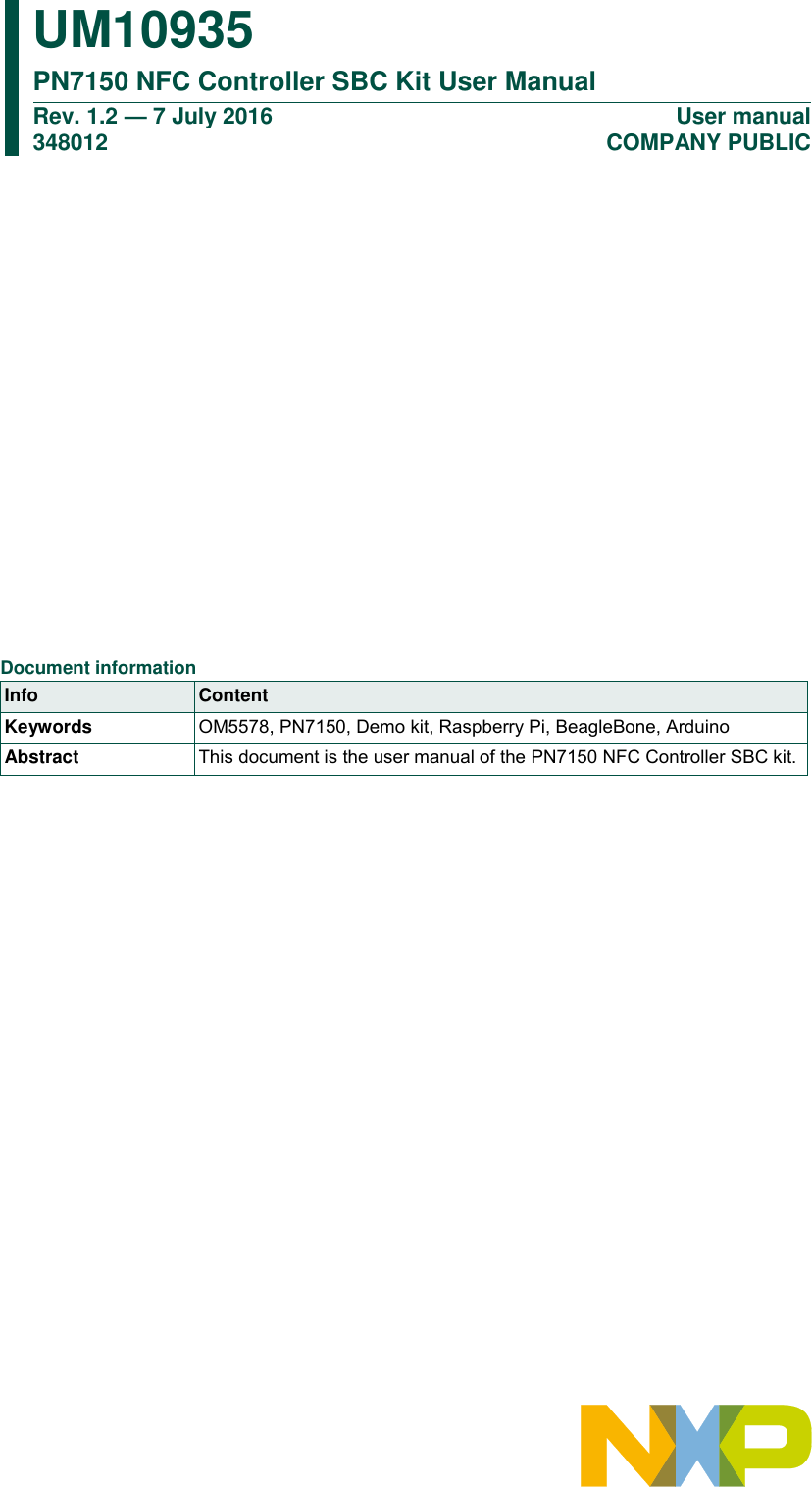

UM10935 PN7150 NFC Controller SBC Kit User Manual Rev. 1.2 — 7 July 2016 348012 User manual COMPANY PUBLIC Document information Info Content Keywords OM5578, PN7150, Demo kit, Raspberry Pi, BeagleBone, Arduino Abstract This document is the user manual of the PN7150 NFC Controller SBC kit.

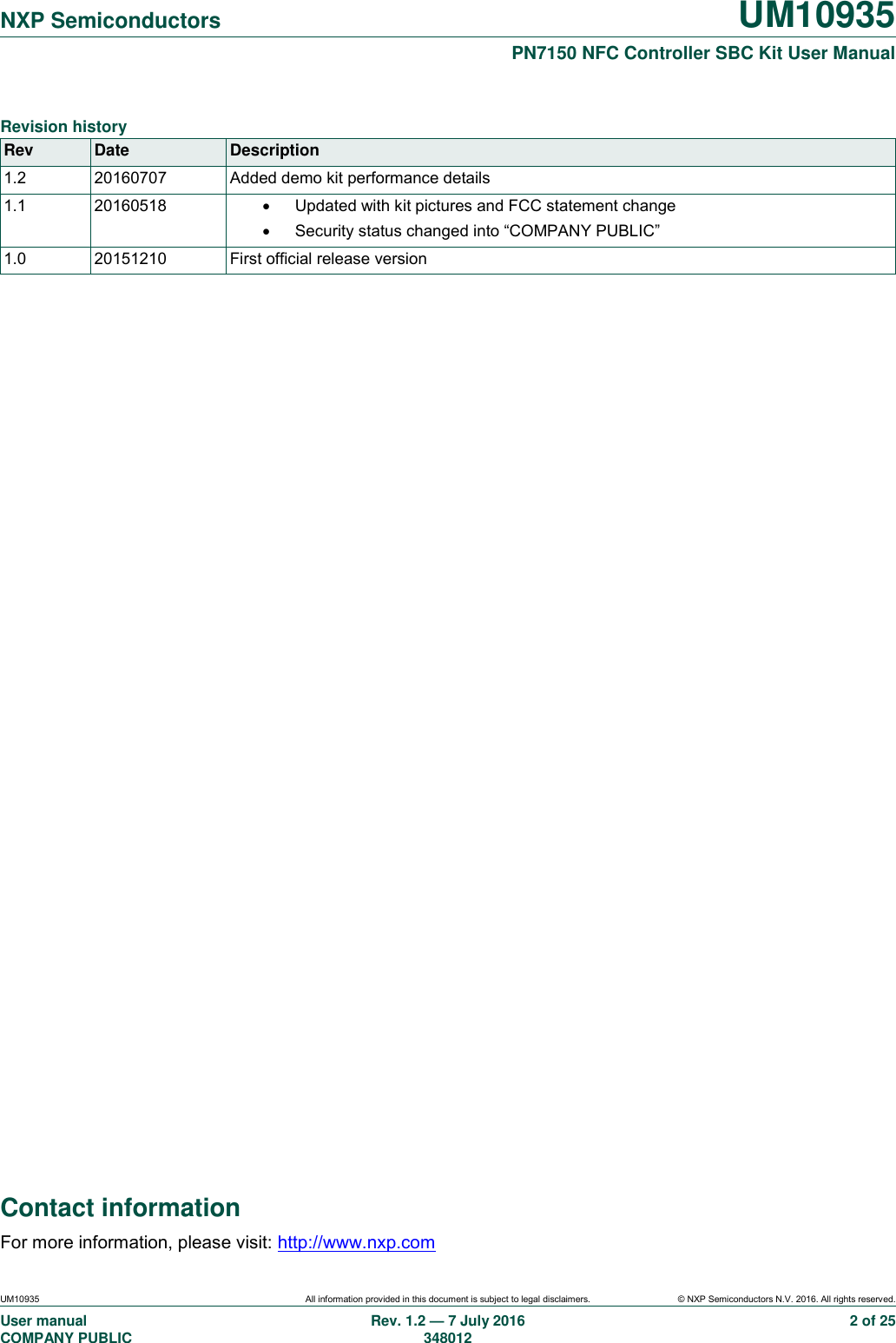

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 2 of 25 Contact information For more information, please visit: http://www.nxp.com Revision history Rev Date Description 1.2 20160707 Added demo kit performance details 1.1 20160518  Updated with kit pictures and FCC statement change  Security status changed into “COMPANY PUBLIC” 1.0 20151210 First official release version

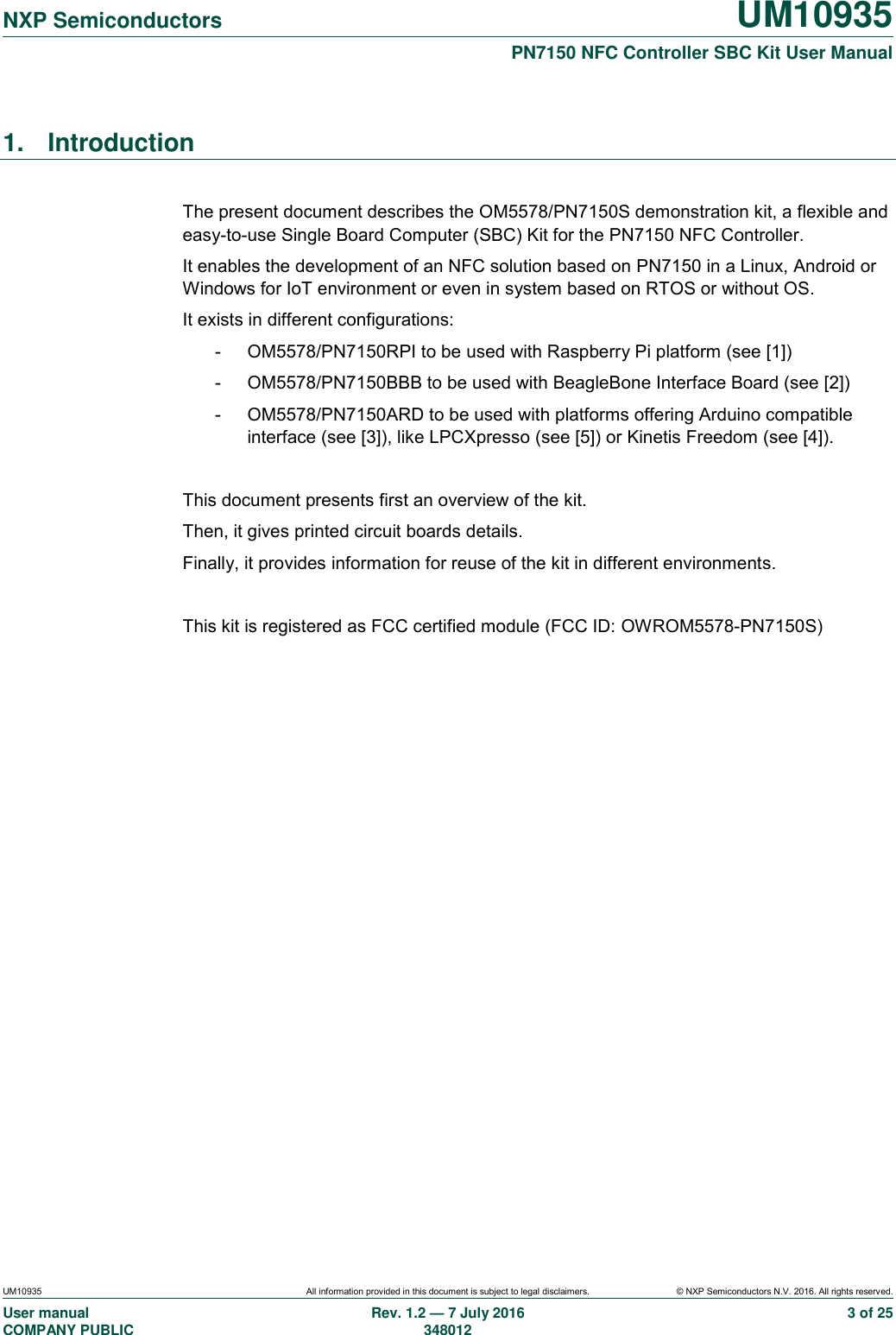

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 3 of 25 1. Introduction The present document describes the OM5578/PN7150S demonstration kit, a flexible and easy-to-use Single Board Computer (SBC) Kit for the PN7150 NFC Controller. It enables the development of an NFC solution based on PN7150 in a Linux, Android or Windows for IoT environment or even in system based on RTOS or without OS. It exists in different configurations: - OM5578/PN7150RPI to be used with Raspberry Pi platform (see [1]) - OM5578/PN7150BBB to be used with BeagleBone Interface Board (see [2]) - OM5578/PN7150ARD to be used with platforms offering Arduino compatible interface (see [3]), like LPCXpresso (see [5]) or Kinetis Freedom (see [4]). This document presents first an overview of the kit. Then, it gives printed circuit boards details. Finally, it provides information for reuse of the kit in different environments. This kit is registered as FCC certified module (FCC ID: OWROM5578-PN7150S)

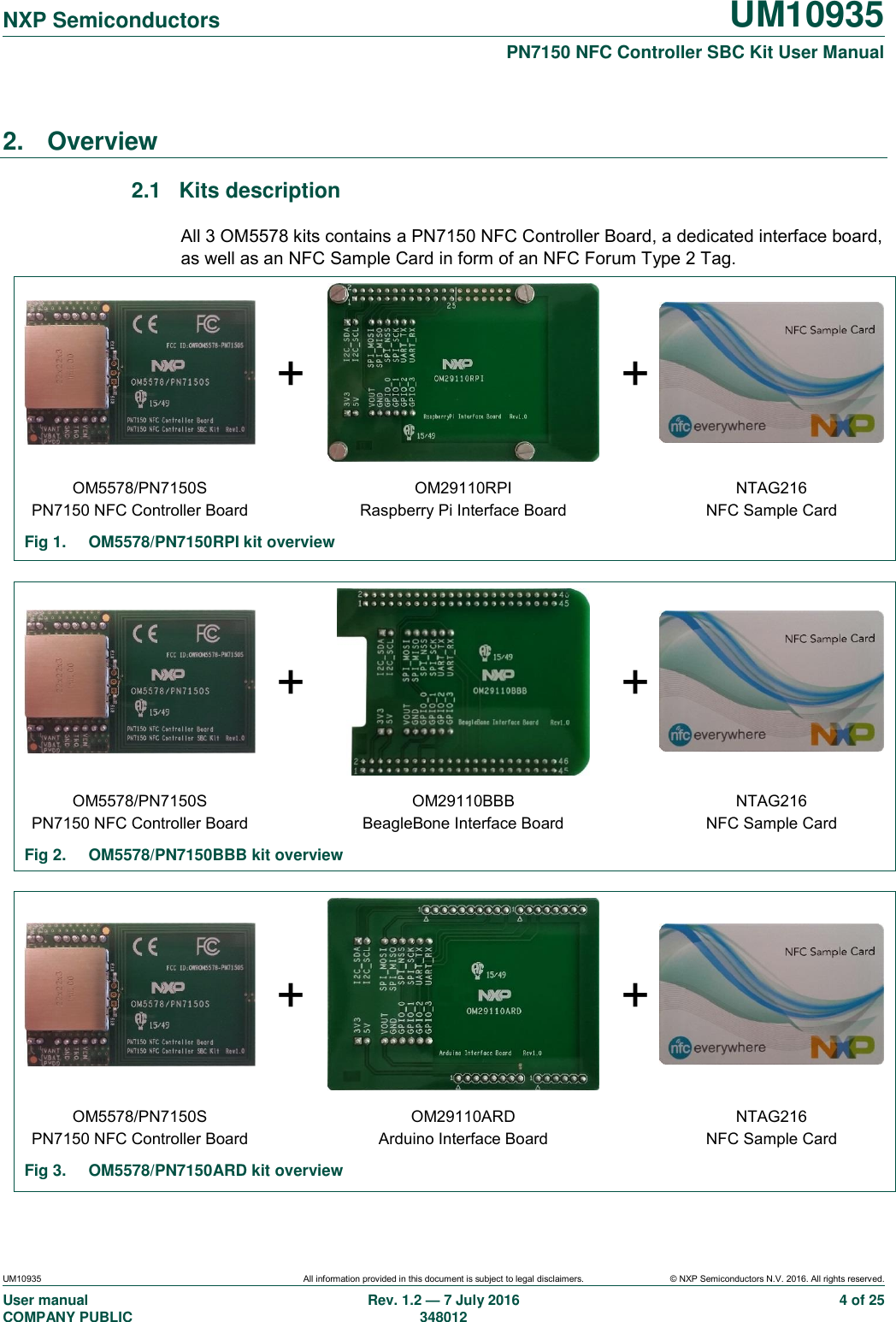

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 4 of 25 2. Overview 2.1 Kits description All 3 OM5578 kits contains a PN7150 NFC Controller Board, a dedicated interface board, as well as an NFC Sample Card in form of an NFC Forum Type 2 Tag. + + OM5578/PN7150S PN7150 NFC Controller Board OM29110RPI Raspberry Pi Interface Board NTAG216 NFC Sample Card Fig 1. OM5578/PN7150RPI kit overview + + OM5578/PN7150S PN7150 NFC Controller Board OM29110BBB BeagleBone Interface Board NTAG216 NFC Sample Card Fig 2. OM5578/PN7150BBB kit overview + + OM5578/PN7150S PN7150 NFC Controller Board OM29110ARD Arduino Interface Board NTAG216 NFC Sample Card Fig 3. OM5578/PN7150ARD kit overview

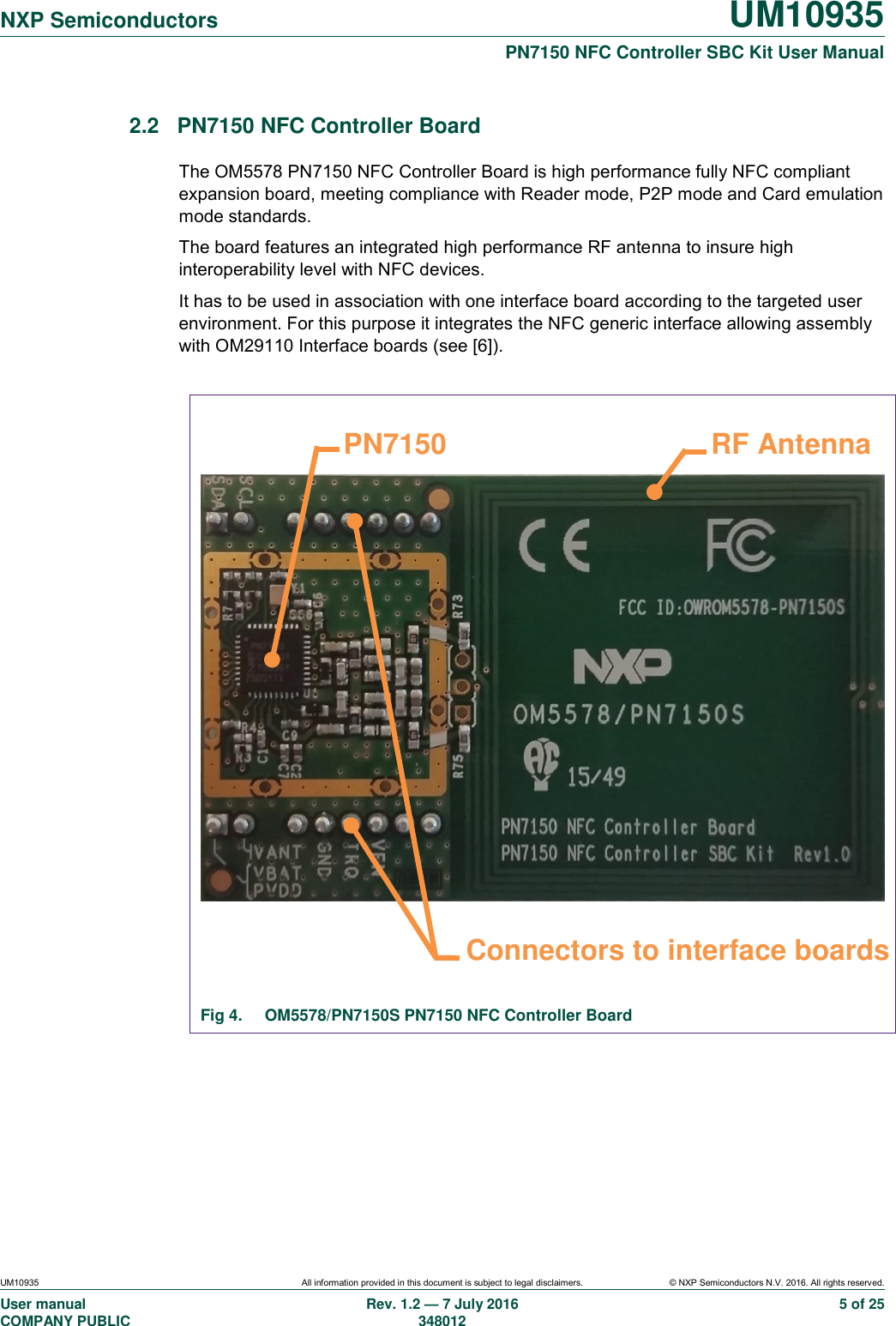

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 5 of 25 2.2 PN7150 NFC Controller Board The OM5578 PN7150 NFC Controller Board is high performance fully NFC compliant expansion board, meeting compliance with Reader mode, P2P mode and Card emulation mode standards. The board features an integrated high performance RF antenna to insure high interoperability level with NFC devices. It has to be used in association with one interface board according to the targeted user environment. For this purpose it integrates the NFC generic interface allowing assembly with OM29110 Interface boards (see [6]). Fig 4. OM5578/PN7150S PN7150 NFC Controller Board Connectors to interface boards RF Antenna PN7150

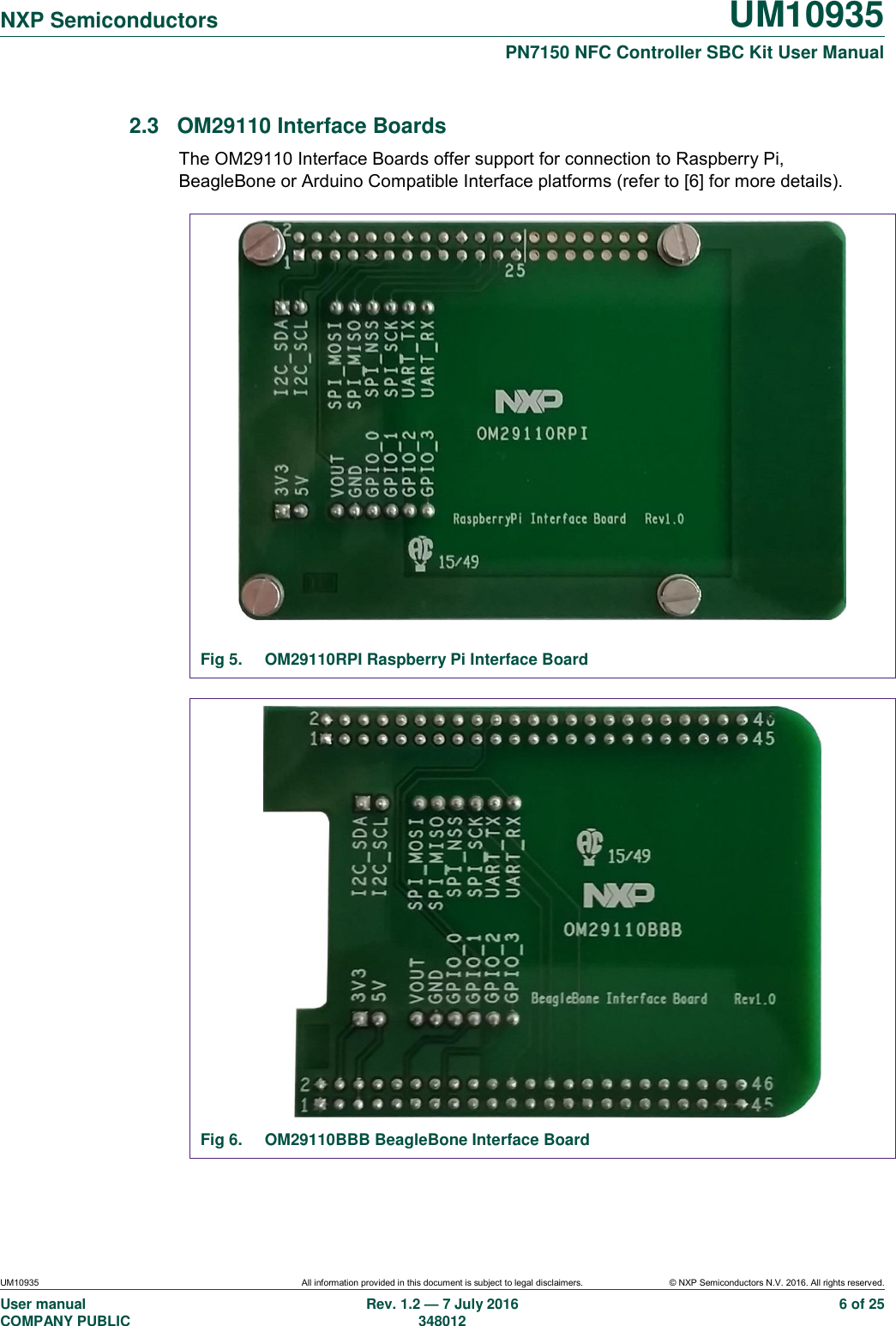

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 6 of 25 2.3 OM29110 Interface Boards The OM29110 Interface Boards offer support for connection to Raspberry Pi, BeagleBone or Arduino Compatible Interface platforms (refer to [6] for more details). Fig 5. OM29110RPI Raspberry Pi Interface Board Fig 6. OM29110BBB BeagleBone Interface Board

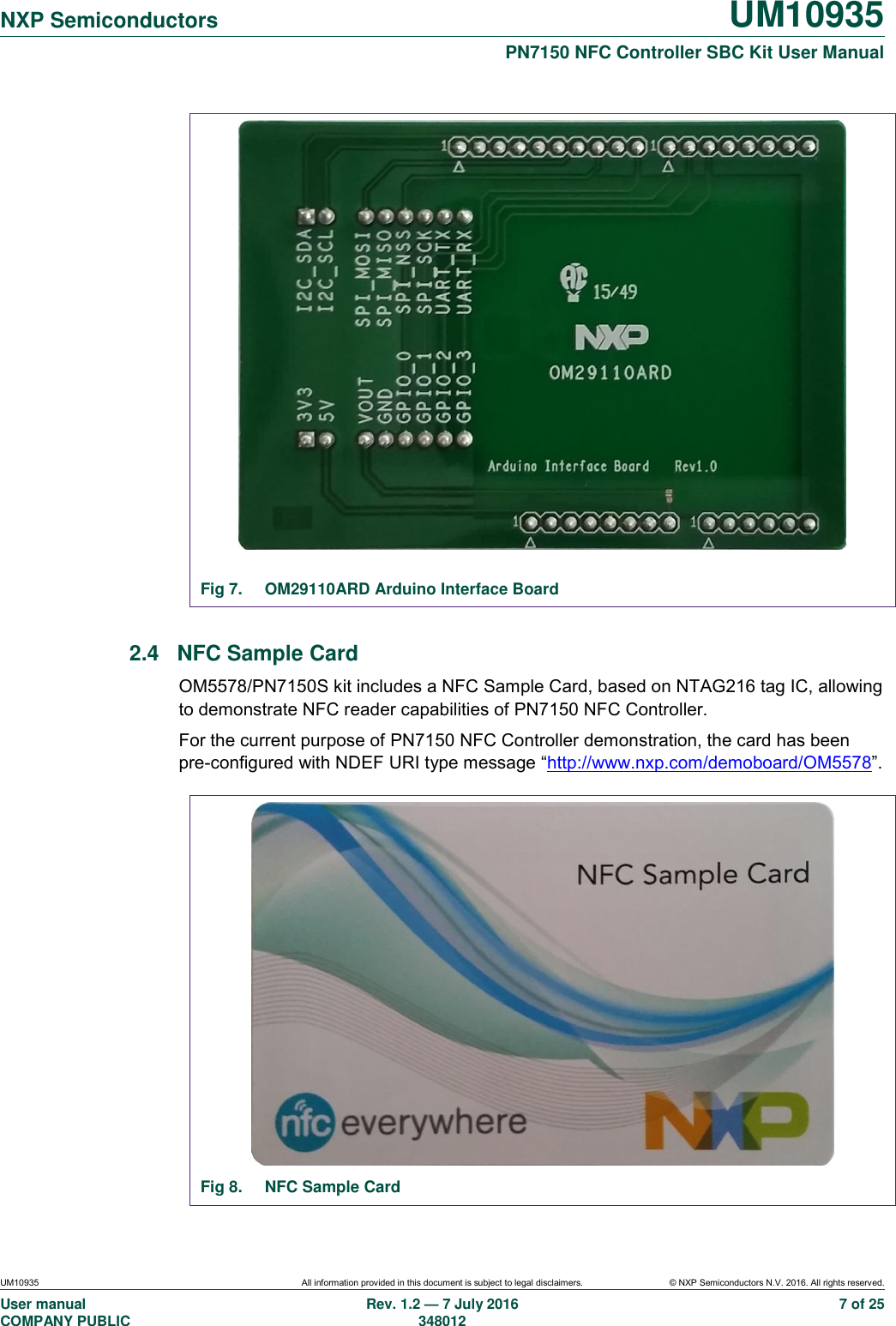

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 7 of 25 Fig 7. OM29110ARD Arduino Interface Board 2.4 NFC Sample Card OM5578/PN7150S kit includes a NFC Sample Card, based on NTAG216 tag IC, allowing to demonstrate NFC reader capabilities of PN7150 NFC Controller. For the current purpose of PN7150 NFC Controller demonstration, the card has been pre-configured with NDEF URI type message “http://www.nxp.com/demoboard/OM5578”. Fig 8. NFC Sample Card

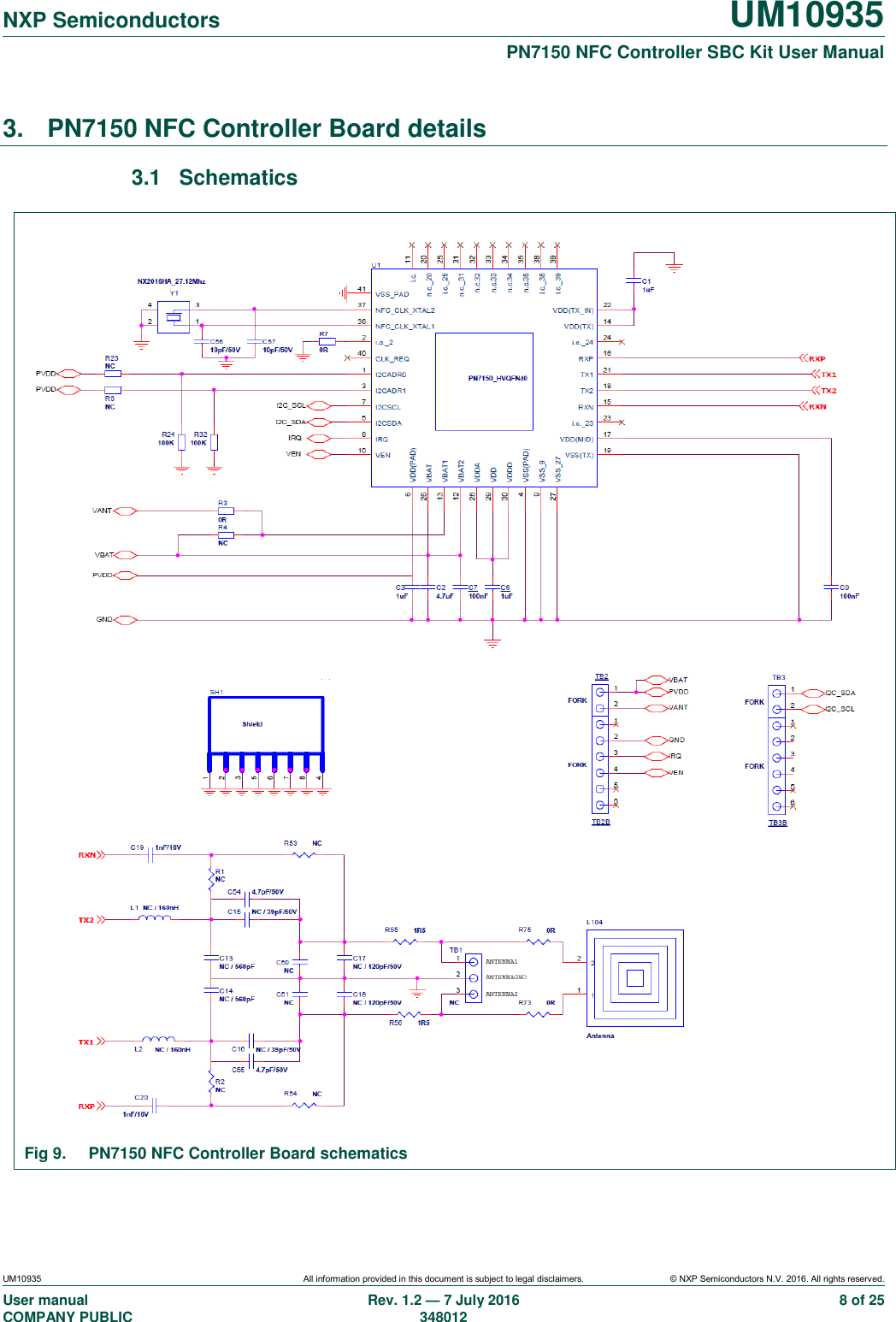

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 8 of 25 3. PN7150 NFC Controller Board details 3.1 Schematics Fig 9. PN7150 NFC Controller Board schematics

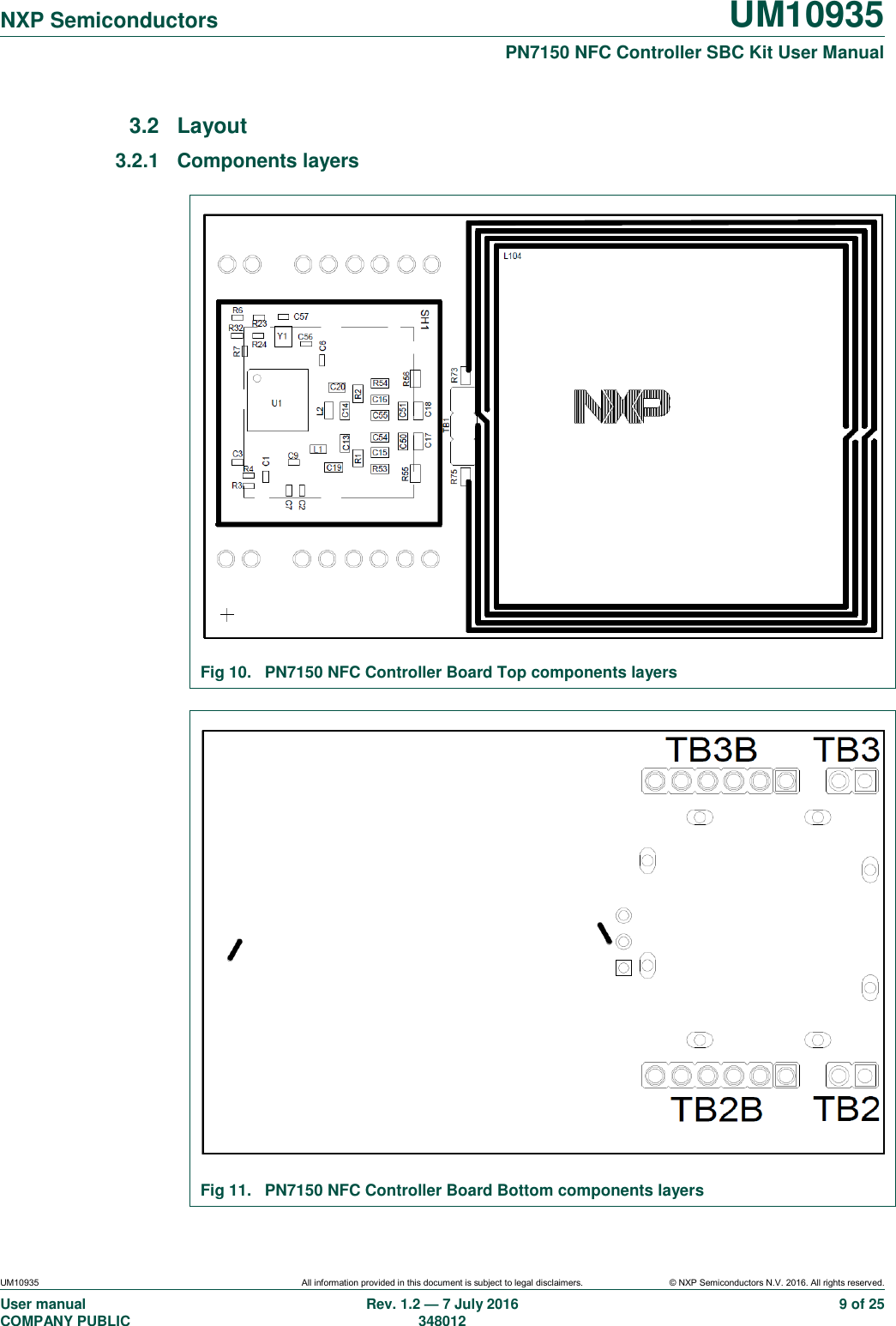

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 9 of 25 3.2 Layout 3.2.1 Components layers Fig 10. PN7150 NFC Controller Board Top components layers Fig 11. PN7150 NFC Controller Board Bottom components layers

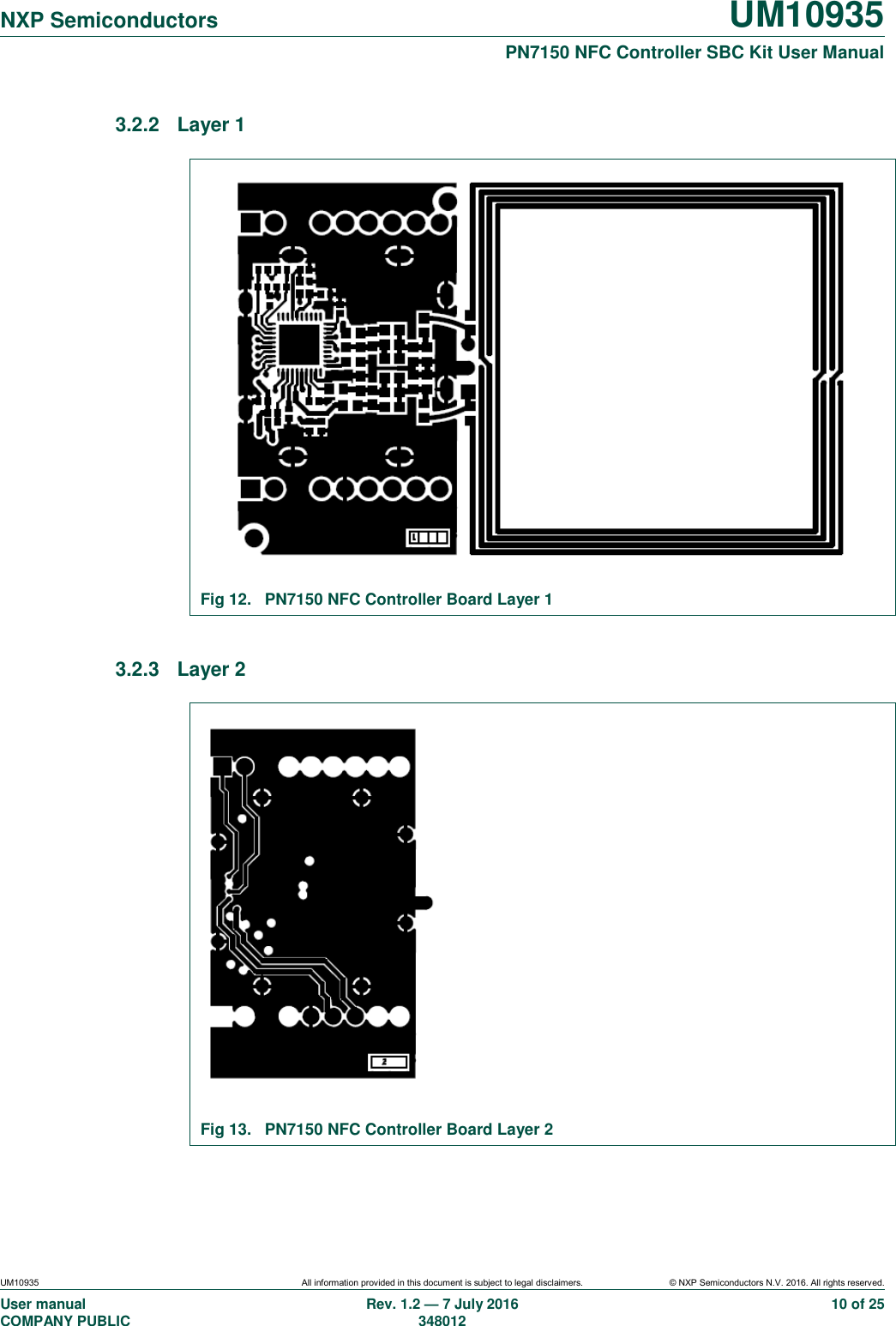

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 10 of 25 3.2.2 Layer 1 Fig 12. PN7150 NFC Controller Board Layer 1 3.2.3 Layer 2 Fig 13. PN7150 NFC Controller Board Layer 2

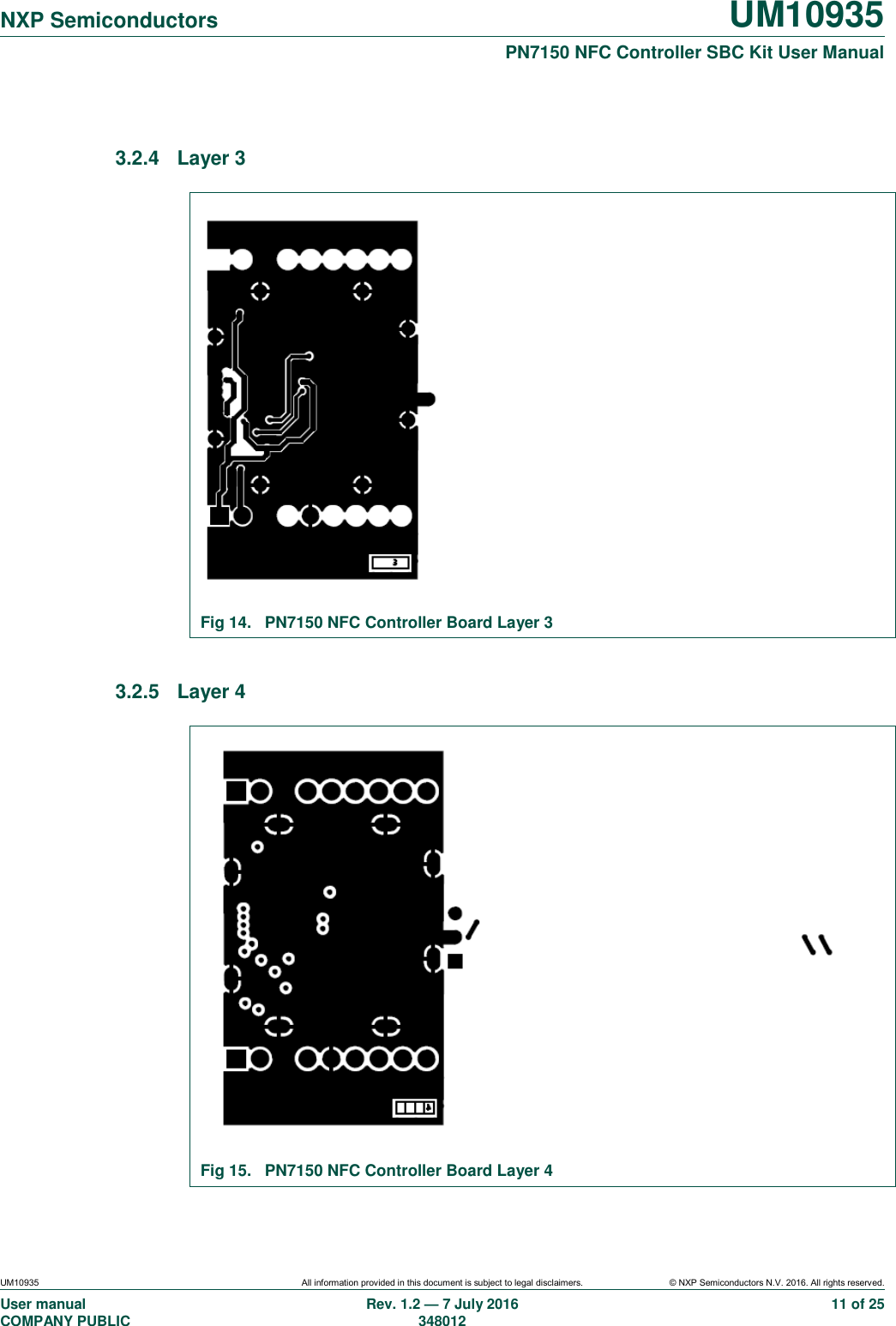

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 11 of 25 3.2.4 Layer 3 Fig 14. PN7150 NFC Controller Board Layer 3 3.2.5 Layer 4 Fig 15. PN7150 NFC Controller Board Layer 4

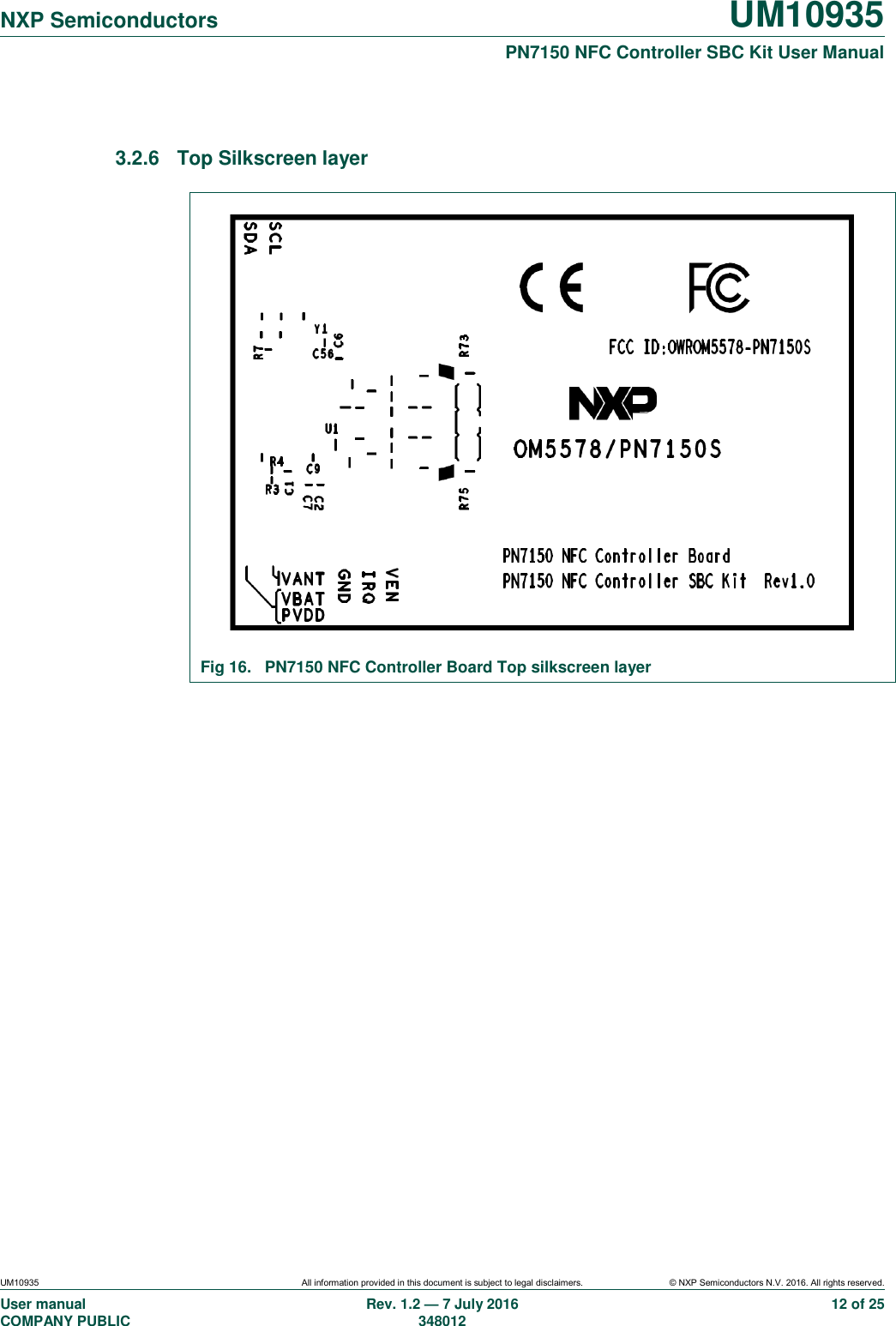

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 12 of 25 3.2.6 Top Silkscreen layer Fig 16. PN7150 NFC Controller Board Top silkscreen layer

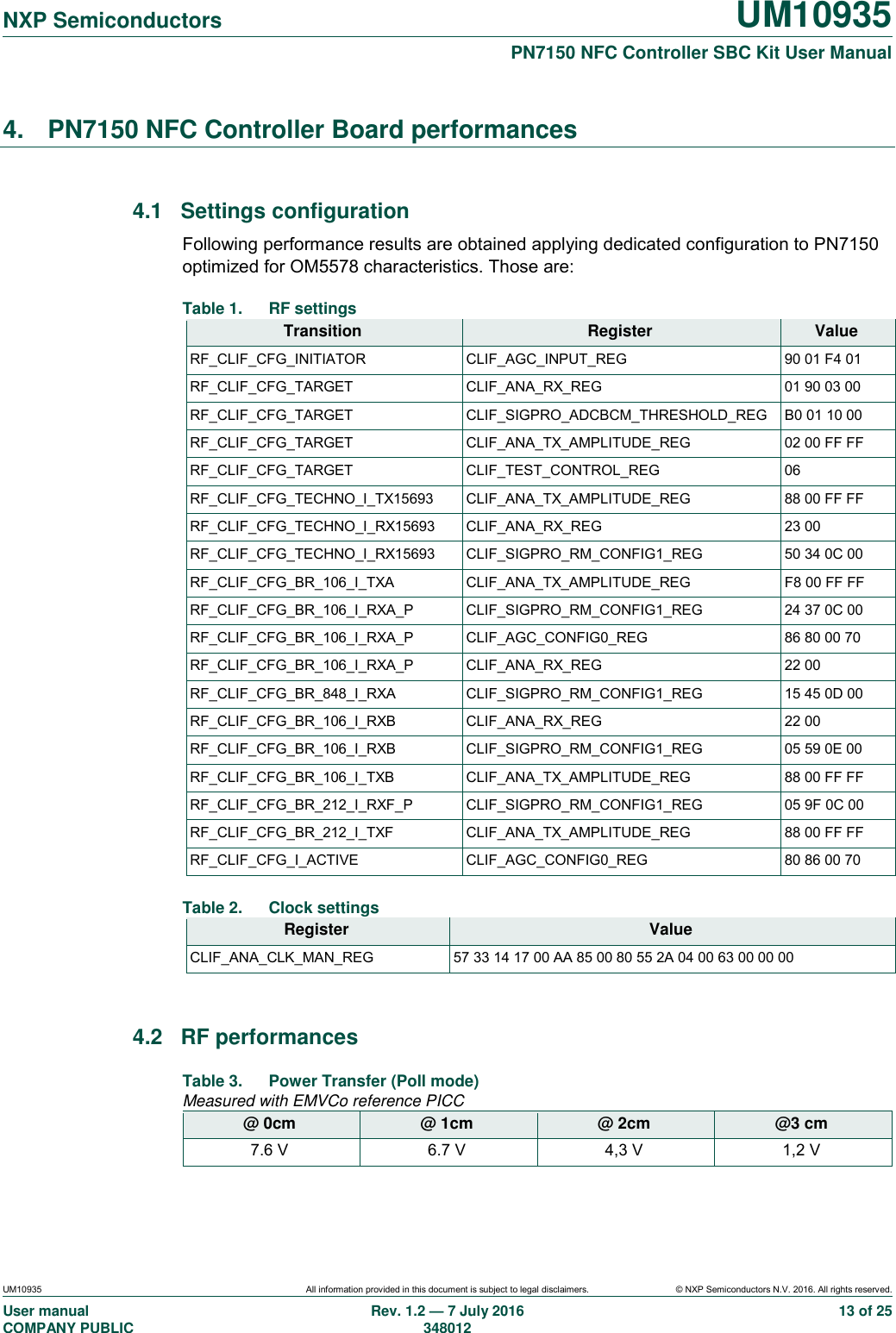

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 13 of 25 4. PN7150 NFC Controller Board performances 4.1 Settings configuration Following performance results are obtained applying dedicated configuration to PN7150 optimized for OM5578 characteristics. Those are: Table 1. RF settings Transition Register Value RF_CLIF_CFG_INITIATOR CLIF_AGC_INPUT_REG 90 01 F4 01 RF_CLIF_CFG_TARGET CLIF_ANA_RX_REG 01 90 03 00 RF_CLIF_CFG_TARGET CLIF_SIGPRO_ADCBCM_THRESHOLD_REG B0 01 10 00 RF_CLIF_CFG_TARGET CLIF_ANA_TX_AMPLITUDE_REG 02 00 FF FF RF_CLIF_CFG_TARGET CLIF_TEST_CONTROL_REG 06 RF_CLIF_CFG_TECHNO_I_TX15693 CLIF_ANA_TX_AMPLITUDE_REG 88 00 FF FF RF_CLIF_CFG_TECHNO_I_RX15693 CLIF_ANA_RX_REG 23 00 RF_CLIF_CFG_TECHNO_I_RX15693 CLIF_SIGPRO_RM_CONFIG1_REG 50 34 0C 00 RF_CLIF_CFG_BR_106_I_TXA CLIF_ANA_TX_AMPLITUDE_REG F8 00 FF FF RF_CLIF_CFG_BR_106_I_RXA_P CLIF_SIGPRO_RM_CONFIG1_REG 24 37 0C 00 RF_CLIF_CFG_BR_106_I_RXA_P CLIF_AGC_CONFIG0_REG 86 80 00 70 RF_CLIF_CFG_BR_106_I_RXA_P CLIF_ANA_RX_REG 22 00 RF_CLIF_CFG_BR_848_I_RXA CLIF_SIGPRO_RM_CONFIG1_REG 15 45 0D 00 RF_CLIF_CFG_BR_106_I_RXB CLIF_ANA_RX_REG 22 00 RF_CLIF_CFG_BR_106_I_RXB CLIF_SIGPRO_RM_CONFIG1_REG 05 59 0E 00 RF_CLIF_CFG_BR_106_I_TXB CLIF_ANA_TX_AMPLITUDE_REG 88 00 FF FF RF_CLIF_CFG_BR_212_I_RXF_P CLIF_SIGPRO_RM_CONFIG1_REG 05 9F 0C 00 RF_CLIF_CFG_BR_212_I_TXF CLIF_ANA_TX_AMPLITUDE_REG 88 00 FF FF RF_CLIF_CFG_I_ACTIVE CLIF_AGC_CONFIG0_REG 80 86 00 70 Table 2. Clock settings Register Value CLIF_ANA_CLK_MAN_REG 57 33 14 17 00 AA 85 00 80 55 2A 04 00 63 00 00 00 4.2 RF performances Table 3. Power Transfer (Poll mode) Measured with EMVCo reference PICC @ 0cm @ 1cm @ 2cm @3 cm 7.6 V 6.7 V 4,3 V 1,2 V

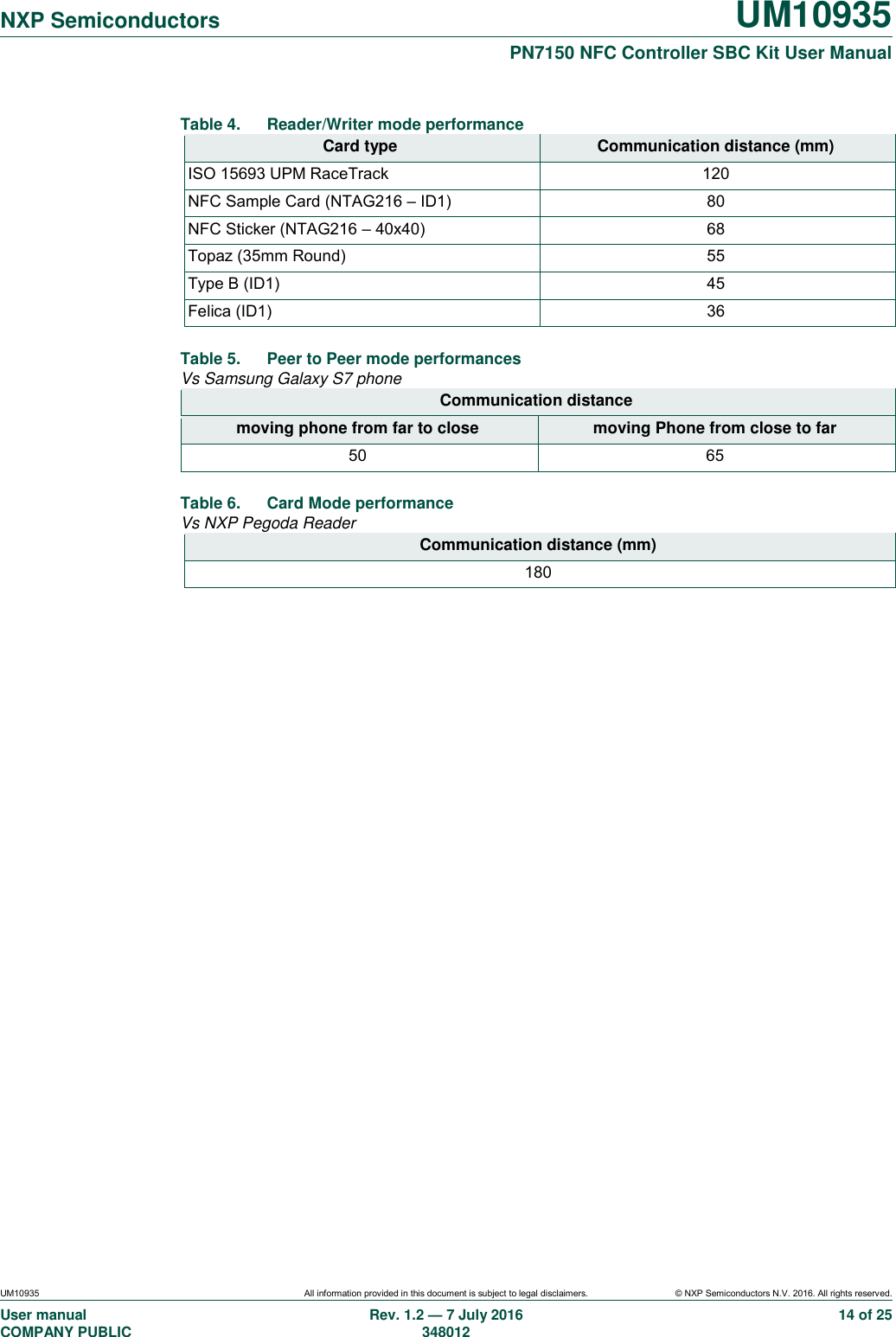

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 14 of 25 Table 4. Reader/Writer mode performance Card type Communication distance (mm) ISO 15693 UPM RaceTrack 120 NFC Sample Card (NTAG216 – ID1) 80 NFC Sticker (NTAG216 – 40x40) 68 Topaz (35mm Round) 55 Type B (ID1) 45 Felica (ID1) 36 Table 5. Peer to Peer mode performances Vs Samsung Galaxy S7 phone Communication distance moving phone from far to close moving Phone from close to far 50 65 Table 6. Card Mode performance Vs NXP Pegoda Reader Communication distance (mm) 180

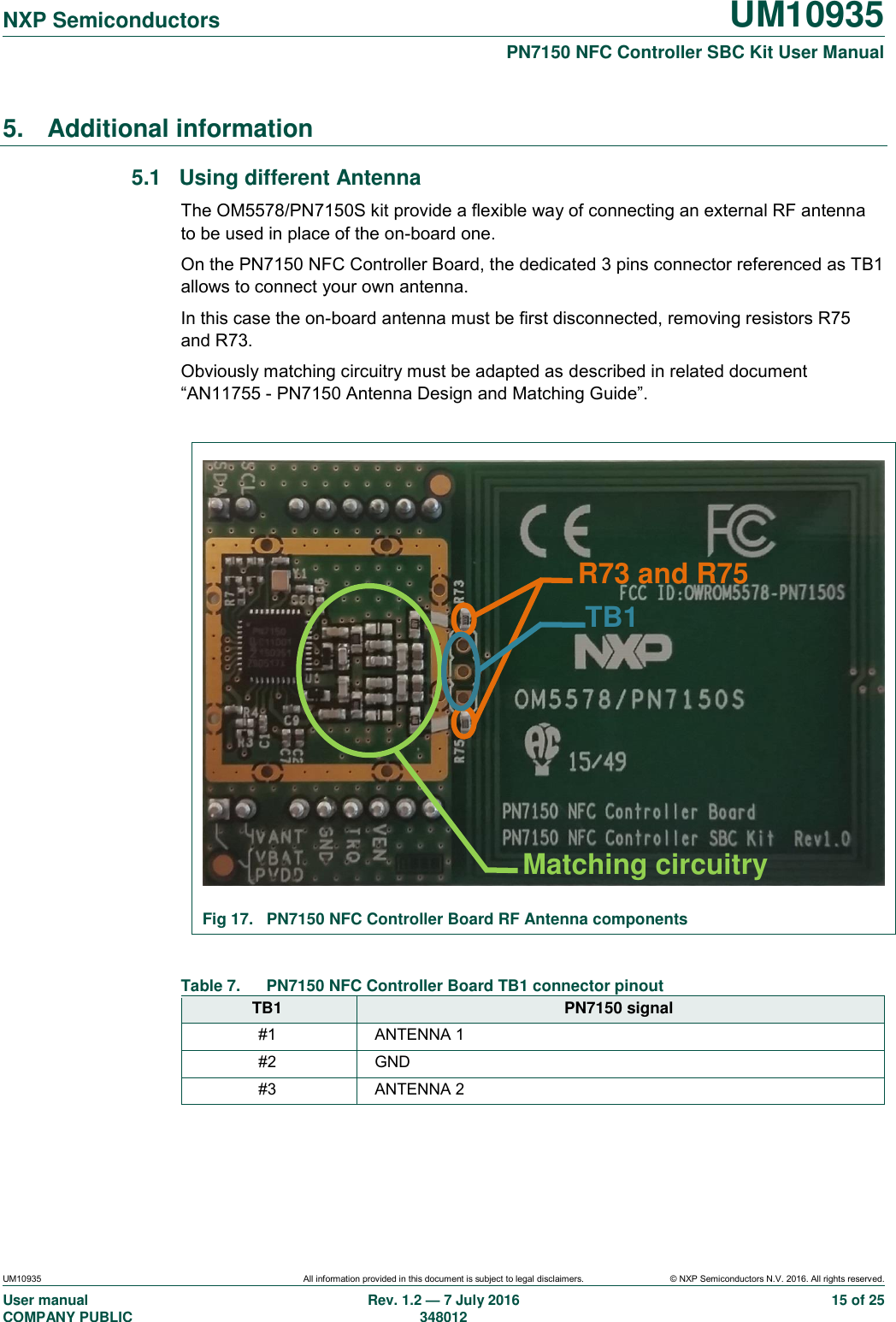

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 15 of 25 5. Additional information 5.1 Using different Antenna The OM5578/PN7150S kit provide a flexible way of connecting an external RF antenna to be used in place of the on-board one. On the PN7150 NFC Controller Board, the dedicated 3 pins connector referenced as TB1 allows to connect your own antenna. In this case the on-board antenna must be first disconnected, removing resistors R75 and R73. Obviously matching circuitry must be adapted as described in related document “AN11755 - PN7150 Antenna Design and Matching Guide”. Fig 17. PN7150 NFC Controller Board RF Antenna components Table 7. PN7150 NFC Controller Board TB1 connector pinout TB1 PN7150 signal #1 ANTENNA 1 #2 GND #3 ANTENNA 2 TB1 R73 and R75 Matching circuitry

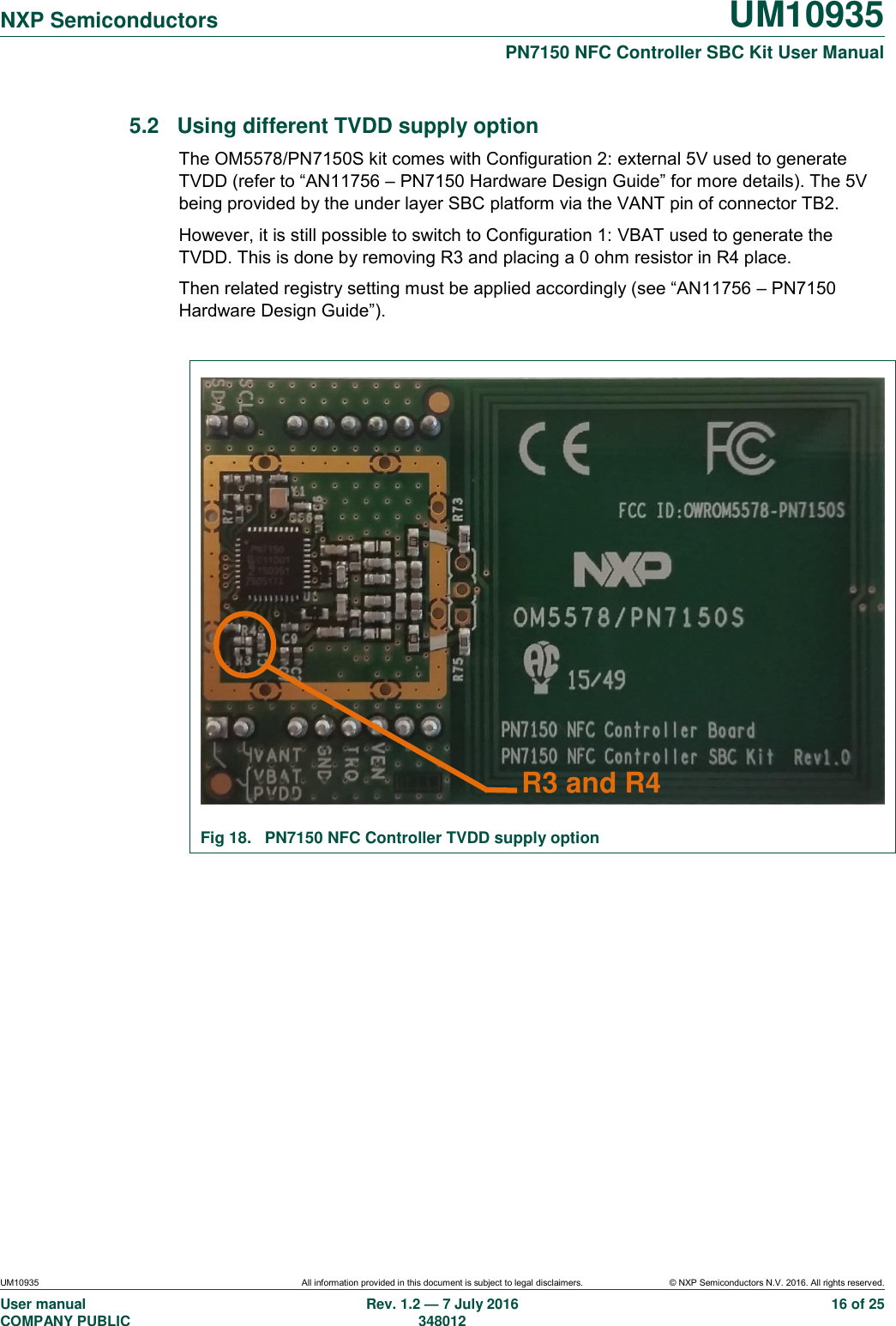

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 16 of 25 5.2 Using different TVDD supply option The OM5578/PN7150S kit comes with Configuration 2: external 5V used to generate TVDD (refer to “AN11756 – PN7150 Hardware Design Guide” for more details). The 5V being provided by the under layer SBC platform via the VANT pin of connector TB2. However, it is still possible to switch to Configuration 1: VBAT used to generate the TVDD. This is done by removing R3 and placing a 0 ohm resistor in R4 place. Then related registry setting must be applied accordingly (see “AN11756 – PN7150 Hardware Design Guide”). Fig 18. PN7150 NFC Controller TVDD supply option R3 and R4

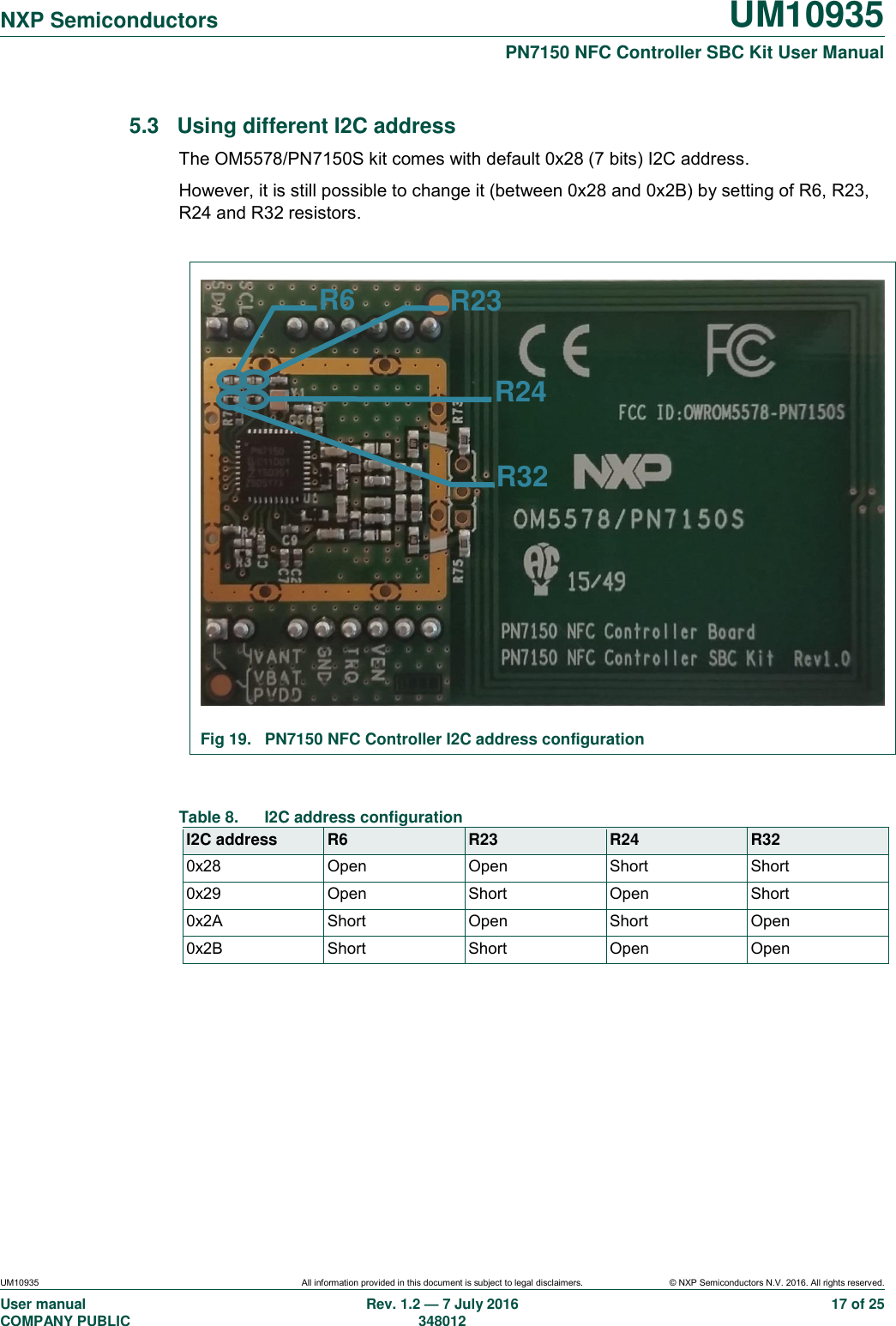

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 17 of 25 5.3 Using different I2C address The OM5578/PN7150S kit comes with default 0x28 (7 bits) I2C address. However, it is still possible to change it (between 0x28 and 0x2B) by setting of R6, R23, R24 and R32 resistors. Fig 19. PN7150 NFC Controller I2C address configuration Table 8. I2C address configuration I2C address R6 R23 R24 R32 0x28 Open Open Short Short 0x29 Open Short Open Short 0x2A Short Open Short Open 0x2B Short Short Open Open R6 R23 R24 R32

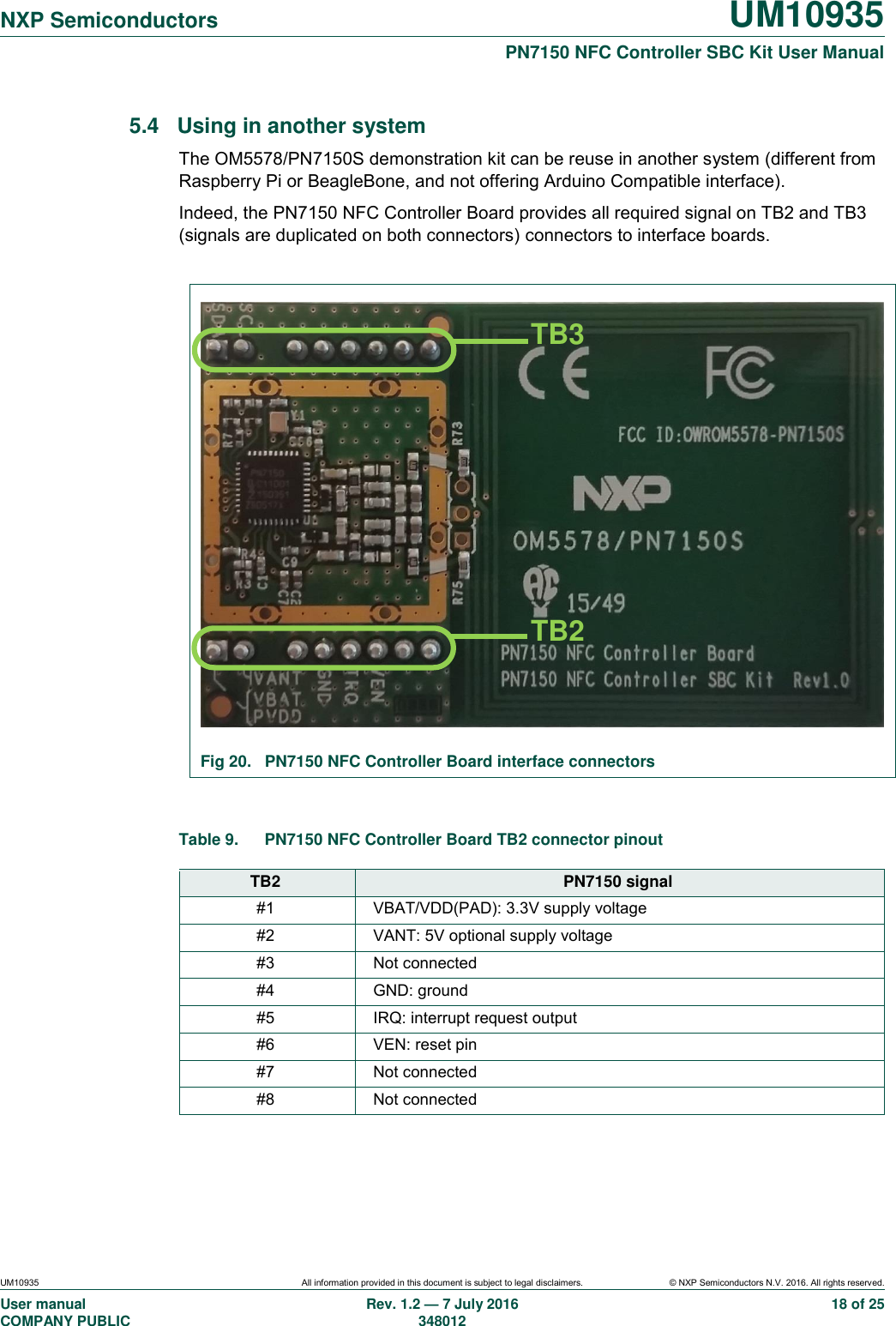

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 18 of 25 5.4 Using in another system The OM5578/PN7150S demonstration kit can be reuse in another system (different from Raspberry Pi or BeagleBone, and not offering Arduino Compatible interface). Indeed, the PN7150 NFC Controller Board provides all required signal on TB2 and TB3 (signals are duplicated on both connectors) connectors to interface boards. Fig 20. PN7150 NFC Controller Board interface connectors Table 9. PN7150 NFC Controller Board TB2 connector pinout TB2 PN7150 signal #1 VBAT/VDD(PAD): 3.3V supply voltage #2 VANT: 5V optional supply voltage #3 Not connected #4 GND: ground #5 IRQ: interrupt request output #6 VEN: reset pin #7 Not connected #8 Not connected TB3 TB2

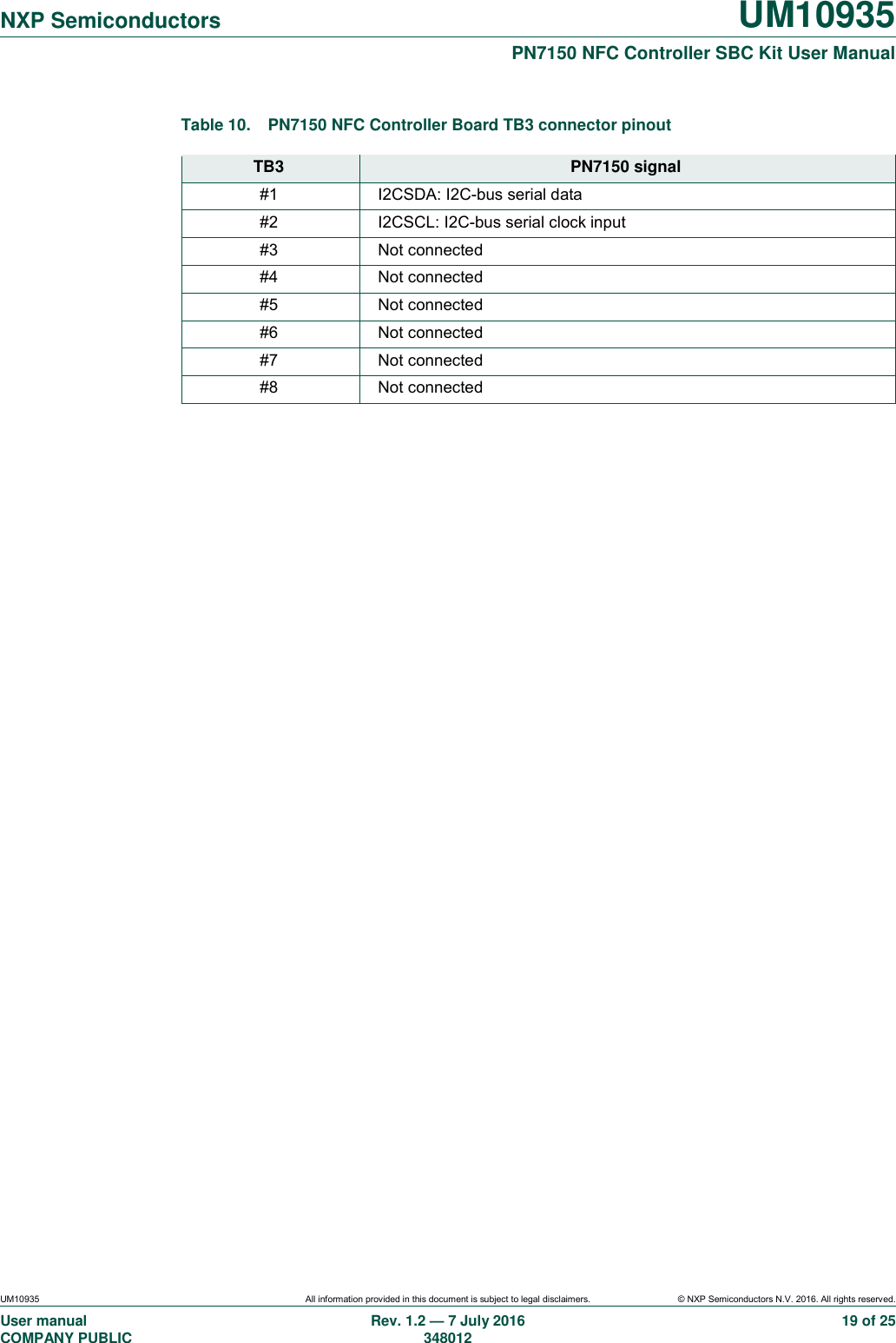

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 19 of 25 Table 10. PN7150 NFC Controller Board TB3 connector pinout TB3 PN7150 signal #1 I2CSDA: I2C-bus serial data #2 I2CSCL: I2C-bus serial clock input #3 Not connected #4 Not connected #5 Not connected #6 Not connected #7 Not connected #8 Not connected

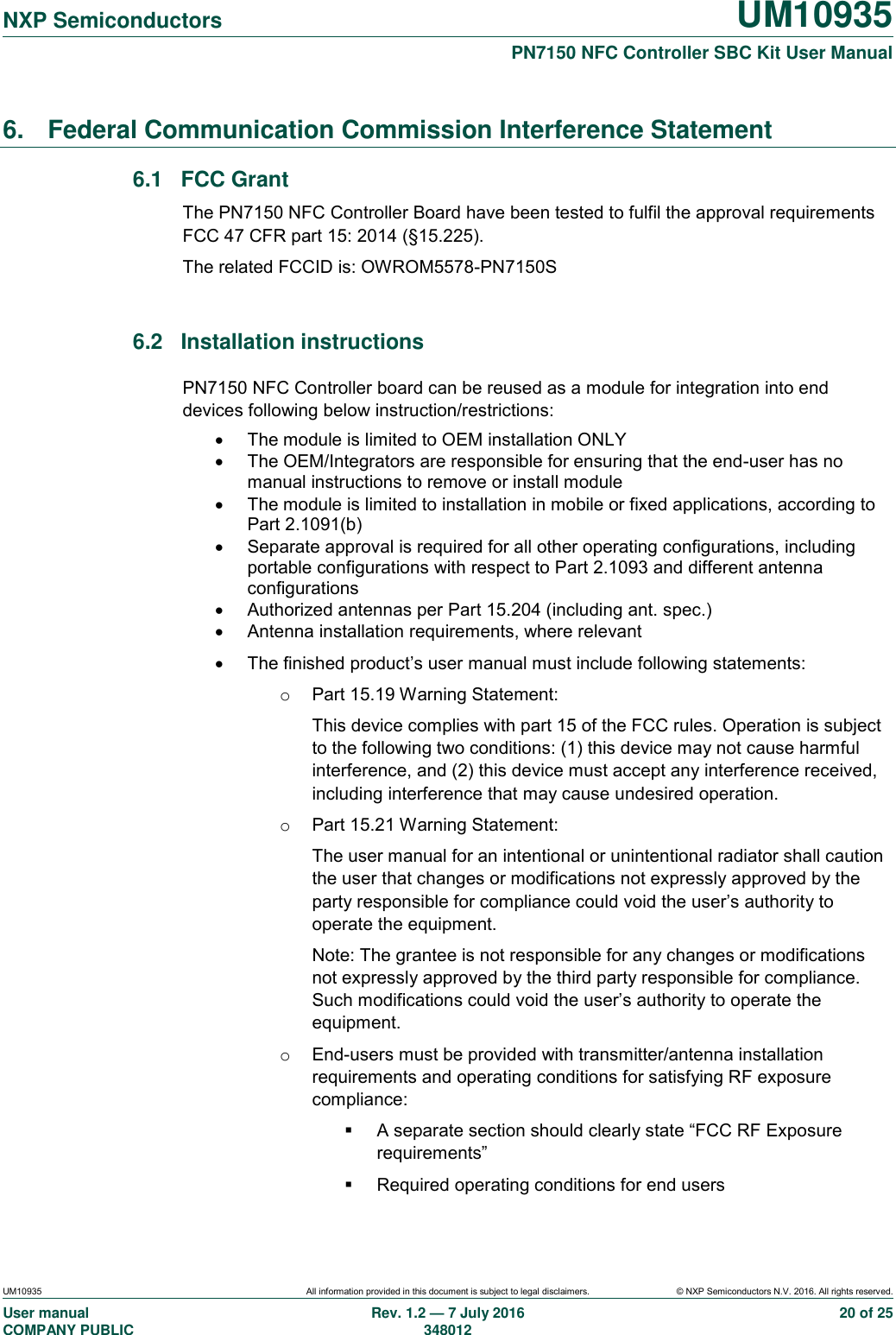

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 20 of 25 6. Federal Communication Commission Interference Statement 6.1 FCC Grant The PN7150 NFC Controller Board have been tested to fulfil the approval requirements FCC 47 CFR part 15: 2014 (§15.225). The related FCCID is: OWROM5578-PN7150S 6.2 Installation instructions PN7150 NFC Controller board can be reused as a module for integration into end devices following below instruction/restrictions:  The module is limited to OEM installation ONLY  The OEM/Integrators are responsible for ensuring that the end-user has no manual instructions to remove or install module  The module is limited to installation in mobile or fixed applications, according to Part 2.1091(b)  Separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations  Authorized antennas per Part 15.204 (including ant. spec.)  Antenna installation requirements, where relevant  The finished product’s user manual must include following statements: o Part 15.19 Warning Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. o Part 15.21 Warning Statement: The user manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The grantee is not responsible for any changes or modifications not expressly approved by the third party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. o End-users must be provided with transmitter/antenna installation requirements and operating conditions for satisfying RF exposure compliance:  A separate section should clearly state “FCC RF Exposure requirements”  Required operating conditions for end users

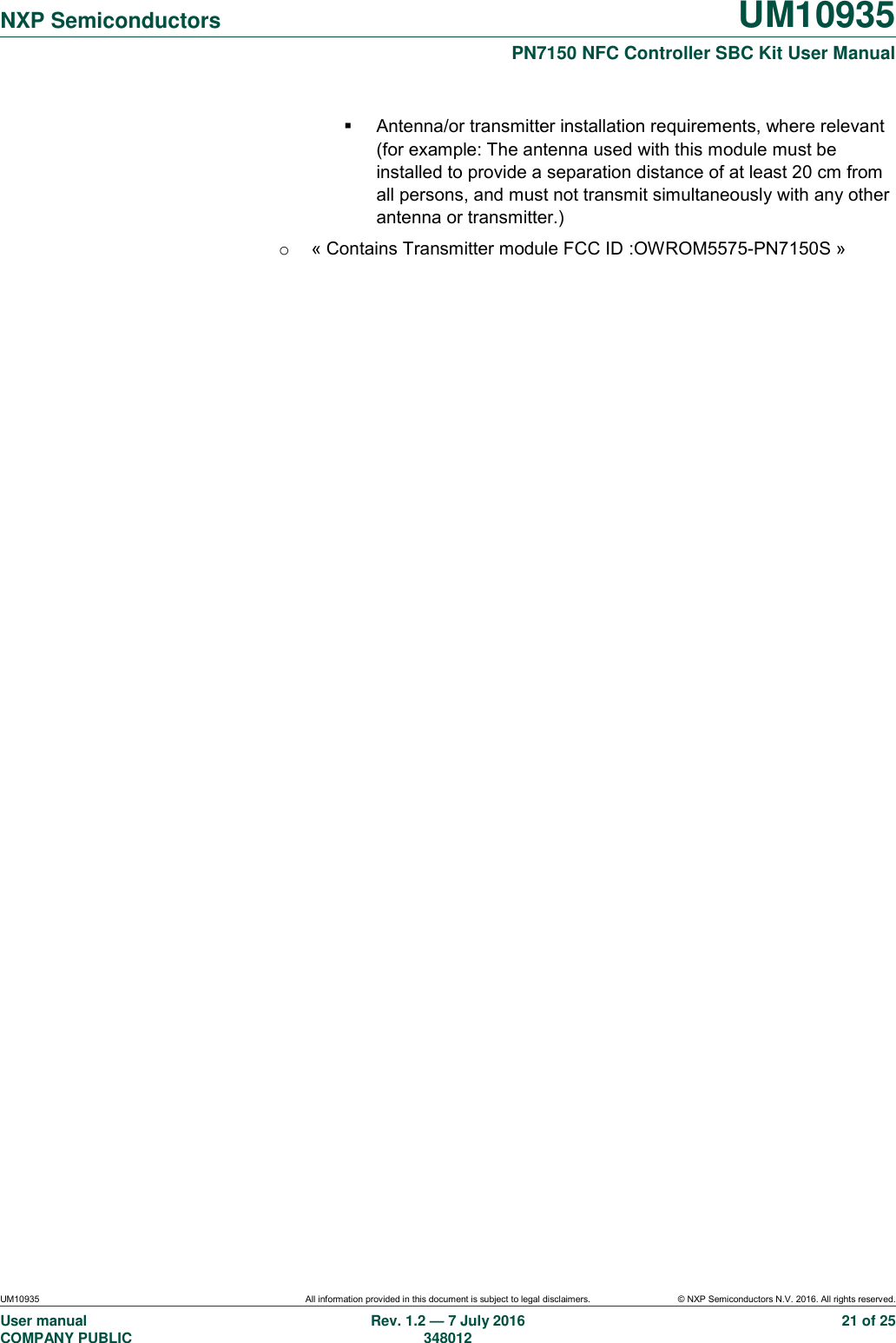

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 21 of 25  Antenna/or transmitter installation requirements, where relevant (for example: The antenna used with this module must be installed to provide a separation distance of at least 20 cm from all persons, and must not transmit simultaneously with any other antenna or transmitter.) o « Contains Transmitter module FCC ID :OWROM5575-PN7150S »

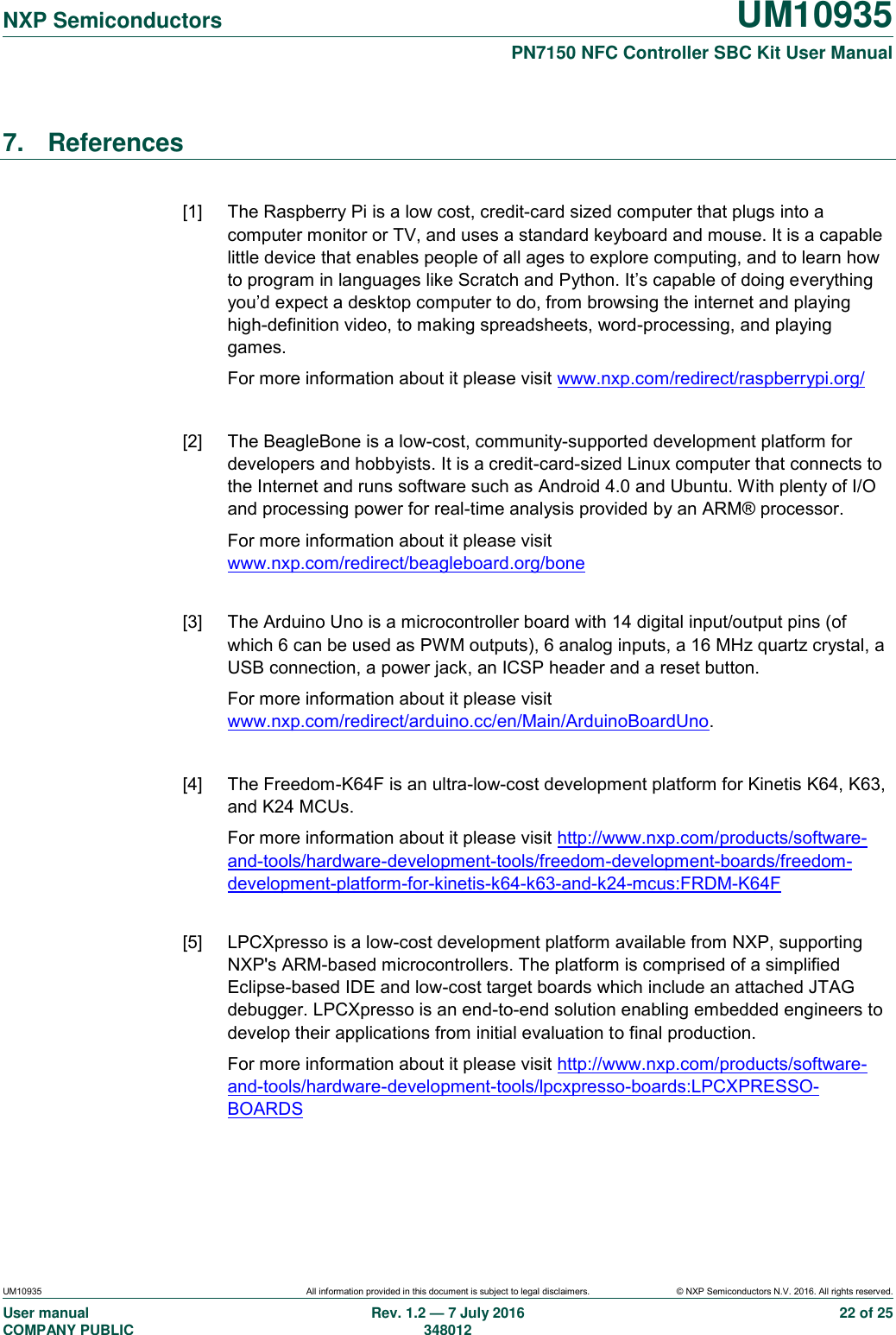

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 22 of 25 7. References [1] The Raspberry Pi is a low cost, credit-card sized computer that plugs into a computer monitor or TV, and uses a standard keyboard and mouse. It is a capable little device that enables people of all ages to explore computing, and to learn how to program in languages like Scratch and Python. It’s capable of doing everything you’d expect a desktop computer to do, from browsing the internet and playing high-definition video, to making spreadsheets, word-processing, and playing games. For more information about it please visit www.nxp.com/redirect/raspberrypi.org/ [2] The BeagleBone is a low-cost, community-supported development platform for developers and hobbyists. It is a credit-card-sized Linux computer that connects to the Internet and runs software such as Android 4.0 and Ubuntu. With plenty of I/O and processing power for real-time analysis provided by an ARM® processor. For more information about it please visit www.nxp.com/redirect/beagleboard.org/bone [3] The Arduino Uno is a microcontroller board with 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. For more information about it please visit www.nxp.com/redirect/arduino.cc/en/Main/ArduinoBoardUno. [4] The Freedom-K64F is an ultra-low-cost development platform for Kinetis K64, K63, and K24 MCUs. For more information about it please visit http://www.nxp.com/products/software-and-tools/hardware-development-tools/freedom-development-boards/freedom-development-platform-for-kinetis-k64-k63-and-k24-mcus:FRDM-K64F [5] LPCXpresso is a low-cost development platform available from NXP, supporting NXP's ARM-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production. For more information about it please visit http://www.nxp.com/products/software-and-tools/hardware-development-tools/lpcxpresso-boards:LPCXPRESSO-BOARDS

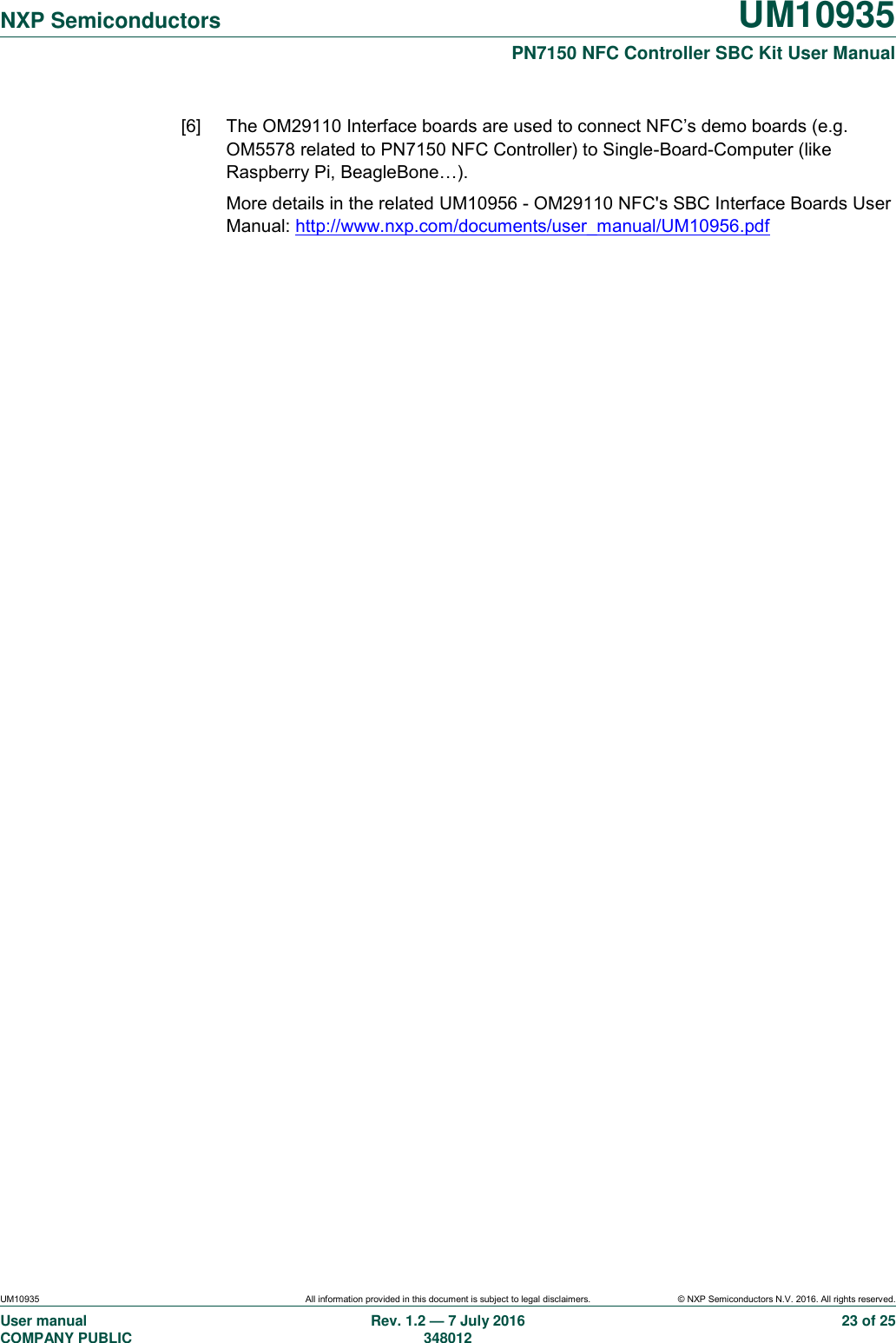

NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 23 of 25 [6] The OM29110 Interface boards are used to connect NFC’s demo boards (e.g. OM5578 related to PN7150 NFC Controller) to Single-Board-Computer (like Raspberry Pi, BeagleBone…). More details in the related UM10956 - OM29110 NFC's SBC Interface Boards User Manual: http://www.nxp.com/documents/user_manual/UM10956.pdf

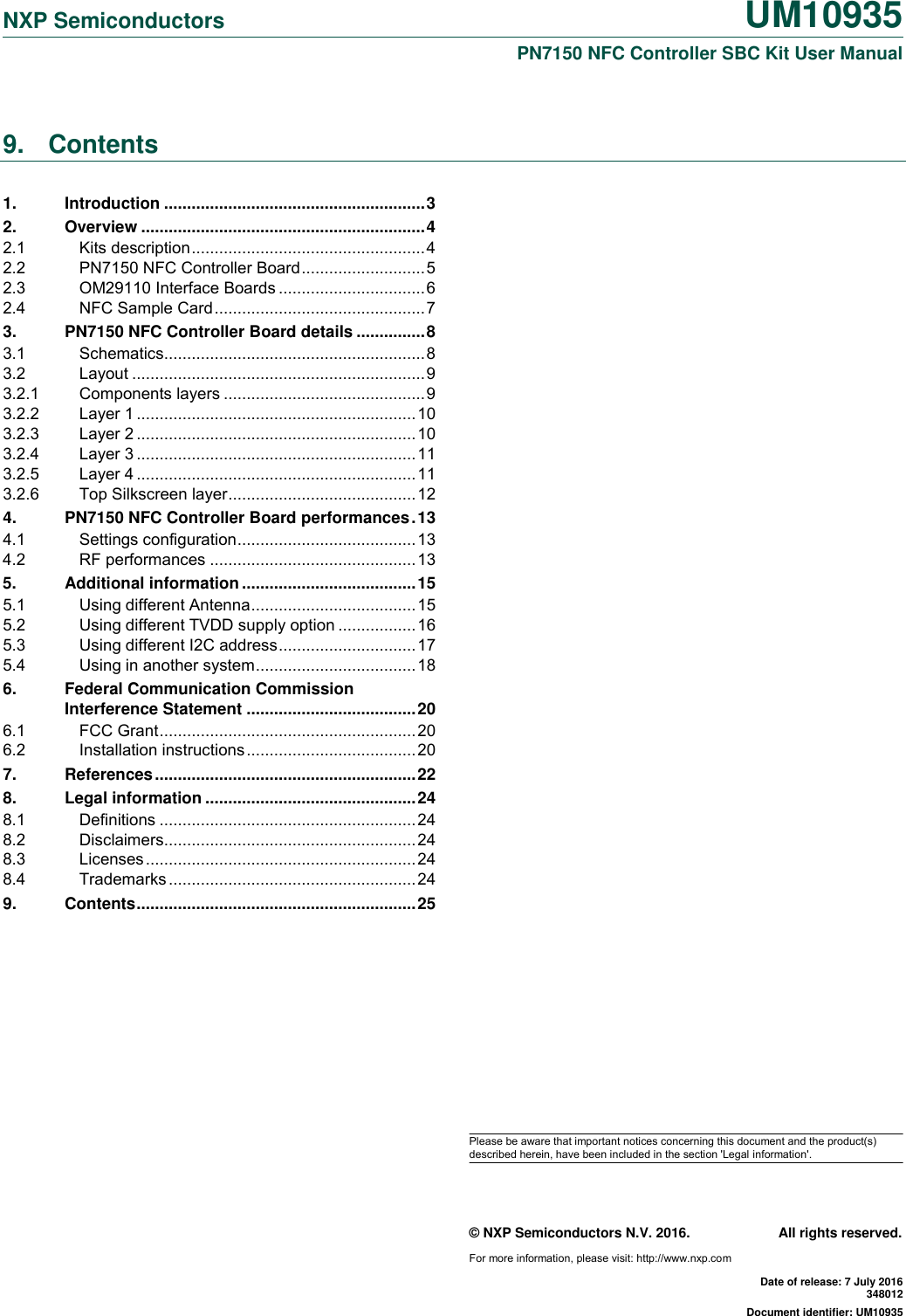

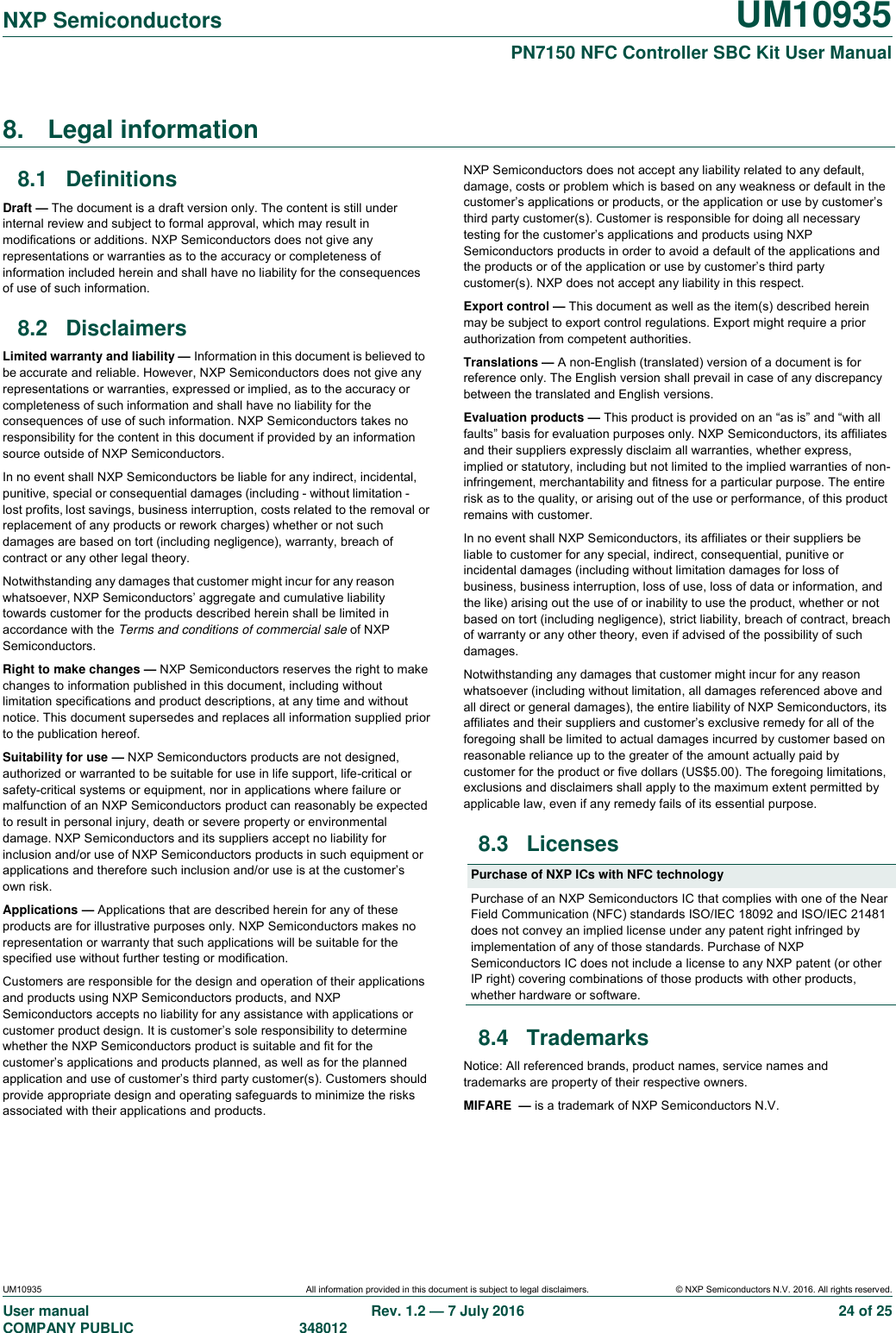

Error! Unknown document property name. Error! Unknown document property name. Error! Unknown document property name. NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual UM10935 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2016. All rights reserved. User manual COMPANY PUBLIC Rev. 1.2 — 7 July 2016 348012 24 of 25 8. Legal information8.1 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. 8.2 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. NXP Semiconductors takes no responsibility for the content in this document if provided by an information source outside of NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of NXP Semiconductors. Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors and its suppliers accept no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using NXP Semiconductors products, and NXP Semiconductors accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the NXP Semiconductors product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). NXP does not accept any liability in this respect. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Evaluation products — This product is provided on an “as is” and “with all faults” basis for evaluation purposes only. NXP Semiconductors, its affiliates and their suppliers expressly disclaim all warranties, whether express, implied or statutory, including but not limited to the implied warranties of non-infringement, merchantability and fitness for a particular purpose. The entire risk as to the quality, or arising out of the use or performance, of this product remains with customer. In no event shall NXP Semiconductors, its affiliates or their suppliers be liable to customer for any special, indirect, consequential, punitive or incidental damages (including without limitation damages for loss of business, business interruption, loss of use, loss of data or information, and the like) arising out the use of or inability to use the product, whether or not based on tort (including negligence), strict liability, breach of contract, breach of warranty or any other theory, even if advised of the possibility of such damages. Notwithstanding any damages that customer might incur for any reason whatsoever (including without limitation, all damages referenced above and all direct or general damages), the entire liability of NXP Semiconductors, its affiliates and their suppliers and customer’s exclusive remedy for all of the foregoing shall be limited to actual damages incurred by customer based on reasonable reliance up to the greater of the amount actually paid by customer for the product or five dollars (US$5.00). The foregoing limitations, exclusions and disclaimers shall apply to the maximum extent permitted by applicable law, even if any remedy fails of its essential purpose. 8.3 Licenses Purchase of NXP ICs with NFC technology Purchase of an NXP Semiconductors IC that complies with one of the Near Field Communication (NFC) standards ISO/IEC 18092 and ISO/IEC 21481 does not convey an implied license under any patent right infringed by implementation of any of those standards. Purchase of NXP Semiconductors IC does not include a license to any NXP patent (or other IP right) covering combinations of those products with other products, whether hardware or software. 8.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are property of their respective owners. MIFARE — is a trademark of NXP Semiconductors N.V.
NXP Semiconductors UM10935 PN7150 NFC Controller SBC Kit User Manual Please be aware that important notices concerning this document and the product(s) described herein, have been included in the section 'Legal information'. © NXP Semiconductors N.V. 2016. All rights reserved. For more information, please visit: http://www.nxp.com Date of release: 7 July 2016 348012 Document identifier: UM10935 9. Contents1. Introduction ......................................................... 3 2. Overview .............................................................. 4 2.1 Kits description ................................................... 4 2.2 PN7150 NFC Controller Board ........................... 5 2.3 OM29110 Interface Boards ................................ 6 2.4 NFC Sample Card .............................................. 7 3. PN7150 NFC Controller Board details ............... 8 3.1 Schematics......................................................... 8 3.2 Layout ................................................................ 9 3.2.1 Components layers ............................................ 9 3.2.2 Layer 1 ............................................................. 10 3.2.3 Layer 2 ............................................................. 10 3.2.4 Layer 3 ............................................................. 11 3.2.5 Layer 4 ............................................................. 11 3.2.6 Top Silkscreen layer ......................................... 12 4. PN7150 NFC Controller Board performances . 13 4.1 Settings configuration ....................................... 13 4.2 RF performances ............................................. 13 5. Additional information ...................................... 15 5.1 Using different Antenna .................................... 15 5.2 Using different TVDD supply option ................. 16 5.3 Using different I2C address .............................. 17 5.4 Using in another system ................................... 18 6. Federal Communication Commission Interference Statement ..................................... 20 6.1 FCC Grant ........................................................ 20 6.2 Installation instructions ..................................... 20 7. References ......................................................... 22 8. Legal information .............................................. 24 8.1 Definitions ........................................................ 24 8.2 Disclaimers....................................................... 24 8.3 Licenses ........................................................... 24 8.4 Trademarks ...................................................... 24 9. Contents ............................................................. 25
