NXP Austria OM5578-PN7150S 13.56 MHz RFID Module User Manual UM10935

NXP Austria GmbH 13.56 MHz RFID Module UM10935

User Manual

UM10935
PN7150 NFC Controller SBC Kit User Manual
Rev. 1.2 — 7 July 2016
348012
User manual
COMPANY PUBLIC
Document information
Info
Keywords
Abstract
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
2 of 25
Contact information
For more information, please visit: http://www.nxp.com
Revision history
Rev
Date
Description
1.2
20160707
Added demo kit performance details
1.1
20160518
Updated with kit pictures and FCC statement change
Security status changed into “COMPANY PUBLIC”
1.0
20151210
First official release version
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
3 of 25
1. Introduction
The present document describes the OM5578/PN7150S demonstration kit, a flexible and
easy-to-use Single Board Computer (SBC) Kit for the PN7150 NFC Controller.
It enables the development of an NFC solution based on PN7150 in a Linux, Android or
Windows for IoT environment or even in system based on RTOS or without OS.
It exists in different configurations:
- OM5578/PN7150RPI to be used with Raspberry Pi platform (see [1])
- OM5578/PN7150BBB to be used with BeagleBone Interface Board (see [2])
- OM5578/PN7150ARD to be used with platforms offering Arduino compatible
interface (see [3]), like LPCXpresso (see [5]) or Kinetis Freedom (see [4]).
This document presents first an overview of the kit.
Then, it gives printed circuit boards details.
Finally, it provides information for reuse of the kit in different environments.
This kit is registered as FCC certified module (FCC ID: OWROM5578-PN7150S)
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
4 of 25
2. Overview
2.1 Kits description
All 3 OM5578 kits contains a PN7150 NFC Controller Board, a dedicated interface board,
as well as an NFC Sample Card in form of an NFC Forum Type 2 Tag.
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110RPI
Raspberry Pi Interface Board
NTAG216
NFC Sample Card

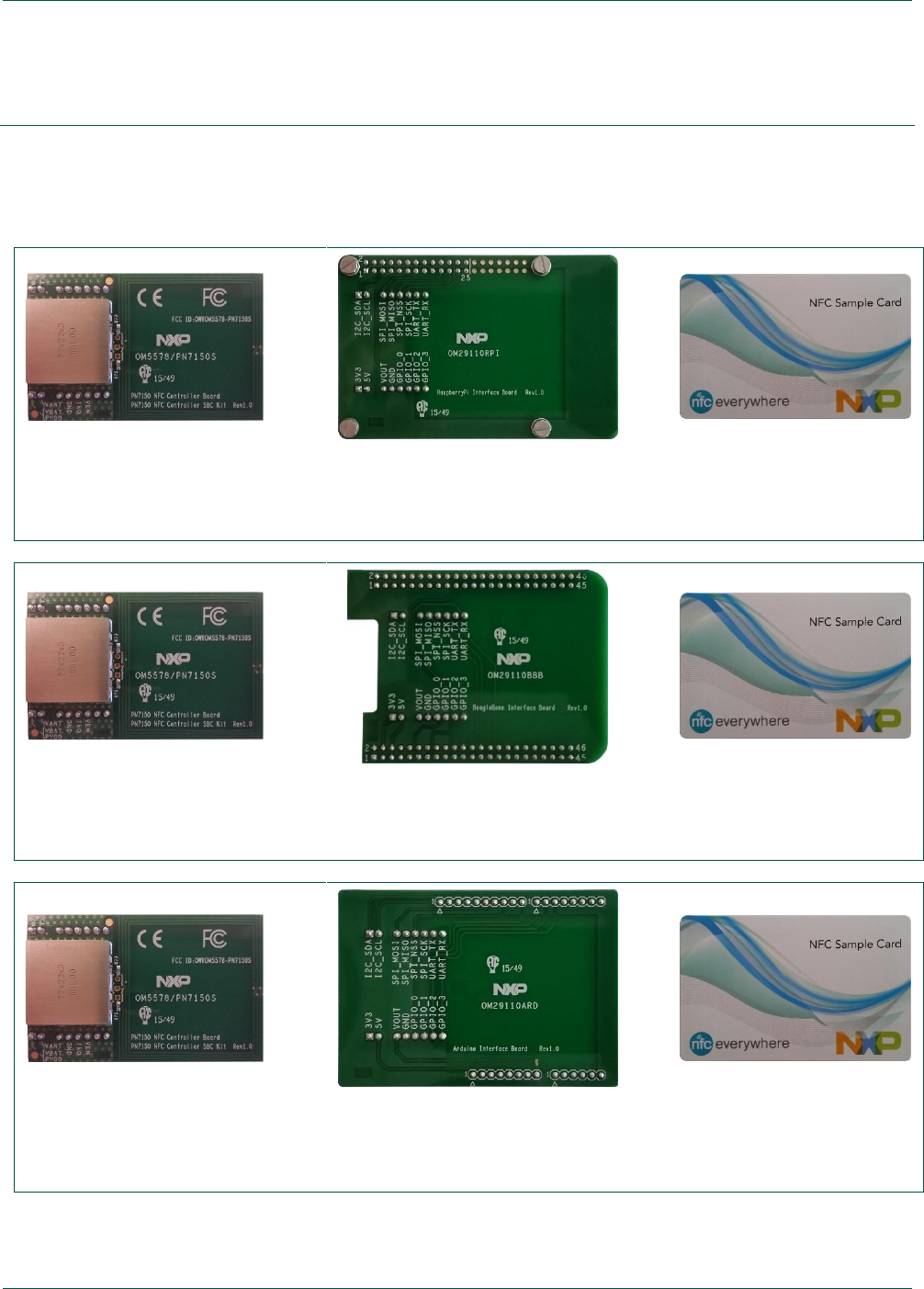

Fig 1. OM5578/PN7150RPI kit overview
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110BBB
BeagleBone Interface Board
NTAG216
NFC Sample Card
Fig 2. OM5578/PN7150BBB kit overview
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110ARD
Arduino Interface Board
NTAG216
NFC Sample Card
Fig 3. OM5578/PN7150ARD kit overview
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
5 of 25
2.2 PN7150 NFC Controller Board
The OM5578 PN7150 NFC Controller Board is high performance fully NFC compliant
expansion board, meeting compliance with Reader mode, P2P mode and Card emulation
mode standards.
The board features an integrated high performance RF antenna to insure high
interoperability level with NFC devices.
It has to be used in association with one interface board according to the targeted user
environment. For this purpose it integrates the NFC generic interface allowing assembly
with OM29110 Interface boards (see [6]).

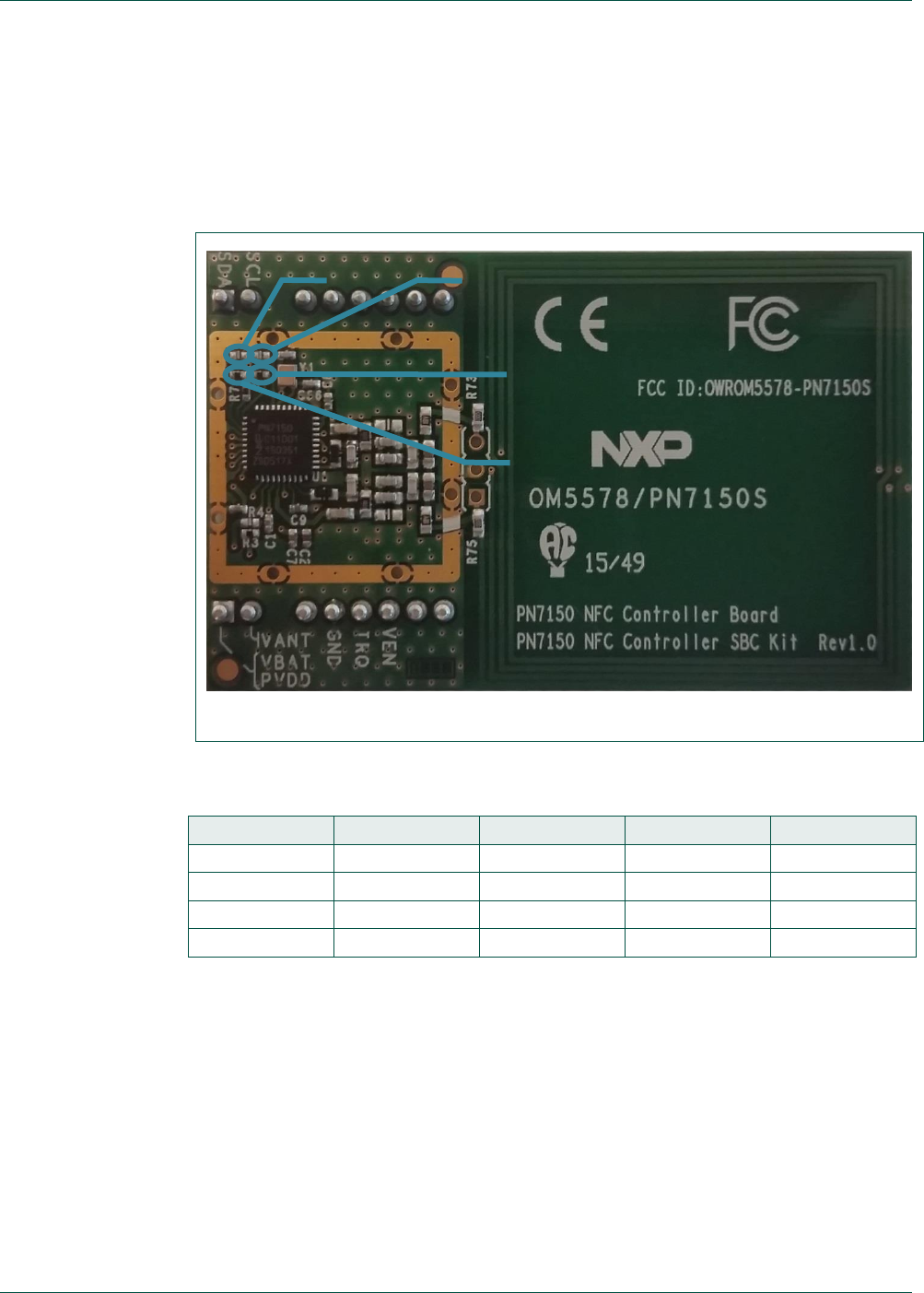

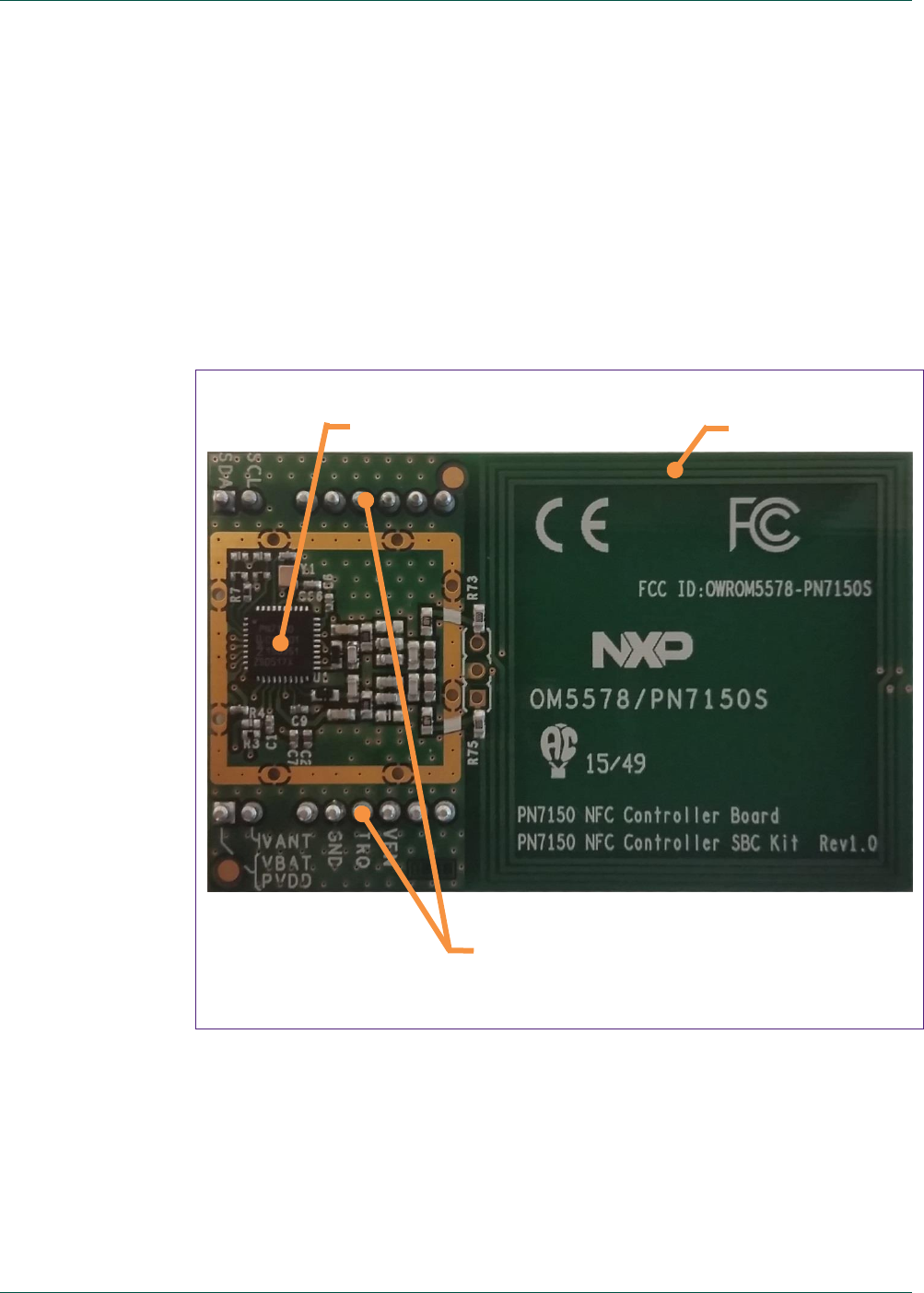

Fig 4. OM5578/PN7150S PN7150 NFC Controller Board
Connectors to interface boards
RF Antenna
PN7150
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
6 of 25
2.3 OM29110 Interface Boards
The OM29110 Interface Boards offer support for connection to Raspberry Pi,
BeagleBone or Arduino Compatible Interface platforms (refer to [6] for more details).

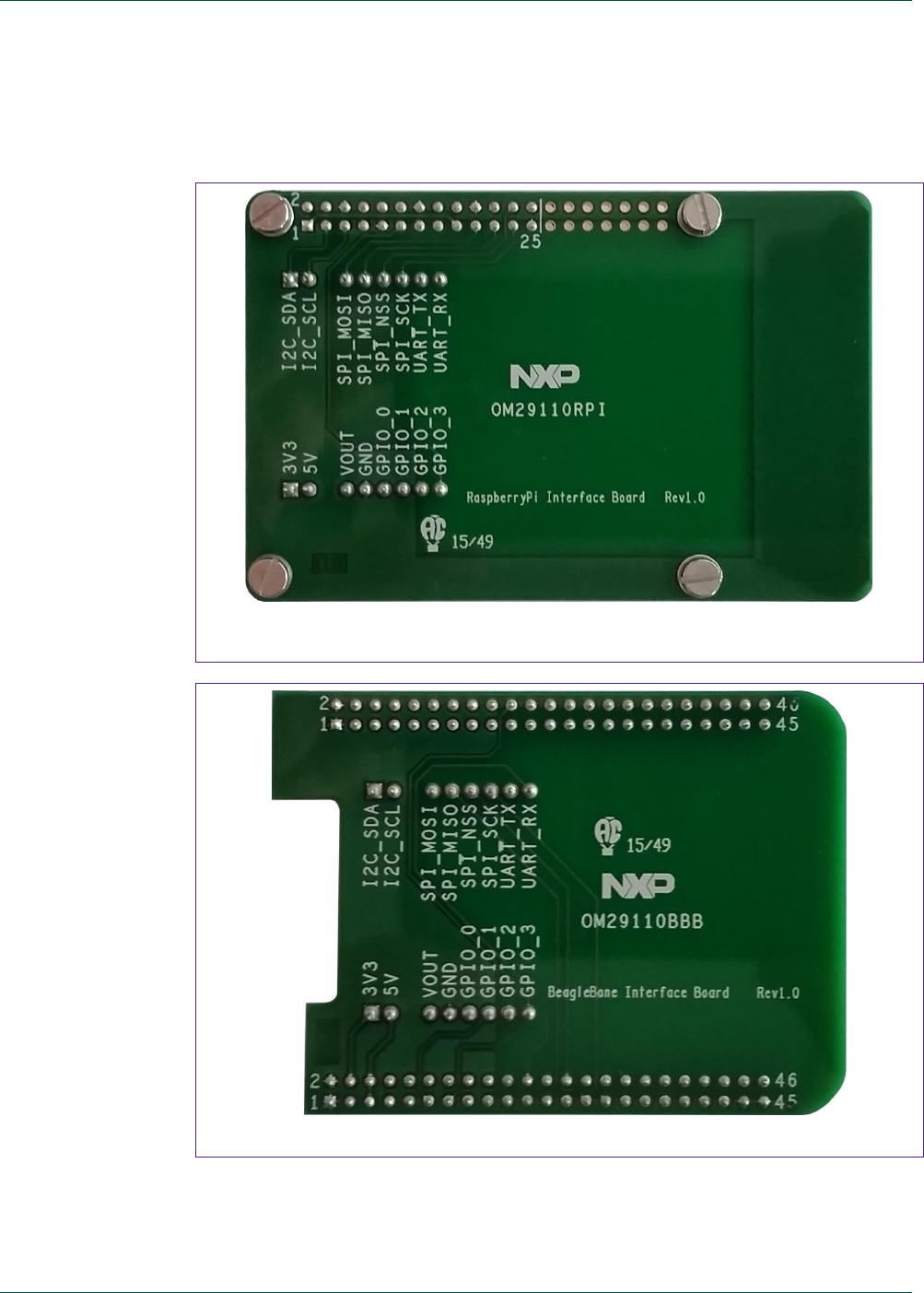

Fig 5. OM29110RPI Raspberry Pi Interface Board
Fig 6. OM29110BBB BeagleBone Interface Board
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
7 of 25

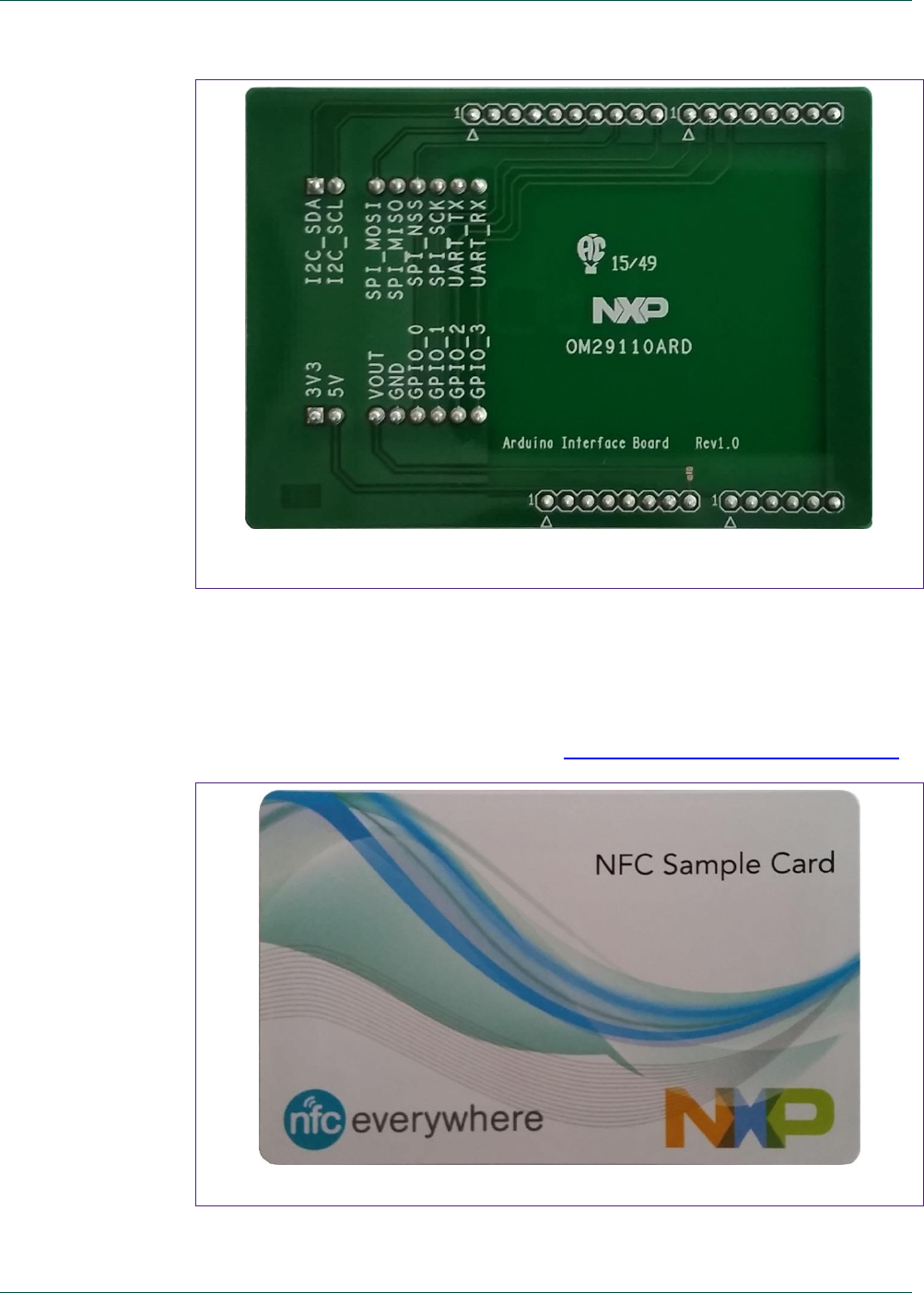

Fig 7. OM29110ARD Arduino Interface Board
2.4 NFC Sample Card
OM5578/PN7150S kit includes a NFC Sample Card, based on NTAG216 tag IC, allowing
to demonstrate NFC reader capabilities of PN7150 NFC Controller.
For the current purpose of PN7150 NFC Controller demonstration, the card has been
pre-configured with NDEF URI type message “http://www.nxp.com/demoboard/OM5578”.
Fig 8. NFC Sample Card
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
8 of 25
3. PN7150 NFC Controller Board details
3.1 Schematics

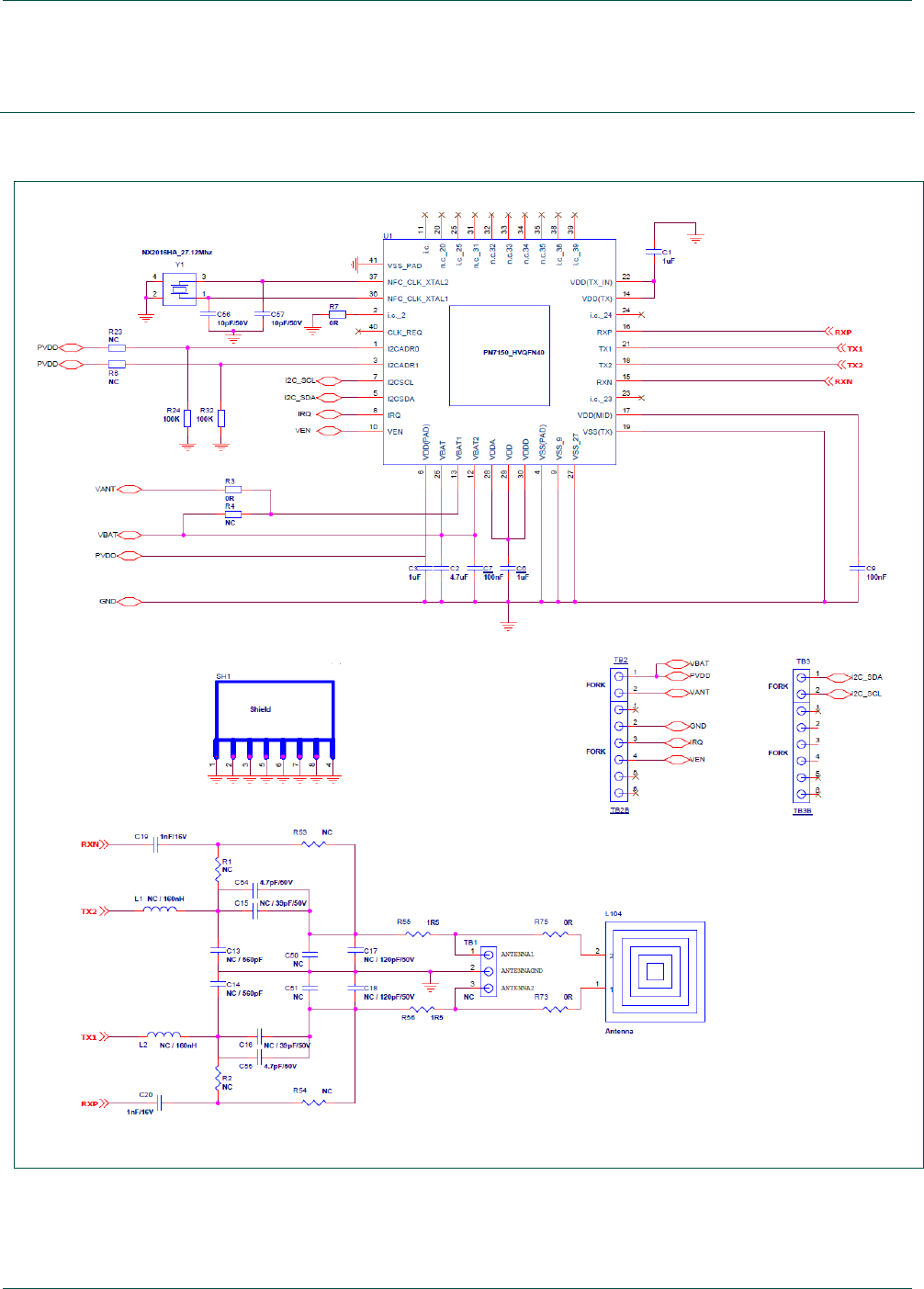

Fig 9. PN7150 NFC Controller Board schematics
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
9 of 25
3.2 Layout
3.2.1 Components layers

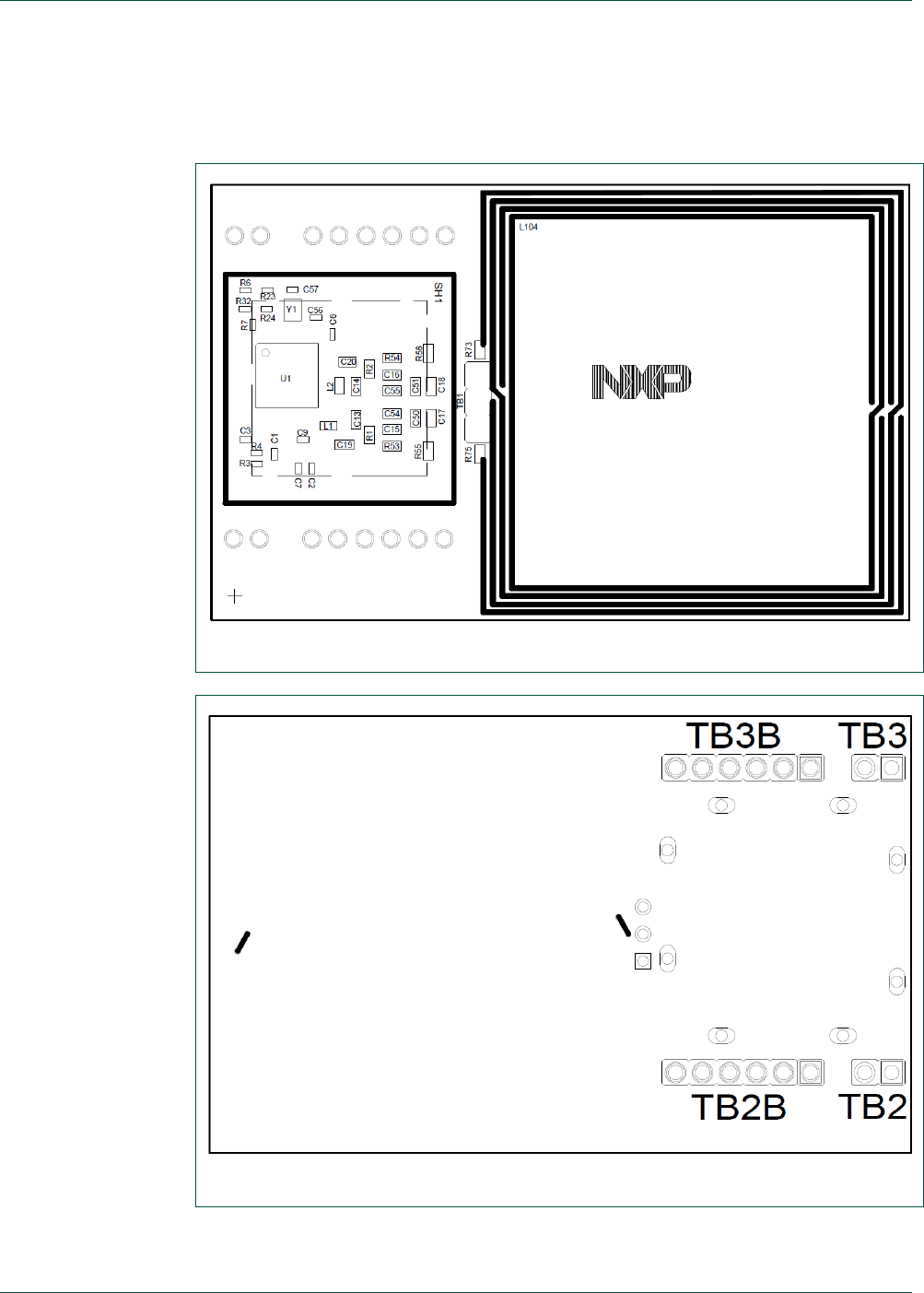

Fig 10. PN7150 NFC Controller Board Top components layers
Fig 11. PN7150 NFC Controller Board Bottom components layers
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
10 of 25
3.2.2 Layer 1

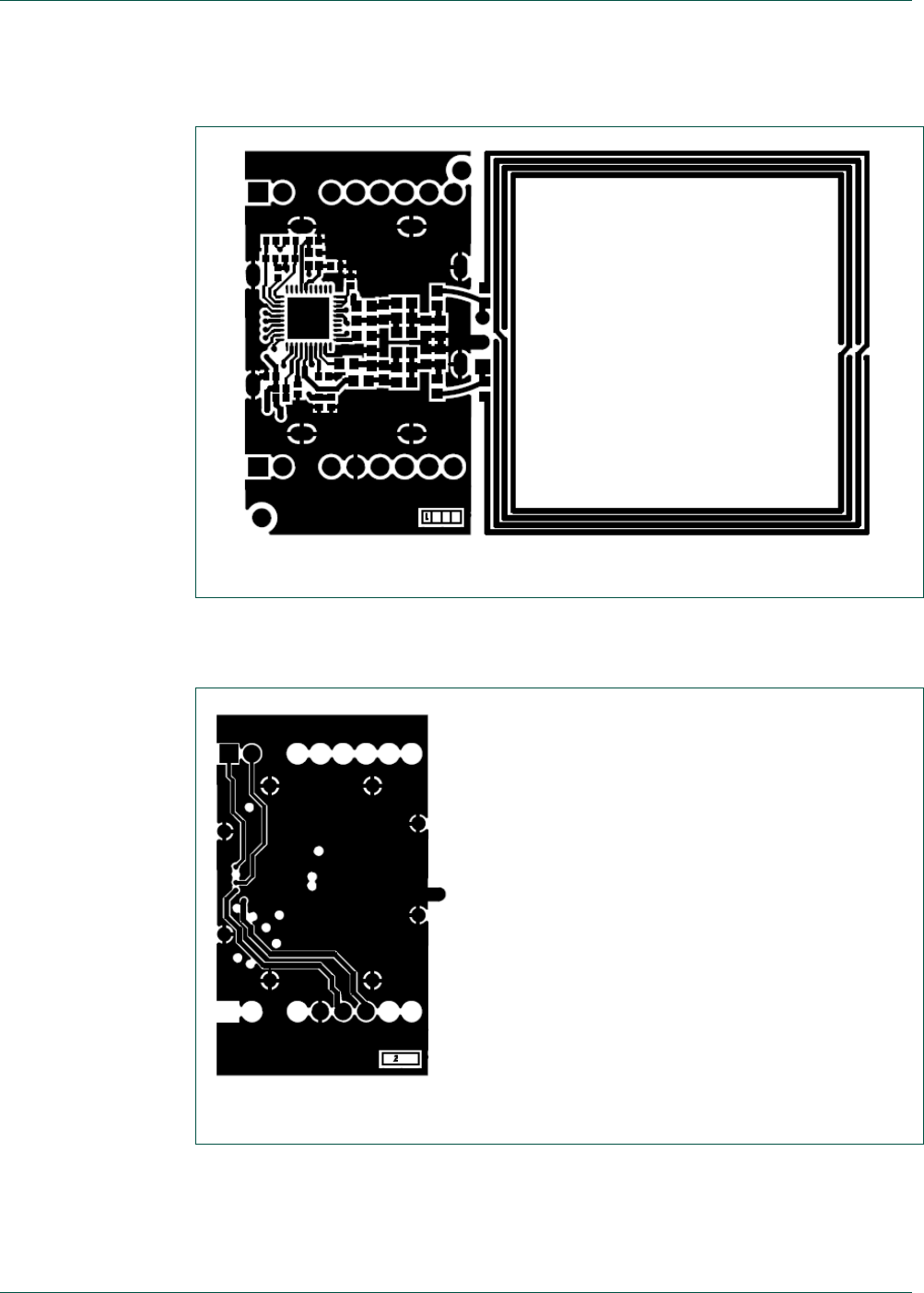

Fig 12. PN7150 NFC Controller Board Layer 1
3.2.3 Layer 2
Fig 13. PN7150 NFC Controller Board Layer 2
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
11 of 25
3.2.4 Layer 3

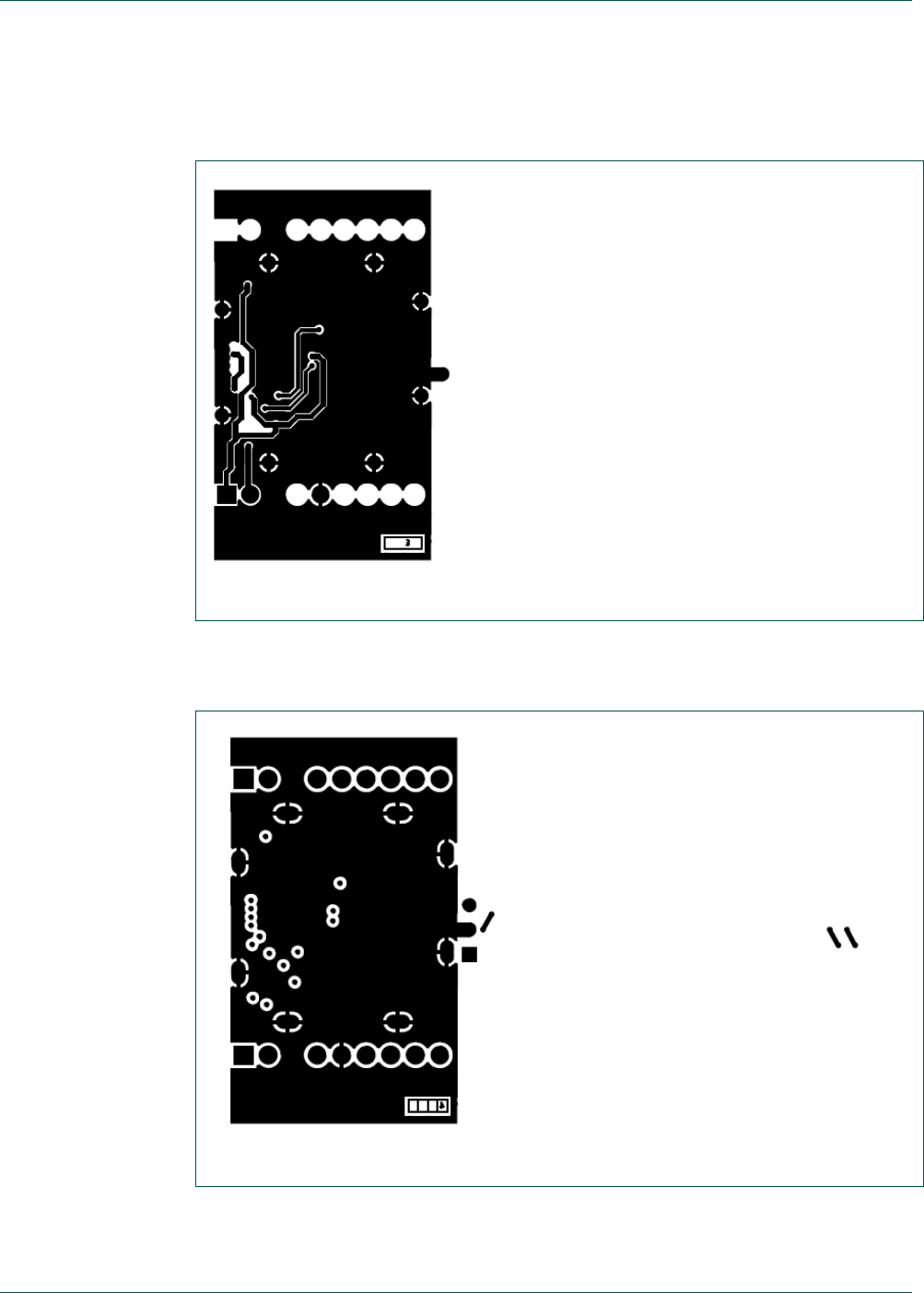

Fig 14. PN7150 NFC Controller Board Layer 3
3.2.5 Layer 4
Fig 15. PN7150 NFC Controller Board Layer 4
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
12 of 25
3.2.6 Top Silkscreen layer

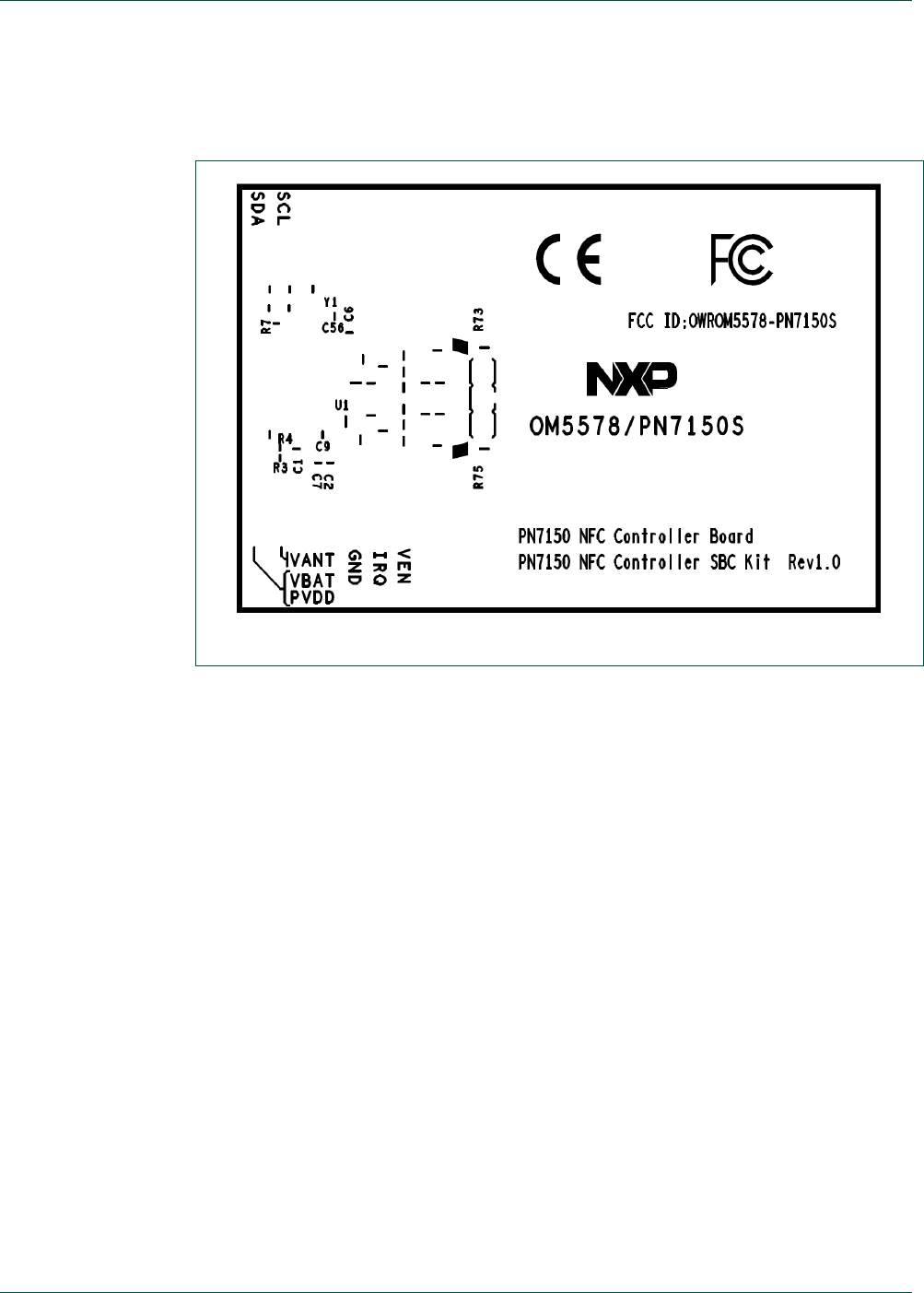

Fig 16. PN7150 NFC Controller Board Top silkscreen layer
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
13 of 25
4. PN7150 NFC Controller Board performances
4.1 Settings configuration
Following performance results are obtained applying dedicated configuration to PN7150
optimized for OM5578 characteristics. Those are:
Table 1. RF settings
Transition
Register
Value
RF_CLIF_CFG_INITIATOR
CLIF_AGC_INPUT_REG
90 01 F4 01
RF_CLIF_CFG_TARGET
CLIF_ANA_RX_REG
01 90 03 00
RF_CLIF_CFG_TARGET
CLIF_SIGPRO_ADCBCM_THRESHOLD_REG
B0 01 10 00
RF_CLIF_CFG_TARGET
CLIF_ANA_TX_AMPLITUDE_REG
02 00 FF FF
RF_CLIF_CFG_TARGET
CLIF_TEST_CONTROL_REG
06
RF_CLIF_CFG_TECHNO_I_TX15693
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_TECHNO_I_RX15693
CLIF_ANA_RX_REG
23 00
RF_CLIF_CFG_TECHNO_I_RX15693
CLIF_SIGPRO_RM_CONFIG1_REG
50 34 0C 00
RF_CLIF_CFG_BR_106_I_TXA
CLIF_ANA_TX_AMPLITUDE_REG
F8 00 FF FF
RF_CLIF_CFG_BR_106_I_RXA_P
CLIF_SIGPRO_RM_CONFIG1_REG
24 37 0C 00
RF_CLIF_CFG_BR_106_I_RXA_P
CLIF_AGC_CONFIG0_REG
86 80 00 70
RF_CLIF_CFG_BR_106_I_RXA_P
CLIF_ANA_RX_REG
22 00
RF_CLIF_CFG_BR_848_I_RXA
CLIF_SIGPRO_RM_CONFIG1_REG
15 45 0D 00
RF_CLIF_CFG_BR_106_I_RXB
CLIF_ANA_RX_REG
22 00
RF_CLIF_CFG_BR_106_I_RXB
CLIF_SIGPRO_RM_CONFIG1_REG
05 59 0E 00
RF_CLIF_CFG_BR_106_I_TXB
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_BR_212_I_RXF_P
CLIF_SIGPRO_RM_CONFIG1_REG
05 9F 0C 00
RF_CLIF_CFG_BR_212_I_TXF
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_I_ACTIVE
CLIF_AGC_CONFIG0_REG
80 86 00 70
Table 2. Clock settings
Register
Value
CLIF_ANA_CLK_MAN_REG
57 33 14 17 00 AA 85 00 80 55 2A 04 00 63 00 00 00
4.2 RF performances
Table 3. Power Transfer (Poll mode)
Measured with EMVCo reference PICC
@ 0cm
@ 1cm
@ 2cm
@3 cm
7.6 V
6.7 V
4,3 V
1,2 V
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
14 of 25
Table 4. Reader/Writer mode performance
Card type
Communication distance (mm)
ISO 15693 UPM RaceTrack
120
NFC Sample Card (NTAG216 – ID1)
80
NFC Sticker (NTAG216 – 40x40)
68
Topaz (35mm Round)
55
Type B (ID1)
45
Felica (ID1)
36
Table 5. Peer to Peer mode performances
Vs Samsung Galaxy S7 phone
Communication distance
moving phone from far to close
moving Phone from close to far
50
65
Table 6. Card Mode performance
Vs NXP Pegoda Reader
Communication distance (mm)
180
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
15 of 25
5. Additional information
5.1 Using different Antenna
The OM5578/PN7150S kit provide a flexible way of connecting an external RF antenna
to be used in place of the on-board one.
On the PN7150 NFC Controller Board, the dedicated 3 pins connector referenced as TB1
allows to connect your own antenna.
In this case the on-board antenna must be first disconnected, removing resistors R75
and R73.
Obviously matching circuitry must be adapted as described in related document
“AN11755 - PN7150 Antenna Design and Matching Guide”.

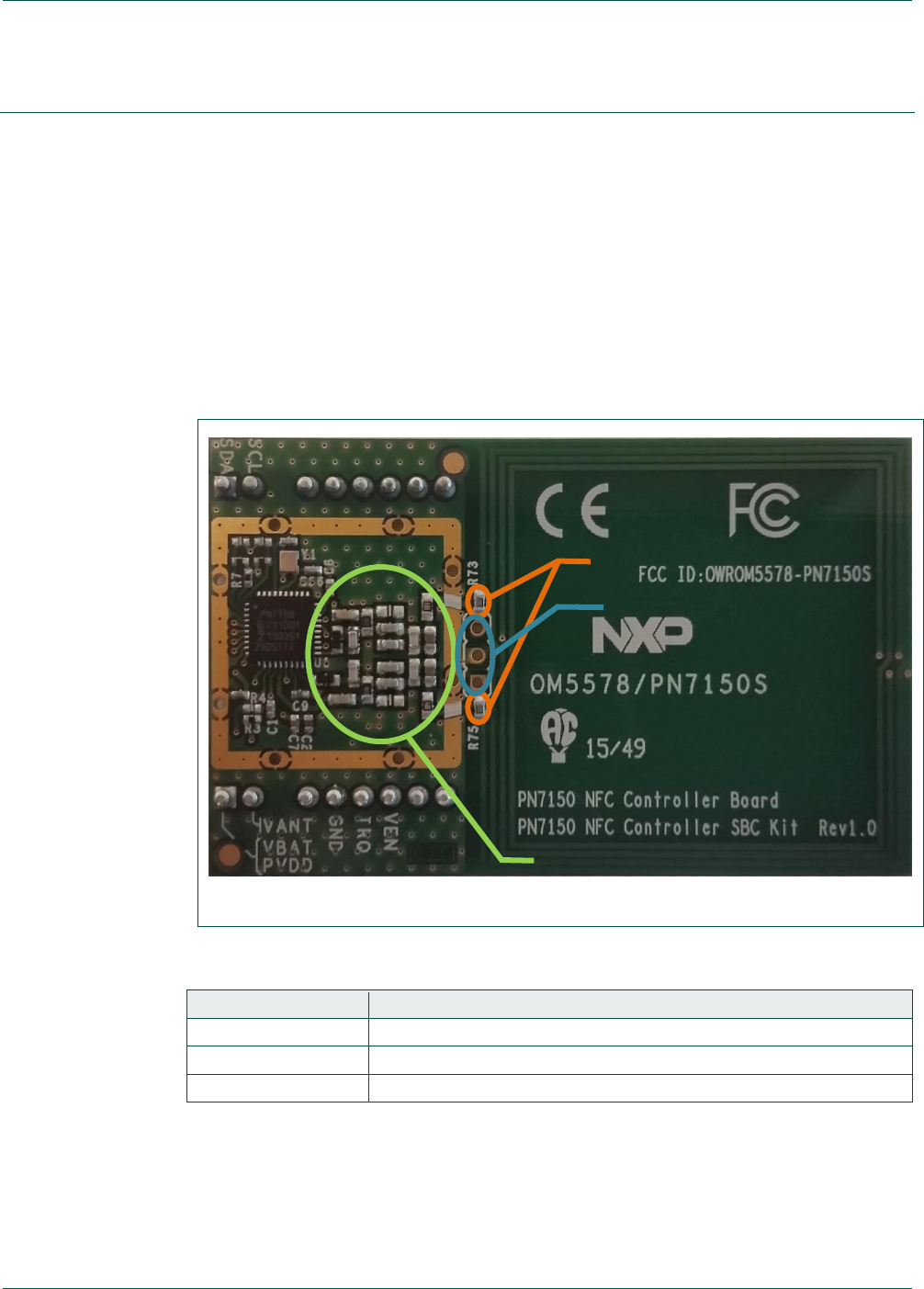

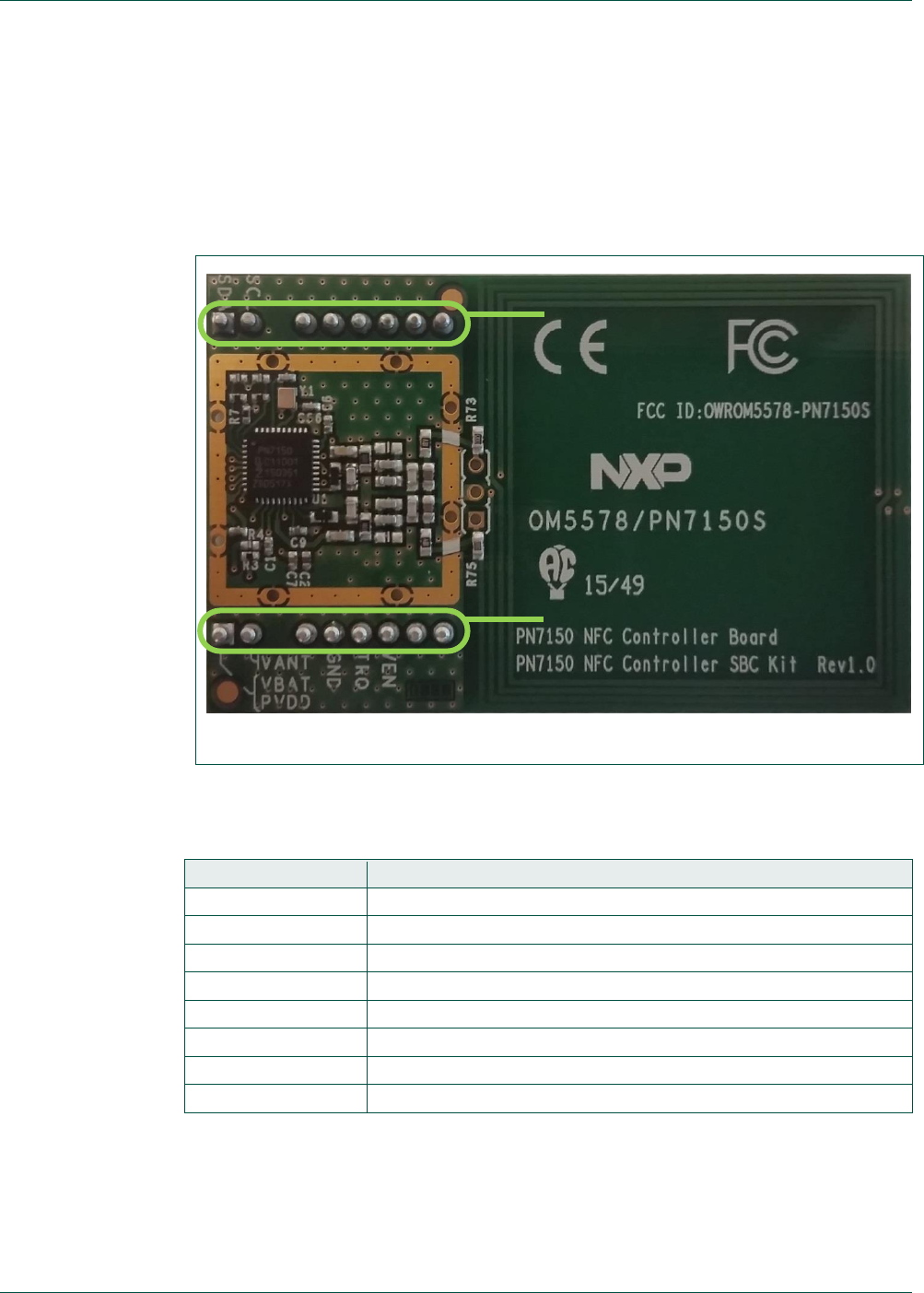

Fig 17. PN7150 NFC Controller Board RF Antenna components
Table 7. PN7150 NFC Controller Board TB1 connector pinout
TB1
PN7150 signal
#1
ANTENNA 1
#2
GND
#3
ANTENNA 2
TB1
R73 and R75
Matching circuitry
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
16 of 25
5.2 Using different TVDD supply option
The OM5578/PN7150S kit comes with Configuration 2: external 5V used to generate
TVDD (refer to “AN11756 – PN7150 Hardware Design Guide” for more details). The 5V
being provided by the under layer SBC platform via the VANT pin of connector TB2.
However, it is still possible to switch to Configuration 1: VBAT used to generate the
TVDD. This is done by removing R3 and placing a 0 ohm resistor in R4 place.
Then related registry setting must be applied accordingly (see “AN11756 – PN7150
Hardware Design Guide”).

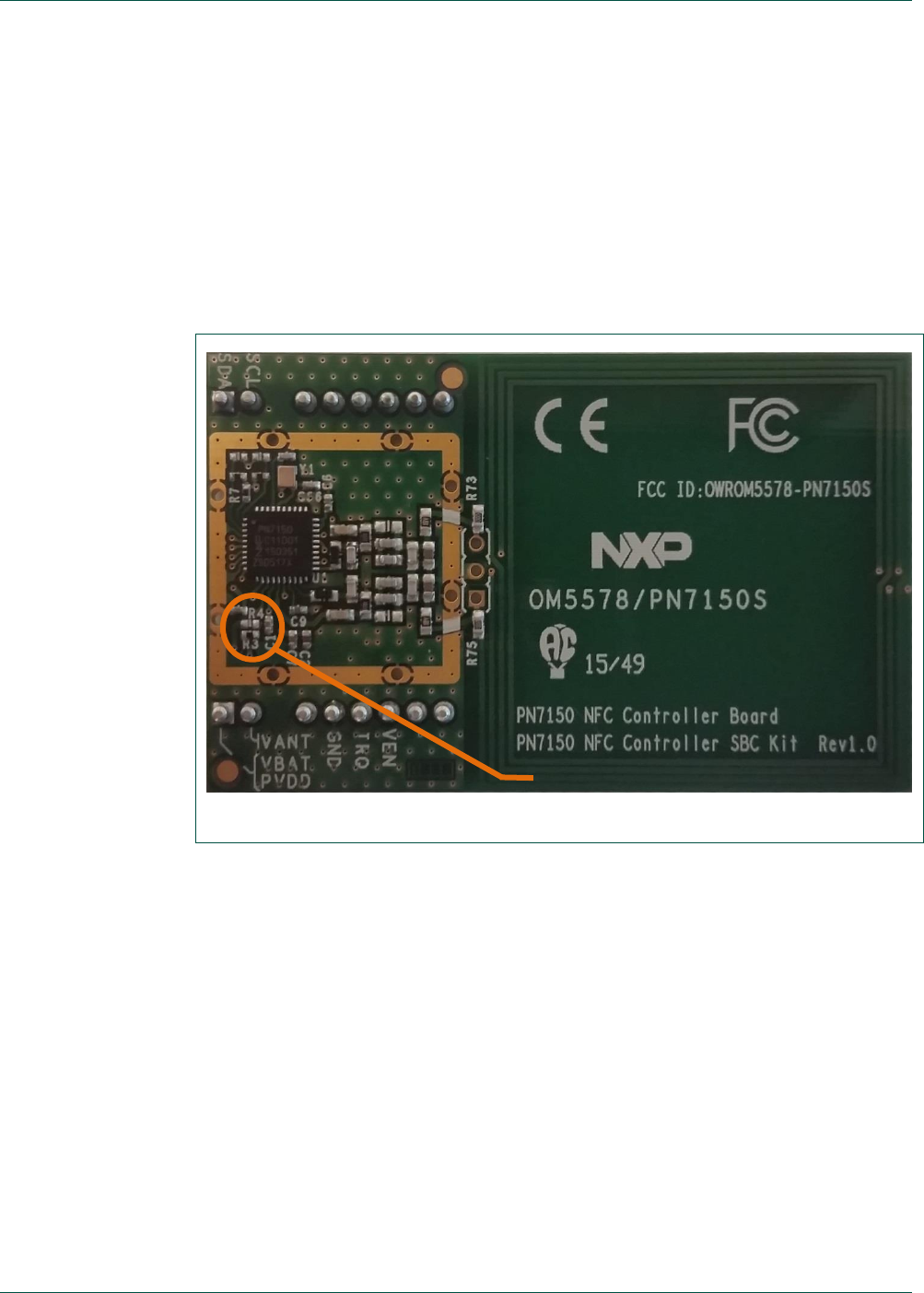

Fig 18. PN7150 NFC Controller TVDD supply option
R3 and R4
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
17 of 25
5.3 Using different I2C address
The OM5578/PN7150S kit comes with default 0x28 (7 bits) I2C address.
However, it is still possible to change it (between 0x28 and 0x2B) by setting of R6, R23,
R24 and R32 resistors.
Fig 19. PN7150 NFC Controller I2C address configuration
Table 8. I2C address configuration
I2C address
R6
R23
R24
R32
0x28
Open
Open
Short
Short
0x29
Open
Short
Open
Short
0x2A
Short
Open
Short
Open
0x2B
Short
Short
Open
Open
R6
R23
R24
R32
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
18 of 25
5.4 Using in another system
The OM5578/PN7150S demonstration kit can be reuse in another system (different from
Raspberry Pi or BeagleBone, and not offering Arduino Compatible interface).
Indeed, the PN7150 NFC Controller Board provides all required signal on TB2 and TB3
(signals are duplicated on both connectors) connectors to interface boards.
Fig 20. PN7150 NFC Controller Board interface connectors
Table 9. PN7150 NFC Controller Board TB2 connector pinout
TB2
PN7150 signal
#1
VBAT/VDD(PAD): 3.3V supply voltage
#2
VANT: 5V optional supply voltage
#3
Not connected
#4
GND: ground
#5
IRQ: interrupt request output
#6
VEN: reset pin
#7
Not connected
#8
Not connected
TB3
TB2
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
19 of 25
Table 10. PN7150 NFC Controller Board TB3 connector pinout
TB3
PN7150 signal
#1
I2CSDA: I2C-bus serial data
#2
I2CSCL: I2C-bus serial clock input
#3
Not connected
#4
Not connected
#5
Not connected
#6
Not connected
#7
Not connected
#8
Not connected
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
20 of 25
6. Federal Communication Commission Interference Statement
6.1 FCC Grant
The PN7150 NFC Controller Board have been tested to fulfil the approval requirements
FCC 47 CFR part 15: 2014 (§15.225).
The related FCCID is: OWROM5578-PN7150S
6.2 Installation instructions
PN7150 NFC Controller board can be reused as a module for integration into end
devices following below instruction/restrictions:
The module is limited to OEM installation ONLY
The OEM/Integrators are responsible for ensuring that the end-user has no
manual instructions to remove or install module
The module is limited to installation in mobile or fixed applications, according to
Part 2.1091(b)
Separate approval is required for all other operating configurations, including
portable configurations with respect to Part 2.1093 and different antenna
configurations
Authorized antennas per Part 15.204 (including ant. spec.)
Antenna installation requirements, where relevant
The finished product’s user manual must include following statements:
o Part 15.19 Warning Statement:
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
o Part 15.21 Warning Statement:
The user manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
Note: The grantee is not responsible for any changes or modifications
not expressly approved by the third party responsible for compliance.
Such modifications could void the user’s authority to operate the
equipment.
o End-users must be provided with transmitter/antenna installation
requirements and operating conditions for satisfying RF exposure
compliance:
A separate section should clearly state “FCC RF Exposure
requirements”
Required operating conditions for end users
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
21 of 25
Antenna/or transmitter installation requirements, where relevant
(for example: The antenna used with this module must be
installed to provide a separation distance of at least 20 cm from
all persons, and must not transmit simultaneously with any other
antenna or transmitter.)
o « Contains Transmitter module FCC ID :OWROM5575-PN7150S »
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
22 of 25
7. References
[1] The Raspberry Pi is a low cost, credit-card sized computer that plugs into a
computer monitor or TV, and uses a standard keyboard and mouse. It is a capable
little device that enables people of all ages to explore computing, and to learn how
to program in languages like Scratch and Python. It’s capable of doing everything
you’d expect a desktop computer to do, from browsing the internet and playing
high-definition video, to making spreadsheets, word-processing, and playing
games.
For more information about it please visit www.nxp.com/redirect/raspberrypi.org/
[2] The BeagleBone is a low-cost, community-supported development platform for
developers and hobbyists. It is a credit-card-sized Linux computer that connects to
the Internet and runs software such as Android 4.0 and Ubuntu. With plenty of I/O
and processing power for real-time analysis provided by an ARM® processor.
For more information about it please visit
www.nxp.com/redirect/beagleboard.org/bone
[3] The Arduino Uno is a microcontroller board with 14 digital input/output pins (of
which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a
USB connection, a power jack, an ICSP header and a reset button.
For more information about it please visit
www.nxp.com/redirect/arduino.cc/en/Main/ArduinoBoardUno.
[4] The Freedom-K64F is an ultra-low-cost development platform for Kinetis K64, K63,
and K24 MCUs.
For more information about it please visit http://www.nxp.com/products/software-
and-tools/hardware-development-tools/freedom-development-boards/freedom-
development-platform-for-kinetis-k64-k63-and-k24-mcus:FRDM-K64F
[5] LPCXpresso is a low-cost development platform available from NXP, supporting
NXP's ARM-based microcontrollers. The platform is comprised of a simplified
Eclipse-based IDE and low-cost target boards which include an attached JTAG
debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to
develop their applications from initial evaluation to final production.
For more information about it please visit http://www.nxp.com/products/software-
and-tools/hardware-development-tools/lpcxpresso-boards:LPCXPRESSO-
BOARDS
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
23 of 25
[6] The OM29110 Interface boards are used to connect NFC’s demo boards (e.g.
OM5578 related to PN7150 NFC Controller) to Single-Board-Computer (like
Raspberry Pi, BeagleBone…).
More details in the related UM10956 - OM29110 NFC's SBC Interface Boards User
Manual: http://www.nxp.com/documents/user_manual/UM10956.pdf
Error!
Unknown
document
property
name.
Error! Unknown document property name.
Error! Unknown document property
name.
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2016. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.2 — 7 July 2016
348012
24 of 25
8. Legal information
8.1 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences
of use of such information.
8.2 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, NXP Semiconductors does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. NXP Semiconductors takes no
responsibility for the content in this document if provided by an information
source outside of NXP Semiconductors.
In no event shall NXP Semiconductors be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation -
lost profits, lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, NXP Semiconductors’ aggregate and cumulative liability
towards customer for the products described herein shall be limited in
accordance with the Terms and conditions of commercial sale of NXP
Semiconductors.
Right to make changes — NXP Semiconductors reserves the right to make
changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
Suitability for use — NXP Semiconductors products are not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of an NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. NXP Semiconductors and its suppliers accept no liability for
inclusion and/or use of NXP Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at the customer’s
own risk.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their applications
and products using NXP Semiconductors products, and NXP
Semiconductors accepts no liability for any assistance with applications or
customer product design. It is customer’s sole responsibility to determine
whether the NXP Semiconductors product is suitable and fit for the
customer’s applications and products planned, as well as for the planned
application and use of customer’s third party customer(s). Customers should
provide appropriate design and operating safeguards to minimize the risks
associated with their applications and products.
NXP Semiconductors does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default in the
customer’s applications or products, or the application or use by customer’s
third party customer(s). Customer is responsible for doing all necessary
testing for the customer’s applications and products using NXP
Semiconductors products in order to avoid a default of the applications and
the products or of the application or use by customer’s third party
customer(s). NXP does not accept any liability in this respect.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
Evaluation products — This product is provided on an “as is” and “with all
faults” basis for evaluation purposes only. NXP Semiconductors, its affiliates
and their suppliers expressly disclaim all warranties, whether express,
implied or statutory, including but not limited to the implied warranties of non-
infringement, merchantability and fitness for a particular purpose. The entire
risk as to the quality, or arising out of the use or performance, of this product
remains with customer.
In no event shall NXP Semiconductors, its affiliates or their suppliers be
liable to customer for any special, indirect, consequential, punitive or
incidental damages (including without limitation damages for loss of
business, business interruption, loss of use, loss of data or information, and
the like) arising out the use of or inability to use the product, whether or not
based on tort (including negligence), strict liability, breach of contract, breach
of warranty or any other theory, even if advised of the possibility of such
damages.
Notwithstanding any damages that customer might incur for any reason
whatsoever (including without limitation, all damages referenced above and
all direct or general damages), the entire liability of NXP Semiconductors, its
affiliates and their suppliers and customer’s exclusive remedy for all of the
foregoing shall be limited to actual damages incurred by customer based on
reasonable reliance up to the greater of the amount actually paid by
customer for the product or five dollars (US$5.00). The foregoing limitations,
exclusions and disclaimers shall apply to the maximum extent permitted by
applicable law, even if any remedy fails of its essential purpose.
8.3 Licenses
Purchase of NXP ICs with NFC technology
Purchase of an NXP Semiconductors IC that complies with one of the Near
Field Communication (NFC) standards ISO/IEC 18092 and ISO/IEC 21481
does not convey an implied license under any patent right infringed by
implementation of any of those standards. Purchase of NXP
Semiconductors IC does not include a license to any NXP patent (or other
IP right) covering combinations of those products with other products,
whether hardware or software.
8.4 Trademarks
Notice: All referenced brands, product names, service names and
trademarks are property of their respective owners.
MIFARE — is a trademark of NXP Semiconductors N.V.
NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in the section 'Legal information'.
© NXP Semiconductors N.V. 2016. All rights reserved.
For more information, please visit: http://www.nxp.com
Date of release: 7 July 2016
348012
Document identifier: UM10935
9. Contents
1. Introduction ......................................................... 3
2. Overview .............................................................. 4
2.1 Kits description ................................................... 4
2.2 PN7150 NFC Controller Board ........................... 5
2.3 OM29110 Interface Boards ................................ 6
2.4 NFC Sample Card .............................................. 7
3. PN7150 NFC Controller Board details ............... 8
3.1 Schematics......................................................... 8
3.2 Layout ................................................................ 9
3.2.1 Components layers ............................................ 9
3.2.2 Layer 1 ............................................................. 10
3.2.3 Layer 2 ............................................................. 10
3.2.4 Layer 3 ............................................................. 11
3.2.5 Layer 4 ............................................................. 11
3.2.6 Top Silkscreen layer ......................................... 12
4. PN7150 NFC Controller Board performances . 13
4.1 Settings configuration ....................................... 13
4.2 RF performances ............................................. 13
5. Additional information ...................................... 15
5.1 Using different Antenna .................................... 15
5.2 Using different TVDD supply option ................. 16
5.3 Using different I2C address .............................. 17
5.4 Using in another system ................................... 18
6. Federal Communication Commission
Interference Statement ..................................... 20
6.1 FCC Grant ........................................................ 20
6.2 Installation instructions ..................................... 20
7. References ......................................................... 22
8. Legal information .............................................. 24
8.1 Definitions ........................................................ 24
8.2 Disclaimers....................................................... 24
8.3 Licenses ........................................................... 24
8.4 Trademarks ...................................................... 24
9. Contents ............................................................. 25

Navigation menu
