1. Customer Evaluation Board PNEV5180B: Photo

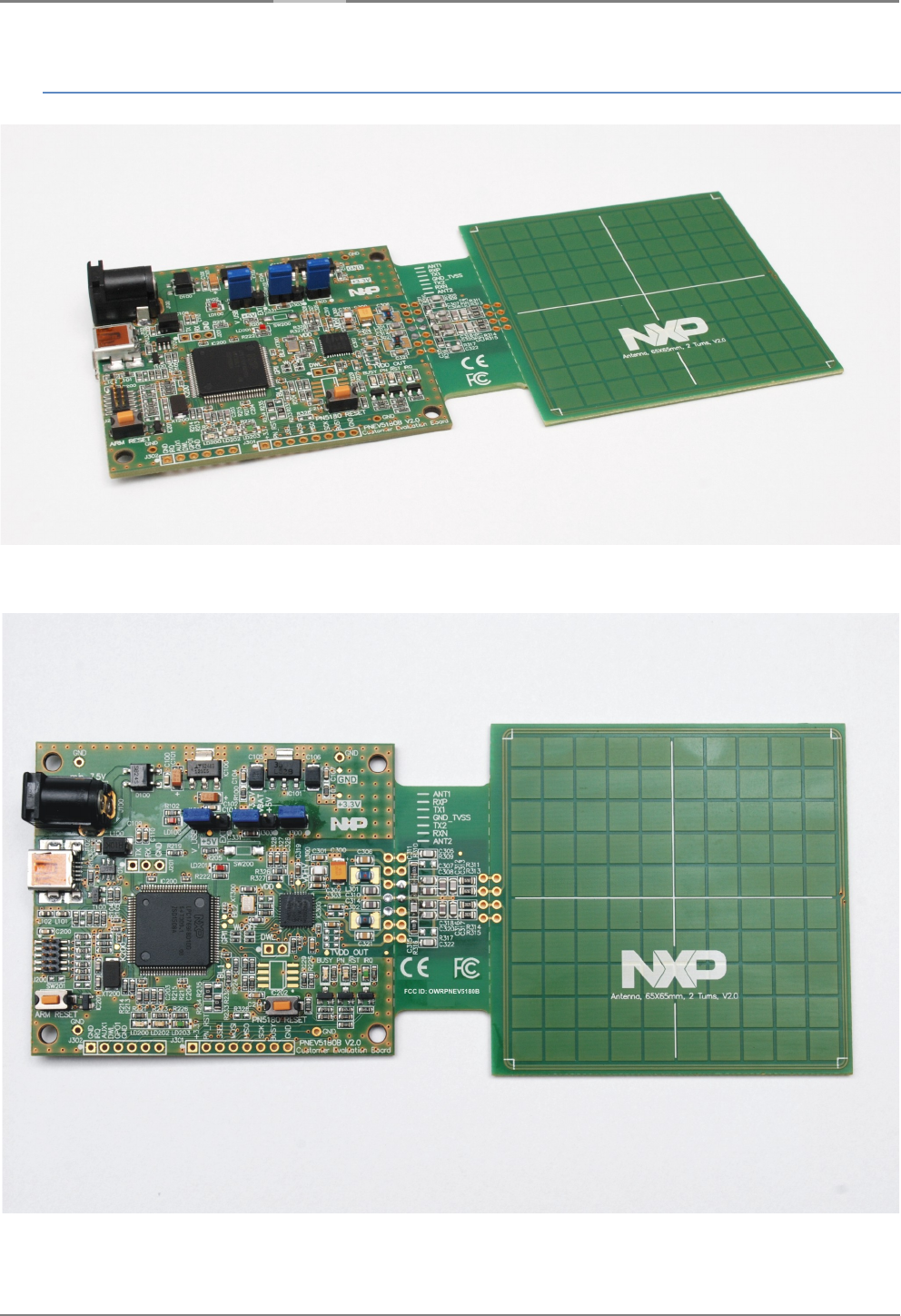

Figure 1: Customer Evaluation Board PNEV5180B – side view.
Figure 2: Customer Evaluation Board PNEV5180B – top view.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 5 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
2. Customer Evaluation Board PNEV5180B: Description
1. Operational desription
Customer Evaluation Board PNEV5180B is an example of implementation of ISO/IEC 14443A and ISO/IEC
14443B reader/writer, NFC reader/writer and Card Emulation Device on the same printed board. Middle size
antenna, implemented on the same pcb (reader and antenna can be broken into separate parts), permits
reading/writing on distance up to 50 mm (RFID card or other NFC device). The onboard USB connector permits
direct connection and communication with personal computer.
Power supply is via usb port or via external power supply (7.5 V / 500 mA).
On the Customer Evaluation Board PNEV5180B main parts are easily visible:
•the pcb antenna (can be separated from matching part),
•the antenna matching components (can be separated from reader and antenna part),
•the reader part: PN5180 reader IC, LPC 1769 microcontroller IC, two crystall oscillators and decopling
capacitors, power supply ICs and EEPROM, USB serial communication port and JTAG port.
The Customer Evaluation Board PNEV5180B uses USB serial communiation port for communicating with
personal computer and transfer data. JTAG port is for development purposes (programming). Some test pins
are added on pcb.
The Customer Evaluation Board PNEV5180B has following features:
•Supports ISO/IEC 14443A and ISO/IEC 14443B reader/writer up to 848 Kbps.
•Supports MIFARE 1K/4K encryption in reader/writer mode.
•Supports contactless RF communication according to the FeliCa protocol at 212 Kbps and 424 Kbps.
•Supports all NFCIP-1 modes up to 424 Kbps. The PN512 handles the complete NFC framing and error
detection.
•Supports the reading of NFC Forum Tag Types 1,2,3,4,5
•P2P supported for types: A (106 kbit/s), F (212, 424 kbit/s)
•ISO/IEC15693 reader (I-Code)
•ISO/IEC 18000 EPC-HF reader (I-Code ILT)
•EMVCo 2.4 L1 digital & analog Compliance
•Card Emulation: ISO/IEC 14443A (up to 848 kbit/s)
•Serial communication via USB port with Personal computer
•Power supply via USB port or via external power adapter.
Disclaimer :
This module is intended only for development and evaluation purposes, and cannot be used in a finished
product.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 6 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
Figure 3: Customer Evaluation Board PNEV5180B - Block diagram.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 7 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
Figure 4: Customer Evaluation Board PNEV5180B: dimensions, pcb with elements.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 8 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
3. Customer Evaluation Board PNEV5180B: SPECIFICATION
3.1. Customer Evaluation Board PNEV5180B: Specifications
Table 2: Customer Evaluation Board PNEV5180B – specifications
Antenna
PCB type, 65 mm x 65 mm
Contactless operating frequency
13.56 MHz
Card reading/writing distance
Up to 50 mm
Contactless (RFID) Smart Card Interface
Reader/Writer mode
ISO 14443 A up to 848 Kbps transmission rate (depending on card)
ISO 14443 B up to 848 Kbps transmission rate (depending on card)
Reader/Writer mode supporting JIS X 6319-4 (comparable with FeliCa scheme)
NFC Forum tag type 1,2,3,4,5 reader
NFC Forum compliance for R/W – Analog & Digital
SO/IEC15693 reader (I-Code)
ISO/IEC 18000 EPC-HF reader (I-Code ILT)
EMVCo 2.4 L1 digital & analog Compliance
Peer to Peer mode
Passive-Initiator / Passive-Target
Active-Initiator / Active-Target
P2P supported for types: A (106 kbit/s), F (212,424 kbit/s)
Card Emulation
SO/IEC 14443A (up to 848 kbit/s)
Microcontroller LPC1769
ARM Cortex-M3 based microcontroller with 512 kb internal flash
memory, 64 kb internal RAM
Clock Crystals 12.000 MHz crystal for CPU
Firmware
Customer developed firmware for testing PN5180 functionality
Host Interface
Host Interface USB 2.0 (also supported USB 1.1)
Transmission Speed 12 Mbps (USB 2.0 full speed)
Power Supply Bus powered
Other Communication
Interfaces
JTAG IEEE1149.1 Serial
Interface
JTAG 10-pin connector; to connect JTAG adapter
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 9 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
Electrical and Mechanical Specifications
Power Supply 5V DC 5%, 500 mA (via USB port) or
external power suply 7.5 V DC ±15% / 500 mA
PCB Dimensions (L x W x
H)
152 mm x 68 mm x 15 mm
Weight approx. 40 g
Operating Temperature 0… + 40 C (without condensing)
Storage temperature -40 … + 85 C (without condensing)
Operating Humidity 5 … 95% RH
Certificates CE, FCC
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 10 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
3.2. Customer Evaluation Board PNEV5180B: Electrical characteristics
Table 3: Customer Evaluation Board PNEV5180B – Electical Specifications
Operating Range
Symbol Description Conditions Min Typ Max Unit
PWR_DC DC Power Supply Active Reader 2.5 - 3.6 V
Tamb Ambient Temperature / 0 +25 +40 C
Current Consumption
Symbol Description Conditions Min Typ Max Unit
IC5V Supply Current Active, RF on - 350 450 mA
Operating Distance
Symbol Description Conditions Min Typ Max Unit
DST Operating Distance Measured from the center of
the antenna
- 0 – 50 - mm
USB Interface Characteristics
Symbol Description Conditions Min Typ Max Unit
USB Baudrate mini B USB Connector /
micro B USB Connector
- 12 - Mbaud
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 11 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
4. INSTALLING MANUAL
4.1. Desktop use
Customer Evaluation Board PNEV5180B is intended for development use in development
environment such are development departements in factories, at institutes. PNEV5180B
board is powered via USB serial connection from personal computer or via external power
supply.
Usuall climate conditions in development environment (room temperature and humidity) are
deep inside Customer Evaluation Board PNEV5180B specified climate conditions.
4.2. Power supply
Customer Development Board PNEV5180B has no power supply mounted on pcb. There are
two possibilties to connect external power supply:
- powering via USB port (mini B or micro B connector) from personal computer or
- via external power supply 7,5 V DC / 500 mA.
Which option is used is set with jumper J4 (figure 17).
The mini B USB (or micro B USB) connector is used for connection to the PC usb port – for
power supply and USB serial communication. Used this power option is default setting with
jumper J4. USB A male to mini (micro) B USB (5 pin) cable is used for connection between
Customer Evaluation Board PNEV5180B and personal computer.
External power supply 7.5 V DC / 500 mA is connected to power jack X4 to supply Customer
Development Board PNEV5180B. On board IC LT1129IST-5 is used to stabilize voltage to 5
V.
Note 1:
Power supply from USB port on personal computer has to comply with LPS requirement of
IEC60950-1.
Maximum lenght for USB cable is 1.8 meter.
Note 2:
External power supply 7,5 V DC / 500 mA has to comply with LPS requirement of IEC60950-
1.
Maximum lenght for power cable is 1.8 meter.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 12 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
5. USER MANUAL
Customer Evaluation Board PNEV5180B is an example of implementation of ISO/IEC
14443A and ISO/IEC 14443B reader/writer, NFC reader/writer and Card Emulation Device on
the same printed board. Middle size antenna, implemented on the same pcb (reader and
antenna can be broken into separate parts), permits reading/writing on distance up to 50 mm
(RFID card or other NFC device). The onboard USB connector permits direct connection and
communication with personal computer.
Customer Evaluation Board PNEV5180B is inteded to send and receive data according to
the ISO 14443A and ISO 14443B protocol. Data transfer from reader to/from contactless
cards operates at frequency 13.56 MHz. Data transfer between PN5180 reader IC and
microcontroller LPC1769 is via SPI serial communication.
The firmware for testing and development purposes is written into LPC1769 microcontroller.
But user can develop his own firmware and write it via JTAG port into LPC1769 memory.
Power supply is via usb port or via external power supply (7.5 V / 500 mA).
How to installing user developed firmware is written in detail in Quick Start Guide (and ARM
Board User Manual).
5.1. General user instructions
-Reading/writing is possible with MIFARE contactless cards, FeliCa cards or with NFC
device.
-PNEV5180B board can detect contactless card or NFC device up to 50 mm from the
center reader's antenna.
-PNEV5180B board can emulate contactless (NFC) card.
-Contactless card identification is possible in electromagnetic field (created from
contactless reader). Nonmetal material between antenna and RFID contactless card
have no influence to reading distance or reading reliability.
-Reading/writing to/from card is very simple: user approaches his contactless card to
reader's antena. PNEV5180B board detects card and confirm reading via serial (USB)
communication to personal computer (depend from customer firmware). Successfully
reading/writing can be signalised with status led diode on PNEV5180B board.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 13 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
5.2. Instructions for safe work, maintaining and care
•Be careful not to damage the connectors, antenna, PCB, ICs and other connected
parts.
•Because of the specifics of the device and the damage, only quallified staff, authorized
by the producer, are allowed to repair the device. All interventions of the unauthorized
person and mechanical damage means repealing of the guarantee.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 14 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
6. ELECTROMAGNETIC COMPATIBILITY
Customer Evaluation Board PNEV5180B fulfils the following requirements of electromagnetic
compatibility:
FCC, Part 15 and CE.
6.1 FCC Compliance Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Compliance for Limited Modular Approval (§15.212(b))
As note, the module is intended for PROFESSIONAL AND DEVELOPMENT USE ONLY and
cannot be used in final products. The module is tested to comply with relevant part 15 rules
without shielding and in the same configuration as it is intended to be used by developer.
PNEV5180B board has passed spurious emissions test without shielding and is certified as
limited modular transmitter. Under FCC part 15.212(b), shielding is not required.
Concerning §2.803 the PNEV5180B board will be not offered for sale to other parties or to
end users located in a residential environment.
Caution!
The Federal Communications Commission warns the users that changes or modifications to
the unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 15 of 16
BL ID Hardware Manual
Project Name: Integration Manual Project ID: 62743
6.2 COMPLIANCE INFORMATION according to 47CFR 2.1033
We, declare that the product
Customer Evaluation Board PNEV5180B
FCC 12.225, Limited Modular Approval, FCC ID: OWRPNEV5180B
is in conformity with Part 15 of the FCC Rules.
Operation of this product is subject to the following conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
STS Template 1.0 public © NXP B.V. 2015. All rights reserved
Doc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2015.11.13 16 of 16
