NXP Austria PNEV7462B PN7462AU Customer Demo Board User Manual Integration Manual EXPLORE NFC

NXP Austria GmbH PN7462AU Customer Demo Board Integration Manual EXPLORE NFC

Manual

Document informationInfo ContentAuthor Pavel SlamnikAuthor Role Design EngineerKeywords PN7462AU Customer Demo Board, PNEV7462B, RFID, NFC, Integration Manual: PN7462AU Customer Demo Board, PNEV7462BDoc Rev 1.00 Approved — 2016 BL ID

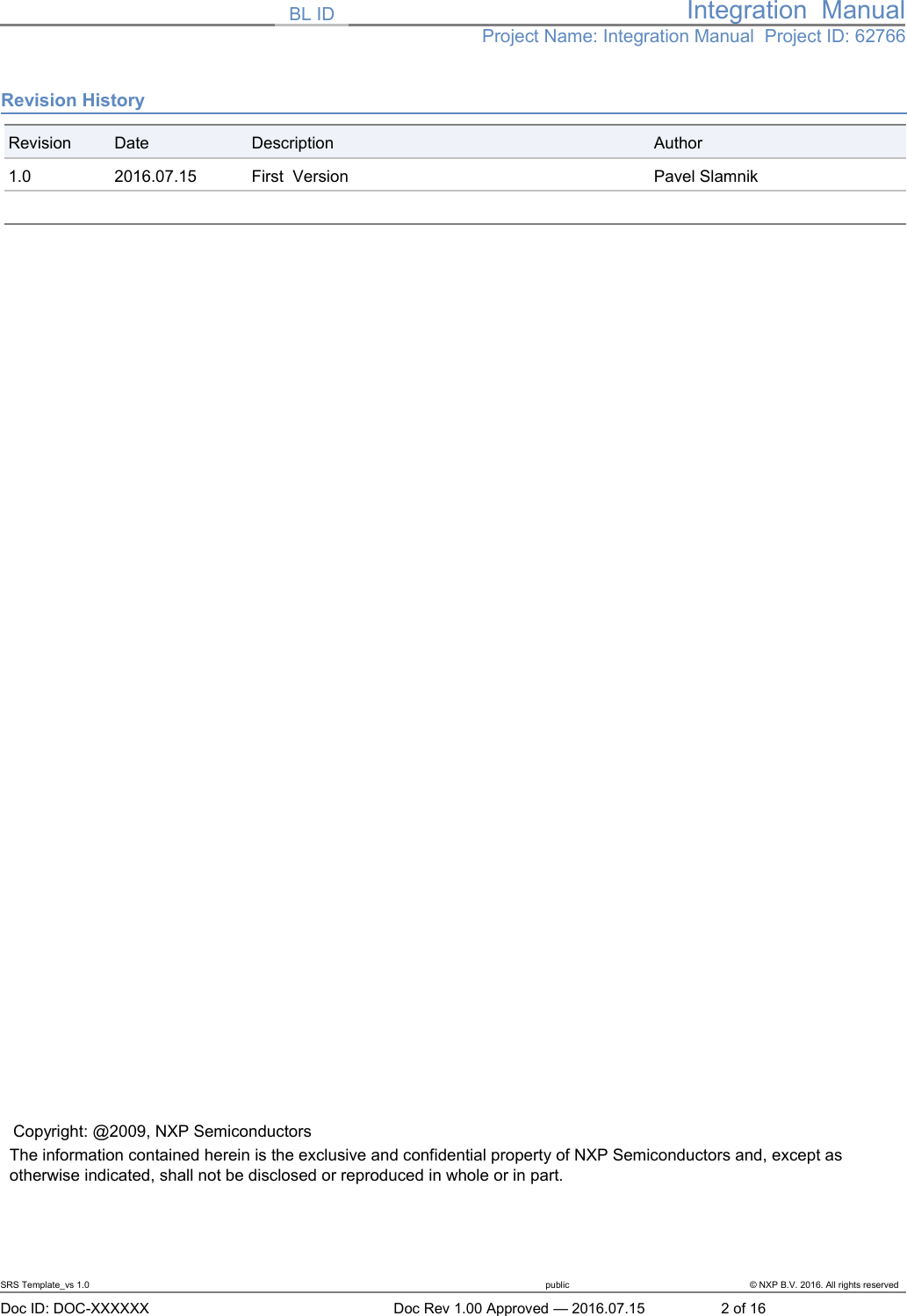

BL ID Integration ManualProject Name: Integration Manual Project ID: 62766Revision HistoryRevision Date Description Author1.0 2016.07.15 First Version Pavel SlamnikSRS Template_vs 1.0 public © NXP B.V. 2016. All rights reserved Doc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 2016.07.15 2 of 16Copyright: @2009, NXP SemiconductorsThe information contained herein is the exclusive and confidential property of NXP Semiconductors and, except as otherwise indicated, shall not be disclosed or reproduced in whole or in part.

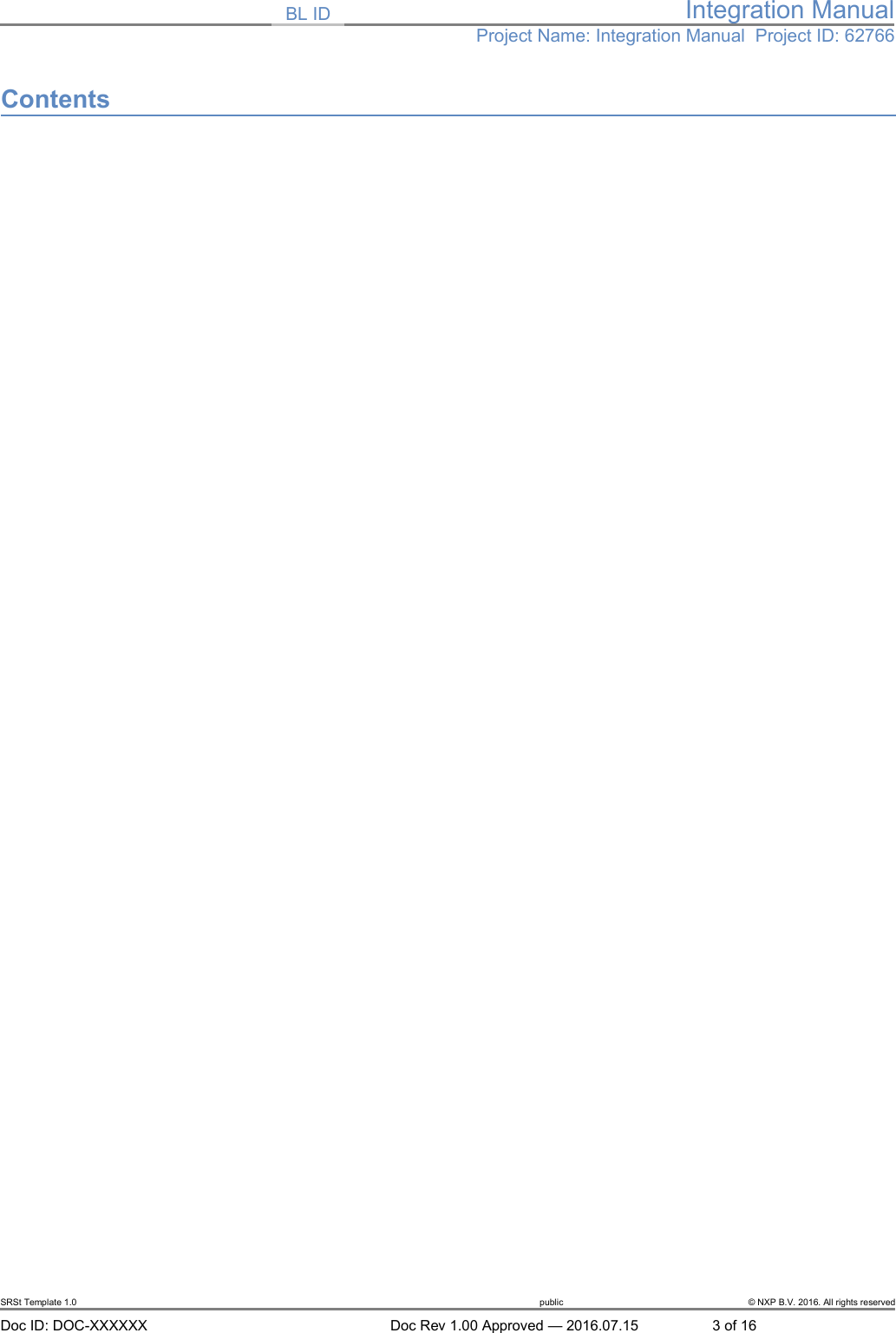

BL ID Integration ManualProject Name: Integration Manual Project ID: 62766ContentsSRSt Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Approved — 2016.07.15 3 of 16
BL ID Integration ManualProject Name: Integration Manual Project ID: 62766STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 4 of 16

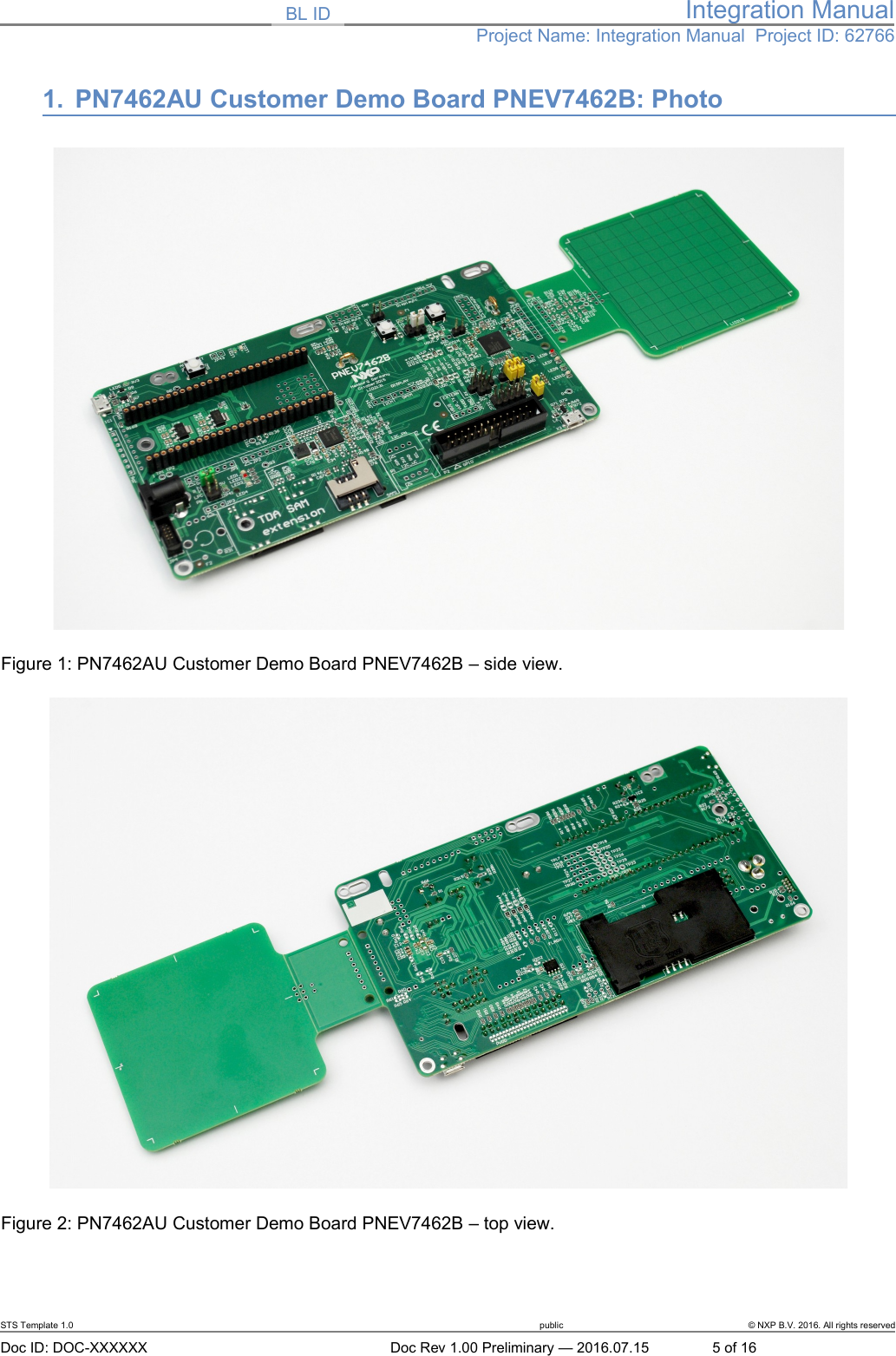

BL ID Integration ManualProject Name: Integration Manual Project ID: 627661. PN7462AU Customer Demo Board PNEV7462B: PhotoFigure 1: PN7462AU Customer Demo Board PNEV7462B – side view.Figure 2: PN7462AU Customer Demo Board PNEV7462B – top view.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 5 of 16

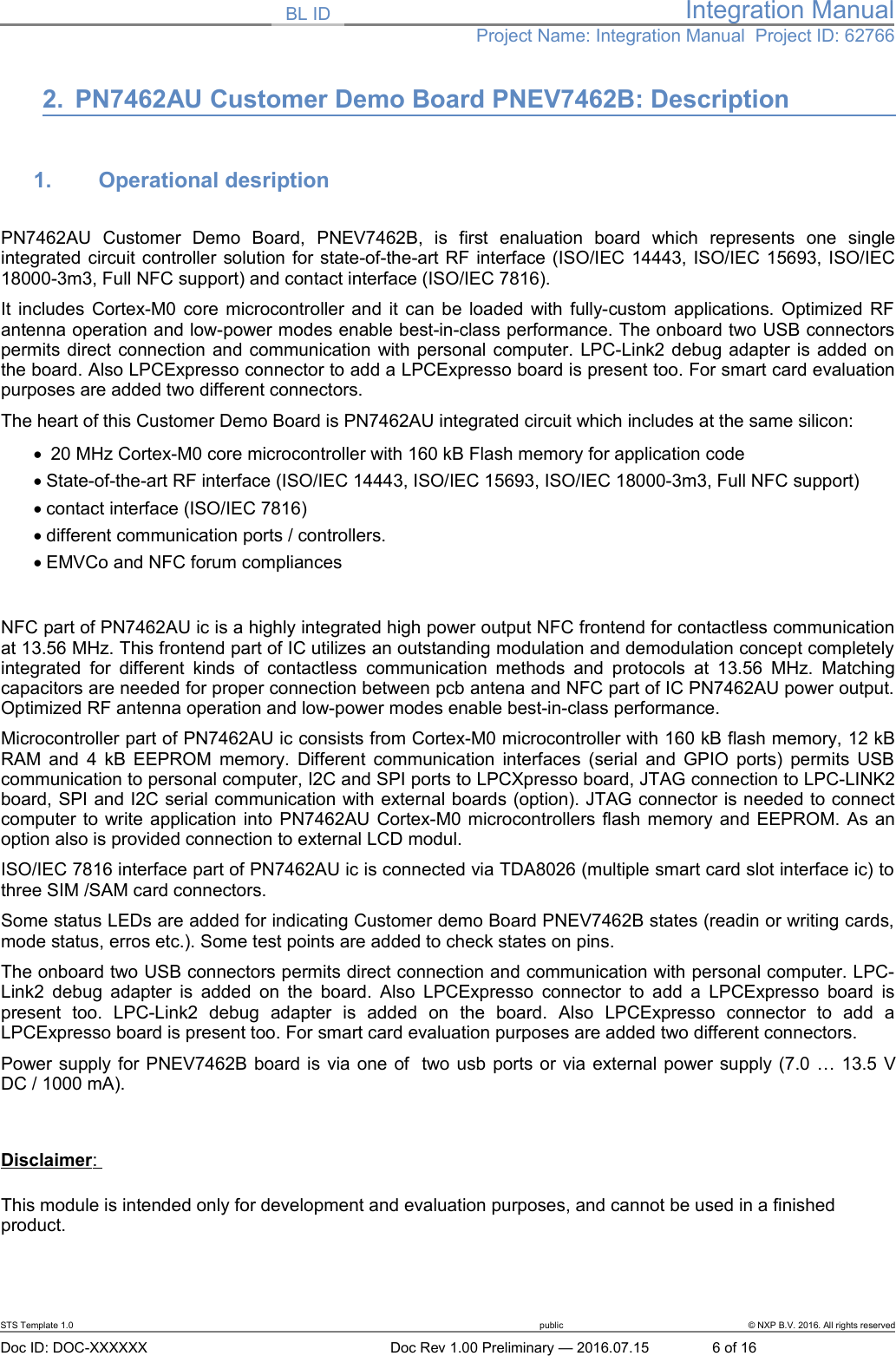

BL ID Integration ManualProject Name: Integration Manual Project ID: 627662. PN7462AU Customer Demo Board PNEV7462B: Description1. Operational desription PN7462AU Customer Demo Board, PNEV7462B, is first enaluation board which represents one singleintegrated circuit controller solution for state-of-the-art RF interface (ISO/IEC 14443, ISO/IEC 15693, ISO/IEC18000-3m3, Full NFC support) and contact interface (ISO/IEC 7816).It includes Cortex-M0 core microcontroller and it can be loaded with fully-custom applications. Optimized RFantenna operation and low-power modes enable best-in-class performance. The onboard two USB connectorspermits direct connection and communication with personal computer. LPC-Link2 debug adapter is added onthe board. Also LPCExpresso connector to add a LPCExpresso board is present too. For smart card evaluationpurposes are added two different connectors.The heart of this Customer Demo Board is PN7462AU integrated circuit which includes at the same silicon:· 20 MHz Cortex-M0 core microcontroller with 160 kB Flash memory for application code· State-of-the-art RF interface (ISO/IEC 14443, ISO/IEC 15693, ISO/IEC 18000-3m3, Full NFC support) · contact interface (ISO/IEC 7816)· different communication ports / controllers.· EMVCo and NFC forum compliancesNFC part of PN7462AU ic is a highly integrated high power output NFC frontend for contactless communicationat 13.56 MHz. This frontend part of IC utilizes an outstanding modulation and demodulation concept completelyintegrated for different kinds of contactless communication methods and protocols at 13.56 MHz. Matchingcapacitors are needed for proper connection between pcb antena and NFC part of IC PN7462AU power output.Optimized RF antenna operation and low-power modes enable best-in-class performance.Microcontroller part of PN7462AU ic consists from Cortex-M0 microcontroller with 160 kB flash memory, 12 kBRAM and 4 kB EEPROM memory. Different communication interfaces (serial and GPIO ports) permits USBcommunication to personal computer, I2C and SPI ports to LPCXpresso board, JTAG connection to LPC-LINK2board, SPI and I2C serial communication with external boards (option). JTAG connector is needed to connectcomputer to write application into PN7462AU Cortex-M0 microcontrollers flash memory and EEPROM. As anoption also is provided connection to external LCD modul.ISO/IEC 7816 interface part of PN7462AU ic is connected via TDA8026 (multiple smart card slot interface ic) tothree SIM /SAM card connectors.Some status LEDs are added for indicating Customer demo Board PNEV7462B states (readin or writing cards,mode status, erros etc.). Some test points are added to check states on pins. The onboard two USB connectors permits direct connection and communication with personal computer. LPC-Link2 debug adapter is added on the board. Also LPCExpresso connector to add a LPCExpresso board ispresent too. LPC-Link2 debug adapter is added on the board. Also LPCExpresso connector to add aLPCExpresso board is present too. For smart card evaluation purposes are added two different connectors.Power supply for PNEV7462B board is via one of two usb ports or via external power supply (7.0 … 13.5 VDC / 1000 mA). Disclaimer : This module is intended only for development and evaluation purposes, and cannot be used in a finished product. STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 6 of 16

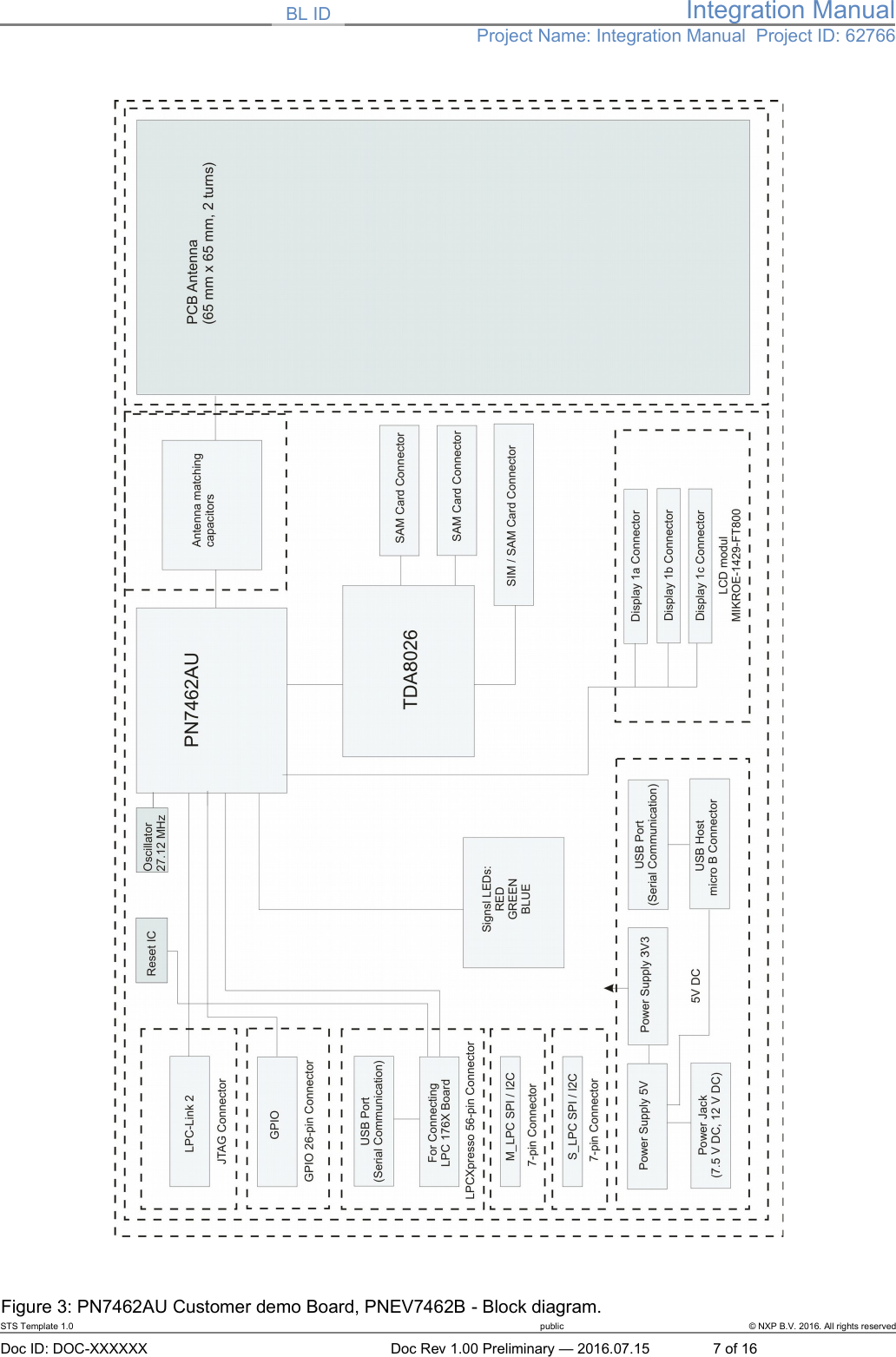

BL ID Integration ManualProject Name: Integration Manual Project ID: 62766Figure 3: PN7462AU Customer demo Board, PNEV7462B - Block diagram.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 7 of 16

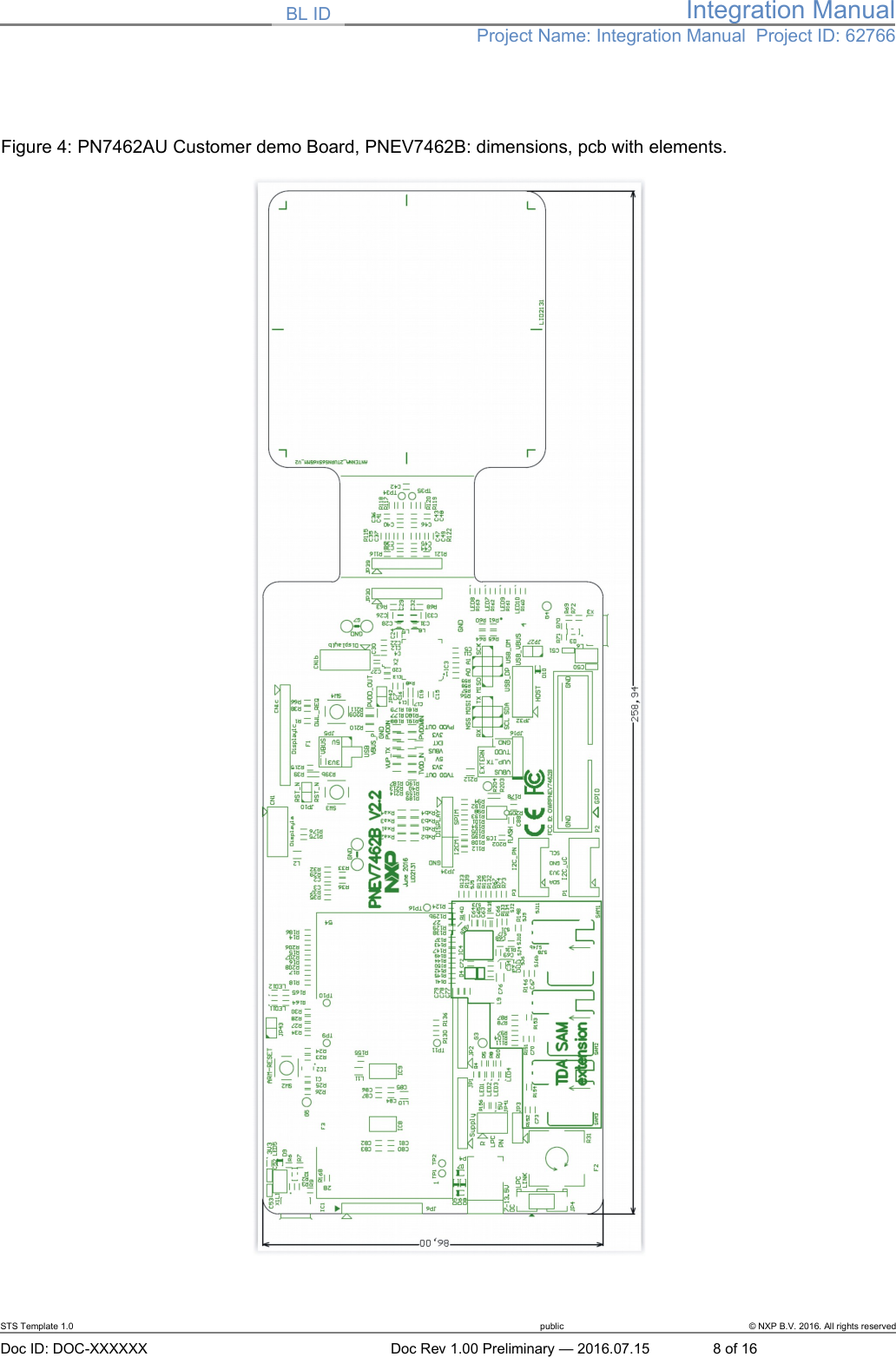

BL ID Integration ManualProject Name: Integration Manual Project ID: 62766Figure 4: PN7462AU Customer demo Board, PNEV7462B: dimensions, pcb with elements.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 8 of 16

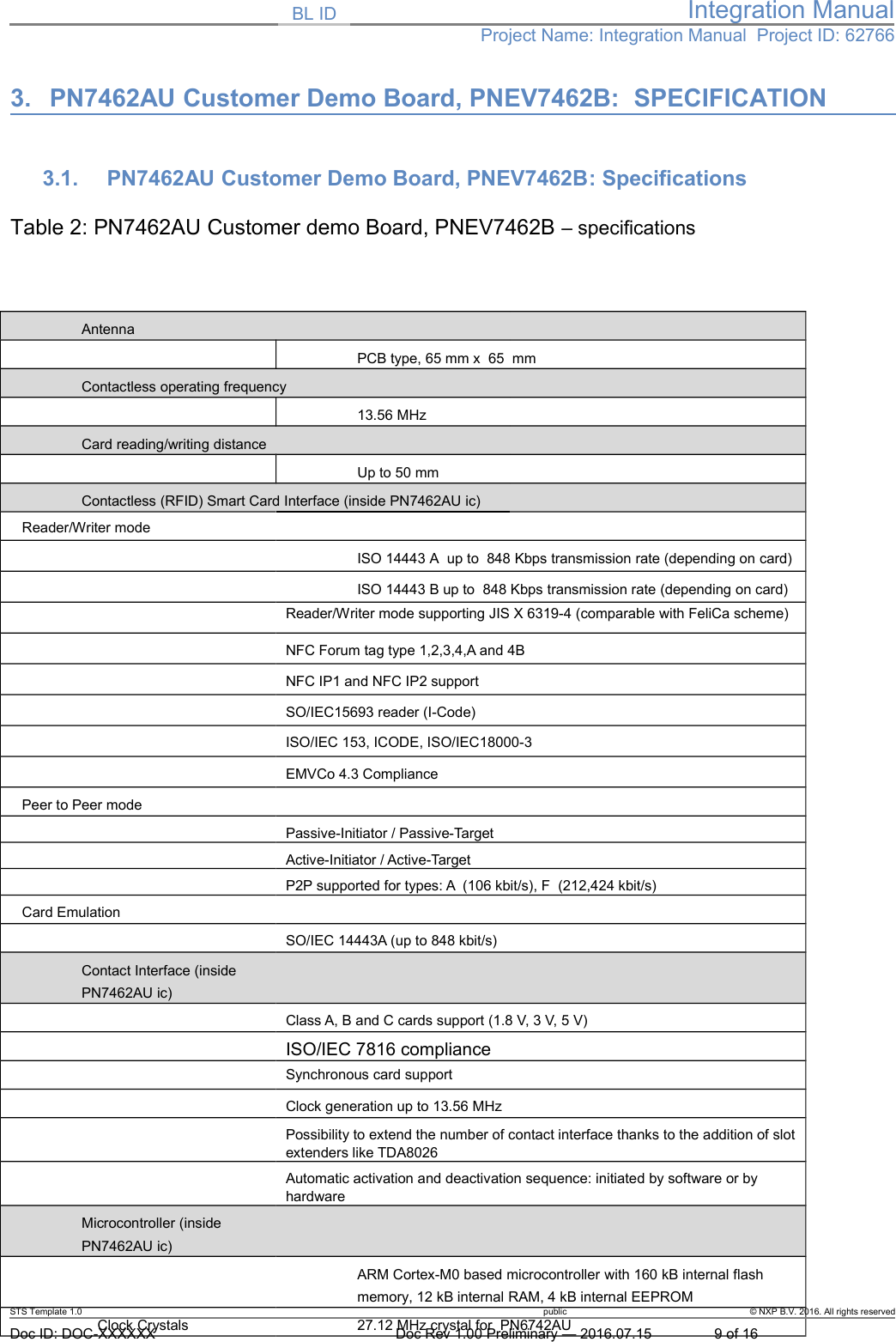

BL ID Integration ManualProject Name: Integration Manual Project ID: 627663. PN7462AU Customer Demo Board, PNEV7462B: SPECIFICATION3.1. PN7462AU Customer Demo Board, PNEV7462B: SpecificationsTable 2: PN7462AU Customer demo Board, PNEV7462B – specificationsAntenna PCB type, 65 mm x 65 mmContactless operating frequency13.56 MHzCard reading/writing distanceUp to 50 mmContactless (RFID) Smart Card Interface (inside PN7462AU ic) Reader/Writer modeISO 14443 A up to 848 Kbps transmission rate (depending on card)ISO 14443 B up to 848 Kbps transmission rate (depending on card)Reader/Writer mode supporting JIS X 6319-4 (comparable with FeliCa scheme)NFC Forum tag type 1,2,3,4,A and 4BNFC IP1 and NFC IP2 supportSO/IEC15693 reader (I-Code)ISO/IEC 153, ICODE, ISO/IEC18000-3EMVCo 4.3 Compliance Peer to Peer modePassive-Initiator / Passive-TargetActive-Initiator / Active-Target P2P supported for types: A (106 kbit/s), F (212,424 kbit/s) Card EmulationSO/IEC 14443A (up to 848 kbit/s)Contact Interface (inside PN7462AU ic)Class A, B and C cards support (1.8 V, 3 V, 5 V)ISO/IEC 7816 complianceSynchronous card supportClock generation up to 13.56 MHzPossibility to extend the number of contact interface thanks to the addition of slotextenders like TDA8026Automatic activation and deactivation sequence: initiated by software or by hardwareMicrocontroller (inside PN7462AU ic)ARM Cortex-M0 based microcontroller with 160 kB internal flash memory, 12 kB internal RAM, 4 kB internal EEPROM Clock Crystals 27.12 MHz crystal for PN6742AUSTS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 9 of 16

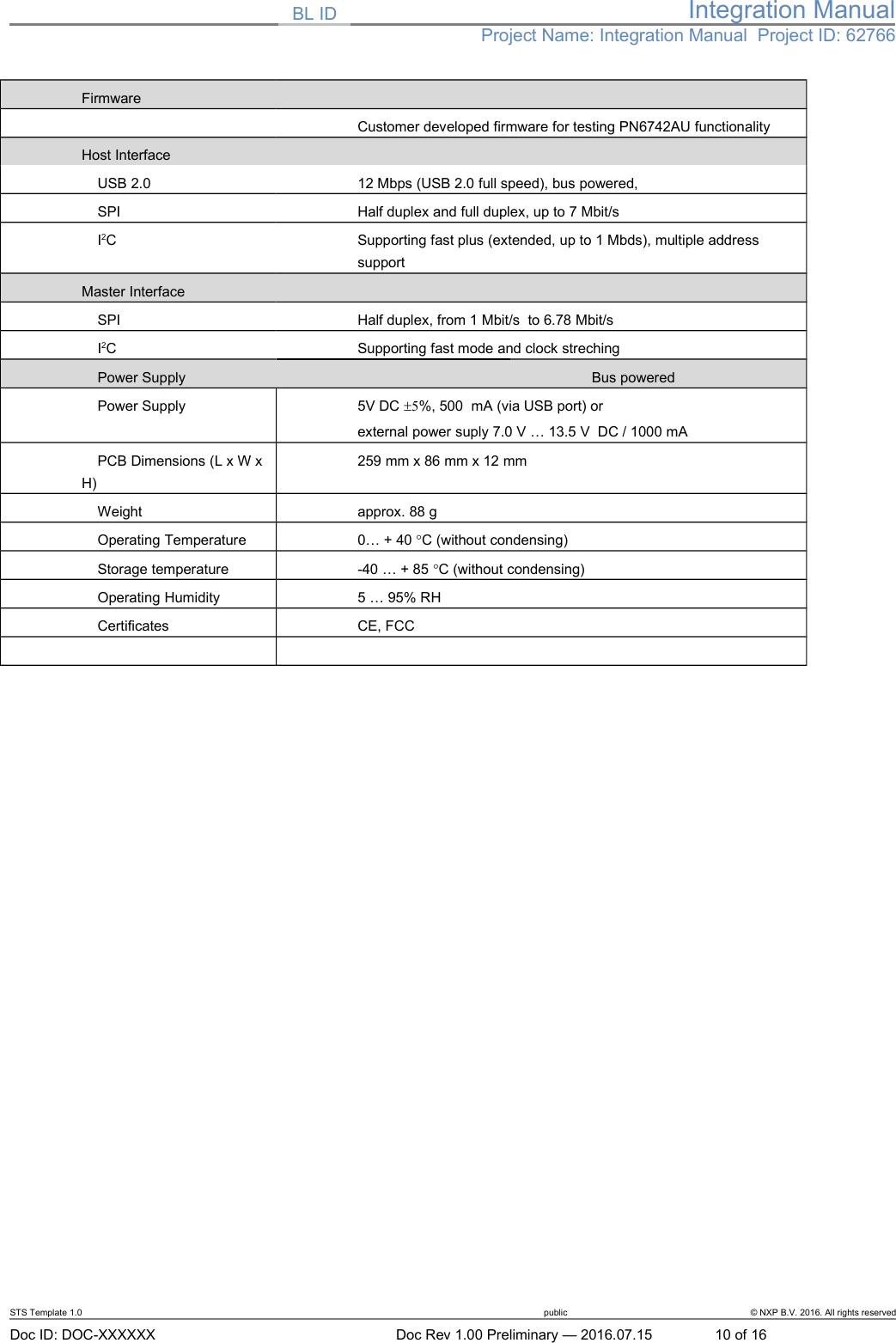

BL ID Integration ManualProject Name: Integration Manual Project ID: 62766FirmwareCustomer developed firmware for testing PN6742AU functionalityHost Interface USB 2.0 12 Mbps (USB 2.0 full speed), bus powered, SPI Half duplex and full duplex, up to 7 Mbit/s I2C Supporting fast plus (extended, up to 1 Mbds), multiple address supportMaster Interface SPI Half duplex, from 1 Mbit/s to 6.78 Mbit/s I2C Supporting fast mode and clock streching Power Supply Bus powered Power Supply 5V DC 5%, 500 mA (via USB port) orexternal power suply 7.0 V … 13.5 V DC / 1000 mA PCB Dimensions (L x W x H)259 mm x 86 mm x 12 mm Weight approx. 88 g Operating Temperature 0… + 40 C (without condensing) Storage temperature -40 … + 85 C (without condensing) Operating Humidity 5 … 95% RH Certificates CE, FCCSTS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 10 of 16

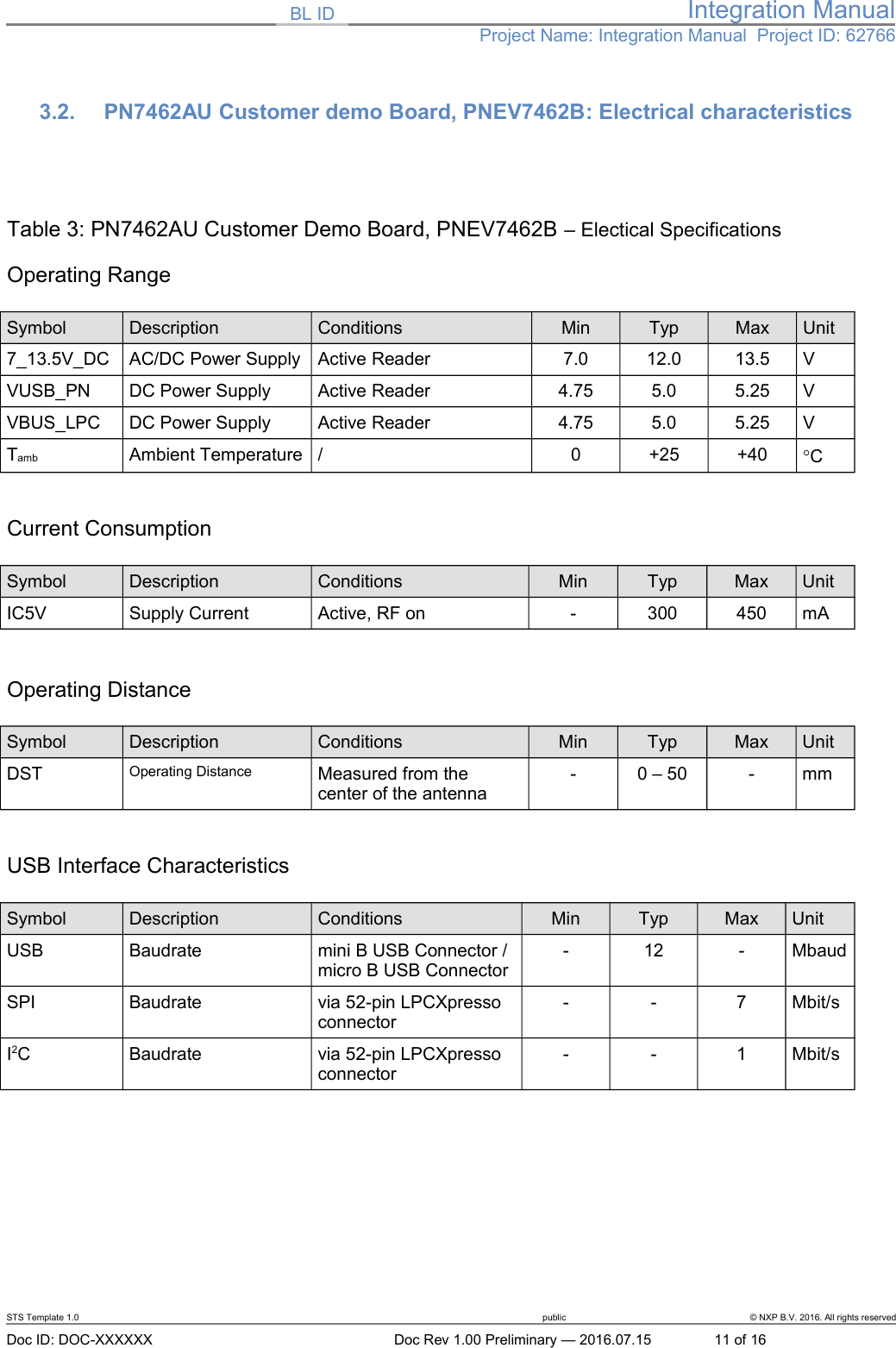

BL ID Integration ManualProject Name: Integration Manual Project ID: 627663.2. PN7462AU Customer demo Board, PNEV7462B: Electrical characteristicsTable 3: PN7462AU Customer Demo Board, PNEV7462B – Electical SpecificationsOperating RangeSymbol Description Conditions Min Typ Max Unit7_13.5V_DC AC/DC Power Supply Active Reader 7.0 12.0 13.5 VVUSB_PN DC Power Supply Active Reader 4.75 5.0 5.25 VVBUS_LPC DC Power Supply Active Reader 4.75 5.0 5.25 VTamb Ambient Temperature / 0 +25 +40 CCurrent Consumption Symbol Description Conditions Min Typ Max UnitIC5V Supply Current Active, RF on - 300 450 mAOperating DistanceSymbol Description Conditions Min Typ Max UnitDST Operating Distance Measured from the center of the antenna- 0 – 50 - mmUSB Interface CharacteristicsSymbol Description Conditions Min Typ Max UnitUSB Baudrate mini B USB Connector / micro B USB Connector- 12 - MbaudSPI Baudrate via 52-pin LPCXpresso connector- - 7 Mbit/sI2C Baudrate via 52-pin LPCXpresso connector- - 1 Mbit/sSTS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 11 of 16

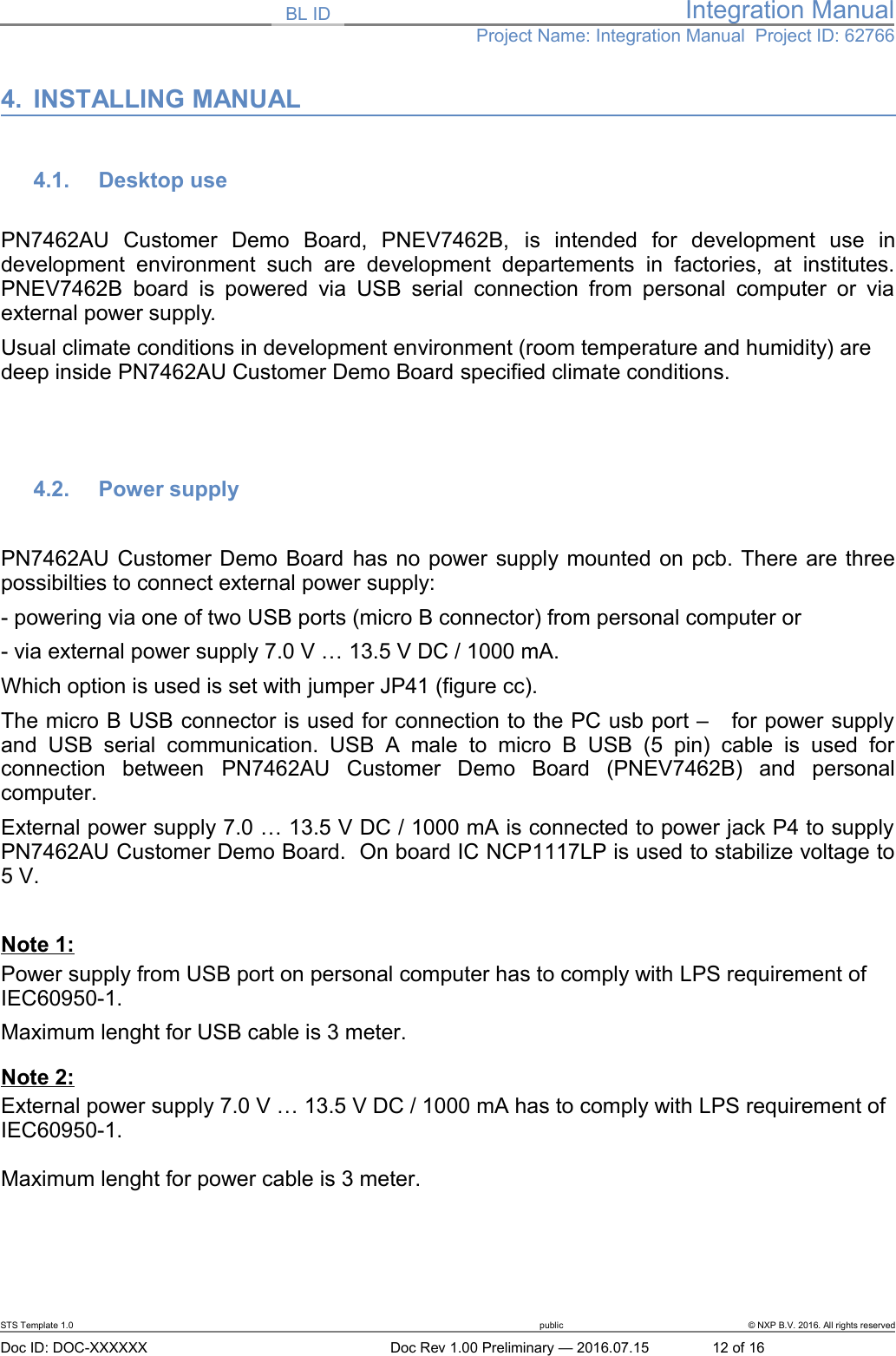

BL ID Integration ManualProject Name: Integration Manual Project ID: 627664. INSTALLING MANUAL4.1. Desktop use PN7462AU Customer Demo Board, PNEV7462B, is intended for development use indevelopment environment such are development departements in factories, at institutes.PNEV7462B board is powered via USB serial connection from personal computer or viaexternal power supply.Usual climate conditions in development environment (room temperature and humidity) are deep inside PN7462AU Customer Demo Board specified climate conditions. 4.2. Power supplyPN7462AU Customer Demo Board has no power supply mounted on pcb. There are threepossibilties to connect external power supply:- powering via one of two USB ports (micro B connector) from personal computer or- via external power supply 7.0 V … 13.5 V DC / 1000 mA.Which option is used is set with jumper JP41 (figure cc).The micro B USB connector is used for connection to the PC usb port – for power supplyand USB serial communication. USB A male to micro B USB (5 pin) cable is used forconnection between PN7462AU Customer Demo Board (PNEV7462B) and personalcomputer.External power supply 7.0 … 13.5 V DC / 1000 mA is connected to power jack P4 to supplyPN7462AU Customer Demo Board. On board IC NCP1117LP is used to stabilize voltage to5 V.Note 1:Power supply from USB port on personal computer has to comply with LPS requirement of IEC60950-1.Maximum lenght for USB cable is 3 meter.Note 2:External power supply 7.0 V … 13.5 V DC / 1000 mA has to comply with LPS requirement of IEC60950-1.Maximum lenght for power cable is 3 meter.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 12 of 16

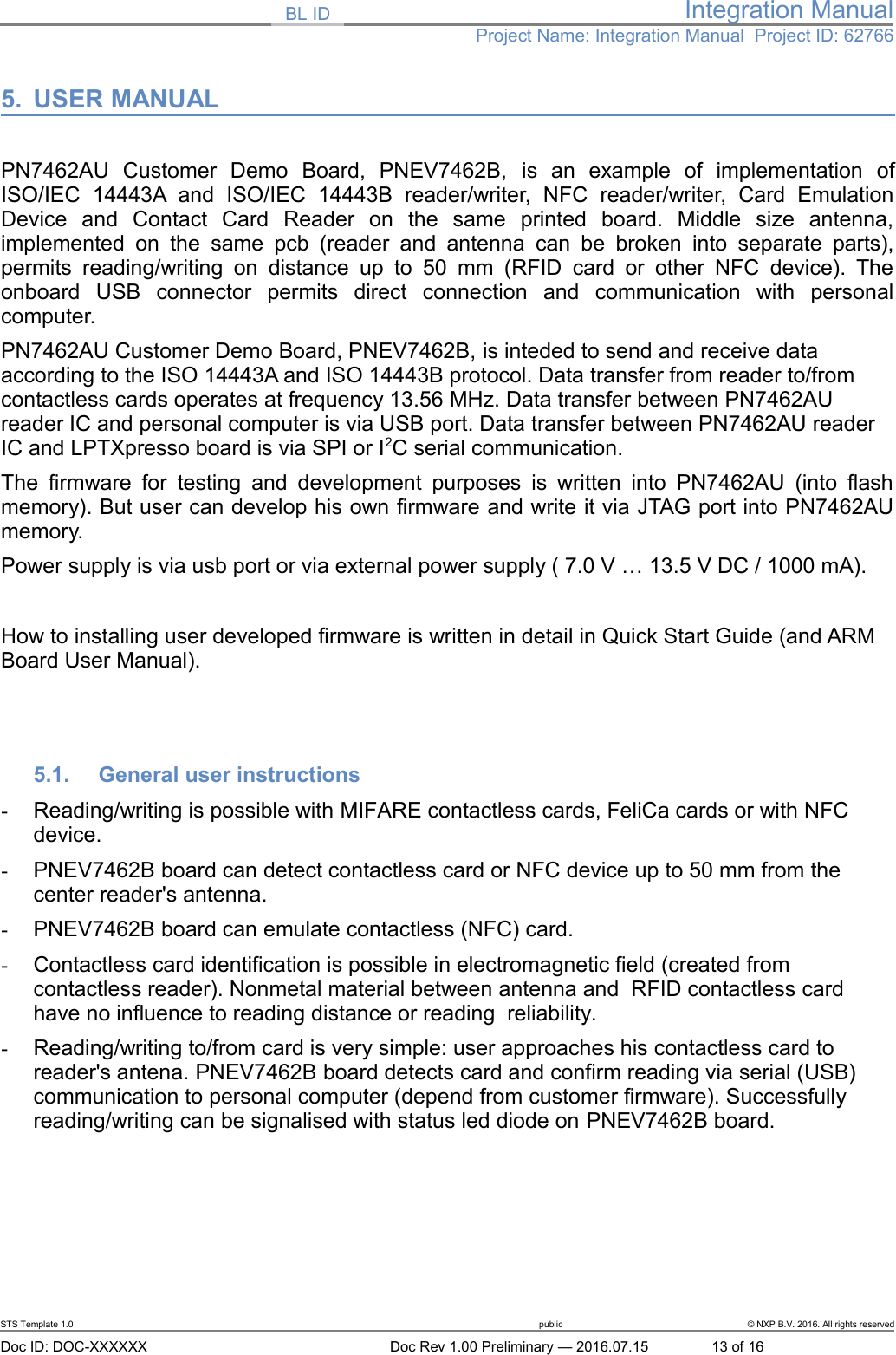

BL ID Integration ManualProject Name: Integration Manual Project ID: 627665. USER MANUALPN7462AU Customer Demo Board, PNEV7462B, is an example of implementation ofISO/IEC 14443A and ISO/IEC 14443B reader/writer, NFC reader/writer, Card EmulationDevice and Contact Card Reader on the same printed board. Middle size antenna,implemented on the same pcb (reader and antenna can be broken into separate parts),permits reading/writing on distance up to 50 mm (RFID card or other NFC device). Theonboard USB connector permits direct connection and communication with personalcomputer. PN7462AU Customer Demo Board, PNEV7462B, is inteded to send and receive data according to the ISO 14443A and ISO 14443B protocol. Data transfer from reader to/from contactless cards operates at frequency 13.56 MHz. Data transfer between PN7462AU reader IC and personal computer is via USB port. Data transfer between PN7462AU reader IC and LPTXpresso board is via SPI or I2C serial communication. The firmware for testing and development purposes is written into PN7462AU (into flashmemory). But user can develop his own firmware and write it via JTAG port into PN7462AUmemory. Power supply is via usb port or via external power supply ( 7.0 V … 13.5 V DC / 1000 mA). How to installing user developed firmware is written in detail in Quick Start Guide (and ARM Board User Manual).5.1. General user instructions-Reading/writing is possible with MIFARE contactless cards, FeliCa cards or with NFC device.-PNEV7462B board can detect contactless card or NFC device up to 50 mm from the center reader's antenna.-PNEV7462B board can emulate contactless (NFC) card.-Contactless card identification is possible in electromagnetic field (created from contactless reader). Nonmetal material between antenna and RFID contactless card have no influence to reading distance or reading reliability.-Reading/writing to/from card is very simple: user approaches his contactless card to reader's antena. PNEV7462B board detects card and confirm reading via serial (USB) communication to personal computer (depend from customer firmware). Successfully reading/writing can be signalised with status led diode on PNEV7462B board. STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 13 of 16

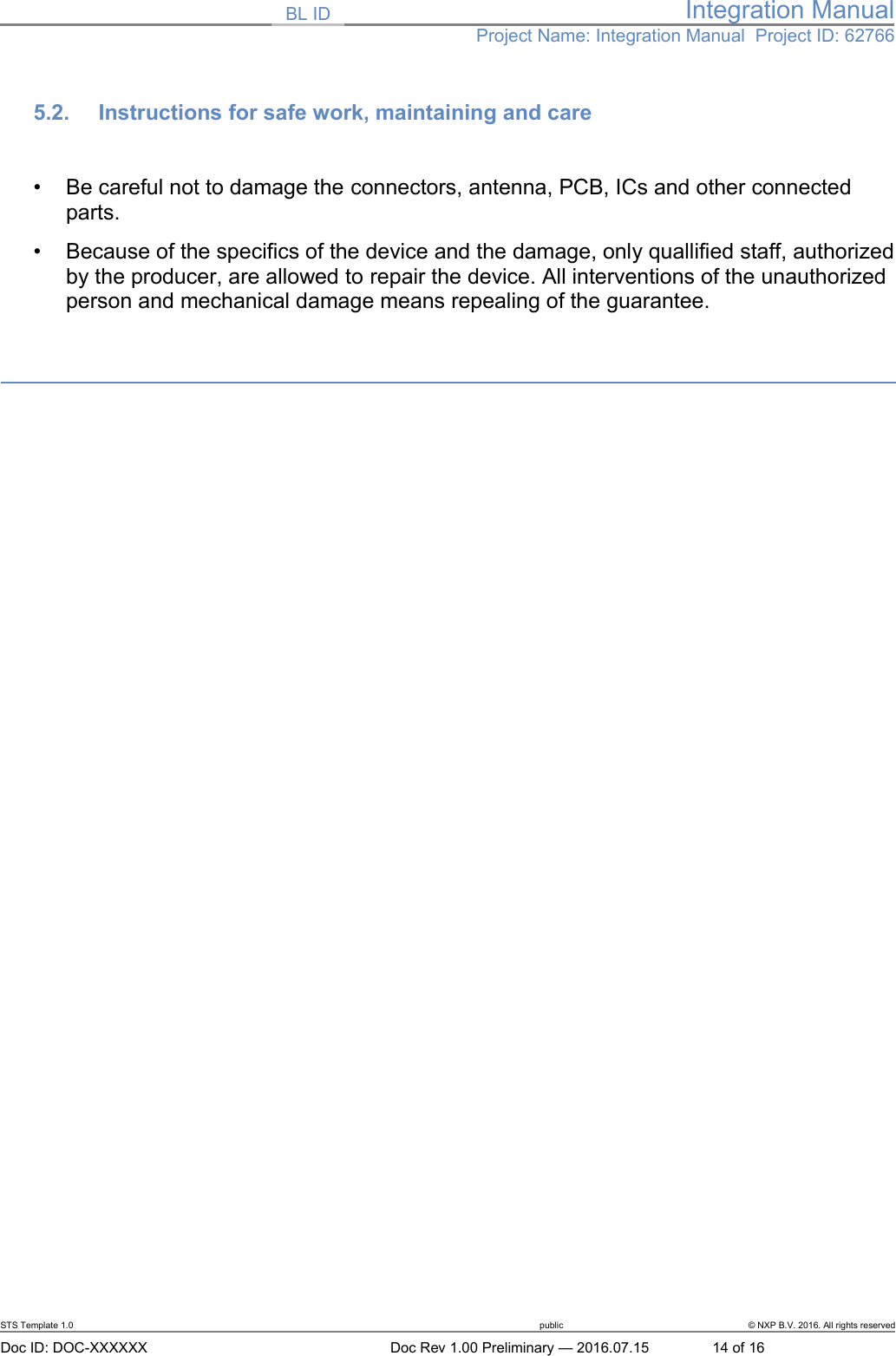

BL ID Integration ManualProject Name: Integration Manual Project ID: 627665.2. Instructions for safe work, maintaining and care•Be careful not to damage the connectors, antenna, PCB, ICs and other connected parts.•Because of the specifics of the device and the damage, only quallified staff, authorizedby the producer, are allowed to repair the device. All interventions of the unauthorized person and mechanical damage means repealing of the guarantee.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 14 of 16

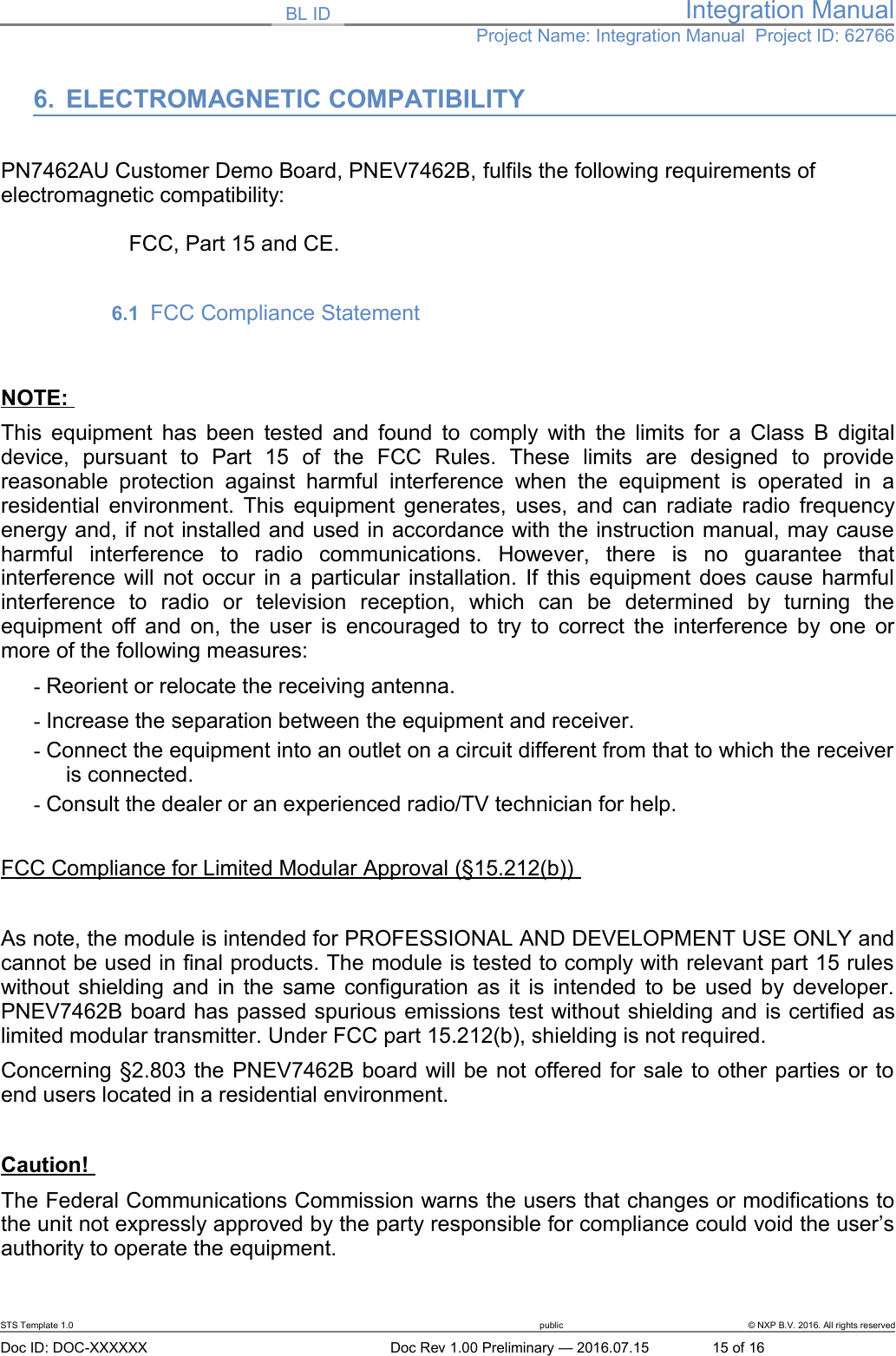

BL ID Integration ManualProject Name: Integration Manual Project ID: 627666. ELECTROMAGNETIC COMPATIBILITYPN7462AU Customer Demo Board, PNEV7462B, fulfils the following requirements of electromagnetic compatibility: FCC, Part 15 and CE.6.1 FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference when the equipment is operated in aresidential environment. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instruction manual, may causeharmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.- Consult the dealer or an experienced radio/TV technician for help.FCC Compliance for Limited Modular Approval (§15.212(b)) As note, the module is intended for PROFESSIONAL AND DEVELOPMENT USE ONLY andcannot be used in final products. The module is tested to comply with relevant part 15 ruleswithout shielding and in the same configuration as it is intended to be used by developer.PNEV7462B board has passed spurious emissions test without shielding and is certified aslimited modular transmitter. Under FCC part 15.212(b), shielding is not required.Concerning §2.803 the PNEV7462B board will be not offered for sale to other parties or toend users located in a residential environment.Caution! The Federal Communications Commission warns the users that changes or modifications tothe unit not expressly approved by the party responsible for compliance could void the user’sauthority to operate the equipment.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 15 of 16

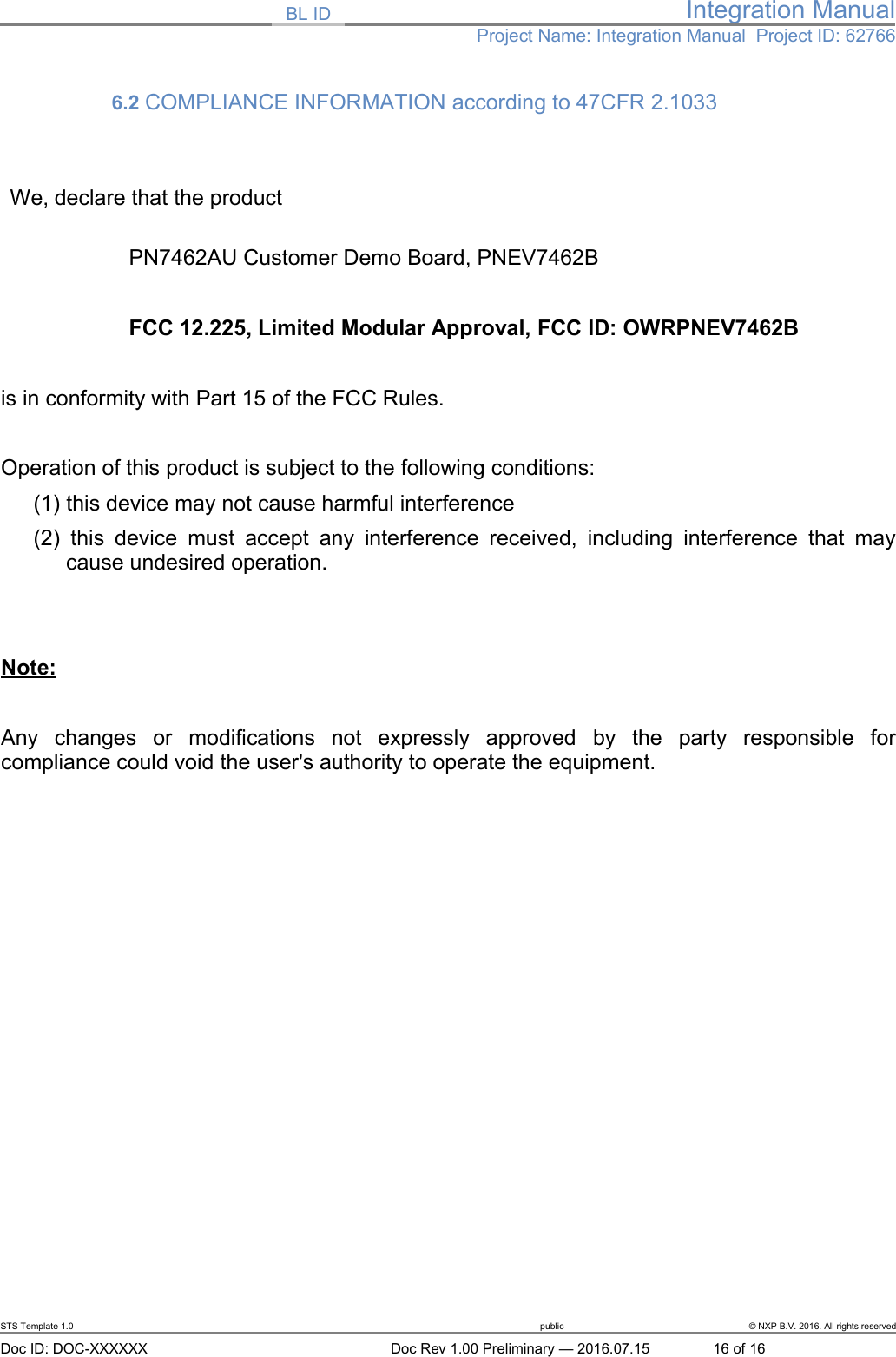

BL ID Integration ManualProject Name: Integration Manual Project ID: 627666.2 COMPLIANCE INFORMATION according to 47CFR 2.1033 We, declare that the productPN7462AU Customer Demo Board, PNEV7462B FCC 12.225, Limited Modular Approval, FCC ID: OWRPNEV7462Bis in conformity with Part 15 of the FCC Rules.Operation of this product is subject to the following conditions: (1) this device may not cause harmful interference(2) this device must accept any interference received, including interference that maycause undesired operation.Note:Any changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.STS Template 1.0 public © NXP B.V. 2016. All rights reservedDoc ID: DOC-XXXXXX Doc Rev 1.00 Preliminary — 2016.07.15 16 of 16
