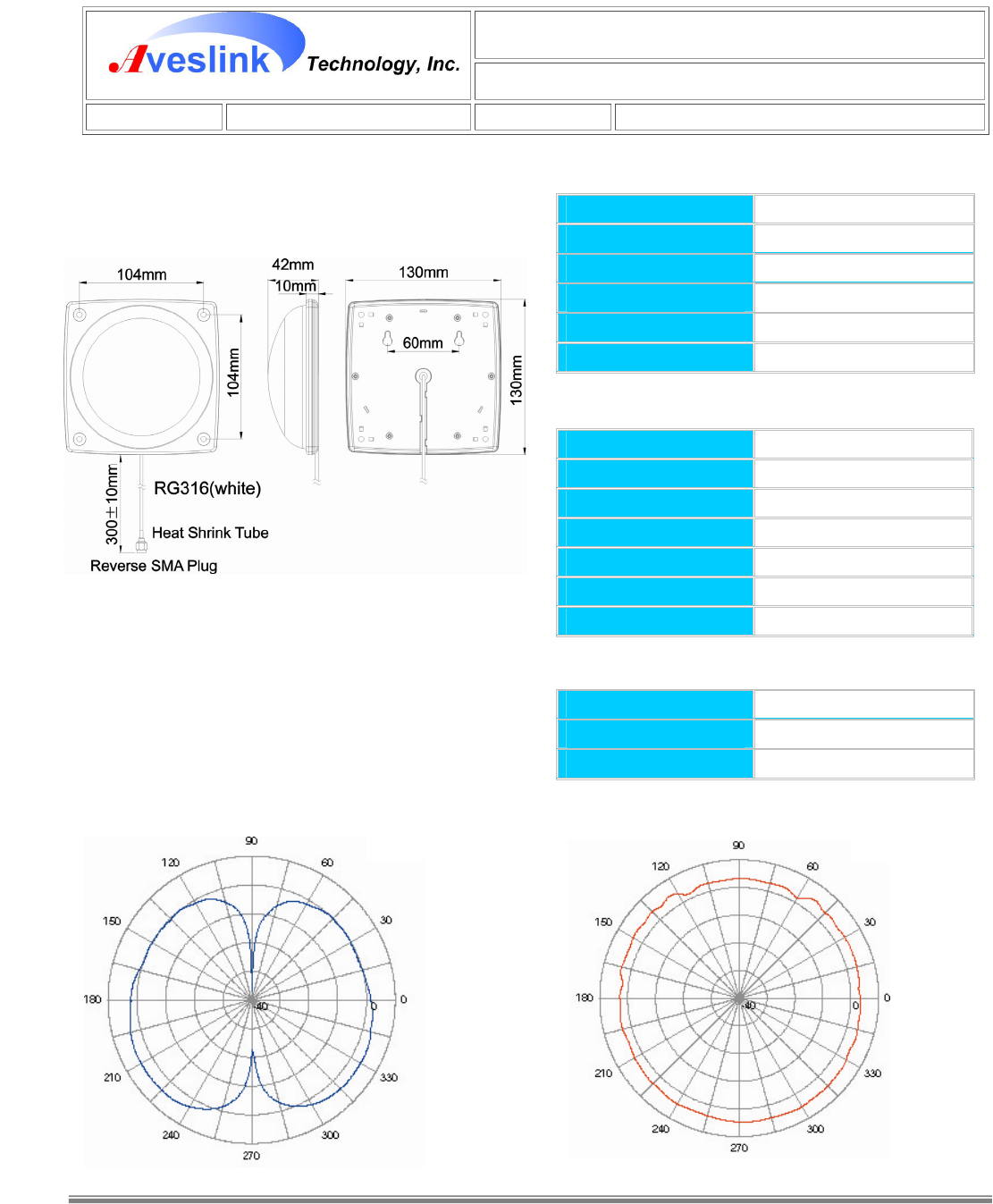

Mechanical Drawing
Mechanical Specification
Environmental Specification
Ceiling Antenna
Model No.: E-1204-AC
Rev. 1.0 Date Oct. 22, 2007
Connector Type Reverse SMA Plug (Brass)
Material ABS / PC
Cable RG316 (300mm)
Dimension 104x104x42mm
Accessory Or Other Wall Mount Accessory
Water Proof --
Weight 146g (est.)
2375 Zanker Rd., #240, San Jose, CA 95131 Phone: 408 383-0688 Fax: 408 383-0388
Operating Temp - 20 ~ + 65℃℃
Storage Temp - 30 ~ + 70℃℃
Substance Meets RoHs requirement
Electrical Specification
Frequency Range 2.4~2.4835GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Omni
Gain 4dBi
Polarization Horizontal
E-plane H-plane
Unit: mm
