Antenna Datasheet

Integrated Antenna Solutions 1
Product Specification AE030054-E

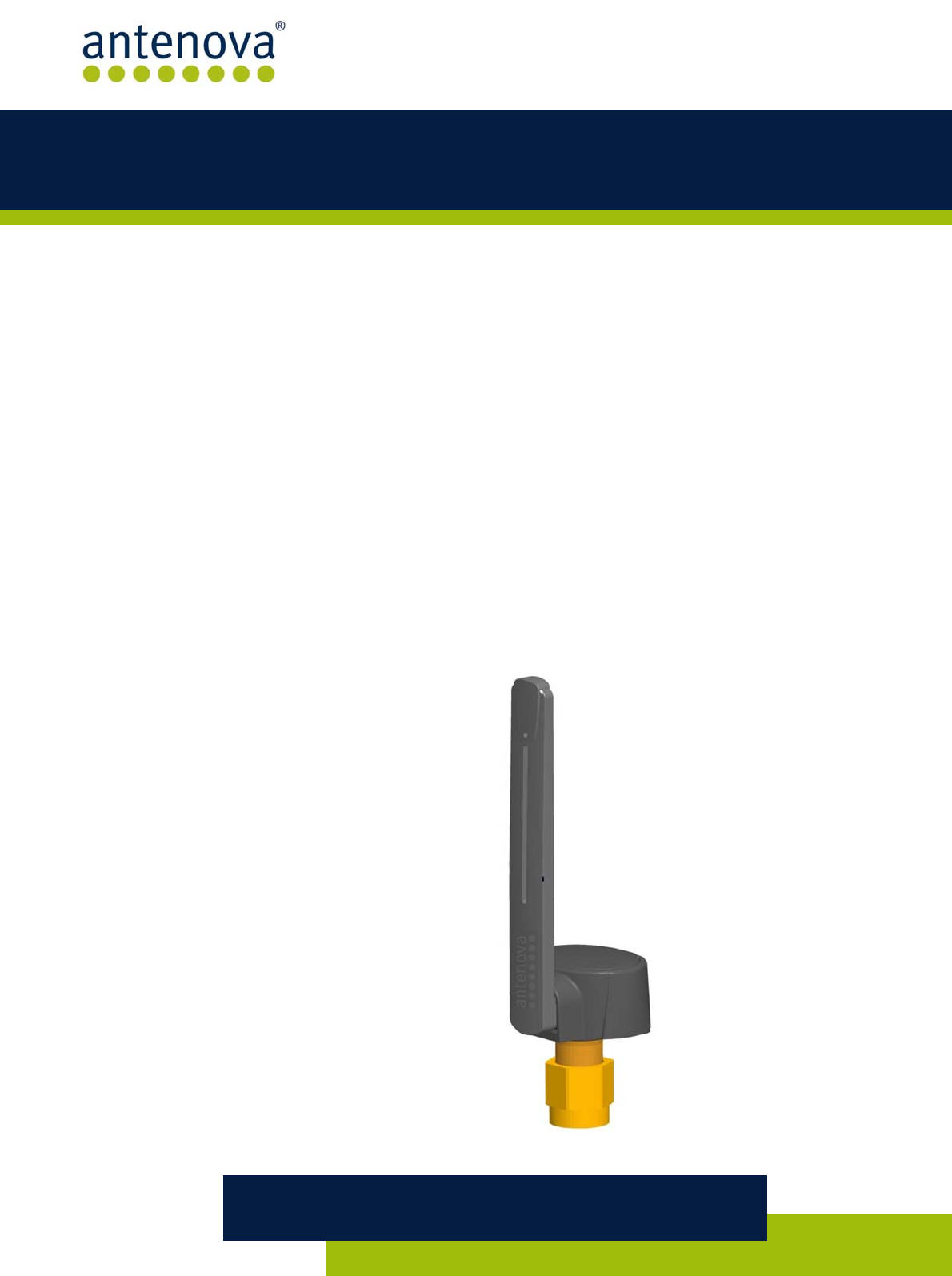

Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01 Product Specification
1 Features
• Designed for 2.4 GHz applications: Bluetooth®, Wi-Fi® (802.11b/g), ZigBee® , etc.
• Antenna with a SMA male connector
• Also available as SMA reverse thread to meet FCC regulations, part 15
• High efficiency
• Supplied in bulk
2 Description
Titanis is intended for use with all 2.4 GHz applications. The antenna is fitted with a SMA
male connector and a blade made of flexible material that can be rotated 360 degree.
No external matching network required.
3 Applications
• Development tools
• Test equipment
• Access points, routers, etc
• Printers
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01
4 Part number
Titanis Standard SMA - male: 2010B4844-01
Titanis Reverse thread SMA - male: 2010B6090-01
150
5 General data
Product name Titanis 2.4 GHz
2010B4844-01 (Standard SMA – male)
Part Number 2010B6090-01 (Reverse thread SMA – male)
Frequency 2.4 – 2.5 GHz
Polarization Linear
Operating temperature -40 ºC to +85 ºC
Impedance 50 Ω
Weight 7.1 g
Antenna type Swivel external
Dimensions 20 x 19.5 x 62.5 [mm]
6 Electrical characteristics
Typical performance Conditions
Peak gain 2.2 dBi
Average gain -1.0 dBi
Average efficiency 80%
Maximum Return Loss -13 dB
Maximum VSWR 1.6:1
Data given for the 2.4 – 2.5 GHz frequency range
Integrated Antenna Solutions 2
Product Specification AE030054-E
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01

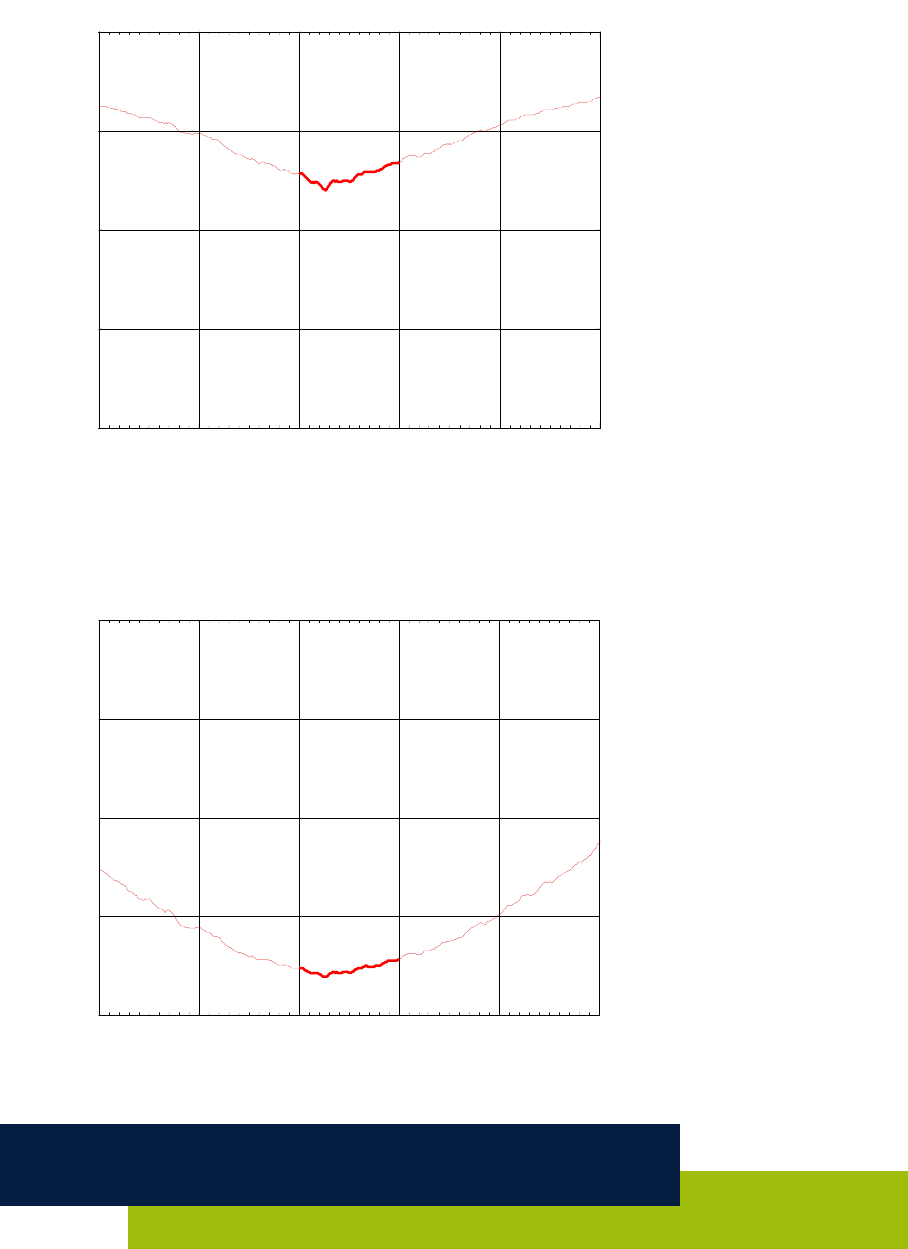

7 Electrical performance
7-1 Return Loss
2200 2300 2400 2500 2600 2700
-40
-30
-20
-10
0
∇
∇
[MHz]
[dB] mtool5
7-2 VSWR
2200 2300 2400 2500 2600 2700
1
2
3
4
5
∇
∇
[MHz]
mtool5
Integrated Antenna Solutions 3
Product Specification AE030054-E
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01
7-3 Antenna patterns
Integrated Antenna Solutions 4
Product Specification AE030054-E
Z dBi
-15
-35
5
X Y
XZ plane
XY plane ZY plane
Patterns show combined polarisations
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01

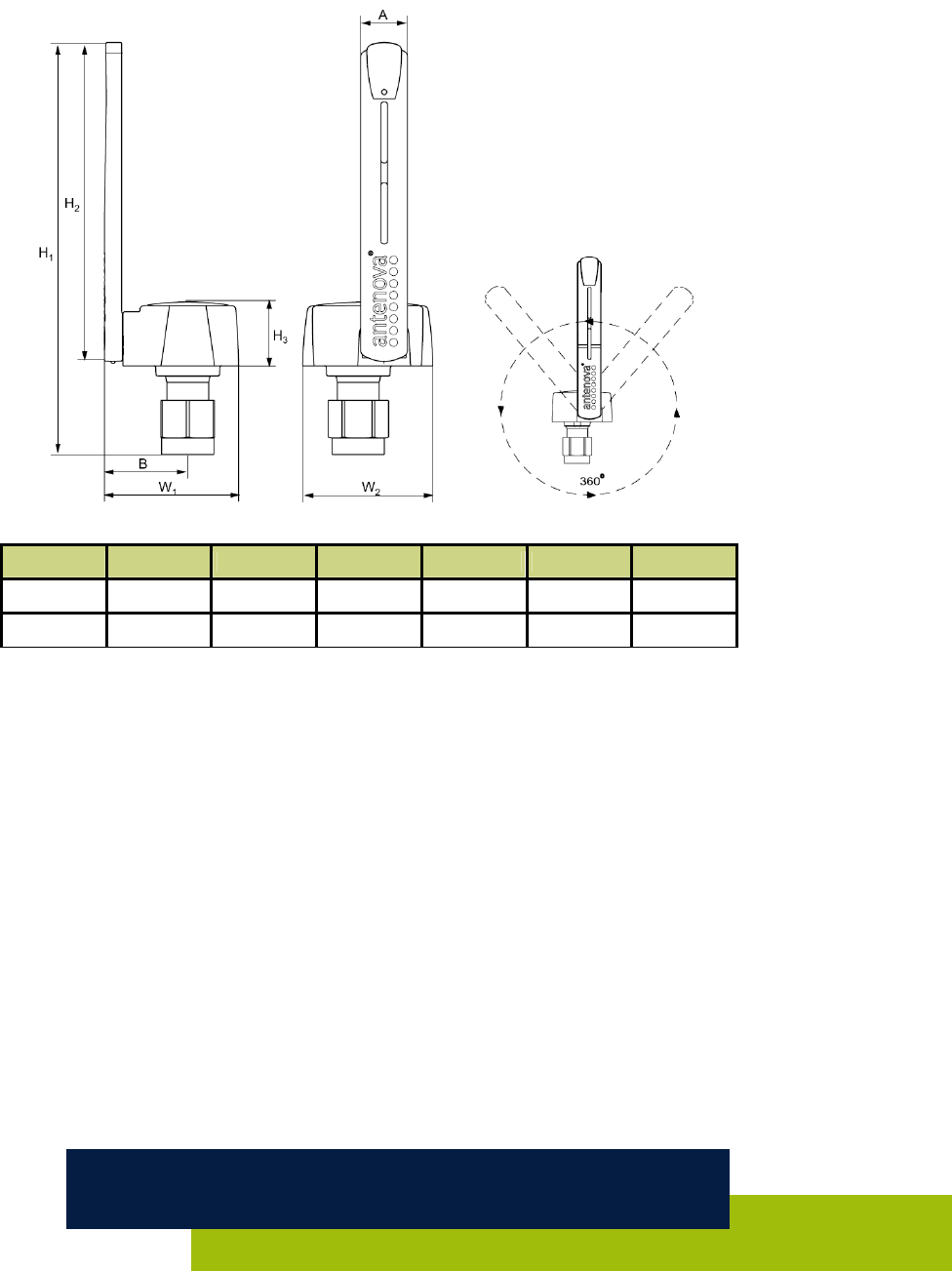

8 Antenna dimensions
A B H1 H2 H3 W1 W2
Height Height Height Width Width
7 ± 0.2 12.5 ± 0.5 62.5 ± 0.5 48.3 ± 0.5 9.5 ± 0.5 20 ± 0.3 19.5 ± 0.3
Dimensions in mm
9 Hazardous material regulation conformance
The antenna has been tested to conform to RoHS requirements. A certificate of
conformance is available from Antenova’s website.
Integrated Antenna Solutions 5
Product Specification AE030054-E
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01
10 Packaging
10-1 Optimal storage conditions
Temperature -10ºC to 40ºC
Humidity Less than 75% RH
Shelf Life 48 Months
Storage place Away from corrosive gas and direct sunlight
10-2 Packaging information
The antennas are delivered in bulk, enclosed in plastic bags.

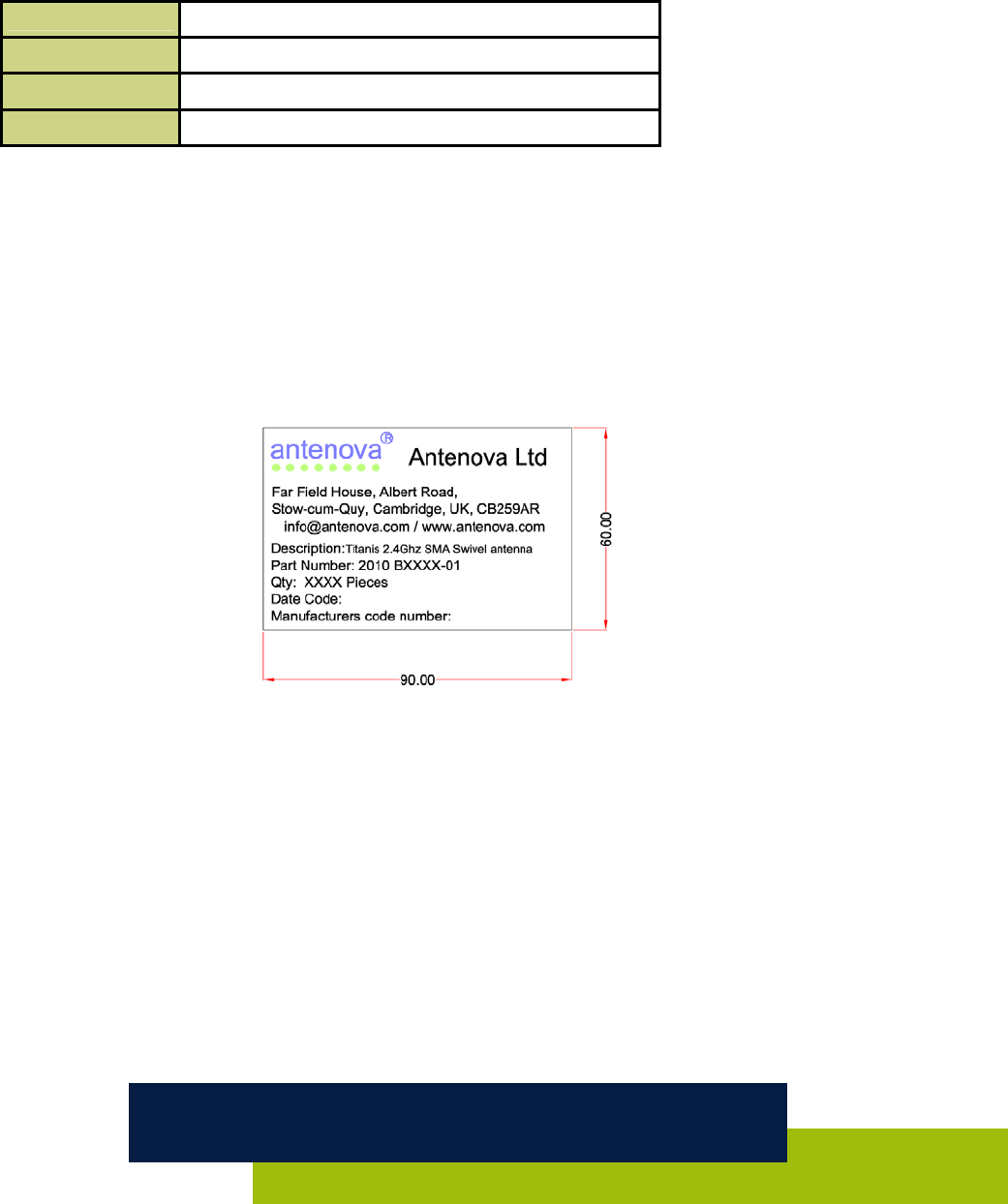

10-3 Bag label information
Dimensions in mm
Integrated Antenna Solutions 6
Product Specification AE030054-E
Titanis 2.4 GHz Swivel SMA Antenna
Part No. 2010B4844-01 / 2010B6090-01
