User Manual

UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
Rev. 1.1 — 15 September 2015 User manual
Document information
Info Content
Keywords JN5169, Zigbee, module
Abstract JN5169-001-M00 module user manual
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 2 of 20
Contact information
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
Revision history
Rev Date Description
1.1 20150915 removed M06 module
1.0 20150629 Initial version
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 3 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
1. General description
The JN5169-001-M00 module family provides designers with a ready-made component
that provides a fully integrated solution for applications, using the IEEE802.15.4 standard
in the 2.4 GHz - 2.5 GHz ISM frequency band, including ZigBee Smart Energy and Home
Automation and can be quickly and easily included in product designs. The module
integrates all of the RF components required, removing the need to perform expensive RF
design and test. Products can be designed by simply connecting sensors and switches to
the module IO pins. The module uses NXP’s single chip IEEE802.15.4 wireless
microcontroller, allowing designers to make use of the extensive chip development
support material. Hence, this module allows designers to bring wireless applications to
market in the minimum time with significantly reduced development effort and cost.
JN5169-001-M00 module has FCC modular approval. it is also CE compliant and subject
to a Notified Body Opinion.
1.1 FCC identification
1.2 Regulatory approvals
The JN5169-001-M00 has been tested against the requirements of the following
European standards.
Radio EN 300 328 v 1.8.1
EMC, EN 301 489-17 v 2.2.1, EN 62479 2010, EN 301 489-1 v 1.9.2
Basic Safety Assessment (BSA) EN 60950-1:2006
A Notified Body statement of opinion for this standard is available on request.
Additionally, the module has received FCC “Modular Approval”, in compliance with CFR
47 FCC part 15 regulations and in accordance to FCC public notice DA00-1407. The
modular approval notice and test report are available on request.
2. Features and benefits
2.1 Benefits
Microminiature module solutions
Ready to use in products
Minimises product development time
No RF test required for systems
Compliant with:
FCC 47CFR Part 15C
ETSI EN 300-328 V1.8.1
Table 1. FCC identification
Module name Description FCCID
JN5169-001-M00 Standard power, integrated antenna XXMJN5169M0
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 4 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
EN 301-489-17 V2.2.1
EN60950-1-2006
Temperature range: 40 qC to +85 qC
Lead-free and RoHS compliant
2.2 Features: module
2.4GHz IEEE 802.15.4, ZigBee Smart Energy and Home Automation compatible
Integral antenna
16 mm u30 mm PCB size
TX power 8.5 dBm/10 dBm
Receiver sensitivity –96.5 dBm
TX current 25.7 mA at 10 dBm
TX current 23.5 mA at 8.5 dBm
RX current 17.8 mA at maximum input level 10 dBm
RX current 16.7 mA at maximum input level 0 dBm
2.0 V/3.6 V operation
2.3 Features: microcontroller
32-bit RISC CPU; 1 MHz to 32 MHz clock speed
Variable instruction width for high coding efficiency
Multi-stage instruction pipeline
512 kB Flash
32 kB RAM
4 kB EEPROM
Data EEPROM with guaranteed 100 k write operations
ZigBee PRO stack with Home Automation and Smart Energy profiles
2-wire I2C-bus compatible serial interface; can operate as either master or slave
5uPWM (4 timers, 1 timer/counter)
2 low-power sleep counters
2UARTs
SPI-bus Master and Slave port, 3 selects
Supply voltage monitor with 8 programmable thresholds
6-input 10-bit ADC, comparator
Battery and temperature sensors
Watchdog and Supply Voltage Monitor (SVM)
Up to 20 Digital IO (DIO) pins
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 5 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
3. Applications
Robust and secure low-power wireless applications
ZigBee Smart Energy networks
ZigBee Home Automation networks
Toys and gaming peripherals
Energy harvesting - for example, self-powered light switch
4. Overview
The JN5169-001-M00 is an ultra-low power, high performance surface mount module
targeted at IEEE 802.15.4, ZigBee Smart Energy and Home Automation networking
applications, enabling users to realize products with minimum time to market and at the
lowest cost. It removes the need for expensive and lengthy development of custom RF
board designs and test suites. The module uses NXP’s JN5169 wireless microcontroller to
provide a comprehensive solution with large memory, high CPU and radio performance
and all RF components included. All that is required to develop and manufacture wireless
control or sensing products is to connect a power supply and peripherals such as
switches, actuators and sensors, considerably simplifying product development.
The module includes an integrated antenna.
5. Marking
The JN5169-001-M00 module meets the requirements of Directive 2002/95/EC of the
European Parliament and of the Council on the Restriction of Hazardous Substance
(RoHS) and of the Chinese RoHS requirements SJ/T11363-2006 which came into force
on 1st March 2007.

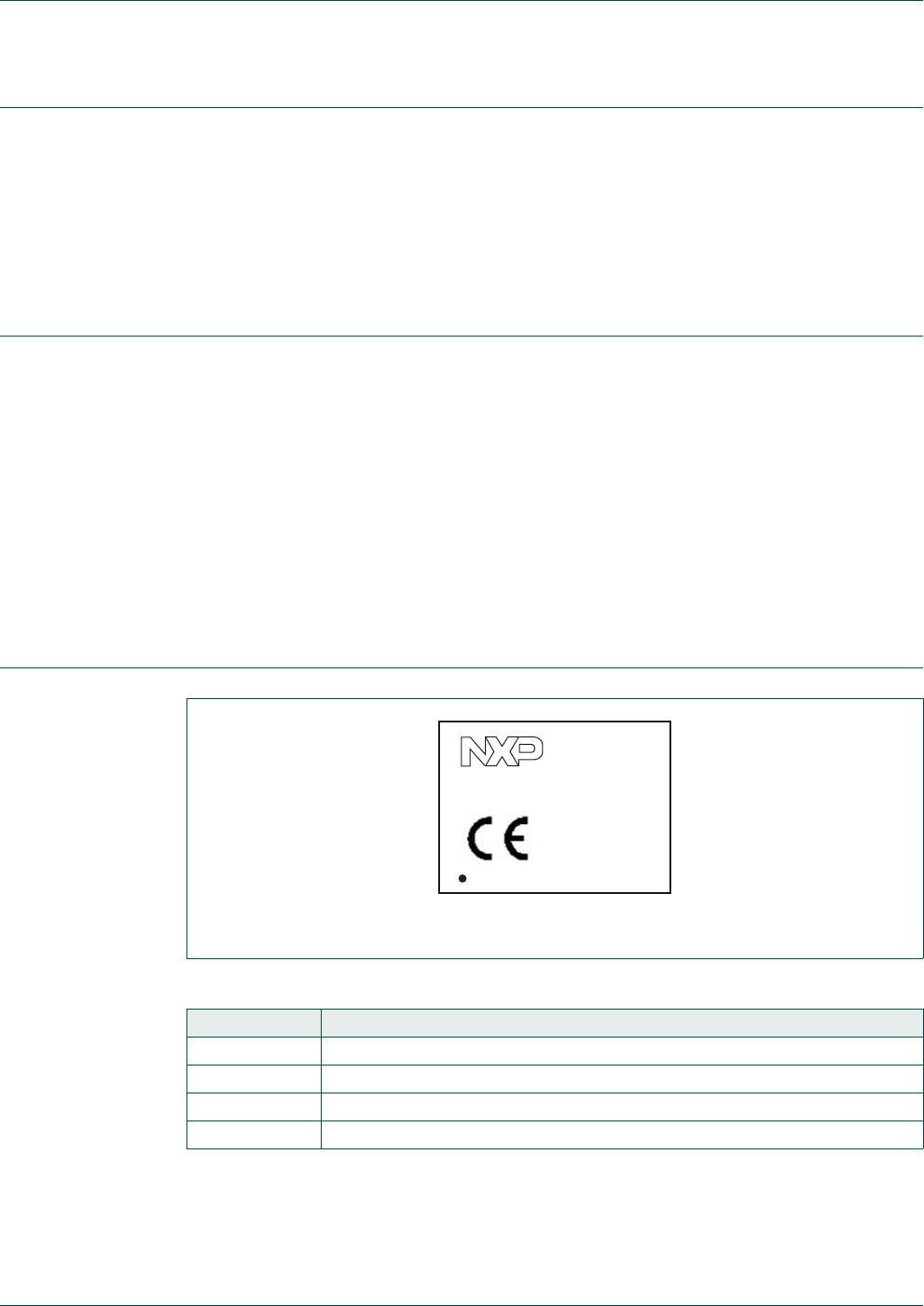

Fig 1. JN5169-001-M00 package marking (top view)
Table 2. Marking code
Line number Marking code
Line 1 NXP Logo: B&W outline logo
Line 2 part ID: JN5169-001-M00
Line 3 FCC ID: XXMJN5169M0
Line 4 European notified body number
aaa-019018
JN5169-001-M00
FCC ID:XXMJN5169M0
CE 0536
0536
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 6 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
6. Block diagram

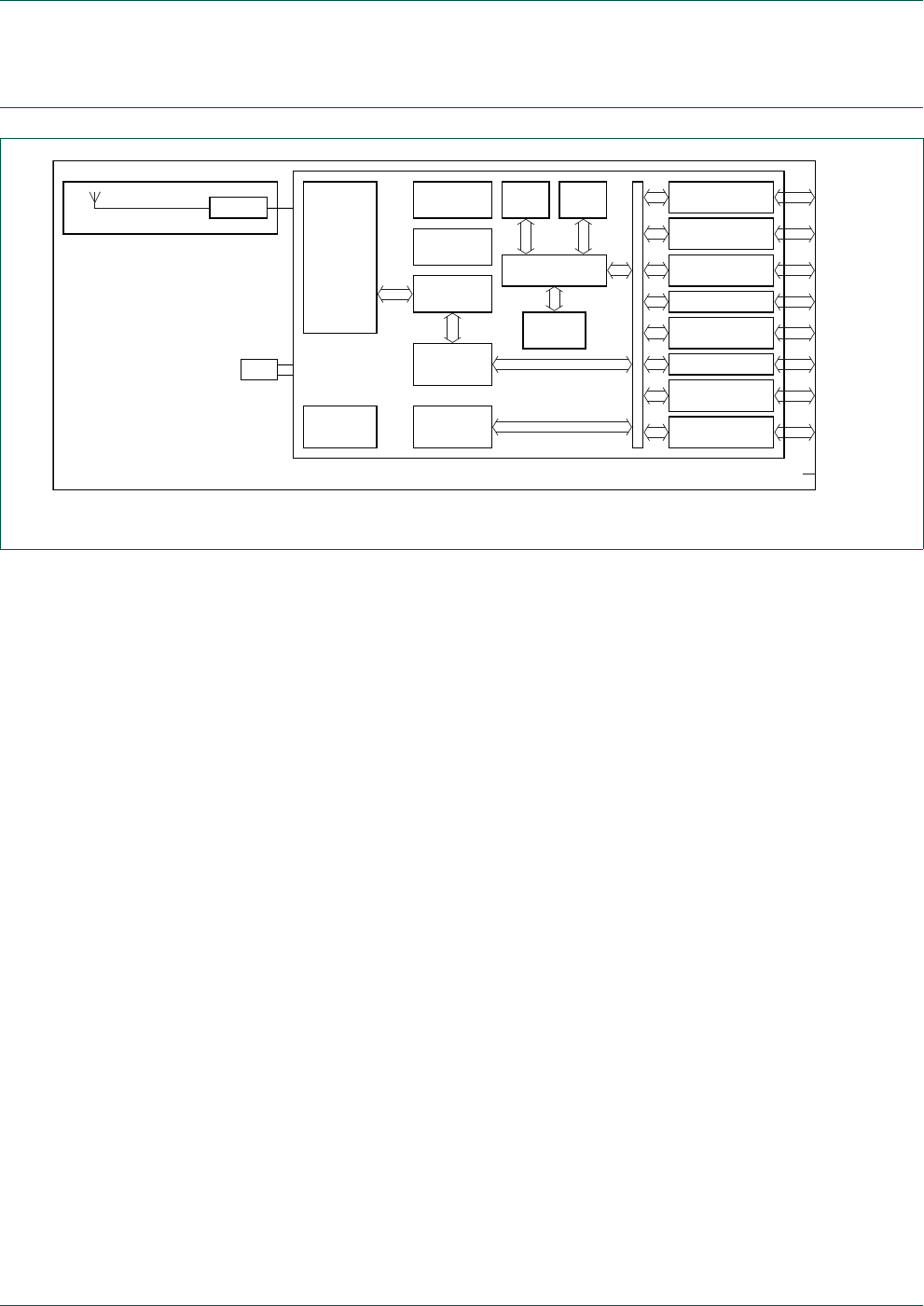

Fig 2. Block diagram
aaa-019072
POWER
BATTERY AND
TEMP SENSORS
20 DIO
PLUS 2 DO
4 X PWM
PLUS TIMER
32-BIT
RISC CPU
FLASH
512 kB
RAM
32 kB
IEEE802.15.4
MAC
ACCELERATOR
128-BIT AES
ENCRYPTION
ACCELERATOR
WATCHDOG
TIMER
VOLTAGE
BROWNOUT
O-QPSK
MODEM
XTAL
POWER
MANAGEMENT
4 kB
EEPROM
2-WIRE SERIAL
(MASTER/SLAVE)
SPI-BUS
MASTER AND SLAVE
6 CHAN
10 BIT ADC
SLEEP COUNTER
2 X UART
2.4 GHz
RADIO
INCLUDING
DIVERSITY
INTEGRATED ANTENNA MATCHING
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 7 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
7. Pinning information
7.1 Pinning
7.2 Pin description
(1) Multi-function: DIO12/PWM2/CTS0/JTAG_TCK/ADO/SPISMOSI.
(2) Multi-function: DIO13/PWM3/RTS0/JTAG_TMS/ADE/SPISMISO.
(3) Multi-function: DIO14/SIF_CLK/TXD0/TXD1/JTAG_TDO/SPISEL1/SPISSEL.
(4) Multi-function: DIO15/SIF_D/RXD0/RXD1/JTAG_TDI/SPISEL2/SPISCLK.

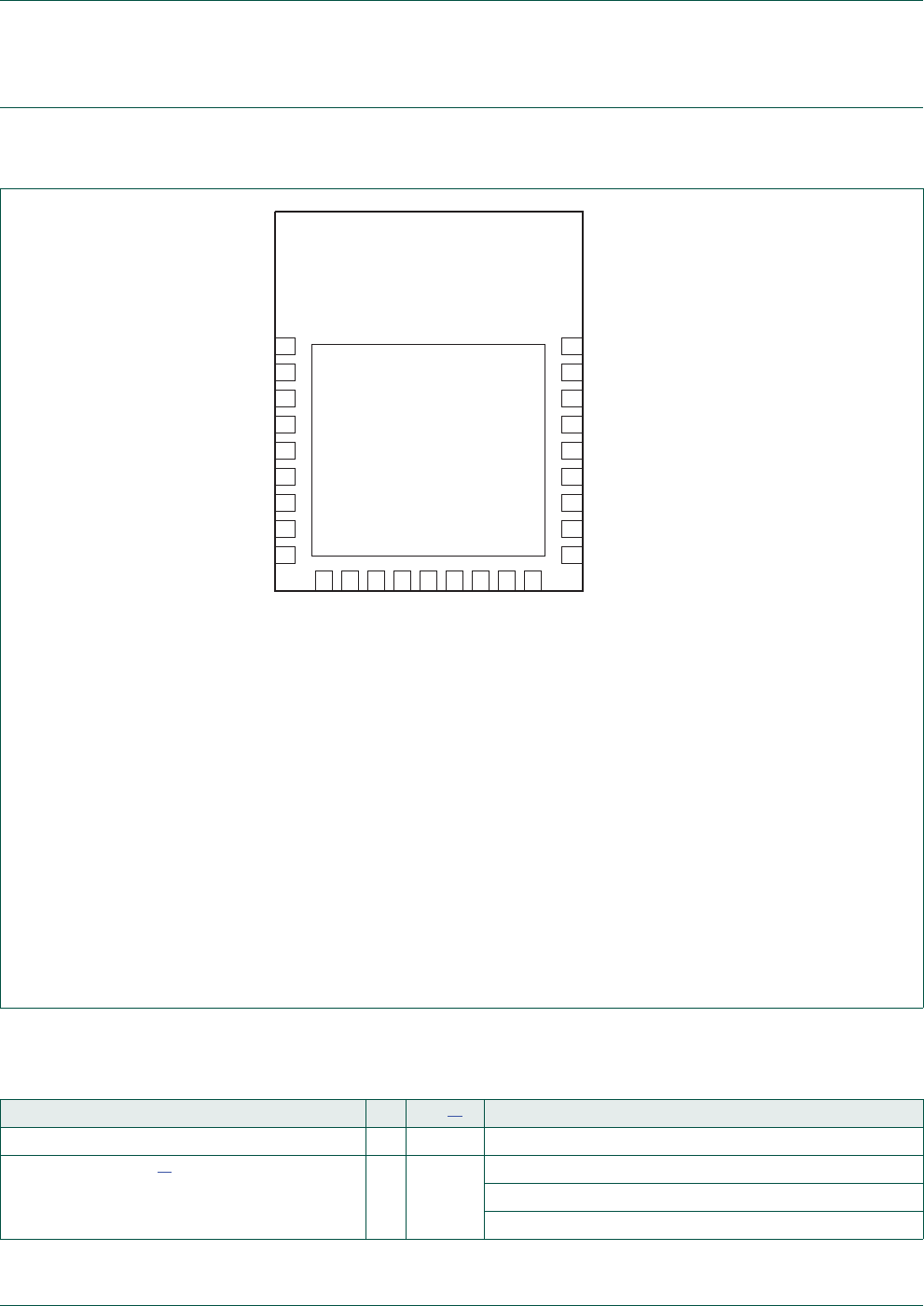

Fig 3. Pin configuration
aaa-019073
1
DIO16/SPISMOSI/SIF_CLK/COMP1P
19
VDD
2DIO17/SPISMISO/SIF_D/COMP1M/PWM4
DIO7/RXD0/JTAG_TDI/PWM3
3
RESET_N
20
DIO6/TXD0/JTAG_TDO/PWM2
4
27
DIO5/RTS0/JTAG_TMS/PWM1/PC1
5
26
DIO4/CTS0/JTAG_TCK/TIM0OUT/PC0
6
25
7
24
DIO19/SPISEL0
8
23
DIO18/SPIMOSI
9
22
DO1/SPIMISO/PWM3
21
VSS
11
VREF/ADC2
DIO15(4)
12
13
DIO14(3)
14
DIO13(2)
15
ADC1
DIO12(1)
16
DIO0/ADO/SPISEL1/ADC3
17
DIO1/ADE/SPISEL2/ADC4/PC0
DIO11/PWM1/TXD1
18
DIO2/RFRX/TIM0CK_GT/ADC5
DIO10/TIM0OUT/32KXTALOUT
DIO3/RFTX/TIM0CAP/ADC6
DIO9/TIM0CAP/32KXTALIN/RXD1/32KIN
10
DO0/SPICLK/PWM2
DIO8/TIM0CK_GT/PC1/PWM4
Transparent top view
Table 3. Pin description
Symbol Pin Type[1] Description
ADC1 1 I ADC1 — ADC input
DO0/SPICLK/PWM2[2] 2O DO0 — DO0
SPICLK — SPI-bus master clock output
PWM2 — PWM2 output
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 8 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
DO1/SPIMISO/PWM3[3] 3I/O DO1 — DO1
SPIMISO — SPI-bus Master In, Slave Out input
PWM3 — PWM3 output
DIO18/SPIMOSI 4 I/O DIO18 — DIO18
SPIMOSI — SPI-bus Master Out Slave In output
DIO19/SPISEL0 5 I/O DIO19 — DIO19
SPISEL0 — SPI-bus Master Select Output 0
DIO0/ADO/SPISEL1/ADC3 6 I/O DIO0 — DIO0
ADO — antenna diversity odd output
SPISEL1 — SPI-bus master select output 1
ADC3 — ADC input: ADC3
DIO1/ADE/SPISEL2/ADC4/PC0 7 I/O DIO1 — DIO1
ADE — antenna diversity even output
SPISEL2 — SPI-bus master select output 2
ADC4 — ADC input: ADC4
PC0 — pulse counter 0 input
DIO2/RFRX/TIM0CK_GT/ADC5 8 I/O DIO2 — DIO2
RFRX — radio receives control output
TIM0CK_GT — timer0 clock/gate input
ADC5 — ADC input: ADC5
DIO3/RFTX/TIM0CAP/ADC6 9 I/O DIO3 — DIO3
RFTX — radio transmit control output
TIM0CAP — timer0 capture input
ADC6 — ADC input: ADC6
DIO4/CTS0/JTAG_TCK/TIM0OUT/PC0 10 I/O DIO4 — DIO4
CTS0 — UART 0 clear to send input
JTAG_TCKJTAG CLK input
TIM0OUT — timer0 PWM output
PC0 — pulse counter 0 input
DIO5/RTS0/JTAG_TMS/PWM1/PC1 11 I/O DIO5 — DIO5
RTS0 — UART 0 request to send output
JTAG_TMS — JTAG mode select input
PWM1 — PWM1 output
PC1 — pulse counter 1 input
DIO6/TXD0/JTAG_TDO/PWM2 12 I/O DIO6 — DIO6
TXD0 — UART 0 transmit data output
JTAG_TDO — JTAG data output
PWM2 — PWM2 data output
Table 3. Pin descriptioncontinued
Symbol Pin Type[1] Description
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 9 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
DIO7/RXD0/JTAG_TDI/PWM3 13 I/O DIO7 — DIO7
RXD0 — UART 0 receive data input
JTAG_TDI — JTAG data input
PWM3 — PWM 3 data output
DIO8/TIM0CK_GT/PC1/PWM4 14 I/O DIO8 — DIO8
TIM0CK_GT — timer0 clock/gate input
PC1 — pulse counter1 input
PWM4 — PWM 4 output
DIO9/TIM0CAP/32KXTALIN/RXD1/32KIN 15 I/O DIO9 — DIO9
TIM0CAP — Timer0 Capture input
32KXTALIN — 32 kHz External Crystal input
RXD1 — UART1 Receive Data input
32KIN — 32 kHz External clock input
DIO10/TIM0OUT/32KXTALOUT 16 I/O DIO10 — DIO10
TIM0OUT — Timer0 PWM Output
32KXTALOUT — 32 kHz External Crystal output
VDD 17 P VDDsupply voltage
VSS 18 GND ground
DIO11/PWM1/TXD1 19 I/O DIO11 — DIO11
PWM1 — PWM1 output
TXD1 — UART1 Transmit Data output
DIO12[4] 20 I/O DIO12 — DIO12
PWM2 — PWM2 output
CTS0 — UART0 clear to send input
JTAG_TCKJTAG CLK input
ADO — antenna diversity odd output
SPISMOSI — SPI-bus slave Master Out, Slave In input
DIO13[5] 21 I/O DIO13 — DIO13
PWM3 — PWM3 output
RTS0 — UART0 request to send output
JTAG_TMS — JTAG mode select input
ADE — antenna diversity even output
SPISMISO — SPI-bus slave master in slave out output
RESET_N 22 I RESET_N — reset input
DIO14[6] 23 I/O DIO14 — DIO14
SIF_CLK — serial interface clock
TXD0 — UART 0 transmit data output
TXD1 — UART 1 transmit data output
JTAG_TDO — JTAG data output
SPISEL1 — SPI-bus master select output 1
SPISSEL — SPI-bus slave select input
Table 3. Pin descriptioncontinued
Symbol Pin Type[1] Description
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 10 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
[1] P = power supply; G = ground; I = input, O = output; I/O = input/output.
[2] JTAG programming mode: must be left floating high during reset to avoid entering JTAG programming mode.
[3] UART programming mode: leave pin floating high during reset to avoid entering UART programming mode or hold it low to program.
[4] Multi-function: DIO12/PWM2/CTS0/JTAG_TCK/ADO/SPISMOSI.
[5] Multi-function: DIO13/PWM3/RTS0/JTAG_TMS/ADE/SPISMISO.
[6] Multi-function: DIO14/SIF_CLK/TXD0/TXD1/JTAG_TDO/SPISEL1/SPISSEL.
[7] Multi-function: DIO15/SIF_D/RXD0/RXD1/JTAG_TDI/SPISEL2/SPISCLK.
8. Functional description
8.1 JN5169 single chip wireless microcontroller
The JN5169-001-M00 is constructed around the JN5169-001 single chip wireless
microcontroller, which includes the radio system, a 32-bit RISC CPU, Flash, RAM and
EEPROM memory and a range of analogue and digital peripherals.
The chip is described fully in JN5169 Wireless Microcontroller Datasheet (see Ref. 2).
8.2 Peripherals
DIO15[7] 24 I/O DIO15 — DIO15
SIF_D — serial interface data
RXD0 — UART 0 receive data input
RXD1 — UART 1 receive data input
JTAG_TDI — JTAG data input
SPISEL2 — SPI-bus master select output 2
SPISCLK — SPI-bus slave clock input
DIO16/SPISMOSI/SIF_CLK/COMP1P 25 I/O DIO16 — DIO16
COMP1P — comparator positive input
SIF_CLK — Serial Interface clock
SPISMOSI — SPI-bus Slave Master Out Slave In input
DIO17/SPISMISO/SIF_D/COMP1M 26 I/O DIO17 — DIO17
COMP1M — COMP1M; comparator negative input
SIF_D — Serial Interface Data
SPISMISO — SPI-bus Slave Master In Slave Out output
PWM4 — PWM 4 output
VREF/ADC2 27 P VREF — analog peripheral reference voltage
IADC2 — ADC input 2
Table 3. Pin descriptioncontinued
Symbol Pin Type[1] Description
Table 4. Peripherals
Peripherals JN5169-001-M00 JN5169-001-M06 Notes
Master SPI-bus port 3 selects 3 selects 250 kHz - 16 MHz
Slave SPI-bus port 1 1 250 kHz - 4 MHz
UART 2 2 16550 compatible
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 11 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
The performance of all peripherals is defined in the JN5169 Wireless Microcontroller
Datasheet (see Ref. 2).
NXP supplies all the development tools and networking stacks needed to enable
end-product development to occur quickly and efficiently. These are all freely available
from the NXP Wireless Connectivity TechZone (see Ref. 3). A range of
evaluation/developer kits is also available, allowing products to be quickly bread boarded.
Efficient development of software applications is enabled by the provision of a complete,
unlimited, software developer kit. Together with the available libraries for the
IEEE802.15.4 MAC and ZigBee PRO network stacks, this package provides everything
required to develop application code and to trial it with hardware representative of the final
module.
The module can be user programmed both in development and in production using
software supplied by NXP. Access to the on-chip peripherals, MAC and network stack
software is provided through specific APIs. This information is available on the NXP
support website, together with many example applications, user guides, reference
manuals and application notes.
9. Limiting values
Two-wire serial I/F (compatible with SMbus and
I2C-bus)
1 1 Up to 400kHz
PWM 16 MHz clock
timer 4 4
timer/counter 1 1
Programmable Sleep Timers 2 2 32 kHz clock
Digital IO lines (multiplexed with UARTs, timers
and SPI-bus selects)
20 18 DIO2 and DIO3 are not
available on JN5169-001-M06
modules
Analog-to-Digital converter 4 4 10-bit, up to 100 ks/s
Programmable analogue comparator 1 1 ultra low power mode for sleep
Internal temperature sensor 1 1
Internal battery sensor 1 1
Table 4. Peripherals
Peripherals JN5169-001-M00 JN5169-001-M06 Notes
Table 5. Limiting values
Symbol Parameter Conditions Min Max Unit
VDD supply voltage 0.3 +3.6 V
VVREF voltage on pin VREF 0.3 VDDA +
0.3V
V
VADC1 voltage on pin ADC1 0.3 VDDA +
0.3V
V
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 12 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
10. Recommended operating conditions
[1] To reach the maximum TX power, 2.8 V is the minimum.
11. Characteristics
11.1 DC current
[1] To reach the maximum TX power, 2.8 V is the minimum.
[1] Waiting on I/O event.
VIO(dig) digital input/output voltage 0.3 VDDD +
0.3V
V
Tstg storage temperature 40 +150 qC
VESD electrostatic discharge voltage according to ETSI EN 301 489-17
2012 V2.2.1 and ETSI EN 301 489-1
2011 V1.9.2
-4kV
Table 5. Limiting values …continued
Symbol Parameter Conditions Min Max Unit
Table 6. Operating conditions
Symbol Parameter Conditions Min Max Unit
VDD supply voltage [1] 23.6V
Tamb ambient temperature standard range 40 +85 qC
Table 7. Active processing
VDD =2V to 3.6V; T
amb =25
q
C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
IDD supply current M00
radio in receive mode; maximum input level at 10 dBm - 17.8 - mA
radio in receive mode; maximum input level at 0 dBm - 16.7 - mA
radio in transmit mode 10 dBm [1] - 25.7 - mA
radio in transmit mode 8.5 dBm [1] - 23.5 - mA
Table 8. Sleep mode
VDD =2V to 3.6V; T
amb =25
q
C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
IDD(IO) input/output supply
current
in sleep mode; with I/O wake-up;
Tamb =2C
[1] -0.10-PA
in sleep mode; with I/O and RC oscillator
timer wake-up; Tamb =25qC
-0.73-PA
Table 9. Deep sleep mode
VDD =2V to 3.6V; T
amb =25
q
C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
IDD supply current deep sleep mode; measured at 25 qC[1] -50-nA
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 13 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
[1] Waiting on chip RESET or I/O event.
11.2 AC characteristics
11.2.1 Radio transceiver
These modules meet all the requirements of the IEEE802.15.4 standard over 2.0 V
to 3.6 V and offers the improved RF characteristics shown in Table 10. All RF
characteristics are measured single ended.
[1] With external matching inductors and assuming PCB layout.
[1] To reach the maximum TX power, 2.8 V is the minimum on VDDA.
[2] Up to an extra 2.5 dB of attenuation is available if required.
12. Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules see Ref. 4. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
Table 10. RF port characteristics
Single-ended; Impedance = 50
:
[1]; VDD =2V to 3.6V; T
amb =25
q
C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
frange frequency range 2.4 - 2.485 GHz
Table 11. Radio transceiver characteristics
VDD =2V to 3.6V; T
amb =25
q
C; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
Receiver
SRX receiver sensitivity nominal for 1 % PER, as per 802.15.4 - 96.5 - dBm
Pi(RX)(max) maximum receiver input
power
1 % PER, measured as sensitivity; supply
current at 14.7 mA
-10-dBm
1 % PER, measured as sensitivity; supply
current at 13 mA
-0-dBm
RSSI(min) minimum received signal
strength indicator
-95 - dBm
RSSI(max) maximum received
signal strength indicator
-10 - dBm
Transmitter
Pooutput power IDD = 23.3 mA [1] -10-dBm
IDD = 19.6 mA [1] -8.5-dBm
Po(cr) control range output
power
in 6 major steps and then 4 fine steps [2] -42 - dB
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 14 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help
OEM integrators instructions
The OEM integrators are responsible for ensuring that the end-user has no manual
instructions to remove or install module
The module is limited to installation in mobile or fixed applications, according to
CFR 47 Part 2.1091(b)
Separate approval is required for all other operating configurations, including
portable configurations with respect to CFR 47 Part 2.1093 and different antenna
configurations
User guide mandatory statements
User's instructions of the host device must contain the following statements in
addition to operation instructions:
* “This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation”
* “Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment”
FCC RF Exposure requirements
User's instructions of the host device must contain the following instructions in
addition to operation instructions:
* The antenna used with this module must be installed to provide a separation
distance of at least 20 cm from all persons, and must not transmit simultaneously
with any other antenna or transmitter
12.1 FCC end product labelling
The final ‘end product’ should be labelled in a visible area with the following:
“Contains TX FCC ID: XXMJN5169M0”.
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 15 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
13. Footprint information for reflow soldering

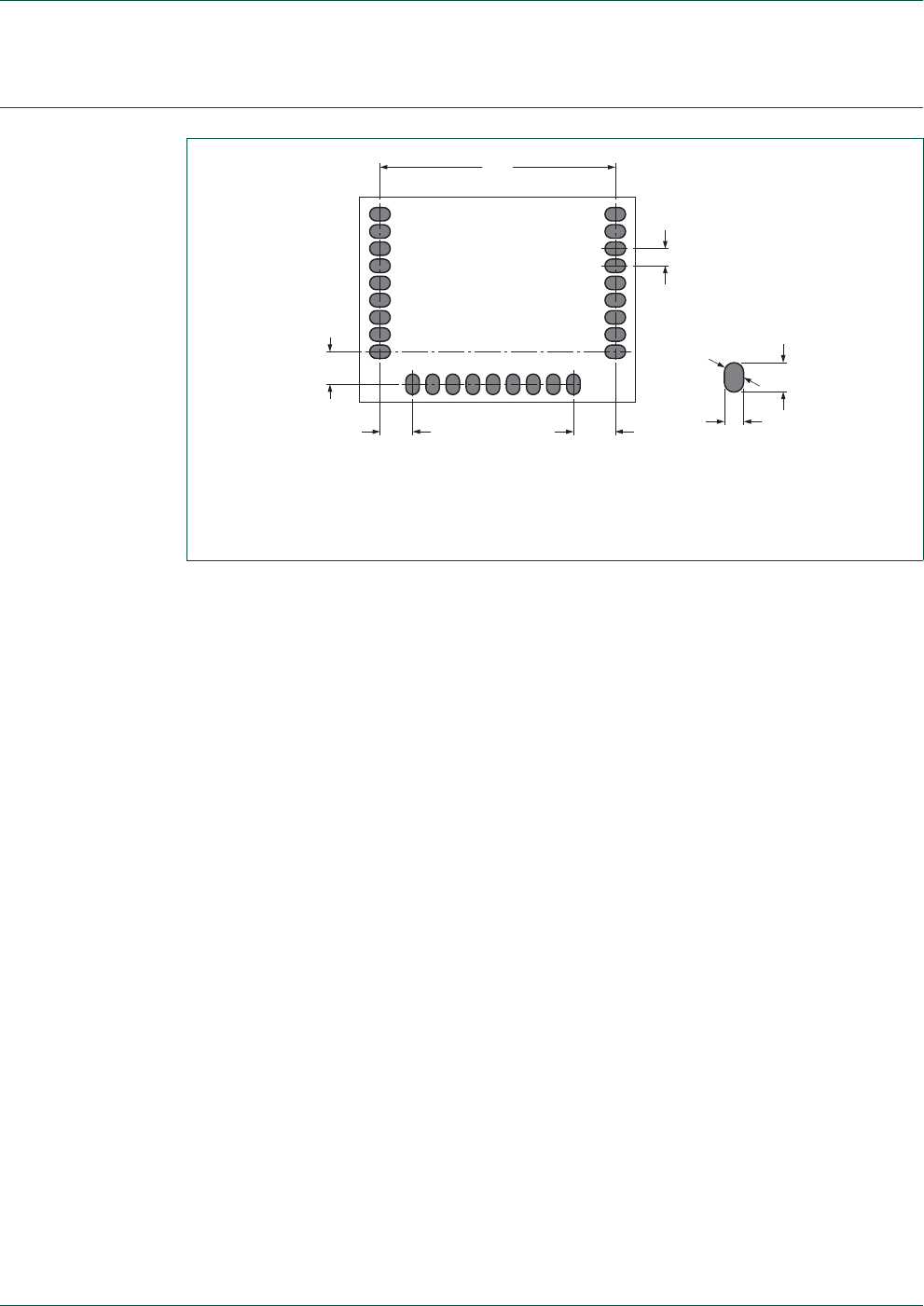

Fig 4. Module PCB footprint
aaa-019074
16.0
Dimensions in mm
2.54
2.54 3.30
1.27
1.5
Ø 1
1
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 16 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
14. Package outline

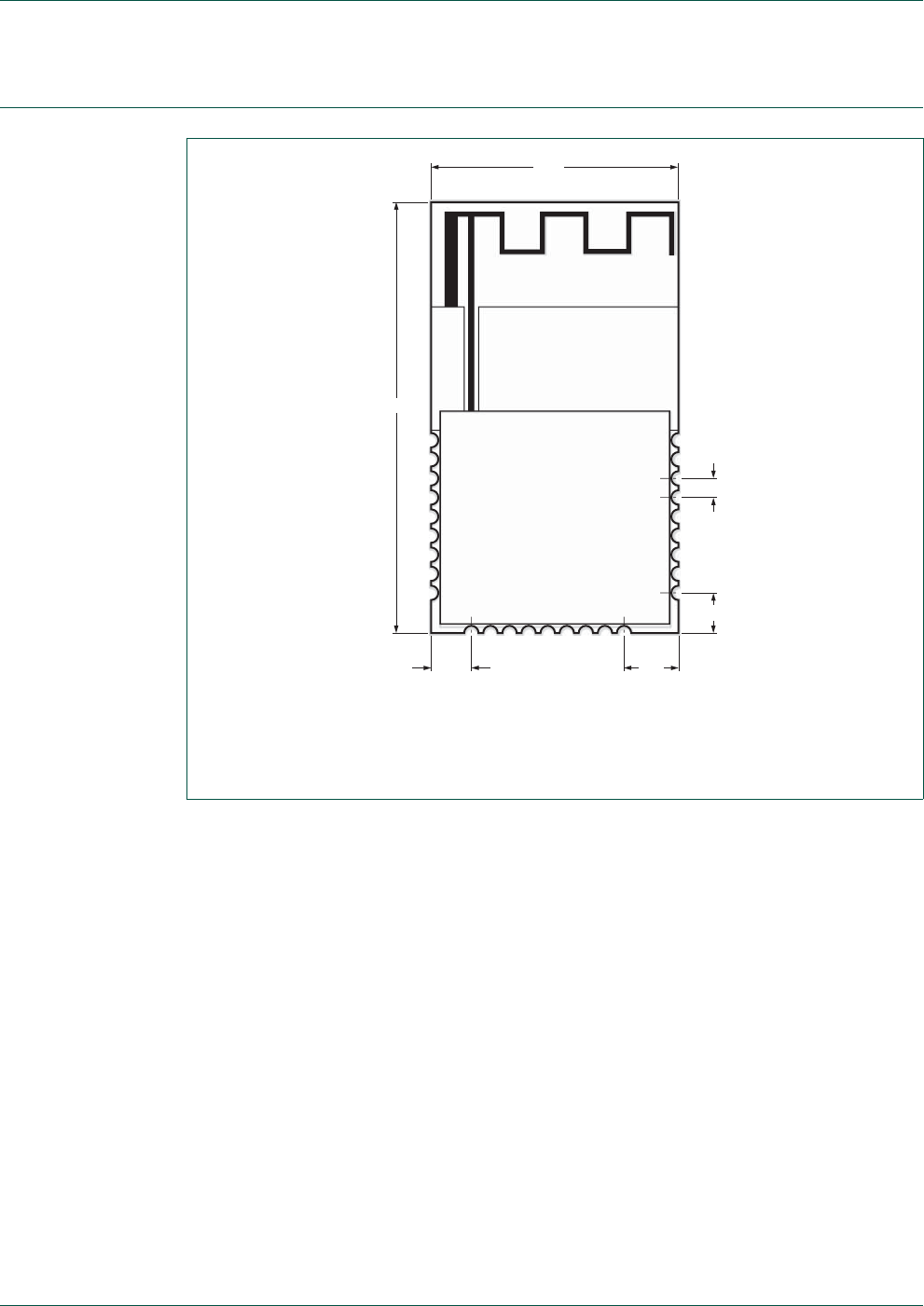

Fig 5. Package outline JN5169-001-M00
aaa-019075
Dimensions in mm
thickness: 3.5 mm
16.0
2.54 3.3
30.0
2.54
1.27
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 17 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
15. Abbreviations
16. References
[1] IEEE Std 802.15.4-2011 — IEEE Std 802.15.4-2011 IEEE Standard for Information
Technology.
[2] JN5169 — JN5169 wireless microcontroller datasheet.
[3] Wireless Connectivity TechZone —
http://www.nxp.com/techzones/wireless-connectivity
[4] Part 15 of the FCC Rules —
http://www.ecfr.gov/cgiͲbin/textͲidx?SID=d01e00935bfcb0d53b914e7c8e63f383&node
=47:1.0.1.1.16&rgn=div5
Table 12. Abbreviations
Acronym Description
API Application Program Interface
ADC Analog to Digital Converter
FCC Federal Communication Commission
IO Input Output
OEM Original Equipment Manufacturer
PCB Printed Circuit Board
PER Packet Error Rate
PWM Pulse Width Modulation
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RISC Reduce Instruction Set Computing
RSSI Receive Signal Strength Indicator
RTS Request-To-Send
SPI Serial Peripheral Interface
SVM Supply Voltage Monitor
SYNTH SYNTHesizer
UART Universal Asynchronous Receiver/Transmitter
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 18 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
17. Legal information
17.1 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences of
use of such information.
17.2 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, NXP Semiconductors does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. NXP Semiconductors takes no
responsibility for the content in this document if provided by an information
source outside of NXP Semiconductors.
In no event shall NXP Semiconductors be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards
customer for the products described herein shall be limited in accordance
with the Terms and conditions of commercial sale of NXP Semiconductors.
Right to make changes — NXP Semiconductors reserves the right to make
changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
Suitability for use — NXP Semiconductors products are not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of an NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. NXP Semiconductors and its suppliers accept no liability for
inclusion and/or use of NXP Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at the customer’s own
risk.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their applications
and products using NXP Semiconductors products, and NXP Semiconductors
accepts no liability for any assistance with applications or customer product
design. It is customer’s sole responsibility to determine whether the NXP
Semiconductors product is suitable and fit for the customer’s applications and
products planned, as well as for the planned application and use of
customer’s third party customer(s). Customers should provide appropriate
design and operating safeguards to minimize the risks associated with their
applications and products.
NXP Semiconductors does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default in the
customer’s applications or products, or the application or use by customer’s
third party customer(s). Customer is responsible for doing all necessary
testing for the customer’s applications and products using NXP
Semiconductors products in order to avoid a default of the applications and
the products or of the application or use by customer’s third party
customer(s). NXP does not accept any liability in this respect.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Evaluation products — This product is provided on an “as is” and “with all
faults” basis for evaluation purposes only. NXP Semiconductors, its affiliates
and their suppliers expressly disclaim all warranties, whether express, implied
or statutory, including but not limited to the implied warranties of
non-infringement, merchantability and fitness for a particular purpose. The
entire risk as to the quality, or arising out of the use or performance, of this
product remains with customer.
In no event shall NXP Semiconductors, its affiliates or their suppliers be liable
to customer for any special, indirect, consequential, punitive or incidental
damages (including without limitation damages for loss of business, business
interruption, loss of use, loss of data or information, and the like) arising out
the use of or inability to use the product, whether or not based on tort
(including negligence), strict liability, breach of contract, breach of warranty or
any other theory, even if advised of the possibility of such damages.
Notwithstanding any damages that customer might incur for any reason
whatsoever (including without limitation, all damages referenced above and
all direct or general damages), the entire liability of NXP Semiconductors, its
affiliates and their suppliers and customer’s exclusive remedy for all of the
foregoing shall be limited to actual damages incurred by customer based on
reasonable reliance up to the greater of the amount actually paid by customer
for the product or five dollars (US$5.00). The foregoing limitations, exclusions
and disclaimers shall apply to the maximum extent permitted by applicable
law, even if any remedy fails of its essential purpose.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
17.3 Trademarks
Notice: All referenced brands, product names, service names and trademarks
are the property of their respective owners.
I2C-bus — logo is a trademark of NXP Semiconductors N.V.
UM10922 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
User manual Rev. 1.1 — 15 September 2015 19 of 20
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
18. Tables
Table 1. FCC identification . . . . . . . . . . . . . . . . . . . . . . . .3
Table 2. Marking code . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Table 3. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . .7
Table 4. Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Table 5. Limiting values . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 6. Operating conditions . . . . . . . . . . . . . . . . . . . .12
Table 7. Active processing . . . . . . . . . . . . . . . . . . . . . . 12
Table 8. Sleep mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 9. Deep sleep mode . . . . . . . . . . . . . . . . . . . . . . 12
Table 10. RF port characteristics . . . . . . . . . . . . . . . . . . 13
Table 11. Radio transceiver characteristics. . . . . . . . . . . 13
Table 12. Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 17
19. Figures
Fig 1. JN5169-001-M00 package marking (top view) . . .5
Fig 2. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Fig 3. Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fig 4. Module PCB footprint. . . . . . . . . . . . . . . . . . . . . .15
Fig 5. Package outline JN5169-001-M00 . . . . . . . . . . .16
NXP Semiconductors UM10922
ZigBee PRO and IEEE802.15.4 JN5169-001-M00 module
© NXP Semiconductors N.V. 2015. All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 15 September 2015
Document identifier: UM10922
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in section ‘Legal information’.
20. Contents
1 General description. . . . . . . . . . . . . . . . . . . . . . 3
1.1 FCC identification . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Regulatory approvals . . . . . . . . . . . . . . . . . . . . 3
2 Features and benefits . . . . . . . . . . . . . . . . . . . . 3
2.1 Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Features: module . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Features: microcontroller . . . . . . . . . . . . . . . . . 4
3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7 Pinning information. . . . . . . . . . . . . . . . . . . . . . 7
7.1 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 7
8 Functional description . . . . . . . . . . . . . . . . . . 10
8.1 JN5169 single chip wireless microcontroller. . 10
8.2 Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . 11
10 Recommended operating conditions. . . . . . . 12
11 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . 12
11.1 DC current . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
11.2 AC characteristics. . . . . . . . . . . . . . . . . . . . . . 13
11.2.1 Radio transceiver . . . . . . . . . . . . . . . . . . . . . . 13
12 Federal Communication Commission Statement
13
12.1 FCC end product labelling . . . . . . . . . . . . . . . 14
13 Footprint information for reflow soldering . . 15
14 Package outline . . . . . . . . . . . . . . . . . . . . . . . . 16
15 Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . 17
16 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
17 Legal information. . . . . . . . . . . . . . . . . . . . . . . 18
17.1 Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
17.2 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
17.3 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
18 Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
19 Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
20 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Navigation menu
