Namsung XDMAR6720BT Bluetooth Module User Manual
Namsung Corporation. Bluetooth Module Users Manual
Namsung >
Users Manual
XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com
USER’S MANUAL
XDMAR6720BT
(Bluetooth Module)
Namsung Corporation.
13F Crown Plaza, 197-22, Guro-dong, Guro-gu, Seoul,
Korea (152-050)

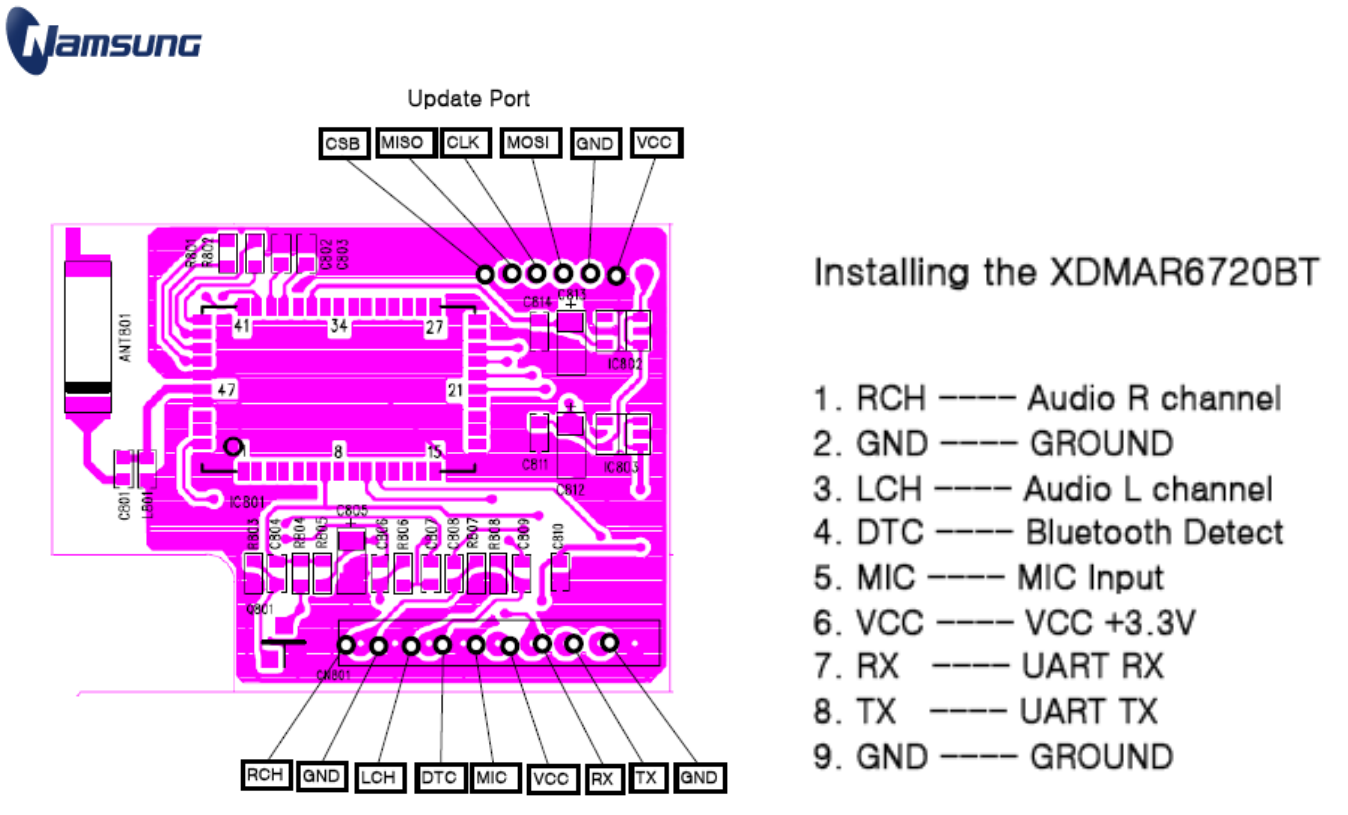

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

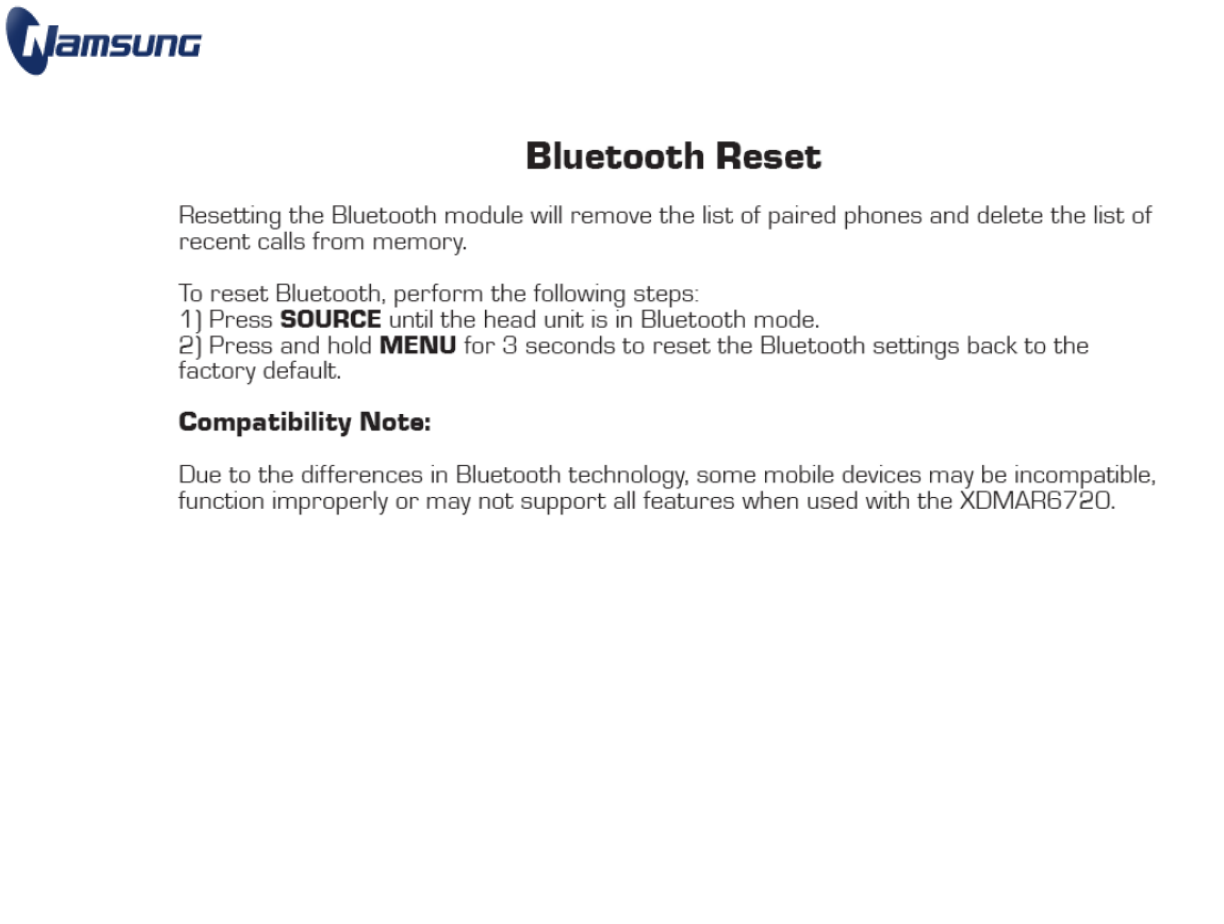

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

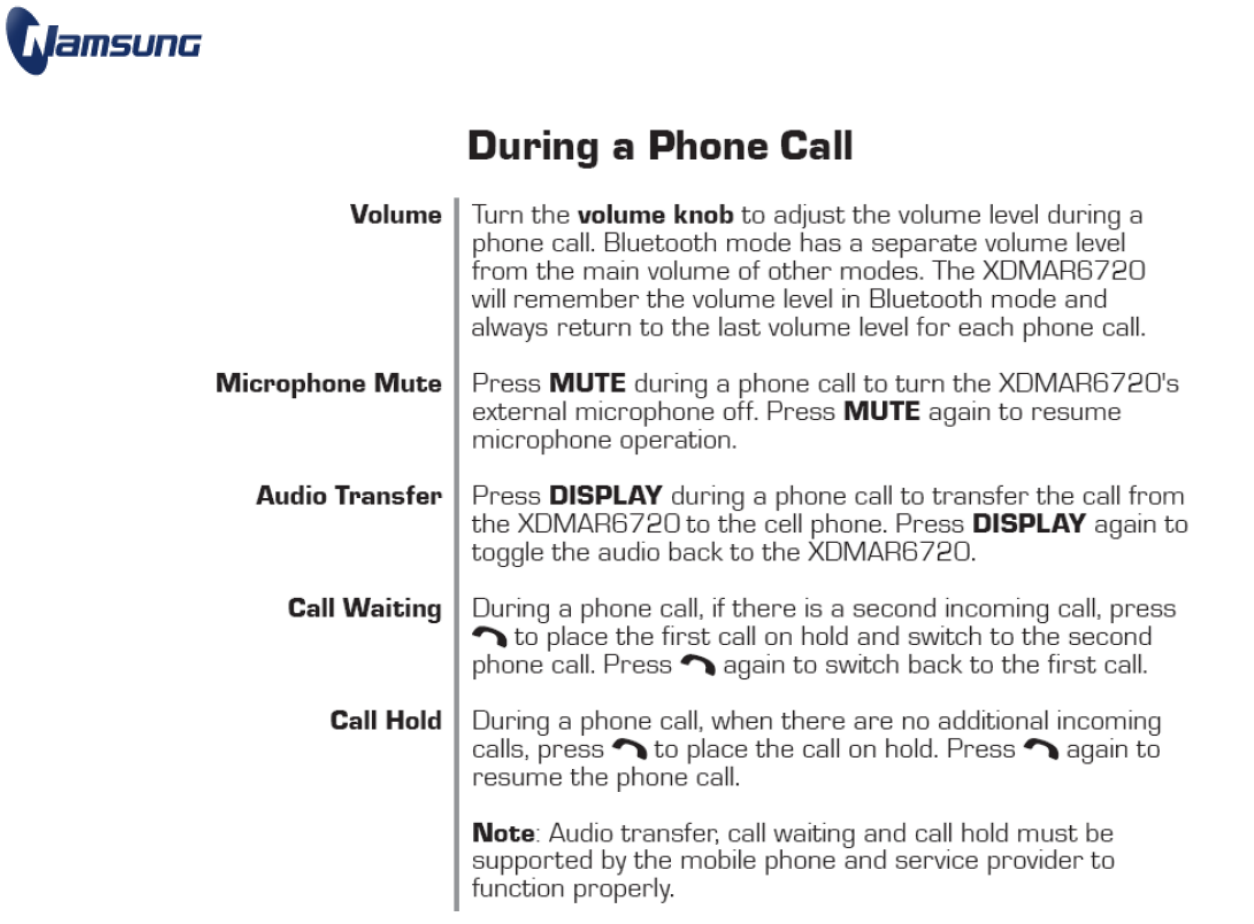

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

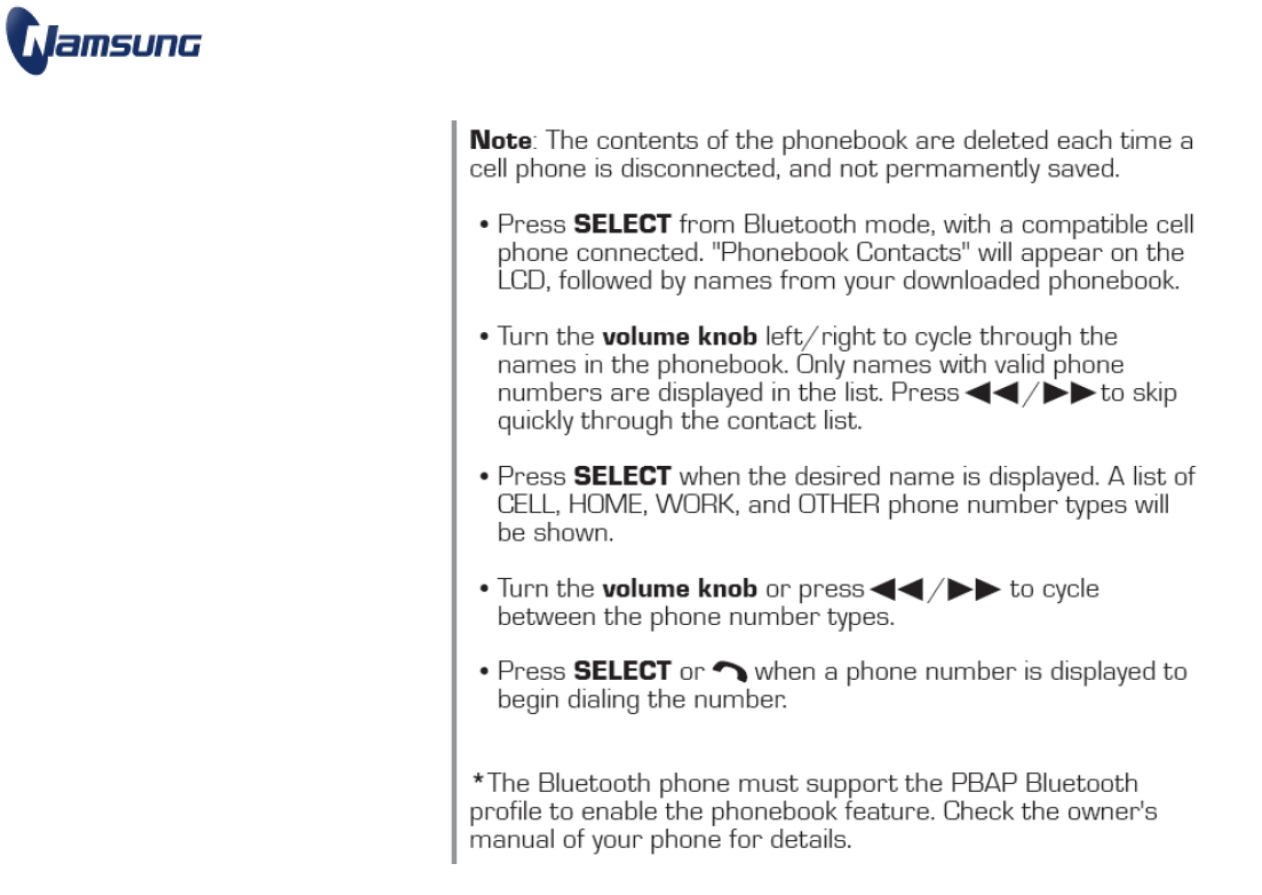

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

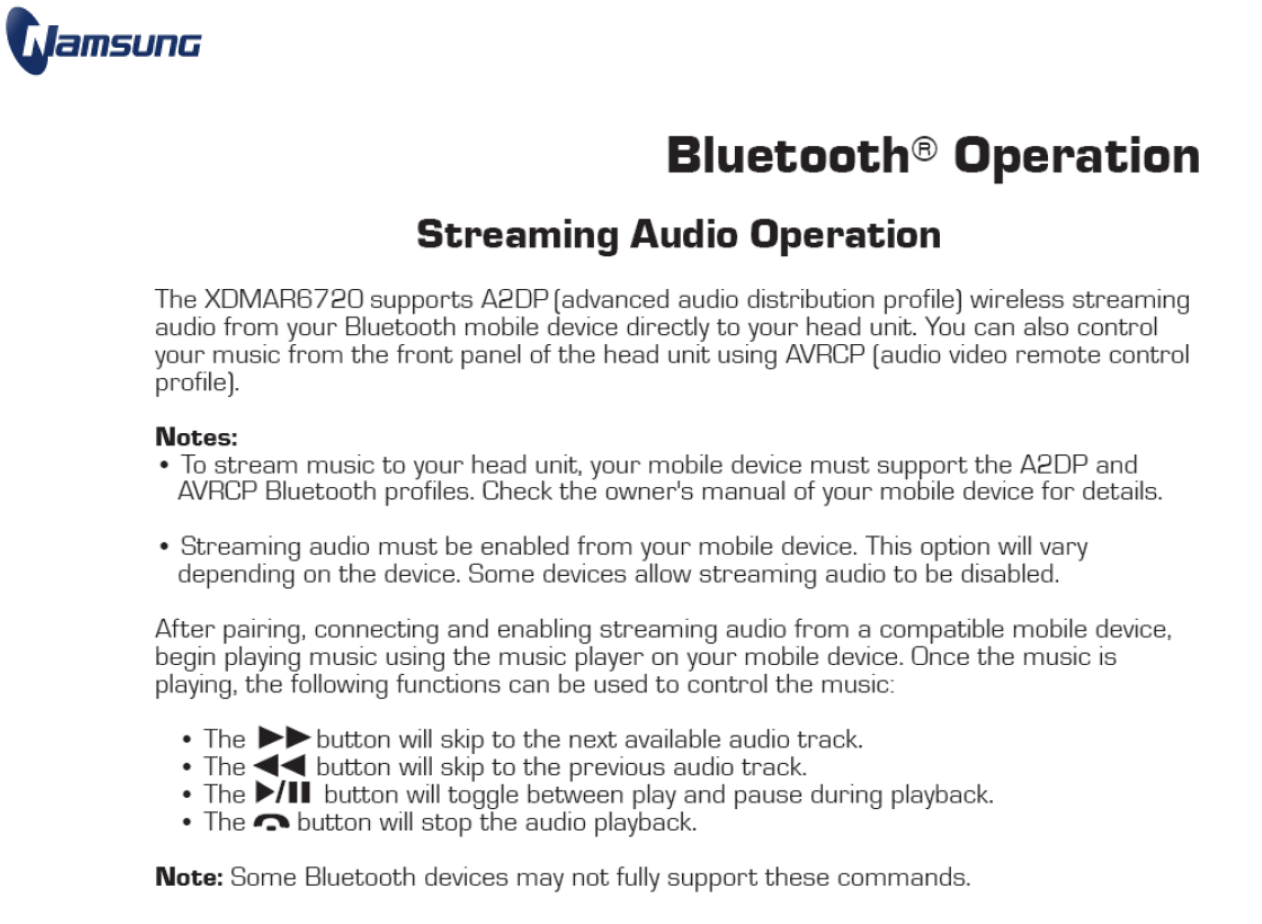

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

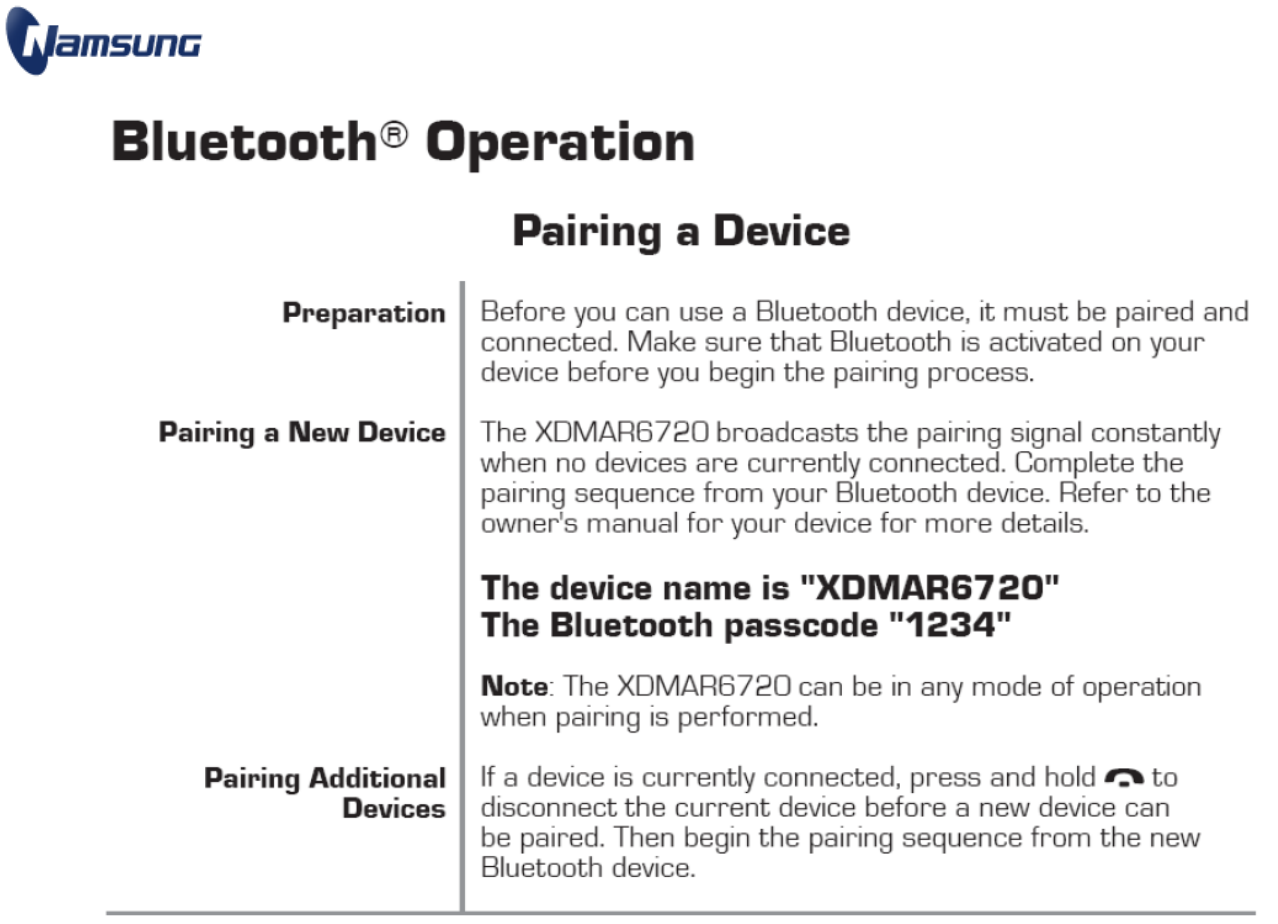

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

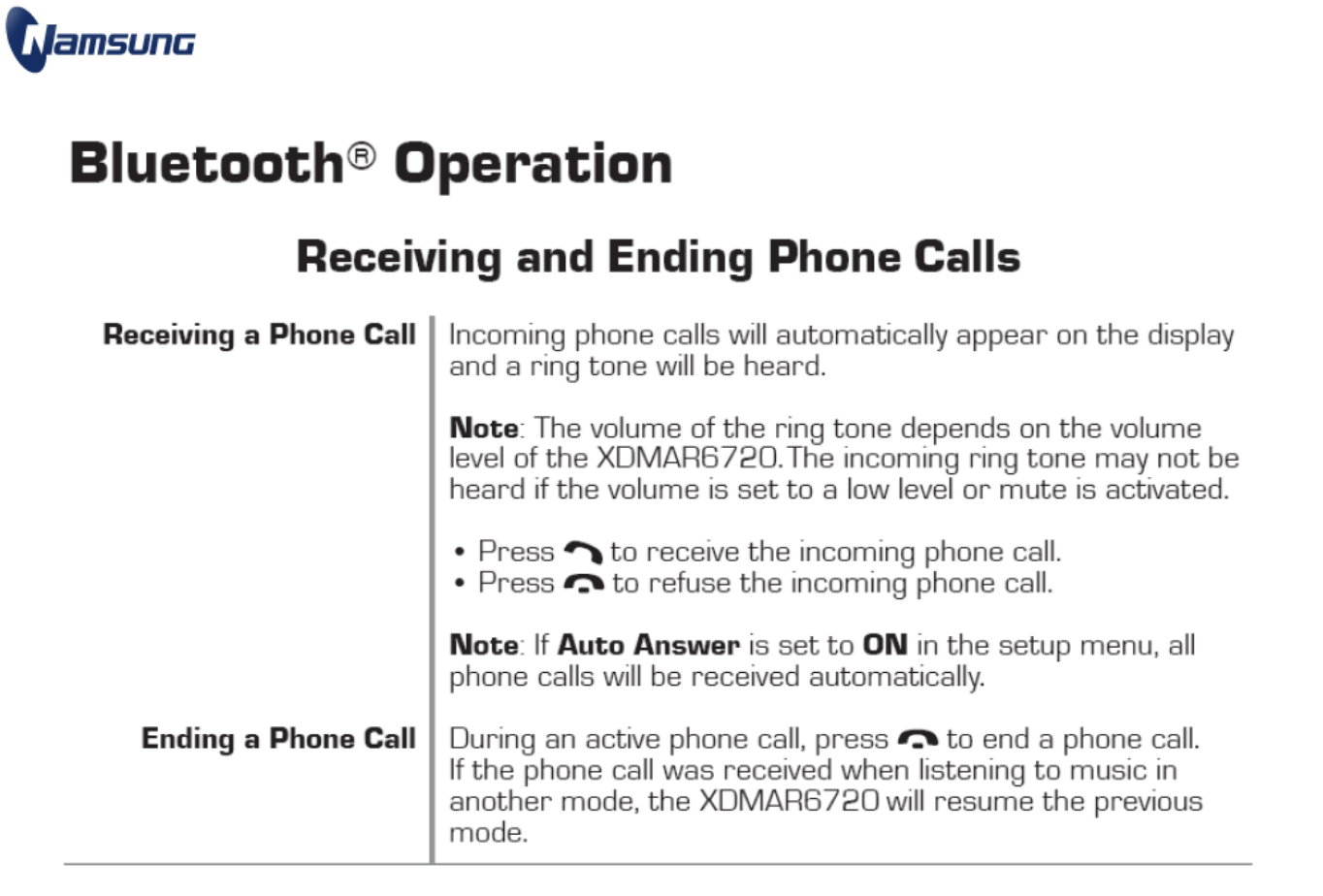

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

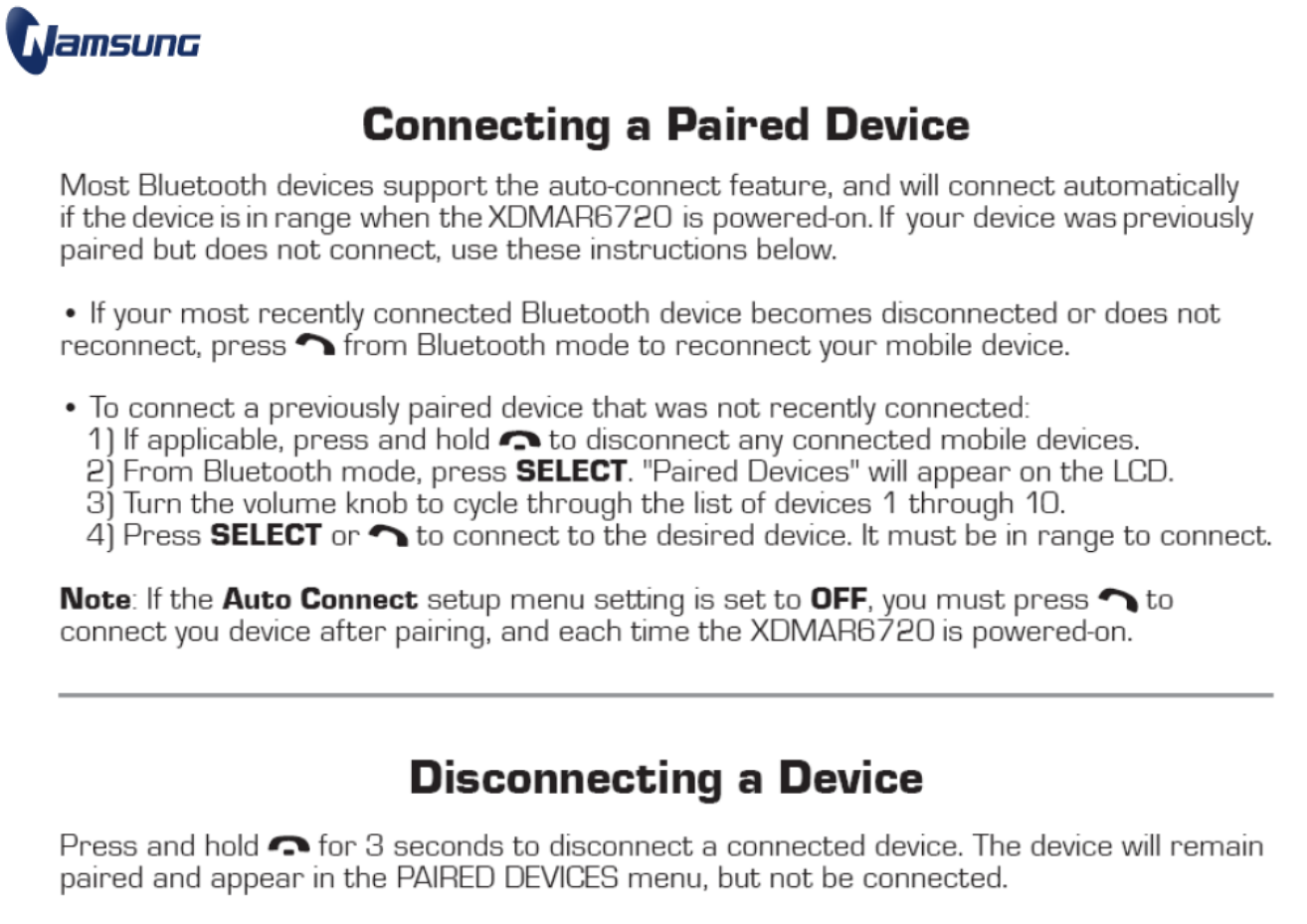

XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com
XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com

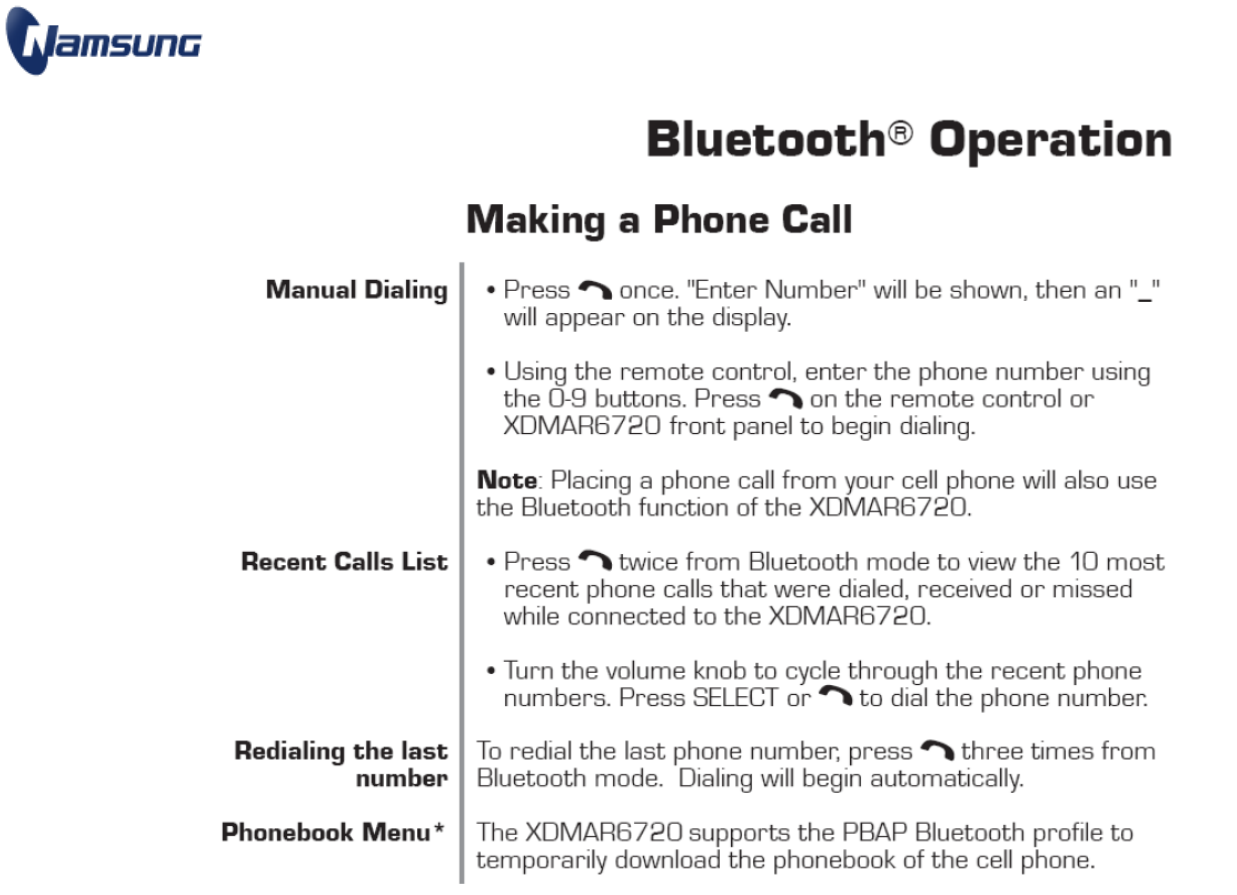

Specifications
XDMAR6720BT
Frequency Range
2 402 ~ 2 480 MHz
Modulation Method
FHSS (Frequency Hopping Spread Spectrum)
Antenna Chips Antenna
The Number of Channel 79 Channels
Input Voltage DC 3.3V, 50 mAh
Operating Temperature Range 0 ~ +40 °C
Modulation Type 8-DPSK
Communication Mode Duplex
XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com
`
XDMAR6720BT
© 2011 All rights reserved Printed in Korea
http://www.namsung.com
FCC RF INTERFERENCE STATEMENT
FCCID : GJWXDMAR6720BT
NOTE :
The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other
than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form,
provided the user can reasonably be expected to have the capability to access information in that form.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacturer could void the users authority to operate such equipment
