USERS MANUAL

GENERAL DESCRIPTION
The GEM-KEYF is a multifunction pendant/keychain trans-
mitter compatible with Napco GEM-Series wireless systems. It
serves as an area arm/disarm device with two auxiliary functions,
and may be used as a police panic and/or auxiliary emergency
transmitter. A 3V Lithium coin cell battery (type CR2032) powers
the GEM-KEYF transmitter. A flashing LED indication signals a
low-battery warning to replace the unit.
The GEM-KEYF leaves the factory as a remote area arm/
disarm transmitter with two Auxiliary buttons, A1 and A2. Auxil-
iary functions are selected by programming Key Fob Transmitter
Aux 1 and Aux 2 options: Panic, Auxiliary, or Instant protection.
In addition, any of the panel's Relay Groups may be selected for
controlling garage doors, exterior lighting, or other applications
requiring external relays (RM3000 Relay Modules, optional).
Note: The Aux 1 Button and Aux 2 Button must each be held
down for approximately 2 seconds before the respective signal
will be sent. The LED will light while the unit is transmitting.
Low-Battery Check. The batteries are checked automatically
during any transmission. A low-battery condition will cause the
LED to come on and start pulsing for approximately 30 seconds;
a low-battery report will be sent to the receiver.
REQUIRED PROGRAMMING
The following information is required for each unit. Refer to the
instructions for the control panel and keypad in use for detailed
programming information.
An assigned Key Fob transmitter number
Area number(s) to which transmitter is applicable
The 6-digit RF ID code with checksum digit printed on the
transmitter (enter all numbers and/or letters, including leading
zeros, if any)
Aux-1 option and Aux-2 option
Note: In UL burglar alarm installations:
(1) If the GEM-KEYF is used to arm and/or disarm the sys-
tem, the control panel must be programmed to provide a
single chirp on arming and a double chirp on disarming. A
listed alarm bell or horn is to be used.
(2) Program the burglary output for all protection devices.
BATTERY REPLACEMENT
1. Remove keyring from the keyring loop.
2. Carefully insert the edge of a small coin in the notch lo-
cated in the bottom right corner of the Key-Fob (near the
keyring loop). Open the case by gently twisting the coin.
Lift off the top cover.
3. With the bottom half of the Key-Fob facing upwards, care-
fully remove the circuit board.
4. On the bottom side of the circuit board, push the battery
out of its metal holder with a sharp pencil. The battery will
slide out of its holder as shown in the image below. Note
the orientation of the battery polarity, with its positive side
up, before fully removing the battery.
5. Replace with a new battery, positive (+) side up, by slid-
ing the battery into its metal bracket. Be certain of battery
polarity before installation.
6. Reassemble the case by first placing the circuit board, bat-
tery side down, into the Key-Fob base. Place the top of
the Key-Fob (with its rubber button/gasket in place) on the
Key-Fob base and press to snap the two Key-Fob pieces
together.
7. Test the Key-Fob operation.
BUTTON REPLACEMENT
Factory supplied auxiliary buttons can be installed to operate
other items, such as outdoor lights. Install as follows:
1. Open the Key-Fob as per the Battery Replacement in-
structions (above) step 1.
2. With the top cover off, lift and remove the rubber buttons
from the inside of the top
cover.
3. Replace the rubber buttons
with the secondary buttons,
(shown at right) reassem-
bling the Key-Fob in the re-
verse order of disassembly.
4. Test the Key-Fob operation.
R
GEM-KEYF
Key-Fob
Transmitter
WI1361.08 5/06
© NAPCO 2006

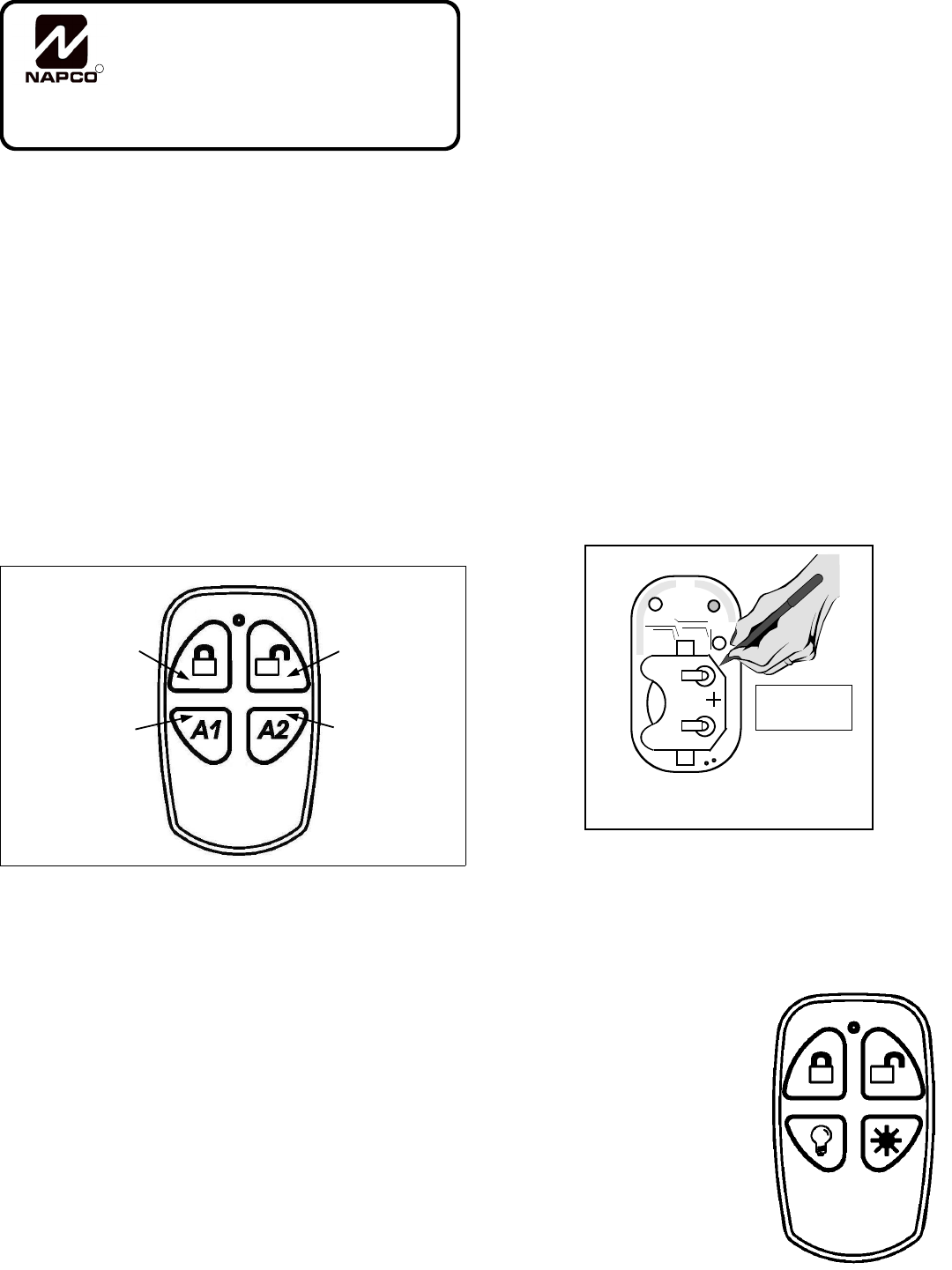

Factory-Supplied Functions: Arm, Disarm, Aux. 1 and Aux. 2
ARM
AUX. 1
DISARM
AUX. 2
Battery Replacement: Top View
of Bottom Circuit Board
© NAPCO
06022
2032
Insert pencil and
push battery out of
holder as shown
Napco Security Systems, Inc.
333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
NAPCO SECURITY SYSTEMS, INC.
(NAPCO) warrants its products to be free
from manufacturing defects in materials
and workmanship for thirty-six months
following the date of manufacture.
NAPCO will, within said period, at its op-
tion, repair or replace any product failing
to operate correctly without charge to the original purchaser or
user.
This warranty shall not apply to any equipment, or any
part thereof, which has been repaired by others, improperly
installed, improperly used, abused, altered, damaged, sub-
jected to acts of God, or on which any serial numbers have
been altered, defaced or removed. Seller will not be responsi-
ble for any dismantling or reinstallation charges.
THERE ARE NO WARRANTIES, EXPRESS OR IM-
PLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON
THE FACE HEREOF. THERE IS NO EXPRESS OR IM-
PLIED WARRANTY OF MERCHANT ABILITY OR A WAR-
RANTY OF FITNESS FOR A PARTICULAR PURPOSE. AD-
DITIONALLY, THIS WARRANTY IS IN LIEU OF ALL OTHER
OBLIGATIONS OR LIABILITIES ON THE PART OF NAPCO.
Any action for breach of warranty, including but not limited
to any implied warranty of merchant ability, must be brought
within the six months following the end of the warranty period.
IN NO CASE SHALL NAPCO BE LIABLE TO ANYONE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS OR ANY OTHER WARRANTY, EX-
PRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS
CAUSED BY THE SELLER'S OWN NEGLIGENCE OR
FAULT.
In case of defect, contact the security professional who
installed and maintains your security system. In order to exer-
cise the warranty, the product must be returned by the secu-
rity professional, shipping costs prepaid and insured to
NAPCO. After repair or replacement, NAPCO assumes the
cost of returning products under warranty. NAPCO shall have
no obligation under this warranty, or otherwise, if the product
has been repaired by others, improperly installed, improperly
used, abused, altered, damaged, subjected to accident, nui-
sance, flood, fire or acts of God, or on which any serial num-
bers have been altered, defaced or removed. NAPCO will not
be responsible for any dismantling, reassembly or reinstalla-
tion charges.
This warranty contains the entire warranty. It is the sole
warranty and any prior agreements or representations,
whether oral or written, are either merged herein or are ex-
pressly canceled. NAPCO neither assumes, nor authorizes
any other person purporting to act on its behalf to modify, to
change, or to assume for it, any other warranty or liability con-
cerning its products. In no event shall NAPCO be liable for an
amount in excess of NAPCO's original selling price of the
product, for any loss or damage, whether direct, indirect, inci-
dental, consequential, or otherwise arising out of any failure of
the product. Seller's warranty, as herein above set forth, shall
not be enlarged, diminished or affected by and no obligation
or liability shall arise or grow out of Seller's rendering of techni-
cal advice or service in connection with Buyer's order of the
goods furnished thereunder.
NAPCO RECOMMENDS THAT THE ENTIRE SYSTEM
BE COMPLETELY TESTED WEEKLY.
Warning: Despite frequent testing, and due to, but not lim-
ited to, any or all of the following; criminal tampering, electrical
or communications disruption, it is possible for the system to
fail to perform as expected. NAPCO does not represent that
the product/system may not be compromised or circum-
vented; or that the product or system will prevent any personal
injury or property loss by burglary, robbery, fire or otherwise;
nor that the product or system will in all cases provide ade-
quate warning or protection. A properly installed and main-
tained alarm may only reduce risk of burglary, robbery, fire or
otherwise but it is not insurance or a guarantee that these
events will not occur. CONSEQUENTLY, SELLER SHALL
HAVE NO LIABILITY FOR ANY PERSONAL INJURY,
PROPERTY DAMAGE, OR OTHER LOSS BASED ON A
CLAIM THE PRODUCT FAILED TO GIVE WARNING.
Therefore, the installer should in turn advise the consumer to
take any and all precautions for his or her safety including, but
not limited to, fleeing the premises and calling police or fire
department, in order to mitigate the possibilities of harm and/
or damage.
NAPCO is not an insurer of either the property or safety of
the user's family or employees, and limits its liability for any
loss or damage including incidental or consequential dam-
ages to NAPCO's original selling price of the product regard-
less of the cause of such loss or damage.
Some states do not allow limitations on how long an im-
plied warranty lasts or do not allow the exclusion or limitation
of incidental or consequential damages, or differentiate in their
treatment of limitations of liability for ordinary or gross negli-
gence, so the above limitations or exclusions may not apply to
you. This Warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
R
NAPCO SECURITY LIMITED WARRANTY
