User’s Manual

Printed in Japan

78K/0 Series

Instructions

Document No. U12326EJ4V0UM00 (4th edition)

Date Published October 2001 N CP(K)

1995

Common to 78K/0 Series

2User's Manual U12326EJ4V0UM

[MEMO]

User's Manual U12326EJ4V0UM

Caution: Purchase of NEC I2C components conveys a license under the Philips I2C Patent Rights to use these

components in an I2C system, provided that the system conforms to the I2C Standard Specification as

defined by Philips.

IEBus is a trademark of NEC Corporation.

NOTES FOR CMOS DEVICES

1 PRECAUTION AGAINST ESD FOR SEMICONDUCTORS

Note:

Strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and

ultimately degrade the device operation. Steps must be taken to stop generation of static electricity

as much as possible, and quickly dissipate it once, when it has occurred. Environmental control

must be adequate. When it is dry, humidifier should be used. It is recommended to avoid using

insulators that easily build static electricity. Semiconductor devices must be stored and transported

in an anti-static container, static shielding bag or conductive material. All test and measurement

tools including work bench and floor should be grounded. The operator should be grounded using

wrist strap. Semiconductor devices must not be touched with bare hands. Similar precautions need

to be taken for PW boards with semiconductor devices on it.

2 HANDLING OF UNUSED INPUT PINS FOR CMOS

Note:

No connection for CMOS device inputs can be cause of malfunction. If no connection is provided

to the input pins, it is possible that an internal input level may be generated due to noise, etc., hence

causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels

of CMOS devices must be fixed high or low by using a pull-up or pull-down circuitry. Each unused

pin should be connected to V

or GND with a resistor, if it is considered to have a possibility of

being an output pin. All handling related to the unused pins must be judged device by device and

related specifications governing the devices.

3 STATUS BEFORE INITIALIZATION OF MOS DEVICES

Note:

Power-on does not necessarily define initial status of MOS device. Production process of MOS

does not define the initial operation status of the device. Immediately after the power source is

turned ON, the devices with reset function have not yet been initialized. Hence, power-on does

not guarantee out-pin levels, I/O settings or contents of registers. Device is not initialized until the

reset signal is received. Reset operation must be executed immediately after power-on for devices

having reset function.

4User's Manual U12326EJ4V0UM

The export of these products from Japan is regulated by the Japanese government. The export of some or all of these

products may be prohibited without governmental license. To export or re-export some or all of these products from a

country other than Japan may also be prohibited without a license from that country. Please call an NEC sales

representative.

M8E 00. 4

The information in this document is current as of August, 2001. The information is subject to

change without notice. For actual design-in, refer to the latest publications of NEC's data sheets or

data books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all

products and/or types are available in every country. Please check with an NEC sales representative

for availability and additional information.

No part of this document may be copied or reproduced in any form or by any means without prior

written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.

NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of

third parties by or arising from the use of NEC semiconductor products listed in this document or any other

liability arising from the use of such products. No license, express, implied or otherwise, is granted under any

patents, copyrights or other intellectual property rights of NEC or others.

Descriptions of circuits, software and other related information in this document are provided for illustrative

purposes in semiconductor product operation and application examples. The incorporation of these

circuits, software and information in the design of customer's equipment shall be done under the full

responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third

parties arising from the use of these circuits, software and information.

While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers

agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize

risks of damage to property or injury (including death) to persons arising from defects in NEC

semiconductor products, customers must incorporate sufficient safety measures in their design, such as

redundancy, fire-containment, and anti-failure features.

NEC semiconductor products are classified into the following three quality grades:

"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products

developed based on a customer-designated "quality assurance program" for a specific application. The

recommended applications of a semiconductor product depend on its quality grade, as indicated below.

Customers must check the quality grade of each semiconductor product before using it in a particular

application.

"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio

and visual equipment, home electronic appliances, machine tools, personal electronic equipment

and industrial robots

"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed

for life support)

"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems and medical equipment for life support, etc.

The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's

data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not

intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness

to support a given application.

(Note)

(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.

(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for

NEC (as defined above).

•

User's Manual U12326EJ4V0UM

Regional Information

Some information contained in this document may vary from country to country. Before using any NEC

product in your application, pIease contact the NEC office in your country to obtain a list of authorized

representatives and distributors. They will verify:

•

Device availability

•

Ordering information

•

Product release schedule

•

Availability of related technical literature

•

Development environment specifications (for example, specifications for third-party tools and

components, host computers, power plugs, AC supply voltages, and so forth)

•

Network requirements

In addition, trademarks, registered trademarks, export restrictions, and other legal issues may also vary

from country to country.

NEC Electronics Inc. (U.S.)

Santa Clara, California

Tel: 408-588-6000

800-366-9782

Fax: 408-588-6130

800-729-9288

NEC Electronics (Germany) GmbH

Duesseldorf, Germany

Tel: 0211-65 03 02

Fax: 0211-65 03 490

NEC Electronics (UK) Ltd.

Milton Keynes, UK

Tel: 01908-691-133

Fax: 01908-670-290

NEC Electronics Italiana s.r.l.

Milano, Italy

Tel: 02-66 75 41

Fax: 02-66 75 42 99

NEC Electronics (Germany) GmbH

Benelux Office

Eindhoven, The Netherlands

Tel: 040-2445845

Fax: 040-2444580

NEC Electronics (France) S.A.

Velizy-Villacoublay, France

Tel: 01-3067-5800

Fax: 01-3067-5899

NEC Electronics (France) S.A.

Madrid Office

Madrid, Spain

Tel: 091-504-2787

Fax: 091-504-2860

NEC Electronics (Germany) GmbH

Scandinavia Office

Taeby, Sweden

Tel: 08-63 80 820

Fax: 08-63 80 388

NEC Electronics Hong Kong Ltd.

Hong Kong

Tel: 2886-9318

Fax: 2886-9022/9044

NEC Electronics Hong Kong Ltd.

Seoul Branch

Seoul, Korea

Tel: 02-528-0303

Fax: 02-528-4411

NEC Electronics Singapore Pte. Ltd.

Novena Square, Singapore

Tel: 253-8311

Fax: 250-3583

NEC Electronics Taiwan Ltd.

Taipei, Taiwan

Tel: 02-2719-2377

Fax: 02-2719-5951

NEC do Brasil S.A.

Electron Devices Division

Guarulhos-SP, Brasil

Tel: 11-6462-6810

Fax: 11-6462-6829

J01.2

6User's Manual U12326EJ4V0UM

Major Revisions in This Edition

Page Description

Throughout Deletion of all information except for information common to

the 78K/0 Series (for individual product information, refer to the

user’s manual of each product).

The mark shows major revised points.

User's Manual U12326EJ4V0UM

INTRODUCTION

Target Readers This manual is intended for users who wish to understand the functions of

78K/0 Series products and to design and develop its application systems and

programs.

Purpose This manual is intended to give users an understanding of the various kinds of

instruction functions of 78K/0 Series products.

Organization This manual is broadly divided into the following sections.

• CPU functions

• Instruction set

• Explanation of instructions

How to Read This Manual It is assumed that readers of this manual have general knowledge in the fields of

electrical engineering, logic circuits, and microcontrollers.

• To check the details of the functions of an instruction whose mnemonic is known:

→Refer to APPENDICES B and C.

• To check an instruction whose mnemonic is not known but whose general

function is known:

→Find the mnemonic in CHAPTER 4 INSTRUCTION SET and then check the

detailed functions in CHAPTER 5 EXPLANATION OF INSTRUCTIONS.

• To learn about the various kinds of 78K/0 Series product instructions in general:

→Read this manual in the order of CONTENTS.

• To learn about the hardware functions of 78K/0 Series products:

→See the separate user’s manuals.

Conventions Data significance: Higher digits on the left and lower digits on the right

Note: Footnote for item marked with Note in the text

Caution: Information requiring particular attention

Remark: Supplementary information

Numeral representation: Binary................. XXXX or XXXXB

Decimal .............. XXXX

Hexadecimal...... XXXXH

8User's Manual U12326EJ4V0UM

Related Documents

The related documents indicated in this publication may include preliminary versions. However, preliminary

versions are not marked as such.

• Documents Common to 78K/0 Series

Document Name Document No.

User’s Manual Instructions This manual

Application NoteNote Basic I U12704E

Basic II U10121E

Basic III U10182E

Note Some subseries may not be covered.

Caution The related documents listed above are subject to change without notice. Be sure to use the

latest version of each document for designing.

User's Manual U12326EJ4V0UM

CONTENTS

CHAPTER 1 MEMORY SPACE ...............................................................................................................12

1.1 Memory Spaces ................................................................................................................12

1.2 Internal Program Memory (Internal ROM) Space ..........................................................12

1.3 Vector Table Area .............................................................................................................12

1.4 CALLT Instruction Table Area.........................................................................................12

1.5 CALLF Instruction Entry Area .........................................................................................12

1.6 Internal Data Memory (Internal RAM) Space ..................................................................12

1.7 Special Function Register (SFR) Area............................................................................13

1.8 External Memory Space ...................................................................................................13

1.9 IEBusTM Register Area ......................................................................................................13

CHAPTER 2 REGISTERS ........................................................................................................................14

2.1 Control Registers .............................................................................................................14

2.1.1 Program counter (PC) ......................................................................................................... 14

2.1.2 Program status word (PSW) ............................................................................................... 14

2.1.3 Stack pointer (SP) ................................................................................................................ 16

2.2 General-Purpose Registers .............................................................................................17

2.3 Special Function Registers (SFRs) .................................................................................19

CHAPTER 3 ADDRESSING .....................................................................................................................20

3.1 Instruction Address Addressing .....................................................................................20

3.1.1 Relative addressing ............................................................................................................. 20

3.1.2 Immediate addressing ......................................................................................................... 21

3.1.3 Table indirect addressing ................................................................................................... 22

3.1.4 Register addressing ............................................................................................................ 23

3.2 Operand Address Addressing ........................................................................................24

3.2.1 Implied addressing .............................................................................................................. 24

3.2.2 Register addressing ............................................................................................................ 25

3.2.3 Direct addressing ................................................................................................................ 26

3.2.4 Short direct addressing ...................................................................................................... 27

3.2.5 Special-function register (SFR) addressing ...................................................................... 28

3.2.6 Register indirect addressing .............................................................................................. 29

3.2.7 Based addressing ................................................................................................................ 30

3.2.8 Based indexed addressing ................................................................................................. 30

3.2.9 Stack addressing ................................................................................................................. 31

CHAPTER 4 INSTRUCTION SET ............................................................................................................32

4.1 Operation ..........................................................................................................................32

4.1.1 Operand identifiers and description methods .................................................................. 32

4.1.2 Description of “operation” column .................................................................................... 33

4.1.3 Description of “flag operation” column ............................................................................ 33

4.1.4 Description of number of clocks ........................................................................................ 34

4.1.5 Instructions listed by addressing type .............................................................................. 34

4.2 Instruction Codes .............................................................................................................38

4.2.1 Description of instruction code table ................................................................................ 38

4.2.2 Instruction code list............................................................................................................. 39

10 User's Manual U12326EJ4V0UM

CHAPTER 5 EXPLANATION OF INSTRUCTIONS .................................................................................46

5.1 8-Bit Data Transfer Instructions ......................................................................................48

5.2 16-Bit Data Transfer Instructions....................................................................................51

5.3 8-Bit Operation Instructions ............................................................................................54

5.4 16-Bit Operation Instructions ..........................................................................................63

5.5 Multiply/Divide Instructions ............................................................................................67

5.6 Increment/Decrement Instructions .................................................................................70

5.7 Rotate Instructions ...........................................................................................................75

5.8 BCD Adjust Instructions ..................................................................................................82

5.9 Bit Manipulation Instructions ..........................................................................................85

5.10 Call Return Instructions ...................................................................................................93

5.11 Stack Manipulation Instructions ...................................................................................101

5.12 Unconditional Branch Instruction ................................................................................105

5.13 Conditional Branch Instructions ................................................................................... 107

5.14 CPU Control Instructions ..............................................................................................116

APPENDIX A REVISION HISTORY .....................................................................................................123

APPENDIX B INSTRUCTION INDEX (MNEMONIC: BY FUNCTION) .............................................124

APPENDIX C INSTRUCTION INDEX (MNEMONIC: IN ALPHABETICAL ORDER) ......................126

User's Manual U12326EJ4V0UM

LIST OF FIGURES

Figure No. Title Page

2-1 Program Counter Configuration.............................................................................................................. 14

2-2 Program Status Word Configuration....................................................................................................... 14

2-3 Stack Pointer Configuration .................................................................................................................... 16

2-4 Data to Be Saved to Stack Memory ....................................................................................................... 16

2-5 Data to Be Reset from Stack Memory .................................................................................................... 16

2-6 General-Purpose Register Configuration ............................................................................................... 18

LIST OF TABLES

Table No. Title Page

2-1 General-Purpose Register Absolute Address Correspondence Table ..................................................... 17

4-1 Operand Identifiers and Description Methods .......................................................................................... 32

12 User's Manual U12326EJ4V0UM

CHAPTER 1 MEMORY SPACE

1.1 Memory Spaces

The 78K/0 Series product program memory map varies depending on the internal memory capacity. For details

of memory-mapped address area, refer to the user’s manual of each product.

1.2 Internal Program Memory (Internal ROM) Space

Each 78K/0 Series product has internal ROM in the address space. Program and table data, etc. are stored

in the ROM. Normally, this memory space is addressed by the program counter (PC). For details of the internal

ROM space, refer to the user’s manual of each product.

1.3 Vector Table Area

The 64-byte area 0000H to 003FH is reserved as a vector table area. The program start addresses for branch

upon RESET input or interrupt request generation are stored in the vector table area. Of the 16-bit address, the

lower 8 bits are stored at even addresses and the higher 8 bits are stored at odd addresses. For the vector table

area, refer to the user’s manual of each product.

1.4 CALLT Instruction Table Area

The 64-byte area 0040H to 007FH can store the subroutine entry address of a 1-byte call instruction (CALLT).

1.5 CALLF Instruction Entry Area

The 2048-byte area 0800H to 0FFFH can perform a direct subroutine call with a 2-byte call instruction (CALLF).

1.6 Internal Data Memory (Internal RAM) Space

78K/0 Series products incorporate the following RAMs. For details of these RAMs, refer to the user’s manual

of each product.

(1) Internal high-speed RAM

Each 78K/0 Series product incorporates an internal high-speed RAM. In the 32-byte area FEE0H to FEFFH

of these areas, 4 banks of general-purpose registers, each bank consisting of eight 8-bit registers, are

allocated.

The internal high-speed RAM can also be used as a stack memory.

(2) Buffer RAM

There are some products in the 78K/0 Series to which buffer RAM is allocated. This RAM is used to store

the transfer/receive data of serial interface channel 1 (3-wire serial I/O mode with automatic transfer/receive

function). If not used in this mode, the buffer RAM can also be used as an ordinary RAM area.

CHAPTER 1 MEMORY SPACE

User's Manual U12326EJ4V0UM

(3) RAM for VFD display

There are some products in the 78K/0 Series to which RAM for VFD display is allocated. This RAM can

also be used as an ordinary RAM area.

(4) Internal expansion RAM

There are some products in the 78K/0 Series to which internal expansion RAM is allocated.

(5) RAM for LCD display

There are some products in the 78K/0 Series to which RAM for LCD display is allocated. This RAM can

also be used as an ordinary RAM area.

1.7 Special Function Register (SFR) Area

On-chip peripheral hardware special function registers (SFRs) are allocated in the area FF00H to FFFFH (for

details of the special function registers, refer to the user’s manual of each product).

Caution Do not access addresses to which SFRs are not allocated. If an address is erroneously

accessed, the CPU may become deadlocked.

1.8 External Memory Space

This is an external memory space that can be accessed by setting the memory extension mode register. This

space can store program and table data, and be assigned peripheral devices.

For details of the products in which an external memory space can be used, refer to the user’s manual of each

product.

1.9 IEBusTM Register Area

IEBus registers that are used to control the IEBus controller are allocated to the IEBus register area.

For details of the products that incorporate an IEBus controller, refer to the user’s manual of each product.

14 User's Manual U12326EJ4V0UM

CHAPTER 2 REGISTERS

2.1 Control Registers

The control registers control the program sequence, statuses and stack memory. A program counter, a program

status word and a stack pointer are the control registers.

2.1.1 Program counter (PC)

The program counter is a 16-bit register that holds the address information of the next program to be executed.

In normal operation, the PC is automatically incremented according to the number of bytes of the instruction

to be fetched. When a branch instruction is executed, immediate data and register contents are set.

RESET input sets the reset vector table values at addresses 0000H and 0001H to the program counter.

Figure 2-1. Program Counter Configuration

2.1.2 Program status word (PSW)

The program status word is an 8-bit register consisting of various flags to be set/reset by instruction execution.

Program status word contents are automatically stacked upon interrupt request generation or PUSH PSW

instruction execution and are automatically reset upon execution of the RETB, RETI and POP PSW instructions.

RESET input sets the PSW to 02H.

Figure 2-2. Program Status Word Configuration

15 0

IE Z RBS1 AC RBS0 0 ISP CY

CHAPTER 2 REGISTERS

User's Manual U12326EJ4V0UM

(1) Interrupt enable flag (IE)

This flag controls the interrupt request acknowledgement operations of the CPU.

When IE = 0, the IE flag is set to interrupt disable (DI), and interrupts other than non-maskable interrupts

are all disabled.

When IE = 1, the IE flag is set to interrupt enable (EI), and interrupt request acknowledgement is controlled

by an in-service priority flag (ISP), an interrupt mask flag for various interrupt sources, and a priority

specification flag.

This flag is reset (0) upon DI instruction execution or interrupt request acknowledgment and is set (1) upon

execution of the EI instruction.

(2) Zero flag (Z)

When the operation result is zero, this flag is set (1). It is reset (0) in all other cases.

(3) Register bank select flags (RBS0 and RBS1)

These are 2-bit flags used to select one of the four register banks.

In these flags, the 2-bit information that indicates the register bank selected by SBL RBn instruction

execution is stored.

(4) Auxiliary carry flag (AC)

If the operation result has a carry from bit 3 or a borrow at bit 3, this flag is set (1). It is reset (0) in all other

cases.

(5) In-service priority flag (ISP)

This flag manages the priority of acknowledgeable maskable vectored interrupts. When ISP = 0, vectored

interrupt requests specified as low priority by the priority specification flag register (PR) are disabled for

acknowledgment. Actual acknowledgment for interrupt requests is controlled by the state of the interrupt

enable flag (IE).

(6) Carry flag (CY)

This flag stores an overflow or underflow upon add/subtract instruction execution. It stores the shift-out

value upon rotate instruction execution and functions as a bit accumulator during bit manipulation

instruction execution.

CHAPTER 2 REGISTERS

User's Manual U12326EJ4V0UM

Interrupt and

BRK instructions

PSW

PC15-PC8

PC7-PC0

Lower half

SP SP _ 2

SP _ 2

CALL, CALLF and

CALLT instructions

PUSH rp

instruction

SP _ 1

SP SP _ 2

SP _ 2

SP _ 1

PC7-PC0

SP _ 3

SP _ 2

SP _ 1

SP SP _ 3

Upper half

2.1.3 Stack pointer (SP)

This is a 16-bit register that holds the start address of the memory stack area. Only the internal high-speed

RAM area can be set as the stack area.

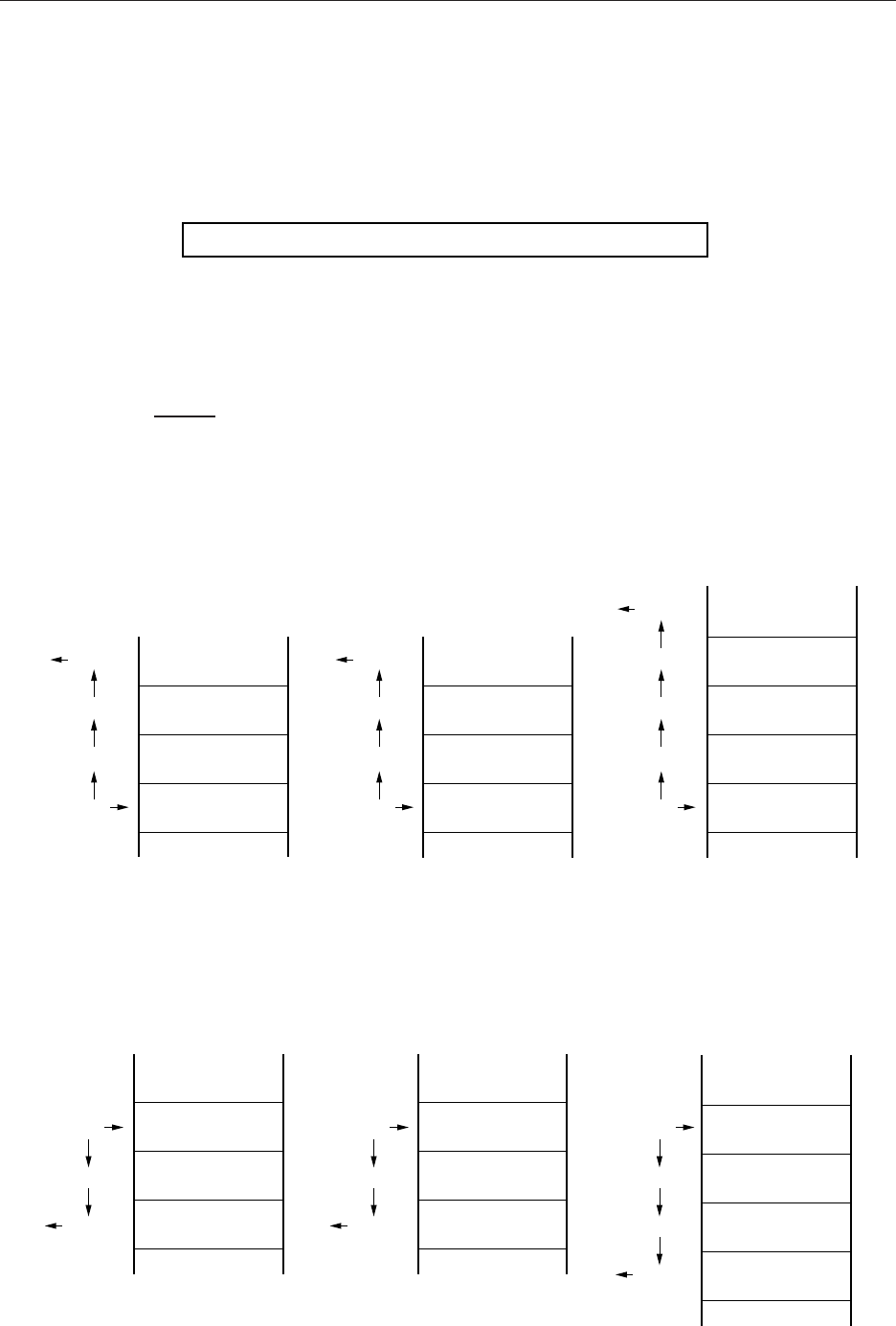

Figure 2-3. Stack Pointer Configuration

The SP is decremented ahead of write (save) to the stack memory and is incremented after read (reset) from

the stack memory.

Each stack operation saves/resets data as shown in Figures 2-4 and 2-5.

Caution Since RESET input makes SP contents undefined, be sure to initialize the SP before instruction

execution.

Figure 2-4. Data to Be Saved to Stack Memory

Figure 2-5. Data to Be Reset from Stack Memory

15 0

RETI and RETB

instructions

PSW

PC15-PC8

PC7-PC0

Lower half

RET instructionPOP rp

instruction

SP PC7-PC0

Upper half

SP + 1

SP SP + 2

SP + 1

SP SP + 2

SP + 1

SP + 2

SP SP + 3

CHAPTER 2 REGISTERS

User's Manual U12326EJ4V0UM

2.2 General-Purpose Registers

General-purpose registers are mapped at particular addresses (FEE0H to FEFFH) of the data memory. These

registers consist of 4 banks, each bank consisting of eight 8-bit registers (X, A, C, B, E, D, L and H).

In addition that each register can be used as an 8-bit register, two 8-bit registers in pairs can be used as a 16-

bit register (AX, BC, DE and HL).

General-purpose registers can be described in terms of functional names (X, A, C, B, E, D, L, H, AX, BC, DE

and HL) and absolute names (R0 to R7 and RP0 to RP3).

of the 4-register bank configuration, an efficient program can be created by switching between a register for normal

processing and a register for processing upon interrupt generation for each bank.

Table 2-1. General-Purpose Register Absolute Address Correspondence Table

Bank Name Register Absolute Address Bank Name Register Absolute Address

Functional Absolute Functional Absolute

Name Name Name Name

BANK0 H R7 FEFFH BANK2 H R7 FEEFH

L R6 FEFEH L R6 FEEEH

D R5 FEFDH D R5 FEEDH

E R4 FEFCH E R4 FEECH

B R3 FEFBH B R3 FEEBH

C R2 FEFAH C R2 FEEAH

A R1 FEF9H A R1 FEE9H

X R0 FEF8H X R0 FEE8H

BANK1 H R7 FEF7H BANK3 H R7 FEE7H

L R6 FEF6H L R6 FEE6H

D R5 FEF5H D R5 FEE5H

E R4 FEF4H E R4 FEE4H

B R3 FEF3H B R3 FEE3H

C R2 FEF2H C R2 FEE2H

A R1 FEF1H A R1 FEE1H

X R0 FEF0H X R0 FEE0H

CHAPTER 2 REGISTERS

User's Manual U12326EJ4V0UM

Figure 2-6. General-Purpose Register Configuration

(a) Absolute names

(b) Functional names

BANK0

BANK1

BANK2

BANK3

FEFFH

FEE0H R0

15 0 7 0

16-bit processing 8-bit processing

FEE7H

RP3

RP2

RP1

RP0

FEE8H

FEEFH

FEF0H

FEF7H

FEF8H

BANK0

BANK1

BANK2

BANK3

FEFFH

FEE0H X

15 0 7 0

16-bit processing 8-bit processing

FEE7H

FEE8H

FEEFH

FEF0H

FEF7H

FEF8H

CHAPTER 2 REGISTERS

User's Manual U12326EJ4V0UM

2.3 Special Function Registers (SFRs)

Unlike a general-purpose register, each special-function register has a special function.

Special function registers are allocated in the 256-byte area FF00H to FFFFH.

Special function registers can be manipulated, like general-purpose registers, by operation, transfer and bit

manipulation instructions. The manipulatable bit units (1, 8, and 16) differ depending on the special function

Each manipulation bit unit can be specified as follows.

• 1-bit manipulation

Describes a symbol reserved by the assembler for the 1-bit manipulation instruction operand (sfr.bit). This

manipulation can also be specified by an address.

• 8-bit manipulation

Describes a symbol reserved by the assembler for the 8-bit manipulation instruction operand (sfr). This

manipulation can also be specified by an address.

• 16-bit manipulation

Describes a symbol reserved by the assembler for the 16-bit manipulation instruction operand (sfrp). When

addressing an address, describe an even address.

For details of the special function registers, refer to the user’s manual of each product.

Caution Do not access addresses to which SFRs are not allocated. If an address is erroneously

accessed, the CPU may become deadlocked.

20 User's Manual U12326EJ4V0UM

CHAPTER 3 ADDRESSING

3.1 Instruction Address Addressing

An instruction address is determined by program counter (PC) contents. The PC contents are normally

incremented (+1 for each byte) automatically according to the number of bytes of an instruction to be fetched each

time another instruction is executed. When a branch instruction is executed, the branch destination information

is set to the PC and branched by the following addressing (for details of each instruction, refer to CHAPTER 5

EXPLANATION OF INSTRUCTIONS).

3.1.1 Relative addressing

[Function]

The value obtained by adding 8-bit immediate data (displacement value: jdisp8) of an instruction code to

the start address of the following instruction is transferred to the program counter (PC) and branched. The

displacement value is treated as signed two’s complement data (–128 to +127) and bit 7 becomes a sign

bit. In other words, in relative addressing, the value is relatively transferred to the range between –128 and

+127 from the start address of the following instruction.

This function is carried out when the “BR $addr16” instruction or a conditional branch instruction is executed.

[Illustration]

15 0

87 6

jdisp8

When S = 0, α indicates all bits "0".

When S = 1, α indicates all bits "1".

... PC is the start address of

the next instruction of

a BR instruction.

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

15 0

to fa

11 10

00001

643

CALLF

to fa

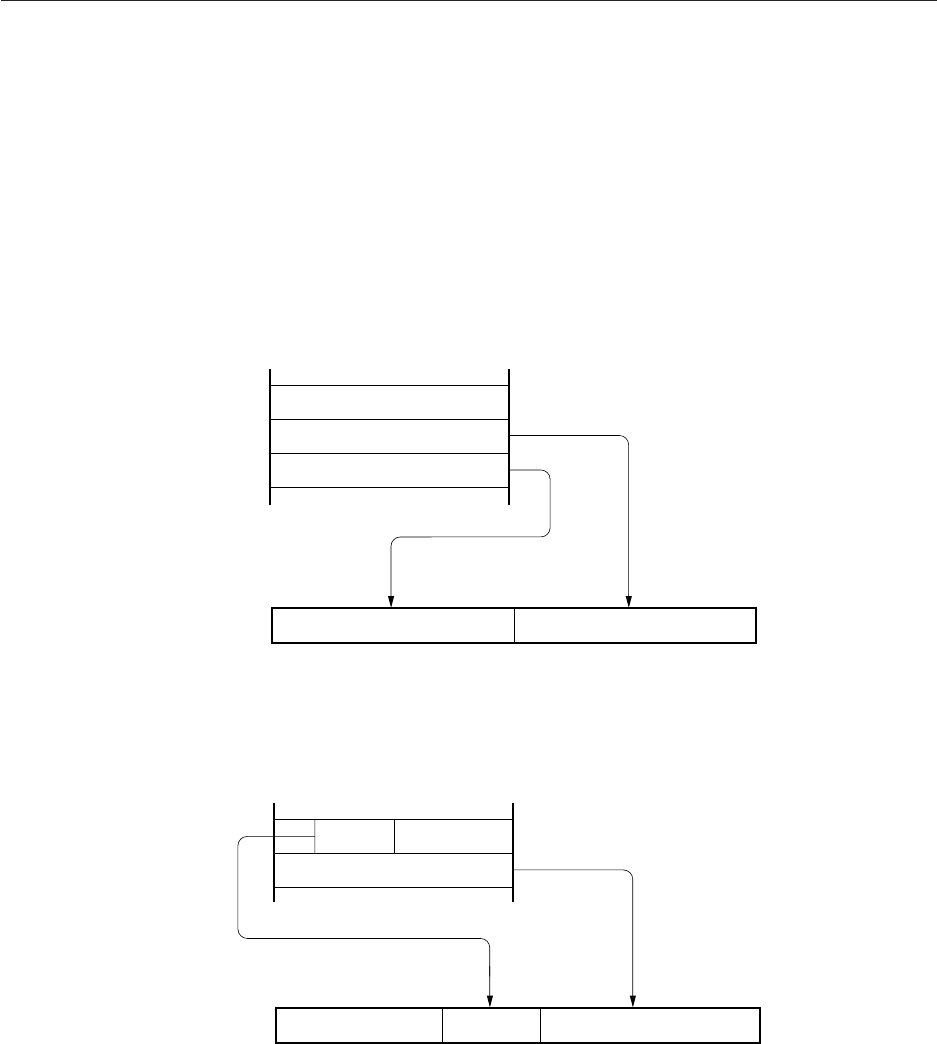

3.1.2 Immediate addressing

[Function]

Immediate data in the instruction word is transferred to the program counter (PC) and branched.

This function is carried out when the “CALL !addr16” or “BR !addr16” or “CALLF !addr11” instruction is

executed. The CALL !addr16 and BR !addr16 instructions can be branched to all memory spaces. The

CALLF !addr11 instruction is branched to the area of 0800H to 0FFFH.

[Illustration]

CALL !addr16, BR !addr16 instruction

CALLF !addr11 instruction

15 0

CALL or BR

Low Addr.

High Addr.

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

15 1

15 0

Low addr.

High addr.

Memory (Table)

Effective address+1

Effective address 01

00000000

65 0

111

765 10

4–0

Instruction code

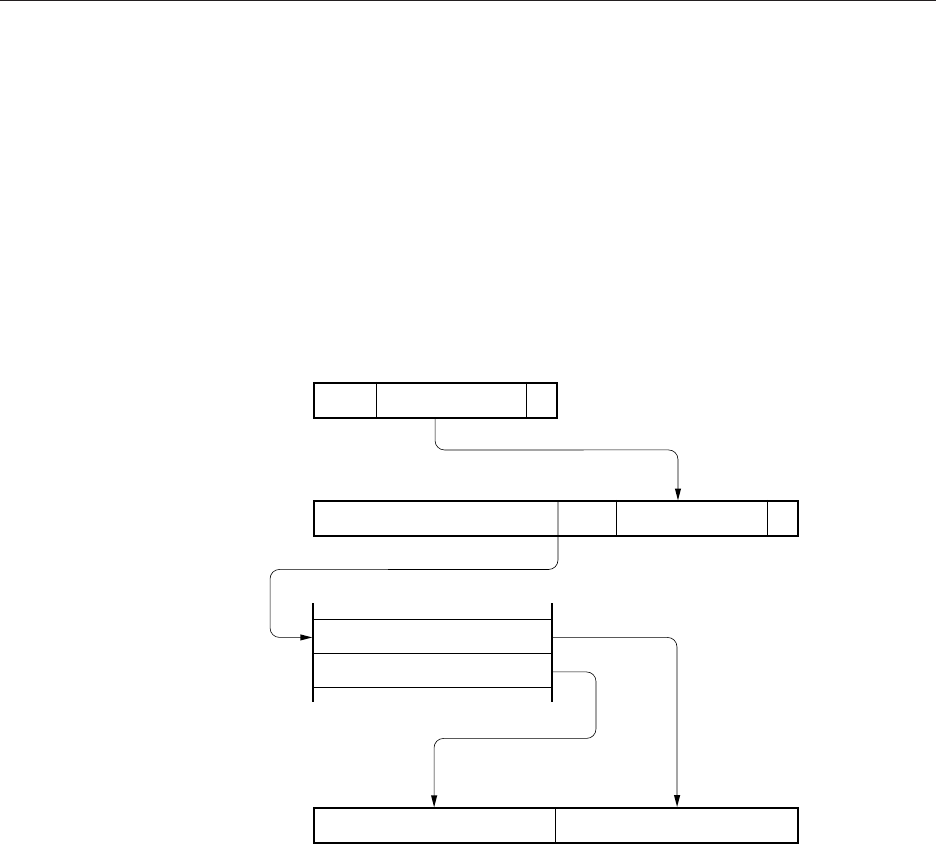

3.1.3 Table indirect addressing

[Function]

Table contents (branch destination address) of the particular location to be addressed by the lower-5-bit

immediate data of an instruction code from bit 1 to bit 5 are transferred to the program counter (PC) and

branched.

When the “CALLT [addr5]” instruction is executed, table indirect addressing is performed. Executing this

instruction enables the value to be branched to all memory spaces referencing the address stored in the

memory table of 40H to 7FH.

[Illustration]

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.1.4 Register addressing

[Function]

The register pair (AX) contents to be specified by an instruction word are transferred to the program counter

(PC) and branched.

This function is carried out when the “BR AX” instruction is executed.

[Illustration]

15 0

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.2 Operand Address Addressing

The following methods are available to specify the register and memory (addressing) to undergo manipulation

during instruction execution.

3.2.1 Implied addressing

[Function]

This addressing automatically specifies the address of the registers that function as an accumulator (A and

AX) in the general-purpose register area.

Of the 78K/0 Series instruction words, the following instructions employ implied addressing.

Instruction Register to Be Specified by Implied Addressing

MULU A register for multiplicand and AX register for product storage

DIVUW AX register for dividend and quotient storage

ADJBA/ADJBS A register for storage of numeric values targeted for decimal correction

ROR4/ROL4 A register for storage of digit data that undergoes digit rotation

[Operand format]

Because implied addressing can be automatically employed with an instruction, no particular operand format

is necessary.

[Description example]

In the case of MULU X

With an 8-bit x 8-bit multiply instruction, the product of the A register and X register is stored in AX. In this

example, the A and AX registers are specified by implied addressing.

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.2.2 Register addressing

[Function]

be accessed is specified by the register bank selection flags (RBS0 and RBS1) and the register specification

codes (Rn and RPn) in the instruction codes.

an 8-bit register is specified, one of the eight registers is specified by 3 bits in the instruction code.

[Operand format]

Identifier Description

r X, A, C, B, E, D, L, H

rp AX, BC, DE, HL

‘r’ and ‘rp’ can be described with absolute names (R0 to R7 and RP0 to RP3) as well as function names

(X, A, C, B, E, D, L, H, AX, BC, DE and HL).

[Description example]

MOV A, C; When selecting the C register for r

Instruction code 01100010

INCW DE; When selecting the DE register pair for rp

Instruction code 10000100

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.2.3 Direct addressing

[Function]

Direct addressing directly addresses the memory indicated by the immediate data in the instruction word.

[Operand format]

Identifier Description

addr16 Label or 16-bit immediate data

[Description example]

MOV A, !FE00H; When setting !addr16 to FE00H

[Illustration]

Instruction code 1 0 001110OP code

0000000000H

11111110FEH

Memory

OP code

addr16 (lower)

addr16 (upper)

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

15 0

Short direct memory

Effective

address 1111111

OP code

saddr-offset

When 8-bit immediate data is 20H to FFH, α = 0.

When 8-bit immediate data is 00H to 1FH, α = 1.

3.2.4 Short direct addressing

[Function]

The memory to be manipulated in the fixed space is directly addressed with 8-bit data in an instruction word.

This addressing is applied to the 256-byte fixed space FE20H to FF1FH. An internal high-speed RAM and

special function registers (SFRs) are mapped at FE20H to FEFFH and FF00H to FF1FH, respectively.

The SFR area (FF00H to FF1FH) where short direct addressing is applied is a part of the entire SFR area.

Ports that are frequently accessed in a program, a compare register of the timer/event counter and a capture

manipulated with a small number of bytes and clocks.

When 8-bit immediate data is at 20H to FFH, bit 8 of an effective address is set to 0. When it is at 00H to

1FH, bit 8 is set to 1. See [Illustration] below.

[Operand format]

Identifier Description

saddr Label or FE20H to FF1FH immediate data

saddrp Label or FE20H to FF1FH immediate data (even address only)

[Description example]

MOV FE30H, #50H; When setting saddr to FE30H and the immediate data to 50H

[Illustration]

Instruction code 00010001OP code

0011000030H (saddr-offset)

0101000050H (immediate data)

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

15 0

SFR

Effective

address 1111111

OP code

sfr-offset

3.2.5 Special-function register (SFR) addressing

[Function]

A memory-mapped special function register (SFR) is addressed with 8-bit immediate data in an instruction

word.

This addressing is applied to the 240-byte spaces FF00H to FFCFH and FFE0H to FFFFH. However, the

SFRs mapped at FF00H to FF1FH can be accessed with short direct addressing.

[Operand format]

Identifier Description

sfr Special function register name

sfrp 16-bit-manipulatable special function register name (even address only)

[Description example]

MOV PM0, A; When selecting PM0 for sfr

[Illustration]

Instruction code 11110110OP code

0010000020H (sfr-offset)

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

15 08

7 0

Memory Memory address specified

by register pair DE

Contents of memory to be

addressed are transferred

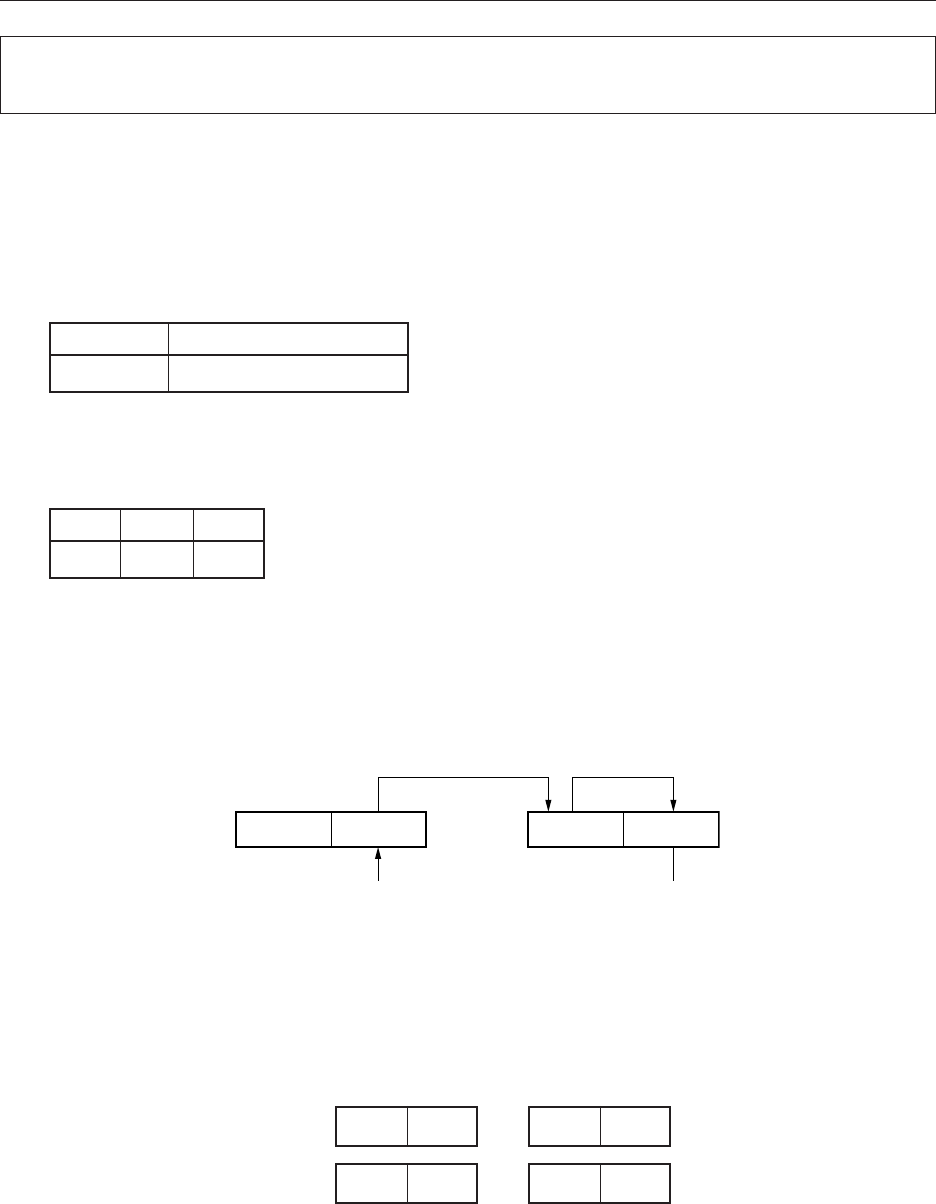

3.2.6 Register indirect addressing

[Function]

[Operand format]

Identifier Description

—[DE], [HL]

[Description example]

MOV A, [DE]; When selecting register pair [DE]

Instruction code 10000101

[Illustration]

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.2.7 Based addressing

[Function]

8-bit immediate data is added to the contents of the HL register pair as a base register and the sum is used

to address the memory. The HL register pair to be accessed is in the register bank specified by the register

bank select flag (RBS0 and RBS1). Addition is performed by expanding the offset data as a positive number

to 16 bits. A carry from the 16th bit is ignored. This addressing can be carried out for all the memory spaces.

[Operand format]

Identifier Description

—[HL+byte]

[Description example]

MOV A, [HL+10H]; When setting byte to 10H

Instruction code 10101110

00010000

3.2.8 Based indexed addressing

[Function]

The B or C register contents specified in an instruction word are added to the contents of the HL register

pair as a base register and the sum is used to address the memory. The HL, B, and C registers to be accessed

are registers in the register bank specified by the register bank select flag (RBS0 to RBS1). Addition is

performed by expanding the B or C register as a positive number to 16 bits. A carry from the 16th bit is

ignored. This addressing can be carried out for all the memory spaces.

[Operand format]

Identifier Description

—[HL+B], [HL+C]

[Description example]

In the case of MOV A, [HL+B]

Instruction code 10101011

CHAPTER 3 ADDRESSING

User's Manual U12326EJ4V0UM

3.2.9 Stack addressing

[Function]

The stack area is indirectly addressed with the stack pointer (SP) contents.

This addressing method is automatically employed when the PUSH, POP, subroutine call and RETURN

instructions are executed or the register is saved/reset upon generation of an interrupt request.

Stack addressing enables addressing of the internal high-speed RAM area only.

[Description example]

In the case of PUSH DE

Instruction code 10110101

32 User's Manual U12326EJ4V0UM

CHAPTER 4 INSTRUCTION SET

This chapter lists the instructions in the 78K/0 Series instruction set. The instructions are common to all

78K/0 Series products.

4.1 Operation

For the operation list for each product, refer to the user’s manual of each product.

4.1.1 Operand identifiers and description methods

Operands are described in the “Operand” column of each instruction in accordance with the description method

of the instruction operand identifier (refer to the assembler specifications for details). When there are two or more

description methods, select one of them. Alphabetic letters in capitals and the symbols, #, !, $ and [ ] are key

words and are described as they are. Each symbol has the following meaning.

• #: Immediate data specification

• !: Absolute address specification

• $: Relative address specification

• [ ]: Indirect address specification

In the case of immediate data, describe an appropriate numeric value or a label. When using a label, be sure

to describe the #, !, $ and [ ] symbols.

For operand register identifiers, r and rp, either function names (X, A, C, etc.) or absolute names (names in

parentheses in the table below, R0, R1, R2, etc.) can be used for description.

Table 4-1. Operand Identifiers and Description Methods

Identifier Description Method

r X (R0), A (R1), C (R2), B (R3), E (R4), D (R5), L (R6), H (R7)

rp AX (RP0), BC (RP1), DE (RP2), HL (RP3)

sfr Special-function register symbolNote

sfrp Special-function register symbols (16-bit manipulatable register even addresses only)Note

saddr FE20H to FF1FH Immediate data or labels

saddrp FE20H to FF1FH Immediate data or labels (even addresses only)

addr16 0000H to FFFFH Immediate data or labels (Only even addresses for 16-bit data transfer instructions)

addr11 0800H to 0FFFH Immediate data or labels

addr5 0040H to 007FH Immediate data or labels (even addresses only)

word 16-bit immediate data or label

byte 8-bit immediate data or label

bit 3-bit immediate data or label

RBn RB0 to RB3

Note FFD0H to FFDFH are not addressable.

Remark Refer to the user’s manual of each product for the symbols of special function registers.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

4.1.2 Description of “operation” column

A: A register; 8-bit accumulator

X: X register

B: B register

C: C register

D: D register

E: E register

H: H register

L: L register

AX: AX register pair; 16-bit accumulator

BC: BC register pair

DE: DE register pair

HL: HL register pair

PC: Program counter

SP: Stack pointer

PSW: Program status word

CY: Carry flag

AC: Auxiliary carry flag

Z: Zero flag

RBS: Register bank select flag

IE: Interrupt request enable flag

NMIS: Flag indicating non-maskable interrupt servicing in progress

( ): Memory contents indicated by address or register contents in parentheses

XH, XL: Higher 8 bits and lower 8 bits of 16-bit register

: Logical product (AND)

V: Logical sum (OR)

V: Exclusive logical sum (exclusive OR)

—: Inverted data

addr16: 16-bit immediate data or label

jdisp8: Signed 8-bit data (displacement value)

4.1.3 Description of “flag operation” column

(Blank): Unchanged

0: Cleared to 0

1: Set to 1

×: Set/cleared according to the result

R: Previously saved value is restored

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

4.1.4 Description of number of clocks

1 instruction clock cycle is 1 CPU clock cycle (fCPU) selected by the processor clock control register (PCC).

4.1.5 Instructions listed by addressing type

(1) 8-bit instructions

MOV, XCH, ADD, ADDC, SUB, SUBC, AND, OR, XOR, CMP, MULU, DIVUW, INC, DEC, ROR, ROL,

RORC, ROLC, ROR4, ROL4, PUSH, POP, DBNZ

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

2nd Operand #byte A rNote sfr saddr !addr16 PSW [DE] [HL]

[HL+byte]

$addr16 1 None

[HL+B]

1st Operand [HL+C]

A ADD MOV MOV MOV MOV MOV MOV MOV MOV ROR

ADDC XCH XCH XCH XCH XCH XCH XCH ROL

SUB ADD ADD ADD ADD ADD RORC

SUBC ADDC ADDC ADDC ADDC ADDC ROLC

AND SUB SUB SUB SUB SUB

OR SUBC SUBC SUBC SUBC SUBC

XOR AND AND AND AND AND

CMP OR OR OR OR OR

XOR XOR XOR XOR XOR

CMP CMP CMP CMP CMP

r MOV MOV INC

ADD DEC

ADDC

SUB

SUBC

AND

XOR

CMP

B, C DBNZ

sfr MOV MOV

saddr MOV MOV DBNZ INC

ADD DEC

ADDC

SUB

SUBC

AND

XOR

CMP

!addr16 MOV

PSW MOV MOV PUSH

POP

[DE] MOV

[HL] MOV ROR4

ROL4

[HL+byte] MOV

[HL+B]

[HL+C]

XMULU

CDIVUW

Note Except r = A.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

2nd Operand A.bit sfr.bit saddr.bit PSW.bit [HL].bit CY $addr16 None

1st Operand

A.bit MOV1 BT SET1

BF CLR1

BTCLR

sfr.bit MOV1 BT SET1

BF CLR1

BTCLR

saddr.bit MOV1 BT SET1

BF CLR1

BTCLR

PSW.bit MOV1 BT SET1

BF CLR1`

BTCLR

[HL].bit MOV1 BT SET1

BF CLR1

BTCLR

CY MOV1 MOV1 MOV1 MOV1 MOV1 SET1

AND1 AND1 AND1 AND1 AND1 CLR1

OR1 OR1 OR1 OR1 OR1 NOT1

XOR1 XOR1 XOR1 XOR1 XOR1

2nd Operand #word AX rpNote sfrp saddrp !addr16 SP None

1st Operand

AX ADDW MOVW MOVW MOVW MOVW MOVW

SUBW XCHW

CMPW

rp MOVW MOVWNote INCW

DECW

PUSH

POP

sfrp MOVW MOVW

saddrp MOVW MOVW

!addr16 MOVW

SP MOVW MOVW

Note Only when rp = BC, DE or HL.

(2) 16-bit instructions

MOVW, XCHW, ADDW, SUBW, CMPW, PUSH, POP, INCW, DECW

(3) Bit manipulation instructions

MOV1, AND1, OR1, XOR1, SET1, CLR1, NOT1, BT, BF, BTCLR

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

(4) Call instructions/branch instructions

CALL, CALLF, CALLT, BR, BC, BNC, BZ, BNZ, BT, BF, BTCLR, DBNZ

2nd Operand AX !addr16 !addr11 [addr5] $addr16

1st Operand

Basic Instructions BR CALL CALLF CALLT BR

BR BC

BNC

BNZ

Compound Instructions BT

BTCLR

DBNZ

(5) Other instructions

ADJBA, ADJBS, BRK, RET, RETI, RETB, SEL, NOP, EI, DI, HALT, STOP

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

4.2 Instruction Codes

4.2.1 Description of instruction code table

rrpRB

R2R1R0reg P1P0reg-pair RB1RB0reg-bank

0 0 0 R0 X 0 0 RP0 AX 0 0 RB0

0 0 1 R1 A 0 1 RP1 BC 0 1 RB1

0 1 0 R2 C 1 0 RP2 DE 1 0 RB2

0 1 1 R3 B 1 1 RP3 HL 1 1 RB3

100R4E

101R5D

110R6L

111R7H

Bn: Immediate data corresponding to bit

Data: 8-bit immediate data corresponding to byte

Low/High byte: 16-bit immediate data corresponding to word

Saddr-offset: 16-bit address lower 8-bit offset data corresponding to saddr

Sfr-offset: sfr 16-bit address lower 8-bit offset data

Low/High addr: 16-bit immediate data corresponding to addr16

jdisp: Signed two’s complement data (8 bits) of relative address distance between the start

and branch addresses of the next instruction

fa10 to fa0: 11 bits of immediate data corresponding to addr11

ta4 to ta0: 5 bits of immediate data corresponding to addr5

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

4.2.2 Instruction code list

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

8-Bit Data MOV r,#byte 1010 0

R2R1R0

Data

Transfer saddr,#byte 0001 0001 Saddr-offset Data

sfr,#byte 0001 0011 Sfr-offset Data

A,r Note 0110 0

R2R1R0

r,A Note 0111 0

R2R1R0

A,saddr 1111 0000 Saddr-offset

saddr,A 1111 0010 Saddr-offset

A,sfr 1111 0100 Sfr-offset

sfr,A 1111 0110 Sfr-offset

A,!addr16 1000 1110 Low addr High addr

!addr16,A 1001 1110 Low addr High addr

PSW,#byte 0001 0001 0001 1110 Data

A,PSW 1111 0000 0001 1110

PSW,A 1111 0010 0001 1110

A,[DE] 1000 0101

[DE],A 1001 0101

A,[HL] 1000 0111

[HL],A 1001 0111

A,[HL+byte] 1010 1110 Data

[HL+byte],A 1011 1110 Data

A,[HL+B] 1010 1011

[HL+B],A 1011 1011

A,[HL+C] 1010 1010

[HL+C],A 1011 1010

XCH A,r Note 0011 0

R2R1R0

A,saddr 1000 0011 Saddr-offset

A,sfr 1001 0011 Sfr-offset

A,!addr16 1100 1110 Low addr High addr

A,[DE] 0000 0101

A,[HL] 0000 0111

A,[HL+byte] 1101 1110 Data

A,[HL+B] 0011 0001 1000 1011

A,[HL+C] 0011 0001 1000 1010

Note Except r = A.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

16-Bit Data MOVW rp,#word 0001 0P1P00 Low byte High byte

Transfer saddrp,#word 1110 1110 Saddr-offset Low byte High byte

sfrp,#word 1111 1110 Sfr-offset Low byte High byte

AX,saddrp 1000 1001 Saddr-offset

saddrp,AX 1001 1001 Saddr-offset

AX,sfrp 1010 1001 Sfr-offset

sfrp,AX 1011 1001 Sfr-offset

AX,rp Note 1 1100 0P1P00

rp,AX Note 1 1101 0P1P00

AX,!addr16 0000 0010 Low addr High addr

!addr16,AX 0000 0011 Low addr High addr

XCHW AX,rp Note 1 1110 0P1P00

8-Bit ADD A,#byte 0000 1101 Data

Operation saddr,#byte 1000 1000 Saddr-offset Data

A,r Note 2 0110 0001 0000 1

R2R1R0

r,A 0110 0001 0000 0

R2R1R0

A,saddr 0000 1110 Saddr-offset

A,!addr16 0000 1000 Low addr High addr

A,[HL] 0000 1111

A,[HL+byte] 0000 1001 Data

A,[HL+B] 0011 0001 0000 1011

A,[HL+C] 0011 0001 0000 1010

ADDC A,#byte 0010 1101 Data

saddr,#byte 1010 1000 Saddr-offset Data

A,r Note 2 0110 0001 0010 1

R2R1R0

r,A 0110 0001 0010 0

R2R1R0

A,saddr 0010 1110 Saddr-offset

A,!addr16 0010 1000 Low addr High addr

A,[HL] 0010 1111

A,[HL+byte] 0010 1001 Data

A,[HL+B] 0011 0001 0010 1011

A,[HL+C] 0011 0001 0010 1010

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

Notes 1. Only when rp = BC, DE or HL.

2. Except r = A.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

8-Bit SUB A,#byte 0001 1101 Data

Operation saddr,#byte 1001 1000 Saddr-offset Data

A,r Note 0110 0001 0001 1

R2R1R0

r,A 0110 0001 0001 0

R2R1R0

A,saddr 0001 1110 Saddr-offset

A,!addr16 0001 1000 Low addr High addr

A,[HL] 0001 1111

A,[HL+byte] 0001 1001 Data

A,[HL+B] 0011 0001 0001 1011

A,[HL+C] 0011 0001 0001 1010

SUBC A,#byte 0011 1101 Data

saddr,#byte 1011 1000 Saddr-offset Data

A,r Note 0110 0001 0011 1

R2R1R0

r,A 0110 0001 0011 0

R2R1R0

A,saddr 0011 1110 Saddr-offset

A,!addr16 0011 1000 Low addr High addr

A,[HL] 0011 1111

A,[HL+byte] 0011 1001 Data

A,[HL+B] 0011 0001 0011 1011

A,[HL+C] 0011 0001 0011 1010

AND A,#byte 0101 1101 Data

saddr,#byte 1101 1000 Saddr-offset Data

A,r Note 0110 0001 0101 1

R2R1R0

r,A 0110 0001 0101 0

R2R1R0

A,saddr 0101 1110 Saddr-offset

A,!addr16 0101 1000 Low addr High addr

A,[HL] 0101 1111

A,[HL+byte] 0101 1001 Data

A,[HL+B] 0011 0001 0101 1011

A,[HL+C] 0011 0001 0101 1010

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

Note Except r = A.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

8-Bit OR A,#byte 0110 1101 Data

Operation saddr,#byte 1110 1000 Saddr-offset Data

A,r Note 0110 0001 0110 1

R2R1R0

r,A 0110 0001 0110 0

R2R1R0

A,saddr 0110 1110 Saddr-offset

A,!addr16 0110 1000 Low addr High addr

A,[HL] 0110 1111

A,[HL+byte] 0110 1001 Data

A,[HL+B] 0011 0001 0110 1011

A,[HL+C] 0011 0001 0110 1010

XOR A,#byte 0111 1101 Data

saddr,#byte 1111 1000 Saddr-offset Data

A,r Note 0110 0001 0111 1

R2R1R0

r,A 0110 0001 0111 0

R2R1R0

A,saddr 0111 1110 Saddr-offset

A,!addr16 0111 1000 Low addr High addr

A,[HL] 0111 1111

A,[HL+byte] 0111 1001 Data

A,[HL+B] 0011 0001 0111 1011

A,[HL+C] 0011 0001 0111 1010

CMP A,#byte 0100 1101 Data

saddr,#byte 1100 1000 Saddr-offset Data

A,r Note 0110 0001 0100 1

R2R1R0

r,A 0110 0001 0100 0

R2R1R0

A,saddr 0100 1110 Saddr-offset

A,!addr16 0100 1000 Low addr High addr

A,[HL] 0100 1111

A,[HL+byte] 0100 1001 Data

A,[HL+B] 0011 0001 0100 1011

A,[HL+C] 0011 0001 0100 1010

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

Note Except r = A.

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

16-Bit ADDW AX,#word 1100 1010 Low byte High byte

Operation SUBW AX,#word 1101 1010 Low byte High byte

CMPW AX,#word 1110 1010 Low byte High byte

Multiply/ MULU X 0011 0001 1000 1000

divide DIVUW C 0011 0001 1000 0010

Increment/ INC r 0100 0

R2R1R0

decrement saddr 1000 0001 Saddr-offset

DEC r 0101 0

R2R1R0

saddr 1001 0001 Saddr-offset

INCW rp 1000 0

P1P0

DECW rp 1001 0

P1P0

Rotate ROR A,1 0010 0100

ROL A,1 0010 0110

RORC A,1 0010 0101

ROLC A,1 0010 0111

ROR4 [HL] 0011 0001 1001 0000

ROL4 [HL] 0011 0001 1000 0000

BCD ADJBA 0110 0001 1000 0000

Adjust ADJBS 0110 0001 1001 0000

Bit MOV1 CY,saddr.bit 0111 0001 0

B2B1B0

0100 Saddr-offset

Manipulation

CY,sfr.bit 0111 0001 0

B2B1B0

1100 Sfr-offset

CY,A.bit 0110 0001 1

B2B1B0

1100

CY,PSW.bit 0111 0001 0

B2B1B0

0100 0001 1110

CY,[HL].bit 0111 0001 1

B2B1B0

0100

saddr.bit,CY 0111 0001 0

B2B1B0

0001 Saddr-offset

sfr.bit,CY 0111 0001 0

B2B1B0

1001 Sfr-offset

A.bit,CY 0110 0001 1

B2B1B0

1001

PSW.bit,CY 0111 0001 0

B2B1B0

0001 0001 1110

[HL].bit,CY 0111 0001 1

B2B1B0

0001

AND1 CY,saddr.bit 0111 0001 0

B2B1B0

0101 Saddr-offset

CY,sfr.bit 0111 0001 0

B2B1B0

1101 Sfr-offset

CY,A.bit 0110 0001 1

B2B1B0

1101

CY,PSW.bit 0111 0001 0

B2B1B0

0101 0001 1110

CY,[HL].bit 0111 0001 1

B2B1B0

0101

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

Bit OR1 CY,saddr.bit 0111 0001 0

B2B1B0

0110 Saddr-offset

Manipulation

CY,sfr.bit 0111 0001 0

B2B1B0

1110 Sfr-offset

CY,A.bit 0110 0001 1

B2B1B0

1110

CY,PSW.bit 0111 0001 0

B2B1B0

0110 0001 1110

CY,[HL].bit 0111 0001 1

B2B1B0

0110

XOR1 CY,saddr.bit 0111 0001 0

B2B1B0

0111 Saddr-offset

CY,sfr.bit 0111 0001 0

B2B1B0

1111 Sfr-offset

CY,A.bit 0110 0001 1

B2B1B0

1111

CY,PSW.bit 0111 0001 0

B2B1B0

0111 0001 1110

CY,[HL].bit 0111 0001 1

B2B1B0

0111

SET1 saddr.bit 0

B2B1B0

1010 Saddr-offset

sfr.bit 0111 0001 0

B2B1B0

1010 Sfr-offset

A.bit 0110 0001 1

B2B1B0

1010

PSW.bit 0

B2B1B0

1010 0001 1110

[HL].bit 0111 0001 1

B2B1B0

0010

CLR1 saddr.bit 0

B2B1B0

1011 Saddr-offset

sfr.bit 0111 0001 0

B2B1B0

1011 Sfr-offset

A.bit 0110 0001 1

B2B1B0

1011

PSW.bit 0

B2B1B0

1011 0001 1110

[HL].bit 0111 0001 1

B2B1B0

0011

SET1 CY 0010 0000

CLR1 CY 0010 0001

NOT1 CY 0000 0001

Call Return CALL !addr16 1001 1010 Low addr High addr

CALLF !addr11 0 fa10–8 1100 fa7–0

CALLT [addr5] 1 1 ta4–0 1

BRK 1011 1111

RET 1010 1111

RETB 1001 1111

RETI 1000 1111

Stack PUSH PSW 0010 0010

Manipulation

rp 1011 0

P1P0

POP PSW 0010 0011

rp 1011 0

P1P0

MOVW SP,#word 1110 1110 0001 1100 Low byte High byte

SP,AX 1001 1001 0001 1100

AX,SP 1000 1001 0001 1100

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

CHAPTER 4 INSTRUCTION SET

User's Manual U12326EJ4V0UM

Unconditional

BR !addr16 1001 1011 Low addr High addr

Branch $addr16 1111 1010 jdisp

AX 0011 0001 1001 1000

Conditional BC $addr16 1000 1101 jdisp

Branch BNC $addr16 1001 1101 jdisp

BZ $addr16 1010 1101 jdisp

BNZ $addr16 1011 1101 jdisp

BT saddr.bit,$addr16 1

B2B1B0

1100 Saddr-offset jdisp

sfr.bit,$addr16 0011 0001 0

B2B1B0

0110 Sfr-offset jdisp

A.bit,$addr16 0011 0001 0

B2B1B0

1110 jdisp

PSW.bit,$addr16 1

B2B1B0

1100 0001 1110 jdisp

[HL].bit,$addr16 0011 0001 1

B2B1B0

0110 jdisp

BF saddr.bit,$addr16 0011 0001 0

B2B1B0

0011 Saddr-offset jdisp

sfr.bit,$addr16 0011 0001 0

B2B1B0

0111 Sfr-offset jdisp

A.bit,$addr16 0011 0001 0

B2B1B0

1111 jdisp

PSW.bit,$addr16 0011 0001 0

B2B1B0

0011 0001 1110 jdisp

[HL].bit,$addr16 0011 0001 1

B2B1B0

0111 jdisp

BTCLR saddr.bit,$addr16 0011 0001 0

B2B1B0

0001 Saddr-offset jdisp

sfr.bit,$addr16 0011 0001 0

B2B1B0

0101 Sfr-offset jdisp

A.bit,$addr16 0011 0001 0

B2B1B0

1101 jdisp

PSW.bit,$addr16 0011 0001 0

B2B1B0

0001 0001 1110 jdisp

[HL].bit,$addr16 0011 0001 1

B2B1B0

0101 jdisp

DBNZ B,$addr16 1000 1011 jdisp

C,$addr16 1000 1010 jdisp

saddr,$addr16 0000 0100 Saddr-offset jdisp

CPU SEL RBn 0110 0001 11

RB1

RB0

000

control NOP 0000 0000

EI 0111 1010 0001 1110

DI 0111 1011 0001 1110

HALT 0111 0001 0001 0000

STOP 0111 0001 0000 0000

Instruction

Mnemonic

Operands Operation Code

Group B1 B2 B3 B4

46 User's Manual U12326EJ4V0UM

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

This chapter explains the instructions of 78K/0 Series products. Each instruction is described with a mnemonic,

including description of multiple operands.

The basic configuration of instruction description is shown on the next page.

For the number of instruction bytes and the instruction codes, refer to the user’s manual of each product and

CHAPTER 4 INSTRUCTION SET, respectively.

All the instructions are common to 78K/0 Series products.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

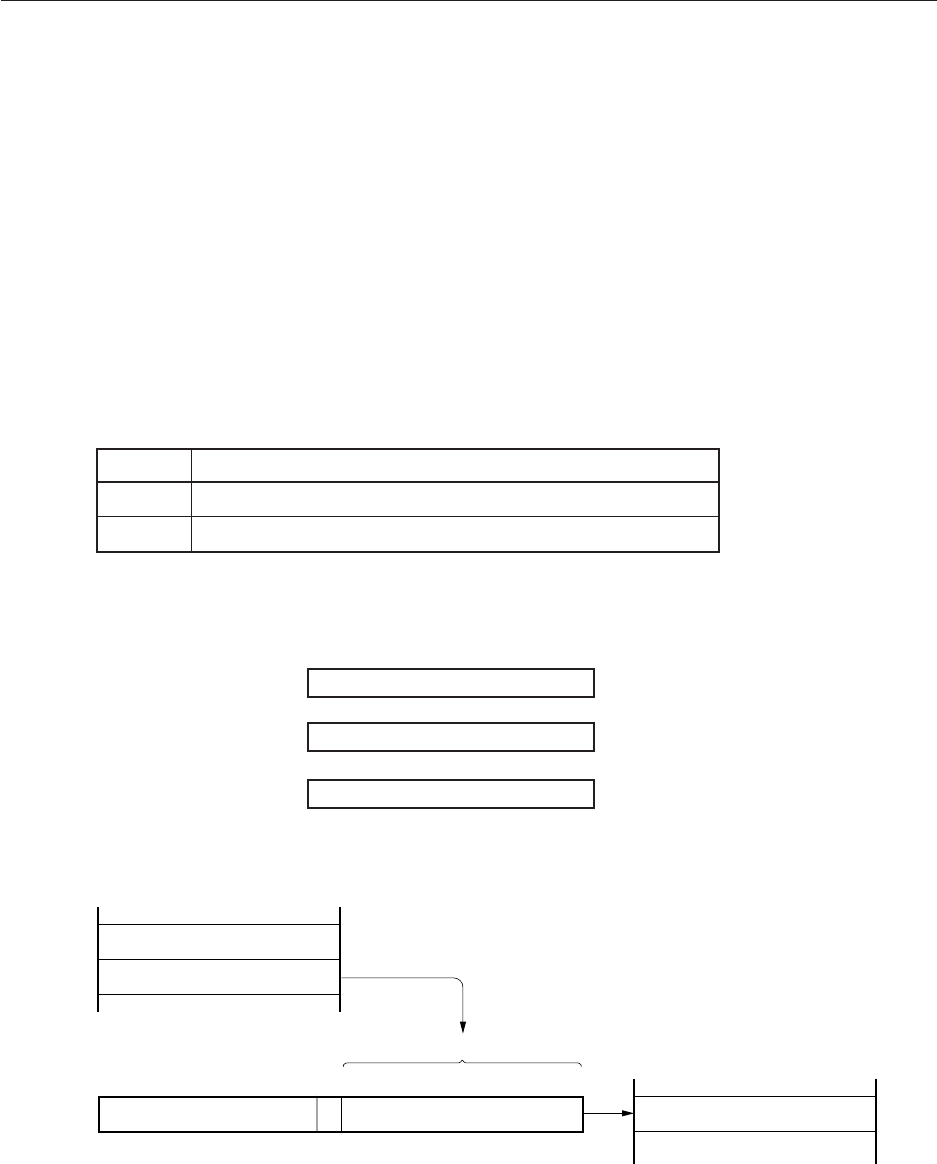

DESCRIPTION EXAMPLE

Mnemonic Full name

Move

MOV Byte Data Transfer

Meaning of instruction

[Instruction format] MOV dst, src: Indicates the basic description format of the instruction.

[Operation] dst ←src: Indicates instruction operation using symbols.

[Operand] Indicates operands that can be specified by this instruction. Refer to 4.1 Operation for

the description of each operand symbol.

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

MOV r, #byte MOV A, PSW

A, saddr [HL], A

saddr, A A, [HL+byte]

PSW, #byte [HL+C], A

[Flag] Indicates the flag operation that changes by instruction execution.

Each flag operation symbol is shown in the conventions.

ZACCY

Conventions

Symbol Description

Blank Unchanged

0 Cleared to 0

1 Set to 1

X Set or cleared according to the result

R Previously saved value is restored

[Description]: Describes the instruction operation in detail.

• The contents of the source operand (src) specified by the 2nd operand are transferred to the destination

operand (dst) specified by the 1st operand.

[Description example]

MOV A, #4DH; 4DH is transferred to the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.1 8-Bit Data Transfer Instructions

The following instructions are 8-bit data transfer instructions.

MOV ... 49

XCH ... 50

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Move

MOV Byte Data Transfer

[Instruction format] MOV dst, src

[Operation] dst ← src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

MOV r, #byte MOV A, PSW

saddr, #byte PSW, A

sfr, #byte A, [DE]

A, r Note [DE], A

r, A Note A, [HL]

A, saddr [HL], A

saddr, A A, [HL+byte]

A, sfr [HL+byte], A

sfr, A A, [HL+B]

A, !addr16 [HL+B], A

!addr16, A A, [HL+C]

PSW, #byte [HL+C], A

Note Except r = A

[Flag]

PSW, #byte and PSW, All other operand

A operands combinations

Z AC CY Z AC CY

×××

[Description]

• The contents of the source operand (src) specified by the 2nd operand are transferred to the destination

operand (dst) specified by the 1st operand.

• No interrupts are acknowledged between the MOV PSW, #byte instruction/MOV PSW, A instruction and the

next instruction.

[Description example]

MOV A, #4DH; 4DH is transferred to the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Exchange

XCH Byte Data Exchange

[Instruction format] XCH dst, src

[Operation] dst ↔ src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

XCH A, r Note XCH A, [HL]

A, saddr A, [HL+byte]

A, sfr A, [HL+B]

A, !addr16 A, [HL+C]

A, [DE]

Note Except r = A

[Flag]

ZACCY

[Description]

• The 1st and 2nd operand contents are exchanged.

[Description example]

XCH A, FEBCH; The A register contents and address FEBCH contents are exchanged.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.2 16-Bit Data Transfer Instructions

The following instructions are 16-bit data transfer instructions.

MOVW ... 52

XCHW ... 53

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Move Word

MOVW Word Data Transfer

[Instruction format] MOVW dst, src

[Operation] dst ← src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

MOVW rp, #word MOVW sfrp, AX

saddrp, #word AX, rp Note

sfrp, #word rp, AX Note

AX, saddrp AX, !addr16

saddrp, AX !addr16, AX

AX, sfrp

Note Only when rp = BC, DE or HL

[Flag]

ZACCY

[Description]

• The contents of the source operand (src) specified by the 2nd operand are transferred to the destination

operand (dst) specified by the 1st operand.

[Description example]

MOVW AX, HL; The HL register contents are transferred to the AX register.

[Caution]

Only an even address can be specified. An odd address cannot be specified.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Exchange Word

XCHW Word Data Exchange

[Instruction format] XCHW dst, src

[Operation] dst ↔ src

[Operand]

Mnemonic Operand(dst,src)

XCHW AX, rp Note

Note Only when rp = BC, DE or HL

[Flag]

ZACCY

[Description]

• The 1st and 2nd operand contents are exchanged.

[Description example]

XCHW AX, BC; The memory contents of the AX register are exchanged with those of the BC register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.3 8-Bit Operation Instructions

The following are 8-bit operation instructions.

ADD ... 55

ADDC ... 56

SUB ... 57

SUBC ... 58

AND ... 59

OR ... 60

XOR ... 61

CMP ... 62

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Add

ADD Byte Data Addition

[Instruction format] ADD dst, src

[Operation] dst, CY ← dst + src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

ADD A, #byte ADD A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

×××

[Description]

• The destination operand (dst) specified by the 1st operand is added to the source operand (src) specified

by the 2nd operand and the result is stored in the CY flag and the destination operand (dst).

• If the addition result shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the addition generates a carry out of bit 7, the CY flag is set (1). In all other cases, the CY flag is cleared

(0).

• If the addition generates a carry for bit 4 out of bit 3, the AC flag is set (1). In all other cases, the AC flag

is cleared (0).

[Description example]

ADD CR10, #56H; 56H is added to the CR10 register and the result is stored in the CR10 register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Add with Carry

ADDC Addition of Byte Data with Carry

[Instruction format] ADDC dst, src

[Operation] dst, CY ← dst + src + CY

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

ADDC A, #byte ADDC A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

×××

[Description]

• The destination operand (dst) specified by the 1st operand, the source operand (src) specified by the 2nd

operand and the CY flag are added and the result is stored in the destination operand (dst) and the CY flag.

The CY flag is added to the least significant bit. This instruction is mainly used to add two or more bytes.

• If the addition result shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the addition generates a carry out of bit 7, the CY flag is set (1). In all other cases, the CY flag is cleared

(0).

• If the addition generates a carry for bit 4 out of bit 3, the AC flag is set (1). In all other cases, the AC flag

is cleared (0).

[Description example]

ADDC A, [HL+B]; The A register contents and the contents at address (HL register + (B register)) and the

CY flag are added and the result is stored in the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Subtract

SUB Byte Data Subtraction

[Instruction format] SUB dst, src

[Operation] dst, CY ← dst – src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

SUB A, #byte SUB A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

×××

[Description]

• The source operand (src) specified by the 2nd operand is subtracted from the destination operand (dst)

specified by the 1st operand and the result is stored in the destination operand (dst) and the CY flag.

The destination operand can be cleared to 0 by equalizing the source operand (src) and the destination

operand (dst).

• If the subtraction shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the subtraction generates a borrow out of bit 7, the CY flag is set (1). In all other cases, the CY flag is

cleared (0).

• If the subtraction generates a borrow for bit 3 out of bit 4, the AC flag is set (1). In all other cases, the AC

flag is cleared (0).

[Description example]

SUB D, A; The A register is subtracted from the D register and the result is stored in the D register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Subtract with Carry

SUBC Subtraction of Byte Data with Carry

[Instruction format] SUBC dst, src

[Operation] dst, CY ← dst – src – CY

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

SUBC A, #byte SUBC A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

×××

[Description]

• The source operand (src) specified by the 2nd operand and the CY flag are subtracted from the destination

operand (dst) specified by the 1st operand and the result is stored in the destination operand (dst).

The CY flag is subtracted from the least significant bit. This instruction is mainly used for subtraction of two

or more bytes.

• If the subtraction shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the subtraction generates a borrow out of bit 7, the CY flag is set (1). In all other cases, the CY flag is

cleared (0).

• If the subtraction generates a borrow for bit 3 out of bit 4, the AC flag is set (1). In all other cases, the AC

flag is cleared (0).

[Description example]

SUBC A, [HL]; The (HL register) address contents and the CY flag are subtracted from the A register and

the result is stored in the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

And

AND Logical Product of Byte Data

[Instruction format] AND dst, src

[Operation] dst ← dst ∧ src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

AND A, #byte AND A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

[Description]

• Bit-wise logical product is obtained from the destination operand (dst) specified by the 1st operand and the

source operand (src) specified by the 2nd operand and the result is stored in the destination operand (dst).

• If the logical product shows that all bits are 0, the Z flag is set (1). In all other cases, the Z flag is cleared

(0).

[Description example]

AND FEBAH, #11011100B; Bit-wise logical product of FEBAH contents and 11011100B is obtained and the

result is stored at FEBAH.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

OR Logical Sum of Byte Data

[Instruction format] OR dst, src

[Operation] dst ← dst ∨ src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

OR A, #byte OR A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

[Description]

• The bit-wise logical sum is obtained from the destination operand (dst) specified by the 1st operand and the

source operand (src) specified by the 2nd operand and the result is stored in the destination operand (dst).

• If the logical sum shows that all bits are 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

[Description example]

OR A, FE98H; The bit-wise logical sum of the A register and FE98H is obtained and the result is stored in

the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Exclusive Or

XOR Exclusive Logical Sum of Byte Data

[Instruction format] XOR dst, src

[Operation] dst ← dst ∨ src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

XOR A, #byte XOR A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

[Description]

• The bit-wise exclusive logical sum is obtained from the destination operand (dst) specified by the 1st operand

and the source operand (src) specified by the 2nd operand and the result is stored in the destination operand

(dst).

Logical negation of all bits of the destination operand (dst) is possible by selecting #0FFH for the source

operand (src) with this instruction.

• If the exclusive logical sum shows that all bits are 0, the Z flag is set (1). In all other cases, the Z flag is

cleared (0).

[Description example]

XOR A, L; The bit-wise exclusive logical sum of the A and L registers is obtained and the result is stored in

the A register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Compare

CMP Byte Data Comparison

[Instruction format] CMP dst, src

[Operation] dst – src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

CMP A, #byte CMP A, !addr16

saddr, #byte A, [HL]

A, r Note A, [HL+byte]

r, A A, [HL+B]

A, saddr A, [HL+C]

Note Except r = A

[Flag]

ZACCY

×××

[Description]

• The source operand (src) specified by the 2nd operand is subtracted from the destination operand (dst)

specified by the 1st operand.

The subtraction result is not stored anywhere and only the Z, AC and CY flags are changed.

• If the subtraction result is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the subtraction generates a borrow out of bit 7, the CY flag is set (1). In all other cases, the CY flag is

cleared (0).

• If the subtraction generates a borrow for bit 3 out of bit 4, the AC flag is set (1). In all other cases, the AC

flag is cleared (0).

[Description example]

CMP FE38H, #38H; 38H is subtracted from the contents at address FE38H and only the flags are changed

(comparison of contents at address FE38H and the immediate data).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.4 16-Bit Operation Instructions

The following are 16-bit operation instructions.

ADDW ... 64

SUBW ... 65

CMPW ... 66

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Add Word

ADDW Word Data Addition

[Instruction format] ADDW dst, src

[Operation] dst, CY ← dst + src

[Operand]

Mnemonic Operand(dst,src)

ADDW AX, #word

[Flag]

ZACCY

×××

[Description]

• The destination operand (dst) specified by the 1st operand is added to the source operand (src) specified

by the 2nd operand and the result is stored in the destination operand (dst).

• If the addition result shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the addition generates a carry out of bit 15, the CY flag is set (1). In all other cases, the CY flag is cleared

(0).

• As a result of addition, the AC flag becomes undefined.

[Description example]

ADDW AX, #ABCDH; ABCDH is added to the AX register and the result is stored in the AX register.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Subtract Word

SUBW Word Data Subtraction

[Instruction format] SUBW dst, src

[Operation] dst, CY ← dst – src

[Operand]

Mnemonic Operand(dst,src)

SUBW AX, #word

[Flag]

ZACCY

×××

[Description]

• The source operand (src) specified by the 2nd operand is subtracted from the destination operand (dst)

specified by the 1st operand and the result is stored in the destination operand (dst) and the CY flag.

The destination operand can be cleared to 0 by equalizing the source operand (src) and the destination

operand (dst).

• If the subtraction shows that dst is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the subtraction generates a borrow out of bit 15, the CY flag is set (1). In all other cases, the CY flag is

cleared (0).

• As a result of subtraction, the AC flag becomes undefined.

[Description example]

SUBW AX, #ABCDH; ABCDH is subtracted from the AX register contents and the result is stored in the AX

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Compare Word

CMPW Word Data Comparison

[Instruction format] CMPW dst, src

[Operation] dst – src

[Operand]

Mnemonic Operand(dst,src)

CMPW AX, #word

[Flag]

ZACCY

×××

[Description]

• The source operand (src) specified by the 2nd operand is subtracted from the destination operand (dst)

specified by the 1st operand.

The subtraction result is not stored anywhere and only the Z, AC and CY flags are changed.

• If the subtraction result is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the subtraction generates a borrow out of bit 15, the CY flag is set (1). In all other cases, the CY flag is

cleared (0).

• As a result of subtraction, the AC flag becomes undefined.

[Description example]

CMPW AX, #ABCDH; ABCDH is subtracted from the AX register and only the flags are changed (comparison

of the AX register and the immediate data).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.5 Multiply/Divide Instructions

The following are multiply/divide instructions.

MULU ... 68

DIVUW ... 69

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Multiply Unsigned

MULU Unsigned Multiplication of Data

[Instruction format] MULU src

[Operation] AX ← A × src

[Operand]

Mnemonic Operand(src)

MULU X

[Flag]

ZACCY

[Description]

• The A register contents and the source operand (src) data are multiplied as unsigned data and the result

is stored in the AX register.

[Description example]

MULU X; The A register contents and the X register contents are multiplied and the result is stored in the AX

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Divide Unsigned Word

DIVUW Unsigned Division of Word Data

[Instruction format] DIVUW dst

[Operation] AX (quotient), dst (remainder) ← AX ÷ dst

[Operand]

Mnemonic Operand(dst)

DIVUW C

[Flag]

ZACCY

[Description]

• The AX register contents are divided by the destination operand (dst) contents and the quotient and the

remainder are stored in the AX register and the destination operand (dst), respectively.

Division is executed using the AX register and destination operand (dst) contents as unsigned data.

However, when the destination operand (dst) is 0, the X register contents are stored in the C register and

AX becomes 0FFFFH.

[Description example]

DIVUW C; The AX register contents are divided by the C register contents and the quotient and the remainder

are stored in the AX register and the C register, respectively.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.6 Increment/Decrement Instructions

The following are increment/decrement instructions.

INC ... 71

DEC ... 72

INCW ... 73

DECW ... 74

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Increment

INC Byte Data Increment

[Instruction format] INC dst

[Operation] dst ← dst + 1

[Operand]

Mnemonic Operand(dst)

INC r

saddr

[Flag]

ZACCY

××

[Description]

• The destination operand (dst) contents are incremented by only one.

• If the increment result is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the increment generates a carry for bit 4 out of bit 3, the AC flag is set (1). In all other cases, the AC flag

is cleared (0).

• Because this instruction is frequently used for increment of a counter for repeated operations and an indexed

addressing offset register, the CY flag contents are not changed (to hold the CY flag contents in multiple-

byte operation).

[Description example]

INC B; The B register is incremented.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Decrement

DEC Byte Data Decrement

[Instruction format] DEC dst

[Operation] dst ← dst – 1

[Operand]

Mnemonic Operand(dst)

DEC r

saddr

[Flag]

ZACCY

××

[Description]

• The destination operand (dst) contents are decremented by only one.

• If the decrement result is 0, the Z flag is set (1). In all other cases, the Z flag is cleared (0).

• If the decrement generates a carry for bit 3 out of bit 4, the AC flag is set (1). In all other cases, the AC

flag is cleared (0).

• Because this instruction is frequently used for decrement of a counter for repeated operations and an indexed

addressing offset register, the CY flag contents are not changed (to hold the CY flag contents in multiple-

byte operation).

• If dst is the B or C register or saddr, and it is not desired to change the AC and CY flag contents, the DBNZ

instruction can be used.

[Description example]

DEC FE92H; The contents at address FE92H are decremented.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Increment Word

INCW Word Data Increment

[Instruction format] INCW dst

[Operation] dst ← dst + 1

[Operand]

Mnemonic Operand(dst)

INCW rp

[Flag]

ZACCY

[Description]

• The destination operand (dst) contents are incremented by only one.

• Because this instruction is frequently used for increment of a register (pointer) used for addressing, the Z,

AC and CY flag contents are not changed.

[Description example]

INCW HL; The HL register is incremented.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Decrement Word

DECW Word Data Decrement

[Instruction format] DECW dst

[Operation] dst ← dst – 1

[Operand]

Mnemonic Operand (dst)

DECW rp

[Flag]

ZACCY

[Description]

• The destination operand (dst) contents are decremented by only one.

• Because this instruction is frequently used for decrement of a register (pointer) used for addressing, the Z,

AC and CY flag contents are not changed.

[Description example]

DECW DE; The DE register is decremented.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.7 Rotate Instructions

The following are rotate instructions.

ROR ... 76

ROL ... 77

RORC ... 78

ROLC ... 79

ROR4 ... 80

ROL4 ... 81

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

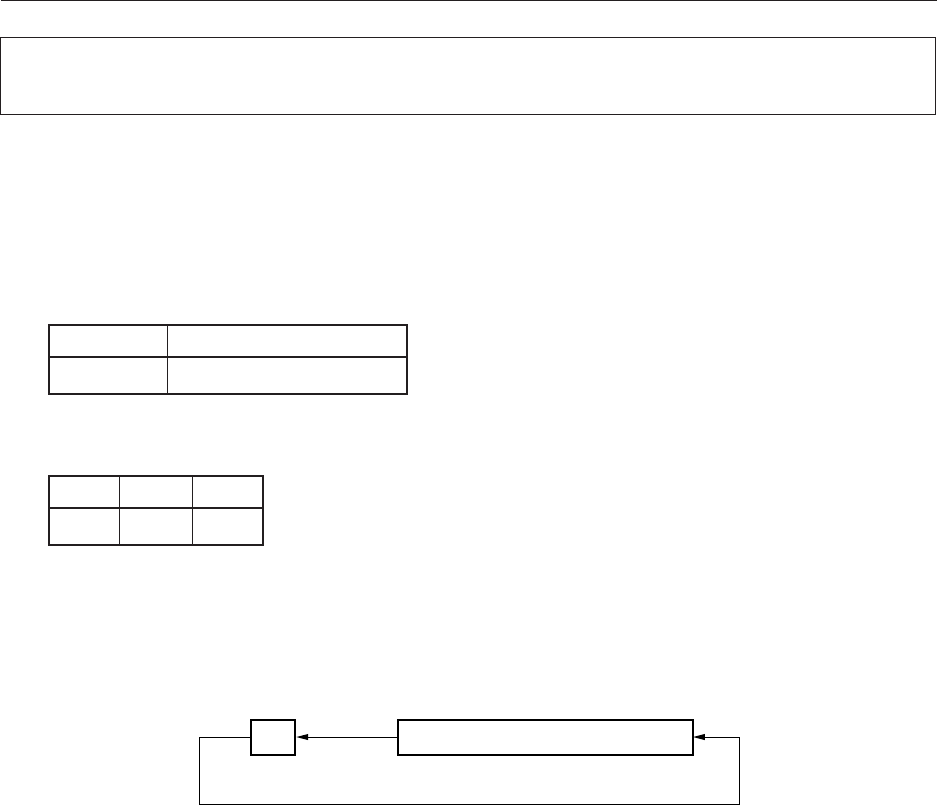

Rotate Right

ROR Byte Data Rotation to the Right

[Instruction format] ROR dst, cnt

[Operation] (CY, dst7←dst0, dstm–1←dstm) × one time

[Operand]

Mnemonic Operand(dst,cnt)

ROR A, 1

[Flag]

ZACCY

[Description]

• The destination operand (dst) contents specified by the 1st operand are rotated to the right just once.

• The LSB (bit 0) contents are simultaneously rotated to MSB (bit 7) and transferred to the CY flag.

[Description example]

ROR A, 1; The A register contents are rotated one bit to the right.

CY 07

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

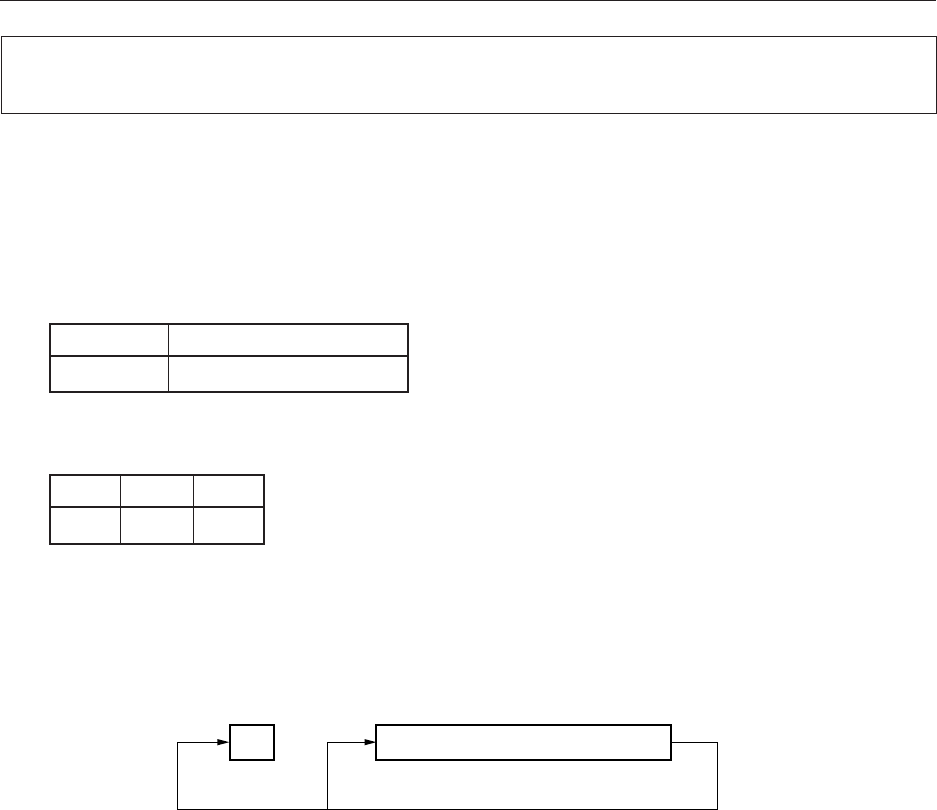

Rotate Left

ROL Byte Data Rotation to the Left

[Instruction format] ROL dst, cnt

[Operation] (CY, dst0←dst7, dstm+1 ←dstm) × one time

[Operand]

Mnemonic Operand(dst,cnt)

ROL A, 1

[Flag]

ZACCY

[Description]

•The destination operand (dst) contents specified by the 1st operand are rotated to the left just once.

•The MSB (bit 7) contents are simultaneously rotated to LSB (bit 0) and transferred to the CY flag.

[Description example]

ROL A, 1; The A register contents are rotated to the left by one bit.

CY 07

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Rotate Right with Carry

RORC Byte Data Rotation to the Right with Carry

[Instruction format] RORC dst, cnt

[Operation] (CY ←dst0, dst7←CY, dstm–1←dstm) × one time

[Operand]

Mnemonic Operand(dst,cnt)

RORC A, 1

[Flag]

ZACCY

[Description]

•The destination operand (dst) contents specified by the 1st operand are rotated just once to the right with

carry.

[Description example]

RORC A, 1; The A register contents are rotated to the right by one bit including the CY flag.

CY 07

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Rotate Left with Carry

ROLC Byte Data Rotation to the Left with Carry

[Instruction format] ROLC dst, cnt

[Operation] (CY ←dst7, dst0←CY, dstm+1 ←dstm) × one time

[Operand]

Mnemonic Operand(dst,cnt)

ROLC A, 1

[Flag]

ZACCY

[Description]

•The destination operand (dst) contents specified by the 1st operand are rotated just once to the left with

carry.

[Description example]

ROLC A, 1; The A register contents are rotated to the left by one bit including the CY flag.

CY 07

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Rotate Right Digit

ROR4 Digit Rotation to the Right

[Instruction format] ROR4 dst

[Operation] A3-0 ←(dst)3-0, (dst)7-4 ←A3-0, (dst)3-0 ←(dst)7-4

[Operand]

Mnemonic Operand(dst)

ROR4 [HL] Note

Note Specify an area other than the SFR area as operand [HL].

[Flag]

ZACCY

[Description]

•The lower 4 bits of the A register and the 2-digit data (4-bit data) of the destination operand (dst) are rotated

to the right.

The higher 4 bits of the A register remain unchanged.

[Description example]

ROR4 [HL]; Rightward digit rotation is executed with the memory contents specified by the A and HL registers.

A (HL)

7430 7430

Before Execution 1010 0011 1100 0101

After Execution 1010 0101 0011 1100

00 347

dst

347

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Rotate Left Digit

ROL4 Digit Rotation to the Left

[Instruction format] ROL4 dst

[Operation] A3-0 ←(dst)7-4, (dst)3-0 ←A3-0, (dst)7-4 ←(dst)3-0

[Operand]

Mnemonic Operand(dst)

ROL4 [HL] Note

Note Specify an area other than the SFR area as operand [HL].

[Flag]

ZACCY

[Description]

•The lower 4 bits of the A register and the 2-digit data (4-bit data) of the destination operand (dst) are rotated

to the left.

The higher 4 bits of the A register remain unchanged.

A (HL)

7430 7430

Before Execution 0001 0010 0100 1000

After Execution 0001 0100 1000 0010

00 347

dst

347

[Description example]

ROL4 [HL]; Leftward digit rotation is executed with the memory contents specified by the A and HL registers.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.8 BCD Adjust Instructions

The following are BCD adjust instructions.

ADJBA ... 83

ADJBS ... 84

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Decimal Adjust Register for Addition

ADJBA Decimal Adjustment of Addition Result

[Instruction format] ADJBA

[Operation] Decimal Adjust Accumulator for Addition

[Operand]

None

[Flag]

ZACCY

×××

[Description]

• The A register, CY flag and AC flag are decimally adjusted from their contents. This instruction carries out

an operation having meaning only when the BCD (binary coded decimal) data is added and the addition result

is stored in the A register (in all other cases, the instruction carries out an operation having no meaning).

See the table below for the adjustment method.

• If the adjustment result shows that the A register contents are 0, the Z flag is set (1). In all other cases,

the Z flag is cleared (0).

Condition Operation

A3 to A0 ≤ 9A7 to A4 ≤ 9 and CY = 0 A ←A, CY ←0, AC ←0

AC = 0 A7 to A4 ≥ 10 or CY = 1 A ←A+01100000B, CY ←1, AC ←0

A3 to A0 ≥ 10 A7 to A4 < 9 and CY = 0 A ←A+00000110B, CY ←0, AC ←1

AC = 0 A7 to A4 ≥ 9 or CY = 1 A ←A+01100110B, CY ←1, AC ←1

AC = 1 A7 to A4 ≤ 9 and CY = 0 A ←A+00000110B, CY ←0, AC ←0

A7 to A4 ≥ 10 or CY = 1 A ←A+01100110B, CY ←1, AC ←0

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Decimal Adjust Register for Subtraction

ADJBS Decimal Adjustment of Subtraction Result

[Instruction format] ADJBS

[Operation] Decimal Adjust Accumulator for Subtraction

[Operand]

None

[Flag]

ZACCY

×××

[Description]

• The A register, CY flag and AC flag are decimally adjusted from their contents. This instruction carries out

an operation having meaning only when the BCD (binary coded decimal) data is subtracted and the

subtraction result is stored in the A register (in all other cases, the instruction carries out an operation having

no meaning).

See the table below for the adjustment method.

• If the adjustment result shows that the A register contents are 0, the Z flag is set (1). In all other cases,

the Z flag is cleared (0).

Condition Operation

AC = 0 CY = 0 A ←A, CY ←0, AC ←0

CY = 1 A ←A–01100000B, CY ←1, AC ←0

AC = 1 CY = 0 A ←A–00000110B, CY ←0, AC ←0

CY = 1 A ←A–01100110B, CY ←1, AC ←0

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.9 Bit Manipulation Instructions

The following are bit manipulation instructions.

MOV1 ... 86

AND1 ... 87

OR1 ... 88

XOR1 ... 89

SET1 ... 90

CLR1 ... 91

NOT1 ... 92

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Move Single Bit

MOV1 1 Bit Data Transfer

[Instruction format] MOV1 dst, src

[Operation] dst ←src

[Operand]

Mnemonic Operand(dst,src) Mnemonic Operand(dst,src)

MOV1 CY, saddr.bit MOV1 saddr.bit, CY

CY, sfr.bit sfr.bit, CY

CY, A.bit A.bit, CY

CY, PSW.bit PSW.bit, CY

CY, [HL].bit [HL].bit, CY

[Flag]

dst = CY PSW.bit In all other cases

Z AC CY Z AC CY Z AC CY

×××

[Description]

• Bit data of the source operand (src) specified by the 2nd operand is transferred to the destination operand

(dst) specified by the 1st operand.

• When the destination operand (dst) is CY or PSW.bit, only the corresponding flag is changed.

[Description example]

MOV1 P3.4, CY; The CY flag contents are transferred to bit 4 of port 3.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

And Single Bit

AND1 1 Bit Data Logical Product

[Instruction format] AND1 dst, src

[Operation] dst ←dst ∧src

[Operand]

Mnemonic Operand(dst,src)

AND1 CY, saddr.bit

CY, sfr.bit

CY, A.bit

CY, PSW.bit

CY, [HL].bit

[Flag]

ZACCY

[Description]

• Logical product of bit data of the destination operand (dst) specified by the 1st operand and the source

operand (src) specified by the 2nd operand is obtained and the result is stored in the destination operand

(dst).

• The operation result is stored in the CY flag (because of the destination operand (dst)).

[Description example]

AND1 CY, FE7FH.3; Logical product of FE7FH bit 3 and the CY flag is obtained and the result is stored in

the CY flag.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Or Single Bit

OR1 1 Bit Data Logical Sum

[Instruction format] OR1 dst, src

[Operation] dst ←dst ∨ src

[Operand]

Mnemonic Operand(dst,src)

OR1 CY, saddr.bit

CY, sfr.bit

CY, A.bit

CY, PSW.bit

CY, [HL].bit

[Flag]

ZACCY

[Description]

• The logical sum of bit data of the destination operand (dst) specified by the 1st operand and the source

operand (src) specified by the 2nd operand is obtained and the result is stored in the destination operand

(dst).

• The operation result is stored in the CY flag (because of the destination operand (dst)).

[Description example]

OR1 CY, P2.5; The logical sum of port 2 bit 5 and the CY flag is obtained and the result is stored in the CY

flag.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Exclusive Or Single Bit

XOR1 1 Bit Data Exclusive Logical Sum

[Instruction format] XOR1 dst, src

[Operation] dst ←dst ∨ src

[Operand]

Mnemonic Operand(dst,src)

XOR1 CY, saddr.bit

CY, sfr.bit

CY, A.bit

CY, PSW.bit

CY, [HL].bit

[Flag]

ZACCY

[Description]

• The exclusive logical sum of bit data of the destination operand (dst) specified by the 1st operand and the

source operand (src) specified by the 2nd operand is obtained and the result is stored in the destination

operand (dst).

• The operation result is stored in the CY flag (because of the destination operand (dst)).

[Description example]

XOR1 CY, A.7; The exclusive logical sum of the A register bit 7 and the CY flag is obtained and the result

is stored in the CY flag.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Set Single Bit (Carry Flag)

SET1 1 Bit Data Set

[Instruction format] SET1 dst

[Operation] dst ←1

[Operand]

Mnemonic Operand(dst)

SET1 saddr.bit

sfr.bit

A.bit

PSW.bit

[HL].bit

[Flag]

dst = PSW.bit dst = CY In all other cases

Z AC CY Z AC CY Z AC CY

××× 1

[Description]

• The destination operand (dst) is set (1).

• When the destination operand (dst) is CY or PSW.bit, only the corresponding flag is set (1).

[Description example]

SET1 FE55H.1; Bit 1 of FE55H is set (1).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Clear Single Bit (Carry Flag)

CLR1 1 Bit Data Clear

[Instruction format] CLR1 dst

[Operation] dst ← 0

[Operand]

Mnemonic Operand(dst)

CLR1 saddr.bit

sfr.bit

A.bit

PSW.bit

[HL].bit

[Flag]

dst = PSW.bit dst = CY In all other cases

Z AC CY Z AC CY Z AC CY

××× 0

[Description]

• The destination operand (dst) is cleared (0).

• When the destination operand (dst) is CY or PSW.bit, only the corresponding flag is cleared (0).

[Description example]

CLR1 P3.7; Bit 7 of port 3 is cleared (0).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Not Single Bit (Carry Flag)

NOT1 1 Bit Data Logical Negation

[Instruction format] NOT1 dst

[Operation] dst ←dst

[Operand]

Mnemonic Operand(dst)

NOT1 CY

[Flag]

ZACCY

[Description]

• The CY flag is inverted.

[Description example]

NOT1 CY; The CY flag is inverted.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.10 Call Return Instructions

The following are call return instructions.

CALL ... 94

CALLF ... 95

CALLT ... 96

BRK ... 97

RET ... 98

RETI ... 99

RETB ... 100

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Call

CALL Subroutine Call (16 Bit Direct)

[Instruction format] CALL target

[Operation] (SP–1) ←(PC+3)H,

(SP–2) ←(PC+3)L,

SP ← SP–2,

PC ← target

[Operand]

Mnemonic Operand(target)

CALL !addr16

[Flag]

ZACCY

[Description]

• This is a subroutine call with a 16-bit absolute address or a register indirect address.

• The start address (PC+3) of the next instruction is saved in the stack and is branched to the address specified

by the target operand (target).

[Description example]

CALL !3059H; Subroutine call to 3059H

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Call Flag

CALLF Subroutine Call (11 Bit Direct Specification)

[Instruction format] CALLF Target

[Operation] (SP–1) ←(PC+2)H,

(SP–2) ←(PC+2)L,

SP ← SP–2,

PC ← target

[Operand]

Mnemonic Operand(target)

CALLF !addr11

[Flag]

ZACCY

[Description]

• This is a subroutine call which can only be branched to addresses 0800H to 0FFFH.

• The start address (PC+2) of the next instruction is saved in the stack and is branched in the range of

addresses 0800H to 0FFFH.

• Only the lower 11 bits of an address are specified (with the higher 5 bits fixed to 00001B).

• The program size can be compressed by locating the subroutine at 0800H to 0FFFH and using this

instruction. If the program is in the external memory, the execution time can be decreased.

[Description example]

CALLF !0C2AH; Subroutine call to 0C2AH

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Call Table

CALLT Subroutine Call (Refer to the Call Table)

[Instruction format] CALLT [addr5]

[Operation] (SP–1) ← (PC+1)H,

(SP–2) ←(PC+1)L,

SP ←SP–2,

PCH←(00000000, addr5+1)

PCL←(00000000, addr5)

[Operand]

Mnemonic Operand([addr5])

CALLT [addr5]

[Flag]

ZACCY

[Description]

• This is a subroutine call for call table reference.

• The start address (PC+1) of the next instruction is saved in the stack and is branched to the address indicated

with the word data of a call table (the higher 8 bits of address are fixed to 00000000B and the next 5 bits

are specified by addr5).

[Description example]

CALLT [40H]; Subroutine call to the word data addresses 0040H and 0041H.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Break

BRK Software Vectored Interrupt

[Instruction format] BRK

[Operation] (SP–1) ←PSW,

(SP–2) ←(PC+1)H,

(SP–3) ←(PC+1)L,

IE ←0,

SP ←SP–3,

PCH←(3FH),

PCL←(3EH)

[Operand]

None

[Flag]

ZACCY

[Description]

• This is a software interrupt instruction.

• PSW and the next instruction address (PC+1) are saved to the stack. After that, the IE flag is cleared (0)

and the saved data is branched to the address indicated with the word data at the vector address (003EH).

Because the IE flag is cleared (0), the subsequent maskable vectored interrupts are disabled.

• The RETB instruction is used to return from the software vectored interrupt generated with this instruction.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Return

RET Return from Subroutine

[Instruction format] RET

[Operation] PCL←(SP),

PCH←(SP+1),

SP ←SP+2

[Operand]

None

[Flag]

ZACCY

[Description]

• This is a return instruction from the subroutine call made with the CALL, CALLF and CALLT instructions.

• The word data saved to the stack returns to the PC, and the program returns from the subroutine.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Return from Interrupt

RETI Return from Hardware Vectored Interrupt

[Instruction format] RETI

[Operation] PCL←(SP),

PCH←(SP+1),

PSW ←(SP+2),

SP ←SP+3,

NMIS ← 0

[Operand]

None

[Flag]

ZACCY

RRR

[Description]

• This is a return instruction from the vectored interrupt.

• The data saved to the stack returns to the PC and the PSW, and the program returns from the interrupt service

routine.

• This instruction cannot be used for return from the software interrupt with the BRK instruction.

• None of interrupts are acknowledged between this instruction and the next instruction to be executed.

• The NMIS flag is set to 1 by acknowledgment of a non-maskable interrupt, and cleared to 0 by the RETI

instruction.

[Caution]

When the return from non-maskable interrupt servicing is performed by an instruction other than the RETI

instruction, the NMIS flag is not cleared to 0, and therefore no interrupts (including non-maskable interrupts)

except software interrupts can be acknowledged.

100

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Return from Break

RETB Return from Software Vectored Interrupt

[Instruction format] RETB

[Operation] PCL←(SP),

PCH←(SP+1),

PSW ←(SP+2),

SP ←SP+3

[Operand]

None

[Flag]

ZACCY

RRR

[Description]

• This is a return instruction from the software interrupt generated with the BRK instruction.

• The data saved in the stack returns to the PC and the PSW, and the program returns from the interrupt service

routine.

• None of interrupts are acknowledged between this instruction and the next instruction to be executed.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

101

User's Manual U12326EJ4V0UM

5.11 Stack Manipulation Instructions

The following are stack manipulation instructions.

PUSH ... 102

POP ... 103

MOVW SP, src ... 104

MOVW AX, SP ... 104

102

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Push

PUSH Push

[Instruction format] PUSH src

[Operation] When src = rp When src = PSW

(SP–1) ←srcH, (SP–1) ←src

(SP–2) ←srcL,SP←SP–1

SP ←SP–2

[Operand]

Mnemonic Operand(src)

PUSH PSW

[Flag]

ZACCY

[Description]

• The data of the register specified by the source operand (src) is saved to the stack.

[Description example]

PUSH AX; AX register contents are saved to the stack.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

103

User's Manual U12326EJ4V0UM

Pop

POP Pop

[Instruction format] POP dst

[Operation] When dst = rp When dst = PSW

dstL←(SP), dst ←(SP)

dstH←(SP+1), SP ←SP+1

SP ←SP+2

[Operand]

Mnemonic Operand(dst)

POP PSW

[Flag]

dst =rp PSW

Z AC CY Z AC CY

RRR

[Description]

• Data is returned from the stack to the register specified by the destination operand (dst).

• When the operand is PSW, each flag is replaced with stack data.

• None of interrupts are acknowledged between the POP PSW instruction and the subsequent instruction.

[Description example]

POP AX; The stack data is returned to the AX register.

104

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

MOVW SP, src Move Word

MOVW AX, SP Word Data Transfer with Stack Pointer

[Instruction format] MOVW dst, src

[Operation] dst ←src

[Operand]

Mnemonic Operand(dst,src)

MOVW SP, #word

SP, AX

AX, SP

[Flag]

ZACCY

[Description]

• This is an instruction to manipulate the stack pointer contents.

• The source operand (src) specified by the 2nd operand is stored in the destination operand (dst) specified

by the 1st operand.

[Description example]

MOVW SP, #FE1FH; FE1FH is stored in the stack pointer.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

105

User's Manual U12326EJ4V0UM

5.12 Unconditional Branch Instruction

The unconditional branch instruction is shown below.

BR ... 106

106

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Branch

BR Unconditional Branch

[Instruction format] BR target

[Operation] PC ←target

[Operand]

Mnemonic Operand(target)

BR !addr16

$addr16

[Flag]

ZACCY

[Description]

• This is an instruction to branch unconditionally.

• The word data of the target address operand (target) is transferred to PC and branched.

[Description example]

BR AX; The AX register contents are branched as the address.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

107

User's Manual U12326EJ4V0UM

5.13 Conditional Branch Instructions

Conditional branch instructions are shown below.

BC ... 108

BNC ... 109

BZ ... 110

BNZ ... 111

BT ... 112

BF ... 113

BTCLR ... 114

DBNZ ... 115

108

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Branch if Carry

BC Conditional Branch with Carry Flag (CY = 1)

[Instruction format] BC $addr16

[Operation] PC ←PC+2+jdisp8 if CY = 1

[Operand]

Mnemonic Operand($addr16)

BC $addr16

[Flag]

ZACCY

[Description]

• When CY = 1, data is branched to the address specified by the operand.

When CY = 0, no processing is carried out and the subsequent instruction is executed.

[Description example]

BC $300H; When CY = 1, data is branched to 0300H (with the start of this instruction set in the range of

addresses 027FH to 037EH).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

109

User's Manual U12326EJ4V0UM

Branch if Not Carry

BNC Conditional Branch with Carry Flag (CY = 0)

[Instruction format] BNC $addr16

[Operation] PC ←PC+2+jdisp8 if CY = 0

[Operand]

Mnemonic Operand($addr16)

BNC $addr16

[Flag]

ZACCY

[Description]

• When CY = 0, data is branched to the address specified by the operand.

When CY = 1, no processing is carried out and the subsequent instruction is executed.

[Description example]

BNC $300H; When CY = 0, data is branched to 0300H (with the start of this instruction set in the range of

addresses 027FH to 037EH).

110

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Branch if Zero

BZ Conditional Branch with Zero Flag (Z = 1)

[Instruction format] BZ $addr16

[Operation] PC ←PC+2+jdisp8 if Z = 1

[Operand]

Mnemonic Operand($addr16)

BZ $addr16

[Flag]

ZACCY

[Description]

• When Z = 1, data is branched to the address specified by the operand.

When Z = 0, no processing is carried out and the subsequent instruction is executed.

[Description example]

DEC B

BZ $3C5H; When the B register is 0, data is branched to 03C5H (with the start of this instruction set in the

range of addresses 0344H to 0443H).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

111

User's Manual U12326EJ4V0UM

Branch if Not Zero

BNZ Conditional Branch with Zero Flag (Z = 0)

[Instruction format] BNZ $addr16

[Operation] PC ← PC+2+jdisp8 if Z = 0

[Operand]

Mnemonic Operand($addr16)

BNZ $addr16

[Flag]

ZACCY

[Description]

• When Z = 0, data is branched to the address specified by the operand.

When Z = 1, no processing is carried out and the subsequent instruction is executed.

[Description example]

CMP A, #55H

BNZ $0A39H; If the A register is not 0055H, data is branched to 0A39H (with the start of this instruction set

in the range of addresses 09B8H to 0AB7H).

112

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Branch if True

BT Conditional Branch by Bit Test (Byte Data Bit = 1)

[Instruction format] BT bit, $addr16

[Operation] PC ←PC+b+jdisp8 if bit = 1

[Operand]

Mnemonic Operand(bit,$addr16) b(Number of bytes)

BT saddr.bit, $addr16 3

sfr.bit, $addr16 4

A.bit, $addr16 3

PSW.bit, $addr16 3

[HL].bit, $addr16 3

[Flag]

ZACCY

[Description]

• If the 1st operand (bit) contents have been set (1), data is branched to the address specified by the 2nd

operand ($addr16).

If the 1st operand (bit) contents have not been set (1), no processing is carried out and the subsequent

instruction is executed.

[Description example]

BT FE47H.3, $55CH; When bit 3 at address FE47H is 1, data is branched to 055CH (with the start of this

instruction set in the range of addresses 04DAH to 05D9H).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

113

User's Manual U12326EJ4V0UM

Branch if False

BF Conditional Branch by Bit Test (Byte Data Bit = 0)

[Instruction format] BF bit, $addr16

[Operation] PC ← PC+b+jdisp8 if bit = 0

[Operand]

Mnemonic Operand(bit,$addr16) b(Number of bytes)

BF saddr.bit, $addr16 4

sfr.bit, $addr16 4

A.bit, $addr16 3

PSW.bit, $addr16 4

[HL].bit, $addr16 3

[Flag]

ZACCY

[Description]

• If the 1st operand (bit) contents have been cleared (0), data is branched to the address specified by the 2nd

operand ($addr16).

If the 1st operand (bit) contents have not been cleared (0), no processing is carried out and the subsequent

instruction is executed.

[Description example]

BF P2.2, $1549H; When bit 2 of port 2 is 0, data is branched to address 1549H (with the start of this instruction

set in the range of addresses 14C6H to 15C5H).

114

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Branch if True and Clear

BTCLR Conditional Branch and Clear by Bit Test (Byte Data Bit = 1)

[Instruction format] BTCLR bit, $addr16

[Operation] PC ← PC+b+jdisp8 if bit = 1, then bit ←0

[Operand]

Mnemonic Operand(bit,$addr16) b(Number of bytes)

BTCLR saddr.bit, $addr16 4

sfr.bit, $addr16 4

A.bit, $addr16 3

PSW.bit, $addr16 4

[HL].bit, $addr16 3

[Flag]

bit =PSW.bit In all other cases

Z AC CY Z AC CY

×××

[Description]

• If the 1st operand (bit) contents have been set (1), they are cleared (0) and branched to the address specified

by the 2nd operand.

If the 1st operand (bit) contents have not been set (1), no processing is carried out and the subsequent

instruction is executed.

• When the 1st operand (bit) is PSW.bit, the corresponding flag contents are cleared (0).

[Description example]

BTCLR PSW.0, $356H; When bit 0 (CY flag) of PSW is 1, the CY flag is cleared to 0 and branched to address

0356H (with the start of this instruction set in the range of addresses 02D4H to

03D3H).

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

115

User's Manual U12326EJ4V0UM

Decrement and Branch if Not Zero

DBNZ Conditional Loop (R1 ≠ 0)

[Instruction format] DBNZ dst, $addr16

[Operation] dst ←dst–1,

then PC ←PC+b+jdisp16 if dst R1 ≠ 0

[Operand]

Mnemonic Operand(dst,$addr16) b(Number of bytes)

DBNZ B, $addr16 2

C, $addr16 2

saddr, $addr16 3

[Flag]

ZACCY

[Description]

• One is subtracted from the destination operand (dst) contents specified by the 1st operand and the

subtraction result is stored in the destination operand (dst).

• If the subtraction result is not 0, data is branched to the address indicated with the 2nd operand ($addr16).

When the subtraction result is 0, no processing is carried out and the subsequent instruction is executed.

• The flag remains unchanged.

[Description example]

DBNZ B, $1215H; The B register contents are decremented. If the result is not 0, data is branched to 1215H

(with the start of this instruction set in the range of addresses 1194H to 1293H).

116

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

5.14 CPU Control Instructions

The following are CPU control instructions.

SEL RBn ... 117

NOP ... 118

EI ... 119

DI ... 120

HALT ... 121

STOP ... 122

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

117

User's Manual U12326EJ4V0UM

Select Register Bank

SEL RBn Register Bank Selection

[Instruction format] SEL RBn

[Operation] RBS0, RBS1 ←n; (n = 0-3)

[Operand]

Mnemonic Operand(RBn)

SEL RBn

[Flag]

ZACCY

[Description]

• The register bank specified by the operand (RBn) is made a register bank for use by the next and subsequent

instructions.

• RBn ranges from RB0 to RB3.

[Description example]

SEL RB2; Register bank 2 is selected as the one for use by the next and subsequent instructions.

118

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

No Operation

NOP No Operation

[Instruction format] NOP

[Operation] no operation

[Operand]

None

[Flag]

ZACCY

[Description]

• Only the time is consumed without processing.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

119

User's Manual U12326EJ4V0UM

Enable Interrupt

EI Interrupt Enabled

[Instruction format] EI

[Operation] IE ←1

[Operand]

None

[Flag]

ZACCY

[Description]

• The maskable interrupt acknowledgeable status is set (by setting the interrupt enable flag (IE) to (1)).

• No interrupts are acknowledged between this instruction and the next instruction.

• If this instruction is executed, vectored interrupt acknowledgment from another source can be disabled. For

details, refer to “Interrupt Functions” in the user’s manual of each product.

120

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Disable Interrupt

DI Interrupt Disabled

[Instruction format] DI

[Operation] IE ←0

[Operand]

None

[Flag]

ZACCY

[Description]

• Maskable interrupt acknowledgment by vectored interrupt is disabled (with the interrupt enable flag (IE)

cleared (0)).

• No interrupts are acknowledged between this instruction and the next instruction.

• For details of interrupt servicing, refer to “Interrupt Functions” in the user’s manual of each product.

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

121

User's Manual U12326EJ4V0UM

Halt

HALT HALT Mode Set

[Instruction format] HALT

[Operation] Set HALT Mode

[Operand]

None

[Flag]

ZACCY

[Description]

• This instruction is used to set the HALT mode to stop the CPU operation clock. The total power consumption

of the system can be decreased with intermittent operation by combining this mode with the normal operation

mode.

122

CHAPTER 5 EXPLANATION OF INSTRUCTIONS

User's Manual U12326EJ4V0UM

Stop

STOP Stop Mode Set

[Instruction format] STOP

[Operation] Set STOP Mode

[Operand]

None

[Flag]

ZACCY

[Description]

• This instruction is used to set the STOP mode to stop the main system clock oscillator and to stop the whole

system. Power consumption can be minimized to only leakage current.

123

User's Manual U12326EJ4V0UM

APPENDIX A REVISION HISTORY

The following table shows the revision history of the previous editions. The “Applied to:” column indicates the

chapters of each edition in which the revision was applied.

Edition Major Revision from Previous Edition Applied to:

2nd Addition of the following versions: Throughout

PD78055 and 78P058, and

PD78018F, 78044A, 78054Y,

78078, 78083, 78098, and 780208 Subseries

Addition of the English documentation No. to the related documents INTRODUCTION

Addition of the IEBus register area (

PD78098 Subseries only)

CHAPTER 1 MEMORY SPACE

Addition of the description of the number of clocks when the

CHAPTER 4 INSTRUCTION SET

external ROM contains the program to the clock column.

Addition of Notes to the description of the ROR4 and ROL4 CHAPTER 5 EXPLANATION

instructions in the rotate instruction. OF INSTRUCTIONS

Change of the operation of the ADJBA and ADJBS instructions

in the BCD adjust instruction.

3rd Addition of the following versions: Throughout

PD78014H, 78018FY, 78044F, 78044H, 78058F, 78058FY,

78064Y, 78064B, 78075B, 78075BY, 78078Y, 78098B, 780018Y,

780024, 780024Y, 780034, 780034Y, 780058, 780058Y,

780228, 780308, 780308Y, 780924, and 780964 Subseries,

and

PD78011F, 78012F, 78070A, 78070AY, 780001, 78P0914,

780206, and 780208

Deletion of the following versions

PD78024, 78044, and 78044A Subseries

Addition of the table of all internal RAM spaces of each model CHAPTER 1 MEMORY SPACE

Change of the format of external memory space table

4th Deletion of all information except for information common to the Throughout

78K/0 Series (for individual product information, refer to the user’s

manual of each product).

124 User's Manual U12326EJ4V0UM

APPENDIX B INSTRUCTION INDEX (MNEMONIC: BY FUNCTION)

[8-bit data transfer instructions]

MOV ... 49

XCH ... 50

[16-bit data transfer instructions]

MOVW ... 52

XCHW ... 53

[8-bit operation instructions]

ADD ... 55

ADDC ... 56

SUB ... 57

SUBC ... 58

AND ... 59

OR ... 60

XOR ... 61

CMP ... 62

[16-bit operation instructions]

ADDW ... 64

SUBW ... 65

CMPW ... 66

[Multiply/divide instructions]

MULU ... 68

DIVUW ... 69

[Increment/decrement instructions]

INC ... 71

DEC ... 72

INCW ... 73

DECW ... 74

[Rotate instructions]

ROR ... 76

ROL ... 77

RORC ... 78

ROLC ... 79

ROR4 ... 80

ROL4 ... 81

[BCD adjust instructions]

ADJBA ... 83

ADJBS ... 84

[Bit manipulation instructions]

MOV1 ... 86

AND1 ... 87

OR1 ... 88

XOR1 ... 89

SET1 ... 90

CLR1 ... 91

NOT1 ... 92

[Call return instructions]

CALL ... 94

CALLF ... 95

CALLT ... 96

BRK ... 97

RET ... 98

RETI ... 99

RETB ... 100

[Stack manipulation instructions]

PUSH ... 102

POP ... 103

MOVW SP, src ... 104

MOVW AX, SP ... 104

125

User's Manual U12326EJ4V0UM

[Unconditional branch instruction]

BR ... 106

[Conditional branch instructions]

BC ... 108

BNC ... 109

BZ ... 110

BNZ ... 111

BT ... 112

BF ... 113

BTCLR ...114

DBNZ ... 115

[CPU control instructions]

SEL RBn ... 117

NOP ... 118

EI ... 119

DI ... 120

HALT ... 121

STOP ... 122

APPENDIX B INSTRUCTION INDEX (MNEMONIC: BY FUNCTION)

126 User's Manual U12326EJ4V0UM

APPENDIX C INSTRUCTION INDEX (MNEMONIC: IN ALPHABETICAL ORDER)

[A]

ADD ... 55

ADDC ... 56

ADDW ... 64

ADJBA ... 83

ADJBS ... 84

AND ... 59

AND1 ... 87

[B]

BC ... 108

BF ... 113

BNC ... 109

BNZ ... 111

BR ... 106

BRK ... 97

BT ... 112

BTCLR ... 114

BZ ... 110

[C]

CALL ... 94

CALLF ... 95

CALLT ... 96

CLR1 ... 91

CMP ... 62

CMPW ... 66

[D]

DBNZ ... 115

DEC ... 72

DECW ... 74

DI ... 120

DIVUW ... 69

[E]

EI ... 119

[H]

HALT ... 121

[I]

INC ... 71

INCW ... 73

[M]

MOV ... 49

MOVW ... 52

MOVW AX, SP ... 104

MOVW SP, src ... 104

MOV1 ... 86

MULU ... 68

[N]

NOP ... 118

NOT1 ... 92

[O]

OR ... 60

OR1 ... 88

[P]

POP ... 103

PUSH ... 102

[R]

RET ... 98

RETB ... 100

RETI ... 99

ROL ... 77

ROLC ... 79

ROL4 ... 81

ROR ... 76

RORC ... 78

ROR4 ... 80

127

User's Manual U12326EJ4V0UM

[S]

SEL RBn ... 117

SET1 ... 90

STOP ... 122

SUB ... 57

SUBC ... 58

SUBW ... 65

[X]

XCH ... 50

XCHW ... 53

XOR ... 61

XOR1 ... 89

APPENDIX C INSTRUCTION INDEX (MNEMONIC: IN ALPHABETICAL ORDER)

128 User's Manual U12326EJ4V0UM

[MEMO]

Although NEC has taken all possible steps

to ensure that the documentation supplied

to our customers is complete, bug free

and up-to-date, we readily accept that

errors may occur. Despite all the care and

precautions we've taken, you may

encounter problems in the documentation.

Please complete this form whenever

you'd like to report errors or suggest

improvements to us.

Hong Kong, Philippines, Oceania

NEC Electronics Hong Kong Ltd.

Fax: +852-2886-9022/9044

Korea

NEC Electronics Hong Kong Ltd.

Seoul Branch

Fax: +82-2-528-4411

Taiwan

NEC Electronics Taiwan Ltd.

Fax: +886-2-2719-5951

Address

North America

NEC Electronics Inc.

Corporate Communications Dept.

Fax: +1-800-729-9288

+1-408-588-6130

Europe

NEC Electronics (Europe) GmbH

Technical Documentation Dept.

Fax: +49-211-6503-274

South America

NEC do Brasil S.A.

Fax: +55-11-6462-6829

Asian Nations except Philippines

NEC Electronics Singapore Pte. Ltd.

Fax: +65-250-3583

Japan

NEC Semiconductor Technical Hotline

Fax: +81- 44-435-9608

I would like to report the following error/make the following suggestion:

Document title:

Document number: Page number:

Thank you for your kind support.

If possible, please fax the referenced page or drawing.

Excellent Good Acceptable PoorDocument Rating

Clarity

Technical Accuracy

Organization

CS 01.2
