Cordless Telephone
User Guide
(03.14.00)
– Please Read –
Important Cordless Telephone Installation Information
DS1000/2000 900 MHz Cordless Telephone Installation Tips
• The cordless telephone base unit plugs into a
digital
station port.
• For best results, the base unit should be placed in line-of-site with its handset.
• Cordless telephone range and reception can vary from site to site. Some of the things that
may adversely affect range and reception are:
- Placing the base against or close to a wall (particularly if the wall has metal studs).
- Positioning the base close to a device that emits Electromagnetic Interference (EMI),
such as a TV, radio, computer, fluorescent light, fax machine, or printer.
- Installing the base close to other 900 Mhz devices, such as Symbol or Telex hand-held
inventory devices.
- Installing the base above a ceiling that uses foil-backed insulation.
- Installing the base behind a door which can be closed, tinted windows, or one-way glass
which will separate the base from the handset.
• Always raise the base unit antenna to its full vertical position.
• When installing more than one cordless telephone in the same site:
- Be sure the base units are at least 15 feet apart.
- Do not install more than 12 cordless telephones in an area of close proximity.
- After installation, change each telephone’s channel by pressing
CH
on the handset. This will
minimize interference between your cordless telephones. There are 30 available channels.
• The handset must charge 5-8 hours in its charger prior to initial use.
• The Nickel Metal Hydride Rechargeable Battery Pack is recyclable. If you replace a battery
pack, always dispose of the old pack along with your other recyclable materials.
This manual has been developed by NEC Unified Solutions, Inc. It is intended for the use of its customers and service
personnel, and should be read in its entirety before attempting to install or program the system. Any comments or suggestions
for improving this manual would be appreciated. Forward your remarks to:
NEC Unified Solutions, Inc.
4 Forest Parkway
Shelton, CT 06484
www.necunifiedsolutions.com
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation
with respect to, any of the equipment covered. This manual is subject to change without notice and NEC Unified Solutions,
Inc. has no obligation to provide any updates or corrections to this manual. Further, NEC Unified Solutions, Inc. also reserves
the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No
representation is made that this manual is complete or accurate in all respects and NEC Unified Solutions, Inc. shall not be
liable for any errors or omissions. In no event shall NEC Unified Solutions, Inc. be liable for any incidental or consequential
damages in connection with the use of this manual. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent
of NEC Unified Solutions, Inc.
©2004 by NEC Unified Solutions, Inc. All Rights Reserved.
Printed in U.S.A.
Table of Contents
DS1000/2000 Cordless Telephone User Guide
Table of Contents
◆
1
Table of Contents
Chapter 1: Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DS1000/2000 900 Mhz Cordless Telephone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1802-Ring Down Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
9998-Regional Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
The Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Using the Basic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Placing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hanging Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Changing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Traveling Out Of Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Using the Base Cordless and Desk Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Low Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Using Your Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Connecting the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Wall-Mounting the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Mounting the Base on the Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Mounting the Base to a Wall Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installing the Battery in your Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Charging the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing the Charger and Charging the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning the Battery Charger Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Wall-Mounting the Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installing the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Earloop Style
Headset with your Cordless Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installing Headset P/N 750638 (M145 Earloop Style) . . . . . . . . . . . . . . . . . . . . . . .13
Earloop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Ear Cushion Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting the Headset and Using the Controls. . . . . . . . . . . . . . . . . . . . . . . . 15
Using the Headband Style Headset with your Cordless Telephone . . . . . . . . . . . . . . . . .16
Installing Headset P/N 750637 (M175 Headband Style) . . . . . . . . . . . . . . . . . . . . .16
Optional Earloop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the Headset and using the Controls . . . . . . . . . . . . . . . . . . . . . . . . 18
Specifications and Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Table of Contents
2
◆
Table of Contents
DS1000/2000 Cordless Telephone User Guide
Chapter 2: Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Feature Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Barge In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Call Coverage Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Call Forwarding Off Premise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Call Waiting / Camp On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Central Office Calls, Answering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Central Office Calls, Placing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Directed Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Distinctive Ringing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Do Not Disturb Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Extension Hunting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Forced Trunk Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Group Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Group Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Hotline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Meet Me Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Message Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Microphone Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Monitor / Silent Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Night Service / Night Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Off-Hook Signaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Prime Line Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Privacy Release Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Programmable Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Removing Lines and Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Reverse Voice Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Ringing Line Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Save Number Dialed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Split . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Tandem Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Trunk (Line) Queuing and Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Voice Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Walking Class of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cordless Telephone Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Introduction
DS1000/2000 Cordless Telephone User Guide
Chapter 1: Installation
◆
1
1
Chapter 1:
Installation
Introduction
DS1000/2000 900 Mhz Cordless Telephone
DS1000/2000 900 Mhz Cordless Telephone
Overview
The DS1000/2000 900 Mhz Cordless Telephone (P/N 80683)is a 900 Mhz digital nar-
row band FM cordless telephone that provides mobility, flexibility and convenience for
those who spend much of the workday away from their desk. Fully integrated with the
DS1000/2000 system, DS1000/2000 900 Mhz Cordless Telephone offers many standard
features such as Call Forwarding, Call Coverage, Hotline, and Voice Mail. Comple-
mented by 4 fully programmable function keys (with LEDs), the DS1000/2000 900 Mhz
Cordless Telephone achieves a whole new level of convenience and mobility. An easy-
to-read 16-character by 2-line LCD display (with four status icons), volume controls, a
rechargeable Nickel Metal Hydride Battery Pack, and a handy belt clip round out the
elegant and affordable DS1000/2000 900 Mhz Cordless Telephone.
The DS1000/2000 900 Mhz Cordless Telephone auto-IDs in
1801-Extension Circuit Type
with circuit type 50. No additional programming is required for basic feature operation.
Programming
1802-Ring Down Destination
For the cordless telephone extension number, use this option to designate the extension associated with the
base unit
Desk
button. By default, there is no entry for this option.
9998-Regional Defaults
You must leave this option at its default value (
1
- US Mode). The cordless telephone will not function if you
set this option to
2
(Latin America).
The Basics
Basic Operation
2
◆
Chapter 1: Installation
DS1000/2000 Cordless Telephone User Guide
The Basics
Basic Operation
Using the Basic Features
Answering Calls
■
Outside calls:
Ring with 2 short rings followed by a long ring.
■
Intercom calls:
Ring with 1 long ring.
■
To answer a call:
Press
TALK
or the flashing line key.
-
If your handset is in the charger, lifting the handset answers the incoming call.
Placing Calls
■
Intercom calls
: Press
TALK
+ Dial co-worker’s extension or
*8
for Voice Mail.
■
Outside calls:
Press
TALK
+ Dial trunk access code + Dial outside number, or
Press line key + Dial outside number
Hanging Up
■
Press
TALK
or place the handset in the charger.
Changing Channels
If the installation site has more than one DS1000/2000 900 Mhz Cordless Telephone, set up each telephone
to operate on its own channel.
■
While on a call, press
CH
.
-
The
TALK
icon flashes briefly while the handset changes channels. There are 30 channels max.
-
If you select a channel that is already in use, you see
SYSTEM BUSY
.
Standby Mode
■
When the handset is out of the charger, it will go into Standby Mode after about 5 minutes. Standby
mode blanks the display to conserve power.
■
Placing or answering a call automatically cancels Standby Mode.
Traveling Out Of Range
■
If you try to place a call while out of range (beyond the range of your handset):
-
ACQUIRING LINK
flashes in your display.
-
You hear five quick beeps.
-
NO SERVICE
flashes in your display.
■
If you travel out of range while on a call:
-
You hear five quick beeps.
-
Your handset goes into standby mode.
-
The call disconnects.
Using the Base
Cordless
and
Desk
Buttons
■
While on a call at your cordless handset
: Press
Desk
to transfer the call to your desk extension.
■
While on a call at your desk extension
: Press
Cordless
to transfer the call to your cordless handset.
■
While idle at your cordless handset
: Press
Desk
to call your desk extension on the Intercom.
■
While idle at your desk extension
: Press Cordless to beep (locate) for cordless handset.
Low Battery
If the
LOW
icon displays:
■
If on a call, press
TALK
to hang up as soon as possible so your call is not interrupted.
■
Recharge or replace the battery before placing or answering another call.
The Basics
Basic Operation
DS1000/2000 Cordless Telephone User Guide
Chapter 1: Installation
◆
3
1
Using Your Handset
Figure 1: Using Your Handset
Voice Mail
●
On if you have
a Voice Mail message
or Message Waiting.
●
Dial *8 to respond
Battery
On when
battery is low
Ringer
●
On when ring is turned off
Talk
●
Off while idle
●
On while on a call
●
Flashes while
microphone muted
Headset jack
●
While idle, Press TALK
for Intercom dial tone
●
While busy, press
TALK to hang up
Hold
Press HOLD to put
your call on hold
Talk
Last Number Redial
Press REDIAL to
redial your last call
●
While idle, press
to select ring type
or vibrate
●
While on a call, press to mute
microphone
●
While idle, press and hold
5 seconds to turn ringer on or off
Ring Volume
Ring On/Off Mute
●
TRANSFER + Extension
transfers call to a co-worker
●
TRANSFER + 700 transfers
call to Voice Mail
Transfer
●
Press CH to change channels
if you hear interference
●
30 separate channels
Channel
●
Line keys 1-4 by default
●
Can optionally be
programmed for
other features
Programmable Keys
Conference
While on a call,
press CONF to set up
a conference
Microphone
Picks up your voice
Line1 Line2 Line3 Line4
2-line, 16
character display
Note: ACQUIRING LINK
means your handset
is setting up a
connection
with the base
●
While on a call, press
to change handset
receiving volume
80683 - 1
While on a call
Press to transfer
call to handset
Press to transfer
call to desk extension
While idle
Press to locate
(beep) handset
Press to call
desk extension
Installation
Installing the Base
4
◆
Chapter 1: Installation
DS1000/2000 Cordless Telephone User Guide
Installation
Installing the Base

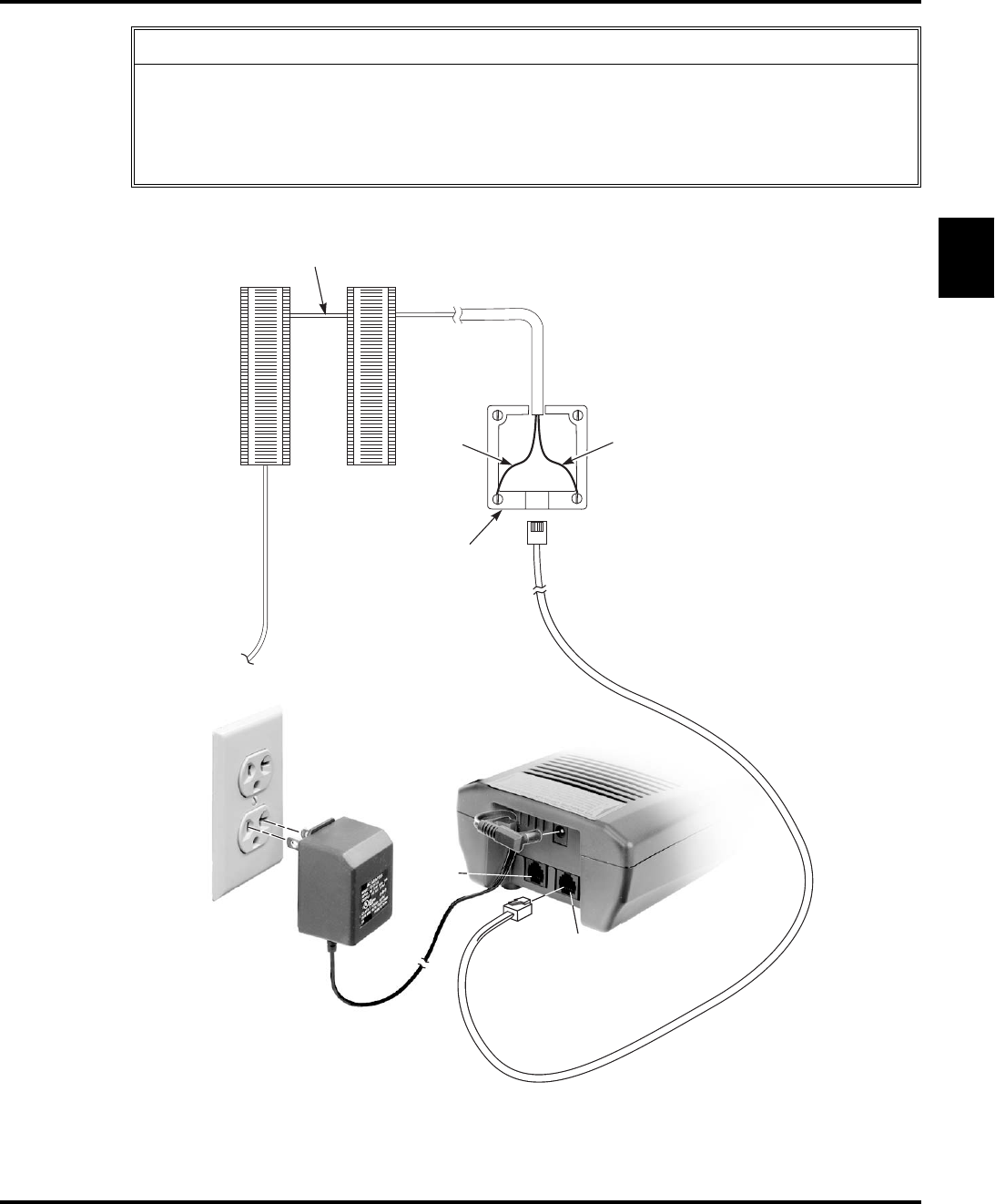

Connecting the Base
To connect the base to the DS1000/2000 system
(Figure 2: Installing the Base)
:
1.
Install a modular jack within 6 feet of the base and within 6 feet of an available standard (NEMA 5-15R)
120 VAC outlet.
2.
Run a single pair of 24 AWG station cable from the cross-connect block to the modular jack.
3.
Terminate the station cable
WHT/BLU - BLU/WHT
leads to the
RED
and
GRN
lugs on the modular jack.
4. Back at the main equipment location, run one pair of cross-connect wire between an available digital
station port pins on the extension block and cross-connect block to complete the installation.
5. Install bridging clips as required.
6. Plug one end of a modular line cord into the base LINE IN jack; plug the other end of the line cord into
the modular jack.
■The DS1000/2000 900 Mhz Cordless Telephone auto-IDs in 1801-Extension Circuit Type with cir-
cuit type 50. No additional programming is required for basic feature operation.
To connect the AC Adaptor to the base:
1. Run the AC adaptor cord under the strain relief on the back of the base as shown.
2. Plug the AC adaptor into AC outlet.
3. Be sure the base antenna is in the vertical position.
Checking the Base LEDs
Normal Operation
■The Power LED is on.
■The Cordless and Desk LEDs are off.
Troubleshooting
■If the Power LED is off, the base power supply is not properly connected.
■If the Desk LED is flashing, the base is not correctly connected to a digital station circuit in the main
equipment.
Be sure to review Guidelines for Placing the Base, Figure 3: Correct Installation Methods, and Figure 4:
Incorrect Installation Methods prior to connecting the base unit to the system.

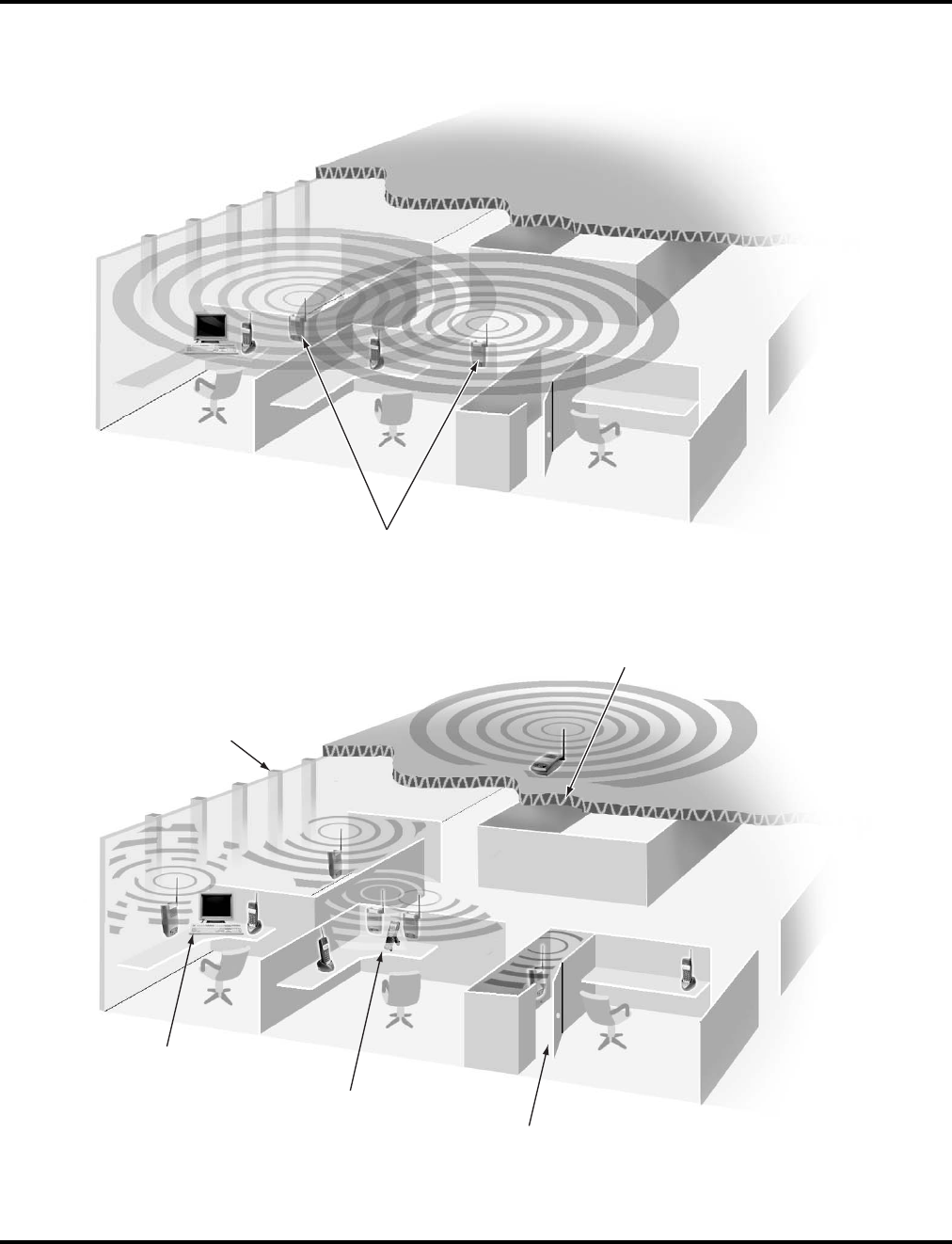

Guidelines for Placing the Base
• For best results, the base unit should be placed in line-of-site with its handset.
• Cordless telephone range and reception can vary from site to site. Some of the things that may
adversely affect range and reception are:
- Placing the base against or close to a wall (particularly if the wall has metal studs).
- Positioning the base close to a device that emits Electromagnetic Interference (EMI), such as a
TV, radio, computer, fluorescent light, fax machine, or printer.
- Installing the base close to other 900 Mhz devices, such as Symbol or Telex hand-held inventory
devices.
- Installing the base above a ceiling that uses foil-backed insulation.
- Installing the base behind a door which can be closed, tinted windows, or one-way glass which will
separate the base from the handset.
Installation
Installing the Base
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆5
1
Figure 2: Installing the Base
• Always raise the base unit antenna to its full vertical position.
• When installing more than one cordless in the same site:
- Be sure the base units are at least 15 feet apart.
• After installation, change each telephone’s channel by pressing CH on the handset. This will mini-
mize interference between your cordless telephones.
Guidelines for Placing the Base (Cont’d)
625
Modular
Jack
BLK
YEL
RED GRN
BLU-WHT WHT-BLU
Cross
Connect
Block
One-Pair
Cross Connect
(To digital keyset port)
Station
Block
80683 - 3
AC Adaptor
Digital Keyset Jack
Line in
Line
out
Installation
Installing the Base
6◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Figure 3: Correct Installation Methods
Figure 4: Incorrect Installation Methods
80683 - 7
Correct line-of-site installation, away
from devices that cause interference or
locations that block signal.
80683 - 6
Too close to another
device that emits EMI
Too close to other
900 Mhz devices
Metal studs
Foil backed insulated ceiling
Behind a door that
can be closed, tinted windows
or one way glass
Installation
Wall-Mounting the Base
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆7
1

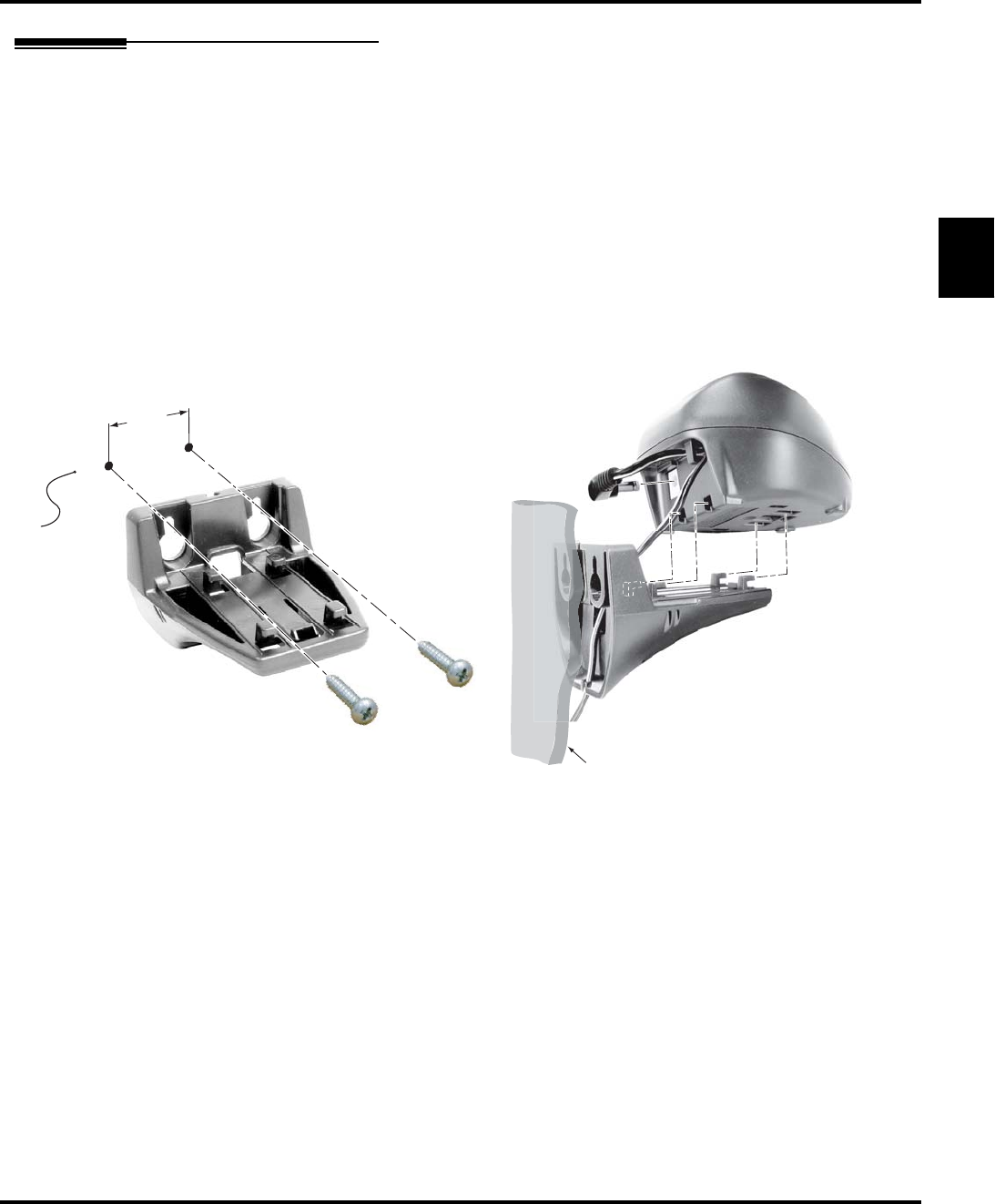

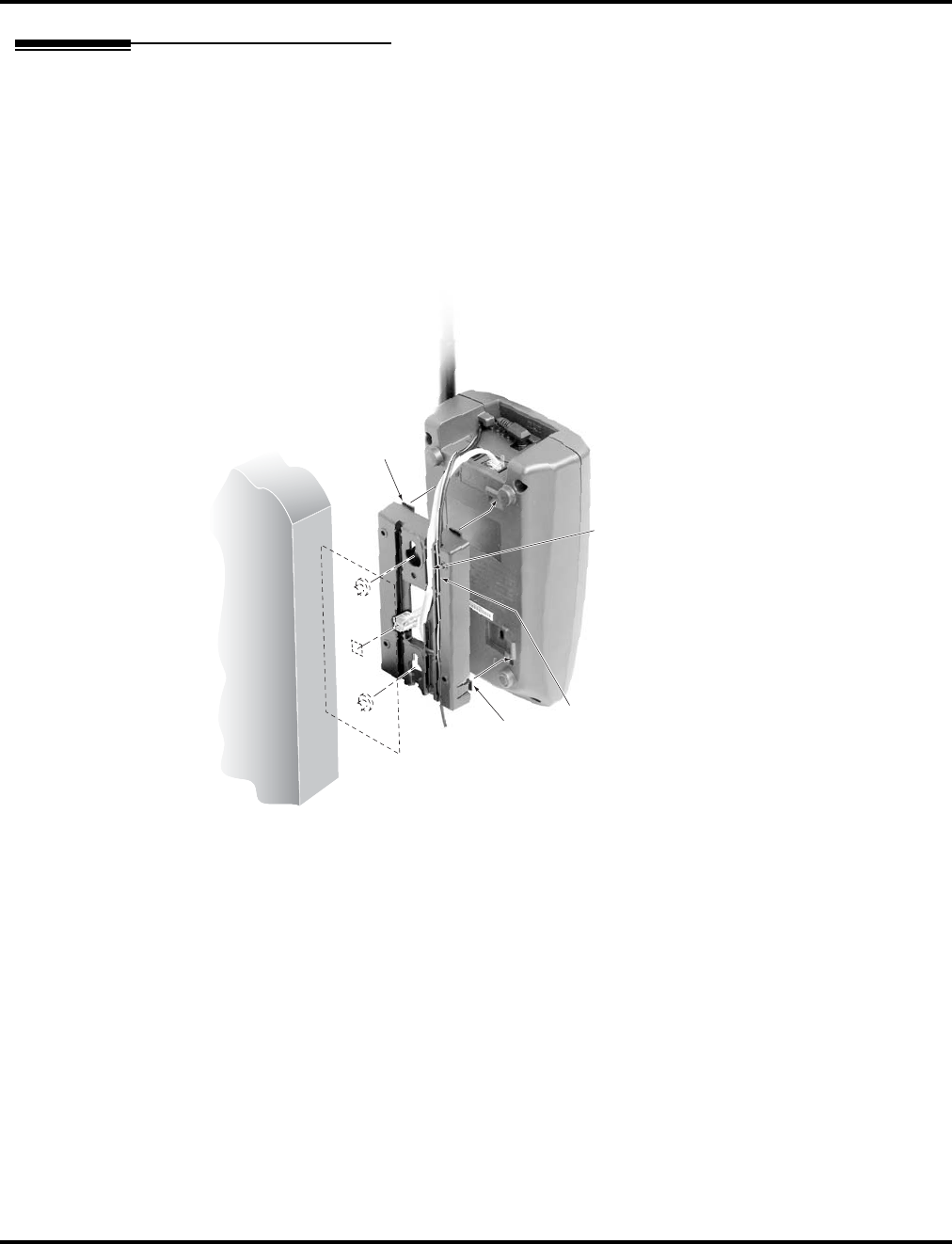

Wall-Mounting the Base
Mounting the Base on the Wall
To mount the base on the wall (Figure 5: Mounting the Base on the Wall):
1. Run the base line cord in the wide wire channel as shown, but do not plug it into the base.
2. Run the AC adaptor cord in the narrow wire channel as shown, but do not plug it into the base.
3. Using suitable fasteners, attach the wall-mount bracket to the wall in the desired location.
-To make the base easier to remove later on, consider not tightening the fasteners all the way.
4. Snap the base onto the wall-mount bracket.
-Make sure the mounting ears fit all the way into their slots and the mounting tabs snap into place.
5. Connect the base line cord and AC adaptor cord to the base.
Figure 5: Mounting the Base on the Wall
To remove the base from the wall:
-If you did not tighten the fasteners, you can slide the base off the wall before going to the next step.
1. Unplug the line cord and AC adaptor cord from the base.
2. Press the mounting tabs to release the wall-mount bracket from the base.
Wall
80683 - 14
AC adaptor cord
in narrow channel
Mounting tab
Mounting ear
Line cord
in wide
channel
Installation
Wall-Mounting the Base
8◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Mounting the Base to a Wall Plate
To mount the base on a standard wall plate (Figure 6: Mounting the Base to a Standard Wall Plate):
1. Snap the base onto the wall-mount bracket.
-Make sure the mounting ears fit all the way into their slots and the mounting tabs snap into place.
2. Run a customer-provided short line cord in the wide wire channel as shown and plug it into the base.
3. Run the AC adaptor cord in the narrow wire channel as shown and plug it into the base.
4. Plug the other end of the short line cord into the wall plate modular jack.
5. Slide the wall-mount bracket onto the wall plate.
Figure 6: Mounting the Base to a Standard Wall Plate
To remove the base from the wall:
1. Slide the wall-mount bracket off of the wall plate.
2. Unplug the short line cord from the wall plate.
3. Unplug the short line cord and AC adaptor cord from the base.
4. Press the mounting tabs to release the wall-mount bracket from the base.
Wall
Wall Plate
AC adaptor cord
in narrow channel
Mounting tab
80683 - 15
Mounting ear
Line cord
in wide
channel
Installation
Installing the Battery
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆9
1
Installing the Battery
Installing the Battery in your Handset
To install the battery in your handset (Figure 7: Installing the Handset Battery):
1. Slide the battery cover off of the handset.
2. Insert the battery lead into the battery connector. Be sure to observe the polarity of the connection by lin-
ing up the black dot with the black wire.
3. Turn the battery around to it fits into the battery compartment.
4. Slide the battery cover back onto the handset until it snaps into place.
Figure 7: Installing the Handset Battery
80683 - 2
White wire
Red
wire
Black wire
After inserting jack,
turn battery to fit into
battery compartment
Installation
Charging the Handset
10 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide

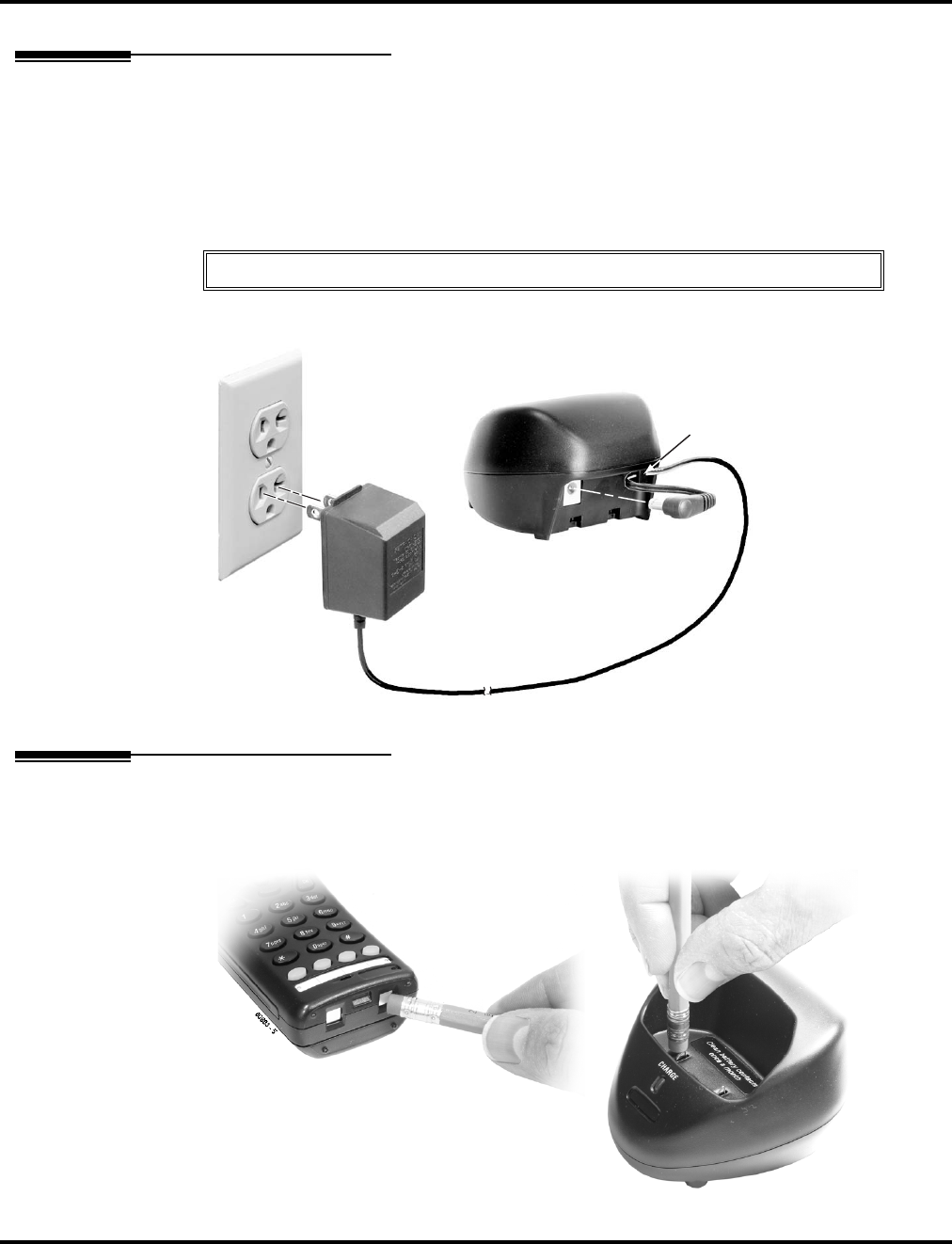

Charging the Handset
Installing the Charger and Charging the Handset
To connect the AC Adaptor to the charger (Figure 8: Installing the Charger):
1. Run the AC adaptor cord under the strain relief on the back of the charger as shown.
2. Plug the AC adaptor cord into the charger.
3. Plug the AC adaptor into AC outlet.
4. Insert the handset into the charger.
When the handset is correctly inserted into the charger, the CHARGE LED on the
charger is on.
Figure 8: Installing the Charger
Cleaning the Battery Charger Contacts
To clean the battery charger contacts (Figure 9: Cleaning the Battery Charger Contacts):
●Use a pencil eraser or soft cloth to periodically (once a month) clean the battery contacts.
Figure 9: Cleaning the Battery Charger Contacts
The handset must charge 5-8 hours in its charger prior to initial use.
80683 - 4
AC Adaptor
Strain Relief
Installation
Charging the Handset
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆11
1
Wall-Mounting the Charger
To wall-mount the charger (Figure 10: Wall-Mounting the Charger):
1. Choose a suitable location for the charger wall-mount bracket within 6 feet of an AC outlet.
2. Install suitable fasteners 1 3/16” apart, leaving the heads out about 1/4”.
3. Run the AC adaptor cord through the notch in the bottom of the wall-mount bracket and up
through the rectangular cutout in the bracket.
4. Place the wall-mount bracket on the fasteners and tighten.
5. Run the AC adaptor cord through the strain relief on the back of the charger, then plug the
cord into the charger.
6. Snap the charger onto the wall-mount bracket.
7. Plug the AC adaptor into the AC outlet.
Figure 10: Wall-Mounting the Charger
80683 - 13
1-3/16"
Wall
80683 - 11
Wall
Installation
Using the Belt Clip
12 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Using the Belt Clip
Installing the Belt Clip

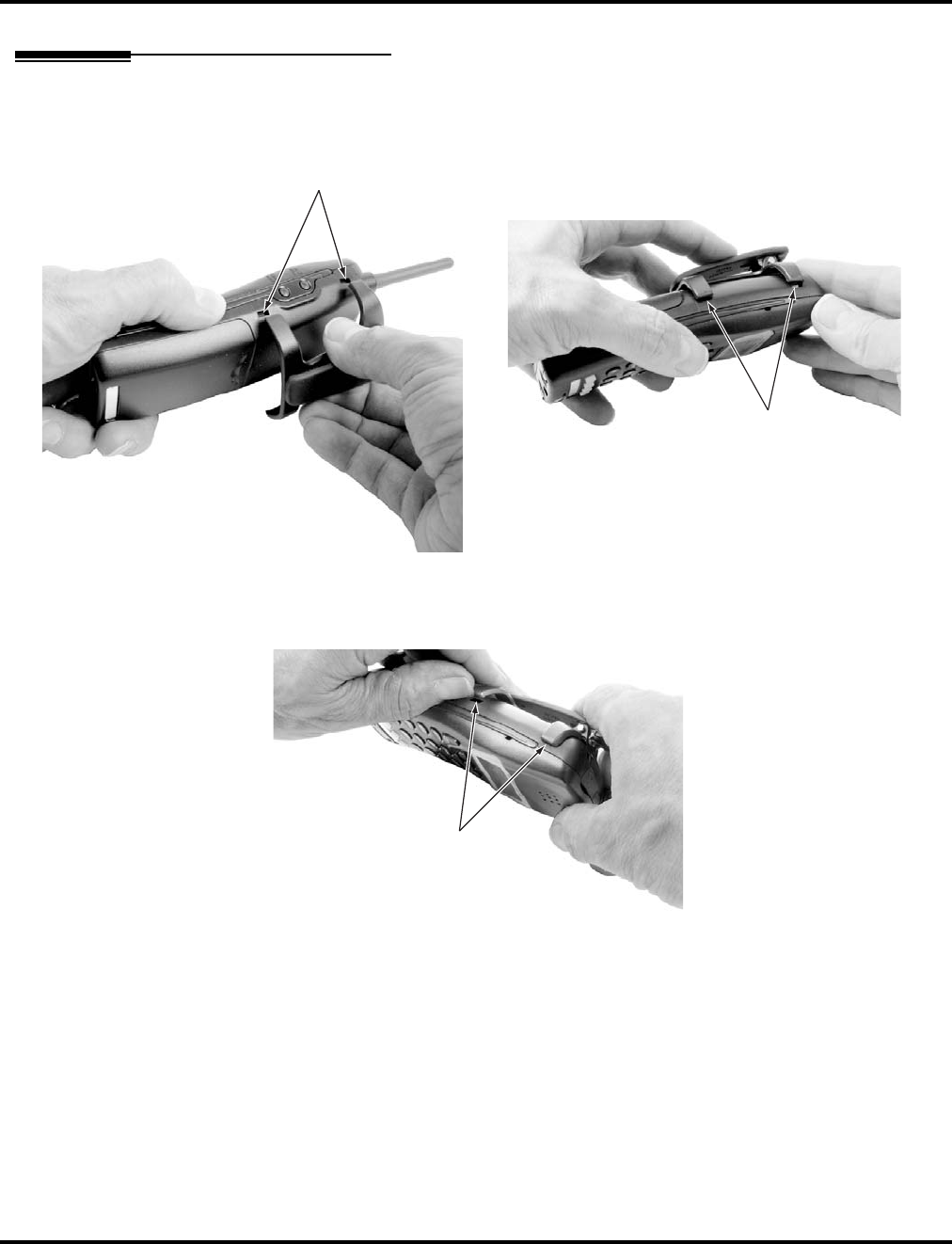

To install the belt clip (Figure 11: Installing the Belt Clip):
■With the open end of the clip facing away from the antenna, snap the belt clip onto the handset.
Figure 11: Installing the Belt Clip
To remove the belt clip (Figure 12: Removing the Belt Clip):
■Gently pry the belt clip prongs out of the slots in the handset.
Figure 12: Removing the Belt Clip
80683 - 8
Snap prongs into slots
80683 - 9
Snap prongs into slots
on other side
80683 - 10
Pry prongs up from slots
Installation
Using the Earloop Style Headset with your Cordless Telephone
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆13
1
Using the Earloop Style Headset with your Cordless Telephone

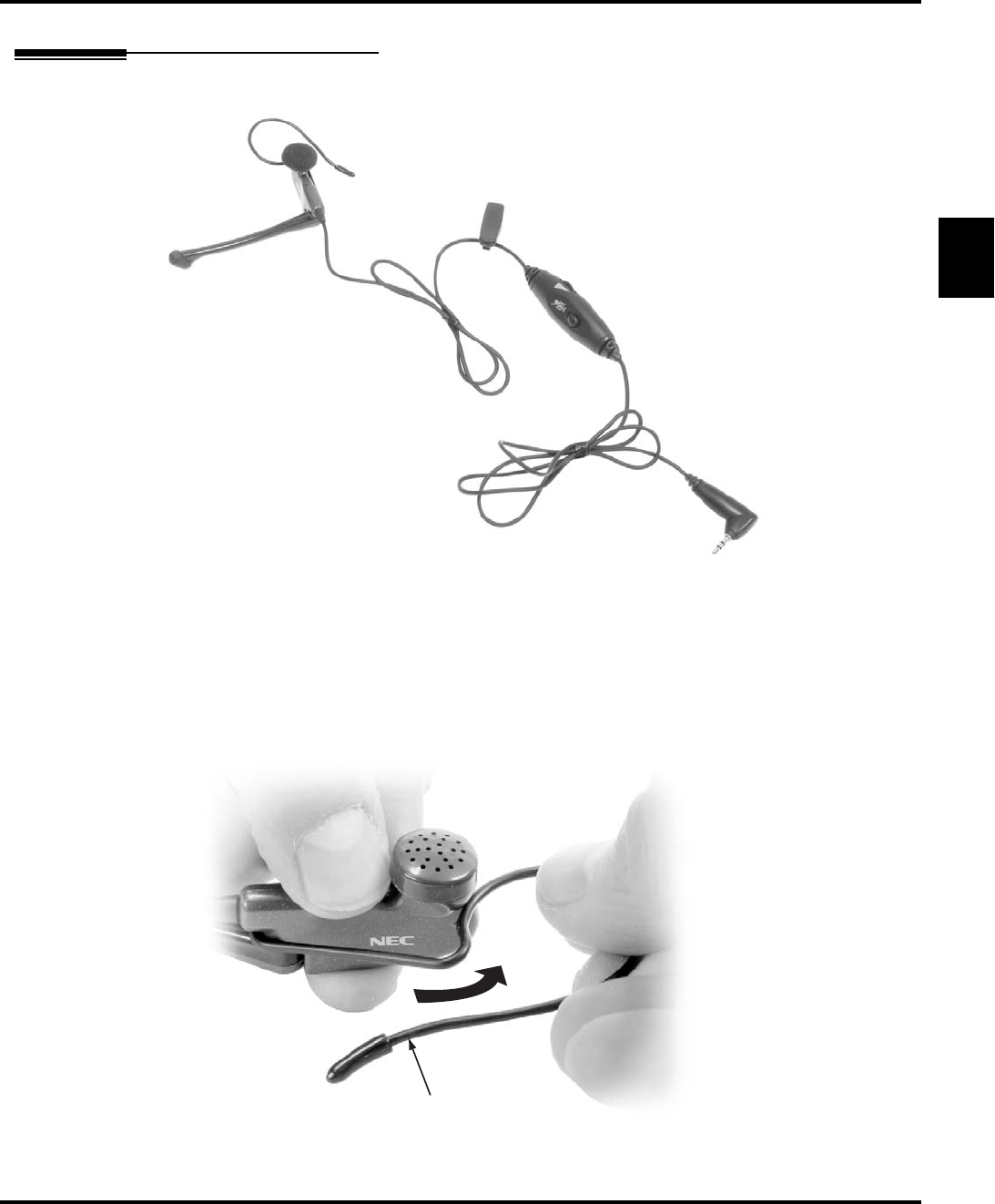

Installing Headset P/N 750638 (M145 Earloop Style)
Figure 13: Headset P/N 750638 (Ear Loop Style)
Earloop Installation
To install the earloop (recommended) (Figure 14: Installing the Ear Loop):
■Hook the earloop onto the headset and snap into place.
-Installation for the right ear is shown. For the left ear, hook the earloop on the opposite side of the
headset and reverse the microphone boom.
Figure 14: Installing the Ear Loop
80683 - 17
Ear loop
Snap into
place
Installation
Using the Earloop Style Headset with your Cordless Telephone
14 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Ear Cushion Installation
To install the ear cushion (Figure 15: Installing the Ear Cushion):
■Pull the ear cushion over the earpiece.
Figure 15: Installing the Ear Cushion
80683 - 18
Ear cushion
Pull over
earpiece
Installation
Using the Earloop Style Headset with your Cordless Telephone
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆15
1
Connecting the Headset and Using the Controls

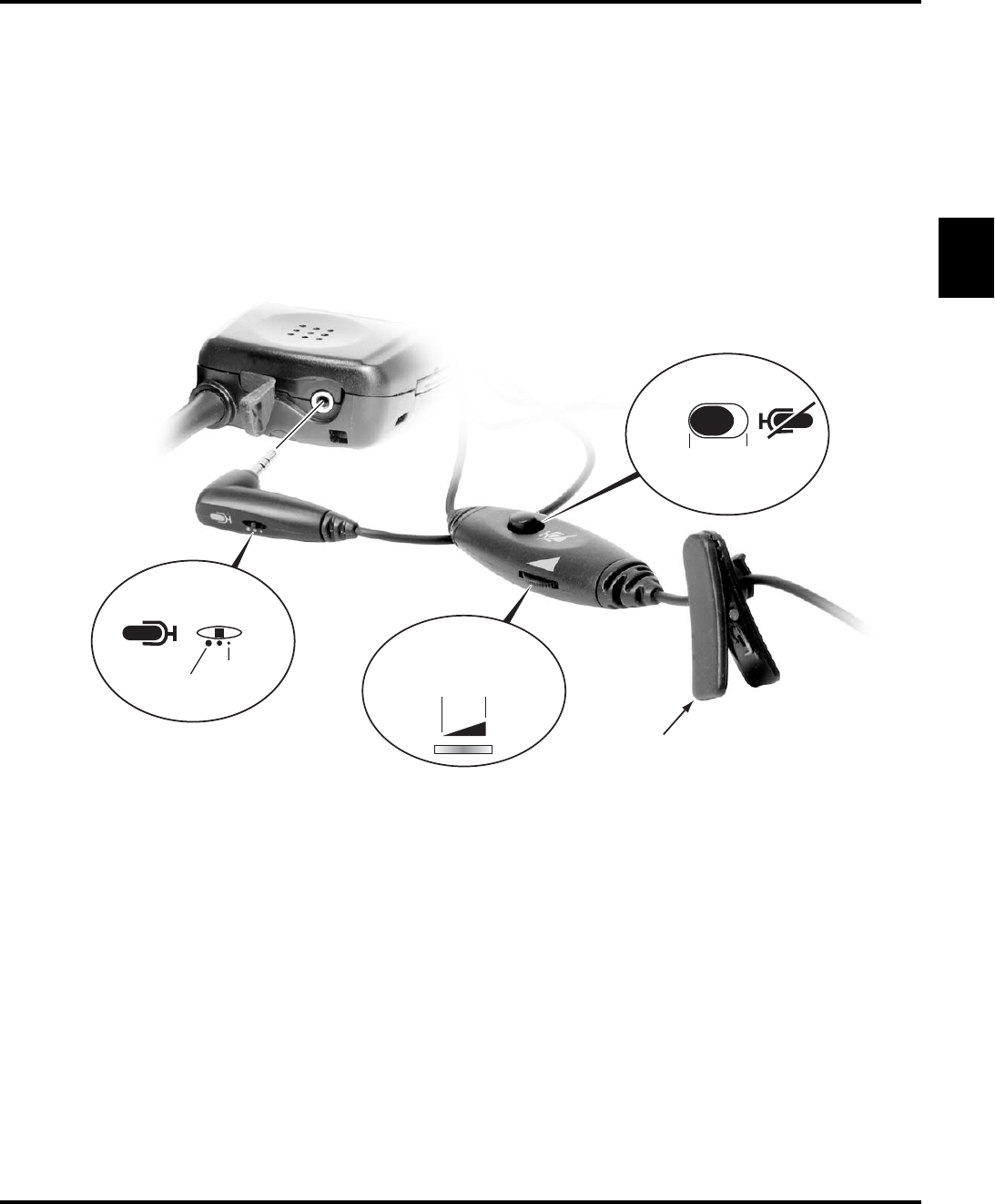

To connect the headset and use the controls (Figure 16: Connecting the Headset):
■Plug the headset into the Headset Jack on the top of the handset.
■Use the Microphone Volume control to adjust the volume of your headset’s microphone (i.e., your
voice).
■Use the Headset Receiver Volume control to adjust the volume of the receiver in your headset (i.e.,
your caller’s voice).
■To temporarily turn off your headset microphone, slide the Microphone Mute switch into the Micro-
phone Muted position.
■Clip the Belt/Lapel Clip to your belt or lapel to secure the headset cord.
Figure 16: Connecting the Headset
80683 - 16
Belt/lapel clip
Minimum
volume
Maximum
volume
Headset receive vloume
Microphone mute
Microphone
muted
Microphone
ON
Microphone volume
More
volume
Less
volume
Installation
Using the Headband Style Headset with your Cordless Telephone
16 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Using the Headband Style Headset with your Cordless Telephone

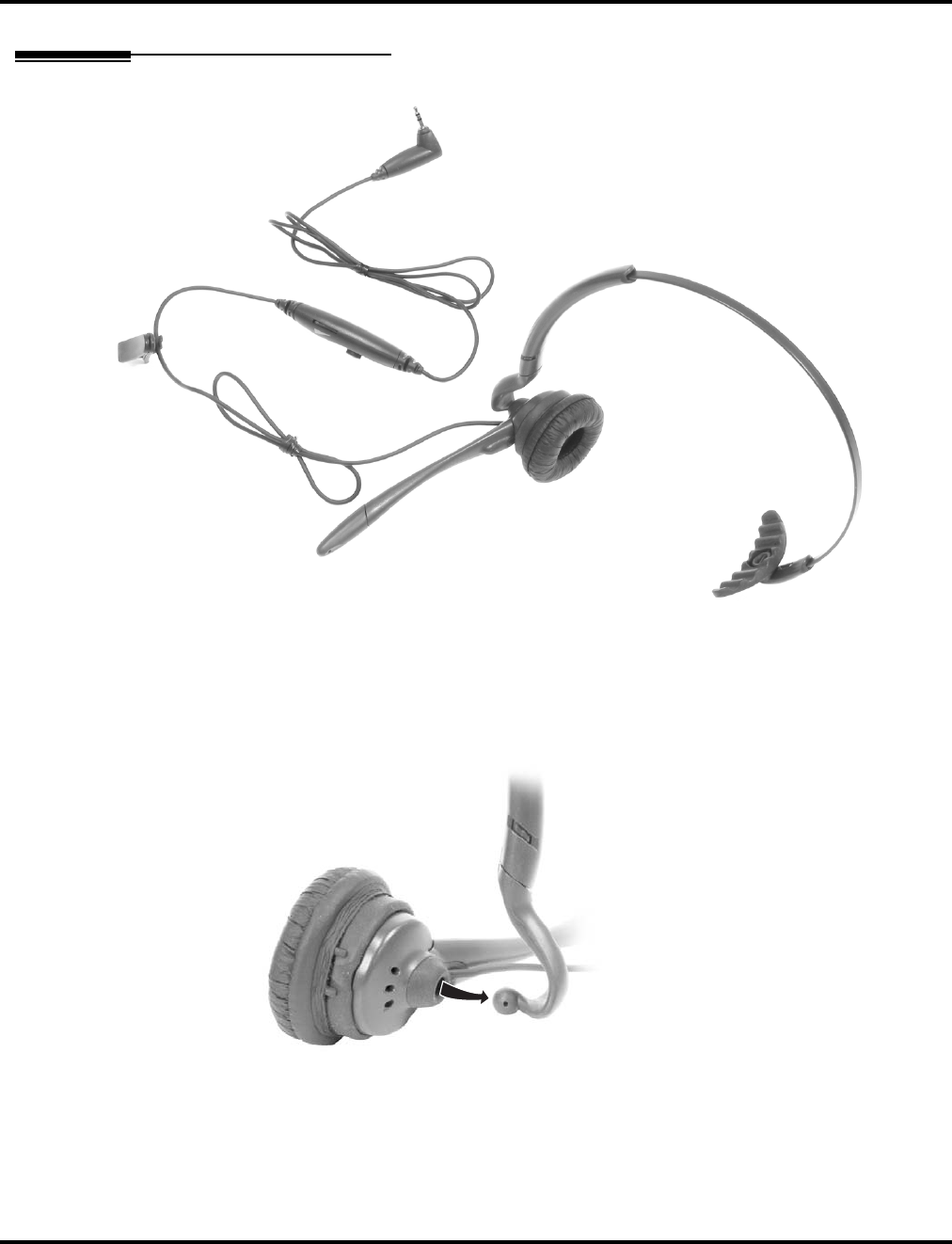

Installing Headset P/N 750637 (M175 Headband Style)
Figure 17: Headset P/N 750637 (Headband Style)
Optional Earloop Installation
To install the optional earloop:
■Snap the head band out of the ear piece.
Figure 18: Installing the Optional Earloop
80683 - 19
Installation
Using the Headband Style Headset with your Cordless Telephone
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆17
1
■Remove the ear cushion.
Figure 19: Removing the Ear Cushion
■Snap on the earloop ring. (Make sure the earloop ring lies flat against the microphone boom as shown.)
Figure 20: Snapping on the Earloop Ring
■Insert the earloop into the earloop ring. (Installation for the right ear is shown. For the left ear, insert the
earloop from underneath the earloop ring.)
Figure 21: Inserting the Earloop into the Earloop Ring
80683 - 20
80683 - 21
80683 - 22
Installation
Using the Headband Style Headset with your Cordless Telephone
18 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Connecting the Headset and using the Controls

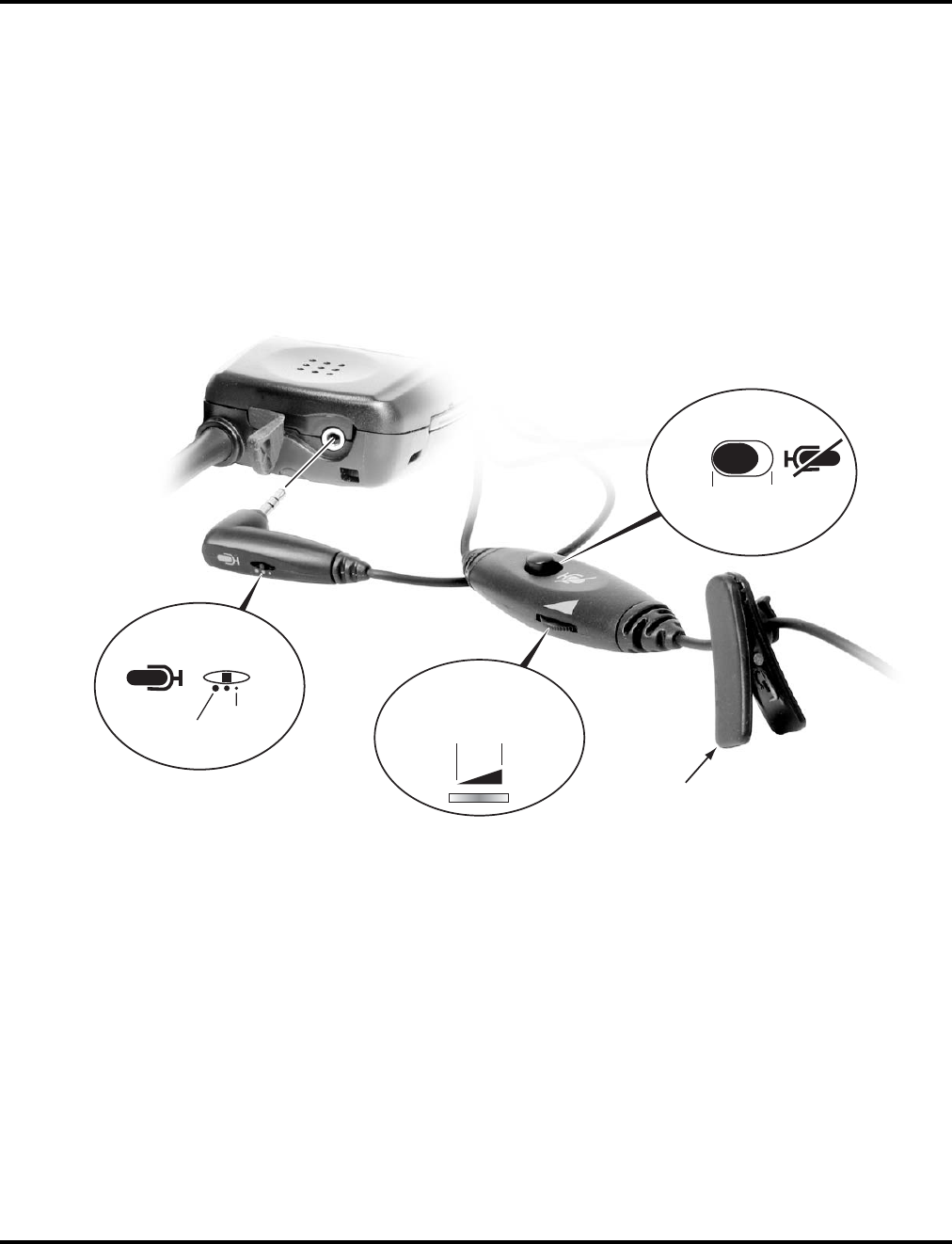

To connect the headset and use the controls (Figure 22: Connecting the Headset and
Using the Controls):
●Plug the headset into the Headset Jack on the top of the handset.
●Use the Microphone Volume control to adjust the volume of your headset’s microphone
(i.e., your voice).
●Use the Headset Receiver Volume control to adjust the volume of the receiver in your head-
set (i.e., your caller’s voice).
●To temporarily turn off your headset microphone, slide the Microphone Mute switch into the
Microphone Muted position.
●Clip the Belt/Lapel Clip to your belt or lapel to secure the headset cord.
Figure 22: Connecting the Headset and Using the Controls
80683 - 16
Belt/lapel clip
Minimum
volume
Maximum
volume
Headset receive vloume
Microphone mute
Microphone
muted
Microphone
ON
Microphone volume
More
volume
Less
volume
Installation
Specifications and Parts
DS1000/2000 Cordless Telephone User Guide Chapter 1: Installation ◆19
1
Specifications and Parts
Specifications
DS1000/2000 Cordless Telephone Specifications
Transmission and Reception
Transmission Method . . . . . . . . . . . . . 900 MHz Digital Narrow Band FM
Receive/Transmit Frequency . . . . . . . . 902-905 MHz & 925-928 MHz
Frequency Control . . . . . . . . . . . . . . . Phase Lock Loop
PCM Type . . . . . . . . . . . . . . . . . . . . . . 32 Kbps ADPCM (Adaptive Differential Pulse
Code Modulation)
Range . . . . . . . . . . . . . . . . . . . . . . . . . Up to 350 feet (depending on installation site)
See Guidelines for Placing the Base on page 4 for
some of the factors that affect range.
Bandwidth . . . . . . . . . . . . . . . . . . . . . + 50 KHz
Data Transmission Speed . . . . . . . . . . 688 BPS
Transmit Power . . . . . . . . . . . . . . . . . . .4 mW approx.
Simultaneous Conversations (Channels) 30
Handset Battery
Type . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6V 750 mAh Nickel Metal Hydride Recharge-
able Battery Pack
Charge Time . . . . . . . . . . . . . . . . . . . . 5-6 Hours max. to full charge
Life . . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 7 hours talk time
Up to 5 days standby
Power Requirements
Power Supplies
Charger (supplied) . . . . . . . . . . . . . . . 9 VDC (yellow color-coded connector)
Base (supplied) . . . . . . . . . . . . . . . . . 10 VDC (black color-coded connector)
Mechanical
Handset
Size . . . . . . . . . . . . . . . . . . . . . . . . . . 2” W x 1 1/4” D x 5 1/2” H (without antenna)
Weight . . . . . . . . . . . . . . . . . . . . . . . . Approximately 5.1 oz. (with battery)
Base
Size . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1/4” W x 7 5/8”” D x 2 1/4” H (without antenna)
Weight . . . . . . . . . . . . . . . . . . . . . . . . Approximately 13.3 oz.
Charger
Size . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1/4” W x 3 1/2” D x 2 1/16” H
Weight . . . . . . . . . . . . . . . . . . . . . . . . Approximately 2.3 oz.
Installation
Specifications and Parts
20 ◆Chapter 1: Installation DS1000/2000 Cordless Telephone User Guide
Parts and Accessories
Environmental
Environmental Specifications . . . . . . . Maintain the same environmental conditions as
you would for your DS1000/2000 keysets.
Miscellaneous
Display Type . . . . . . . . . . . . . . . . . . . . 16 character, 2-line LCD with 4 Status Icons
Distinctive Ringing . . . . . . . . . . . . . . . 3 ring tones (two volume levels each) and vibrate
The DS1000/2000 Cordless Telephone is hearing-aid compatible.
DS1000/2000 Cordless Telephone Parts and Accessories
Part Number Description
80683 DS1000/2000 Cordless Telephone
730632 EXP 9385 Charger Unit without AC Adaptor
730619 AD-970 AC Adaptor for Charger Unit
730618 EXP 9704 AC Adaptor for Base Unit
730634 EXP 9302 Belt Clip
750637 NEC Cordless Headset (M175 - Headband style)
750638 NEC Cordless Headset (M145 - Earloop style)
730631 BT-930 Replacement Battery (Ni-Mh, DC 3.6V 750 mAh)
730633 EXP 9360 Wall Mount Bracket for Charger Unit
730608 EXP 9660 Wall Mount Bracket for Base Unit
DS1000/2000 Cordless Telephone Specifications
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆21
2
Chapter 2:
Features
Feature Operation
Feature Operation
Barge In
Barge In is disabled by default.
To Barge In on an extension or line:
1. Call busy extension or place call on busy line.
2. Dial 4. (You hear 2 beeps.)
3. Join in the conversation in progress.
Call Coverage Keys
There are no Call Coverage keys assigned by default.
To answer a call ringing or flashing a Call Coverage key:
1. Press the flashing Call Coverage key.
Call Coverage Key Flash Rates
When the key is: The covered extension is:
Off Idle or not installed
On Busy
Flashing Slowly Ringing
Flashing Fast In DND for intercom calls (option 2) or all calls (option 3)
Wink Off In DND for outside calls (option 1)
Feature Operation
22 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
To use your Call Coverage key to place a call to your idle co-worker:
1. Press the Call Coverage key.
Call Forwarding
Call Forwarding is enabled by default.
To activate Call Forwarding:
1. Press TALK and dial *3.
2. Dial the Call Forwarding type:
0 = Cancel your extension’s Call Forwarding
2 = Call Forwarding Busy/No Answer
4 = Call Forwarding Immediate
6 = Call Forwarding No Answer
3. Dial the destination extension, 0 for your operator, or the Voice Mail master number (e.g., 700).
4. Dial 2 to forward all calls; 8 to forward just outside calls.
The second line of the handset display shows that Call Forwarding is enabled (FWD) and the destination
extension (number, name or Voice Mail).
Call Forwarding Off Premise
Call Forwarding Off Premise is disabled by default.
To activate Call Forwarding Off Premise:
1. Have your System Administrator set up your Personal Speed Dial bins.
2. Press TALK and dial *33 + 2.
3. Dial the Personal Speed Dial bin number (701-720) that Call Forwarding Off Premise should dial to for-
ward your calls.
4. Press HOLD.
5. Dial 2 to forward all calls; 8 to forward just outside calls.
The second line of the handset display shows that Call Forwarding is enabled (FWD) and the destination
number or name.
Call Waiting / Camp On
Call Waiting / Camp On is enabled by default.
To Camp-On to a busy extension:
1. Call a busy co-worker.
2. Dial 2, but do not hang up.
-If you hang up, the system converts your Camp-On to a Callback.
3. When your co-worker becomes free, you hear ringback.
4. Speak to your co-worker when they answer their waiting call.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆23
2
Callback
Callback is enabled by default.
To leave a Callback at a busy co-worker:
1. Call your busy co-worker.
2. Dial 2 and hang up.
-If you stay on the line, you will Camp-On to your busy co-worker.
3. When your busy co-worker becomes free, your phone will automatically ring.
4. Press TALK to answer.
5. Speak to your co-worker when the call goes through.
Caller ID
Caller ID is disabled by default.
If enabled in the system and provided by your telephone company, the handset display will show the Caller
ID information as the call is ringing.
-Second Call Caller ID and Third Party Caller ID Check are note available.
Central Office Calls, Answering
Central Office Calls, Answering is enabled by default.
To answer an outside call ringing your phone:
1. Press TALK.
-Your handset will not vibrate while it is in its charger base.
Central Office Calls, Placing
Central Office Calls, Placing is enabled by default.
To place an outside call using a line or loop key:
1. Press the line or loop key.
To place an outside call over a specific line using Line Dial-Up:
1. Press TALK.
2. Dial #9.
3. Dial the line number (e.g., 01 for line 1).
To place an outside call using Direct Line Access):
1. Press TALK.
2. Dial 1.
3. Dial the line number (e.g., 01 for line 1).
Feature Operation
24 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
To place an outside call using Line Group Access:
1. Press TALK and dial a Line Group Access Code (90-98).
-If you hear dial tone as soon as you dial 9, your system has Line Group Routing. A line group has
been automatically selected for you.
Conference
Conference is enabled by default.
To set up a Conference:
1. Establish Intercom or outside call.
2. Press CONF.
3. Dial extension you want to add,
OR
Place or answer an outside call,
OR
Retrieve call from Park Orbit.
4. Press CONF to set up the Conference.
-You see: CONFERENCE CALL
Directed Call Pickup
Directed Call Pickup is enabled by default.
To use Directed Call Pickup to intercept a call to a co-worker’s extension:
1. Press TALK.
2. Dial **.
3. Dial your co-worker’s extension number.
-To pick up a call ringing an attendant, dial the attendant’s extension number (e.g., 300). Do not dial
0 or 01-04.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆25
2
Distinctive Ringing
Distinctive Ringing is enabled by default.
To change your handset’s ringing tone:
-Outside calls ring with two short rings followed by one long.
-Intercom calls ring with one long ring.
1. While idle, press RING/VOL.
-You hear the selected ringing tone. The tone will ring for about 2 seconds unless you press RING/
VOL to select another tone.
-There are four ring tones from which to choose. The default setting is hi-lited.
To turn the ringer off:
1. While your phone is idle, press and hold ON/OFF MUTE for five seconds.
-The OFF icon will display indicating that the ringer is off.
Do Not Disturb Override
Do Not Disturb Override is disabled by default.
To use Do Not Disturb Override:
1. Dial your co-worker.
2. When you hear DND tone, dial 1.
3. The system automatically places a ringing Intercom call to your co-worker.
Extension Hunting
Extension Hunting is disabled by default.
To temporarily install or remove your extension from your UCD group:
1. Press TALK.
2. Dial *5, then . . .
3. Dial 4 to return your extension to your group, or
Dial 6 to remove your extension from your group.
Display Name Description
Ring Type A High High pitch ring, loud
Ring Type A Low High pitch ring, soft
Ring Type B High Low pitch ring, loud
Ring Type B Low Low pitch ring, soft
Ring Type C High High pitch warble, loud
Ring Type C Low High pitch warble, soft
Ring Off Vibrate1
1 While the handset is in the charger, the Ring Off setting uses Ring
Type A Low.
Feature Operation
26 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Forced Trunk Disconnect
Forced Trunk Disconnect is disabled by default.
To disconnect a busy outside line:
1. Press line key for busy outside line.
OR
Press TALK and dial the line’s Line Access Code (e.g., 101 for line 1).
2. Dial # to disconnect the line.
3. Press line key and dial the number you want to call.
Group Call Pickup
Group Call Pickup is disabled by default.
To answer a call ringing a phone in your Pickup Group:
1. Press TALK and dial *#.
OR
Press the flashing Group Pickup key.
Group Ring
Group Ring is disabled by default.
To answer a call ringing into your Ring Group:
1. Press TALK.
Hold
Hold is enabled by default.
To place an outside call on System Hold:
1. Press HOLD.
-The line key flashes fast to indicate that it is on Hold.
-The line will recall with a distinctive “wink-on” flash rate if you leave it on Hold too long.
To place an outside call on Exclusive Hold:
1. Press HOLD twice.
-The line key flashes with a distinctive “wink-on” flash rate to show when it is on Hold or recalling.
To place an Intercom call on Hold:
1. Press HOLD.
To pick up an outside call on Hold:
1. Press the flashing line key.
To pick up an Intercom call on Hold:
1. Press TALK + HOLD.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆27
2
Hotline
Hotline is disabled by default.
To place a call to your Hotline partner:
1. Press your Hotline key.
To Transfer your outside call to your Hotline partner:
1. While on the call, press your Hotline key.
2. (Optional) Announce the call.
3. Press TALK to hang up and Transfer the call.
To answer a call from your Hotline partner.
1. Press TALK
Intercom
Intercom is enabled by default.
To place an Intercom call:
1. Press TALK + Dial your co-worker’s extension number.
-To call a Door Box, dial the Door Box extension number. You cannot control the Door Box relay.
To answer an Intercom call ringing your phone:
1. Press TALK.
Last Number Redial
Last Number Redial is enabled by default.
To redial your last call:
1. Press a line key + REDIAL.
Hotline Key Flash Rates
When the key is: The covered extension is:
Off Idle or not installed
On Busy
Flashing Fast In DND for intercom calls (option 2) or all calls (option 3)
Wink Off In DND for outside calls (option 1)
Feature Operation
28 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Meet Me Conference
Meet Me Conference is enabled by default.
To set up a Meet-Me Conference:
1. Press TALK.
2. Dial *1 + Dial a page zone number + Announce Meet-Me Conference code (#11 or #12).
3. Press TRANSFER + Dial the announced Meet-Me Conference code.
To join a Meet-Me Conference:
1. Listen for page announcing the Meet-Me Conference.
2. Press TALK.
3. Dial the announced Meet-Me Conference code (#11 or #12).
Message Waiting
Message Waiting is available by default, but only in systems without Voice Mail installed.
To leave a Message Waiting:
1. Place Intercom call to co-worker + Dial 8.
-The extension you call can be unanswered, busy, or in Do Not Disturb.
To answer a Message Waiting:
- Your “New Mail” icon indicates that you have a Message Waiting.
1. Press TALK + Dial *8.
Microphone Mute
Microphone Mute is enabled by default.
To mute your handset’s microphone:
1. While on a call, press ON/OFF MUTE.
-The TALK icon flashes while your microphone is muted.
To cancel Microphone Mute:
1. While on a call, press ON/OFF MUTE.
-The TALK icon stops flashing.
-Microphone Mute automatically cancels when you hang up.
Monitor / Silent Monitor
Monitor / Silent Monitor is disabled by default.
To Monitor a call:
1. Call busy co-worker + Dial 6.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆29
2
Night Service / Night Ring
Night Service is disabled by default.
To activate or deactivate Night Service:
1. Press your Night key.
To answer a call ringing the paging system at night:
1. Press TALK + Dial *0.
Off-Hook Signaling
Off-Hook Signaling (Camp-On tones) is available for Intercom calls by default.
While busy on a call, you can receive Camp-On tones when another call is trying to get through.
Paging
Paging is available by default.
To make an Internal Paging Announcement:
1. Press TALK.
2. Dial *1.
3. Dial the Page Zone number (1-7 or 0 for All Call).
4. Make announcement and hang up.
Park
Park is available by default.
To Park a call in a System Park Orbit:
1. While on an outside call, press TRANSFER.
2. Dial * and the System Park Orbit (60-69).
3. Press TALK to hang up.
To retrieve a call from a System Park Orbit:
1. Press TALK + Dial * and the System Park Orbit (60-69).
To Park a call at a co-worker’s extension (using Personal Park):
1. While on an outside call, press TRANSFER.
2. Dial **.
3. Dial the number of the extension at which you want to Park the call.
4. Press TALK to hang up.
To retrieve a call parked at a co-worker’s extension:
1. Press TALK + Dial ** and the number of the extension at which the call is parked.
Feature Operation
30 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Prime Line Preference
Intercom Prime Line Preference is enabled by default.
To place a call on your Prime Line:
1. Press TALK + Dial the call normally.
-To bypass your Prime Line, press another line key before pressing TALK.
Privacy Release Groups
Privacy Release Groups is disabled by default.
To join an outside call with a member of your Privacy Release Group:
1. Press the busy line key.
-Your display shows: CONFERENCE CALL
To prevent a member of your Privacy Release Group from joining your call:
1. Place or answer an outside call on a line key.
2. Press the line key.
3. Press the line key again to allow a co-worker to join in.
Programmable Function Keys
By default, keys 1-4 are line keys for outside lines 1-4. You can only set up cordless telephone function keys
from system programming.
Cordless Telephone Programmable Function Keys
Description Code BLF Operation
Undefined 00 - -
Loop Key, Switched 01 Off: Idle
On: You are on a loop key call.
Slow Flash: Call is ringing the
loop key
Incoming: Press key to answer
outside call.
Outgoing: Press key + Dial trunk
group (0-9) to place call.
Loop Key, Fixed 02 + Trunk
Group (90-98)
Off: Idle
On: You are on a loop key call.
Slow Flash: Call is ringing the
loop key
Press key to place or answer out-
side call.
Line Key 03 + Trunk
number (e.g.,
1)
Off: Idle
On: Line busy
Slow Flash: Line ringing
Press key to place or answer out-
side call.
Park Orbit Key 04 + System
Orbit (60-69)
Off: Park Orbit idle.
On: Call parked in orbit by a co-
worker
Fast Flash: Has a call you
parked.
Press key to Park or retrieve call.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆31
2
Hotline Key 05 + Partner’s
extension
Off: Partner is idle
On: Partner is ringing or busy
Fast Flash: Partner in DND for
Intercom calls (option 2) or all
calls (option 3).
Wink Off: Partner in DND for
outside calls (option 1)
Press key to call or Transfer to
Hotline partner.
Call Coverage Immediate Ring 06 + Covered
extension
Off: Covered extension idle.
On: Covered extension busy.
Slow Flash: Co-worker ringing
Fast Flash: Covered extension in
DND for Intercom calls (option
2) or all calls (option 3).
Wink Off: Covered extension in
DND for outside calls (option 1)
Press key to call or pick up a call
ringing the covered extension.
Call Coverage No Ring 07 + Covered
extension
Call Coverage Delay Ring 08 + Covered
extension
Group Pickup Immediate Ring 09 + Pickup
Group (1-8)
Off: Call not ringing pickup
group
Slow Flash: Call ringing pickup
group
Press key to answer call ringing
pickup group.
Group Pickup No Ring 10 + Pickup
Group (1-8)
Group Pickup Delay Ring 11 + Pickup
Group (1-8)
Page Zone Key 13 + Page
Zone (1-7, 0
for all call)
Off: Page Zone idle.
On: Page Zone busy.
Press to Page into the assigned
zone.
System Speed Dial Key 14 + System
bin number
(200-299)
No BLF. Press to dial stored number.
Personal Speed Dial Key 15 + Personal
bin number
(701-720)
Call Timer Key Not available.
Voice Mail Record Key 17 Off: Recording off.
On: Recording being set up.
Fast Flash: Recording on.
Press to start and stop recording
conversation into mailbox.
Night Key 18 + CLEAR Off: System in Day Mode.
On: System in Night Mode.
Press to switch the day/night
mode of the system.
Split Key 20 No BLF. Press to switch between calls.
See the Split feature for more.
ICM Directory Key Not available.
Reverse Voice Over Key 23 + Covered
extension
Off: Covered extension idle.
On: Covered extension busy.
Slow Flash: Co-worker ringing
Fast Flash: Covered extension in
DND for Intercom calls (option
2) or all calls (option 3).
Wink Off: Covered extension in
DND for outside calls (option 1)
• While on a handset call,
press key to place private
Intercom call to co-worker.
• While idle, press to call co-
worker.
Cordless Telephone Programmable Function Keys
Description Code BLF Operation
Feature Operation
32 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Removing Lines and Extensions
Removing Lines and Extensions is disabled by default.
To removes lines and extensions from service:
1. Press TALK.
2. Dial #40.
3. Dial the number of the extension you want to remove or return to service (e.g., 300).
OR
Dial the number of the trunk you want to remove or return to service (e.g., 101).
4. Dial 4 to return or 6 to remove.
Message Center / Voice Mail
Key
24 + Your
extension or
Message Cen-
ter Extension
Off: No messages in associated
mailbox
Fast Flash: Messages are waiting
in associated mailbox
•TALK + Press to call associ-
ated mailbox.
Save Key 25 No BLF • While on a call, press key to
Save number you just dialed.
• While idle, press key to
redial previously saved num-
ber.
Account Code Key 26 Off: Account Code inactive.
On: Account Code active for
call.
Fast Flash: Account Code entry
mode.
Press to enter Account Code,
then press again to return to call.
Call Forwarding Key 27 Off: Call Forwarding disabled.
Fast Flash: Extension in Call
Forwarding programming mode.
Wink Off: Call Forwarding
enabled.
• While idle, enters Call For-
warding programming mode
(the same as pressing TALK
and dialing *3).
• While busy, switches Call
Forwarding on and off.
Headset Key Not available.
Cordless Telephone Programmable Function Keys
Description Code BLF Operation
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆33
2
Reverse Voice Over
Reverse Voice Over is disabled by default.
To place a Reverse Voice Over call:
1. While on a handset call, press and hold your Reverse Voice Over key.
-You hear two beeps, then conversation with your co-worker in your handset.
To return to your initial caller:
1. Release your Reverse Voice Over key.
To place a call to the co-worker assigned to your Reverse Voice Over key:
1. While your handset is idle, press your Reverse Voice Over key.
-You hear two beeps, then conversation with your co-worker.
Ringing Line Preference
Ringing Line Preference is enabled by default.
■With Ringing Line Preference enabled, pressing TALK will answer the ringing call.
-
To bypass Ringing Line Preference, press a line key or Programmable Function Key before press-
ing
TALK
.
■With Ringing Line Preference disabled, pressing TALK will provide Intercom dial tone (instead of
answering the ringing call).
Save Number Dialed
Save Number Dialed is disabled by default.
To save the outside number you just dialed:
1. Press your Save Programmable Function Key.
To redial the saved number:
1. Press your Save Programmable Function Key.
-If the line you select is busy, you may be able to dial 2 to wait for the line to become free.
Reverse Voice Over Key Flash Rates
When the key is: The covered extension is:
Off Idle or not installed
On Busy
Flashing Fast In DND for intercom calls (option 2) or all calls (option 3)
Wink Off In DND for outside calls (option 1)
Feature Operation
34 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Speed Dial
There are no Speed Dial numbers stored by default.
Note: You cannot program Personal or System Speed Dial bins from your Cordless Telephone. See your
Communications Manager.
To dial a System Speed Dial number:
1. Press TALK + Dial # + Dial the bin number (e.g., 200).
To dial a Personal Speed Dial number:
1. Press TALK + Dial # + Dial the bin number (e.g., 200).
Split
Split is disabled by default.
You must have a Split key programmed to use this feature. Refer to the Programmable Function Keys feature
for more.
To Split between your current Intercom call and a new Intercom call:
1. Press HOLD to place your current Intercom call on Hold.
2. Wait for your display to return to idle.
3. Place or answer second Intercom call.
4. Press the Split key to switch between your two Intercom calls.
To Split between your current outside call and an Intercom call:
1. Press TRANSFER to place the outside call on Hold.
2. Place or answer waiting Intercom call.
3. Press the Split key to switch between the Intercom call and the outside call.
To Split between your current Intercom call and an outside call:
1. Press HOLD to put your Intercom call on Hold.
2. Press a line key to place or answer your outside call.
3. Press your Split Programmable Function Key to switch between the calls.
To Split between your current outside call and a waiting Intercom call:
1. Press TRANSFER to place your current outside call on Hold.
2. Press TALK to hang up.
3. Place or answer new outside call.
4. Press the Split key to switch between your two calls.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆35
2
Tandem Trunking
Tandem Trunking is disabled by default.
To set up a tandem call (Unsupervised Conference):
1. Place or answer an outside call.
2. Press CONF.
3. Place or answer another outside call.
4. Press CONF + TALK to hang up.
-You can optionally press HOLD to place the Conference on Hold. Press one of the line keys +
CONF to reinstate the tandem call.
To disconnect a tandem call (using Forced Trunk Disconnect):
1. Press line key for busy line (or use Direct Line Access) + # to disconnect the line.
To Barge In on a tandem call:
-Use this procedure to rejoin a Conference already in progress.
1. Press line key for busy line (or use Direct Line Access) + 4 to Barge In.
Transfer
Transfer is enabled by default.
To Transfer your call:
1. Do not hang up.
2. Press TRANSFER.
3. Dial your co-worker’s extension number.
-You can also Transfer the call to a Ring Group or UCD Group master number.
4. Announce the call + Press TALK to make a Screened Transfer.
OR
Press the flashing line key to return to the call if your co-worker doesn’t want it.
OR
Press TALK to send the call through unscreened.
To Transfer your call to a co-worker’s mailbox:
1. Do not hang up.
2. Press TRANSFER + Dial your co-worker’s extension.
3. Dial 8.
-To Transfer the call to your own mailbox, press your own Message Center key.
4. Press TALK to hang up.
Feature Operation
36 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Trunk (Line) Queuing and Callback
Trunk (Line) Queuing and Callback are disabled by default.
To queue for a busy line:
1. Press line key for busy line.
OR
Press TALK and dial line’s Direct Line Access code (e.g., 101 for line 1).
2. Dial 2; do not hang up.
3. When the line becomes free, you automatically connect.
-When you hear dial tone from the line, you can place your call again.
To leave a Line Callback for a busy line:
1. Press line key for busy line.
OR
Press TALK and dial line’s Direct Line Access code (e.g., 101 for line 1).
2. Dial 2 + Hang up.
3. When the line becomes free, the system automatically calls you back.
-You must answer within 4 rings or the system cancels the Callback.
Voice Mail
Voice Mail is disabled by default.
The “new mail” icon indicates when you have messages. If you have a Message Center key for your own
extension, it will flash when you have new messages.
To call your mailbox:
1. Press TALK + Dial *8.
OR
Press TALK + Press your own Message Center key.
-If requested by Voice Mail, enter your security code.
To leave a message in the mailbox of an unanswered extension:
1. Dial 8.
-The Voice Mail system will prompt you to leave a message.
To activate or cancel Call Forwarding to your mailbox:
1. Press TALK and dial *3.
2. Dial the Call Forwarding type:
0 = Cancel your extension’s Call Forwarding
2 = Call Forwarding Busy/No Answer
4 = Call Forwarding Immediate
6 = Call Forwarding No Answer
3. Dial the Voice Mail master number (e.g., 700).
4. Dial 2 to forward all calls; 8 to forward just outside calls.
To Transfer your call to a co-worker’s mailbox:
1. Do not hang up.
Feature Operation
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆37
2
2. Press TRANSFER + Dial your co-worker’s extension.
3. Dial 8.
-To Transfer the call to your own mailbox, press your own Message Center key.
4. Press TALK to hang up.
To record your active call in your Mailbox:
Only one party on a call can use Conversation Record at any one time. This includes Intercom calls and Con-
ference calls.
1. While on a call, press your Voice Mail Record key.
-Your Voice Mail Record key lights while your system calls your mailbox. Once recording begins, the
key flashes fast and you hear the voice prompt, “Recording.”
To stop Conversation Record:
1. Press your Voice Mail Record key.
To call the Message Center:
-The Message Center key flashes fast when there are new messages in the Message Center Mailbox.
-You can have a Message Center key for your own extension, if desired.
1. Press TALK + Press the Message Center key.
To Transfer a call to the Message Center:
1. Press the Message Center key + Press TALK to hang up.
-Your caller will be prompted to leave a message in the Message Center mailbox.
Voice Over
Voice Over is disabled by default.
To initiate a Voice Over to a busy extension:
1. Dial 9.
-You hear two beeps, then you can speak with your co-worker.
A co-worker cannot send a Voice Over to your extension.
Volume Control
Volume Control is enabled by default.
The adjust volume while on a call:
1. Press RING/VOL.
-This adjusts the handset receiver volume, not the volume of your transmitted voice.
-There are four volume levels: Low, Medium, High, and Maximum.
-When you hang up, your handset retains the volume level you selected.
Feature Operation
38 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Walking Class of Service
Walking Class of Service is disabled by default.
To enable Walking Class of Service at a co-worker’s cordless telephone:
1. Press TALK + Dial ##0.
2. Dial your own extension number + HOLD.
3. Enter your PIN number + HOLD.
4. Place any call or use any feature allowed by your Toll Restriction and Class of Service settings.
-You can place additional calls. Walking Class of Service will automatically deactivate after 10 sec-
onds.
Feature Summary
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆39
2
Feature Summary
Cordless Telephone Feature Summary
DS1000/2000 Cordless Telephone Feature Summary (Page 1 of 3)
Feature Available Default Comment
Alphanumeric Display Yes Enabled Handset feature
Auto Redial No N/A
Background Music No N/A
Barge In Yes Disabled
Call Coverage Keys Yes Disabled
Call Forwarding Yes Enabled
Call Forwarding Off Premise Yes Disabled
Call Timer No N/A
Call Waiting/Camp On Yes Enabled
Callback Yes Enabled
Caller ID Yes Disabled Second Call and Third Party Caller ID not
available
Caller ID Logging No N/A
Central Office Calls, Answering Yes Enabled
Central Office Calls, Placing Yes Enabled Some codes are disabled by default.
Conference Yes Enabled
Dial Number Preview No N/A
Direct Station Selection No N/A
Direct Station Selection, Console No N/A
Direct Trunk Access Yes Operator Only
Directed Call Pickup Yes Enabled
Directory Dialing No N/A
Distinctive Ringing Yes Enabled Handset feature
Do Not Disturb No N/A
Do Not Disturb Override Yes Disabled
Extension Locking No N/A
Extension Hunting Yes Disabled
Flash No N/A
Forced Trunk Disconnect Yes Operator Only
Group Call Pickup Yes Disabled
Group Listen No N/A
Group Ring Yes Disabled
Handsfree No N/A
Headset Compatibility Yes Enabled Handset feature
Hold, Exclusive Yes Enabled
Feature Summary
40 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
Hold, Intercom Yes Enabled
Hold, System Yes Enabled
Hotline Yes Disabled
Interactive Soft Keys No N/A
Last Number Redial Yes Enabled Handset feature. Enhanced Last Number Redial
not available.
Meet Me Conference Ye s Enabled
Message Waiting Yes Enabled Scrolling through waiting messages not available.
Microphone Mute Yes Enabled
Monitor/ Silent Monitor Yes Disabled
Night Service/Night Ring Yes Disabled
Off-Hook Signaling Yes Enabled for
ICM
Camp-On only. Off-hook ringing not available.
Paging Yes Enabled
Park Yes Enabled
Prime Line Preference Yes Intercom
Prime Line
Privacy Release Groups Yes Disabled
Programmable Function Keys Yes Line Keys 1-4
Removing Lines and Extensions
from Service
Yes Operator only
Reverse Voice Over Yes Disabled
Ringing Line Preference Yes Enabled
Save Number Dialed Ye s Disabled
Selectable Display Messaging No N/A
Speed Dial, Extension Yes Enabled - No
numbers
stored
Numbers must be stored via system programming
Speed Dial, System Yes Enabled --No
numbers
stored
Numbers must be stored via system programming
or another non-cordless user
Split Yes Disabled
Tandem Trunking Yes Disabled
Time and Date No N/A
Transfer Yes Enabled
Trunk (Line) Queuing Yes Operator only
User Programmable Features No N/A
Voice Mail Yes Disabled
Handset has an icon for new messages. Answer-
ing Machine Emulation and Message Check are
not available.
DS1000/2000 Cordless Telephone Feature Summary (Page 2 of 3)
Feature Available Default Comment
Feature Summary
DS1000/2000 Cordless Telephone User Guide Chapter 2: Features ◆41
2
Voice Over Yes Disabled Handset cannot receive a Voice Over.
Volume and Contrast Control Yes Enabled Volume control is a handset feature. Contrast Con-
trol is not available.
Walking Class of Service Yes Disabled
Programming the System No N/A Handset cannot enter programming mode
DS1000/2000 Cordless Telephone Feature Summary (Page 3 of 3)
Feature Available Default Comment
Feature Summary
42 ◆Chapter 2: Features DS1000/2000 Cordless Telephone User Guide
NEC Unified Solutions, Inc.
4 Forest Parkway, Shelton, CT 06484
Tel: 800-365-1928 Fax: 203-926-5458
www.necunifiedsolutions.com
Other Important Telephone Numbers
Sales: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203-926-5450
Customer Service: . . . . . . . . . . . . . . . . . . . . . . . . . . .203-926-5444
Customer Service FAX: . . . . . . . . . . . . . . . . . . . . . . .203-926-5454
Technical Service: . . . . . . . . . . . . . . . . . . . . . . . . . . .203-925-8801
Discontinued Product Service: . . . . . . . . . . . . . . . . . .900-990-2541
Technical Training: . . . . . . . . . . . . . . . . . . . . . . . . . . .203-926-5430
Emergency Technical Service (After Hours) . . . . . . . .203-929-7920
(Excludes discontinued products)
*80683INS01*
80683INS01
June 21, 2004
Printed in U.S.A.
NEC Unified Solutions, Inc.
4 Forest Parkway, Shelton, CT 06484
TEL: 203-926-5400 FAX: 203-929-0535
www.necunifiedsolutions.com

Navigation menu
