1 Introduction
Thank you for your purchase of the NEDAP TRANSIT EDGE WIRELESS
system. Nedap AVI manufactures some of the most reliable readers on the
market today. Specializing in long range automatic vehicle identification,
Nedap’s readers are able to identify both the vehicle and driver up to 33’ and
at speeds up to 125 mph!
The TRANSIT EDGE WIRELESS, a long range reader, showcases specially
developed technology from both HID and AvaLan wireless to provide a
powerful web accessible reader at your perimeter.
The NEDAP TRANSIT EDGE WIRELESS part no (9876790) exists of the
following main components.
• TRANSIT NEDAP USA
• EDGEPLUS SOLO ES400
• AW900mT ( Client at entrance/gate)
• AW2 antenna
The Base station for the connection at your network exists of the following
components.
• AW900iT part no (9877010) ( wireless access point at network
connection )
• AW2 antenna

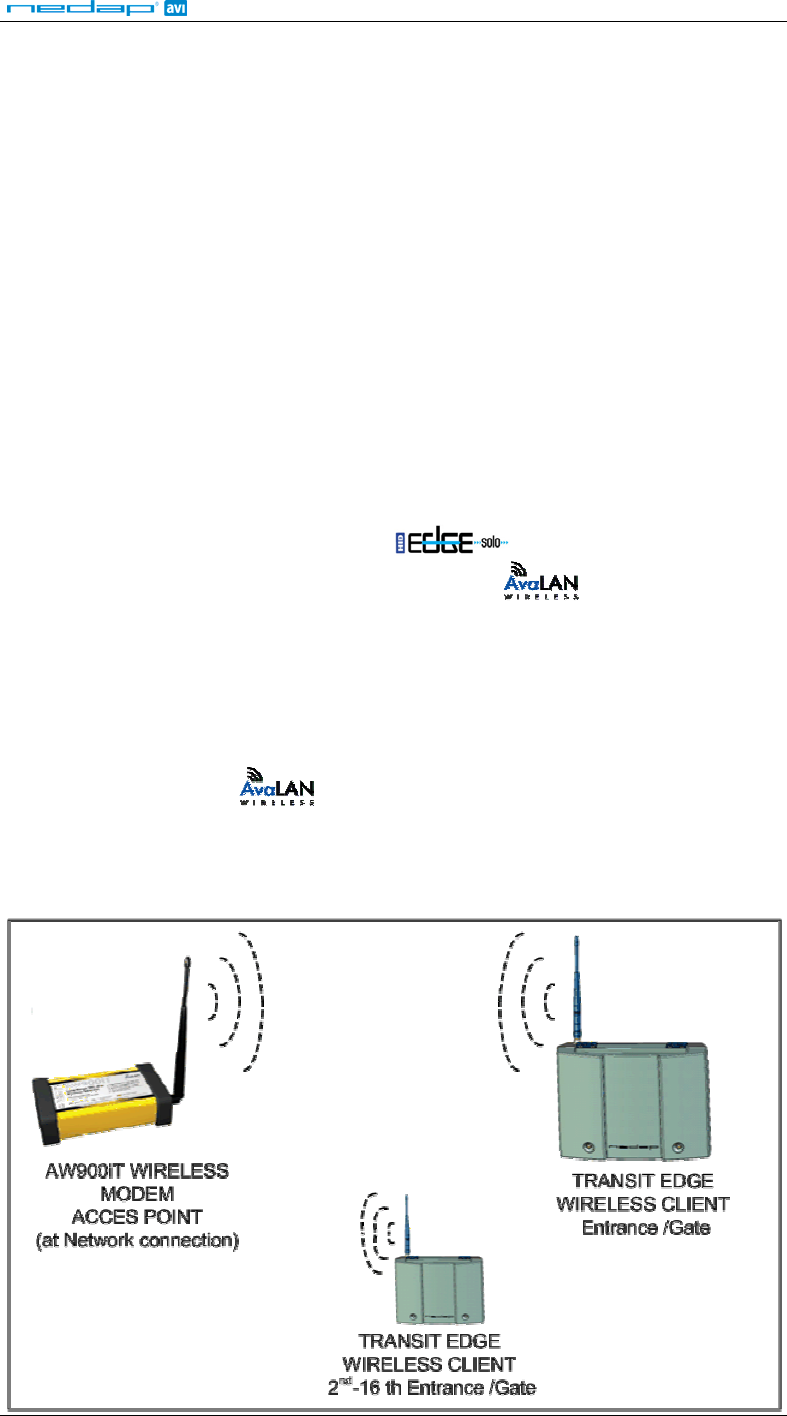

The functional main components are described in the Block diagram below.
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 4 of 8

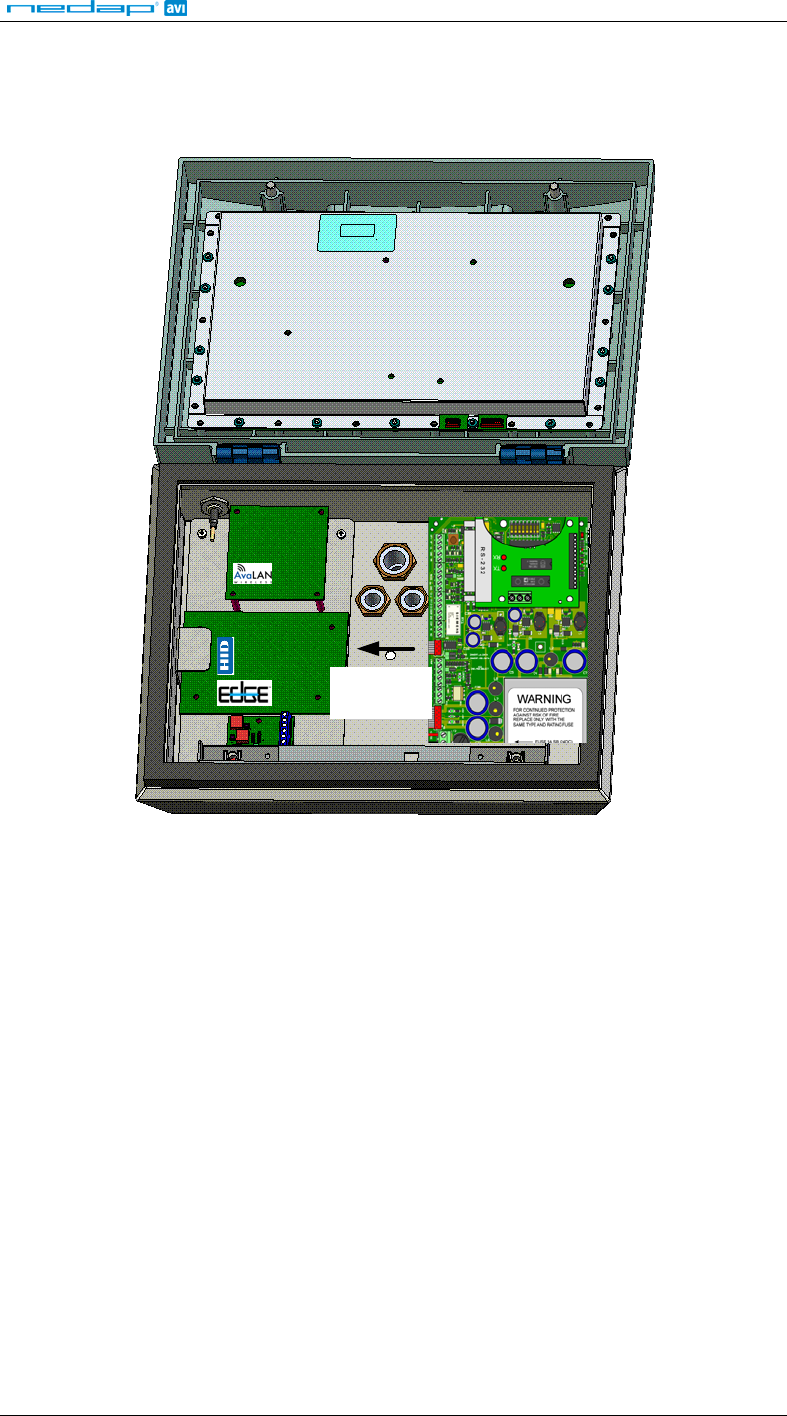

2 System diagram
AW900mT
Wireless
Modem
9876960
EDGEPLUS
SOLO ES 400
83000 B HID
MAC address
for the edge
solo
The TRANSIT EDGE WIRELESS is complete wired up and ready for use.
You have only to follow the next steps.
• Install the TRANSIT EDGE WIRELESS according the TRANSIT
manual and the quick reference. Put also the included AW2
antenna on the top of the unit.
• Power up the TRANSIT EDGE WIRELESS with a 24 VDC 2A
power supply.
• Perform initial setup as described in the Quick start guide
(AW900T User’s Manual Supplement) and the AW900mT.
(USER’S MANUAL)
• Check with the aid of the LED,s from the access and subscriber if
the link is available. Tip you can use the Ethernet cable between
the modem and the edge to share the network keys.
• Restore the connections after sharing the network keys and power
down and up the TRANSIT EDGE WIRELESS and the base
station.
• Connect the Edge Plus wiring according to the Installation Guide
P/N 82000-902-ENEN.
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 5 of 8
• To configure and communicate with the Edge Plus use the Quick
Installation Guide. (Document number 82000-901A.20).

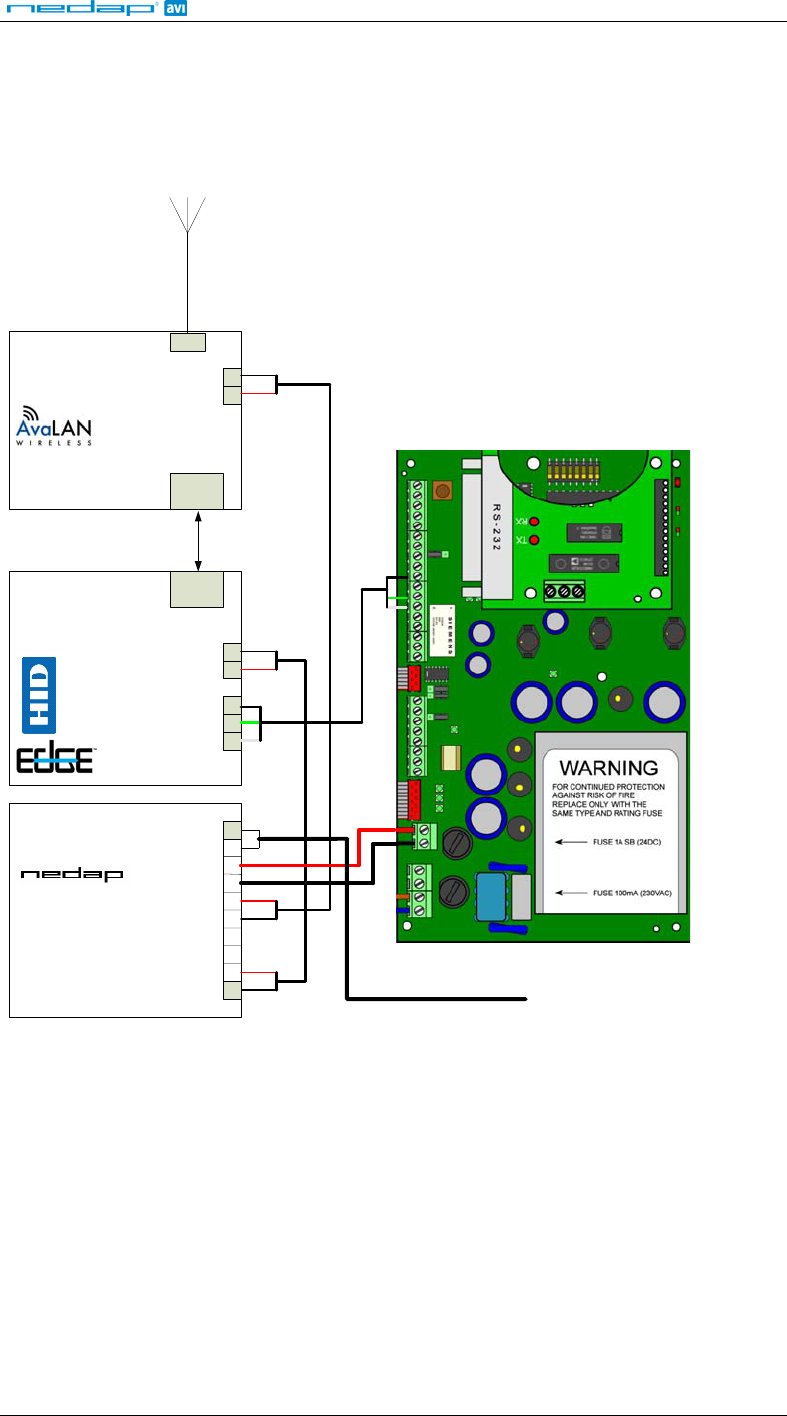

3 Wiring diagram
AW900mT
Wireless Modem
9876960
Power Terminal
Power
24VDC from
TRANSIT
RF
DATA
10Base
Ethernet
RJ45
ANTENNA
AW2
EDGEPLUS
SOLO ES400
83000B HID
9876820
PWR
Gnd
Data 0
Data 1
12VDC
DATA
10Base Ethernet
RJ45
Wiegand
Cat 5e
cable
Uin
PRNT SAM
POWER SUPPLY
PS24/12
7819315
TrIt
Wmod
Aux
Uout
24VDC
input 2A
K1
24V
GND
24V
GND
24V
GND
24V
GND
+12V
GND
GND
O2
O3
Connection and
wiring diagram
TRANSIT EDGE
WIRELESS
INPUT
24VDC 2A
The diagram above shows schematically the internal connection between the
used modules.
The Main connections are:
• TRANSIT
o TRANSIT Wiegand output to the EdgePlus Module.
o 24VDC Power connection to the PS24/12 Power Supply
• Edge Plus module
o Power connection to PS24/12 Power Supply
o Wiegand Input from TRANSIT
o Ethernet Cable from AW900mT module
• AW900MT Module
o Ethernet cable from Edge plus Module
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 6 of 8
o Power connection to PS24/12 Power supply
o Antenna cable to AW2 Antenna
4 Contact Information
If you have any questions when configuring your TRANSIT EDGE
WIRELESS
Please contact:
Curtis Dennis
NEDAP AVI
Tuxen &Associates. Inc.
Exclusive Agent – The Americas
Phone: 417-339-4730 ext. 101
e-mail: cdennis@tuxen.us
web: www.nedapavi.com
If you have any questions when configuring your HID edge system.
Please contact:
HID Global (California, USA)
Support: support_na@hidvertx.com
Sales: sales@hidvertx.com
Main: (949) 598-1600
Sales: (800) 210-4744
Telephone 1-800-237-7769
Fax number: (949) 598-1690
If you have any questions when configuring your AvaLan system
Please contact:
Technical support: (650) 384.000
e-mail: support@avalanwireless.com
web: www.avalanwireless.com
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 7 of 8
5 FCC Declarations
Compliance statement (part 15.19)
This device complies with part 15 of the FCC Rules and to RSS210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning (part 15.21)
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This in particular is applicable for the antenna which has been delivered
with the TRANSIT EDGE WIRELESS.
RF Exposure ( OET Bulletin 65 )
To comply with FCC RF exposure requirements for mobile transmitting
devices, this transmitter should only be used or installed at locations where
there is at least 20cm separation distance between the antenna and all
persons.
Information to the User (Part 15.105 (b))
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 8 of 8
Appendix
A.1 Specification TRANSIT
