Nedap N V UPASSREACH UHF RFID Reader for EPC Gen2 Class 1 tags User Manual datasheet1

N. V. Nederlandsche Apparatenfabriek NEDAP UHF RFID Reader for EPC Gen2 Class 1 tags datasheet1

Contents

datasheet1

Long range is now within reach!
UHF based long range ID at up to 4 meters [12ft].
Product
overview
Nedap, expertise in Vehicle Identification
Nedap- founded in 1929 and based in the
Netherlands – employs about 600 employees
worldwide. Nedap AVI has an outstanding ex-
pertise in RFID technology and vehicle access
applications. Our RFID solutions are tailored
for vehicle applications, ensuring reliable op-
eration for any vehicle gate environment. As
one of the pioneers in RFID technology during
decades, Nedap has established an impressive
track record of vehicle identification installa-
tions worldwide in many different industries.
Nedap’s AVI system is considered the best in
the market. Features as simultaneous driver
and vehicle identification make the Nedap
offering unique. Therefore Nedap is the perfect
fit to any long range vehicle access application,
offering a full product line for vehicle access.
The latest addition to the product line, the
uPASS Reach, is based on years of experience
and expertise in this market.
Headquarters
Nedap AVI
PO Box 103
7140 AC Groenlo
The Netherlands
T: +31 544 471 666
F: +31 544 464 255
Americas
Nedap US Office
500 W. Main, Suite 301
Branson, MO 65616
USA
Asia
Nedap Asia Office
391 Orchard Road
#23-01 Ngee Ann City
Tower B
Singapore 238874
Middle East FZE
West Wing 6,
Block A, Office 227
Dubai Aiport
Free Zone (DAFZA)
Parallelweg 2e
7141 DC Groenlo
The Netherlands
E: info-avi@nedap.com
www.nedapavi.com
T: 417 339 7368
F: 417 337 8889
E: info-us@nedap.com
T: +65 683 280 51
F: +65 683 280 52
E: info-asia@nedap.com
T: +971 (0)4 214 6260
F: +971 (0)4 214 6262
E: info-me@nedap.com
Big range. Little price.
For years, others have claimed to offer
long range UHF performance at a
competitive price, but none have really
been able to deliver. Until now!
Introducing the uPASS Reach reader from
Nedap AVI. Developed from decades of
experience with RFID technology and
timed to take advantage of new, superior
Gen 2 tag read characteristics, the uPASS
Reach reader is a culmination of both
experience and innovation.
Featuring a 4 meter [12ft] read range,
superior to all conventional Prox systems,
the uPASS Reach offers a true long range
solution for car parks, gated communities,
and employee parking lots. Now there’s a
uPASS Reach reader that offers maximum
distance at an affordable price.

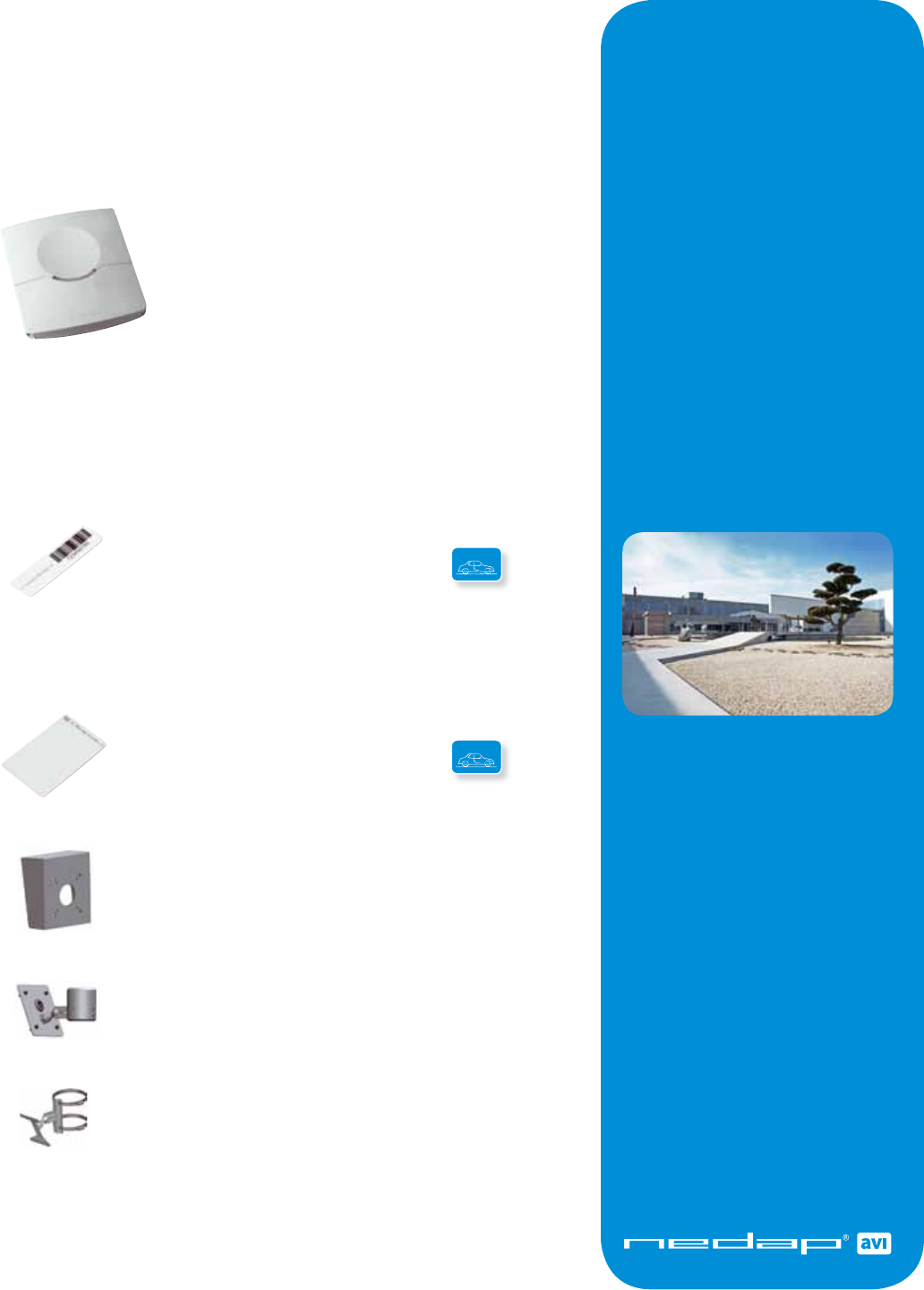

uPASS Reach reader
For full product information visit www.nedapavi.com
uPASS Reach reader
uPASS READER
uPASS Reach reader
Long range UHF parking access reader
Operating frequency: 865 -955 MHz
Dimensions: 7.9 x 8.7 x 1.8 in
[200 x 220 x 45 mm]
Detection range: up to 12 ft [4m]
Interfaces: RS232, RS422 and USB
Outputs: Wiegand and Magstripe ISO 7811/2
Part nr: 9942319 uPASS Reach Reg I
9945466 uPASS Reach Reg II + III
9945474 uPASS Reach Reg Japan
TAGS
UHF windshield sticker
Single ID vehicle tag
Identification: Vehicle ID
Part nr: 9942327 UHF Windshield Tag
9942335 UHF Windshield Tag
Tamperproof
UHF ISO tag
Single ID vehicle tag
Identification: Vehicle ID
Part nr: 9942344
ACCESSORIES
UHF Weather hood
Part nr: 7591152
Pole mounting kit
Part nr: 9943803
Adjustable wall mounting kit
Part nr: 9875840
UHF ISO tag
UHF windshield sticker
Adjustable wall mounting kit
UHF Weather hood
Pole mounting kit
A very limited read range, increased
risk of congestion and, most of all,
inconvenience for the user to come to a
full stop and open the window to present
a badge. All major disadvantages of a
proximity installation.
The uPASS Reach is the perfect cure to
the problems characteristic of prox and
it’s ideally suited for upgrading those
installations as the reader can easily be
installed on a gooseneck with no need
for additional mounting accessories or
rewiring.
uPASS Reach is a 865-955 MHz reader and
EPC Gen 2 passive tag based system. With
readers installed at a height between 1.2
and 2 meters [4-6.6 ft]. A long range UHF
tag visible in direct line of sight will be
identified from up to 4 meters [12 ft].
The reader output allows the access
control or parking system to open the
gate when authorized without the need
for card readers or PIN pads. A built-
in, high intensity LED provides visual
feedback to the user that the tag has
been read.
Passive, maintenance free
and customized tags
The system is based on passive Gen 2
UHF tags that provide superior read
quality to previous tag standards. Plus,
they are both battery and maintenance
free. Tags are mounted inside the vehicle
behind the windshield. The thin, flexible,
UHF sticker format is easy to install and
has a windshield compatible adhesive
to ensure proper mounting. For added
security, tamperproof - break upon
removal- tags are also available.
Nedap customized UHF tags have a
customer specific number sequence
compatible to your application. The
number is also printed on the tag
allowing easy and fast enrolment of
tags into a management system. An
additional printed barcode makes it even
easier. Security authentication features
are included to provide data integrity
and to prevent cloning of tags.
In addition, Hybrid UHF-HF cards
are available that support UHF and
all smartcard technologies used
worldwide for access control and
time & attendance solutions.
Plug &Play operation
As with all of Nedap’s AVI systems, the
uPASS Reach reader features open
industry communication. This allows
seamless integration into any existing
or new access control or parking
management system and makes the
uPASS Reach reader ideal for upgrading
any existing Wiegand reader installation.
The uPASS Reach reader has an integrated
fine-tuned antenna in an elegant and
compact enclosure ideal for outdoor
(IP65) as well as indoor applications. The
reader is compliant with ISO 18000-6c
and EPCglobal Gen2 standards.
A specially designed mounting kit and
protection hood are available to attach
the reader to a gooseneck or pole.
Reduced Install Costs =
Increased Value
Easy to mount and a cinch to integrate
with existing wiring and even able to be
mounted directly to metal, the uPass
Reach reader costs markedly less to install
than other solutions. With costs inline
with many low end prox reader
installations, the uPASS Reach reader
offers performance unmatched in the
industry for long range ID.
Applications
The uPASS system is the ultimate
solution for commercial and residential
parking applications, such as car parks,
gated communities and employee
parking access.
Existing Protocols
Among others the uPass Reach reader
offers Wiegand and Magstripe ISO 7811/2
data outputs, that allow for seamless
integration into most legacy systems,
so you can upgrade, not overhaul.
Multi lane
Featuring interference eliminating,
frequency offset and time sharing
capabilities, the uPASS Reach reader is
ideally suited for multi-lane applications.
This enables the readers to be mounted
close to one another, reducing install
costs, while still achieving superior
performance.
Handsfree parking access has never been so affordable!

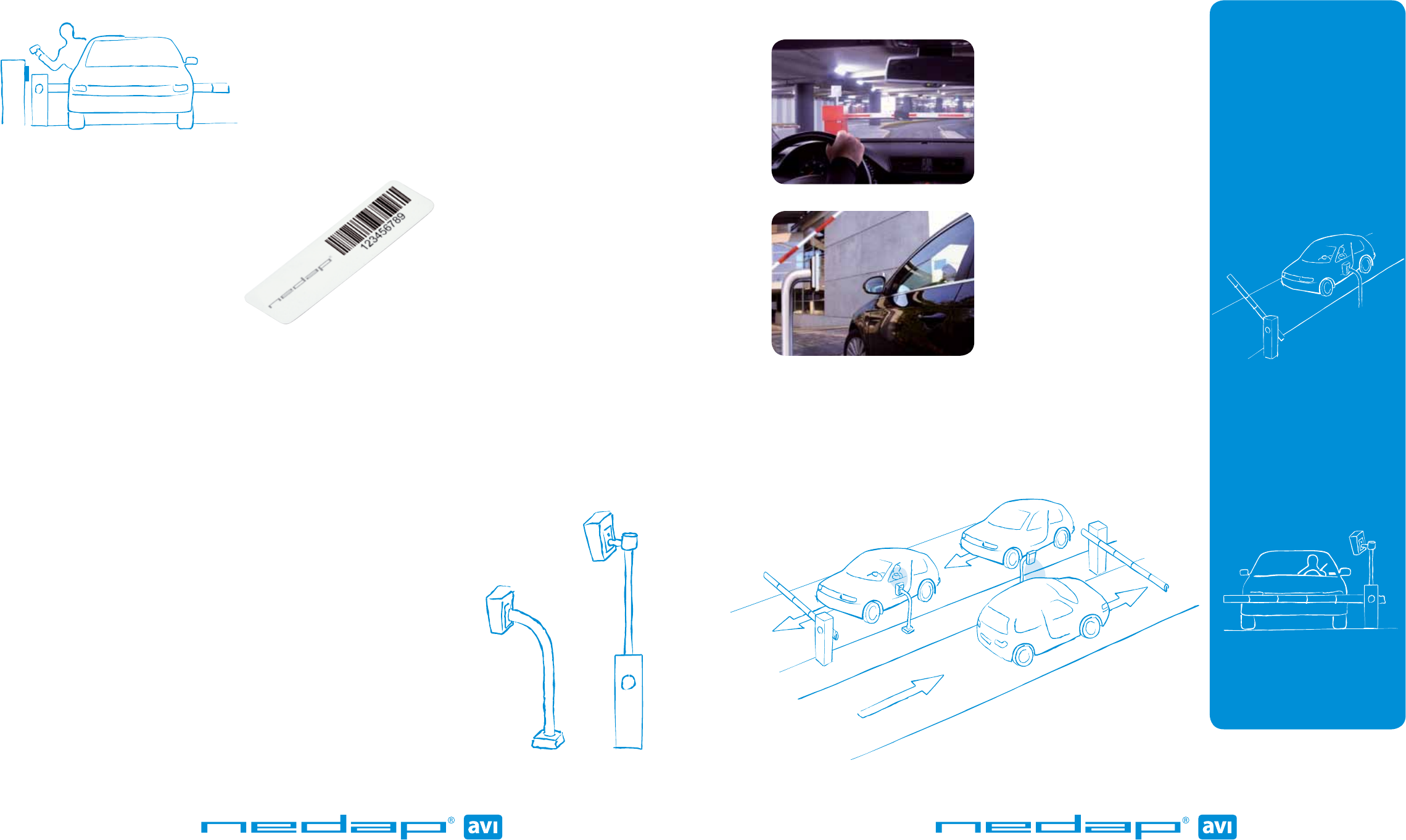

Application
examples
Gooseneck
- Detection angle: 45 degrees
- Read range up to 1 meters [3ft]
- Mounting height; approximately
1,25 meters [4,1 ft]
Pole
- Detection angle: 45 degrees
- Read range up to 4 meters [12ft]
- Mounting height; max 2 meters
[6,6 ft]
UHF windshield tag
Reader
on pole
Reader on
gooseneck
Parking comercial
Parking residencial
