1 General
The VP1001 is a local unit in the VELOS system and usually installed for identification of animals for
feeding, weighing, milking, heat detection etc.
The VP1001 has the following main tasks :
- Identification of tags (134.2 kHz FDX/HDX)
- Controlling outputs, 6 outputs available to activate e.g. lights, motors, valves, relays
- Reading inputs, 6 inputs available for e.g. sensors, switches
Output/input 1 till 4 ( I/O 1 till I/O 4 ) can be used to control feed motors or as normal output/input
Output/input 5 and 6 ( I/O 5 till I/O 6 ) can only be used as output/input.
The use of feed motors or output/input must be configured in the software (see manual of the V-pu)
Following antenna types can be used :
- V-sense antennas
- EWA transformer with stainless steel antenna strip
- HDPE antenna with HDPE antenna tuner
A booster (VP1002) can be used to amplify the antenna field for high performance identification
Reference manuals :
PS0000-200PM-00 Velos general overview
VP8001-200PM-00 V-pu
VP1002-200PM-00 ISO-Booster
VP6001-200PM-00 V-sense
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 2
2 Connections

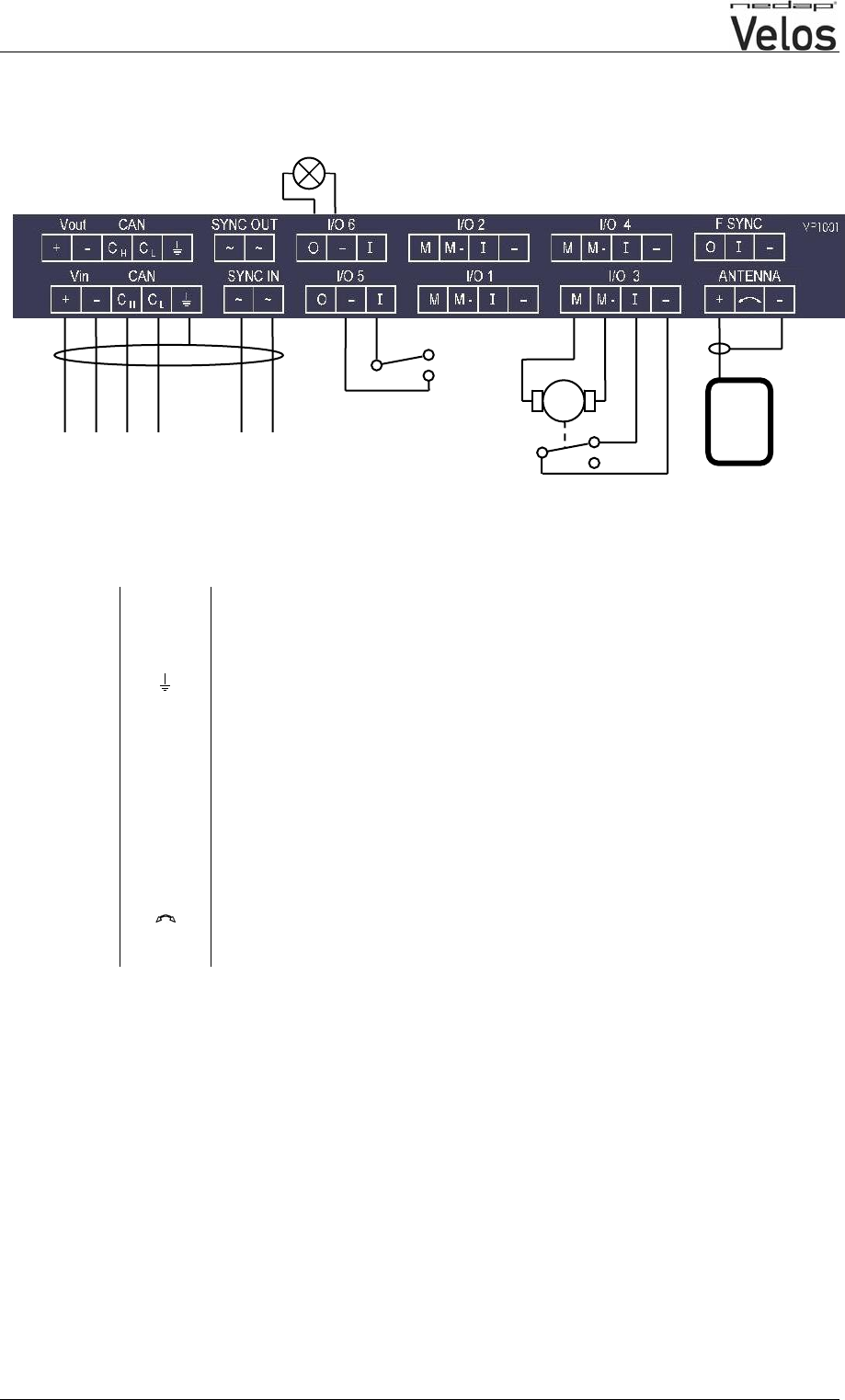

Figure above shows the I/O of the VP1001. The motor, output and input is an example. The
configuration is depending on the used software on the V-pu, so called behaviour components. Use
the display menu and push button to check and configure the I/O functions.
Vin + Input voltage 24 VDC, +20% -20%
- Minus
CAN CH CAN high (cable twisted pair with CL)
CL CAN low (cable twisted pair with CH)
Shielding of CAN-bus cable
SYNC ~ Synchronisation for HDX, AC (no plus or minus, cable must be twisted pair)
~ See above
I/O 1 .. 4 M Motor output or normal output max 3A
M- Minus for motor output or normal output
I Input of motor or normal input
- Minus for motor input or normal input
I/O 5 .. 6 O Output max 3A
- Minus for output (O) and minus input (I)
I Input
ANTENNA + Antenna with external adjustment (adjustment not on this V-pack)
Antenna with no adjustment, adjustment on this V-pack
- Antenna minus (shield of coax cable)
F SYNC Frequency synchronisation (not used yet)
M
oran
g
e
blue white
blue
black
red
orange white
green
red
white
brown
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 3

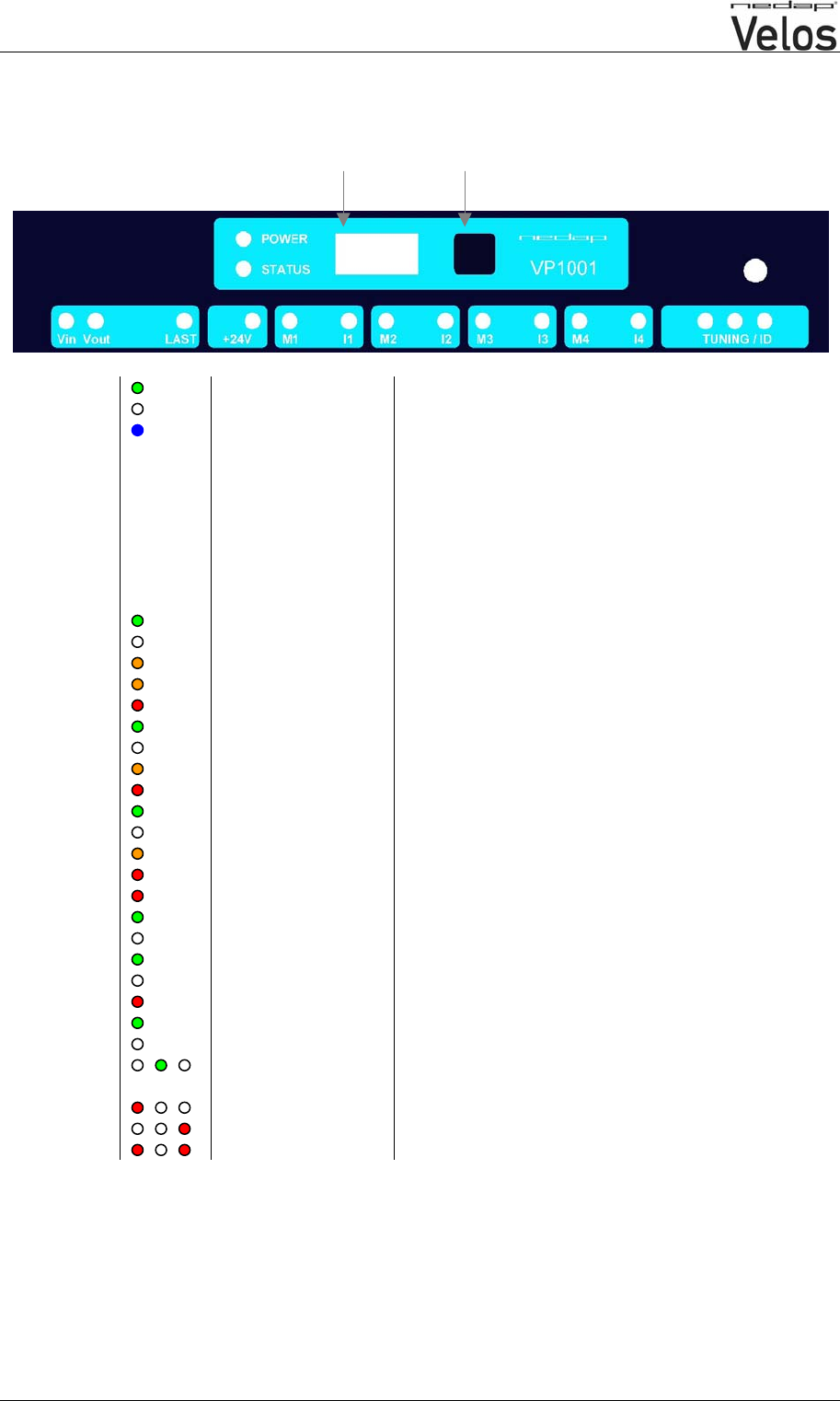

3 LED indicators
push button
display
POWER Green on Power on
off No power
STATUS Blue
Slow blinking
Very fast blinking
Fast blinking
1 short flash
2 short flashes
3 short flashes
Operating ok
Service mode activ
Downloading or error during download
V-pack not coupled
Firmware present but not activ
No firmware present
Display on Address indicated No communication
off Communication status ok
V in Green on Input power applied
off No power
Orange Low power, lower then 20V
Orange blinking Wrong CAN-bus connection, Vin and Vout swapped
Red Error, plus and minus swapped
V out Green on Output power
off No power
Orange blinking Low power
Red blinking Error, plus and minus swapped
LAST Green on V-pack is last one on the CAN-bus
off V-pack is not last one on the CAN-bus
Orange blinking CAN-bus error and last V-pack on CAN-bus
Red CAN-bus error
Red blinking CAN-bus warning / wrong connected
+24V Green on 24V output switched on
off Output switched off
M1 .. M4 Green on Output on
off Output off
Red blinking Output error
I1 .. I4 Green on Input contact open
off Input contact closed
TUNING /ID Green on
Green blinking Antenna ok
Antenna ok and tag identified
Red on Antenna not tuned correctly
Red on Antenna not tuned correctly
Red blinking Antenna error / not connected
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 4

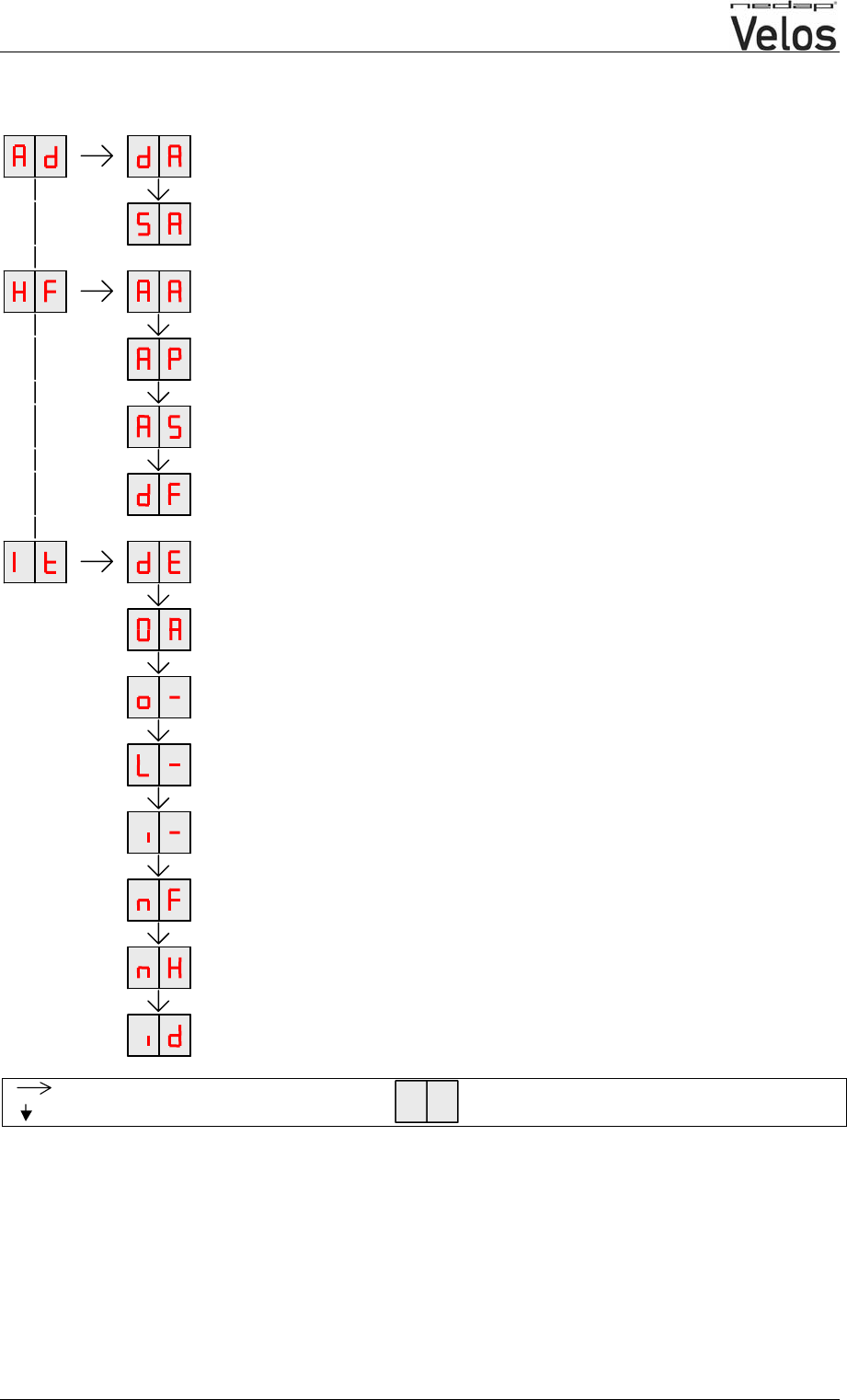

4 Display menu
DISPLAY ADDRESS
Shows the actual address
SET ADDRESS
Change the address
ADJUST ANTENNA
Antenna tuning will be shown by output 6 (lamp)
ANTENNA POWER
Min/max 10 / 99. Normally set to 99. Possibility to set a lower value.
ANTENNA SENSITIVITY SQUELCH
Min/max 0 / 9. Normally set to 0. Possibility to set a lower value.
SETTINGS TO DEFAULT
All HF settings back to factory settings
DISPLAY ERROR
Shows error code
TEST ALL OUTPUTS
All outputs are switch on one by one. Test results are shown on the display.
TEST MOTOR OUTPUT
TEST OUTPUT
TEST INPUT
NOISE LEVEL FDX
Shows noise level measured by the FDX receiver
NOISE LEVEL HDX
Shows noise level measured by the HDX receiver
TEST IDENTIFICATION
Shows last 2 digits of a tag number
Press button until blinking
Press button short To leave menu:
press button until display is empty
How to use the display and push button
Normally the display is off. If there is no connection to the V-pu the address is shown. It is also
possible some program states of a behaviour component are shown during operation.
Activate the menu press short on the button, the display menu is shown
Scroll down press short
Select press until blinking
Change and store select item to change, open item by pressing till blinking, change by pressing
short, store by pressing to blinking
Check a setting select the item to check, press until blinking, first value shown is actual setting
The display is normally automatically switched off after 30 minutes.
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 5

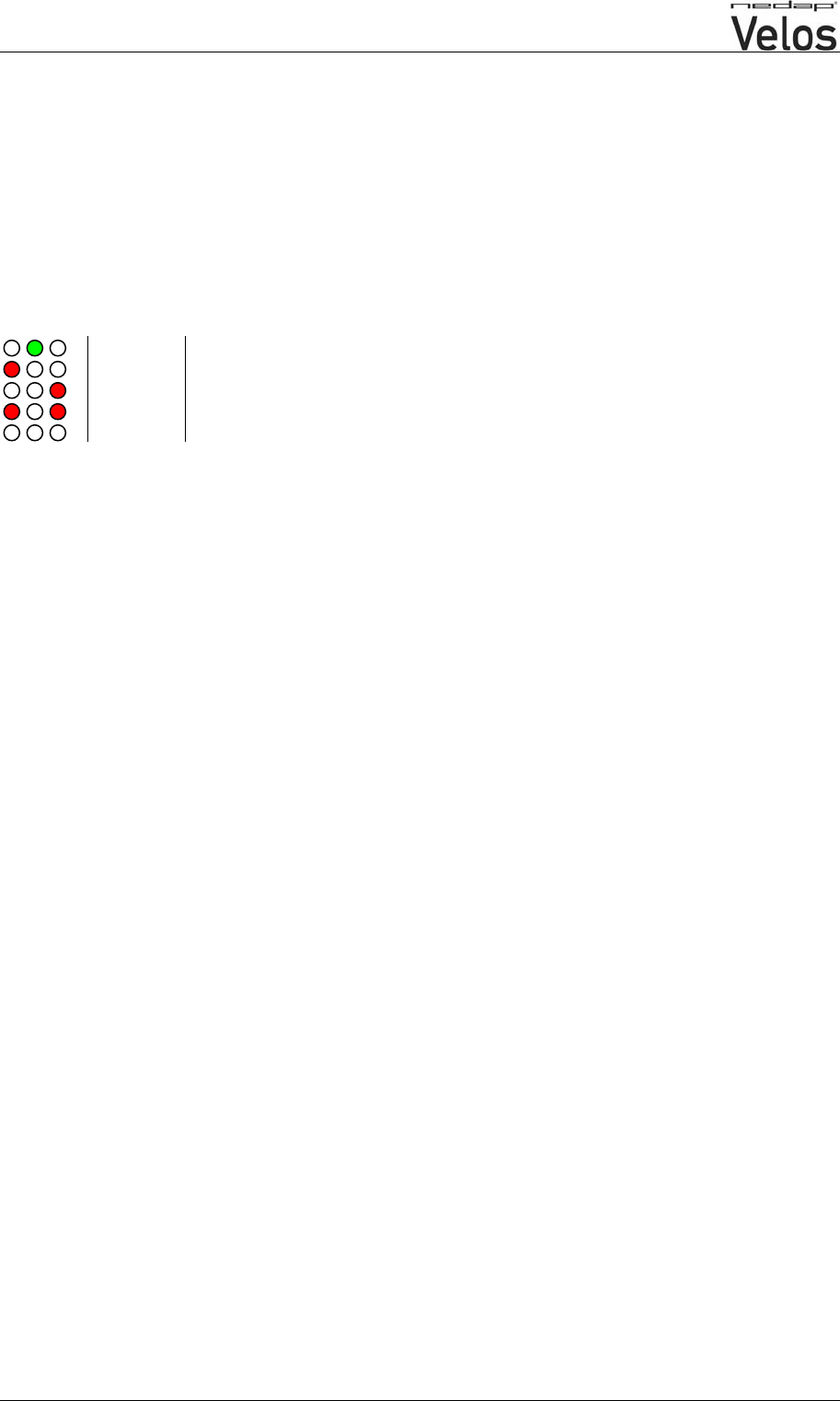

5 Antenna adjustments
Antenna tuning
After first time power up the antenna tuning must be checked. Check the TUNING led, green is OK
and means the antenna is correctly tuned. When the green led is not ON the antenna must be tuned.
Antenna tuning :
- Turn Lt on the antenna till the green led is ON (use a plastic screw driver)
Green on Antenna tuning ok
Red on Antenna out of range, turn to the right till green led is on
Red on Antenna out of range, turn to the left till green led is on
Red on No antenna connected or low antenna signal
All off Antenna switch off by the software
If there is no antenna led on, software has set the antenna field off, first set the antenna in ID test
mode by using the display/push button.
Antenna power
Default the antenna power is set to maximum (99) and needs no adjustments.
Lowering the antenna power will reduce the reading distance of the antenna.
Check the antenna power
The antenna power level is shown on the display in the service menu at HF option AP (Adjust Power)
- Select menu option AP (Adjust Power) on the display by using the push button next to the display
- Push the button until the display starts to blink, a value will appear on the display
- The value on the display is the actual power setting. 99 is the default factory setting.
- To leave the menu without modifying the settings press the button until the display blanks (press
about 4 seconds)
Modify the antenna power
- Select the actual antenna power on the display (see above check antenna power)
- Press the button shortly, the first value will change
- Press until the desired value, hold now the button until blinking
- The second digit can be changed in the same way
- When the desired value is on the display, press until the display blinks
- The next menu item AS is now indicated.
- To leave the service menu and return to normal operation, press the button until the display blanks
(press about 4 seconds)
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 6
Antenna squelch
Antenna squelch is a possibility to set a threshold for the ID level of a tag. It means the antenna
power is still the same, but the software will not transfer weak received tag numbers.
Default the antenna squelch is set to minimum (-0). This means no threshold. Maximum is -9.
Check the antenna squelch level
The antenna squelch level is shown on the display in the service menu at HF, option AS (Adjust
Squelch)
- Select menu option AS (Adjust Squelch) on the display by using the push button next to the display
- Push the button until the display starts to blink, a value will appear on the display
- The value on the display is the actual power setting. -0 is the default factory setting.
- To leave the menu without modifying the settings press the button until the display blanks (press
about 4 seconds)
Modify the antenna squelch level
- Select the actual antenna squelch level on the display (see above check squelch level)
- Press the button shortly, the value will change
- Press until the desired value, hold now the button until blinking
- The next menu item “df” is now indicated.
- To leave the service menu and return to normal operation, press the button until the display blanks
(press about 4 seconds)
6 Installation steps
1. Install all wiring
2. Switch on the power to the system
3. Check the adjustment of the antenna (green led on)
4. Check the connected equipment like lamps, motors, sensors etc. Use the display/push button
menu to check the correct functioning.
5. Set the addresses, an address must be unique on both CAN-bus channels
6. Start up the web browser on the V-pu and configure the system (see manual of the V-pu)
VP1001-200PM-00-ISO Reader Motor Control 4-2007/1.0 Page 7
7 Update
Firm ware
A VP1001 is equipped with software to activate in- and outputs, display / push button and a motor
safeguard. This software is called firmware. During manufacturing the firmware is programmed and
ready for use. In case of an update it is possible to download new firmware thru the CAN-bus. In the
Velos system the web browser interface of the V-pu (VP8001) is used to handle this. More details
about download new firmware see also the manual of the V-pu (VP8001).
8 Specifications
Specifications VP 1001 (art.no. 9910905)
Dimensions 143 x 120 x 68 mm LxWxH (excluding mounting rail) Weight: ± 360 gr
CAN CAN-bus communication 125 kBit
Power Input voltage 25 VDC, +20% -20%
Max power consumption 300 mA with antenna switched on
Maximum power consumption 2,5 A
Protected against reverse connection power supply
Software Downloadable by the CAN network
Inputs Reading inputs, analog (0-40V) and digital.
Suitable for NPN and PNP sensors.
Outputs Max. 2.5 Amp by current limiter, short-circuiting protected
Motor safe-guard (after 25 sec)
Antennas 800 µH. Different types possible.
Detection distance Varies per antenna
Synchronisation Synchronisation according to ISO 11785
Environment Temperature: Operating: -10 – 55 °C, Storage: -25 – 70 °C
Relative humidity: 10 – 93% non condensing
IP class IP 30. When installed in V-box IP 65 (cover and cables installed correctly !)
Cable specifications
CAN-bus Velos cable
Synchronisation Velos cable
Antenna Coax RG58. Max. length depending on antenna type.
Outputs CE approved at cable length < 3m
Inputs CE approved at cable length < 3m
Always use a NEDAP power supply
The Nedap guarantee-regulations are only valid when is installed as indicated in this manual.
Install data cables at a safe distance from (high) powered cables
More information
For more detailed information contact your local Nedap supplier or check the internet site.
VP6001-200PM-00 V-sense DRAFT 01-2007/0.1
VP6001
V-sense antenna
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no
licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and
availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in
part, without the written consent of the publisher.
© Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands
VP2001-200PM-00 Power supply 01-2007/0.1 Page 2 of 2
VP6001
V-sense antenna
General
The VP6001 is used as antenna in Velos system and connected to a V-pack with identification.
Connections
The VP6001 is connected to a V-pack by a coax cable, see manual of the concerning V-pack.
To open the VP6001 : remove screws at the side.
Adjustment
Tuning must be done by Lt with a plastic screw driver.
See manual of the connected V-pack for tuning instructions.
Lt
To antenna of V-pack
