Neptune Technology Group MTX950 MOBILE DATA COLLECTOR User Manual USERS MANUAL
Neptune Technology Group Inc. MOBILE DATA COLLECTOR USERS MANUAL
USERS MANUAL
![](/img.php?id=529447&img=bg1.png)
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
FCC Part 101 Certification
Test Report
FCC ID: P2SMTX950
FCC Rule Part: 101
ACS Report Number: 05-0025-101
Manufacturer: Neptune Technology Group, Inc.
Equipment Type: Mobile Drive-by Data Collector
Model: MTX950
Manual
![](/img.php?id=529447&img=bg2.png)
MRX920TM/MTX950TM
User’s Manual
![](/img.php?id=529447&img=bg3.png)
This manual is an unpublished work and contains the trade secrets and confidential infor-
mation of Neptune Technology Group Inc., which are not to be divulged to third parties
and may not be reproduced or transmitted in whole or part, in any form or by any means,
electronic or mechanical for any purpose, without the express written permission of Nep-
tune Technology Group Inc. All rights to designs or inventions disclosed herein, including
the right to manufacture, are reserved to Neptune Technology Group Inc.
The information contained in this document is subject to change without notice. Neptune
reserves the right to change the product specifications at any time without incurring any
obligations.
Trademarks used in this manual
MRX920TM and EZRouteMAPSTM are trademarks of Neptune Technology Group Inc.
RouteMAPS is a registered trademark of Neptune Technology Group Inc.
Other brands or product names are the trademarks or registered trademarks of their
respective holders.
FCC Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
“NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help”
Industry Canada Notice
This Class B digital apparatus meets all requirements of the Canadian Interference Caus-
ing Equipment Regulations. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l'inter-
férence canadienne causant des règlements d'équipement. L'opération est sujette aux
deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2)
ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence
qui peut causer l'opération peu désirée.
"RF Exposure (Intentional Radiators Only)
This equipment complies with the FCC RF radiation requirements for uncontrolled envi-
ronments. To maintain compliance with these requirements, the antenna and any radiat-
ing elements should be installed to ensure that a minimum separation distance of 67 cm
is maintained from the general population."
MRX920TM User’s Manual
Literature No. UM MRX920/MTX 02.05
Part No. 12508-002
Neptune Technology Group Inc.
1600 Alabama Highway 229
Tallassee, AL 36078
Tel: (334) 283-6555
Fax: (334) 283-7299
Copyright © 2005
Neptune Technology Group Inc.
All rights reserved.
![](/img.php?id=529447&img=bg5.png)
Notes:
![](/img.php?id=529447&img=bg6.png)
Contents
MRX920/MTX950 User’s Manual v
1Introduction
System Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Conventions Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Product Support within North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Contacting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2MRX920 Overview
MRX920 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
The Laptop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
MRX920 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
MRX920 Function Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Reading Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Message Area and Progress Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Information Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Route Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Route Display Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Viewing MIU Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
![](/img.php?id=529447&img=bg7.png)
vi MRX920/MTX950 User’s Manual
Contents
MRX920 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
RF Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Radio Frequency (RF) Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Digital Multi-channel Receiver (DMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Central Processing Unit (CPU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
3Setting Up the MRX920 Unit
Placing the MRX920 Unit in the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Opening Carrying Case Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Plugging in the Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Inserting the USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Turning the Unit On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Starting the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Adjusting System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
![](/img.php?id=529447&img=bg8.png)
Contents
MRX920/MTX950 User’s Manual vii
4 Using the MRX920 Unit
Reading Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Beeper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Turning the Beeper On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Selecting Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Detail Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Viewing Account Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Collecting Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Starting Meter Reads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Navigation on the Route Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Viewing Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Identifying Missed Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Viewing Account Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Using Coded Notes or Skip Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Moving From One Account to the Next . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Displaying Account Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Reading Missed Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Pausing and Restarting Meter Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Creating an Export File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Exiting the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
From the Route Import and Route Export Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
From the Route Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Turning off the Laptop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Removing the USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
![](/img.php?id=529447&img=bg9.png)
viii MRX920/MTX950 User’s Manual
Contents
5Closing the MRX920 Unit
Preparing to Remove the MRX920 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Laptop Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Using Your Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Touchpad Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

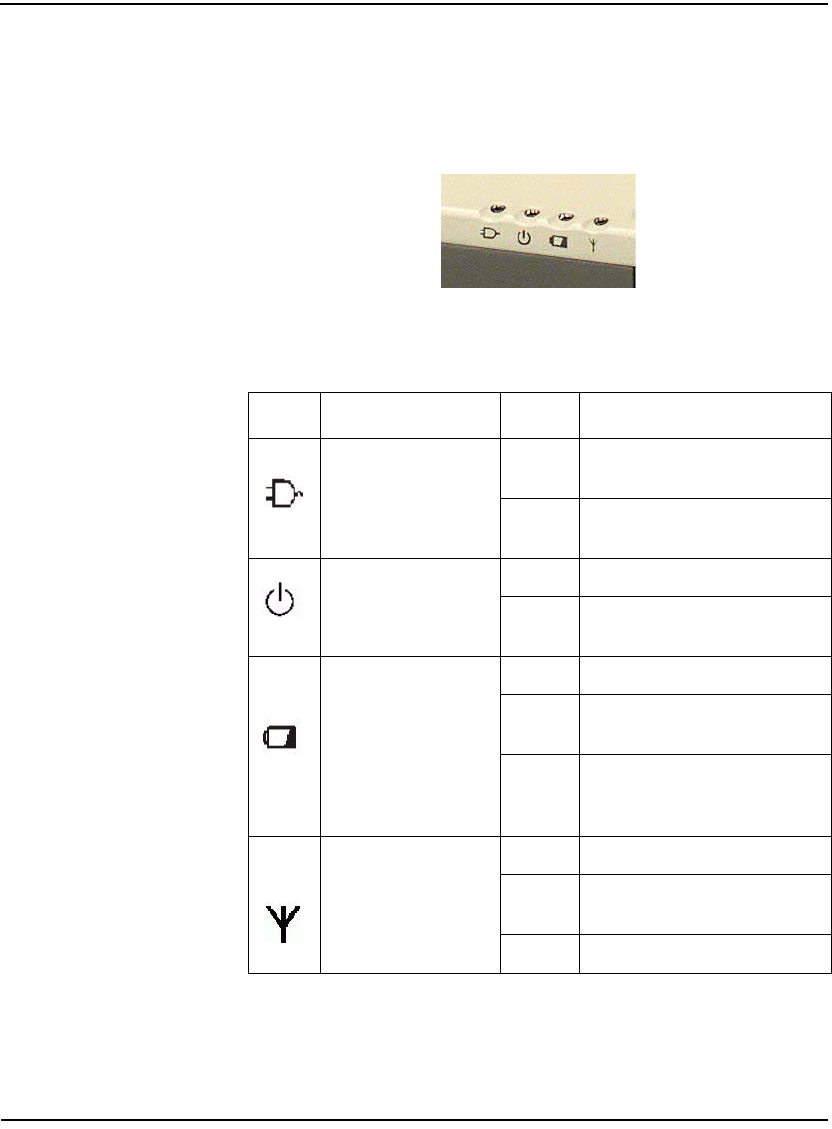

LED Activity Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
LED Power / Wireless Modem Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
Troubleshooting Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Performing Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Displaying the Software Self Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Importing Route Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
If No Route Data File is Found . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Correcting the Import Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
ASpecifications

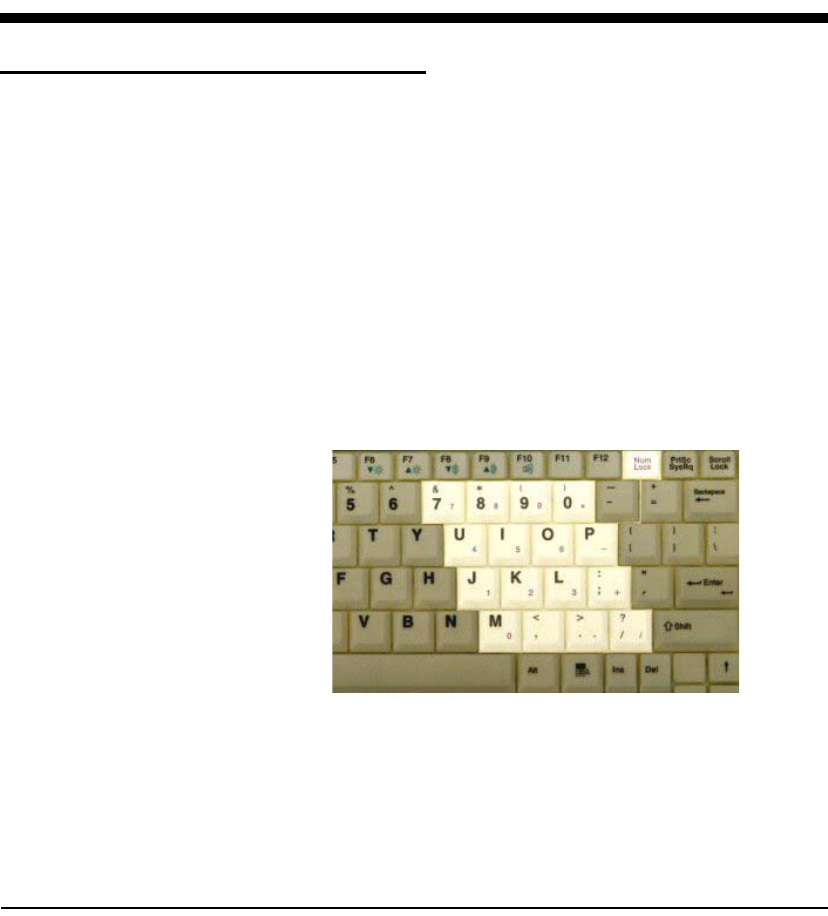

BKeyboard
![](/img.php?id=529447&img=bga.png)
Contents
MRX920/MTX950 User’s Manual ix
CTroubleshooting
Glossary
Index
![](/img.php?id=529447&img=bgb.png)
x MRX920/MTX950 User’s Manual
Contents
![](/img.php?id=529447&img=bgc.png)
MRX920/MTX950 User’s Manual ix
Figures
Figure Title Page

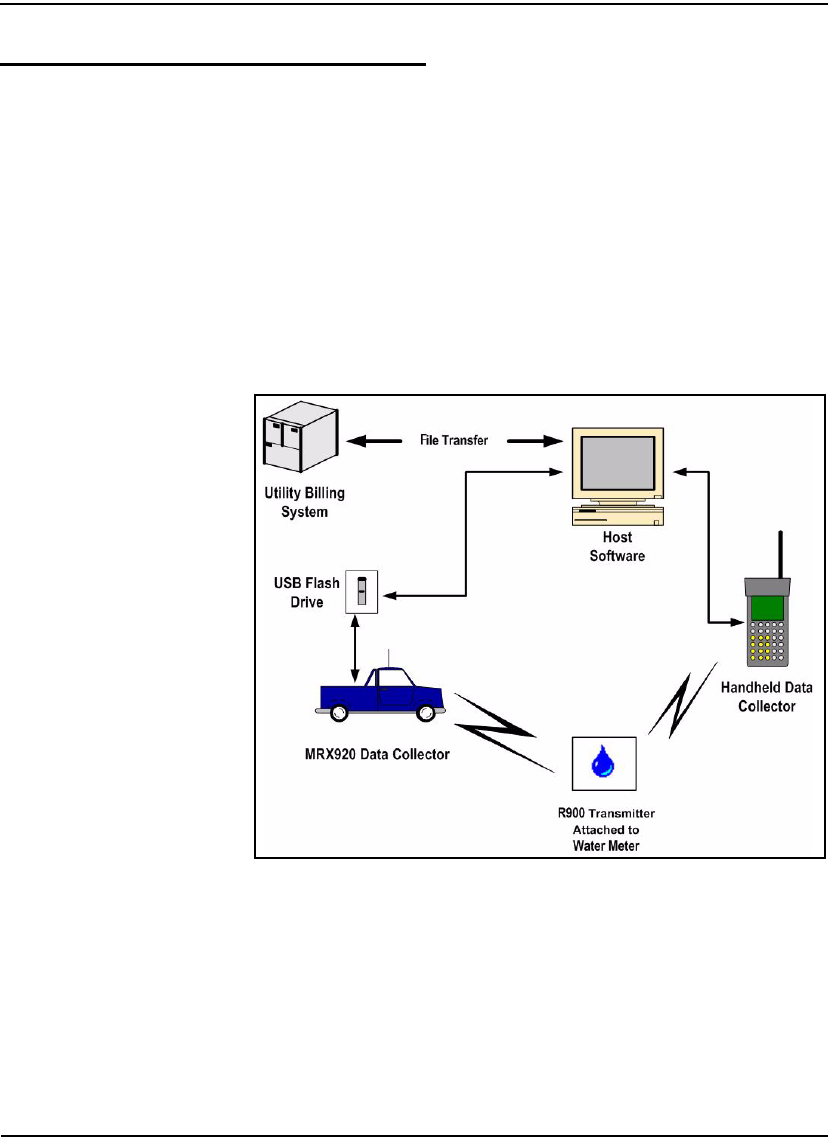

1.1 MRX920 Meter Reading Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

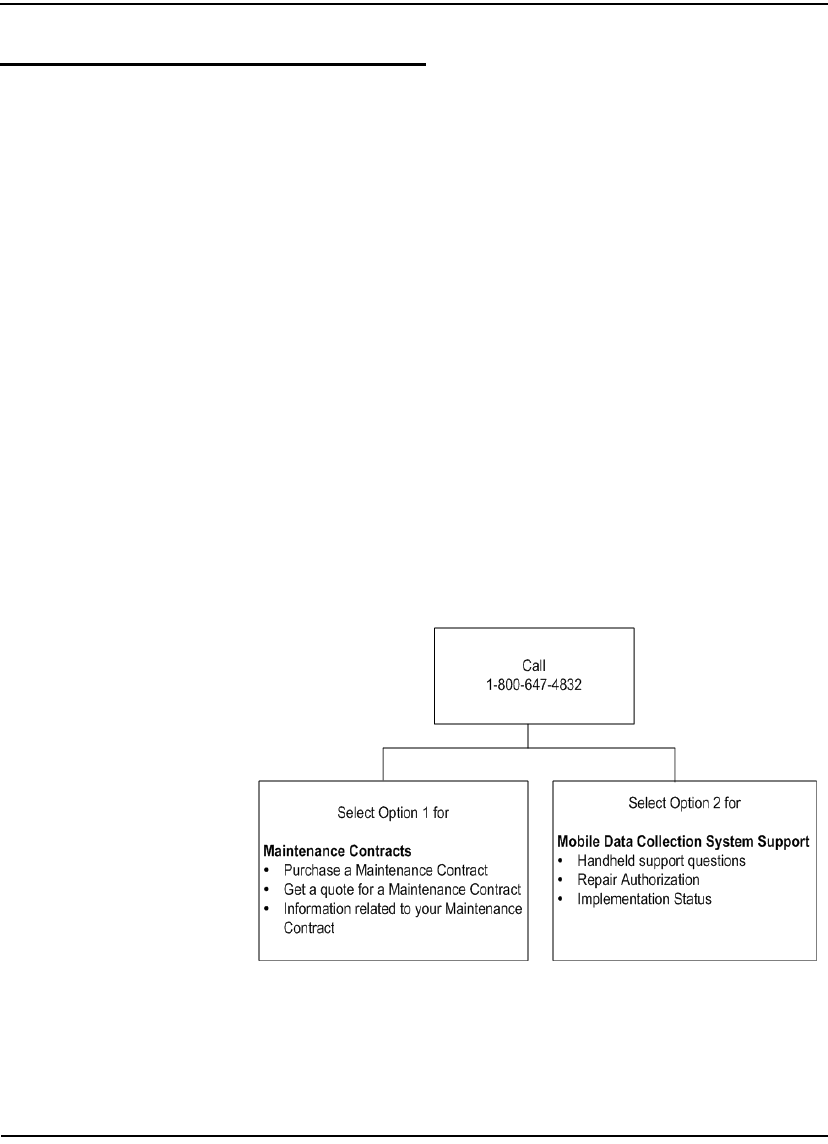

1.2 Support Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

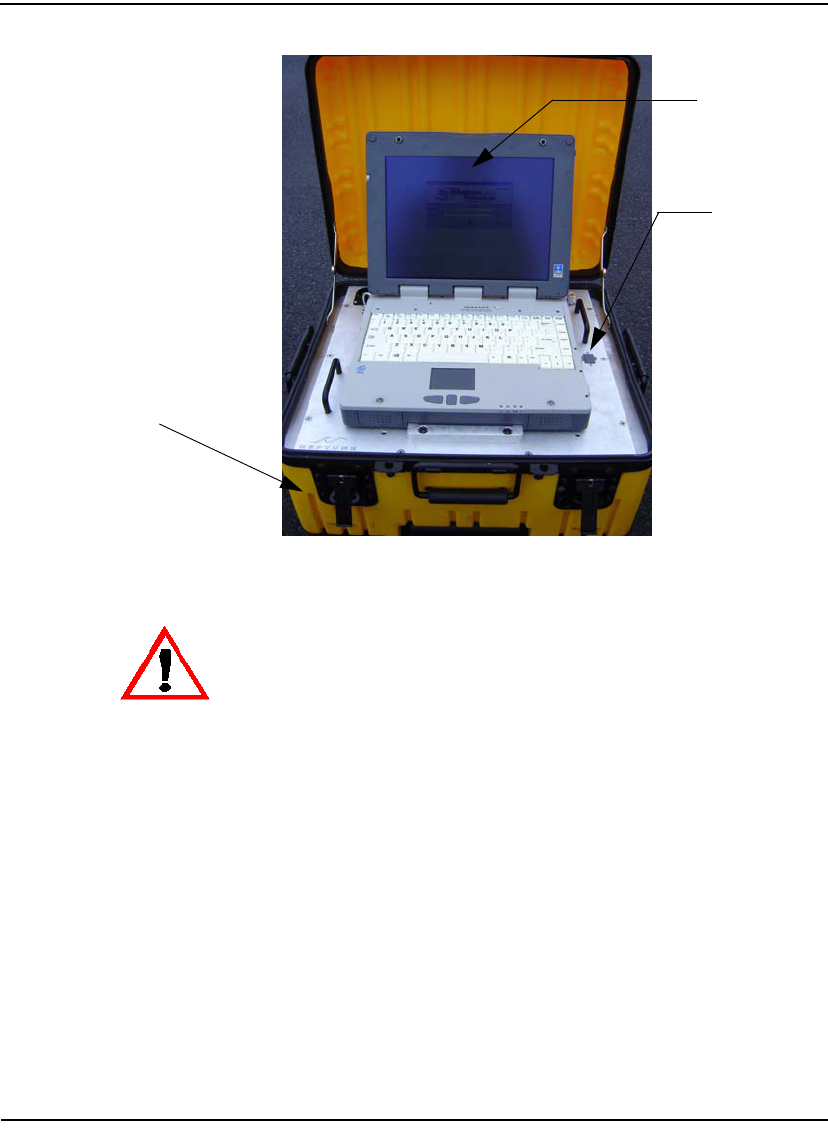

2.1 MRX920 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2 Laptop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.3 USB Port for USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2.4 Navigating Within the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

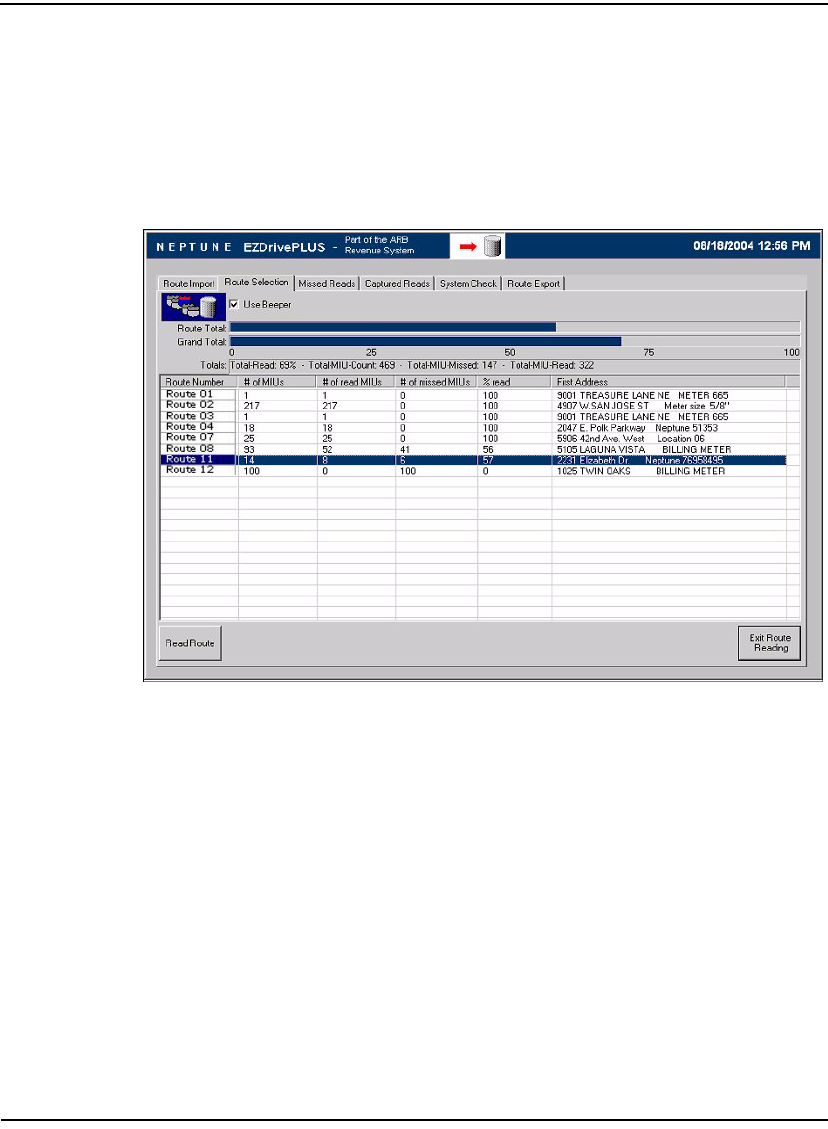

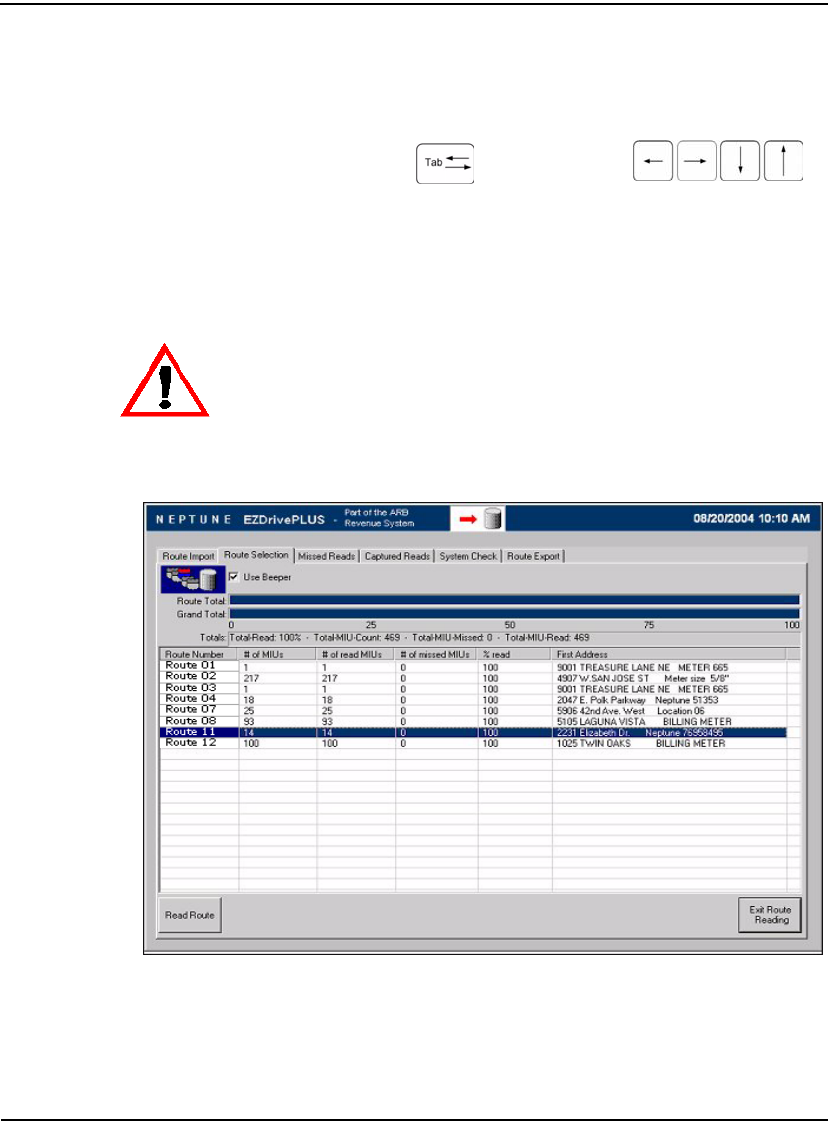

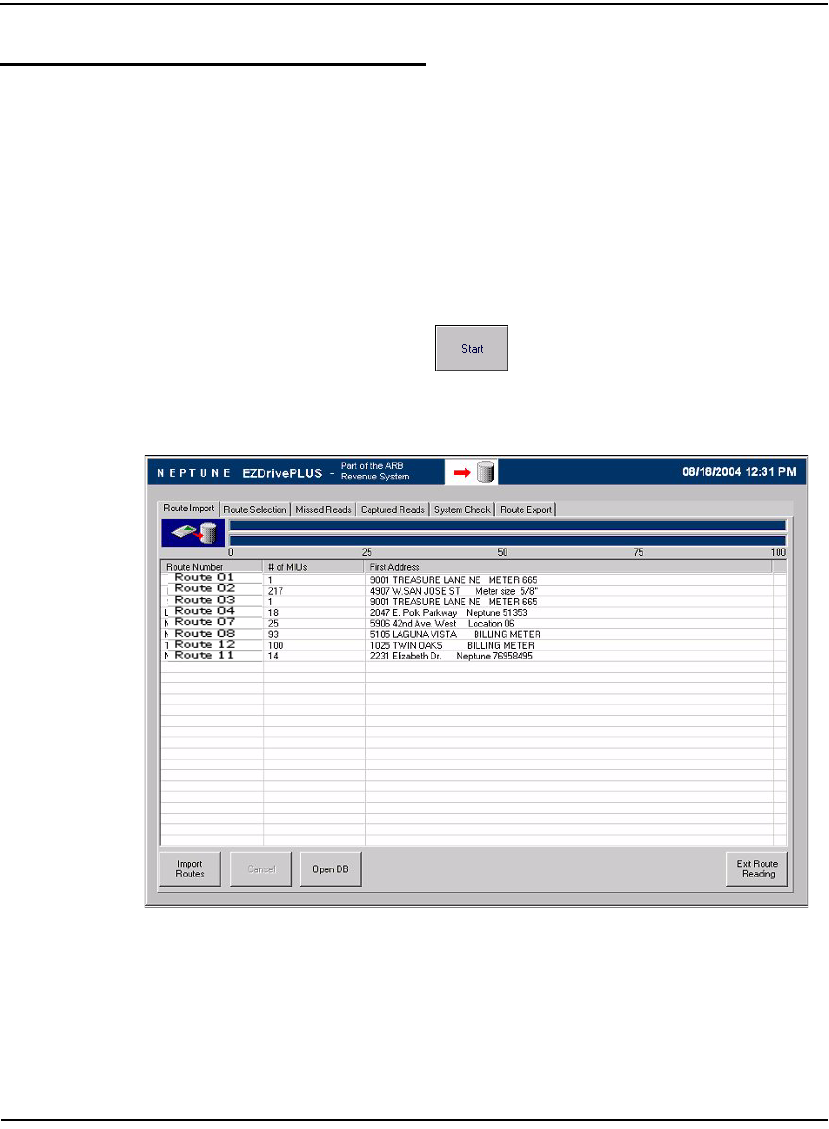

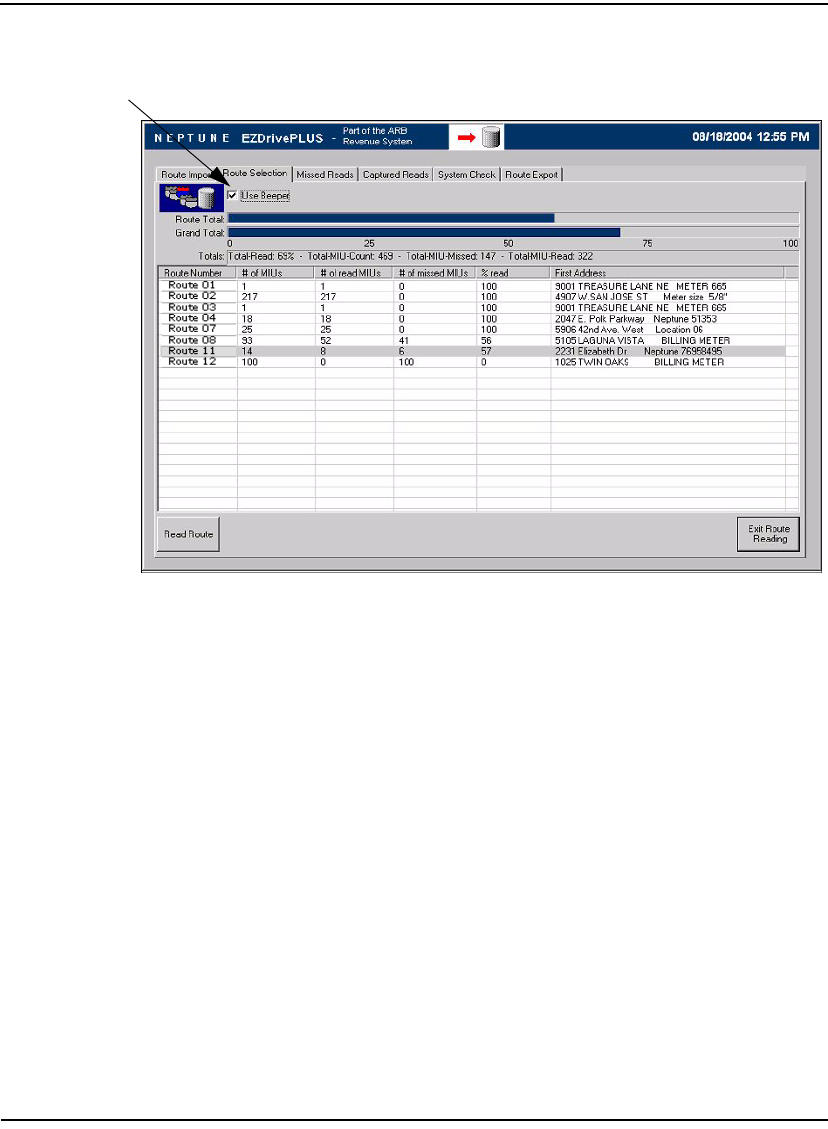

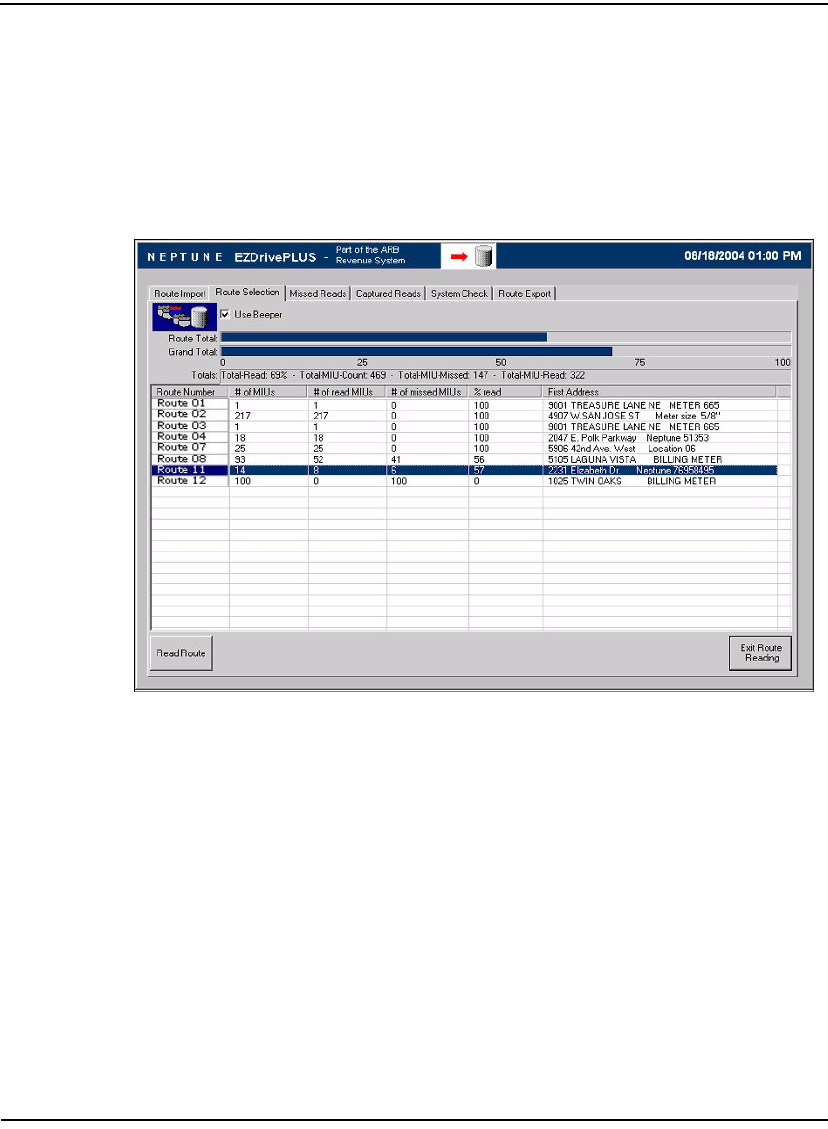

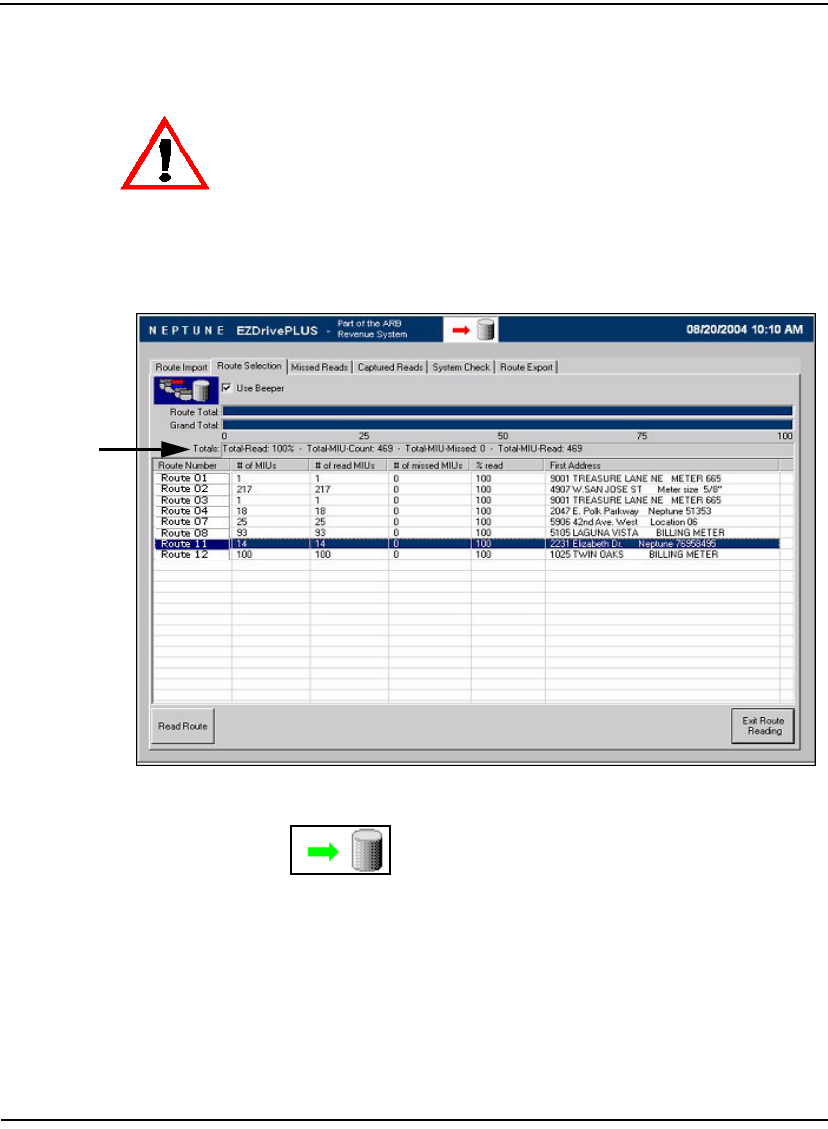

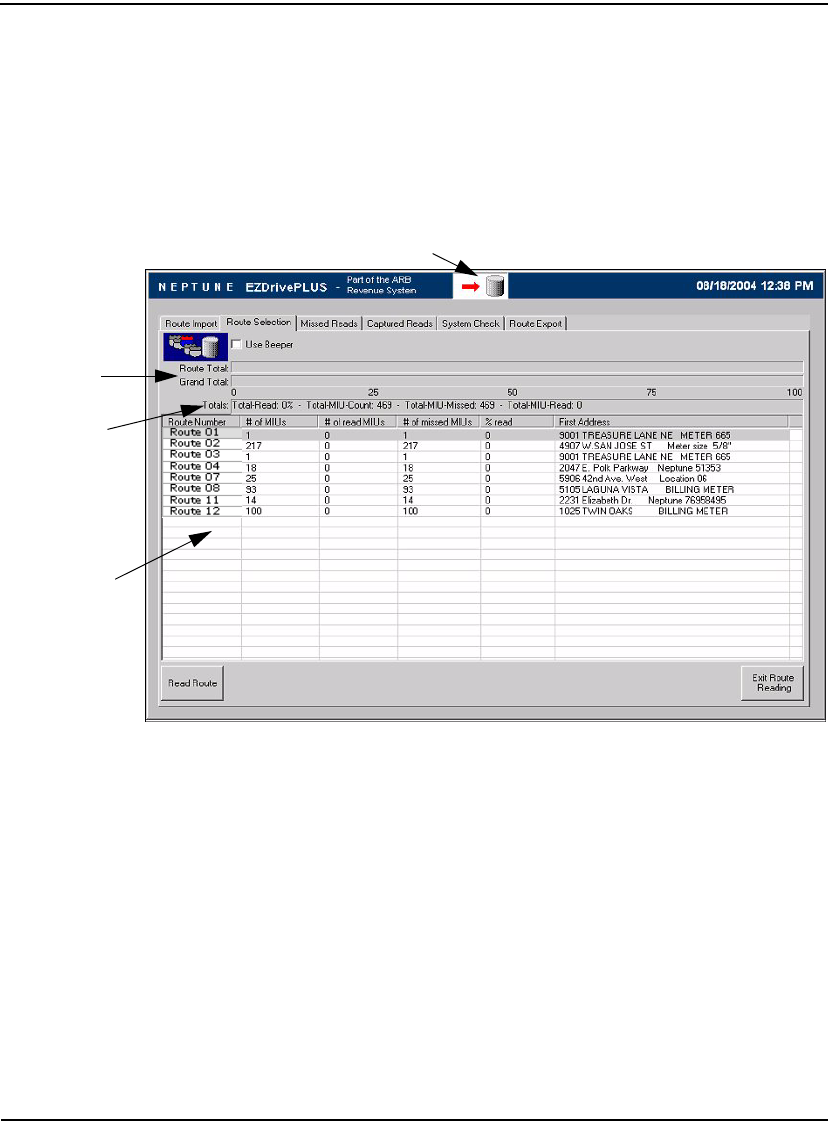

2.5 Route Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

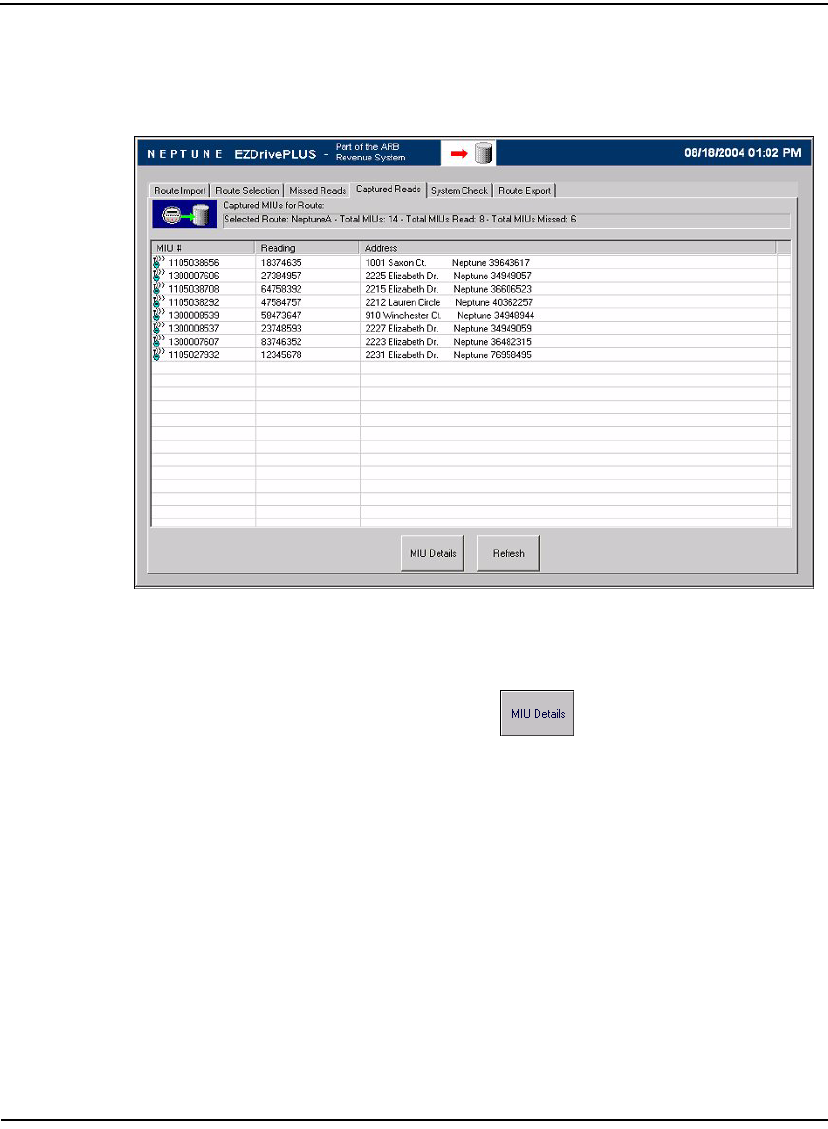

2.6 Missed Reads and Captured Reads Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

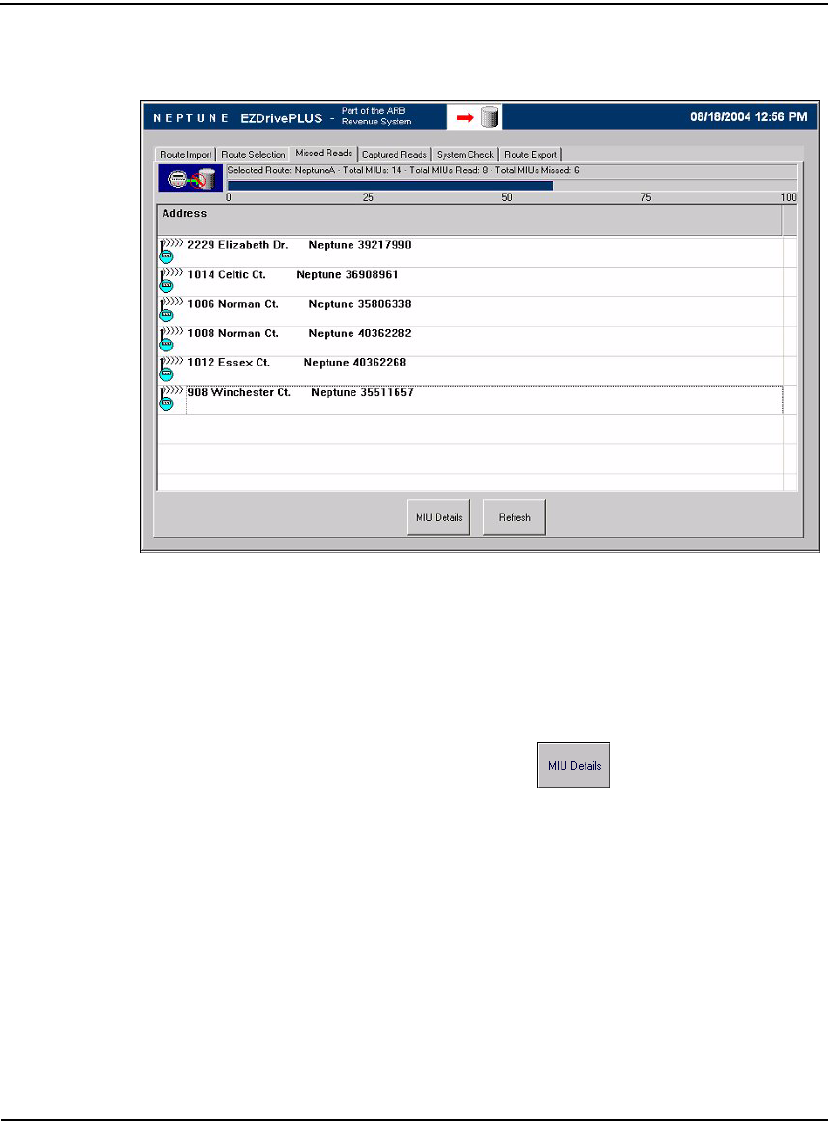

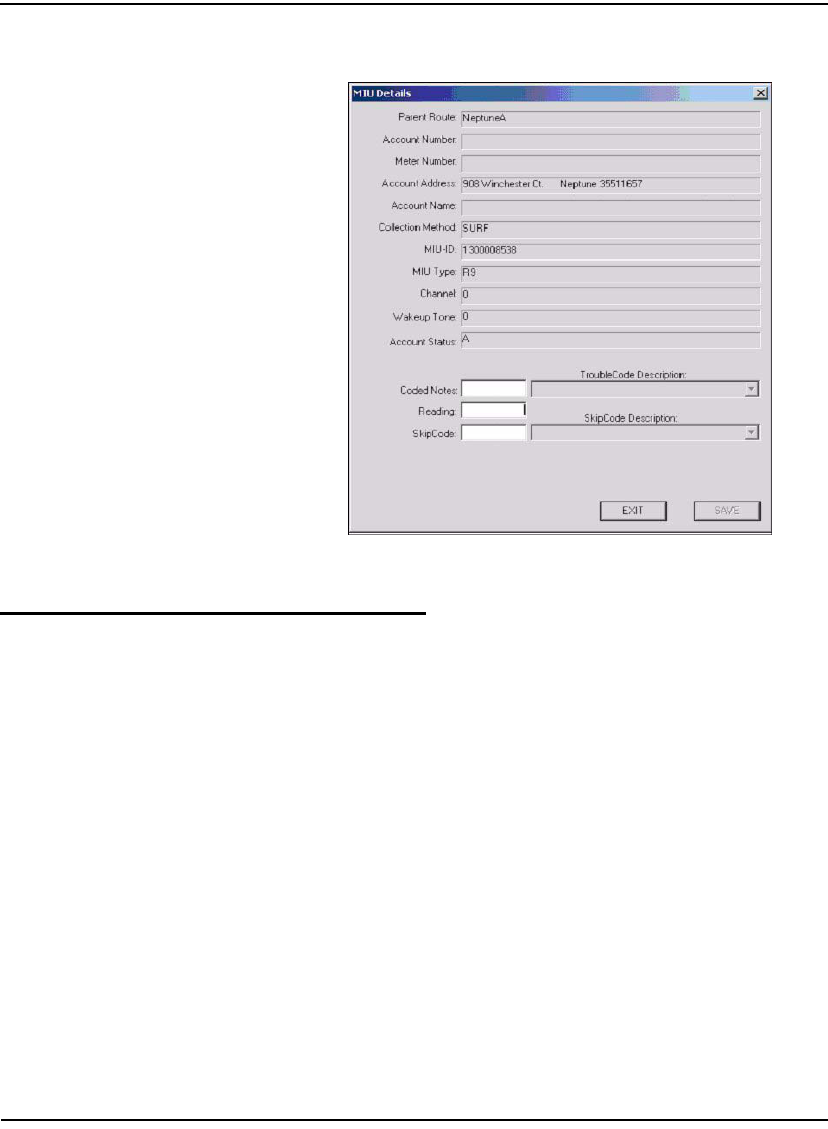

2.7 MIU Details Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

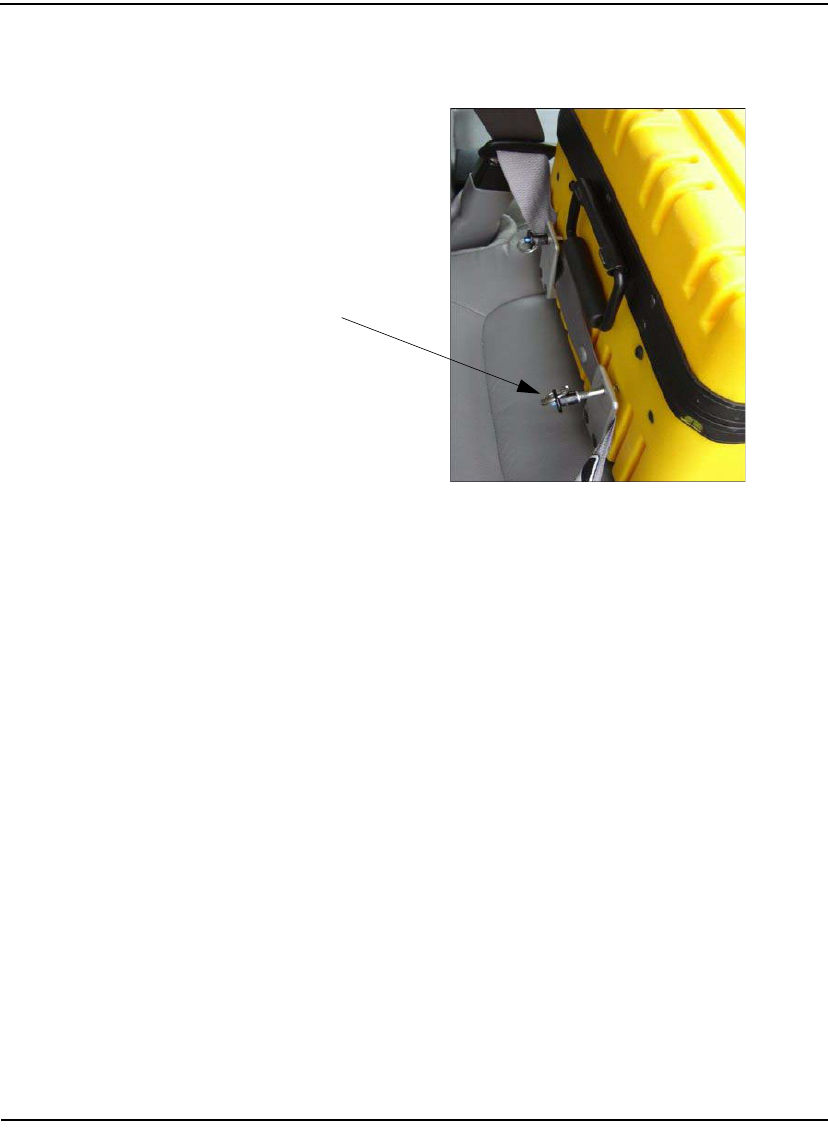

3.1 Removing the Safety Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.2 Placing Seatbelt in Retention Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.3 Replacing the Safety Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

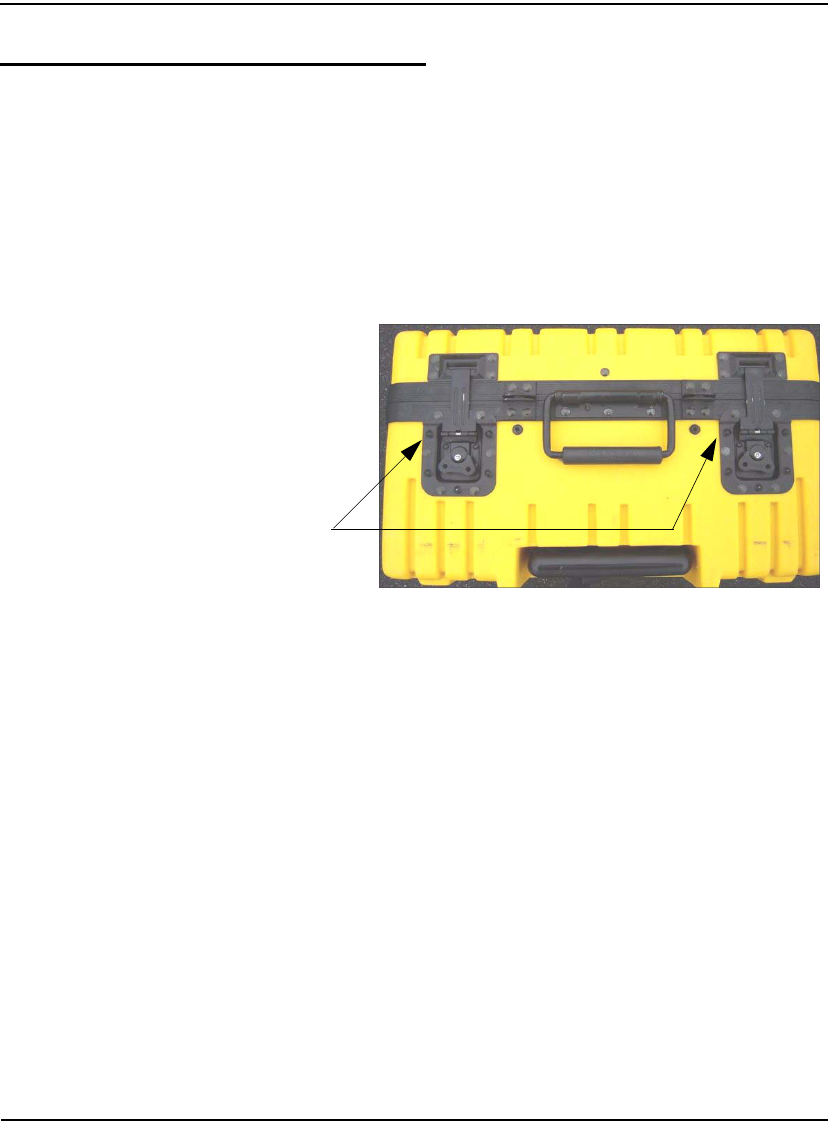

3.4 Latches on MRX920 Carrying Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

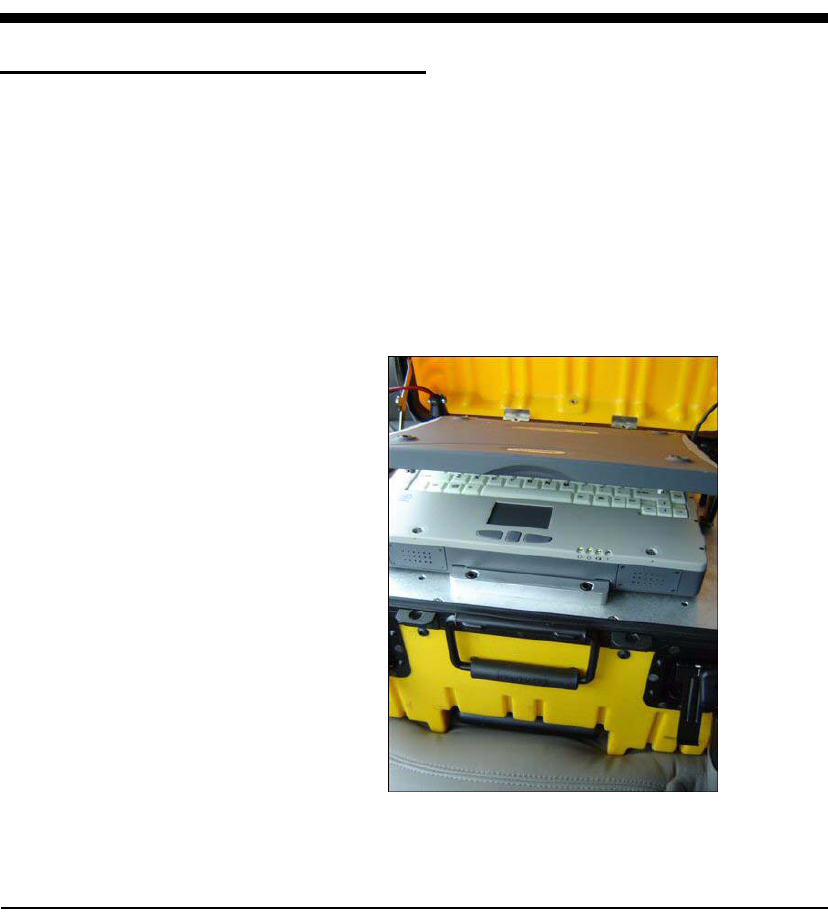

3.5 Opening the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.6 Vehicle Power Supply Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

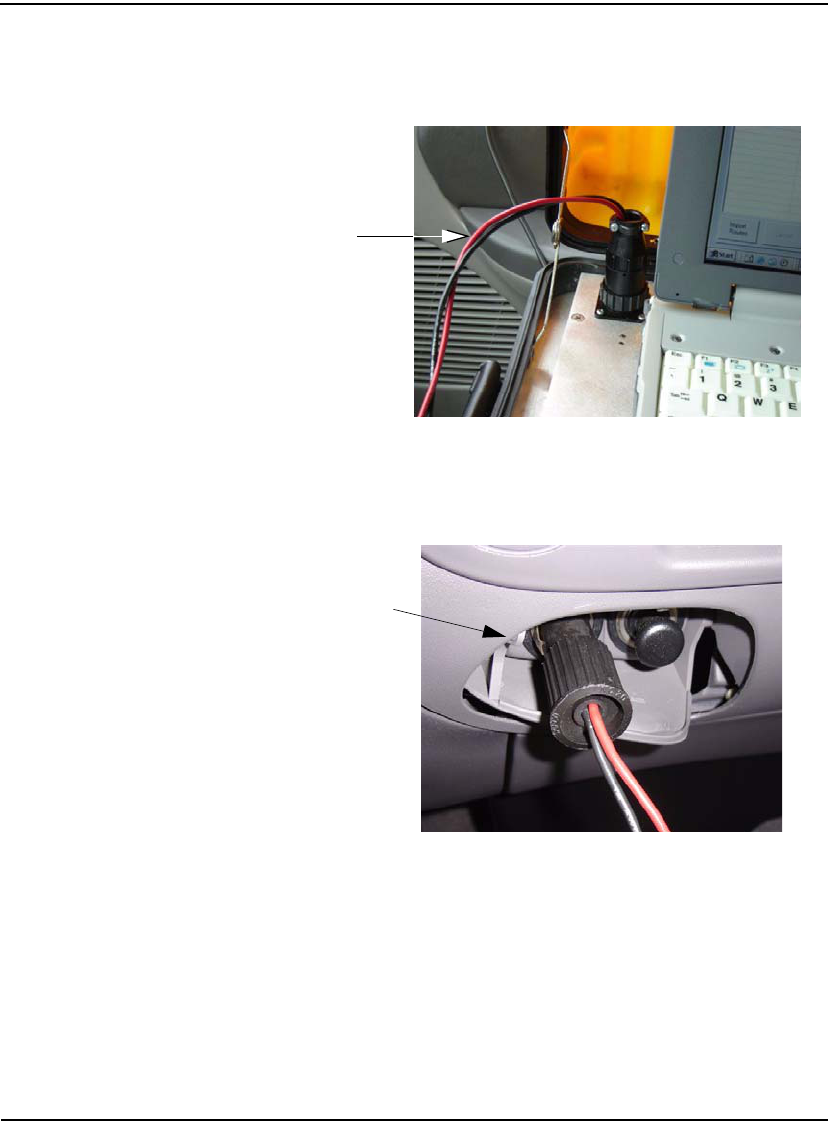

3.7 Vehicle Power Supply Power Cable Inserted In Car . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

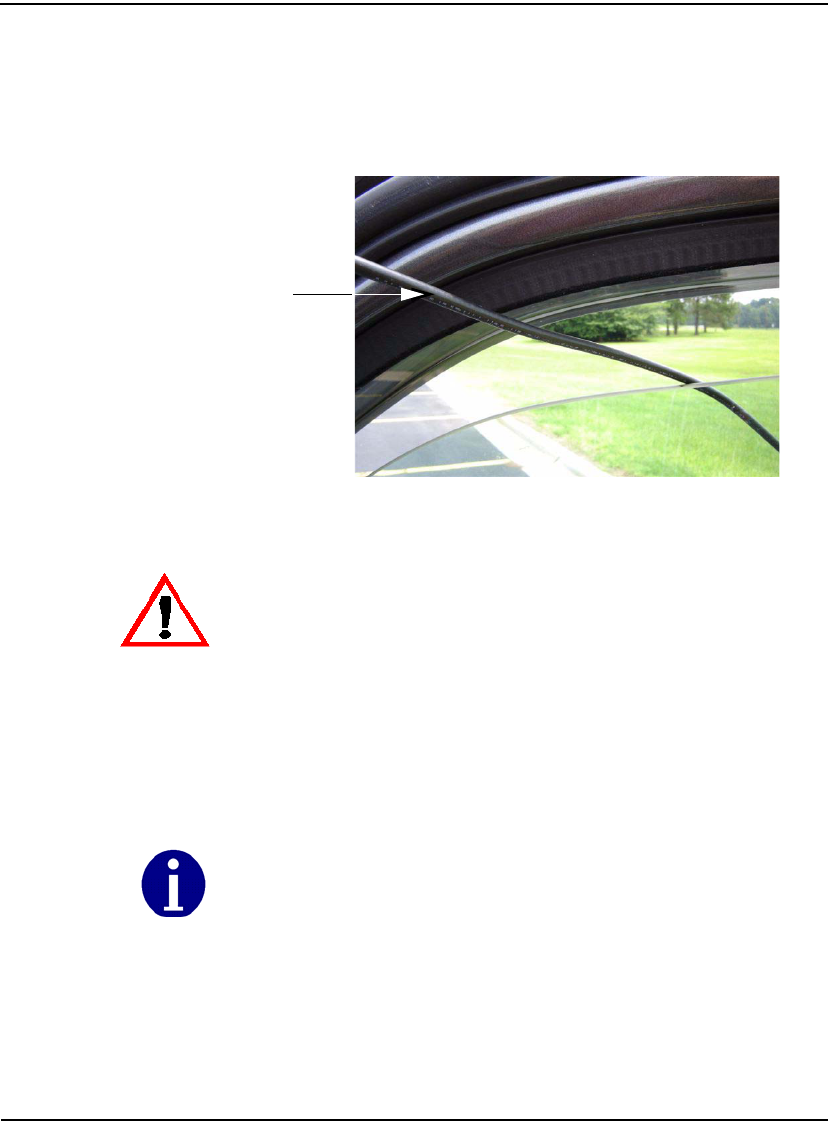

3.8 Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

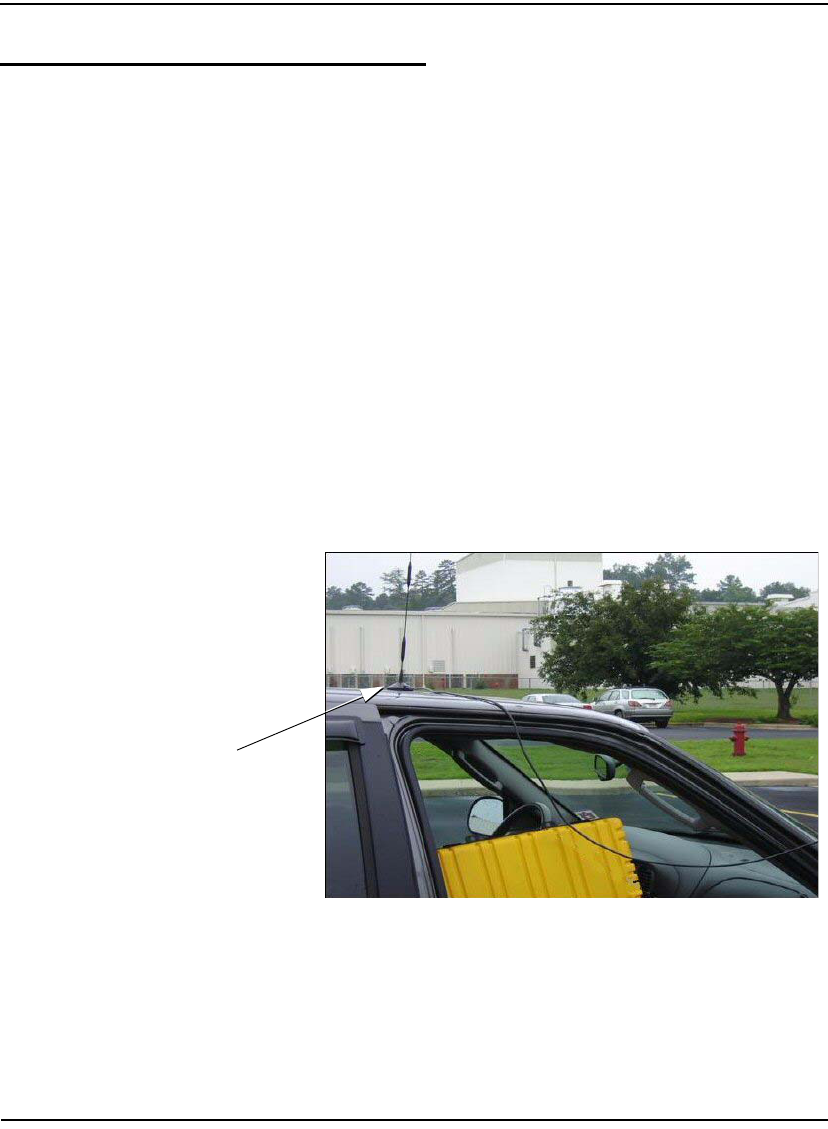

3.9 Antenna Cable Through Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3.10 USB Port and Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

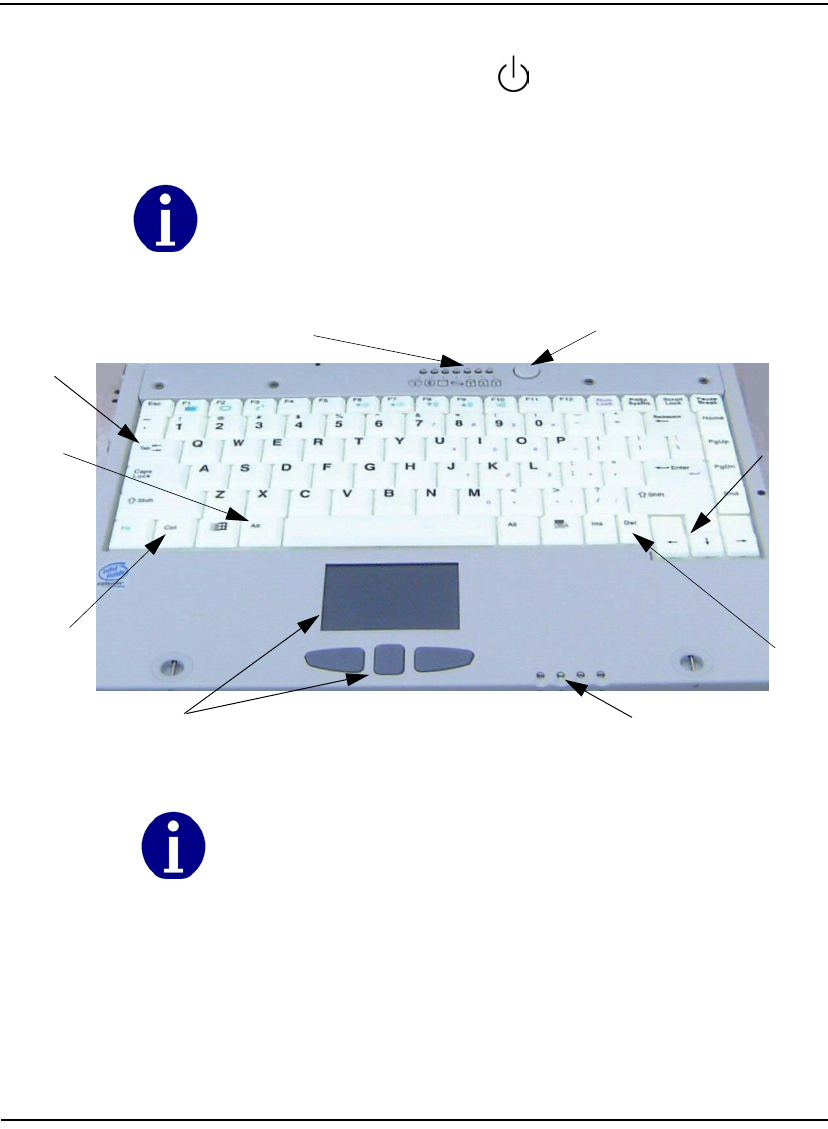

3.11 Laptop Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
4.1 Route Display with Multiple Routes Being Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.2 Use Beeper Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

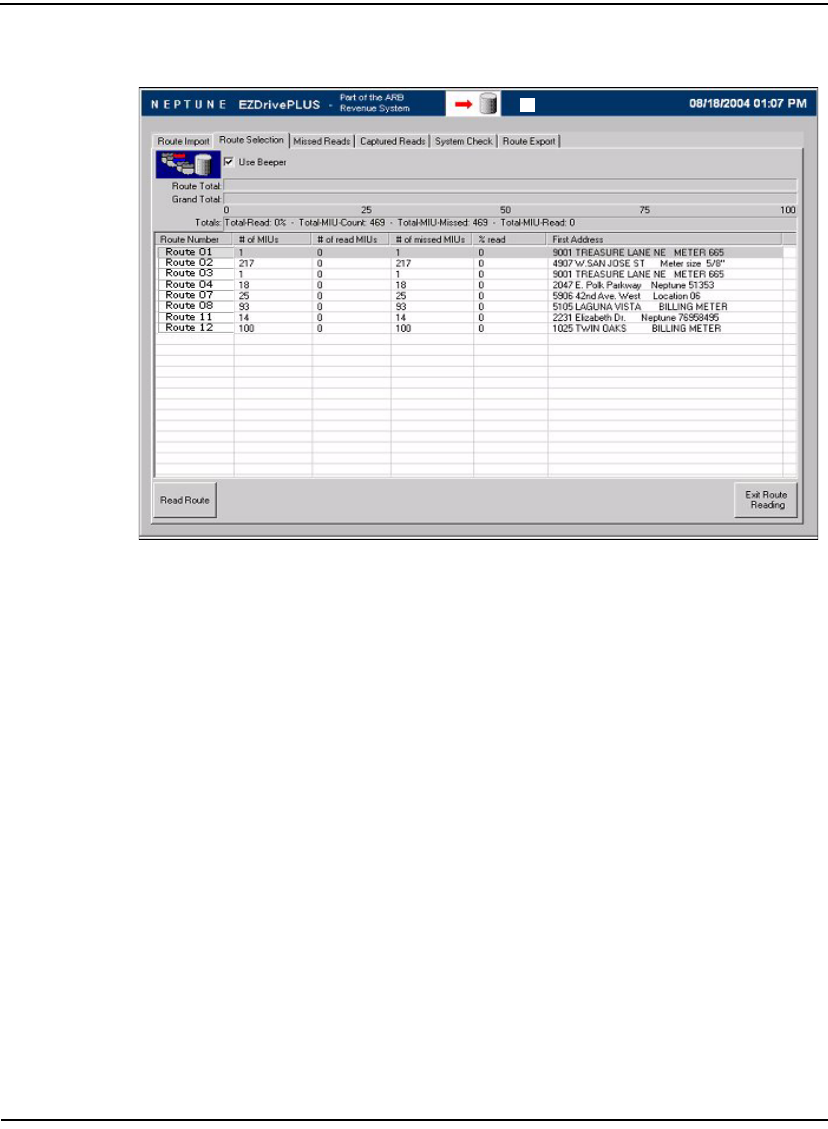

4.3 Route Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
4.4 Missed Reads Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

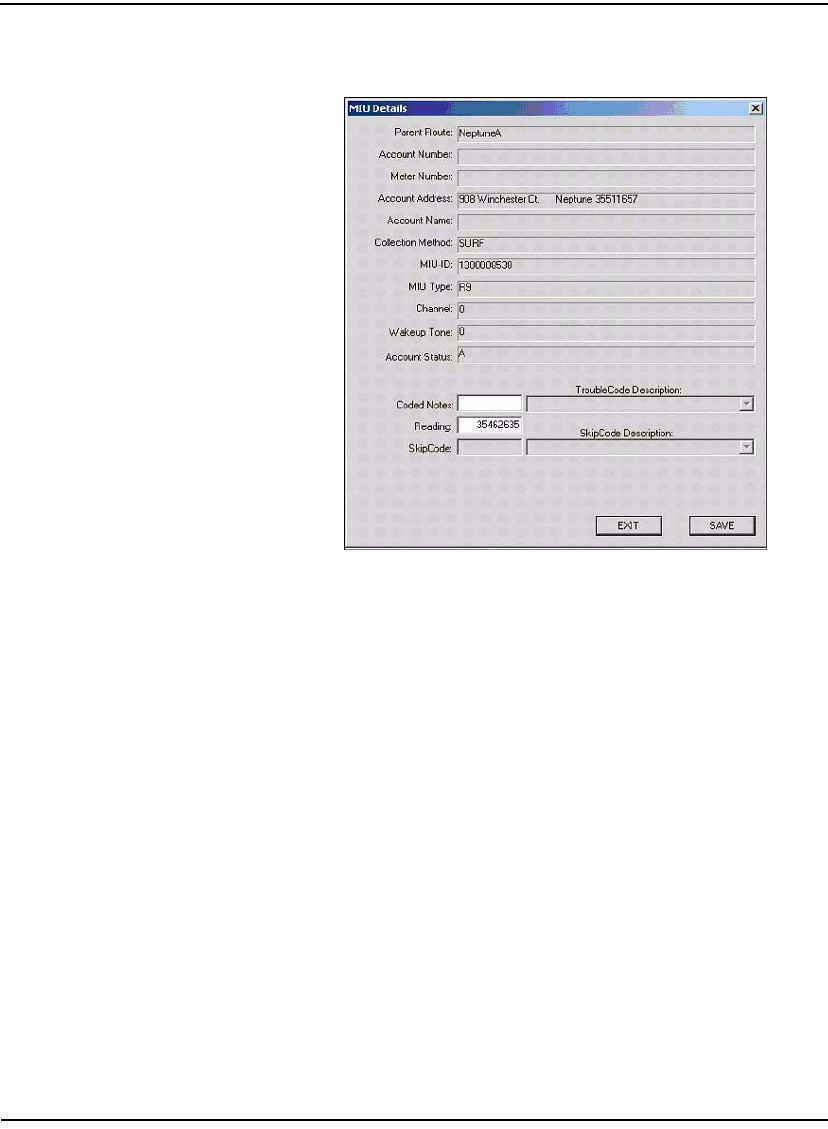

4.5 MIU Details Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
4.6 Route Selection Screen with Route Highlighted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

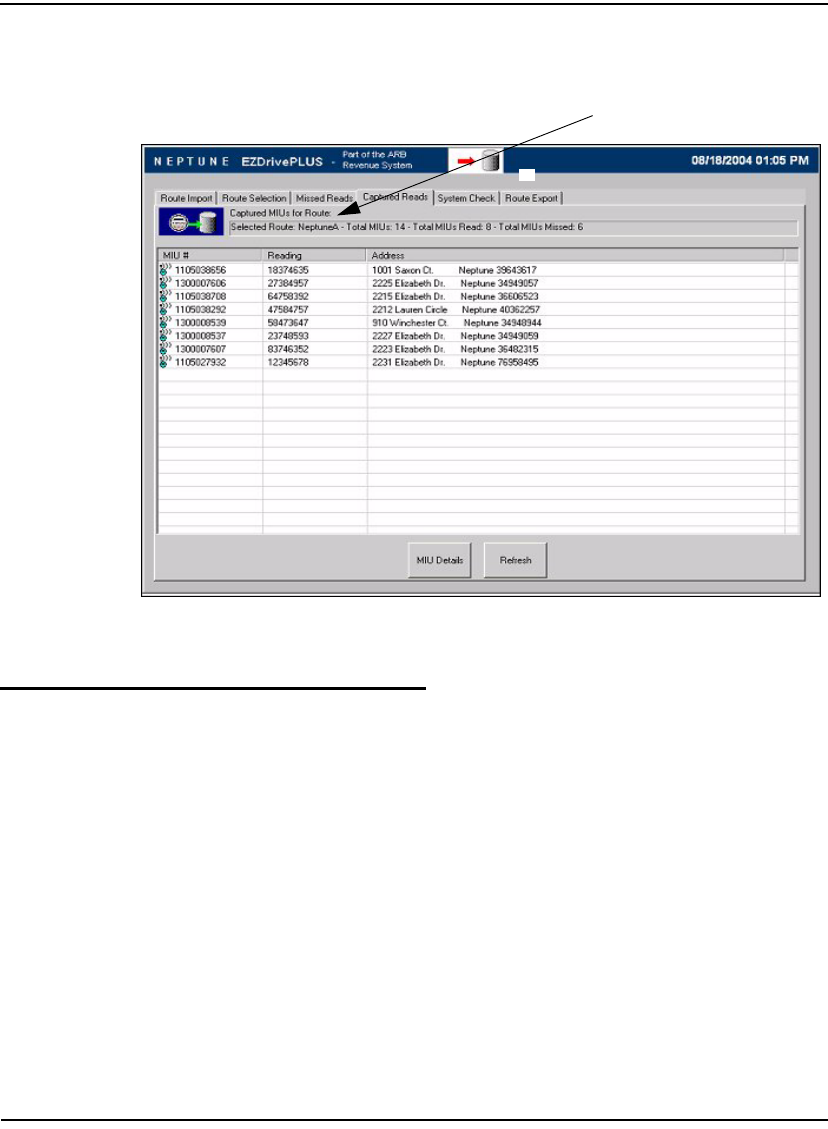

4.7 Captured Read Screen with Account Highlighted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
4.8 Reading a Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
4.9 Route With All Reads Completed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
4.10 Route Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

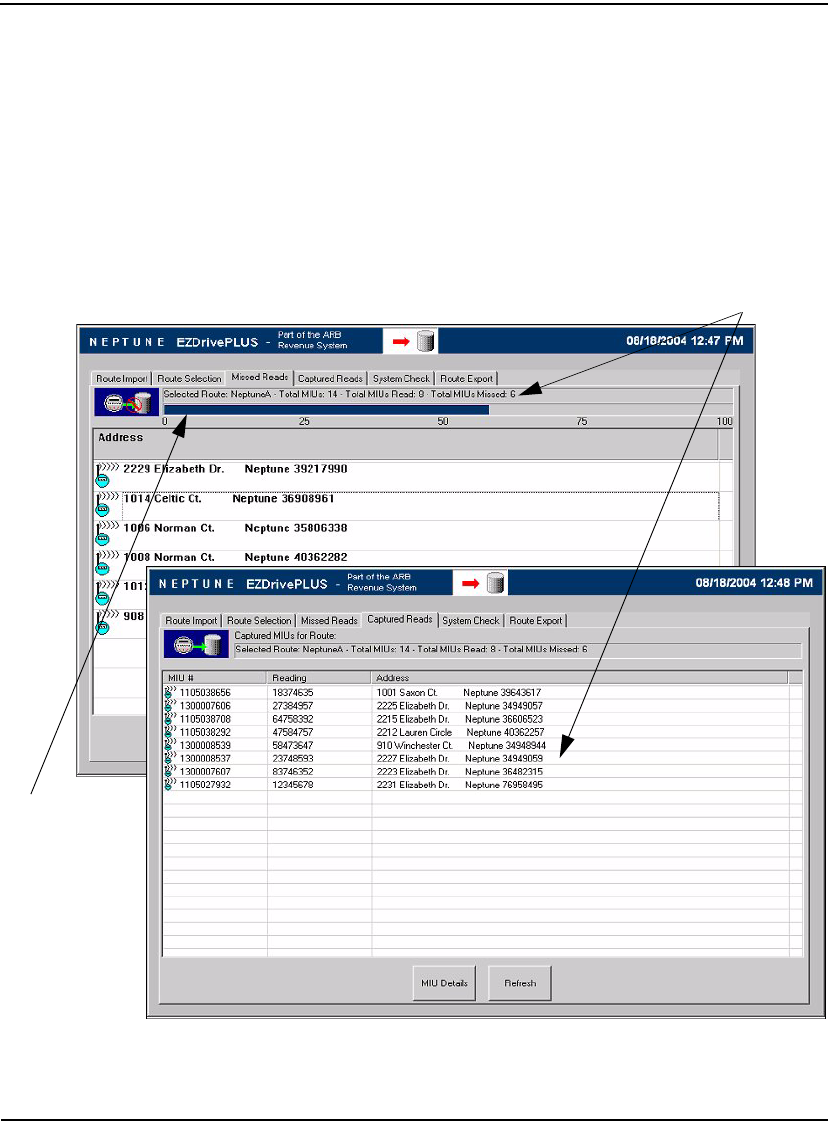

4.11 Captured Reads Screen Message Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
![](/img.php?id=529447&img=bgd.png)
Figures
x MRX920/MTX950 User’s Manual
Figure Title Page

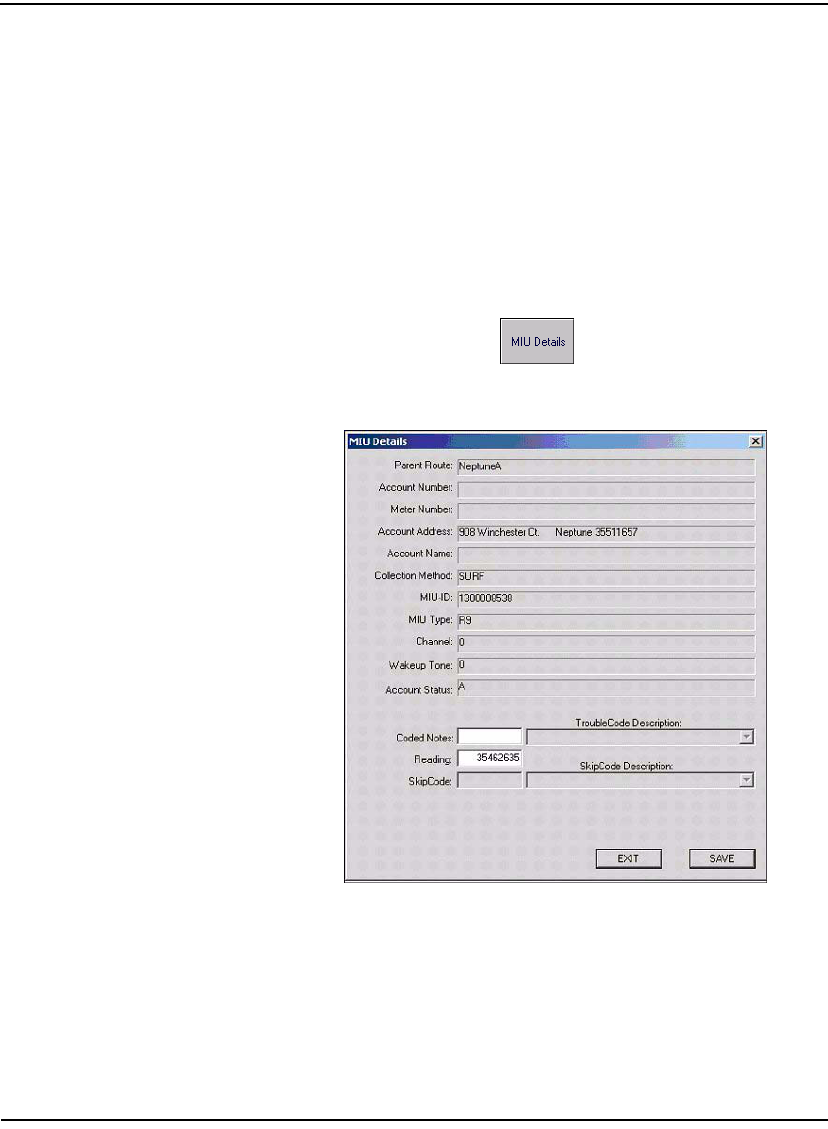

4.12 MIU Details dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
5.1 Laptop Prepared for Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.2 Cover Closed on the MRX920 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

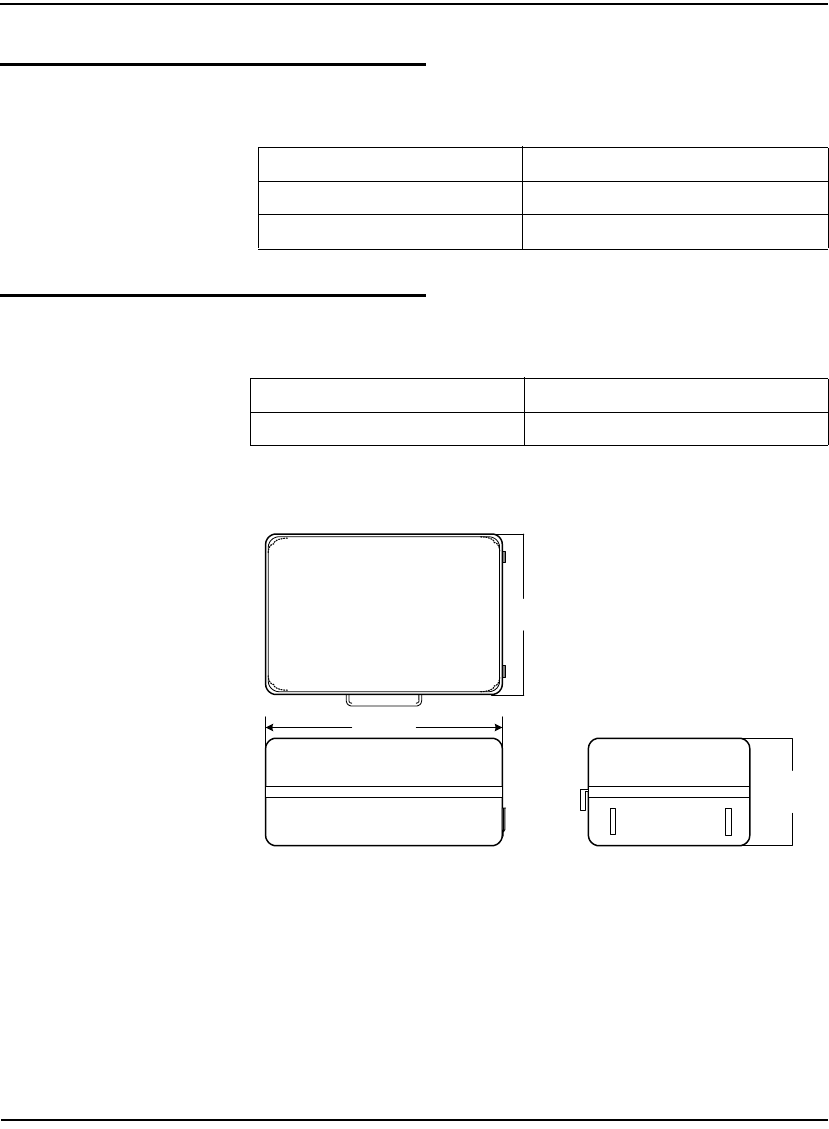

A.1 MRX920 Unit Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
1.6 Numeric Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

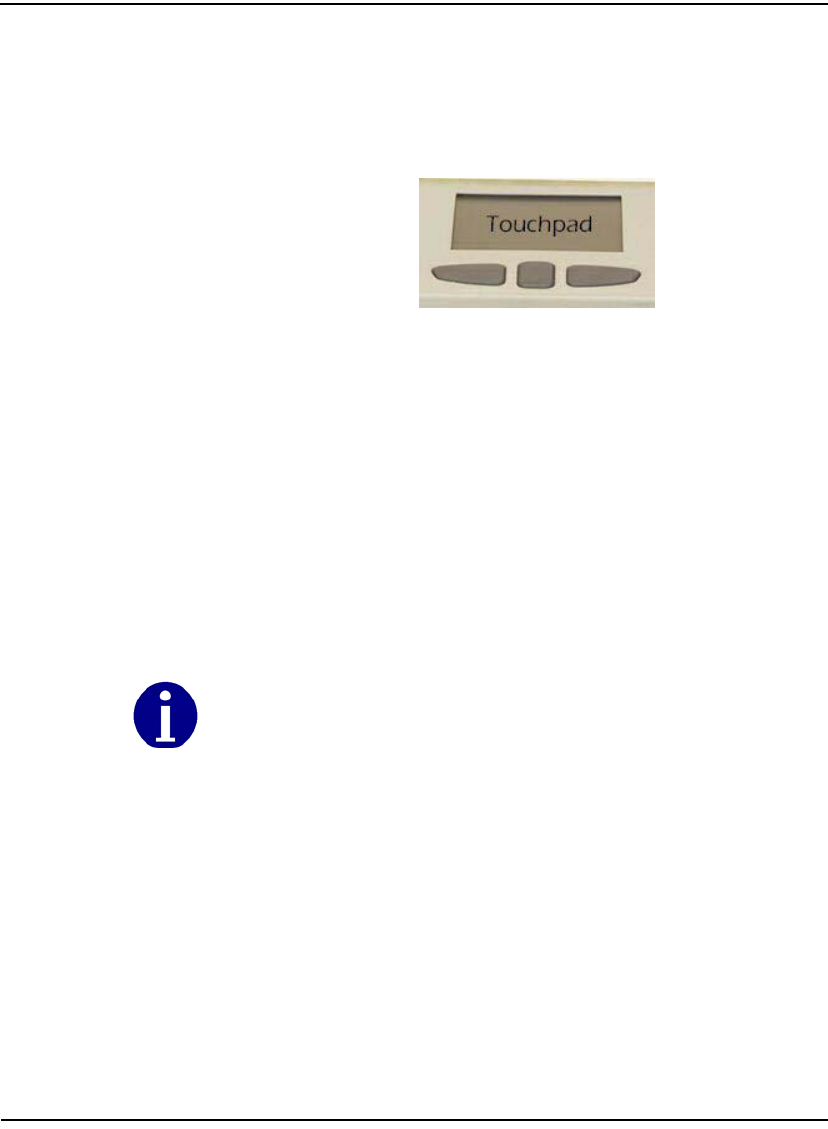

1.7 Touchback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

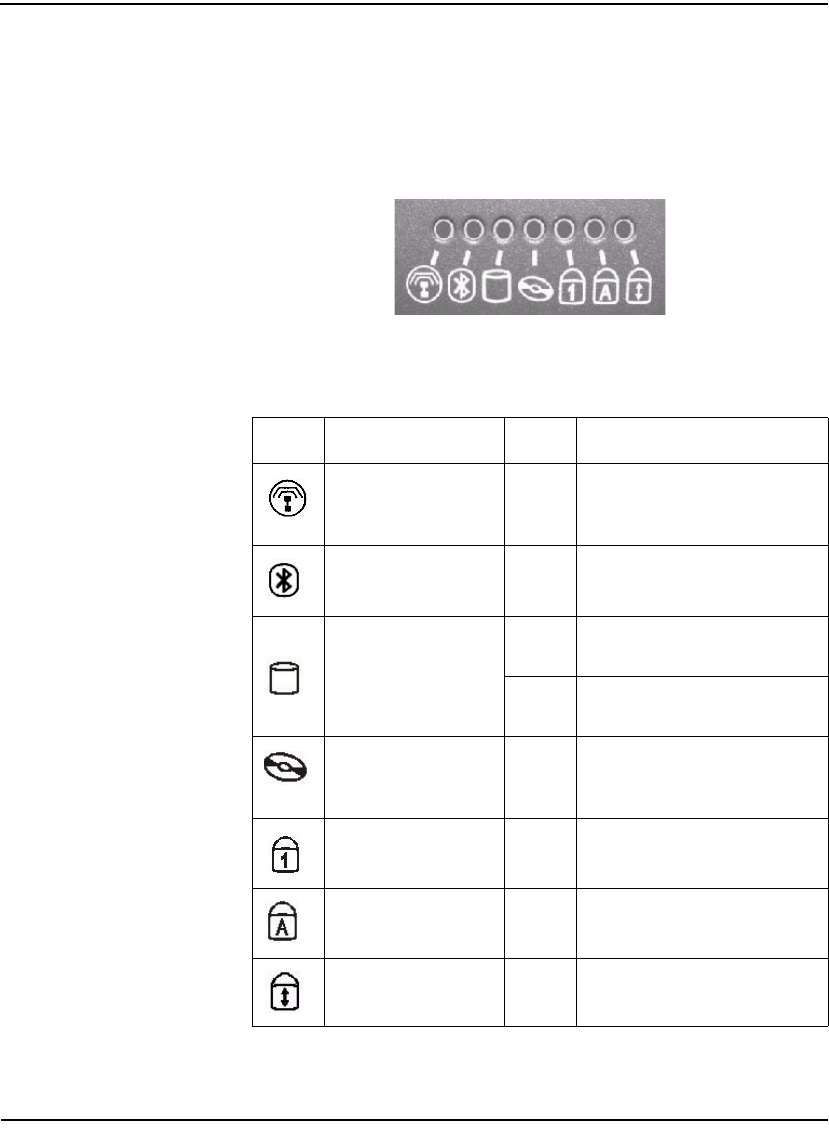

B.8 LED Activity Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
B.9 LED Power Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
C.1 Route Import Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

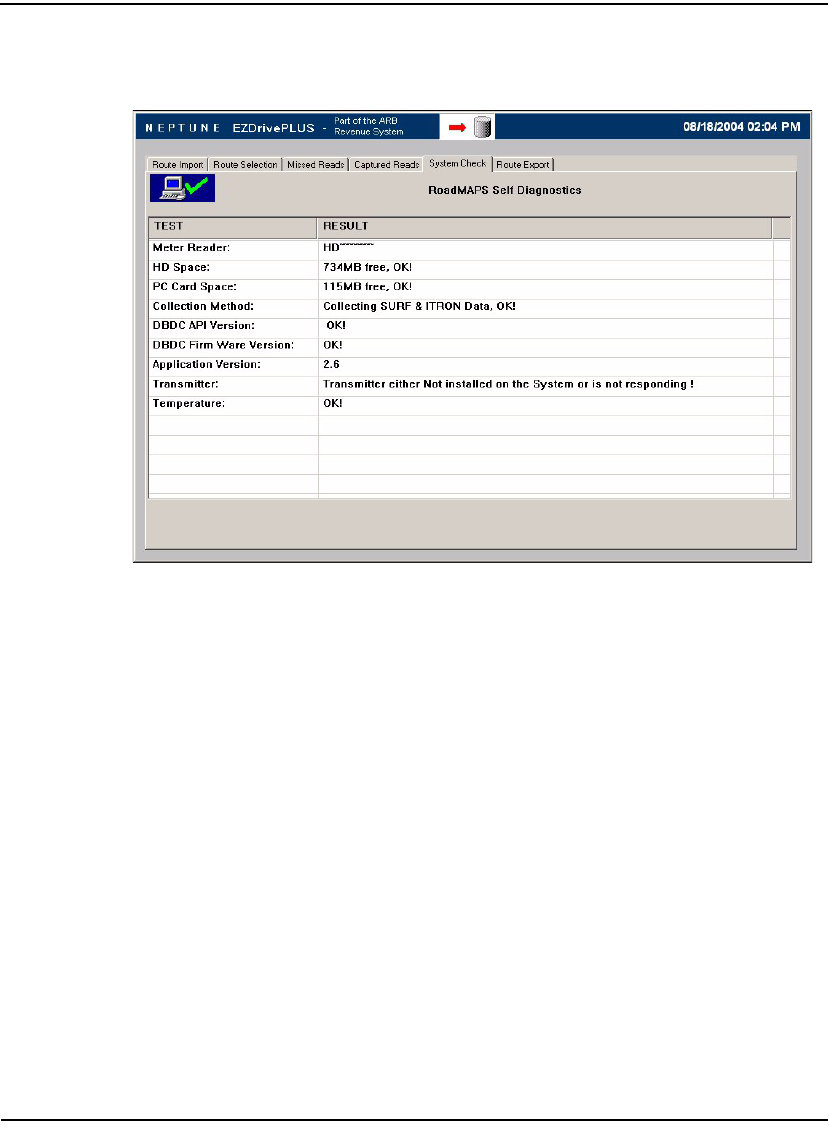

C.1 System Check Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

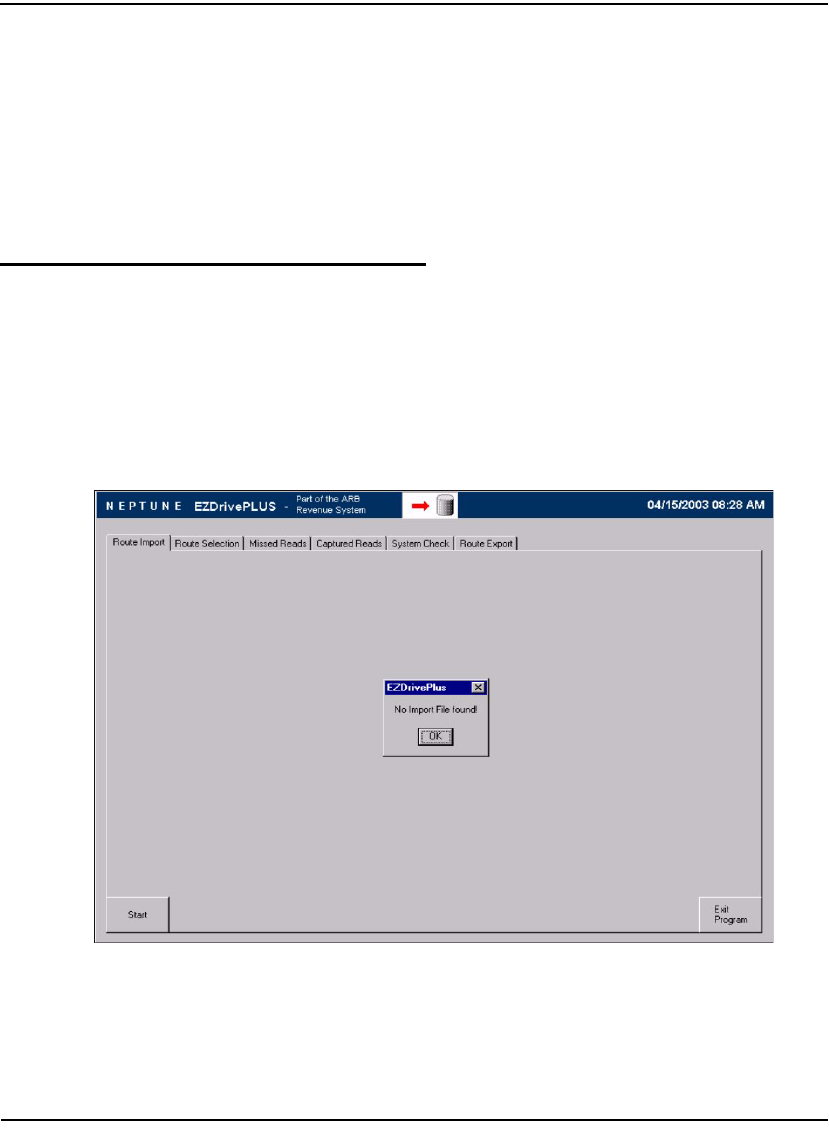

C.1 Error Message on Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
![](/img.php?id=529447&img=bge.png)
MRX920/MTX950 User’s Manual xi
Tables
Table Title Page
A.1 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
A.2 PC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
A.3 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
A.4 Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
A.5 Operating Voltage and Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
B.1 LED Activity Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
B.2 LED Power Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
C.1 Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
![](/img.php?id=529447&img=bgf.png)
xii MRX920/MTX950 User’s Manual
Notes:
Tables
![](/img.php?id=529447&img=bg10.png)
MRX920/MTX950 User’s Manual 1-1
Chapter 1 Introduction

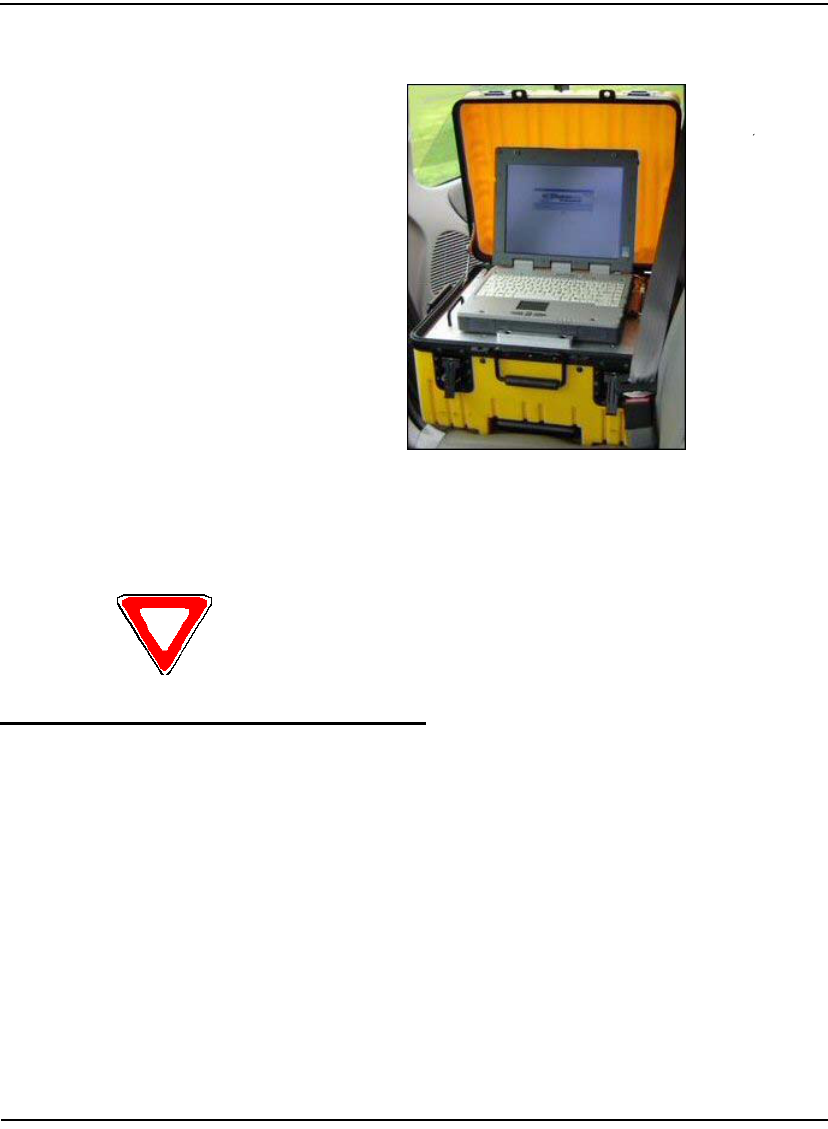

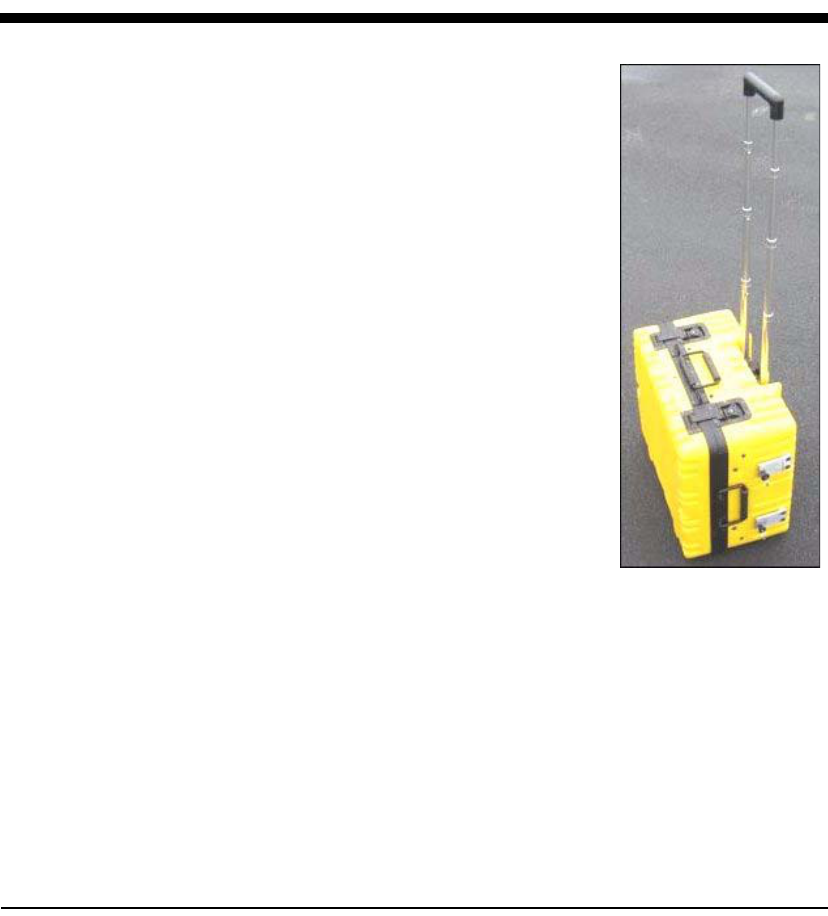

The MRX920ΤΜ unit is a rugged, com-
pact, portable, easy-to-use, meter-read-
ing unit for Neptune Radio Frequency
(RF) equipped water meters. It can be

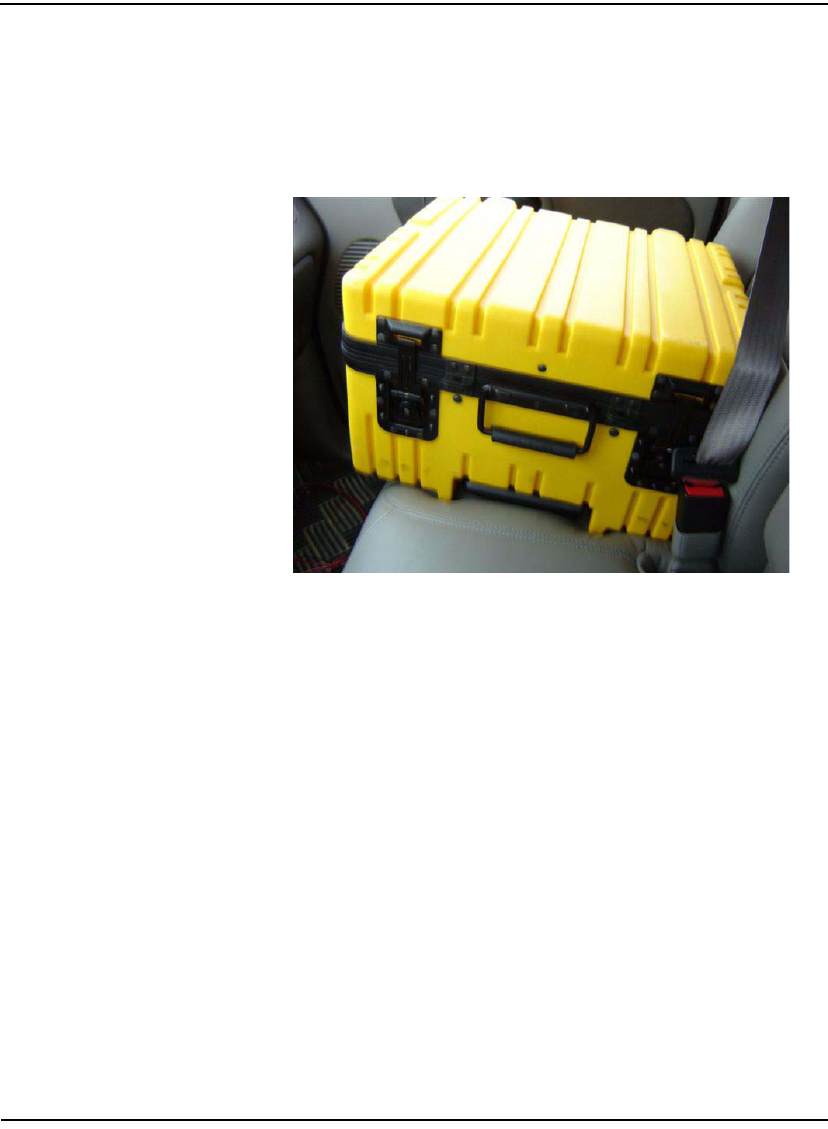

securely placed in the passenger seat of
any vehicle using a standard seat belt
and can be powered by the vehicle
power supply receptacle.
The MRX920 unit provides the meter-
reading industry with many advantages
over current meter-reading methods:
• Suitable for any size utility
• Portable and easy to set up
• Significantly reduced man-hours
needed to collect readings
• Maximized meter reading success
rates
• Improved meter reading accuracy
• Access for meter that are “hard-to-read” and “dangerous-to-
read.”
• Increased safety and minimized liability exposure
![](/img.php?id=529447&img=bg11.png)
Introduction
1-2 MRX920/MTX950 User’s Manual
System Operations
Operators use Equinox-MRTM host software to make route assign-
ments for meter readers. The routes to be read are obtained from
the utility billing system and placed on the USB flash drive for the
meter readers. Each meter reader inserts a USB flash drive into
the MRX920 unit and then drives through the routes assigned to be
read by collecting data broadcast by R900 Meter Interface Units
(MIUs). When complete, the meter readers return the USB flash
drives so the meter readings can be uploaded to the MTX950 host
software. The host software transfers the customer information to
the billing computer to generate customer bills. (See Figure 1.1.)
Figure 1.1 MRX920 Meter Reading Operations
![](/img.php?id=529447&img=bg12.png)
Introduction
MRX920/MTX950 User’s Manual 1-3
About This Manual
The MRX920/MTX950 User’s Manual describes the system and its
features. The manual also provides procedures on how to use the
MRX920 unit from setting up the unit and using its MTX950 soft-
ware, to exiting and closing the unit.
This manual contains the following chapters:
Chapter Title Description
2 MRX920 Overview Provides an overview of the MRX920 unit
and software, including a description of
function keys, screens, and
MRX920 hardware.
3 Setting Up the MRX920
Unit
Describes hardware setup instructions,
power and antenna connection, and
instructions on how to turn on the laptop
computer. The chapter also includes infor-
mation on how to adjust system settings
including keyboard backlighting, display
intensity, and the beeper settings.
4 Using the MRX920 Unit Explains how the product works, proce-
dures for reading meters, reviewing
account information, reading missed
meters, and exiting the software.
5 Closing the MRX920 Unit Provides a procedure for closing the
MRX920 unit.
Appendix A Specifications Provides a reference section containing
product specifications.
Appendix B Keyboard Provides a reference for the laptop key-
board and the LED activity and power indi-
cators.
Appendix C Troubleshooting Provides diagnostics procedures for trou-
bleshooting MRX920 problems.
![](/img.php?id=529447&img=bg13.png)
Introduction
1-4 MRX920/MTX950 User’s Manual
Conventions Used in this Manual
This manual uses the following icons and typographical conven-
tions to identify special information.
Product Support within North America
Neptune offers various methods to obtain high-quality, responsive
technical support. However, before contacting Neptune, it is
important that you know the version number of the software that
your MRX920 unit uses. This information is useful to the support
technician who addresses the call.
To find the version number of MRX920 software, you must display
the System Check screen. For instructions on obtaining the ver-
sion number of the MRX920 software, see “Performing Diagnos-
tics,” on page C-3.
The Warning icon identifies actions that can cause injury to the user or per-
manently damage the product.
The Caution icon identifies important information that is critical to ensuring
that data stored with the MRX920 unit is not lost.
The Note icon identifies information that clarifies a point within the text.
All small caps Refers to keys. Examples: ENTER, ALT, TAB
All bold initial caps Refers to field names, menus, buttons, and menu options. Example: Device field or
File menu.
+ between keys Refers to pressing the keys at the same time. Example: ALT+B
![](/img.php?id=529447&img=bg14.png)
Introduction
MRX920/MTX950 User’s Manual 1-5
Contacting Technical Support
Within North America, Neptune technical support is available
Monday through Friday, 8:00 AM to 7:00 PM Eastern Standard
Time by telephone, email, or fax.
To contact technical support by phone, call 1 (800) 647-4832. You
will be directed to the appropriate team of specialists. These spe-
cialists are dedicated to you until the issue is resolved to your sat-
isfaction. When placing a call, be prepared to give the following
information:
• The exact wording of any message that appears on the screen
of the MRX920 Unit.
• A description of what happened and what you were doing
when the problem occurred.
• A description of how you tried to solve the problem.
• Your company’s end user name.
You will be directed according to the options in Figure 1.2.
Figure 1.2 Support Options
![](/img.php?id=529447&img=bg15.png)
Introduction
1-6 MRX920/MTX950 User’s Manual
To contact technical support by fax, send a description of your
problem to 1 (334) 283-7497. Please include on the fax cover sheet
the best time of day for a support specialist to contact you.
To contact technical support by e-mail, send your letter to the fol-
lowing address:
hhsupp@neptunetg.com
![](/img.php?id=529447&img=bg16.png)
MRX920/MTX950 User’s Manual 2-1
Chapter 2 MRX920 Overview
The MRX920 unit is a portable, mobile data collection device. It is
used in conjunction with internal MTX950 software and host
software to conduct automatic meter reading. The data collected
is then communicated to the utility’s billing system.
The MRX920 unit features the following:
• Durable carrying case designed for easy set-up and use in any
vehicle
• Fully waterproofed keyboard
• A touch screen display to allow for easy navigation and option
selection
• A beeper sound to indicate successful readings
• Exchange of route data between the MRX920 unit’s laptop and
host software
• Ability to read R900 radio transmitters
• Captured reads stored to the hard drive of the laptop
MRX920 Features
The MRX920 unit consists of a data collection receiver/processing
unit and laptop computer in a portable case designed for easy set-
up and use in meter reading (see Figure 2.1). The unit features
meter reading software designed for simplified route collection.
![](/img.php?id=529447&img=bg17.png)
MRX920 Overview
2-2 MRX920/MTX950 User’s Manual
Figure 2.1 MRX920 Unit
The Laptop
The laptop computer on the MRX920 unit, as shown in Figure 2.2,
is part of the overall MRX920 data collector. It communicates with
the receiver through a serial link using the software, which
decodes and records the collected readings by the receiver.
Laptop Computer
USB Flash Drive
inserts here
Receiving/
Processing Unit
Do not attempt to open the bottom of the MRX920 carrying case. Attempting to repair
or modify the unit on your own can result in personal injury or damage to the unit and
will void the warranty.
![](/img.php?id=529447&img=bg18.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-3

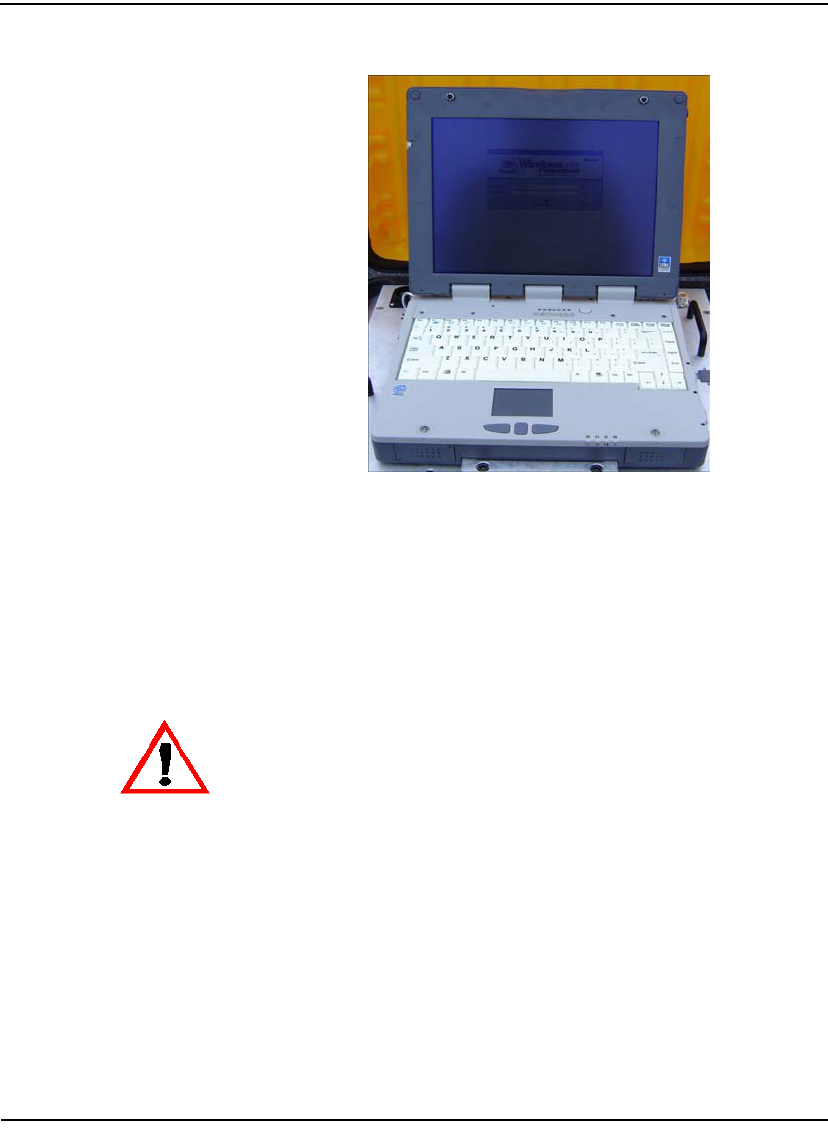

Figure 2.2 Laptop
To protect the safety of the driver collecting readings, the laptop
computer provides an audible indicator option that can be turned
on or off as required. For more information, see “Beeper Settings,”
on page 4-3. When turned on, the unit only beeps when receiving
an MIU signal in the selected route. Other readings are silently
inserted into other routes.
The laptop computer retrieves meter readings from the receiver in
real-time, and stores them in nonvolatile memory. It checks meter
reading completeness against route files that are downloaded
from the host software. About one second after a reading is
received, the message area and progress bar update the reading
status of the route.
To protect the driver’s safety, use the Beeper function on the MRX920 unit to monitor
meter reading.
![](/img.php?id=529447&img=bg19.png)
MRX920 Overview
2-4 MRX920/MTX950 User’s Manual

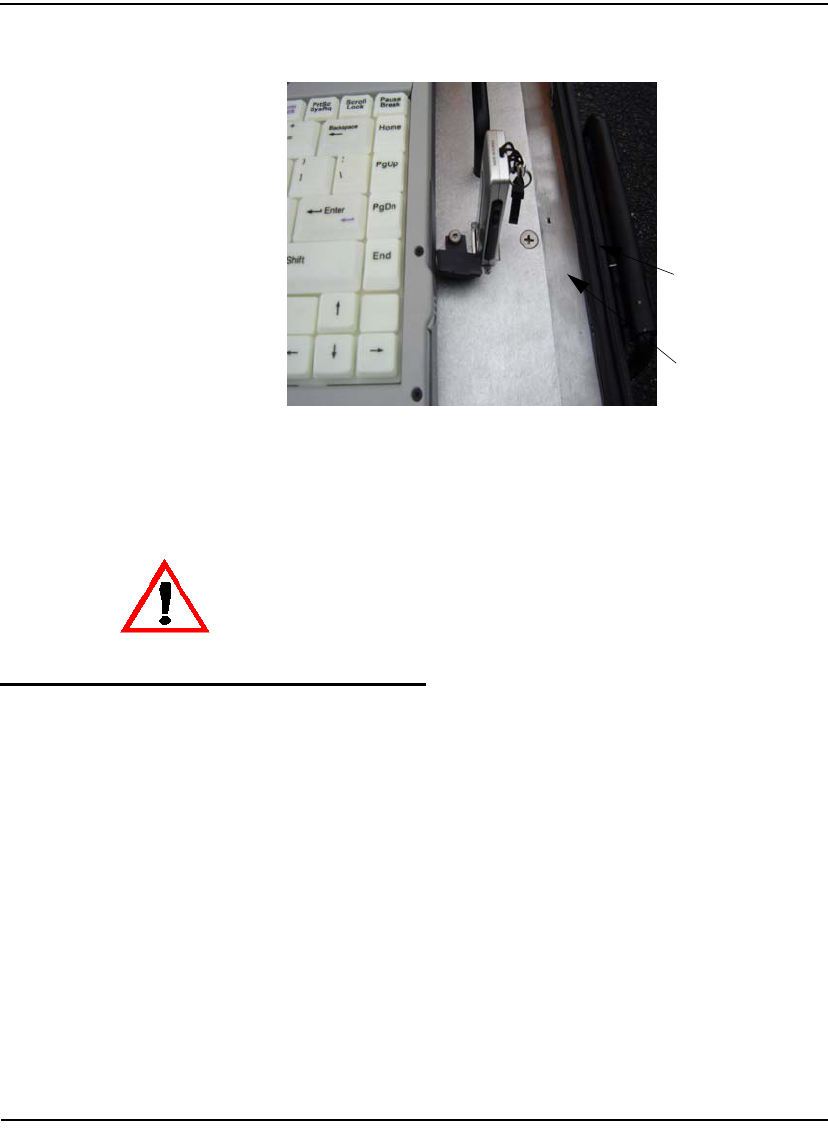

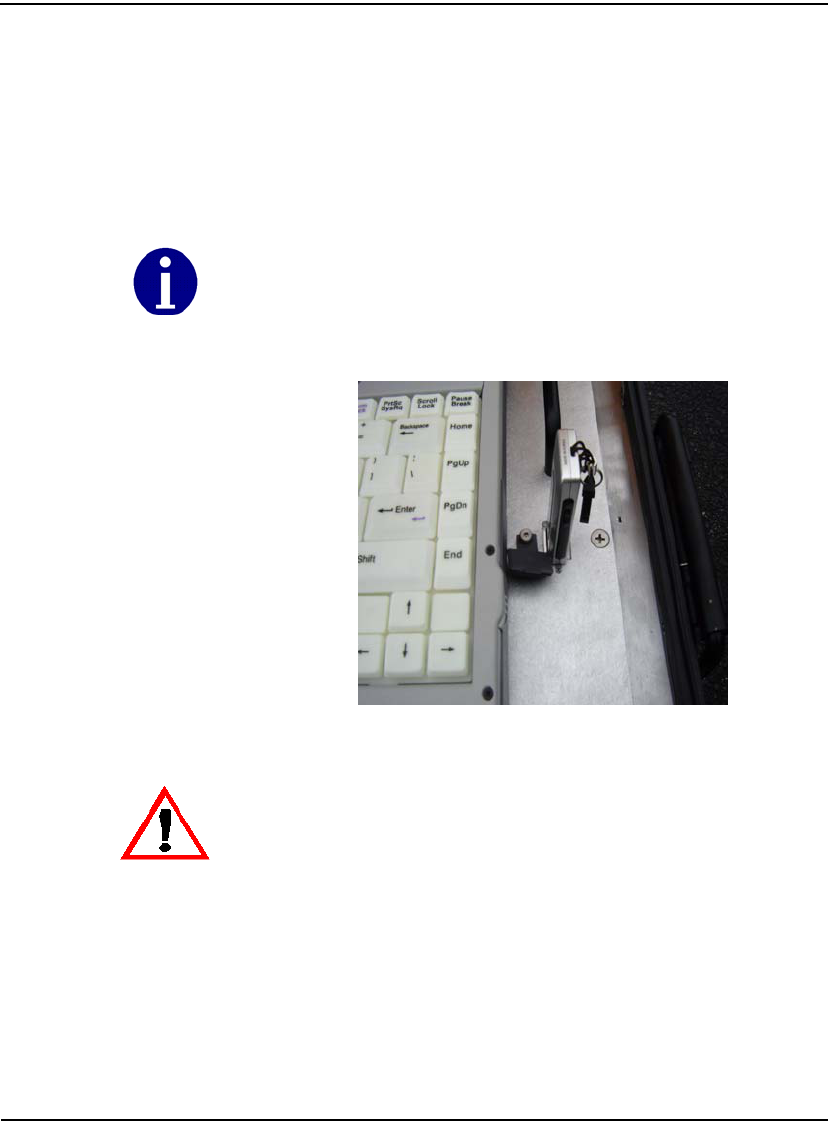

USB Port
The USB port, shown in Figure 2.3, is located on the top plate of
the MRX920 laptop unit. Another USB port is located on the rear
of the laptop. You can use either slot for meter reading, but do not
use both USB ports at the same time.
Figure 2.3 USB Port for USB Flash Drive
Neptune recommends that you use only the USB port located on the top plate of the
MRX920 laptop for meter reading.
The MRX920 unit requires that you use only one USB port for the USB flash drive.
![](/img.php?id=529447&img=bg1a.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-5
Navigation
All MRX920 functions are performed in one of two ways:
•Using the TAB key or the arrow
keys to move the focus to the appropriate button and pressing
ENTER.
• Using the provided stylus to touch the selections available on
the laptop display.
Figure 2.4 Navigating Within the Software
For example, Figure 2.4 shows the Route Import screen with
a route highlighted.
Always use the stylus provided with the laptop to touch the display. Substituting a
hard or sharp item can damage the display.
![](/img.php?id=529447&img=bg1b.png)
MRX920 Overview
2-6 MRX920/MTX950 User’s Manual
Software
The software application runs on the laptop computer that is part
of the MRX920 unit. The purpose of the software is to log meter
readings from routes where R900s are installed. Messages from
MIUs outside of the route are identified as such and are discarded.
The software also provides a visual interface for the operator to
monitor route progress.
Although the software can start and stop the reading of message
data, it does not control the receive frequency or the decoding of
message data. Instead, the MRX920 unit contains a receiving and
processing unit that collects data only from R900s.
The file transfer between the host software and the MRX920 is
through the USB flash drive that store routes and accounts. The
file transfer between the host software and the utility company
billing system is in a file format specific to Neptune’s software
application.
MRX920 Display
Information about the screen display for MRX920 unit is
contained in “Laptop Specifications,” found on page A-1.

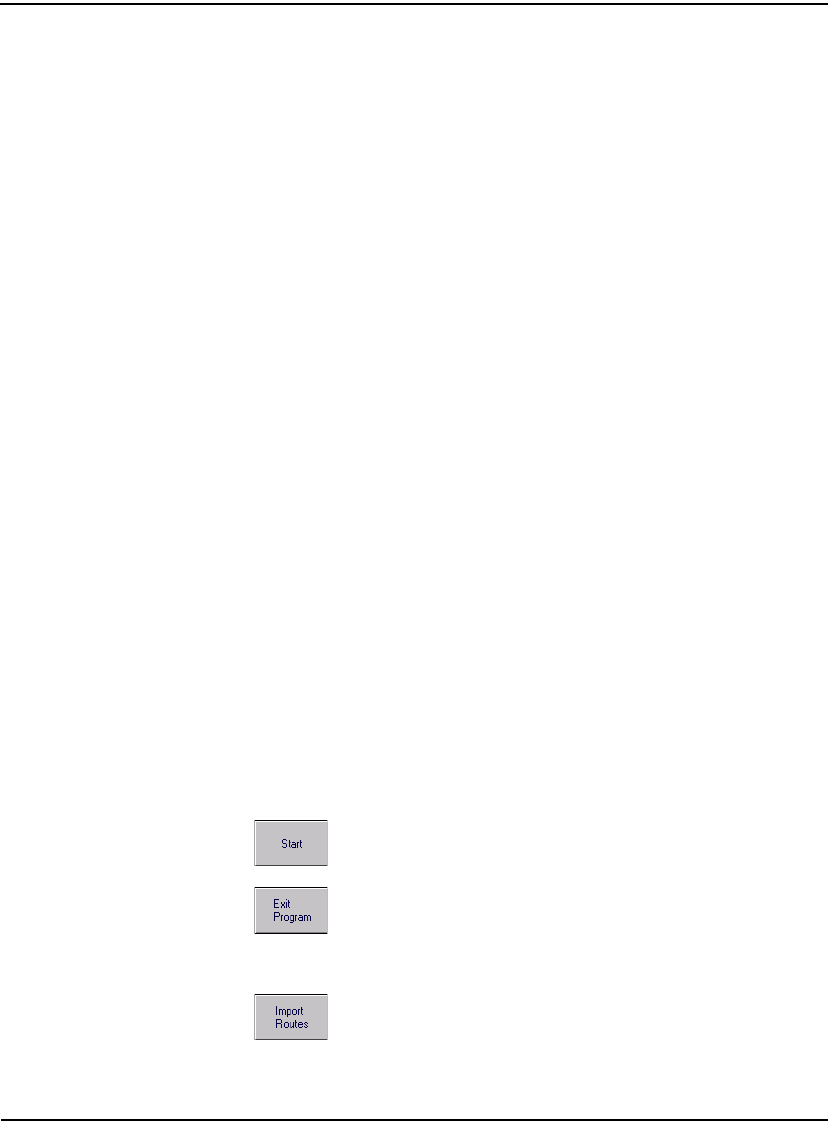

MRX920 Function Buttons
Each software screen contains different function buttons
pertaining to the specific information on that screen. Use the
following list to identify the different buttons and their specific
functions.
Welcome Screen
automatically launches the route import process
closes the software program
Route Import Screen
manually launches the route import process
![](/img.php?id=529447&img=bg1c.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-7

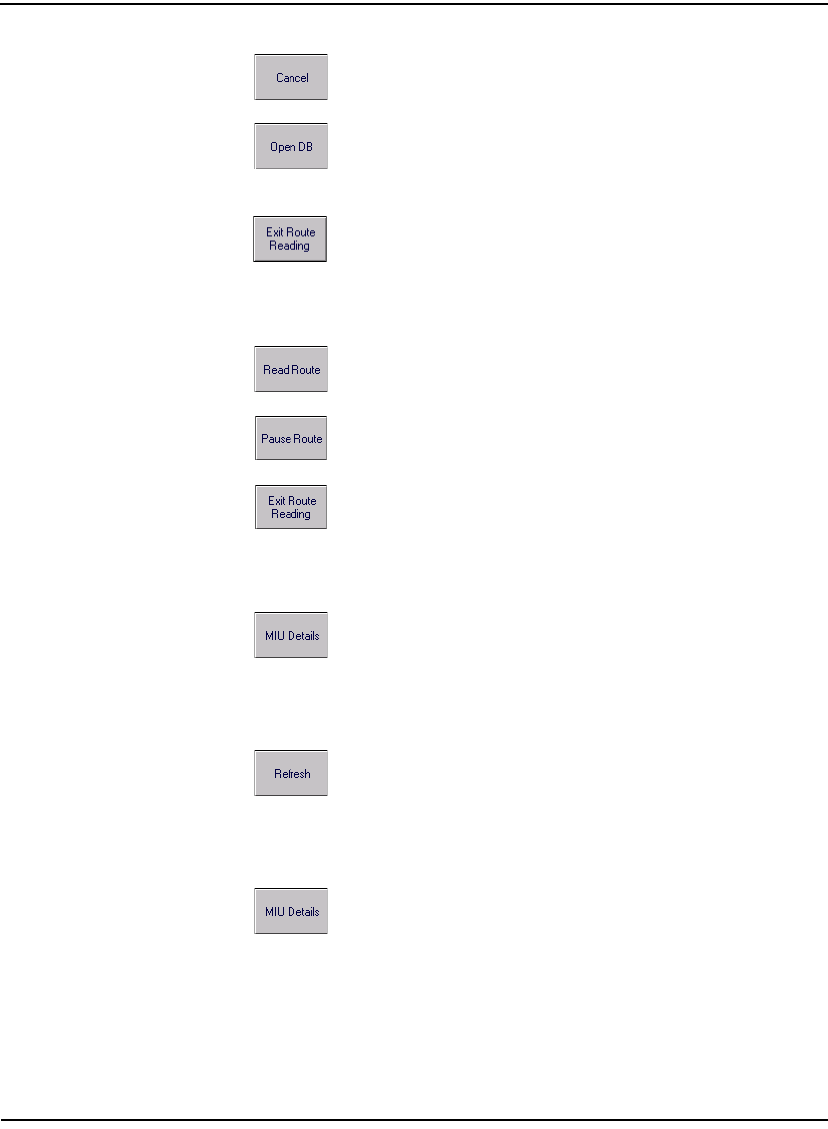

stops the import route process
opens a dialog that allows the user to open a
specific database
closes the Route Import screen and returns to the
Welcome screen
Route Selection Screen
initiates the route reading process
temporarily pauses the reading process
closes the Route Selection screen and moves the user
to the Route Export screen
Missed Reads Screen
opens a dialog that provides the user with various
details about the selected account, including the meter
number, MIU, the collection method, the account
name, coded notes, or skip codes
returns the user to the first account in the selected
route
Captured Reads Screen
opens a dialog that provides the user with various
details about the selected account, including the meter
number, the type of MIU, the collection method, the
account name, coded notes, or skip codes
![](/img.php?id=529447&img=bg1d.png)
MRX920 Overview
2-8 MRX920/MTX950 User’s Manual
returns the user to the first account in the selected
route
Route Export Screen
launches the export of the loaded routes
closes the Route Selection screen and returns the user
to the Welcome screen

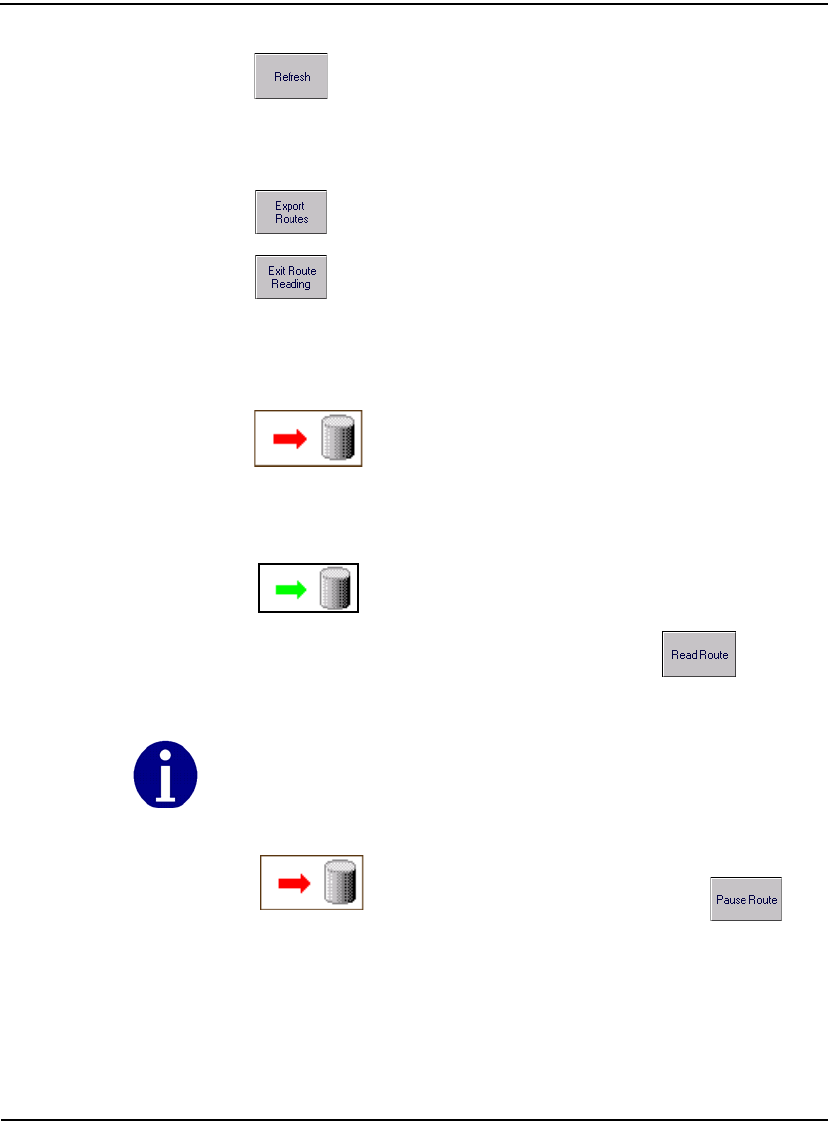

Reading Indicator

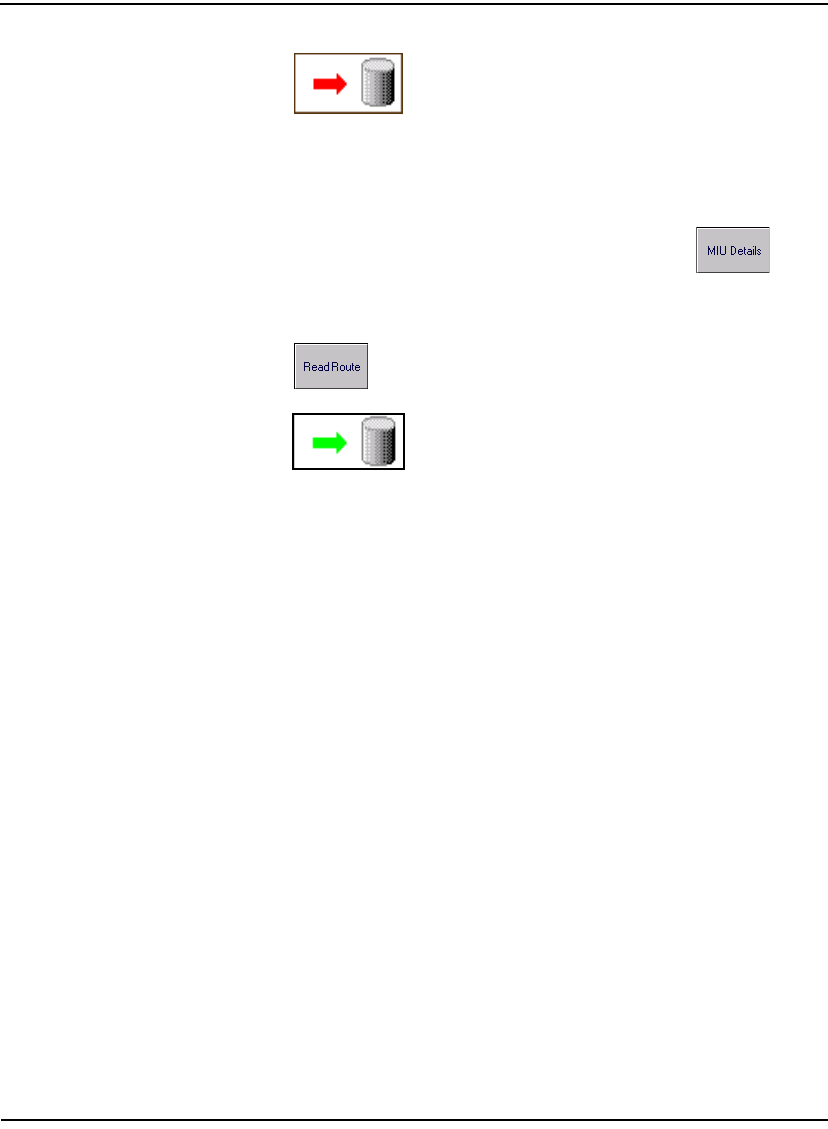

The Reading indicator, located on the title bar of
the software, shows the activity status of the
MRX920 unit. When the Route Selection screen is
first accessed, the Reading indicator resembles the
icon at the left with a red arrow, indicating that
there is currently no reading activity.
When the reading indicator displays a pulsing green
arrow, it indicates that the MRX920 unit is reading
and storing meter-reading data. To initiate route
reading, select the Read Route button.
Once you begin reading meters, the Read Route
button changes to the Pause Route
button. Selecting this button temporarily stops the
reading process, and the Reading indicator no
longer displays the pulsing arrow. When
reactivated, the MRX920 resumes reading.
If for any reason, the laptop is not receiving new data for a period longer than five
seconds, the Reading arrow stops pulsing.
![](/img.php?id=529447&img=bg1e.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-9
Message Area and Progress Bar
The message area on the software screens indicates the number
and percentage of meters on the route that were read successfully.
A graphical progress bar also shows the percentage of the route
that is complete. Before meter reading begins, no accounts are
reported as read, and the progress bar is blank.
While readings are captured, the Route Total progress bar shows
the percentage complete of the route selected on the Route
Selection screen. The Route Selection screen shows both the
selected Route Total as well as the readings Grand Total.
Information Area
The information area of a MRX920 screen displays the route or
addresses to be read. These following views are available:
• The route view includes the route number, number of MIUs to
be read, first address on the route, and percentage of the
route that was read.
• The account view provides a listing of the addresses and MIU
IDs to be read for a specific route. If you display account
detail, the information area displays information for the
selected account.
• A meter reading and loading indicator area with a graphic
progress bar and pulsing reading indicator.
• A message and information display area.
• An active function icon or reading indicator.
![](/img.php?id=529447&img=bg1f.png)
MRX920 Overview
2-10 MRX920/MTX950 User’s Manual
Route Selection Screen
The Route Selection display screen illustrated in Figure 2.5 shows
loaded routes and the percentage of each route that has been
read. The screen includes the Reading indicator, an information
area with a list of routes, and a selection box that allows you to
turn the beeper on or off.

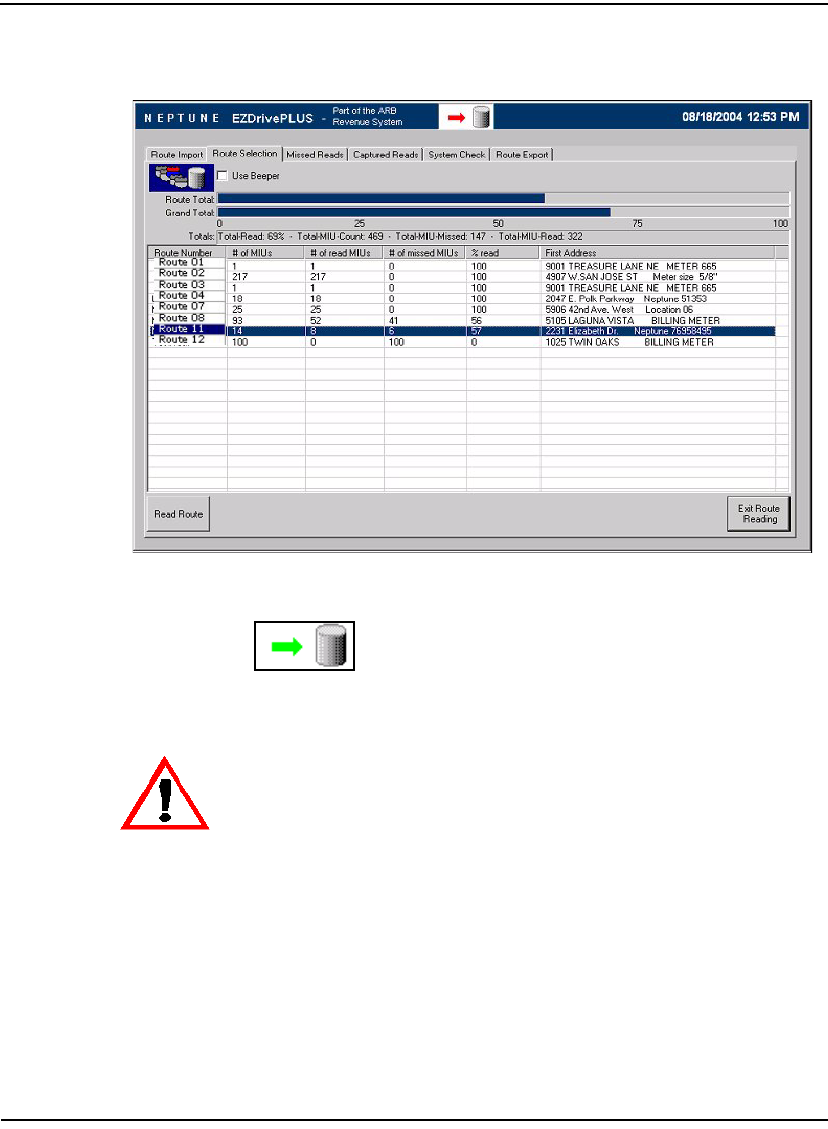

Figure 2.5 Route Selection Screen
Information Area
Progress Bars
Message Area
Reading Indicator
![](/img.php?id=529447&img=bg20.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-11
Route Display Screens
There are two screens, the Missed Reads screen and the Captured
Reads screen (Figure 2.6), that provide information for a selected
route. Both of these screens have a message area for the selected
route with the total number of meters on the route, the number
that were read successfully, and the number that were missed.
The Missed Reads screen also has a graphical progress bar that
shows the percentage of the route that has been successfully read.
Figure 2.6 Missed Reads and Captured Reads Screens
Message Areas
Graphic
Progress Bar
![](/img.php?id=529447&img=bg21.png)
MRX920 Overview
2-12 MRX920/MTX950 User’s Manual
Viewing MIU Details
It is possible to view the details of a specific MIU from either the
Missed Reads or Captured Reads screen. The software allows you
to immediately identify the type of MIU by looking at the icons to
the left of each MIU in the information field.
Use the following procedure to access more detailed information
on a specific MIU.
1 Select the specific MIU by touching the screen with the stylus
or by using the or the keys.
2 Press the MIU Details button.

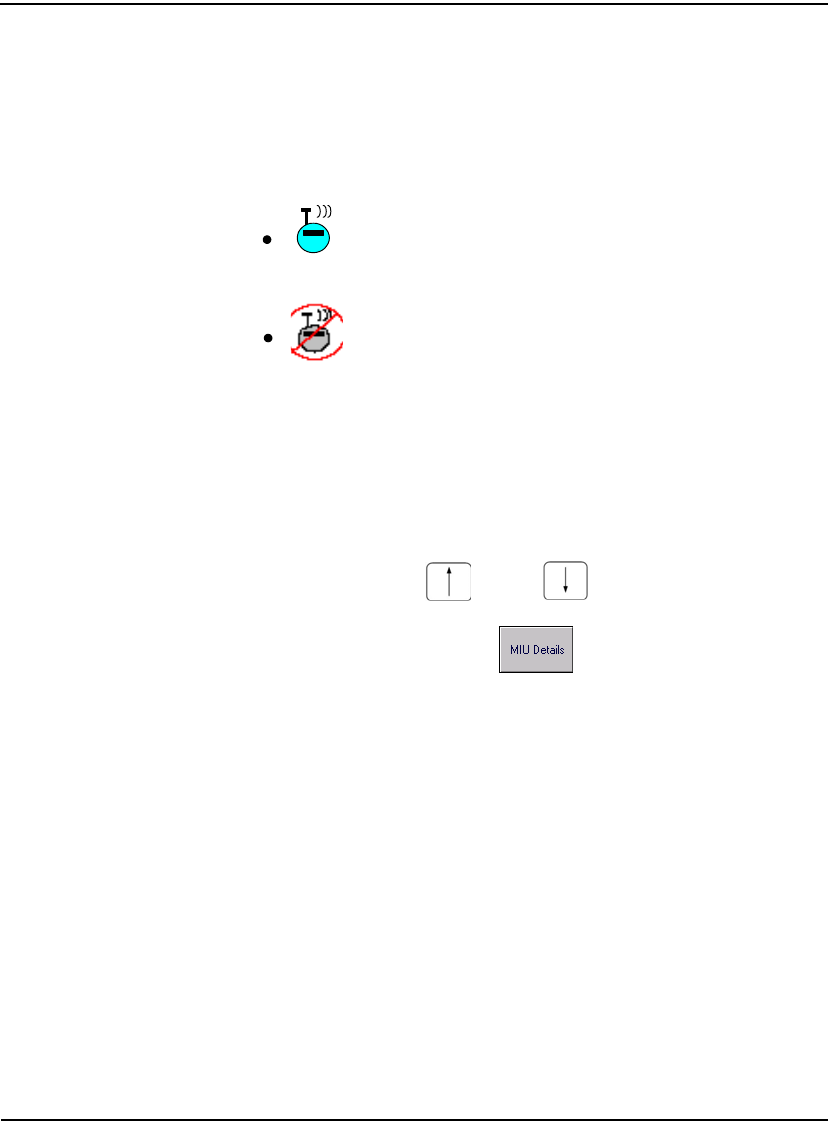

— The blue MIU icon represents a R900 RF
transmitter.
The gray MIU icon with red circle around it and a
red diagonal line through it represents an inactive
meter. An “I” displays on the MIU Details screen in
the Account Status field.
![](/img.php?id=529447&img=bg22.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-13
The MIU Details dialog (Figure 2.7) appears.
Figure 2.7 MIU Details Dialog
MRX920 Unit
The MRX920 unit consists of an RF receiver that is made up
of the following 3 modules:
• RF (Radio Frequency) Front End
• Digital Multi-channel Receiver (DMR)
• CPU (based on a PC104 board)
RF Receiver
Radio Frequency (RF) Front End
The RF front end module receives the 910 - 920 MHz receiving
band from the antenna through the duplexer. The duplexer
functions as a translator, ensuring that the receiving band is
![](/img.php?id=529447&img=bg23.png)
MRX920 Overview
2-14 MRX920/MTX950 User’s Manual
passed from the antenna to the RF receiver. The RF front end
module then translates the RF spectrum from the 910 - 920 MHz
band down to a 41 MHz band.
Digital Multi-channel Receiver (DMR)
The DMR module receives and decodes the bands from the RF
front end module to determine if the signals are from an RF
module that uses the R900 protocol or other supported protocols.
Samples from up to 8 identified frequencies are processed to
obtain the data signals. The signals are compared to a profile, and
if there is a match, the signal is processed to extract and validate
the data within it. The extracted data is stored in local cache
memory.
The DMR processes 10 MHz of band with a full 128-channel
receiver, of which only 77 channels are available, and extracts
messages which are sent to the CPU. The DMR receives and
demodulates up to eight simultaneous R900 messages. The
MRX920 unit together with the MIU functions as a receiver that
works together as a spread spectrum system.
The MRX920 unit reads signals from R900 MIUs with a high rate of
success on the first pass. Inbound meter readings are collected
and stored into memory. The receiver processes the MIU signals,
and the application software ignores readings from MIU messages
received that are not currently loaded into the unit. Readings from
any MIU that are on one of the routes loaded into the MRX920 unit
will be processed and stored into memory.
The receiver filters out duplicates in order to keep the best or last
reading received. This optimizes memory storage space. Records
for each reading are stored in the receiver database to eliminate
duplicates and to keep track of reading data.
Central Processing Unit (CPU)
The Central Processing Unit (CPU), which temporarily stores
received data, is based on a PC104 board. It receives the messages
obtained from the band by the DMR module through the PC104
(ISA) bus. It then extracts the data and uses an RS-232 serial link
to transfer it to the laptop computer.
![](/img.php?id=529447&img=bg24.png)
MRX920 Overview
MRX920/MTX950 User’s Manual 2-15
Power Supply
The MRX920 unit is powered by a 12V DC power supply. Refer to
Table A.5 located on page A-3 for the different operating voltages
and current levels.
When components require more than 12 volts, additional voltage
is generated using DC/DC converters; when components require
less than 12 volts, linear regulators are used.
The power supply system has fuses and switches to control,
protect, and limit its operation.
Antenna
The MRX920 antenna, used for filter and reception, is connected
to the RF receiver subsystem.
The antenna is made of a corrosion-free material that is tolerant to
ultra-violet exposure. It has a magnetic base and is capable of
staying in place at speeds of up to 70 miles per hour (m.p.h.).
To prevent excessive use of the battery, the MRX920 unit must not be operated if the
vehicle's engine is not running.
While the antenna is designed to stay in place at speeds of up to 70 m.p.h.,
Neptune recommends operating the MRX920 at speeds not to exceed the legal limits.
For optimal performance, the MRX920 should not be operated at speeds greater than
30 m.p.h.
![](/img.php?id=529447&img=bg25.png)
MRX920 Overview
Notes
2-16 MRX920/MTX950 User’s Manual
![](/img.php?id=529447&img=bg26.png)
MRX920/MTX950 User’s Manual 3-1
Chapter 3 Setting Up the MRX920 Unit
This section provides basic instructions for setting up the MRX920
unit so it can be used to perform mobile meter reading and
exchange information with the host computer.
Placing the MRX920 Unit in the Vehicle
Follow this procedure to set up the MRX920 unit in the vehicle
passenger seat.
1 Place the MRX920 unit in the passenger seat with the two
seatbelt retention loops facing the back of the seat.
2 Press the blue button on the safety pin, and pull the pin out of
the seatbelt retention loop. (See Figure 3.1 on Page 3-2.)
Neptune recommends that you insert the USB flash drive into the laptop after you place
the unit in the vehicle.
Never set up the MRX920 unit during a lightning storm or under excessively wet condi-
tions.
![](/img.php?id=529447&img=bg27.png)
Setting Up the MRX920 Unit
3-2 MRX920/MTX950 User’s Manual

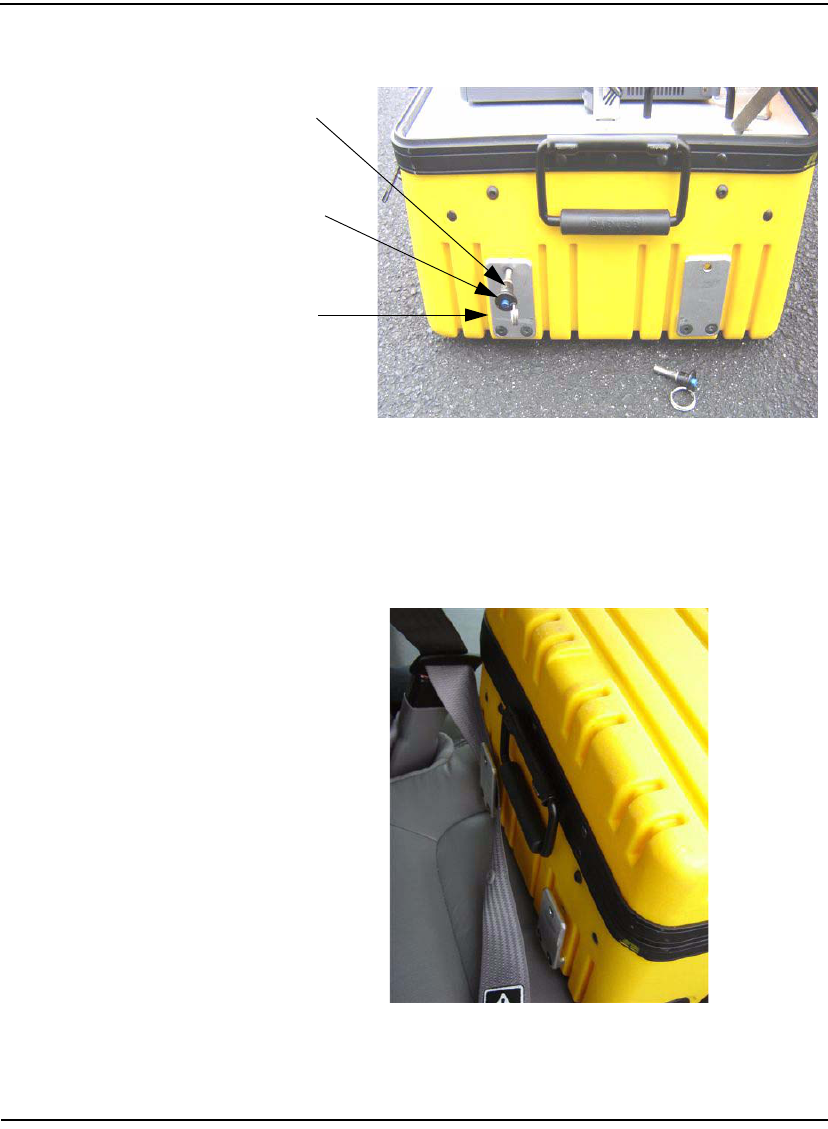

Figure 3.1 Removing the Safety Latch
3 Repeat Step 2 to remove the safety pin from the second
seatbelt retention loop.
4 Guide the seat belt through the seat belt retention loops, as
shown in Figure 3.2.
Figure 3.2 Placing Seatbelt in Retention Loop
Safety Pin
Blue Button
Seatbelt
Retention Loop
![](/img.php?id=529447&img=bg28.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-3
5 Replace the safety pins in the seatbelt retention loops, as
shown in Figure 3.3.
Figure 3.3 Replacing the Safety Pin
6 Adjust the seat belt so that the unit is secure in the
passenger’s seat.
7 To further secure the unit, slide it against the back of the seat.
Safety Pin
![](/img.php?id=529447&img=bg29.png)
Setting Up the MRX920 Unit
3-4 MRX920/MTX950 User’s Manual
Opening Carrying Case Cover
To set up the MRX920 unit in a vehicle, you must open the top
cover by opening the latches on the cover. See Figure 3.4.
Follow this procedure to open the latches on MRX920 unit, shown
in Figure 3.4, and open the carrying case top.
1 Lift the latch flap and turn it to the left.
The latch releases from the catch on the carrying case top.
Figure 3.4 Latches on MRX920 Carrying Case
2 Repeat step 1 for the other latch.
3 Open the cover until it locks in place. (See Figure 3.5.)
Latches
![](/img.php?id=529447&img=bg2a.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-5
Figure 3.5 Opening the Cover
4 To further secure the unit, slide it against the back of the seat
(see Figure 3.5).
Plugging in the Power Cable
Follow this procedure to connect the vehicle power supply power
cable to the MRX920 unit and plug it into the vehicle power supply
receptacle.
1 Start the vehicle.
If the unit interferes with your vision for the passenger window, rest the cover on top
of the laptop display to ensure maximum visibility.
![](/img.php?id=529447&img=bg2b.png)
Setting Up the MRX920 Unit
3-6 MRX920/MTX950 User’s Manual
2 Insert the appropriate end of the vehicle power supply power
cable into the connector on the MRX920 unit, as illustrated in
Figure 3.6.
Figure 3.6 Vehicle Power Supply Power Cable
3 Plug the other end of the power cable into the vehicle power
supply receptacle as illustrated in Figure 3.7.
Figure 3.7 Vehicle Power Supply Power Cable Inserted In Car
Vehicle Power Sup-
ply Cable
Vehicle Power Sup-
ply Receptacle
![](/img.php?id=529447&img=bg2c.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-7
Installing the Antenna
The proper installation of the antenna cable is critical for the
optimal performance of the MRX920 Unit. If the cable is crimped,
the performance of the unit will degrade significantly.
There are several options for running the cable. The best method
depends on the type of vehicle being used. The most important
consideration when installing the antenna is for the cable to
remain intact.
To ensure proper installation of the antenna, complete the
following steps.
1 If the antenna cable is not plugged in, plug it into the socket
on the top right side of the drive-by unit next to the laptop
computer.
2 Place the magnetic base of the antenna in the center of the
roof approximately one foot behind the leading edge of the
roof.
Figure 3.8 Antenna Installation
Antenna Base
![](/img.php?id=529447&img=bg2d.png)
Setting Up the MRX920 Unit
3-8 MRX920/MTX950 User’s Manual
3 Connect the antenna to the MRX920 unit, and hand-tighten the
connector by turning it clockwise until it is secured.
4 Route the antenna wire through the passenger window or
through the door. (See Figure 3.9.)
Figure 3.9 Antenna Cable Through Window
A rear vent window on a mini-van can be another good loca-
tion. Caution must also be taken when opening the door with
a cable running through the window. The cable can be pulled
out of the connector, again adversely affecting performance.
The cable runs
through the window,
which is the preferred
method.
Caution is necessary to ensure there is sufficient room for the cable and that
it does not get crimped.
In some vehicles, there is enough room to run the cable through the doorframe of the
vehicle without crimping the cable. Also, the sound of the internal fan provides
auditory evidence that the power supply is working. Other vehicles do not always have
enough clearance (especially vehicles with rain gutters). Running the cable through a
rear door can be an option. You can also run the cable through a window.
![](/img.php?id=529447&img=bg2e.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-9
5 Gently close the window, positioning the antenna cable so
there is no pressure on it.
Inserting the USB Flash Drive
Neptune recommends that you insert the USB flash drive into the
laptop after you place the MRX920 unit in the vehicle.
Follow this procedure to insert the USB flash drive containing the
routes you plan to read.
1 Remove the cover from the USB flash drive.
2 Remove the dust cover from the USB port.
Pressure on the antenna cable can cause damage!
Neptune recommends that you use only the USB port located on the top plate of the
MRX920 laptop for meter reading.
![](/img.php?id=529447&img=bg2f.png)
Setting Up the MRX920 Unit
3-10 MRX920/MTX950 User’s Manual
Figure 3.10 USB Port and Drive
3 Insert the USB flash drive into the port on the top plate of the
MRX920 unit.
Turning the Unit On
Follow this procedure to turn on the MRX920 laptop and start the
MTX950 software.
1 With the laptop computer facing you, open the display.
2 Raise the display to a comfortable viewing position with the
keyboard accessible to you.
USB Port
USB Flash Drive
Be careful not to force the USB flash drive into the slot. Forcing can causes
damage to the drive or to the metered data contained on the drive. If the drive
does not insert easily, rotate it 180o, and try to insert it again.
![](/img.php?id=529447&img=bg30.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-11
3 Press the power button located near the center of the
back edge of the laptop.
Figure 3.11 Laptop Keyboard
For additional information on MRX920 self-diagnostics or
keyboard, see
• “Performing Diagnostics.” on page C-3.
• “Using the Keyboard.” on page B-1
The power button is a soft raised button on the right side of the LED light indicators.
See Figure 3.11.
Alt
Ctrl
Delete
LED Activity Indicators ON / OFF
Touchpad LED Wireless/Modem Indicators
Arrow
Keys
Tab
If the laptop fails to respond to the keys or to the stylus, reboot by pressing and holding
down Ctrl + Alt + Delete (Figure 3.11) for at least 10 seconds. Release the buttons to
restart the computer.
![](/img.php?id=529447&img=bg31.png)
Setting Up the MRX920 Unit
3-12 MRX920/MTX950 User’s Manual
Starting the Software
Follow this procedure to start the software for your MRX920
laptop.
1 Double-click on the MRX920 icon on your Windows desktop.
The software automatically tries to import a route file. When
the import process is complete, the Route Selection screen
appears.
2 Continue to “Using the MRX920 Unit.” on page 4-1, to begin
using your MRX920 unit.
Adjusting System Settings
This section describes several settings you can make to the
MRX920 unit to make it easier and more comfortable to use.
Contrast
The laptop XGA display is a transmissive color display designed to
minimize glare and maximize transmitted light from the backlight
so it has excellent readability in indirect light. The XGA display is
easy to read in vehicles. However, to increase or decrease the
brightness of the display, perform one of the following actions.
• Press FN + F6 to decrease LCD brightness.
• Press FN + F7 to increase LCD brightness.
If the route data file is not found, a message displays. See “If No Route Data File is
Found.” on page C-5, for instructions.
![](/img.php?id=529447&img=bg32.png)
Setting Up the MRX920 Unit
MRX920/MTX950 User’s Manual 3-13
Volume
The volume for the beeper setting can also be controlled:
• Press FN + F8—decreases the volume.
• Press FN + F9—increases the volume.
• Press FN + F10—toggles the volume mute on or off.
You can also adjust the volume with the Windows volume control
feature, which is located on the taskbar and looks like this .
Adjusting the volume using the function keys produces only a slight change with each
press. It may take several presses to increase or decrease the volume to the level that
you want.
![](/img.php?id=529447&img=bg33.png)
Setting Up the MRX920 Unit
Notes:
3-14 MRX920/MTX950 User’s Manual
![](/img.php?id=529447&img=bg34.png)
MRX920/MTX950 User’s Manual 4-1
Chapter 4 Using the MRX920 Unit
Using the MRX920 unit to collect readings begins with the host
software building a route file that is transferred to the MRX920
unit via the USB flash drive. The meter reader inserts the USB
flash drive in the MRX920 unit and begins automatic meter
reading by driving the vehicle through the route and collecting
readings. After the readings are complete, the meter reader
returns to the utility, shuts down the MRX920 unit, and removes
the USB flash drive to give it to the host computer operator. The
host computer operator transfers the data from the USB flash
drive to the host computer software and transfers the data to the
utility billing system computer.
Reading Meters
Because the MRX920 automatically reads meters, efficient use of
the system depends on two factors:
• the distance of the MRX920 unit from the MIU being read.
• the vehicle’s driving speed.
In a typical meter reading scenario, you drive your vehicle through
the routes listed on the route selection screen in any order. You
can position your vehicle at any route or starting address as
required by driving conditions and route distribution for the most
efficient data collection. The MRX920 unit reads and stores
readings regardless of the order of the routes displayed.
![](/img.php?id=529447&img=bg35.png)
Using the MRX920 Unit
4-2 MRX920/MTX950 User’s Manual
Figure 4.1 Route Display with Multiple Routes Being Read
When the MRX920 unit starts collecting data, the
Reading indicator changes to display a pulsing green
arrow. This icon continues to pulse as long as read
data is received within a period of five seconds.
In normal use, you focus on driving and listening for beeps on the selected
route. You DO NOT need to look at the screen on the MRX920 unit while you
are driving. The MRX920 unit automatically receives and stores any readings
within range for any MIU IDs that are loaded on the laptop.
![](/img.php?id=529447&img=bg36.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-3
Beeper Settings
A beeper is available in the MRX920 unit to emit a beep tone for
every account that is read and stored in the MTX950 software.
This helps to monitor the meter reading without having to look at
the laptop display. This also offers a safe way to monitor reading
progress while driving a route.
The beeper only sounds while the MRX920 is performing readings
and stops when all readings are completed. You can turn the
beeper function on or off while the unit is performing readings.
The default setting in the MRX920 is for the beep tone to be turned
off.
Turning the Beeper On or Off
Follow this procedure to switch the MRX920 beeper on or off.
1 Access the Route Selection screen.
At the top of the screen, there is a Use Beeper field with a
check box, as shown in Figure 4.2.
Beeps are only heard when readings are posted for MIUs in the selected route.
![](/img.php?id=529447&img=bg37.png)
Using the MRX920 Unit
4-4 MRX920/MTX950 User’s Manual
Figure 4.2 Use Beeper Field
2 Select the box using the stylus.
A check in the box indicates the beeper is on. An empty box
indicates the beeper is off.
Beeper check box
![](/img.php?id=529447&img=bg38.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-5
Selecting Routes
This is an optional step if you want to review selected routes to
determine a good starting point for reading.
1 Access the Route Selection screen, shown in Figure 4.3, by
pressing the Route Selection tab.
Figure 4.3 Route Selection Screen
2 Highlight the route to be viewed.
3 Select the Missed Reads tab to display the Missed Reads
screen.
All accounts that are unread or missed during the reading
process are displayed on the Missed Reads screen as shown
in Figure 4.4.
![](/img.php?id=529447&img=bg39.png)
Using the MRX920 Unit
4-6 MRX920/MTX950 User’s Manual
Figure 4.4 Missed Reads Screen
The Missed Read screen appears showing the accounts in the
route, with the first address in the route on the first line.
4 If necessary, select another address for your starting point.
5 To get detailed information on an account, select that account
and press the MIU Details button.
![](/img.php?id=529447&img=bg3a.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-7
The MIU Details dialog, shown in Figure 4.5, appears.
Figure 4.5 MIU Details Dialog
6 Go to the procedure “Starting Meter Reads,” on page 4-10 to
begin reading the route.
Detail Settings
When viewing route information in the software, you can view the
details of a specific account. Account details consist of the
following:
• Parent Route • Account Number
• Meter Number • Account Address
• Account Name • Collection Method
•MIU-ID •MIU Type
• Channel • Wakeup Tone
![](/img.php?id=529447&img=bg3b.png)
Using the MRX920 Unit
4-8 MRX920/MTX950 User’s Manual
Viewing Account Detail
Follow this procedure to view account details for selected
accounts.
1 From the Route Selection screen, highlight the route
containing the account you want to view, as shown in
Figure 4.6.
Figure 4.6 Route Selection Screen with Route Highlighted
![](/img.php?id=529447&img=bg3c.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-9
2 Go to either the Missed Reads or Captured Reads screen,
depending on whether or not the account has already been
read. See Figure 4.7.
Figure 4.7 Captured Read Screen with Account Highlighted
3 Highlight the specific account.
4 Press the MIU Details button.
The MIU Details dialog appears with the details of the
selected account. See Figure 4.5.
5 To close the MIU Details dialog, select OK.
![](/img.php?id=529447&img=bg3d.png)
Using the MRX920 Unit
4-10 MRX920/MTX950 User’s Manual
Collecting Readings
On occasion, it could be necessary for the driver to stop and view
routes and display account detail. A meter reader can easily
suspend meter reading and restart it before continuing on a route.
See “Pausing and Restarting Meter Reading,” on page 4-19.
Starting Meter Reads
Follow this procedure to begin collecting meter readings after you
have positioned your vehicle at the starting address and started up
the MRX920 laptop computer.
1 From the welcome screen, press the Start button
and the routes on the USB flash drive automatically load into
the software.
2 Highlight the route where you begin reading.
The Route Selection screen automatically appears.
3 Click the route you want to see on the Missed Reads and
Captured Reads screens.
For the meter reader’s safety, the MRX920 unit is designed so that there is no
requirement to use the laptop display and keyboard while driving. To verify that the
unit is reading properly, use the beeper option to monitor readings.
To read meters, the plug-in power cord on the MRX920 unit must be connected to the
vehicle power supply receptacle. Make sure the red LED is lit on the power cable.
![](/img.php?id=529447&img=bg3e.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-11

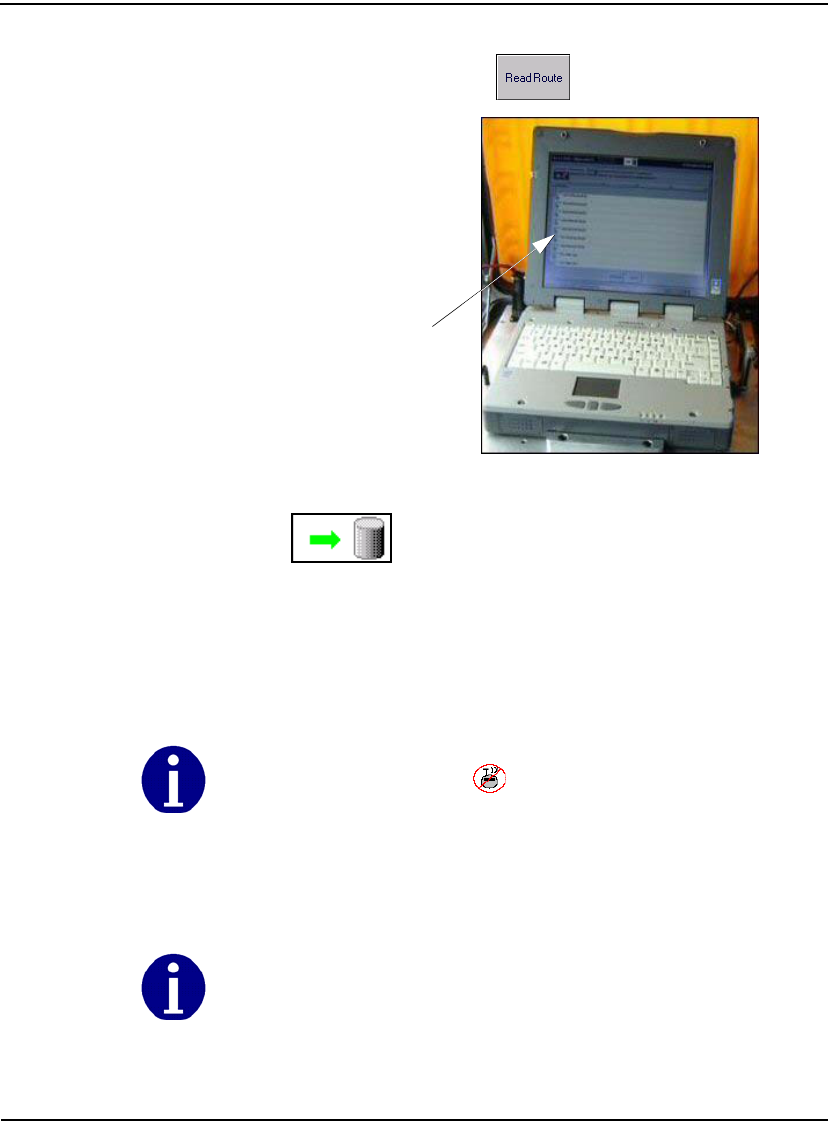

4 Press the Read Route button.
Figure 4.8 Reading a Route
The Reading indicator turns on and pulses to
indicate that reading is in progress. Addresses
and routes that are successfully read are listed
on the Captured Reads screen. Any remaining
unread or missed routes are listed on the
Missed Reads screen. The Reading icon
continues to pulse as long as read data is
received within a period of five seconds.
5 Start driving your vehicle by each address along the route at
the posted speed limits.
Missed Reads Screen
If there are any inactive meters on this route, they are listed on the Captured Reads
screen, represented by the icon ––a gray meter enclosed in a red circle with a
line through it. Refer to “Viewing MIU Details,” on page 2-12.
While the antenna is designed to stay in place at speeds of up to 70 m.p.h.,
Neptune recommends operating the MRX920 at speeds not to exceed the legal limits.
For optimal performance, the MRX920 should not be operated at speeds greater than
30 m.p.h.
![](/img.php?id=529447&img=bg3f.png)
Using the MRX920 Unit
4-12 MRX920/MTX950 User’s Manual
6 If the message area at the top of the Captured Reads screen
indicates that all accounts on the route have been read (as
shown in Figure 4.9), select the next route to be read.
Figure 4.9 Route With All Reads Completed
The Reading indicator on the software screen
pulses as you continue driving each route until
all of the routes have been read. When reading
is completed, check the Missed Reads screen to
see if there are any missed accounts.
Use the Beeper function on the MRX920 unit to monitor meter reading while
driving. Use of the laptop display or keyboard can compromise driver safety.
See “Turning the Beeper On or Off,” on page 4-3.
Total Read
![](/img.php?id=529447&img=bg40.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-13
7 Choose from the following:
• To pause the MRX920 meter reading before all routes
have been read, see “Pausing and Restarting Meter Read-
ing,” on page 4-19.
• To reread missed meters, see “Using Coded Notes or Skip
Codes,” on page 4-16.
• To end meter reading and upload the read data to the Host
software, see “Exiting the Software,” on page 4-21.
Navigation on the Route Display Screen
Before you complete readings for the MRX920 routes, you can
move between routes on the route display screen to select the
route information you want to view. This also gives you access to
route details and individual account information.
You can move between the routes whether or not the MRX920 is
actively reading meters.
1 Touch the screen with the stylus to select the desired route.
2 Press to move backward through the route, or to
move forward through the route.
Viewing Routes
Follow this procedure to select routes to display route reading
progress and route detail. You can perform this procedure
whether or not routes are actively being read.
1 Press the Route Selection tab to access the Route Selection
![](/img.php?id=529447&img=bg41.png)
Using the MRX920 Unit
4-14 MRX920/MTX950 User’s Manual
screen, shown in Figure 4.10.
Figure 4.10 Route Selection Screen
2 Highlight the specific route you want to view.
The top graphical progress bar displays the percentage of the
route that is complete.
3 Select the Missed Reads or Captured Reads screen. (See
Figure 4.11)
Both screens display the individual accounts within the
selected route. The message area at the top of the screen
![](/img.php?id=529447&img=bg42.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-15
display the route number, total MIUs, total MIUs read, and
total MIUs missed.
Figure 4.11 Captured Reads Screen Message Area
Identifying Missed Accounts
Occasionally, because of driving speed, RF interference, or
problems with the MIUs, it is possible to miss a meter reading.
Usually, you can tell if meters are missed because the route does
not progress to a read status of 100%. To view the missed
accounts:
1 From the Route Selection screen, highlight the route
containing the missed reads.
2 Press the Missed Reads tab to display the Missed Reads
screen.
Message Area
![](/img.php?id=529447&img=bg43.png)
Using the MRX920 Unit
4-16 MRX920/MTX950 User’s Manual
All missed accounts are listed in the information area of the
screen.
Refer to the following section, "Viewing Account Details" for
specific details of a missed account.
Viewing Account Details
Before reading begins, the Route Selection screen displays zeros
for all routes in the # of read MIUs field. Once reading is
initiated, the captured reads for each route are recorded in this
field.
After meter reading is completed, only the missed or unread
accounts remain on the Missed Reads screen. The meter reader
then knows which addresses to reread.
If for any reason the MRX920 is not able to read missed MIUs on
the second attempt, the meter reader can select specific accounts
by using the MIU Details dialog to display more information for
the account.
Using Coded Notes or Skip Codes
You can use the MIU Details screen to record trouble that you are
having with the reading. Or if you choose to skip the reading, you
can record the reason. However, you cannot have an automatic
reading with a skip code. The skip codes means that you are
skipping the reading.
Entering a Trouble Code
To enter a trouble code, complete the following steps.
1On the MIU Details screen, tab to the Coded Notes field.
2 Choose one of the following options:
When viewing details for an account, only two of the three notes fields can display.
There is always the reading code, and either a trouble code or a skip code.
![](/img.php?id=529447&img=bg44.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-17
• If you already know the trouble code, type it in the Coded
Notes field.
• If you do not know the code, tab to the TroubleCode
Description field, and select the reason code from the
drop-down selection list.
3 Press Save to record the reason for the trouble.
Entering a Skip Code
To enter a code for why you skipped a reading, complete the
following steps.
1On the MIU Details screen, tab to the SkipNotes field.
2 Choose one of the following options:
• If you already know the skip code, type it in the
SkipNotes field.
• If you do not know the skip code, tab to the SkipCode
Description field, and select the reason code from the
drop-down selection list.
3 Press Save to record the reason for skipping the reading.
Moving From One Account to the Next
Before completing readings for the addresses in a route, you can
move between accounts to select the account to display.
1 Touch the screen with the stylus to select the desired account.
2 Press to move backward through the route or to
move forward through the route.
EZRouteMAPS customers should NOT use skip codes.
![](/img.php?id=529447&img=bg45.png)
Using the MRX920 Unit
4-18 MRX920/MTX950 User’s Manual
Displaying Account Detail
Follow this procedure to view route detail for selected routes.
1 From the Route Selection screen, highlight the appropriate
account.
2 Select either the Missed Reads screen or the Captured
Reads screen, depending on whether or not the account has
been read.
3 Highlight a specific account.
4 Press the MIU Details button.
The MIU Details dialog (Figure 4.12) appears.
Figure 4.12 MIU Details dialog
The collection method on the Account Detail screen is unlicensed
radio frequency (R900 MIUs). Usually route numbers are derived
from the route numbers assigned at the time of previous meter
reading routes, such as handheld meter reader routes.
![](/img.php?id=529447&img=bg46.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-19
In addition, the fields for Coded Notes or Skip Codes allow you
to record information about this account. See “Using Coded Notes
or Skip Codes,” on page 4-16.
Reading Missed Accounts
The procedure for reading missed accounts is similar to the
procedure used on the initial reading. To assist in reading missed
accounts, you need to view route and account details to locate the
exact starting point for reading. It is also helpful to drive slower
and get as close as possible to the missed meters to improve
chances of receiving read data.
To identify a missed meter, select a route from the Route Selection
screen that shows a read status of less than 100% in the progress
bar at the top of the screen. Once selected, missed accounts from
that route are shown on the Missed Reads screen.
If necessary, use the MIU Detail button for the missed account
and determine if there are any problems with the account that
prevent a successful reading. Note the address of any accounts for
subsequent reading and reporting.
To read a missed meter, drive to the first unread account address
on the route. Read the remaining accounts on the route.
If you do not succeed in reading an account after a second
attempt, the account remains with a status of “unread.” The utility
can initiate follow-up action to investigate the source of the
reading problem.
Pausing and Restarting Meter Reading
Follow this procedure to stop and then restart data collection
using the MRX920 unit. This is useful if you want to review the
route reading status of a route or individual account or if you need
to look up the starting address for a route to be read.
1 While the Reading indicator is pulsing, press the Pause
Route button.
![](/img.php?id=529447&img=bg47.png)
Using the MRX920 Unit
4-20 MRX920/MTX950 User’s Manual
The Reading indicator stops displaying the
pulsing green arrow. When you press the
Pause Route button, the red arrow displays.
2 To review account information before restarting, select either
the Missed Reads or Captured Reads screen, depending on
whether or not the account has already been read.
3 Select an account and press the MIU Details
button.
4 To resume automatic reading, press the Read Route
button.
Reading continues and the Reading indicator
switches back to a status of “Reading”.
![](/img.php?id=529447&img=bg48.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-21
Creating an Export File
After you have completed reading all of your routes, you need to
create an export file for your utility to upload the read data to the
host software.
When all routes have been read, use the following procedure to
create an export file:
1 Press the Route Export tab to display the Route Export
screen.
2 Press the Export Routes button to store the routes
on the USB flash drive.
Exiting the Software
There are three screens, Route Import, Route Selection, and
Route Export, that display the Exit Route Reading button. On the
Route Import and Route Export screens, when you press this
button you return to the Welcome screen. When you press this
button from the Route Selection screen, the Route Export screen
displays. Complete the following procedure to exit the software,
then proceed to the procedure to turn off the laptop.
From the Route Import and Route Export Screens
1 Press the Exit Route Reading button.
The Welcome screen displays.
2 Press the Exit Program button.
the software closes.
It is now safe to turn off your computer. Proceed to
"Turning off the Laptop".
![](/img.php?id=529447&img=bg49.png)
Using the MRX920 Unit
4-22 MRX920/MTX950 User’s Manual
From the Route Selection Screen
1 Press the Exit Route Reading button.
The Route Export screen displays.
2 On the Route Export screen, press the Exit Route Reading
button again.
The Welcome screen displays.
3 Press the Exit Program button.
The software closes.
It is now safe to turn off your computer. Proceed to
"Turning off the Laptop".
Turning off the Laptop
1 From the Start menu, click Shut Down.
2 From the Shut Down Windows screen select Shut Down.
3 Click OK.
4 You can now safely remove the USB flash drive. (Refer to
“Removing the USB Flash Drive,” on page 4-23.)
5 Remove the power cable from the vehicle power supply
receptacle.
6 Drive back to your utility to return the USB flash drive
containing the read data so it can be uploaded to the host
software.
Improperly removing the USB flash drive while the laptop is ON can cause data
corruption on the USB flash drive. Refer to the following section for procedures to
safely remove the USB flash drive while the PC is on.
![](/img.php?id=529447&img=bg4a.png)
Using the MRX920 Unit
MRX920/MTX950 User’s Manual 4-23
Removing the USB Flash Drive
Follow this procedure to safely remove the USB flash drive from
the laptop while it is operating.
1 Click the USB flash drive icon located in the lower right
corner of the Windows task bar.
The USB flash drive properties dialog appears.
2 Select the Socket Status tab.
3 Select the USB flash drive from the list provided.
As shown in Figure 2.3 on Page 2-4, the list provided shows
one socket as being empty. (Refer to “USB Port,” on page 2-4.)
4 Click OK.
A dialog displays telling you that you can now remove the
USB flash drive.
5 Remove the USB flash drive from the port on the back of the
laptop.
Improperly removing the USB flash drive while the laptop is ON can cause
data corruption on the USB flash drive.
![](/img.php?id=529447&img=bg4b.png)
Using the MRX920 Unit
Notes
4-24 MRX920/MTX950 User’s Manual
![](/img.php?id=529447&img=bg4c.png)
MRX920/MTX950 User’s Manual 5-1
Chapter 5 Closing the MRX920 Unit
Preparing to Remove the MRX920 Unit
Follow this procedure to close up the MRX920 unit, and
prepare it for removal from the vehicle.
1 With the laptop computer turned off, close the laptop display.
2 Remove the power cable from the vehicle power supply
receptacle.
3 Remove the antenna from the vehicle roof.
4 Remove the antenna cable from the MRX920 unit.
Figure 5.1 Laptop Prepared for Closing
![](/img.php?id=529447&img=bg4d.png)
Closing the MRX920 Unit
5-2 MRX920/MTX950 User’s Manual
5 Remove the vehicle seat belt from the seat belt retention
loops on the MRX920 carrying case.
6 Close the cover on the MRX920 unit and secure it by closing
the latches on the unit.
Figure 5.2 Cover Closed on the MRX920 Unit
![](/img.php?id=529447&img=bg4e.png)
MRX920/MTX950 User’s Manual A-1
Appendix A Specifications
Electrical Specifications
Laptop Specifications
Table A.1 Electrical Specifications
Power Consumption 9A maximum
Power Supply 12V DC via plug-in power cord
Table A.2 PC Specifications
System Type
Windows Based
