ARB UTILITY MANAGEMENT SYSTEMS WATER |ELECTRIC |GAS
E-Cod
R900G ENDPOINT INSTALLATION AND MAINTENANCE GUIDE
R900G Endpoint Installation and Maintenance Guide
![](/img.php?id=1310391&img=bg3.png)
![](/img.php?id=1310391&img=bg4.png)
R900G ™ Endpoint Installation and Maintenance Guide
ARB UTILITY MANAGEMENT SYSTEMS WATER | ELECTRIC | GAS
![](/img.php?id=1310391&img=bg5.png)
This manual is an unpublished work and contains the trade secrets and confidential information of Neptune Technology
Group Inc., which are not to be divulged to third parties and may not be reproduced or transmitted in whole or part, in
any form or by any means, electronic or mechanical for any purpose, without the express written permission of Nep-
tune Technology Group Inc. All rights to designs or inventions disclosed herein, including the right to manufacture, are
reserved to Neptune Technology Group Inc.
Neptune engages in ongoing research and development to improve and enhance its products. Therefore, Neptune
reserves the right to change product or system specifications without notice.
Trademarks used in this manual
R900G is a trademark of Neptune Technology Group Inc. R900 is a trademark of Neptune Technology Group Inc. Other
brands or product names are the trademarks or registered trademarks of their respective holders.
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with the FCC RF radiation requirements for uncontrolled environments. To maintain compli-
ance with these requirements, the antenna and any radiating elements should be installed to ensure that a minimum
separation distance of 20cm is maintained from the general population.
Professional Installation
In accordance with section 15.203 of the FCC rules and regulations, the MIU must be professionally installed by trained
utility meter installers. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Transportation: The Federal Aviation Administration prohibits operating transmitters and
receivers on all commercial aircraft. When powered, the R900 Endpoint is considered an
operating transmitter and can not be shipped by air.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des
règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer
l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui
peut causer l'opération peu désirée.
Copyright © 2006-2007
Neptune Technology Group Inc.
All Rights Reserved.
R900G Installation and Maintenance Guide
Literature No. IM R900G 06.07
Part No.12778-001
Neptune Technology Group Inc.
1600 Alabama Highway 229
Tallassee, AL 36078
Tel: (334) 283-6555
Fax: (334) 263-7299
![](/img.php?id=1310391&img=bg7.png)
![](/img.php?id=1310391&img=bg8.png)
Contents
R900G Endpoint Installation and Maintenance Guide v
1Product Description
R900G Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
RF Protocol Error Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
RF Frequency Control Algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
RF Transmission Period and Randomness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
R900G Module Range and Read Success Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
R900G Endpoint Value-Added Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2Specifications
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications - R900G MIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Functional Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Meter Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3General Installation Guidelines
Product Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety and Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4R900G Endpoint - Retrofit Installation
Installing American AL/AR/AC/AM-175/250/425/630 with Dial or Odometer Index . . . . . . . . . . . . . . . . 9
R900G Model: 12750-000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Removing the Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Index and the R900G Endpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing Sensus R200/275/315 with Dial or Odometer Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
R900G Model: 12821-000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Removing the Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Install the Index and the R900G Endpoint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
![](/img.php?id=1310391&img=bg9.png)
Contents
vi R900G Endpoint Installation and Maintenance Guide
5Programming the R900G Endpoint
Starting the R900G Programmer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Index
![](/img.php?id=1310391&img=bga.png)
R900G Endpoint Installation and Maintenance Guide vii
Figures
Figure Title Page
1 AC250 with R900G Endpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Sensus R-275 with R900G Endpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

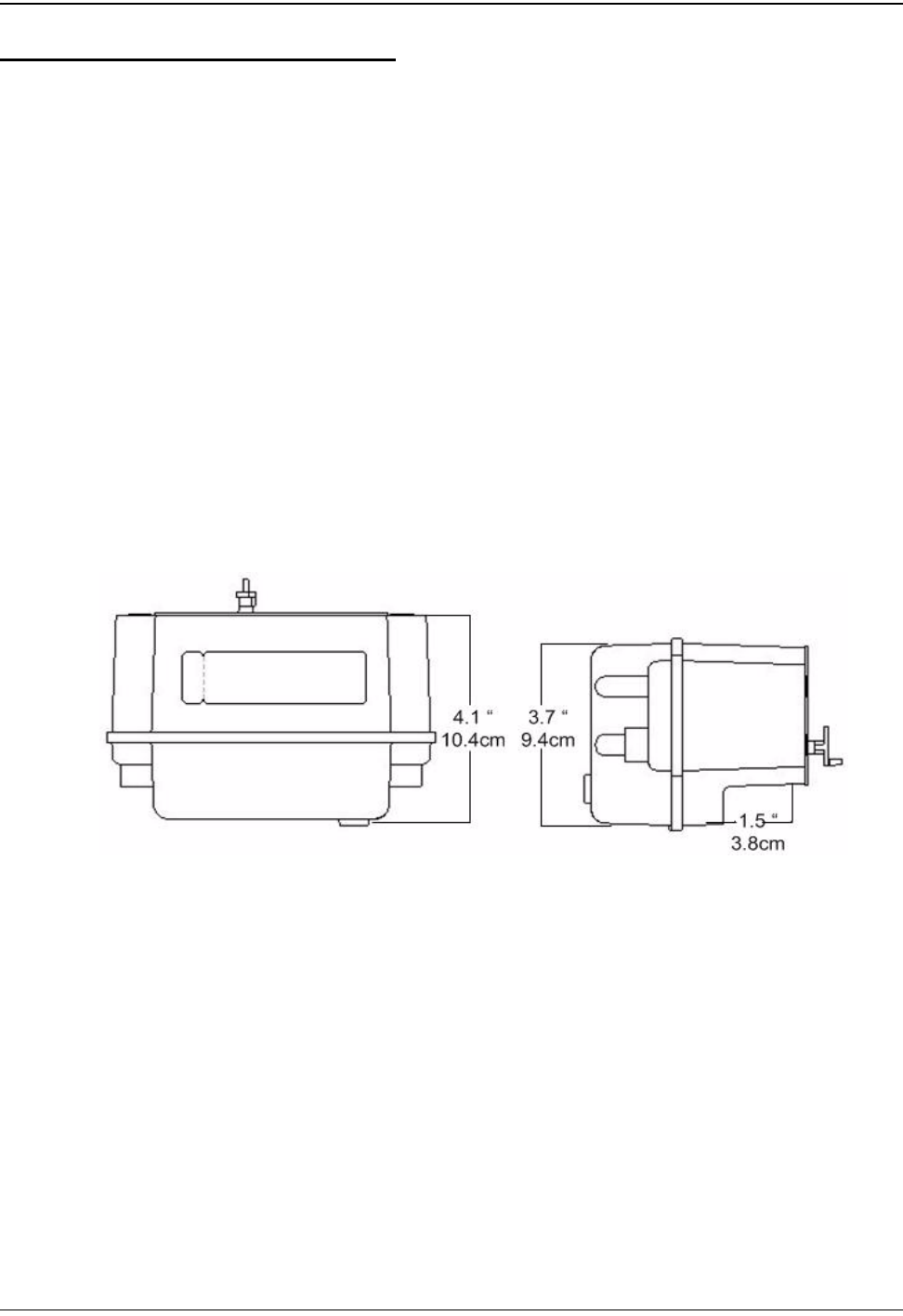

3 R900G MIU Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 American Meter - AC250 with Temperature Compensating Dial Index. . . . . . . . . . . . . . . . . . . . . . . 9
5 Removing Existing Tamper Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Index Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 American Gas Meter with Index Removed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Placing the Gas Meter Index on the R900G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Securing the Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10 R900G Endpoint Drive Dogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11 Using the Mounting Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12 Sensus R200/275/315 with Dial or Odometer Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
13 Puncturing and Removing Tamper Plugs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
14 Removing Lens Mounting Screws. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
15 Removing Index Mounting Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
16 Drive Dog Alignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
17 Securing the Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
18 Mount the R900G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
19 Securing to Meter casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
20 Neptune CE5320X Handheld with Field Programmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

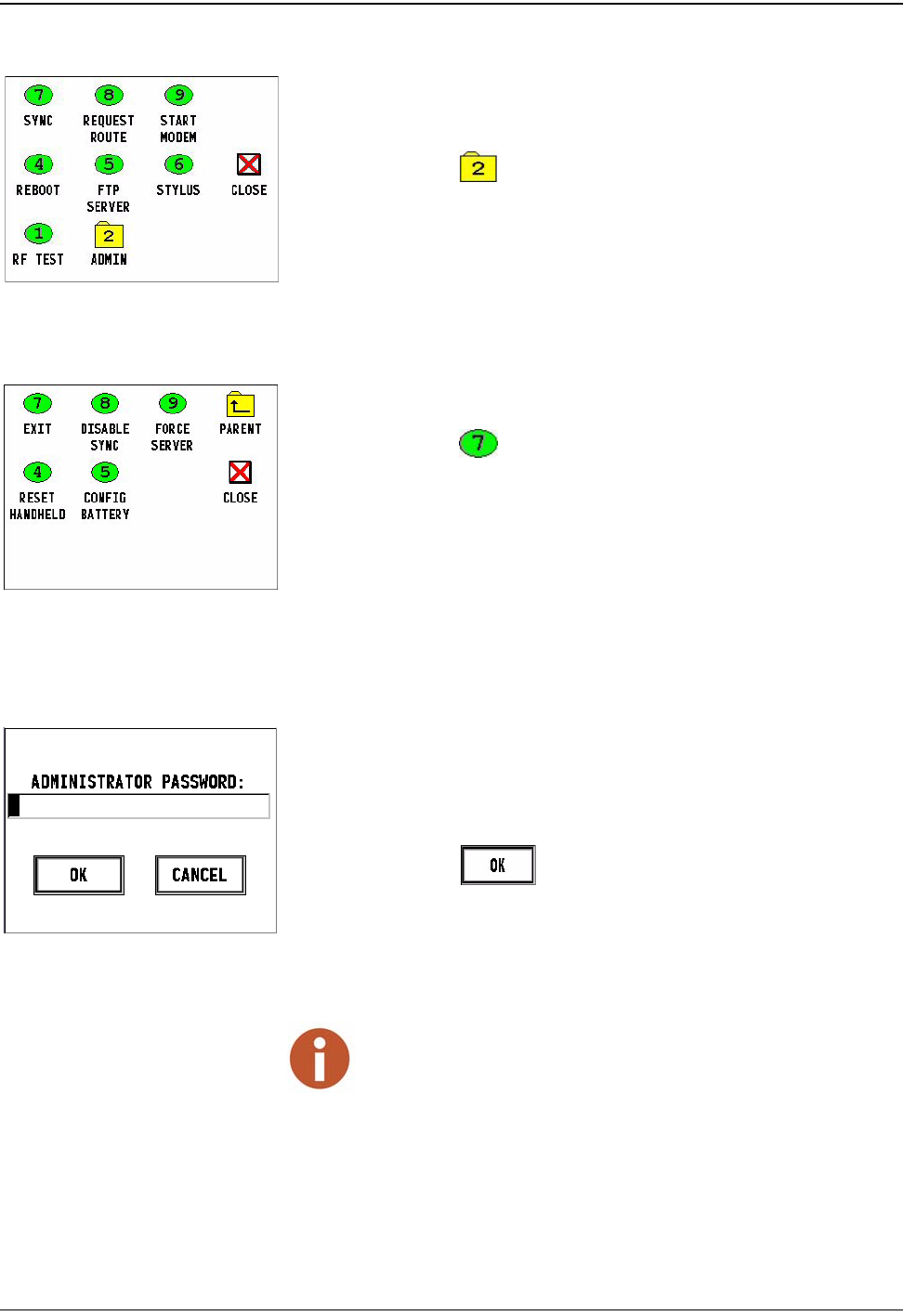

21 Equinox Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
22 Equinox Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
23 Equinox Administrator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
24 Administrator Password Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
25 Folder Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
26 R900G Programming Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
27 R900G Programming Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
28 Program Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
29 Checksum Match Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
![](/img.php?id=1310391&img=bgb.png)
viii R900G Endpoint Installation and Maintenance Guide
Notes:
Figures
![](/img.php?id=1310391&img=bgc.png)
R900G Endpoint Installation and Maintenance Guide ix
Tables
Table Title Page
1 Identification Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Recommended Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 Recommended Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
![](/img.php?id=1310391&img=bgd.png)
x R900G Endpoint Installation and Maintenance Guide
Notes:
Figures
![](/img.php?id=1310391&img=bge.png)
R900G Endpoint Installation and Maintenance Guide 1
1 Product Description
This section provides a general description of the R900G Endpoint for various
natural gas meters that provide meter consumption and value-added data.
The Neptune R900G Endpoint combines the field-proven R900® radio frequency
(RF) technology, developed by Neptune Technology Group, into a retrofit module
for current residential and commercial natural gas meters from American,
Equimeter (Sensus/Rockwell), and Actaris (Sprague). The R900G will attach to
new or existing meters, and will transmit consumption and tamper information
from the meter to a handheld, mobile, or a targeted fixed network reading device.
The R900G is a one-way RF module that operates in the unlicensed 902-928MHz
band. The data is transmitted through a high power signal to an enhanced data
collection device, providing utilities with an automatic meter reading (AMR)
solution with accurate consumption data, reduced meter reading times, and higher
meter reading success rates.
The R900G meets both FCC part 15.247 and Industry Canada Class B regulations,
allowing for a high output power AMR module that greatly increases range and
meter reading success rates. The R900G module uses frequency-hopping spread
spectrum technology to avoid RF interference and enhance security. The R900G
module transmits the consumption data, tamper conditions and value-added data,
and a unique 10-digit RF MIU ID every 14 seconds. The R900G Endpoint is a
Factory Mutual (FM) approved intrinsically safe device for Class I, Division 1,
Group C & D hazardous (classified) locations.

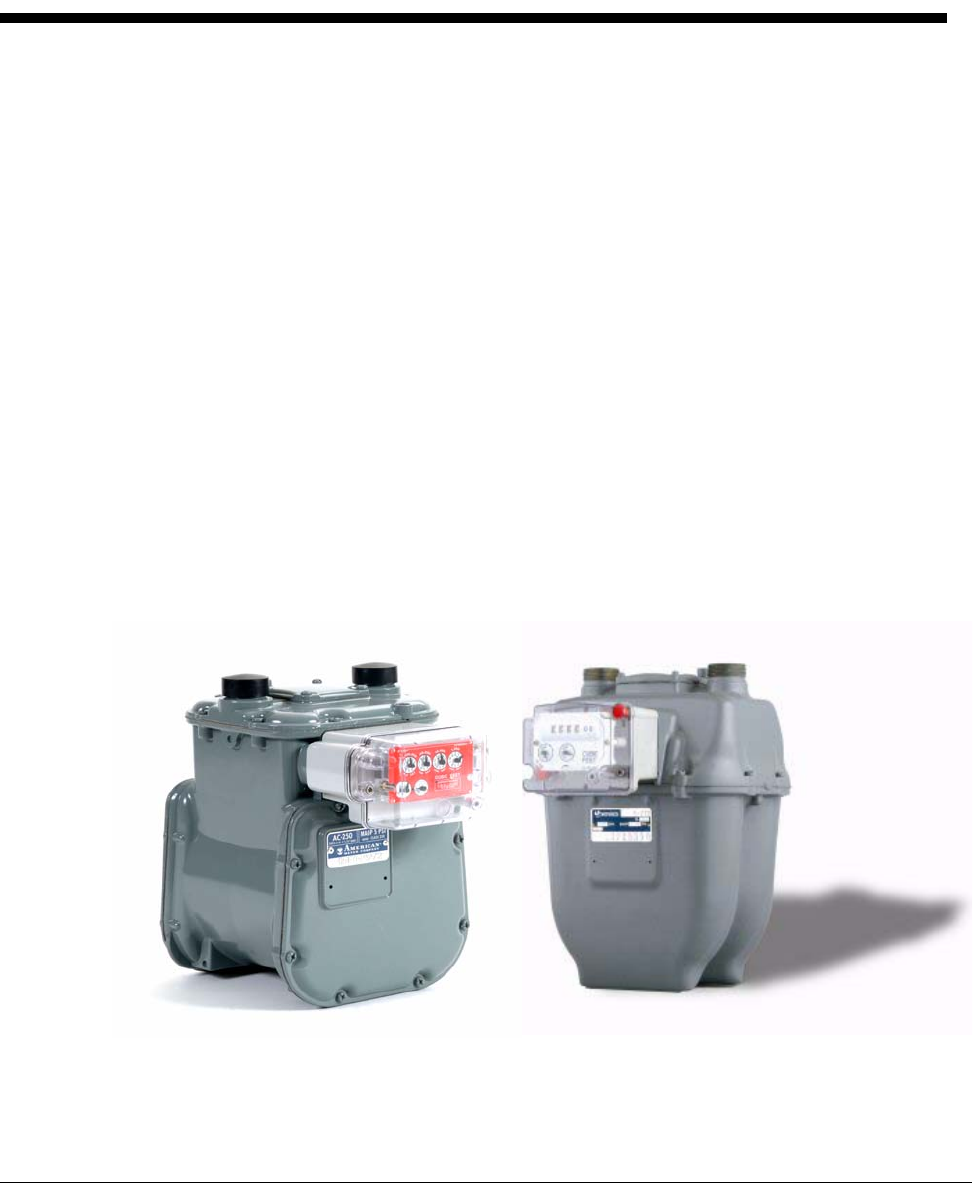

Figure 2 Sensus R-275 with R900G Endpoint

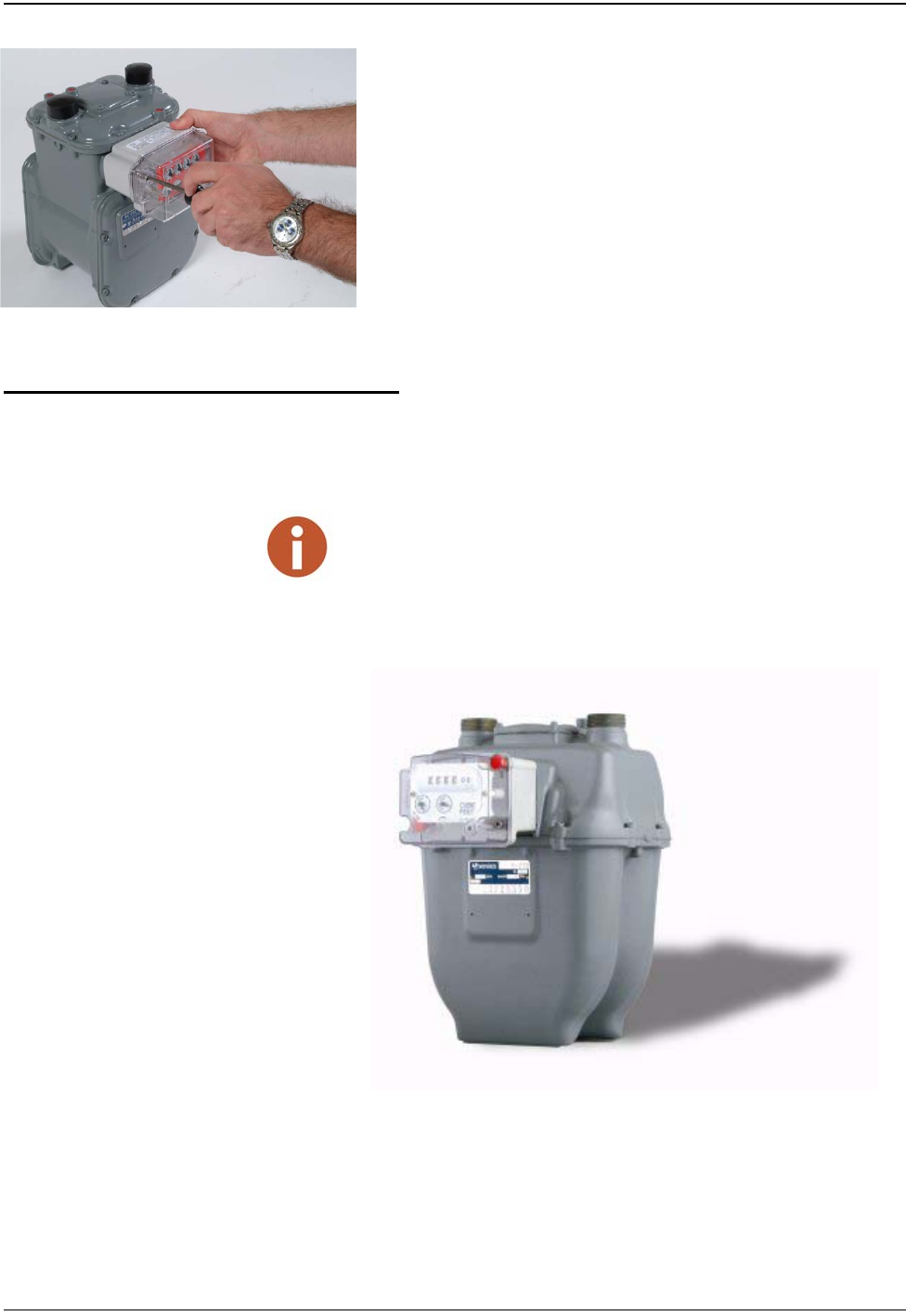

Figure 1 AC250 with R900G Endpoint
![](/img.php?id=1310391&img=bgf.png)
Product Description
2 R900G Endpoint Installation and Maintenance Guide
R900G Programming
The R900G is field-programmable via an Infrared (IR) port. At the factory, each of
the following items is programmed into the MIU:
• Serial number - Each R900G module is given a unique serial number/identifica-
tion number. To eliminate the possibility for duplicate ID numbers, custom
serial numbers are not available.
• Time between meter readings - The R900G module updates the meter reading
every 15 minutes.
• Time between R900G module transmissions - The time between R900G module
transmissions is set for approximately 14 seconds. Custom time intervals are
not available.
Field progammable features include the following:
• Existing index reading
• Pressure compensation factor
• Test hand registration
RF Protocol Error Detection
The Radio Frequency (RF) protocol is composed of a header, data packet, and an
error detection mechanism that reduces the possibility of erroneous data.
RF Frequency Control Algorithm
The R900G module's frequency-hopping spread-spectrum has a sequence of at
least 50 different channels for transmitting data. Associated with the 50 channels
are 50 frequencies that can be pre-selected in a pseudo random manner. These 50
frequencies are coded into the software.
RF Transmission Period and Randomness
The randomness algorithm is defined so that no two consecutive transmissions
from the two R900G modules will interfere with one another.
R900G Module Range and Read Success Rates
The R900G module is a radio frequency device that complies with FCC Part 15.247
allowing for a higher output power device. The higher output power coupled with
the sensitivity of Neptune's reading systems enhances a utility’s range, minimizing
the reading time while maximizing read success rates.
R900G Endpoint Value-Added Features
The R900G Endpoint provides tamper detection. The remote reading capabilities
of the R900G eliminate the monthly visual inspection of gas meters for evidence of
tampering.
![](/img.php?id=1310391&img=bg10.png)
Product Description
R900G Endpoint Installation and Maintenance Guide 3
R900G Endpoint Value-Added Features (continued)
Magnetic Tamper
The R900G has the capability of detecting the use of a large outside magnetic field
(capable of saturating sensors) being brought near the shaft sensor. If this occurs,
the magnetic tamper flag displays.
Reverse Flow Tamper
The R900G has the capability of detecting reverse rotation of the meter output
shaft. If such a tamper occurs, the volume increments in the normal fashion, and
the reverse-flow tamper flag displays. Reverse flow is managed so that the RF read
continues to match the meter index.
Removal from Meter
The R900G is equipped with a tilt switch. When the R900G is removed, the removal
from meter flag displays.
Consecutive Days of No Consumption
The meter can be removed from service for unknown periods without authoriza-
tion. This mode of tampering can be detected by monitoring the number of consec-
utive days of no consumption.
The R900G sets a flag in the event of 7 consecutive days of no consumption. In the
event that 14 consecutive days are reached, a separate flag displays.
![](/img.php?id=1310391&img=bg11.png)
R900G Endpoint Installation and Maintenance Guide 4
2 Specifications
This section provides you with the specifications for the R900G Endpoint.
Electrical Specifications
Transmitter Specifications
Power Lithium battery with Hybrid Layer Capacitor
(HLC) Capacitor
Transmit Period Every 14 seconds
Transmitter Channels 50
Channel Frequency 902-928 MHz
Output Power Meets FCC Part 15.247
FCC Verification Part 15.247
FM Approval Class I, Division 1, Groups C and D
![](/img.php?id=1310391&img=bg12.png)
Specifications
R900G Endpoint Installation and Maintenance Guide 5
Specifications - R900G MIU
Environmental Specifications
Functional Specifications
Dimensions and Weight
Figure 3 R900G MIU Dimensions
Operating Temperature -22° to 149°F (-30° to 65°C)
Storage Temperature -40° to 158°F (-40° to 70°C)
Operating Humidity 0 to 95% Condensing
MIU ID 10 digits
Dimensions Refer to Figure 3
Weight 1.0 lbs. (454 grams)
![](/img.php?id=1310391&img=bg13.png)
Specifications
6 R900G Endpoint Installation and Maintenance Guide
Meter Compatibility
The following table represents all current residential and top-
mount commercial American, Sensus, Equimeter, and Actaris
models.
Table 1 Identification Table
Gas Meter Mfgr Gas Meter Models Neptune Part
Number
Residential Meters
American® Meter AL/AR/AC/AM-175/250/425 12750-000
Sensus®/Invensys®/
Rockwell®/Equimeter®
R-200/275/315
(Cubic Foot Registration) 12821-000
Sensus®/Invensys®/
Rockwell®/Equimeter®
#415
(Cubic Foot Registration) 12821-100
Actaris®/Sprague® 175/250/400A METRIS Availability to be
announced at a later
date
Commercial Meters
American® Meter AC-630 12750-000
American® Meter AL-800/AL-1000
AL-1400/2300/5000 Availability to be
announced at a later
date.
Sensus®/Invensys®/
Rockwell®/Equimeter®
#750/1600/
3000/5000,10000
Actaris®/Sprague® 675A, 800A, 1000A
![](/img.php?id=1310391&img=bg14.png)
R900G Endpoint Installation and Maintenance Guide 7
3 General Installation Guidelines
This section describes tools, materials, and general installation information for the
R900G Endpoint.
Product Unpacking and Inspection
Upon receipt of the product, the following unpacking and inspection procedures
should be performed.
Carefully open the shipping container, follow any instructions that may be marked
on the exterior. Remove all packing materials surrounding the product and
carefully remove the product from the container.
Retain the shipping container and all packing materials in order to materials to
transport the equipment to the site and in the event the product needs to be
returned to the manufacturer for any reason.
Visually inspect the product and applicable accessories for any physical damage
such as loose or broken parts, or any other sign of damage that may have occurred
during shipment.
If damage to the shipping container is evident upon receipt, request the carrier to be present when
the product is unpacked.
If damage is found, request an inspection by the carrier's agent within 48 hours of delivery and file
a claim with the carrier. A claim for equipment damage in transit is the sole responsibility of the
purchaser.
![](/img.php?id=1310391&img=bg15.png)
General Installation Guidelines
8 R900G Endpoint Installation and Maintenance Guide
Tools and Materials
Tables 2 and 3 show the recommended tools and materials you may need to suc-
cessfully install the R900 MIU or to replace the MIU’s internal battery.
Safety and Preliminary Checks
Observe the following safety and preliminary checks before and during each
installation:
• Verify that you are at the location specified on the Site Work Order.
• Verify that the site is safe for you and your equipment.
• Notify the customer of your presence and tell the customer that you will need
access to the gas meter.
• If the Site Work Order does not have an MIU ID number on it, write in the ID
number(s) of the MIU you are about to install. If the Site Work Order already
has an MIU ID number on it, verify that it matches the ID numbers on the MIU
you are about to install.
Some items may not apply to your specific installation or the list may not contain all required tools
or materials.
Table 2 Recommended Tools
Item Description/ Recommendation Use
Tool Kit Contains standard tools including:
• 1/8" flat head screwdriver
• 1/4" flat head screwdriver
• #1 Phillips screwdriver
• Pliers – wire-cutting, long-nose util-
ity
• Cordless electric drill/screwdriver
(optional)
• Putty knife
Various installation procedures
performed by the utility
IR programming
device
• Neptune CE5320X handheld loaded
with R900G programming software
• Apex receiver
• Field Programmer
To program the index, and so forth,
by the field programmer
Table 3 Recommended Materials
Item Description/Recommendation Use
Site Work Order Documentation provided by your
utility
Receiving and recording informa-
tion about the work site
![](/img.php?id=1310391&img=bg16.png)
R900G Endpoint Installation and Maintenance Guide 9
4 R900G Endpoint - Retrofit Installation
Complete the following instructions to install an R900G Endpoint according to the
model required for the specific gas meter you are installing.
Installing American AL/AR/AC/AM-175/250/425/630 with Dial or Odometer Index
R900G Model: 12750-000

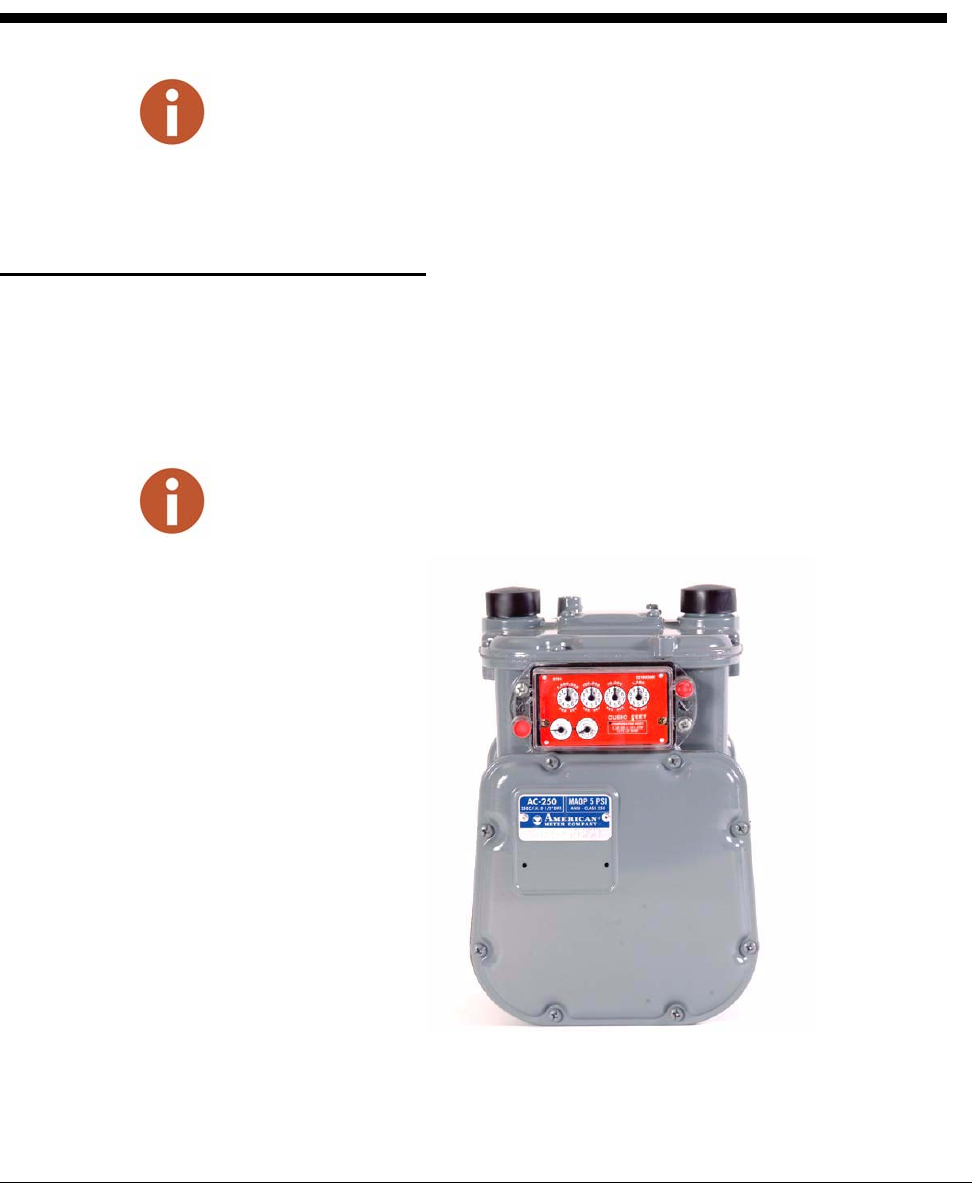

The following figure illustrates the American Models AL/AR/AC/AM-175/250/425
with Dial or Odometer Index.
Figure 4 American Meter - AC250 with Temperature Compensating Dial Index
Before proceeding with the installation, make sure the R900G Endpoint number matches model re-
quired for the specific gas meter model being installed. Refer to Table Table 1 on page 6.
Although meters vary by manufacturers, the steps are similar.
![](/img.php?id=1310391&img=bg17.png)
R900G Endpoint - Retrofit Installation
10 R900G Endpoint Installation and Maintenance Guide
Removing the Index
Complete the following steps for index removal.
1 Use a large, flat head screwdriver to puncture and remove

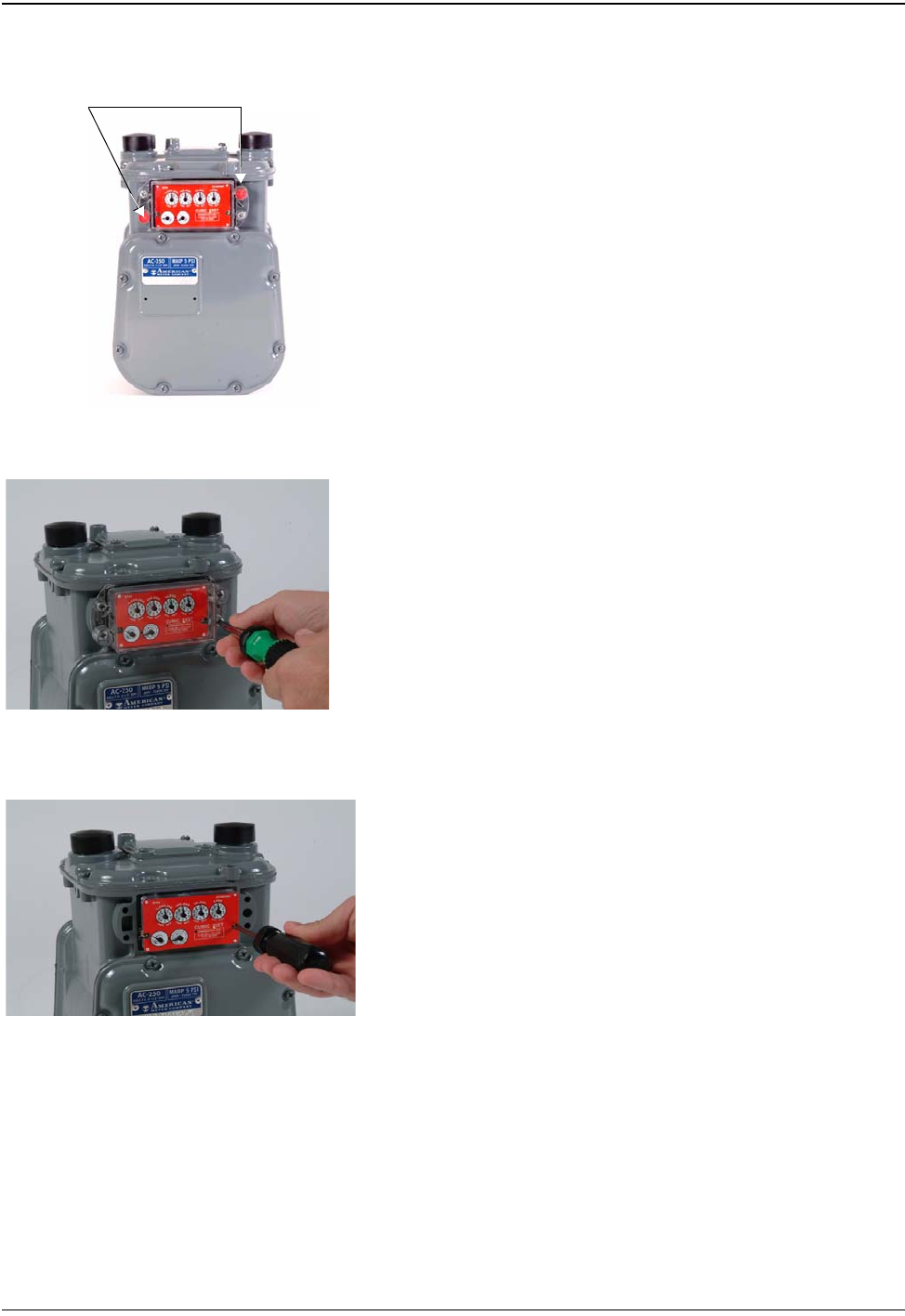

existing Tamper Plugs, if present. (See Figure 5.)
Figure 5 Removing Existing Tamper Plugs
2 Use a large screwdriver to remove and discard the four lens
mounting screws and the lens. (See Figure 6.)
Figure 6 Index Removal
3 Remove the gasket. Use a putty knife to remove any excess
gasket from the meter body casing.
4 Use a small screwdriver to remove the two index mounting
screws. Do not discard these screws as they are needed to
mount the existing index to the R900G housing. (See Figure
7.)
Figure 7 American Gas Meter with Index Removed
Tamper Plugs
![](/img.php?id=1310391&img=bg18.png)
R900G Endpoint - Retrofit Installation
R900G Endpoint Installation and Maintenance Guide 11
Installing the Index and the R900G Endpoint
Complete the following steps to install the Index and the R900G
Endpoint to the meter body casing.

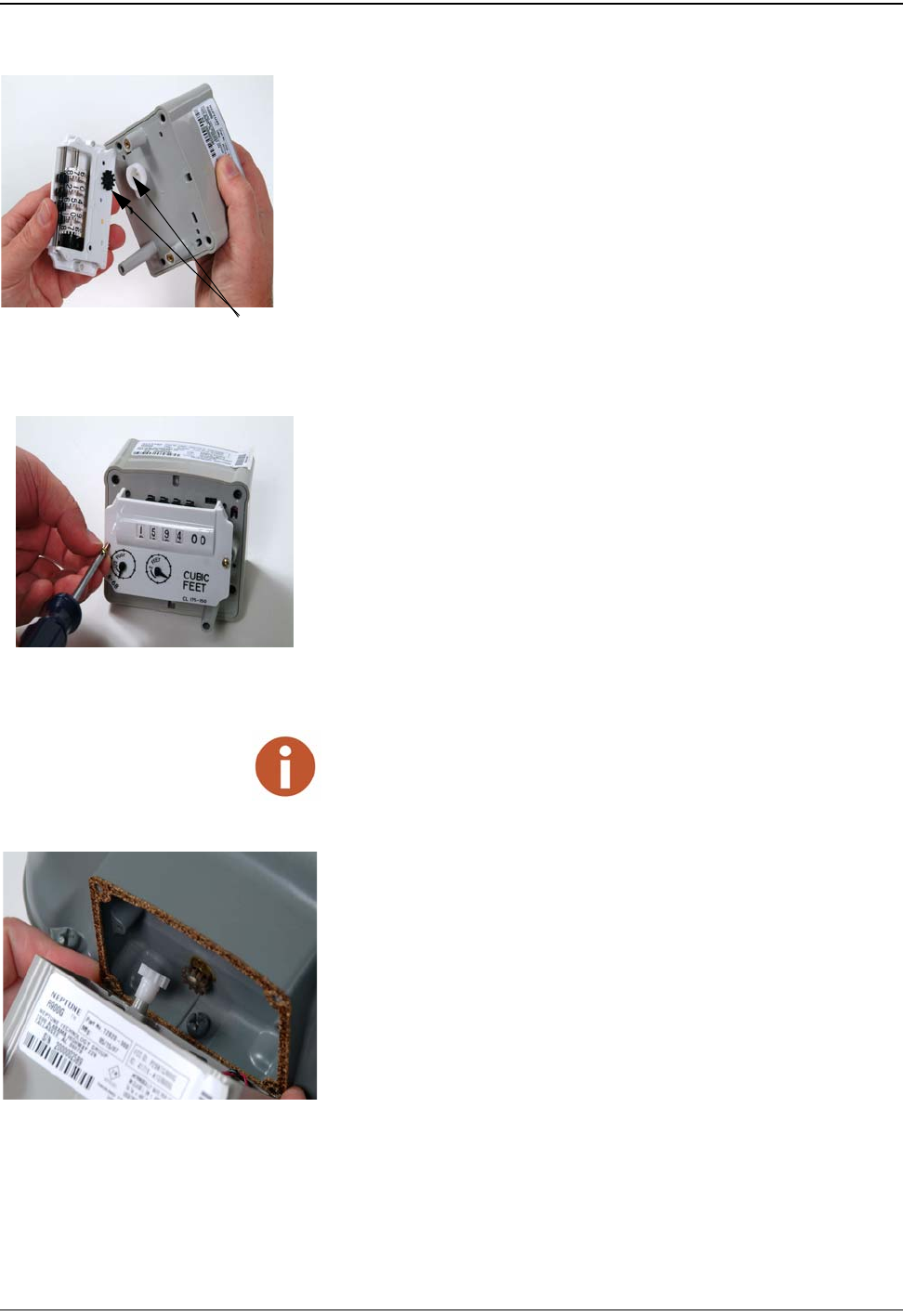

1 Place the gas meter index on the front of the R900G Endpoint
ensuring that the two drive dogs are aligned for engagement.
(See Figure 8.)
Figure 8 Placing the Gas Meter Index on the R900G
2 Secure the index to the R900G housing using the 2 index
mounting screws removed from the meter in Step 4 during
“Removing the Index” on page 10. (See Figure 7 and Figure 9.)
Figure 9 Securing the Index
3When mounting the R900G Endpoint to the front of the gas
meter casing, ensure that the gas meter drive dog engages
with the R900G Endpoint drive dog. These two drive dogs
must mate without causing any binding or potential for disen-
gagement. (See Figure 10.)
Figure 10 R900G Endpoint Drive Dogs
Drive Dogs
• When attaching the gas meter index to the R900G Endpoint, make sure it is
securely mounted.
• The Sensus/Equimeter version uses a gear to the index. Make sure the
drive dog mates with the drive gear.
![](/img.php?id=1310391&img=bg19.png)
R900G Endpoint - Retrofit Installation
12 R900G Endpoint Installation and Maintenance Guide

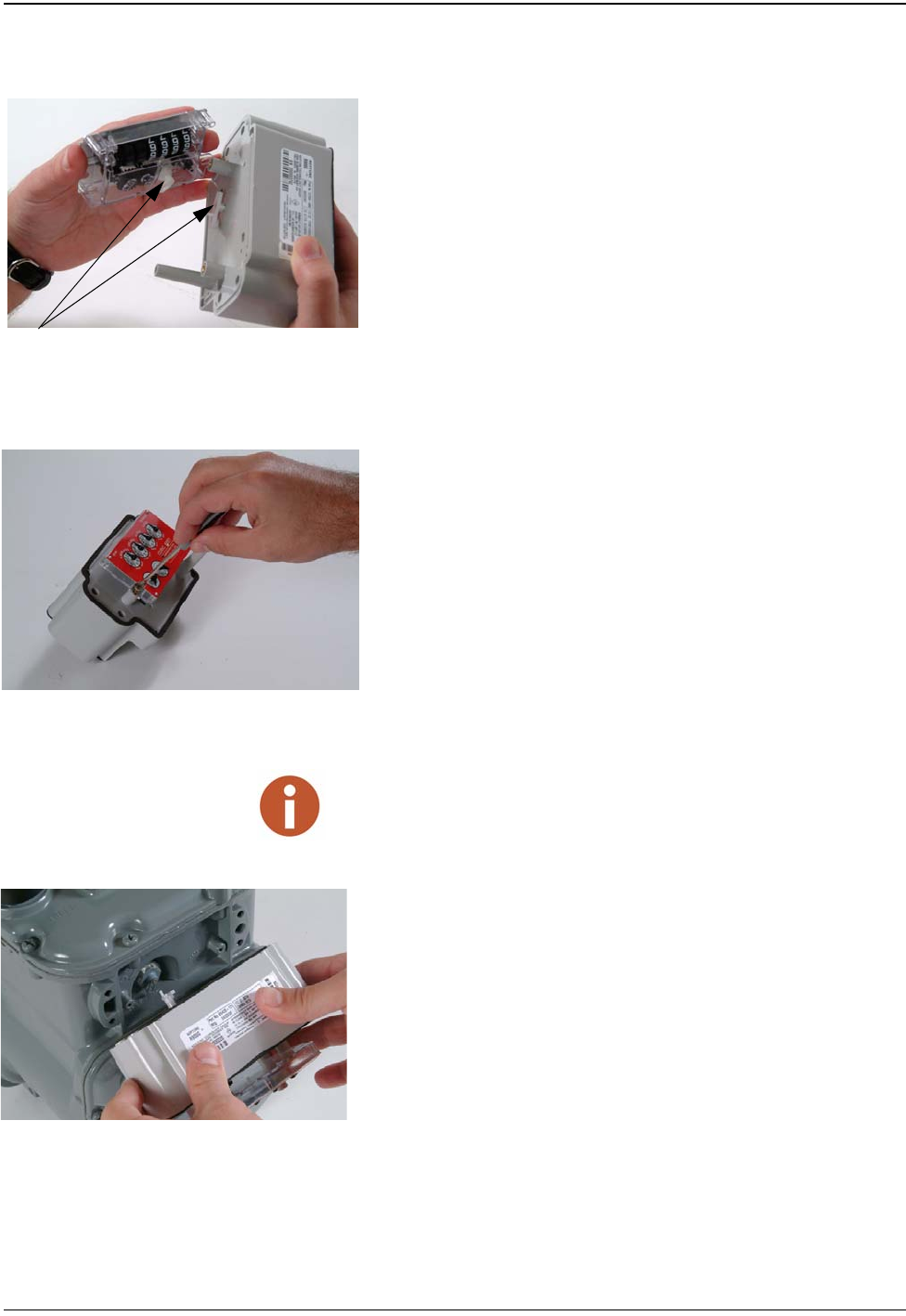

4 Slide the cover over the R900G Endpoint housing.
5 Use the four mounting screws (supplied) to secure the
cover and the R900G Endpoint to the gas meter casing. (See
Figure 11.)
6 Install two tamper snap seals (supplied) into the recess in the
cover.
7 Seat firmly.
Figure 11 Using the Mounting Screws
Installing Sensus R200/275/315 with Dial or Odometer Index
R900G Model: 12821-000
The following figure illustrates the Sensus Model R200/275/315
with Dial or Odometer Index.
Figure 12 Sensus R200/275/315 with Dial or Odometer Index
The following steps are the same for installation of R900G Model: 12821-100
on Sensus model #415.
![](/img.php?id=1310391&img=bg1a.png)
R900G Endpoint - Retrofit Installation
R900G Endpoint Installation and Maintenance Guide 13
Removing the Index
Complete the following steps for index removal.

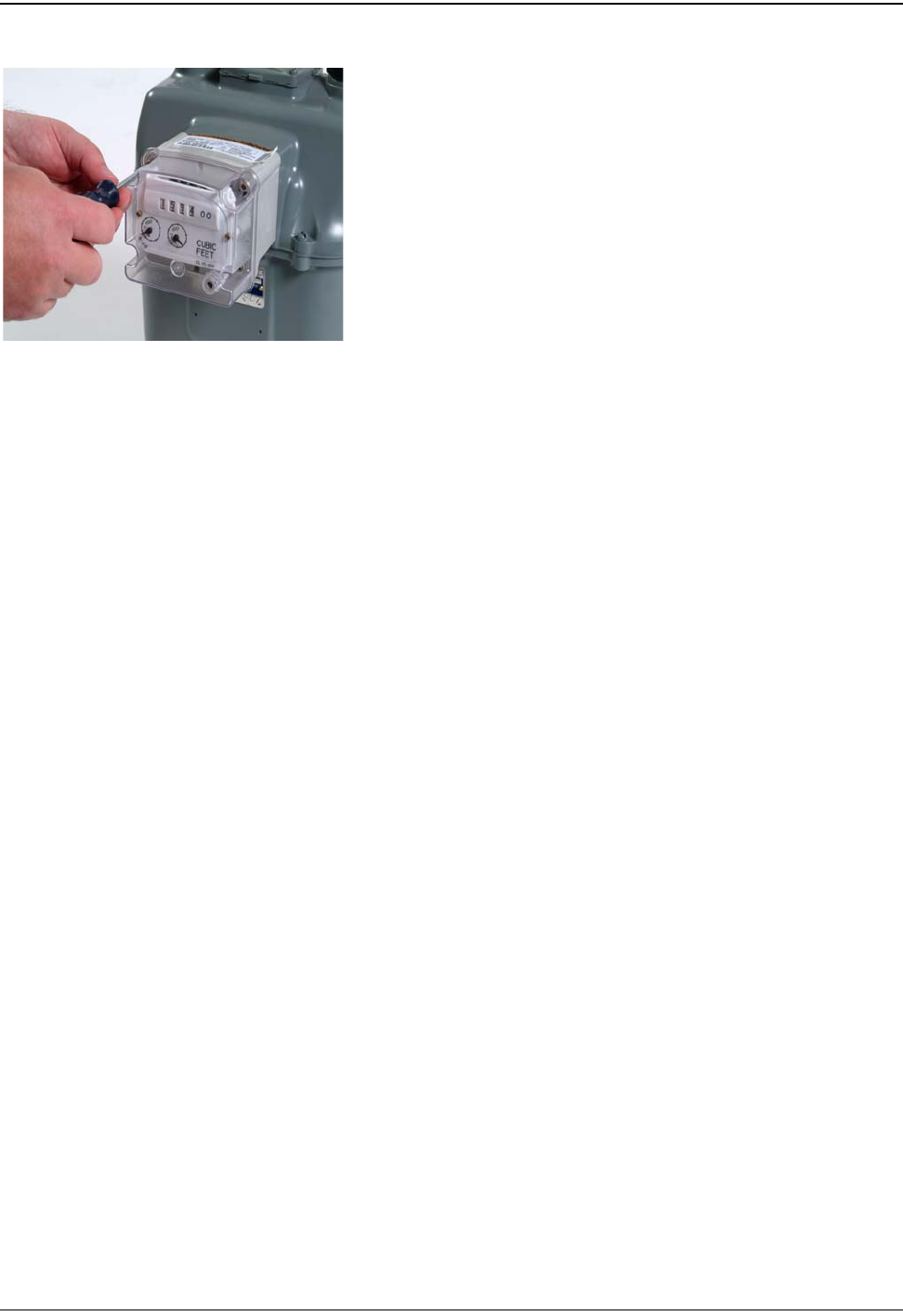

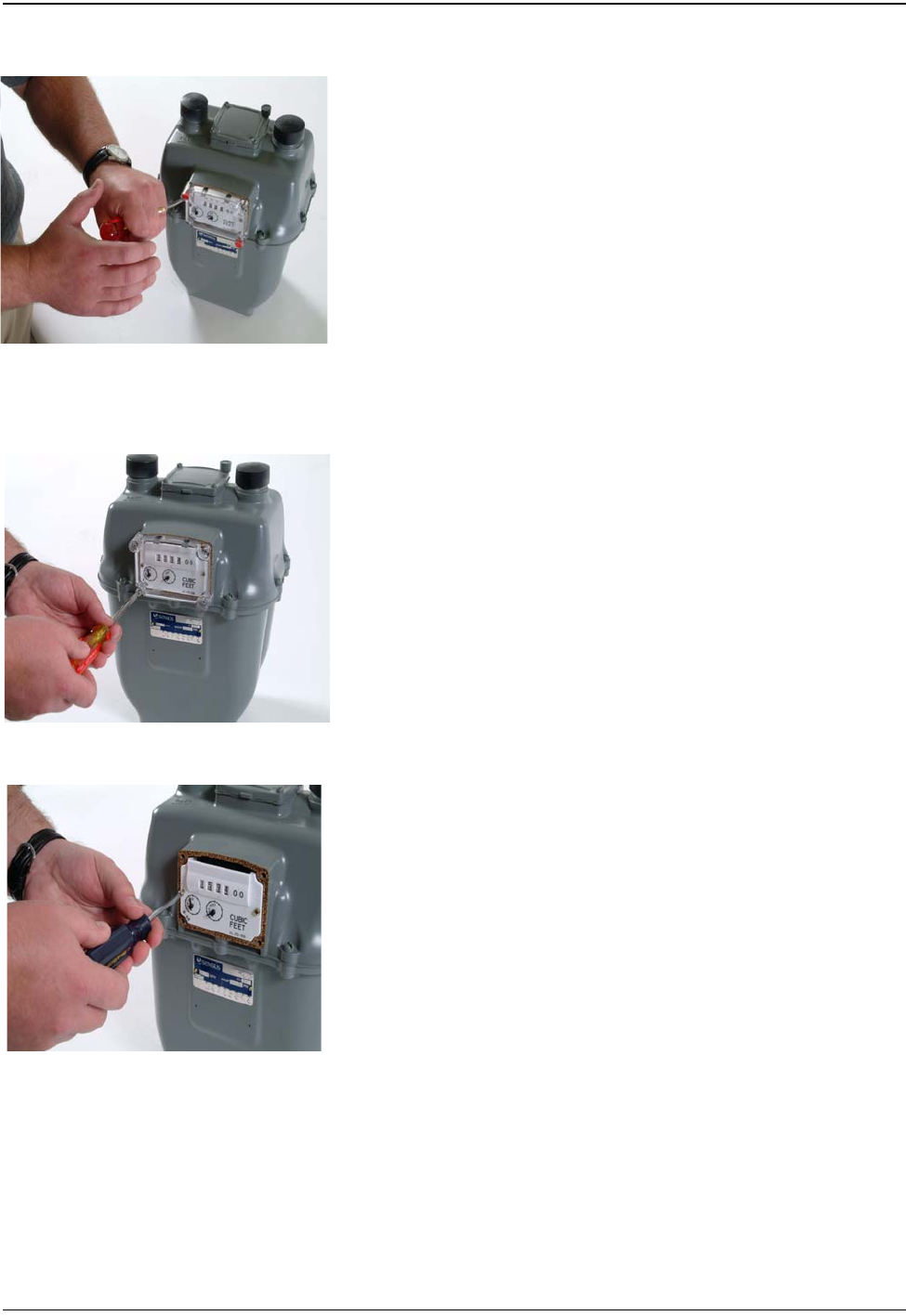

1 Use a large, flat head screwdriver to puncture and remove
existing tamper plugs, if present. (See Figure 13.)
Figure 13 Puncturing and Removing Tamper Plugs
2 Use a large screwdriver to remove and discard the four lens
mounting screws and the lens. (See Figure 14.)
Figure 14 Removing Lens Mounting Screws
3Remove Index Screws remove the two index mounting
screws. Do not discard these screws as they are needed to
mount the existing index to the R900G housing. (See Figure
15.)
Figure 15 Removing Index Mounting Screws
![](/img.php?id=1310391&img=bg1b.png)
R900G Endpoint - Retrofit Installation
14 R900G Endpoint Installation and Maintenance Guide
Install the Index and the R900G Endpoint.
4Place the gas meter index on the front of the R900G Endpoint
ensuring that the two drive dogs are aligned for engage-
ment.(See Figure 16.)
Figure 16 Drive Dog Alignment
5Secure the index to the R900G housing using the 2 index
mounting screws removed from the meter in Step 3 during
“Removing the Index” on page 10. (See Figure 15 and Figure
17.)
Figure 17 Securing the Index
6 When mounting the R900G Endpoint to the front of the gas
meter casing, ensure that the gas meter drive dog engages
with the R900G Endpoint drive dog. These two drive dogs
must mate without causing any binding or potential for disen-
gagement. (See Figure 18.)
Figure 18 Mount the R900G
Drive Dogs
• When attaching the gas meter index to the R900G Endpoint, make sure it is
securely mounted.
• The Sensus/Equimeter version uses a gear to the index. Make sure the
drive dog mates with the drive gear.
![](/img.php?id=1310391&img=bg1c.png)
R900G Endpoint - Retrofit Installation
R900G Endpoint Installation and Maintenance Guide 15
7Slide the cover over the R900G Endpoint housing.
8 Use the four mounting screws (supplied) to secure the
cover and the R900G Endpoint to the gas meter casing. (See
Figure 19.)
9 Install two tamper plugs (supplied) into the recess in the
cover.
10 Seat firmly.
Figure 19 Securing to Meter casing
![](/img.php?id=1310391&img=bg1d.png)
R900G Endpoint Installation and Maintenance Guide 16

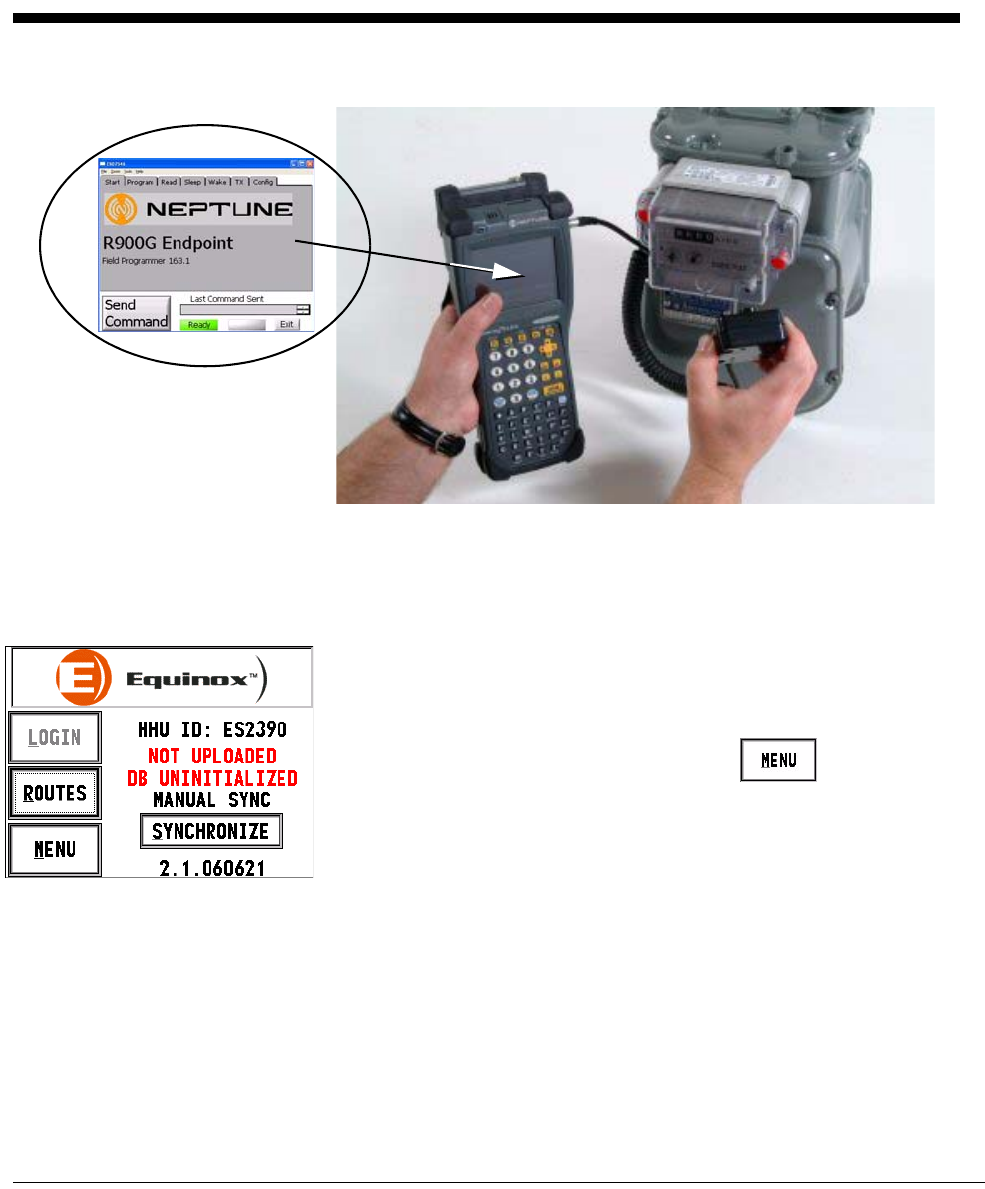

5 Programming the R900G Endpoint
To program an R900G Endpoint, use the Neptune CE5320X handheld with Equinox
software to display and process the information.
Figure 20 Neptune CE5320X Handheld with Field Programmer
Starting the R900G Programmer Software
1 Start the R900G Programmer Software by completing the following
steps from the Equinox Start Screen. See Figure 21.
2While on the Equinox main screen, touch .
Figure 21 Equinox Main Screen
![](/img.php?id=1310391&img=bg1e.png)
Programming the R900G Endpoint
R900G Endpoint Installation and Maintenance Guide 17
The Equinox main menu appear as illustrated in Figure 22.
3 Select Admin.
.
Figure 22 Equinox Menu
The Equinox Admin menu appears as illustrated in Figure 23.
4 Select Exit.
Figure 23 Equinox Administrator Menu
The Administrator Password screen appears as illustrated in
Figure 24.
5 When prompted, type in the password provided by your com-
pany, such as, BUBBA.
6 Touch .
Figure 24 Administrator Password Screen
The handheld reboots, and the Windows CE.NET screen
appears.
The default password for all factory configured CE5320X Handhelds is
BUBBA. If you are unsure of your password, try the default password. If
BUBBA is not correct, check with your administrator for the correct pass-
word.
![](/img.php?id=1310391&img=bg1f.png)
Programming the R900G Endpoint
18 R900G Endpoint Installation and Maintenance Guide
7 Tap the screen once.
The Folder selection screen appears as illustrated in Figure
25.
Figure 25 Folder Selection Screen
8 Select My Documents.

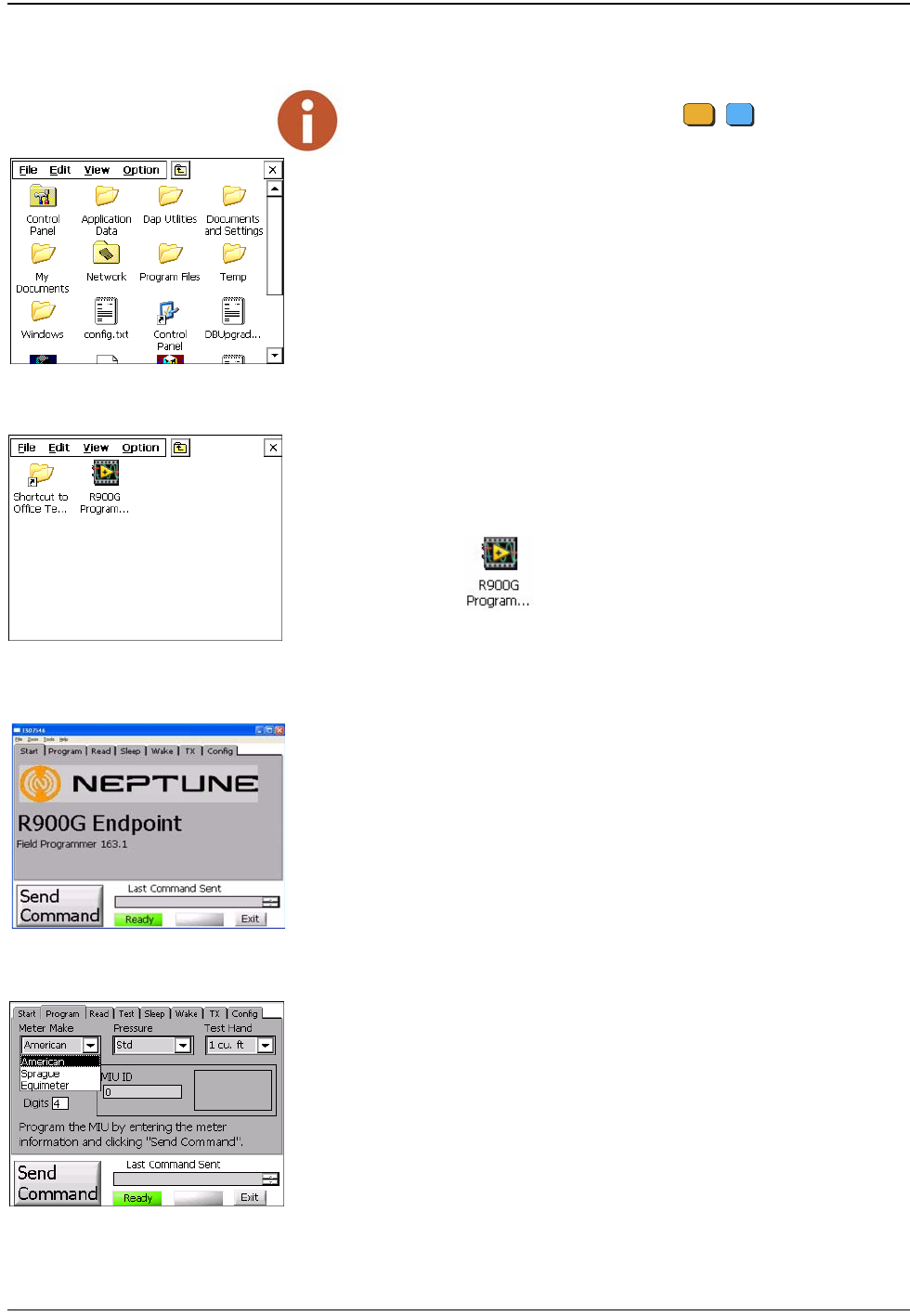

The R900G Programming icon appears as illustrated in Figure
26.
9 Select .
Figure 26 R900G Programming Icon
When the programming software begins, the screen illustrated
in Figure 27 appears.
Figure 27 R900G Programming Screen
10 Select the Program tab at the top of the screen.
The screen illustrated in Figure 28 appears.
Figure 28 Program Tab
The screen backlight will turn off. Press to turn on the
screen backlight.
F3
![](/img.php?id=1310391&img=bg20.png)
Programming the R900G Endpoint
R900G Endpoint Installation and Maintenance Guide 19
11 Make the following selections on this window:
• From the Meter Make drop-down selection list, choose
the appropriate setting for the type of meter to program.
• From the Pressure drop-down selection list, choose the
appropriate setting for the pressure compensation.
•From the Tes t Ha nd drop-down selection list, choose the
appropriate resolution.
•For the Initial Reading, type the index reading, for
example, 2345.
• For the number of Digits, type the number of reading dials
or odometer wheels on the index. This number shall be
either 4, 5 or 6.
Figure 29 Checksum Match Message

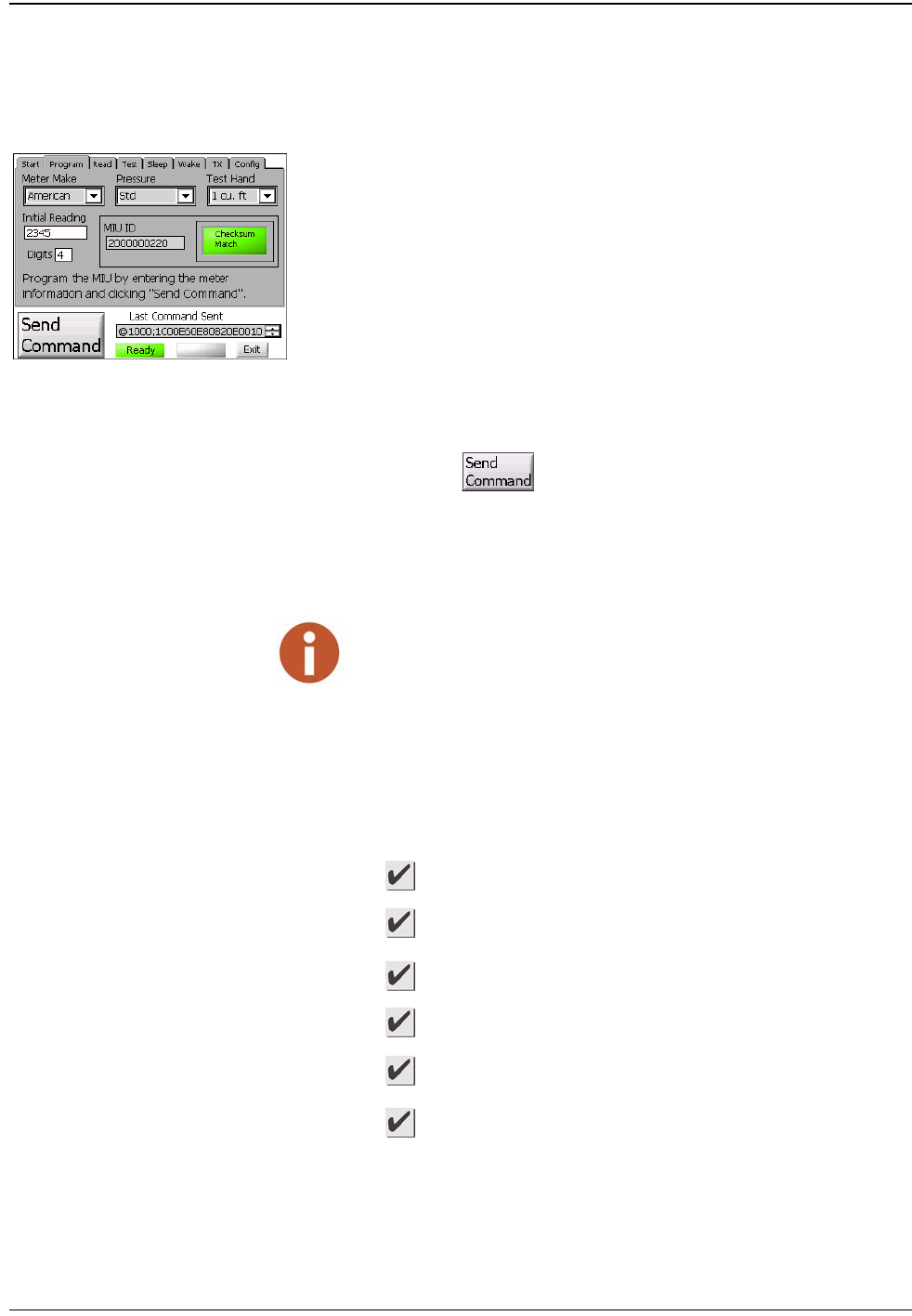

12 When you have entered all the appropriate data,
touch to program the R900G unit.
13 When the programming is complete, the unit returns a Check-
sum Match message, as well as confirmation of the MIU ID as
illustrated in Figure 29.
The checksum match message indicates that the unit is pro-
grammed and transmitting.
Checklist
Before leaving the installation site, be sure to:
This process takes approximately 5-10 seconds
Record MIU ID for each R900G endpoint gas meter.
Verify that you have followed all requirements of this
Quick Install Guide.
Verify that you have recorded all required information.
Clean up any installation debris.
Verify that the requirements of the site work order have
been completed.
Inform the customer that you have completed your
work. If you were unable to finish, inform the customer
of when you'll be back to complete the project.
![](/img.php?id=1310391&img=bg21.png)
Programming the R900G Endpoint
20 R900G Endpoint Installation and Maintenance Guide
Contact Information
Within North America, Neptune Support is available Monday
through Friday, 8:00 AM to 7:00 PM Eastern Standard Time, by
telephone or fax.
To contact Technical Support by phone, call 1-800-645-1892. If all
Support Technicians are helping other customers, your call will be
routed to the Neptune Support voice mail system. Please leave
your name, the name of your company, and your telephone num-
ber. Your call will be returned within business hours in the order it
was received.
To contact Technical Support by fax, send a description of your
problem to 1-334-283-7497. Please include on the fax cover sheet
the best time of day for a support technician to contact you. To
contact Technical Support by E-mail, send your letter to the fol-
lowing address: hhsupp@neptunetg.com.
![](/img.php?id=1310391&img=bg22.png)
R900G Endpoint Installation and Maintenance Guide 21
Index
A
accessories, meter 7
Actaris
gas meter models 6
algorithm
randomness 2
RF frequency control 2
American
dial index 9, 12
drive dog 11, 14
drive dogs 11
gas meter models 6
index removal 10, 13
index removed 10, 13, 15
odometer index 9, 12
R900G housing 10, 13
B
battery
internal 8
lithium 4
C
Canadian Interference Causing Equipment Regulations iii
capacitor, HLC 4
casing, meter body 11
CE5320X handheld 16
channel
for transmitting data 2
frequency 4
transmitter 4
checklist, for completion 19
checksum match 19
Compatibility 6
compatibility, meter 6
conditions, environmental 5
D
damage, found when unpacked 7
data collection device 1
device
approved 1
data collection 1
higher output power 2
IR programming 8
output power 2
RF 2
targeted fixed network 1
dial index
American 9, 12
dimensions 5
drive dogs
American 11, 14
E
electrical specifications 4
environmental conditions 5
Equimeter, models 6
Equinox
main menu 17
main screen 16
F
FCC
notice ii
verification 4
features, value-added 2
field-programming 2
FM approval 4
frequency-hopping 2
functional specifications 5
G
gasket, removing 10
gear, Sensus/Equimeter version 11, 14
general description 1
general information 7
H
handheld, CE5320X 16
HLC capacitor 4
Hybrid Layer Capacitor 4
I
icon, R900G programming 18
identification, meter 6
index removal, American 10, 13
index removed
American 10, 13, 15
indications, tamper 2
Industry Canada notice iii
inspection, of the R900G Endpoint 7
install, R900G Endpoint 9
installation
American meters 9
before proceeding 9
importance of professional ii
preliminary checks 8
safety 8
![](/img.php?id=1310391&img=bg23.png)
Index
22 R900G Endpoint Installation and Maintenance Guide
interférence canadienne iii
Invensys, models 6
IR programming device 8
M
main menu. Equinox 17
main screen, Equinox 16
materials needed 7
materials, recommended 8
meter
accessories 7
identification 6
meter compatibility 6
MIU ID 1
model
matching number 9
models, gas meter 6
N
Neptune, support 20
notices
FCC ii
Industry Canada iii
O
odometer index
American 9, 12
operating humidity 5
operating temperature 5
output power 2
P
packing materials, for reshipping 7
period, transmit 4
power, output 2, 4
preliminary checks 8
programming receiver 8
programming, R900G 16
R
R900® radio frequency (RF) 1
R900G
description 1
dimensions 5
general description 1
housing 11, 14
interface 5
module reads 2
module transmissions 2
programming 18
serial number 2
specifications 4
tools and materials 8
weight 5
R900G (illus.) 1
R900G housing
American 10, 13
R900G Programming 18
radio technology 1
readings 2
reads, success rates 2
receiver, for programming 8
regulations, Canadian iii
retrofit installation 9
RF
exposure information ii
frequency 2
module 1
protocol, error detection 2
technology 1
transmission 2
Rockwell
models 6
S
safety checks 8
Sensus
gas meter models 6
serial number 2
site work order 8
software, programming 16
specifications
dimensions 5
electrical 4
encoder register interface 5
environmental conditions 5
functional 5
MIU ID 5
transmitter 4
weight 5
Sprague, models 6
spread-spectrum 2
standard tools 8
storage temperature 5
support, technical 20
T
technical support 20
temperature, storage 5
time intervals, custom 2
tools needed 7
tools, recommended 8
![](/img.php?id=1310391&img=bg25.png)
24 R900G Endpoint Installation and Maintenance Guide
Notes:
Index
![](/img.php?id=1310391&img=bg26.png)
![](/img.php?id=1310391&img=bg27.png)
IM R900G 06.07 Part No. 12778-001 © Copyright 2006 -2007, Neptune Technology Group Inc. Neptune is a registered trademark of Neptune Technology Group Inc.
neptunetg.com
Neptune Technology Group Inc.
1600 Alabama Highway 229
Tallassee, AL 36078
USA
Tel: (334) 283-6555
Fax: (334) 283-7299
Neptune Technology Group (Canada) Ltd.
7275 West Credit Avenue
Mississauga, Ontario
L5N 5M9
Canada
Tel: (905) 858-4211
Fax: (905) 858-0428
Neptune Technology Group Inc.
Ejército Nacional No. 418
Piso 12, Desp. 1201-1202
Col. Chapultepec Morales
Delegación Miguel Hidalgo
11570 México, Distrito Federal
Tel: (525) 55203 5294 / (525) 55203 5708
Fax: (525) 55203 6503
