ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-5
v1.0, July 2008

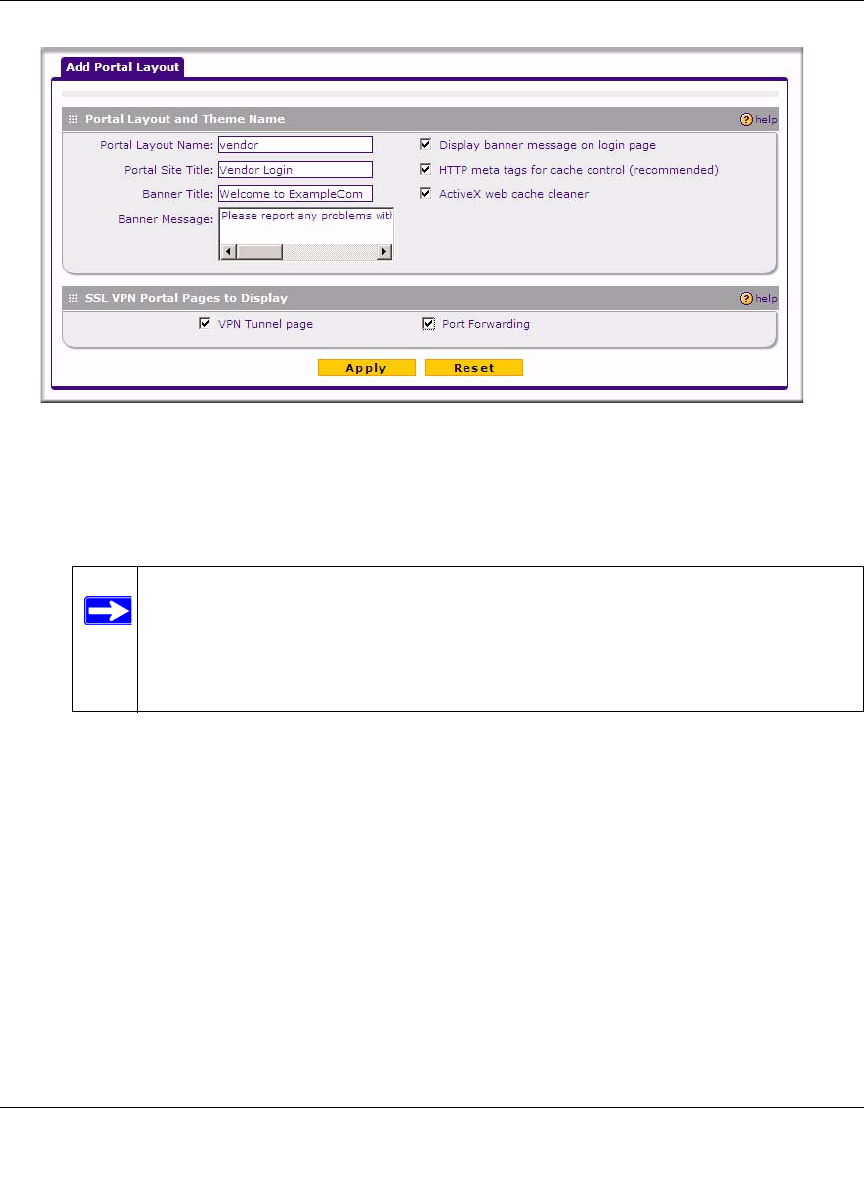

3. In the Portal Layout and Theme Name section of the menu, configure the following entries:
a. Enter a descriptive name for the portal layout in the Portal Layout Name field. This name
will be part of the path of the SSL VPN portal URL.
Only alphanumeric characters, hyphen (-), and underscore (_) are accepted for the Portal
Layout Name. If you enter other types of characters or spaces, the layout name will be
truncated before the first non-alphanumeric character. Note that unlike most other URLs,
this name is case sensitive.
b. In the Portal Site Title field, enter a title that will appear at the top of the user’s web
browser window.
c. To display a banner message to users before they log in to the portal, enter the banner title
text in the Banner Title field. Also enter the banner message text in the Banner Message
text area. Enter a plain text message or include HTML and JavaScript tags. The maximum
length of the login page message is 4096 characters. Select the Display banner message
Figure 7-2OK
Note: Custom portals are accessed at a different URL than the default portal. For
example, if your SSL VPN portal is hosted at
https://vpn.company.com, and you created a portal layout named “sales”,
then users will be able to access the sub-site at
https://vpn.company.com/portal/sales.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-6 Virtual Private Networking Using SSL
v1.0, July 2008
on login page checkbox to show the banner title and banner message text on the Login
screen as shown below
As shown in the figure, the banner title text is displayed in the orange header bar. The
banner message text is displayed in the grey header bar.
d. Check the Enable HTTP meta tags for cache control checkbox to apply HTTP meta tag
cache control directives to this Portal Layout. Cache control directives include:
<meta http-equiv=”pragma” content=”no-cache”>
<meta http-equiv=”cache-control” content=”no-cache”>
<meta http-equiv=”cache-control” content=”must-revalidate”>
These directives help prevent clients browsers from caching SSL VPN portal pages and
other web content.
e. Check the “ActiveX web cache cleaner checkbox to load an ActiveX cache control when
users log in to the SSL VPN portal.
Figure 7-3Need new screenshot
Note: NETGEAR strongly recommends enabling HTTP meta tags for security
reasons and to prevent out-of-date web pages, themes, and data being
stored in a user’s web browser cache.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-7
v1.0, July 2008
The web cache cleaner will prompt the user to delete all temporary Internet files, cookies
and browser history when the user logs out or closes the web browser window. The
ActiveX web cache control will be ignored by web browsers that don't support ActiveX.
4. In the SSL VPN Portal Pages to Display section, check the checkboxes for the portal pages
you wish users to access. Any pages that are not selected will not be visible from the portal
navigation menu. Your choices are:
• VPN Tunnel. Provides full network connectivity.
• Port Forwarding. Provides access to specific defined network services.
5. Click Apply to confirm your settings.
The “Operation succeeded” message appears at the top of the tab. Your new layout appears in
the List of Layouts table.
Configuring Domains, Groups, and Users
Remote users connecting to the SSL firewall must be authenticated before being allowed to access
the network. The login window presented to the user requires three items: a User Name, a
Password, and a Domain selection. The Domain determines the authentication method to be used
and the portal layout that will be presented.
You must create name and password accounts for your SSL VPN users. When you create a user
account, you must specify a group. Groups are used to simplify the application of access policies.
When you create a group, you must specify a domain. Therefore, you should create any needed
domains first, then groups, then user accounts.
To configure Domains, Groups, and Users, see “Adding Authentication Domains, Groups, and
Users” on page 8-1.
Configuring Applications for Port Forwarding
Port Forwarding provides access to specific defined network services. To define these services,
you must specify the internal addresses and TCP applications (port numbers) that will be
intercepted by the Port Forwarding client on the user’s PC. The client will reroute this traffic to the
firewall.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-8 Virtual Private Networking Using SSL
v1.0, July 2008
Adding Servers
To configure Port Forwarding, you must define the internal host machines (servers) and TCP
applications available to remote users. To add servers, follow these steps:

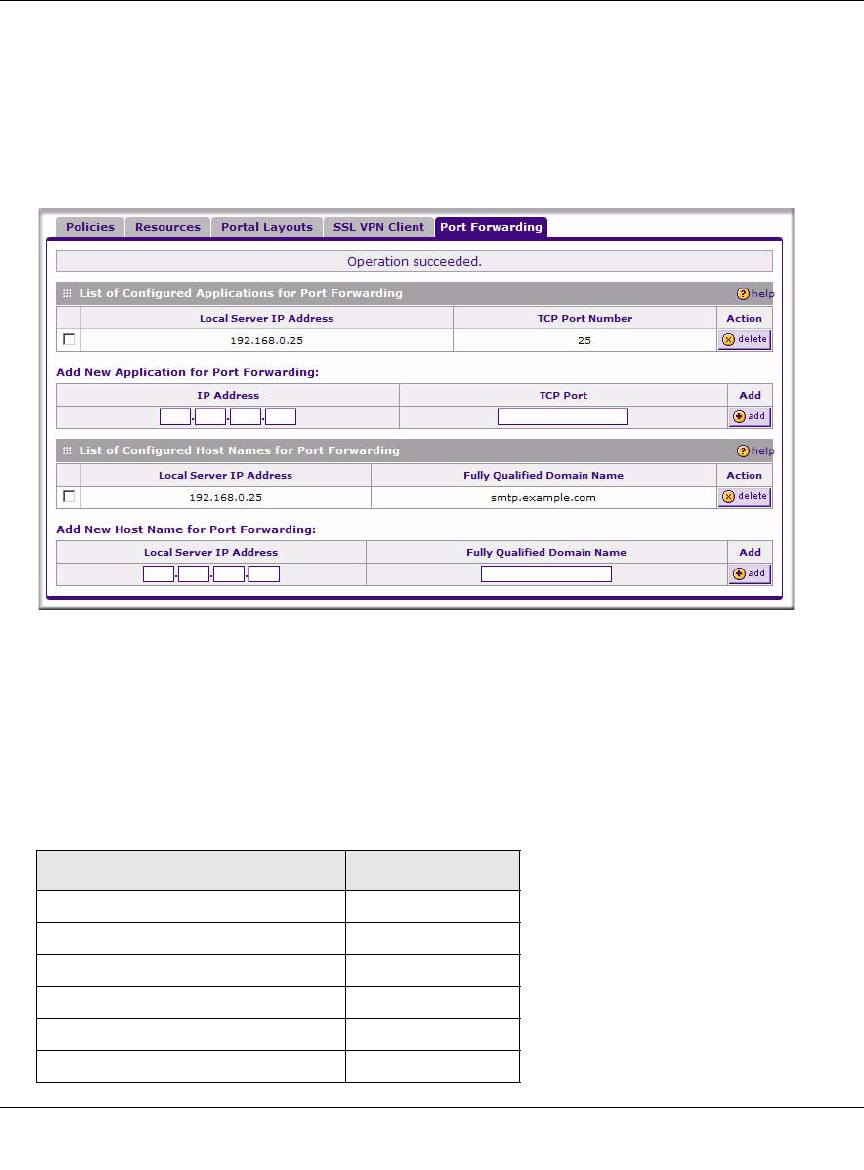

1. Select VPN > SSL VPN from the main/submenu, and then select the Port Forwarding tab. The
Port Forwarding screen display.
2. In the Add New Application for Port Forwarding section, enter the IP address of an internal
server or host computer.
3. In the TCP Port field, enter the TCP port number of the application to be tunneled. The table
below lists many commonly used TCP applications and port numbers.
Figure 7-4OK
Table 7-1. Port Forwarding Applications/TCP Port Numbers
TCP Application Port Number
FTP Data (usually not needed) 20
FTP Control Protocol 21
SSH 22a
Telnet 23a
SMTP (send mail) 25
HTTP (web) 80
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-9
v1.0, July 2008
4. Click Add.
The “Operation succeeded” message appears at the top of the tab, and the new application
entry is listed in the List of Configured Applications.
5. Repeat this process to add other applications for use in Port Forwarding.
Adding A New Host Name
Once the server IP address and port information has been configured, remote users will be able to
access the private network servers using Port Forwarding. As a convenience for users, you can also
specify host name to IP address resolution for the network servers. Host Name Resolution allows
users to access TCP applications at familiar addresses such as mail.example.com or
ftp.example.com rather than by IP addresses.
To add a host name for client name resolution, follow these steps:
1. Select the Port Forwarding tab, shown in Figure 7-4.
2. If the server you want to name does not appear in the List of Configured Applications for
Port Forwarding, you must add it before you can rename it.
3. In the Add New Host Name for Port Forwarding section, enter the IP address of the server
you want to name.
4. In the Fully Qualified Domain Name field, enter the full server name.
5. Click Add.
The “Operation succeeded” message appears at the top of the tab, and the new entry is listed in
the List of Configured Host Names.
POP3 (receive mail) 110
NTP (network time protocol) 123
Citrix 1494
Terminal Services 3389
VNC (virtual network computing) 5900 or 5800
a. Users can specify the port number together with the host
name or IP address.
Table 7-1. Port Forwarding Applications/TCP Port Numbers (continued)
TCP Application Port Number
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-10 Virtual Private Networking Using SSL
v1.0, July 2008
Remote users can now securely access network applications once they have logged into the SSL
VPN portal and launched Port Forwarding.
Configuring the SSL VPN Client
The SSL VPN Client within the SRXN3205 will assign IP addresses to remote VPN tunnel clients.
Because the VPN tunnel connection is a point-to-point connection, you can assign IP addresses
from the corporate subnet to the remote VPN tunnel clients.
Some additional considerations are:
• So that the virtual (PPP) interface address of a VPN tunnel client does not conflict with
addresses on the corporate network, configure an IP address range that does not directly
overlap with addresses on your local network. For example, if 192.168.1.1 through
192.168.1.100 are currently assigned to devices on your local network, then start the client
address range at 192.168.1.101 or choose an entirely different subnet altogether.
• The VPN tunnel client cannot contact a server on the corporate network if the VPN tunnel
client’s Ethernet interface shares the same IP address as the server or the firewall (for example,
if your laptop has a network interface IP address of 10.0.0.45, then you won’t be able to
contact a server on the remote network that also has the IP address 10.0.0.45).
• If you assign an entirely different subnet to the VPN tunnel clients than the subnet used by the
corporate network, you must
– Add a client route to configure the VPN tunnel client to connect to the corporate network
using the VPN tunnel.
– Create a static route on the corporate network’s firewall to forward local traffic intended
for the VPN tunnel clients to the firewall.
• Select whether you want to enable full tunnel or split tunnel support based on your bandwidth:
– Full tunnel. Sends all of the client’s traffic across the VPN tunnel.
– Split tunnel. Sends only traffic destined for the corporate network based on the specified
client routes. All other traffic is sent to the Internet. Split tunnel allows you to manage
your company bandwidth by reserving the VPN tunnel for corporate traffic only.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-11
v1.0, July 2008

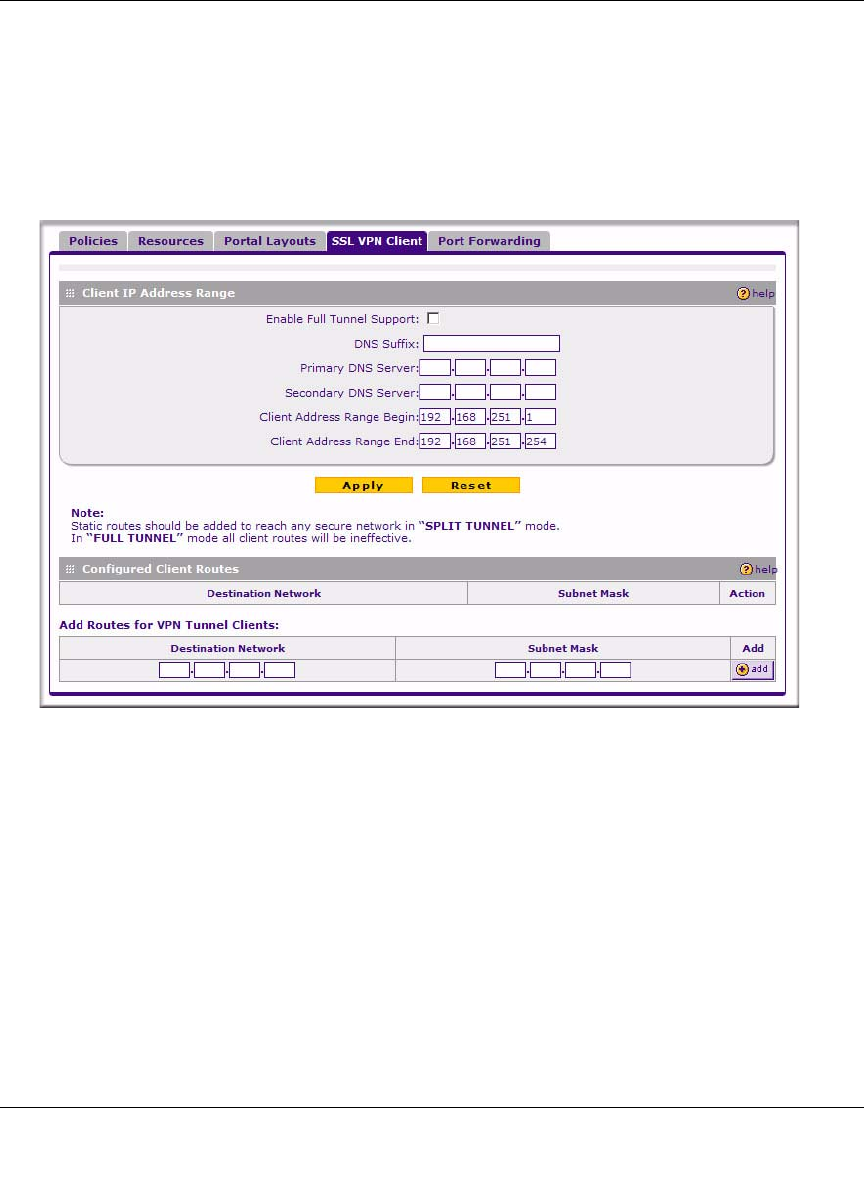

Configuring the Client IP Address Range
Determine the address range to be assigned to VPN tunnel clients, then define the address range.
To configure the client IP address range:
1. Select VPN > SSL VPN from the main/submenu, and then select the SSL VPN Client tab. The
SSL VPN Client screen displays.
2. Select Enable Full Tunnel Support unless you want split tunneling.
3. (Optional) Enter a DNS Suffix to be appended to incomplete DNS search strings.
4. Enter Primary and Secondary DNS Server IP addresses to be assigned to the VPN tunnel
clients.
5. In the Client Address Range Begin field, enter the first IP address of the IP address range.
6. In the Client Address Range End field, enter the last IP address of the IP address range.
7. Click Apply.
The “Operation succeeded” message appears at the top of the tab.
Figure 7-5OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-12 Virtual Private Networking Using SSL
v1.0, July 2008
VPN tunnel clients are now able to connect to the firewall and receive a virtual IP address in the
client address range.
Adding Routes for VPN Tunnel Clients
The VPN Tunnel Clients assume that the following networks are located across the VPN over the
SSL tunnel:
• The subnet containing the client IP address (PPP interface), as determined by the class of the
address (Class A, B, or C).
• Subnets specified in the Configured Client Routes table.
If the assigned client IP address range is in a different subnet than the corporate network, or the
corporate network has multiple subnets, you must define Client Routes.
To add an SSL VPN Tunnel client route, follow these steps:
1. Access the SSL VPN Client tab shown in Figure 7-5.
2. In the Add Routes section, enter the Destination Network IP address of a local area network
or subnet. For example, enter 192.168.0.0.
3. Enter the appropriate Subnet Mask.
4. Click Add.
The “Operation succeeded” message appears at the top of the tab and the new client route is
listed in the Configured Client Routes table.
Restart the firewall if VPN tunnel clients are currently connected. Restarting forces clients to
reconnect and receive new addresses and routes.
Replacing and Deleting Client Routes
If the specifications of an existing route need to be changed, follow these steps:
1. Make a new entry with the correct specifications.
2. In the Configured Client Routes table, click the Delete button in the actions column.
3. If an existing route is no longer needed for any reason, you can delete it.
Note: You must also add a static route on your corporate firewall that directs local traffic
destined for the VPN tunnel client address range to the firewall.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-13
v1.0, July 2008

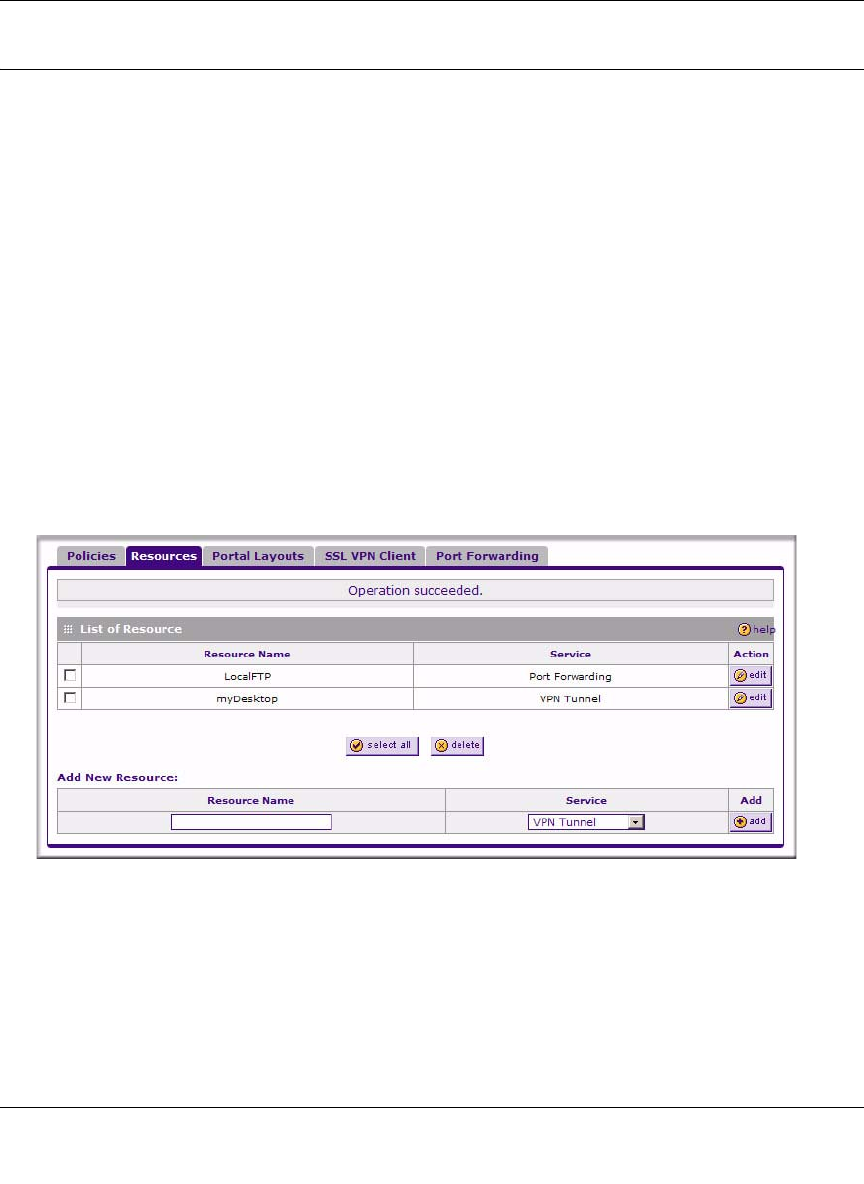

Using Network Resource Objects to Simplify Policies
Network resources are groups of IP addresses, IP address ranges, and services. By defining
resource objects, you can more quickly create and configure network policies. You will not need to
redefine the same set of IP addresses or address ranges when configuring the same access policies
for multiple users.
Defining network resources is optional; smaller organizations can choose to create access policies
using individual IP addresses or IP networks rather than predefined network resources. But for
most organizations, we recommend that you use network resources. If your server or network
configuration changes, by using network resources you can perform an update quickly instead of
individually updating all of the user and group policies.
Adding New Network Resources
To define a network resource:
1. Select VPN > SSL VPN from the main/submenu, and then select the Resources tab. The
Resources screen displays.
2. In the Add New Resource section, type the (qualified) resource name in the Resource Name
field.
3. In the Service pull-down menu, select the type of service to apply to the resource: either VPN
Tunnel or Port Forwarding.
4. Click Add.
Figure 7-6OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-14 Virtual Private Networking Using SSL
v1.0, July 2008
The “Operation succeeded” message appears at the top of the tab, and the newly-added
resource name appears on the List of Resources table.
5. Adjacent to the new resource, click the Edit button. The Add Resource Addresses screen
displays.
6. From the Object Type pull-down menu, select either IP Address or IP Network:
• If you selected IP Address, enter an IP address or fully qualified domain name in the IP
Address/Name field.
• If you selected IP Network, enter the IP network address in the Network Address field.
Enter the mask length in the Mask Length (0-31) field.
7. Enter the Port Range or Port Number for the IP Address or IP Network you selected.
8. Click Apply to add the IP address or IP network to the resource. The new configuration
appears in the Defined Resource Addresses table, as shown in Figure 7-7.
Configuring User, Group, and Global Policies
An administrator can define and apply user, group and global policies to predefined network
resource objects, IP addresses, address ranges, or all IP addresses and to different SSL VPN
Figure 7-7OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-15
v1.0, July 2008
services. A specific hierarchy is invoked over which policies take precedence. The firewall policy
hierarchy is defined as:
1. User Policies take precedence over all Group Policies.
2. Group Policies take precedence over all Global Policies.
3. If two or more user, group, or global policies are configured, the most specific policy takes
precedence.
For example, a policy configured for a single IP address takes precedence over a policy configured
for a range of addresses. And a policy that applies to a range of IP addresses takes precedence over
a policy applied to all IP addresses. If two or more IP address ranges are configured, then the
smallest address range takes precedence. Hostnames are treated the same as individual IP
addresses.
Network resources are prioritized just like other address ranges. However, the prioritization is
based on the individual address or address range, not the entire network resource.
For example, let’s assume the following global policy configuration:
• Policy 1: A Deny rule has been configured to block all services to the IP address range
10.0.0.0 – 10.0.0.255.
• Policy 2: A Deny rule has been configured to block FTP access to 10.0.1.2 – 10.0.1.10.
• Policy 3: A Permit rule has been configured to allow FTP access to the predefined network
resource, FTP Servers. The FTP Servers network resource includes the following addresses:
10.0.0.5 – 10.0.0.20 and ftp.company.com, which resolves to 10.0.1.3.
Assuming that no conflicting user or group policies have been configured, if a user attempted to
access:
• An FTP server at 10.0.0.1, the user would be blocked by Policy 1.
• An FTP server at 10.0.1.5, the user would be blocked by Policy 2.
• An FTP server at 10.0.0.10, the user would be granted access by Policy 3. The IP address
range 10.0.0.5 - 10.0.0.20 is more specific than the IP address range defined in Policy 1.
• An FTP server at ftp.company.com, the user would be granted access by Policy 3. A single
host name is more specific than the IP address range configured in Policy 2.
Note: The user would not be able to access ftp.company.com using its IP address
10.0.1.3. The firewall policy engine does not perform reverse DNS lookups.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-16 Virtual Private Networking Using SSL
v1.0, July 2008

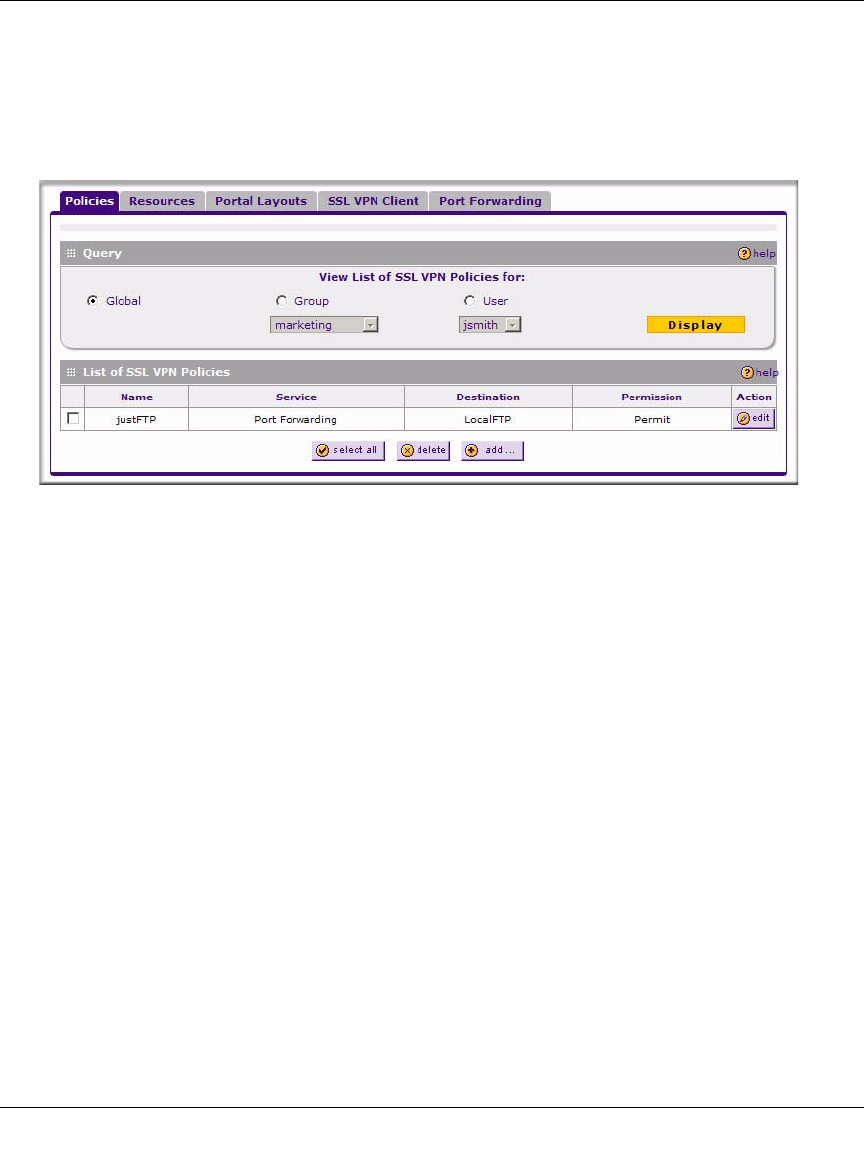

Viewing Policies
To view the existing policies, follow these steps:
1. Select VPN > SSL VPN from the main/submenu, and then select the Policies tab. The Policies
screen will display.
2. Make your selection from the following Query options:
• Click Global to view all global policies.
• Click Group to view group policies, and choose the relevant group’s name from the pull-
down menu.
• Click User to view group policies, and choose the relevant user’s name from the pull-
down menu.
3. Click the Display button. The List of SSL VPN Policies will display the list for your selected
Query option. Change Query selection and click display again for each of the three queries.
Adding a Policy
To add a policy, follow these steps:
Figure 7-8OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-17
v1.0, July 2008
1. Select VPN > SSL VPN from the main/submenu, and select the Policies tab. The Policies
screen displays.
2. Make your selection from the following Query options:
• Click Global if this new policy is to exclude all users and groups.
• Click Group if this new policy is to be limited to a selected group.
Open the pull-down menu and choose the relevant group’s name.
• Click User if this new policy is to be limited to a selected user.
Open the pull-down menu and choose the individual user’s name.
3. Click Add. The Add Policies screen appears.
4. In the Add SSL VPN Policies section, review the Apply Policy To options and click one.
Depending upon your selection, specific options to the right are activated or inactivated as
noted in the following:

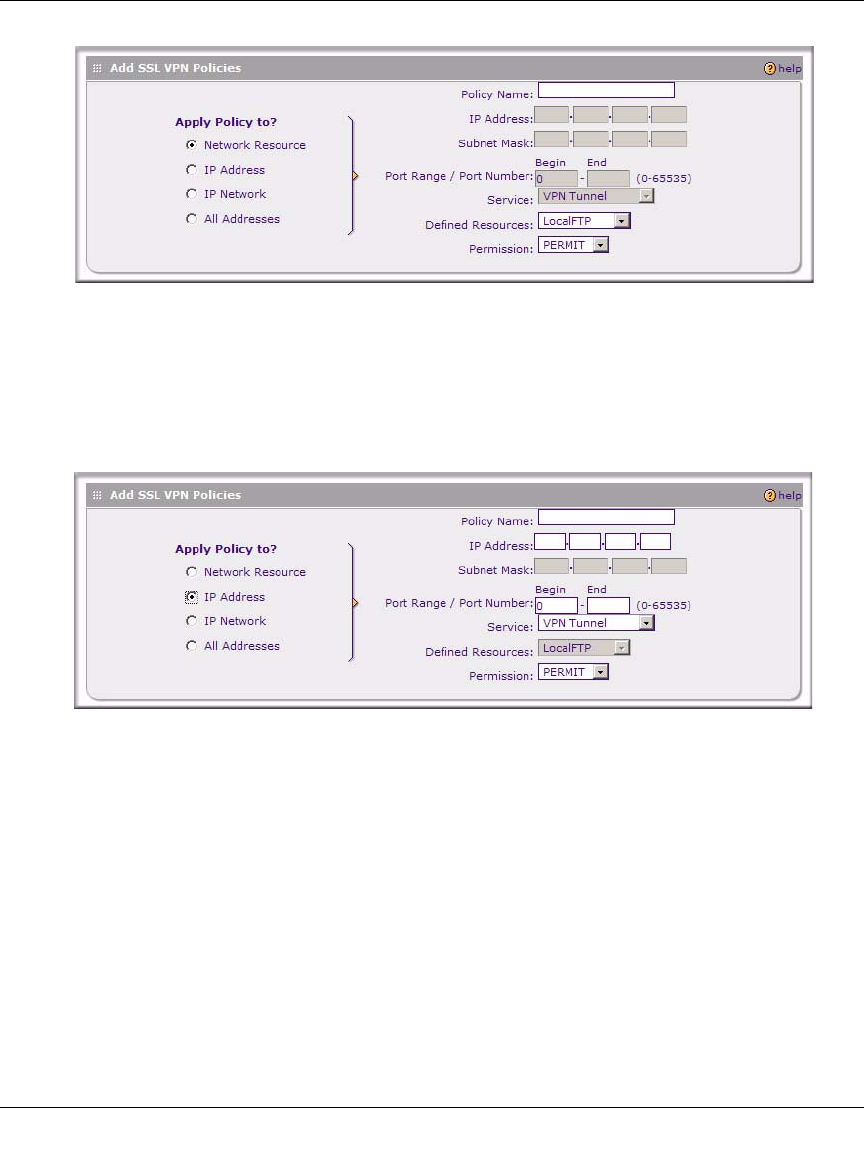

• If you choose Network Resource, you’ll need to enter a descriptive Policy Name, then
choose a Defined Resource and relevant Permission (PERMIT or DENY) from the pull-
down menus.
Figure 7-9OK
Note: You should have already created the needed groups or users as described in
“Adding Authentication Domains, Groups, and Users” on page 8-1.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-18 Virtual Private Networking Using SSL
v1.0, July 2008
If a needed network resource has not been defined, you can add it before proceeding with
this new policy. See “Adding New Network Resources ” on page 7-13.
• If you choose IP Address, you’ll need to enter a descriptive Policy Name, the specific IP
Address, then choose the Service and relevant Permission from the pull-down menus.

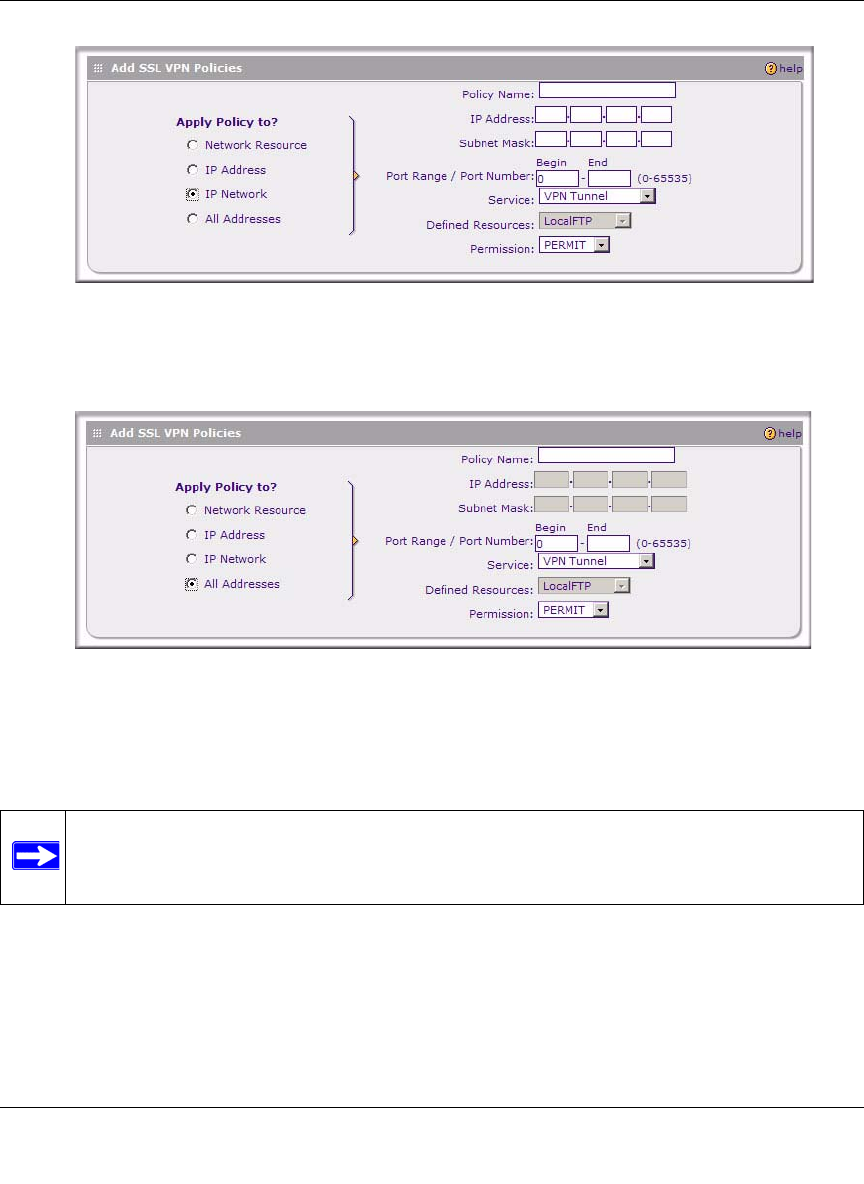

• If you choose IP Network, you’ll need to enter a descriptive Policy Name, IP Address,
Subnet Mask, then choose the Service and relevant Permission from the pull-down
menus.
Figure 7-10
Figure 7-11
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Virtual Private Networking Using SSL 7-19
v1.0, July 2008
• If you choose All Addresses, you’ll need to enter a descriptive Policy Name, then choose
the Service and relevant Permission from the pull-down menus.
5. When you are finished making your selections, click Apply. The Policies screen reappears.
Your policy goes into effect immediately and is added to the policies in the List of SSL VPN
Policies table on this screen.
Figure 7-12
Figure 7-13

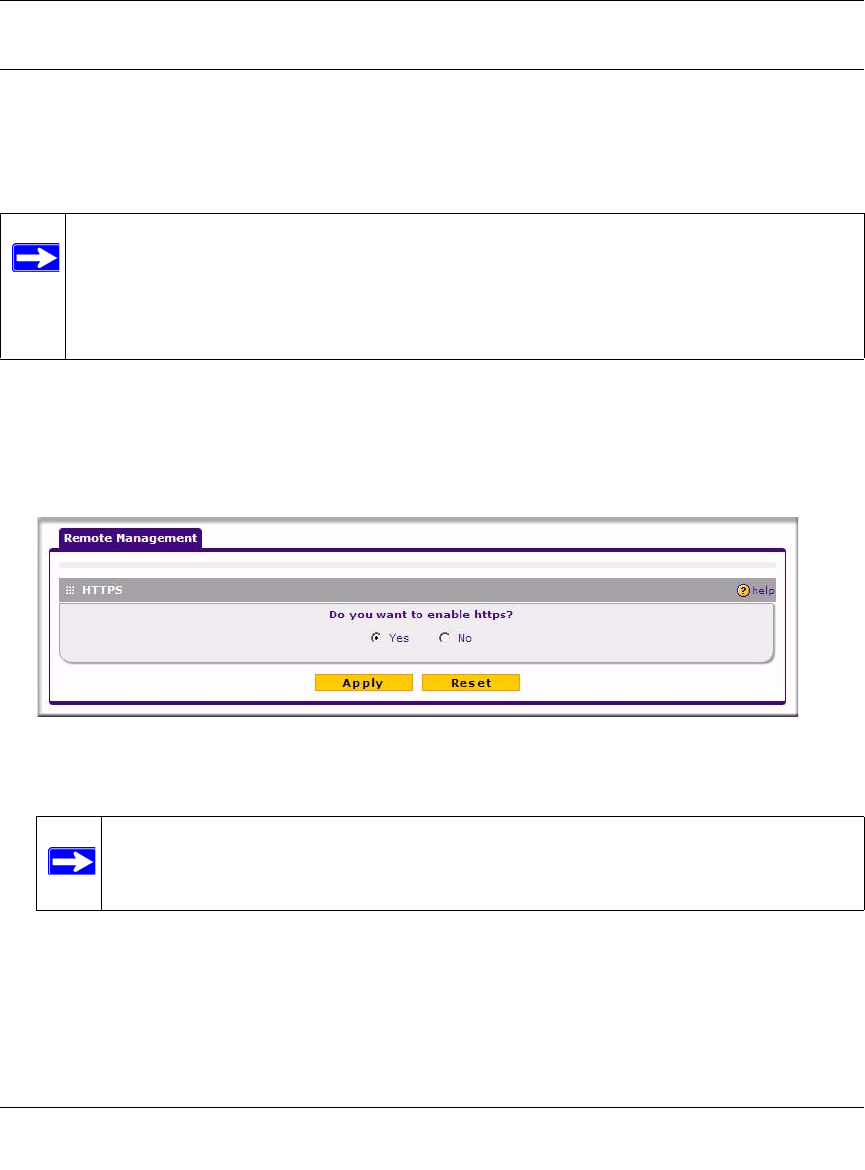

Note: In addition to configuring SSL VPN user policies, be sure that HTTPS remote
management is enabled. Otherwise, all SSL VPN user connections will be
disabled. See “Enabling Remote Management Access” on page 9-10.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
7-20 Virtual Private Networking Using SSL
v1.0, July 2008
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-1
v1.0, July 2008
Chapter 8
Managing Users, Authentication, and Certificates
This chapter contains the following sections:
•“Adding Authentication Domains, Groups, and Users”
•“Managing Certificates”
Adding Authentication Domains, Groups, and Users
You must create name and password accounts for all users who will connect to the firewall. This
includes administrators and SSL VPN clients. Accounts for IPsec VPN clients are only needed if
you have enabled Extended Authentication (XAUTH) in your IPsec VPN configuration.
Users connecting to the firewall must be authenticated before being allowed to access the firewall
or the VPN-protected network. The login window presented to the user requires three items: a
User Name, a Password, and a Domain selection. The Domain determines the authentication
method to be used and, for SSL VPN connections, the portal layout that will be presented.
Except in the case of IPsec VPN users, when you create a user account, you must specify a group.
When you create a group, you must specify a domain. Therefore, you should create any needed
domains first, then groups, then user accounts.
Creating a Domain
The domain determines the authentication method to be used for associated users. For SSL VPN
connections, the domain also determines the portal layout that will be presented, which in turn
determines the network resources to which the associated users will have access.
To create a domain:

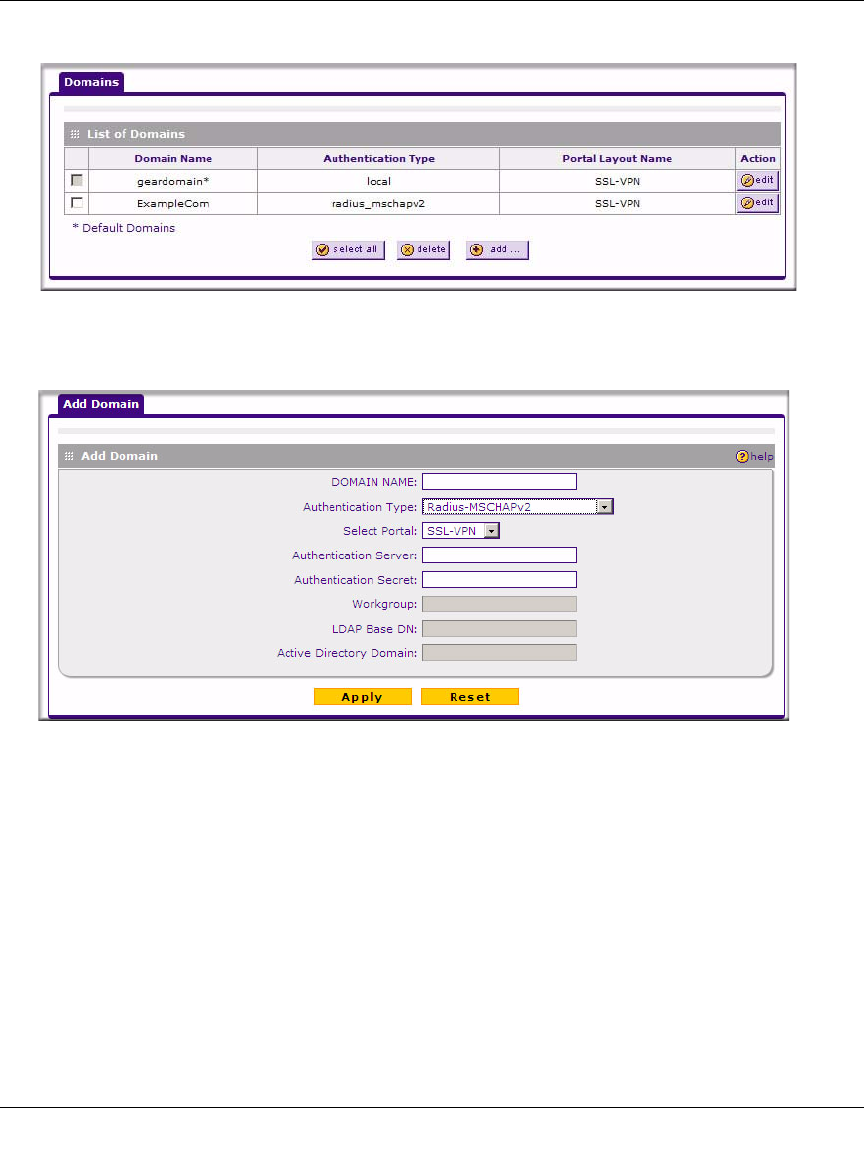

1. Select Users > Domains from the main/sub-menu. The Domains screen displays.
Note: IPsec VPN users will always belong to the default domain (geardomain) and are
not assigned to groups.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-2 Managing Users, Authentication, and Certificates
v1.0, July 2008
2. Click Add. The Add Domain screen displays.
3. Configure the following fields:
a. Enter a descriptive name for the domain in the Domain Name field.
b. Select the Authentication Type.
Figure 8-1OK
Figure 8-2OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-3
v1.0, July 2008
The required fields are activated in varying combinations according to your selection of
Authentication Type:
c. Select a portal to which this domain will be associated.
4. Click Apply to save and apply your entries. The Domain screen will display a new domain
row.
Creating a Group
The use of groups simplifies the configuration of VPN policies when different sets of users will
have different restrictions and access controls.
To create a group:

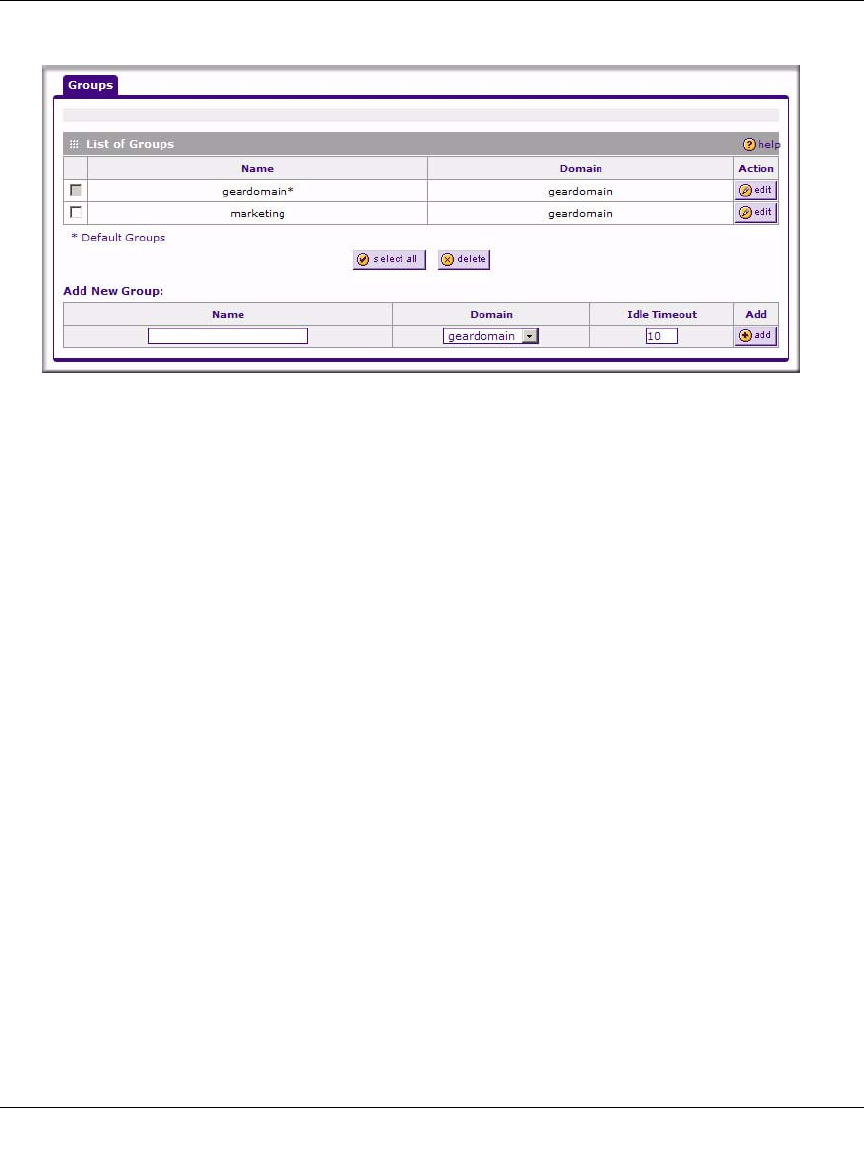

1. Select Users > Groups from the main/submenu and the Groups screen displays.
Authentication Type Required Authentication Information Fields
Local User Database None
Radius-PAP Authentication Server, Authentication Secret
Radius-CHAP Authentication Server, Authentication Secret
Radius-MSCHAP Authentication Server, Authentication Secret
Radius-MSCHAPv2 Authentication Server, Authentication Secret
NT Domain Authentication Server, Workgroup
Active Directory Authentication Server, Active Directory Domain
LDAP Authentication Server, LDAP Base DN
Note: Groups that are defined in the User menu are used for setting SSL VPN policies.

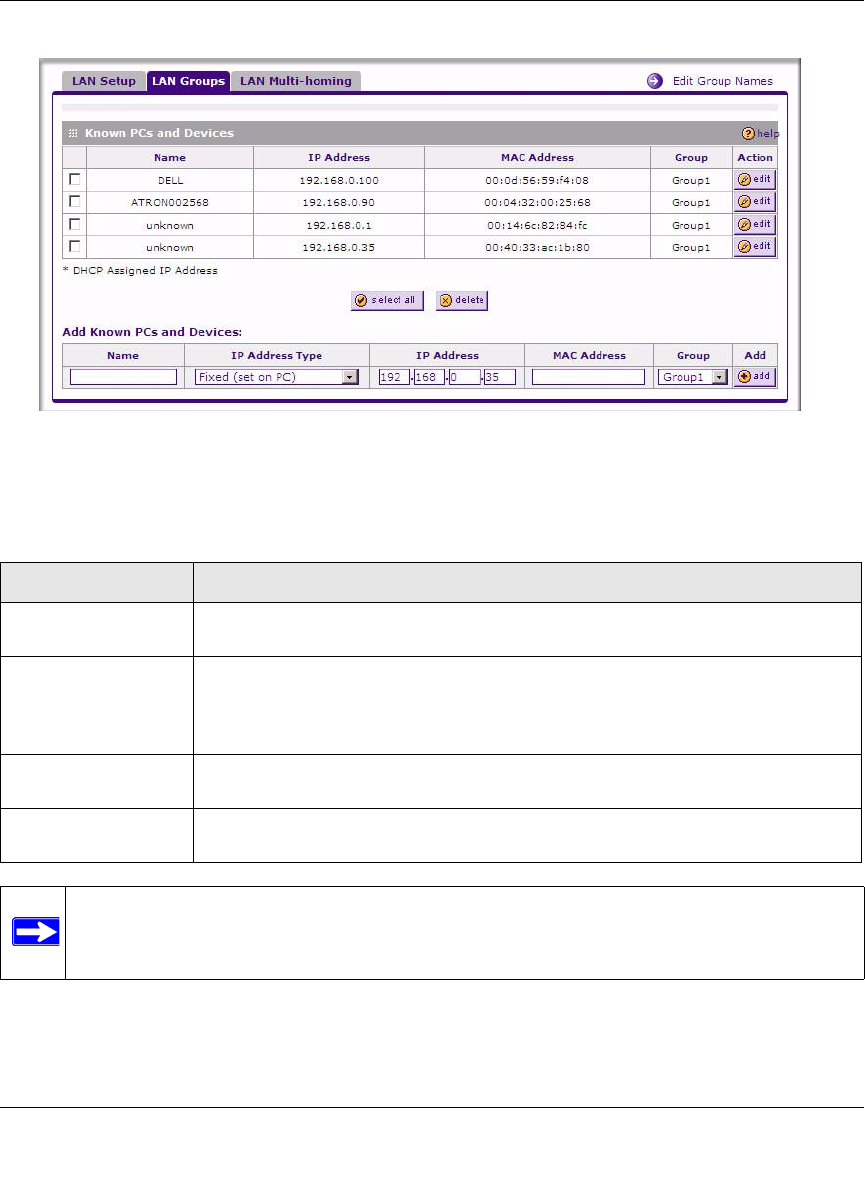

These groups should not be confused with LAN Groups that are defined in the
Network | LAN Setup | LAN Groups tab, which are used to simplify firewall
policies.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-4 Managing Users, Authentication, and Certificates
v1.0, July 2008
2. Configure the new group settings in the Add New Group section of the menu:
a. Name. Enter a descriptive name for the group.
b. Domain. Select the appropriate domain (only for Administrator or SSL VPN User).
c. Timeout. For an Administrator, this is the period at which an idle user will be
automatically logged out of the Web Configuration Manager
3. Click Add.
The new group appears in the List of Groups, ready for use in user account setup.

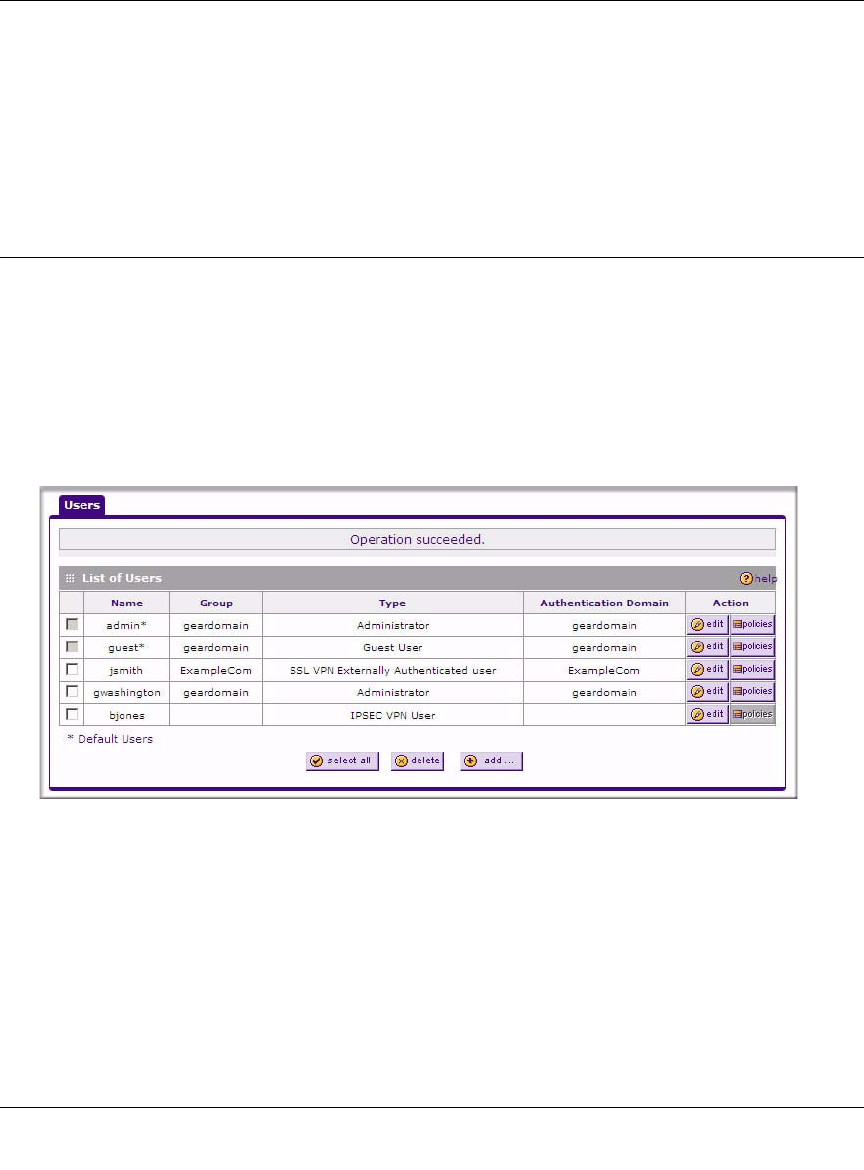

Creating a New User Account
To add individual user accounts:
1. Select Users > Users from the main/submenu and the Users screen displays.
Figure 8-3OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-5
v1.0, July 2008
.
2. Click Add and the Add User tab screen displays.
3. Configure the following fields:
a. User Name. Enter a unique identifier, using any alphanumeric characters.
b. User Type. Select either Administrator, SSL VPN User, or IPsec VPN User.
c. Select Group. Select from a list of configured groups. The user will be associated with the
domain that is associated with that group.
d. Password/Confirm Password. The password can contain alphanumeric characters, dash,
and underscore.
Figure 8-4Ok
Figure 8-5Ok
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-6 Managing Users, Authentication, and Certificates
v1.0, July 2008
e. Idle Timeout. For an Administrator, this is the period at which an idle user will be
automatically logged out of the Web Configuration Manager.
4. Click Apply to save and apply your entries. The new user appears in the List of Users.
Setting User Login Policies
You can restrict the ability of defined users to log into the Web Configuration Manager. You can
also require or prohibit logging in from certain IP addresses or using particular browsers.
To configure user login policies:

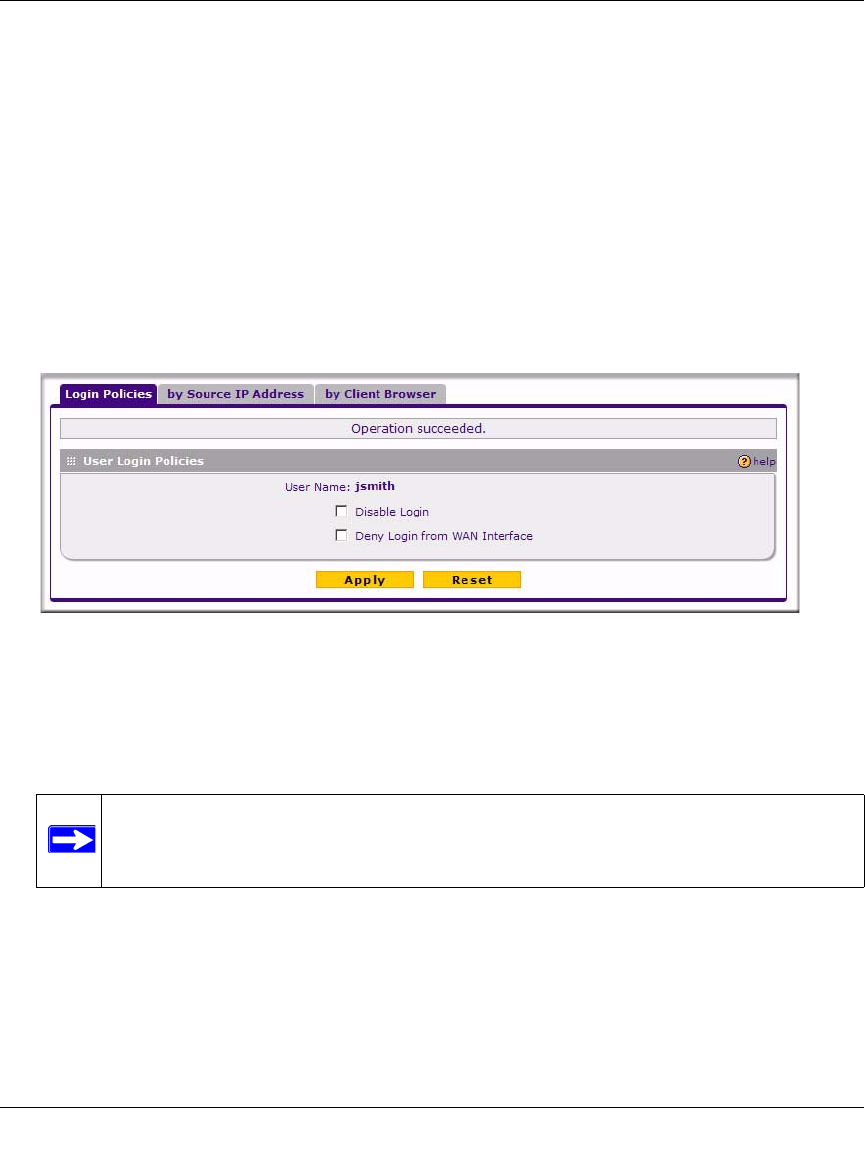

1. In the Action column of the List of Users table, click Policies adjacent to the user policy you
want to configure. The Login Policies screen displays:
2. To prohibit this user from logging in to the firewall, select the Disable Login checkbox.
3. To prohibit this user from logging in from the WAN interface, select the Deny Login from
WAN Interface checkbox. In this case, the user can log in only from the LAN interface.
4. Click Apply to save your settings.
Figure 8-6ok
Note: For security reasons, Deny Login from WAN Interface is checked by default
for admin and guest.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-7
v1.0, July 2008

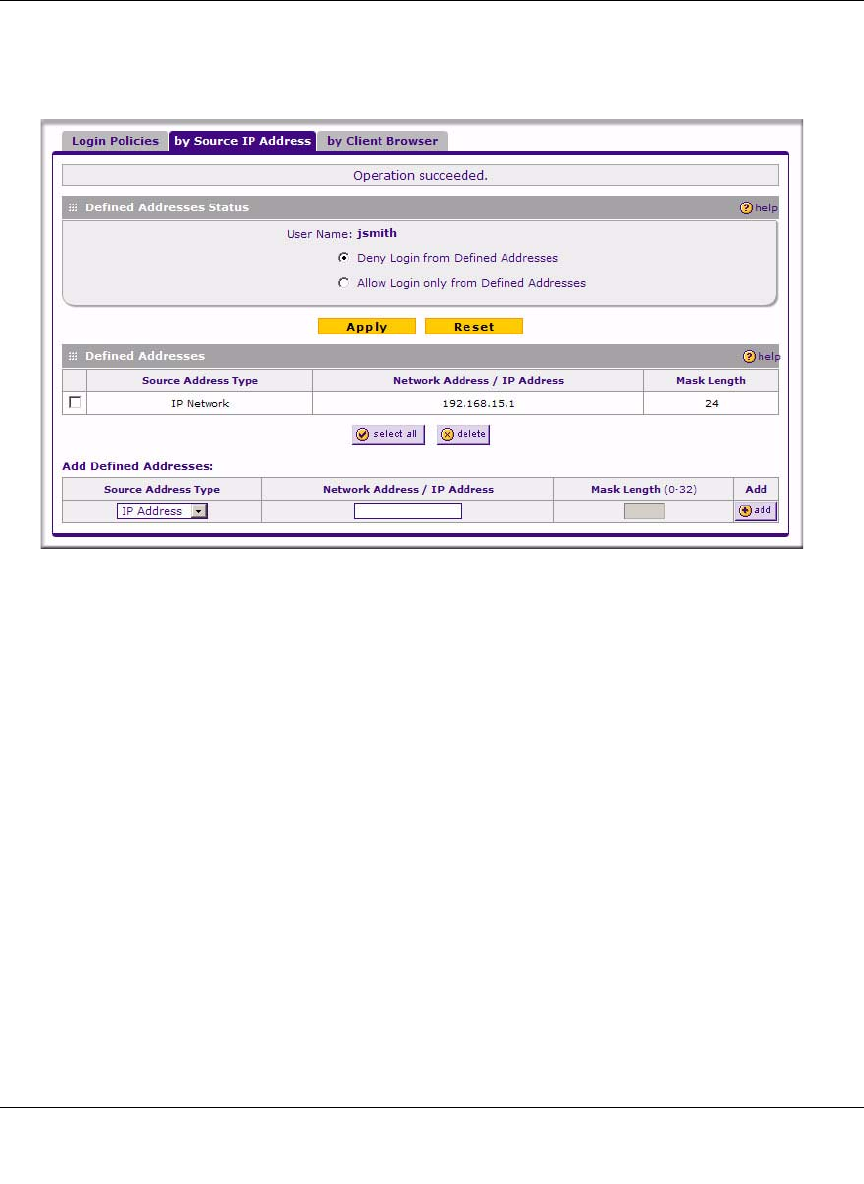

To restrict logging in based on IP address:
1. Select the by Source IP Address tab and the by Source IP Address screen displays.
2. In the Defined Addresses Status section, select:
•the Deny Login from Defined Addresses to deny logging in from the IP addresses that
you will specify
•the Allow Login only from Defined Addresses to allow logging in from the IP addresses
that you will specify.
3. Click Apply.
4. To specify a single IP address, select IP Address from the Source Address Type pull-down
menu and enter the IP address in the Network Address/IP address field.
5. To specify a subnet of IP addresses, select IP Network from the Source Address Type pull-
down menu. Enter the network address and netmask length in the Network Address/IP
address field.
6. Click Add to move the defined address to the Defined Addresses table.
7. Repeat these steps to add additional addresses or subnets.
Figure 8-7ok
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-8 Managing Users, Authentication, and Certificates
v1.0, July 2008

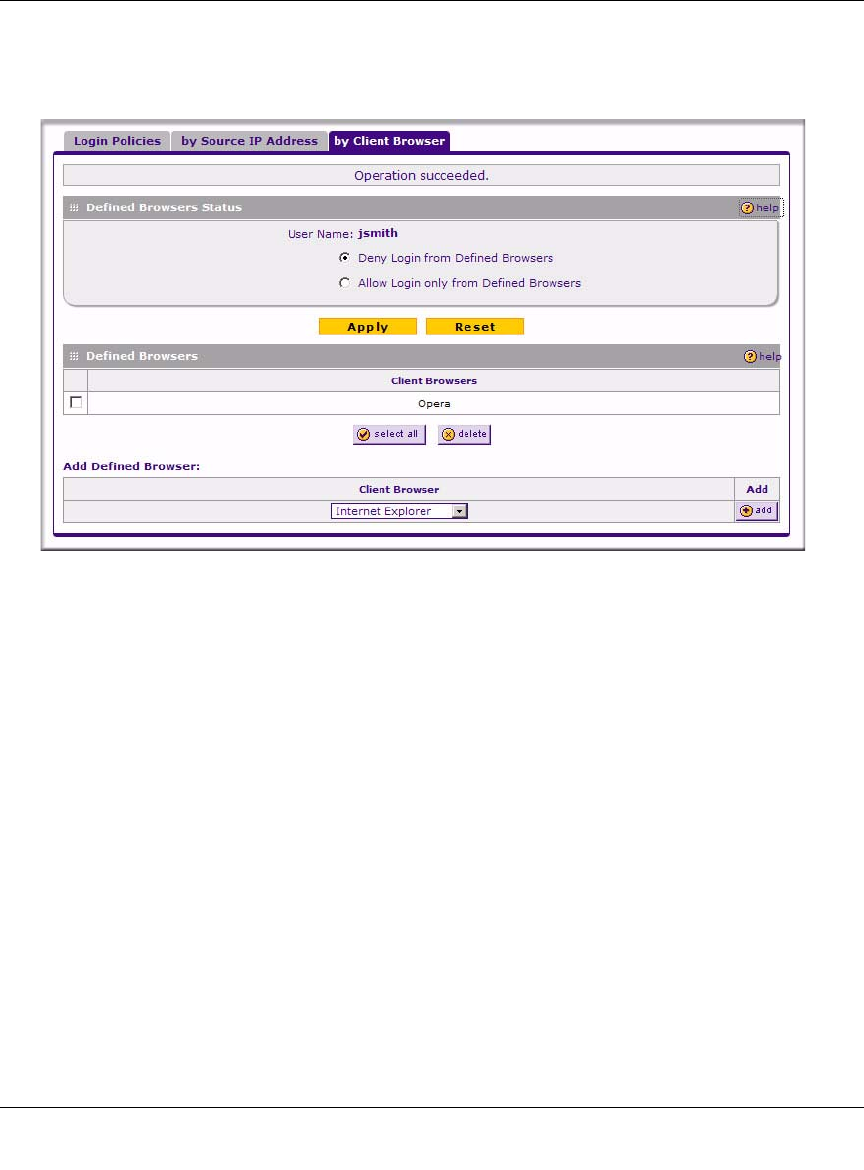

To restrict logging in based on the user’s browser:
1. Select the by Client Browser tab. The by Client Browser screen will display.
2. In the Defined Browsers Status section, select:
•the Deny Login from Defined Browsers to deny logging in from browsers that you will
specify.
•the Allow Login only from Defined Browsers to allow logging in from browsers that you
will specify.
3. From the Add Defined Browser selection, select a browser from the Client Browser pull-
down menu and click Add to move the defined browser to the Defined Browsers table.
4. Repeat these steps to add additional browsers, then click Apply to save your changes.
Figure 8-8ok
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-9
v1.0, July 2008
Managing Certificates
The firewall uses digital certificates to authenticate connecting VPN gateways or clients, and to be
authenticated by remote entities. A certificate that authenticates a server, for example, is a file that
contains:
• A public encryption key to be used by clients for encrypting messages to the server.
• Information identifying the operator of the server.
• A digital signature confirming the identity of the operator of the server. Ideally, the signature is
from a trusted third party whose identity can be verified absolutely.
You can obtain a certificate from a well-known commercial Certificate Authority (CA) such as
Verisign or Thawte, or you can generate and sign your own certificate. Because a commercial CA
takes steps to verify the identity of an applicant, a certificate from a commercial CA provides a
strong assurance of the server’s identity. A self-signed certificate will trigger a warning from most
browsers as it provides no protection against identity theft of the server.
Your firewall contains a self-signed certificate from NETGEAR. We recommend that you replace
this certificate prior to deploying the firewall in your network.
From the VPN > Certificates main menu/submenu, you can view the currently loaded certificates,
upload a new certificate and generate a Certificate Signing Request (CSR). Your firewall will
typically hold two types of certificates:
• CA certificate. Each CA issues its own CA identity certificate in order to validate
communication with the CA and to verify the validity of certificates signed by the CA.
• Self certificate. The certificate issued to you by a CA identifying your device.
Viewing and Loading CA Certificates
The Trusted Certificates (CA Certificates) table lists the certificates of CAs and contains the
following data:
•CA Identity (Subject Name). The organization or person to whom the certificate is issued.
•Issuer Name. The name of the CA that issued the certificate.
•Expiry Time. The date after which the certificate becomes invalid.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-10 Managing Users, Authentication, and Certificates
v1.0, July 2008

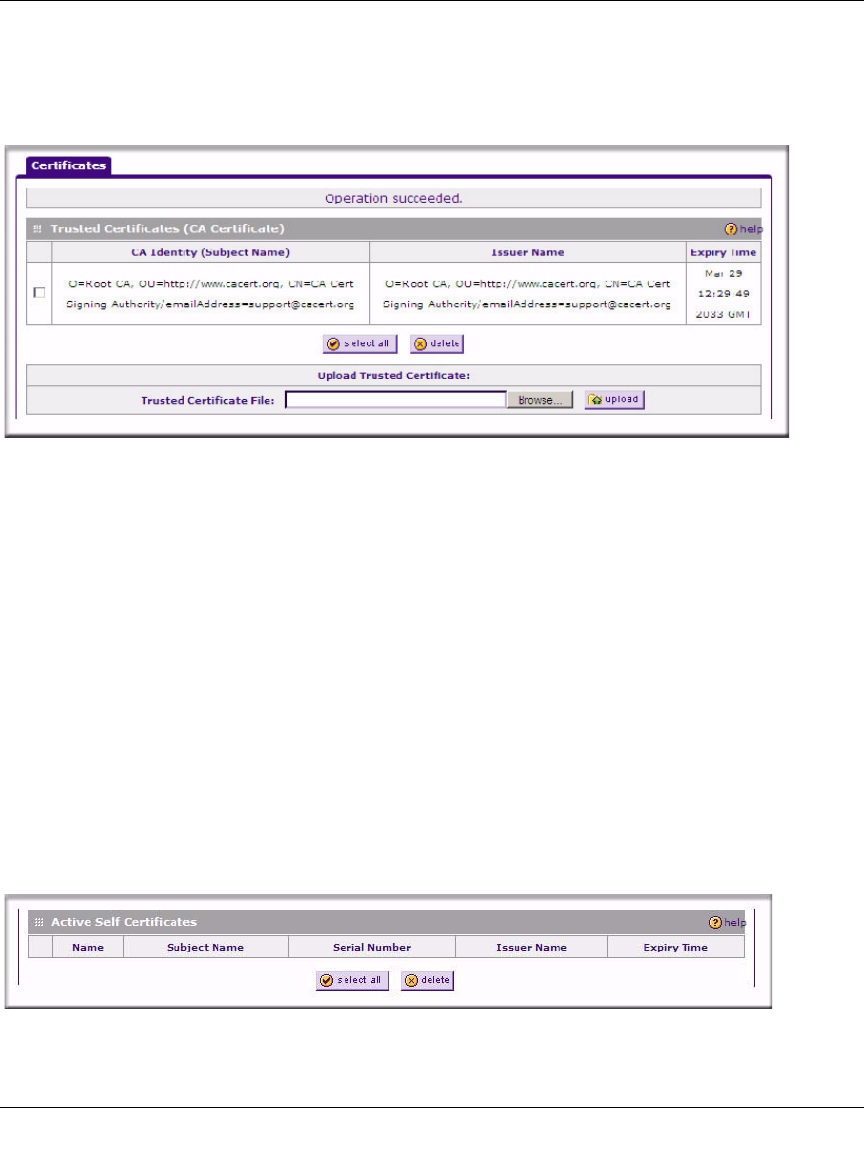

To view the VPN Certificates:
Select VPN > Certificates from the main/sub-menu and the Certificates screen displays.
The top section of the Certificates screen displays the Trusted Certificates (CA Certificates).
When you obtain a self certificate from a CA, you will also receive the CA certificate. In addition,
many CAs make their certificates available on their websites.
To load a CA certificate into your firewall:
1. Store the CA certificate file on your computer.
2. Under Upload Trusted Certificates in the Certificates menu, click Browse and locate the CA
certificate file.
3. Click Upload. The CA Certificate will appear in the Trusted Certificates (CA Certificates)
table.
Viewing Active Self Certificates
The Active Self Certificates table in the Certificates screen shows the certificates issued to you by
a CA and available for use.
Figure 8-9Maybe OK??
Figure 8-10OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-11
v1.0, July 2008
For each self certificate, the following data is listed:
•Name. The name you used to identify this certificate.
•Subject Name. This is the name that other organizations will see as the holder (owner) of this
certificate. This should be your registered business name or official company name. Generally,
all of your certificates should have the same value in the Subject field.
•Serial Number. This is a serial number maintained by the CA. It is used to identify the
certificate with in the CA.
•Issuer Name. The name of the CA that issued the certificate.
•Expiry Time. The date on which the certificate expires. You should renew the certificate
before it expires.
Obtaining a Self Certificate from a Certificate Authority
To use a self certificate, you must first request the certificate from the CA, then download and
activate the certificate on your system. To request a self certificate from a CA, you must generate a
Certificate Signing Request (CSR) for your firewall. The CSR is a file containing information
about your company and about the device that will hold the certificate. Refer to the CA for
guidelines on the information you include in your CSR.

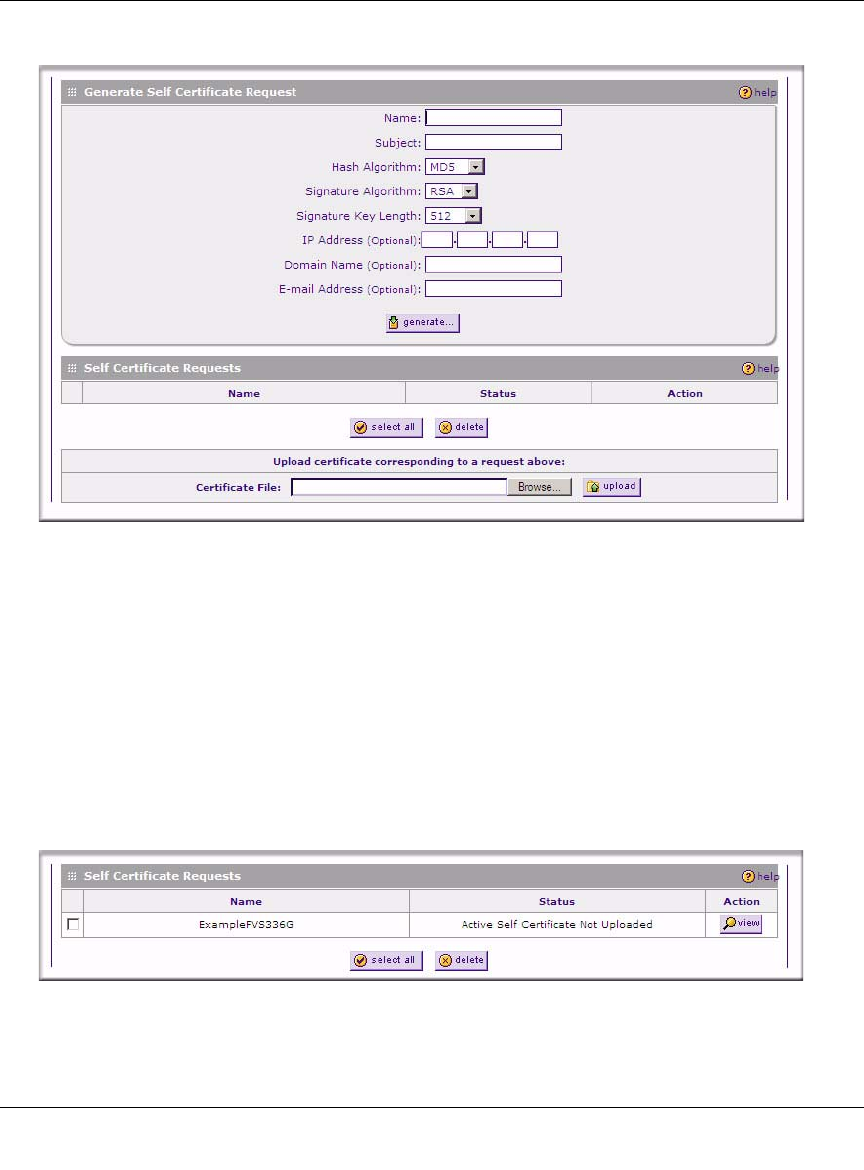

To generate a new Certificate Signing Request (CSR) file:
1. Locate the Generate Self Certificate Request section of the Certificates screen.
2. Configure the following fields:
•Name – Enter a descriptive name that will identify this certificate.
•Subject – This is the name which other organizations will see as the holder (owner) of the
certificate. Since this name will be seen by other organizations, you should use your
registered business name or official company name. (Using the same name, or a derivation
of the name, in the Title field would be useful.)
• From the pull-down menus, choose the following values:
– Hash Algorithm: MD5 or SHA2.
– Signature Algorithm: RSA.
– Signature Key Length: 512, 1024, 2048. (Larger key sizes may improve security, but
may also decrease performance.)
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-12 Managing Users, Authentication, and Certificates
v1.0, July 2008
3. Complete the Optional fields, if desired, with the following information:
•IP Address – If you have a fixed IP address, you may enter it here. Otherwise, you should
leave this field blank.
•Domain Name – If you have an Internet domain name, you can enter it here. Otherwise,
you should leave this field blank.
•E-mail Address – Enter the e-mail address of a technical contact in your organization.
4. Click Generate. A new certificate request is created and added to the Self Certificate
Requests table.
Figure 8-11OK
Figure 8-12Need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-13
v1.0, July 2008

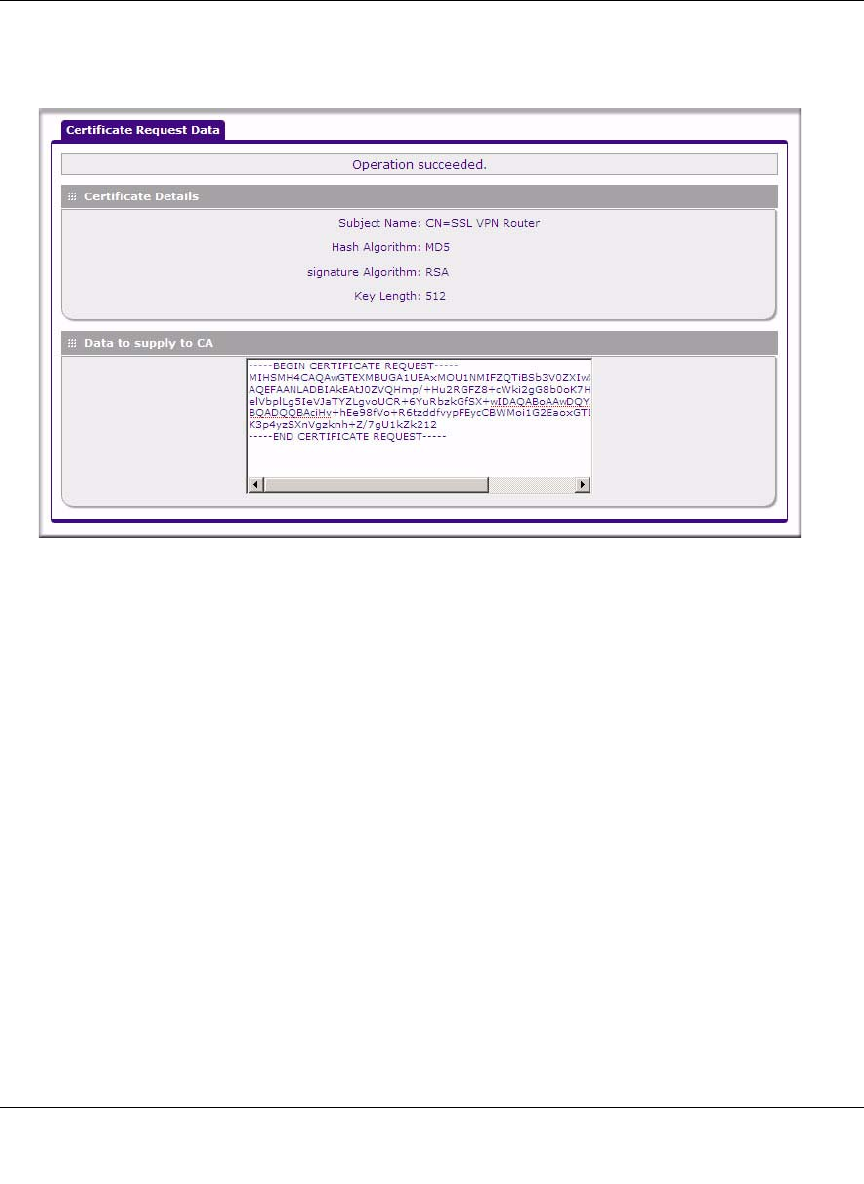

5. In the Self Certificate Requests table, click View under the Action column to view the
request.
6. Copy the contents of the Data to supply to CA text box into a text file, including all of the
data contained from “----BEGIN CERTIFICATE REQUEST---” to “---END CERTIFICATE
REQUEST---”.
7. Submit your certificate request to a CA:
a. Connect to the website of the CA.
b. Start the Self Certificate request procedure.
c. When prompted for the requested data, copy the data from your saved text file (including
“----BEGIN CERTIFICATE REQUEST---” and “---END CERTIFICATE REQUEST”).
d. Submit the CA form. If no problems occur, the certificate will be issued.
8. Store the certificate file from the CA on your computer and backup the certificate file from the
CA in another location.
Figure 8-13OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-14 Managing Users, Authentication, and Certificates
v1.0, July 2008

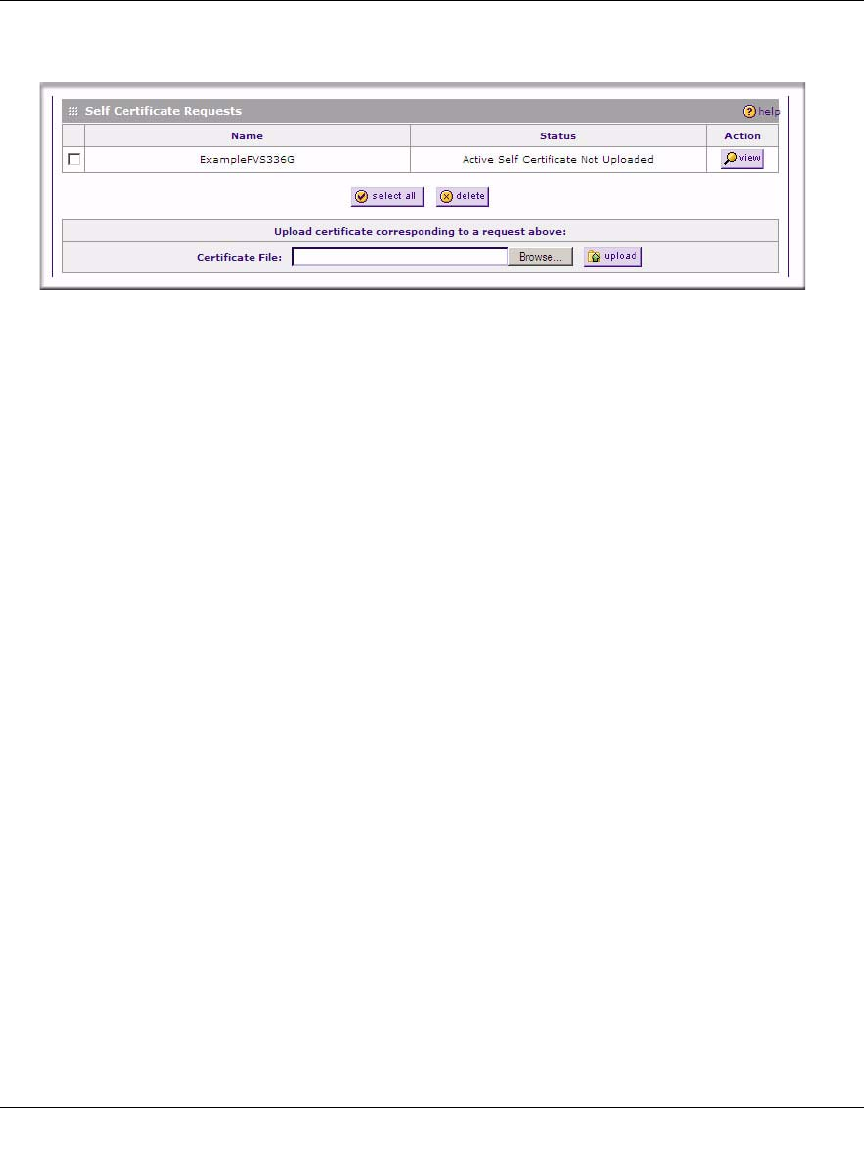

9. Return to the Certificates screen and locate the Self Certificate Requests section..
10. Select the checkbox next to the certificate request, then click Browse and locate the certificate
file on your PC.
11. Click Upload. The certificate file will be uploaded to this device and will appear in the Active
Self Certificates list.
If you have not already uploaded the CA certificate, do so now, as described in “The top section of
the Certificates screen displays the Trusted Certificates (CA Certificates).” on page 8-10. You
should also periodically check your CA’s Certificate Revocation List, as described in “Managing
your Certificate Revocation List (CRL)” on page 8-14.
Managing your Certificate Revocation List (CRL)
A CRL file shows certificates that have been revoked and are no longer valid. Each CA issues their
own CRLs. It is important that you keep your CRLs up-to-date. You should obtain the CRL for
each CA regularly.
In the Certificates menu, you can view your currently-loaded CRLs and upload a new CRL.
To view and upload CRLs:
1. Select VPN > Certificates from the main/submenu.
The Certificates menu will display showing the Certificate Revocation Lists (CRL) table at
the bottom of the screen.
Figure 8-14need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Managing Users, Authentication, and Certificates 8-15
v1.0, July 2008
The CRL table lists your active CAs and their critical release dates:
•CA Identify – The official name of the CA which issued this CRL.
•Last Update – The date when this CRL was released.
•Next Update – The date when the next CRL will be released.
2. Click Browse and locate the CRL file you previously downloaded from a CA.
3. Click Upload. The CRL file will be uploaded and the CA Identity will appear in the
Certificate Revocation Lists (CRL) table. If you had a previous CA Identity from the same
CA, it will be deleted.
Figure 8-15OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
8-16 Managing Users, Authentication, and Certificates
v1.0, July 2008
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-1
v1.0, July 2008
Chapter 9
Firewall and Network Management
This chapter describes how to use the network management features of your ProSafe Wireless-N
VPN Firewall. These features can be found by clicking on the appropriate heading in the Main
Menu of the browser interface.
The ProSafe Wireless-N VPN Firewall offers many tools for managing the network traffic to
optimize its performance. You can also control administrator access, be alerted to important events
requiring prompt action, monitor the firewall status, perform diagnostics, and manage the firewall
configuration file.
This chapter contains the following sections:
•“Performance Management”
•“Changing Passwords and Administrator Settings”
•“Enabling Remote Management Access”
•“Using an SNMP Manager”
•“Settings Backup and Firmware Upgrade”
•“Configuring Time Zone Settings”

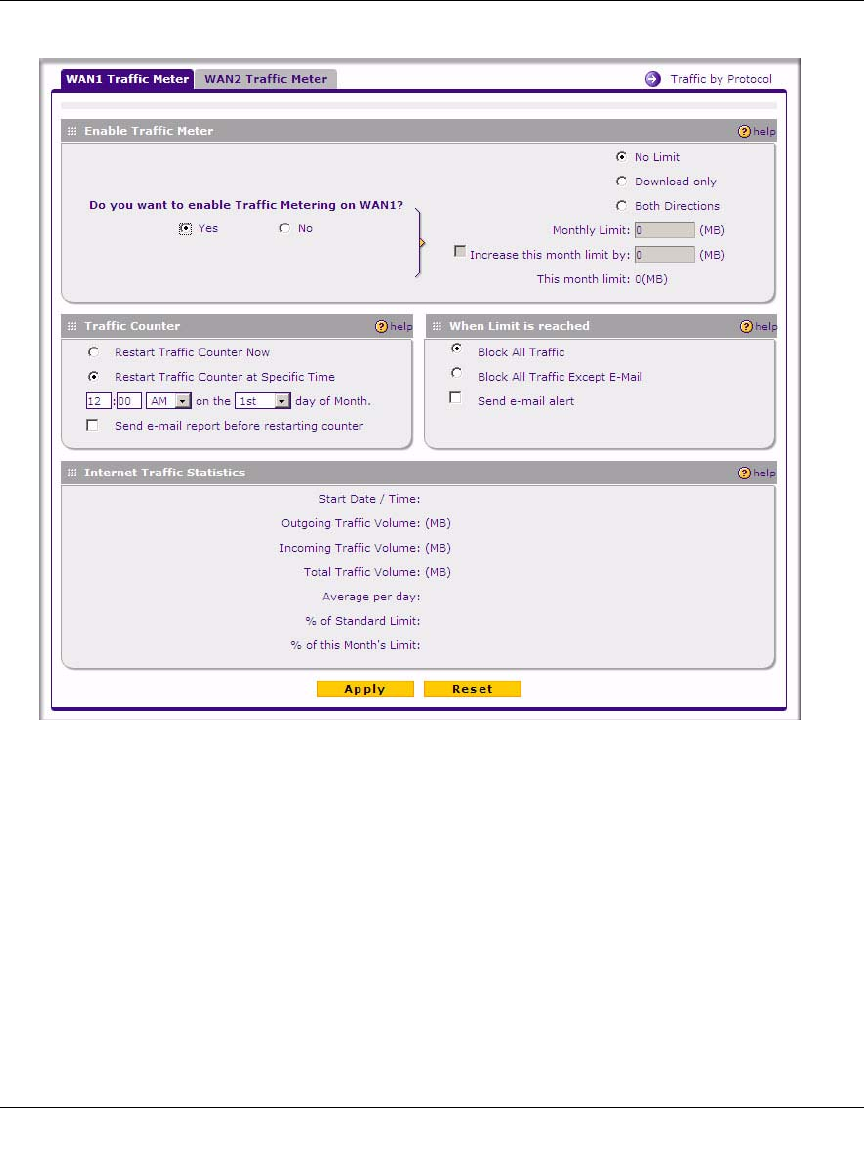

Performance Management
Performance management consists of controlling the traffic through the firewall so that the
necessary traffic gets through when there is a bottleneck and either reducing unnecessary traffic or
rescheduling some traffic to low-peak times to prevent bottlenecks from occurring in the first
place. The firewall has the necessary features and tools to help the network manager accomplish
these goals.
Bandwidth Capacity
The maximum bandwidth capacity of the firewall in each direction is as follows:
• LAN side: 5000 Mbps (five LAN ports at 1000 Mbps each)
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-2 Firewall and Network Management
v1.0, July 2008
• WAN side: 1000 Mbps (one WAN port at 1000 Mbps)
In practice, the WAN side bandwidth capacity will be much lower when DSL or cable modems are
used to connect to the Internet. As a result and depending on the traffic being carried, the WAN
side of the firewall will be the limiting factor to throughput for most installations.
Features that Reduce Traffic
Features of the VPN firewall that can be called upon to decrease WAN-side loading are as follows:
• Service blocking
• Block sites
• Source MAC filtering
Service Blocking
You can control specific outbound traffic (from LAN to WAN). Outbound Services lists all
existing rules for outbound traffic. If you have not defined any rules, only the default rule will be
listed. The default rule allows all outgoing traffic.
Each rule lets you specify the desired action for the connections covered by the rule:
•BLOCK always
• BLOCK by schedule, otherwise Allow
• ALLOW always
• ALLOW by schedule, otherwise Block
As you define your firewall rules, you can further refine the application according to the following
criteria:
•LAN Users. These settings determine which computers on your network are affected by this
rule. Select the desired options:
–Any. All PCs and devices on your LAN.
– Single address. The rule will be applied to the address of a particular PC.
– Address range. The rule is applied to a range of addresses.
Warning: This feature is for Advanced Administrators only! Incorrect configuration
will cause serious problems.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-3
v1.0, July 2008
–Groups. The rule is applied to a Group (see “Managing Groups and Hosts (LAN Groups)”
on page 3-5 to assign PCs to a Group using the LAN Groups Database).
•WAN Users. These settings determine which Internet locations are covered by the rule, based
on the IP address.
–Any. The rule applies to all Internet IP address.
– Single address. The rule applies to a single Internet IP address.
– Address range. The rule is applied to a range of Internet IP addresses.
•Services. You can specify the desired Services or applications to be covered by this rule. If the
desired service or application does not appear in the list, you must define it using the Services
menu (see “Services-Based Rules” on page 5-2 and “Adding Customized Services” on page 5-
17).
•Schedule. You can specify whether the rule is to be applied on the Schedule 1, Schedule 2, or
Schedule 3 time schedule (see “Setting Schedules to Block or Allow Traffic” on page 5-20).
See “Using Rules & Services to Block or Allow Traffic” on page 5-2 for the procedure on how to
use this feature.
Services
The Rules menu contains a list of predefined Services for creating firewall rules. If a service does
not appear in the predefined Services list, you can define the service. The new service will then
appear in the Rules menu's Services list.
See “Services-Based Rules” on page 5-2 for the procedure on how to use this feature.
Groups and Hosts
You can apply these rules selectively to groups of PCs to reduce the outbound or inbound traffic.
The LAN Groups Database is an automatically-maintained list of all known PCs and network
devices. PCs and devices become known by the following methods:
•DHCP Client Request. By default, the DHCP server in this firewall is enabled, and will
accept and respond to DHCP client requests from PCs and other network devices. These
requests also generate an entry in the LAN Groups Database. Because of this, leaving the
DHCP server feature (on the LAN screen) enabled is strongly recommended.
•Scanning the Network. The local network is scanned using ARP. requests. The ARP scan will
detect active devices that are not DHCP clients. However, sometimes the name of the PC or
device cannot be accurately determined, and will appear in the database as Unknown.
•Manual Entry. You can manually enter information about a device.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-4 Firewall and Network Management
v1.0, July 2008
See “Managing Groups and Hosts (LAN Groups)” on page 3-5 for the procedure on how to use
this feature.
Schedule
If you have set firewall rules on the Rules screen, you can configure three different schedules (for
example, schedule 1, schedule 2, and schedule 3) for when a rule is to be applied. Once a schedule
is configured, it affects all Rules that use this schedule. You specify the days of the week and time
of day for each schedule.
See “Setting Schedules to Block or Allow Traffic” on page 5-20 for the procedure on how to use
this feature.
Block Sites
If you want to reduce traffic by preventing access to certain sites on the Internet, you can use the
VPN firewall’s filtering feature. By default, this feature is disabled; all requested traffic from any
Web site is allowed.
•Keyword (and Domain Name) Blocking. You can specify up to 32 words that, should they
appear in the Web site name (i.e., URL) or in a newsgroup name, will cause that site or
newsgroup to be blocked by the VPN firewall.
You can apply the keywords to one or more groups. Requests from the PCs in the groups for
which keyword blocking has been enabled will be blocked. Blocking does not occur for the
PCs that are in the groups for which keyword blocking has not been enabled.
You can bypass keyword blocking for trusted domains by adding the exact matching domain
to the list of Trusted Domains. Access to the domains on this list by PCs even in the groups for
which keyword blocking has been enabled will still be allowed without any blocking.
•Web Component blocking. You can block the following Web component types: Proxy, Java,
ActiveX, and Cookies. Sites on the Trusted Domains list are still subject to Web component
blocking when the blocking of a particular Web component has been enabled.
See “Setting Block Sites (Content Filtering)” on page 5-21 for the procedure on how to use this
feature.
Source MAC Filtering
If you want to reduce outgoing traffic to prevent Internet access by certain PCs on the LAN, you
can use the source MAC filtering feature to drop the traffic received from the PCs with the
specified MAC addresses. By default, this feature is disabled; all traffic received from PCs with
any MAC address is allowed.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-5
v1.0, July 2008
See “Enabling Source MAC Filtering (Address Filter)” on page 5-24 for the procedure on how to
use this feature.
Features that Increase Traffic
Features that tend to increase WAN-side loading are as follows:
• Port forwarding
• Port triggering
• Exposed hosts
•VPN tunnels
Port Forwarding
The firewall always blocks DoS (Denial of Service) attacks. A DoS attack does not attempt to steal
data or damage your PCs, but overloads your Internet connection so you can not use it (i.e., the
service is unavailable). You can also create additional firewall rules that are customized to block or
allow specific traffic.
You can control specific inbound traffic (from WAN to LAN). Inbound Services lists all existing
rules for inbound traffic. If you have not defined any rules, only the default rule will be listed. The
default rule blocks all inbound traffic.
Each rule lets you specify the desired action for the connections covered by the rule:
•BLOCK always
• ALLOW always
• BLOCK by schedule, otherwise allow
• ALLOW by schedule, otherwise block
You can also enable a check on special rules:
•VPN Passthrough. Passes the VPN traffic without any filtering, specially used when this
firewall is between two VPN tunnel end points.
•Drop fragmented IP packets. Drops any fragmented IP packets.
•UDP Flooding. Limits the number of UDP sessions created from one LAN machine.
•TCP Flooding. Protects the firewall from SYN flood attack.
Warning: This feature is for Advanced Administrators only! Incorrect configuration
will cause serious problems.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-6 Firewall and Network Management
v1.0, July 2008
•Enable DNS Proxy. Allows the firewall to handle DNS queries from the LAN.
•Enable Stealth Mode. Prevents the firewall from responding to incoming requests for
unsupported services.
As you define your firewall rules, you can further refine the application according to the following
criteria:
•LAN Users. These settings determine which computers on your network are affected by this
rule. Select the desired IP Address in this field.
•WAN Users. These settings determine which Internet locations are covered by the rule, based
on the IP address.
– Any: The rule applies to all Internet IP address.
– Single address: The rule applies to a single Internet IP address.
– Address range: The rule is applied to a range of Internet IP addresses.
•Destination Address. These settings determine the destination IP address for this rule which
will be applicable to incoming traffic. This rule will be applied only when the destination IP
address of the incoming packet matches the IP address of the WAN interface. Selecting ANY
enables the rule for any LAN IP destination.
•Services. You can specify the desired Services or applications to be covered by this rule. If the
desired service or application does not appear in the list, you must define it using the Services
menu (see “Adding Customized Services” on page 5-17).
•Schedule. You can specify whether the rule is to be applied on the Schedule 1, Schedule 2, or
Schedule 3 time schedule (see “Setting Schedules to Block or Allow Traffic” on page 5-20).
See “Using Rules & Services to Block or Allow Traffic” on page 5-2 for the procedure on how to
use this feature.

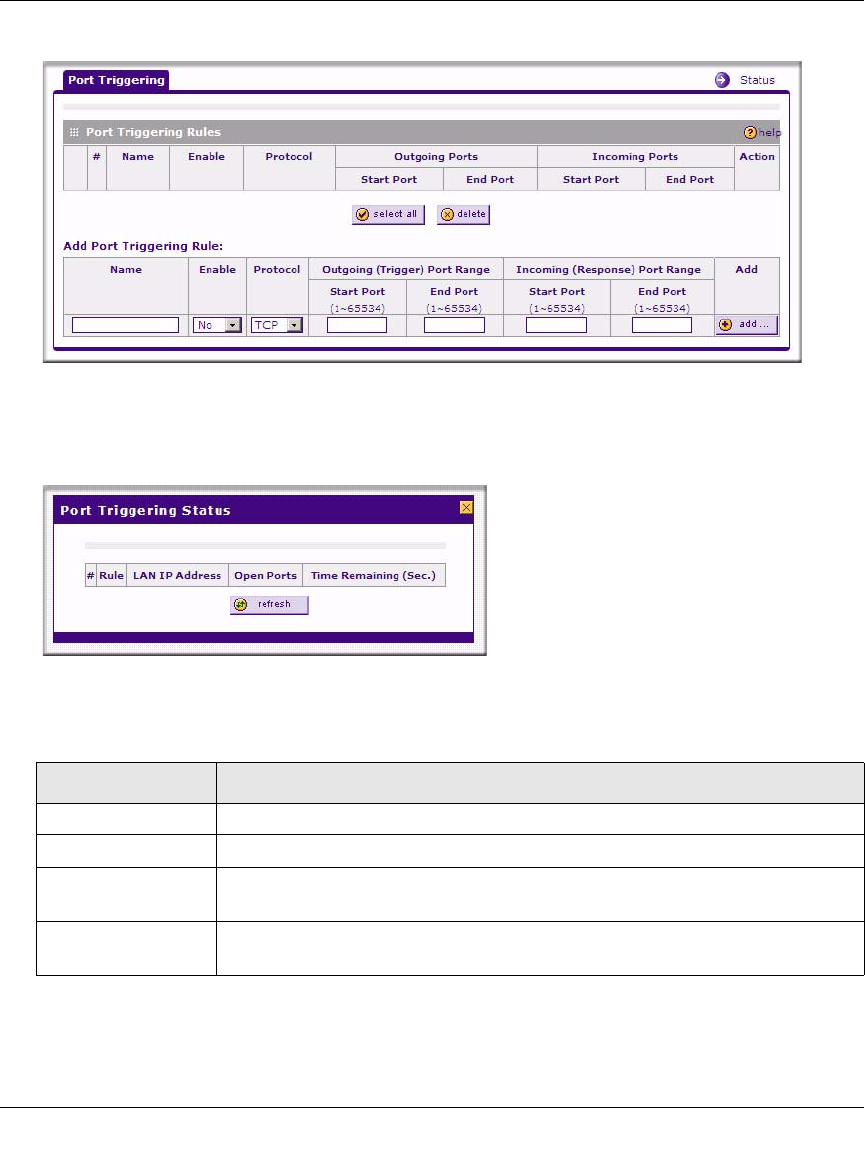

Port Triggering
Port triggering allows some applications to function correctly that would otherwise be partially
blocked by the firewall. Using this feature requires that you know the port numbers used by the
application.
Once configured, port triggering operates as follows:
• A PC makes an outgoing connection using a port number defined in the Port Triggering table.
• This firewall records this connection, opens the additional INCOMING port or ports
associated with this entry in the Port Triggering table, and associates them with the PC.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-7
v1.0, July 2008
• The remote system receives the PCs request and responds using the different port numbers that
you have now opened.
• This firewall matches the response to the previous request and forwards the response to the
PC. Without port triggering, this response would be treated as a new connection request rather
than a response. As such, it would be handled in accordance with the Port Forwarding rules.
– Only one PC can use a port triggering application at any time.
– After a PC has finished using a port triggering application, there is a time-out period
before the application can be used by another PC. This is required because the firewall
cannot be sure when the application has terminated.
See “Enabling Port Triggering” on page 5-28 for the procedure on how to use this feature.

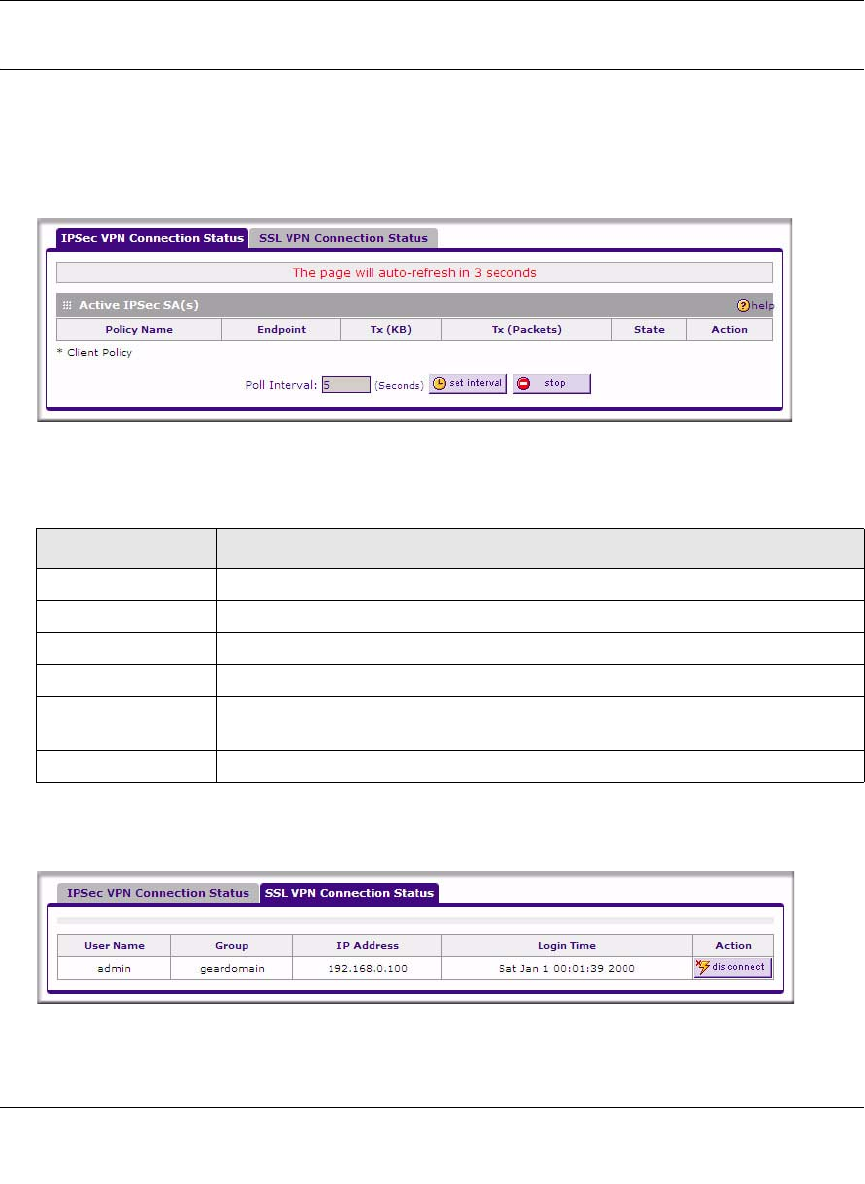

VPN Tunnels
The VPN firewall permits up to 5 IPsec VPN tunnels and 3 SSL VPN tunnels not to exceed 8 total
tunnels at a time. Each tunnel requires extensive processing for encryption and authentication.
See Chapter 6, “Virtual Private Networking Using IPsec” for the procedures on how to use IPsec
VPN, and Chapter 7, “Virtual Private Networking Using SSL for the procedures on how to use
SSL VPN.
Using QoS to Shift the Traffic Mix
The QoS priority settings determine the priority and, in turn, the quality of service for the traffic
passing through the firewall. The QoS is set individually for each service.
• You can accept the default priority defined by the service itself by not changing its QoS
setting.
• You can change the priority to a higher or lower value than its default setting to give the
service higher or lower priority than it otherwise would have.
The QoS priority settings conform to the IEEE 802.1D-1998 (formerly 802.1p) standard for class
of service tag.
You will not change the WAN bandwidth used by changing any QoS priority settings. But you will
change the mix of traffic through the WAN port by granting some services a higher priority than
others. The quality of a service is impacted by its QoS setting, however.
See “Setting Quality of Service (QoS) Priorities” on page 5-19 for the procedure on how to use
this feature.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-8 Firewall and Network Management
v1.0, July 2008
Tools for Traffic Management
The ProSafe Wireless-N VPN Firewall includes several tools that can be used to monitor the traffic
conditions of the firewall and control who has access to the Internet and the types of traffic each
individual is allowed to have. See “Monitoring System Performance” on page 11-1 for a
discussion of the tools.

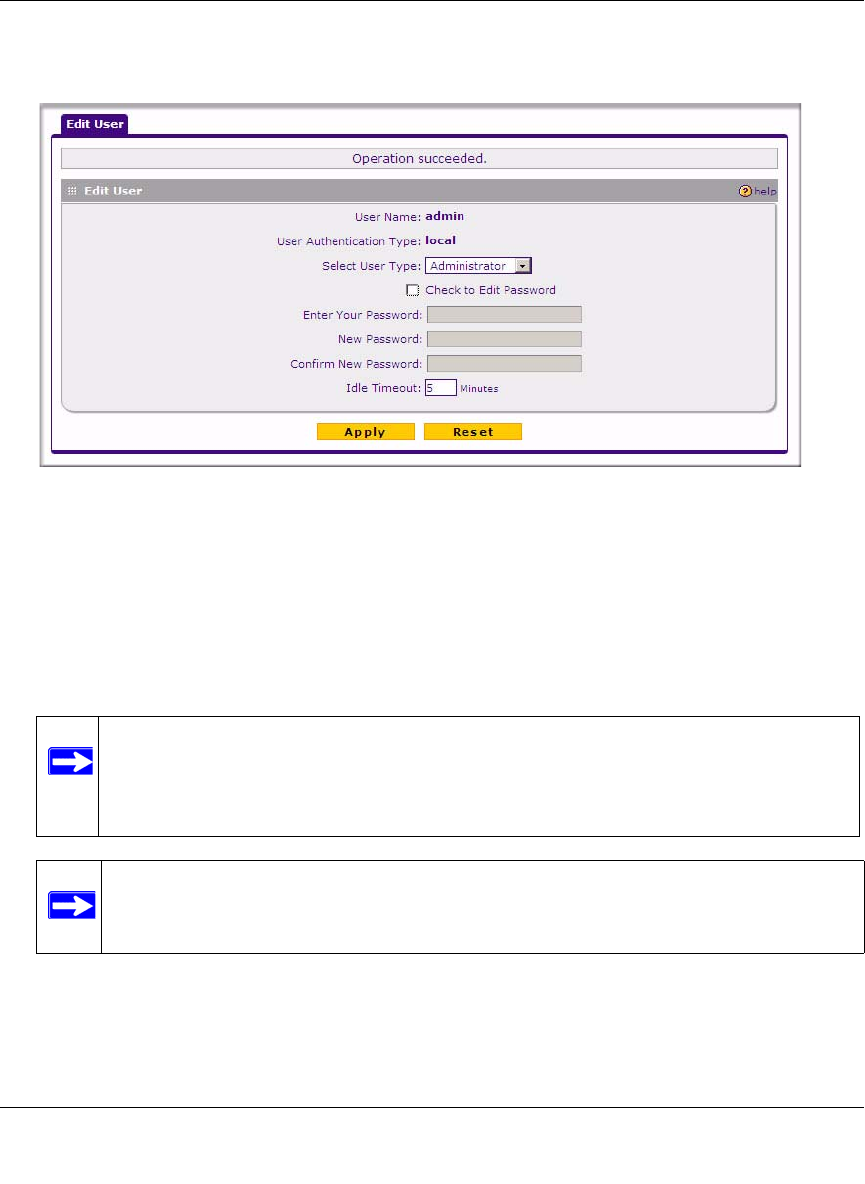

Changing Passwords and Administrator Settings
The default administrator and guest password for the Web Configuration Manager is password.
Netgear recommends that you change this password to a more secure password. You can also
configure a separate password for the guest account.
To modify the Administrator user account settings, including password:
1. Select Users > Users from the main/submenu and the List of Users screen displays.
2. Select the checkbox adjacent to admin in the Name column, then click Edit in the Action
column.
Figure 9-1OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-9
v1.0, July 2008
The Edit User screen is displayed, with the current settings for Administrator displayed in the
Select User Type pull-down menu.
3. Select the Check to Edit Password checkbox. The password fields become active.
4. Enter the old password, then enter the new password twice.
5. (Optional) To change the idle timeout for an administrator login session, enter a new number
of minutes in the Idle Timeout field.
6. Click Apply to save your settings or Reset to return to your previous settings.
Figure 9-2OK
Note: If the administrator login timeout value is too large, you may have to wait a
long time before you are able to log back into the firewall if your previous
login was disrupted (for example, if you did not click Logout on the Main
Menu bar to log out).
Note: After a factory default reset, the password and timeout value will be changed
back to password and 5 minutes, respectively.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-10 Firewall and Network Management
v1.0, July 2008
Enabling Remote Management Access
Using the Remote Management page, you can allow an administrator on the Internet to configure,
upgrade, and check the status of your firewall. You must be logged in locally to enable remote
management (see “Logging into the Security Router” on page 2-2).
To configure your firewall for Remote Management:
1. Select Administration > Remote Management from the main/submenu.
The Remote Management screen displays.
.
2. Click the Yes radio box to enable HTTPS remote management (enabled by default).
3. Click Apply to have your changes take effect.
When accessing your firewall from the Internet, the Secure Sockets Layer (SSL) will be
enabled. You will enter https:// (not http://) and type your firewall’s WAN IP address into your
browser.
For example, if your WAN IP address is 172.16.0.123, type the following in your browser:
Note: Be sure to change the default configuration password of the firewall to a very
secure password. The ideal password should contain no dictionary words from any
language, and should be a mixture of letters (both upper and lower case), numbers,
and symbols. Your password can be up to 30 characters. See “Changing Passwords
and Administrator Settings” on page 9-8 for the procedure on how to do this.
Figure 9-3OK
Note: For enhanced security, restrict access to as few external IP addresses as
practical. See “Setting User Login Policies” on page 8-6 for instructions on
restricting administrator access. Be sure to use strong passwords.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-11
v1.0, July 2008
https://172.16.0.123
The firewall’s remote login URL is https://<IP_address> or
https://<FullyQualifiedDomainName>..
Using an SNMP Manager
Simple Network Management Protocol (SNMP) lets you monitor and manage your firewall from
an SNMP Manager. It provides a remote means to monitor and control network devices, and to
manage configurations, statistics collection, performance, and security.
The SNMP Configuration table lists the SNMP configurations by:
•IP Address. The IP address of the SNMP manager.
Note: To maintain security, the SRXN3205 will reject a login that uses http://address
rather than the SSL https://address.
Note: The first time you remotely connect to the SRXN3205 with a browser via SSL, you
may get a warning message regarding the SSL certificate. If you are using a
Windows computer with Internet Explorer 5.5 or higher, simply click Yes to accept
the certificate.
Note: If you are unable to remotely connect to the SRXN3205 after enabling HTTPS
remote management, check whether other user policies, such as the default user
policy, are preventing access.
Note: If you disable HTTPS remote management, all SSL VPN user connections will
also be disabled.
Tip: If you are using a dynamic DNS service such as TZO, you can identify the WAN IP
address of your SRXN3205 by running tracert from the Windows Run menu
option. Trace the route to your registered FQDN. For example, enter tracert
SRXN3205.mynetgear.net, and the WAN IP address that your ISP assigned
to the SRXN3205 is displayed.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-12 Firewall and Network Management
v1.0, July 2008
•Port. The trap port of the configuration.
•Community. The trap community string of the configuration.
To create a new SNMP configuration entry:
1. Select Administration > SNMP from the main/submenu and the SNMP screen displays.
.
2. Configure the following fields in the Create New SNMP Configuration Entry section:
• Enter the IP Address of the SNMP manager in the IP Address field and the Subnet Mask
in the Subnet Mask field.
– If you want to allow only the host address to access the VPN firewall and receive
traps, enter an IP Address of, for example, 192.168.1.101 with a Subnet Mask of
255.255.255.255.
– If you want to allow a subnet access to the VPN firewall through SNMP, enter an IP
address of, for example,192.168.1.101 with a Subnet Mask of 255.255.255.0. The
traps will still be received on 192.168.1.101, but the entire subnet will have access
through the community string.
– If you want to make the VPN firewall globally accessible using the community string,
but still receive traps on the host, enter 0.0.0.0 as the Subnet Mask and an IP Address
for where the traps will be received.
• Enter the trap port number of the configuration in the Port field. The default is 162.
• Enter the trap community string of the configuration in the Community field.
3. Click Add to create the new configuration. The entry is displayed in the SNMP
Configuration table.

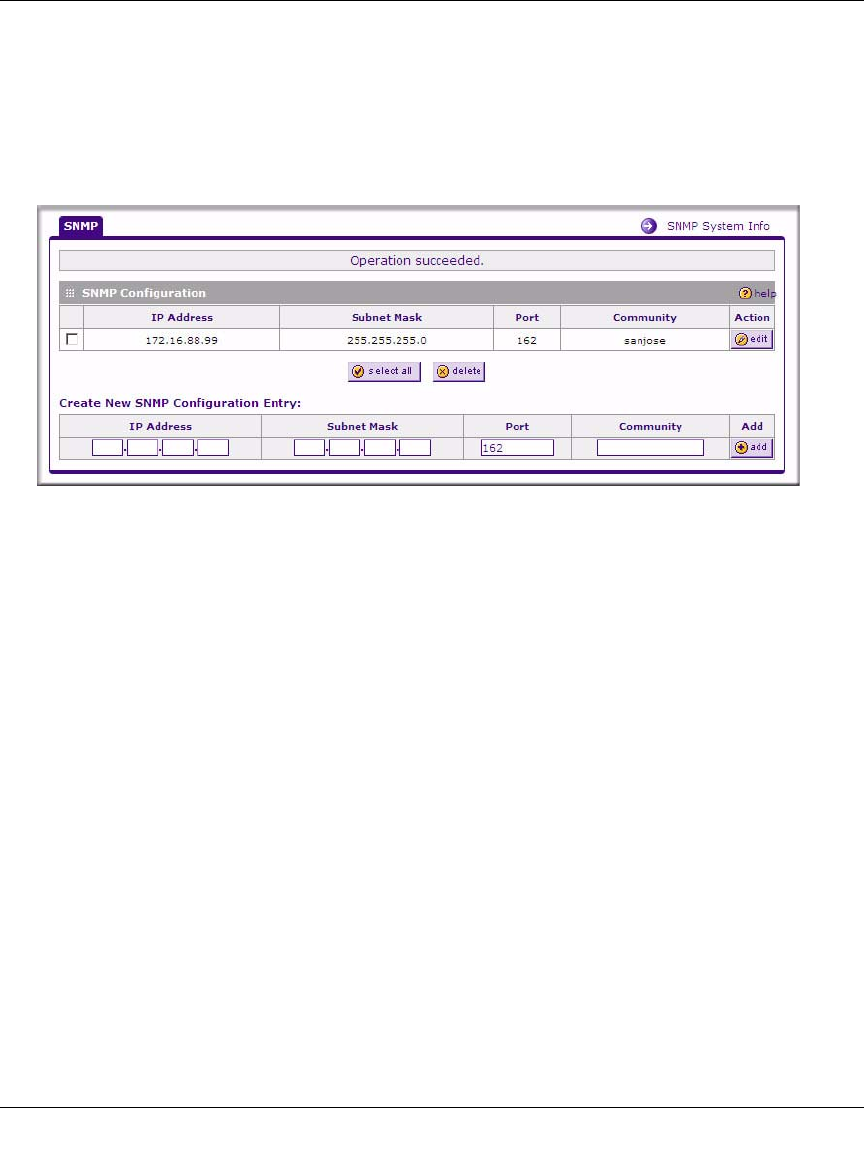

Figure 9-4OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-13
v1.0, July 2008
The SNMP System Info link, located in the upper right of the screen, opens the SNMP
SysConfiguration screen. This screen displays the VPN firewall identification information
available to the SNMP manager: System Contact, System Location, and System name. You can
edit these values.
Settings Backup and Firmware Upgrade
Once you have installed the VPN firewall and have it working properly, you should back up a copy
of your settings, in case something gets corrupted. When you backup the settings, these are saved
as a file on your computer. You can then restore the VPN firewall settings from this file. The
Settings Backup and Firmware Upgrade screen allows you to:
• Back up and save a copy of your current settings
• Restore saved settings from the backed-up file.
• Revert to the factory default settings.
• Upgrade the VPN firewall firmware from a saved file on your hard disk to use a different
firmware version.
Backup and Restore Settings
To backup settings:
1. Select Administration > Settings Backup and Firmware Upgrade from the main/submenu.
The Settings Backup and Firmware Upgrade screen displays.

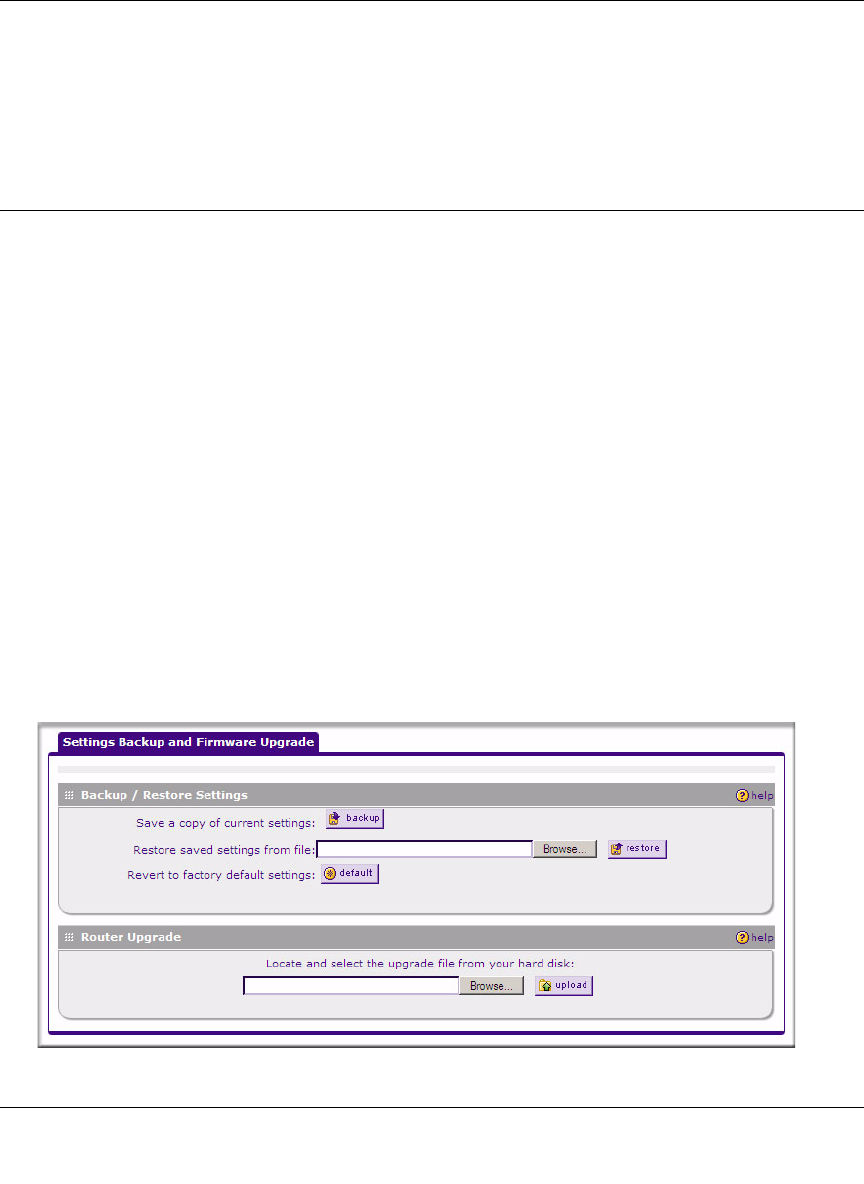

Figure 9-5OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-14 Firewall and Network Management
v1.0, July 2008
2. Click Backup to save a copy of your current settings.
• If your browser isn’t set up to save downloaded files automatically, locate where you want
to save the file, specify file name, and click Save.
• If you have your browser set up to save downloaded files automatically, the file will be
saved to your browser’s download location on the hard disk.
To restore settings from a backup file:
1. Next to Restore save settings from file, click the Browse button.
2. Locate and select the previously saved backup file (by default, netgear.cfg).
3. When you have located the file, click the Restore button.
An Alert page will appear indicating the status of the restore operation. You must manually
restart the VPN firewall for the restored settings to take effect.
To reset the firewall to the original factory default settings, click the Default button.
You must manually restart the VPN firewall before the default settings to take effect. After
rebooting, the firewall’s password will be password and the LAN IP address will be 192.168.1.1.
The VPN firewall will act as a DHCP server on the LAN, to the wireless clients, and act as a
DHCP client to the Internet.
Router Upgrade
You can install a different version of the VPN firewall firmware from the Settings Backup and
Firmware Upgrade menu. To view the current version of the firmware that your VPN firewall is
running, choose Monitoring from the main menu. The Router Status screen is displayed,
showing all of the VPN firewall router statistics, including the firmware version. When you
upgrade your firmware, the new firmware version will be displayed.
To download a firmware version:
1. Go to the NETGEAR Web site at http://www.netgear.com/support and click Downloads.
Warning: Once you start restoring settings or erasing the firewall, do NOT interrupt
the process. Do not try to go online, turn off the firewall, shut down the
computer or do anything else to the firewall until it finishes restarting!
Warning: When you click default, your firewall settings will be erased. All firewall
rules, VPN policies, LAN/WAN settings and other settings will be lost. Please
backup your settings or all your settings will be lost!
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Firewall and Network Management 9-15
v1.0, July 2008
2. From the Product Selection pull-down menu, choose the SRXN3205. Select the software
version and follow the To Install steps to download your software.
After downloading an upgrade file, you may need to unzip (uncompress) it before upgrading
the firewall. If release notes are included in the download, read them before continuing.
To upgrade the router software:
1. Select Administration > Settings Backup and Firmware Upgrade from the main/submenu.
2. In the Router Upgrade section, click Browse.
3. Locate the downloaded file and click Upload. This will start the software upgrade to your
VPN firewall. This may take some time. At the conclusion of the upgrade, your firewall will
reboot.
4. After the VPN firewall has rebooted, click Monitoring and confirm the new firmware version
to verify that your firewall now has the new software installed.
Configuring Time Zone Settings
The Time Zone screen provides settings for Date, Time and NTP server designations. The
Network Time Protocol (NTP) is used to synchronize computer clock times in a network of
computers.
To set Time, Date and NTP servers:
1. Select Administration > Time Zone from the main/submenu.
The Time Zone screen displays.
Warning: Do not try to go online, turn off the firewall, shutdown the computer or do
anything else to the firewall until the firewall finishes the upgrade! When
the Test light turns off, wait a few more seconds before doing anything.
Note: In some cases, such as a major upgrade, it may be necessary to erase the
configuration and manually reconfigure your firewall after upgrading it. Refer
to the release notes included with the software to find out if this is required.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
9-16 Firewall and Network Management
v1.0, July 2008
2. From the Date/Time pull-down menu, choose the Local Time Zone.
This is required for scheduling work correctly. The VPN firewall includes a real-time clock
(RTC), which it uses for scheduling.
3. If supported in your region, click Automatically Adjust for Daylight Savings Time.
4. Select an NTP Server option:
•Use Default NTP Servers. The RTC is updated regularly by contacting a Netgear NTP
server on the Internet. A primary and secondary (backup) server are preloaded.
•Use Custom NTP Servers. If you prefer to use a particular NTP server, enter the name or
IP address of the NTP Server in the Server 1 Name/IP Address field. You can enter the
address of a backup NTP server in the Server 2 Name/IP Address field. If you select this
option and leave either the Server 1 or Server 2 fields empty, they will be set to the default
Netgear NTP servers.
5. Click Apply to save your settings.

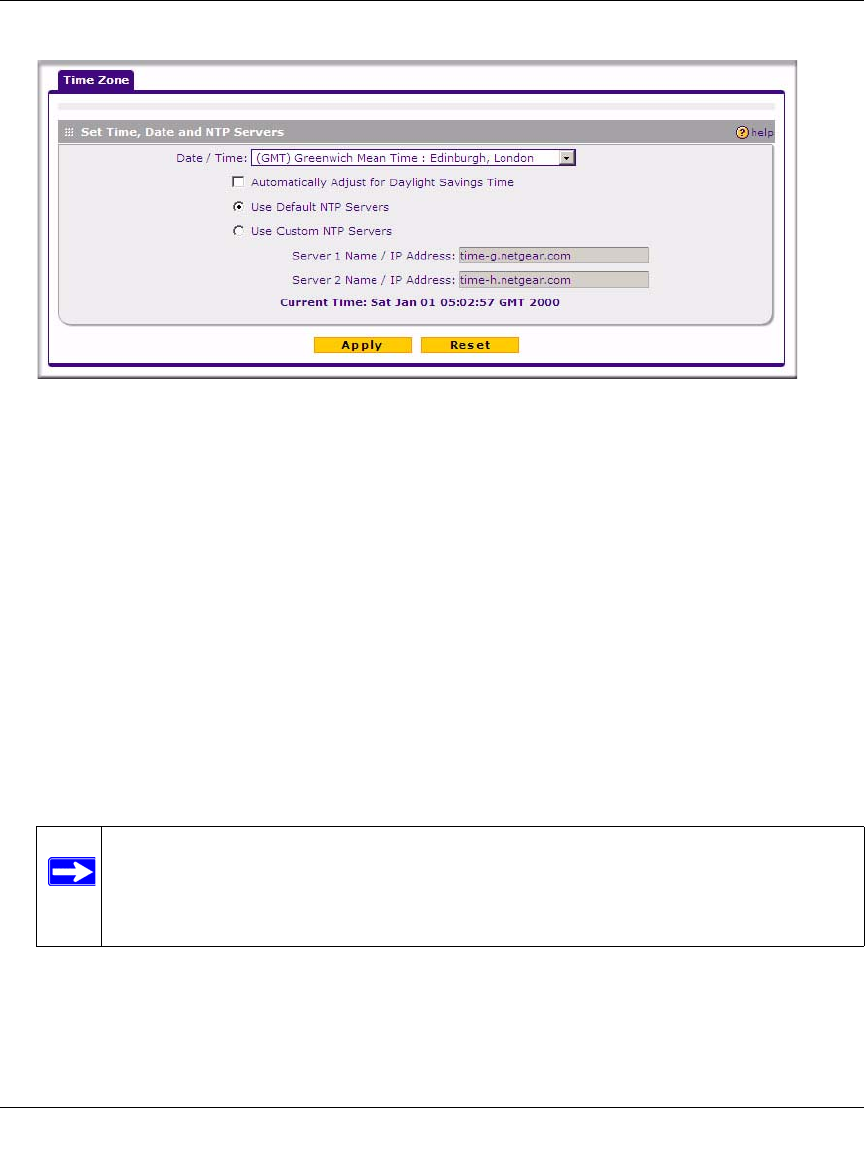

Figure 9-6Need new screen shot
Note: If you select the default NTP servers or if you enter a custom server FQDN, the
firewall must determine the IP address of the NTP server by a DNS lookup.
You must configure a DNS server address in the Network menu before the
firewall can perform this lookup.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-1
v1.0, July 2008
Chapter 11
Monitoring System Performance
This chapter describes the full set of system monitoring features of your ProSafe Wireless-N
Security Router. You can be alerted to important events such as {{WAN port rollover}}, WAN
traffic limits reached, and login failures and attacks. You can also view status information about
the firewall, WAN port, LAN ports, and VPN tunnels.
This chapter contains the following sections:
•“Enabling the Traffic Meter”
•“Activating Notification of Events and Alerts”
•“Viewing Firewall Logs”
•“Viewing Router Configuration and System Status”
•“Monitoring the WAN Port Status”
•“Monitoring Attached Devices”
•“Reviewing the DHCP Log”
•“Monitoring Active Users”
•“Viewing Port Triggering Status”
•“Monitoring VPN Tunnel Connection Status”
•“Reviewing the VPN Logs”
Enabling the Traffic Meter
If your ISP charges by traffic volume over a given period of time, or if you want to study traffic
types over a period of time, you can activate the Traffic Meter for the WAN port.
To monitor traffic limits on the WAN port:
1. Select Monitoring > Traffic Meter from the main/submenu, and then the WAN Traffic Meter
tab.
The WAN Traffic Meter screen will display.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-2 Monitoring System Performance
v1.0, July 2008
2. Enable the traffic meter by clicking the Yes radio box under Do you want to enable Traffic
Metering on WAN? The traffic meter will record the volume of Internet traffic passing
through the WAN. Select the following options:
•No Limit. Any specified restrictions will not be applied when traffic limit is reached.
•Download only. The specified restrictions will be applied to the incoming traffic only
•Both Directions. The specified restrictions will be applied to both incoming and outgoing
traffic only
•Monthly Limit. Enter the monthly volume limit and select the desired behavior when the
limit is reached.
Figure 11-1Need New Screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-3
v1.0, July 2008
•Increase this month limit by. Temporarily increase the Traffic Limit if you have reached
the monthly limit, but need to continue accessing the Internet. Select the checkbox and
enter the desired increase. (The checkbox will automatically be cleared when saved so that
the increase is only applied once.)
•This month limit. Displays the limit for the current month.
3. In the Traffic Counter section, make your traffic counter selections:
•Restart Traffic Counter Now. Select this option and click Apply to restart the Traffic
Counter immediately.
•Restart Traffic Counter at Specific Time. Restart the Traffic Counter at a specific time
and day of the month. Fill in the time fields and choose AM or PM and the day of the
month from the pull-down menus.
•Send e-mail report before restarting counter. An E-mail report will be sent immediately
before restarting the counter. You must configure the E-mail screen in order for this
function to work (see “E-Mail Notifications of Event Logs and Alerts” on page 5-33).
4. In the When limit is reached section, make the following choice:
•Block all traffic. All access to and from the Internet will be blocked.
•Block all traffic except E-mail. Only E-mail traffic will be allowed. All other traffic will
be blocked.
•Send E-mail alert. You must configure the E-mail screen in order for this function to
work. Go to the Firewall Logs and & E-mail Tab to set this up.
5. Click Apply to save your settings.
The Internet Traffic Statistics section displays statistics on Internet Traffic via the WAN port.
If you have not enabled the Traffic Meter, these statistics are not available.
6. Click the Traffic by Protocol link, in the upper right header, to see a report of the Internet
traffic by type. The volume of traffic for each protocol will be displayed in a popup window.
Traffic counters are updated in MBytes scale; the counter starts only when traffic passed is at
least 1MB.
Note: Both incoming and outgoing traffic are included in the limit
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-4 Monitoring System Performance
v1.0, July 2008
Activating Notification of Events and Alerts
The Firewall Logs can be configured to log and then e-mail denial of access, general attack
information, and other information to a specified e-mail address. For example, your security router
will log security-related events such as: accepted and dropped packets on different segments of
your LAN; denied incoming and outgoing service requests; hacker probes and login attempts; and
other general information based on the settings you input on the Firewall Logs & E-mail menu. In
addition, if you have set up Content Filtering on the Block Sites screen (see “Setting Block Sites
(Content Filtering)” on page 5-21), a log will be generated when someone on your network tries to
access a blocked site.
You must have e-mail notification enabled to receive the logs in an e-mail message. If you don't
have e-mail notification enabled, you can view the logs by clicking the View Logs option arrow to
the right of the tab. Selecting all events will increase the size of the log, so it is good practice to
select only those events which are required
To configure logging and notifications:
1. Select Monitoring from the main menu and Firewall Logs & E-mail from the submenu.
The Firewall Logs & E-mail screen displays.
2. Enter the name of the log in the Log Identifier field.
Log Identifier is a mandatory field used to identify which device sent the log messages. The
identifier is appended to log messages.
3. In the Routing Logs section, select the network segments for which you would like logs to be
sent (for example, LAN to WAN under Dropped Packets).
4. In the System Logs section, select the type of system events to be logged.
5. Check Yes to enable E-mail Logs. Then enter:
a. E-mail Server address. Enter either the IP address or Internet name of your ISP’s
outgoing E-mail SMTP server. If you leave this box blank, no logs will be sent to you.
b. Return E-mail Address. Enter an e-mail address to appear as the sender.
c. Send To E-mail Address. Enter the e-mail address where the logs and alerts should be
sent. You must use the full e-mail address (for example, jsmith@example.com).
6. No Authentication is selected by default. If your SMTP server requires user authentication,
select the required authentication type—either Login Plain or CRAM-MD5. Then enter the
user name and password to be used for authentication.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-5
v1.0, July 2008
7. To respond to IDENT protocol messages, check the Respond to Identd from SMTP Server
radio box. The Ident Protocol is a weak scheme to verify the sender of e-mail (a common
daemon program for providing the ident service is identd).

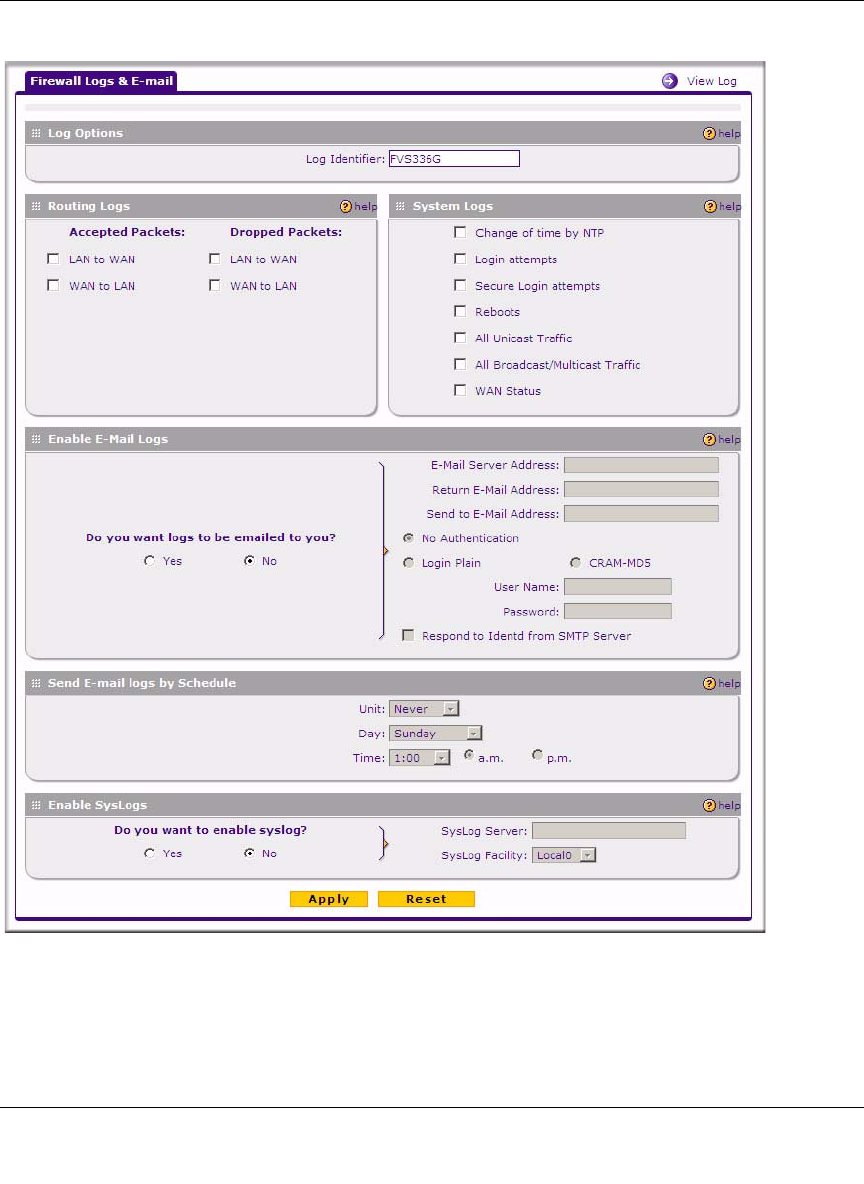

Figure 11-2Need new screenshot more option in this one
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-6 Monitoring System Performance
v1.0, July 2008
8. Enter a Schedule for sending the logs. From the Unit pull-down menu, choose: Never, Hourly,
Daily, or Weekly. Then set the Day and Time fields that correspond to your selection.
9. You can configure the firewall to send system logs to an external PC that is running a syslog
logging program. Click Yes to enable SysLogs and send messages to the syslog server, then:
a. Enter your SysLog Server IP address
b. Select the appropriate syslog facility from the SysLog Facility pull-down menu. The
SysLog Facility levels of severity are described in the table below.
10. Click Apply to save your settings.
Viewing Firewall Logs
To view the Firewall logs:
1. Select Monitoring from the main menu and Firewall Logs & E-mail in the submenu.
The Firewall Logs & E-mail screen displays
2. Click the View Log link in the upper right-hand section of the screen.
The Logs screen is displayed.
3. If the E-mail Logs options as been enabled, you can send a copy of the log by clicking Send
Log.
4. Click Refresh Log to retrieve the latest update; click Clear Log to delete all entries.
Numerical Code Severity
0 Emergency: System is unusable
1 Alert: Action must be taken immediately
2 Critical: Critical conditions
3 Error: Error conditions
4 Warning: Warning conditions
5 Notice: Normal but significant conditions
6 Informational: Informational messages
7 Debug: Debug level messages
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-7
v1.0, July 2008
Log entries are described in Table 11-1.
Viewing Router Configuration and System Status
The Router Status screen provides status and usage information. To view the router configuration
and system status:
1. Select Monitoring from the main menu and Router Status in the submenu.
The Router Status screen is displayed.
Table 11-1. Firewall Logs Field Descriptions
Field Description
Date and Time The date and time the log entry was recorded.
Description or Action The type of event and what action was taken if any.
Source IP The IP address of the initiating device for this log entry.
Source port and
interface
The service port number of the initiating device, and whether it originated from the
LAN or WAN.
Destination The name or IP address of the destination device or Web site.
Destination port and
interface
The service port number of the destination device, and whether it’s on the LAN or
WAN.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-8 Monitoring System Performance
v1.0, July 2008
The following information is displayed:

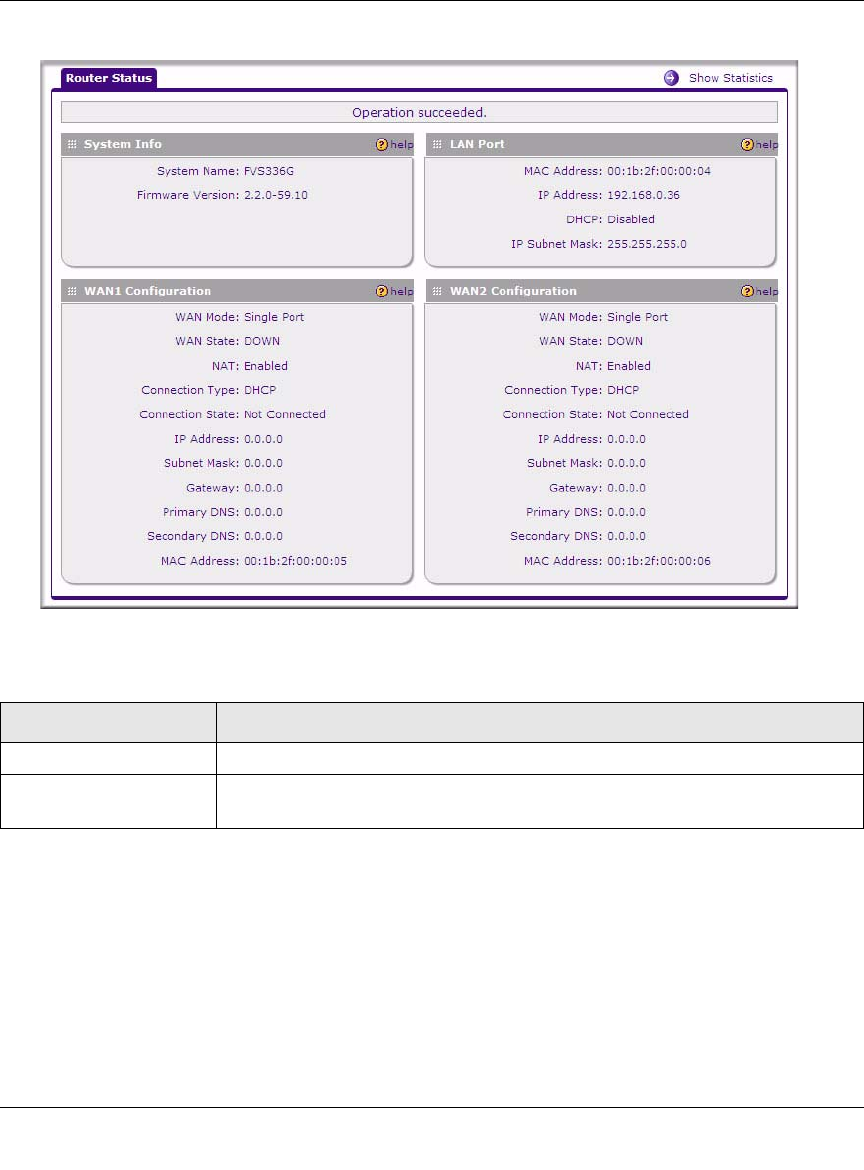

Figure 11-3Need New screenshot
Item Description
System Name This is the Account Name that you entered in the Basic Settings page.
Firmware Version This is the current software the router is using. This will change if you upgrade
your router.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-9
v1.0, July 2008
Monitoring the WAN Port Status
You can monitor the status of the WAN connection, the Dynamic DNS Server connection, and the
DHCP Server connection. To monitor the status of the WAN port:
1. Select Network Configuration from the main menu and WAN Settings in the submenu.
The WAN ISP Settings screen is displayed.
2. Click the WAN Status link in the upper right-hand section of the screen.

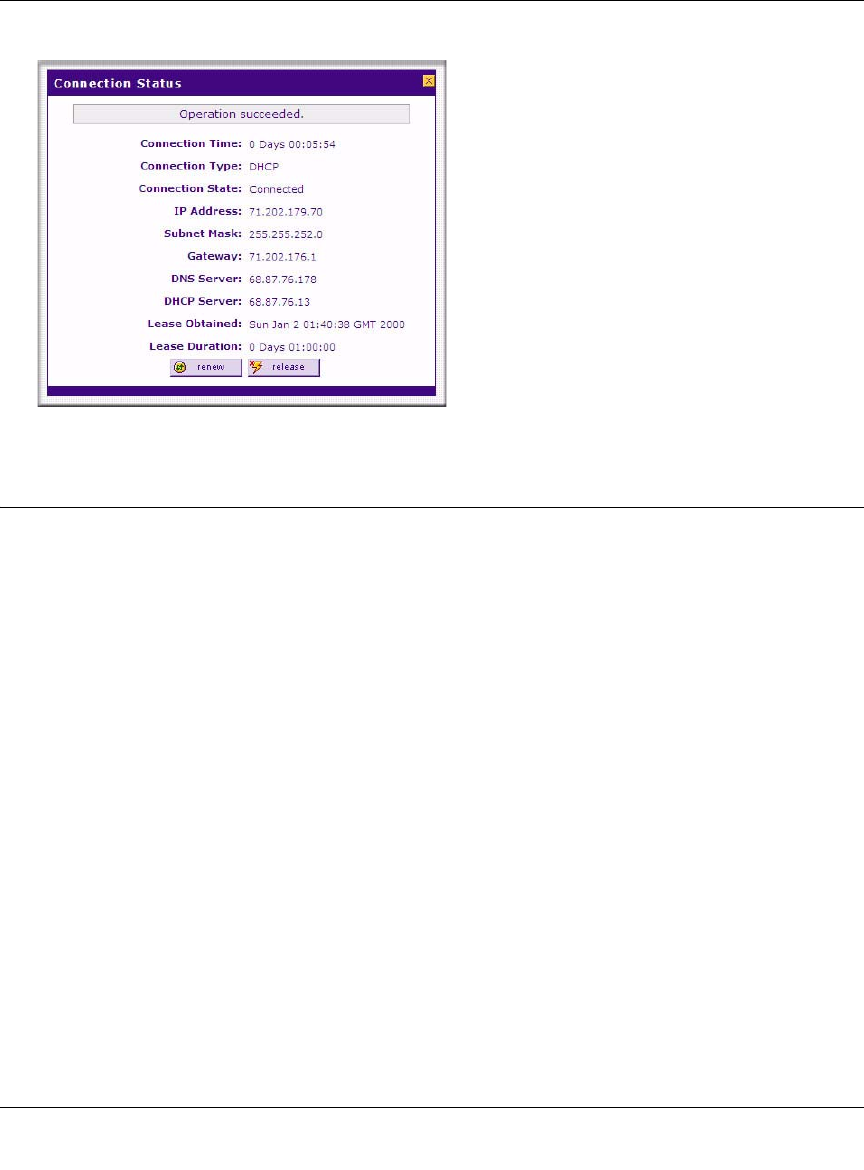

The Connection Status popup window displays a status report on the WAN port. See figure
12-4.
LAN Port Displays the current settings for MAC address, IP address, DHCP role and IP
Subnet Mask that you set in the LAN IP Setup page. DHCP can be either Server
or None.
WAN Configuration Indicates whether the WAN Mode is Single, Dual, or Rollover, and whether the
WAN State is UP or DOWN. It also is displayed if:
• NAT is Enabled or Disabled.
• Connection Type: DHCP enabled or disabled.
• Connection State
• WAN IP Address
• Subnet Mask
• Gateway Address
• Primary and Secondary DNS Server Addresses
• MAC Address.
Note: The Router Status screen displays current settings and statistics for your router.
As this information is read-only, any changes must be made on other pages.
Item Description
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-10 Monitoring System Performance
v1.0, July 2008
.
Monitoring Attached Devices
The LAN Groups screen contains a table of all IP devices that the security router has discovered
on the local network. To view the LAN Groups screen:
1. Select Network Configuration from the main menu and LAN Settings in the submenu.
2. Then select the LAN Groups tab and the LAN Groups screen displays.
3. The Known PCs and Devices database is an automatically-maintained list of LAN-attached
devices. PCs and other LAN devices become known by the following methods:
•DHCP Client Requests. By default, the DHCP server in the router is enabled, and will
accept and respond to DHCP client requests from PCs and other network devices. These
requests also generate an entry in the database. Because of this, leaving the DHCP Server
feature enabled (in the LAN Setup menu) is strongly recommended.
•Scanning the Network. The local network is scanned using standard methods such as
ARP. The scan will detect active devices that are not DHCP clients. However, sometimes
the name of the PC or device cannot be accurately determined and will be shown as
unknown.
•Manually Adding Devices. You can enter information in the Add Known PCs and
Devices section and click Add to manually add a device to the database.
Figure 11-4Need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-11
v1.0, July 2008
The Known PCs and Devices table lists all current entries in the LAN Groups database. For each
PC or device, the following data is displayed
Figure 11-5OK
Table 11-2. Known PCs and Devices options
Item Description
Name The name of the PC or device. Sometimes, this can not be determined, and will be
listed as Unknown. In this case, you can edit the entry to add a meaningful name.
IP Address The current IP address. For DHCP clients, where the IP address is allocated by the
DHCP Server in this device, this IP address will not change. Where the IP address
is set on the PC (as a fixed IP address), you may need to update this entry
manually if the IP address on the PC is changed.
MAC Address The MAC address of the PC. The MAC address is a low-level network identifier
which is fixed at manufacture.
Group Each PC or device must be in a single group. The Group column indicates which
group each entry is in. By default, all entries are in the Group1.
Note: If the security router is rebooted, the table data is lost until the security router
rediscovers the devices.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-12 Monitoring System Performance
v1.0, July 2008

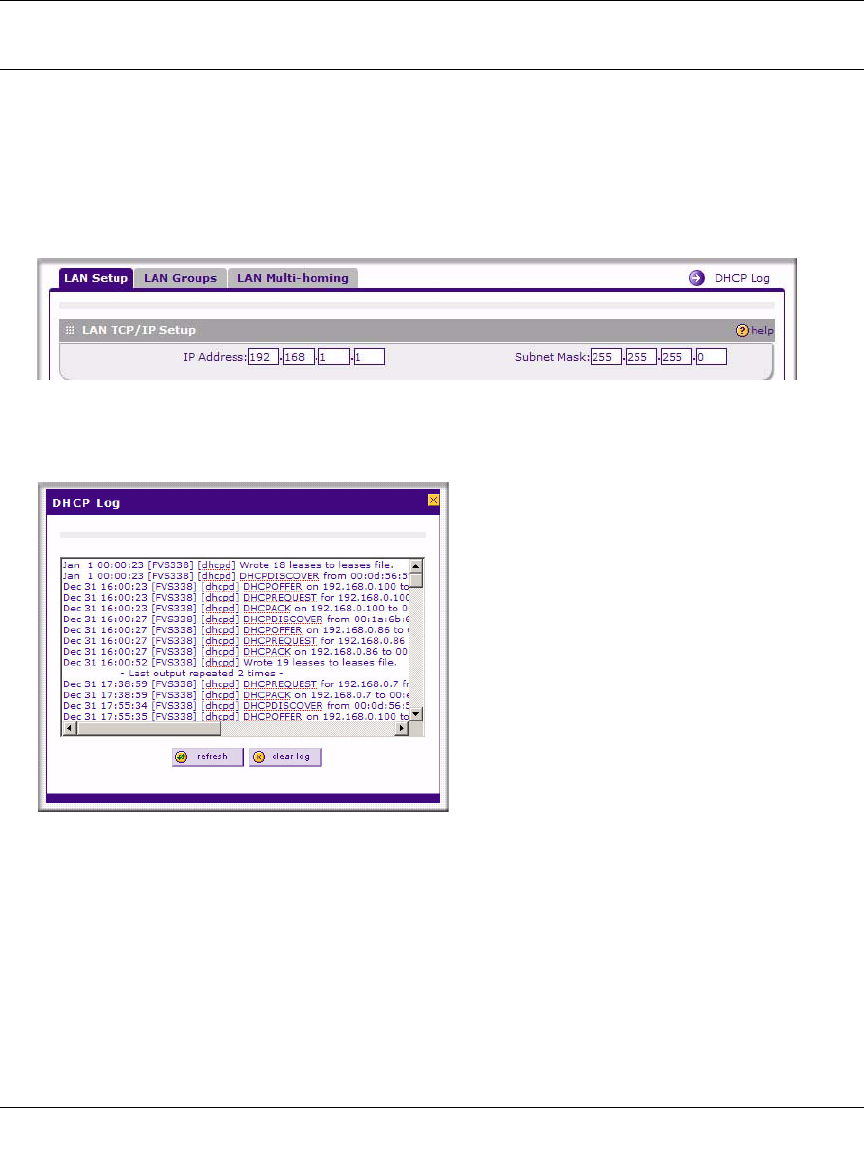

Reviewing the DHCP Log
To review the most recent entries in the DHCP log:
1. Select Network Configuration > LAN Setup from the main/submenu, and then click the
LAN Setup tab.
The LAN Setup screen displays.
2. Click the DHCP Log link to the right of the tabs. The DHCP Log appears in a popup window.
3. To view the most recent entries, click refresh. To delete all the existing log entries, click clear
log.
Figure 11-6OK
Figure 11-7OK
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-13
v1.0, July 2008

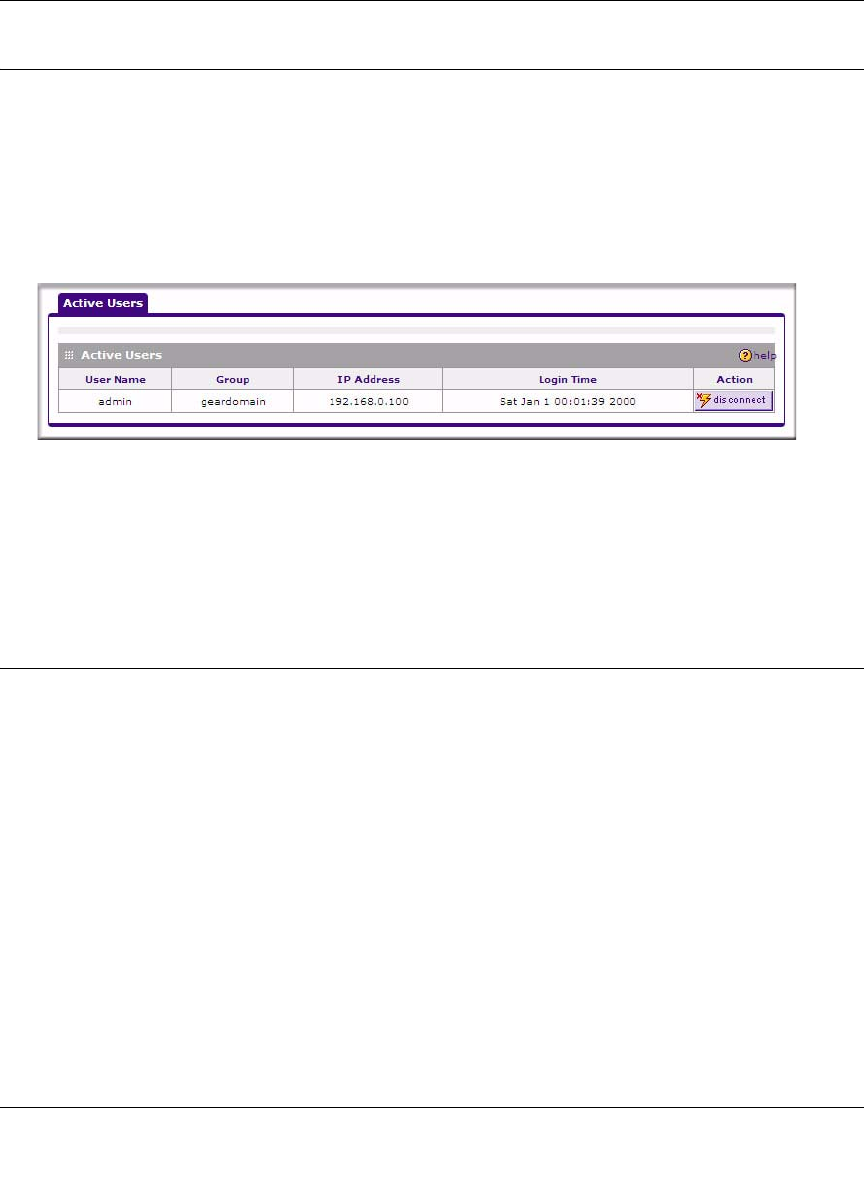

Monitoring Active Users
The Active Users menu screen displays a list of administrators and SSL VPN users currently
logged into the device.
To display the list of active users:
1. Select Monitoring > Active Users from the main/submenu. The Active Users screen is
displayed.
The active user’s username, group, and IP address are listed in the table with a timestamp
indicating the time and date that the user logged in.
2. You can disconnect an active user by clicking Disconnect to the right of the user’s list entry.
Viewing Port Triggering Status
To view the status of Port Triggering:
1. Select Security > Port Triggering from the main/submenu.
The Port Triggering screen displays.
Figure 11-8Need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-14 Monitoring System Performance
v1.0, July 2008
2. When the Port Triggering screen is displayed, click the Status link to the right of the tab to
display the Port Triggering Status.
The status window displays the following information:
Figure 11-9OK
Figure 11-10OK
Item Description
Rule The name of the port triggering rule associated with this entry.
LAN IP Address The IP address of the PC currently using this rule.
Open Ports The Incoming ports which are associated the this rule. Incoming traffic using one
of these ports will be sent to the IP address above.
Time Remaining The time remaining before this rule is released and made available for other
PCs. This timer is restarted whenever incoming or outgoing traffic is received.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Monitoring System Performance 11-15
v1.0, July 2008
Monitoring VPN Tunnel Connection Status
To review the status of current VPN tunnels:
1. Select VPN > Connection Status from the main/submenu, and then select the IPsec VPN
Connection Status tab. The IPsec Connection Status screen displays.
The Active IPsec SAs table lists each active connection with the following information.
2. Select the SSL VPN Connection Status tab and the SLL VPN Connection Status screen
displays.
Figure 11-11OK
Item Description
Policy Name The name of the VPN policy associated with this SA.
Endpoint The IP address on the remote VPN endpoint.
Tx (KB) The amount of data transmitted over this SA.
Tx (Packets) The number of IP packets transmitted over this SA.
State The current status of the SA. Phase 1 is Authentication phase and Phase 2 is
Key Exchange phase.
Action Use this button to terminate/build the SA (connection) if required.
Figure 11-12Need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
11-16 Monitoring System Performance
v1.0, July 2008
The active SSL VPN user’s username, group, and IP address are listed in the table with a
timestamp indicating the time and date that the user connected.
3. You can disconnect an active SSL VPN user by clicking Disconnect to the right of the user’s
list entry.

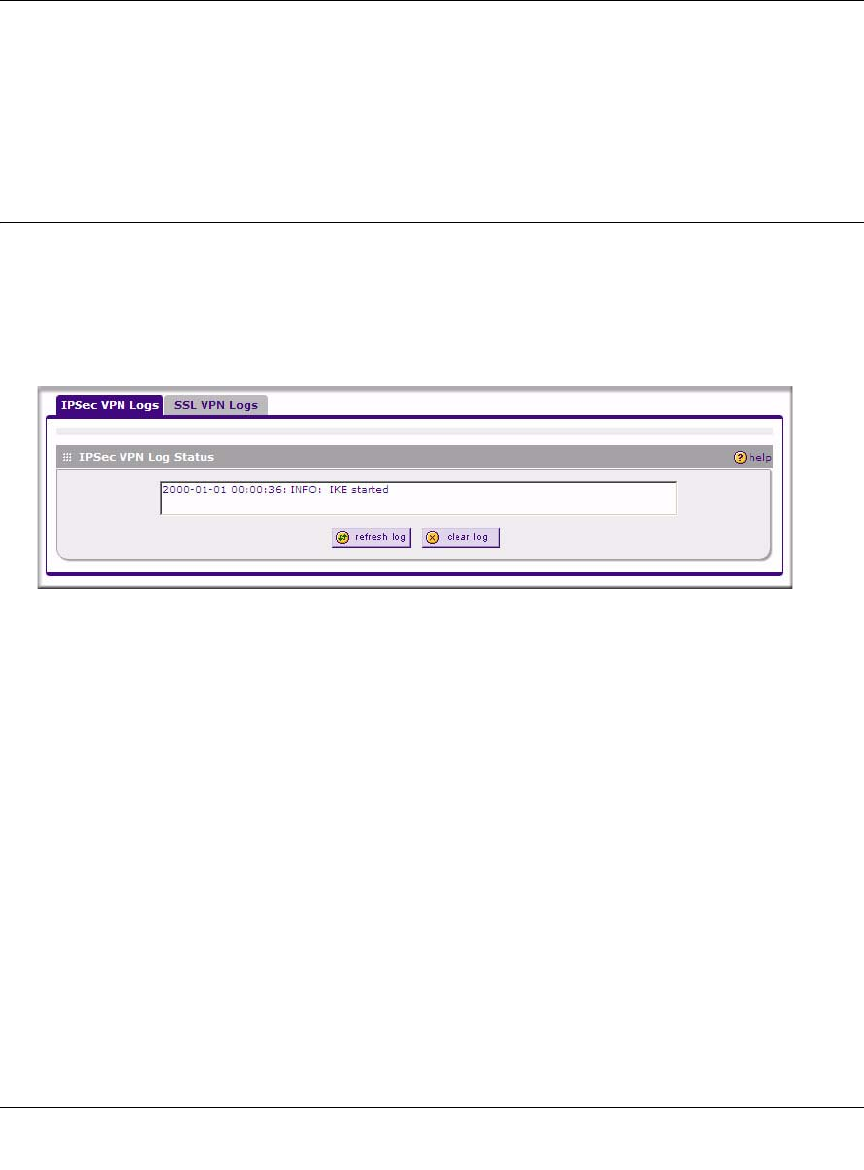

Reviewing the VPN Logs
The VPN Logs screen gives log details for recent VPN activity.
1. Select Monitoring > VPN Logs from the main/submenu, and select the IPsec VPN Logs tab.
The IPsec VPN Logs screen displays.
2. To view the most recent entries, click refresh log.
3. To delete all the existing log entries, click clear log.
4. Select the SSL VPN Logs tab to view SSL VPN log details.
Figure 11-13Need new screenshot
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Troubleshooting 12-1
v1.0, July 2008
Chapter 12
Troubleshooting
This chapter provides troubleshooting tips and information for your ProSafe Wireless-N VPN
Firewall. After each problem description, instructions are provided to help you diagnose and solve
the problem.
This chapter contains the following sections:
•“Basic Functions”
•“Troubleshooting the Web Configuration Interface”
•“Troubleshooting the ISP Connection”
•“Troubleshooting a TCP/IP Network Using a Ping Utility”
•“Restoring the Default Configuration and Password”
•“Problems with Date and Time”
•“Diagnostics Functions”
Basic Functions
After you turn on power to the VPN firewall, the following sequence of events should occur:
1. When power is first applied, verify the PWR LED is on.
2. After approximately two minutes, verify:
a. The TEST LED is not lit.
b. The LAN port LINK/ACT LEDs are lit for any local ports connected.
c. The WAN port LINK/ACT LEDs are lit on the WAN port.
If a port’s LINK/ACT LED is lit, a link has been established to the connected device. If a LAN
port is connected to a 1000 Mbps device, verify the port’s SPEED LED is green. If the port is
100 Mbps, the LED will be amber. If the port is 10 Mbps, the LED will be off.
If any of these conditions does not occur, refer to the appropriate following section.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
12-2 Troubleshooting
v1.0, July 2008
Power LED Not On
If the Power and other LEDs are off when your VPN firewall is turned on:
• Verify the power adapter cord is properly connected to your VPN firewall and the power
adapter is properly connected to a functioning power outlet.
• Verify you are using the 12VDC, 1.5A power adapter supplied by NETGEAR for this product.
If the error persists, you have a hardware problem and should contact technical support.
LEDs Never Turn Off
When the firewall is turned on, the LEDs turns on for about 10 seconds and then turn off. If all the
LEDs stay on, there is a fault within the firewall.
If all LEDs are still on one minute after power up:
• Cycle the power to see if the firewall recovers.
• Clear the firewall’s configuration to factory defaults. This will set the firewall’s IP address to
192.168.1.1. This procedure is explained in “Restoring the Default Configuration and
Password” on page 12-7.
If the error persists, you might have a hardware problem and should contact technical support.
LAN or WAN Port LEDs Not On
If either the LAN LEDs or WAN LEDs do not light when the Ethernet connection is made, check
the following:
• Verify the Ethernet cable connections are secure at the firewall and at the hub or workstation.
• Verify the power is turned on to the connected workstation.
• Ensure you are using the correct cable:
When connecting the firewall’s Internet port to a cable or DSL modem, use the cable that was
supplied with the cable or DSL modem. This cable could be a standard straight-through
Ethernet cable or an Ethernet crossover cable.
Troubleshooting the Web Configuration Interface
If you are unable to access the firewall’s Web Configuration interface from a PC on your local
network, check the following:
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Troubleshooting 12-3
v1.0, July 2008
• Check the Ethernet connection between the PC and the firewall as described in the previous
section.
• Ensure your PC’s IP address is on the same subnet as the firewall. If you are using the
recommended addressing scheme, your PC’s address should be in the range of 192.168.1.2 to
192.168.1.254.
• If your firewall’s IP address has been changed and you don’t know the current IP address,
clear the firewall’s configuration to factory defaults. This will set the firewall’s IP address to
192.168.1.1. This procedure is explained in “Restoring the Default Configuration and
Password” on page 12-7.
• Ensure you are using the SSL https://address login rather than http://address.
• Ensure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded.
• Try quitting the browser and launching it again.
• Ensure you are using the correct login information. The factory default login name is admin
and the password is password. Verify CAPS LOCK is off when entering this information.
If the firewall does not save changes you have made in the Web Configuration Interface, check the
following:
• When entering configuration settings, be sure to click the APPLY button before moving to
another menu or tab, or your changes are lost.
• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but
the Web browser may be caching the old configuration.
Note: If your PC’s IP address is shown as 169.254.x.x: Windows and MacOS will
generate and assign an IP address if the computer cannot reach a DHCP
server. These auto-generated addresses are in the range of 169.254.x.x. If your
IP address is in this range, check the connection from the PC to the firewall
and reboot your PC.
Tip: If you don’t want to revert to the factory default settings and lose your
configuration settings, you can reboot the firewall and use a sniffer to capture
packets sent during the reboot. Look at the ARP packets to locate the firewall’s
LAN interface address.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
12-4 Troubleshooting
v1.0, July 2008
Troubleshooting the ISP Connection
If your firewall is unable to access the Internet, you should first determine whether the firewall is
able to obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address,
your firewall must request an IP address from the ISP. You can determine whether the request was
successful using the Web Configuration Manager.
To check the WAN IP address:
1. Launch your browser and navigate to an external site such as www.netgear.com
2. Access the Main Menu of the firewall’s configuration at https://192.168.1.1
3. Under the Monitoring menu, click Router Status.
4. Check that an IP address is shown for the WAN Port.
If 0.0.0.0 is shown, your firewall has not obtained an IP address from your ISP.
If your firewall is unable to obtain an IP address from the ISP, you may need to force your cable or
DSL modem to recognize your new firewall by performing the following procedure:
1. Turn off power to the cable or DSL modem.
2. Turn off power to your firewall.
3. Wait five minutes and reapply power to the cable or DSL modem.
4. When the modem’s LEDs indicate that it has reacquired sync with the ISP, reapply power to
your firewall.
If your firewall is still unable to obtain an IP address from the ISP, the problem may be one of the
following:
• Your ISP may require a login program.
Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login.
• If your ISP requires a login, you may have incorrectly set the login name and password.
• Your ISP may check for your PC's host name.
Assign the PC Host Name of your ISP account as the Account Name in the Basic Settings
menu.
• Your ISP only allows one Ethernet MAC address to connect to the Internet, and may check for
your PC’s MAC address. In this case:
– Inform your ISP that you have bought a new network device, and ask them to use the
firewall’s MAC address; or
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Troubleshooting 12-5
v1.0, July 2008
– Configure your firewall to spoof your PC’s MAC address. This can be done in the Basic
Settings menu. Refer to “Manually Configuring the Internet Connection” on page 2-7.
If your firewall can obtain an IP address, but your PC is unable to load any Web pages from the
Internet:
• Your PC may not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS
servers for your use. You may configure your PC manually with DNS addresses, as explained
in your operating system documentation.
• Your PC may not have the firewall configured as its TCP/IP gateway.
Troubleshooting a TCP/IP Network Using a Ping Utility
Most TCP/IP terminal devices and firewalls contain a ping utility that sends an echo request packet
to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP
network is made very easy by using the Ping utility in your PC or workstation.
Testing the LAN Path to Your VPN Firewall
You can ping the firewall from your PC to verify that the LAN path to your firewall is set up
correctly.
To ping the firewall from a PC running Windows 95 or later:
1. From the Windows toolbar, click Start and choose Run.
2. In the field provided, type “ping” followed by the IP address of the firewall; for example:
ping 192.168.1.1
3. Click OK. A message, similar to the following, should display:
Pinging <IP address> with 32 bytes of data
If the path is working, you will see this message:
Reply from <IP address>: bytes=32 time=NN ms TTL=xxx
If the path is not working, you will see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
12-6 Troubleshooting
v1.0, July 2008
• Wrong physical connections
– Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN
or WAN Port LEDs Not On” on page 12-2.
– Check that the corresponding Link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and firewall.
• Wrong network configuration
– Verify that the Ethernet card driver software and TCP/IP software are both installed
and configured on your PC or workstation.
– Verify that the IP address for your firewall and your workstation are correct and that
the addresses are on the same subnet.
Testing the Path from Your PC to a Remote Device
After verifying the LAN path works correctly, test the path from your PC to a remote device. From
the Windows run menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
– Verify your PC has the IP address of your firewall listed as the default gateway. If the IP
configuration of your PC is assigned by DHCP, this information will not be visible in your
PC’s Network Control Panel.
– Verify the network address of your PC (the portion of the IP address specified by the
netmask) is different from the network address of the remote device.
– Verify your cable or DSL modem is connected and functioning.
– If your ISP assigned a host name to your PC, enter that host name as the Account Name in
the Basic Settings menu.
– Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many
broadband ISPs restrict access by only allowing traffic from the MAC address of your
broadband modem, but some ISPs additionally restrict access to the MAC address of a
single PC connected to that modem. If this is the case, you must configure your firewall to
“clone” or “spoof” the MAC address from the authorized PC. Refer to “Manually
Configuring the Internet Connection” on page 2-7.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Troubleshooting 12-7
v1.0, July 2008
Restoring the Default Configuration and Password
This section explains how to restore the factory default configuration settings, changing the VPN
firewall’s administration password to password and the IP address to 192.168.1.1. You can erase
the current configuration and restore factory defaults in two ways:
• Use the Erase function of the VPN firewall (see “Settings Backup and Firmware Upgrade” on
page 9-13).
• Use the reset button (Factory Defaults) on the front panel of the VPN firewall. Use this method
for cases when the administration password or IP address is not known.
To restore the factory default configuration settings without knowing the administration password
or IP address, you must use the reset button on the rear panel of the VPN firewall.
To restore the factory defaults:
1. Press and hold the Factory Defaults (reset button) until the Test LED turns on and begins to
blink (about 10 seconds).
Use a slender pointed object, such as an ink pen or paper clip, to press and hold the reset
button (Factory Defaults).
2. Release the reset button (Factory Defaults) and wait for the VPN firewall to reboot.
Problems with Date and Time
The Administration > Time Zone menu displays the current date and time of day. The VPN
firewall uses the Network Time Protocol (NTP) to obtain the current time from one of several
Network Time Servers on the Internet. Each entry in the log is stamped with the date and time of
day. Problems with the date and time function can include:
• Date shown is January 1, 2000. Cause: The VPN firewall has not yet successfully reached a
Network Time Server. Verify your Internet access settings are configured correctly. If you
have just completed configuring the VPN firewall, wait at least five minutes and check the
date and time again.
• Time is off by one hour. Cause: The VPN firewall does not automatically sense Daylight
Savings Time. Check the Time Zone menu, and check or uncheck the box marked “Adjust for
Daylight Savings Time”.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
12-8 Troubleshooting
v1.0, July 2008

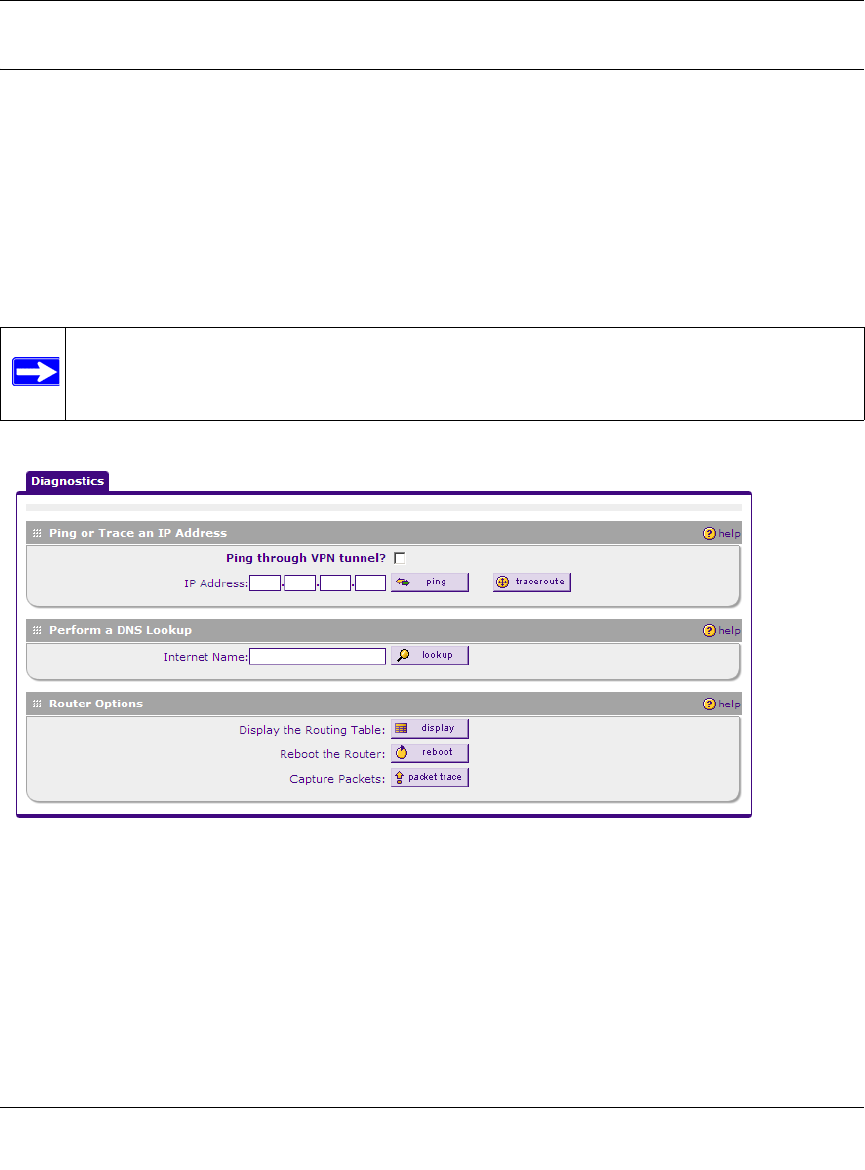

Diagnostics Functions
You can perform diagnostics such as pinging an IP address, performing a DNS lookup, displaying
the routing table, rebooting the VPN firewall, and capturing packets.
1. Select Monitoring > Diagnostics from the main/submenu.
The Diagnostics screen displays.
2. View the selections available in the Diagnostic screen and browse the descriptions listed in
Table 12-1., “Diagnostics”.
Note: For normal operation, diagnostics are not required.
Figure 12-1
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
Troubleshooting 12-9
v1.0, July 2008
Table 12-1. Diagnostics
Item Description
Ping or trace an IP
address
Ping – Used to send a ping packet request to a specified IP address—most often, to
test a connection. If the request times out (no reply is received), it usually means that
the destination is unreachable. However, some network devices can be configured
not to respond to a ping. The ping results will be displayed in a new screen; click
“Back” on the Windows menu bar to return to the Diagnostics screen.
If the specified address is intended to be reached through a VPN tunnel, check Ping
through VPN tunnel.
Traceroute – Lists all routers between the source (this device) and the destination IP
address. The traceroute results will be displayed in a new screen; click “Back” on the
Windows menu bar to return to the Diagnostics screen.
Perform a DNS
lookup
A DNS (Domain Name Server) converts the Internet name (for example,
www.netgear.com) to an IP address. If you need the IP address of a Web, FTP, Mail
or other Server on the Internet, you can request a DNS lookup to find the IP address.
Display the routing
table
This operation will display the internal routing table, which can be used by Technical
Support to diagnose routing problems.
Reboot the firewall Used to perform a remote reboot (restart). You can use this if the firewall seems to
have become unstable or is not operating normally.
Note: Rebooting will break any existing connections either to the firewall (such as
your management session) or through the firewall (for example, LAN users
accessing the Internet). However, connections to the Internet will automatically be re-
established when possible.
Packet trace Packet Trace selects the interface and starts the packet capture on that interface.
ProSafe Wireless-N VPN Firewall SRXN3205 Reference Manual
12-10 Troubleshooting
v1.0, July 2008
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
Default Settings and Technical Specifications A-1
v1.0, July 2008
Appendix A
Default Settings and Technical Specifications
You can use the reset button located on the rear panel to reset all settings to their factory defaults.
This is called a hard reset.
• To perform a hard reset, press and hold the reset button for approximately 10 seconds (until the
TEST LED blinks rapidly). Your device will return to the factory configuration settings shown
in Table A-1 below.
• Pressing the reset button for a shorter period of time will simply cause your device to reboot.
Table A-1. router Default Configuration Settings
Feature Default Behavior
Router Login
User Login URL https://192.168.1.1
User Name (case sensitive) admin
Login Password (case sensitive) password
Internet Connection
WAN MAC Address Use Default address
WAN MTU Size 1500
Port Speed AutoSense
Local Network (LAN)
Lan IP Address 192.168.1.1
Subnet Mask 255.255.255.0
RIP Direction None
RIP Version Disabled
RIP Authentication Disabled
DHCP Server Enabled
DHCP Starting IP Address 192.168.1.2
DHCP Ending IP Address 192.168.1.100
Management
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
A-2 Default Settings and Technical Specifications
v1.0, July 2008
Technical specifications for the ProSafe Wireless-N Security Router are listed in the following
table.
Time Zone GMT
Time Zone Adjusted for Daylight Saving
Time
Disabled
SNMP Disabled
Remote Management Disabled
Firewall
Inbound (communications coming in from
the Internet)
Denied
Outbound (communications from the
LAN to the Internet)
Allowed (all)
Source MAC filtering Disabled
Stealth Mode Enabled
Table A-2. router Technical Specifications
Feature Specifications
Network Protocol and Standards Compatibility
Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP
PPP over Ethernet (PPPoE)
Power Adapter
North America: 120V, 60 Hz, input
United Kingdom, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
Japan: 100V, 50/60 Hz, input
Physical Specifications
Dimensions: 1.7 x 10 x 7.2 in.
Weight: 2 kg (4.5 lb)
Table A-1. router Default Configuration Settings (continued)
Feature Default Behavior
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
Default Settings and Technical Specifications A-3
v1.0, July 2008
Environmental Specifications
Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 90% maximum relative humidity, noncondensing
Electromagnetic Emissions
Meets requirements of: FCC Part 15 Class B
VCCI Class B
EN 55 022 (CISPR 22), Class B
Interface Specifications
LAN: 10BASE-T or 100BASE-Tx 1000BASE-T, RJ-45
WAN: 10BASE-T or 100BASE-Tx 1000BASE-T, RJ-45
Table A-3. SSL VPN Technical Specifications
Parameter Specification
Network Management Web-based configuration and status monitoring
Concurrent Users
Supported
10 tunnels
Encryption DES, 3DES, AES, MD5, SHA-1
Authentication Local User database, RADIUS, LDAP, MS Active Directory
Certificates supported X.509, CRL
Electromagnetic
Compliance
FCC Part 15 Class B, CE, and C-TICK
Environmental
Specifications
Operating temperature: 0 to 50° C
Operating humidity: 5-95%, non-condensing
Table A-2. router Technical Specifications (continued)
Feature Specifications
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
A-4 Default Settings and Technical Specifications
v1.0, July 2008
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
Related Documents B-1
v1.0, July 2008
Appendix B
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Internet Networking and TCP/IP
Addressing: http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Communications: http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing a Computer for
Network Access: http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Virtual Private Networking
(VPN): http://documentation.netgear.com/reference/enu/vpn/index.htm
Glossary http://documentation.netgear.com/reference/enu/glossary/index.htm
ProSafe Wireless-N Security Router SRXN3205 Reference Manual
B-2 Related Documents
v1.0, July 2008
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-1
v1.0, October 2007
Index
A
access
remote management 8-10
ActiveX web cache control 6-6
Add LAN WAN Inbound Service 4-9
Add LAN WAN Outbound Service 4-8
Add Mode Config Record screen 5-19
Add Protocol Binding
Destination Network 2-16
Service 2-16
Add Resource Addresses menu 6-14
Adding 4-16
address reservation 3-8
administrator login timeout 8-10
Advanced Options
MTU Size 2-20
Port Speed 2-20
Router’s MAC Address 2-20
Allowing Videoconference from Restricted Addresses
example of 4-13
Attack Checks
about 4-10
Attack Checks screen 4-11
Authentication Algorithm
IKE Policy 5-13, 5-15
Auto Detect 2-5
Auto Uplink 1-4
Auto-Rollover
configuration of 2-13
definition of 2-11
Dual WAN ports 5-1
restoring WAN interface 2-15
use with DDNS 2-17
Using WAN port 2-14
B
backup and restore settings 8-14
bandwidth capacity 8-1
LAN side 8-1
Load balancing mode 8-2
Rollover mode 8-2
WAN side 8-2
Banner Message 6-5
Banner Title 6-5
BigPond Cable 2-6, 2-8
Internet connection 2-10
Block Sites
Content Filtering 4-19
reducing traffic 8-4
Block Sites screen 4-20
Block TCP Flood 4-10
block traffic
with schedule 4-18
Blocking Instant Messenger
example of 4-16
C
CA
about 7-9
Cat5 cable C-3
certificate
generate new CSR 7-11
Certificate Authority. See CA.
Certificate Signing Request, see CSR
certificates
management of 7-11
Classical Routing
definition of 2-12
command line interface 8-12
configuration
automatic by DHCP 1-4
connecting the VPN firewall 2-1
Connection Status
VPN Tunnels 5-15
Content 4-19
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-2
v1.0, October 2007
Content Filtering 4-1
about 4-19
Block Sites 4-19
enabling 4-20
firewall protection, about 4-1
content filtering 1-3, 4-1
crossover cable 1-4, 10-2
CSR 7-11
customized service
adding 4-2, 4-17
editing 4-17
D
Date
setting 8-16
troubleshooting 10-7
Daylight Savings Time
adjusting for 8-17
DDNS
about 2-17
configuration of 2-18
links to 2-18
providers of 2-17
services, examples 2-19
DDNS providers
links to 2-19
default configuration
restoring 10-7
default password 2-3
denial of service attack 4-10
Denial of Service. See DoS.
Destination Network
Add Protocol Binding 2-16
DHCP 2-6
DNS server address 3-4
DHCP Address Pool 3-4
DHCP log
monitoring 9-12
DHCP server
about 3-1
address pool 3-1, 3-4
configuring secondary IP addresses 3-9
enable 3-4
lease time 3-4
diagnostics
DNS lookup 10-8
packet capture 10-8
ping 10-8
rebooting 10-8
routing table 10-8
Diagnostics screen 10-8
Diffie-Hellman Group
IKE Policy 5-13
Disable DHCP Server 3-1
Disable DNS Proxy 4-11
DMZ WAN Rule
example of 4-14
DNS 6-2
ISP server addresses 2-11
lookup for WAN failure 2-14
server IP address 3-4
DNS proxy 8-6
disable 4-11
enable 3-4
feature 1-4
DNS queries
Auto-Rollover 2-13
DNS Suffix 6-11
Domain Name
router 3-4
Domain Name Blocking 4-19
Domain Name Servers. See DNS.
DoS
about protection 1-3
Dual 1-2
Dual WAN
configuration of 2-11
Dual WAN Port systems
VPN Tunnel addresses 5-2
Dual WAN Ports
features of 1-2
Dual WAN ports
Auto-Rollover, configuration of 2-13
inbound traffic C-8
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-3
v1.0, October 2007
Load Balancing, configuration of 2-15
load balancing, inbound traffic C-9
network planning C-1
Dynamic DNS
configuration of 2-17
Dynamic DNS Configuration screen 2-17, 2-18
Dynamic DNS. See DDNS
DynDNS.org 2-17
E
Edge Device 5-25
XAUTH, with ModeConfig 5-22
Edit Group Names 2-16, 3-7
Edit IKE Policy screen 5-6
Edit VPN Policy screen 5-9
e-mail logs
enabling notification 4-25, 9-4
E-mail Server address 9-4
Enable DHCP server 3-1
Enable DNS Proxy 3-4
Ending IP Address
DHCP Address Pool 3-4
Event Logs
emailing of 4-25, 9-4
Extended Authentication. See XAUTH.
F
factory default login 1-8
factory default settings
revert to 8-14
failover after 2-15
firewall
connecting to the Internet 2-1, C-4
features 1-4
front panel 1-6
rear panel 1-7
technical specifications A-1
viewing activity 9-14
Firewall Log
Field Description 9-7
Firewall Logs
emailing of 4-25, 9-4
viewing 9-6
Firewall Logs & E-mail screen 4-25, 9-4
Firewall Protection
Content Filtering, about 4-1
firewall protection 4-1
firmware
downloading 8-15
upgrade 8-15
fixed IP address 2-6, 3-7
FQDN 2-17, 5-2
fragmented IP packets 8-6
fully qualified domain name. See FQDN.
G
Gateway VPN Tunnel
creating 5-4
Global Policies 6-15
Group Names
editing 3-7
Group Policies 6-15
groups, managing 3-5
H
hardware requirements C-3
host name resolution 6-9
Hosting A Local Public Web Server
example of 4-12
hosts, managing 3-5
HTTP meta tags 6-6
I
Iego.net 2-17
IGP 3-12
IKE Policies menu 5-10
IKE Policy
about 5-12
management of 5-12
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-4
v1.0, October 2007
ModeConfig, configuring with 5-21
XAUTH, adding to 5-25
Inbound Rules
default definition 4-2
field descriptions 4-5
order of precedence 4-7
Port Forwarding 4-2, 4-4
rules for use 4-4
inbound rules 4-4
example 4-14
Inbound Service Rule
modifying 4-9
Inbound Services
field descriptions 4-5
inbound traffic C-6, C-8
dual WAN ports C-8, C-9
single WAN port reference case C-8
increasing traffic 8-5
Port Forwarding 8-5
Port Triggering 8-7
VPN Tunnels 8-7
installation 1-4
Installation, instructions for 2-1
Interior Gateway Protocol. See IGP.
Internet
configuration requirements C-4, C-5
configuring the connection manually 2-8
connecting to 2-1
Internet connection
manual configuration 2-8
Internet Service Provider. See ISP.
IP addresses
auto-generated 10-3
DHCP address pool 3-1
how to assign 3-1
multi home LAN 3-5
reserved 3-8
router default 3-3
IP Subnet Mask
router default 3-3
IPsec 4-11
IPsec Connection Status screen 9-14
IPSec Host 5-26
IPsec Host
XAUTH, with ModeConfig 5-22
IPsec host 5-24
ISP connection
troubleshooting 10-4
K
Keep Connected
Idle TImeout 2-9
Idle Timeout 2-9
Keyword Blocking 4-19
applying 4-22
Known PCs and Devices
list of 3-6
L
L2TP 4-11
LAN
configuration 3-1
using LAN IP setup options 3-2
LAN Groups Database
about 3-5
advantages of 3-5
fields 3-6
LAN Groups menu 3-6
LAN Security Checks 4-10
LAN Setup screen 3-2
LAN side
bandwidth capacity 8-1
LAN WAN Inbound Rule
example of 4-12, 4-13, 4-15
LAN WAN Inbound Services Rules
about 4-9
add 4-9
LAN WAN Outbound Rule
example of 4-16
LAN WAN Rule
example of 4-14
LAN WAN Rules
default outbound 4-7
lease time 3-4
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-5
v1.0, October 2007
LEDs
explanation of 1-6
troubleshooting 10-2
Load Balancing
bandwidth capacity 8-2
configuration of 2-15
definition of 2-12
use with DDNS 2-17
view protocol bindings 2-16
logging in
default login 2-2
login policy
restrict by browser 7-8
restrict by IP address 7-7
restrict by port 7-6
M
MAC address 10-7
authentication by ISP 2-20
configuring 2-6
format 2-21, 4-23
in LAN groups database 3-7
spoofing 10-5
MAC addresses
blocked, adding 4-22
main menu 2-4
metric
in static routes 3-11
ModeConfig 5-18
about 5-18
assigning remote addresses, example 5-18
Client Configuration 5-22
IKE Policies menu, configuring 5-19
menu, configuring 5-19
testing Client 5-23
monitoring devices 9-10
by DHCP Client Requests 9-10
by Scanning the Network 9-10
MTU Size 2-20
multi home LAN IPs 3-5
about 3-9
multi-NAT 4-14
N
NAS
Identifier 5-27
NAT
configuring 2-12
firewall, use with 4-1
multi-NAT 4-14
one-to-one mapping 2-12
one-to-one mapping example 4-14
Network Access Server. See NAS.
Network Address Translation. See NAT.
network configuration requirements C-3
Network Database
table 3-6
Network Database Group Names screen 3-7
network planning
dual WAN ports C-1
Network Time Protocol. See NTP.
newsgroup 4-20
NTP 8-16
troubleshooting 10-7
NTP servers
custom 8-17
default 8-17
setting 8-16
O
option arrow 2-4
Outbound Rules
default definition 4-2
field descriptions 4-3
order of precedence 4-7
service blocking 4-2
outbound rules 4-3
Outbound Service Rule
adding 4-8
modifying 4-9
Outbound Services
field descriptions 4-3
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-6
v1.0, October 2007
P
package contents 1-5
packet capture 10-9
passwords and login timeout
changing 8-8
passwords,restoring 10-7
performance management 8-1, 9-1
Ping
troubleshooting TCP/IP 10-5
ping 10-9
Ping On Internet Ports 4-10
Ping to an IP address
Auto-Rollover 2-13
Ping to this IP address 2-14
planning
inbound traffic C-6, C-8
VPNs C-6
policy hierarchy 6-15
port filtering
service blocking 4-3
Port Forwarding
Inbound Rules 4-2, 4-4
increasing traffic 8-5
rules, about 4-4
Port Mode 2-14, 2-15
port numbers 4-16
Port Speed 2-20
Port Triggering
about 4-23
adding a rule 4-24
increasing traffic 8-7
rules of use 4-24
status monitoring 9-13
Port Triggering screen 4-24, 9-14
Portal Site Title 6-5
ports
explanation of WAN and LAN 1-6
PPP connection 6-2
PPP over Ethernet. See PPPoE.
PPPoE 1-4, 2-6, 2-8
Internet connection 2-9
PPTP 2-6, 2-8, 4-11
protocol binding 2-15
protocol numbers
assigned 4-16
protocols
Routing Information Protocol 1-4
Q
QoS
about 4-18
priority definitions 4-18
shifting traffic mix 8-8
using in firewall rules 4-2
Quality of Service. See QoS.
R
RADIUS Server
configuring 5-26
RADIUS-CHAP 5-24, 5-25
AUTH, using with 5-24
RADIUS-PAP 5-24
XAUTH, using with 5-24
reducing traffic 8-2
Block Sites 8-4
service blocking 8-2
Source MAC Filtering 8-5
remote management 8-10
access 8-10
configuration 8-10
remote users
assigning addresses 5-18
ModeConfig 5-18
requirements
hardware C-3
reserved IP address
configuring 3-8
in LAN groups database 3-7
restrictions 3-7
resources
defining 6-13
restore saved settings 8-14
retry interval 2-14
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-7
v1.0, October 2007
Return E-mail Address 9-4
RFC 1349 4-18
RFC1700
protocol numbers 4-16
RIP
about 3-12
advertising static routes 3-11
configuring parameters 3-12
feature 1-4
versions of 3-13
RIP Configuration menu 3-12
Rollover mode
bandwidth capacity 8-2
router
upgrade software 8-16
router administration
tips on 4-25
Router Status 2-13
Router Status screen 9-7
Router Upgrade
about 8-15
Router’s MAC Address 2-20
Routing Information Protocol. See RIP.
routing menu 3-10
rules
blocking traffic 4-2
inbound 4-4
inbound example 4-14
outbound 4-3
service blocking 4-3
services-based 4-2
running tracert 8-12
S
schedule
blocking traffic 4-18
Schedule 1 screen 4-18
secondary IP addresses
DHCP, use with 3-9
Secondary LAN IPs
see Multi Home LAN IPs 3-9
self certificate request 7-11
Send To E-mail Address 9-4
Service
Add Protocol Binding 2-16
service 4-16
Service Based Rules 4-2
service blocking 4-3
Outbound Rules 4-2
port filtering 4-3
reducing traffic 8-2
service numbers
common protocols 4-16
Services 4-16
Services menu 4-17
Setting Up One-to-One NAT Mapping
example of 4-14
Settings Backup & Upgrade screen 8-14
Settings Backup and Firmware Upgrade 8-14
Simple Network Management Protocol. See SNMP.
Single WAN Port
inbound traffic C-8
sniffer 10-3
SNMP
about 8-12
configuring 8-12
global access 8-13
host only access 8-13
subnet access 8-13
SNMP screen 8-12
Source MAC Filter screen 4-22
Source MAC Filtering
enabling 4-22
reducing traffic 8-5
Source Network
Add Protocol Binding 2-16
Specifying an Exposed Host
example of 4-15
split tunnel
configuring 6-11
description 6-10
spoof MAC address 10-5
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-8
v1.0, October 2007
SSL VPN Client
description 6-2
SSL VPN Logs 9-16
Starting IP Address
DHCP Address Pool 3-4
Stateful Packet Inspection
firewall, use with 4-1
stateful packet inspection. See SPI.
Static 3-10
static IP address
configuring 2-10
detecting 2-6
static routes
about 3-10
configuring 3-10
metric 3-11
stealth mode 4-10, 8-6
submenu 2-4
SYN flood 4-10, 8-6
SysLog Server
IP Address 9-6
T
tab, menu 2-4
TCP flood
special rule 8-6
TCP/IP
network, troubleshooting 10-5
Time
setting 8-16
troubleshooting 10-7
time
daylight savings, troubleshooting 10-8
Time Zone
setting of 8-16
Time Zone screen 8-16
timeout, administrator login 8-10
ToS. See QoS.
traceroute 10-9
tracert
use with DDNS 8-12
traffic
increasing 8-5
reducing 8-2
traffic management 8-8
traffic meter 2-21
troubleshooting 10-1
browsers 10-3
configuration settings, using sniffer 10-3
defaults 10-3
ISP connection 10-4
NTP 10-7
testing your setup 10-6
Web configuration 10-3
Trusted Certificates 7-9, 7-10
Trusted Domains
building list of 4-22
TZO.com 2-17
U
UDP flood 4-10
special rule 8-6
User Database 5-25
User Policies 6-15
V
view protocol bindings
Load Balancing 2-16
VPN
gateway to gateway, about C-14
gateway-to-gateway, Dual gateway C-15
gateway-to-gateway, single gateway C-14
Load Balancing, examples of C-11
load balancing, with dual WAN ports C-7
Road Warrior, dual gateway C-12
Road Warrior, examples of C-11
Road Warrior, single gateway C-12
Rollover, examples of C-10
rollover, with dual WAN ports C-7
telecommuter, about C-17
telecommuter, Dual gateway C-18
telecommuter, single gateway C-18
VPN Client
configuring 5-7
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336G Reference Manual
Index-9
v1.0, October 2007
configuring PC, example 5-16
VPN Wizard example 5-16
VPN firewall
connecting 2-1
VPN Logs screen 9-15
VPN passthrough 4-11, 8-6
VPN Policies screen 5-5, 5-9
VPN Policy
Auto 5-13
field definitions 5-14
Manual 5-13
VPN Tunnel addresses
Dual WAN Port systems 5-2
VPN Tunnel Connection
monitoring status 9-14
VPN tunnels
about 5-1
Connection Status 5-15
increasing traffic 8-7
IPsec 4-11
L2TP 4-11
load balancing mode 5-2
PPTP 4-11
rollover mode 5-2
VPN Wizard
Gateway tunnel 5-4
VPN Client, configuring 5-7
VPN Wizard Default Values 5-5
VPNC 5-4
VPNs C-6, C-10
about C-10
gateway-to-gateway C-14, C-15, C-17
road warrior C-11, C-12, C-13
telecommuter C-18, C-20
viewing VPN tunnel status 9-14
W
WAN
configuring Advanced options 2-19
configuring WAN Mode 2-11
WAN Failure Detection Method 2-12, 2-13
WAN Mode setup 5-2
WAN Port 1 status 2-7
WAN Ports
monitoring status 9-9
WAN ports
status of 2-13
WAN Security Check
about 4-10
WAN side
bandwidth capacity 8-2
WAN Status 2-6
WAN1 Advanced Options 2-20
WAN1 ISP Settings
manual setup 2-8
WAN1 Protocol Bindings 2-16
WAN1 Traffic Meter 9-1
WAN2 ISP Settings
manual setup 2-11
WAN2 Protocol Bindings 2-17
WAN2 Traffic Meter 9-3
Web Components 4-19
blocking 4-22
filtering, about 4-19
Web configuration
troubleshooting 10-3
WinPoET 2-8
WINS server 3-4
X
XAUTH
IPsec host 5-24
types of 5-24
