Netgear orporated 10200134 N 150 Wireless Router User Manual Part 1
Netgear Incorporated N 150 Wireless Router Part 1
Contents
- 1. User Manual Part 1
- 2. User Manual Part 2
User Manual Part 1
August 2010
v1.0
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
N 150 Wireless Router
WNR1000 v2h2
User Manual
ii
v1.0, August 2010
©2010 by NETGEAR, Inc. All rights reserved.
Product Registration, Support, and Documentation
Register your product at http://www.netgear.com/register. Registration is required before you can use our telephone
support service. Product updates and Web support are always available at http://www.netgear.com/support.
Setup documentation is available on the CD, on the support website, and on the documentation website. When the
wireless router is connected to the Internet, click the Knowledge Base or the Documentation link under Web Support on
the main menu to view support information.
Trademarks
NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of
NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered
trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered
trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the N 150 Wireless Router WNR1000 v2h2 has been suppressed in accordance with the
conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example,
test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the
notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß das N 150 Wireless Router WNR1000 v2h2 gemäß der im BMPT-AmtsblVfg 243/
1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B.
Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der
Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result
in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.
v1.0, August 2010
iii
NOTE: This product's firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods
have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive
1999/5/EC:
• EN 60950-1: 2001
Safety of information technology equipment
• EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
• EN 301 489-17 V1.2.1 (2002-08) and EN 301 489-1 V1.4.1 (2002-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems
and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries under the following conditions and/or with the following restrictions:
• In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization
to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
• This device may not be used for setting up outdoor radio links in France and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
Europe – Declaration of Conformity in Languages of the European Community
Česky
[Czech] [NETGEAR Inc.] tímto prohlašuje, že tento [WNR1000 v2h2] je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk
[Danish] Undertegnede [NETGEAR Inc.] erklærer herved, at følgende udstyr [WNR1000v2h2]
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German] Hiermit erklärt [NETGEAR Inc.], dass sich das Gerät [WNR1000 v2h2] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian] Käesolevaga kinnitab [NETGEAR Inc.] seadme [WNR1000 v2h2] vastavust direktiivi 1999/
5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [NETGEAR Inc.], declares that this [WNR1000 v2h2] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
v1.0, August 2010
iv
Español
[Spanish] Por medio de la presente [NETGEAR Inc.] declara que el [WNR1000 v2h2] cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Eλληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [NETGEAR Inc.] ΔΗΛΩΝΕΙ ΟΤΙ [WNR1000 v2h2]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French] Par la présente [NETGEAR Inc.] déclare que l'appareil [WNR1000 v2h2] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian] Con la presente [NETGEAR Inc.] dichiara che questo [WNR1000 v2h2] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian] Ar šo [NETGEAR Inc.] deklarē, ka [WNR1000 v2h2] atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian] Šiuo [NETGEAR Inc.] deklaruoja, kad šis [WNR1000 v2h2] atitinka esminius reikalavimus
ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch] Hierbij verklaart [NETGEAR Inc.]. dat het toestel [WNR1000 v2h2] in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese] Hawnhekk, [NETGEAR Inc.], jiddikjara li dan [WNR1000 v2h2] jikkonforma mal-htigijiet
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian] Alulírott, [NETGEAR Inc.] nyilatkozom, hogy a [WNR1000 v2h2] megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish] Niniejszym [NETGEAR Inc.] oświadcza, że [WNR1000 v2h2] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese] [NETGEAR Inc.] declara que este [WNR1000 v2h2] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian] [NETGEAR Inc.] izjavlja, da je ta [WNR1000 v2h2] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak] [NETGEAR Inc.] týmto vyhlasuje, _e [WNR1000 v2h2] spĺňa základné po_iadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish] [NETGEAR Inc.] vakuuttaa täten että [WNR1000 v2h2] tyyppinen laite on direktiivin 1999/
5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish] Härmed intygar [NETGEAR Inc.] att denna [WNR1000 v2h2] står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
v1.0, August 2010
v
FCC Requirements for Operation in the United States
Federal Communications Commission (FCC) Compliance Notice:
Radio Frequency Notice: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when
connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your
body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only. Any
product changes or modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration Of Conformity
We NETGEAR, Inc., 4500 Great America Parkway, Santa Clara, CA 95054, declare under our sole responsibility that
the model N 150 Wireless Router WNR1000 v2h2 complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
v1.0, August 2010
vi
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate
the equipment.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated witha minimum distance of 20 cm between the radiator and your body.
Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.
v1.0, August 2010
vii
Product and Publication Details
Model Number: WNR1000 v2h2
Publication Date: August 2010
Product Family: Wireless Router
Product Name: N 150 Wireless Router WNR1000 v2h2
Home or Business Product: Home
Language: English
Publication Part Number: 202-10546-01
vii
v1.0, August 2010
Contents
About This Manual
Conventions, Formats, and Scope ................................................................................... xi
How to Use This Manual ................................................................................................. xii
How to Print This Manual ................................................................................................xiii
Revision History ...............................................................................................................xiii
Chapter 1
Configuring Basic Connectivity
Using the Setup Manual .................................................................................................1-1
Logging In To Your Wireless Router ..............................................................................1-2

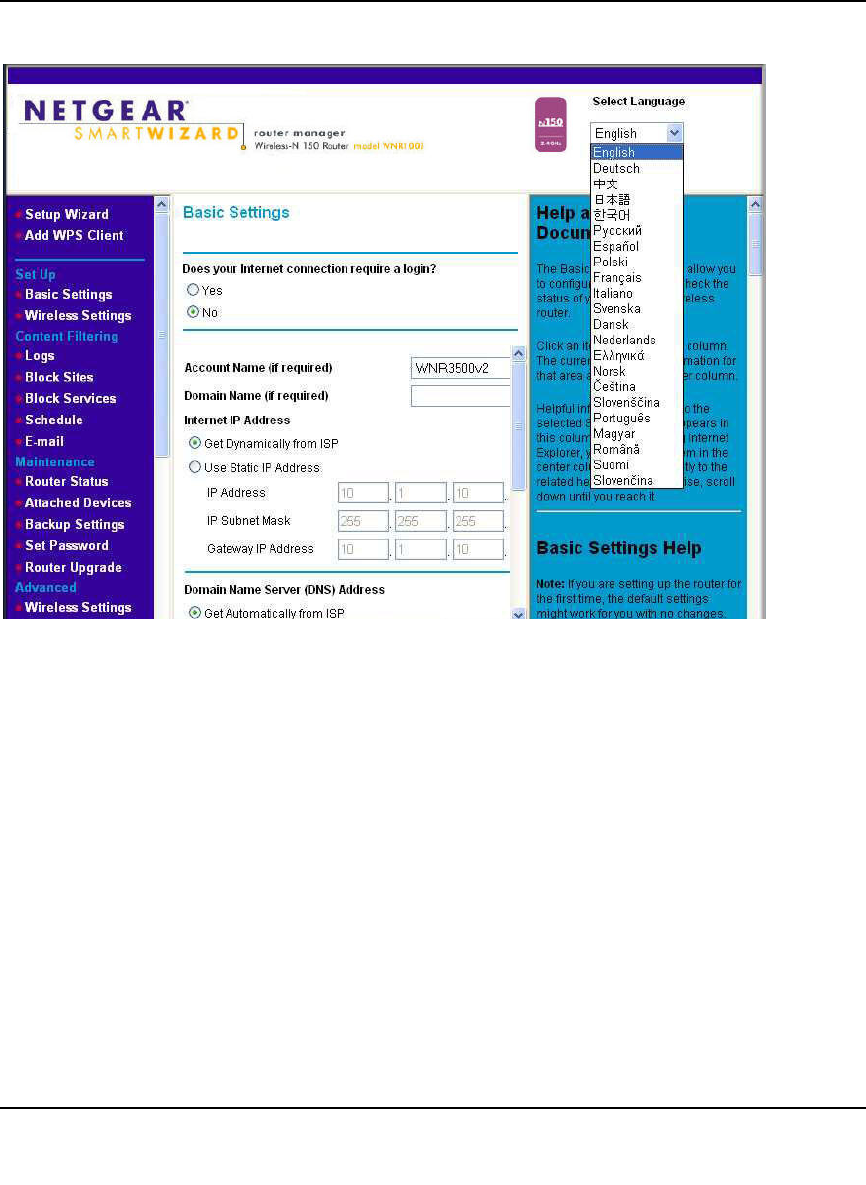

Selecting a Language for Your Screen Display ..............................................................1-4
Configuring Your Internet Settings Using the Setup Wizard ...........................................1-6
Viewing and Configuring Basic Internet Settings ............................................................1-6

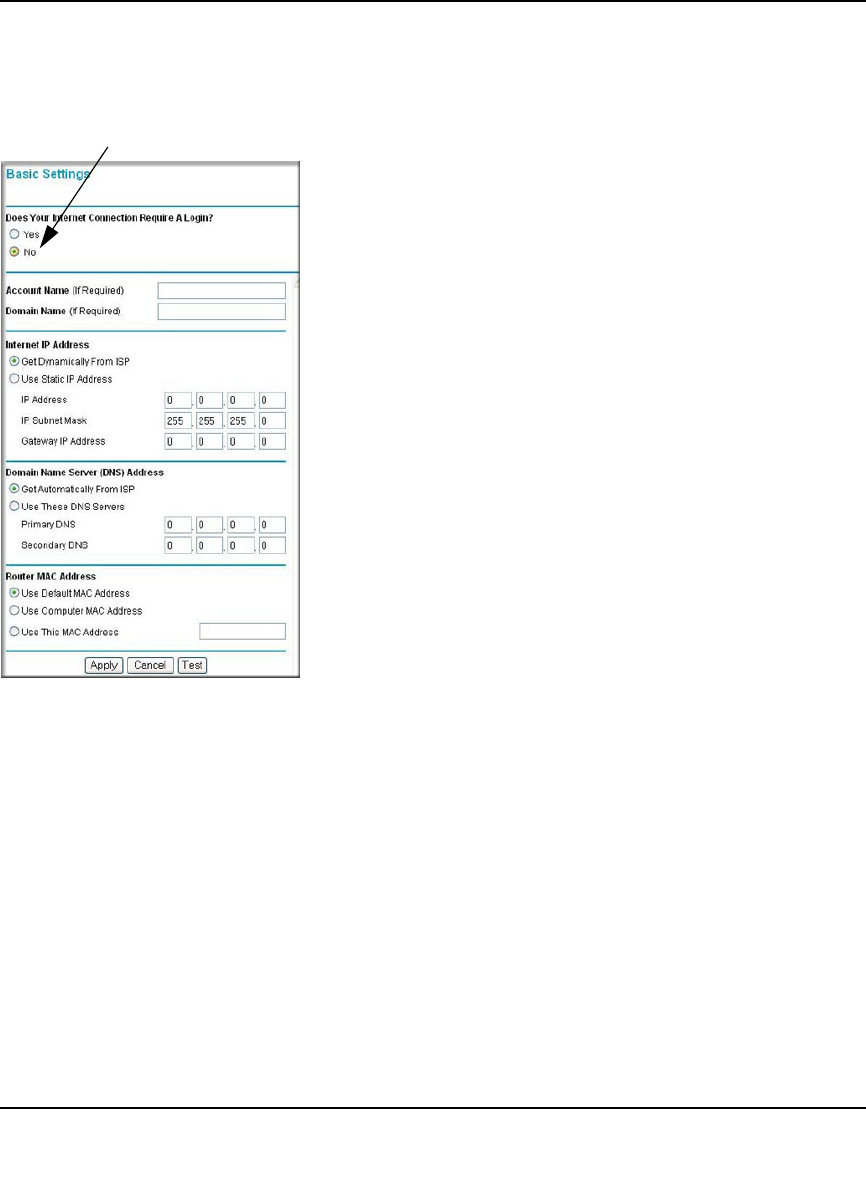

Your Internet Connection Does Not Require a Login ...............................................1-7

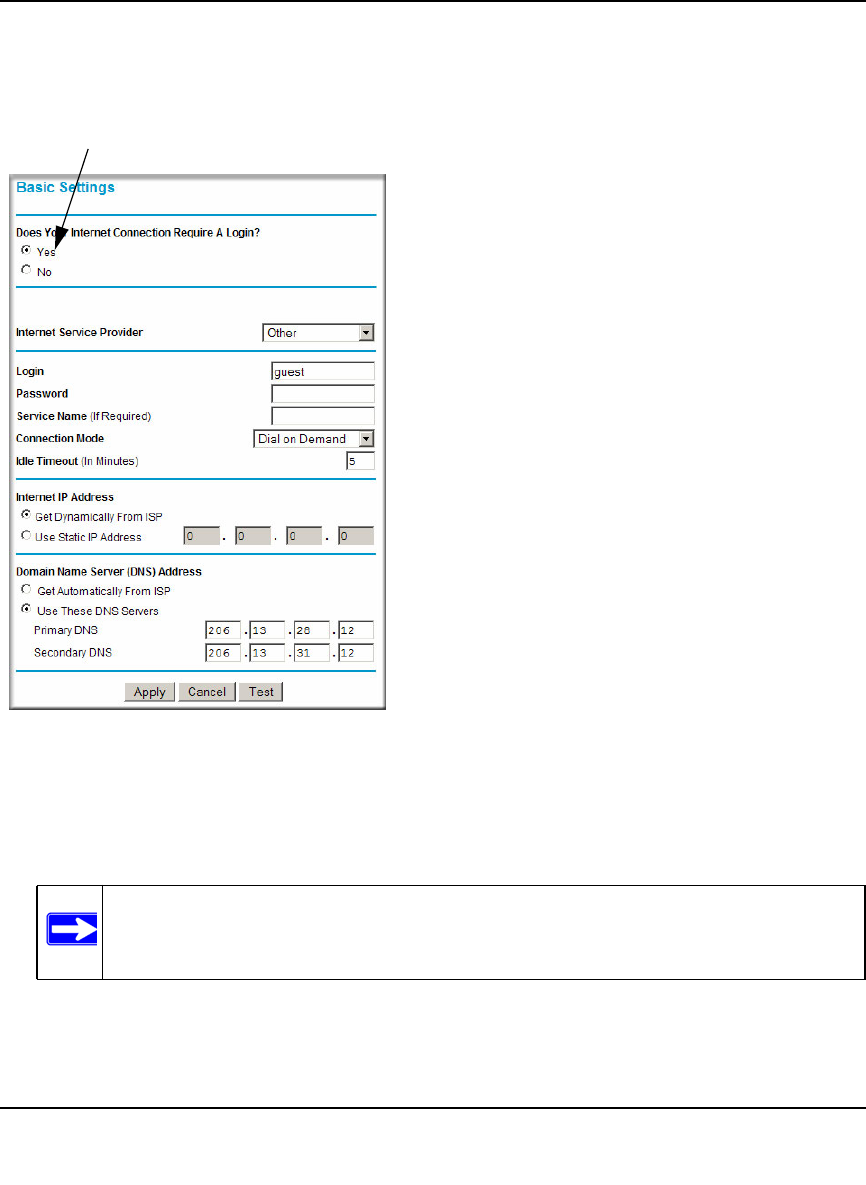

Your Internet Connection Does Require a Login .....................................................1-9
Setting Up and Testing Basic Wireless Connectivity ....................................................1-11
Chapter 2
Safeguarding Your Network
Choosing Appropriate Wireless Security ........................................................................2-1
Recording Basic Wireless Settings Setup Information ...................................................2-5
Changing Wireless Security Settings .............................................................................2-6

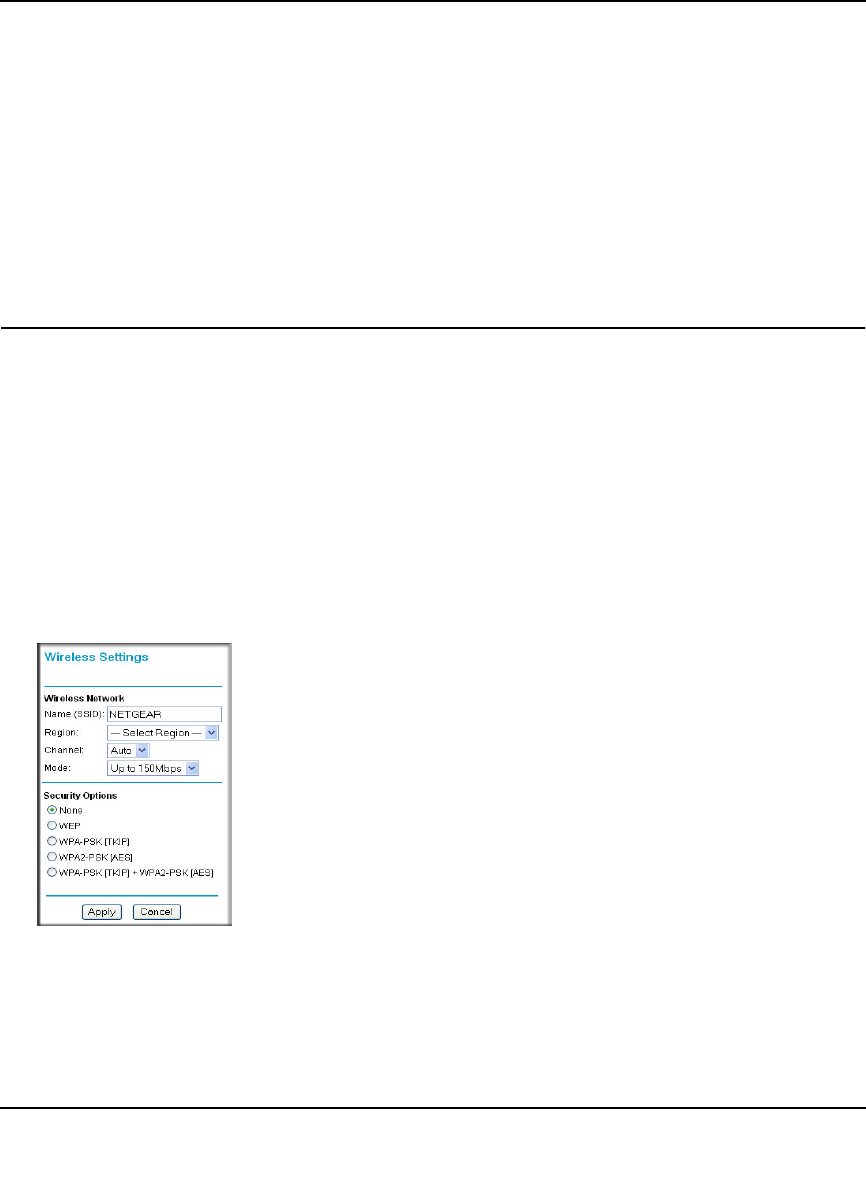

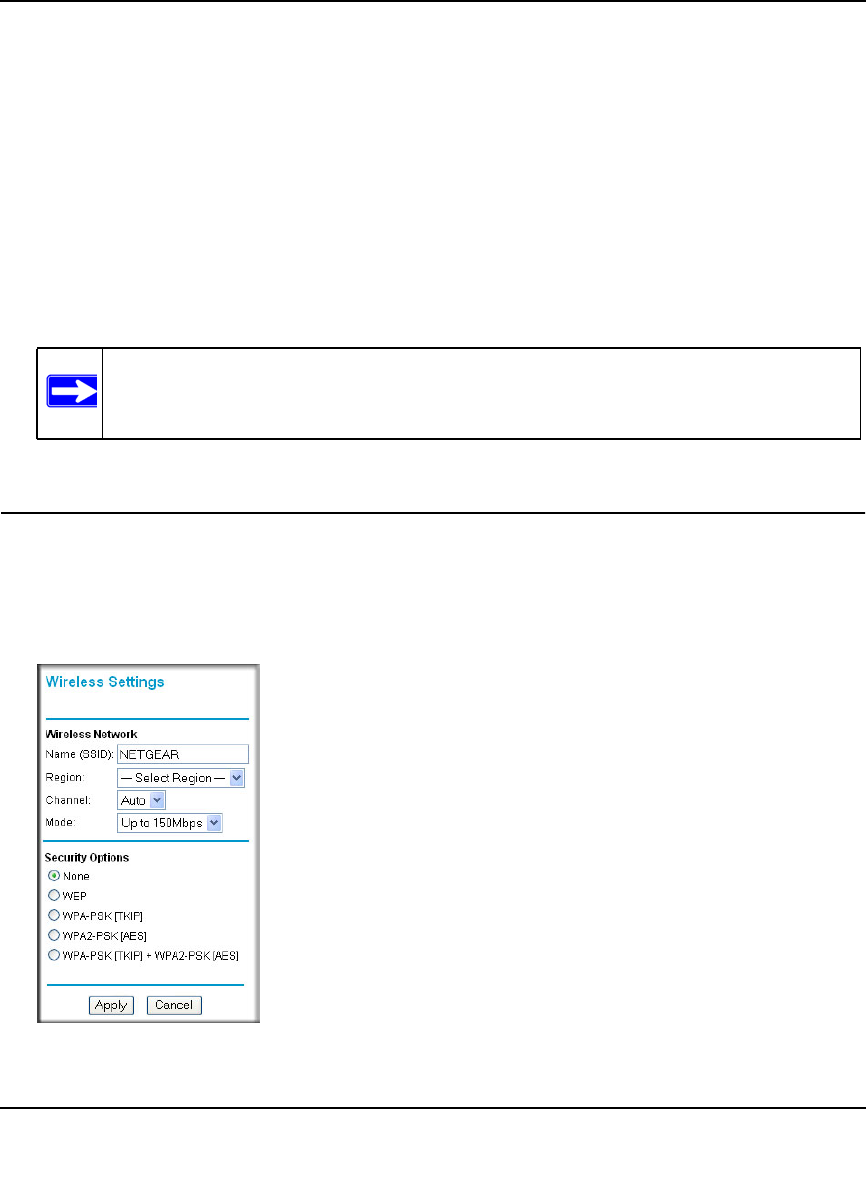

Viewing Basic Wireless Settings ..............................................................................2-6

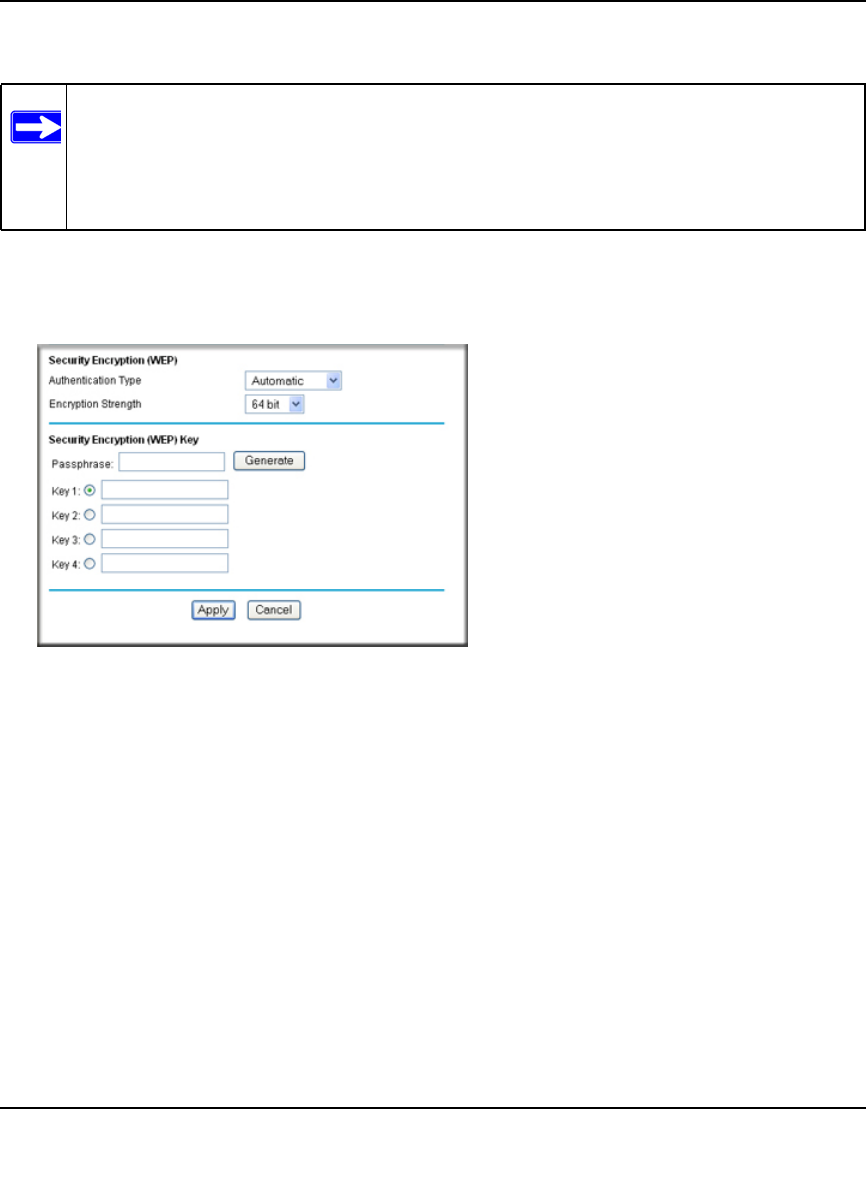

Configuring WEP Wireless Security .........................................................................2-8

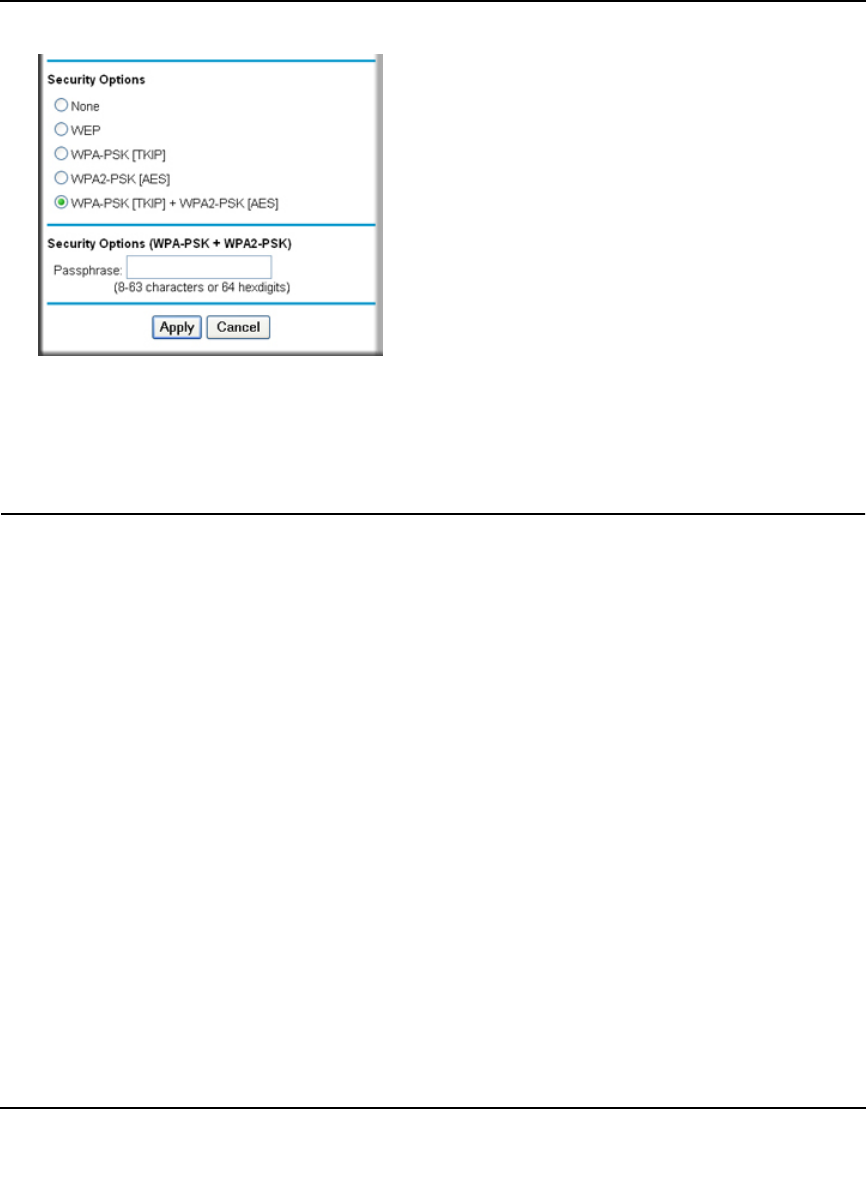

Configuring WPA-PSK and WPA2-PSK Wireless Security ....................................2-10

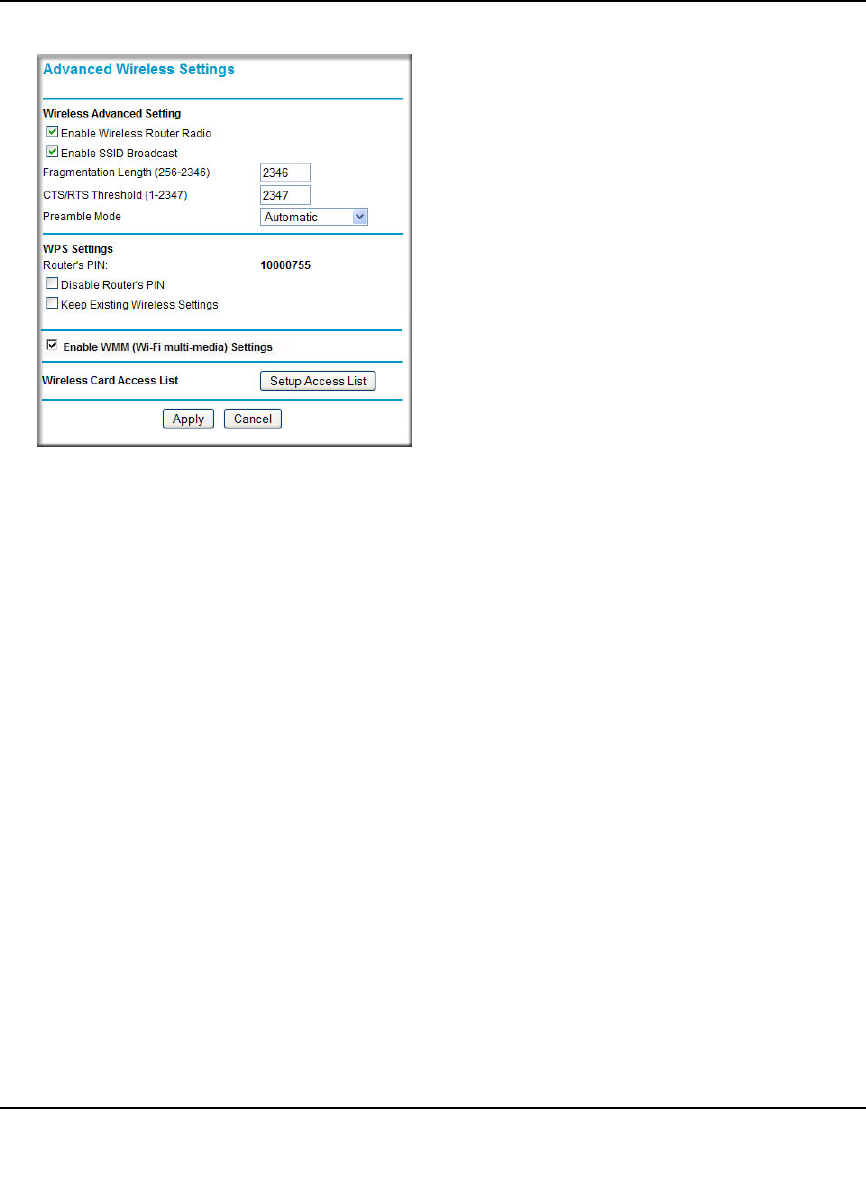

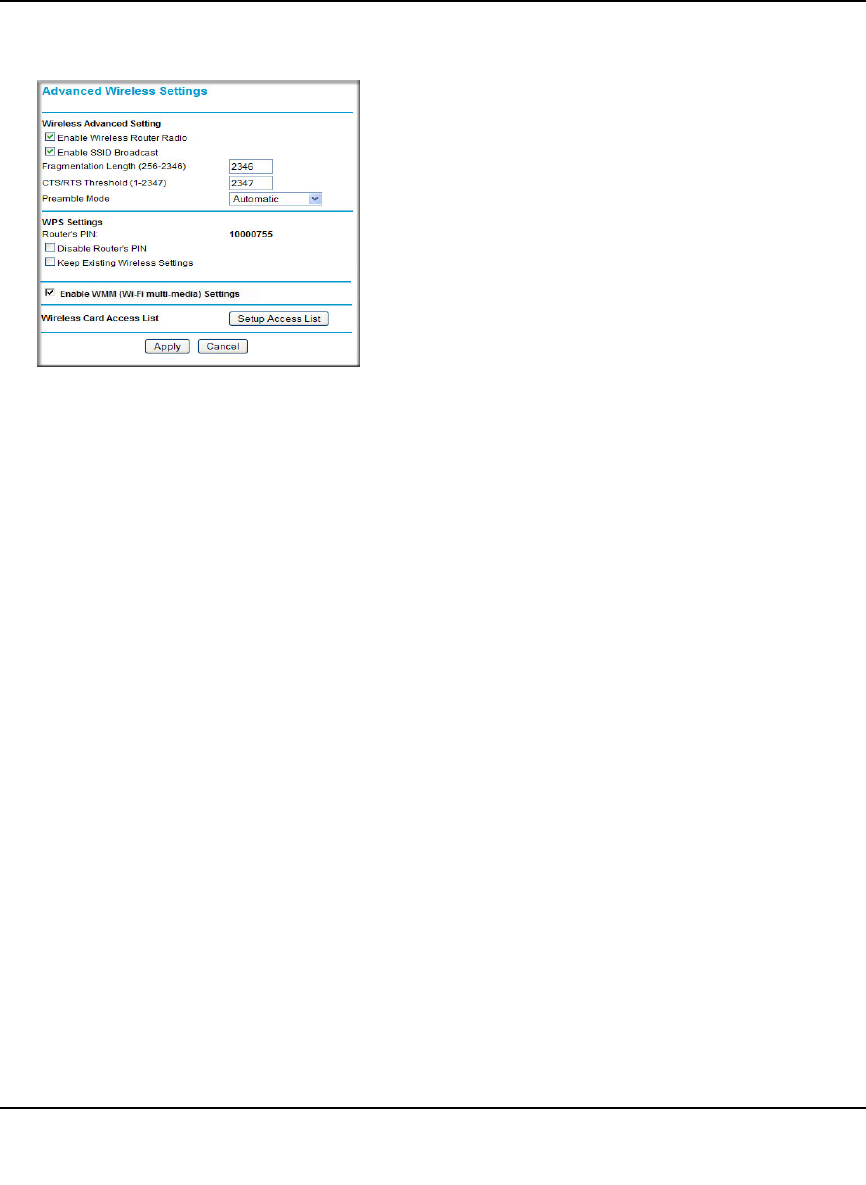

Viewing Advanced Wireless Settings ...........................................................................2-11
Using Push 'N' Connect (Wi-Fi Protected Setup) .........................................................2-13

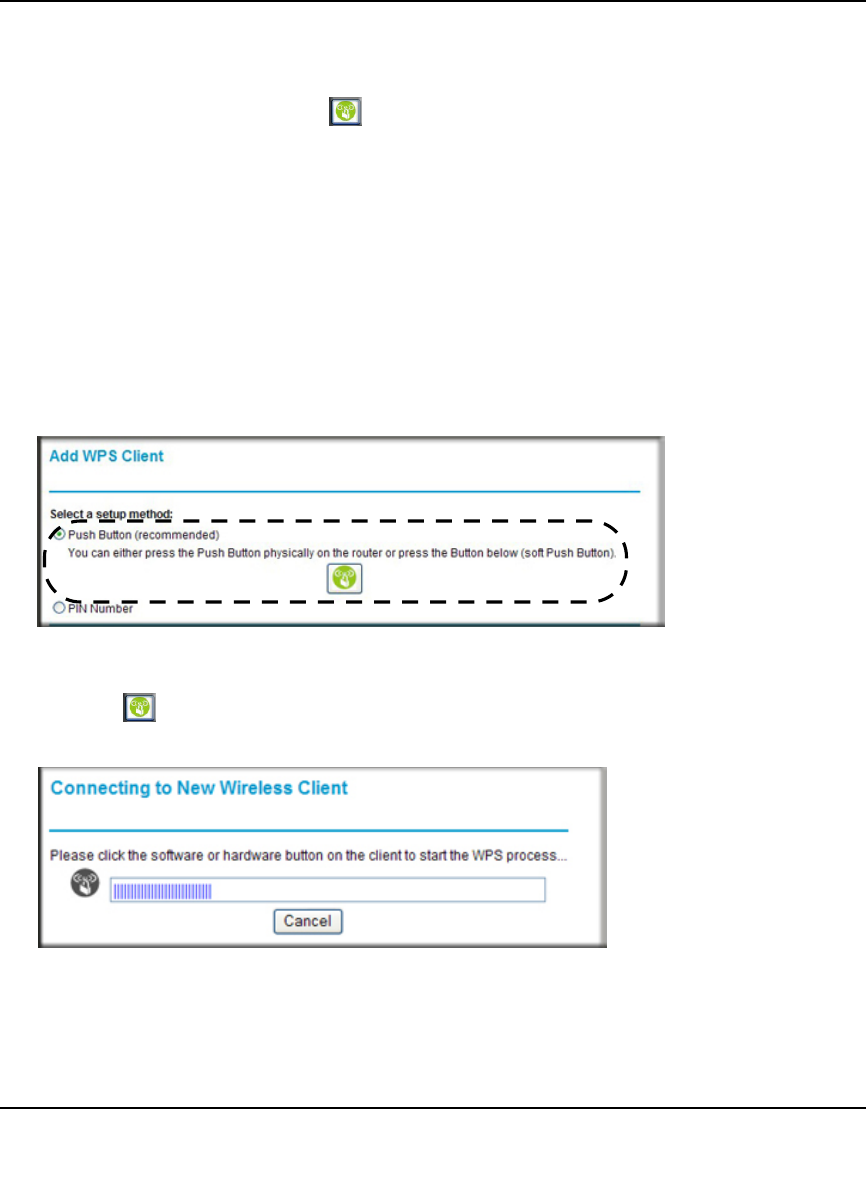

Push Button Configuration .....................................................................................2-13

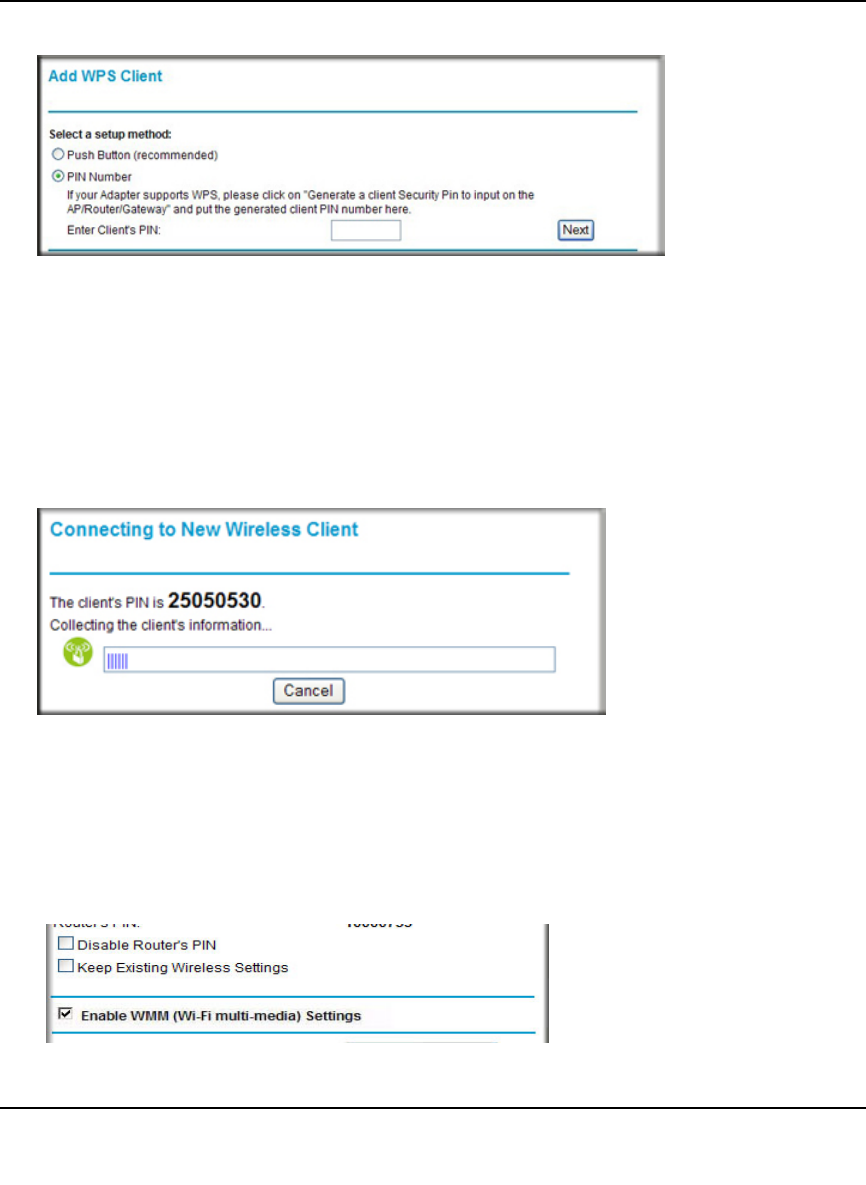

Security PIN Entry ..................................................................................................2-15
Configuring the WPS Settings ................................................................................2-16
Connecting Additional Wireless Client Devices after WPS Setup ..........................2-17
Contents viii
v1.0, August 2010

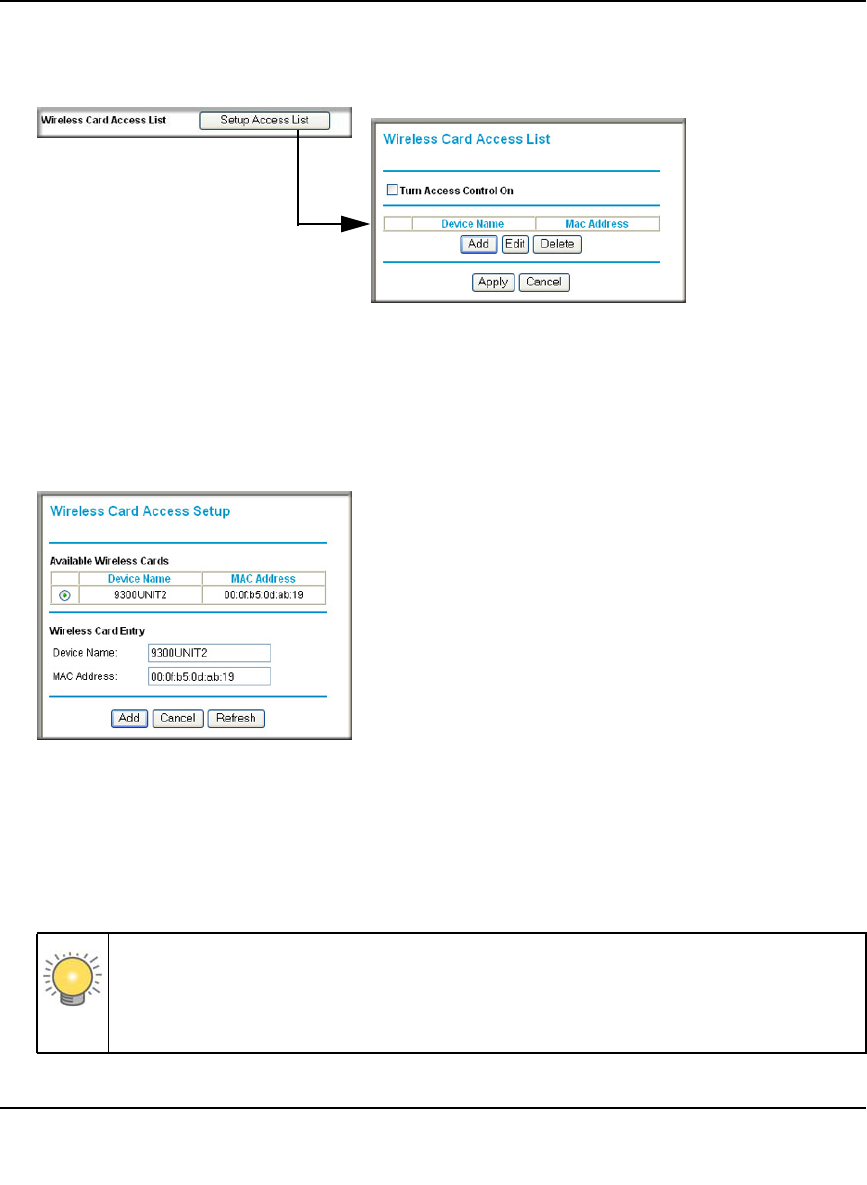

Restricting Wireless Access by MAC Address .............................................................2-18

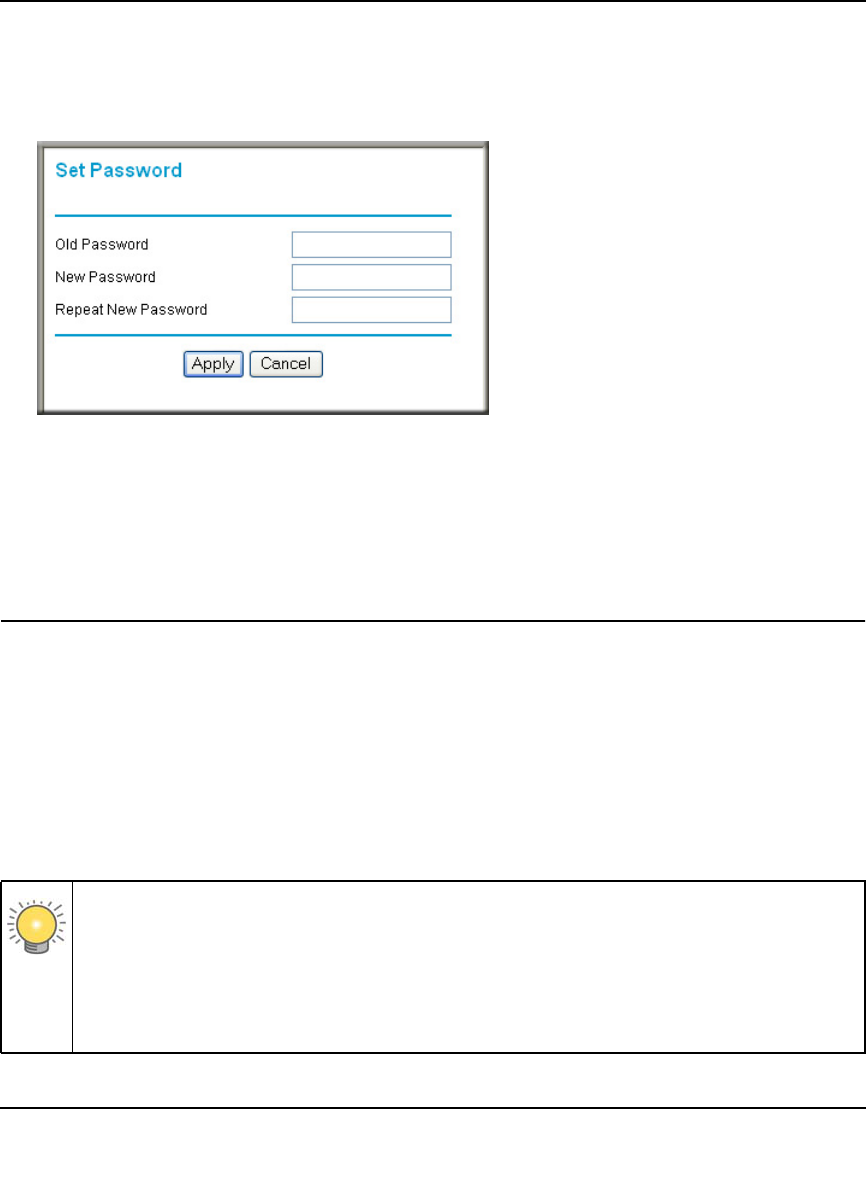

Changing the Administrator Password .........................................................................2-20
Backing Up Your Configuration ....................................................................................2-21
Understanding Your Firewall ........................................................................................2-22
Chapter 3
Restricting Access From Your Network
Content Filtering Overview .............................................................................................3-1

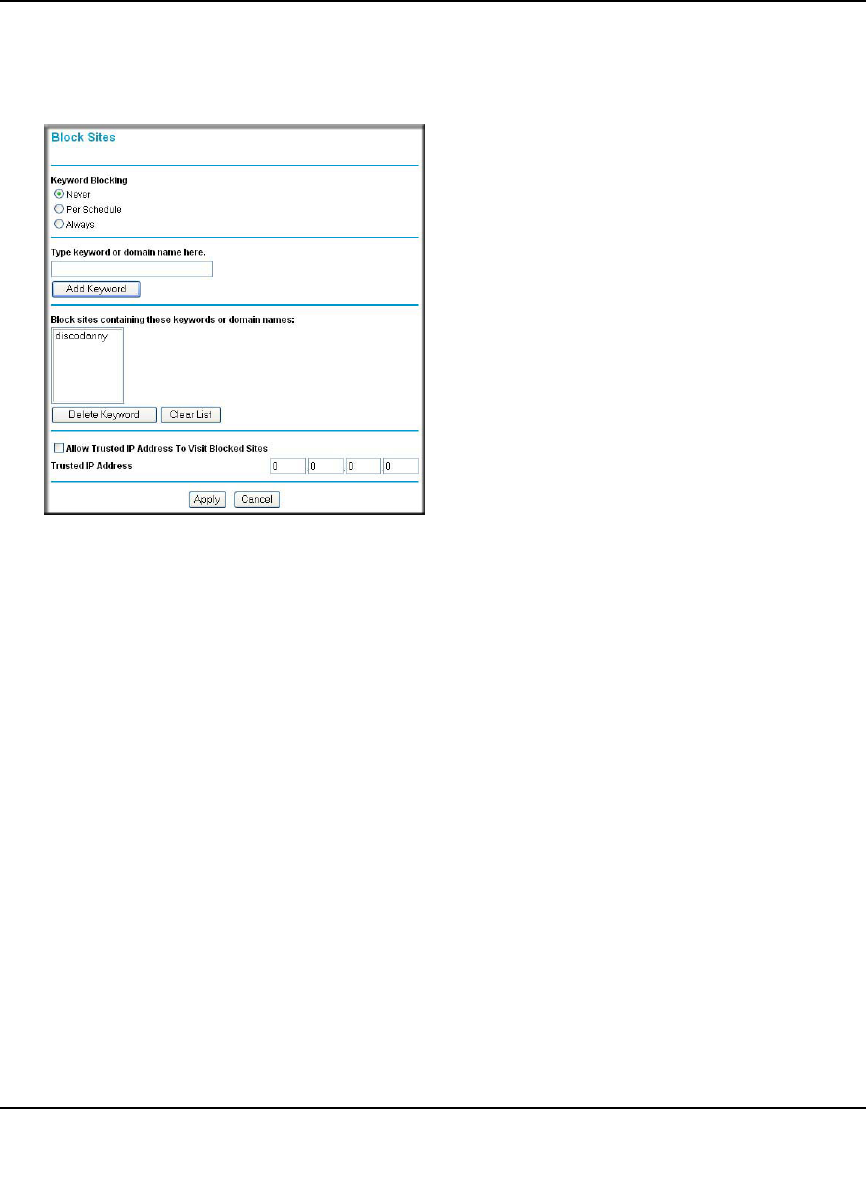

Blocking Access to Internet Sites ...................................................................................3-1

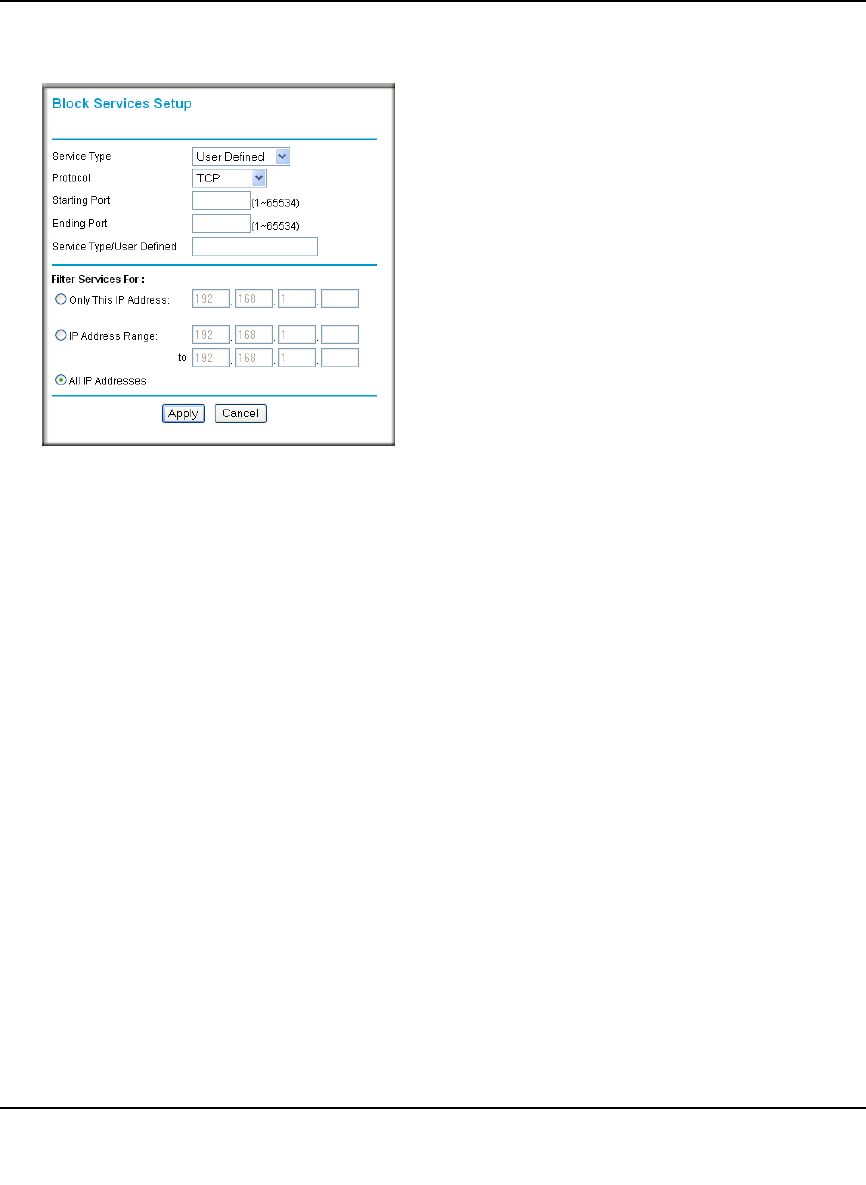

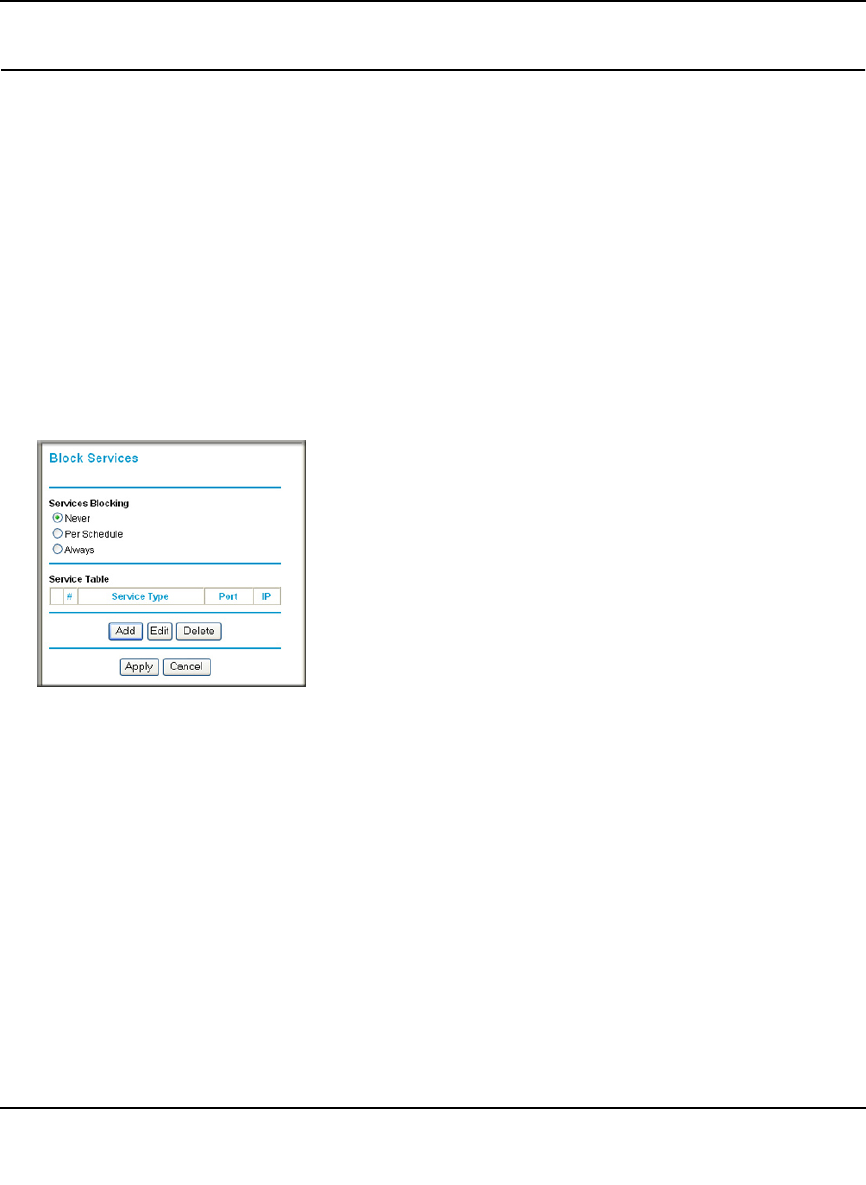

Blocking Access to Internet Services .............................................................................3-3
Blocking Services by IP Address Range ..................................................................3-5

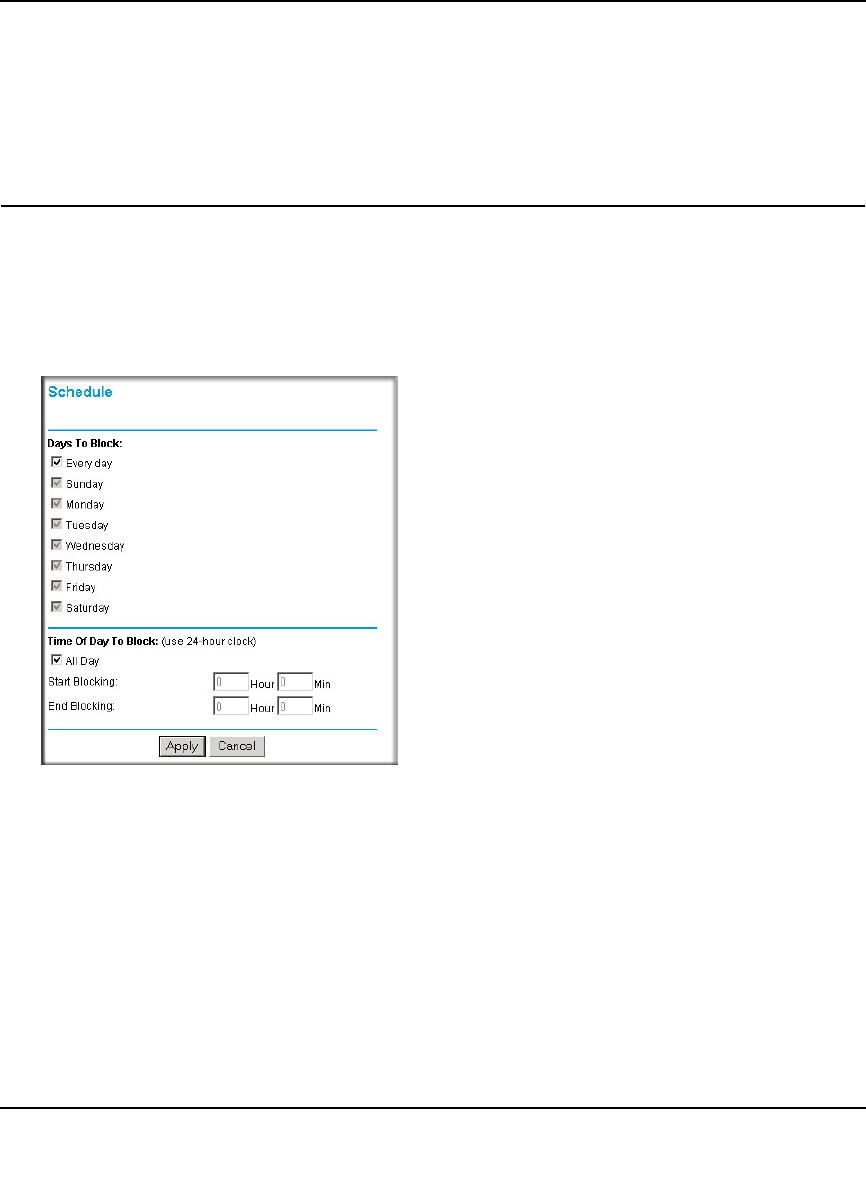

Scheduling Blocking .......................................................................................................3-5

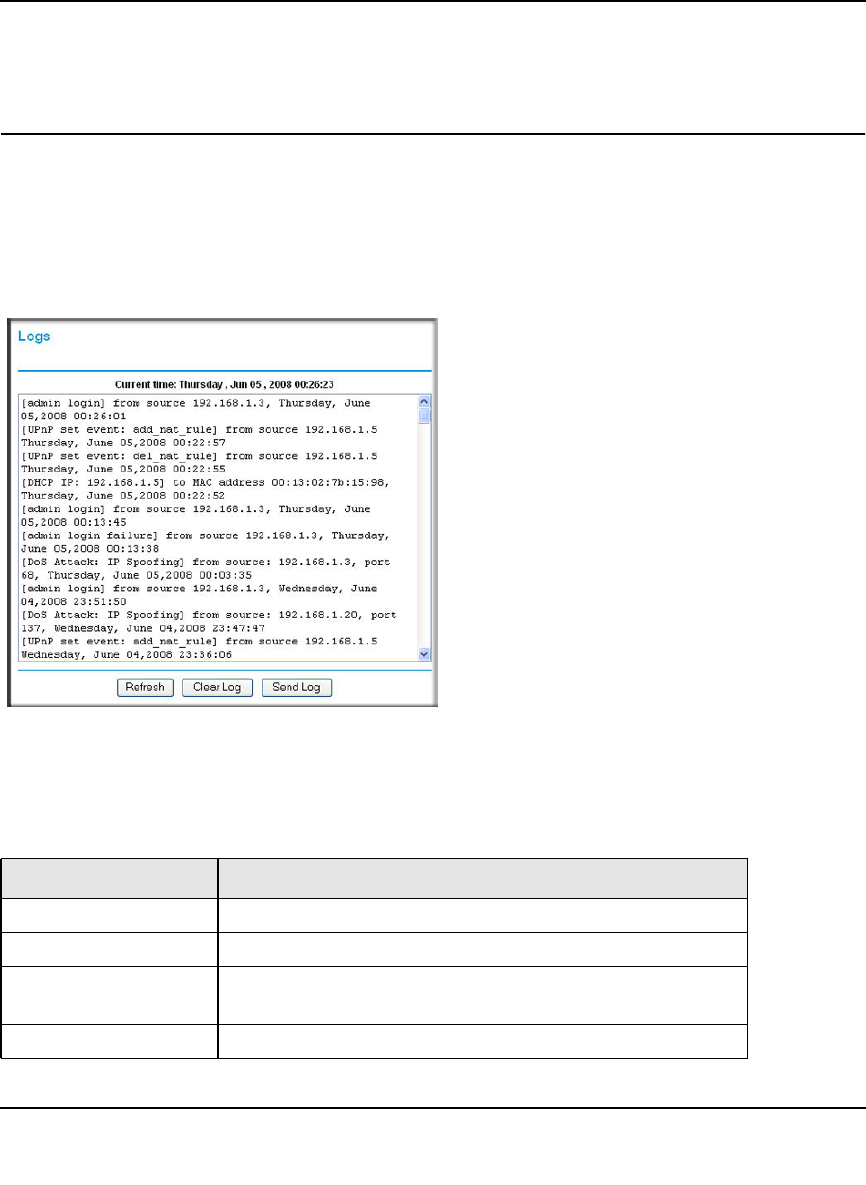

Viewing Logs of Web Access or Attempted Web Access ...............................................3-6

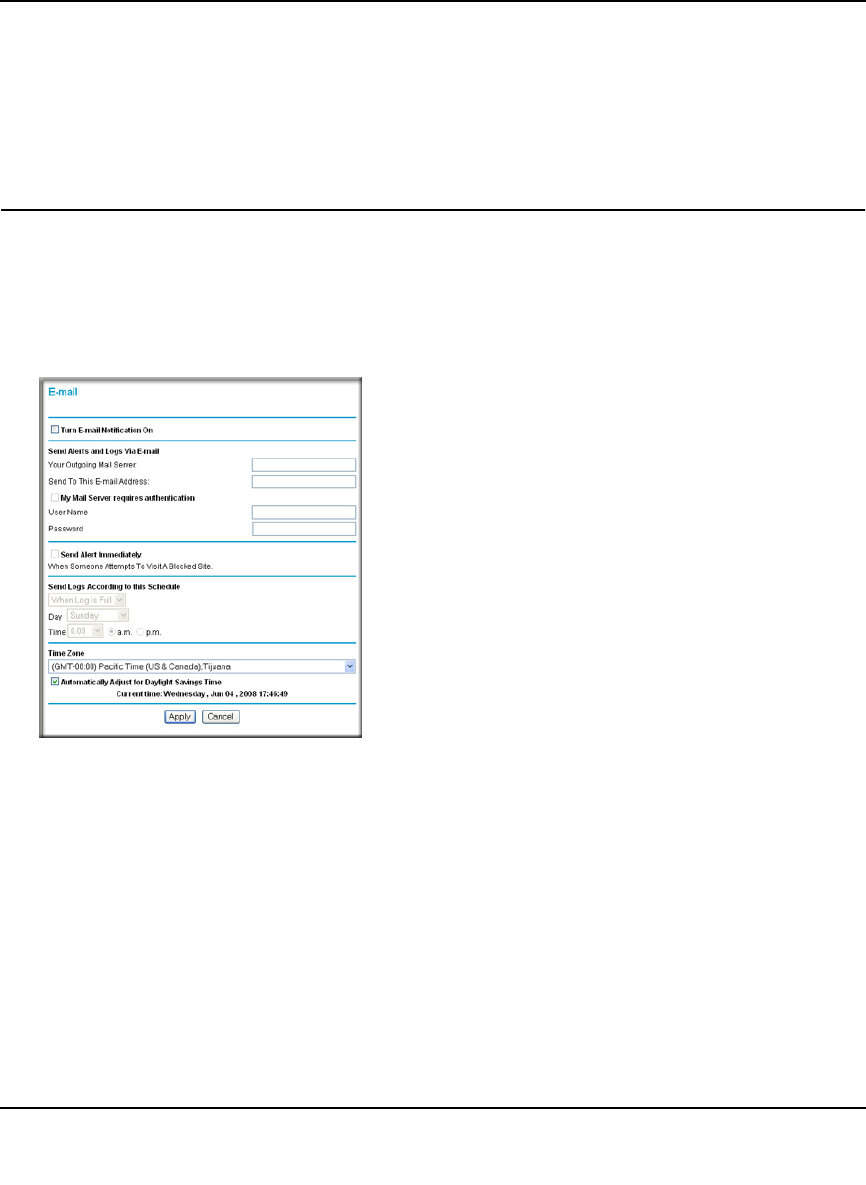

Configuring E-mail Alert and Web Access Log Notifications ..........................................3-7
Setting the Time Zone ....................................................................................................3-8
Chapter 4
Customizing Your Network Settings
Using the LAN IP Setup Options ....................................................................................4-1
Configuring a Device Name .....................................................................................4-2

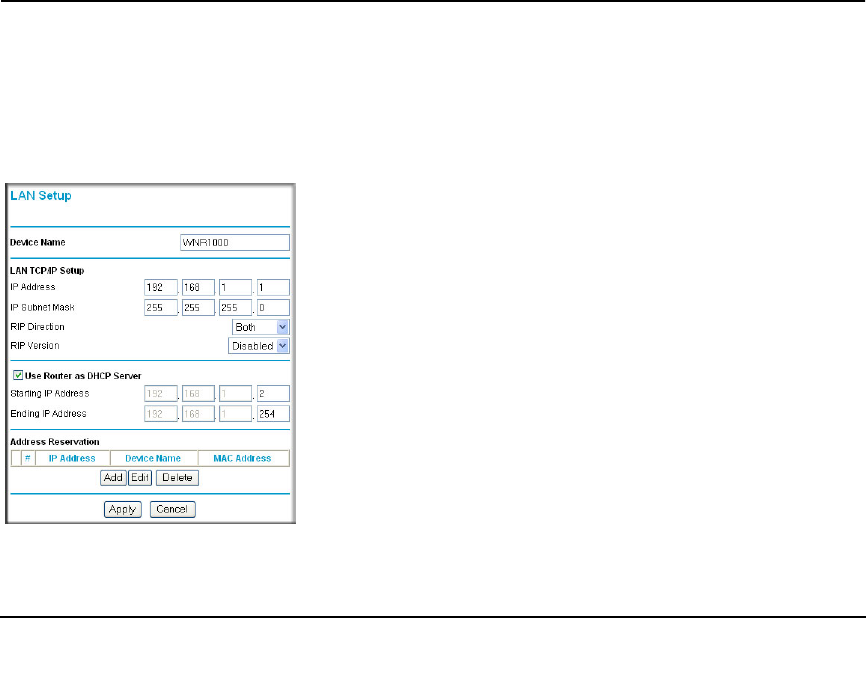

Configuring LAN TCP/IP Setup Parameters ............................................................4-2
Using the Router as a DHCP Server ........................................................................4-3
Using Address Reservation ......................................................................................4-4

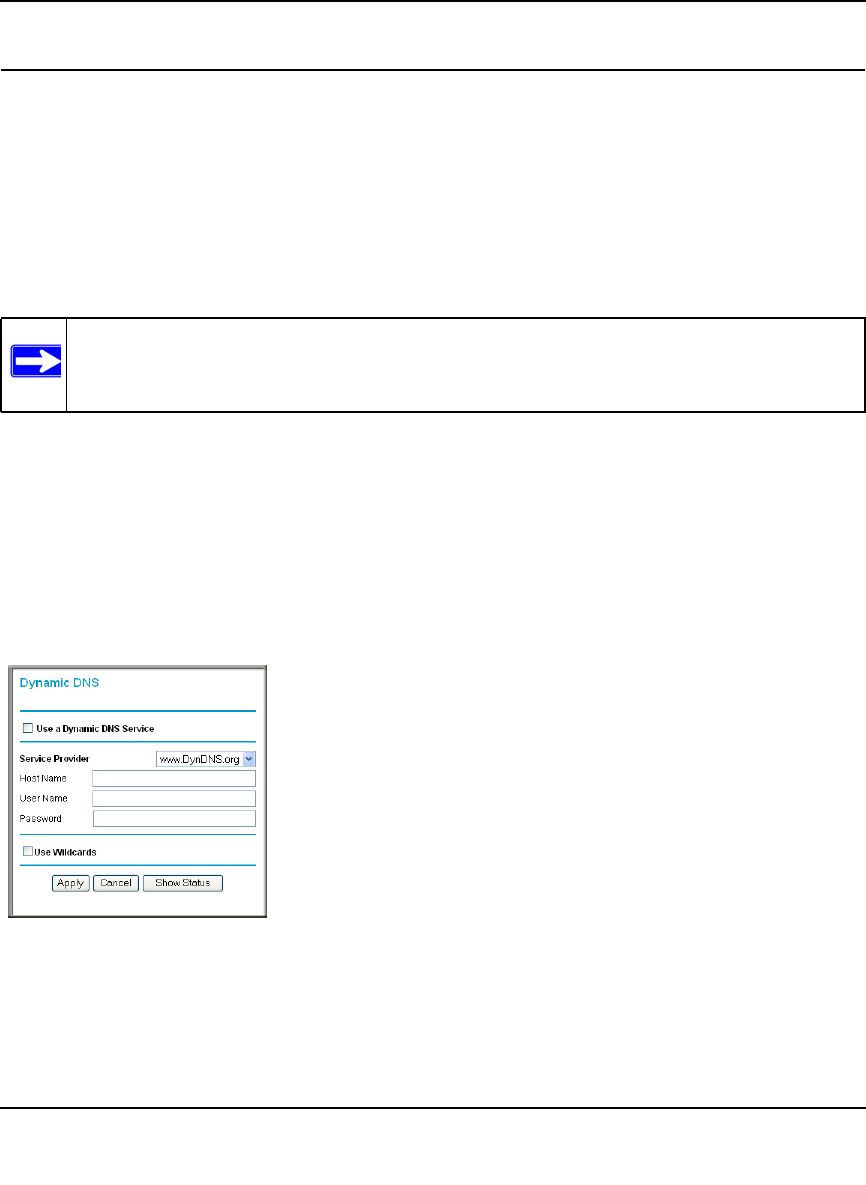

Using a Dynamic DNS Service .......................................................................................4-5

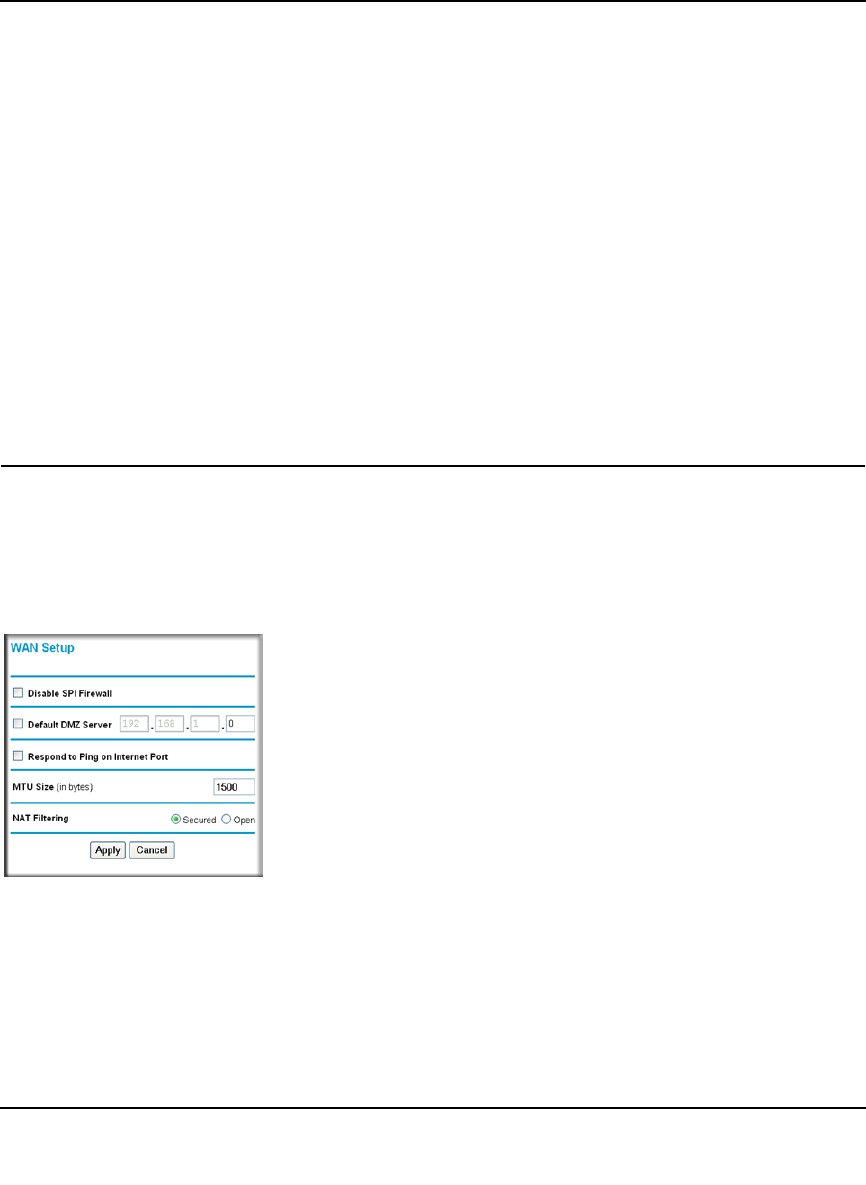

Configuring the WAN Setup Options ..............................................................................4-6
Disabling the SPI Firewall ........................................................................................4-6
Setting Up a Default DMZ Server .............................................................................4-7
Responding to a Ping on the Internet (WAN) Port ...................................................4-7
Setting the MTU Size ...............................................................................................4-8
Configuring NAT Filtering .........................................................................................4-8

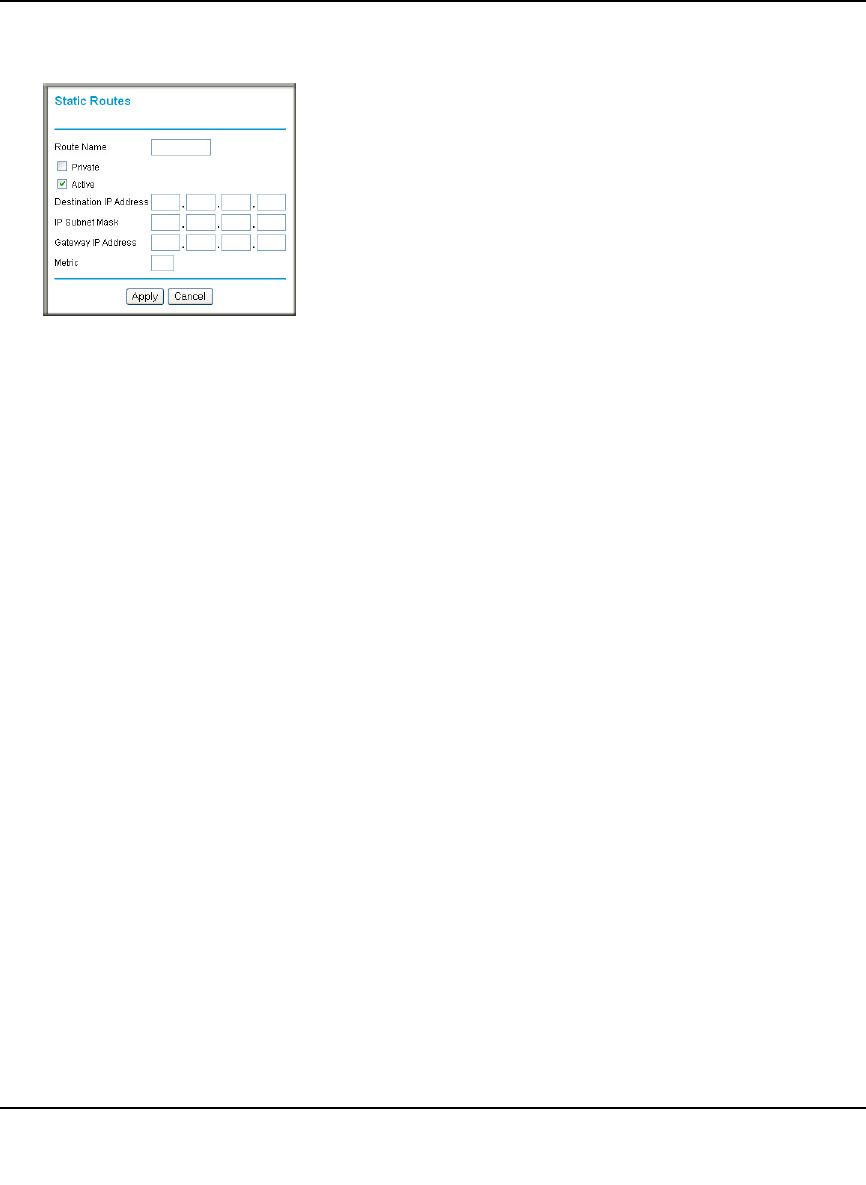

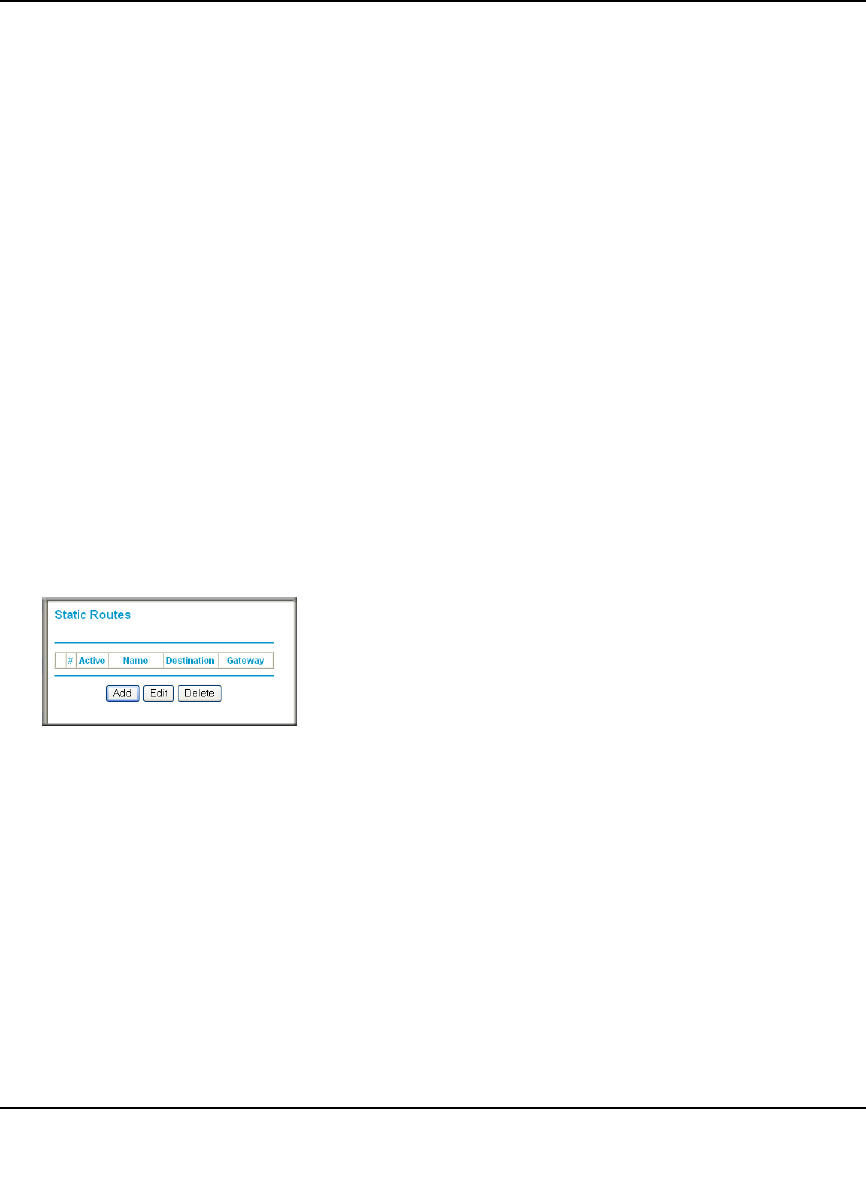

Configuring Static Routes ...............................................................................................4-8
Contents ix
v1.0, August 2010
Chapter 5
Fine-Tuning Your Network
Allowing Inbound Connections to Your Network ............................................................5-1
How Your Computer Accesses a Remote Computer through Your Router .............5-2
How Port Triggering Changes the Communication Process ....................................5-3
How Port Forwarding Changes the Communication Process ..................................5-5
How Port Forwarding Differs from Port Triggering ...................................................5-6

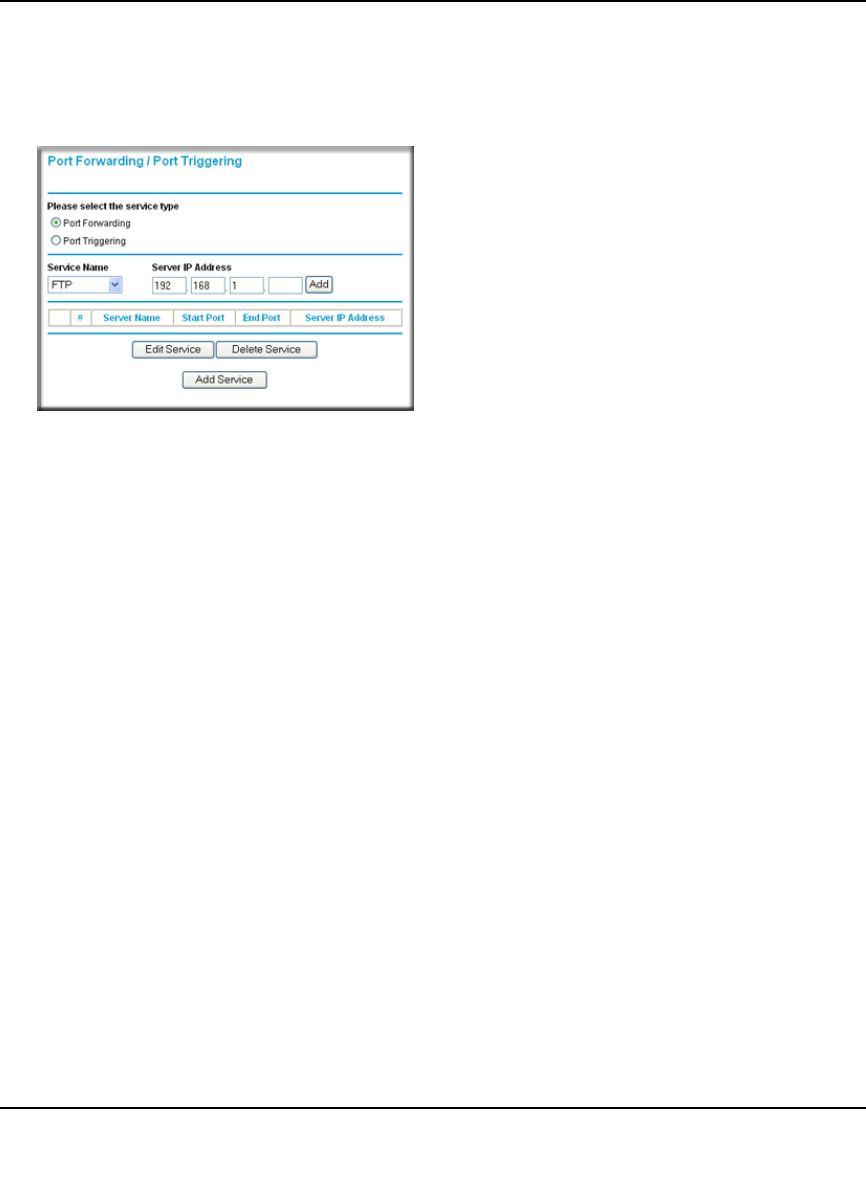

Configuring Port Forwarding to Local Servers ................................................................5-6

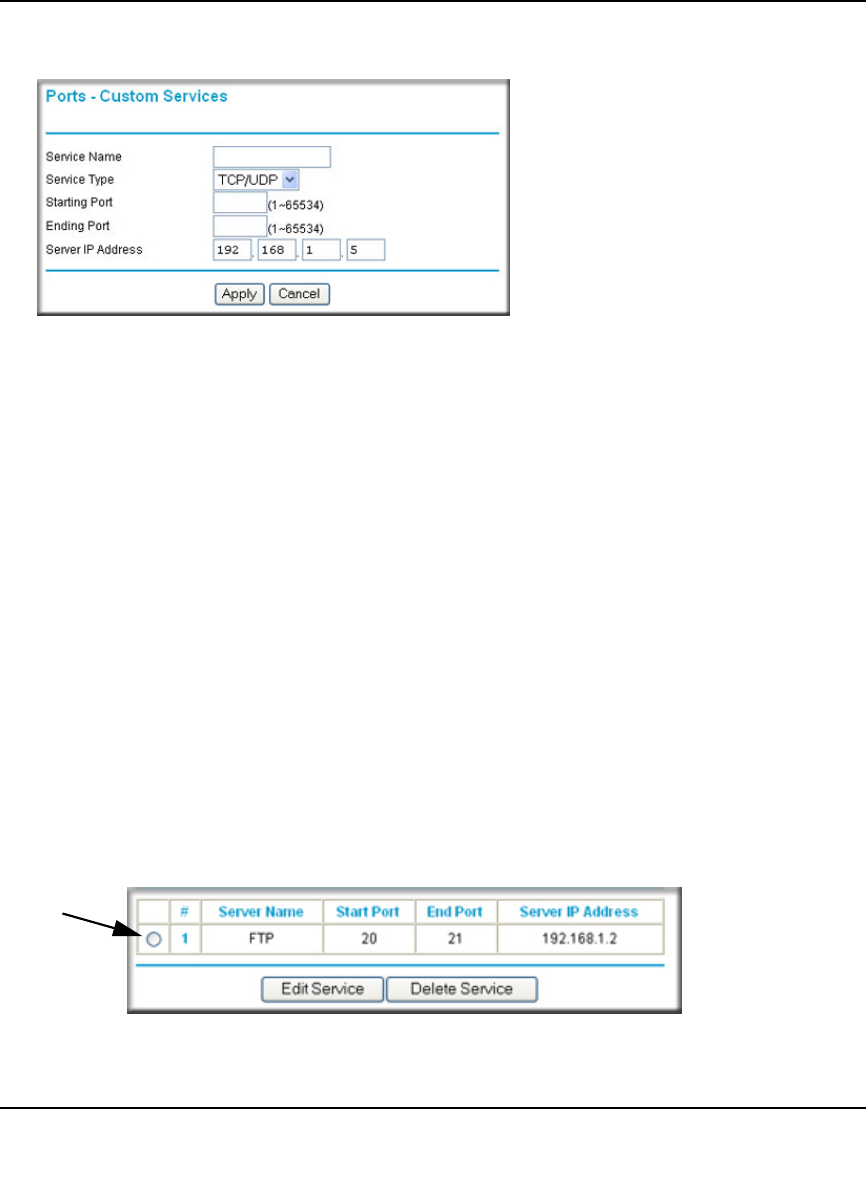

Adding a Custom Service .........................................................................................5-7
Editing or Deleting a Port Forwarding Entry .............................................................5-8

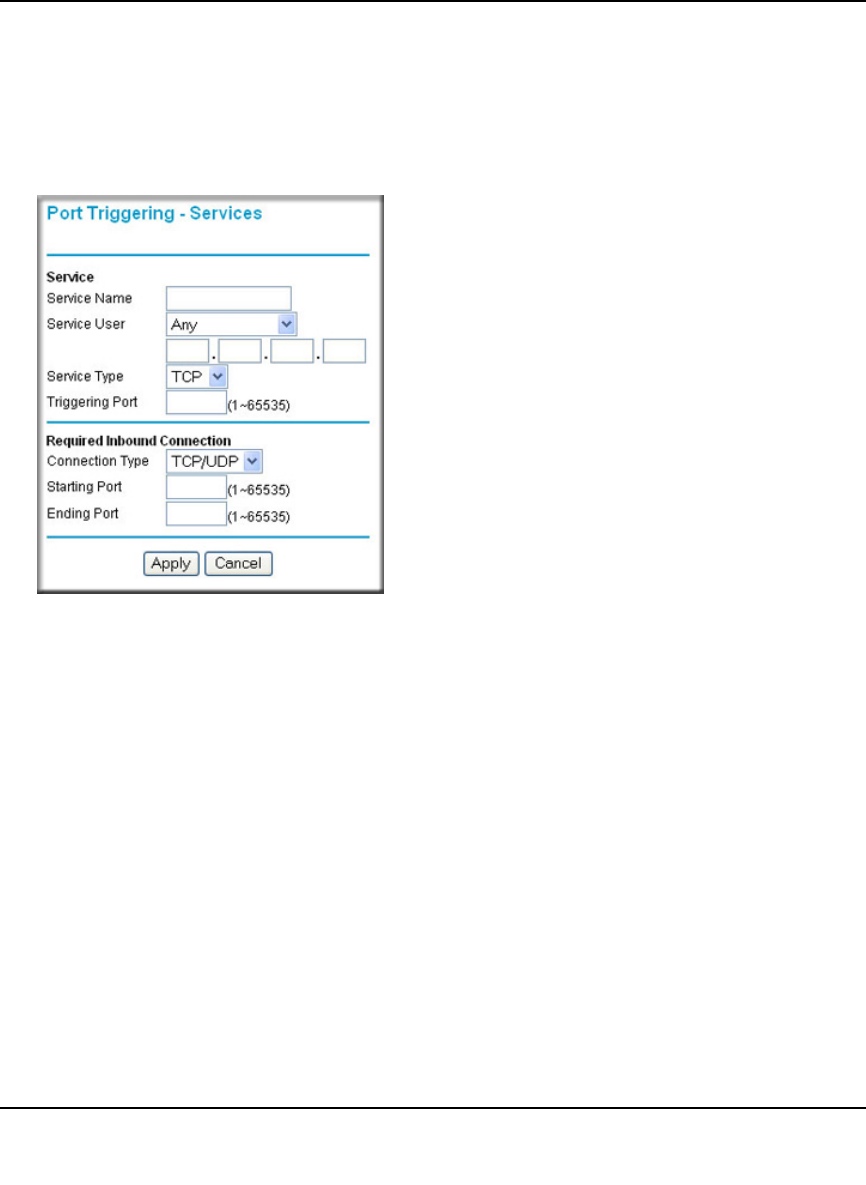

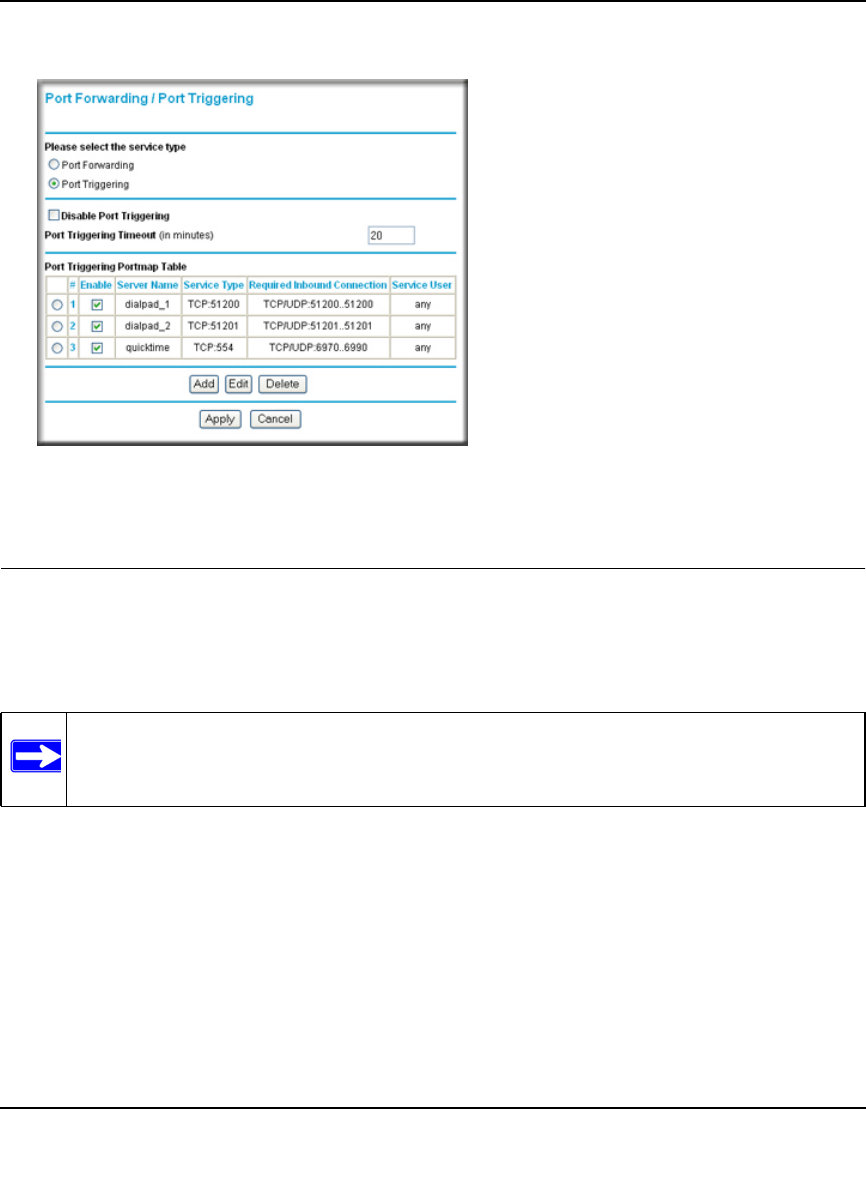

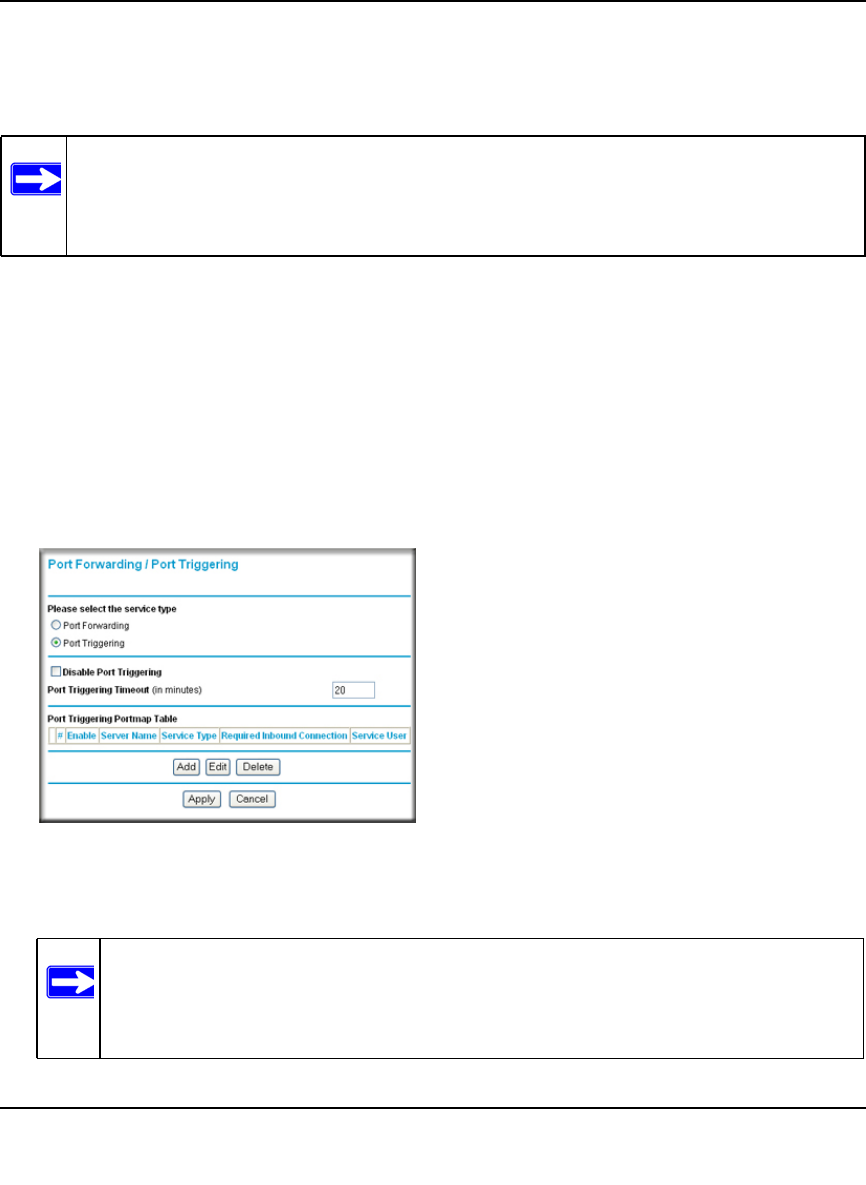

Configuring Port Triggering ............................................................................................5-9

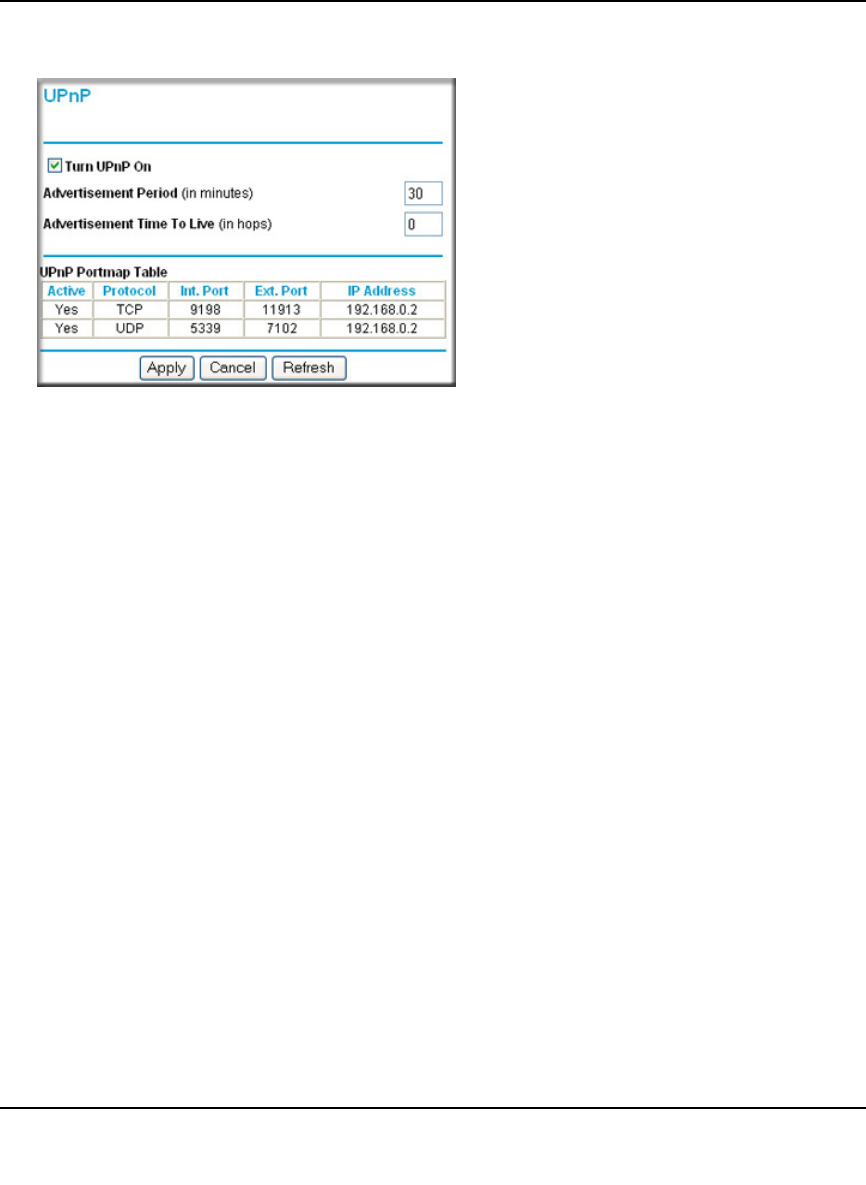

Using Universal Plug and Play .....................................................................................5-12
Optimizing Wireless Performance ................................................................................5-14
Changing the MTU Size ...............................................................................................5-15
Overview of Home and Small Office Networking Technologies ...................................5-16
Assessing Your Speed Requirements ...................................................................5-17
Chapter 6
Using Network Monitoring Tools

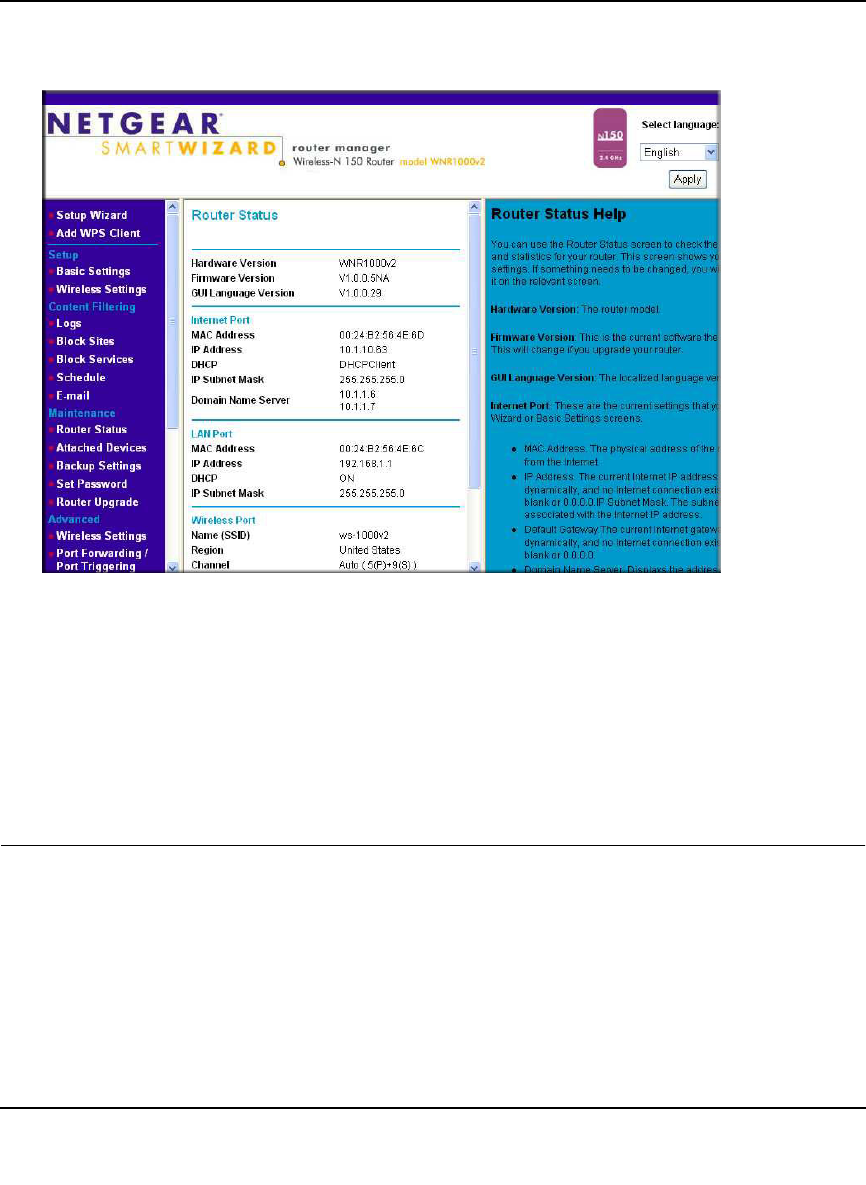

Viewing Wireless Router Status Information ..................................................................6-2
Viewing a List of Attached Devices ................................................................................6-7
Managing the Configuration File .....................................................................................6-7
Backing Up and Restoring the Configuration ...........................................................6-8
Erasing the Configuration .........................................................................................6-8
Updating the Router Firmware .......................................................................................6-9

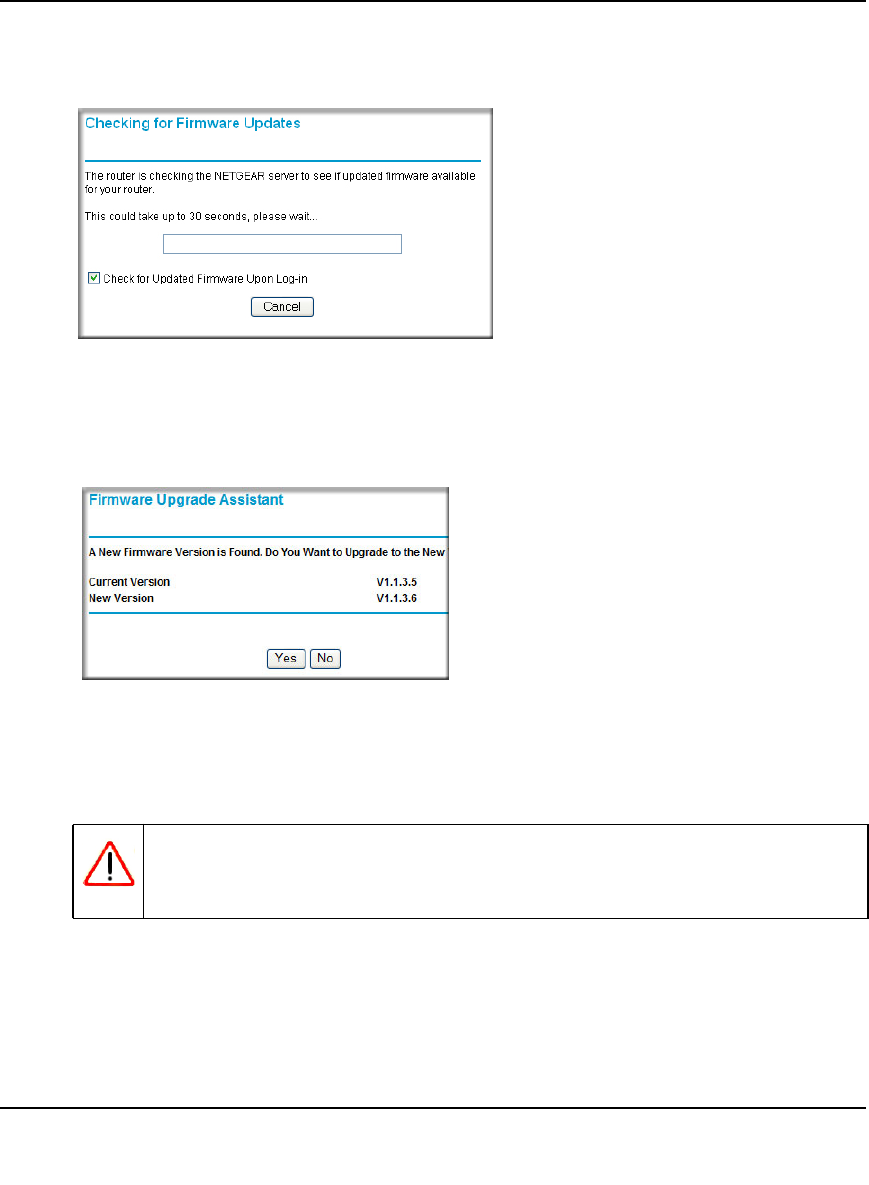

Checking for New Firmware in the Router Upgrade Screen ....................................6-9
Updating Manually to New Router Firmware .........................................................6-10
Enabling Remote Management Access .......................................................................6-12
Traffic Meter .................................................................................................................6-14
Contents x
v1.0, August 2010
Chapter 7
Troubleshooting
Quick Tips .......................................................................................................................7-1
Troubleshooting Basic Functions ...................................................................................7-2
Login Problems ...............................................................................................................7-5
Checking the Internet Service Connection .....................................................................7-6
Obtaining an Internet IP Address .............................................................................7-6
Troubleshooting PPPoE ...........................................................................................7-7
Troubleshooting Internet Browsing ..........................................................................7-8
Troubleshooting Your Network Using the Ping Utility .....................................................7-8
Testing the LAN Path to Your Router .......................................................................7-9
Testing the Path from Your Computer to a Remote Device ...................................7-10
Problems with Date and Time ......................................................................................7-10
Problems with Wireless Adapter Connections ..............................................................7-11
Restoring the Default Configuration and Password ......................................................7-12
Appendix A
Technical Specifications
Default Configuration Settings ....................................................................................... A-1
General Specifications ................................................................................................... A-3
Appendix B
Related Documents
Index
xi
v1.0, August 2010
About This Manual
The user manual provides information for configuring the features of the NETGEAR®N 150 Wireless
Router WNR1000 v2h2 beyond initial configuration settings. Initial configuration
instructions can be found in the NETGEAR Wireless Router Setup Manual. You should have basic
to intermediate computer and Internet skills.
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical conventions. This manual uses the following typographical conventions:
•Formats. This manual uses the following formats to highlight special messages:
Italic Emphasis, books, CDs
Bold User input, GUI screen text
Fixed Command prompt, CLI text, code
Italic URL links
Note: This format is used to highlight information of importance or special interest.
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note might result in a malfunction or damage to the
equipment, a breach of security, or a loss of data.
xii
v1.0, August 2010
•Scope. This manual is written for the WNR1000 v2h2 router according to these specifications:
For more information about network, Internet, firewall, and VPN technologies, click the links to
the NETGEAR website in Appendix B, “Related Documents.”
How to Use This Manual
The HTML version of this manual includes the following:
• Buttons, and , for browsing forward or backward through the manual one page
at a time.
• A button that displays the table of contents and an button that displays an
index. Double-click a link in the table of contents or index to navigate directly to where the
topic is described in the manual.
• A button to access the full NETGEAR, Inc. online knowledge base for the product
model.
• Links to PDF versions of the full manual and individual chapters.
Danger: This is a safety warning. Failure to take heed of this notice might result in
personal injury or death.
Product Version N 150 Wireless Router WNR1000 v2h2
Manual Publication Date August 2010
Note: Product updates are available on the NETGEAR, Inc. website at
http://www.netgear.com/support.
xiii
v1.0, August 2010
How to Print This Manual
To print this manual, your computer must have the free Adobe Acrobat reader installed in order to
view and print PDF files. The Acrobat reader is available on the Adobe Web site at
http://www.adobe.com.
Revision History
NETGEAR, Inc. is constantly searching for ways to improve its products and documentation. The
following table indicates any changes that might have been made since the WNR1000v2 router
was introduced.
Tip: If your printer supports printing two pages on a single sheet of paper, you can
save paper and printer ink by selecting this feature.
Table 2-1. Publication Revision History
Part Number Version
Number Date Description
202-10546-01 v1.0 August 2010 First publication.
1-1
v1.0, August 2010
Chapter 1
Configuring Basic Connectivity
This chapter describes the settings for your Internet connection and your wireless local area
network (LAN) connection. When you perform the initial configuration of your wireless router
using the Resource CD as described in the NETGEAR Wireless Router Setup Manual, these
settings are specified automatically for you. This chapter provides further details about these
connectivity settings, as well as instructions on how to log in to the router for further
configuration.
This chapter includes the following sections:
•“Using the Setup Manual” on page 1-1
•“Logging In To Your Wireless Router” on page 1-2
•“Selecting a Language for Your Screen Display” on page 1-4
•“Configuring Your Internet Settings Using the Setup Wizard” on page 1-6
•“Viewing and Configuring Basic Internet Settings” on page 1-6
•“Setting Up and Testing Basic Wireless Connectivity” on page 1-11
Using the Setup Manual
For first-time installation of your wireless router, refer to the NETGEAR Wireless Router Setup
Manual. The Setup Manual explains how to launch the NETGEAR Smart Wizard on the Resource
CD to step you through the procedure to connect your router, modem, and computers. The Smart
Wizard will assist you in configuring your wireless settings and enabling wireless security for your
network. After initial configuration using the Setup Manual, you can use the information in this
User Manual to configure additional features of your wireless router.
For installation instructions in a language other than English, refer to the language options on the
Resource CD.
Note: NETGEAR recommends using the Smart Wizard™ on the Resource CD for initial
configuration, as described in the NETGEAR Wireless Router Setup Manual.
Configuring Basic Connectivity 1-2
v1.0, August 2010

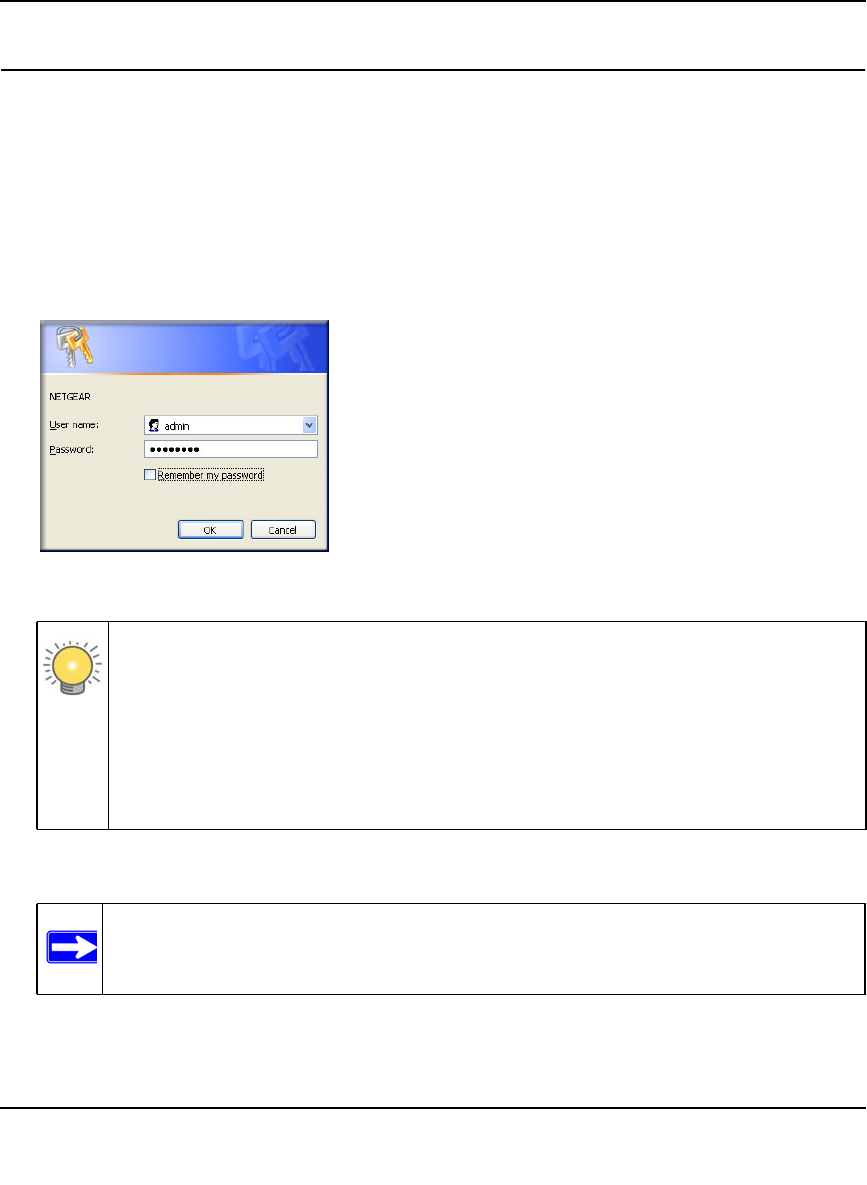

Logging In To Your Wireless Router
When the wireless router is connected to your network, you can access and configure the router
using your browser. The Default Access login information is printed on the bottom label of your
router.
To access the router:
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, and then press Enter. A login window displays.
2. Enter admin for the router user name and your password (or the default, password).
Figure 1-1
Tip: You can connect to the wireless router by typing either of these URLs in the
address field of your browser, and then pressing Enter:
•http://www.routerlogin.net
•http://www.routerlogin.com
If these URLs do not work, you must type the IP address of the router, for
example, http://192.168.1.1.
Note: The router user name and password are not the same as any other user name or
password you might use to log in to your Internet connection.
Configuring Basic Connectivity 1-3
v1.0, August 2010
– The Checking for Firmware Updates screen appears unless you previously cleared the
Check for Updated Firmware Upon Log-in check box.
This message displays if the router discovers that new firmware is available. (If no new
firmware is available, the router will proceed to the router status screen.)
– To automatically update to the new firmware, click Yes to allow the router to download
and install the new firmware file from NETGEAR.
The update process typically takes about 1 minute. When the upload is complete, your router
automatically restarts.
Figure 1-2
Figure 1-3
Warning: When uploading firmware to the WNR1000v2 router, do not interrupt
the Web browser by closing the window, clicking a link, or loading a
new page. If the browser is interrupted, it could corrupt the firmware.
Configuring Basic Connectivity 1-4
v1.0, August 2010
3. If there is no new firmware, the login will take you to the Router Status screen displayed here.
If the wireless router is connected to the Internet, you can select Knowledge Base or
Documentation under Web Support in the main menu to view support information or the
documentation for the wireless router.
If you do not click Logout, the wireless router will wait for 5 minutes after no activity before
it automatically logs you out.
Selecting a Language for Your Screen Display
Using the Select Language drop-down menu, located in the upper right corner of the Router
Manager screen, you can display the router manager screens in any of languages shown in Figure
1-5:
Figure 1-4
Configuring Basic Connectivity 1-5
v1.0, August 2010
Figure 1-5
The language is set to English by default. The default language is always stored in memory. When
you select a language other than the default, that language as well as English is stored in memory.
The additional language stored is the most recently selected. For example, if you select Deutsch,
German and English will be stored. If you next select Chinese, Chinese and English will be stored.
To specify a language to be used on your router manager screens, do the following:
1. Expand the list and select the language you want.
2. Click Apply.
Configuring Basic Connectivity 1-6
v1.0, August 2010
The language you select is then downloaded and displayed in the language selection box, and
your screen display will be in the selected language.
Configuring Your Internet Settings Using the Setup Wizard
You can manually configure your Internet connection using the Basic Settings screen, or you can
allow the Setup Wizard to determine your Internet Service Provider (ISP) configuration.
The Setup Wizard searches your Internet connection for servers and protocols to determine your
ISP configuration.
To use the Setup Wizard to assist with configuration or to verify the Internet connection settings:
1. Select Setup Wizard from the top of the main menu.
2. Click Next to proceed. Enter your ISP settings, as needed.
3. At the end of the Setup Wizard, click Test to verify your Internet connection. If you have
trouble connecting to the Internet, see Chapter 7, “Troubleshooting.”
Viewing and Configuring Basic Internet Settings
Settings related to your Internet service are specified in the Basic Settings screen. Select Basic
Settings under Setup in the main menu.
The content you see in the Basic Settings screen depends on whether your ISP requires that you
log in with a user name and password for Internet access.
Note: You can select from the entire list of supported languages only when the router is
connected to the Internet. When the router is not connected to the Internet, you can
select one of the stored languages only.
Configuring Basic Connectivity 1-7
v1.0, August 2010
Your Internet Connection Does Not Require a Login
If no login is required by your ISP, the following settings appear in the Basic Settings screen.
•Account Name (might also be called Host Name). The account name is provided to the ISP
during a DHCP request from your router. In most cases, this setting is not required, but some
ISPs require it for access to ISP services such as mail or news servers.
•Domain Name. The domain name is provided by your router to computers on your LAN when
the computers request DHCP settings from your router. In most cases, this settings is not
required.
•Internet IP Address. Determines how your router obtains an IP address for Internet access.
– If your ISP assigns an IP address dynamically (by DHCP), select Get Dynamically From
ISP.
Figure 1-6
No login required
Configuring Basic Connectivity 1-8
v1.0, August 2010
– If your ISP has assigned you a permanent, fixed (static) IP address for your computer,
select Use Static IP Address. Enter the IP address that your ISP assigned. Also, enter the
subnet mask and the gateway IP address. The gateway is the ISP’s router to which your
router will connect.
•Domain Name Server (DNS) Address. If you know that your ISP does not automatically
transmit DNS addresses to the router during login, select Use These DNS Servers, and enter
the IP address of your ISP’s primary DNS server. If a secondary DNS server address is
available, enter it also.
•Router MAC Address. This section determines the Ethernet MAC address that the router will
use on the Internet port. Typically, you would leave Use Default Address selected. However,
some ISPs (especially cable modem providers) register the Ethernet MAC address of the
network interface card in your computer when your account is first opened. They then accept
only traffic from the MAC address of that computer. This feature allows your router to
masquerade as that computer by “cloning” or “spoofing” its MAC address.
To change the MAC address, select one of the following methods:
– Select Use Computer MAC Address. The router will then capture and use the MAC
address of the computer that you are now using. You must be using the one computer that
is allowed by the ISP.
– Select Use This MAC Address, and enter it here.
Note: If you enter or change a DNS address, restart the computers on your
network so that these settings take effect.
Configuring Basic Connectivity 1-9
v1.0, August 2010
Your Internet Connection Does Require a Login
If a login is required by your ISP, the following settings appear in the Basic Settings screen:
•Does Your Internet Connection Require A Login? If you usually must use a login program
such as WinPOET to access the Internet, your Internet connection requires a login. After you
select Yes, the Basic Settings screen displays.
Figure 1-7
Note: After you finish setting up your router, you will no longer need to launch the
ISP’s login program on your computer to access the Internet. When you start
an Internet application, your router will automatically log you in.
Login required
Configuring Basic Connectivity 1-10
v1.0, August 2010
•Internet Service Provider. This drop-down list contains a few ISPs that need special
protocols for connection. Not all ISPs are listed here. The ones on this list have special
requirements. The list includes:
–PPTP (Point to Point Tunneling Protocol), used primarily in Austrian DSL services
–Telstra Bigpond, an Australian residential cable modem service
–Other, which selects PPPoE (Point to Point Protocol over Ethernet), the protocol used by
most DSL services worldwide.
•Login and Password. This is the user name and password provided by your ISP. This name
and password are used to log in to the ISP server.
–Service Name. If your connection is capable of connecting to multiple Internet services,
this setting specifies which service to use.
–Connection Mode. This drop-down list selects when the router will connect to and
disconnect from the Internet. The list includes:
•Always On. The router logs in to the Internet immediately after booting and never
disconnects.
Figure 1-8
Note: The Telstra Bigpond setting is only for older cable modem service
accounts still requiring a Bigpond login utility. Telstra has
discontinued this type of account. Those with Telstra DSL accounts
and newer cable modem accounts should select No for Does Your
Internet Connection Require a Login.
Figure 1-9
Configuring Basic Connectivity 1-11
v1.0, August 2010
•Dial on Demand. The router logs in only when outgoing traffic is present and logs out
after the idle time-out.
•Manually Connect. The router logs in or logs out only when the user clicks Connect
or Disconnect in the Router Status screen.
–Idle Timeout. Your Internet connection is logged out if there is no data transfer during the
specified time interval.
•Domain Name Server (DNS) Address. If you know that your ISP does not automatically
transmit DNS addresses to the router during login, select Use These DNS Servers, and enter
the IP address of your ISP’s primary DNS server. If a secondary DNS server address is
available, enter it also.
Setting Up and Testing Basic Wireless Connectivity
Follow these instructions to set up and test basic wireless connectivity. Once you have established
basic wireless connectivity, you can enable security settings appropriate to your needs.
1. Select Wireless Settings under Setup in the main menu of the WNR1000 v2h2 router.
Note: If you enter or change a DNS address, restart the computers on your network
so that these settings take effect.
Figure 1-10
Configuring Basic Connectivity 1-12
v1.0, August 2010
2. As appropriate, select the region in which the wireless interface will operate.
3. For the wireless network name (SSID), use the default name, or choose a suitable descriptive
name. In the Name (SSID) field, you can enter a value of up to 32 alphanumeric characters.
The default SSID is NETGEAR.
4. For the remaining settings, accept the defaults.
• The default channel is Auto.
It should not be necessary to change the wireless channel unless you notice interference
problems with another nearby wireless router or access point. Select a channel that is not
being used by any other wireless networks within several hundred feet of your router. For
more information about the wireless channel frequencies, click the link to the online
document “Wireless Networking Basics” in Appendix B.
• The default mode of Up to 150Mbps. The options are:
– Up to 54 Mbps – Legacy Mode – Maximum speed of up to 54 Mbps for b/g networks.
– Up to 65 Mbps – Neighbor Friendly Mode – Will not interfere with neighboring
wireless networks.
– Up to 150 Mbps – Performance Mode – Maximum Wireless N speed up to 150 Mbps.
• The default Security Options is None.
5. Click Apply to save your changes.
Note: In North America, you will not be able to change the region setting.
Note: The SSID is case-sensitive; NETGEAR is not the same as nETgear. Also, the
SSID of any wireless access adapters must match the SSID you specify in the
WNR1000 v2h2 router. If they do not match, you will not get a wireless
connection to the WNR1000 v2h2 router.
Note: If you are configuring the router from a wireless computer and you change the
router’s SSID, channel, or security settings, you will lose your wireless
connection when you click Apply. You must then change the wireless settings
of your computer to match the router’s new settings.
Wireless-N 150 Router WNR1000v2 User Manual
Configuring Basic Connectivity 1-13
v1.0, August 2010
6. Select Wireless Settings under Advanced in the main menu of the WNR1000 v2h2 router.
7. Make sure that the Enable Wireless Router Radio, Enable SSID Broadcast, and Enable
WMM check boxes are selected.
8. Click Setup Access List.
9. Make sure that the Turn Access Control On check box is not selected.
10. Configure and test your wireless computer for wireless connectivity.
Program the wireless adapter of your computer to have the same SSID and channel that you
specified in the router, and disable encryption. Check that your computer has a wireless link
and can obtain an IP address by DHCP from the router.
Once your computer has basic wireless connectivity to the router, you can configure the advanced
wireless security functions of the computer and router (for more information about security and
these settings, see Chapter 2, “Safeguarding Your Network ”).
Figure 1-11
2-1
v1.0, August 2010
Chapter 2
Safeguarding Your Network
The N 150 Wireless Router WNR1000 v2h2 provides highly effective security features,
which are covered in detail in this chapter.
This chapter includes the following sections:
•“Choosing Appropriate Wireless Security”
•“Recording Basic Wireless Settings Setup Information” on page 2-5
•“Changing Wireless Security Settings” on page 2-6
•“Viewing Advanced Wireless Settings” on page 2-11
•“Using Push 'N' Connect (Wi-Fi Protected Setup)” on page 2-13
•“Restricting Wireless Access by MAC Address” on page 2-18
•“Changing the Administrator Password” on page 2-20
•“Backing Up Your Configuration” on page 2-21
•“Understanding Your Firewall” on page 2-22
Choosing Appropriate Wireless Security
Unlike wired networks, wireless networks allow anyone with a compatible adapter to receive your
wireless data transmissions well beyond your walls. Operating an unsecured wireless network
creates an opportunity for outsiders to eavesdrop on your network traffic or to enter your network
to access your computers and files. Indoors, computers can connect over wireless networks at
ranges of up to 300 feet. Such distances can allow for others outside your immediate area to access
your network. Use the security features of your wireless equipment that are appropriate to your
needs.
The time it takes to establish a wireless connection can vary depending on both your security
settings and router placement.
Stronger security methods can entail a cost in terms of throughput, latency, battery consumption,
and equipment compatibility. In choosing an appropriate security level, you can also consider the
effort compared to the reward for a hacker to break into your network. As a minimum, however,
NETGEAR recommends using WEP with Shared Key authentication. Do not run an unsecured
wireless network unless it is your intention to provide free Internet access for the public.
Safeguarding Your Network 2-2
v1.0, August 2010
WEP connections can take slightly longer to establish. Also, WEP, WPA-PSK, and WPA2-PSK
encryption can consume more battery power on a notebook computer, and can cause significant
performance degradation with a slow computer.
To configure the wireless network, you can:
•Manually specify your SSID and your wireless security settings. The WNR1000 v2h2 router
provides two screens for configuring the wireless settings:
–Wireless Settings. You access these under Setup in the main menu (see “Viewing Basic
Wireless Settings” on page 2-6).
–Advanced Wireless Settings. You access these under Advanced in the main menu (see
“Viewing Advanced Wireless Settings” on page 2-11).
Note: NETGEAR recommends that you change the administration password of your
router. Default passwords are well known, and an intruder can use your
administrator access to read or disable your security settings. For information
about how to change the administrator password, see “Changing the Administrator
Password” on page 2-20.
Figure 2-1
WNR1000v2
1) Open system: easy but no security
2) MAC access list: no data security
3) WEP: security but some performance
impact
4) WPA-PSK: strong security
5) WPA2-PSK: very strong security
Wireless data
security options
Range: up to 300 foot radius
Note: Use these with other features that enhance security (Table 2-2 on page 2-4).
Safeguarding Your Network 2-3
v1.0, August 2010
•Use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/
WPA2 security on both the router and the client device. If the clients in your network are
WPS capable, you can use Wi-Fi Protected Setup (WPS) to automatically set the SSID and
implement WPA/WPA2 security on both the router and the client device (see “Using Push 'N'
Connect (Wi-Fi Protected Setup)” on page 2-13).
Basic security options are listed in order of increasing effectiveness in Table 2-1. Other features
that affect security are listed in Table 2-2 on page 2-4. For more details on wireless security
methods, click the link to the online document “Wireless Networking Basics” in Appendix B.
Table 2-1. Wireless Security Options
Security Type Description
None. No wireless security. Recommended only for
troubleshooting wireless connectivity. Do not run an
unsecured wireless network unless it is your
intention to provide free Internet access for the
public.
WEP. Wired Equivalent Privacy. Wired Equivalent Privacy (WEP) data encryption
provides moderate data security. WEP Shared Key
authentication and WEP data encryption can be
defeated by a determined eavesdropper using
publicly available tools.
For more information, see “Configuring WEP
Wireless Security” on page 2-8.
WPA-PSK (TKIP). WPA-PSK standard encryption
with TKIP encryption type.
WPA2-PSK (AES). Wi-Fi Protected Access version 2
with Pre-Shared Key; WPA2-PSK standard
encryption with the AES encryption type.
WPA-PSK (TKIP) + WPA2-PSK (AES). Mixed mode.
Wi-Fi Protected Access with Pre-Shared Key (WPA-
PSK and WPA2-PSK) data encryption provides
extremely strong data security, very effectively
blocking eavesdropping. Because WPA and WPA2
are relatively new standards, older wireless adapters
and devices might not support them.
For more information, see “Configuring WPA-PSK
and WPA2-PSK Wireless Security” on page 2-10.
Safeguarding Your Network 2-4
v1.0, August 2010
Table 2-2. Other Features That Enhance Security
Security Type Description
Disable the wireless router radio. If you disable the wireless router radio, wireless
devices cannot communicate with the router at all.
You might disable this when you are away or when
other users of your network all use wired
connections.
For more information, see “Viewing Advanced
Wireless Settings” on page 2-11.
Turn off the broadcast of the wireless network
name SSID. If you disable the broadcast of the SSID, only
devices that know the correct SSID can connect.
This nullifies the wireless network discovery feature
of some products such as Windows XP, but your data
is still fully exposed to an intruder using available
wireless eavesdropping tools.
For more information, see “Viewing Advanced
Wireless Settings” on page 2-11.
Restrict access based on MAC address. You can restrict access to only trusted computers so
that unknown computers cannot wirelessly connect
to the WNR1000v2 router. MAC address filtering
adds an obstacle against unwanted access to your
network by the general public, but the data broadcast
over the wireless link is fully exposed. This data
includes your trusted MAC addresses, which can be
read and impersonated by a hacker.
For more information, see “Restricting Wireless
Access by MAC Address” on page 2-18.
Modify your firewall’s rules. By default, the firewall allows any outbound traffic
and prohibits any inbound traffic except for
responses to your outbound traffic. However, you
can modify the firewall’s rules.
For more information, see “Understanding Your
Firewall” on page 2-22.
Use the Push 'N' Connect feature (Wi-Fi
Protected Setup). Wi-Fi Protected Setup provides easy setup by
means of a push button. Older wireless adapters and
devices might not support this. Check whether
devices are WPS enabled.
For more information, see “Using Push 'N' Connect
(Wi-Fi Protected Setup)” on page 2-13.
Safeguarding Your Network 2-5
v1.0, August 2010
Recording Basic Wireless Settings Setup Information
Before and after customizing your wireless settings, print this section, and record the following
information. If you are working with an existing wireless network, the person who set up or is
responsible for the network can provide this information. Otherwise, you must choose the settings
for your wireless network. Either way, record the settings for your wireless network in the spaces
provided.
•Wireless Network Name (SSID). ______________________________ The SSID identifies
the wireless network. You can use up to 32 alphanumeric characters. The SSID is case-
sensitive. The SSID in the wireless adapter card must match the SSID of the wireless router. In
some configuration utilities (such as in Windows XP), the term “wireless network name” is
used instead of SSID.
•If WEP Authentication is used, circle one: Shared Key or Auto.
–WEP Encryption Key Size. Choose one: 64-bit or 128-bit. Again, the encryption key
size must be the same for the wireless adapters and the wireless router.
–Data Encryption (WEP) Keys. There are two methods for creating WEP data encryption
keys. Whichever method you use, record the key values in the spaces provided.
•Passphrase Method. ______________________________ These characters are
case-sensitive. Enter a word or group of printable characters and click Generate. Not
all wireless devices support the passphrase method.
•Manual Method. These values are not case-sensitive. For 64-bit WEP, enter 10
hexadecimal digits (any combination of 0–9, a–f, or A–F). For 128-bit WEP, enter
26 hexadecimal digits.
Key 1: ___________________________________
Key 2: ___________________________________
Key 3: ___________________________________
Key 4: ___________________________________
• If WPA-PSK or WPA2-PSK authentication is used:
Note: If you select Shared Key, the other devices in the network will not connect
unless they are also set to Shared Key and are configured with the correct key.
Safeguarding Your Network 2-6
v1.0, August 2010
–Passphrase. ______________________________ These characters are case-sensitive.
Enter a word or group of printable characters. When you use WPA-PSK, the other devices
in the network will not connect unless they are also set to WPA-PSK and are configured
with the correct passphrase. Similarly, when you use WPA2-PSK, the other devices in the
network will not connect unless they are also set to WPA2-PSK and are configured with
the correct passphrase.
Use the procedures described in the following sections to specify the WNR1000 v2h2 router. Store
this information in a safe place.
Changing Wireless Security Settings
This section describes the wireless settings that you can view and configure in the Wireless
Settings screen, which you access under Setup in the main menu.
Viewing Basic Wireless Settings
To specify the wireless security settings of your router:
1. Log in to the router as described in “Logging In To Your Wireless Router” on page 1-2.
2. Select Wireless Settings under Setup in the main menu. The Wireless Settings screen
displays.
The available settings in this screen are:
Figure 2-2
Safeguarding Your Network 2-7
v1.0, August 2010
•Name (SSID). The SSID is also known as the wireless network name. Enter a value of up to
32 alphanumeric characters. When more than one wireless network is active, different wireless
network names provide a way to separate the traffic. For a wireless device to participate in a
particular wireless network, it must be configured with the SSID for that network. The
WNR1000 v2h2 default SSID is NETGEAR. You can disable this broadcast as described in
“Viewing Advanced Wireless Settings” on page 2-11.
•Region. This field identifies the region where the WNR1000 v2h2 router can be used. It might
not be legal to operate the wireless features of the wireless router in a region other than one of
those identified in this field.
•Channel. This field determines which operating frequency is used. It should not be necessary
to change the wireless channel unless you notice interference problems with another nearby
wireless network. The wireless router uses channel bonding technology to extend the
bandwidth for data transmission. For more information about the wireless channel
frequencies, see the online document that you can access from “Wireless Networking Basics”
in Appendix B.
•Mode. The default mode is Up to 150Mbps.
The Mode options are:
– Up to 54 Mbps - Legacy Mode with maximum speed of up to 54 Mbps for b/g networks.
– Up to 65 Mbps - Neighbor Friendly Mode - Will not interfere with neighboring wireless
networks.
Note: The region selection feature might not be available in all countries.
Note: The maximum wireless signal rate is derived from the IEEE Standard 802.11
specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials
and construction, and network overhead, lower actual data throughput rate.
Safeguarding Your Network 2-8
v1.0, August 2010
– Up to 150 Mbps - Performance Mode - Maximum Nx speeds up to 150 Mbps. Using
channel expansion to achieve the 150 Mbps data rate, the WNR1000 v2h2 will use the
channel you selected as the primary channel and expand to the secondary channel
(primary channel +4 or –4) to achieve a 40 MHz frame-by-frame bandwidth. The
WNR1000 v2h2 will detect channel usage and will disable frame-by-frame expansion if the
expansion would result in interference with the data transmission of other access points or
clients.
•Security Options. The selection of wireless security options can significantly affect your
network performance. The time it takes to establish a wireless connection can vary depending
on both your security settings and router placement.
WEP connections can take slightly longer to establish. Also, WEP, WPA-PSK, and WPA2-
PSK encryption can consume more battery power on a notebook computer, and can cause
significant performance degradation with a slow computer. Instructions for configuring the
security options can be found in “Choosing Appropriate Wireless Security” on page 2-1. A
full explanation of wireless security standards is available in the online document that you can
access from “Wireless Networking Basics” in Appendix B.
3. Click Apply to save your settings.
Configuring WEP Wireless Security
WEP Shared Key authentication and WEP data encryption can be defeated by a determined
eavesdropper using publicly available tools.
WEP offers the following options:
•Automatic. With the Automatic option, the router will try both Open System and Shared Key
authentication. Normally this setting is suitable. If it fails, select Open System or Shared Key.
You can also refer to your wireless adapter’s documentation to see what method to use.
•Open System. With Open System authentication and 64 or 128 bit WEP data encryption, the
WNR1000 v2h2 router does perform data encryption but does not perform any authentication.
Anyone can join the network. This setting provides very little practical wireless security.
•Shared Key. With Shared Key authentication, a wireless device must know the WEP key to
join the network. Select the encryption strength (64 or 128 bit data encryption). Manually
enter the key values, or enter a word or group of printable characters in the Passphrase field.
Manually entered keys are not case-sensitive, but passphrase characters are case-sensitive.
Safeguarding Your Network 2-9
v1.0, August 2010
To configure WEP data encryption:
1. Select Wireless Settings under Setup in the main menu.
2. In the Security Options section, select WEP. The WEP options display.
.
3. Select the authentication type and encryption strength.
4. You can manually or automatically program the four data encryption keys. These values must
be identical on all computers and access points in your network.
•Automatic. In the Passphrase field, enter a word or group of printable characters, and
click Generate. The passphrase is case-sensitive. For example, NETGEAR is not the
same as nETgear. The four key fields are automatically populated with key values.
•Manual. Enter 10 hexadecimal digits (any combination of 0–9, a–f, or A–F). These
entries are not case-sensitive. For example, AA is the same as aa.
Select which of the four keys to activate.
5. Click Apply to save your settings.
Note: If you use a wireless computer to configure WEP settings, you will be disconnected
when you click Apply. You must then either configure your wireless adapter to
match the wireless router WEP settings or access the wireless router from a wired
computer to make any further changes. Not all wireless adapter configuration
utilities support passphrase key generation.
Figure 2-3
Safeguarding Your Network 2-10
v1.0, August 2010
Configuring WPA-PSK and WPA2-PSK Wireless Security
Wi-Fi Protected Access with Pre-Shared Key (WPA-PSK and WPA2-PSK) data encryption
provides extremely strong data security, very effectively blocking eavesdropping. Because WPA
and WPA2 are relatively new standards, older wireless adapters and devices might not support
them. Check whether newer drivers are available from the manufacturer. Also, you might be able
to use the Push 'N' Connect feature to configure this type of security if it is supported by your
wireless clients. See “Using Push 'N' Connect (Wi-Fi Protected Setup)” on page 2-13.
WPA–Pre-Shared Key does perform authentication. WPA-PSK uses TKIP (Temporal Key
Integrity Protocol) data encryption, and WPA2-PSK uses AES (Advanced Encryption Standard)
data encryption. Both methods dynamically change the encryption keys making them nearly
impossible to circumvent.
Mixed mode allows clients using either WPA-PSK (TKIP) or WPA2-PSK (AES). This provides
the most reliable security, and is easiest to implement, but it might not be compatible with older
adapters.
To configure WPA-PSK, WPA2-PSK, or WPA-PSK+WPA2-PSK:
1. Select Wireless Settings under Setup in the main menu. The Wireless Settings screen
displays.
2. Select one of the WPA-PSK or WPA2-PSK options for the security type. The third option
(WPA-PSK [TKIP] + WP2-PSK [AES]) is the most flexible, since it allows clients using
either WPA-PSK or WPA2-PSK.
3. In the Passphrase field, enter a word or group of 8–63 printable characters. The passphrase is
case-sensitive.
Note: Not all wireless adapters support WPA. Furthermore, client software is also
required. Windows XP with Service Pack 2 does include WPA support.
Nevertheless, the wireless adapter hardware and driver must also support WPA.
For instructions on configuring wireless computers or PDAs (personal digital
assistants) for WPA-PSK security, consult the documentation for the product you
are using.
Safeguarding Your Network 2-11
v1.0, August 2010
4. Click Apply to save your settings.
Viewing Advanced Wireless Settings
This section describes the wireless settings that you can view and specify in the Advanced
Wireless Settings screen, which you access under Advanced in the main menu.
To configure the advanced wireless security settings of your router:
1. Log in to the router as described in “Logging In To Your Wireless Router” on page 1-2.
2. Select Wireless Settings under Advanced in the main menu. The advanced Wireless Settings
screen displays
Figure 2-4
Safeguarding Your Network 2-12
v1.0, August 2010
The available settings in this screen are:
•Enable Wireless Router Radio. If you disable the wireless router radio, wireless devices
cannot connect to the WNR1000 v2h2 router. If you will not be using your wireless network
for a period of time, you can clear this check box and disable all wireless connectivity.
•Enable SSID Broadcast. Clear this check box to disable broadcast of the SSID, so that
only devices that know the correct SSID can connect. Disabling SSID broadcast nullifies
the wireless network discovery feature of some products such as Windows XP.
•Enable WMM. Clear this check box to disable WMM. WMM (Wireless Multimedia), a
subset of the 802.11e standard, allows wireless traffic to have a range of priorities,
depending on the kind of data. Time-dependent information, like video or audio, will have
a higher priority than normal traffic. For WMM to function correctly, Wireless clients
must also support WMM.
•Fragmentation Threshold, CTS/RTS Threshold, and Preamble Mode. The
Fragmentation Threshold, CTS/RTS Threshold, and Preamble Mode options are reserved
for wireless testing and advanced configuration only. Do not change these settings.
•WPS Settings. For information about these settings, see the section, “Using Push 'N'
Connect (Wi-Fi Protected Setup)” on page 2-13.
•Wireless Card Access List. For information about this list, see “Restricting Wireless
Access by MAC Address” on page 2-18.
Figure 2-5
Safeguarding Your Network 2-13
v1.0, August 2010
.
Using Push 'N' Connect (Wi-Fi Protected Setup)
If your wireless clients support Wi-Fi Protected Setup (WPS), you can use this feature to configure
the router’s network name (SSID) and security settings and, at the same time, connect a wireless
client securely and easily to the router. Look for the symbol on your client device. WPS
automatically configures the network name (SSID) and wireless security settings for the router (if
the router is in its default state) and broadcasts these settings to the wireless client.
When you add wireless clients, whether or not they are WPS enabled, the added devices must
share the same network name (SSID) and security passphrase. For more information, see
“Connecting Additional Wireless Client Devices after WPS Setup” on page 2-17.
The WNR1000v2 router provides two methods for connecting to a wireless client that supports
WPS, described in the following sections:
•“Push Button Configuration”
•“Security PIN Entry” on page 2-15
Push Button Configuration
There are two methods to enable a wireless client to join a network using a push button on the
router: using the physical push button or using the software button in the Add WPS Client screen.
Using the Physical Push Button
1. Press the button on the rear of the WNR1000 v2h2 router for over 5 seconds. For information
about the WPS light, see the NETGEAR Wireless Router Setup Manual.
The green light begins to blink in a regular pattern. While the light is blinking, you have 2
minutes to enable WPS on the client that you are trying to connect to the router.
Note: NETGEAR’s Push 'N' Connect feature is based on the Wi-Fi Protected Setup
(WPS) standard (for more information, see http://www.wi-fi.org). All other Wi-Fi-
certified and WPS-capable products should be compatible with NETGEAR
products that implement Push 'N' Connect.
Note: If you choose to use WPS, the only security methods supported are WPA-PSK and
WPA2-PSK. WEP security is not supported by WPS.
Safeguarding Your Network 2-14
v1.0, August 2010
2. On the wireless client, follow its specific networking instructions to enable WPS, to allow it to
connect to the router.
The WNR1000 v2h2 router’s green light ceases blinking and remains on when one of these
conditions occurs:
• The router and the client establish a wireless connection.
• The 2-minute window period expires for establishing a WPS connection. If the connection
is not established, no WPS security settings will be specified in the WNR1000 v2h2 router.
Using the Software Button in the Add WPS Client Screen
1. Log in to the router as described in “Logging In To Your Wireless Router” on page 1-2.
2. Select Add WPS Client in the main menu, and click Next.
3. Select the Push Button setup method.
4. Click the button in the Add WPS Client screen. The Connecting to New Wireless Client
screen displays.
Figure 2-6
Figure 2-7
Safeguarding Your Network 2-15
v1.0, August 2010
The green light on the WNR1000 v2h2 router begins to blink in a regular pattern. While the
button light is blinking, you have 2 minutes to enable WPS on the device you are trying to
connect to the router.
5. In the wireless client, follow its specific networking instructions to enable WPS, to allow it to
connect to the router.
The WNR1000 v2h2 router’s green light ceases blinking and remains on when one of these
conditions occurs:
• The router and the client establish a wireless connection.
• The 2-minute window period expires for establishing a WPS connection. If the connection
is not established, no WPS security settings will be specified in the WNR1000 v2h2 router.
Security PIN Entry
There are two ways to enable a wireless client to join a network using a PIN: using the router’s
security PIN or using the wireless client’s security PIN.
Using the Router’s Security PIN
1. Obtain your router’s security PIN from the rear panel of the router or from the Advanced
Wireless Settings screen.
2. On the wireless client, follow its specific networking instructions to enter the router’s security
PIN and to establish a wireless connection with the router.
Using the Wireless Client’s Security PIN
1. Log in to the router as described in “Logging In To Your Wireless Router” on page 1-2.
2. Select Add WPS Client in the main menu, and click Next.
3. Select the PIN Number setup method.
Safeguarding Your Network 2-16
v1.0, August 2010
4. On the wireless client, obtain its security PIN, or follow its specific networking instructions to
generate a client security PIN.
5. In the Add WPS Client screen of the WNR1000 v2h2 router, enter the client security PIN in the
Enter Client’s PIN field.
6. Click Next. The following screen displays, and the Smart Wizard initiates the wireless
connection:
Configuring the WPS Settings
1. Log in to the router as described in “Logging In To Your Wireless Router” on page 1-2.
2. Select Wireless Settings under Advanced in the main menu.
Figure 2-8
Figure 2-9
Figure 2-10
Safeguarding Your Network 2-17
v1.0, August 2010
These options are available under WPS Settings:
•Router’s PIN. The PIN is displayed so that you can use it to configure the router through
WPS (Wi-Fi Protected Setup). It is also displayed on the router’s label.
•Disable Router’s PIN. If the router’s PIN is disabled, you cannot configure the router’s
wireless settings with WPS. However, if your settings are already configured, you can still
add WPS-enabled wireless clients. The router might disable the PIN if it detects
suspicious attempts to break into your wireless settings; this can happen if the check box is
selected. You can enable the PIN by clearing the check box and clicking Apply.
•Keep Existing Wireless Settings. This check box is automatically selected after WPS is
enabled to prevent unwanted settings changes, and is also selected if you have already
specified wireless security settings or your SSID without using WPS. When this check
box is not selected, adding a new wireless client using the push button or the Add WPS
Client screen (see “Push Button Configuration” on page 2-13) changes the router’s SSID
and security passphrase. You might need to clear it if you are using certain registrars, such
as for a Windows Vista PC, to configure the router through WPS.
Connecting Additional Wireless Client Devices after WPS Setup
You can add WPS-enabled and non-WPS-enabled client devices.
Adding Additional WPS-Enabled Clients
To add an additional wireless client device that is WPS enabled:
1. Follow the procedures in “Push Button Configuration” on page 2-13 or “Security PIN Entry”
on page 2-15.
2. For information about how to view a list of all devices connected to your router (including
wireless and Ethernet-connected), see “Viewing a List of Attached Devices” on page 6-7.
Adding Additional Non-WPS-Enabled Clients
If you are connecting a combination of WPS-enabled clients and clients that are not WPS enabled,
you cannot use the WPS setup procedures to add clients that are not WPS enabled.
Note: Your wireless settings do not change when you add an additional WPS-enabled
client unless you have cleared the Keep Existing Wireless Settings check box (in
the Wireless Settings screen). If you do clear the check box, a new SSID and a
passphrase are generated, and all existing connected wireless clients are
disassociated and disconnected from the router.
Safeguarding Your Network 2-18
v1.0, August 2010
To connect both non-WPS-enabled and WPS-enabled clients to the WNR1000 v2h2 router:
1. Configure the settings of the WNR1000 v2h2 router (shown in the Wireless Settings screen) for
WPA-PSK or WPA2-PSK security, and record that information. See “Configuring WPA-PSK
and WPA2-PSK Wireless Security” on page 2-10.
When you change security settings, all existing connected wireless clients that do not share
those settings are disassociated and disconnected from the router.
2. For the non-WPS-enabled devices that you wish to connect, open the networking utility, and
follow the utility’s instructions to enter security settings.
3. For the WPS-enabled devices that you wish to connect, follow the procedures in “Using Push
'N' Connect (Wi-Fi Protected Setup)” on page 2-13.
The WNR1000 v2h2 router automatically preserves the settings you configured in step 1 so all
clients share the same security settings (for more information, see “Configuring the WPS
Settings” on page 2-16).
4. For information about how to view a list of all devices connected to your router (including
wireless and Ethernet connected), see “Viewing a List of Attached Devices” on page 6-7.
Restricting Wireless Access by MAC Address
When a Wireless Card Access List is configured and enabled, the router checks the MAC address
of any wireless device attempting a connection and allows only connections to computers
identified on the trusted computers list.
The Wireless Card Access List displays a list of wireless computers that you allow to connect to
the router based on their MAC addresses. These wireless computers must also have the correct
SSID and wireless security settings to access the wireless router.
The MAC address is a network device’s unique 12-character physical address, containing the
hexadecimal characters 0–9, a–f, or A–F only, and separated by colons (for example,
00:09:AB:CD:EF:01). It can usually be found on the bottom of the wireless card or network
interface device. If you do not have access to the physical label, you can display the MAC address
using the network configuration utilities of the computer. In WindowsXP, for example, typing the
ipconfig/all command in an MSDOS command prompt window displays the MAC address as
Physical Address. You might also find the MAC addresses in the router’s Attached Devices
screen.
To restrict access based on MAC addresses:
1. Select Wireless Settings under Advanced in the main menu.
Safeguarding Your Network 2-19
v1.0, August 2010
2. In the Advanced Wireless Settings screen, click Setup Access List to display the Wireless
Card Access List.
3. Click Add to add a wireless device to the wireless access control list. The Wireless Card
Access Setup screen opens and displays a list of currently active wireless cards and their
Ethernet MAC addresses.
4. If the computer you want appears in the Available Wireless Cards list, you can select the radio
button of that computer to capture its MAC address; otherwise, you can manually enter a name
and the MAC address of the authorized computer. You can usually find the MAC address on
the bottom of the wireless device.
Figure 2-11
Figure 2-12
Tip: You can copy and paste the MAC addresses from the router’s Attached Devices
screen into the MAC Address field of this screen. To do this, configure each
wireless computer to obtain a wireless link to the router. The computer should
then appear in the Attached Devices screen.
Safeguarding Your Network 2-20
v1.0, August 2010
5. Click Add to add this wireless device to the Wireless Card Access List. The screen changes
back to the list screen.
6. Repeat step 3 through step 5 for each additional device you want to add to the list.
7. Select the Turn Access Control On check box.
8. Click Apply to save your Wireless Card Access List settings.
Now, only devices on this list can wirelessly connect to the WNR1000 v2h2 router.
Changing the Administrator Password
The default password for the router’s Web Configuration Manager is password. NETGEAR
recommends that you change this password to a more secure password.
Note: When configuring the router from a wireless computer whose MAC address is
not in the Trusted PC list, if you select Turn Access Control On, you lose
your wireless connection when you click Apply. You must then access the
wireless router from a wired computer or from a wireless computer that is on
the access control list to make any further changes.
Warning: MAC address filtering adds an obstacle against unwanted access to your
network by the general public. However, because your trusted MAC
addresses appear in your wireless transmissions, an intruder can read them
and impersonate them. Do not rely on MAC address filtering alone to
secure your network.
Tip: Before changing the router password, back up your configuration settings with the
default password of password. If you save the settings with a new password, and
then you later forget the new password, you will have to reset the router back to the
factory defaults, and log in using the default password of password. This means you
will have to re-enter all the router configuration settings. For information about how
to back up your settings, see “Backing Up and Restoring the Configuration” on
page 6-8.
Safeguarding Your Network 2-21
v1.0, August 2010
To change the administrator password:
1. On the main menu, under Maintenance, select Set Password to display the Set Password
screen.
2. To change the password, first enter the old password, then enter the new password twice.
3. Click Apply.
Backing Up Your Configuration
The configuration settings of the WNR1000 v2h2 router are stored within the router in a
configuration file. You can back up (save) this file and retrieve it later. NETGEAR recommends
that you save your configuration file after you complete the configuration. If the router fails or
becomes corrupted, or an administrator password is lost, you can easily re-create your
configuration by restoring the configuration file.
For instructions on saving and restoring your configuration file, see “Managing the Configuration
File” on page 6-7.
Figure 2-13
Tip: Before saving your configuration file, change the administrator password to the
default, password. Then change it again after you have saved the configuration file.
If you save the file with a new password, and then you later forget the new
password, you will have to reset the router back to the factory defaults and log in
using the default password of password. This means you will have to re-enter all the
router configuration settings.
Safeguarding Your Network 2-22
v1.0, August 2010
Understanding Your Firewall
Your N 150 Wireless Router WNR1000 v2h2 contains a true firewall to protect your network
from attacks and intrusions. A firewall is a device that protects one network from another while
allowing communication between the two. Using a process called Stateful Packet Inspection, the
firewall analyzes all inbound and outbound traffic to determine whether or not it will be allowed to
pass through.
By default, the firewall allows any outbound traffic and prohibits any inbound traffic except for
responses to your outbound traffic. However, you can modify the firewall’s rules to achieve the
following behavior:
•Blocking sites. Block access from your network to certain Web locations based on Web
addresses and Web address keywords. This feature is described in “Blocking Access to
Internet Sites” on page 3-1.
•Blocking services. Block the use of certain Internet services by specific computers on your
network. This feature is described in “Blocking Access to Internet Services” on page 3-3.
•Scheduled blocking. Block sites and services according to a daily schedule. This feature is
described in “Scheduling Blocking” on page 3-5.
•Allow inbound access to your server. To allow inbound access to resources on your local
network (for example, a Web server or remote desktop program), you can open the needed
services by configuring port forwarding as described in “Allowing Inbound Connections to
Your Network” on page 5-1.
•Allow certain games and applications to function correctly. Some games and applications
need to allow additional inbound traffic in order to function. Port triggering can dynamically
allow additional service connections, as described in “Configuring Port Triggering” on
page 5-9. Another feature to solve application conflicts with the firewall is Universal Plug and
Play (UPnP), described in “Using Universal Plug and Play” on page 5-12.
3-1
v1.0, August 2010
Chapter 3
Restricting Access From Your Network
This chapter describes how to use the content filtering and reporting features of the N 150
Wireless Router WNR1000 v2h2 to protect your network.
This chapter includes the following sections:
•“Content Filtering Overview”
•“Blocking Access to Internet Sites”
•“Blocking Access to Internet Services” on page 3-3
•“Scheduling Blocking” on page 3-5
•“Viewing Logs of Web Access or Attempted Web Access” on page 3-6
•“Configuring E-mail Alert and Web Access Log Notifications” on page 3-7
•“Setting the Time Zone” on page 3-8
Content Filtering Overview
The N 150 Wireless Router WNR1000 v2h2 provides you with Web content filtering options,
plus browser activity reporting and instant alerts through e-mail. Parents and network
administrators can establish restricted access policies based on time of day, Web addresses, and
Web address keywords. You can also block Internet access by applications and services, such as
chat rooms or games.
Blocking Access to Internet Sites
The WNR1000 v2h2 router allows you to restrict access based on Web addresses and Web address
keywords. Up to 255 entries are supported in the Keyword list.
Keyword application examples:
• If the keyword XXX is specified, the URL www.zzzyyqq.com/xxx.html is blocked.
• If the keyword .com is specified, only websites with other domain suffixes (such as .edu, .org,
or .gov) can be viewed.
Restricting Access From Your Network 3-2
v1.0, August 2010
To block access to Internet sites:
1. Select Block Sites under Content Filtering in the main menu. The Block Sites screen displays.
2. Enable keyword blocking by selecting either Per Schedule or Always.
To block by schedule, be sure to specify a time period in the Schedule screen. For information
about scheduling, see “Scheduling Blocking” on page 3-5.
Block all access to Internet browsing during a scheduled period by entering a dot (.) as the
keyword, and then set a schedule in the Schedule screen.
3. Add a keyword or domain by entering it in the keyword field and clicking Add Keyword. The
keyword or domain name then appears the Block sites containing these keywords or domain
names list.
Delete a keyword or domain name by selecting it from the list and clicking Delete Keyword.
4. You can specify one trusted user, which is a computer that is exempt from blocking and
logging. Specify a trusted user by entering that computer’s IP address in the Trusted IP
Address fields.
Since the trusted user is identified by IP address, you should configure that computer with a
fixed IP address.
5. Click Apply to save all your settings in the Block Sites screen.
Figure 3-1
Restricting Access From Your Network 3-3
v1.0, August 2010
Blocking Access to Internet Services
The WNR1000 v2h2 router allows you to block the use of certain Internet services by computers on
your network. This is called service blocking or port filtering. Services are functions performed by
server computers at the request of client computers. For example, Web servers serve Web pages,
time servers serve time and date information, and game hosts serve data about other players’
moves. When a computer on your network sends a request for service to a server computer on the
Internet, the requested service is identified by a service or port number. This number appears as the
destination port number in the transmitted IP packets. For example, a packet that is sent with
destination port number 80 is an HTTP (Web server) request.
To block access to Internet services:
1. Select Block Services under Content Filtering in the main menu. The Block Services screen
displays.
2. Enable service blocking by selecting either Per Schedule or Always, and then click Apply.
To block by schedule, be sure to specify a time period in the Schedule screen. For information
about scheduling, see “Scheduling Blocking” on page 3-5.
Figure 3-2
Restricting Access From Your Network 3-4
v1.0, August 2010
3. Specify a service for blocking by clicking Add. The Block Services Setup screen displays.
4. From the Service Type list, select the application or service to be allowed or blocked. The list
already displays several common services, but you are not limited to these choices. To add any
additional services or applications that do not already appear, select User Defined. To define a
service, first you must determine which port number or range of numbers is used by the
application. The service port numbers for many common protocols are defined by the Internet
Engineering Task Force (IETF) and published in RFC1700, “Assigned Numbers.” Service
numbers for other applications are typically chosen from the range 1024 to 65535 by the
authors of the application. You can often determine port number information by contacting the
publisher of the application, by asking user groups or newsgroups, or by searching.
– Enter the starting port and ending port numbers. If the application uses a single port
number, enter that number in both fields.
– If you know that the application uses either TCP or UDP, select the appropriate protocol. If
you are not sure, select Both.
5. Select the radio button for the IP address configuration you want to block, and then enter the
IP addresses in the appropriate fields.
6. Click Add to enable your Block Services Setup selections.
Figure 3-3
Restricting Access From Your Network 3-5
v1.0, August 2010
Blocking Services by IP Address Range
In the Filter Services For area, you can block the specified service for a single computer, a range of
computers (having consecutive IP addresses), or all computers on your network.
Scheduling Blocking
TheWNR1000 v2h2 router allows you to specify when blocking is enforced.
To schedule blocking:
1. Select Schedule under Content Filtering in the main menu. The Schedule screen displays.
2. Configure the schedule for blocking keywords and services.
a. Days to Block. Select days on which you want to apply blocking by selecting the
appropriate check boxes. Select Every Day to select the check boxes for all days. Click
Apply.
b. Time of Day to Block. Select a start and end time in 24-hour format. Select All Day for
24-hour blocking. Click Apply.
Be sure to select your time zone in the E-mail screen as described in “Setting the Time Zone”
on page 3-8.
Figure 3-4
Restricting Access From Your Network 3-6
v1.0, August 2010
3. Click Apply to save your settings.
Viewing Logs of Web Access or Attempted Web Access
The log is a detailed record of the websites you have accessed or attempted to access. Up to
128 entries are stored in the log. Log entries appear only when keyword blocking is enabled and no
log entries are made for the trusted user.
Select Logs under Content Filtering in the main menu. The Logs screen displays.
Table 3-1 describes the log entries.
Figure 3-5
Table 3-1. Log Entry Descriptions
Field Description
Date and time The date and time the log entry was recorded.
Source IP The IP address of the initiating device for this log entry.
Target address The name or IP address of the website or newsgroup
visited or to which access was attempted.
Action Whether the access was blocked or allowed.
Restricting Access From Your Network 3-7
v1.0, August 2010
To refresh the log screen, click the Refresh button.
To clear the log entries, click the Clear Log button.
To e-mail the log immediately, click the Send Log button.
Configuring E-mail Alert and Web Access Log Notifications
To receive logs and alerts by e-mail, you must provide your e-mail account information.
To configure e-mail alert and web access log notifications:
1. Select E-mail under Content Filtering in the main menu. The E-mail screen displays.
2. To receive e-mail logs and alerts from the router, select the Turn E-mail Notification On
check box.
a. Enter the name of your ISP’s outgoing (SMTP) mail server (such as mail.myISP.com) in
the Your Outgoing Mail Server field. You might be able to find this information in the
configuration screen of your e-mail program. If you leave this field blank, log and alert
messages will not be sent by e-mail.
b. Enter the e-mail address to which logs and alerts are sent in the Send To This E-mail
Address field. This e-mail address will also be used as the From address. If you leave this
field blank, log and alert messages will not be sent by e-mail.
Figure 3-6
Restricting Access From Your Network 3-8
v1.0, August 2010
3. If your e-mail server requires authentication, select the My Mail Server requires
authentication check box.
a. Enter your user name for the e-mail server in the User Name field.
b. Enter your password for the e-mail server in the Password field.
4. You can specify that logs are automatically sent by e-mail with these options:
•Send alert immediately. Select this check box for immediate notification of attempted
access to a blocked site or service.
•Send Logs According to this Schedule. Specifies how often to send the logs: Hourly,
Daily, Weekly, or When Full.
–Day. Specifies which day of the week to send the log. Relevant when the log is sent
weekly or daily.
–Time. Specifies the time of day to send the log. Relevant when the log is sent daily or
weekly.
If you select the Weekly, Daily, or Hourly option and the log fills up before the specified
period, the log is automatically e-mailed to the specified e-mail address. After the log is sent,
the log is cleared from the router’s memory. If the router cannot e-mail the log file, the log
buffer might fill up. In this case, the router overwrites the log and discards its contents.
5. Click Apply to save your settings.
So that the log entries are correctly time-stamped and sent at the correct time, be sure to set the
time as described in the next section.
Setting the Time Zone
The WNR1000 v2h2 router uses the Network Time Protocol (NTP) to obtain the current time and
date from one of several network time servers on the Internet. Localize the time zone so that your
log entries and other router functions include the correct time stamp.
To verify and set the time zone (see Figure 3-6 on page 3-7):
•Time Zone. To select your local time zone, use the drop-down list. This setting is used for the
blocking schedule and for time-stamping log entries.
•Automatically Adjust for Daylight Savings Time. If your region supports daylight savings
time, select this check box . The router will automatically adjust the time at the start and end of
the daylight savings time period.
4-1
v1.0, August 2010
Chapter 4
Customizing Your Network Settings
This chapter describes how to configure advanced networking features of the
N 150 Wireless Router WNR1000 v2h2 , including LAN, WAN, and routing settings.
It contains the following sections:
•“Using the LAN IP Setup Options”
•“Using a Dynamic DNS Service” on page 4-5
•“Configuring the WAN Setup Options” on page 4-6
•“Configuring Static Routes” on page 4-8
Using the LAN IP Setup Options
The LAN Setup screen allows configuration of LAN IP services such as Dynamic Host
Configuration Protocol (DHCP) and Routing Information Protocol (RIP).
To configure LAN IP settings, select LAN Setup under Advanced in the main menu. The LAN
Setup screen displays.
Figure 4-1
Customizing Your Network Settings 4-2
v1.0, August 2010
Configuring a Device Name
The device name is a user-friendly name for the router. This name is shown in the Network on
Windows Vista and the Network Explorer on all Windows systems. The Device Name field
cannot be blank. The default name is WNR1000 v2h2.
Configuring LAN TCP/IP Setup Parameters
These are advanced settings that you might configure if you are a network administrator and your
network contains multiple routers. The router is shipped preconfigured to use private IP addresses
on the LAN side and to act as a DHCP server (see “Using the Router as a DHCP Server” on
page 4-3).
The router’s default LAN IP configuration is:
• LAN IP address. 192.168.1.1
• Subnet mask. 255.255.255.0
These addresses are part of the designated private address range for use in private networks and
should be suitable for most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in this screen.
The LAN IP settings are:
•IP Address. The LAN IP address of the router.
•IP Subnet Mask. The LAN subnet mask of the router. Combined with the IP address, the IP
subnet mask allows a device to know which other addresses are local to it, and which must be
reached through a gateway or router.
•RIP Direction. RIP allows a router to exchange routing information with other routers. The
RIP Direction selection controls how the router sends and receives RIP packets. Both is the
default.
– When set to Both or In Only, the router incorporates the RIP information that it receives.
– When set to Both or Out Only, the router broadcasts its routing table periodically.
•RIP Version. This controls the format and the broadcasting method of the RIP packets sent by
the router. (It recognizes both formats when receiving.) The default setting is Disabled.
Note: If you change the LAN IP address of the router while connected through the
browser, you will be disconnected. You must then open a new connection to the
new IP address and log in again.
Customizing Your Network Settings 4-3
v1.0, August 2010
–RIP-1 is universally supported. RIP-1 is usually adequate unless you have an unusual
network setup.
–RIP-2B carries more information than RIP-1 and uses subnet broadcasting.
–RIP-2M carries more information than RIP-1 and uses multicasting.
Using the Router as a DHCP Server
By default, the router functions as a DHCP server, allowing it to assign IP, DNS server, and default
gateway addresses to all computers connected to the router’s LAN. The assigned default gateway
address is the LAN address of the router. The router assigns IP addresses to the attached computers
from a pool of addresses specified in this screen. Each pool address is tested before it is assigned to
avoid duplicate addresses on the LAN.
To specify a pool of IP addresses to be assigned, set the starting IP address and ending IP address.
These addresses should be part of the same IP address subnet as the router’s LAN IP address.
Using the default addressing scheme, you should define a range between 192.168.1.2 and
192.168.1.254, although you might wish to save part of the range for devices with fixed addresses.
The router delivers the following parameters to any LAN device that requests DHCP:
• An IP address from the range you have defined
• Subnet mask
• Gateway IP address (the router’s LAN IP address)
• Primary DNS server (if you entered a primary DNS address in the Basic Settings screen;
otherwise, the router’s LAN IP address)
• Secondary DNS server (if you entered a secondary DNS address in the Basic Settings screen)
To use another device on your network as the DHCP server, or to manually specify the network
settings of all of your computers, clear the Use Router as DHCP Server check box. Otherwise,
leave it selected. If this service is not selected and no other DHCP server is available on your
network, you need to set your computers’ IP addresses manually or they will not be able to access
the router.
Note: For most applications, the default DHCP and TCP/IP settings of the router are
satisfactory. Click the link to the online document “TCP/IP Networking Basics” in
Appendix B for an explanation of DHCP and information about how to assign IP
addresses for your network.
Customizing Your Network Settings 4-4
v1.0, August 2010
Using Address Reservation
When you specify a reserved IP address for a computer on the LAN, that computer always
receives the same IP address each time it accesses the router’s DHCP server. Reserved IP
addresses should be assigned to computers or servers that require permanent IP settings.
To reserve an IP address:
1. Click Add.
2. In the IP Address field, enter the IP address to assign to the computer or server. (Choose an IP
address from the router’s LAN subnet, such as 192.168.1.x.)
3. Enter the MAC address of the computer or server.
4. Click Apply to enter the reserved address into the table.
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.
Figure 4-2
Tip: If the computer is already present on your network, you can copy its MAC
address from the Attached Devices screen and paste it here.
Note: The reserved address is not assigned until the next time the computer contacts
the router’s DHCP server. Reboot the computer or access its IP configuration
and force a DHCP release and renew.
Customizing Your Network Settings 4-5
v1.0, August 2010
Using a Dynamic DNS Service
If your Internet Service Provider (ISP) gave you a permanently assigned IP address, you can
register a domain name and have that name linked with your IP address by public Domain Name
Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you do
not know in advance what your IP address will be, and the address can change frequently. In this
case, you can use a commercial Dynamic DNS service, which allows you to register your domain
to their IP address, and forwards traffic directed at your domain to your frequently changing IP
address.
Your router contains a client that can connect to the Dynamic DNS service provided by
DynDNS.org. You must first visit their website at www.dyndns.org and obtain an account and host
name, which you specify in the router. Then, whenever your ISP-assigned IP address changes,
your router automatically contacts the Dynamic DNS service provider, logs in to your account, and
registers your new IP address. If your host name is hostname, for example, you can reach your
router at hostname.dyndns.org.
Select Dynamic DNS under Advanced in the main menu. The Dynamic DNS screen displays.
To configure for a Dynamic DNS service:
1. Register for an account with one of the Dynamic DNS service providers whose names appear
in the Service Provider list. For example, for DynDNS.org, select www.dynDNS.org.
Note: If your ISP assigns a private WAN IP address (such as 192.168.x.x or 10.x.x.x), the
Dynamic DNS service will not work because private addresses are not routed on
the Internet.
Figure 4-3
Customizing Your Network Settings 4-6
v1.0, August 2010
2. Select the Use a Dynamic DNS Service check box.
3. Select the name of your Dynamic DNS service provider.
4. Enter the host name (or domain name) that your Dynamic DNS service provider gave you.
5. Enter the user name for your Dynamic DNS account. This is the name that you use to log in to
your account, not your host name.
6. Enter the password (or key) for your Dynamic DNS account.
7. If your Dynamic DNS provider allows the use of wildcards in resolving your URL, you can
select the Use Wildcards check box to activate this feature.
For example, the wildcard feature causes *.yourhost.dyndns.org to be aliased to the same IP
address as yourhost.dyndns.org.
8. Click Apply to save your configuration.
Configuring the WAN Setup Options
The WAN Setup options let you configure a DMZ (demilitarized zone) server, change the
Maximum Transmit Unit (MTU) size, and enable the wireless router to respond to a ping on the
WAN (Internet) port. Select WAN Setup under Advanced in the main menu. The WAN Setup
screen displays.
Disabling the SPI Firewall
The Stateful Packet Inspection (SPI) firewall protects your network and computers against attacks
and intrusions. A stateful packet firewall carefully inspects incoming traffic packets, looking for
Figure 4-4
Customizing Your Network Settings 4-7
v1.0, August 2010
known exploits such as malformed, oversized, or out-of-sequence packets. The firewall should be
disabled only in special circumstances, such as when you are troubleshooting application issues.
Setting Up a Default DMZ Server
The default DMZ server feature is helpful when you are using some online games and
videoconferencing applications that are incompatible with Network Address Translation (NAT).
The router is programmed to recognize some of these applications and to work correctly with
them, but there are other applications that might not function well. In some cases, one local
computer can run the application correctly if that computer’s IP address is entered as the default
DMZ server.
Incoming traffic from the Internet is usually discarded by the router unless the traffic is a response
to one of your local computers or a service that you have configured in the Port Forwarding/Port
Triggering screen. Instead of discarding this traffic, you can have it forwarded to one computer on
your network. This computer is called the default DMZ server.
The WAN Setup screen lets you configure a default DMZ server.
To assign a computer or server to be a default DMZ server:
1. Select the Default DMZ Server check box.
2. In the Default DMZ Server fields, enter the IP address for that computer or server.
3. Click Apply.
Responding to a Ping on the Internet (WAN) Port
If you want the router to respond to a ping from the Internet, select the Respond to Ping on
Internet Port check box. This should be used only as a diagnostic tool, since it allows your router
to be discovered by Internet scanners. Do not select this check box unless you have a specific
reason to do so, such as when troubleshooting your connection.
Warning: DMZ servers pose a security risk. A computer designated as the default DMZ
server loses much of the protection of the firewall, and is exposed to exploits
from the Internet. If compromised, the DMZ server computer can be used to
attack other computers on your network.
Customizing Your Network Settings 4-8
v1.0, August 2010
Setting the MTU Size
The normal MTU value for most Ethernet networks is 1500 bytes, 1492 bytes for PPPoE
connections, or 1450 for PPTP connections. For some ISPs, you might need to reduce the MTU
size, but this is rarely required and should not be done unless you are sure it is necessary for your
ISP connection. For more information, see “Changing the MTU Size” on page 5-15.
To change the MTU size:
1. In the MTU Size field, enter a new size between 64 and 1500.
2. Click Apply to save the new configuration.
Configuring NAT Filtering
Network Address Translation (NAT) determines how the router processes inbound traffic. Secured
NAT provides a secured firewall to protect the computers on the LAN from attacks from the
Internet, but might prevent some Internet games, point-to-point applications, or multimedia
applications from functioning. Open NAT provides a much less secured firewall, but allows almost
all Internet applications to function. For more information about NAT, see “How Your Computer
Accesses a Remote Computer through Your Router” on page 5-2.
To change the NAT option:
1. In the NAT Filtering area, select either the Secured or the Open radio button.
2. Click Apply to save the new configuration.
Configuring Static Routes
Static routes provide additional routing information to your router. Under usual circumstances, the
router has adequate routing information after it has been configured for Internet access, and you do
not need to configure additional static routes. You must configure static routes only for unusual
cases such as multiple routers or multiple IP subnets located on your network.
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where you are
employed. This router’s address on your LAN is 192.168.1.100.
• Your company’s network address is 134.177.0.0.
Customizing Your Network Settings 4-9
v1.0, August 2010
When you first configured your router, two implicit static routes were created. A default route was
created with your ISP as the gateway, and a second static route was created to your local network
for all 192.168.1.x addresses. With this configuration, if you attempt to access a device on the
134.177.0.0 network, your router forwards your request to the ISP. The ISP forwards your request
to the company where you are employed, and the request is likely to be denied by the company’s
firewall.
In this case you must define a static route, telling your router that 134.177.0.0 should be accessed
through the ISDN router at 192.168.1.100.
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route applies
to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.1.100.
•A Metric value of 1 will work since the ISDN router is on the LAN.
•Private is selected only as a precautionary security measure in case RIP is activated.
To add or edit a static route:
1. Select Static Routes under Advanced in the main menu. The Static Routes screen displays.
Figure 4-5
Customizing Your Network Settings 4-10
v1.0, August 2010
2. Click Add to expand the Static Routes screen.
3. In the Route Name field, enter a name for this static route. (This is for identification purposes
only.)
4. Select the Private check box if you want to limit access to the LAN only. If Private is selected,
the static route is not reported in RIP.
5. Select the Active check box to make this route effective.
6. In the Destination IP Address field, enter the IP address of the final destination.
7. In the IP Subnet Mask field, enter the IP subnet mask for this destination.
If the destination is a single host, enter 255.255.255.255.
8. In the Gateway IP Address field, enter the gateway IP address, which must be a router on the
same LAN segment as the WNR1000 v2h2 router.
9. In the Metric field, enter a number between 1 and 15 as the metric value.
This represents the number of routers between your network and the destination. Usually, a
setting of 2 or 3 works, but if this is a direct connection, set it to 1.
10. Click Apply to have the static route entered into the table.
Figure 4-6
5-1
v1.0, August 2010
Chapter 5
Fine-Tuning Your Network
This chapter describes how to modify the configuration of the N 150 Wireless Router
WNR1000 v2h2 to allow specific applications to access the Internet or to be accessed from the
Internet, and how to make adjustments to enhance your network’s performance.
This chapter includes the following sections:
•“Allowing Inbound Connections to Your Network”
•“Configuring Port Forwarding to Local Servers” on page 5-6
•“Configuring Port Triggering” on page 5-9
•“Using Universal Plug and Play” on page 5-12
•“Optimizing Wireless Performance” on page 5-14
•“Changing the MTU Size” on page 5-15
•“Overview of Home and Small Office Networking Technologies” on page 5-16
Allowing Inbound Connections to Your Network
By default, the WNR1000 v2h2 router blocks any inbound traffic from the Internet to your computers
except for replies to your outbound traffic. However, you might need to create exceptions to this
rule for the following purposes:
• To allow remote computers on the Internet to access a server on your local network.
• To allow certain applications and games to work correctly when their replies are not
recognized by your router.
Your router provides two features for creating these exceptions: port forwarding and port
triggering. This section explains how a normal outbound connection works, followed by two
examples explaining how port forwarding and port triggering operate and how they differ.
Fine-Tuning Your Network 5-2
v1.0, August 2010
How Your Computer Accesses a Remote Computer through Your
Router
When a computer on your network needs to access a computer on the Internet, your computer
sends your router a message containing source and destination address and process information.
Before forwarding your message to the remote computer, your router must modify the source
information and must create and track the communication session so that replies can be routed
back to your computer.
Here is an example of normal outbound traffic and the resulting inbound responses:
1. You open Internet Explorer, beginning a browser session on your computer. Invisible to you,
your operating system assigns a service number (port number) to every communication
process running on your computer. In this example, let’s say Windows assigns port number
5678 to this browser session.
2. You ask your browser to get a Web page from the Web server at www.example.com. Your
computer composes a Web page request message with the following address and
port information:
• The source address is your computer’s IP address.
• The source port number is 5678, the browser session.
• The destination address is the IP address of www.example.com, which your computer
finds by asking a DNS server.
• The destination port number is 80, the standard port number for a Web server process.
Your computer then sends this request message to your router.
3. Your router creates an entry in its internal session table describing this communication session
between your computer and the Web server at www.example.com. Before sending the Web
page request message to www.example.com, your router stores the original information and
then modifies the source information in the request message, performing Network Address
Translation (NAT):
• The source address is replaced with your router’s public IP address.
This is necessary because your computer uses a private IP address that is not globally
unique and cannot be used on the Internet.
• The source port number is changed to a number chosen by the router, such as 33333. This
is necessary because two computers could independently be using the same session
number.
Your router then sends this request message through the Internet to the Web server at
www.example.com.
Fine-Tuning Your Network 5-3
v1.0, August 2010
4. The Web server at www.example.com composes a return message with the requested Web
page data. The return message contains the following address and port information:
• The source address is the IP address of www.example.com.
• The source port number is 80, the standard port number for a Web server process.
• The destination address is the public IP address of your router.
• The destination port number is 33333.
The Web server then sends this reply message to your router.
5. Upon receiving the incoming message, your router checks its session table to determine
whether there is an active session for port number 33333. Finding an active session, the router
then modifies the message, restoring the original address information replaced by NAT. The
message now contains the following address and port information:
• The source address is the IP address of www.example.com.
• The source port number is 80, the standard port number for a Web server process.
• The destination address is your computer’s IP address.
• The destination port number is 5678, the browser session that made the initial request.
Your router then sends this reply message to your computer, which displays the Web page
from www.example.com.
6. When you finish your browser session, your router eventually senses a period of inactivity in
the communications. Your router then removes the session information from its session table,
and incoming traffic is no longer accepted on port number 33333.
How Port Triggering Changes the Communication Process
In the preceding example, requests are sent to a remote computer by your router from a particular
service port number, and replies from the remote computer to your router are directed to that port
number. If the remote server sends a reply back to a different port number, your router will not
recognize it and will discard it. However, some application servers (such as FTP and IRC servers)
send replies back to multiple port numbers. Using the port triggering function of your router, you
can tell the router to open additional incoming ports when a particular outgoing port originates
a session.
An example is Internet Relay Chat (IRC). Your computer connects to an IRC server at destination
port 6667. The IRC server not only responds to your originating source port, but also sends an
“identify” message to your computer on port 113. Using port triggering, you can tell the router,
Fine-Tuning Your Network 5-4
v1.0, August 2010
“When you initiate a session with destination port 6667, you must also allow incoming traffic on
port 113 to reach the originating computer.” Using steps similar to the preceding example, the
following sequence shows the effects of the port triggering rule you have defined:
1. You open an IRC client program, beginning a chat session on your computer.
2. Your IRC client composes a request message to an IRC server using a destination port number
of 6667, the standard port number for an IRC server process. Your computer then sends this
request message to your router.
3. Your router creates an entry in its internal session table describing this communication session
between your computer and the IRC server. Your router stores the original information,
performs Network Address Translation (NAT) on the source address and port, and sends this
request message through the Internet to the IRC server.
4. Noting your port triggering rule, and having observed the destination port number of 6667,
your router creates an additional session entry to send any incoming port 113 traffic to your
computer.
5. The IRC server sends a return message to your router using the NAT-assigned source port (as
in the previous example, let’s say port 33333) as the destination port. The IRC server also
sends an “identify” message to your router with destination port 113.
6. Upon receiving the incoming message to destination port 33333, your router checks its session
table to determine whether there is an active session for port number 33333. Finding an active
session, the router restores the original address information replaced by NAT and sends this
reply message to your computer.
7. Upon receiving the incoming message to destination port 113, your router checks its session
table and learns that there is an active session for port 113, associated with your computer. The
router replaces the message’s destination IP address with your computer’s IP address and
forwards the message to your computer.
8. When you finish your chat session, your router eventually senses a period of inactivity in the
communications. The router then removes the session information from its session table, and
incoming traffic is no longer accepted on port numbers 33333 or 113.
To configure port triggering, you need to know which inbound ports the application needs. Also,
you need to know the number of the outbound port that will trigger the opening of the inbound
ports. You can usually determine this information by contacting the publisher of the application, or
user groups or newsgroups.
Note: Only one computer at a time can use the triggered application.
Fine-Tuning Your Network 5-5
v1.0, August 2010
How Port Forwarding Changes the Communication Process
In both of the preceding examples, your computer initiates an application session with a server
computer on the Internet. However, you might need to allow a client computer on the Internet to
initiate a connection to a server computer on your network. Normally, your router ignores any
inbound traffic that is not a response to your own outbound traffic. You can configure exceptions
to this default rule by using the port forwarding feature.
A typical application of port forwarding can be shown by reversing the client-server relationship
from our previous Web server example. In this case, a remote computer’s browser needs to access
a Web server running on a computer in your local network. Using port forwarding, you can tell the
router, “When you receive incoming traffic on port 80 (the standard port number for a Web server
process), forward it to the local computer at 192.168.1.123.” The following sequence shows the
effects of the port forwarding rule you have defined:
1. The user of a remote computer opens Internet Explorer and requests a Web page from
www.example.com, which resolves to the public IP address of your router. The remote
computer composes a Web page request message with the following destination information:
• The destination address is the IP address of www.example.com, which is the address of
your router.
• The destination port number is 80, the standard port number for a Web server process.
The remote computer then sends this request message through the Internet to your router.
2. Your router receives the request message and looks in its rules table for any rules covering the
disposition of incoming port 80 traffic. Your port forwarding rule specifies that incoming port
80 traffic should be forwarded to local IP address 192.168.1.123. Therefore, your router
modifies the destination information in the request message:
The destination address is replaced with 192.168.1.123.
Your router then sends this request message to your local network.
3. Your Web server at 192.168.1.123 receives the request and composes a return message with
the requested Web page data. Your Web server then sends this reply message to your router.
4. Your router performs Network Address Translation (NAT) on the source IP address, and sends
this request message through the Internet to the remote computer, which displays the Web
page from www.example.com.
To configure port forwarding, you need to know which inbound ports the application needs. You
usually can determine this information by contacting the publisher of the application or user
groups or newsgroups.
Fine-Tuning Your Network 5-6
v1.0, August 2010
How Port Forwarding Differs from Port Triggering
The following points summarize the differences between port forwarding and port triggering:
• Port triggering can be used by any computer on your network, although only one computer can
use it at a time.
• Port forwarding is configured for a single computer on your network.
• Port triggering does not need to know the computer’s IP address in advance. The IP address is
captured automatically.
• Port forwarding requires that you specify the computer’s IP address during configuration, and
the IP address must never change.
• Port triggering requires specific outbound traffic to open the inbound ports, and the triggered
ports are closed after a period of no activity.
• Port forwarding is always active and does not need to be triggered.
Configuring Port Forwarding to Local Servers
Using the port forwarding feature, you can allow certain types of incoming traffic to reach servers
on your local network. For example, you might make a local Web server, FTP server, or game
server visible and available to the Internet.
Use the Port Forwarding screen to configure the router to forward specific incoming protocols to
computers on your local network. In addition to servers for specific applications, you can also
specify a default DMZ server to which all other incoming protocols are forwarded. The DMZ
server is configured in the WAN Setup screen, as discussed in “Setting Up a Default DMZ Server”
on page 4-7.
Before starting, you need to determine which type of service, application, or game you will
provide, and the local IP address of the computer that will provide the service. Be sure the
computer’s IP address never changes.
Tip: To ensure that your server computer always has the same IP address, use the
reserved IP address feature of your WNR1000v2 router. See “Using Address
Reservation” on page 4-4 for instructions on how to use reserved IP addresses.
Fine-Tuning Your Network 5-7
v1.0, August 2010
To configure port forwarding to a local server:
1. Select Port Forwarding/Port Triggering under Advanced in the main menu. The Port
Forwarding/Port Triggering screen displays.
2. From the Service Name list, select the service or game that you will host on your network.
If the service does not appear in the list, see the following section, “Adding a Custom
Service.”
3. In the corresponding Server IP Address fields, enter the last digit of the IP address of your
local computer that will provide this service.
4. To the right of Server IP Address, click Add. The service appears in the list in the screen.
Adding a Custom Service
To define a service, game, or application that does not appear in the Service Name list, you must
first determine which port number or range of numbers is used by the application. You can usually
determine this information by contacting the publisher of the application or user groups or
newsgroups. When you have the port number information, follow these steps:
1. Select Port Forwarding/Port Triggering under Advanced in the main menu.
Figure 5-1
Fine-Tuning Your Network 5-8
v1.0, August 2010
2. Click Add Service (see Figure 5-1 on page 5-7).The Ports–Custom Services screen displays.
3. In the Service Name field, enter a descriptive name.
4. In the Service Type field, select the protocol. If you are unsure, select TCP/UDP.
5. In the Starting Port field, enter the beginning port number.
• If the application uses only a single port, enter the same port number in the Ending Port
field.
• If the application uses a range of ports, enter the ending port number of the range in the
Ending Port field.
6. In the Server IP Address field, enter the IP address of your local computer that will provide
this service.
7. Click Apply. The service appears in the list in the Port Forwarding/Port Triggering screen.
Editing or Deleting a Port Forwarding Entry
To edit or delete a port forwarding entry:
1. In the table, select the button next to the service name.
Figure 5-2
Figure 5-3
Fine-Tuning Your Network 5-9
v1.0, August 2010
2. Click Edit Service or Delete Service to make changes.
3. Click Apply.
Application Example: Making a Local Web Server Public
If you host a Web server on your local network, you can use port forwarding to allow Web
requests from anyone on the Internet to reach your Web server.
To make a local Web server public:
1. Assign your Web server either a fixed IP address or a dynamic IP address using DHCP address
reservation, as explained in “Using Address Reservation” on page 4-4. In this example, your
router will always give your Web server an IP address of 192.168.1.33.
2. In the Port Forwarding screen, configure the router to forward the HTTP service to the local
address of your Web server at 192.168.1.33.
HTTP (port 80) is the standard protocol for Web servers.
3. (Optional) Register a host name with a Dynamic DNS service, and configure your router to
use the name as described in “Using a Dynamic DNS Service” on page 4-5.
To access your Web server from the Internet, a remote user must know the IP address that has
been assigned by your ISP. However, if you use a Dynamic DNS service, the remote user can
reach your server by a user-friendly Internet name, such as mynetgear.dyndns.org.
Configuring Port Triggering
Port triggering is a dynamic extension of port forwarding that is useful in these cases:
• More than one local computer needs port forwarding for the same application (but not
simultaneously).
• An application needs to open incoming ports that are different from the outgoing port.
When port triggering is enabled, the router monitors outbound traffic looking for a specified
outbound “trigger” port. When the router detects outbound traffic on that port, it remembers the IP
address of the local computer that sent the data. The router then temporarily opens the specified
incoming port or ports, and forwards incoming traffic on the triggered ports to the triggering
computer.
Fine-Tuning Your Network 5-10
v1.0, August 2010
While port forwarding creates a static mapping of a port number or range to a single local
computer, port triggering can dynamically open ports to any computer that needs them and can
close the ports when they are no longer needed.
To configure port triggering, you need to know which inbound ports the application needs. Also,
you need to know the number of the outbound port that will trigger the opening of the inbound
ports. You can usually determine this information by contacting the publisher of the application or
user groups or newsgroups.
To set up port triggering:
1. Select Port Forwarding/Port Triggering under Advanced in the main menu. The
Forwarding/Port Triggering screen displays (see Figure 5-1 on page 5-7).
2. Select the Port Triggering radio button. The port triggering information displays.
3. Clear the Disable Port Triggering check box.
Note: If you use applications such as multiplayer gaming, peer-to-peer connections, real-
time communications such as instant messaging, or remote assistance (a feature in
Windows XP), you should also enable Universal Plug and Play (UPnP) according
to the instructions in “Using Universal Plug and Play” on page 5-12.
Figure 5-4
Note: If the Disable Port Triggering check box is selected after you configure port
triggering, port triggering is disabled. However, any port triggering
configuration information you added to the router is retained even though it is
not used.
Fine-Tuning Your Network 5-11
v1.0, August 2010
4. In the Port Triggering Timeout field, enter a value up to 9999 minutes. This value controls
the inactivity timer for the designated inbound ports. The inbound ports close when the
inactivity time expires. This is required because the router cannot be sure when the application
has terminated.
5. Click Add. the Port Triggering–Services screen displays.
6. In the Service Name field, enter a descriptive service name.
7. In the Service User field, select Any (the default) to allow this service to be used by any
computer on the Internet. Otherwise, select Single address, and enter the IP address of one
computer to restrict the service to a particular computer.
8. Select the service type, either TCP or UDP.
9. In the Triggering Port field, enter the number of the outbound traffic port that will cause the
inbound ports to be opened.
10. Enter the inbound connection port information in the Connection Type, Starting Port, and
Ending Port fields.
Figure 5-5
Fine-Tuning Your Network 5-12
v1.0, August 2010
11. Click Apply. The service appears in the Port Triggering Portmap table.
Using Universal Plug and Play
Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, to
access the network and connect to other devices as needed. UPnP devices can automatically
discover the services from other registered UPnP devices on the network.
To turn on Universal Plug and Play:
Figure 5-6
Note: If you use applications such as multiplayer gaming, peer-to-peer connections, real-
time communications such as instant messaging, or remote assistance (a feature in
Windows XP), you should enable UPnP.
Fine-Tuning Your Network 5-13
v1.0, August 2010
1. Select UPnP under Advanced the main menu. The UPnP screen displays.
2. The available settings and information displayed in this screen are:
•Turn UPnP On. UPnP can be enabled or disabled for automatic device configuration.
The default setting for UPnP is disabled. If this check box is not selected, the router does
not allow any device to automatically control the resources, such as port forwarding
(mapping) of the router.
•Advertisement Period. The advertisement period is how often the router broadcasts its
UPnP information. This value can range from 1 to 1440 minutes. The default period is 30
minutes. Shorter durations ensure that control points have current device status at the
expense of additional network traffic. Longer durations might compromise the freshness
of the device status but can significantly reduce network traffic.
•Advertisement Time To Live. The time to live for the advertisement is measured in hops
(steps) for each UPnP packet sent. The time to live hop count is the number of steps a
broadcast packet is allowed to propagate for each UPnP advertisement before it
disappears. The number of hops can range from 1 to 255. The default value for the
advertisement time to live is 4 hops, which should be fine for most home networks. If you
notice that some devices are not being updated or reached correctly, then it might be
necessary to increase this value.
•UPnP Portmap Table. The UPnP Portmap Table displays the IP address of each UPnP
device that is currently accessing the router and which ports (Internal and External) that
device has opened. The UPnP Portmap Table also displays what type of port is open and
whether that port is still active for each IP address.
3. Click Apply to save your settings.
Figure 5-7
