Netgear orporated 11100154 ProSafe Dual Band Wireless-N Access Point User Manual
Netgear Incorporated ProSafe Dual Band Wireless-N Access Point
Contents
- 1. User Manual
- 2. Users Manual (Statement).pdf
- 3. Users Manual_rev.pdf
User Manual
350 East Plumeria Drive
San Jose, CA 95134
USA
April, 2011
202-10826-01
v1.0
ProSafe Dual Band
Wireless-N Access Point
WNDAP360
Reference Manual
2 |
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
©2011 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or
for more information about the topics covered in this manual, visit the Support website at
http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): Check the list of phone numbers at
http://support.netgear.com/app/answers/detail/a_id/984.
Trademarks
NETGEAR, the NETGEAR logo, ReadyNAS, ProSafe, ProSecure, Smart Wizard, Auto Uplink, X-RAID2, and
NeoTV are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista
are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or
trademarks of their respective holders.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.
Revision History
Publication Part Number Version Publish Date Comments
202-10826-01 v1.0 April 2011 First publication
Contents | 3
Contents
Chapter 1 Introduction
About the ProSafe Dual Band Wireless-N Access Point WNDAP360 . . . . .6
What Is In the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Key Features and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Supported Standards and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . .8
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
802.11b/g/n and 802.11a/n Standards–Based Wireless Networking . . . 10
Autosensing Ethernet Connections with Auto Uplink . . . . . . . . . . . . . . .10
Hardware Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

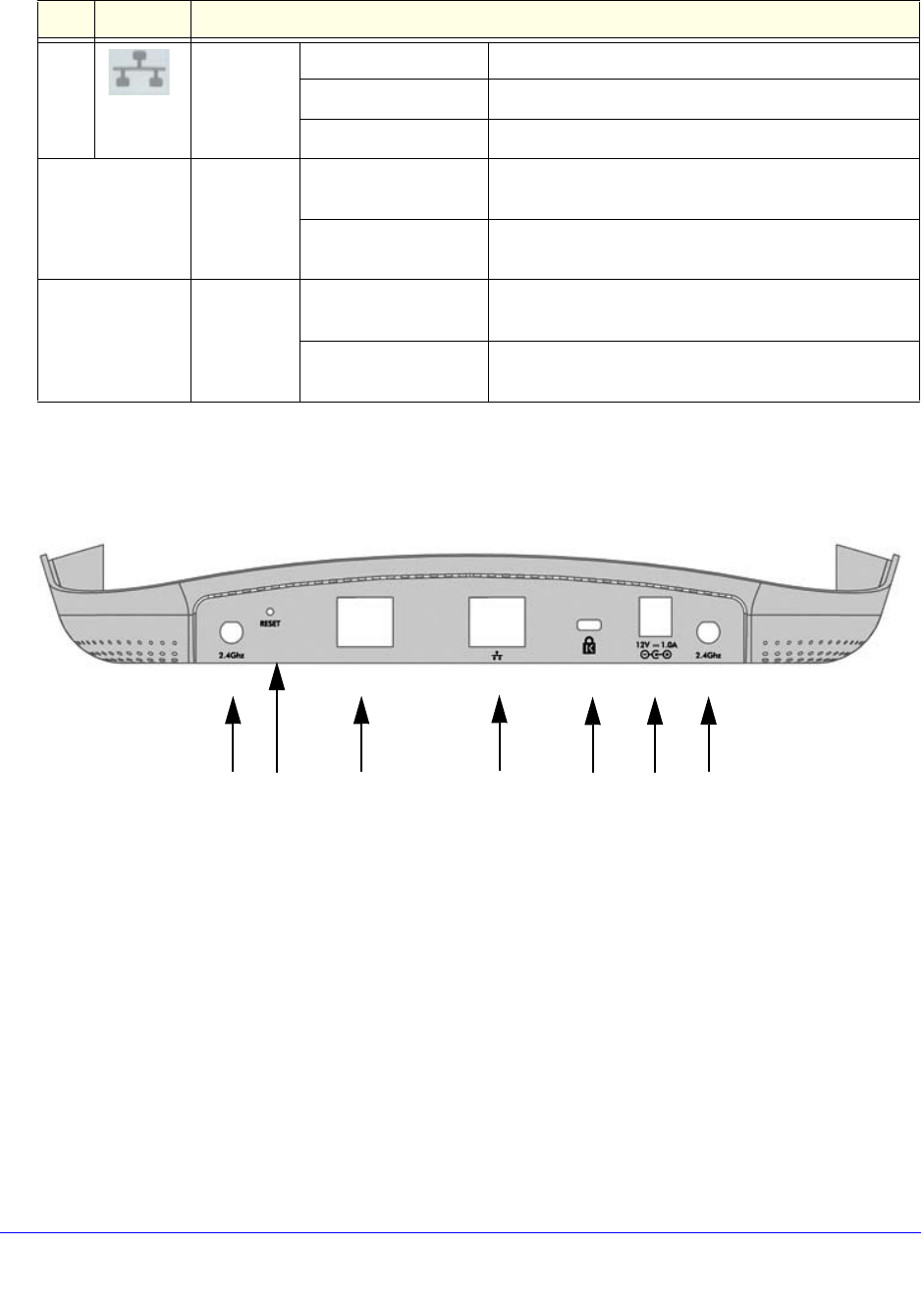

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

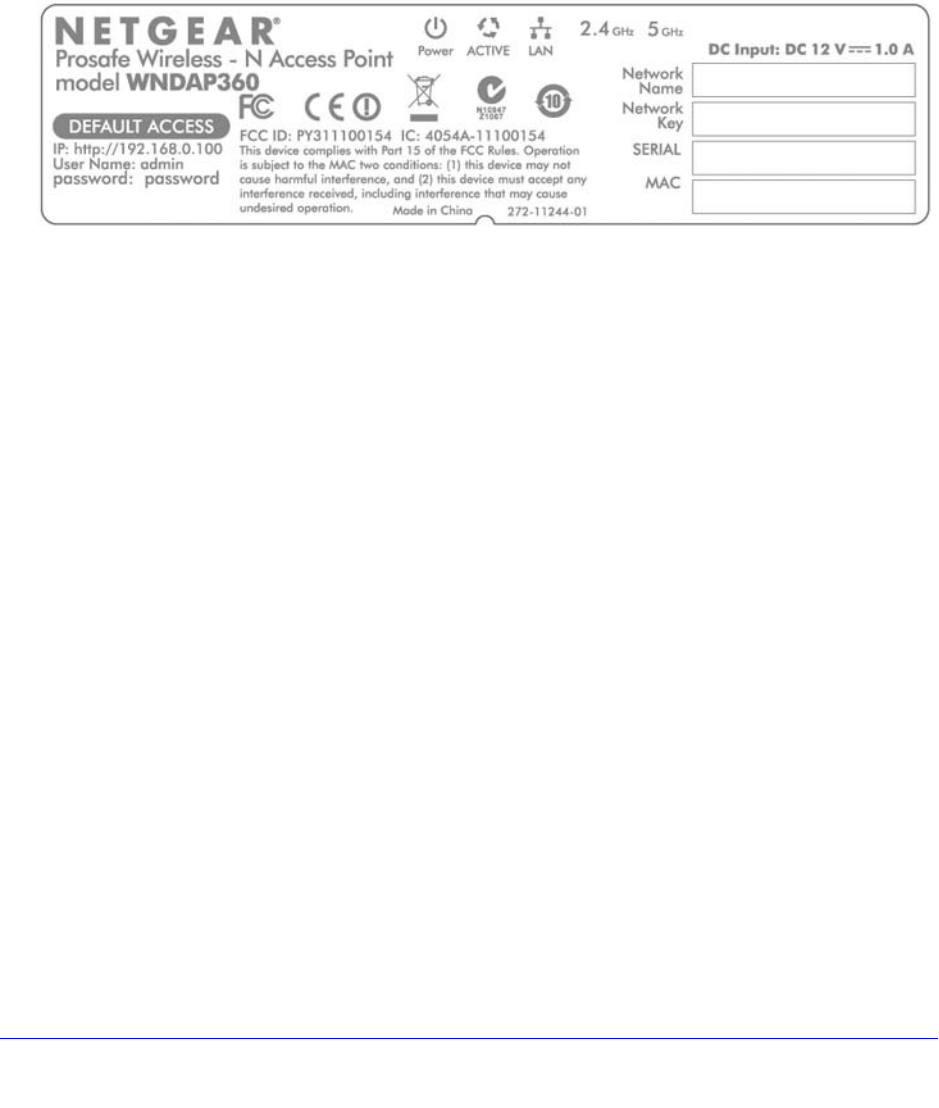

Bottom Panel with Product Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Chapter 2 Installation and Basic Configuration
What You Need before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Wireless Equipment Placement and Range Guidelines . . . . . . . . . . . . .14
Ethernet Cabling Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
LAN Configuration Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Computer Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Install and Configure the Wireless Access Point . . . . . . . . . . . . . . . . . . . .15
Connect the Wireless Access Point to Computer. . . . . . . . . . . . . . . . . . 16
Log In to the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Configure Basic General System Settings and Time Settings . . . . . . . .18

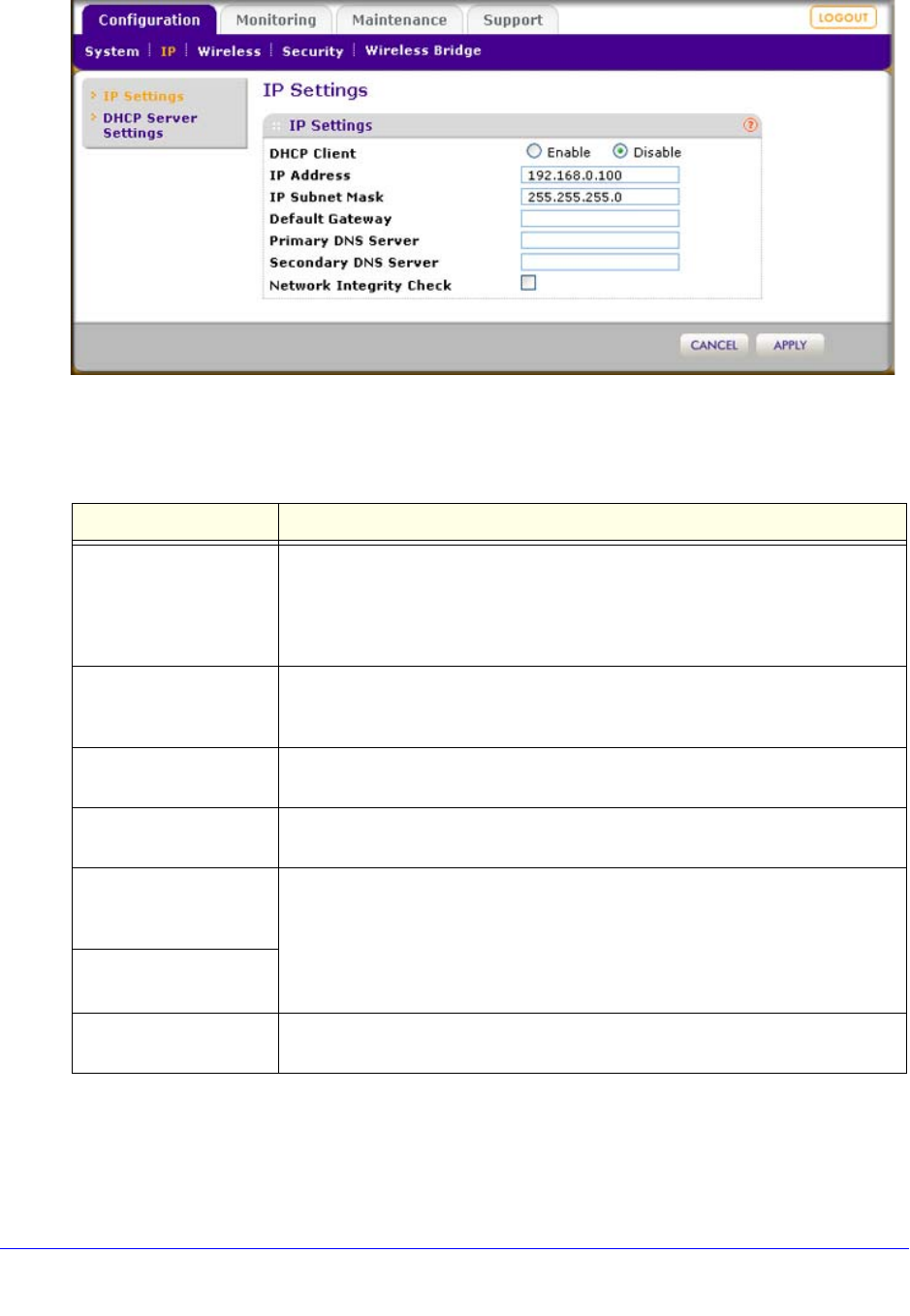

Configure IP Settings and Optional DHCP Server Settings . . . . . . . . . .20
Configure Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Configuring 802.11b/bg/ng Wireless Settings . . . . . . . . . . . . . . . . . . . . 24
Configuring 802.11a/na Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . 26
Operating Frequency (Channel) Guidelines. . . . . . . . . . . . . . . . . . . . . .28
Test Basic Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

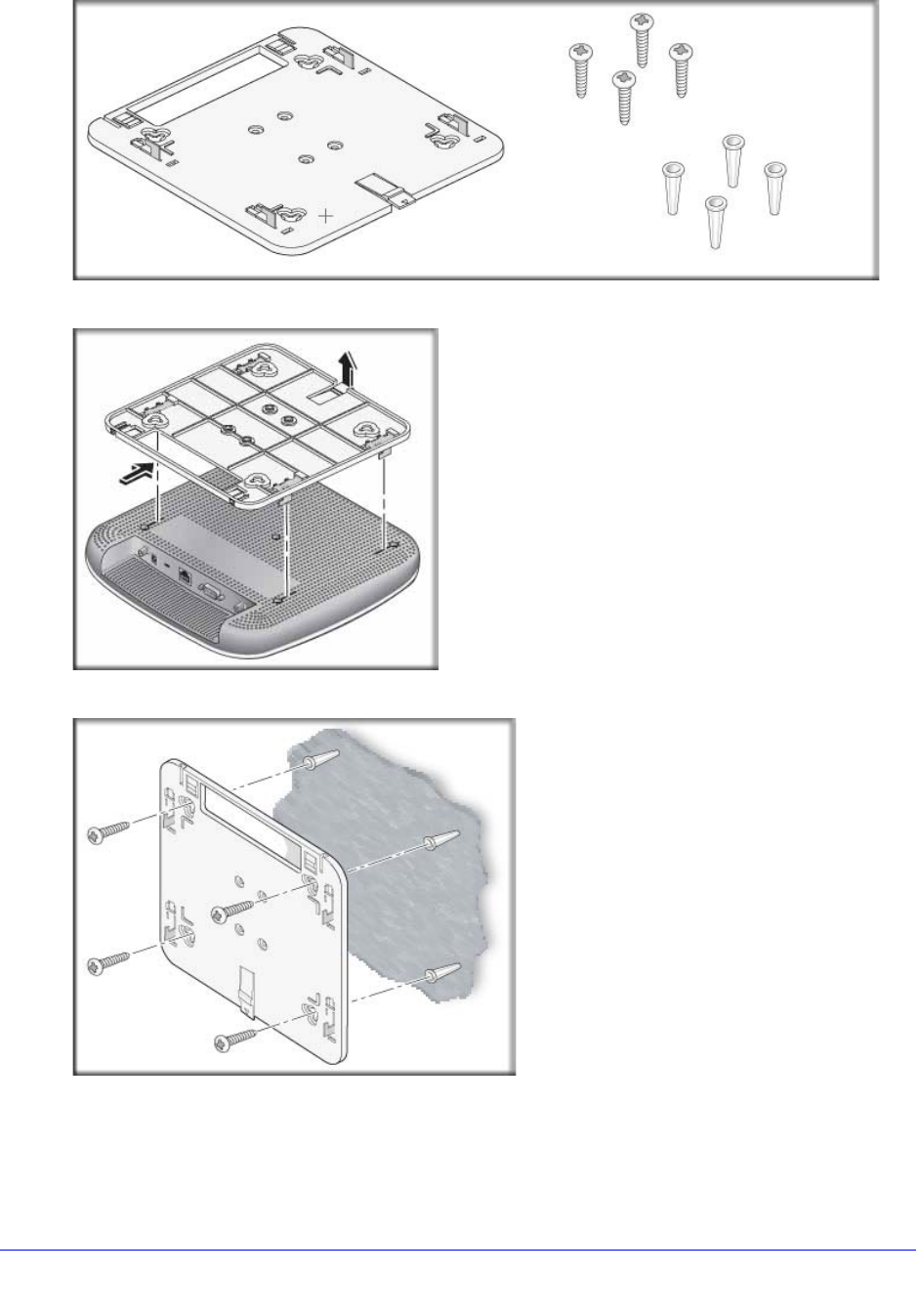

Mount the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

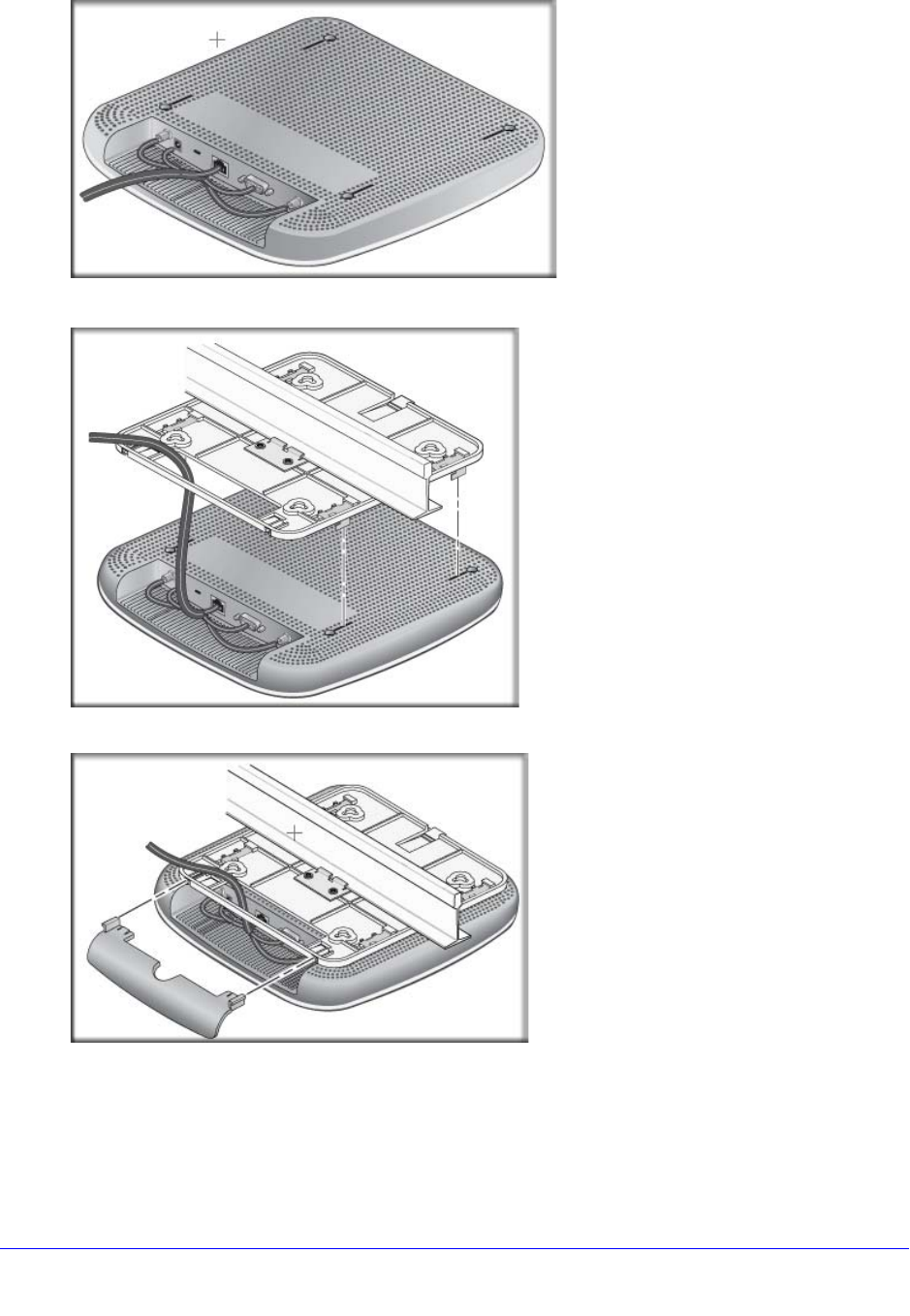

Ceiling Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Wall Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Desk Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Chapter 3 Wireless Configuration and Security
Wireless Data Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Before You Change the SSID, WEP, and WPA Settings . . . . . . . . . . . . 38
4 | Contents
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure and Enable Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 40

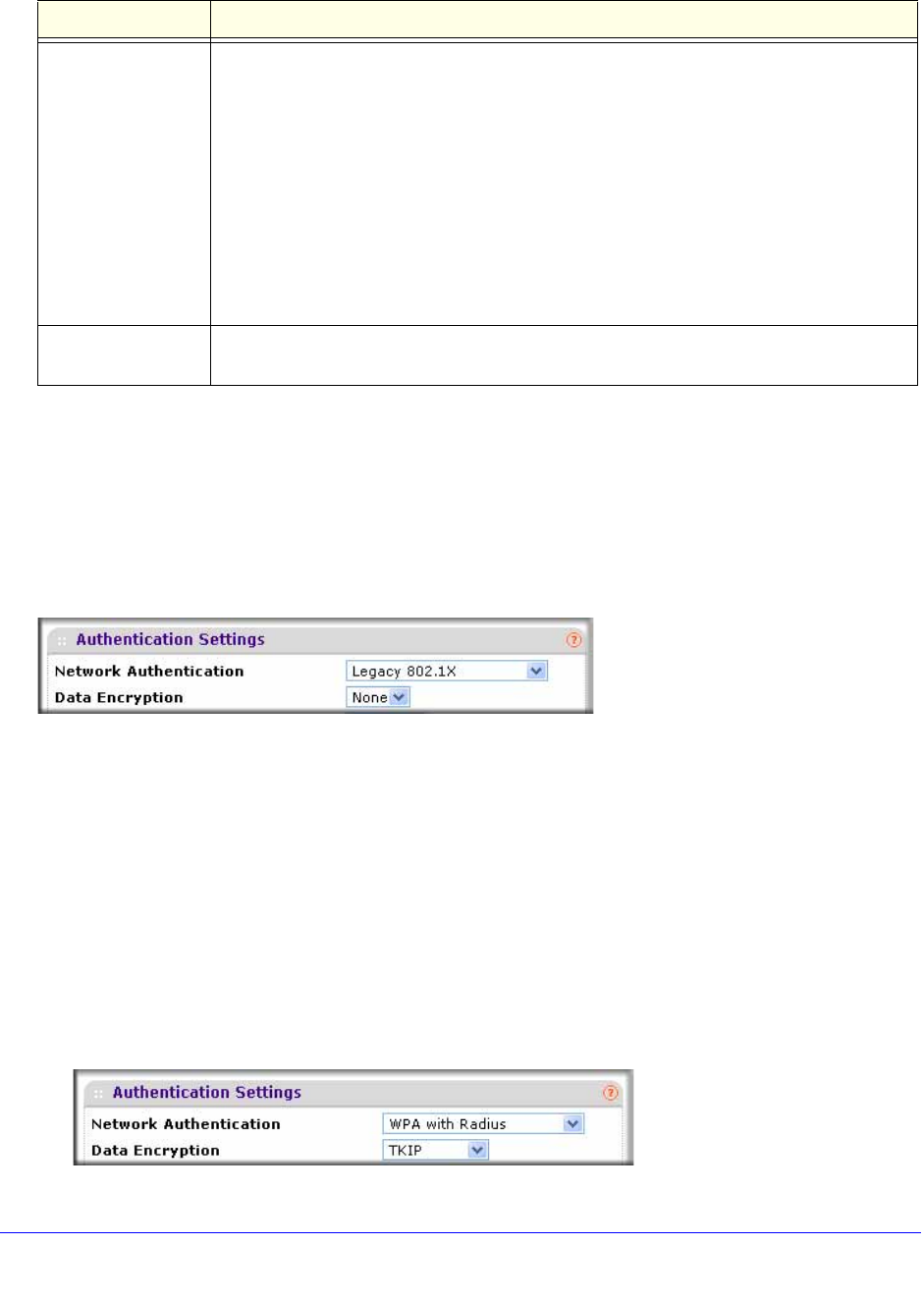

Configure RADIUS Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Restrict Wireless Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . . 51
Schedule the Wireless Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Configure Basic Wireless Quality of Service . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 4 Management
Enable Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

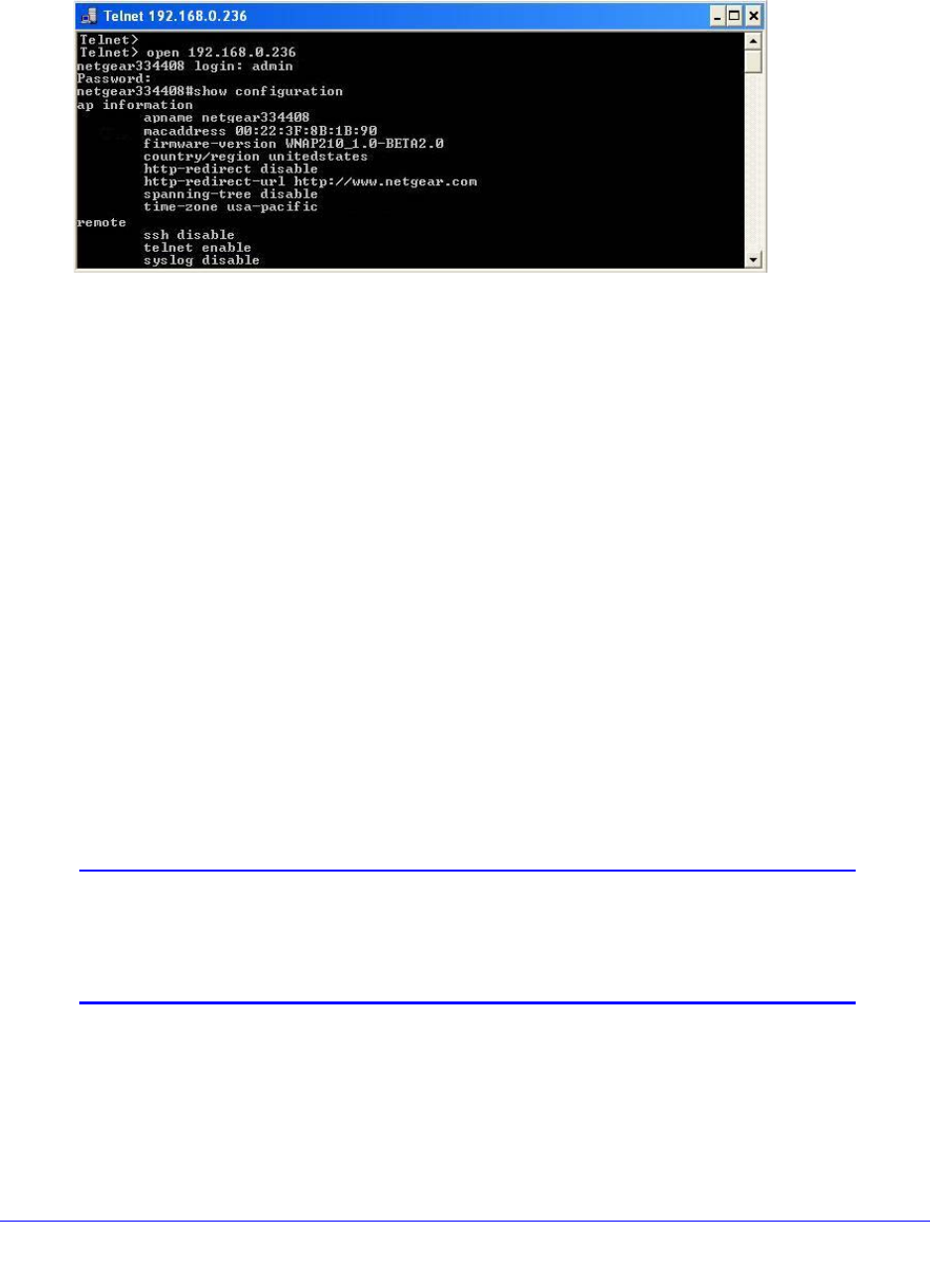

Secure Shell and Telnet Management . . . . . . . . . . . . . . . . . . . . . . . . . . 57

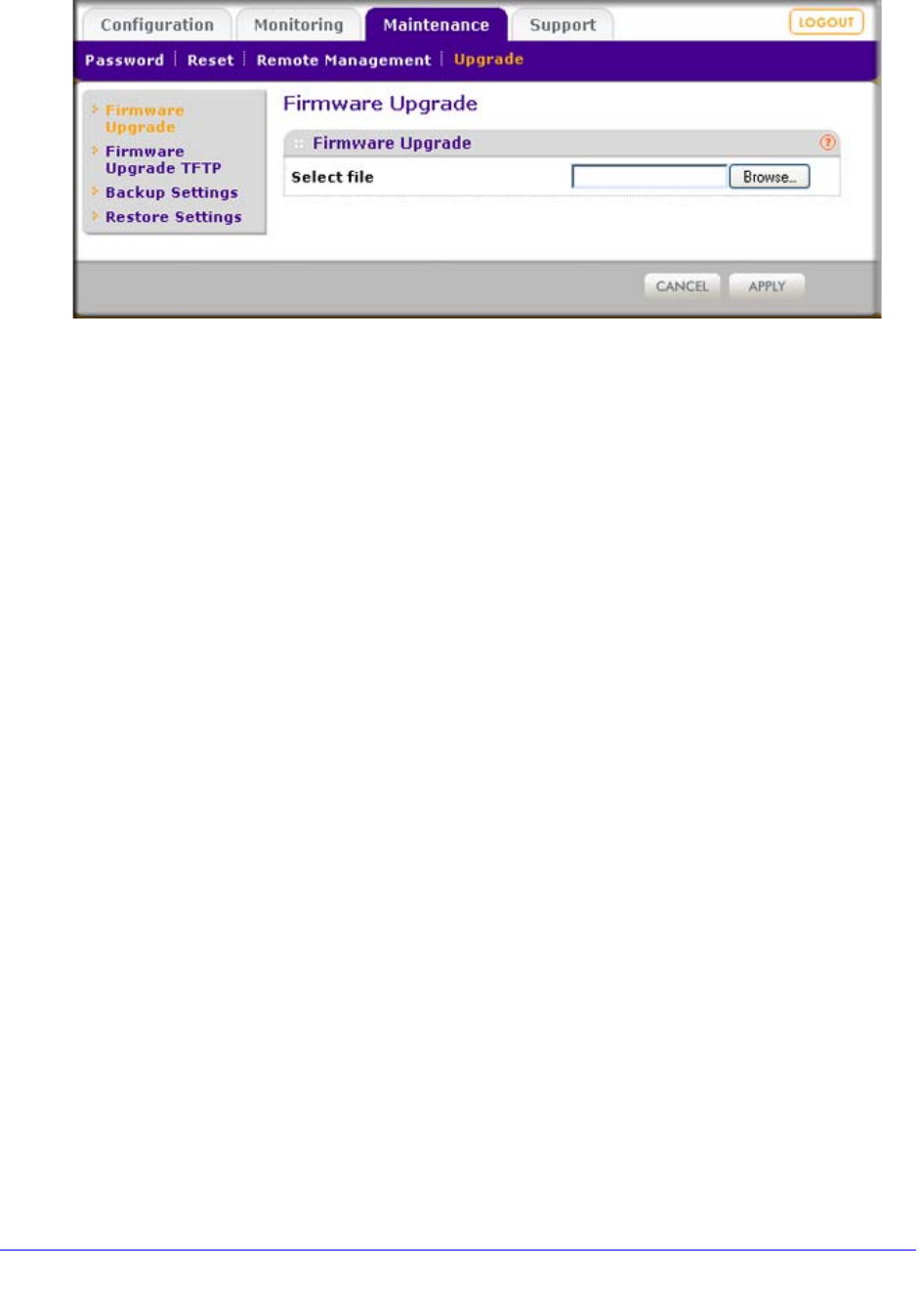

Upgrade the Wireless Access Point Software . . . . . . . . . . . . . . . . . . . . . . 58
Manage the Configuration File or Reset to Factory Defaults . . . . . . . . . . . 61

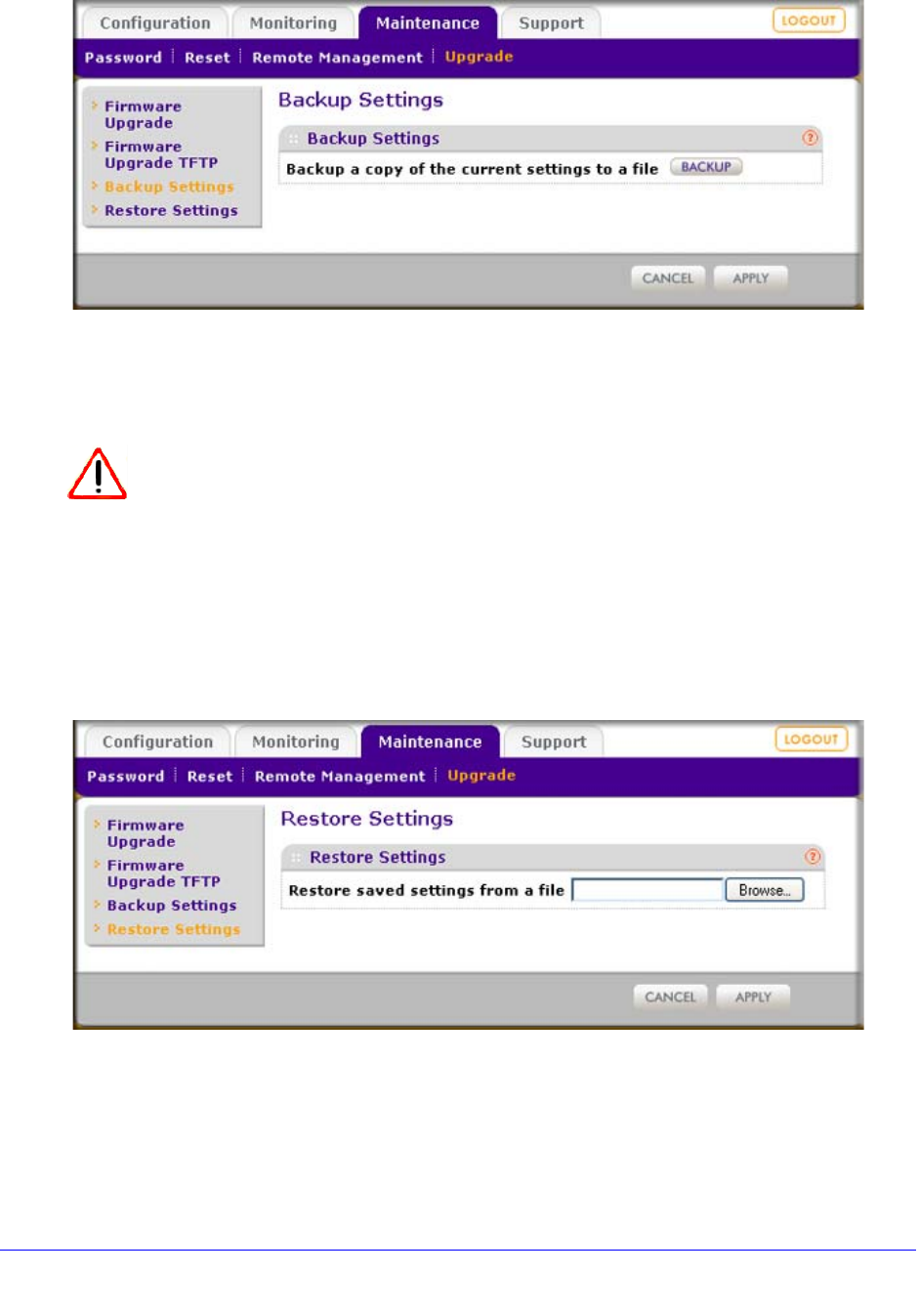

Save the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Restore the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

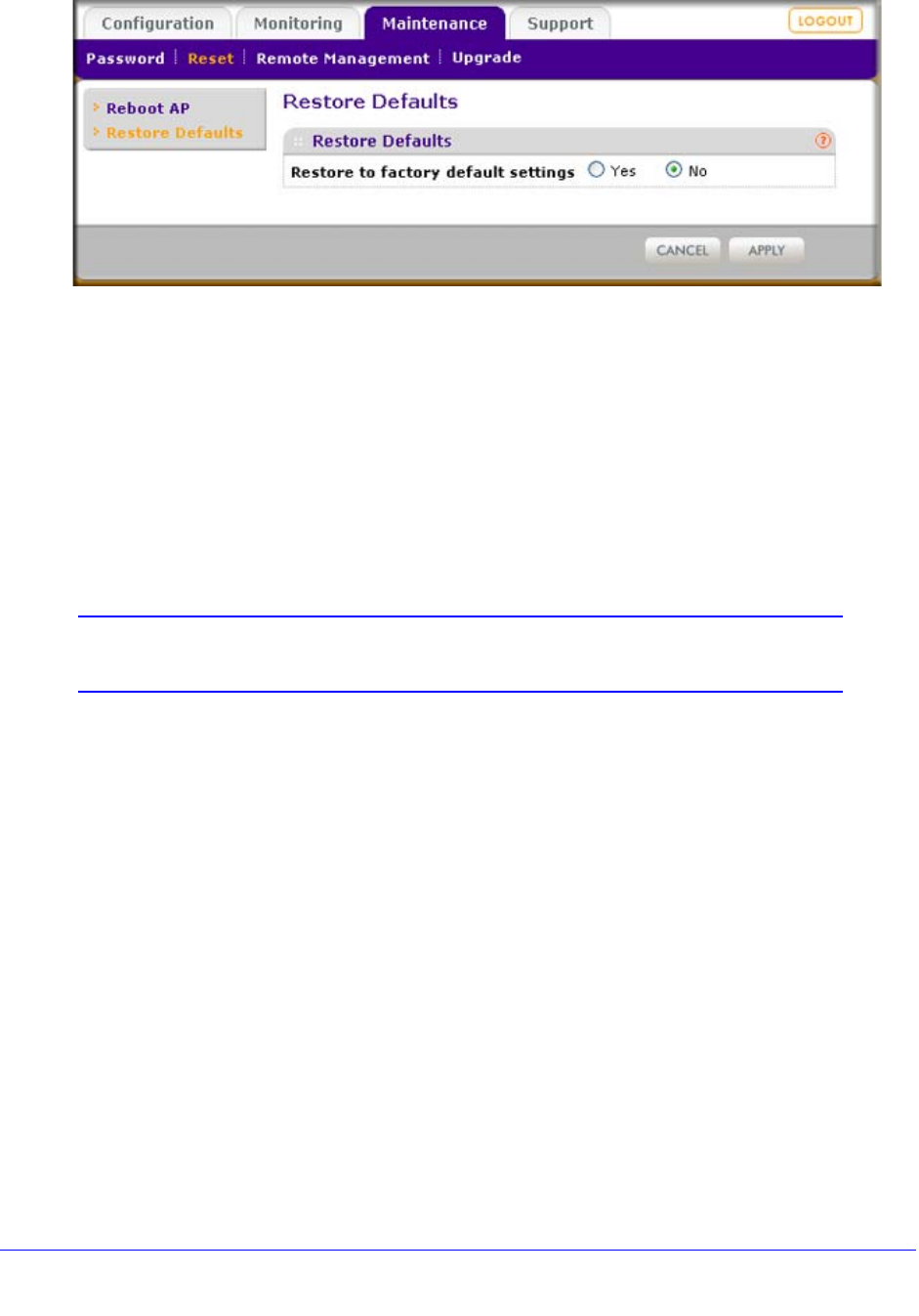

Restore the Wireless Access Point to the Factory Default Settings. . . . 63

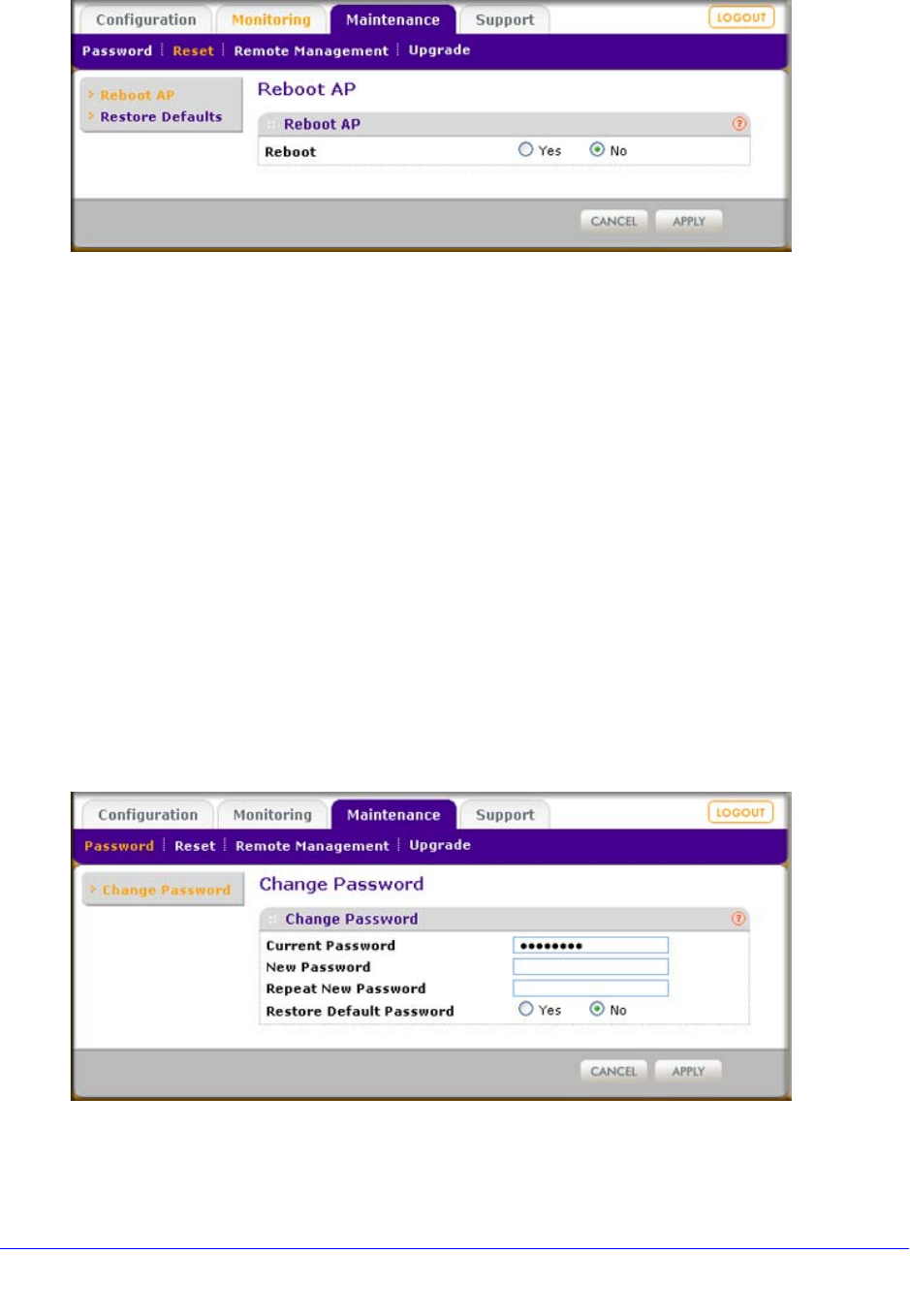

Reboot the Wireless Access Point without Restoring the
Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Change the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

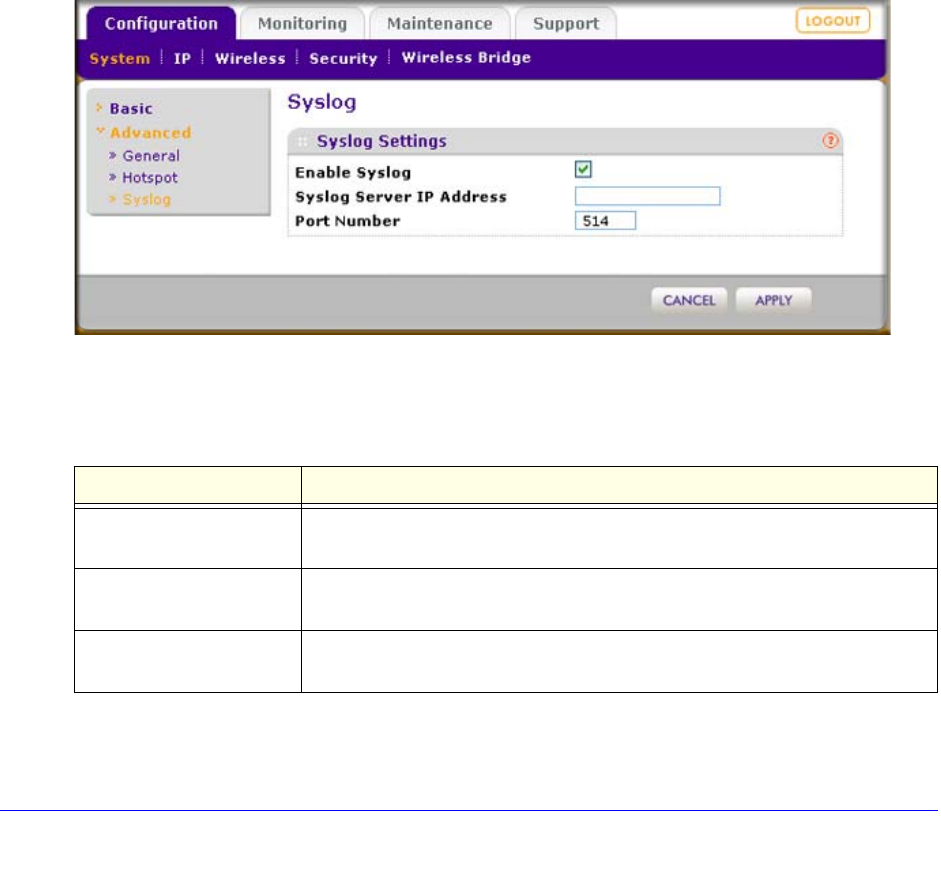

Enable the Syslog Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Monitor the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

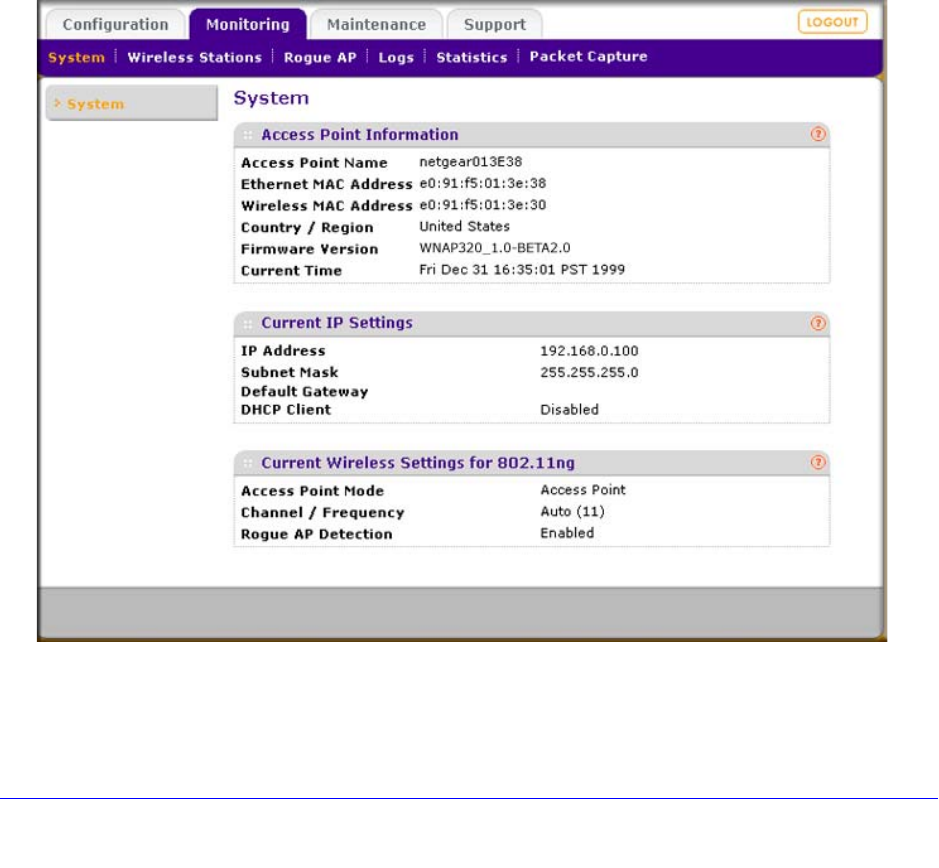

View System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

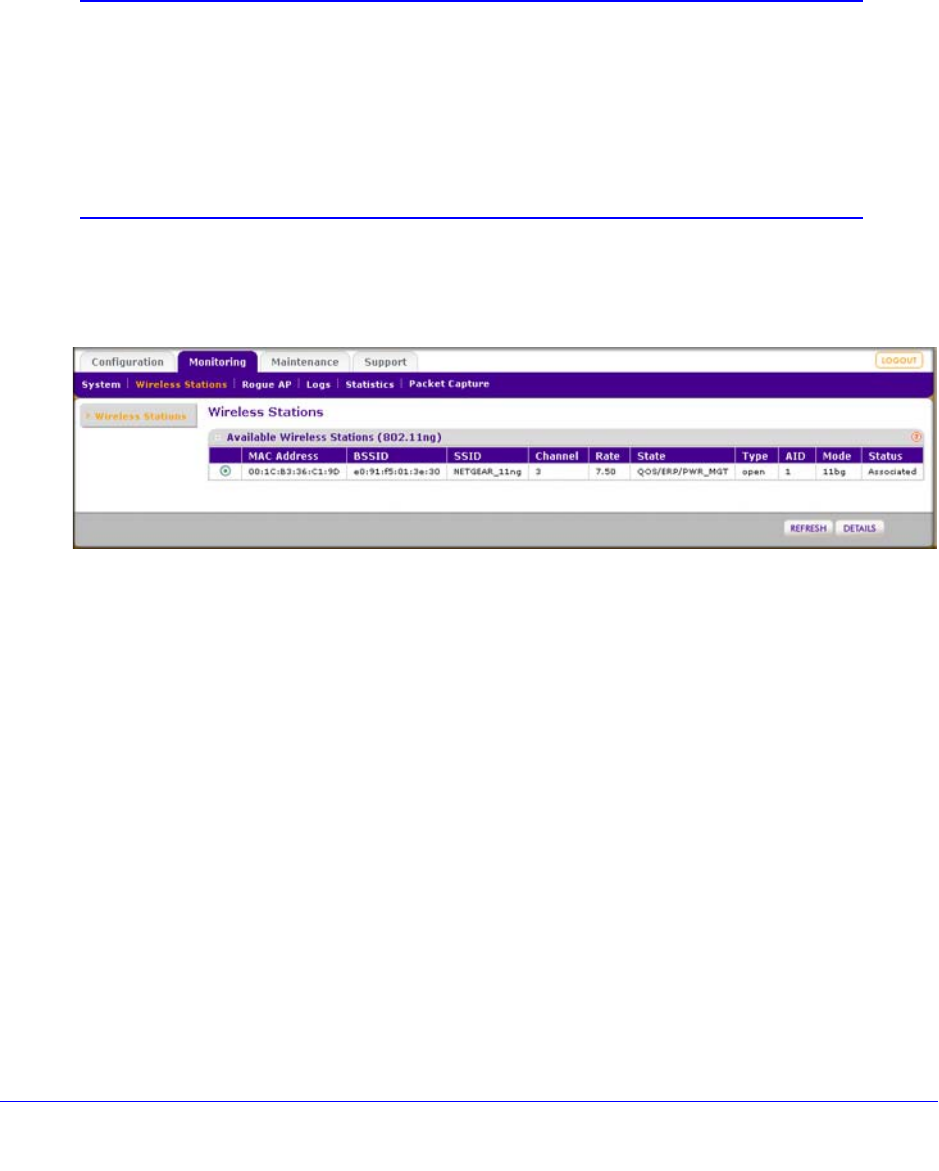

Monitor Wireless Stations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
View the Activity Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Traffic Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Enable Rogue AP Detection and Monitor Access Points. . . . . . . . . . . . . . 73
Enable and Configure Rogue AP Detection . . . . . . . . . . . . . . . . . . . . . . 73
View and Save Access Point Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Chapter 5 Advanced Configuration

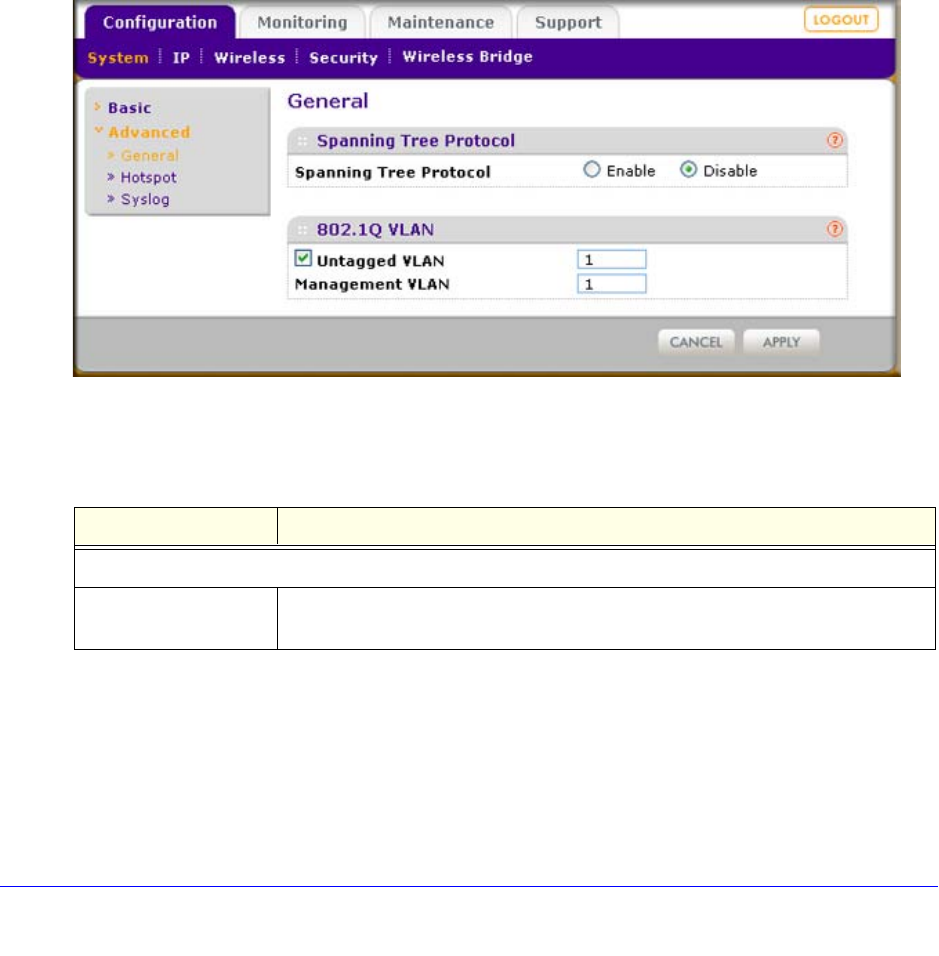

Spanning Tree Protocol and 802.1Q VLAN . . . . . . . . . . . . . . . . . . . . . . . . 76

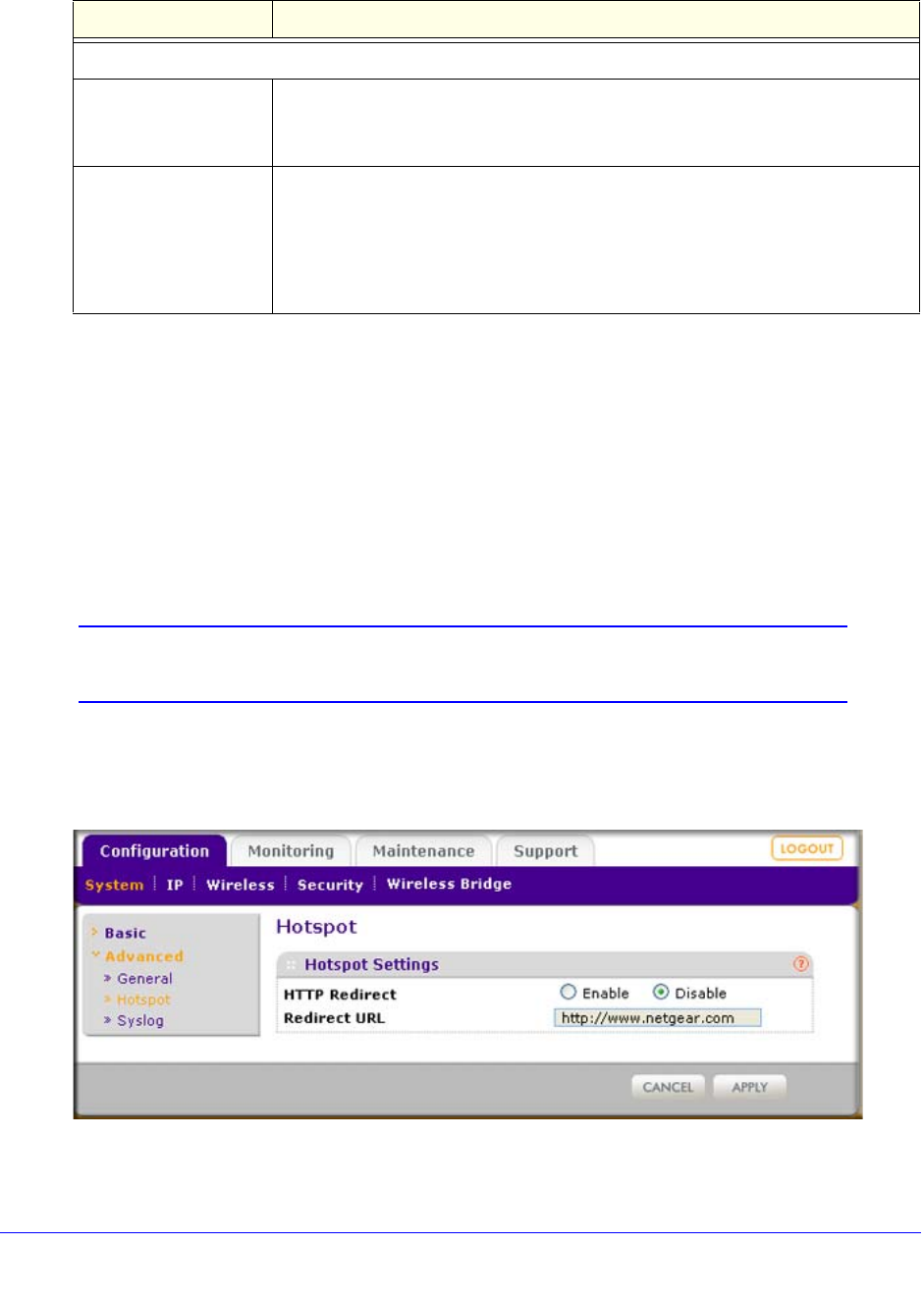

Hotspot Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Configure Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Configure Advanced QoS Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Configure Wireless Bridging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Configure a Point-to-Point Wireless Network . . . . . . . . . . . . . . . . . . . . . 84

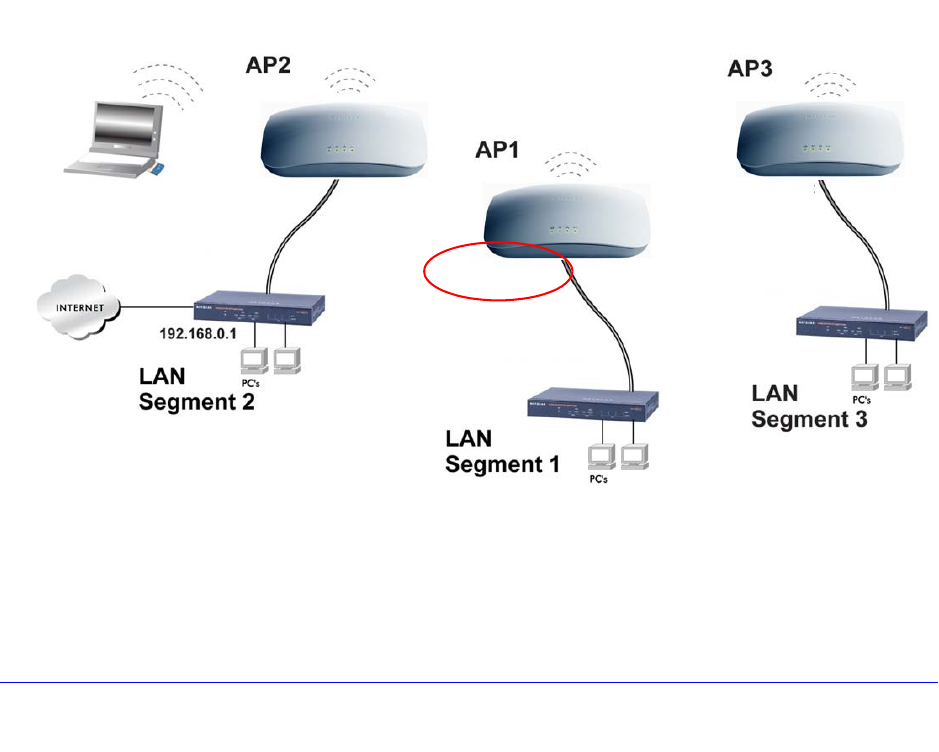

Configure a Point-to-Multipoint Wireless Network . . . . . . . . . . . . . . . . . 87
Configure the Wireless Access Point for Repeater Mode . . . . . . . . . . . 91
Configure the Wireless Access Point for Client Mode . . . . . . . . . . . . . . 94
Chapter 6 Troubleshooting
Basic Functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
No LEDs Are Lit on the Wireless Access Point . . . . . . . . . . . . . . . . . . . 97
The Active LED or the LAN LED Is Not Lit . . . . . . . . . . . . . . . . . . . . . . . 97
The WLAN LED Does Not Light Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
You Cannot Access the Internet or the LAN from a
Wireless-Capable Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Contents | 5
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
You Cannot Configure the Wireless Access Point from a Browser . . . . . .99
When You Enter a URL or IP Address a Time-Out Error Occurs. . . . . . . .99
Troubleshooting a TCP/IP Network Using the Ping Utility . . . . . . . . . . . .100
Testing the LAN Path to Your Wireless Access Point . . . . . . . . . . . . .100
Testing the Path from Your Computer to a Remote Device . . . . . . . . .101
Problems with Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Use the Packet Capture Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Appendix A Supplemental Information
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Appendix B Command-Line Reference
Appendix C Notification of Compliance
Index
Chapter 1. Introduction | 6
1
1. Introduction
This chapter introduces the ProSafe Dual Band Wireless-N Access Point WNDAP360 and
describes some of the key features. This chapter includes the following sections:
• About the ProSafe Dual Band Wireless-N Access Point WNDAP360 on this page
• What Is In the Box? on page 7
• System Requirements on page 7
• Key Features and Standards on page 7
• Hardware Description on page 11
About the ProSafe Dual Band Wireless-N Access Point
WNDAP360
The ProSafe Dual Band Wireless-N Access Point WNDAP360 is the basic building block of a
wireless LAN infrastructure. It provides 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n
connectivity between wired Ethernet networks and radio-equipped wireless notebook
systems, desktop systems, print servers, and other devices.
The wireless access point provides wireless connectivity to multiple wireless network devices
within a fixed range or area of coverage—interacting with a wireless network interface card
(NIC) through an antenna. Typically, an individual in-building wireless access point provides
a maximum connectivity area of about a 500-foot radius. The ProSafe Dual Band Wireless-N
Access Point WNDAP360 can support up to 64 users simultaneously in a range of several
hundred feet.
The ProSafe Dual Band Wireless-N Access Point WNDAP360 acts as a bridge between the
wired LAN and wireless clients. Connecting multiple wireless access points through a wired
Ethernet backbone can further increase the wireless network coverage. As a mobile
computing device moves out of the range of one wireless access point, it moves into the
range of another. As a result, wireless clients can freely roam from one wireless access point
to another and still maintain seamless connection to the network.
The autosensing capability of the ProSafe Dual Band Wireless-N Access Point WNDAP360
allows packet transmission at up to 300 Mbps, or at reduced speeds to compensate for
distance or electromagnetic interference.
Chapter 1. Introduction | 7
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
What Is In the Box?
The product package should contain the following items:
• ProSafe Dual Band Wireless-N Access Point WNDAP360
• Power adapter and cord (12 VCD, 1.0A)
• Straight-through Category 5 Ethernet cable
• ProSafe Dual Band Wireless-N Access Point WNDAP360 Installation Guide
• Resource CD, which includes this manual

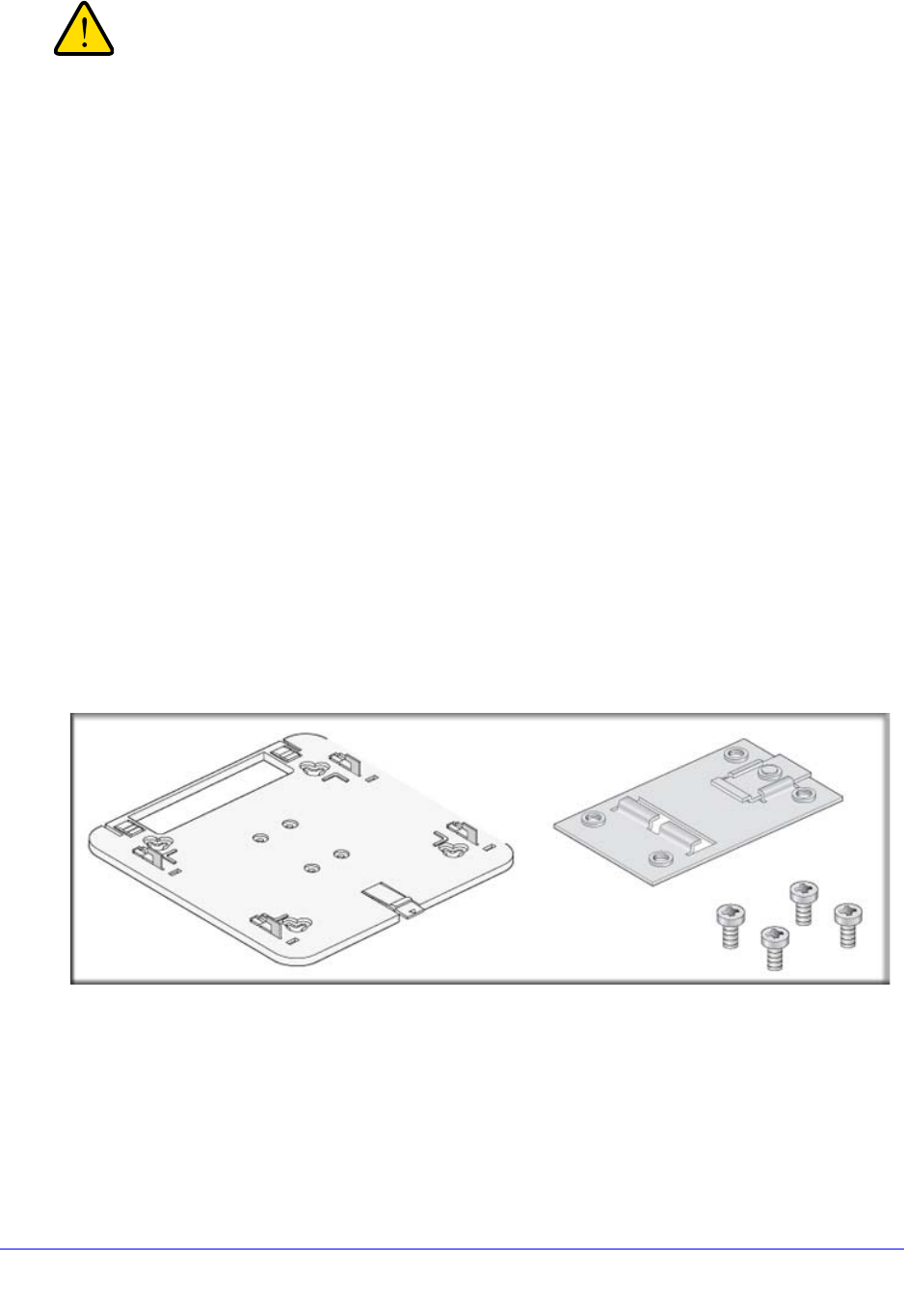

• Wall-mount kit made up of brackets and hardware
Contact your reseller or customer support in your area if there are any missing or damaged
parts.
Refer to the NETGEAR website at http://kbserver.netgear.com/main.asp for the telephone
number of customer support in your area. You should keep the Installation Guide, along with
the original packing materials, and use the packing materials to repack the wireless access
point if you need to return it for repair.
To qualify for product updates and product warranty, NETGEAR encourages you to register
on the NETGEAR website at http://my.netgear.com/registration/login.aspx.
System Requirements
Before installing the wireless access point, make sure that your system meets these
requirements:
• A 10/100/1000 Mbps local area network device such as a hub or switch
• The Category 5 UTP straight-through Ethernet cable with RJ-45 connector included in the
package, or one like it
• A 100–120V, 50–60 Hz AC power source
• A Web browser for configuration, such as Microsoft Internet Explorer 6.0 or later, or
Mozilla 1.5 or later
• At least one computer with the TCP/IP protocol installed
• An 802.11a/n or 802.11b/g/n-compliant devices, such as the NETGEAR WG511 Wireless
Adapter
Key Features and Standards
The ProSafe Dual Band Wireless-N Access Point WNDAP360 is easy to use and provides
solid wireless and networking support. It also offers a wide range of security options.
8 | Chapter 1. Introduction
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Supported Standards and Conventions
The ProSafe Dual Band Wireless-N Access Point WNDAP360 supports the following
standards and conventions:
• Standards compliance. The wireless access point complies with the IEEE 802.11 b/g
standards for wireless LANs, and is Wi-Fi certified for 802.11n standard.
• Full WPA and WPA2 support. The wireless access point provides WPA and WPA2
enterprise-class strong security with RADIUS and certificate authentication as well as
dynamic encryption key generation. The WPA-PSK and WPA2-PSK preshared key
authentication is without the overhead of RADIUS servers but with all of the strong
security of WPA.
• Multiple BSSIDs. The wireless access point supports multiple BSSIDs. When a wireless
access point is connected to a wired network and a set of wireless stations, it is called a
basic service set (BSS). The basic service set identifier (BSSID) is a unique identifier
attached to the header of packets sent over a WLAN that differentiates one WLAN from
another when a mobile device tries to connect to the network.
The multiple BSSID feature allows you to configure up to eight SSIDs on your wireless
access point and assign different configuration settings to each SSID. All the configured
SSIDs are active, and the network devices can connect to the wireless access point by
using any of these SSIDs.
• DHCP client support. DHCP provides a dynamic IP address to PCs and other devices
upon request. The wireless access point can act as a client and obtain information from
your DHCP server; it can also act as a DHCP server and provide network information for
wireless clients.
• SNMP Support. Support for Simple Network Management Protocol (SNMP)
Management Information Base (MIB) management.
• 802.1Q VLAN (virtual LAN) support. A network of computers that behave as if they are
connected to the same network even though they might actually be physically located on
different segments of a LAN. VLANs are configured through software rather than
hardware, which makes them extremely flexible. VLANs are very useful for user and host
management, bandwidth allocation, and resource optimization.
Key Features
The ProSafe Dual Band Wireless-N Access Point WNDAP360 provides solid functionality,
including the following features:
• Dual Band Concurrent. The wireless access point can operate in both the 2.4 GHz band
and the 5 GHz band concurrently.
The choice of bands is reflected in the protocol standard supported, as well as the
administration screens that are displayed.
Chapter 1. Introduction | 9
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Multiple operating modes:
-Wireless access point. Operates as a standard 802.11b/g/n or 802.11 a/n wireless
access point.

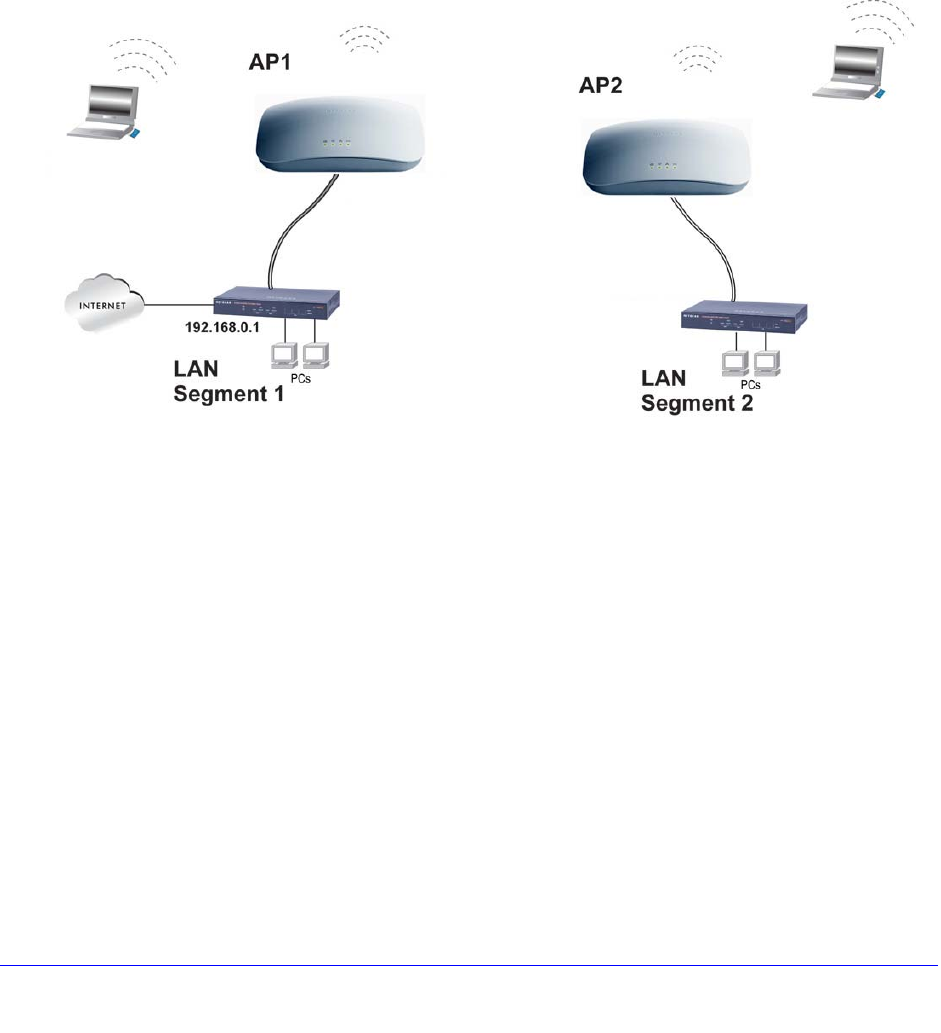

-Point-to-point bridge. In this mode, the wireless access point communicates only
with another bridge-mode wireless station or wireless access point. Network
authentication should be used to protect this communication.
-Point-to-multipoint bridge. Select this only if this wireless access point is the master
for a group of bridge-mode wireless stations. The other bridge-mode wireless stations
send all traffic to this master, and do not communicate directly with each other.
Network authentication should be used to protect this traffic.

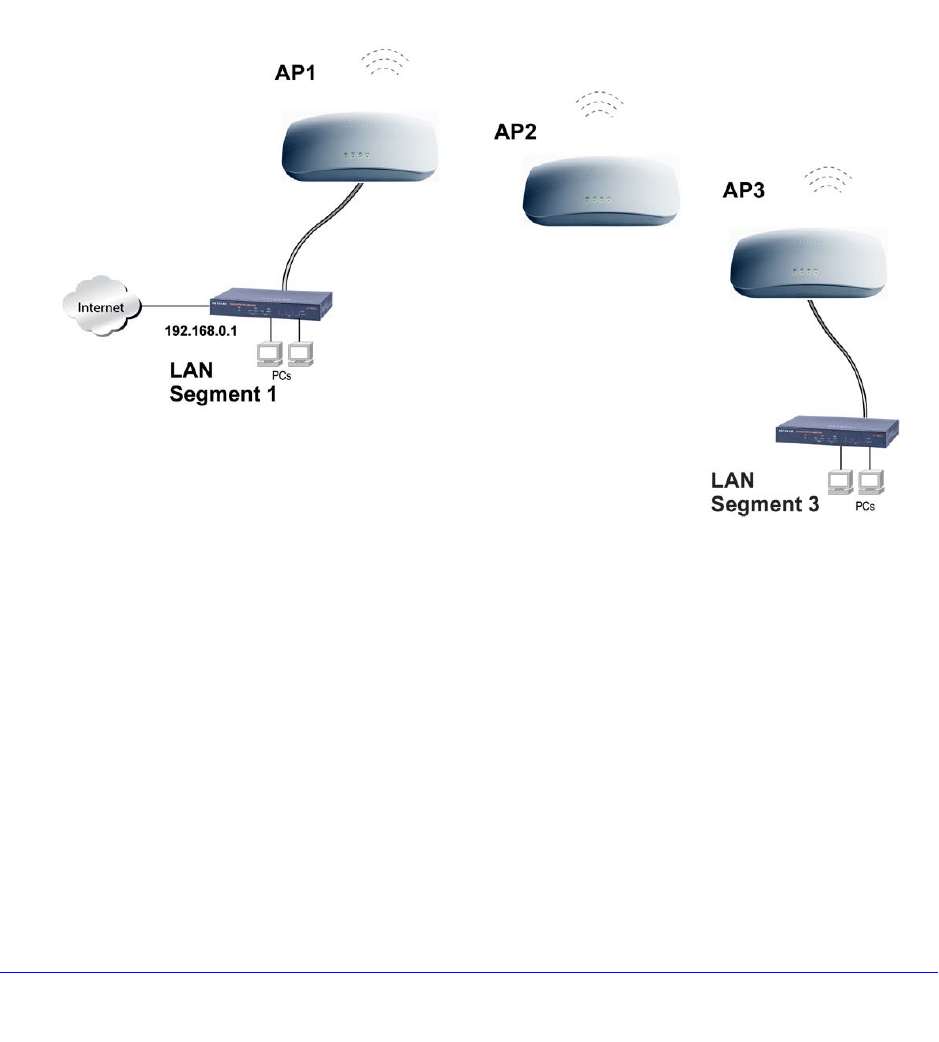

-Wireless repeater. In this mode, the wireless access point does not function as an
access point but communicates only with wireless stations that function in repeater
mode, point-to-point bridge mode, and point-to-multipoint-bridge mode. Network
authentication should be used to protect this communication.
-Client. In this mode, the wireless access point functions as a client bridge only, and
sends all traffic to a remote wireless access point or peer device.
• Hotspot settings. You can allow all HTTP (TCP, port 80) requests to be captured and
redirected to the URL you specify.
• Upgradeable firmware. Firmware is stored in a flash memory. You can upgrade it easily,
using only your Web browser, and you can upgrade it remotely. You can also use the
command-line interface.
• Rogue AP detection. The Rogue AP filtering feature ensures that unknown APs are not
given access to any part of the LAN.
• Access control. The Access Control MAC address filtering feature can ensure that only
trusted wireless stations can use the wireless access point to gain access to your LAN.
• Security profiles. When using multiple BSSIDs, you can configure unique security
settings (encryption, SSID, and so on) for each BSSID.
• Hidden mode. The SSID is not broadcast, assuring only clients configured with the
correct SSID can connect.
• Secure Telnet command-line Interface. The secure Telnet command-line interface
(CLI) enables direct secure access over the serial port and easy scripting of configuration
of multiple wireless access points across an extensive network via the Ethernet interface.
A Secure Shell (SSH) client is required.
• Configuration backup. Configuration settings can be backed up to a file and restored.
• Secure and economical operation. Adjustable power output allows more secure or
economical operation.
• Power over Ethernet. Power can be supplied to the wireless access point over the
Ethernet port from any 802.3af-compliant midspan or end-span source.
• Autosensing Ethernet connection with Auto Uplink™ interface. Connects to
10/100/1000 Mbps IEEE 802.3 Ethernet networks.
• LED indicators. Power/Test, Active, LAN, and WLAN for each radio mode are easily
identified.
10 | Chapter 1. Introduction
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Wi-FI Multimedia (WMM) support. WMM is a subset of the 802.11e standard. WMM
allows wireless traffic to have a range of priorities, depending on the kind of data.
Time-dependent information, like video or audio, has a higher priority than normal traffic.
For WMM to function correctly, wireless clients also need to support WMM.
• Quality of Service (QoS) support. You can configure parameters that affect traffic
flowing from the wireless access point to the client station and traffic flowing from the
client station to the wireless access point. The QoS feature allows you to prioritize traffic,
such as voice and video traffic, so that packets do not get dropped.
• VLAN security profiles. Each security profile is automatically allocated a VLAN ID when
the security profile is modified.
802.11b/g/n and 802.11a/n Standards–Based Wireless
Networking
The ProSafe Dual Band Wireless-N Access Point WNDAP360 provides a bridge between
wired Ethernet LANs and 802.11b/g/n and 802.11a/n-compatible wireless LAN networks. It
provides connectivity between wired Ethernet networks and radio-equipped wireless
notebook systems, desktop systems, print servers, and other devices. Additionally, the
wireless access point supports the following wireless features:
• Aggregation support
• Reduced InterFrame spacing support
• Multiple input, multiple output (MIMO) support
• Distributed coordinated function (CSMA/CA, back-off procedure, ACK procedure,
retransmission of unacknowledged frames)
• RTS/CTS handshake
• Beacon generation
• Packet fragmentation and reassembly
• Auto or long preamble
• Roaming among wireless access points on the same subnet
Autosensing Ethernet Connections with Auto Uplink
The ProSafe Dual Band Wireless-N Access Point WNDAP360 can connect to a standard
Ethernet network. The LAN interface is autosensing and capable of full-duplex or half-duplex
operation.
The wireless access point incorporates Auto UplinkTM technology. The Ethernet port
automatically senses whether the Ethernet cable plugged into the port should have a
“normal” connection such as to a computer or an “uplink” connection such as to a switch or
hub. That port then configures itself correctly. This feature also eliminates any concerns
about crossover cables, as Auto Uplink accommodates either type of cable to make the right
connection.
Chapter 1. Introduction | 11
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Hardware Description
This section describes the top and rear hardware functions of the ProSafe Dual Band
Wireless-N Access Point WNDAP360.
Top Panel

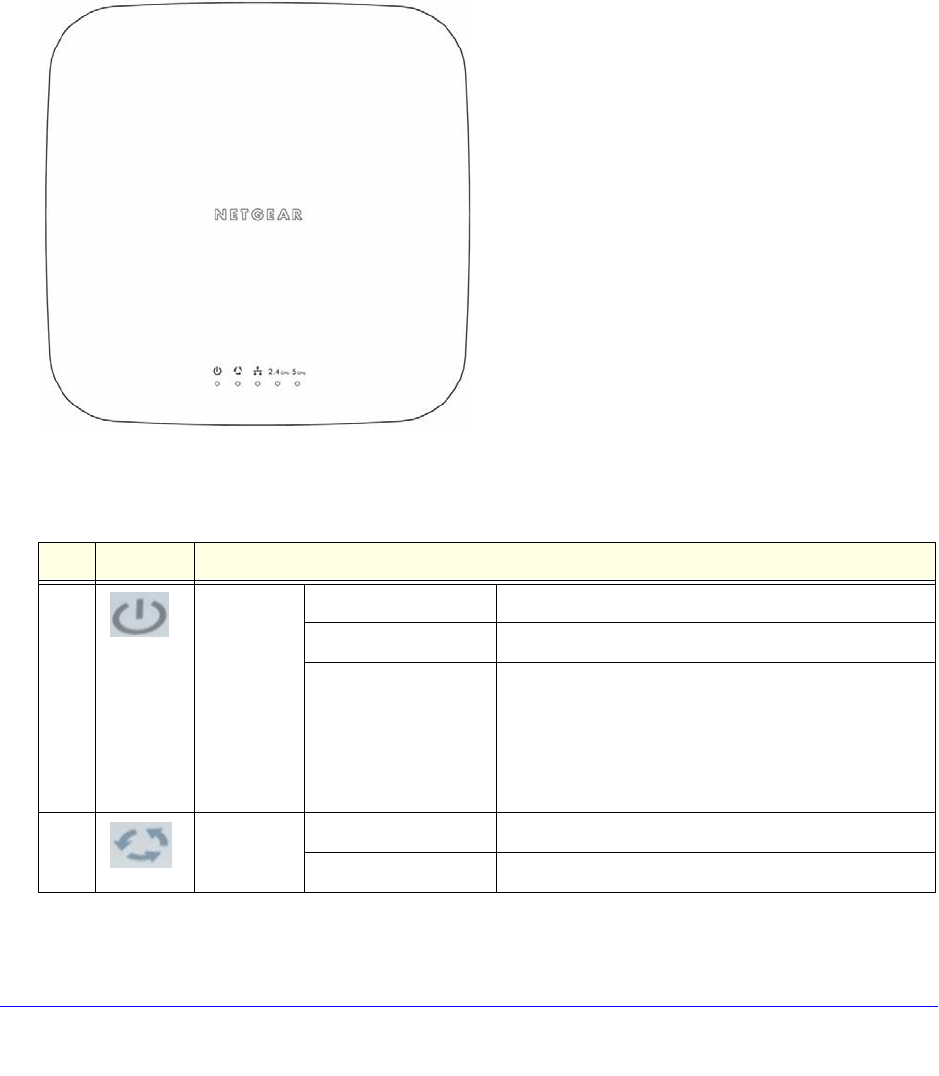

The ProSafe Dual Band Wireless-N Access Point WNDAP360 LEDs are described in the
following figure and table:
Figure 1.
Table 1. Top Panel LEDs
Item LED Description
1Power/Test Off Power is off.
On (green) Power is on.
Amber, then blinking
green A self-test is running or software is being loaded.
During startup, the LED is first steady amber, then
goes off, and then blinks green before turning steady
green after about 45 seconds. If after 1 minute the
LED remains amber or continues to blink green, it
indicates a system fault.
2Active Off No Ethernet traffic is detected or no link is detected.
On or blinking (green) Ethernet traffic is detected.
1 2 3 4 5
12 | Chapter 1. Introduction
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Rear Panel
Figure 2.
The rear panel functions of the ProSafe Dual Band Wireless-N Access Point WNDAP360 are
described in the following list:
1. Reverse SMA connector for an optional 2.4-GHz antenna.
2. Factory default Reset button. Using a sharp object, press and hold this button for about
5 seconds to reset the wireless access point to factory defaults settings. All configuration
settings are lost, and the default password is restored. For more information, see Restore
the Wireless Access Point to the Factory Default Settings on page 63.
3. Console port for connecting to an optional console terminal. The port has an RJ-45
connector and supports the following settings: 9600 K default baud rate, (8) data bits, no (N)
parity bit, and one (1) stop bit.
4. 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with
IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
3LAN Off 10 Mbps or no link is detected.
Amber 10/100 Mbps link is detected.
Green 1000 Mbps link is detected.
4
2.4 GHz
WLAN Off Wireless 802.11b/g/n (2.4 GHz) LAN is not ready or
no wireless activity is detected.
On or blinking (green) Wireless 802.11b/g/n (2.4 GHz) LAN is ready or
wireless activity is detected.
5
5 GHz
WLAN Off Wireless 802.11n/a (5 GHz) LAN is not ready or no
wireless activity is detected.
On or blinking (green) Wireless 802.11n/a (5 GHz) LAN is ready or wireless
activity is detected.
Table 1. Top Panel LEDs (Continued)
Item LED Description
123 4 567
Chapter 1. Introduction | 13
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
5. Cable security lock receptacle for an optional lock.
6. Power socket for a 12 VDC, 1A power adapter.
7. Reverse SMA connector for an optional 2.4-GHz antenna.
Bottom Panel with Product Label
The product label on the bottom of the wireless access point’s enclosure displays factory
default settings, regulatory compliance, and other information:
Figure 3.
Chapter 2. Installation and Basic Configuration | 14
2
2. Installation and Basic Configuration
This chapter describes how to install and configure your access point for wireless connectivity to
your LAN. This basic configuration will enable computers with 2.4 GHz 802.11b/g/n or 5 GHz
802.11 a/n wireless adapters to connect to the Internet, or access printers and files on your LAN.
In planning your wireless network, consider the level of security required. Chapter 3, Wireless
Configuration and Security, describes how to set up wireless security for your network. This
chapter includes the following sections:
• What You Need before You Begin on this page
• Install and Configure the Wireless Access Point on page 15
• Test Basic Wireless Connectivity on page 28

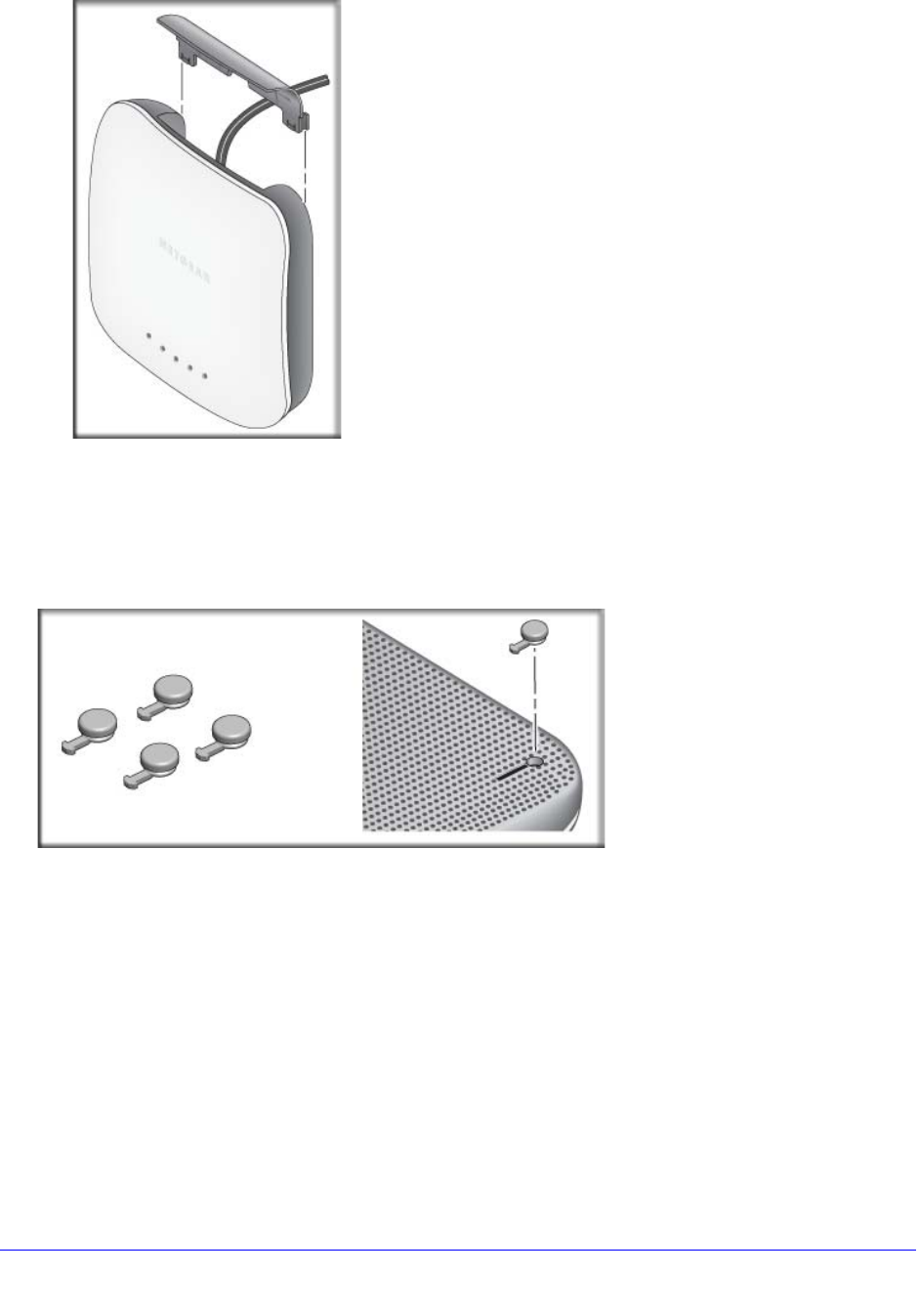

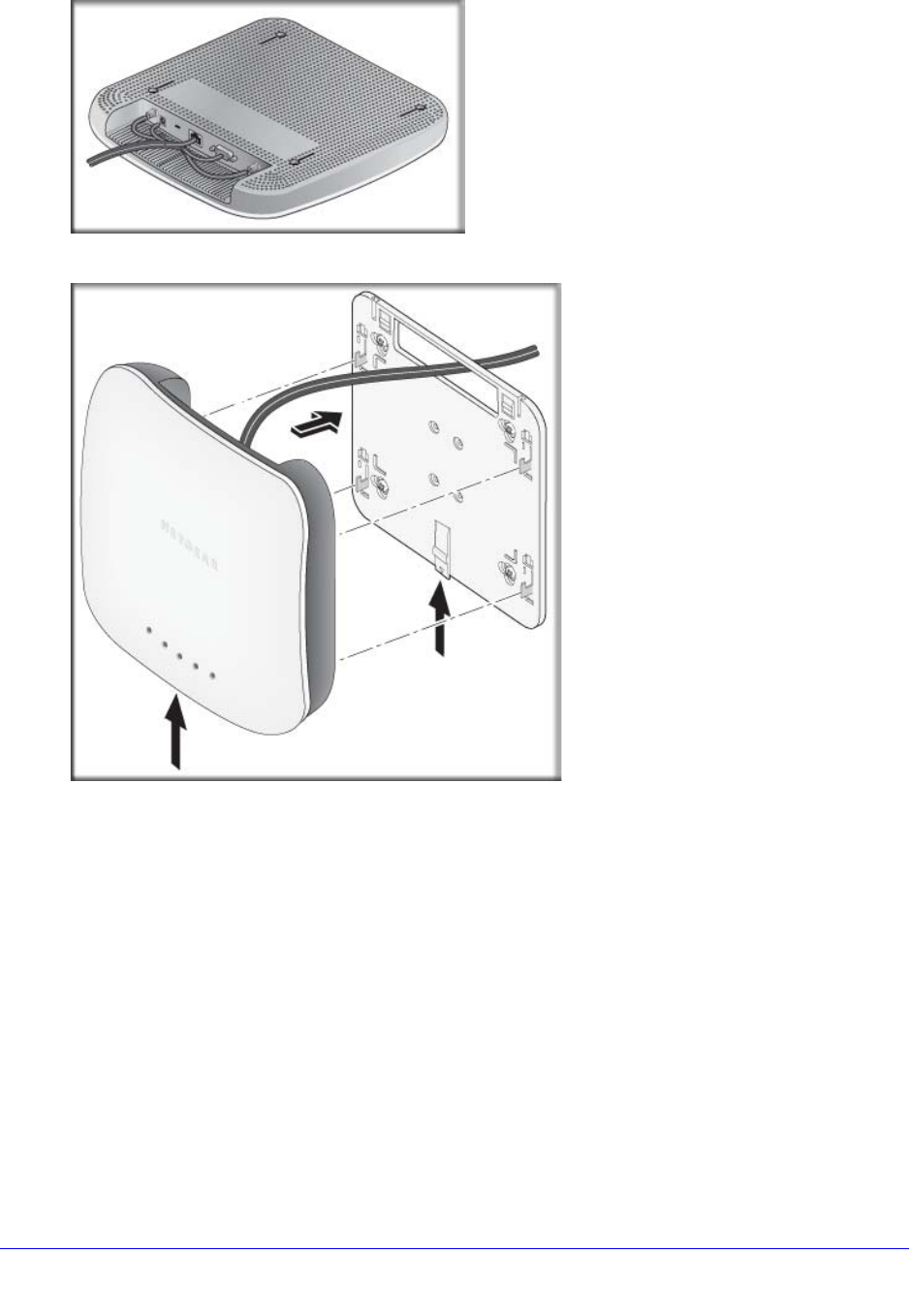

• Mount the Wireless Access Point on page 29
Note: In this chapter and in all further chapters, the WNDAP360 is
referred to as the wireless access point.
What You Need before You Begin
You need to consider the following guidelines and requirements before you can set up your
wireless access point. See also System Requirements on page 7.
Wireless Equipment Placement and Range Guidelines
The range of your wireless connection can vary significantly based on the location of the
wireless access point. The latency, data throughput performance, and notebook power
consumption of wireless adapters also vary depending on your configuration choices.
Note: Failure to follow these guidelines can result in significant
performance degradation or inability to wirelessly connect to the
wireless access point. For complete performance specifications,
see Appendix A, Supplemental Information.
Chapter 2. Installation and Basic Configuration | 15
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
For best results, place your wireless access point according to the following general
guidelines:
• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have
line-of-sight access (even if through walls).
• Away from sources of interference, such as PCs, microwaves ovens, and 2.4-GHz
cordless phones.
• Away from large metal surfaces or water.
• Placing an external antenna in a vertical position provides best side-to-side coverage.
Placing an external antenna in a horizontal position provides best up-and-down
coverage. (An external antenna does not come standard with the WNDAP360 wireless
access point.)
• If you are using multiple wireless access points, it is better if adjacent wireless access
points use different radio frequency channels to reduce interference. The recommended
channel spacing between adjacent wireless access points is five channels (for example,
use channels 1 and 6, or 6 and 11, or 1 and 11).
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Ethernet Cabling Requirements
The wireless access point connects to your LAN using twisted-pair Category 5 Ethernet cable
with RJ-45 connectors.
LAN Configuration Requirements
For the initial configuration of your wireless access point, you need to connect a computer to
the wireless access point.
Computer Hardware Requirements
To connect to the wireless access point on your network, each computer needs to have an
802.11b/g/n or 802.11a/n wireless adapter installed.
Install and Configure the Wireless Access Point
Before installing the wireless access point, make sure that your Ethernet network is up and
working. You will be connecting the wireless access point to the Ethernet network. Then
computers with 802.11b/g/n or 802.11a/n wireless adapters will be able to communicate with
the Ethernet network.
16 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
In order for this to work correctly, verify that you have met all of the system requirements,
shown in System Requirements on page 7.
Install and configure your wireless access point in the order of the following sections:
1. Connect the Wireless Access Point to Computer on this page.
2. Log In to the Wireless Access Point on page 17.
3. Configure Basic General System Settings and Time Settings on page 18.
4. Configure IP Settings and Optional DHCP Server Settings on page 20
5. Configure Basic Wireless Settings on page 23.
Connect the Wireless Access Point to Computer
Tip: Before you place the wireless access point in an elevated position that is
difficult to reach, first set up and test the wireless access point to verify
wireless network connectivity.
To set up the wireless access point:
1. Unpack the box and verify the contents.
2. Prepare a computer with an Ethernet adapter. If this computer is already part of your
network, record its TCP/IP configuration settings. Configure the computer with a static IP
address of 192.168.0.210 and 255.255.255.0 as the subnet mask.
3. Connect an Ethernet cable from the wireless access point to the computer (point A in the
following figure).
4. Securely insert the other end of the cable into the wireless access point’s Ethernet port
(point B in the following figure).
.
Figure 4.
A
B
Ethernet cable
Ethernet port
WNDAP360
Chapter 2. Installation and Basic Configuration | 17
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
5. Turn on your computer.
6. Connect the power adapter to the wireless access point.
Tip: The wireless access point supports Power over Ethernet (PoE). If you
have a switch that provides PoE, you will not need to use the power
adapter to power the wireless access point. This can be especially
convenient when the wireless access point is installed in a high location
far away from a power outlet.
7. Verify the following:

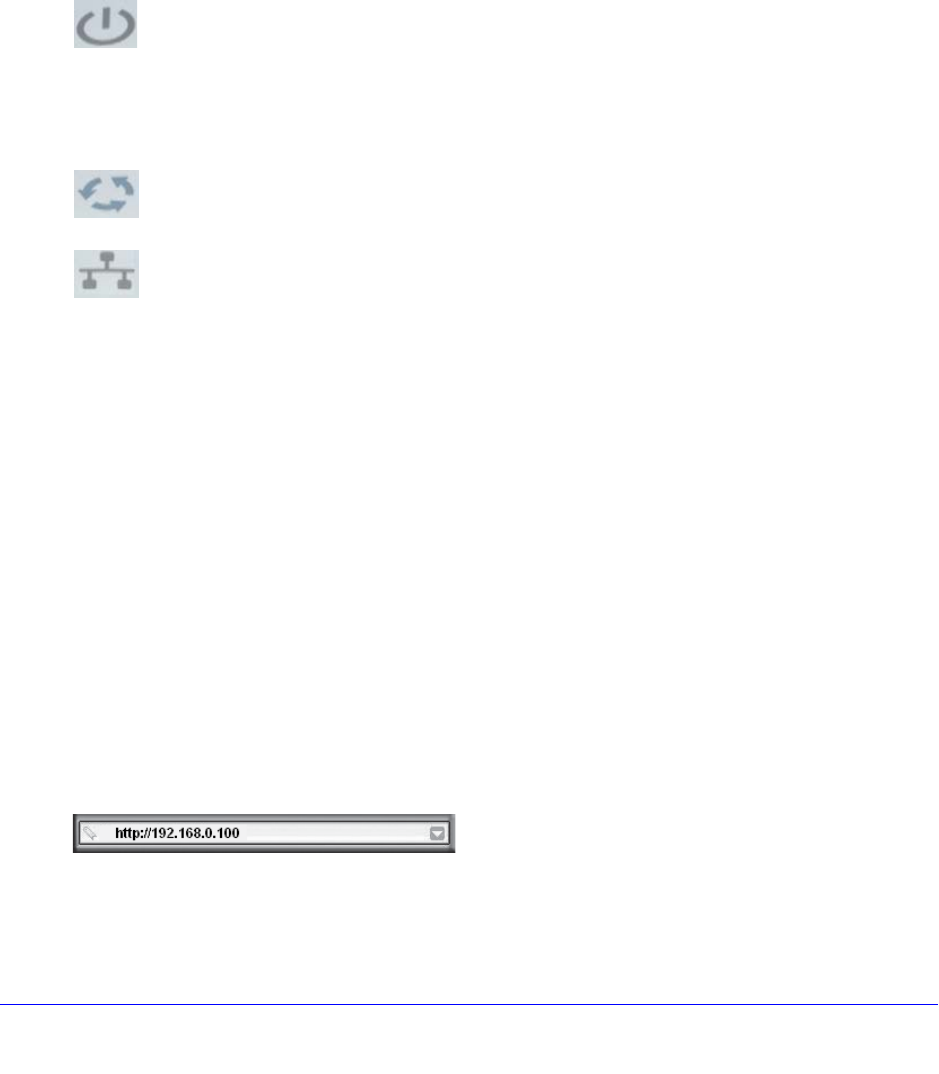

Power/Test LED. The Power/Test LED blinks when the wireless access point is
first turned on. (To be exact, during startup, the LED is first steady amber, then
goes off, and then blinks green.) After about 45 seconds, the LED should stay lit
(steady green). If after 1 minute the Power/Test LED is not lit or is still blinking,
check the connections and see if the power outlet is controlled by a wall switch
that is turned off.
Active LED. The Active LED is lit or blinks green when there is Ethernet traffic.
LAN LED. The LAN LED indicates the LAN speed: green for 1000 Mbps, amber
for 100 Mbps, and no light for 10 Mbps. If the LAN LED is not lit, make sure that
the Ethernet cable is securely attached at both ends.
WLAN LED. The 2.4 GHz WLAN LED is lit or blinks green when the wireless LAN
(WLAN) is ready.
WLAN LED. The 5 GHz WLAN LED is lit or blinks green when the wireless LAN
(WLAN) is ready.
Log In to the Wireless Access Point
The default IP address of your wireless access point is http://192.168.0.100. The wireless
access point is set, by default, for the DHCP client to be disabled.
To log in to the wireless access point:
1. Open a Web browser such as Microsoft Internet Explorer 6.0 or later, or Mozilla Firefox
1.5 or later.
2. Connect to the wireless access point by entering its default address of http://192.168.0.100
into your browser.
The Login screen opens
3. Enter the default user name of admin and the default password of password.
18 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
4. Click Login. The Web browser displays the basic General system settings screen under the
Configuration tab of the main menu as shown in Figure 7 on page 19.
Web Management Interface

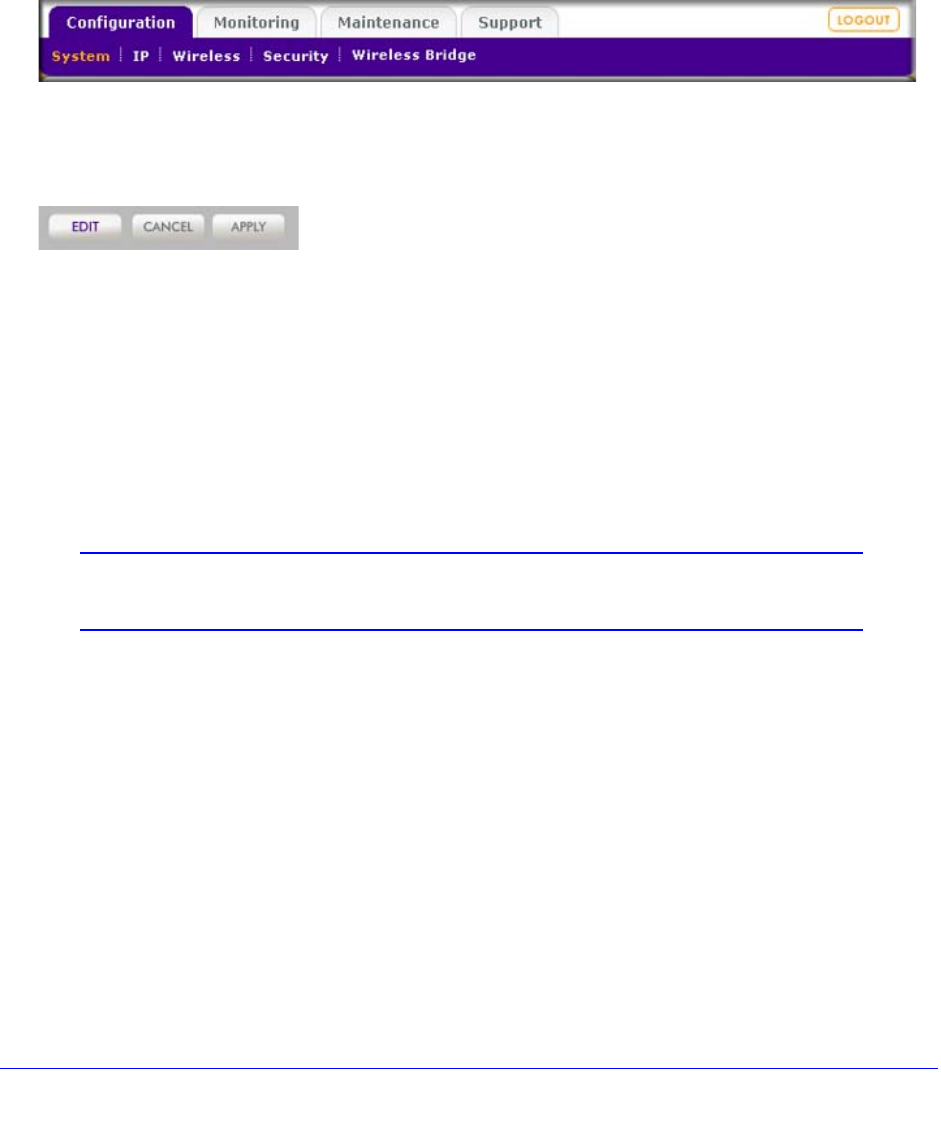

The navigation tabs across the top of the Web Management Interface provide access to all
the configuration functions of the wireless access point, and remain constant. The menu
items in the blue bar change according to the navigation tab that is selected.
Figure 5.
The bottom right corner of all screens that allow you to make configuration changes show the
Apply and Cancel buttons, and on several screens the Edit button.
Figure 6.
These buttons have the following functions:
• Edit. Allows you to edit the existing configuration.
• Cancel. Cancels all configuration changes that you made on the screen.
• Apply. Saves and applies all configuration changes that you made on the screen.
Configure Basic General System Settings and Time Settings
Note: After you have successfully logged in to the wireless access point,
the basic General system settings screen displays.
To configure basic system settings:
1. Select Configuration > System > Basic > General. The basic General system settings
screen displays:
Chapter 2. Installation and Basic Configuration | 19
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 7.
2. Specify the fields as explained in the following table:
3. Click Apply to save your settings.
To configure time settings:
1. Select Configuration > System > Basic > Time. The Time screen displays:
Table 2. Basic General System Settings
Field Description
Access Point Name This unique name is the wireless access point NetBIOS name. The name is printed
on the rear label of the wireless access point. The default is netgearxxxxxx, where
xxxxxxx represents the last 6 digits of the wireless access point MAC address. You
can replace the default name with a unique name up to 15 characters long. The
access point name can be retrieved through SNMP.
Country/Region From the Country/Region drop-down list, select the country where the wireless
access point is installed.
Note: It might not be legal to operate this wireless access point in a region other than
one of those identified in this field.
20 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 8.
2. Specify the fields as explained in the following table:
3. Click Apply to save your settings.
Configure IP Settings and Optional DHCP Server Settings
To configure the IP settings:
1. Select Configuration > IP > IP Settings. The IP Settings screen displays:
Table 3. Time System Settings
Field Description
Time Zone Select the time zone to match your location.
Current Time This is a nonconfigurable field that displays the current date and time.
NTP Client Enable the Network Time Protocol (NTP) client to synchronize the time of the
wireless access point with an NTP server. By default the Enable radio button is
selected.
Use Custom NTP Server Select this check box to If you want to use a custom NTP server.
Note: You need to have an Internet connection to use an NTP server that is
not on your local network.
Hostname /
IP Address Enter the host name or IP address of the custom NTP server.
The default is time-b.netgear.com.
Chapter 2. Installation and Basic Configuration | 21
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 9.
2. Specify the fields as explained in the following table:
3. Click Apply to save your settings.
The wireless access point provides a built-in DHCP server for wireless clients only, which can
be especially useful in small networks. When the DHCP server is enabled, the wireless
access point provides preconfigured TCP/IP configurations to all connected wireless stations.
Table 4. IP Settings
Field Description
DHCP Client By default, the Dynamic Host Configuration Protocol (DHCP) client is disabled. If
you have a DHCP server on your LAN and you select the Enable check box, the
wireless access point will receive its IP address, subnet mask, and default
gateway settings automatically from the DHCP server on your network when you
connect the wireless access point to your LAN.
IP Address Enter the IP address of your wireless access point. The default IP address is
192.168.0.100. To change the address, enter an unused IP address from the
address range used on your LAN, or enable DHCP the server.
IP Subnet Mask Enter the network number portion of an IP address. Unless you are
implementing subnetting, enter 255.255.0.0 as the subnet mask.
Default Gateway Enter the IP address of the ISP’s router to which the wireless access point will
connect.
Primary DNS Server
Enter the IP address of the primary and secondary DNS servers.
A DNS server is a host on the Internet that translates Internet names (such as
www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP
address of one or two DNS servers to your wireless access point during login. If
the ISP does not transfer an address, you need to obtain it from the ISP and
enter it manually in this field.
Secondary DNS Server
Network Integrity Check Select this check box to validate that the upstream link is active before allowing
wireless associations. Ensure that the default gateway is configured.
22 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
To configure DHCP server settings:
1. Select Configuration > IP > DHCP Server Settings. The DHCP Server Settings screen
displays:
Figure 10.
Chapter 2. Installation and Basic Configuration | 23
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
2. Specify the fields as explained in the following table:
3. Click Apply to save your settings.
Configure Basic Wireless Settings
For proper compliance and compatibility between similar products in your coverage area, you
need to correctly configure the 802.11b/g/n and 802.11a/n wireless adapter settings,
including the operating channel and country. You also need to correctly configure the basic
wireless network settings for wireless devices to connect to your network. For other wireless
features, including wireless security, see Chapter 3, Wireless Configuration and Security.
Table 5. LAN Settings
Field Description
DHCP Server Select the DHCP Server check box to enable the DHCP server. Use the default settings or
specify the pool of IP addresses to be assigned by setting the starting IP address and
ending IP address. These addresses should be part of the same IP address subnet as the
wireless access point’s LAN IP address.
DHCP Server VLAN ID Enter the DHCP server VLAN ID. The VLAN ID range is between
1 and 4094.
Starting IP Address Enter the first address in the range of IP addresses to be
assigned to DHCP clients. The default address is 192.168.1.02.
Ending IP Address Enter the last address in the range of IP addresses to be
assigned to DHCP clients. The default address is 192.168.1.50.
Subnet Mask Enter the subnet mask to be used by DHCP clients. The default
mask is 255.255.255.0.
Gateway IP Address Enter the IP address of the default routing gateway to be used by
DHCP clients. The default address is 192.168.0.1.
Primary DNS Address Enter the IP address of the primary Domain Name Server (DNS)
server available to DHCP clients.
Secondary DNS Address Enter the IP address of the secondary DNS server available to
DHCP clients.
Primary WINS Server Enter the IP address of the primary WINS server for the network.
Secondary WINS Server Enter the IP address of the secondary WINS server for the
network.
Lease Enter the period that the DHCP server grants to DHCP clients to
use the assigned IP addresses. The default time is 1 day.
24 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
WARNING!
If you configure the wireless access point from a wireless
computer and you change the wireless access point’s SSID,
channel, or wireless security settings, you will lose your wireless
connection when you click Apply. You then need to change the
wireless settings of your computer to match the wireless access
point’s new settings.
Configuring 802.11b/bg/ng Wireless Settings
To configure the 802.11b/g/n wireless settings:
1. Select Configuration > Wireless > Basic > Wireless Settings. The basic Wireless
Settings screen displays.
2. Specify the fields as explained the following table:
Table 6. Basic Wireless Settings
Field Descriptions
Wireless Mode Select the wireless operating mode that you want to use by selecting one of the
following radio buttons:
• 11b. 802.11b wireless stations only.
• 11bg. Both 802.11b and 802.11g wireless stations can be used.
• 11ng. Both 802.11n and 802.11g wireless stations can be used. This is the
default setting.
Turn Radio On The radio is enabled by default. To turn off the radio, clear the Turn Radio On
check box. Doing so disables access through the wireless access point, which
can be helpful for configuration, network tuning, or troubleshooting activities.
Wireless Network Name
(SSID) Enter a 32-character (maximum) service set identifier (SSID); the characters are
case-sensitive. The default is NETGEAR_11ng. The SSID assigned to a wireless
device needs to match the wireless access point’s SSID for the wireless device
to communicate with the wireless access point. If the SSIDs do not match, you
will not get a wireless connection to the wireless access point.
Scheduler Status This is a nonconfigurable field that show the status of the wireless scheduler. For
more information, see Schedule the Wireless Radio on page 52.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to broadcasts its
SSID, allowing wireless stations that have a null (blank) SSID to adopt the
wireless access point’s SSID. Yes is the default setting. To prevent the SSID
from being broadcast, select the No radio button.
Chapter 2. Installation and Basic Configuration | 25
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Channel / Frequency From the drop-down list, select the channel you wish to use on your wireless
LAN. The wireless channels to use in the United States and Canada are 1 to 11;
for Europe and Australia, 1 to 13. The default setting is Auto.
Note: It should not be necessary to change the wireless channel unless you
experience interference (indicated by lost connections or slow data transfers).
Should this happen, you might want to experiment with different channels to see
which is the best. For more information, see the guidelines following this table.
11ng mode only
Note: For most
networks, the default
settings will work fine.
MCS Index / Data
Rate From the drop-down list, select a Modulation and Coding
Scheme (MCS) index and transmit data rate for the wireless
network. The default setting is Best. For a list of all options
that you can select from in 11ng mode, see Factory Default
Settings in Appendix A.
Channel Width From the drop-down list, select a channel width. The options
are Dynamic 20/40 MHz, 20 MHz, or 40 MHz. A wider
channel improves the performance, but some legacy devices
can operate only in either 20 MHz or 40 MHz.
Ext Protection
Spacing When you select a channel width of Dynamic 20/40 MHz or
40 MHz, you also need to select protection spacing for the
extension channel from the Ext Protection Spacing
drop-down list. In addition to the default value Auto, you can
also select a value of 20 or 25.
11ng mode only
(continued) Ext Channel
Offset When you select a channel width of Dynamic 20/40 MHz or
40 MHz, you also need to select the offset for the extension
channel from the Ext Channel Offset drop-down list. In
addition to the default value Auto, you can also select Upper
or Lower.
Guard Interval From the drop-down list, select the guard interval to protect
transmissions from interference. In addition to the default
value Auto, you can also select Long - 800 ns. Some legacy
devices can operate only with a long guard interval.
11b and 11bg modes
only Data Rate From the drop-down list, select the transmit data rate of the
wireless network. The default setting is Best. For a list of all
options that you can select from in 11b mode and 11bg mode,
see Factory Default Settings in Appendix A.
Output Power From the drop-down list, select the transmission power of the wireless access
point. The default is Full.
Note: Increasing the power improves performance, but if two or more wireless
access points are operating in the same area, on the same channel, it can cause
interference.
Note: Make sure that you comply with the regulatory requirements for total radio
frequency (RF) output power in your country.
Channel Bonding This drop-down list lets you to specify channels to bond. The available options
are 20 MHz, 20/40 MHz, and 40 MHz.
Table 6. Basic Wireless Settings (Continued)
Field Descriptions
26 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. If you have changed the wireless mode and selected the Turn Radio On check box, a
popup window appears: click OK to confirm your change.
4. Click Apply to save your settings.
Configuring 802.11a/na Wireless Settings
To configure the 802.11a/na wireless settings:
1. Select Configuration > Wireless > Basic > Wireless Settings. The basic Wireless
Settings screen displays.
2. Specify the fields as explained the following table:
Table 7. Basic Wireless Settings
Field Descriptions
Wireless Mode Select the wireless operating mode that you want to use by selecting one of the
following radio buttons:
• 11a. 802.11a wireless stations only.
• 11na. Both 802.11n and 802.11a wireless stations can be used. This is the
default setting.
Turn Radio On The radio is enabled by default. To turn off the radio, clear the Turn Radio On
check box. Doing so disables access through the wireless access point, which
can be helpful for configuration, network tuning, or troubleshooting activities.
Wireless Network Name
(SSID) Enter a 32-character (maximum) service set identifier (SSID); the characters are
case-sensitive. The default is NETGEAR_11a. The SSID assigned to a wireless
device needs to match the wireless access point’s SSID for the wireless device
to communicate with the wireless access point. If the SSIDs do not match, you
will not get a wireless connection to the wireless access point.
Scheduler Status This is a nonconfigurable field that show the status of the wireless scheduler. For
more information, see Schedule the Wireless Radio on page 52.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to broadcasts its
SSID, allowing wireless stations that have a null (blank) SSID to adopt the
wireless access point’s SSID. Yes is the default setting. To prevent the SSID
from being broadcast, select the No radio button.
Channel / Frequency From the drop-down list, select the channel you wish to use on your wireless
LAN. The wireless channels to use in the United States and Canada are 1 to 11;
for Europe and Australia, 1 to 13. The default setting is Auto.
Note: It should not be necessary to change the wireless channel unless you
experience interference (indicated by lost connections or slow data transfers).
Should this happen, you might want to experiment with different channels to see
which is the best. For more information, see the guidelines following this table.
Chapter 2. Installation and Basic Configuration | 27
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. If you have changed the wireless mode and selected the Turn Radio On check box, a
popup window appears: click OK to confirm your change.
4. Click Apply to save your settings.
11na mode only
Note: For most
networks, the default
settings will work fine.
MCS Index / Data
Rate From the drop-down list, select a Modulation and Coding
Scheme (MCS) index and transmit data rate for the wireless
network. The default setting is Best. For a list of all options
that you can select from in 11ng mode, see Factory Default
Settings in Appendix A.
Channel Width From the drop-down list, select a channel width. The options
are Dynamic 20/40 MHz, 20 MHz, or 40 MHz. A wider
channel improves the performance, but some legacy devices
can operate only in either 20 MHz or 40 MHz.
Ext Protection
Spacing When you select a channel width of Dynamic 20/40 MHz or
40 MHz, you also need to select protection spacing for the
extension channel from the Ext Protection Spacing
drop-down list. In addition to the default value Auto, you can
also select a value of 20 or 25.
Ext Channel
Offset When you select a channel width of Dynamic 20/40 MHz or
40 MHz, you also need to select the offset for the extension
channel from the Ext Channel Offset drop-down list. In
addition to the default value Auto, you can also select Upper
or Lower.
Guard Interval From the drop-down list, select the guard interval to protect
transmissions from interference. In addition to the default
value Auto, you can also select Long - 800 ns. Some legacy
devices can operate only with a long guard interval.
11b and 11bg modes
only Data Rate From the drop-down list, select the transmit data rate of the
wireless network. The default setting is Best. For a list of all
options that you can select from in 11b mode and 11bg mode,
see Factory Default Settings in Appendix A.
Output Power From the drop-down list, select the transmission power of the wireless access
point. The default is Full.
Note: Increasing the power improves performance, but if two or more wireless
access points are operating in the same area, on the same channel, it can cause
interference.
Note: Make sure that you comply with the regulatory requirements for total radio
frequency (RF) output power in your country.
Channel Bonding This drop-down list lets you to specify channels to bond. The available options
are 20 MHz, 20/40 MHz, and 40 MHz.
Table 7. Basic Wireless Settings (Continued)
Field Descriptions
28 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Operating Frequency (Channel) Guidelines
You should not need to change the operating frequency (channel) unless you notice
interference problems, or are setting up the wireless access point near another wireless
access point. Observe the following guidelines:
• Wireless access points use a fixed channel. You can select a channel that provides the
least interference and best performance. In the United States and Canada, 11 channels
are available.
• If you are using multiple wireless access points, it is better if adjacent wireless access
points use different channels to reduce interference. The recommended channel spacing
between adjacent wireless access points is 5 channels (for example, use channels 1 and
6, or 6 and 11).
• In infrastructure mode, wireless stations normally scan all channels, looking for a wireless
access point. If more than one wireless access point can be used, the one with the
strongest signal is used. This can happen only when the wireless access points use the
same SSID. The WNDAP360 wireless access point functions in infrastructure mode by
default.
Note: For information about how to configure advanced wireless settings,
see Configure Advanced Wireless Settings on page 79.
Test Basic Wireless Connectivity
After you have configured the wireless access point as explained in the previous sections,
test your computers for wireless connectivity before you position and mount the wireless
access point at its permanent position.
To test for wireless connectivity:
1. Configure the 802.11b/g/n and 802.11a/n wireless adapters of your computers so that
they all have the same SSID and channel that you have configured on the wireless
access point.
2. Verify that your computers have a wireless link to the wireless access point, and if you have
enabled the DHCP server on the wireless access point, verify that your computers are able
to obtain an IP address through DHCP from the wireless access point.
3. Verify network connectivity by using a browser such as Internet Explorer 6.0 or later or
Mozilla Firefox 1.5 or later to browse the Internet, or check for file and printer access on your
network.
Note: If you have trouble connecting to the wireless access point, see
Chapter 6, Troubleshooting.
Chapter 2. Installation and Basic Configuration | 29
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
WARNING!
Before you deploy the wireless access point in your network, set
up wireless security and other wireless features as described in
Chapter 3, Wireless Configuration and Security.
In addition to wireless security and other wireless features, before you deploy the wireless
access point in your network, configure any additional features as described in Chapter 4,
Management and Chapter 5, Advanced Configuration.
After you have completed the configuration of the wireless access point, you can reconfigure
the computer that you used for this process back to its original TCP/IP settings.
Mount the Wireless Access Point
This section includes the following subsections:
• Ceiling Installation on this page
• Wall Installation on page 31
• Desk Installation on page 34
Ceiling Installation
To install the wireless access point using the ceiling installation kit:
1. Verify the package content of the ceiling installation kit.
2. Detach the mounting plate from the wireless access point.
Mounting plate
Clamp with screws
30 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Attach the clamp to the ceiling rail.
4. Attach the mounting plate to the clamp.
5. Connect the cables to the wireless access point.
Chapter 2. Installation and Basic Configuration | 31
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
6. Attach the wireless access point to the mounting plate.
7. Attach the cover to the wireless access point.
Wall Installation
To install the wireless access point using the wall installation kit:
1. Verify the package content of the wall installation kit.
32 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
2. Detach the mounting plate from the wireless access point.
3. Attach the mounting plate to the wall.
4. Connect the cables to the wireless access point.
Mounting plate
Screws and
wall supports
Chapter 2. Installation and Basic Configuration | 33
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
5. Attach the wireless access point to the mounting plate.
6. Attach the cover to the wireless access point.
34 | Chapter 2. Installation and Basic Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Desk Installation
To install the wireless access point on a desk, attach the rubber feet to the holes in the bottom
of the wireless access point.
Rubber feet
Chapter 3. Wireless Configuration and Security | 35
3
3. Wireless Configuration and Security
This chapter describes how to configure the wireless features of your ProSafe Dual Band
Wireless-N Access Point WNDAP360. The chapter includes the following sections:
• Wireless Data Security Options on this page
• Security Profiles on page 37
• Configure RADIUS Server Settings on page 49
• Restrict Wireless Access by MAC Address on page 51
• Schedule the Wireless Radio on page 52
• Configure Basic Wireless Quality of Service on page 53
Before you set up wireless security and additional wireless features that are described in this
chapter, connect the wireless access point, get the Internet connection working, and
configure the 802.11b , 11bg, or 11ng wireless settings and the 802.11a or 11na wireless
settings as described in Chapter 2, Installation and Basic Configuration. The wireless access
point should work with an Ethernet LAN connection, and wireless connectivity should have
been verified before you set up wireless security and additional wireless features. In planning
your wireless network, consider the level of security required.
WARNING!
If you are configuring the wireless access point from a wireless
computer and you change the wireless access point’s SSID,
channel, or wireless security settings, you will lose your wireless
connection when you click Apply. You then need to change the
wireless settings of your computer to match the wireless access
point’s new settings.
Wireless Data Security Options
Indoors, computers can connect over 802.11n wireless networks at a maximum range of
300 feet. Typically, a wireless access point inside a building works best with devices within a
100 foot radius. Such distances can allow for others outside your immediate area to access
your network.
36 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Unlike wired network data, your wireless data transmissions can extend beyond your walls
and can be received by anyone with a compatible adapter. For this reason, use the security
features of your wireless equipment. The wireless access point provides highly effective
security features that are covered in detail in this chapter. Deploy the security features
appropriate to your needs.
Figure 11.
There are several ways you can enhance the security of your wireless network:
• Use multiple BSSIDs combined with VLANs. You can configure combinations of
VLANS and BSSIDs with stronger or less restrictive access security according to your
requirements. For example, visitors could be given wireless Internet access but be
excluded from any access to your internal network. For information about how to
configure BSSIDs, see Configure and Enable Security Profiles on page 40.
• Restrict access based by MAC address. You can allow only trusted PCs to connect so
that unknown PCs cannot wirelessly connect to the wireless access point. Restricting
access by MAC address adds an obstacle against unwanted access to your network, but
the data broadcast over the wireless link is fully exposed. For information about how to
restrict access by MAC address, see Restrict Wireless Access by MAC Address on
page 51.
• Turn off the broadcast of the wireless network name (SSID). If you disable broadcast
of the SSID, only devices that have the correct SSID can connect. This nullifies the
wireless network discovery feature of some products, such as Windows XP, but the data
is still exposed. For information about how to turn of broadcast of the SSID, see
Configure and Enable Security Profiles on page 40.
• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
shared key authentication and WEP data encryption block all but the most determined
eavesdropper. This data encryption mode has been superseded by WPA-PSK and
WPA2-PSK.
For information about how to configure WEP, see Configure and Enable Security Profiles
on page 40 and Configure an Open System with WEP or Shared Key with WEP on
page 44.
• Legacy 802.1X. Legacy 80.1X uses RADIUS-based 802.1x authentication but no data
encryption.
Chapter 3. Wireless Configuration and Security | 37
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• WPA and WPA-PSK (TKIP). Wi-Fi Protected Access (WPA) data encryption provides
strong data security with Temporal Key Integrity Protocol (TKIP) encryption. The very
strong authentication along with dynamic per frame rekeying of WPA make it virtually
impossible to compromise.
WPA uses RADIUS-based 802.1x authentication; for more information, see Configure
and Enable Security Profiles on page 40 and Configure WPA with RADIUS, WPA2 with
RADIUS, and WPA & WPA2 with RADIUS on page 46.
WPA-PSK uses a pre-shared key (PSK) for authentication; for more information, see
Configure and Enable Security Profiles on page 40 and Configure WPA-PSK,
WPA2-PSK, and WPA-PSK & WPA2-PSK on page 47.
• WPA2 and WPA2-PSK (AES). Wi-Fi Protected Access version 2 (WPA2) data encryption
provides strong data security with Advanced Encryption Standard (AES) encryption. The
very strong authentication along with dynamic per frame rekeying of WPA2 make it
virtually impossible to compromise.
WPA2 uses RADIUS-based 802.1x authentication; for more information, see Configure
and Enable Security Profiles on page 40 and Configure WPA with RADIUS, WPA2 with
RADIUS, and WPA & WPA2 with RADIUS on page 46.
WPA2-PSK uses a pre-shared key (PSK) for authentication; for more information, see
Configure and Enable Security Profiles on page 40 and Configure WPA-PSK,
WPA2-PSK, and WPA-PSK & WPA2-PSK on page 47.
• WPA & WPA2 and WPA-PSK & WPA2-PSK mixed modes. These modes support data
encryption either with both WPA and WPA2 clients or with both WPA-PSK and
WPA2-PSK clients and provide the most reliable security.
WPA & WPA2 uses RADIUS-based 802.1x authentication; for more information, see
Configure and Enable Security Profiles on page 40 and Configure WPA with RADIUS,
WPA2 with RADIUS, and WPA & WPA2 with RADIUS on page 46.
WPA-PSK & WPA2-PSK uses a pre-shared key (PSK) for authentication; for more
information, see Configure and Enable Security Profiles on page 40 and Configure
WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK on page 47.
Security Profiles
Security profiles let you configure unique security settings for each SSID. The wireless
access point supports up to eight BSSIDs that you can configure on the individual Edit
Wireless Network screens that are accessible from the Edit Security Profile screen (see
Configure and Enable Security Profiles on page 40).
To set up a security profile you select its network authentication type, data encryption,
wireless client security separation, and VLAN ID:
• Network authentication
The wireless access point is set by default as an open system with no authentication.
When you configure network authentication, bear in mind that not all wireless adapters
support WPA or WPA2. Windows XP, Windows 2000 with Service Pack 3, and Windows
38 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Vista do include the client software that supports WPA. However, client software is
required on the client. Consult the product documentation for your wireless adapter and
WPA or WPA2 client software for instructions on configuring WPA2 settings.
For information about the types of network authentication that the wireless access point
supports, see Configure and Enable Security Profiles on page 40.
• Data encryption
Select the data encryption that you want to use. The available options depend on the
network authentication setting described earlier (otherwise, the default is None). The data
encryption settings are explained in Configure and Enable Security Profiles on page 40.
• Wireless client security separation
If enabled, the associated wireless clients (using the same SSID) will not be able to
communicate with each other. This feature is useful for hotspots and other public access
situations. By default, wireless client separation is disabled. For more information, see
Configure and Enable Security Profiles on page 40.
• VLAN ID
If enabled and if the network devices (hubs and switches) on your LAN support the VLAN
(802.1Q) standard, the default VLAN ID for the wireless access point will be associated
with each profile. The default VLAN ID needs to match the IDs that are used by the other
network devices. For more information, see Configure and Enable Security Profiles on
page 40.
Some concepts and guidelines regarding the SSID are explained in the following list:
• A basic service set (BSS) is a group of wireless stations and a single wireless access
point, all using the same service set identifier (BSSID)
• An extended service set (ESS) is a group of wireless stations and multiple wireless
access points, all using the same identifier (ESSID).
• Different wireless access points within an ESS can use different channels. To reduce
interference, adjacent wireless access points should use different channels.
• Roaming is the ability of wireless stations to connect wirelessly when they physically
move from one BSS to another within the same ESS. The wireless station automatically
changes to the wireless access point with the least interference or best performance.
Before You Change the SSID, WEP, and WPA Settings
For a new wireless network, print or copy the following form and fill in the settings. For an
existing wireless network, the network administrator can provide this information. Be sure to
set the Country/Region correctly as the first step.
Chapter 3. Wireless Configuration and Security | 39
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
_________________________________________________________________________
Store this information in a safe place:
• SSID: The service set identification (SSID) identifies the wireless local area network. You
can customize it by using up to 32 alphanumeric characters. Write your SSID on the line.
SSID: ___________________________________
The SSID in the wireless access point is the SSID you configure in the wireless adapter
card. All wireless nodes in the same network need to be configured with the same SSID.
• WEP Key Size, Key Format Passphrase, and Authentication
Choose the key size by circling one: 64, 128, or 152 bits.
Choose the key format by circling one: ASCII or HEX.
Choose the authentication type by circling one: Open or Shared.
Passphrase: ___________________________________
Note: If you select shared key, the other devices in the network will not connect unless
they are set to shared key and have the same keys in the same positions as those in the
wireless access point.
• WPA-PSK (Pre-Shared Key) and WPA2-PSK
Record the WPA-PSK passphrase:
WPA-PSK Passphrase: ________________________________
Record the WPA2-PSK passphrase:
WPA2-PSK Passphrase: ________________________________
• WPA RADIUS Settings
For WPA, record the following settings for the primary and secondary RADIUS servers:
Server Name/IP Address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared Secret: ___________________________________
• WPA2 RADIUS Settings
For WPA2, record the following settings for the primary and secondary RADIUS servers:
Server Name/IP Address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared Secret: ___________________________________
_________________________________________________________________________
40 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure and Enable Security Profiles
To configure and enable a security profile:
1. Select Configuration > Security > Profile Settings. The Profile Settings screen
displays, showing eight wireless security profiles.
The following table explains the fields of the Profile Settings screen:
2. To configure or edit a wireless security profile, select the corresponding radio button to the
left of the wireless security profile. The Edit Security Profile screen opens for the selected
wireless security profile (see the following figure). The first section on the screen is the
Profile Definition section; the second section is the Authentication Settings section. These
sections are explained separately.
Table 8. Profile Settings Screen
Field Description
Profile Name The unique name of the wireless security profile that makes it easy to
recognize the profile.
SSID The wireless network name (SSID) for the wireless security profile.
Security The configured wireless authentication method for the wireless security
profile.
VLAN The default VLAN ID that is associated with the wireless security profile.
Enable The check box that lets you select the wireless security profile so you can
enable it by clicking Apply.
Chapter 3. Wireless Configuration and Security | 41
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 12.
3. Specify the settings of the Profile Definition section of the Edit Security Profile screen as
explained in the following table:
4. Specify the settings of the Authentication Settings section of the Edit Security Profile screen
as explained in the following table.
Table 9. Profile Definition Settings of the Edit Security Profile Screen
Field Description
Profile Name Enter a unique name of the wireless security profile that makes it easy to
recognize the profile. The default names are NETGEAR, NETGEAR-1,
NETGEAR-2, and so on through NETGEAR-7. You can enter a value of up
to 32 alphanumeric characters.
Wireless Network Name
(SSID) The wireless network name (SSID) for the wireless security profile. The
default names are NETGEAR_11ng, NETGEAR_11ng-1,
NETGEAR_11ng-2, and so on through NETGEAR_11ng-7.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to
broadcasts its SSID, allowing wireless stations that have a null (blank)
SSID to adopt the wireless access point’s SSID. Yes is the default setting.
To prevent the SSID from being broadcast, select the No radio button.
42 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
The wireless access point is set by default as an open system with no authentication.
When you configure network authentication, bear in mind the following:
• If you are using access point mode (which is the default mode if you did not enable
wireless bridging), then all options are available. In other modes such as bridge
mode, some options might be unavailable.
• Not all wireless adapters support WPA or WPA2. Windows XP, Windows 2000 with
Service Pack 3, and Windows Vista do include the client software that supports WPA.
However, client software is required on the client. Consult the product documentation
for your wireless adapter and WPA or WPA2 client software for instructions on
configuring WPA2 settings.
Table 10. Authentication Settings of the Edit Security Profile Screen
Field Description
Network Authentication
and
Data Encryption
Note: The data
encryption fields that
are displayed on screen
depend on you selection
from the Network
Authentication
drop-down list.
Open System This is the default setting. You can use an open system
without any encryption or with WEP encryption.
See Configure an Open System with WEP or Shared Key
with WEP on page 44.
Shared Key You need to use WEP encryption and enter at least one
shared key.
See Configure an Open System with WEP or Shared Key
with WEP on page 44.
Legacy 802.1x You need to configure the RADIUS server settings to use
this option.
See Configure Legacy 802.1X on page 46.
WPA with RADIUS You need to configure the RADIUS server settings to use
this option.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 46.
WPA2 with RADIUS Select this setting only if all clients support WPA2. If
selected, you need to use AES encryption and configure
the RADIUS server settings.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 46.
WPA and WPA2
with RADIUS Select this setting to allow clients to use either WPA (with
TKIP) or WPA2 (with AES). If selected, you need to use
TKIP + AES encryption and configure the RADIUS server
settings.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 46.
WPA-PSK You need to use TKIP or TKIP + AES encryption and enter
a WPA passphrase (network key).
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 47.
Chapter 3. Wireless Configuration and Security | 43
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Network Authentication
and
Data Encryption
(continued)
WPA2-PSK Select this only if all clients support WPA2. If selected, you
need to use AES and TKIP + AES encryption and enter a
WPA passphrase (network key).
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 47.
WPA-PSK and
WPA2-PSK Select this setting to allow clients to use either WPA (with
TKIP) or WPA2 (with AES). If selected, you need to use
TKIP + AES encryption and enter a WPA passphrase
(network key).
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 47.
Wireless Client Security
Separation If you enable wireless client security separation by selecting Enable from the
drop-down list, the associated wireless clients are not be able to communicate
with each other. By default, Disable is selected from the drop-down list. This
feature is intended for hotspots and other public access situations.
Dynamic VLAN From the drop-down list, select how VLANs operate by making one of the
following selections:
• Disable. Disables dynamic VLANs, and enables static VLANs. This is the
default setting.
• Optional. Enables dynamic VLANs but if a RADIUS server does not return a
VLAN ID, the wireless station is still allowed to connect to the wireless access
point.
• Required. Enables dynamic VLANs. If a RADIUS server does not return a
VLAN ID, the wireless station is not authenticated and cannot connect to the
wireless access point.
For dynamic VLANs to operate (that is, the selection is Optional or Required),
the following is required:
• The hubs and switches on your LAN need to support the VLAN (802.1Q)
standard.
• The authentication is set to any RADIUS type authentication: either the
network authentication in the wireless security profile or the remote MAC
address database authentication for the MAC Authentication feature can be
used.
VLAN ID Enter the default VLAN ID that needs to be associated with this wireless security
profile. The default VLAN ID is 1. The VLAN ID needs to match the VLAN ID that
is used by the other devices in your network.
Table 10. Authentication Settings of the Edit Security Profile Screen (Continued)
Field Description
44 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
5. Click Apply to save your settings.
WARNING!
If you use a wireless computer to configure wireless security
settings, you will be disconnected when you click Apply.
Reconfigure your wireless computer to match the new settings, or
access the wireless access point from a wired computer to make
further changes.

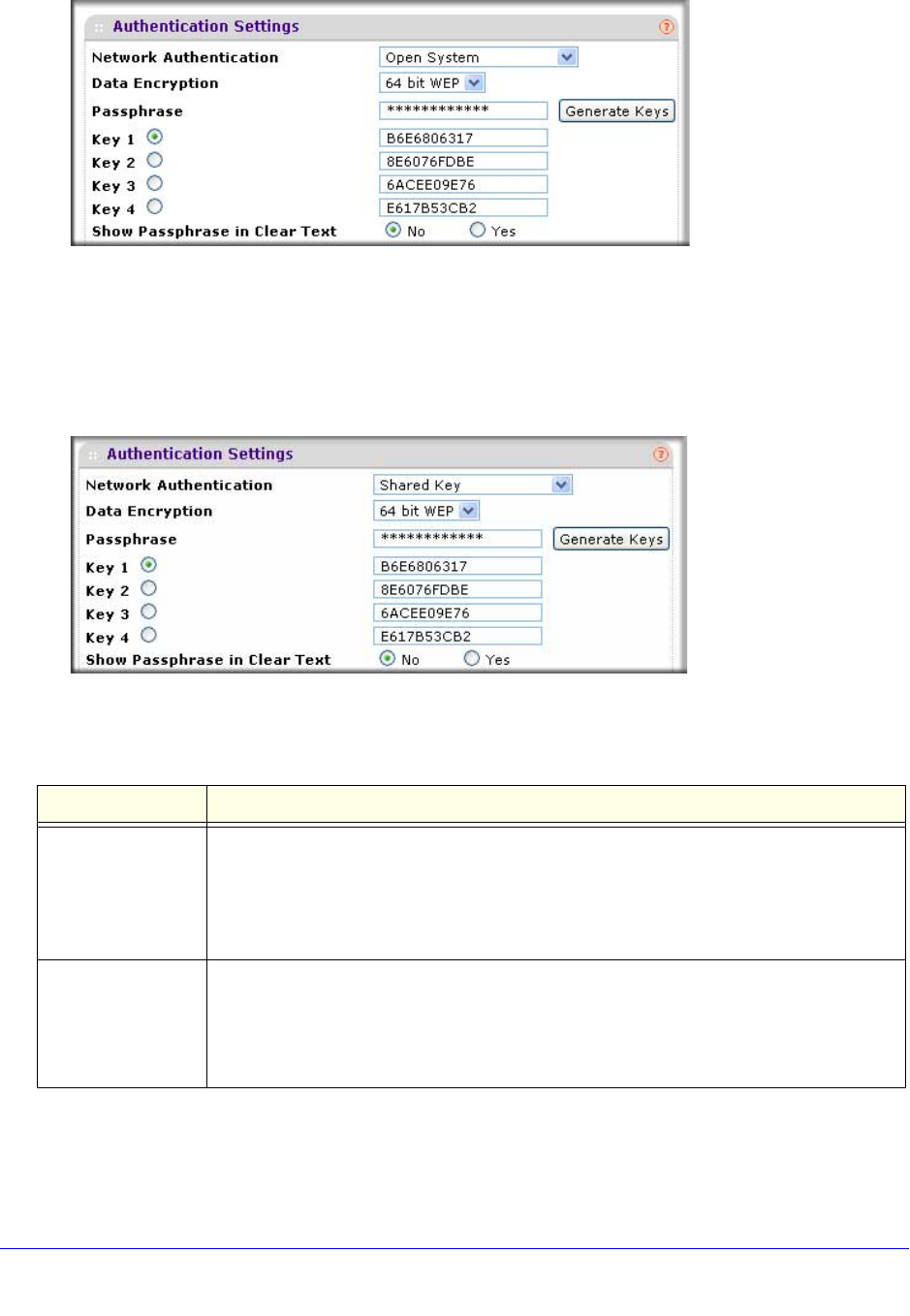

Configure an Open System with WEP or Shared Key with WEP
Wether you use an open system with WEP or shared key with WEP, specify the fields that are
explained in the following table.
• Open System with WEP
An open system can function without any encryption or with pre-shared WEP key
encryption without RADIUS authentication. The security level of static WEP is not very
strong.
When you select Open System from the Network Authentication drop-down list and any
selection other than None from the Data Encryption drop-down list, the screen expands to
display the WEP fields:
Access Control Note: Access control functions only when static VLANs are enabled, that is, you
select Disable from the Dynamic VLAN drop-down list.
The Access Control radio buttons let you enable or disable access control
through a RADIUS server for the wireless security the profile:
• Disable. Access control is disabled. This is the default setting.
• Enable. Access control is enabled, and wireless stations are authenticated
through a RADIUS server; either the network authentication in the wireless
security profile or the remote MAC address database authentication for the
MAC Authentication feature needs to be enabled.
Access Control Policy Note: Access control policy functions only when static VLANs are enabled, that
is, you select Disable from the Dynamic VLAN drop-down list, and when you
select the Enable Access Control radio button.
The Access Control Policy radio buttons let you enable or disable the access
control policy for wireless stations:
• Disable. If a RADIUS server does not return a (static) VLAN ID, the wireless
station is still allowed to connect to the wireless access point.
• Enable. If a RADIUS server does not return a (static) VLAN ID, the wireless
station is not authenticated and cannot connect to the wireless access point.
Table 10. Authentication Settings of the Edit Security Profile Screen (Continued)
Field Description
Chapter 3. Wireless Configuration and Security | 45
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 13.
• Shared Key with WEP
Shared key provides pre-shared WEP key encryption without RADIUS authentication.
The security level of static WEP is not very strong. When you select Shared Key from the
Network Authentication drop-down list, the screen expands to display the WEP fields:
Figure 14.
Table 11. WEP Encryption Settings
Field Descriptions
Data Encryption Select the encryption key size from the drop-down list:
• 64-bit WEP. Standard WEP encryption, using 40/64-bit encryption.
• 128-bit WEP. Standard WEP encryption, using 104/128-bit encryption.
• 152-bit WEP. Proprietary WEP encryption mode, using 128+24 bits encryption. This
mode functions only with other wireless station that support this mode.
Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters
(inclusive). The secret passphrase allows you to automatically generate the keys by
clicking Generate Keys. The default passphrase is sharedsecret.
You can display the actual passphrase by selecting the Show Passphrase in Clear Text
radio button.
46 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure Legacy 802.1X
To use legacy 802.1X security, you need to define RADIUS server settings. For information
about RADIUS servers, see Configure RADIUS Server Settings on page 49.
When you select Legacy 802.1X from the Network Authentication drop-down list, the Data
Encryption drop-down list becomes nonoperational (it shows None only). You need to define
the RADIUS servers only to use legacy 802.1X security.
Figure 15.
Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with
RADIUS
WPA, WPA2, and WPA & WPA2 security requires RADIUS-based 802.1x authentication, so
you also need to define RADIUS server settings. For information about RADIUS servers, see
Configure RADIUS Server Settings on page 49.
The selections that are available from the Data Encryption drop-down list depend on the type
of WPA authentication that you select from the Network Authentication drop-down list and are
shown in the following table.
• WPA with RADIUS
Figure 16.
Encryption Key
(Key1–Key4) Either manually enter a key or allow the key to be automatically generated by clicking
Generate Key.
• For ASCII format, depending on the key size selected, the manually entered encryption
key needs to have a length of 5 (64-bit WEP), 13 (128-bit WEP), or 16 (152-bit WEP)
characters.
• For HEX format, depending on the key size selected, the manually entered or
automatically generated encryption key needs to have a length of 10 (64-bit WEP),
26 (128-bit WEP), or 32 (152-bit WEP) characters.
Note: Wireless stations need to use the key to access the wireless access point.
Note: Not all wireless adapters support passphrase key generation.
Show Passphrase in
Clear Text Select the Yes radio button to display the actual passphrase in the Passphrase field. The
default setting is No.
Table 11. WEP Encryption Settings (Continued)
Field Descriptions
Chapter 3. Wireless Configuration and Security | 47
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• WPA2 with RADIUS

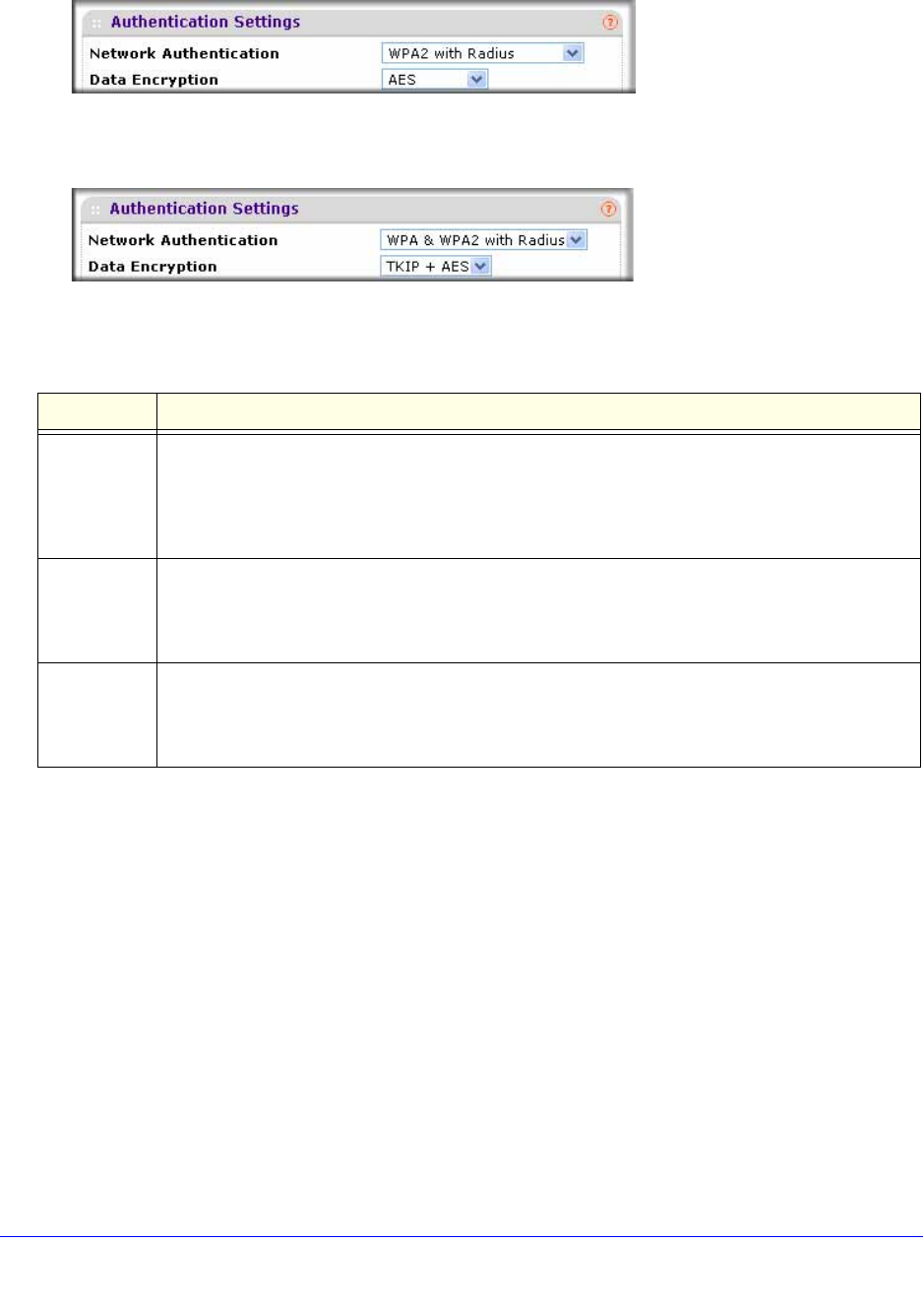

Figure 17.
• WPA & WPA2 with RADIUS
Figure 18.
Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK
WPA-PSK, WPA-PSK, and WPA-PSK & WPA2-PSK authentication use a pre-shared key
(PSK) and do not require authentication from a RADIUS server.
Table 12. WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS Settings
Field Descriptions
TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method used with WPA. You
can also use TKIP with WPA2.
Note: TKIP provides only legacy (slower) rates of operation. NETGEAR recommends WPA2
authentication with AES encryption if you want to use the 11n rates and speed.
AES Advanced Encryption Standard (AES) is the standard encryption method used with WPA2.
Note: Although some wireless clients might support AES with WPA, the WNDAP360 wireless
access point does not support WPA with AES.
TKIP + AES The TKIP + AES encryption method is supported both for WPA and WPA2. Broadcast packets
use TKIP. For unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2 clients
use AES. For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data encryption
method.
48 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
The selections that are available from the Data Encryption drop-down list depend on the type
of WPA-PSK authentication that you select from the Network Authentication drop-down list
and are shown in the following table.
• WPA-PSK

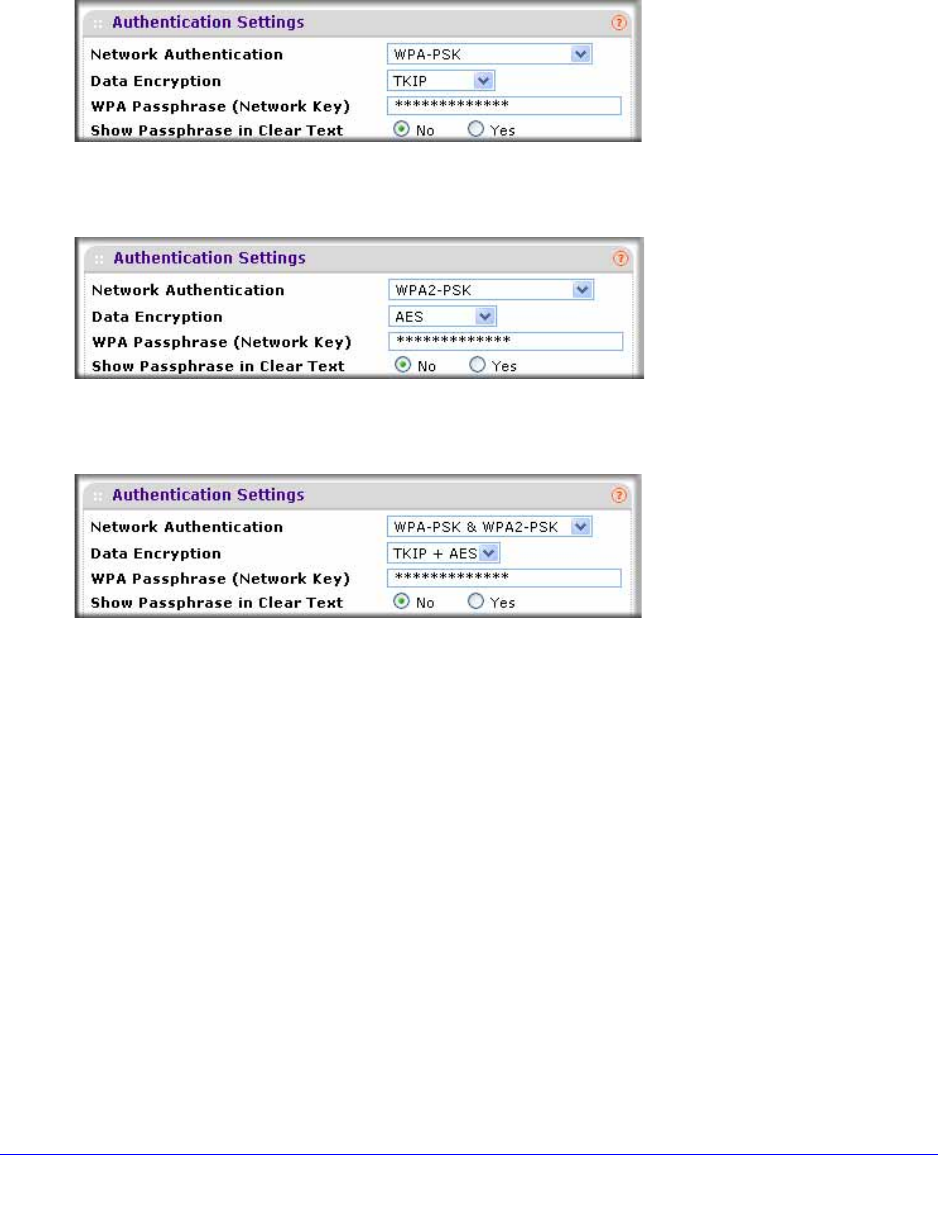

Figure 19.
• WPA2-PSK
Figure 20.
• WPA-PSK & WPA2-PSK
Figure 21.
Chapter 3. Wireless Configuration and Security | 49
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure RADIUS Server Settings
For authentication, accounting, or both authentication and accounting using RADIUS, you
need to configure primary servers and optional secondary servers. These RADIUS server
settings can apply to all devices that are connected to the wireless access point.
To configure the RADIUS server settings:
1. Select Configuration > Security > Advanced > Radius Server Settings. The Radius
Server Settings screen displays. (The following figure shows some examples.)
Table 13. WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK Settings
Field Descriptions
Data Encryption TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method
used with WPA. You can also use TKIP with WPA2.
Note: TKIP provides only legacy (slower) rates of operation. NETGEAR
recommends WPA2 authentication with AES encryption if you want to use the
11n rates and speed.
AES Advanced Encryption Standard (AES) is the standard encryption method used
with WPA2.
Note: Although some wireless clients might support AES with WPA, the
WNDAP360 wireless access point does not support WPA with AES.
TKIP + AES TKIP + AES supports both WPA and WPA2. Broadcast packets use TKIP. For
unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2
clients use AES.
For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data
encryption method.
Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters
(inclusive). The default passphrase is sharedsecret.
You can display the actual passphrase by selecting the Show Passphrase in Clear Text
radio button.
Show Passphrase
in Clear Text Select the Yes radio button to display the actual passphrase in the Passphrase field. The
default setting is No.
50 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 22.
2. Specify the settings as explained in the following table:
Table 14. RADIUS Server Settings
Field Descriptions
RADIUS Server Settings
Primary
Authentication Server IP Address Enter the IP address of the primary RADIUS server for
authentication.
Authentication
Port Enter the UDP port number of the wireless access point that is used
to access the primary RADIUS server for authentication. The
default port number is 1812.
Secret Enter the shared key that is used between the wireless access point
and the primary RADIUS server during authentication.
Secondary
Authentication Server IP Address Enter the IP address of the secondary RADIUS server for
authentication. The secondary RADIUS server is used when the
primary RADIUS server is not available.
Authentication
Port Enter the UDP port number of the wireless access point that is used
to access the secondary RADIUS server for authentication. The
default port number is 1812.
Secret Enter the shared key that is used between the wireless access point
and the secondary RADIUS server during authentication.
Primary
Accounting Server IP Address Enter the IP address of the primary RADIUS server for accounting.
Authentication
Port Enter the UDP port number of the wireless access point that is used
to access the primary RADIUS server for accounting. The default
port number is 1813.
Secret Enter the shared key that is used between the wireless access point
and the primary RADIUS server during the accounting process.
Chapter 3. Wireless Configuration and Security | 51
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Click Apply to save your settings.
Restrict Wireless Access by MAC Address
For increased security, you can restrict access to an SSID by allowing access to only specific
computers or wireless stations based on their MAC addresses. You can restrict access to
only trusted computers so that unknown computers cannot wirelessly connect to the wireless
access point. MAC address filtering adds an obstacle against unwanted access to your
network, but the data broadcast over the wireless link is fully exposed.
Note: For wireless adapters, you can usually find the MAC address printed
on the wireless adapter.
To restrict access based on MAC addresses:
1. Select Configuration > Security > Advanced > MAC Authentication. The MAC
Authentication screen displays.
2. Select the Turn Access Control On check box to enable the access control feature.
3. From the Select Access Control Database drop-down list, select one of the following
database options:
• Local MAC Address Database. The wireless access point uses the local MAC
address database for access control. This is the default setting.
• Remote MAC Address Database. The wireless access point uses the MAC address
database on an external RADIUS server on the LAN for access control. If you select
Secondary
Accounting Server IP Address Enter the IP address of the secondary RADIUS server for
accounting. The secondary RADIUS server is used when the
primary RADIUS server is not available.
Authentication
Port Enter the UDP port number of the wireless access point that is used
to access the secondary RADIUS server for accounting. The default
port number is 1813.
Secret Enter the shared key that is used between the wireless access point
and the secondary RADIUS server during the accounting process.
Authentication Settings
Reauthentication
Time (Seconds) The interval in seconds after which the supplicant is reauthenticated with the
RADIUS server. The default interval is 3600 seconds (1 hour). Enter 0 to disable
reauthentication.
Update Global Key
Every (Seconds) Select the check box to allow the global key update, and enter the interval in
seconds. The check box is selected by default, and the default interval is
1800 seconds (30 minutes). Clear the check box to prevent the global key update.
Table 14. RADIUS Server Settings (Continued)
Field Descriptions
52 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
this database, you first need to configure the RADIUS server settings (see Configure
RADIUS Server Settings on page 49).
4. Click Refresh to refresh the Available Wireless Stations table. The wireless access point
places the MAC addresses of the attached wireless stations in this table.
5. Populate the Trusted Wireless Stations table by one of the following methods:
• Select MAC addresses from the Available Wireless Stations table:
a. Select individual check boxes for MAC addresses, or select all MAC addresses by
selecting the check box in the heading.
b. Click Move to transfer the MAC addresses from the Available Wireless Stations
table to the Trusted Wireless Stations table.
• Enter MAC addresses manually:
a. Enter a MAC address directly in the Trusted Wireless Stations table.
b. Click Add.
To delete a MAC address from the Trusted Wireless Stations table, select individual check
boxes for MAC addresses, or select all MAC addresses by selecting the check box in the
heading, and then click Delete.
6. Click Apply to save your settings.
Now, only devices in the Trusted Wireless Stations table are allowed to wirelessly connect
to the wireless access point.
WARNING!
When configuring the wireless access point from a wireless
computer whose MAC address is not in the access control list,
you will lose your wireless connection when you click Apply. You
then need to access the wireless access point from a wired
computer or from a wireless computer which is on the access
control list to make any further changes.
Schedule the Wireless Radio
Scheduled Wireless On/Off is a green feature that allows you to turn off the wireless radio
during scheduled vacations, office shutdowns, on evenings, or on weekends.
To schedule the radio:
1. Select Configuration > Wireless > Basic > Scheduled Wireless ON-OFF. The
Scheduled Wireless ON-OFF screen displays.
Chapter 3. Wireless Configuration and Security | 53
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
2. Specify the settings as explained in the following table:
3. Click Apply to save your settings.
Configure Basic Wireless Quality of Service
Wi-Fi Multimedia (WMM) is a subset of the 802.11e standard. WMM allows wireless traffic to
have a range of priorities, depending on the type of data. Time-dependent information, such
as video or audio, has a higher priority than normal traffic. For WMM to function correctly,
wireless clients also need to support WMM.
By enabling WMM, you allow Quality of Service (QoS) control for upstream traffic flowing
from a wireless station to the wireless access point and for downstream traffic flowing from
the wireless access point to a wireless station.
WMM defines the following four queues in decreasing order of priority:
• Voice. The highest priority queue with minimum delay, which makes it ideal for
applications like VoIP and streaming media.
• Video. The second highest priority queue with low delay is given to this queue. Video
applications are routed to this queue.
• Best Effort. The medium priority queue with medium delay is given to this queue. Most
standard IP application use this queue.
• Background. Low priority queue with high throughput. Applications, such as FTP, that
are not time-sensitive but require high throughput can use this queue.
The WMM Powersave feature saves power for battery-powered equipment by increasing the
efficiency and flexibility of data transmission.
Note: For information about how to configure advanced wireless QoS, that
is, to configure specific Enhanced Distributed Channel Access
(EDCA) settings, see Configure Advanced QoS Settings on
page 81.
Table 15. Schedule Wireless Radio On/Off Settings
Field Description
Schedule Wireless on-off Select the On radio button to enable the timer. By default, the Off radio button is
selected.
Radio off schedule Select check boxes to specify the days when you want to schedule the radio to
be turned off. By default, Saturday and Sunday are selected.
Radio ON Time Fill in the time that you want the radio to be turned back on. Use 24-hour time
format.
Radio OFF Time Fill in the time that you want the radio to be turned off. Use 24-hour time format.
54 | Chapter 3. Wireless Configuration and Security
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
To configure basic wireless QoS:
1. Select Configuration > Wireless > Basic > QoS Settings. The basic QoS Settings
screen displays.
2. Enable or disable the WMM features:
• Enable Wi-Fi Multimedia (WMM). To enable this feature, select the Enable radio
button, which is the default setting. Select the Disable button to disable the feature.
• WMM Powersave. To enable this feature, select the Enable radio button, which is the
default setting. Select the Disable button to disable the feature.
3. Click Apply to save your settings.
Chapter 4. Management | 55
4
4. Management
This chapter describes how to use the management and monitoring features of your ProSafe
Dual Band Wireless-N Access Point WNDAP360. This chapter includes the following sections:
• Enable Remote Management on this page
• Upgrade the Wireless Access Point Software on page 58
• Manage the Configuration File or Reset to Factory Defaults on page 61
• Change the Administrator Password on page 65
• Enable the Syslog Server on page 66
• Monitor the Wireless Access Point on page 67
• Enable Rogue AP Detection and Monitor Access Points on page 73
Enable Remote Management
Both SNMP and the remote console Secure Shell (SSH) are enabled by default, which
allows for remote management of the wireless access point from a client running SNMP
management software, as well as from a secure shell (SSH) client. The Telnet console is
disabled by default.
SNMP Management
To set up an SNMP management interface:
1. Select Maintenance > Remote Management > SNMP. The SNMP screen displays:
56 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 23.
2. Specify the settings as explained in the following table:
3. Click Apply to save your settings.
Table 16. SNMP Settings
Field Description
SNMP Select the Enable radio button to allow the SNMP network management
software, such as HP OpenView, to manage the wireless access point
through SNMPv1/v2 protocol. By default, the Disable radio button is
selected.
Read-Only Community Name Enter the community string to allow the SNMP manager to read the
wireless access point’s Management Information Base (MIB) objects. The
default is public.
Read-Write Community Name Enter the community string to allow the SNMP manager to read and write
the wireless access point’s MIB objects. The default is private.
Trap Community Name The community string to allow the SNMP manager to send traps. The
default is trap.
IP Address to Receive Traps The IP address of the SNMP manager to receive traps sent from the
wireless access point.
Trap Port The port number of the SNMP manager to receive traps sent from the
wireless access point. The default is 162.
Chapter 4. Management | 57
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Secure Shell and Telnet Management
To configure remote console features:
1. Select Maintenance > Remote Management > Remote Console. The Remote
Console screen displays:
Figure 24.
2. Enable or disable the remote console features:
• Secure Shell (SSH). To enable this feature, select the Enable radio button, which is
the default setting. Select the Disable button to disable the feature.
• Telnet. To enable this feature, select the Enable radio button. Select the Disable
button to disable the feature, which is the default setting.
3. Click Apply to save your settings.
To manage the wireless access point over a Telnet connection:
1. Connect an Ethernet cable to the console port of the wireless access point.
2. Connect the other end of the cable to a VT100/ANSI terminal or a workstation.
If you attach a PC, Apple Macintosh, or UNIX workstation, start a secure
terminal-emulation program, and configure the terminal-emulation program to use the
following settings:
• Baud rate: 9600 bps
• Data bits: 8
• Parity: none
• Stop bit: 1
• Flow control: none
58 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Start a secure Telnet session from the terminal or workstation to the wireless access point. A
screen similar to the following should display:
Figure 25.
4. Enter the login name and password (admin and password are the defaults).
After successful login, the > prompt should appear preceded by the name of the wireless
access point. In this example, the prompt is netgear334408.
5. Enter the CLI commands that you want to use. You can enter show configuration to
display the available CLI commands. The CLI commands are also listed in Appendix B,
Command-Line Reference.
Upgrade the Wireless Access Point Software
The software of the wireless access point is stored in flash memory and can be upgraded as
NETGEAR releases new software. You can download upgrade files from the NETGEAR
website. If the upgrade file is compressed (.zip file), you first need to extract the image (.rmt)
file before sending it to the wireless access point. You can send the upgrade file using your
browser. There are two methods to perform a software upgrade that are described in the
following sections:
• Web Browser Upgrade Procedure on page 59
• TFTP Server Upgrade Procedure on page 60
Note: The Web browser that you use to upload new firmware into the
wireless access point needs to support HTTP uploads. Use a
browser such as Microsoft Internet Explorer 6.0 or later or Mozilla
1.5 or later.
Chapter 4. Management | 59
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Note: You cannot perform the software upgrade from a computer that is
connected to the wireless access point over a wireless link. You
need to use a computer that is connected to the wireless access
point over an Ethernet cable.
WARNING!
When uploading software to the wireless access point, do not
interrupt the Web browser by closing the window, clicking a link,
or loading a new page. If the browser is interrupted, the upload
might fail, corrupt the software, and render the wireless access
point completely inoperable.
IMPORTANT:
In some cases, such as a major upgrade, you might need to erase
the configuration and manually reconfigure your wireless access
point after upgrading it. See the release notes included with the
software to find out if you need to reconfigure the wireless access
point.
Web Browser Upgrade Procedure
To use a Web browser to upgrade the wireless access point firmware:
1. Download the new software file from the NETGEAR website and save it to your hard
disk.
2. If necessary, unzip the new software file.
3. If available, read the release notes before upgrading the software.
4. Select Maintenance > Upgrade > Firmware Upgrade. The Firmware Upgrade screen
displays:
60 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 26.
5. Click Browse and locate the image (.zip) upgrade file.
6. Click Apply to initiate the upgrade process.
During the upgrade process, the wireless access point automatically restarts. The
upgrade process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
7. Verify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 34 on page 67). The firmware version is shown in the
Access Point Information section of the screen.
TFTP Server Upgrade Procedure
To use this method, you need to have a TFTP server set up.
To use a TFTP server to upgrade the wireless access point firmware:
1. Download the new software file from the NETGEAR website and save it to your hard
disk.
2. Place the software file in your TFTP server location. (You do not need to unzip the file.)
3. If available, read the release notes before upgrading the software.
4. Select Maintenance > Upgrade > Firmware Upgrade TFTP. The Firmware Upgrade TFTP
screen displays:
Chapter 4. Management | 61
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 27.
5. Specify the following information:
• Firmware File Name. The name of the unzipped software file.
• TFTP Server IP. The IP address of your TFTP server.
6. Click Apply to initiate the upgrade process.
During the upgrade process, the wireless access point automatically restarts. The
upgrade process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
7. Verify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 34 on page 67). The firmware version is shown in the
Access Point Information section of the screen.
Manage the Configuration File or Reset to Factory
Defaults
The wireless access point settings are stored in the configuration file. You can save this file
(back it up) to a computer, restore it from a computer, or reset it to factory default settings.
Save the Configuration
To save your settings:
1. Select Maintenance > Upgrade > Backup Settings. The Backup Settings screen
displays (see the following figure).
2. Click Backup. Your browser extracts the configuration file (the file name is config) from the
wireless access point and prompts you for a location on your computer to store the file.
3. Follow the instructions of your browser to save the file.
62 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 28.
Restore the Configuration
IMPORTANT:
During the restoration process, do not try to go online, turn off the
wireless access point, shut down the computer, or do anything else
to the wireless access point until it finishes restarting!
To restore your settings from a saved configuration file:
1. Select Maintenance > Upgrade > Restore Settings. The Restore Settings screen
displays:
Figure 29.
2. Click Browse and locate the saved configuration file (the file name is config).
3. Click Apply to initiate the restoration process. During the restoration process, the wireless
access point automatically restarts. The restoration process typically takes about 1 minute.
When the Test LED turns off, wait a few more seconds before doing anything with the
wireless access point.
Chapter 4. Management | 63
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Restore the Wireless Access Point to the Factory Default
Settings
You can restore the wireless access point to the factory default settings by two methods that
are described in the following sections:
• Use the Web Management Interface to Restore Factory Default Settings on this page
• Use the Reset Button to Restore Factory Default Settings on page 64
Note: After you have restored the factory default settings on the wireless
access point:
* All custom configurations will be lost.
* The login password will be password.
* The default LAN IP address will be 192.168.0.100.
* The DHCP client will be disabled.
* The Access Point Name field will be reset to the name printed on
the label on the bottom of the unit.
Use the Web Management Interface to Restore Factory Default Settings
IMPORTANT:
During the restoration process, do not try to go online, turn off the
wireless access point, shut down the computer, or do anything else
to the wireless access point until it finishes restarting!
To restore the factory default settings using the Web Management Interface:
1. Select Maintenance > Reset > Restore Defaults. The Restore Defaults screen
displays (see the following figure).
2. Select the Yes radio button. (By default, the No radio button is selected.)
3. Click Apply to reset the wireless access point to the factory default settings.
During the restoration process, the wireless access point automatically restarts. The
restoration process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
64 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 30.
Use the Reset Button to Restore Factory Default Settings
To restore the factory default settings when you do not know the login user name, login
password, or IP address, you need to use the Reset button on the rear panel of the wireless
access point (see Figure 2 on page 12).
To restore the factory default settings using the Reset button:
1. Using a sharp object, press and hold the Reset button for about 5 seconds (until the Test
LED blinks rapidly) to reset the wireless access point to factory defaults settings.
Note: Pressing the Reset button for a shorter period of time simply causes
the wireless access point to reboot.
2. Release the Reset button.
During the restoration process, the wireless access point automatically restarts. The
restoration process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
Reboot the Wireless Access Point without Restoring the
Default Configuration
If you do not have physical access to the wireless access point to switch it off and on again,
you can use the software to reboot the wireless access point.
To reboot the wireless access point:
1. Select Maintenance > Reset > Reboot AP. The Reboot AP screen displays:
Chapter 4. Management | 65
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 31.
2. Select the Yes radio button. (By default, the No radio button is selected.)
3. Click Apply to reboot the wireless access point.
The reboot process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
Change the Administrator Password
The default password is password. You should change this password to a more secure
password. You cannot change the administrator login name (admin).
The ideal password should contain no dictionary words from any language, and should be a
mixture of letters (both uppercase and lowercase), numbers, and symbols. Your password
can be up to 30 characters.
To change the administrator password:
1. Select Maintenance > Password > Change Password. The Change Password screen
displays:
Figure 32.
2. Take one of the following actions:
66 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Enter a new password twice: once in the New Password field and again in the Repeat
New Password field.
• Next to Restore Default Password, select the Yes radio button to restore the default
password. By default, the No radio button is selected.
3. Click Apply to save your settings.
If you have restored the default password, the login password will be password. If you
have configured a new password, write it down in a secure place.
Enable the Syslog Server
The Syslog screen allows you to enable the syslog option if you have a syslog server on your
LAN. If syslog is enabled, the wireless access point sends its syslog files to the syslog server.
To enable a syslog server:
1. Select Configuration > System > Advanced > Syslog. The Syslog screen displays:
Figure 33.
Specify the settings as explained in the following table:
2. . Click Apply to save your settings.
Table 17. Syslog Settings
Field Description
Enable Syslog Select the check box to enable the syslog option. By default, the syslog option
is disabled.
Syslog Server IP Address Enter the IP address of the syslog server to which the wireless access point
sends the syslog files.
Port Number Enter the port number that is configured on the syslog server. The default port
number is 514.
Chapter 4. Management | 67
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Monitor the Wireless Access Point
The wireless access point provides a variety of status and usage information that is
discussed in the following sections:
• View System Information on page 67
• Monitor Wireless Stations on page 69
• View the Activity Log on page 71
• Traffic Statistics on page 72
View System Information
The System screen provides a summary of the current wireless access point configuration
settings, including current IP settings and current wireless settings. This information is read
only, so any changes need to be made on other screens.
To view the System screen, select Monitoring > System:
Figure 34.
68 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
The following table explains the fields of the System screen:
Table 18. System Screen Fields
Field Description
Access Point Information
Access Point Name The NetBIOS name. For information about how to change the default name, see
Configure Basic General System Settings and Time Settings on page 18.
Ethernet MAC Address The MAC address of the wireless access point’s Ethernet port.
Wireless MAC Address The MAC address of the wireless access point’s wireless card.
Country/Region The country or region for which the wireless access point is licensed for use. For
information about how to change the country or region, see Configure Basic
General System Settings and Time Settings on page 18.
Note: It might not be legal to operate this wireless access point in a country or
region other than one of those identified in this field.
Firmware Version The version of the firmware that is currently installed.
Current Time The current time. For information about how to change the time settings, see
Configure Basic General System Settings and Time Settings on page 18.
Current IP Settings
For information about how to change any of these IP settings, see Configure IP Settings and Optional DHCP
Server Settings on page 20.
IP Address The IP address of the wireless access point.
Subnet Mask The subnet mask for the wireless access point.
Default Gateway The default gateway for the wireless access point communication.
DHCP Client Enabled indicates that the current IP address was obtained from a DHCP server
on your LAN network. Disabled indicates a static IP configuration.
Current Wireless Settings for 802.11n/g
Access Point Mode The operating mode of the wireless access point. One of the following modes is
indicated:
• Access Point
• Point-to-Point Bridge
• Point-to-Point Bridge with Access Point
• Multi-Point Bridge with/without client association
For information about how to change the mode, see Configure Wireless Bridging
on page 83.
Channel / Frequency The channel the wireless port is using. 11 is the default channel when the setting
is Auto. For information about how to change the channel and frequency, see
Configure Basic Wireless Settings on page 23.
Rogue AP Detection Enabled indicates that rogue AP detection is enabled; Disabled indicates that it is
not.
Chapter 4. Management | 69
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Monitor Wireless Stations
The Wireless Stations screen contains the Available Wireless Stations table. This table
shows all IP devices that are associated with the wireless access point in the wireless
network that is defined by the wireless network name (SSID). The table heading indicates the
wireless mode (802.11b, 802.11bg, or 802.11ng).
Note: A wireless network can include multiple wireless access points, all
using the same network name (SSID). This extends the reach of the
wireless network and allows users to roam from one wireless access
point to another, providing seamless network connectivity. Under
these circumstances, be aware that the Available Wireless Stations
table includes only the stations associated with this wireless access
point.
To view the attached wireless stations, and to view details for a wireless station:
1. Select Monitoring > Wireless Stations. The Wireless Stations screen displays:
Figure 35.
To update the list, click Refresh. If the wireless access point is rebooted, the wireless
station data is lost until the wireless access point rediscovers the devices. To force the
wireless access point to look for associated devices, click Refresh.
For each device, the Available Wireless Stations table shows the MAC address, BSSID,
SSID, channel, rate, state, type, AID, mode, and status. For information about these and
more fields, see the following table.
2. To view details of a wireless station, select the corresponding radio button, and then click
Details. The Wireless Stations Details screen displays:
70 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 36.
The following table explains the fields of the Wireless Stations Details screen:
Table 19. Wireless Stations Details Fields
Field Description
MAC Address The MAC address of the wireless station.
BSSID The BSSID that the wireless station is using.
SSID The SSID that the wireless station is using.
Channel The channel that the wireless station is using.
Rate The transmit data rate in Mbps of the wireless station.
State The features that are enabled on the wireless station.
Type The authentication and encryption type that the wireless station is using.
AID The associated identifier (AID) of the wireless station.
Mode The wireless mode in which the wireless station is operating.
Status The wireless status of the wireless station (Associated).
Chapter 4. Management | 71
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
View the Activity Log
You can view the wireless access point’s activity log onscreen and save the logs.
To display the activity log and save it:
1. Select Monitoring > Logs. The Logs screen displays:
Figure 37.
2. Click Save As to save the log contents to a file on your computer or to a disk drive.
RSSI The received signal strength indicator (RSSI) of the wireless station.
Idle Time The time since the last frame was received from the wireless station.
Tx Sequence The sequence number of the last frame that was transmitted to the wireless station.
Rx Sequence The sequence number of the last frame that was received from the wireless station.
Capability The capability summary of the wireless station that was detected during association.
Cipher The cipher that is used by the wireless station and that defines the type of encryption.
SNR The signal-to-noise ratio (SNR) that indicates how much the signal of the wireless
station has been corrupted by noise.
Recv. Bytes The number of bytes received on the wireless station since it last started up.
Trans. bytes The number of bytes transmitted by the wireless station since it last started up.
Assoc. Time Stamp The time when these details of the wireless station were retrieved.
IP Address The IP address of the wireless station.
Channel Width The channel width at which the wireless station operates.
Table 19. Wireless Stations Details Fields (Continued)
Field Description
72 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
To update the display on screen, click Refresh; to clear the log content, click Clear.
Traffic Statistics
The Statistics screen displays information for both wired (LAN) and wireless (WLAN) network
traffic.
To display the Statistics screen, select Monitoring > Statistics:
Figure 38.
To update the statistics information, click Refresh.
The following table explains the fields of the Statistics screen:
Table 20. Statistics Fields
Field Description
Wired Ethernet
Packets The number of packets received and transmitted over the Ethernet
connection since the wireless access point was restarted.
Bytes The number of bytes received and transmitted over the Ethernet connection
since the wireless access point was restarted.
Chapter 4. Management | 73
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Enable Rogue AP Detection and Monitor Access Points
Enable and Configure Rogue AP Detection
The wireless access point can detect rogue access points and prevent them from connecting
to the wireless access point. The wireless access point maintains a list of access points it
detects in the area. Initially all detected access points are displayed in the Unknown AP List.
You restrict communication to approved access points by adding them to the Known AP List
and enabling the rogue AP detection feature.
If you enable rogue AP detection, the wireless access point continuously scans the wireless
network and collects information about all access point on its channel.
To enable and configure rogue AP detection:
1. Select Configuration > Security > Advanced > Rogue AP. The Rogue AP screen
displays.
2. Click Refresh to let the wireless access point discover the access points and populate the
Unknown AP List.
3. In the Unknown AP List, select individual check boxes for access points, or select all access
points by selecting the check box in the column heading.
4. Click Move to transfer the access points from the Unknown AP List to the Known AP List.
Wireless 802.11b, Wireless 802.11bg, or Wireless 801.11ng
The section heading depends on the configured wireless mode.
Unicast Packets The number of unicast packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Broadcast Packets The number of broadcast packets received and transmitted over the
wireless connection since the wireless access point was restarted.
Multicast Packets The number of multicast packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Total Packets The total number of packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Total Bytes The total number of bytes received and transmitted over the wireless
connection since the wireless access point was restarted.
Client Association
802.11b Radio,
802.11bg Radio, or
802.11ng Radio
The number of associated clients connected to the radio in the configured
wireless mode.
Table 20. Statistics Fields (Continued)
Field Description
74 | Chapter 4. Management
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
5. Select the Turn Rogue AP Detection On check box to enable rogue AP detection.
6. Click Apply to save your settings.
To remove APs from the Known AP List and return then to the Unknown AP List:
1. In the Known AP List, select individual check boxes for access points, or select all
access points by selecting the check box in the column heading.
2. Click Delete.
To import a file with a precompiled list of access points into the Known AP List:
1. Take one of the following actions:
• Select the Replace radio button to let the imported list with access points replace the
existing Known AP List.
• Select the Merge radio button to add the imported list with access points to the
existing Known AP List.
2. Click Browse and locate the file that contains the list with access points. This file needs to
be a simple text file with one MAC address per line.
3. Select the file, and click Open.
4. Click Apply to upload the list with access points to the Known AP List.
View and Save Access Point Lists
The wireless access point detects nearby APs and wireless stations and maintains them in a
list. You can use this list to prevent them from connecting to the wireless access point.
To view the Unknown AP List and save it to a file:
1. Select Monitoring > Rogue AP > Unknown AP List. The Unknown AP List screen
displays.
2. Click Refresh to let the wireless access point discover the access points and populate the
Unknown AP List.
The following table explains the fields of the Unknown AP List screen:
Table 21. Unknown AP List Fields
Field Description
MAC Address The MAC address of the unknown AP.
SSID The SSID that the unknown AP is using.
Privacy Indicates whether or not security is enabled (1 means enabled; 0 means
disabled).
Channel The channel that the unknown AP is using.
Rate The transmit data rate in Mbps of the unknown the AP.
Chapter 4. Management | 75
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Click Save to export the list of unknown or known APs to a file. A window opens so you can
browse to the location where you want to save the file. The default file name is macList.txt.
If you wish, you can now import the saved list into the Known AP List on the Rogue AP
screen (see Enable and Configure Rogue AP Detection on page 73).
To view the Known AP List and save it to a file:
1. Select Monitoring > Rogue AP > Known AP List. The Known AP List screen displays.
2. Click Refresh to let the wireless access point discover the access points and populate the
Known AP List.
The following table explains the fields of the Known AP List screen:
3. Click Save to export the list of known access points to a file. A window opens so you can
browse to the location where you want to save the file. The default file name is macList.txt.
You can now import the saved list into the Known AP List on the Rogue AP screen (see
Enable and Configure Rogue AP Detection on page 73).
Beacon Int. The interval for each beacon transmission in ms.
# of Beacons The number of beacons transmitted by the unknown AP that the wireless
access point has detected.
Last Beacon The timestamp that indicates the time when the most recent beacon was
detected.
Table 22. Known AP List Fields
Field Description
MAC Address The MAC address of the known AP.
SSID The SSID that the known AP is using.
Channel The channel that the known AP is using.
Table 21. Unknown AP List Fields
Field Description
Chapter 5. Advanced Configuration | 76
5
5. Advanced Configuration
This chapter describes how to configure the advanced features of your ProSafe Dual Band
Wireless-N Access Point WNDAP360. The chapter includes the following sections:
• Spanning Tree Protocol and 802.1Q VLAN on this page
• Hotspot Settings on page 78
• Configure Advanced Wireless Settings on page 79
• Configure Advanced QoS Settings on page 81
• Configure Wireless Bridging on page 83
Spanning Tree Protocol and 802.1Q VLAN
The advanced General system settings screen allows you to enable the Spanning Tree
Protocol (STP) and configure the VLANs.
STP provides network traffic optimization in locations where multiple wireless access points
are active.
The 802.1Q VLAN protocol on the wireless access point logically separates traffic on the
same physical network:
• Untagged VLAN. When the wireless access point sends frames that are associated with
the untagged VLAN from its Ethernet interface, those frames are untagged. When the
wireless access point receives untagged frames over its Ethernet interface, those frames
are assigned to the untagged VLAN.
Note: Select the Untagged VLAN check box only if the hubs and switches
on your LAN support the 802.1Q VLAN protocol. Likewise, change
the untagged VLAN value only if the hubs and switches on your LAN
support the 802.1Q VLAN protocol. Selecting the Untagged VLAN
check box or changing the untagged VLAN value will result in a loss
of IP connectivity if the hubs and switches on your LAN have not yet
been configured with the corresponding VLAN.
Chapter 5. Advanced Configuration | 77
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Tagged VLAN. When you clear the Untagged VLAN check box, the wireless access point
tags all frames that are sent from its Ethernet interface. Only incoming frames that are
tagged with known VLAN IDs are accepted.
• Management VLAN. The management VLAN can be active only when the wireless
access point functions as a point-to-point or point-to-multipoint bridge (see Configure
Wireless Bridging on page 83). The management VLAN is used for managing traffic
(Telnet, SNMP, and HTTP) to and from the wireless access point.
Frames belonging to the management VLAN are not given any 802.1Q header when they
are sent over the trunk. If a port is in a single VLAN, it can be untagged. However, if the
port is a member of multiple VLANs, it needs to be tagged.
To configure STP and VLANs:
1. Select Configuring > System > Advanced > General. The advanced General system
settings screen displays:
Figure 39.
2. Specify the settings as explained in the following table:
Table 23. STP and VLAN Settings
Field Description
Spanning Tree Protocol
Spanning Tree Protocol Select the Enable radio button to enable STP to prevent path redundancy. By
default, the Disable radio button is selected.
78 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Click Apply to save your settings.
Hotspot Settings
If the wireless access point functions as a public access point and you want it to capture and
redirect all HTTP requests (over TCP, port 80), set up a hotspot server to redirect the
requests to the specified URL and manage the clients. For example, you can redirect HTTP
requests to a Web server for authentication, timing control, or advertising. A hotel might want
all wireless connections to go to its server to start a billing transaction.
Note: The redirection occurs only the first time that a wireless client opens
a Web browser.
To set up a hotspot server:
1. Select Configuration > System > Advanced > Hotspot. The Hotspot screen displays:
Figure 40.
802.1Q VLAN
Untagged VLAN Select the Untagged VLAN check box to configure one VLAN as an untagged
VLAN. By default, the Untagged VLAN check box is selected.
Specify a VLAN ID. The default VLAN ID is 1.
Management VLAN Specify an ID for the VLAN from which the wireless access point can be
managed. The default VLAN ID is 1.
Note: If you configure the VLAN ID as 0 (zero), the wireless access point can be
managed over any VLAN, and frames that belong to the management VLAN are
not tagged with an 802.1Q header when sent over the trunk.
Table 23. STP and VLAN Settings (Continued)
Field Description
Chapter 5. Advanced Configuration | 79
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
2. To enable HTTP redirection, select the Enable radio button. By default, the Disable radio
button is selected.
3. In the Redirect URL field, enter the URL of the Web server to which you wish to redirect
HTTP requests.
4. Click Apply to save your settings. All HTTP requests are now redirected to the specified
URL.
Configure Advanced Wireless Settings
You use the advanced Wireless Settings screen to configure and enable various WLAN
settings for 802.11b, 802.11bg, or 802.11ng wireless mode. The active wireless mode is
indicated on screen. (For information about hot to change the wireless mode, see Configure
Basic Wireless Settings on page 23.)
The default WLAN settings normally work well. However, you can use these settings to
fine-tune the overall performance of your wireless access point for your environment.
To configure advanced wireless settings:
1. Select Configuration > Wireless > Advanced > Wireless Settings. The advanced
Wireless Settings screen displays.
2. Specify the settings as explained in the following table:
Table 24. Advanced Wireless Settings
Field Description
RTS Threshold (0–2347) Enter the Request to Send (RTS) threshold. The default setting is
2347.
If the packet size is equal to or less than the RTS threshold, the
wireless access point uses the Carrier Sense Multiple Access with
Collision Detection (CSMA/CD) mechanism, and the data frame is
transmitted immediately after the silence period.
If the packet size is larger than the RTS threshold, the wireless access
point uses the CSMA with Collision Avoidance (CSMA/CA)
mechanism. In this situation, the transmitting station sends an RTS
packet to the receiving station, and waits for the receiving station to
return a Clear to Send (CTS) packet before sending the actual packet
data.
Fragmentation Length (256–2346) Enter the maximum packet size that is used for the fragmentation of
data packets. Packets that are larger than the specified fragmentation
length are broken up into smaller packets before being transmitted.
The fragmentation length needs to be an even number. The default
setting is 2346.
Beacon Interval (100–1000) Enter the interval between 100 ms and 1000 ms for each beacon
transmission, which allows the wireless access point to synchronize
the wireless network. The default setting is 100.
80 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Click Apply to save your settings.
Aggregation Length (1024–65535) Enter the maximum length of Aggregated MAC Protocol Data Unit
(AMPDU) packets. Larger aggregation lengths could lead to better
network performance. Aggregation is a mechanism used to achieve
higher throughput. The default setting is 65535.
AMPDU Select the Enable radio button to allow the aggregation of several
MAC frames into a single large frame to achieve higher throughput.
Enabling Aggregated MAC Protocol Data Unit (AMPDU) could lead to
better network performance. By default, the Enable radio button is
selected.
RIFS Transmission Select the Enable radio button to allow transmission of successive
frames at different transmit powers. Enabling Reduced Interframe
Space (RIFS) could lead to better network performance. By default,
the Disable radio button is selected.
DTIM Interval (1–255) Enter the Delivery Traffic Indication Message (DTIM) interval, also
referred to as the data beacon rate, which indicates the beacon
delivery traffic indication message period in multiples of beacon
intervals. This value needs to be between 1 and 255. The default
setting is 3.
Preamble Type Select one of the following radio buttons to specify the preamble type:
• Long. A long transmit preamble might provide a more reliable
connection or a slightly longer range. A short transmit preamble
gives better performance.
• Auto. The Auto settings automatically handles both long and short
preambles. The default setting is Auto.
Antenna Select one of the following radio buttons to specify the antenna:
• Internal. Enables the internal antenna. This is the default setting.
• External. Enables an optional external antenna.
802.11d Select this check box to enable support for additional regulatory
domains that are not in the current standard; support includes the
addition of a country information element to beacons, probe requests,
and probe responses. This check box is selected by default.
Client Isolation From the drop-down list, select one of the following options:
• Enable. Communication between wireless clients that are
associated to different virtual access points (VAPs) is blocked.
• Disable. Communication between wireless clients that are
associated to different VAPs is allowed. This is the default setting.
Max. Wireless Clients Enter the maximum number of wireless clients that can
simultaneously connect to the wireless access point at one time. The
default setting is 64 clients.
Table 24. Advanced Wireless Settings (Continued)
Field Description
Chapter 5. Advanced Configuration | 81
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure Advanced QoS Settings
For most networks, the default Quality of Service (QoS) queue settings work well. For
information about how to configure basic QoS, see Configure Basic Wireless Quality of
Service on page 53.
You can specify the settings on multiple queues for increased throughput and better
performance of differentiated wireless traffic such as Voice-over-IP (VoIP), other types of
audio, video, and streaming media, as well as traditional IP data.
The advanced QoS options on the wireless access point are as follows:
• AP EDCA parameters. Specify the access point (AP) Enhanced Distributed Channel
Access (EDCA) settings for different types of data transmitted from the wireless access
point to wireless clients.
• Station EDCA parameters. Specify the station EDCA parameters for different types of
data transmitted from the wireless clients to the wireless access point. If WMM is
disabled, you cannot configure the Station EDCA parameters. (For information about how
to enable WMM, see Configure Basic Wireless Quality of Service on page 53.)
When you configure the EDCA settings, the wireless access point can leverage existing
information in the IP packet header that is related to the Type of Service (ToS). The wireless
access point examines the ToS field in the headers of all packets that it processes. Based on
the value in a packet’s ToS field, the wireless access point prioritizes the packet for
transmission by assigning it to one of the queues. A different type of data is associated with
each queue. You can configure how the wireless access point treats each queue.
The queues defined for different types of data transmitted from AP-to-station and
station-to-AP are:
• Data 0 (Best Effort). Medium priority queue, medium throughput and delay. Most
traditional IP data is sent to this queue.
• Data 1 (Background). Lowest priority queue, high throughput. Bulk data that requires
maximum throughput and is not time-sensitive is sent to this queue (FTP data, for
example).
• Data 2 (Video). Highest priority queue, minimum delay. Time-sensitive video data is
automatically sent to this queue.
• Data 3 (Voice). Highest priority queue, minimum delay. Time-sensitive data such as VoIP
and streaming media are automatically sent to this queue.
To configure advanced QoS:
1. Select Configuration > Wireless > Advanced > QoS Settings. The advanced QoS
Settings screen displays.
82 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
2. Specify the settings as explained in the following table:
Table 25. EDCA Settings
Field Description
AP EDCA parameters
AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that
specifies the wait time (in milliseconds) between data frames. A
higher AIFS value means a higher priority for a queue. Valid values for
AIFS are 0 through 8.
The default values are: Data 0: 3; Data 1: 7; Data 2: 1; Data 3: 1.
cwMin Enter the Minimum Contention Window (cwMin) value that specifies
the upper limit (in milliseconds) of a range from which the initial
random back-off wait time is determined. Decreasing this value
increases the priority of the queue. The value for cwMin needs to be
lower than the value for cwMax. Valid values are 0, 1, 3, 7, 15, 31, 63,
127, 255, 511, or 1023.
The default values are: Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.
cwMax Enter the Maximum Contention Window (cwMax) value that specifies
the upper limit (in milliseconds) for the doubling of the random
back-off value. Decreasing this value increases the priority of the
queue. The value for cwMax needs to be higher than the value for
cwMin. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, or 1023.
The default values are: Data 0: 63; Data 1: 1023; Data 2: 15;
Data 3: 7.
Max. Burst Enter the maximum burst value that specifies the maximum burst
length (in microseconds) allowed for packet bursts on the wireless
network. A packet burst is a collection of multiple frames transmitted
without header information. Decreasing this value increases the
priority of the queue. Valid values for maximum burst length are all
multiples of 32 between 0 and 8192, inclusive of 0 and 8192.
The default values are: Data 0: 0; Data 1: 0; Data 2: 3008;
Data 3: 1504.
Station EDCA parameters
AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that
specifies the wait time (in milliseconds) between data frames. A
higher AIFS value means a higher priority for a queue. Valid values for
AIFS are 0 through 8.
The default values are: Data 0: 3; Data 1: 7; Data 2: 2; Data 3: 2.
cwMin Enter the Minimum Contention Window (cwMin) value that specifies
the upper limit (in milliseconds) of a range from which the initial
random back-off wait time is determined. Decreasing this value
increases the priority of the queue. The value for cwMin needs to be
lower than the value for cwMax. Valid values are 0, 1, 3, 7, 15, 31, 63,
127, 255, 511, or 1023.
The default values are: Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.
Chapter 5. Advanced Configuration | 83
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
3. Click Apply to save your settings.
Configure Wireless Bridging
The wireless access point supports a wireless distributing system (WDS) that lets you build
large bridged wireless networks. You can select from the following wireless access point
modes:
• Wireless point-to-point bridge. In this mode, the wireless access point can
communicate with another bridge-mode wireless station and, as an option, also with
wireless clients. Use WEP, WPA-PSK, or WPA2-PSK to secure the communication. For
information about how to configure this mode, see Configure a Point-to-Point Wireless
Network on page 84.
• Wireless point-to-multipoint bridge. In this mode, the wireless access point is the
master for a group of bridge-mode wireless stations. As an option, the wireless access
point can also communicate with wireless clients. You can configure up to four profiles.
The other bridge-mode wireless stations need to be set to point-to-point bridge mode,
using the MAC address of the master wireless access point. Rather than communicating
directly with each other, all other bridge-mode wireless stations send their traffic to the
master wireless access point. Use WEP, WPA-PSK, or WPA2-PSK to secure the
communication. For information about how to configure this mode, see Configure a
Point-to-Multipoint Wireless Network on page 87.
• Repeater mode. In this mode, this wireless access point operates as a repeater only, and
sends all traffic to a remote access point. Repeater mode does not support
communication with wireless clients, that is, wireless clients cannot associate with the
wireless access point when the wireless access point operates as a repeater. Use WEP,
WPA-PSK, or WPA2-PSK to secure the communication. For information about how to
configure this mode, see Configure the Wireless Access Point for Repeater Mode on
page 91.
cwMax Enter the Maximum Contention Window (cwMax) value that specifies
the upper limit (in milliseconds) for the doubling of the random
back-off value. Decreasing this value increases the priority of the
queue. The value for cwMax needs to be higher than the value for
cwMin. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, or 1023.
The default values are: Data 0: 1023; Data 1: 1023; Data 2: 15;
Data 3: 7.
TXOP Limit Enter the Transmission Opportunity (TXOP) value that specifies the
time interval (in microseconds) in which a client station can initiate
transmissions on the wireless medium (WM). Decreasing this value
increases the priority of the queue. Valid values for TXOP Limit are all
multiples of 32 between 0 and 8192, inclusive of 0 and 8192.
The default values are: Data 0: 0; Data 1: 0; Data 2: 3008;
Data 3: 1504.
Table 25. EDCA Settings (Continued)
Field Description
84 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Client mode. In this mode, the wireless access point operates as a client bridge only, and
sends all traffic to the remote wireless access point or peer device. You can enable MAC
cloning in client mode. For information about how to configure this mode, see Configure
the Wireless Access Point for Client Mode on page 94.
Configure a Point-to-Point Wireless Network
In point-to-point bridge mode, the wireless access point communicates with another
bridge-mode wireless station. Use wireless security to protect this communication. The
following figure shows an example in which two wireless access points (APs) function in
point-to-point bridge mode:
Figure 41.
To configure a point-to-point wireless network:
1. Configure the wireless access point (AP1 on LAN Segment 1 in the previous figure) as
a point-to-point bridge:
a. Select Configuration > Wireless Bridge. The Bridging screen displays.
b. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select the Wireless Point-to-Point Bridge radio button.
d. If you want to enable wireless client association while the wireless access point
functions as a point-to-point bridge, select the Enable Wireless Client Association
check box.
e. Click Edit to configure the security profile settings. The Edit Security Profile screen
displays:
Wireless PC card
in a notebook computer
Wireless PC card
in a notebook computer
Point-to-point
bridge mode Point-to-point
bridge mode
Router Hub or switch
Chapter 5. Advanced Configuration | 85
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual

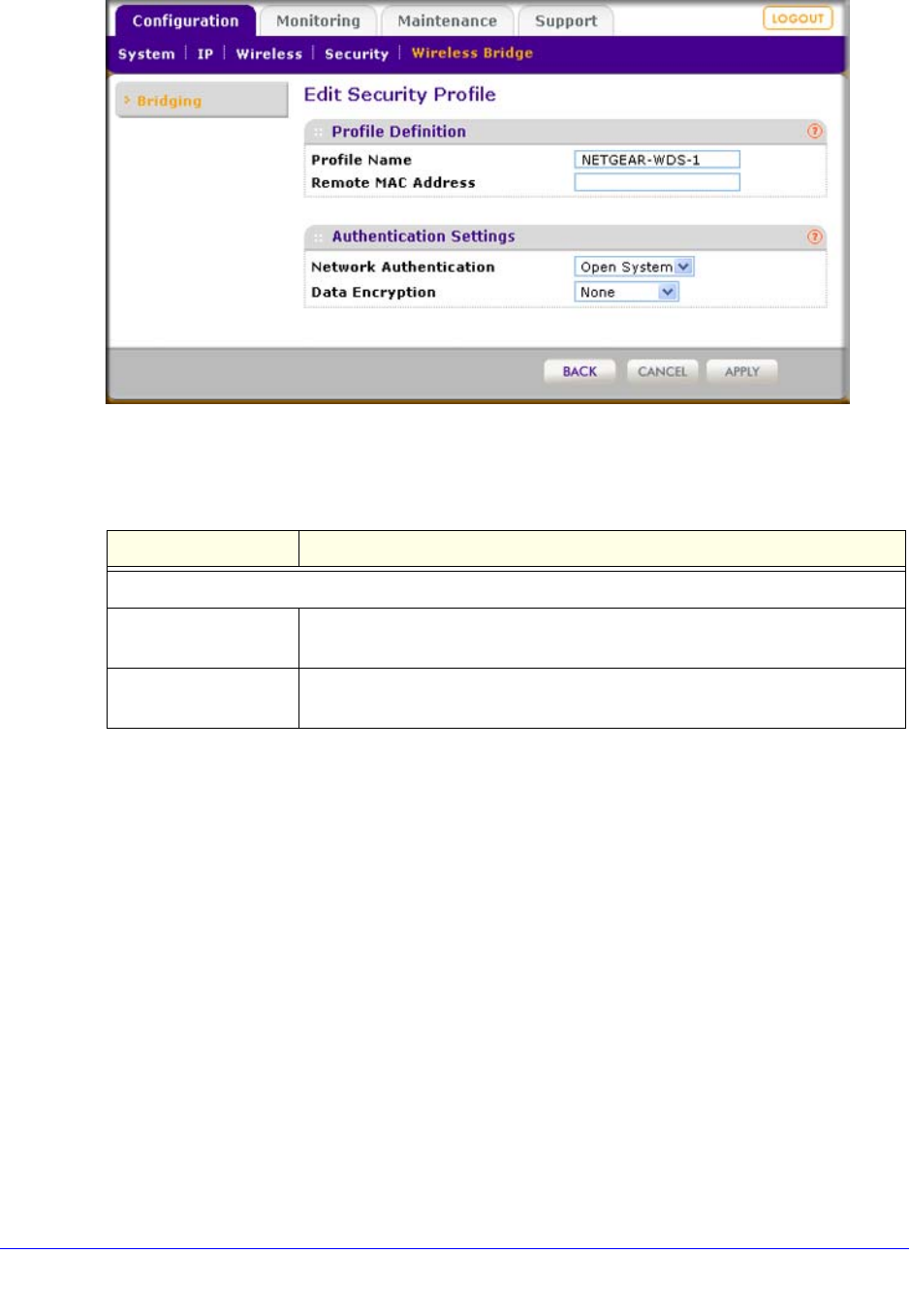

Figure 42.
f. Specify the settings as explained in the following table:
Table 26. Point-to-Point Bridge Profile and Authentication Settings
Field Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default name is
NETGEAR-WDS-1.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP2 on LAN Segment 1 in Figure 41 on page 84).
86 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
g. Click Apply to save your security profile settings. The Bridging screen displays
again.
h. If the correct profile name and security option are displayed in the table, select the
check box in the Enable column.
i. Click Apply in the Bridging screen to save your point-to-point bridge settings.
2. Configure a second wireless access point (AP2) on LAN Segment 2 (see Figure 41 on
page 84) in point-to-point bridge mode.
AP1 needs to have AP2’s MAC address in its Remote MAC Address field, and AP2 needs
to have AP1’s MAC address in its Remote MAC Address field.
3. Configure and verify the following settings for both wireless access points:
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether or not the WPA
Passphrase (Network Key) field displays.
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the
Data Encryption drop-down list, select one of the following:
• None. No authentication and encryption.
• 64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
• 128-bit WEP. Standard WEP encryption, using 104/128-bit
encryption.
• 152-bit WEP. Proprietary WEP encryption mode, using
128+24 bits encryption. This mode functions only with
other wireless station that support this mode.
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Table 26. Point-to-Point Bridge Profile and Authentication Settings (Continued)
Field Description
Chapter 5. Advanced Configuration | 87
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Verify the LAN network configuration of the wireless access points. Both need to be
configured to operate in the same LAN network address range as the LAN devices.
• Both wireless access points need to use the same channel, authentication mode, and
security settings.
4. Verify connectivity across the LAN 1 and LAN 2.
A computer on either LAN segment should be able to connect to the Internet or share
files and printers of any other computers or servers connected to LAN Segment 1 or LAN
Segment 2.
Configure a Point-to-Multipoint Wireless Network
In a point-to-multipoint bridge, the wireless access point is the master for a group of
bridge-mode wireless access points. All traffic is sent to the master rather than to the other
wireless access points. Use wireless security to protect this communication.
For each wireless access point that you want the master to be able to connect to, you need to
configure a security profile with a unique name and the MAC address of the wireless access
point. You can configure up to four such security profiles (NETGEAR-WDS-1,
NETGEAR-WDS-2, and so on).
The following figure shows an example in which AP1 functions in point-to-multipoint bridge
mode and AP2 and AP3 function in point-to-point bridge mode:
Figure 43.
To configure a point-to-multipoint wireless network:
1. Configure the security profiles on the wireless access point (AP1 on LAN Segment 1 in
the previous figure):
Wireless PC card
in a notebook computer Point-to-point
bridge mode
Multipoint
bridge mode
Point-to-point
bridge mode
Router Hub or switch
Hub or switch
88 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
a. Select Configuration > Wireless Bridge. The Bridging screen displays.
b. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select the Wireless Point-to-Multi-Point Bridge radio button.
d. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
e. Click Edit to configure the selected security profile settings. The Edit Security Profile
screen displays for the selected security profile. (The following figure contains some
examples.)

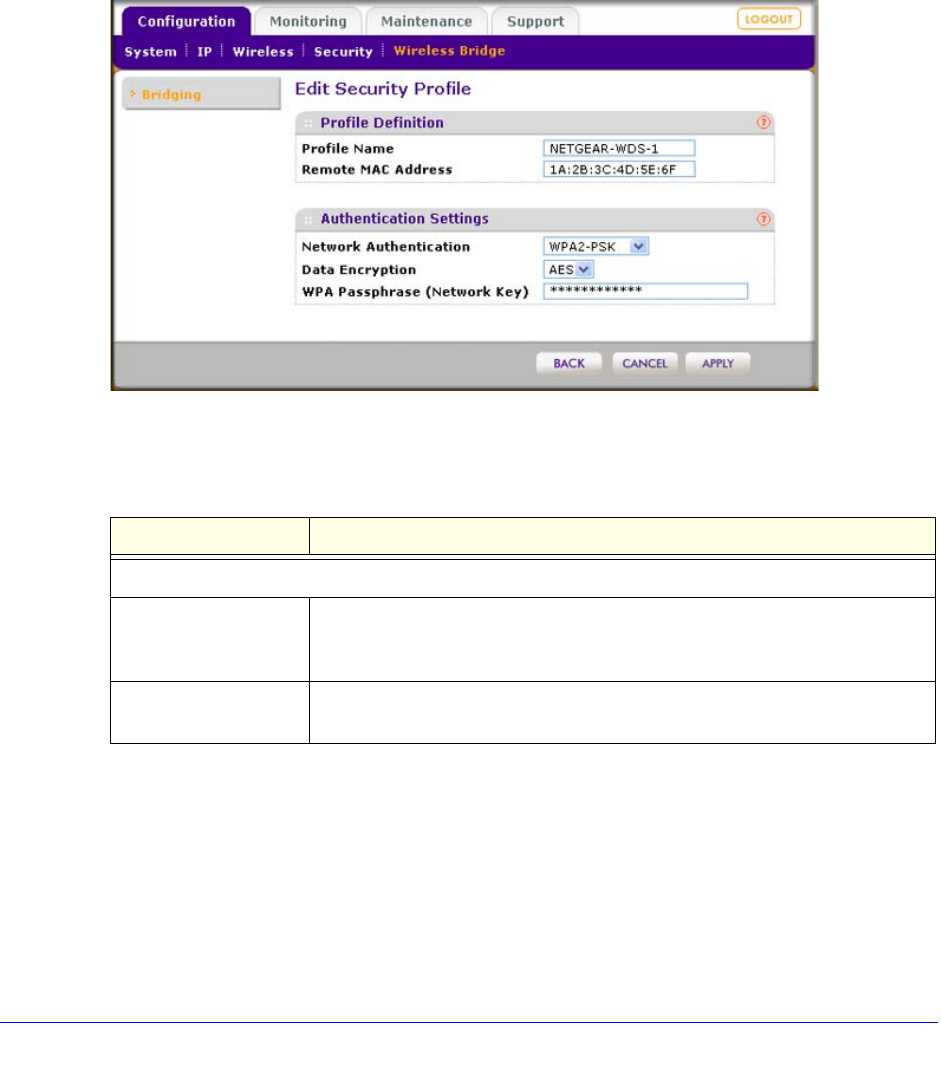

Figure 44.
f. Specify the settings as explained in the following table:
Table 27. Point-to-Multipoint Bridge Profile and Authentication Settings
Field Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP2 or AP 3 on LAN Segment 1 in Figure 43 on page 87).
Chapter 5. Advanced Configuration | 89
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
g. Click Apply to save your security profile settings. The Bridging screen displays
again.
h. Repeat step b through step g for any other security profile that you want to edit.
For example, first configure security profile NETGEAR-WDS-1 with the MAC address
of AP2, and then configure security profile NETGEAR-WDS-2 with the MAC address
of AP3 (see Figure 43 on page 87).
2. Activate the wireless access point (AP1 on LAN Segment 1 in Figure 43 on page 87) as
a point-to-multipoint bridge (that is, it is the master in the wireless network):
a. On the Bridging screen, select the Enable Wireless Bridging check box.
b. Select the Wireless Point-to-Multi-Point Bridge radio button.
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether or not the WPA
Passphrase (Network Key) field displays.
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the
Data Encryption drop-down list, select one of the following:
• None. No authentication and encryption.
• 64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
• 128-bit WEP. Standard WEP encryption, using 104/128-bit
encryption.
• 152-bit WEP. Proprietary WEP encryption mode, using
128+24 bits encryption. This mode functions only with
other wireless station that support this mode.
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Table 27. Point-to-Multipoint Bridge Profile and Authentication Settings (Continued)
Field Description
90 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
c. Select the Enable Wireless Client Association check box to enable wireless client
association.
Note: If you do not select the Enable Wireless Client Association check
box, the wireless access point will not function in point-to-multipoint
bridge but in repeater mode.
d. If the correct profile names and security options are displayed in the table, select the
check boxes in the Enable column for all security profiles that you want to enable.
e. Click Apply in the Bridging screen to activate your point-to-multipoint bridge settings.
3. Configure AP2 on LAN Segment 2 (see Figure 43 on page 87) in point-to-point bridge mode
with the remote MAC address of AP1.
4. Configure AP3 on LAN Segment 3 (see Figure 43 on page 87) in point-to-point bridge mode
with the remote MAC address of AP1.
5. Verify the following for all wireless access points:
• Only AP1 on LAN Segment 1 is configured in point-to-multipoint bridge mode, and all
others APs are configured in point-to-point bridge mode.
• AP2 and AP3 (the point-to-point APs) needs to have AP1’s MAC address in their
Remote MAC Address field.
• All APs need to be on the same LAN, that is, the LAN IP addresses of all APs need to
be in the same network as the LAN devices.
• If you use DHCP, all wireless access points need to obtain an IP address
automatically (as a DHCP client). For more information, see Configure IP Settings
and Optional DHCP Server Settings on page 20.
• All wireless access points need to use the same channel, authentication mode, and
security settings.
6. Verify connectivity across the LANs:
• A computer on any LAN segment should be able to connect to the Internet or share
files and printers with any other PCs or servers connected to any of the three LAN
segments.
Note: You can extend this multipoint bridging configuration by adding
additional wireless access points that are configured in point-to-point
mode for each additional LAN segment. Furthermore, you can
extend the range of the wireless network with NETGEAR wireless
antenna accessories.
Chapter 5. Advanced Configuration | 91
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Configure the Wireless Access Point for Repeater Mode
In repeater mode, the wireless access point operates as a repeater only, without
communication with other wireless clients. All traffic is sent to the remote or downstream
wireless access point. You can configure up to four security profiles to enable the wireless
access point to function as a repeater for four remote wireless access points. Each security
profile requires a unique name and needs to include the MAC address of the remote wireless
access point. You can configure up to four such security profiles (NETGEAR-WDS-1,
NETGEAR-WDS-2, and so on).
The following figure shows an example in which AP1, AP2, and AP3 function in repeater
bridge mode. AP2 requires a security profile for AP1 and another one for AP3:
Figure 45.
To configure the wireless access point as a wireless repeater:
1. Configure the security profiles on the wireless access point (AP2 in the previous figure):
a. Select Configuration > Wireless Bridge. The Bridging screen displays.
b. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select the Wireless Point-to-Multi-Point Bridge radio button.
d. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
e. Click Edit to configure the selected security profile settings. The Edit Security Profile
screen displays for the selected security profile. (The following figure contains some
examples.)
Repeater mode
Repeater mode
Repeater mode
Router
Hub or switch
92 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Figure 46.
f. Specify the settings as explained in the following table:
Table 28. Repeater Profile and Authentication Settings
Field Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP1 or AP3 in Figure 45 on page 91).
Chapter 5. Advanced Configuration | 93
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
g. Click Apply to save your security profile settings. The Bridging screen displays
again.
h. Repeat step b through step g for any other security profile that you want to edit.
For example, first configure security profile NETGEAR-WDS-1 with the MAC address
of AP1, and then configure security profile NETGEAR-WDS-2 with the MAC address
of AP3 (see Figure 45 on page 91).
2. Activate repeater mode on the wireless access point (AP2 in Figure 45 on page 91):
a. On the Bridging screen, select the Enable Wireless Bridging check box.
b. Select the Wireless Point-to-Multi-Point Bridge radio button.
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether or not the WPA
Passphrase (Network Key) field displays.
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the
Data Encryption drop-down list, select one of the following:
• None. No authentication and encryption.
• 64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
• 128-bit WEP. Standard WEP encryption, using 104/128-bit
encryption.
• 152-bit WEP. Proprietary WEP encryption mode, using
128+24 bits encryption. This mode functions only with
other wireless station that support this mode.
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Table 28. Repeater Profile and Authentication Settings (Continued)
Field Description
94 | Chapter 5. Advanced Configuration
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
c. Clear the Enable Wireless Client Association check box to disable wireless client
association.
Note: If you do not clear the Enable Wireless Client Association check box,
the wireless access point will not function in repeater mode but in
point-to-multipoint bridge mode.
d. If the correct profile names and security options are displayed in the table, select the
check boxes in the Enable column for all security profiles that you want to enable.
e. Click Apply in the Bridging screen to activate your repeater settings.
3. Configure AP1 on LAN Segment 1 (see Figure 45 on page 91) in repeater mode with the
remote MAC address of AP2.
4. Configure AP3 on LAN Segment 3 (see Figure 45 on page 91) in repeater mode with the
remote MAC address of AP2.
5. Verify the following for all wireless access points:
• All APs need to be on the same LAN, that is, the LAN IP addresses of all APs need to
be in the same network as the LAN devices.
• If you use DHCP, all wireless access points need to obtain an IP address
automatically (as a DHCP client). For more information, see Configure IP Settings
and Optional DHCP Server Settings on page 20.
• All wireless access points need to use the same channel, authentication mode, and
security settings.
6. Verify connectivity across the LANs:
• A computer on any LAN segment should be able to connect to the Internet or share
files and printers with any other PCs or servers connected to any of the two LAN
segments.
Note: You can extend the repeating functionality by adding up to two more
wireless access points that are configured in repeater mode.
However, since repeaters communicate in half-duplex mode, the
bandwidth decreases as you add repeaters to the network. Also, you
can extend the range of the wireless network with NETGEAR
wireless antenna accessories.
Configure the Wireless Access Point for Client Mode
In client mode, the wireless access point operates as a client bridge only and sends all traffic
to the selected remote wireless access point or peer device.
Chapter 5. Advanced Configuration | 95
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
To configure the wireless access point for client mode:
1. Select Configuration > Wireless Bridge. The Bridging screen displays.
2. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
3. Select the Client radio button. (The Edit button becomes nonoperational after you have
selected the Client button.)
4. As an option, you can now enable MAC cloning, which allows only wireless connections to
computers or wireless stations for which you have added the MAC address to the
Trusted Wireless Stations table. For more information, see Restrict Wireless Access by
MAC Address on page 51.
To enable MAC cloning:
a. Next to MAC Clone, select the Enable radio button. By default, the Disable radio
button is selected.
b. In the MAC Clone Address field, enter the MAC address.
5. Click Apply to save your settings.
Chapter 6. Troubleshooting | 96
6
6. Troubleshooting
This chapter provides information about troubleshooting your ProSafe Dual Band Wireless-N
Access Point WNDAP360. After each problem description, instructions are given to help you
diagnose and solve the problem. For the common problems listed, go to the section indicated.
• Is the wireless access point on?
Go to Basic Functioning on page 97.
• Have I connected the wireless access point correctly?
Go to Basic Functioning on page 97.
• I cannot access the Internet or the LAN.
Go to You Cannot Access the Internet or the LAN from a Wireless-Capable Computer on
page 98.
• I cannot access the wireless access point from a browser.
Go to You Cannot Configure the Wireless Access Point from a Browser on page 99.
• A time-out occurs.
Go to When You Enter a URL or IP Address a Time-Out Error Occurs on page 99.
• I cannot remember the wireless access point’s configuration password.
Go to Change the Administrator Password on page 65.
• I want to clear the configuration and start over again.
Go to Restore the Wireless Access Point to the Factory Default Settings on page 63.
• The date or time is not correct.
Go to Problems with Date and Time on page 101.
The wireless access point provides a packet capture tool that enables you to perform
problem diagnoses. For information about how to use this tool, go to Use the Packet Capture
Tool on page 102.
Chapter 6. Troubleshooting | 97
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Basic Functioning
After you turn on power to the wireless access point, check that the following sequence
of events occurs:
• The Power/Test LED is first steady amber, then goes off, and then blinks green before
turning steady green after about 45 seconds.
• The Active LED is lit or blinks green when there is Ethernet traffic.
• The LAN LED indicates the LAN speed: green for 1000 Mbps, amber for 100 Mbps, and
no light for 10 Mbps.
• The WLAN LED is lit or blinks green when the wireless LAN (WLAN) is ready.
If any of these conditions does not occur, see to the appropriate following section.
No LEDs Are Lit on the Wireless Access Point
It takes a few seconds for the power LED to light up. Wait a minute and check the Power LED
status on the wireless access point. If the wireless access point has no power:
If you use a PoE switch to provide power to the wireless access point, check these
items:
• Make sure that the Ethernet cable between the wireless access point and the PoE switch
is correctly connected at both ends.
• Make sure that the power cord of the PoE switch is plugged into a working power outlet or
power strip.
• Make sure that your PoE switch is functioning normally.
If you use a power cord to provide power to the wireless access point, check these
items:
• Make sure that the power cord is connected to the wireless access point.
• Make sure that the power adapter is connected to a functioning power outlet. If it is in a
power strip, make sure that the power strip is turned on. If it is plugged directly into the
wall, verify that it is not a switched outlet.
• Make sure that you are using the correct NETGEAR power adapter that is supplied with
your wireless access point.
The Active LED or the LAN LED Is Not Lit
There is a hardware connection problem.
Check these items:
• Make sure that the cable connectors are securely plugged in at the wireless access point
and the network device—hub, (PoE) switch, or router.
98 | Chapter 6. Troubleshooting
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• Make sure that the connected device is turned on.
• Make sure that the correct cable is used. Use a standard Category 5 Ethernet patch
cable. If the network device has Auto Uplink™ (MDI/MDIX) ports, you can use either a
crossover cable or a normal patch cable.
The WLAN LED Does Not Light Up
The wireless access point’s antenna is not working.
Check these items:
• If the WLAN LED remains off, either disconnect the cable to the PoE switch and then
reconnect it again, or disconnect the adapter from its power source and then plug it in
again.
• Make sure that optional external antennas are tightly connected to the wireless access
point.
Contact NETGEAR technical support if the WLAN LED remains off.
You Cannot Access the Internet or the LAN from a
Wireless-Capable Computer
There is a configuration problem.
Check these items:
• You might not have restarted the computer with the wireless adapter to allow TCP/IP
changes take effect. Restart the computer.
• The computer with the wireless adapter might not have the correct TCP/IP settings to
communicate with the network. Restart the computer and check that TCP/IP is set up
correctly for that network. In Windows, the usual setting for Network Properties is to
obtain an IP address automatically.
• The wireless access point’s default values might not work with your network. Check the
wireless access point’s default configuration against the configuration of other devices in
your network.
• Make sure that the SSID, network authentication, and data encryption settings of the
computer with the wireless adapter are the same as those of the wireless access point.
• Ping the IP address of the wireless access point to verify that there is a wireless
connection between the computer with the wireless adapter and the wireless access
point. If the ping fails, check the network configuration (for the wireless access point, see
Configure IP Settings and Optional DHCP Server Settings on page 20).
• Ping the default gateway to verify that there is a path from the computer with the wireless
adapter to the default gateway. If the ping fails, check the network configuration or call the
Internet Service Provider (ISP).
Chapter 6. Troubleshooting | 99
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
You Cannot Configure the Wireless Access Point from a
Browser
Check these items:
• The wireless access point is correctly installed, it is powered on, and LAN connections
are okay. Check that the Active LED and LAN LED are on to verify that the Ethernet
connection is okay.
• If your computer uses a fixed (static) IP address, ensure that it is using an IP address in
the range of the wireless access point. The wireless access point’s default IP address is
192.168.0.100, and its subnet mask is 255.255.255.0 with DHCP disabled. Make sure
that your network configuration settings are correct.
• If you are using the NetBIOS name of the wireless access point to connect, ensure that
your computer and the wireless access point are on the same network segment or that
there is a WINS server on your network.
• If your computer is set to Obtain an IP address automatically (DHCP client), restart it.
• Make sure that your browser has Java, JavaScript, or ActiveX enabled. If you are using
Internet Explorer, click Refresh to be sure that the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure that you are using the correct login information. The factory default login name
is admin, and the password is password. Make sure that Caps Lock is off when entering
this information.
If the wireless access point does not save changes you have made in the Web
Management Interface, check the following:
• When entering configuration settings, be sure to click the Apply button before moving to
another screen or tab, or your changes are lost.
• Click the Refresh or Reload button in the Web browser. The changes might have
occurred, but the Web browser might be caching the old configuration.
When You Enter a URL or IP Address a Time-Out Error
Occurs
A number of things could be causing this.
Try the following troubleshooting steps:
• Check whether other computers on the LAN work correctly. If they do, ensure that your
computer’s TCP/IP settings are correct. If you use a fixed (static) IP address, check the
subnet mask, default gateway, DNS, and IP addresses of the wireless access point (see
Configure IP Settings and Optional DHCP Server Settings on page 20).
100 | Chapter 6. Troubleshooting
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
• If the computer is configured correctly but still not working, ensure that the wireless
access point is connected and turned on. Access it and check its settings. If you cannot
connect to the wireless access point, check the LAN and power connections.
• If the wireless access point is configured correctly, check your Internet connection (for
example, your cable modem) to make sure that it is working correctly.
Troubleshooting a TCP/IP Network Using the Ping Utility
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request
packet to the designated device. The device then responds with an echo reply. You can easily
troubleshooting a TCP/IP network by using the ping utility in your computer.
Testing the LAN Path to Your Wireless Access Point
You can ping the wireless access point from your computer to verify that the LAN path to your
wireless access point is set up correctly.
To ping the wireless access point from a computer running Windows 95 or later:
1. From the Windows toolbar, click the Start button, and select Run.
2. In the field provided, type ping followed by the IP address of the wireless access point, as in
this example:
ping 192.168.0.229
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections:
- Make sure that the Active LED and LAN LED are on. If one or both of these LEDs
are off, follow the instructions in The Active LED or the LAN LED Is Not Lit on
page 97.
- Check that the corresponding link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and wireless
access point.
• Wrong network configuration:
Chapter 6. Troubleshooting | 101
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
- Verify that the Ethernet card driver software and TCP/IP software are both
installed and configured on your computer.
- Verify that the IP address for your wireless access point and your workstation are
correct and that the addresses are on the same subnet.
Testing the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your computer to a remote
device.
1. From the Windows toolbar, click the Start button, and select Run.
2. In the Windows Run window, type:
Ping -n 10 IP address
where IP address is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section display. If you do not
receive replies:
• Check that your computer has the IP address of your router listed as the default wireless
access point. If the IP configuration of your computer is assigned by DHCP, this
information is not visible in your computer’s Network Control Panel. Verify that the IP
address of the router is listed as the default wireless access point.
• Check to see that the network address of your computer (the portion of the IP address
specified by the netmask) is different from the network address of the remote device.
• Check that your cable or DSL modem is connected and functioning.
• If your ISP assigned a host name to your computer, enter that host name as the account
name in the basis General system settings screen (see Configure Basic General System
Settings and Time Settings on page 18).
Problems with Date and Time
The Time Settings screen that is accessible through the Configuration > System > Basic >
Time menu choices displays the current date and time of day. The wireless access point uses
the Network Time Protocol (NTP) to obtain the current time from a network time servers on
the Internet that you specify in the Time Settings screen (see Configure Basic General
System Settings and Time Settings on page 18). Each entry on the Logs screen is stamped
with the date and time of day. Problems with the date and time function can include:
• Date and time shown is Fri Dec 31 00:00:00 1999 or a similar incorrect date and time.
Cause: The wireless access point has not yet successfully reached the network time
server. Check that your Internet access settings are configured correctly. If you have just
completed configuring the wireless access point, wait at least 5 minutes and check the
date and time again.
• The day is correct or one day ahead or behind, and the hours are ahead or behind.
Cause: You have selected an incorrect time zone for your area. Specify the correct time
102 | Chapter 6. Troubleshooting
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
zone in the basic General system settings screen (see Configure Basic General System
Settings and Time Settings on page 18).
Use the Packet Capture Tool
You can capture wireless packets to analyze traffic patterns with a network traffic analyzer
tool. The captured packet flow can show if traffic is flowing correctly to its destinations or if
packets are dropped. There is a limit to the size of the packet flow that you can capture in a
file.
To capture packets:
1. Select Monitoring > Packet Capture. The Packet Capture screen displays:
Figure 47.
2. Click Start to start capturing wireless packets leaving or entering the wireless access point
on the active operating channel. Packets on the 2.4-GHz interface are captured. Normal
functioning of the wireless access point is not affected during the packet capture process.
If any previously captured packets exist, you are prompted to delete them, and only then
can you capture new packets.
3. Click Stop to stop capturing packets.
4. Click Save as to save the pacture.pcap file on your computer or to a disk drive.
Appendix A. Supplemental Information | 103
A
A. Supplemental Information
This appendix provides related documentation, factory default settings, and technical
specifications for the ProSafe Dual Band Wireless-N Access Point WNDAP360.
• Technical Specifications on page 103
• Factory Default Settings on page 105
Technical Specifications
Table 29. ProSafe Dual Band Wireless-N Access Point WNDAP360 Technical Specifications
Feature Description
802.11b/bg/ng Wireless Specifications
802.11g data rates 1, 2, 5.5, and 11 Mbps (auto-rate capable)
802.11bg data rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps (auto-rate capable)
802.11ng MCS index and
data rates Data rates for a 20 MHz channel width and a short guard interval (400 ms):
Best, 0 / 7.2 Mbps, 1 / 14.4 Mbps, 2 / 21.7 Mbps, 3 / 28.9 Mbps, 4 / 43.3 Mbps,
5 / 57.8 Mbps, 6 / 65 Mbps, 7 / 72.2 Mbps, 8 / 14.44 Mbps, 9 / 28.88 Mbps,
10 / 43.33 Mbps, 11 / 57.77 Mbps, 12 / 86.66 Mbps, 13 / 115.56 Mbps,
14 / 130 Mbps, 15 / 144.44 Mbps
Best, 6.5 Mbps, 13 Mbps, 19.5 Mbps, 26 Mbps, 39 Mbps, 52 Mbps, 58.5 Mbps,
65 Mbps, 13 Mbps, 26 Mbps, 39 Mbps, 52 Mbps, 78 Mbps, 104 Mbps, 117 Mbps,
130 Mbps
Data rates for a 40 MHz channel width and a short guard interval (400 ms):
Best, 0 / 15 Mbps, 1 / 30 Mbps, 2 / 45 Mbps, 3 / 60 Mbps, 4 / 90 Mbps,
5 / 120 Mbps, 6 / 135 Mbps, 7 / 150 Mbps, 8 / 30 Mbps, 9 / 60 Mbps,
10 / 90 Mbps, 11 / 120 Mbps, 12 / 180 Mbps, 13 / 240 Mbps, 14 / 270 Mbps,
15 / 300 Mbps
Best, 13.5 Mbps, 27 Mbps, 40.5 Mbps, 54 Mbps, 81 Mbps, 121.5 Mbps, 135
Mbps, 27 Mbps, 54 Mbps, 81 Mbps, 162 Mbps, 216 Mbps, 243 Mbps, 270 Mbps
104 | Appendix A. Supplemental Information
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
802.11b/bg/ng
operating frequencies • 2.412–2.462 GHz (US)
• 2.457–2.462 GHz (Spain)
• 2.41–2.484 GHz (Japan 11b)
• 2.41–2.472 GHz (Japan 11ng)
• 2.457–2.472 GHz (France)
• 2.412–2.472 GHz (Europe ETSI)
802.11 b/bg/ng
encryption • 64-bit, 128-bit, and 52-bit WEP
• AES
• TKIP
802.11a/na Wireless Specifications
802.11a data rates 6, 9, 12, 18, 24, 36, 48, 54, and 108 Mbps (auto-rate capable)
802.11na data rates Data rates for a 20 MHz channel width and a short guard interval (400 ms):
Best, 7.2 Mbps, 14.4 Mbps, 21.7 Mbps, 28.9 Mbps, 43.3 Mbps, 57.8 Mbps, 65
Mbps, 72.2 Mbps, 14.44 Mbps, 28.88 Mbps, 43.33 Mbps, 57.77 Mbps, 86.66
Mbps, 115.56 Mbps, 130 Mbps, 144.44 Mbps
Data rates for a 20 MHz channel width and a long guard interval (800 ms):
Best, 6.5 Mbps, 13 Mbps, 19.5 Mbps, 26 Mbps, 39 Mbps, 52 Mbps, 58.5 Mbps,
65 Mbps, 13 Mbps, 26 Mbps, 39 Mbps, 52 Mbps, 78 Mbps, 104 Mbps, 117 Mbps,
130 Mbps
Data rates for a 40 MHz channel width and a short guard interval (400 ms):
Best, 15 Mbps, 30 Mbps, 45 Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 135 Mbps,
150 Mbps, 30 Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 180 Mbps, 240 Mbps, 270
Mbps, 300 Mbps
Data rates for a 40 MHz channel width and a long guard interval (800 ms):
Best, 13.5 Mbps, 27 Mbps, 40.5 Mbps, 54 Mbps, 81 Mbps, 121.5 Mbps, 135
Mbps, 27 Mbps, 54 Mbps, 81 Mbps, 162 Mbps, 216 Mbps, 243 Mbps, 270 Mbps
802.11a/na
Operating Frequencies 5150–5250 MHz (FCC operating frequencies)
5725–5825 MHz (FCC operating frequencies)
5150–5250 MHz (CE [EU] operating frequencies)
5250–5350 Mz (CE [EU] operating frequencies)
5470–5725 MHz (CE [EU] operating frequencies)
802.11 a/na encryption • 64-bit, 128-bit, and 52-bit WEP
• AES
• TKIP
Management and Other Specifications
Network management • Remote configuration and management through Web Management Interface,
SNMP, or Telnet with command-line interface (CLI)
• SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary
configuration MIB
Table 29. ProSafe Dual Band Wireless-N Access Point WNDAP360 Technical Specifications
Feature Description
Appendix A. Supplemental Information | 105
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Factory Default Settings
You can use the Reset button located on the rear of the wireless access point to reset all
settings to their factory defaults. This is called a hard reset.
To perform a hard reset, use a sharp object to push and hold the Reset button for
approximately 5 seconds (until the Test LED blinks rapidly). This returns the wireless access
point to the factory configuration settings that are shown in the following table.
Note: Pressing the Reset button for a shorter period of time simply causes
the wireless access point to reboot.
Maximum clients Limited by the amount of wireless network traffic generated by each node;
maximum 64 supported
Status LEDs • Power/Test LED
• Link speed LED
• Ethernet LAN
• Wireless LAN
Electrical and Physical Specifications
Power adapter 12 VDC, 1A; plug is localized to country of sale
Physical specifications • Dimensions (h x w x d): 253.75 x 253.75 x 54.76 mm (10.0 x 10.0 x 2.16 in)
• Weight: 0.886 kg (1.95 lb)
Environmental
specifications Operating temperature: 0 to 55° C (32 to 131° F)
Operating humidity: 10–9%, noncondensing
Compliance
Note: For more information about compliance, see Appendix C, Notification of Compliance.
Electromagnetic
compliance FCC Part 15 Class B and Class E, CE, and C-TICK
Table 29. ProSafe Dual Band Wireless-N Access Point WNDAP360 Technical Specifications
Feature Description
106 | Appendix A. Supplemental Information
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Table 30. ProSafe Dual Band Wireless-N Access Point WNDAP360 Default Configuration
Settings
Feature Description
Login
User login URL 192.168.0.100
User name (case-sensitive) admin
Login password (case-sensitive) password
Ethernet Connection
Static IP address 192.168.0.210
Ethernet MAC address See bottom label.
Port speed 10/100/1000
Local Network (LAN)
LAN IP address 192.168.0.100
Subnet mask 255.255.255.0
Gateway address 0.0.0.0
DHCP server Disabled
DHCP client Disabled
Time zone USA-Pacific
SNMP Disabled
Spanning Tree Protocol Disabled
Secure Shell (SSH) Enabled
Secure Telnet Disabled
Appendix A. Supplemental Information | 107
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Wireless Local Network (WLAN)
Operating mode Access point, infrastructure mode
Wireless access point name netgearxxxxxx where xxxxxx is the last 6 digits of the
wireless access point MAC address.
Wireless communication Enabled
11 b/g/n wireless network name (SSID) NETGEAR_11ng
Broadcast network name SSID Enabled
Security Disabled (open system)
Transmission speed Besta
Country and region Varies by region
802.11ng radio frequency channel Auto
Output power Full
Wireless card access list All wireless stations allowed
WMM support Enabled
a. Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data
throughput rate.
Table 30. ProSafe Dual Band Wireless-N Access Point WNDAP360 Default Configuration
Settings (Continued)
Feature Description
Appendix B. Command-Line Reference | 108
B
B. Command-Line Reference
The ProSafe Dual Band Wireless-N Access Point WNDAP360 can be configured through either
the command-line interface (CLI), a Web browser, or a MIB browser.
The CLI allows viewing and modification of the configuration from a terminal or computer through
a Telnet connection.
Keyword Description
-------------------------------------- ----------------------
|-backup-configuration --backup configuration
|-config> --configuration setting
| |-apname --access point name
| |-country --country/region
| |-dhcp> --DHCP server
| | |-dns-server --DNS server
| | |-gateway --default gateway
| | |-ip-address --IP range
| | |-lease-time --lease time
| | |-status --status
| | |-subnet-mask --subnet mask
| | |-wins-server --WINS server
| |
| |-http-redirect --enable HTTP redirection
| |-http-redirect-url --HTTP redirection URL
| |-interface> --select wireless lan interface
| | |-wlan> --wireless LAN interface setting
| | | |-2.4GHz> --2.4 GHz wireless LAN interface setting
| | | | |-aggregation-length --aggregated packet size
| | | | |-ampdu --aggregated MAC Protocol Data Unit
| | | | |-beacon-interval --wireless beacon period in TU(1024 us)
| | | | |-channel --wireless channel (depends on country and wireless mode)
| | | | |-channelwidth --wireless channel width
| | | | |-dtim-interval --wireless DTIM period in beacon interval
| | | | |-extension-protection-spacing --wireless extension protection spacing
| | | | |-fragmentation-length --wireless fragmentation threshold(even only)
| | | | |-guardinterval --interval (from interference from other transmissions)
| | | | |-knownap-add --add known access point
| | | | |-knownap-del --delete known access point
Appendix B. Command-Line Reference | 109
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | |-macacl-add --add wireless access control (ACL)
| | | | |-macacl-database --delete wireless access control (ACL) database
| | | | |-macacl-del --delete wireless access control (ACL)
| | | | |-mcsrate --transmit data rate
| | | | |-mode --enable wireless access control (ACL)
| | | | |-operation-mode --wireless operation mode
| | | | |-power --wireless transmit power
| | | | |-preamble --wireless preamble (only effect on 802.11b rates)
| | | | |-radio --enable wireless radio
| | | | |-rate --wireless transmission date rate
| | | | |-rifs-transmission --enable successive frame transmission at different
| | | | | transmit powers
| | | | |-rogue-ap-detection --enable rogue access point detection
| | | | |-rts-threshold --wireless RTS/CTS threshold
| | | | |-security-profile> --create security profile
| | | | | |-1> --1st security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-2> --2nd security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
110 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-3> --3rd security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-4> --4th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-5> --5th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
Appendix B. Command-Line Reference | 111
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-6> --6th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-7> --7th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
112 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | |
| | | | | |-8> --8th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | |
| | | | |-wireless-bridge> --wireless bridge setting
| | | | | |-security-profile> --create security profile
| | | | | | |-1> --1st security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | | |-2> --2nd security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | | |-3> --3rd security profile
| | | | | | | |-authentication --authentication type
Appendix B. Command-Line Reference | 113
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | | |-4> --4th security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | |
| | | | |
| | | | |-wmm> --wmm settings
| | | | | |-ap-data0-best-effort --access point best effort voice data
| | | | | |-ap-data1-background --access point low-priority data
| | | | | |-ap-data2-video --access point video data
| | | | | |-ap-data3-voice --access point voice data
| | | | | |-station-data0-best-effort --station best effort voice data
| | | | | |-station-data1-background --station low-priority data
| | | | | |-station-data2-video --station video data
| | | | | |-station-data3-voice --station voice data
| | | | | |-support --support
| | | | |
| | | |
| | | |-5> --5 GHz wireless LAN interface setting
| | | | |-aggregation-length --aggregated packet size
| | | | |-ampdu --aggregated MAC Protocol Data Unit
| | | | |-beacon-interval --wireless beacon period in TU(1024 us)
| | | | |-channel --wireless channel (depends on country and wireless mode)
| | | | |-channelwidth --wireless channel width
| | | | |-dtim-interval --wireless DTIM period in beacon interval
| | | | |-extension-protection-spacing --wireless extension protection spacing
| | | | |-fragmentation-length --wireless fragmentation threshold(even only)
| | | | |-guardinterval --interval (from interference from other transmissions)
| | | | |-knownap-add --add known access point
| | | | |-knownap-del --delete known access point
| | | | |-macacl> --modify wireless access control (ACL)
114 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | |-add --add wireless access control (ACL)
| | | | | |-del --delete wireless access control (ACL)
| | | | |
| | | | |-macacl-add --add wireless access control (ACL)
| | | | |-macacl-database --delete wireless access control (ACL) database
| | | | |-macacl-del --delete wireless access control (ACL)
| | | | |-mcsrate --transmit data rate
| | | | |-mode --enable wireless access control (ACL)
| | | | |-operation-mode --wireless operation mode
| | | | |-power --wireless transmit power
| | | | |-radio --enable wireless radio
| | | | |-rate --wireless transmission date rate
| | | | |-rifs-transmission --enable successive frame transmission at different
| | | | | transmit powers
| | | | |-rogue-ap-detection --enable rogue access point detection
| | | | |-rts-threshold --wireless RTS/CTS threshold
| | | | |-security-profile> --create security profile
| | | | | |-1> --1st security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-2> --2nd security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
Appendix B. Command-Line Reference | 115
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-3> --3rd security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-4> --4th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-5> --5th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
116 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-6> --6th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-7> --7th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
Appendix B. Command-Line Reference | 117
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | | |-8> --8th security profile
| | | | | | |-authentication --authentication type
| | | | | | |-encryption --data encryption
| | | | | | |-hide-network-name --hide network name
| | | | | | |-key1 --wireless wep key 1
| | | | | | |-key2 --wireless wep key 2
| | | | | | |-key3 --wireless wep key 3
| | | | | | |-key4 --wireless wep key 4
| | | | | | |-keyno --key number
| | | | | | |-name --profile name
| | | | | | |-presharedkey --pre-shared key
| | | | | | |-security-separation --disable associated wireless client communication
| | | | | | |-ssid --network name (1-32 chars)
| | | | | | |-status --profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | |-wepkeytype --wireless wep key type
| | | | | |
| | | | |
| | | | |-wireless-bridge> --wireless bridge setting
| | | | | |-security-profile> --create security profile
| | | | | | |-1> --1st security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | | |-2> --2nd security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
118 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | | | | | |-3> --3rd security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | | |-4> --4th security profile
| | | | | | | |-authentication --authentication type
| | | | | | | |-encryption --data encryption
| | | | | | | |-name --profile name
| | | | | | | |-presharedkey --preshared key
| | | | | | | |-remote-mac --remote MAC
| | | | | | | |-status --profile status
| | | | | | | |-wep-pass-phrase --wireless wep passphrase key
| | | | | | | |-wepkey --wireless wep key
| | | | | | | |-wepkeytype --wireless wep key type
| | | | | | |
| | | | | |
| | | | |
| | | | |-wmm> --wmm settings
| | | | | |-ap-data0-best-effort --access point best effort voice data
| | | | | |-ap-data1-background --access point low-priority data
| | | | | |-ap-data2-video --access point video data
| | | | | |-ap-data3-voice --access point voice data
| | | | | |-station-data0-best-effort --station best effort voice data
| | | | | |-station-data1-background --station low-priority data
| | | | | |-station-data2-video --station video data
| | | | | |-station-data3-voice --station voice data
| | | | | |-support --???
| | | | |
| | | |
| | |
| |
| |-ip> --set host IP
| | |-address --host IP address
| | |-default-gateway --IP address of default gateway
| | |-dhcp-client --enable dhcp client
| | |-dns-server --IP address of DNS server
| |
| |-log> --syslog setting
| | |-syslog --enable syslog client
Appendix B. Command-Line Reference | 119
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
| | |-syslog-server-ip --syslog server IP address
| | |-syslog-server-port --syslog server port number
| |
| |-radius>
| | |-accounting-server-primary --primary accounting server
| | |-accounting-server-primary-port --primary accounting server port
| | |-accounting-server-primary-sharedsecret --primary accounting server shared secret
| | |-accounting-server-secondary --secondary accounting server
| | |-accounting-server-secondary-port --secondary accounting server port
| | |-accounting-server-secondary-sharedsecret --secondary accounting server shared secret
| | |-authentication-server-primary --primary authentication server
| | |-authentication-server-primary-port --primary system accounting server shared
| | | secret
| | |-authentication-server-primary-sharedsecret --primary authentication server shared secret
| | |-authentication-server-secondary --secondary authentication server
| | |-authentication-server-secondary-port --secondary authentication server port
| | |-authentication-server-secondary-sharedsecret --secondary authentication server shared
| | | secret
| |
| |-remote> --enable remote access via SSH
| | |-ssh-port --SSH port
| | |-sshd --SSH daemon
| | |-telnet --enable remote access via Telnet
| |
| |-snmp> --SNMP setting
| | |-description --SNMP system description
| | |-read-community --SNMP ReadCommunity
| | |-snmp-status --SNMP status
| | |-trap-community --SNMP ReadCommunity
| | |-trap-server --SNMP TrapServer IP address
| | |-write-community --SNMP WriteCommunity
| |
| |-spanning-tree --enable spanning tree protocol
| |-time> --time Setting
| | |-custom-ntp-server --custom NTP server host name
| | |-daylightsaving --daylight saving
| | |-ntp-client --NTP client host name
| | |-ntp-server --NTP server host name
| | |-time-zone --time zone
| |
| |-vlan> --vlan settings
| | |-management-vlan --vlan management id
| | |-untagged-vlan --untagged vlan id
| | |-untagged-vlan-status --untagged vlan status
| |
|
|-exit --logout from CLI
120 | Appendix B. Command-Line Reference
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
|-file --
|-firmware-upgrade --upload new system firmware file
|-password --system password
|-restore-configuration --restore system configuration
|-restore-default-password --restore default system password
|-show> --show system settings
| |-configuration --show system configuration
| |-interface> --show wireless lan interface
| | |-eth> --ethernet interface
| | | |-statistics --show ethernet statistics
| | |
| | |-wlan> --wlan interface settings
| | | |-2.4GHz> --2.4GHz wlan interface settings
| | | | |-configuration --interface configuration
| | | | |-knownaplist --known access point list
| | | | |-stationlist --station list
| | | | |-statistics --interface statistics
| | | | |-trusted-stationlist --trusted station list
| | | | |-unknownaplist --unknown access point list
| | | |
| | | |-5GHz> --5GHz wlan interface settings
| | | | |-configuration --interface configuration
| | | | |-knownaplist --known access point list
| | | | |-stationlist --station list
| | | | |-statistics --interface statistics
| | | | |-trusted-stationlist --trusted station list
| | | | |-unknownaplist --unknown access point list
| | | |
| | |
| |
| |-log --system log
| |-system --system setting
Appendix C. Notification of Compliance | 121
C
C. Notification of Compliance
NETGEAR Dual Band - Wireless
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may
result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.
Note: This product's firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe - EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328 (2.4 Ghz), EN301 489-17, EN301 893 (5 Ghz), EN60950-1
For complete DoC please visit the NETGEAR EU Declarations of Conformity website at:
http://support.netgear.com/app/answers/detail/a_id/11621/
EDOC in Languages of the European Community
Language Statement
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk [Danish] Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder
de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
122 | Appendix C. Notification of Compliance
Español
[Spanish]
Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ
ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1999/5/ΕΚ.
Français
[French]
Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet essenzjali
u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
NETGEAR Inc. týmto vyhlasuje, že Radiolan spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
Appendix C. Notification of Compliance | 123
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to
use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only.
Any product changes or modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure (Radiation Exposure Statement)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
FCC Declaration of Conformity
We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the
ProSafe Dual Band Wireless-N Access Point WNDAP360 complies with Part 15 Subpart B of FCC CFR47 Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
• This device is for operation within the 5.150 ~ 5.250 GHz frequency range, and it is restricted to an indoor
environment.
Íslenska
[Icelandic]
Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 1999/5/EF.
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
124 | Appendix C. Notification of Compliance
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
• For products available in the USA market, only channel 1 ~ 11 can be operated. Selection of other channels is
not possible.
Industry Canada
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been designed to operate with an antenna having a maximum gain of 6.29dB. Antenna having a
higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
Caution
The device for operation in the band 5150 - 5250 MHz is only for indoor usage to reduce the potential for harmful
interference to co-channel mobile satellite systems.
High power radars are allocated as primary users (that is, priority users) of the bands 5250 - 5350 MHz and
5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
Industrie Canada
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dB 6.29. Une antenne à gain
plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de
50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement
d'une communication satisfaisante.
NOTE IMPORTANTE: Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Avertissement
Les dispositifs fonctionnant dans la bande 5150 - 5250 MHz sont réservés uniquement pour une utilisation à
l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5250 - 5350 MHz et 5650 - 5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Index | 125
Index
Numerics
11b, 11bg, 11ng (wireless modes) 24, 26
2.4 GHz/5 GHz concurrent 8
2.4-GHz antenna, connector for 12
802.11d support 80
802.1Q VLAN 8
A
access control, wireless stations 44
access point EDCA parameters 82
access, restricting by MAC address 51
accounting, RADIUS servers 49, 50
Active LED
behavior 17
description 11
troubleshooting 97
ActiveX 99
activity log 71
admin password
changing or restoring 65
default 106
Advanced Encryption Standard (AES) 37, 47, 49
Aggregated MAC Protocol Data Unit (A-MPDU)
frames 80
aggregation length 80
antenna
enabling internal or external 80
external orientation 15
Arbitration Inter-Frame Spacing (AIFS) interval 82
associated identifier (AID) 70
associations, clients 73
Australia, channels/frequency 25, 26
authentication
network 37
RADIUS servers 49, 50
autosensing over Ethernet 9
B
background traffic
advanced QoS 81
WMM QoS 53
backing up 61
basic service set (BSS) 38
basic service set identifier (BSSID)
combining with VLANs 36
number supported 37
beacon interval 79
beacons, unknown access points 75
best effort traffic
advanced QoS 81
WMM QoS 53
bridging, wireless 83
broadcast packets, transmitted and received 73
broadcasting, wireless network name (SSID) 24, 26,
36, 41
browsers, recommended 17
BSS (basic service set) 38
BSSID (basic service set identifier)
combining with VLANs 36
number supported 37
bytes, received and transmitted
over Ethernet connection 72
over wireless connection 71
C
Canada, channels/frequency 25, 26
capturing packets 102
Carrier Sense Multiple Access with Collision
Avoidance (CSMA/CA) 79
Carrier Sense Multiple Access with Collision Detection
(CSMA/CD) 79
Category 5 Ethernet cable 7
channel bonding 25, 27
channel width and offset (11ng only) 25, 27
channels
defaults 25, 26
wireless spacing 15
Clear to Send (CTS) packets 79
CLI command sets 108
client mode, bridging
configuring 94
description 84
clients
126 | Index
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
associations 73
DHCP 21
isolation 80
maximum number 80
NTP 20
wireless separation 38, 43
compliance 121
electromagnetic 105
concurrent dual band, use 8
configuration file, backing up or restoring 61
connectors and ports, rear panel 12
console port 12
cwMax (Maximum Contention Window) value 82
cwMin (Minimum Contention Window) value 82
D
data encryption
key generation, WEP 46
key size, WEP 45
WPA and WPA2 49
data rate (11b and 11bg only) 25, 27
data rates 103
date, troubleshooting 101
defaults
channels 25, 26
DHCP gateway 23
factory settings 105
factory, restoring to 63
frequency 25, 26
IP address 17
ISP gateway 21
login password 106
password 17
SNMP 56
subnet mask 21, 106
user name 17, 106
Delivery Traffic Indication Message (DTIM) interval 80
DHCP
clients 21
servers 23
DNS servers
DHCP 23
ISP 21
dual band concurrent, use 8
dynamic and static VLANs 43
E
electromagnetic compliance 105
encryption
key generation, WEP 46
key size, WEP 45
WPA and WPA2 49
Enhanced Distributed Channel Access (EDCA)
parameters 81
environmental specifications 105
Ethernet cabling requirements 15
Europe, channels/frequency 25, 26
Extended Service Set (ESS) 38
external antenna, enabling 80
F
factory default settings 105
firmware
backing up 61
factory defaults 63
restoring 62
upgrade 59
version 68
flash memory 58
fragmentation length 79
frequency, defaults 25, 26
FTP traffic
advanced QoS 81
WMM QoS 53
G
gateways
default (ISP) 21
DHCP 23
generating keys, WEP 45
Gigabit Ethernet (RJ-45) port 12
graphical user interface (GUI)
description 18
troubleshooting 99
guard interval (11ng only) 25, 27
H
half-duplex mode 94
hotspot, server 78
HTTP redirect, enabling 78
I
idle time 71
importing, file with known access points 74
infrastructure mode 28
installation kits 29
installation order 16
interference
channels 15
Index | 127
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
sources of 15
internal antenna, disabling 80
Internet browsing, troubleshooting 98
IP addresses
default 17, 21
DHCP DNS servers 23
DHCP ranges 23
DHCP WINS servers 23
ISP DNS servers 21
LAN 106
NTP servers 20
RADIUS servers 50
SNMP manager 56
static 106
syslog server 66
TFTP server 61
isolation, clients 80
J
Java and Javascript 99
K
key update, RADIUS servers 51
keys, generation, WEP 46
L
LANconfiguration requirements 15
IP address 106
troubleshooting 98
LAN LED
behavior 17
description 12
troubleshooting 97
LAN path, troubleshooting 100
lease, DHCP 23
LEDs
behavior 17
description 11
startup procedure 97
troubleshooting 97
legacy 802.1X (wireless security) 42, 46
local MAC addresses 51
location, country and region 19
log, activities 71
logging in 17
login URL, name, and password 106
losing, wireless connection 52
M
MAC addresses
Ethernet port 68
known access points 75
restricting access by 36, 51
unknown access points 74
wireless access point 19
wireless card 68
management VLAN 77
management, options 55
maximum burst value 82
Maximum Contention Window (cwMax) value 82
maximum number of clients 80
MCS, index and data rate (11ng only) 25, 27
Minimum Contention Window (cwMin) value 82
mixed mode. See WPA and WPA2 mixed mode.
Modulation and Coding Scheme (MCS) 25, 27
mounting plate
ceiling 29
wall 31
multicast packets, transmitted and received 73
N
name, wireless access point 19
names, profiles 41
NetBIOS name 19
network
authentication 37
configuration, troubleshooting 100
integrity check 21
Network Time Protocol (NTP), client and server 20
O
open system 42
operating frequencies 104
order of installation and configuration 16
output power, transmission 25, 27
P
package contents 7
packets
capturing 102
Ethernet, received and transmitted 72
wireless, received and transmitted 73
passphrase
WEP 45
WPA, WPA2, and mixed mode 49
password
changing or restoring 65
default 17
login 106
128 | Index
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
physical connections 100
physical specifications 105
pinging, wireless access point 98, 100
placement, wireless equipment 14
point-to-multipoint bridge
configuring 87
description 83
point-to-point bridge
configuring 84
description 83
policy, access control 44
port and connectors, rear panel 12
ports
RADIUS servers 50
SNMP manager, traps 56
syslog server 66
power adapter 105
Power over Ethernet (PoE) 9, 17
Power/Test LED
behavior 17
description 11
troubleshooting 97
powersaving, WMM 54
preamble type 80
pre-shared key (PSK). See WPA, see WPA2, and see
WPA and WPA2 mixed mode.
priority queues
advanced QoS 81
WMM QoS 53
profile settings 41
profiles, security
creating and configuring 40
description 37
protection spacing (11ng only) 25, 27
Q
QoS (quality of service)
advanced 81
WMM 53
R
radio
scheduling 52
turning off 24, 26
RADIUS servers, configuring 49
range guidelines, wireless equipment 14
read-only name, read-write name, SNMP 56
rear panel 12
reauthentication time, RADIUS servers 51
rebooting, from Web Management Interface 64
received signal strength indicator (RSSI) 71
redirecting, HTTP requests 78
Reduced Interframe Space (RIFS) transmission 80
remote devices, troubleshooting 101
remote MAC addresses 51
remote management, options 55
repeater mode, bridging
configuring 91
description 83
Request to Send (RTS) threshold 79
Reset button 12, 64, 105
restoring
factory defaults 63
password 66
settings 62
restricting access, by MAC address 36
RIFS (Reduced Interframe Space) transmission 80
roaming 38
rogue access points, detection of 73
RSSI (received signal strength indicator) 71
RTS (Request to Send) threshold 79
Rx sequence 71
S
scheduling, wireless radio 52
Secure Shell (SSH), enabling 57
security lock 13
security profiles
creating and configuring 40
description 37
security, wireless options 35
separation, wireless clients 38, 43
servers
DHCP 23
DNS 21
hotspot 78
NTP 20
RADIUS 49
syslog 66
service set identifiers. See SSIDs.
shared key 42, 45
shared secrets, RADIUS servers 50
show configuration, CLI command 58
signal-to-noise ratio (SNR) 71
SMA connectors 12
SNMP
defaults 56
manager, IP address 56
software
backing up 61
Index | 129
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
factory defaults 63
restoring 62
upgrading 59
version 68
Spanning Tree Protocol (STP), enabling 77
specifications
environmental 105
physical 105
SSH (Secure Shell), enabling 57
SSIDs
broadcasting 24, 26, 36
changing 24, 26, 41
matching 28
static and dynamic VLANs 43
station EDCA parameters 82
statistics, traffic 72
STP (Spanning Tree Protocol), enabling 77
streaming media
advanced QoS 81
WMM QoS 53
subnet mask
default 106
DHCP clients 23
wireless access point 21
supported standards 8
syslog 66
system requirements 7
T
tagged VLAN 77
TCP/IP network, troubleshooting 100
technical specifications 103
technical support 2
Telnet, enabling 57
Temporal Key Integrity Protocol (TKIP) 37
TFTP server, upgrade procedure 60
time and time zone
configuring 20
troubleshooting 101
time-out error 99
TKIP (Temporal Key Integrity Protocol) 37, 47, 49
TKIP + AES (WPA & WPA2 mixed mode) 47
top panel 11
trademarks 2
traffic
advanced QoS 81
patterns, analyzing 102
statistics 72
WMM QoS 53
Transmission Opportunity (TXOP) limit 83
transmission output power 25, 27
trap community name 56
traps, SNMP 56
troubleshooting 100
basic functioning 97
browser configuration 99
capturing packets 102
date 101
Internet and LAN connection 98
LAN path 100
LEDs 97
network configuration 100
path to remote device 101
physical connections 100
pinging 98, 100
PoE connection 97
power cord 97
TCP/IP settings 98
time and time zone 101
time-out error 99
trusted, wireless stations 52
Tx sequence 71
TXOP (Transmission Opportunity) limit 83
U
unicast packets
encryption methods 47
transmitted and received 73
Unites States, channels/frequency 25, 26
untagged VLAN 76
upgrading, software 59
URLs, redirecting 78
user name, default 17, 106
V
version, software 68
video traffic
advanced QoS 81
WMM QoS 53
VLANs
dynamic and static 43
identifiers (IDs) 38, 43
tagged, untagged, and management, enabling 76
VoIP traffic
advanced QoS 81
WMM QoS 53
W
web browsers, recommended 17
Web Management Interface
description 18
troubleshooting 99
130 | Index
ProSafe Dual Band Wireless-N Access Point WNDAP360 Reference Manual
WEP
configuring with a shared key 42, 45
configuring with RADIUS 42, 46
data encryption, key size 45
legacy 802.1X 46
open system 44
passphrase 45
types of encryption 36
Wi-Fi Multimedia (WMM) 10, 53, 54
Wi-Fi protected access. See WPA and see WPA2.
WINS servers 23
wired equivalent privacy. See WEP.
wireless adapters, 802.11b/g and 802.11n 15
wireless bridging 83
wireless clients, separation 38, 43
wireless connection, losing 52
wireless equipment, placement and range 14
wireless modes 24, 26
wireless network name (SSID)
broadcasting 24, 26
changing 24, 26, 41
wireless security
options 35
settings 42
wireless stations
access control 44
trusted 52
WLAN LED
behavior 17
description 12
troubleshooting 98
WMM (Wi-Fi Multimedia) 10, 53, 54
WPA
adapter restrictions 42
configuring with PSK 42, 48
configuring with RADIUS 42, 46
encryption 49
passphrase 48, 49
TKIP 47, 49
types of encryption 37
WPA and WPA2 mixed mode
adapter restrictions 42
configuring with PSK 43, 48
configuring with RADIUS 42, 47
encryption 49
passphrase 48, 49
TKIP + AES 47, 49
types of encryption 37
WPA2
adapter restrictions 42
AES 47, 49
configuring with PSK 43, 48
configuring with RADIUS 42, 47
encryption 49
passphrase 48, 49
types of encryption 37
