User Manual-1
1
Product Installation Guide
For
802.11ac PCI Express Card
Model Number : 11AC-AR9880
Revision: 1.0
2
Installing the Wireless PCIe Card module

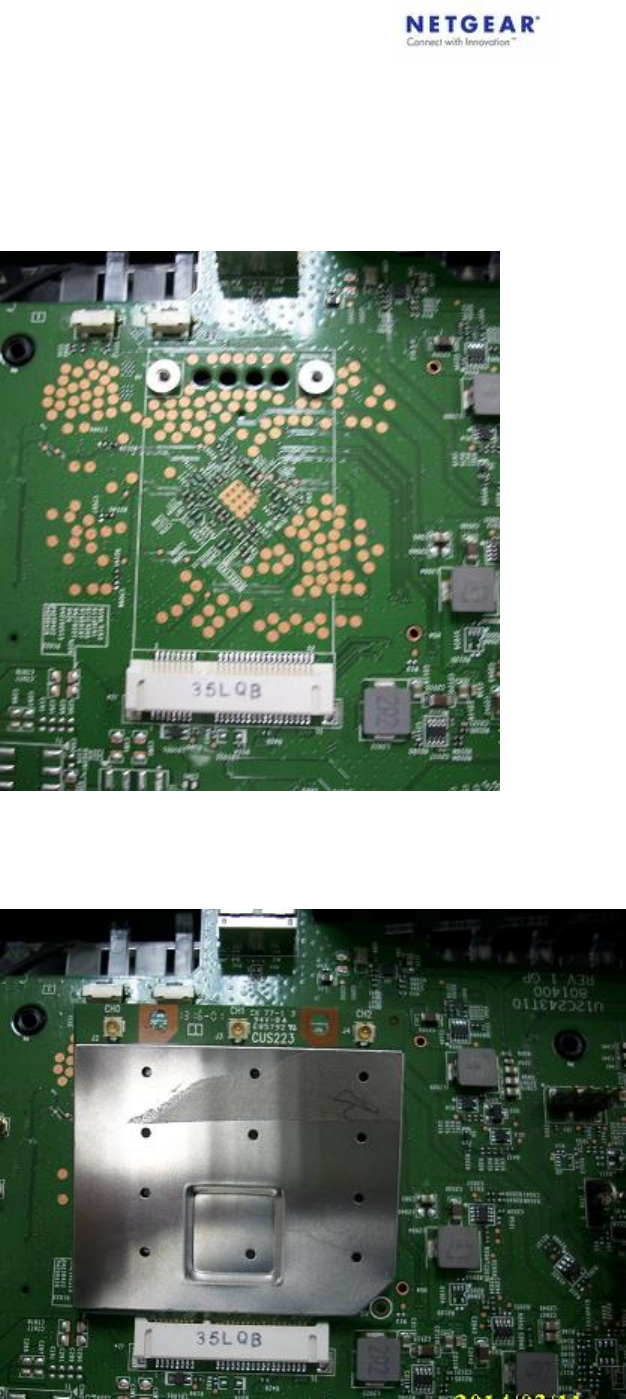

Step-1: Make sure Cable Modem at power off-mode and find the correct position with PCIe connector.
Step-1: Installing PCIe Card module to Cable Modem PCIe Card connector
3

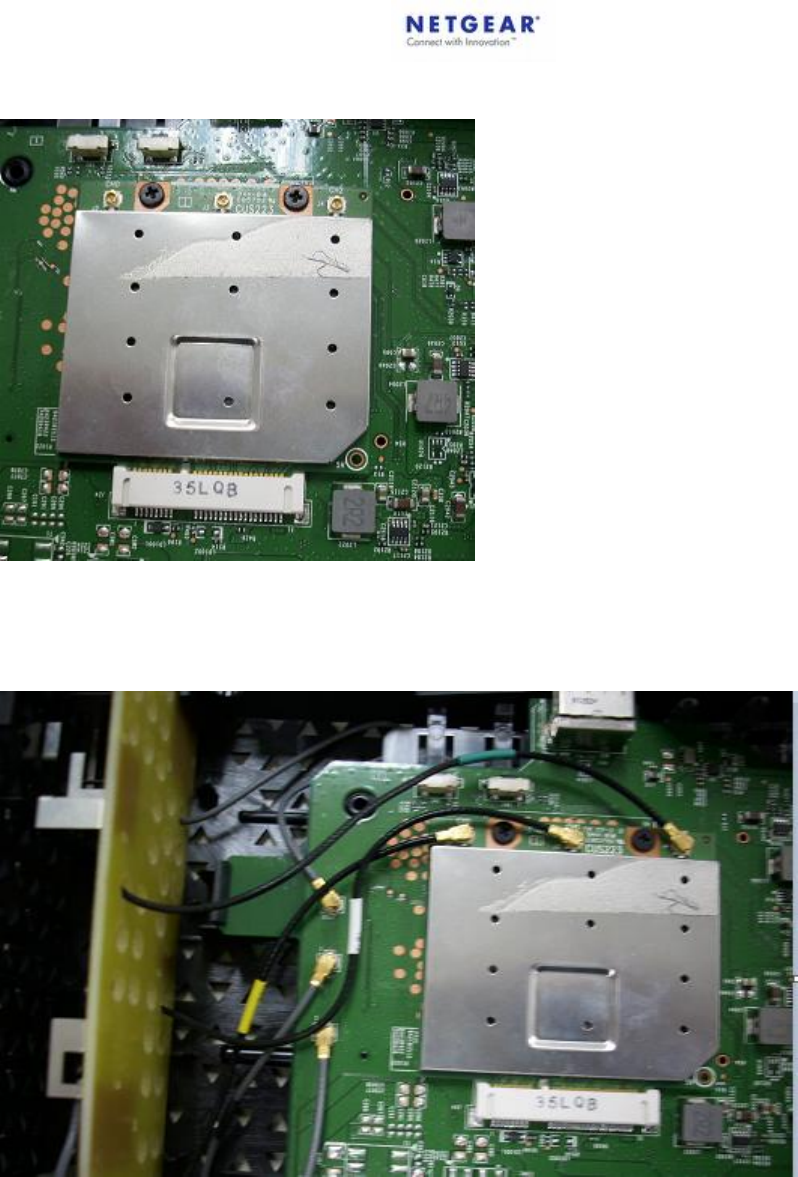

Step-3: Lock Screw
Step-4: Connect three external Wi-Fi antennas on I-PEX connectors.
step4. Power on the Cable Modem.
4
Installing the Wireless PCIe miniCard module
Software
When you have completed the hardware installation, please turn on Cable Modem then
software will be automatically detect PCIe wifi module and turn on device.
