Netvue Technologies NI-3221 Orb Cam User Manual

Netvue Technologies Co., Ltd. Orb Cam Users Manual

Users manual

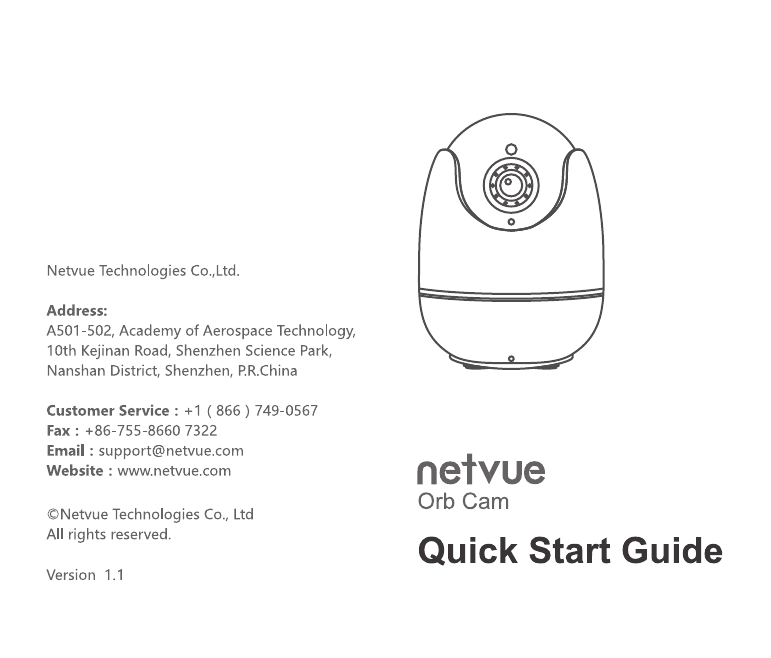

Quick Start Guide
Orb Cam X1
Screw Accessories *1
Mounting Bracket *1 Location *1
Power Adapter *1
Bottom
Power input
TF card
Reset
Support hole
More About Orb Cam
Light Sensor
Night Vision Lights
Lens
Indicator Light
Speaker
Microphone
Side
Packing List
Scan Qr code to download
netvue app
A.Flash slowly:Connecting server.
B.Solid green:Connected server
C.Flash rapidly:WiFi configuration mode
LED Indicator Status
Green
Download Netvue App Power On Device

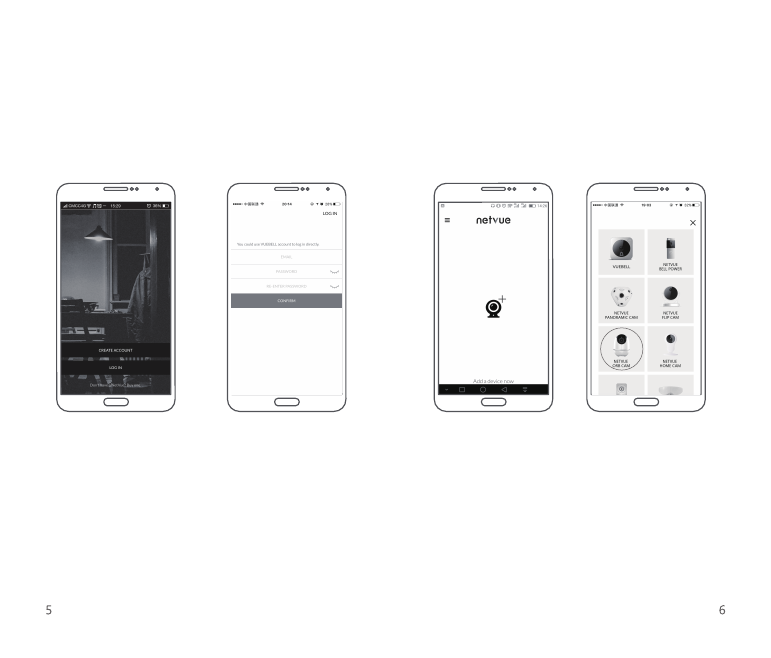

1.Open the APP,register an account and log in. 2.After logging inclick“+”signand choose
Netvue Orb Cam.
Open the app Register account Add device Choose Netvue Ord Cam
Add Device

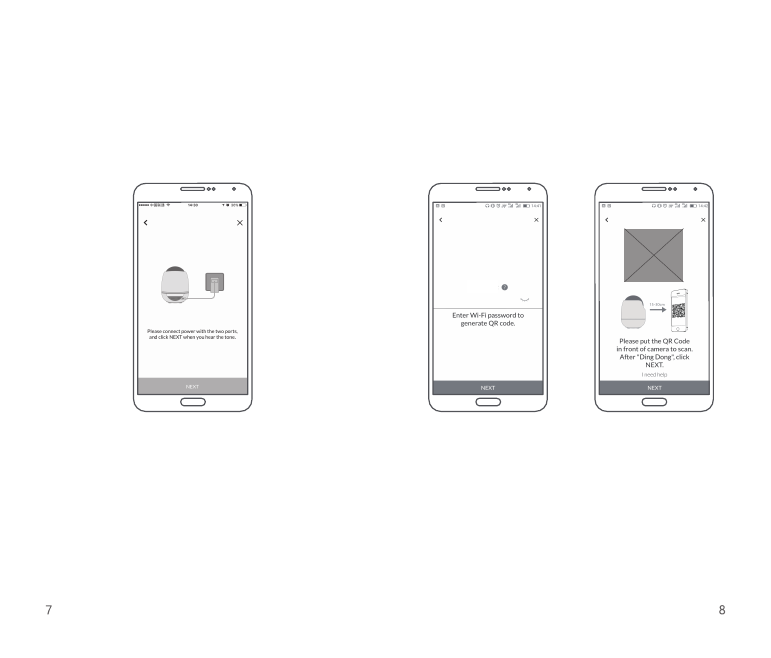

3.Configure WiFi step by step.
Connect power Enter password Scan Qr code

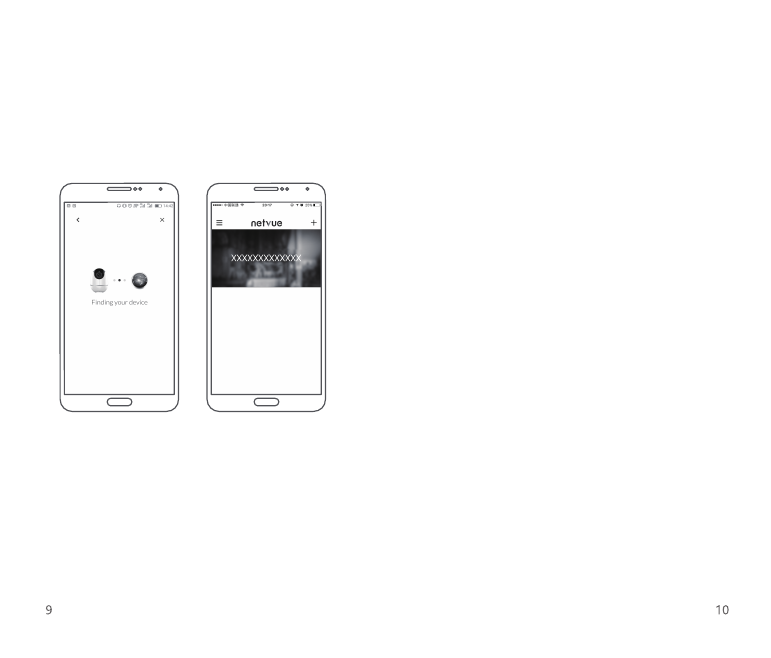

4.Device added successfully.Return to app
home pageyour device should appear in
the list of device.
Device added Device list
1. Use a valid email address to register your
account.
2. Keep the device in a 2.4G WiFi environ
ment with good signal.
3. After connecting to power, the device will
make a “Di” sound for 3 seconds.
Afterwards press the reset button, the
indicator light will then flash rapidly.
4. Strong lights may interfere with the ability
for the device to read the QR code.
5. After connecting to the router, the device
will make a “ding dong” sound effect. After
connecting to the server successfully, it will
play a cheerful chime; if it fails, it will play a
sad sound effect.
6. If the server fails to connect, you may
scan the device ID to connect the device.
Notes

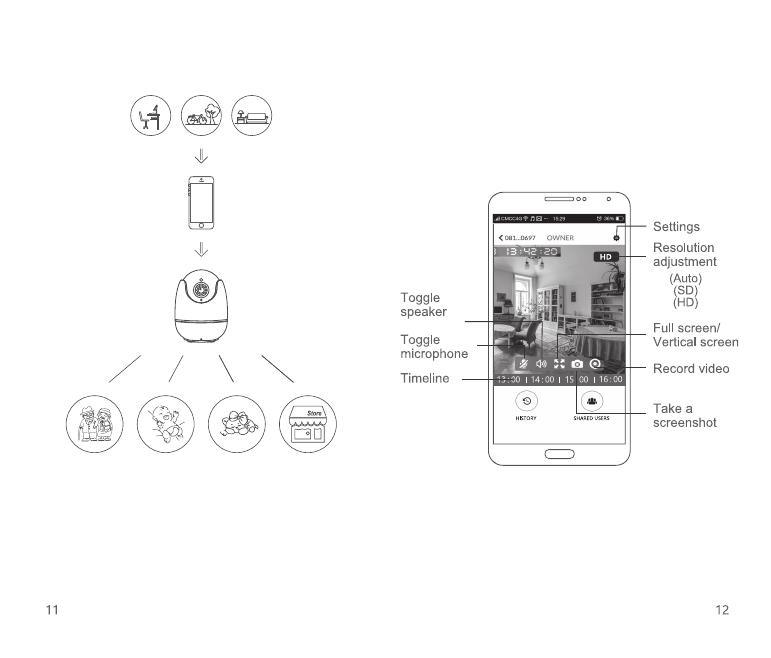

App Features
Congratulations You have completed install-
tion of your camerayou can watch your home
anywhere and anytime
Caution
1. The device should be kept in open areas and
be away from metal. Avoid placing behind furni-
ture or near microwaves. Keep away from
areas with lots of cables if possible. Try to keep
your device within range of your Wi-Fi signal.
2. If you want to move the device to a new Wi-Fi
environment, reconfigure the Wi-Fi settings by
following the instruction on the app.
Warning
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device may
not cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
Any changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this equipment does cause harmful
interference to radio or television
reception,which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following
measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the
equipment and receiver.
· Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV
technician for help.
The device has been evaluated to meet general RF
exposure requirement. The device can be used in
portable exposure condition without restriction.
FCC ID: 2AO8RNI-3221
Manufacturer's Name:
NetVue Technologies Co. Ltd.
Importer:Cédrus Számítástechnikai Kft. Netvue
Orb Cam
Model number: Netvue Orb Cam
Operating Temperature: -20° C to 50° C
This device was tested for typical
body-worn operations. To comply with RF
exposure requirements, a minimum
separation distance of 20cm must be
maintained between the user’s body and the
handset, including the antenna.
Third-party belt-clips, holsters, and similar
accessories used by this device should not
contain any metallic components. Body-worn
accessories that do not meet these requirements
may not comply with RF exposure requirements
and should be avoided. Use only the supplied or
an approved antenna.
This device in compliance with the essential
requirements and other relevant provisions of
Directive 2014/53/EU. All essential radio test
suites have been carried out.
1. Caution : risk of explosion if battery is replaced
by an incorrect type.dispose of used batteries
according to the instructions.
2. Adapter shall be installed near the equipment
and shall be easily accessible.
3. The plug considered as disconnect device of
adapter.
4. The device complies with RF specifica
tions when the device used at 20cm form
your body.
This product can be used across EU
member states.
Function
WiFi 802.11B/G/N
(HT20,HT40)2.4G.
802.11b/g/n(20MHz):
2412~2472MHz
802.11n(40MHz):
2422~2462MHz
Operation
Frequency
Max RF
outputpower
13.9dBm. 20dBm.
Limit
