Newidea Technology 51206 Bluetooth dongle User Manual

Shenzhen Newidea Technology Co., Limited Bluetooth dongle

User Manual

USER MANUALBluetooth dongle51206

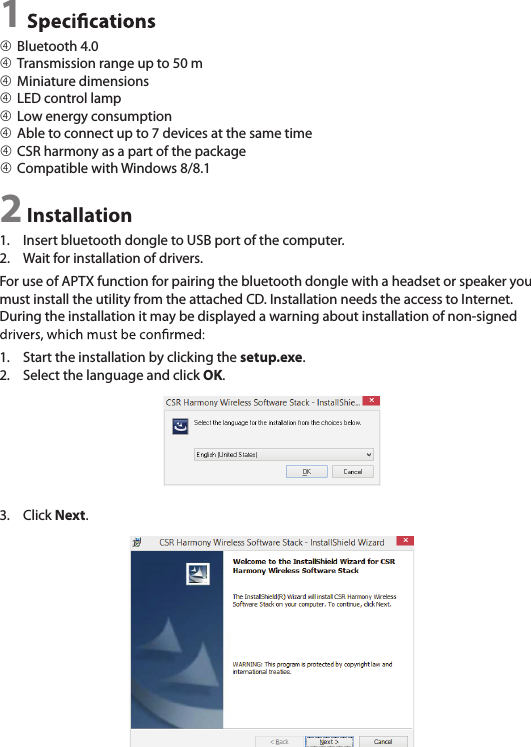

1 Bluetooth 4.0 Transmission range up to 50 m Miniature dimensions LED control lamp Low energy consumption Able to connect up to 7 devices at the same time CSR harmony as a part of the package Compatible with Windows 8/8.12 Installation1. Insert bluetooth dongle to USB port of the computer.2. Wait for installation of drivers.For use of APTX function for pairing the bluetooth dongle with a headset or speaker you must install the utility from the attached CD. Installation needs the access to Internet. During the installation it may be displayed a warning about installation of non-signed 1. Start the installation by clicking the setup.exe.2. Select the language and click OK.3. Click Next.

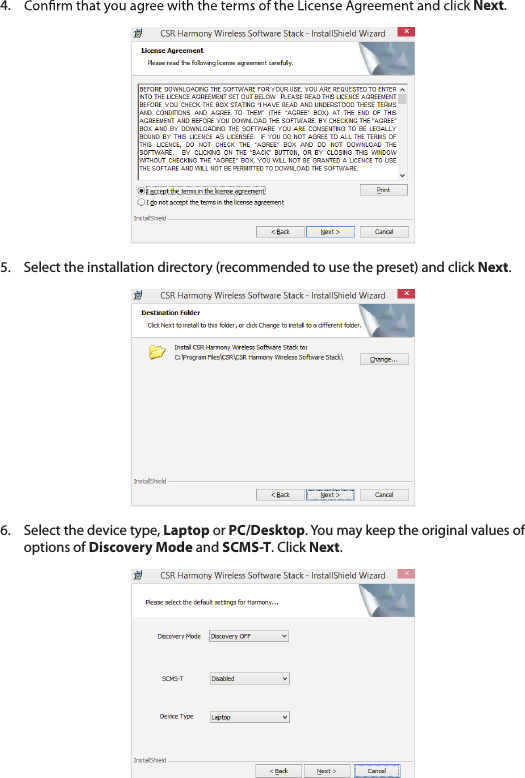

4. Next.5. Select the installation directory (recommended to use the preset) and click Next.6. Select the device type, Laptop or PC/Desktop. You may keep the original values of options of Discovery Mode and SCMS-T. Click Next.

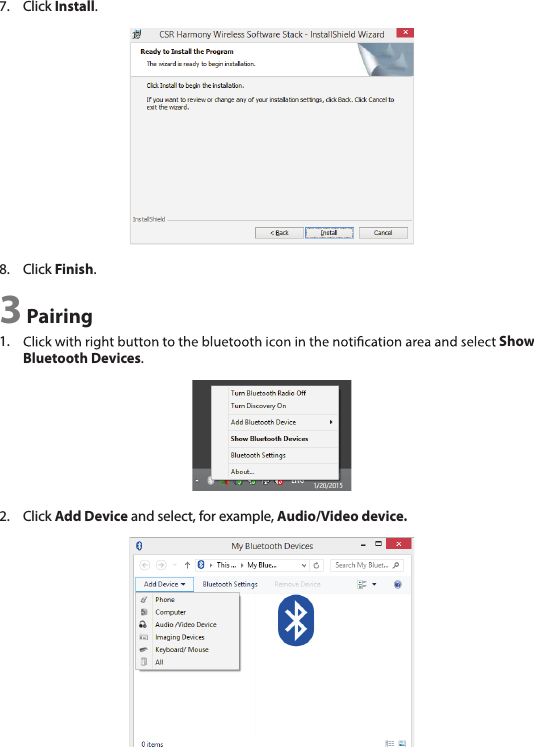

7. Click Install.8. Click Finish.3 Pairing1. Show Bluetooth Devices.2. Click Add Device and select, for example, Audio/Video device.

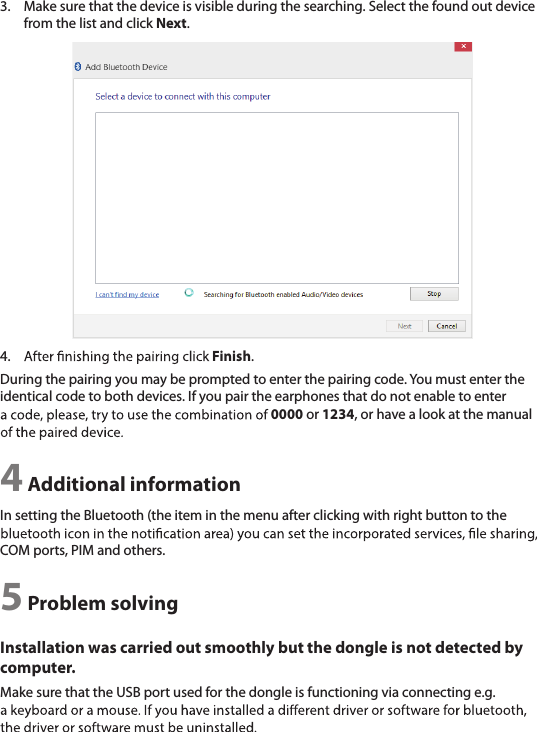

3. Make sure that the device is visible during the searching. Select the found out device from the list and click Next.4. Finish.During the pairing you may be prompted to enter the pairing code. You must enter the identical code to both devices. If you pair the earphones that do not enable to enter 0000 or 1234, or have a look at the manual 4 Additional informationIn setting the Bluetooth (the item in the menu after clicking with right button to the COM ports, PIM and others.5 Problem solvingInstallation was carried out smoothly but the dongle is not detected by computer.Make sure that the USB port used for the dongle is functioning via connecting e.g.

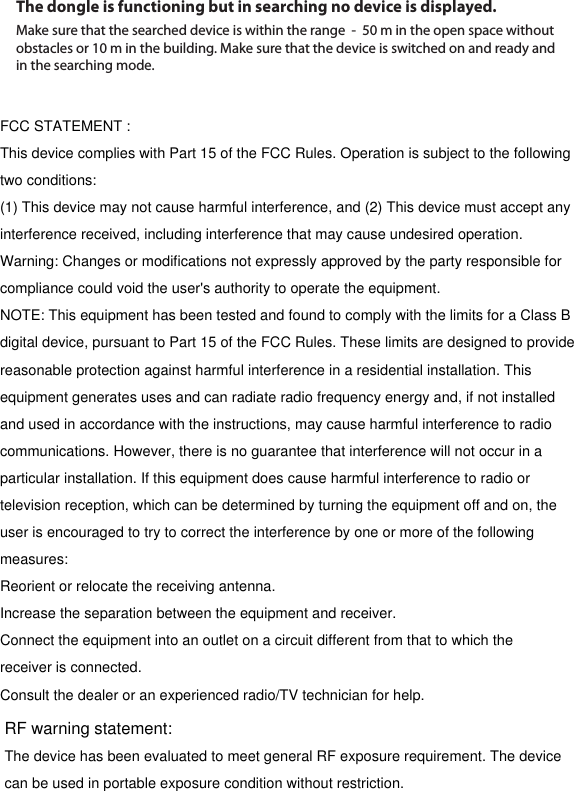

RF warning statement:The dongle is functioning but in searching no device is displayed.Make sure that the searched device is within the range - 50 m in the open space without obstacles or 10 m in the building. Make sure that the device is switched on and ready and in the searching mode.FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and (2) This device must accept anyinterference received, including interference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
