Newtech Electronics BN248 BLUETOOTH EARBUD User Manual TO

Newtech Electronics Limited BLUETOOTH EARBUD TO

User Manual

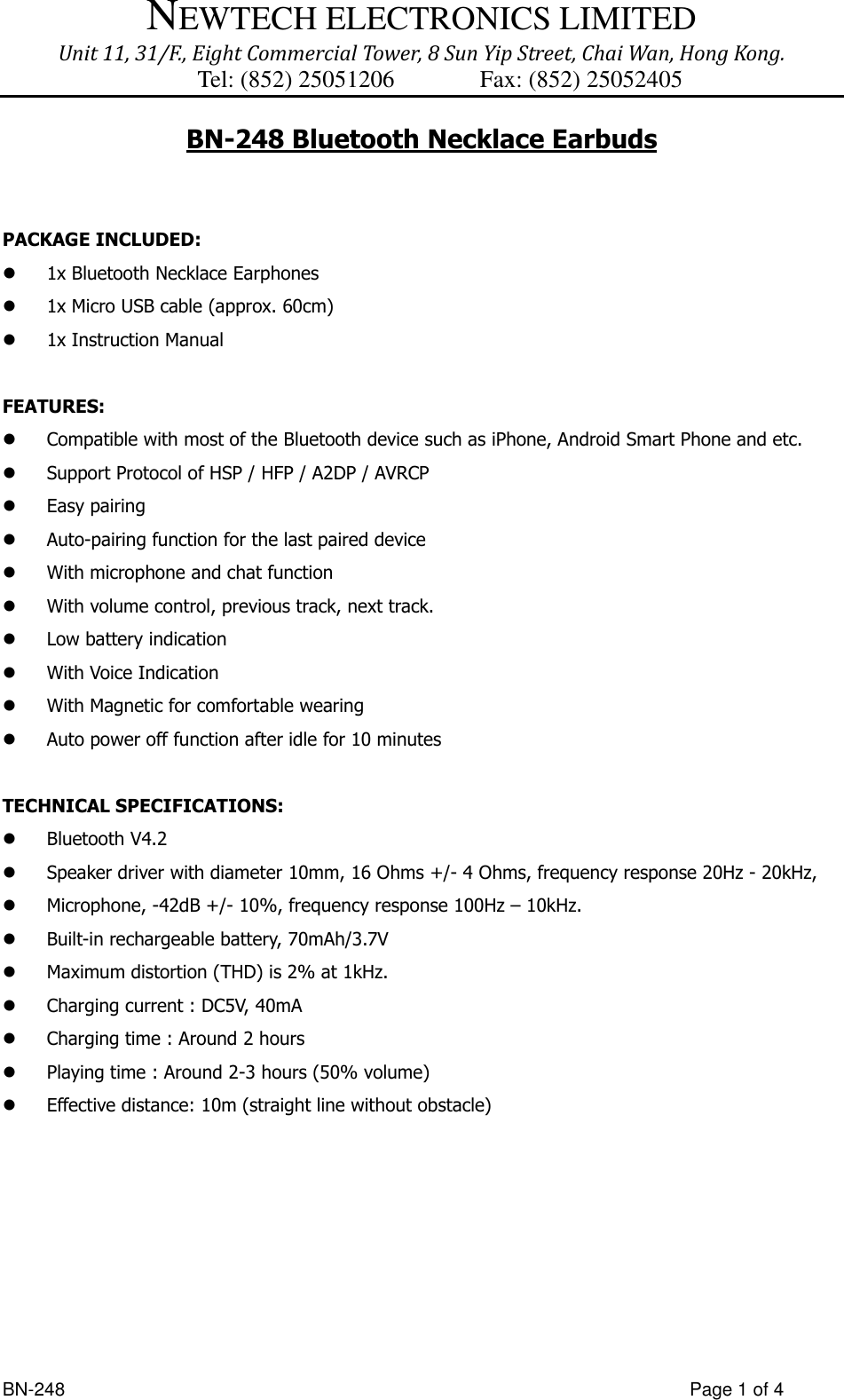

NEWTECH ELECTRONICS LIMITED Unit 11, 31/F., Eight Commercial Tower, 8 Sun Yip Street, Chai Wan, Hong Kong. Tel: (852) 25051206 Fax: (852) 25052405 BN-248 Page 1 of 4 BN-248 Bluetooth Necklace Earbuds PACKAGE INCLUDED:  1x Bluetooth Necklace Earphones  1x Micro USB cable (approx. 60cm)  1x Instruction Manual FEATURES:  Compatible with most of the Bluetooth device such as iPhone, Android Smart Phone and etc.  Support Protocol of HSP / HFP / A2DP / AVRCP  Easy pairing  Auto-pairing function for the last paired device  With microphone and chat function  With volume control, previous track, next track.  Low battery indication  With Voice Indication  With Magnetic for comfortable wearing  Auto power off function after idle for 10 minutes TECHNICAL SPECIFICATIONS:  Bluetooth V4.2  Speaker driver with diameter 10mm, 16 Ohms +/- 4 Ohms, frequency response 20Hz - 20kHz,  Microphone, -42dB +/- 10%, frequency response 100Hz – 10kHz.  Built-in rechargeable battery, 70mAh/3.7V  Maximum distortion (THD) is 2% at 1kHz.  Charging current : DC5V, 40mA  Charging time : Around 2 hours  Playing time : Around 2-3 hours (50% volume)  Effective distance: 10m (straight line without obstacle)

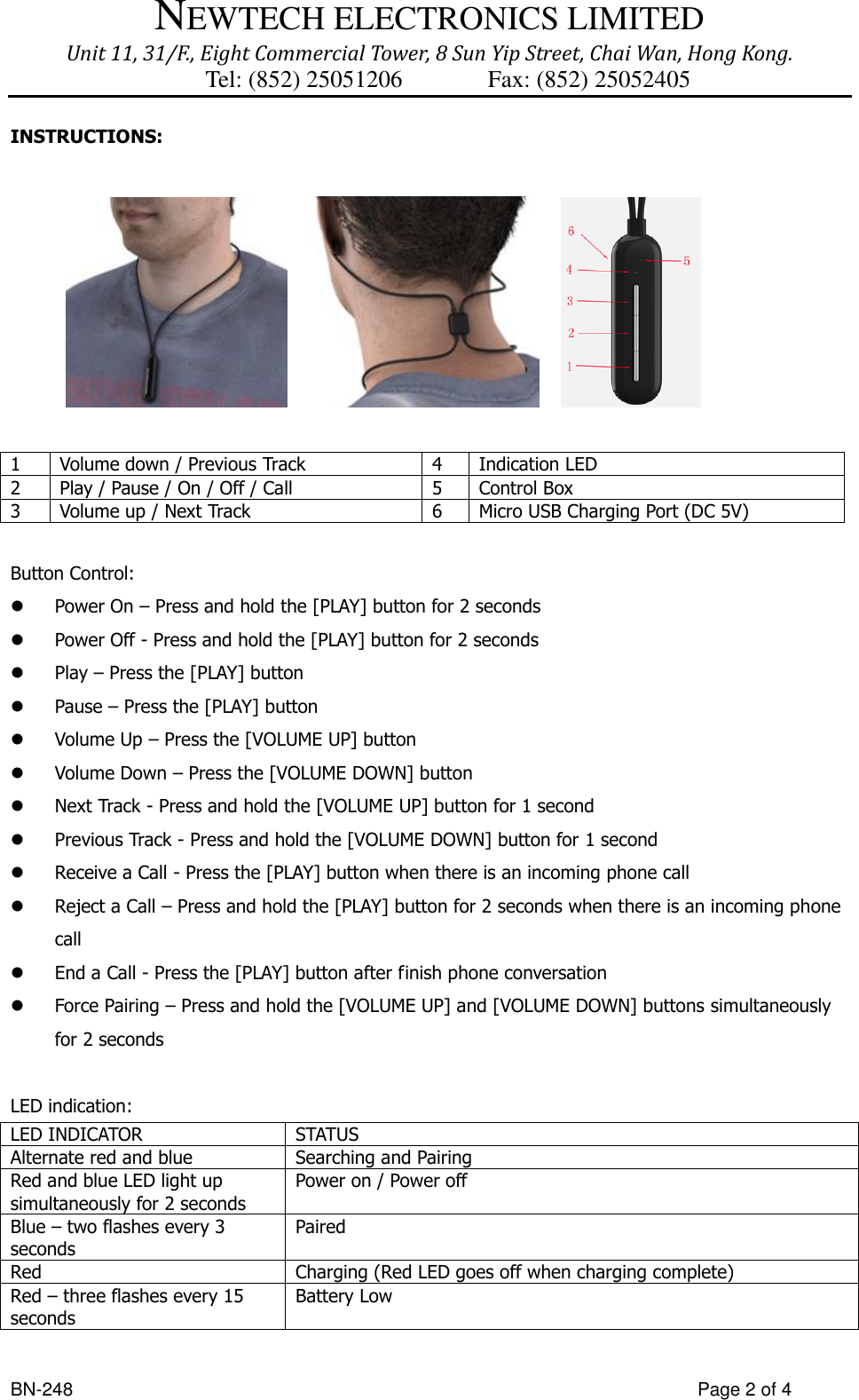

NEWTECH ELECTRONICS LIMITED Unit 11, 31/F., Eight Commercial Tower, 8 Sun Yip Street, Chai Wan, Hong Kong. Tel: (852) 25051206 Fax: (852) 25052405 BN-248 Page 2 of 4 INSTRUCTIONS: 1 Volume down / Previous Track 4 Indication LED 2 Play / Pause / On / Off / Call 5 Control Box 3 Volume up / Next Track 6 Micro USB Charging Port (DC 5V) Button Control:  Power On – Press and hold the [PLAY] button for 2 seconds  Power Off - Press and hold the [PLAY] button for 2 seconds  Play – Press the [PLAY] button  Pause – Press the [PLAY] button  Volume Up – Press the [VOLUME UP] button  Volume Down – Press the [VOLUME DOWN] button  Next Track - Press and hold the [VOLUME UP] button for 1 second  Previous Track - Press and hold the [VOLUME DOWN] button for 1 second  Receive a Call - Press the [PLAY] button when there is an incoming phone call  Reject a Call – Press and hold the [PLAY] button for 2 seconds when there is an incoming phone call  End a Call - Press the [PLAY] button after finish phone conversation  Force Pairing – Press and hold the [VOLUME UP] and [VOLUME DOWN] buttons simultaneously for 2 seconds LED indication: LED INDICATOR STATUS Alternate red and blue Searching and Pairing Red and blue LED light up simultaneously for 2 seconds Power on / Power off Blue – two flashes every 3 seconds Paired Red Charging (Red LED goes off when charging complete) Red – three flashes every 15 seconds Battery Low

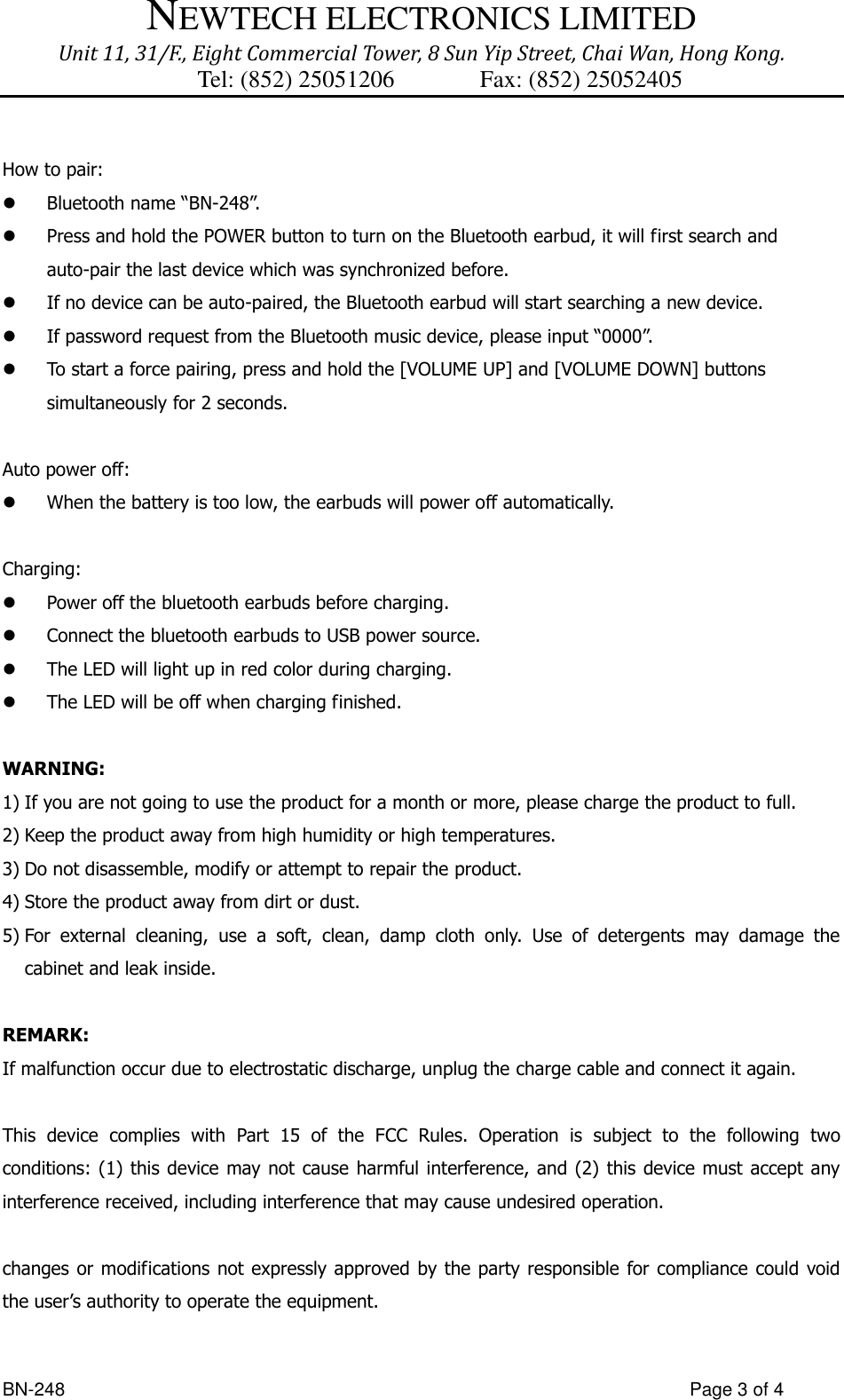

NEWTECH ELECTRONICS LIMITED Unit 11, 31/F., Eight Commercial Tower, 8 Sun Yip Street, Chai Wan, Hong Kong. Tel: (852) 25051206 Fax: (852) 25052405 BN-248 Page 3 of 4 How to pair:  Bluetooth name “BN-248”.  Press and hold the POWER button to turn on the Bluetooth earbud, it will first search and auto-pair the last device which was synchronized before.  If no device can be auto-paired, the Bluetooth earbud will start searching a new device.  If password request from the Bluetooth music device, please input “0000”.  To start a force pairing, press and hold the [VOLUME UP] and [VOLUME DOWN] buttons simultaneously for 2 seconds. Auto power off:  When the battery is too low, the earbuds will power off automatically. Charging:  Power off the bluetooth earbuds before charging.  Connect the bluetooth earbuds to USB power source.  The LED will light up in red color during charging.  The LED will be off when charging finished. WARNING: 1) If you are not going to use the product for a month or more, please charge the product to full. 2) Keep the product away from high humidity or high temperatures. 3) Do not disassemble, modify or attempt to repair the product. 4) Store the product away from dirt or dust. 5) For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the cabinet and leak inside. REMARK: If malfunction occur due to electrostatic discharge, unplug the charge cable and connect it again. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

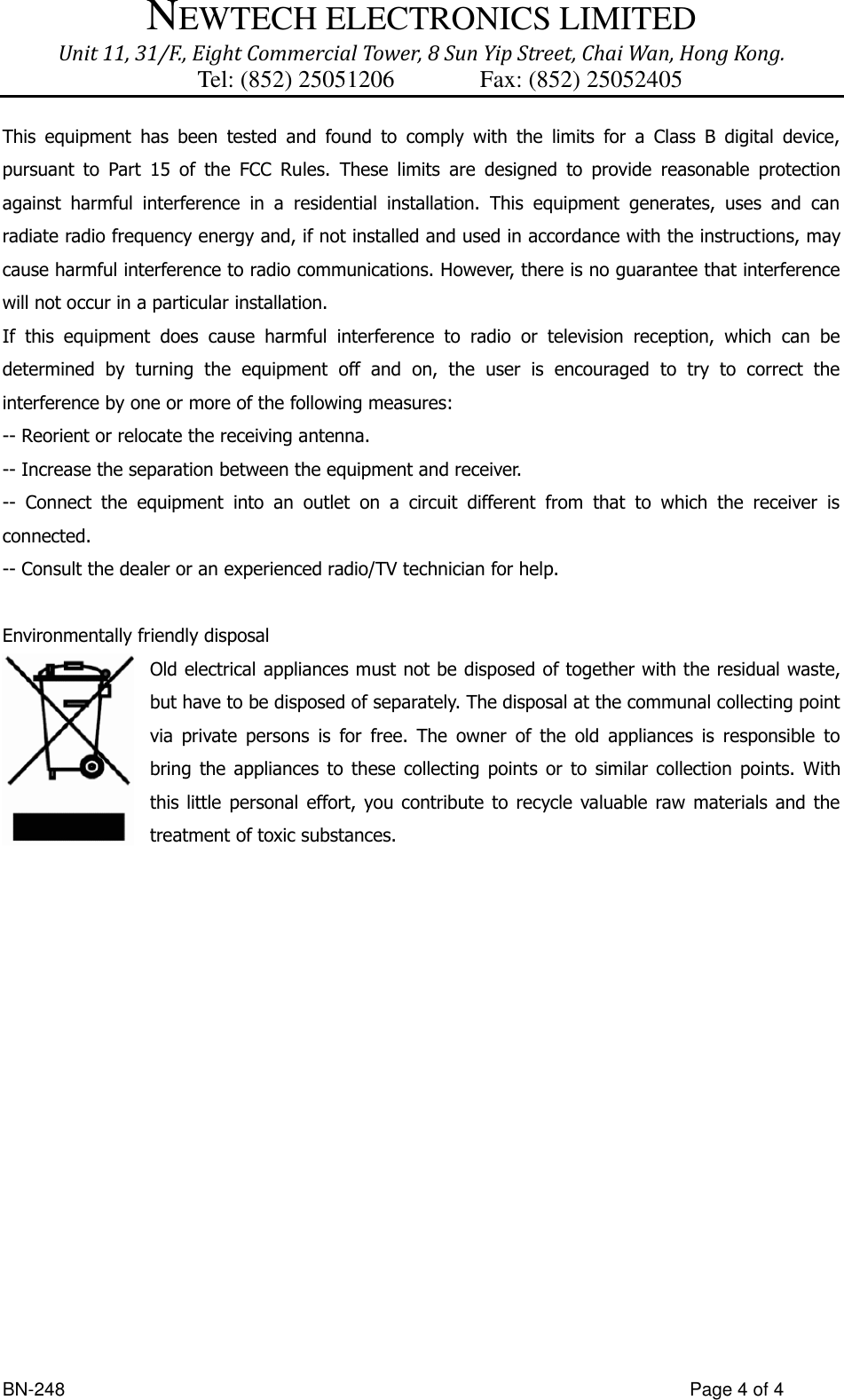

NEWTECH ELECTRONICS LIMITED Unit 11, 31/F., Eight Commercial Tower, 8 Sun Yip Street, Chai Wan, Hong Kong. Tel: (852) 25051206 Fax: (852) 25052405 BN-248 Page 4 of 4 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of the old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.
