1 Introduction
1.1 Purpose and Scope
This document describes the commissioning and normal usage procedure for the
NextNav Local beacon box (A4P-200-0013-02).
1.2 Intended Use
The NextNav Local beacon system is intended to be used in restricted access locations (RAL) in
indoor environments. The NextNav Local beacon is a powered by a DC power system approved
for use in telecommunications equipment.
1.3 FCC Compliance Statements
FCC Section 15.21 Information to user.
Any changes or modifications to the equipment operation settings must be approved by the
NextNav, LLC for FCC compliance; otherwise the user's authority to operate the equipment
will be voided.
Section 15.105(b) Class A digital device Information to the user
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the antenna and any body part of the user or nearby persons.
Document Name: MARS Box User Manual
Version No: 0.2
Company Name: NextNav, LLC.
Confidential Page 5 10/24/2013
Page 5 of 9
2 NextNav Local Beacon Commissioning
Once the NextNav Local Box is installed in the field and the installation checklist is
verified, a field technician follows the following sequence of operations to power up the
box as illustrated in Error! Reference source not found. and the following checklist can
be used for verification of completion of the steps needed.
Installation Tech checklist
1
GPS antenna connection
Yes No
2
Tx antenna connection
Yes No
3
EvDO antenna connection
Yes No
4
SBC: Ethernet port activity
Yes No
5
Rb: Rear Panel LED indicator is lit
Yes No
6
MAIA4: Rear Panel LED indicator is lit
Yes No
7
Able to browse internet from field service laptop
using Ethernet port on WAPS beacon box
Yes No
8
Enable port forwarding if not already done at
manufacturing site
Yes No
9
TX antenna LLA survey done
Yes No
10
Weather board LLA survey done
Yes No
11
GPS antenna LLA survey done
Yes No
12
Survey ground truth of the TX antenna, GPS
antenna and weatherboard
Yes No
Table 1 Commissioning Procedure Steps for Installation Technician
2.1 Equipment List
• NextNav Local Beacon
• FCC Approved AC/DC Adapter
• Transmit Antenna (PN: MPA-806-N)
• GPS Antenna (PN: BL1R-A-XTB-1-FKM)
• EVDO Antenna (PN: PSKN-900/1900S)
• NextNav WeatherBoard unit
RF cables as per chart below:
Document Name: MARS Box User Manual
Version No: 0.2
Company Name: NextNav, LLC.
Confidential Page 6 10/24/2013
Page 6 of 9
Description
Cable Type
Cable Length (max)
GPS Cable
LMR400
150’
AL4RPV-50
250’
Tx Cable
LMR400
250’
AL4RPV-50
400’
2.2 Confirm External Cable Connections

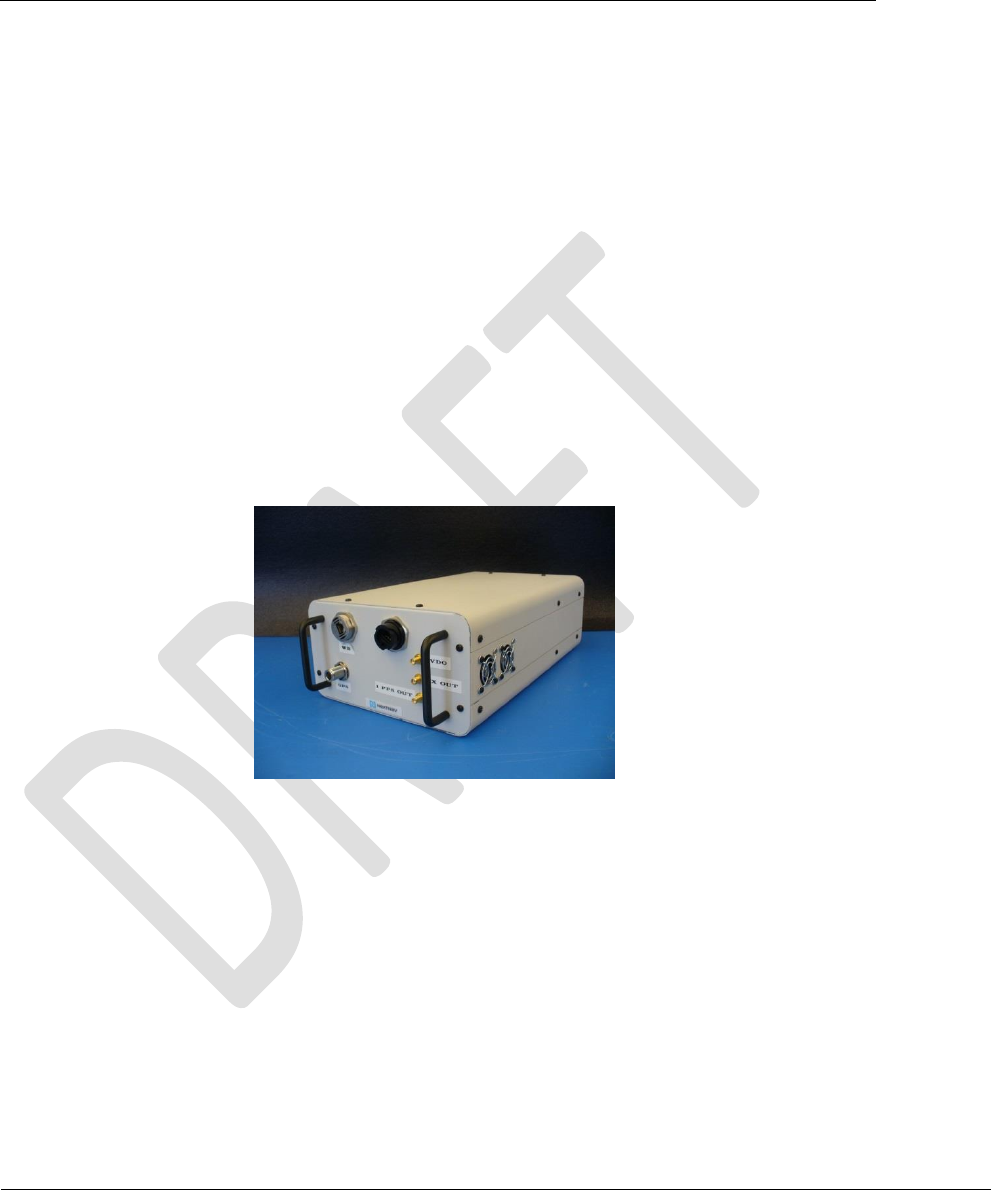

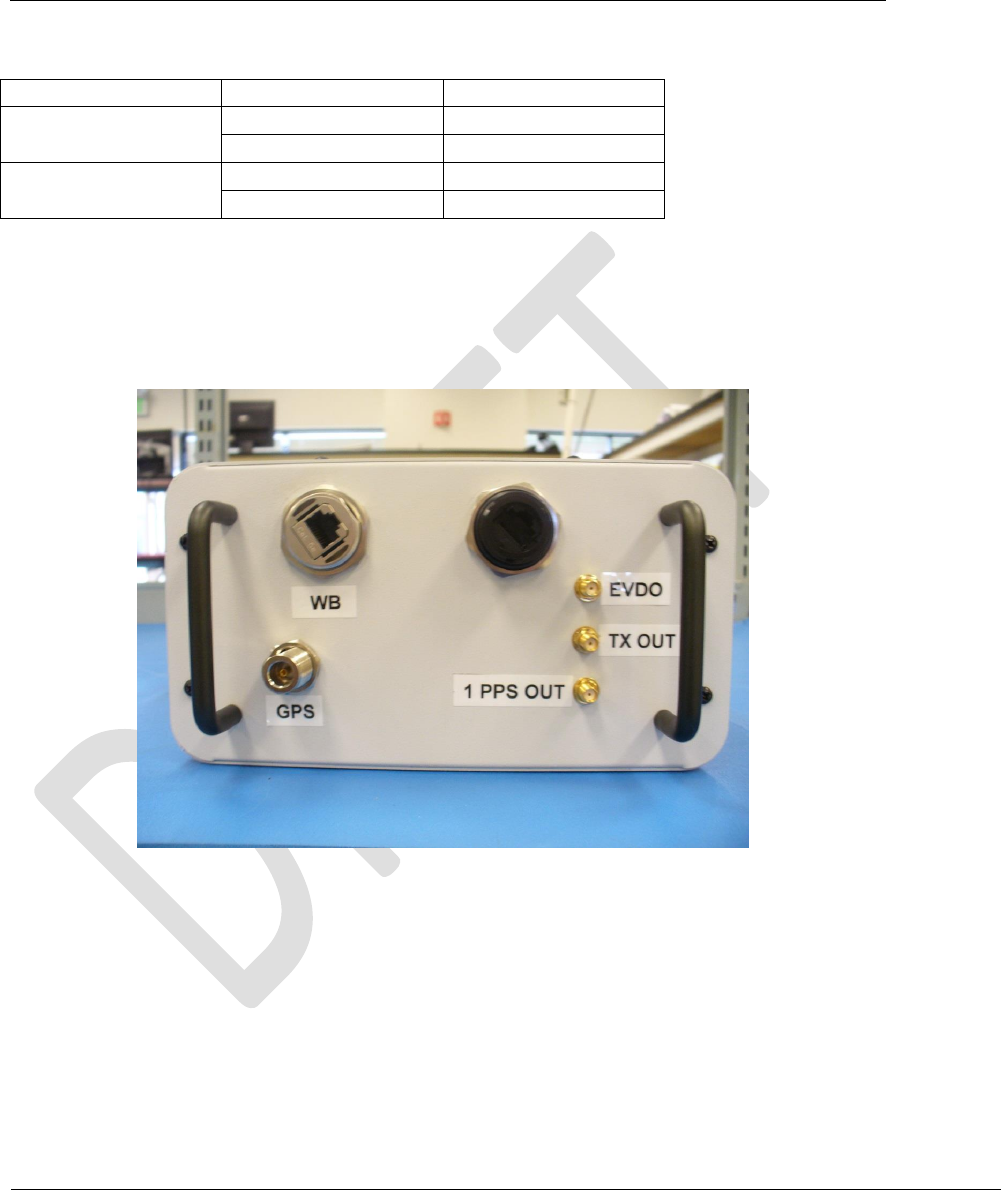

Figure 1 – MARS Box Front Panel
1. Verify the following external connections to the beacon:
a) GPS antenna connection to the MARS Box
b) Tx antenna cable connection to the ‘TX’ port.
c) Weather box connection to the RJ45 WEATHER port.
d) EvDO antenna cables to the EvDO Tx port. In cases of sites which have
been documented as requiring EvDO diversity, connect the diversity
antenna to the EvDO DIV port. In cases of sites which have been
Document Name: MARS Box User Manual
Version No: 0.2
Company Name: NextNav, LLC.
Confidential Page 7 10/24/2013
Page 7 of 9
documented as needing a POTS line, connect the phone line to the
‘TELCO’ port.
2. Verify that the following LEDs (located at the rear panel) are lit indicating proper
operation:
a) Rubidium: Power Switch LED and status indicator LED are lit
b) MAIA4: Status indicator LED is lit

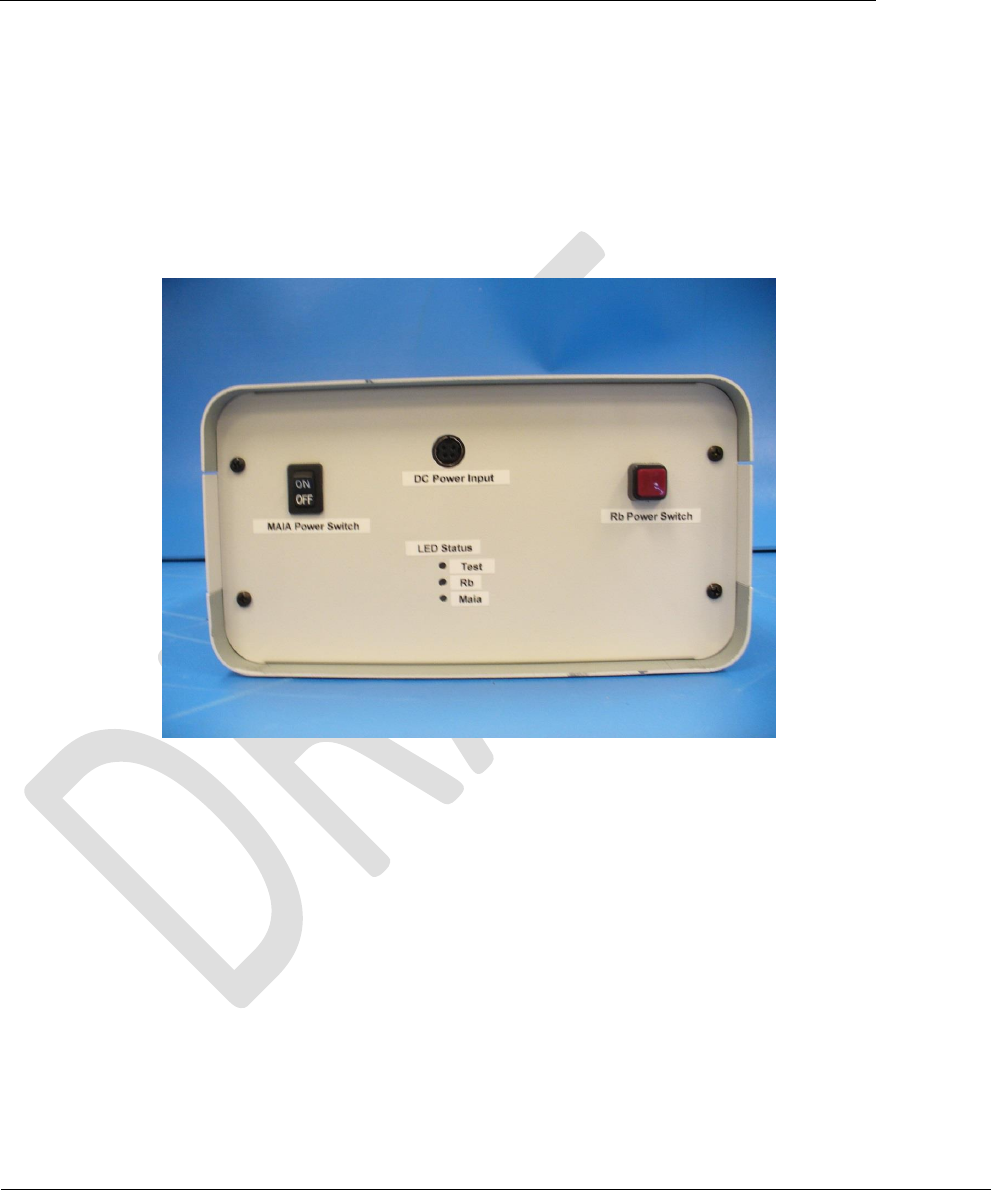

Figure 2 – MARS Box Rear Panel
3. Connect the field service laptop with an Ethernet cable to the ‘Ethernet’ port on
the MARS beacon box. Wait for a few seconds to get an IP address on the field
service laptop. Try and browse the internet to ensure connectivity. Once
connectivity is ensured, call the operator at the NOC to further commission the
beacon box.
Document Name: MARS Box User Manual
Version No: 0.2
Company Name: NextNav, LLC.
Confidential Page 8 10/24/2013
Page 8 of 9
3 Antenna Mounting
3.1 TX Antenna
Tx antenna will be installed indoors. In normal configurations, antenna is to be attached to the
ceiling structures. Proper installation procedures must be followed as defined in site specific
construction drawing. As a general rule the TX antenna shall be kept a minimum distance of 6
feet from any metallic vertical structures on other types of obstructions.
This radio transmitter (FCC ID: A4P-200-0013-01) has been approved by FCC to operate with the
antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this
device.
This radio transmitter may only operate using a vertically polarized antenna with maximum net
gain of antenna and cable of +6 dBi. To reduce potential radio interference to other users, the
antenna gain should be so chosen that the effective radiated power (ERIP) does not exceed 4
Watts.
Antenna Type: Monopole
Polarization: Vertical
Following is a list of the possible antennas and antenna cables combinations.
Antenna
type
Antenna
Gain
(dBi)
Cable Type
Length
(feet)
Cable
Loss
(dB)
Attenuation
Setting (dB)
PA
output
(Watts)
EIRP (W)
(PEP)
MPA-806-N
(omni
config)
2.5
LMR400
10’
0.4
1.0
0.85
1.38
AL4RPV-50
10’
0.2
1.0
0.85
1.45
MPA-806-N
(90° sector
config)
7.0
LMR400
10’
0.4
1.0
0.85
3.89
AL4RPV-50
10’
0.2
1.5
0.35
3.63
Table 2 – NextNav Local antenna and cable options
Note: PA output level (controlled using internal attenuation setting) refers to internal system
parameter. This parameter will be used by the NOC to configure the radio output power.
Document Name: MARS Box User Manual
Version No: 0.2
Company Name: NextNav, LLC.
Confidential Page 9 10/24/2013
Page 9 of 9
3.2 Tune-up procedure not to exceed maximum TX power
A CSV file (configuration file) per transmitter are created by the NOC engineer based on the
installation parameters such as line lengths, antenna type etc.
The TX output power level setting is contained in the CSV file.
The output power is adjusted by the ‘attenuation’ setting. This value in the CSV file is
calculated by a formula to set the output power (not to exceed 4W EIRP). The variables used
in the calculation include PA Gain (Gpa), TX Antenna Gain (Gant), TX filter insertion loss
(ILflt), internal cable loss (ILint), external cable loss (ILext), and transceiver output power
(PTCVR).
EIRP (W) = 10^((PTCVR - ILint + Gpa - ILflt - ILext + Gant) / 10) / 1000
3.3 GPS Receive Antenna
GPS antenna should be installed such that it has clear view of sky. Ideally, you would keep the
antenna close to the ground away from obstruction
• Keep any horizontal blockage smaller than 10 degrees
• Obstruction Clearance guideline
– If it is 1 ft wide it should be at least 6 ft away
– If it is 10 ft wide, it should be at least 60 ft. away.
– If it is significantly less than 1 ft wide (like a guy wire, or a post) it should not cause any
measurable effect
