NexusData TR0001 Network Transceiver Repeater User Manual 274991

NexusData Ltd. Network Transceiver Repeater 274991

Revised Corrected User Installation Manual

REV. ECO No. APPROVED NAME SIGNATURE
A First release
NAME SIGNATURE DATE
DESCRIPTION:
Product Manager
R&D Manager INSTALLATION GUIDE
Testing NTR
Manufacturing Eng. Shay Versano
QA
Engineering Shay Versano
SH
1
OF
DRAW No.
DC00019-001
REV.
A
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _2_ OF_19_
Table of Contents
FCC Warning ................................................................................................................... 3
Mechanical Assembly..................................................................................................... 4
Front Box ....................................................................................................................... 4
Gland ............................................................................................................................. 5
PCB Assembly............................................................................................................... 6
PCB Cover..................................................................................................................... 7
Label.............................................................................................................................. 8
Antenna ......................................................................................................................... 9
Mounting...................................................................................................................... 10
AC Cable ..................................................................................................................... 11
Top Cover.................................................................................................................... 12
Final Assembly ............................................................................................................ 13
Field Installation............................................................................................................ 14
General Instructions .................................................................................................... 14
Installation Steps ......................................................................................................... 14
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _3_ OF_19_
FCC Warning
FCC Warning
Modifications not expressly approved by the manufacturer
could void the user authority to operate the equipment under
FCC Rules.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _4_ OF_19_
Mechanical Assembly

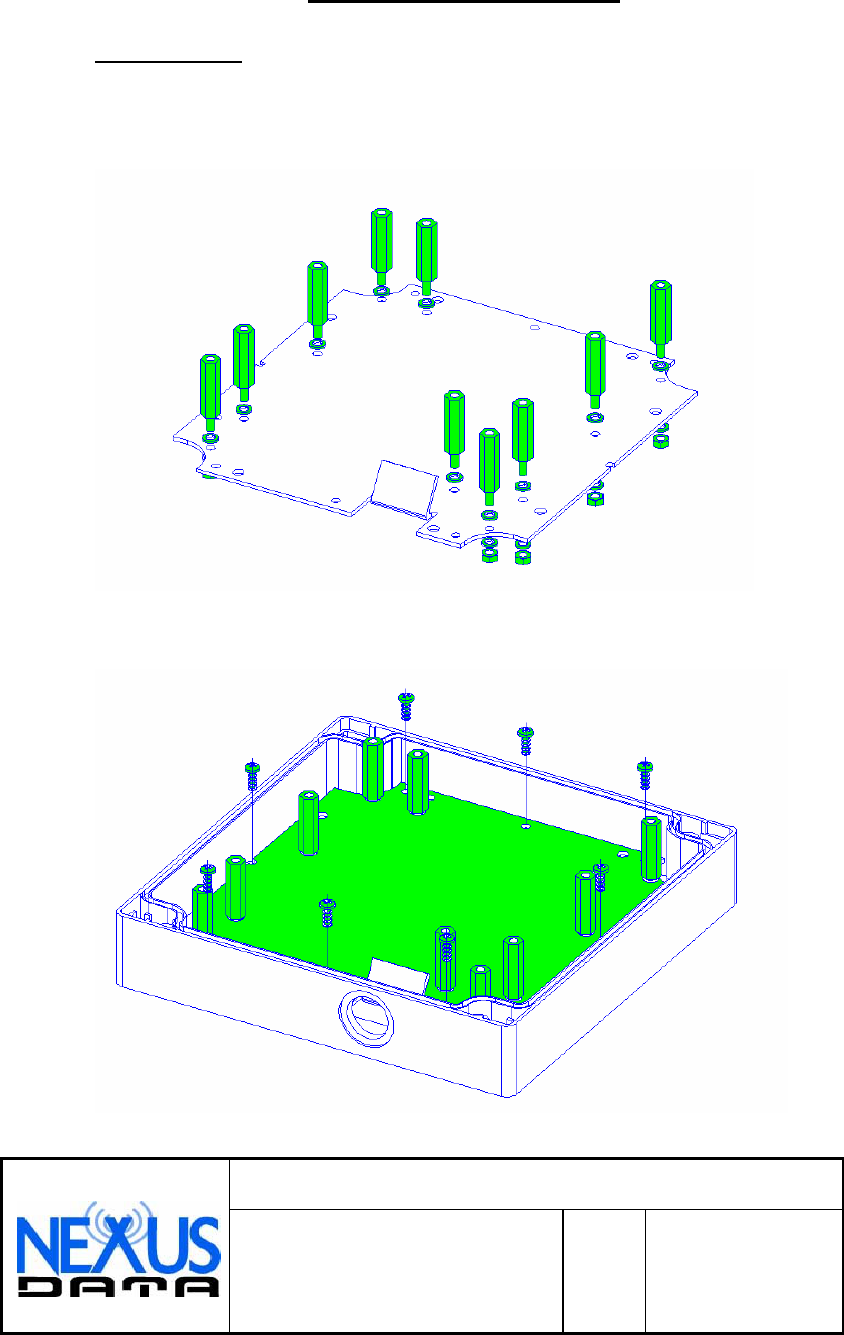

Front Box
Attach standoffs with plain washer, nut and spring washer to the lower
board.
Attach the lower board into the front box and assemble screws.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _5_ OF_19_

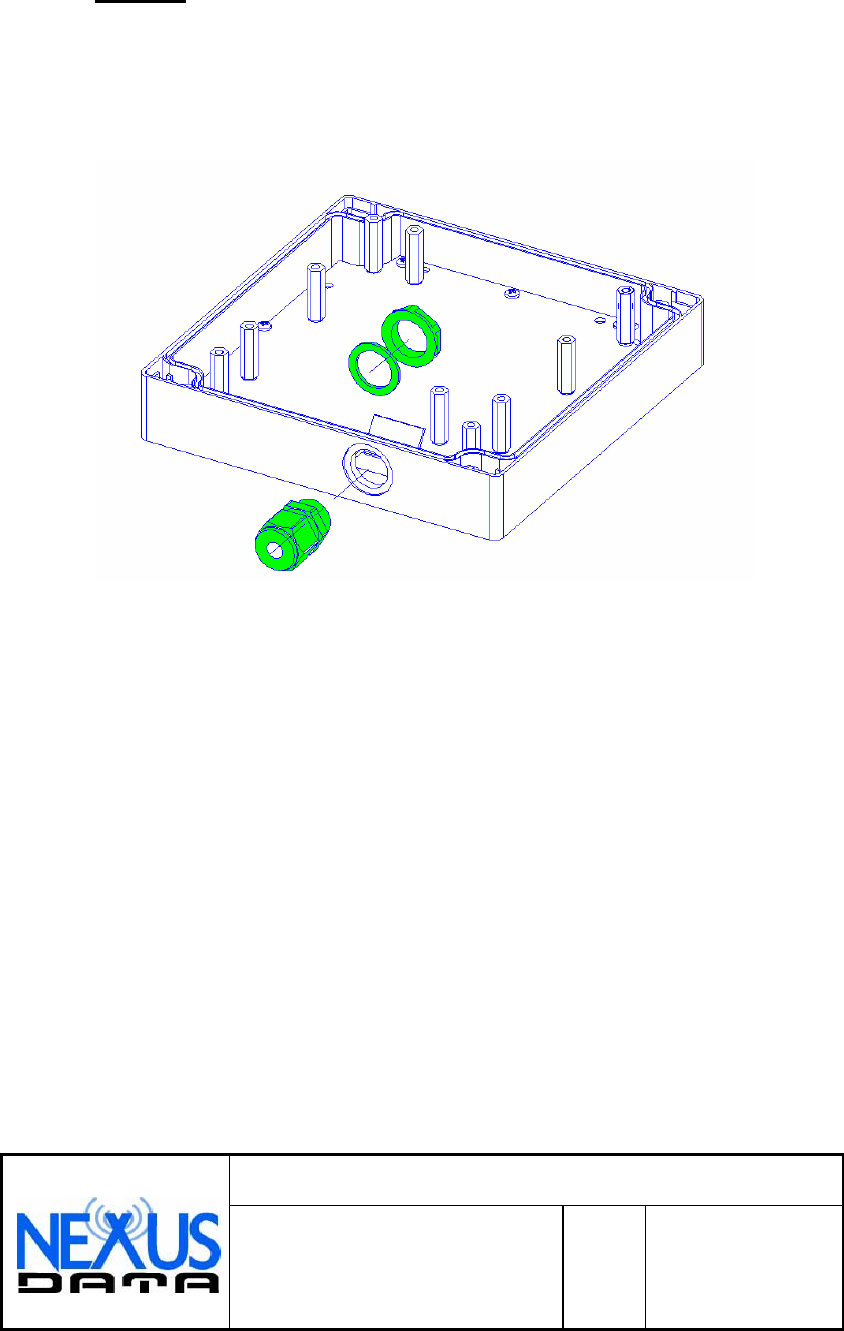

Gland
Assemble gland with nut and washer.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _6_ OF_19_

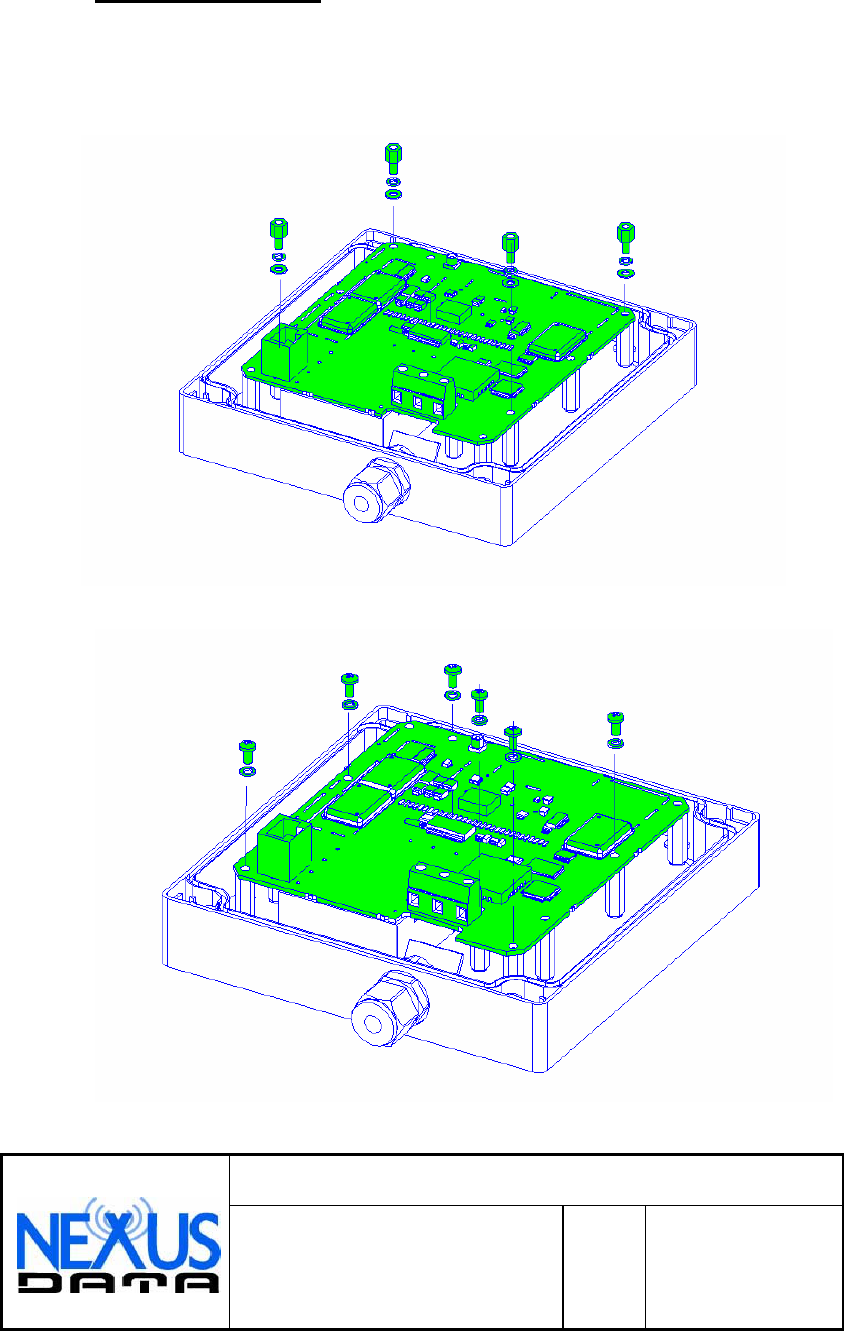

PCB Assembly
Assemble the PCB into the front box and hold it with standoffs, screws,
and washers.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _7_ OF_19_

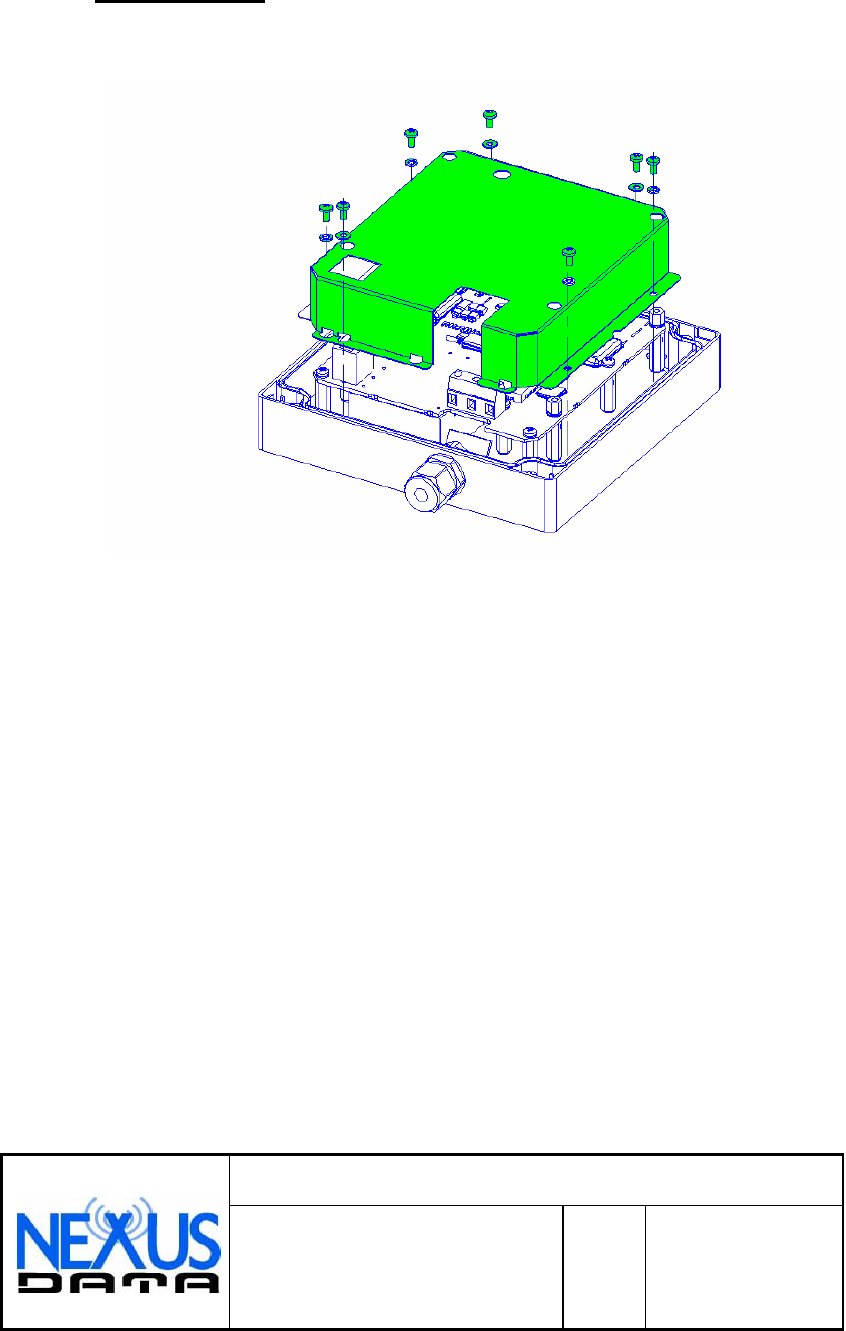

PCB Cover
Place the RF shield above PCB and assemble screws and washers.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _8_ OF_19_

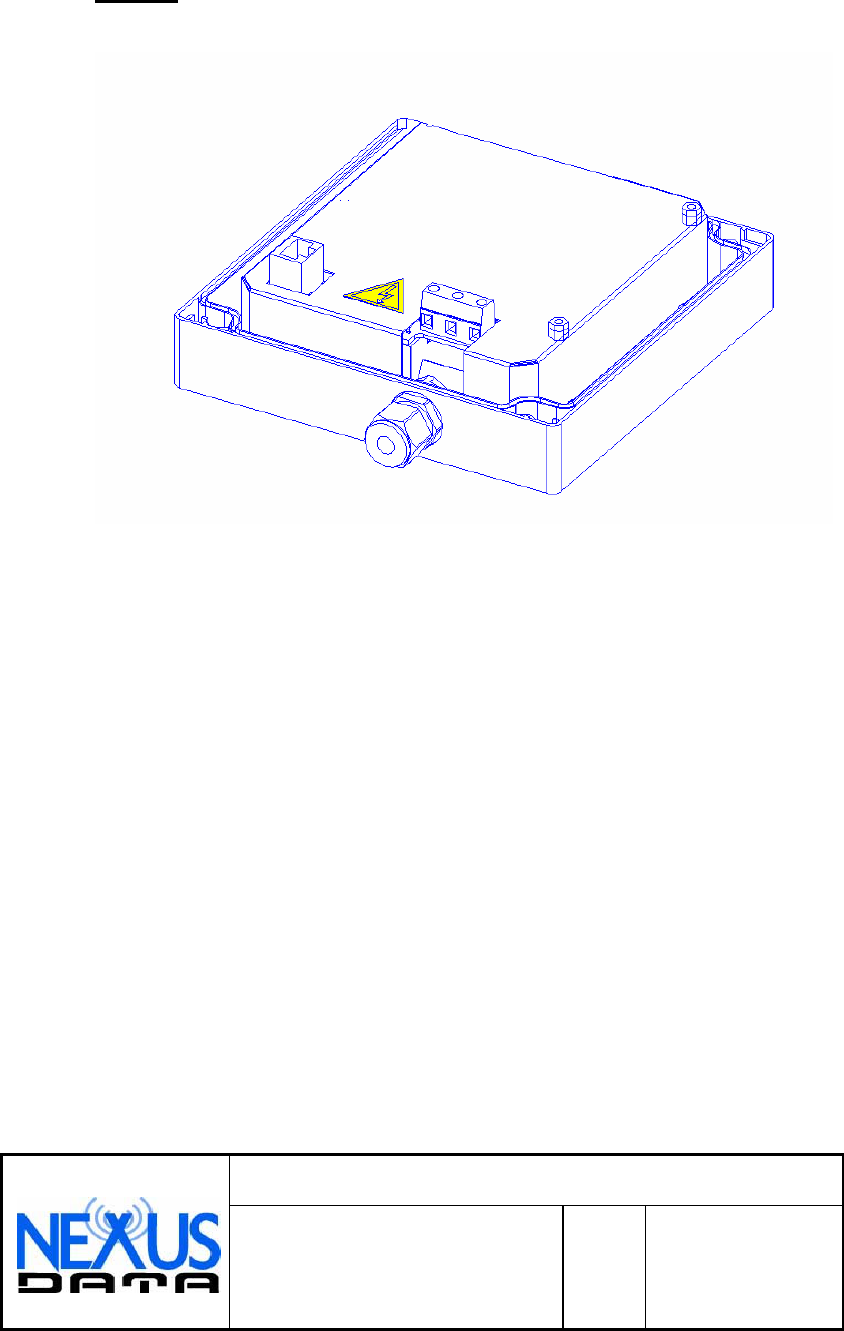

Label
Place warning label on top of the RF shield.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _9_ OF_19_

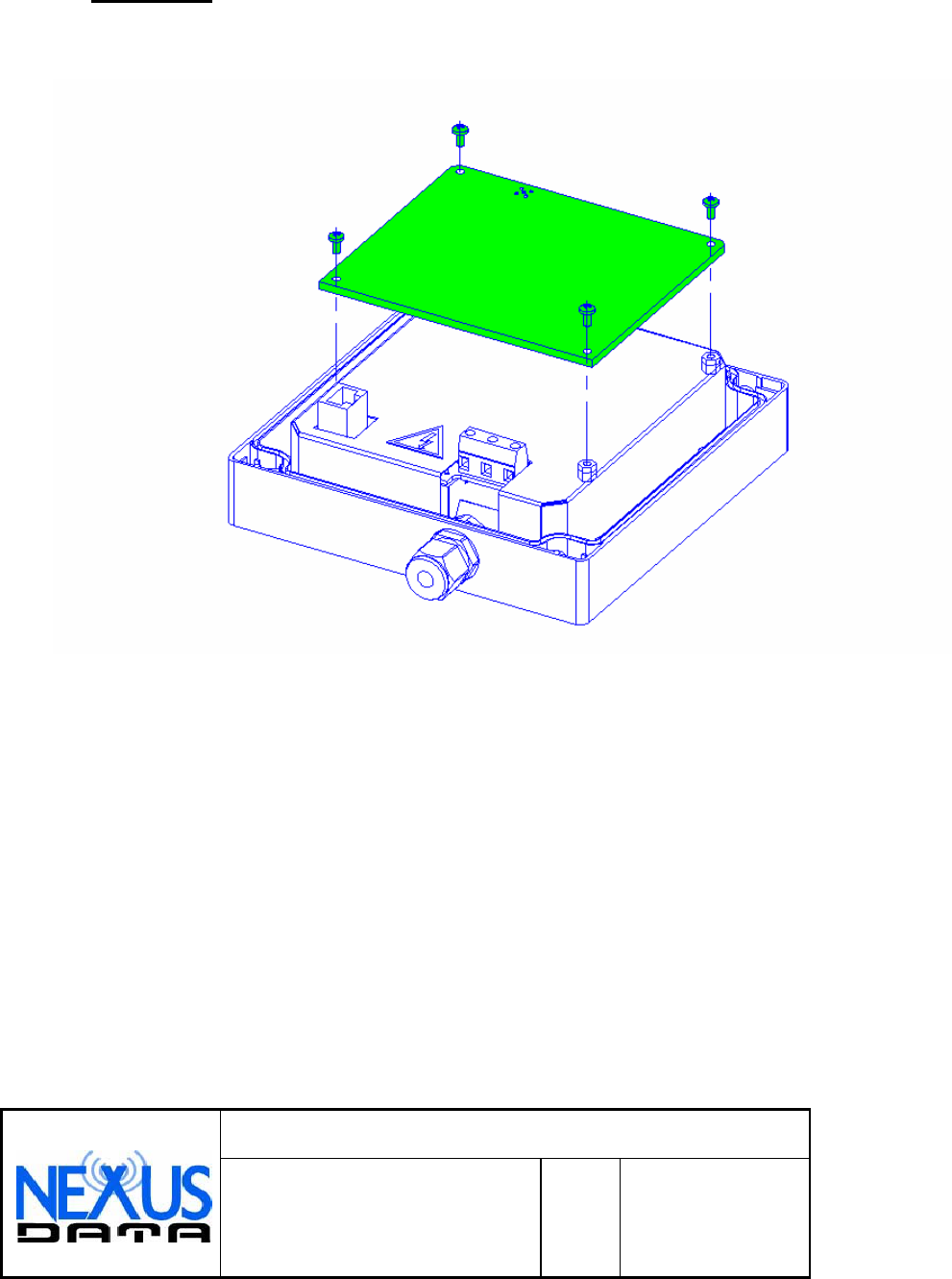

Antenna
Place the antenna and assemble plastic screws.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _10_ OF_19_

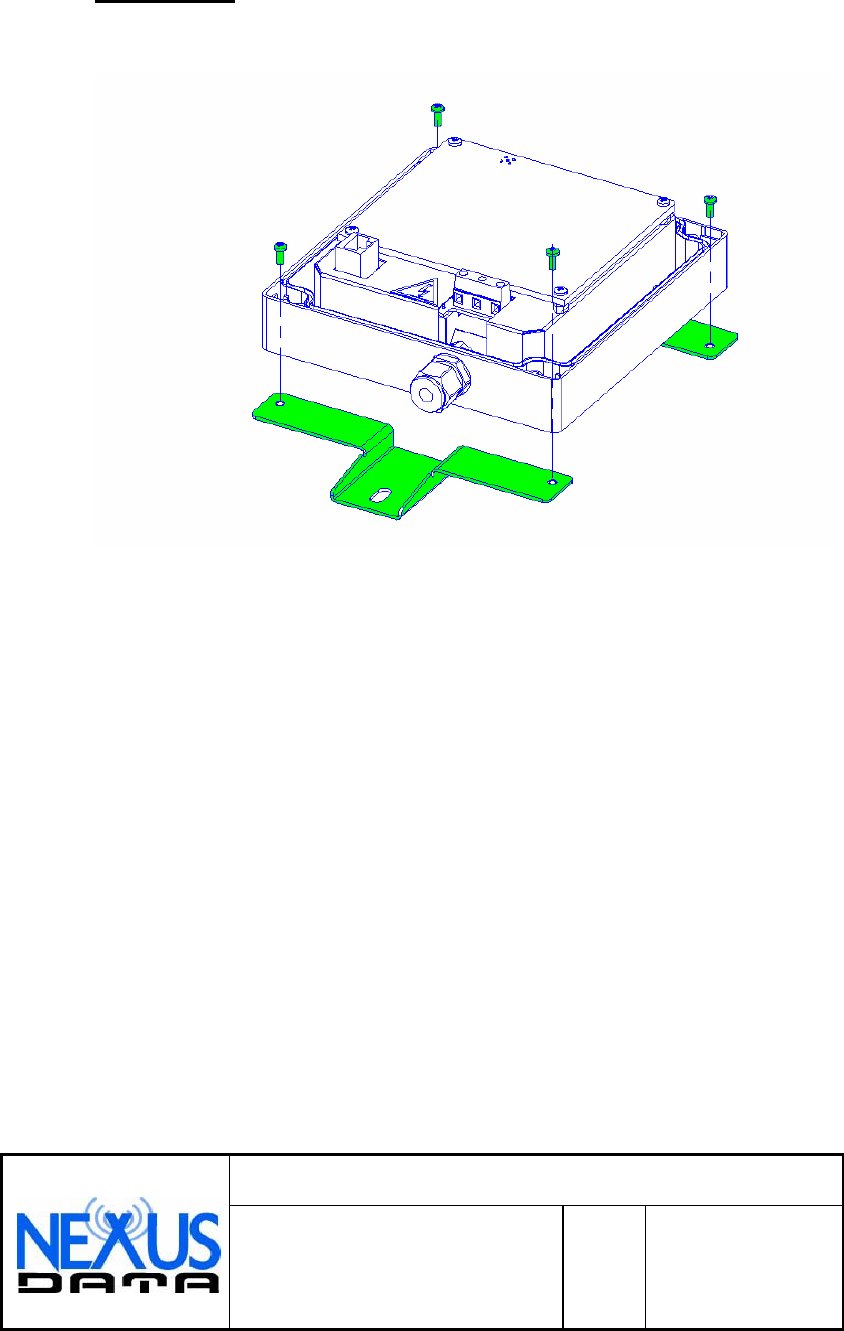

Mounting
Place the bracket and tighten with screws.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _11_ OF_19_

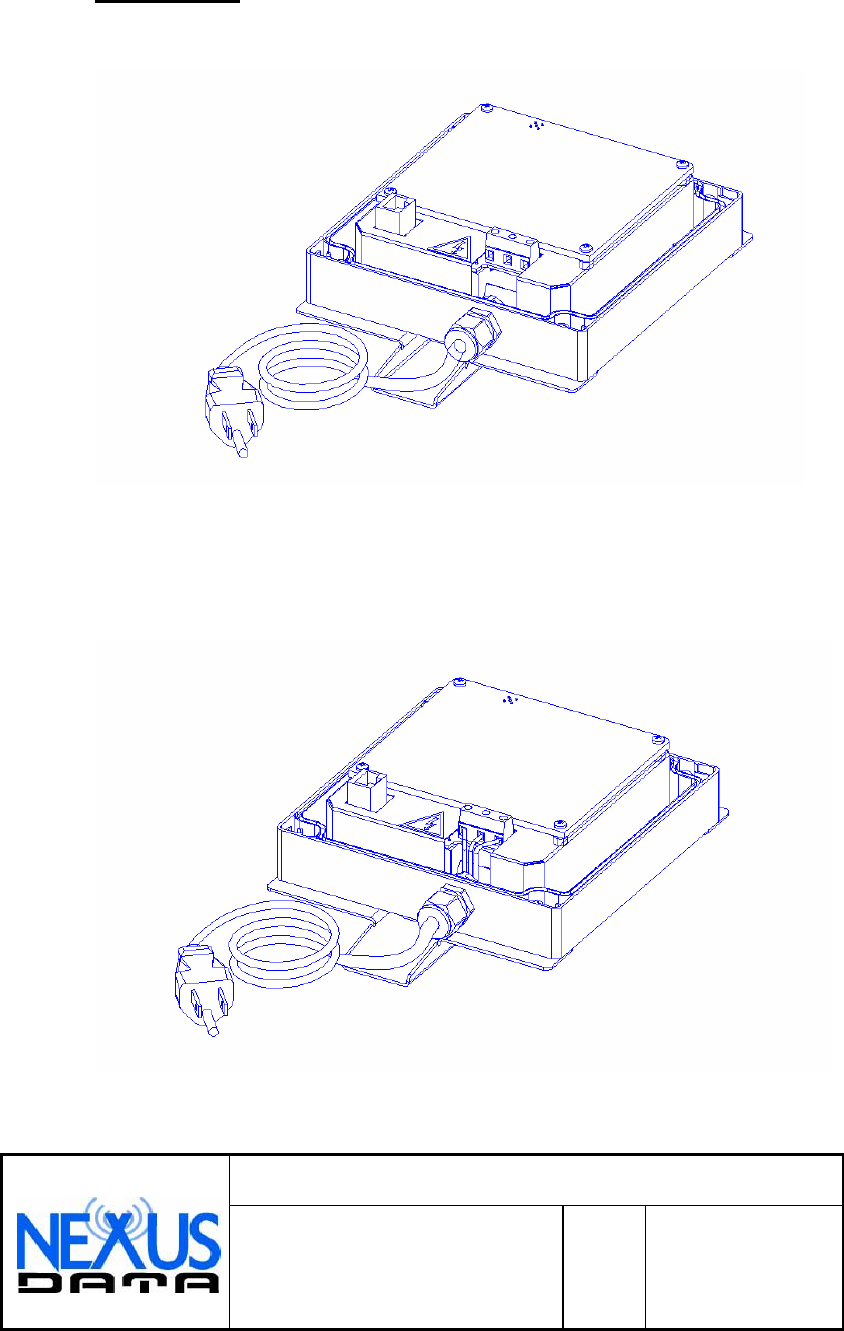

AC Cable
place the AC cable into the front box
Assemble AC cable with screws
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _12_ OF_19_

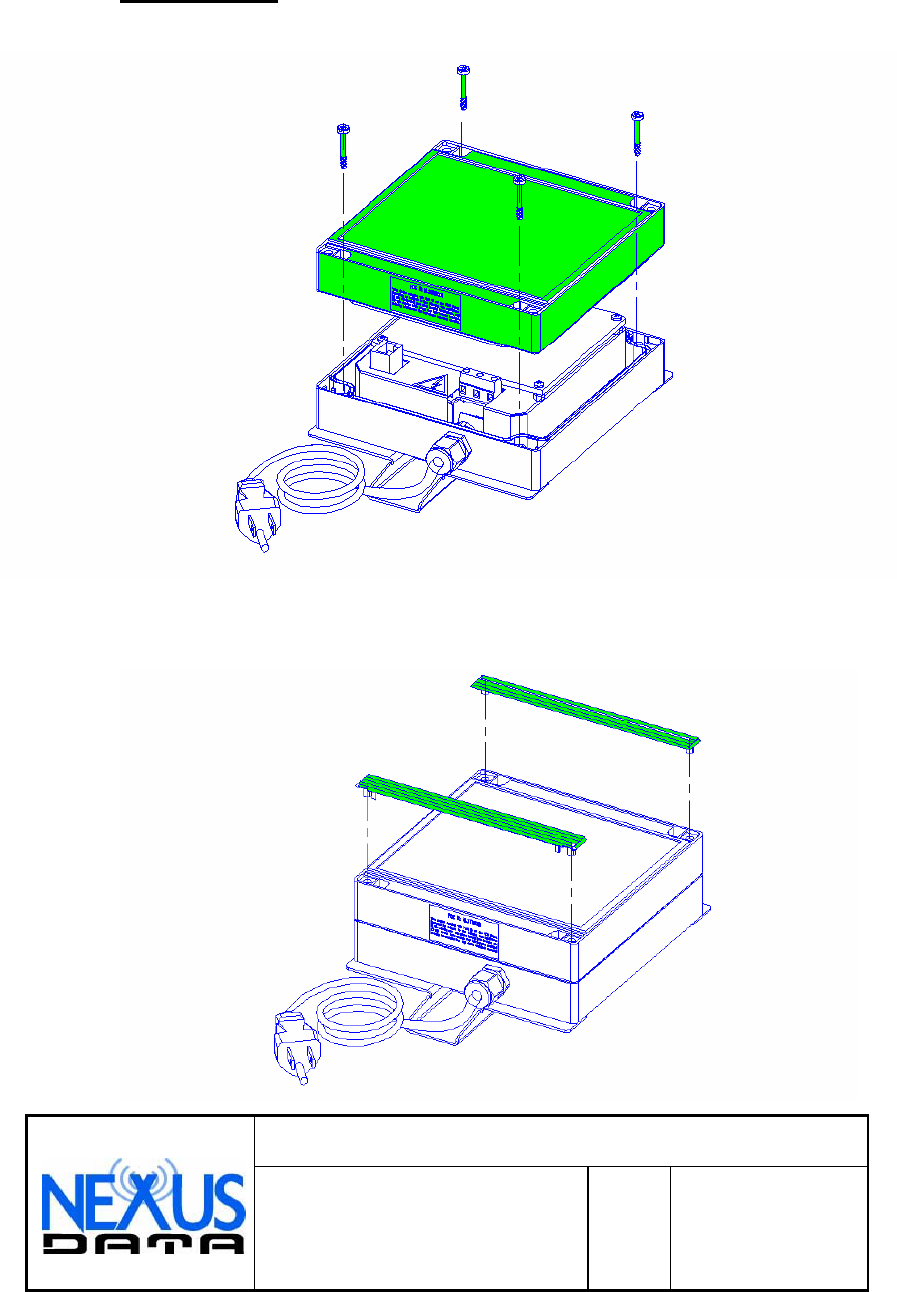

Top Cover
Place the top cover on the front box and assemble screws.
Sealed the top cover with strips.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _13_ OF_19_

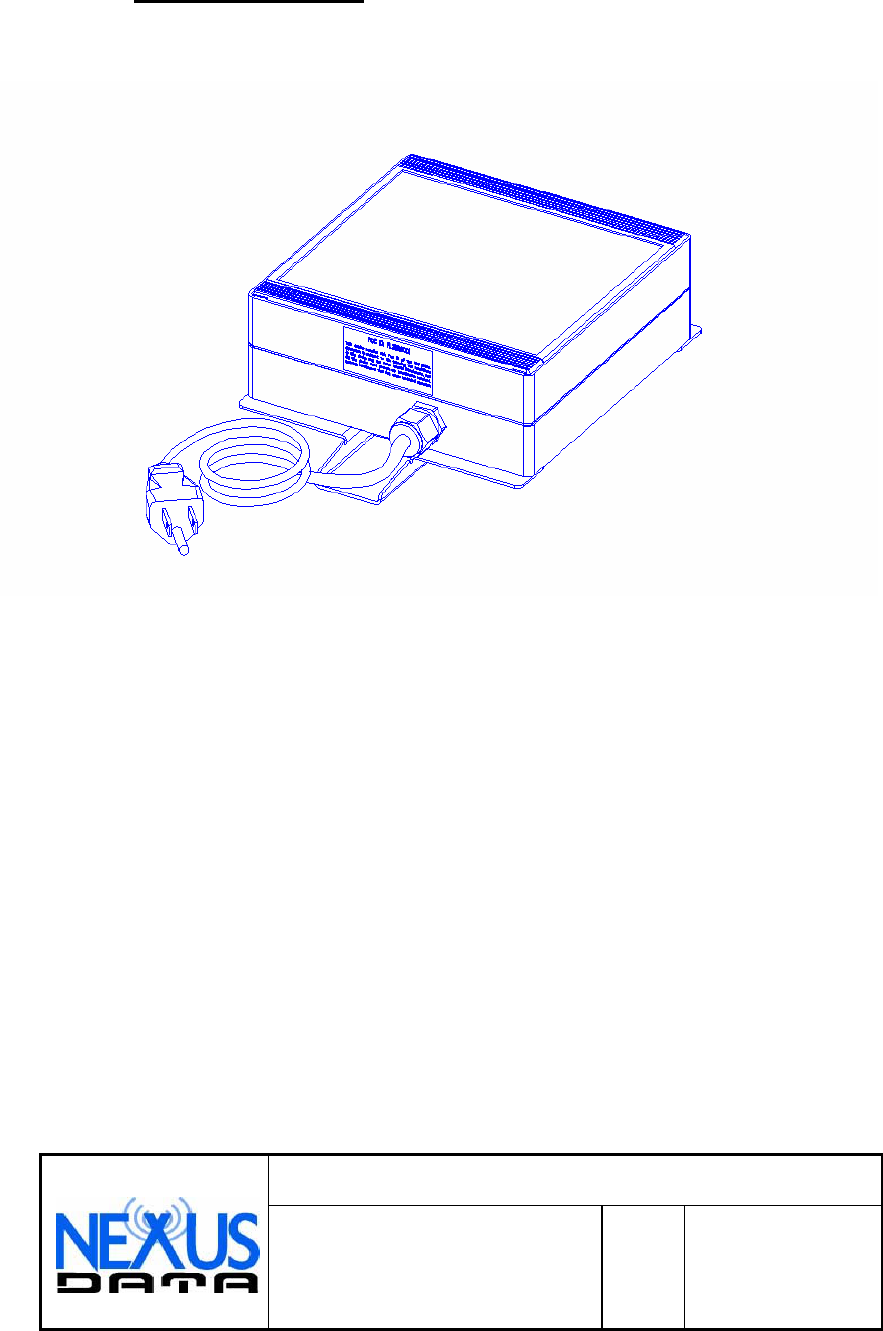

Final Assembly
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _14_ OF_19_
Field Installation
General Instructions
The NTR must be installed at least 3 meters above the floor.
Select the installation location in where no moving/mobile nor
static objects would exist or enter into within 2 meters of the
NTR surrounding, excluding the wall or pipe where the NTR is
installed on.
Installation Steps
Locate installation place, on a roof of a dominate building in
the area where the NTR services are required.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _15_ OF_19_

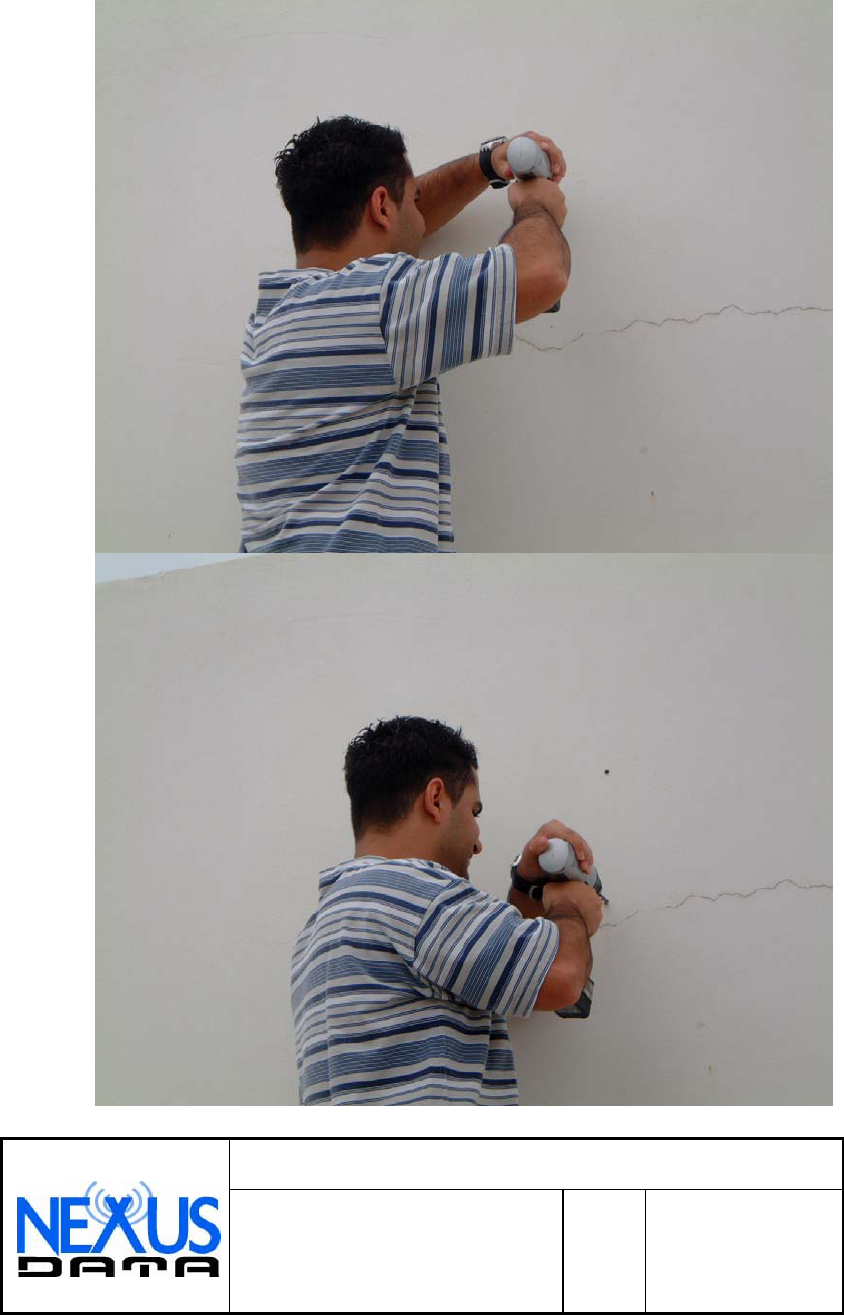

Mark 2 point for drilling.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _16_ OF_19_
drill 2 holes.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _17_ OF_19_

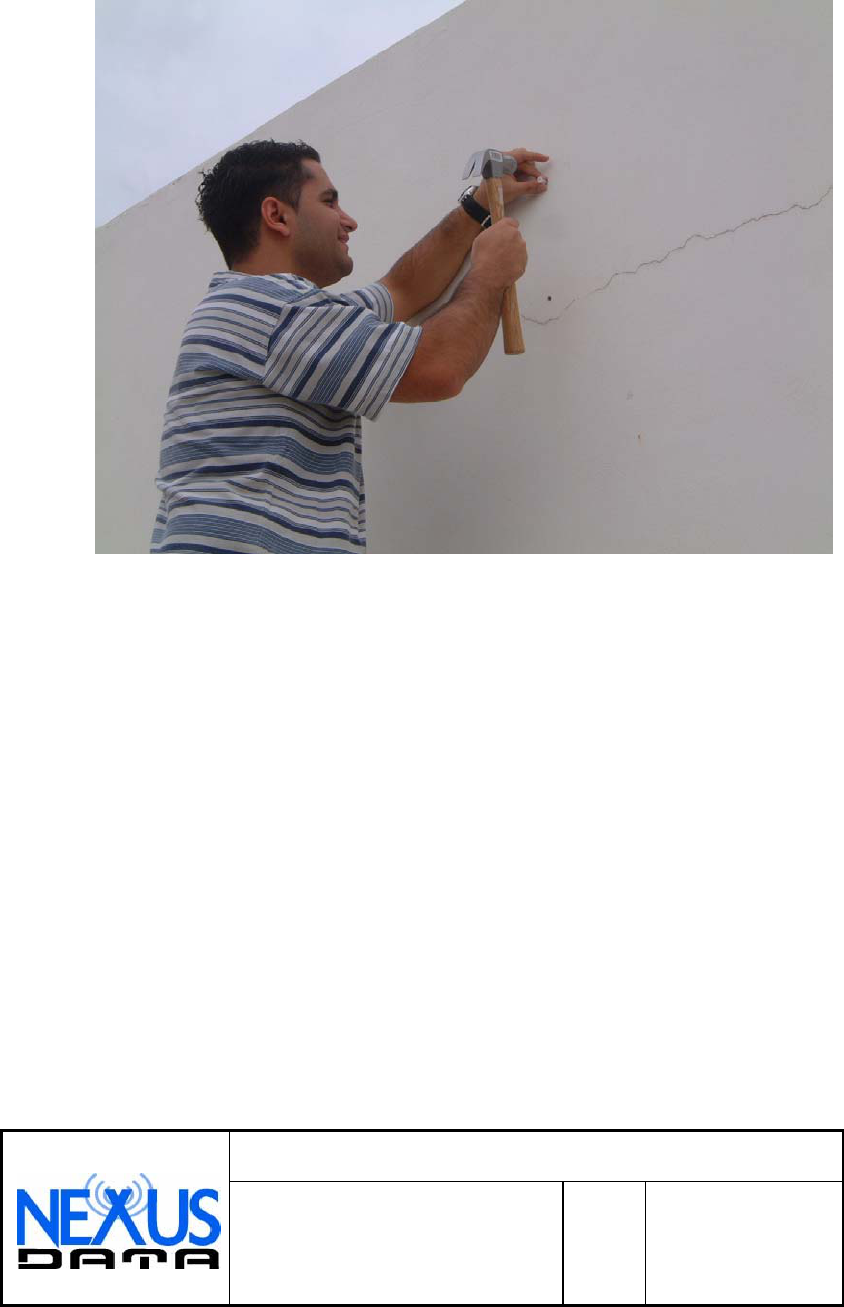

assemble screw-holders.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _18_ OF_19_

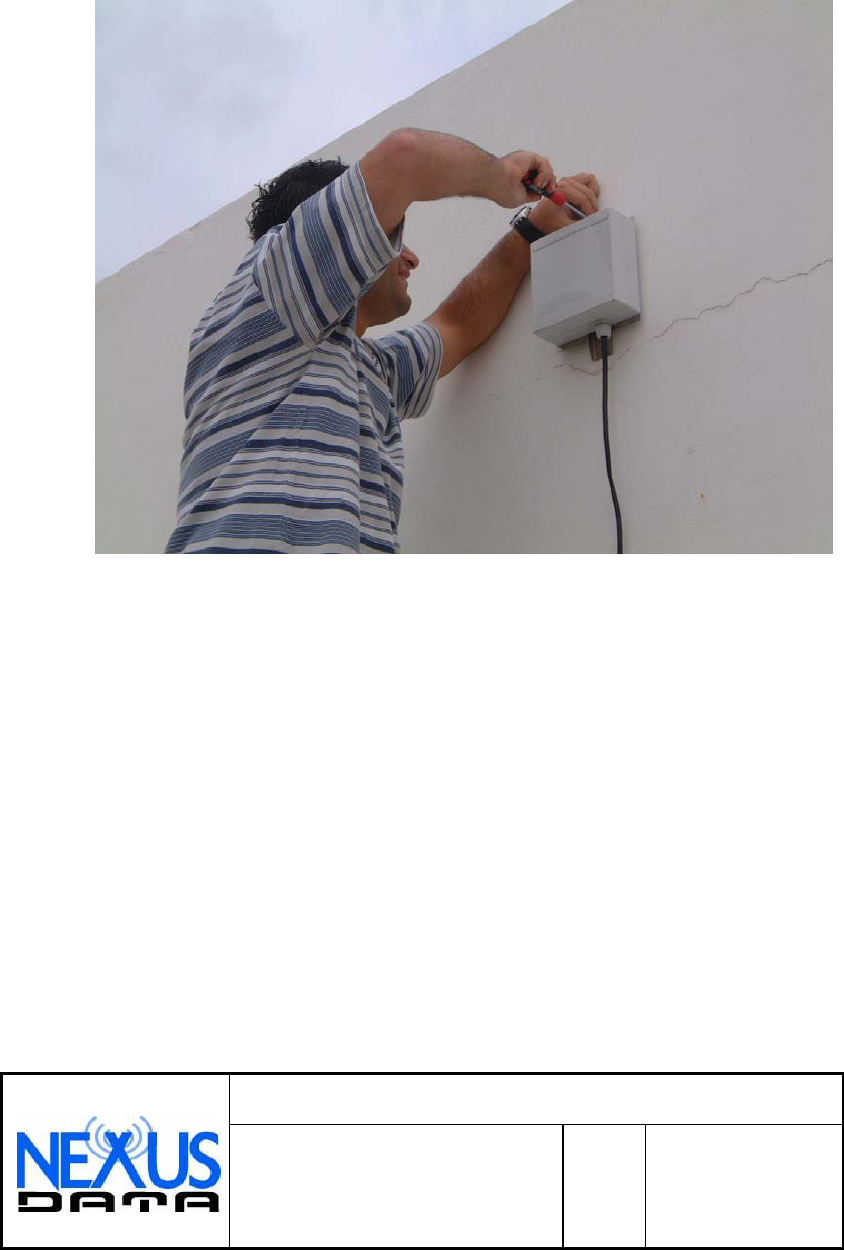

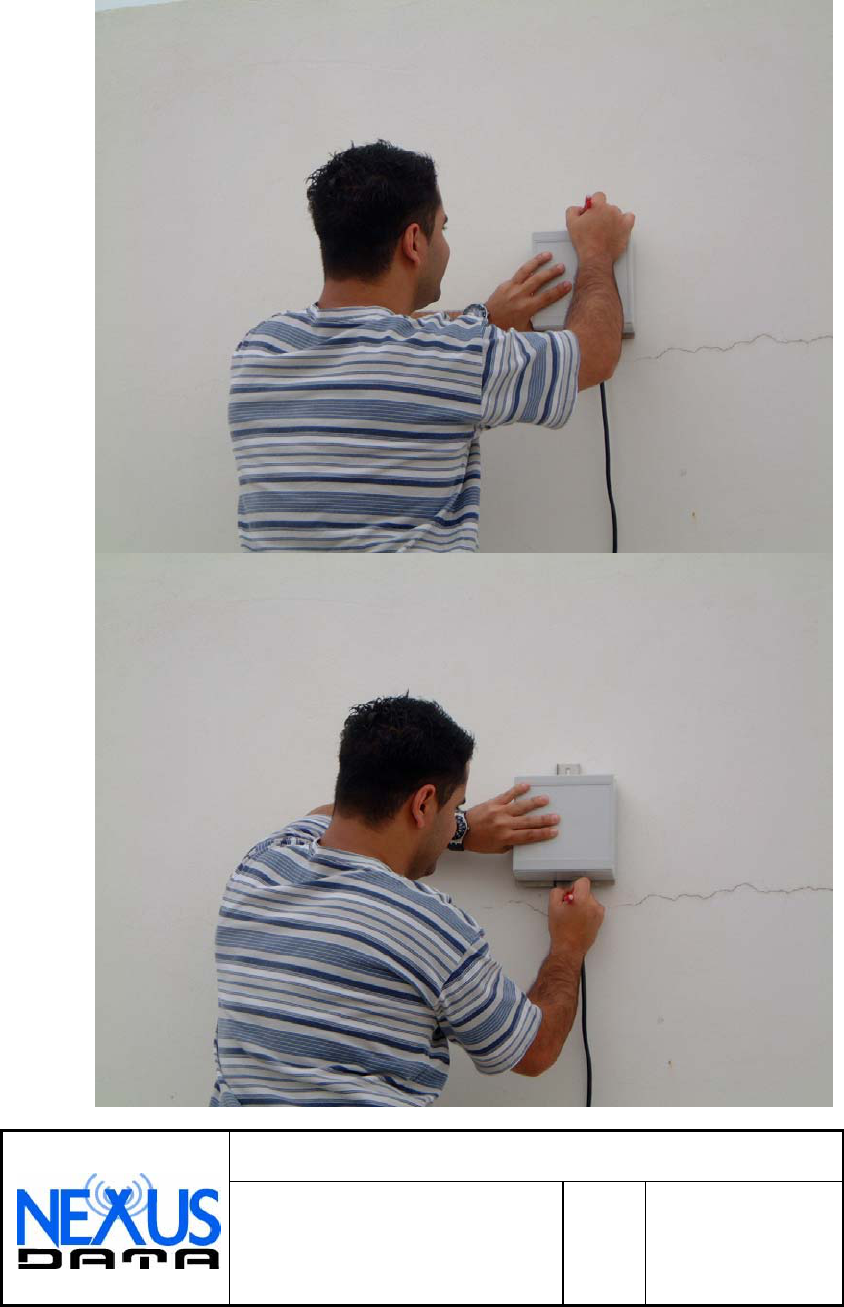

Assemble 2 screws.
DRAW NO.: DC00019-001
DESCRIPTION:
FINAL ASSEMBLY
REPEATER RX-TX
REV
A
SH. _19_ OF_19_

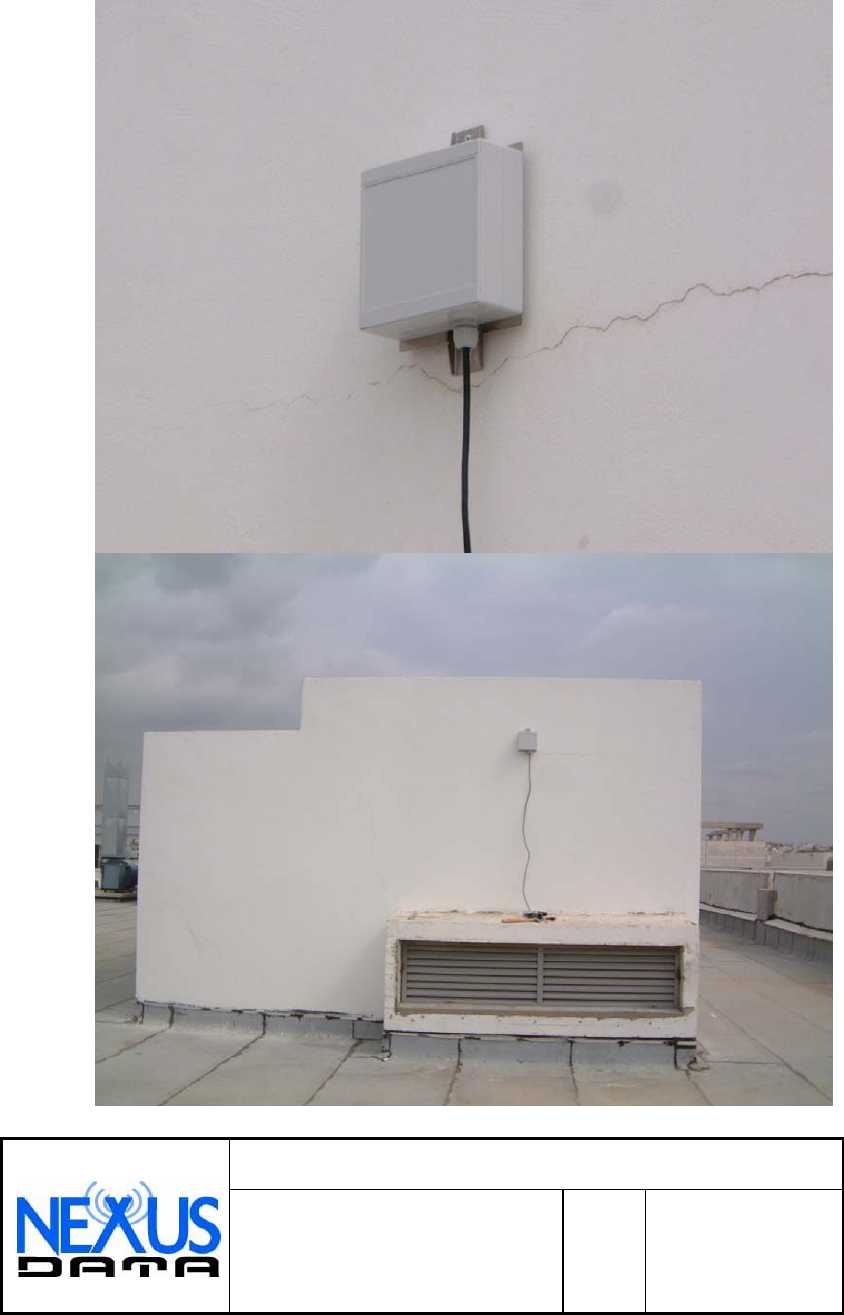

NTR Final installation
