Nihon Kohden ZM-531PA WMTS TRANSMITTER User Manual
Nihon Kohden Corporation WMTS TRANSMITTER
User Manual
If you have any comments or suggestions on this
manual, please contact us at:
www.nihonkohden.com
Transmitter
ZM-520PA/ZM-521PA
ZM-530PA/ZM-531PA
0614-904743
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Copyright Notice
The entire contents of this manual are copyrighted by Nihon Kohden. All rights are reserved. No
part of this document may be reproduced, stored, or transmitted in any form or by any means
(electronic, mechanical, photocopied, recorded, or otherwise) without the prior written permission
of Nihon Kohden.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA C.1
Contents
GENERAL HANDLING PRECAUTIONS ...................................................................... i
WARRANTY POLICY ..................................................................................................iii
Equipment Authorization Requirement ........................................................................iv
EMC RELATED CAUTION ........................................................................................... v
Conventions Used in this Manual and Instrument ......................................................vii
Warnings, Cautions and Notes..............................................................................vii

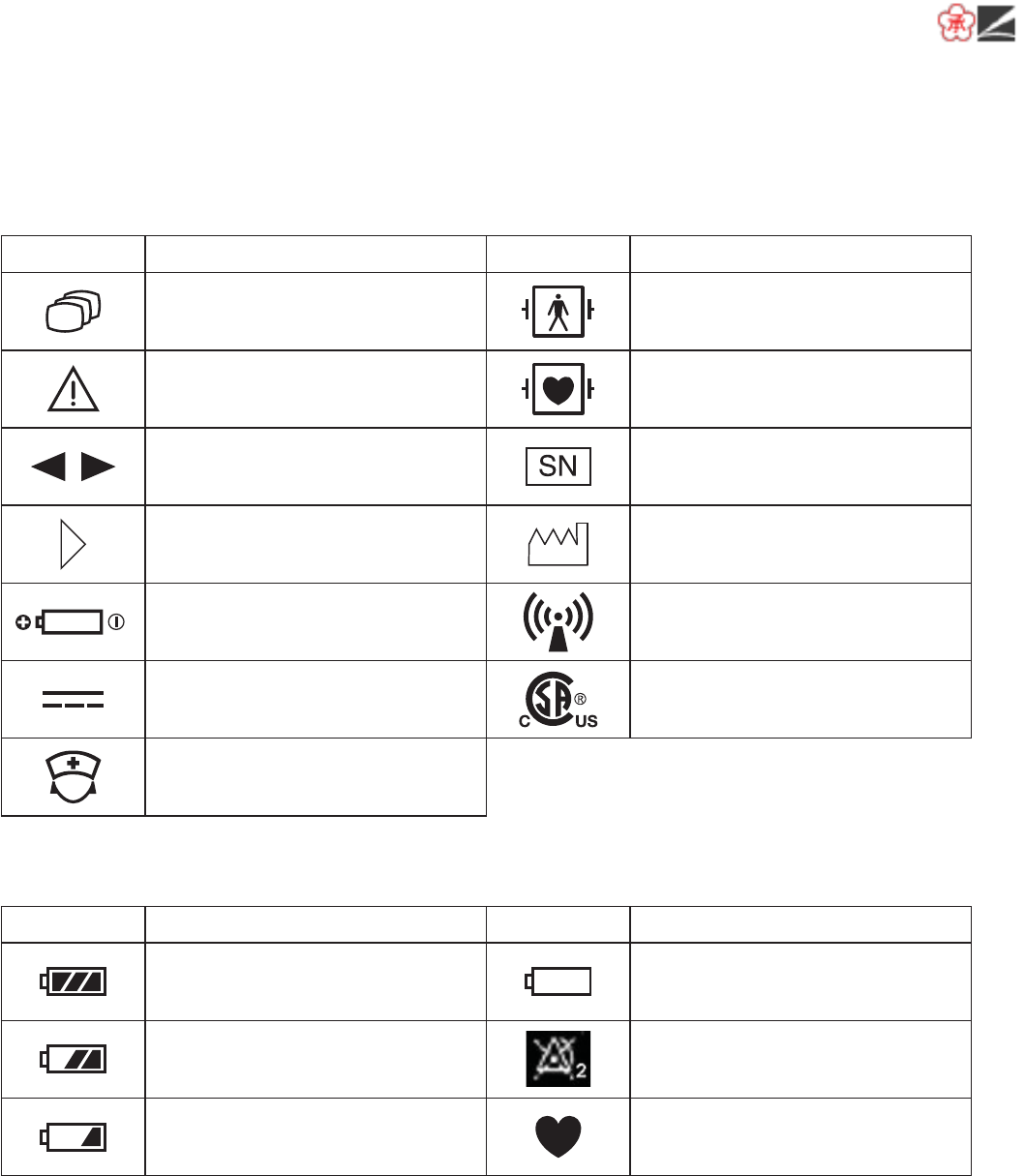

Explanations of the Symbols in this Manual and Instrument ................................viii
Intended Use ..................................................................................................................... 1
General ........................................................................................................................1
Receiving Monitor ........................................................................................................ 3
Panel Description ..............................................................................................................4
Top Panel ..................................................................................................................... 4

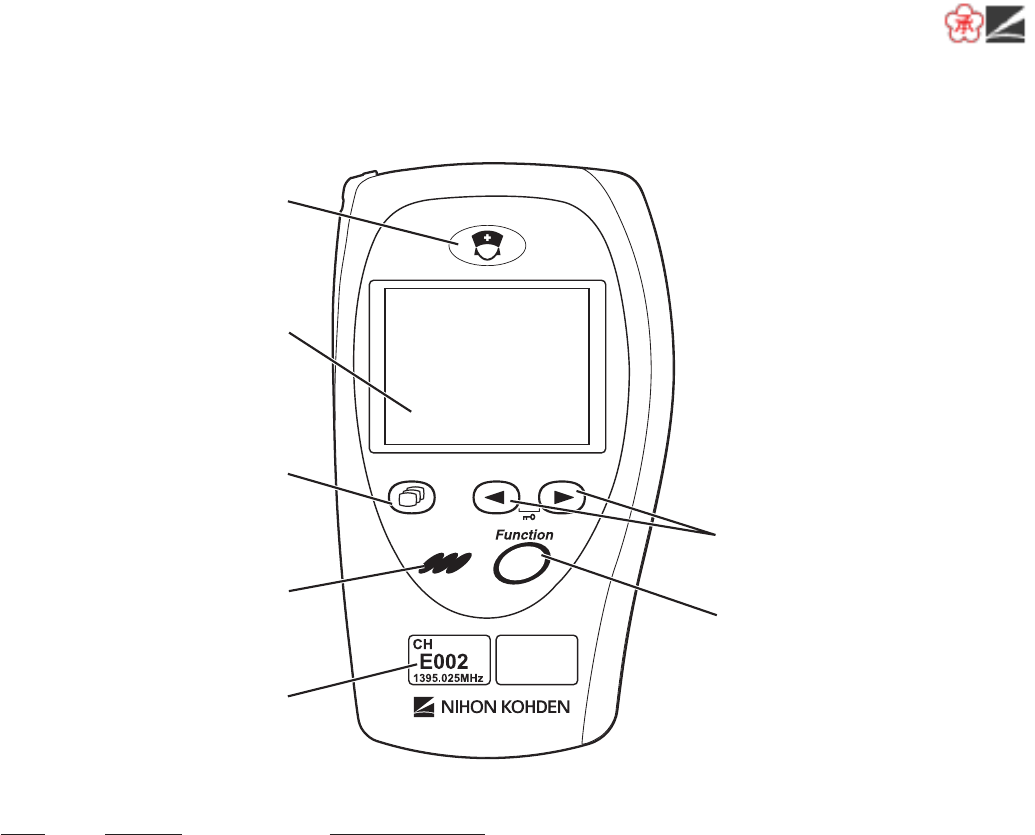

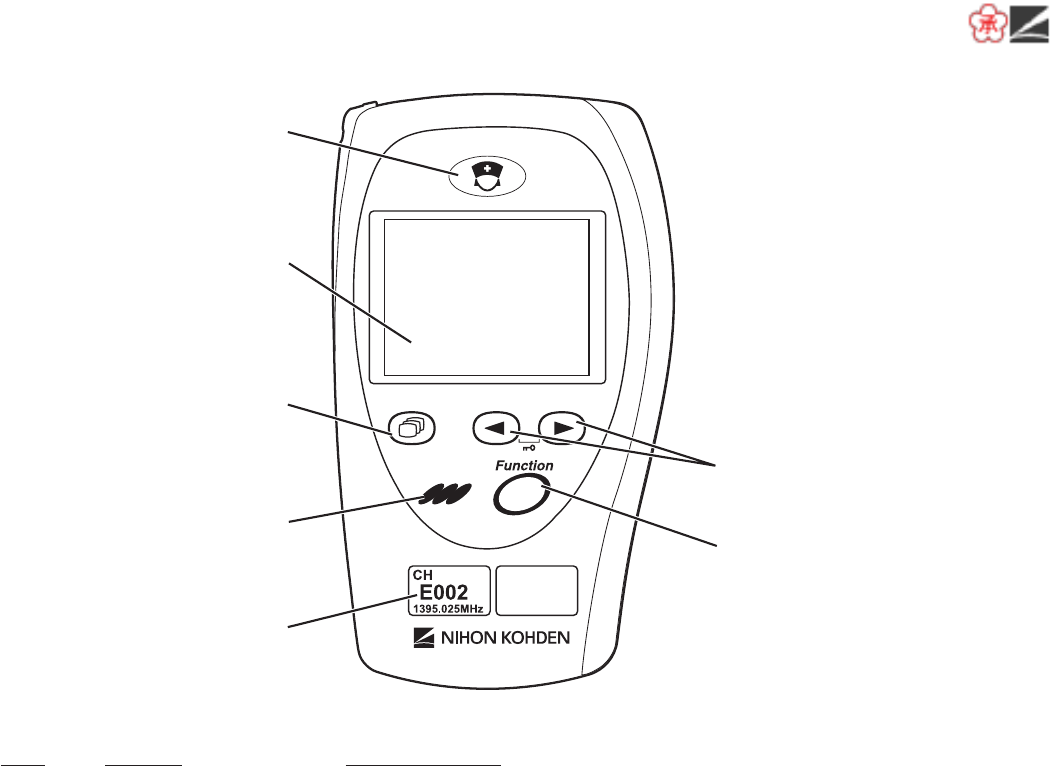

Front Panel ................................................................................................................... 5

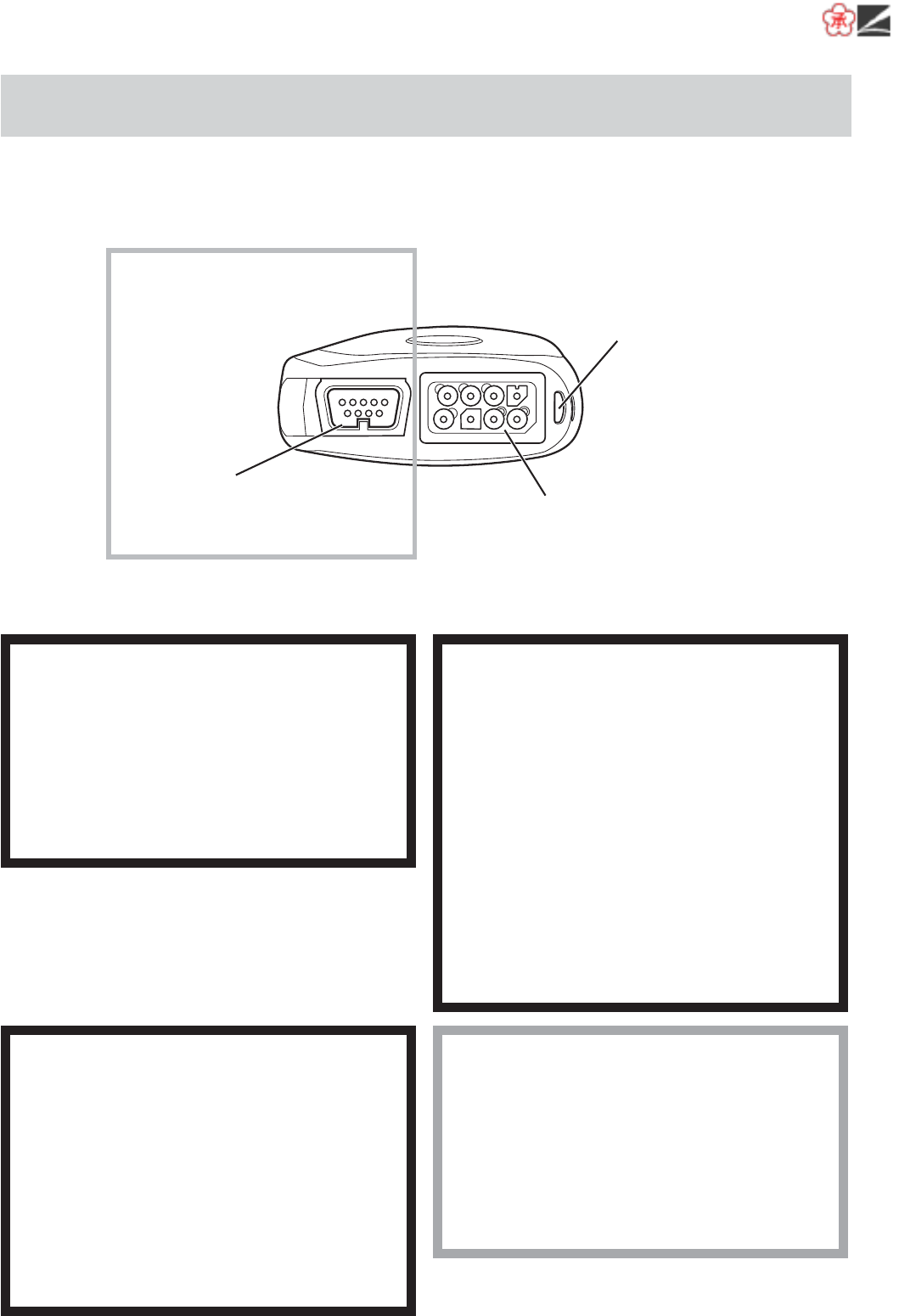

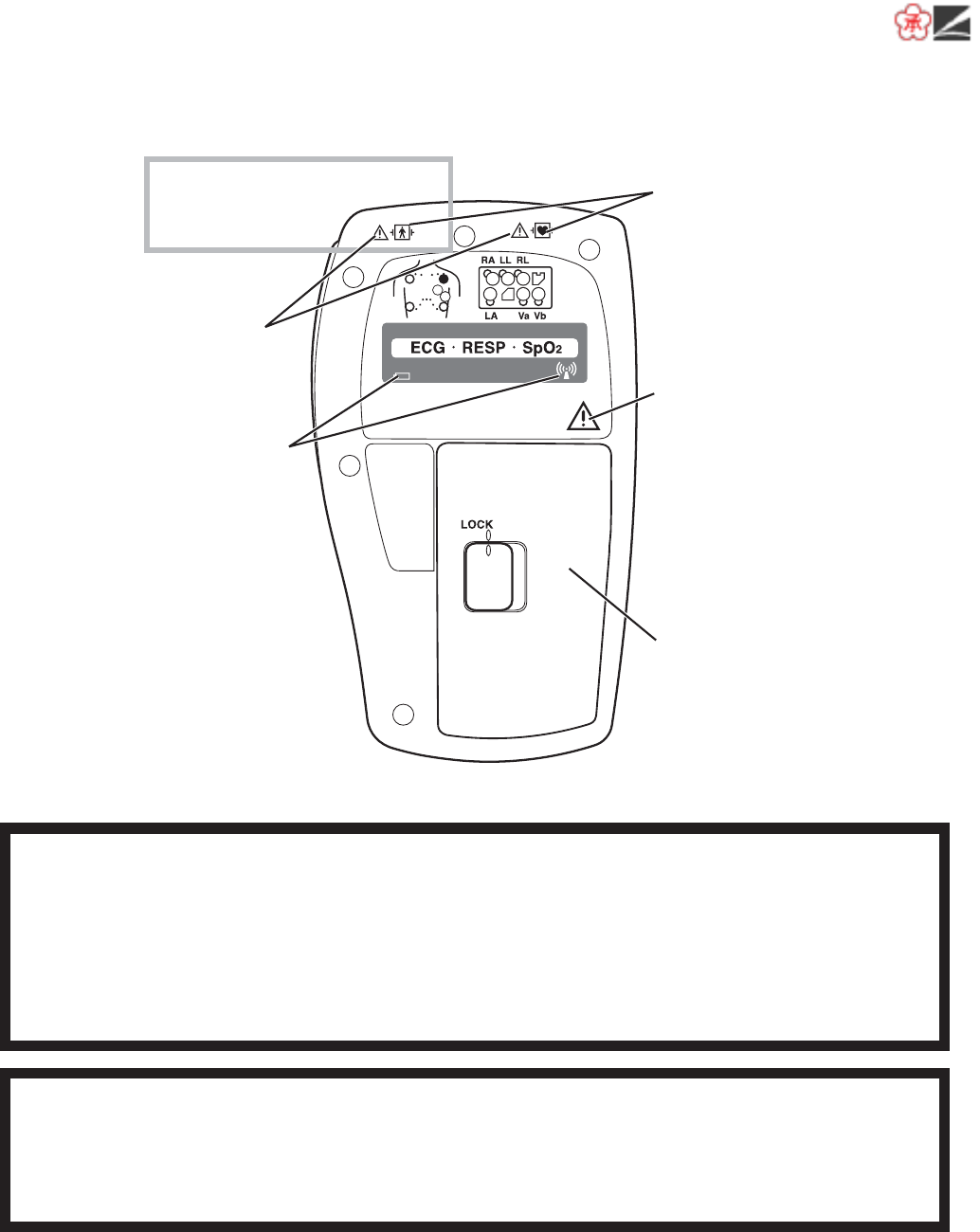

Rear Panel ................................................................................................................... 7
Important Safety Information ............................................................................................. 8
General ........................................................................................................................8
Output Signal ............................................................................................................. 12
Battery ....................................................................................................................... 12
Transmitter Channel Management ............................................................................. 13
For Patients Using Implantable Pacemaker ............................................................... 13
ECG Monitoring ......................................................................................................... 14
SpO2 Monitoring ......................................................................................................... 15
Maintenance .............................................................................................................. 17
Preparation on Transmitter .............................................................................................. 19
Batteries ..................................................................................................................... 19
Handling Batteries ................................................................................................ 19
Battery Lifetime .................................................................................................... 19

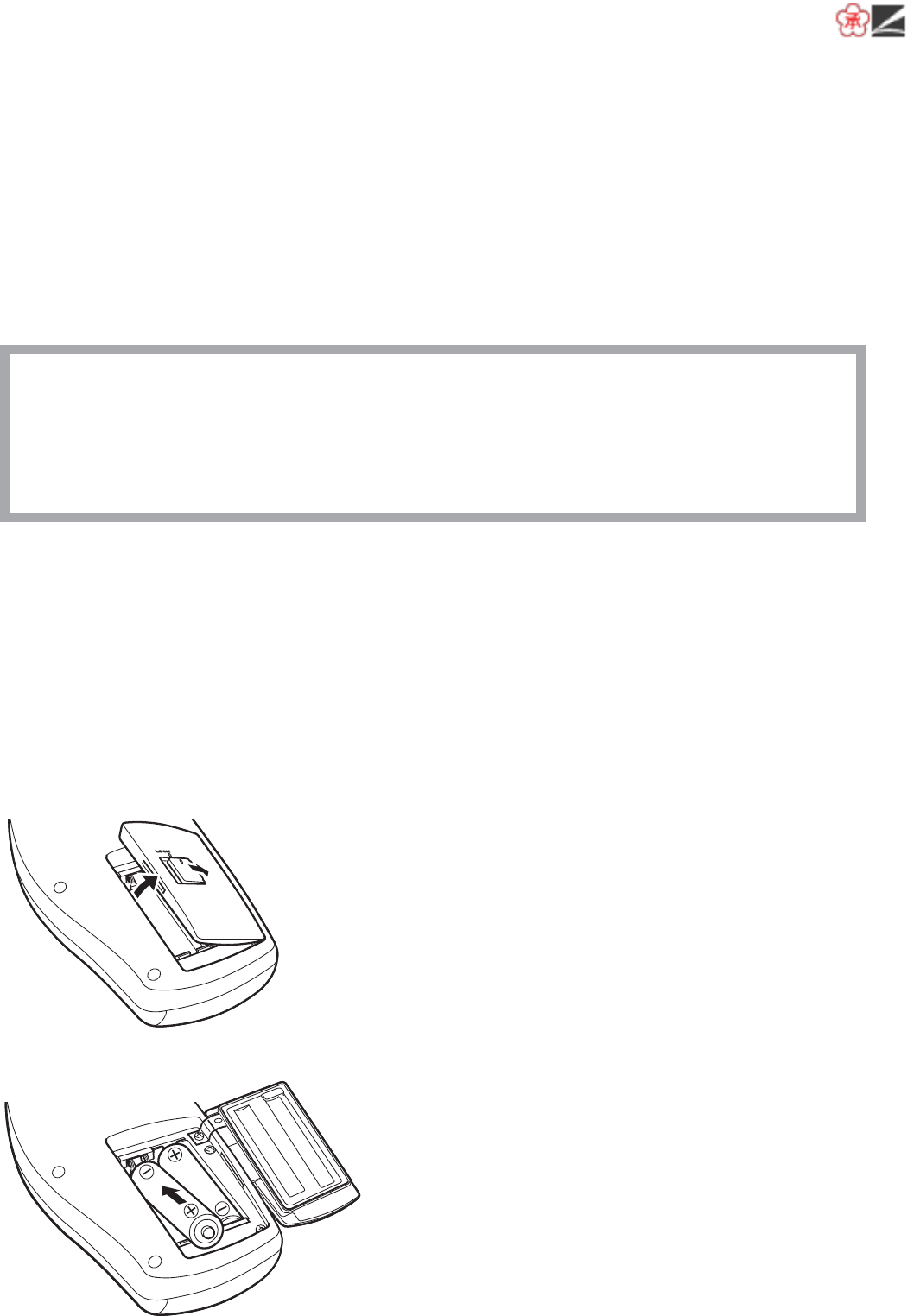

Installing (Replacing) Batteries ............................................................................ 20
Situations Requiring Battery Replacement .......................................................... 21
Battery Level Indication ........................................................................................ 21

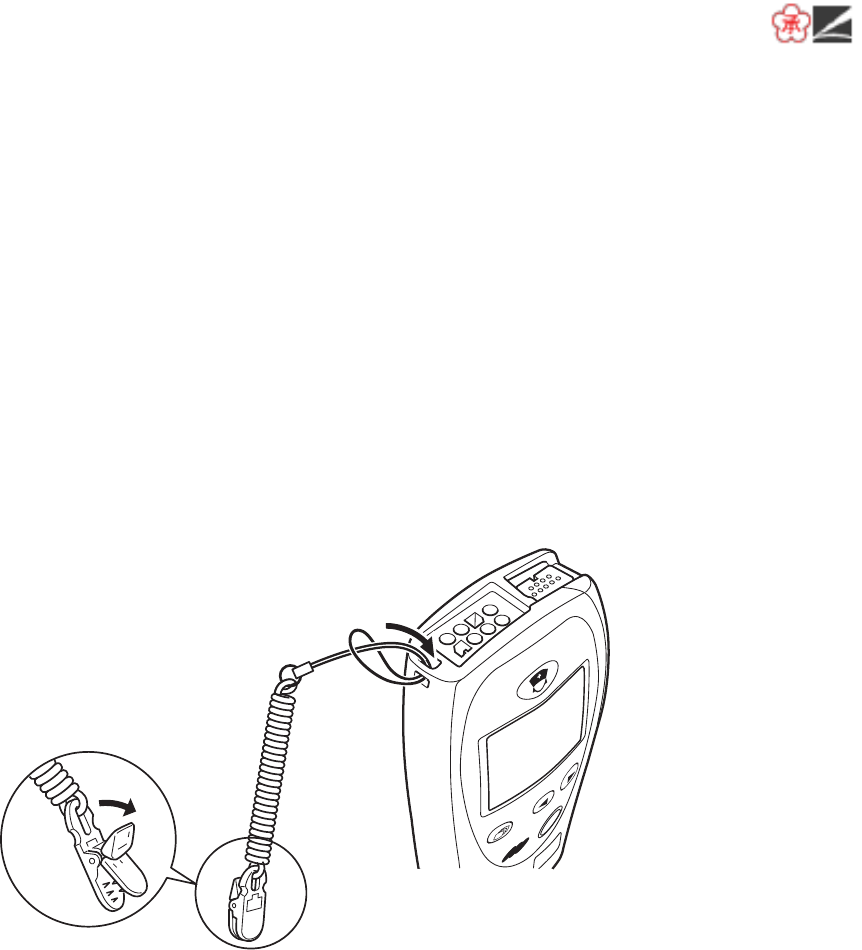

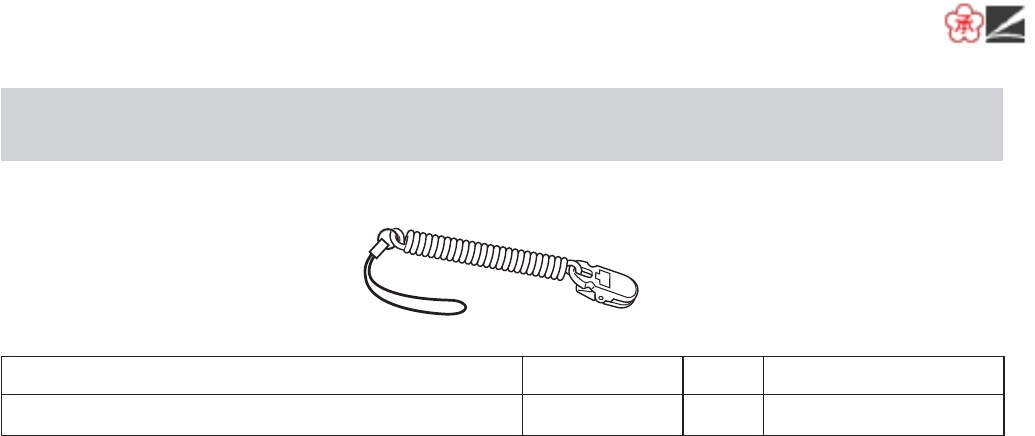

Attaching a Strap to the Transmitter ........................................................................... 22
Turning On the Transmitter ......................................................................................... 23
Check Items Before Use ...................................................................................... 23
Check Items After Power On ................................................................................ 24
Check Items After Use ......................................................................................... 24
Turning Off the Transmitter ......................................................................................... 25

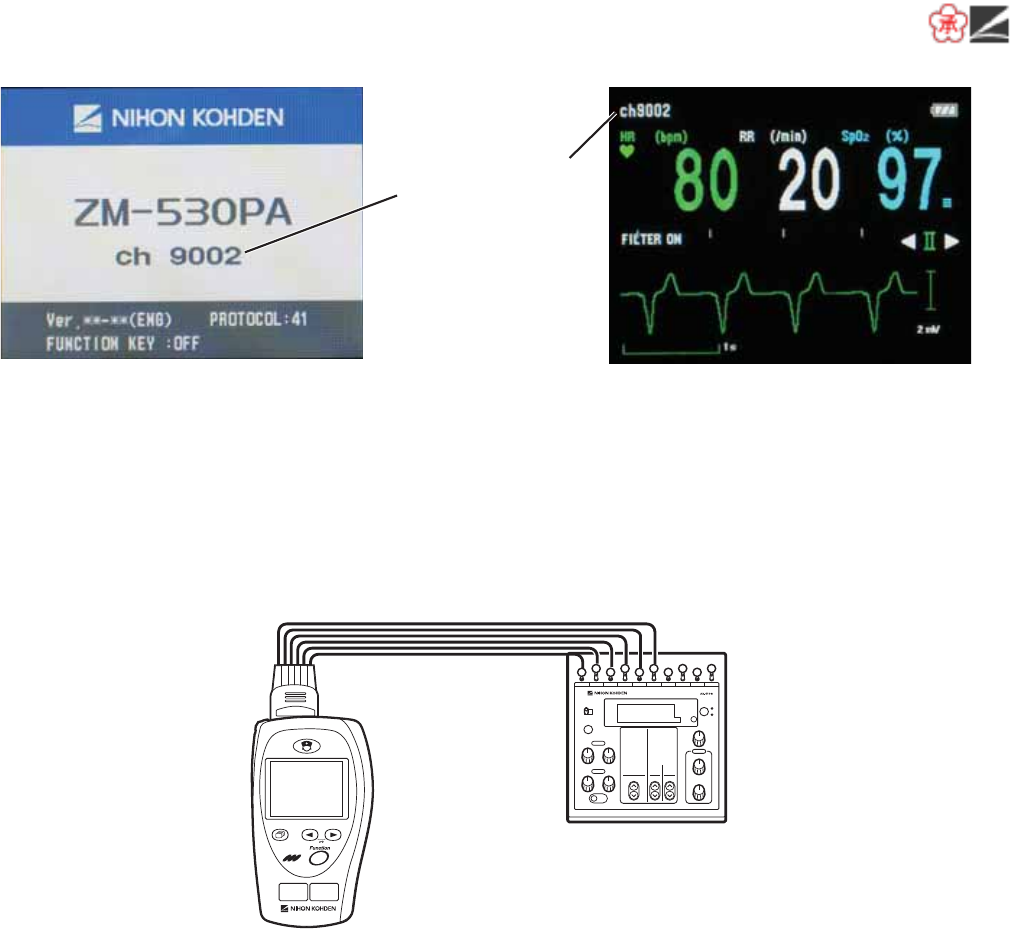

Changing the Transmitter Channel ............................................................................. 25
Changing Parameter and System Setup Settings ........................................................... 26
Changing PARAMETER SETUP Settings.................................................................. 26
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
C.2 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Parameter Setup Setting List ............................................................................... 26

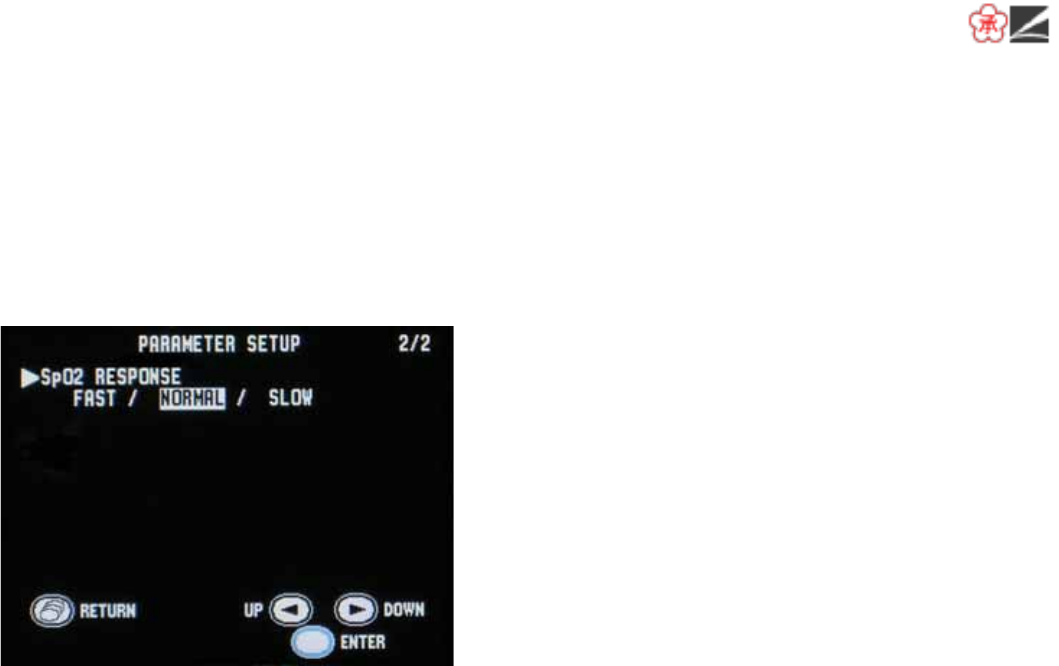

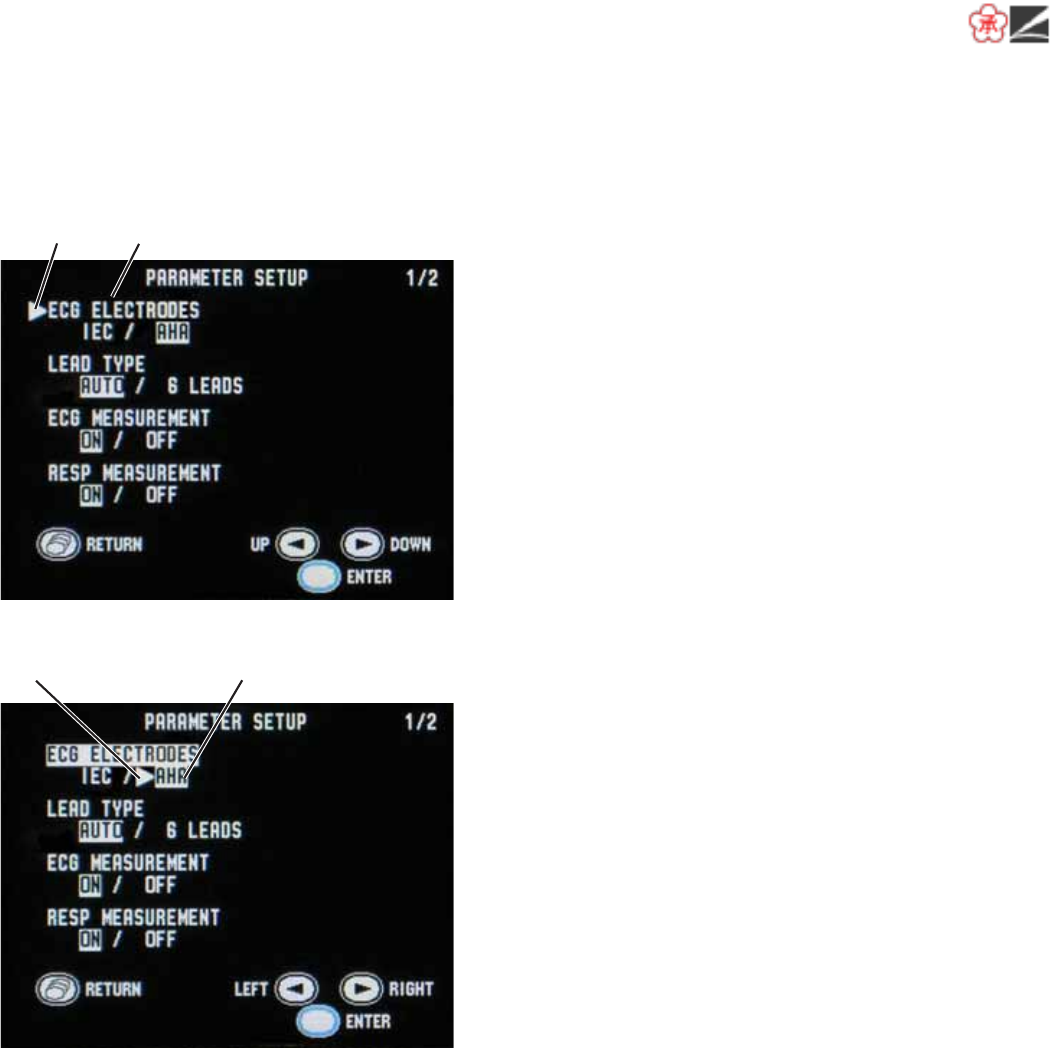

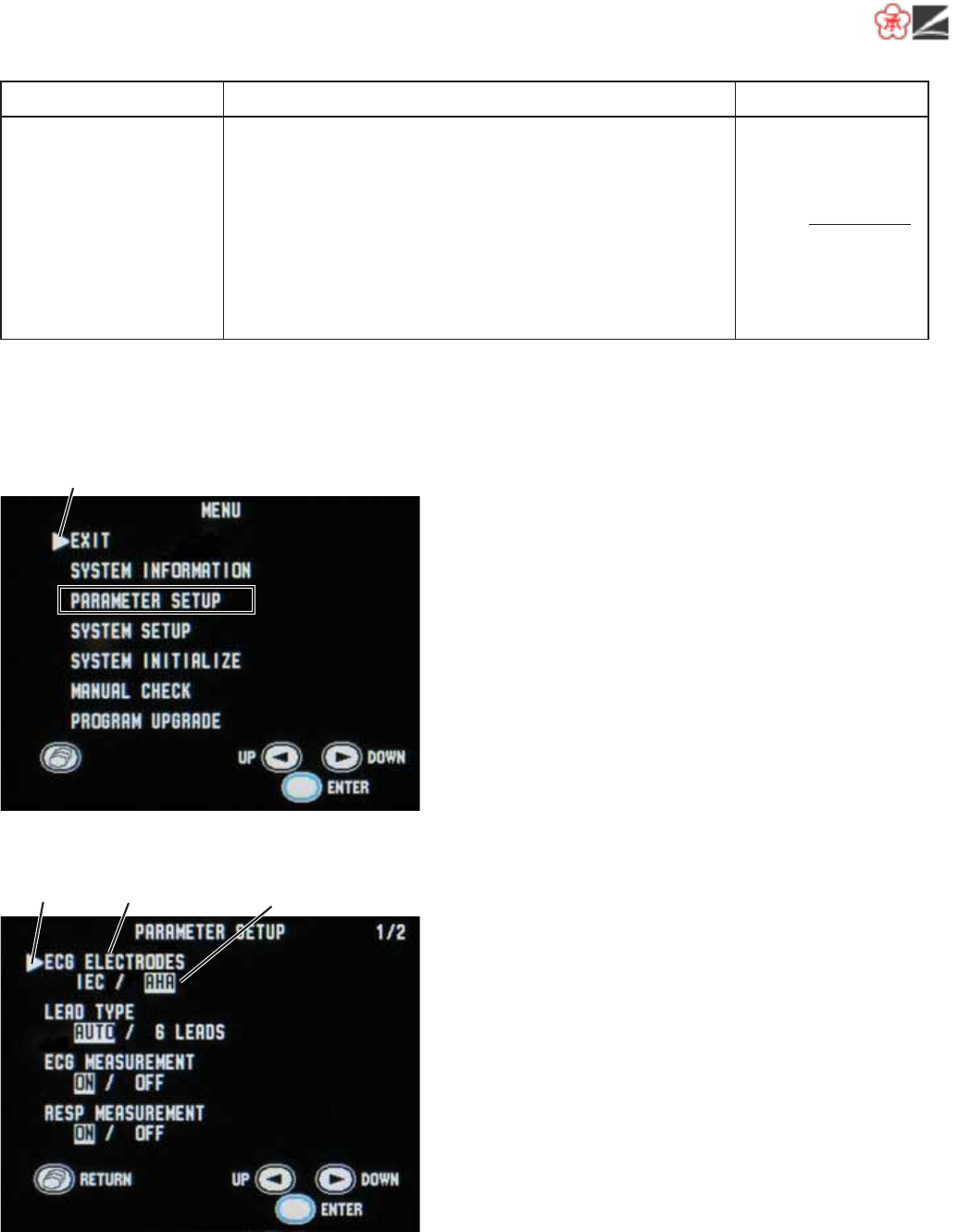

Displaying the PARAMETER SETUP Screen ...................................................... 27
Changing Parameter Setup Settings .................................................................... 28

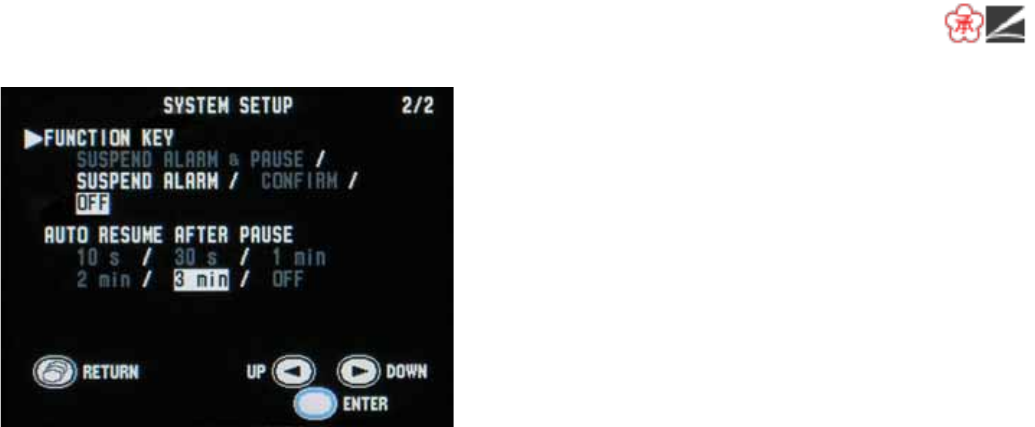

Changing SYSTEM SETUP Settings ......................................................................... 31

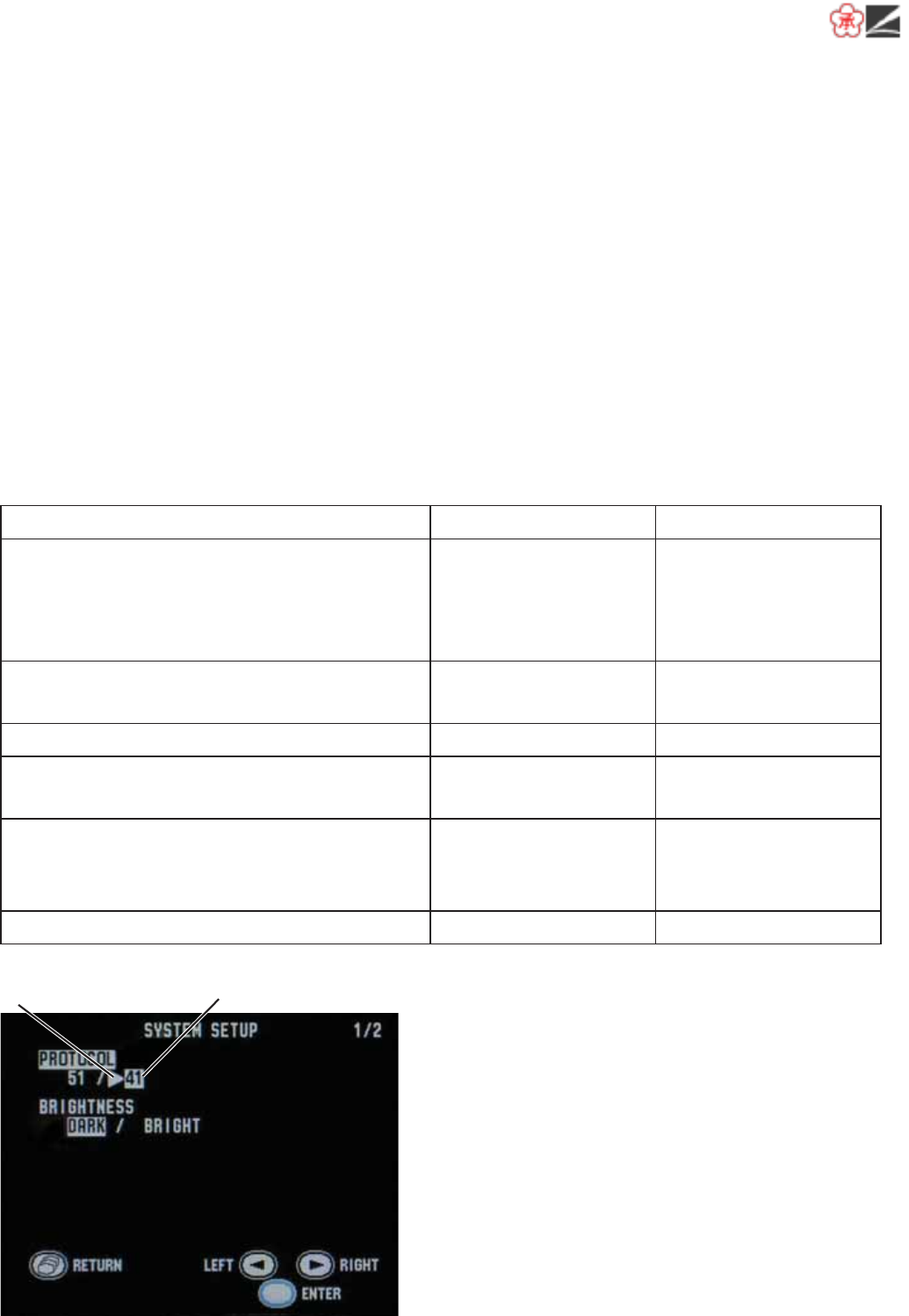

System Setup Setting List .................................................................................... 31

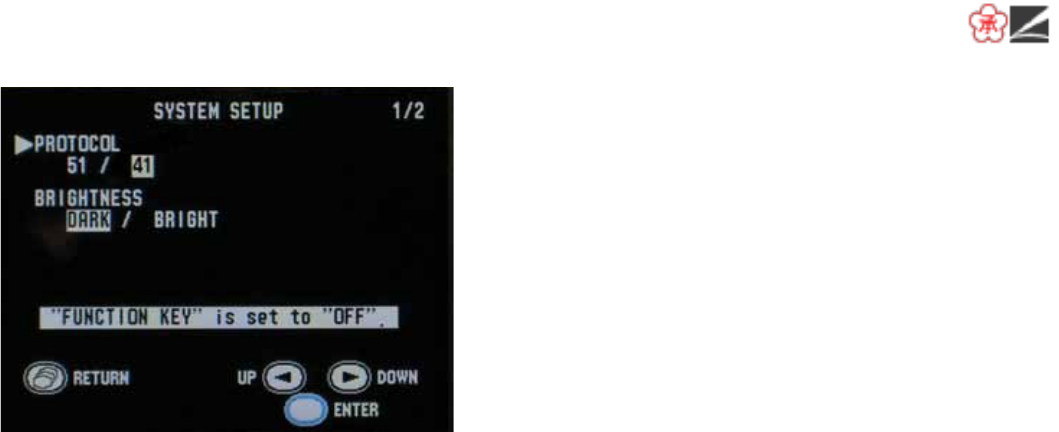

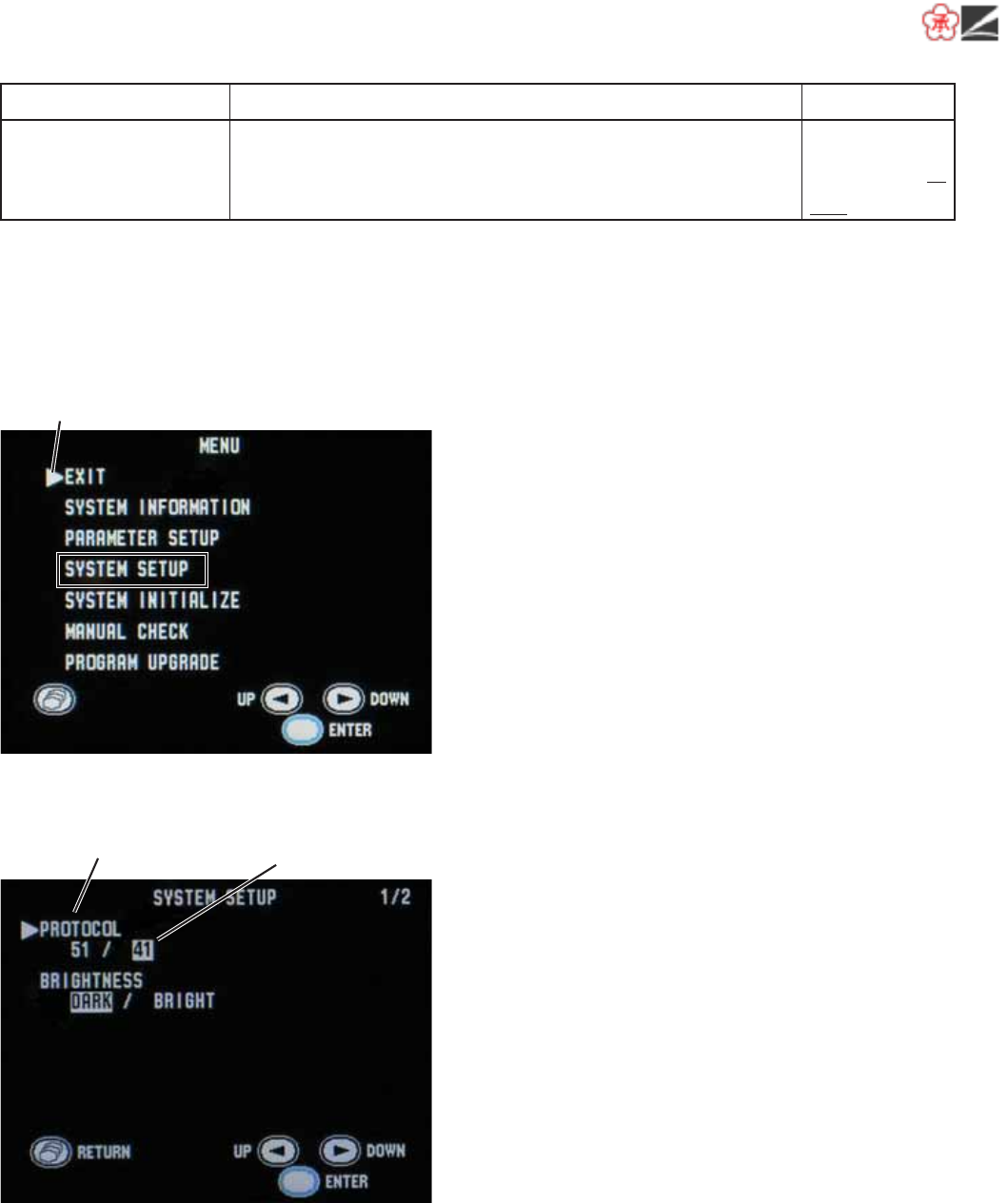

Displaying the SYSTEM SETUP Screen .............................................................. 32
Changing System Setup Settings ........................................................................ 33
Initializing Settings ..................................................................................................... 36
Attaching Electrodes and SpO2 Probe to the Patient....................................................... 37
Attaching Electrodes .................................................................................................. 37

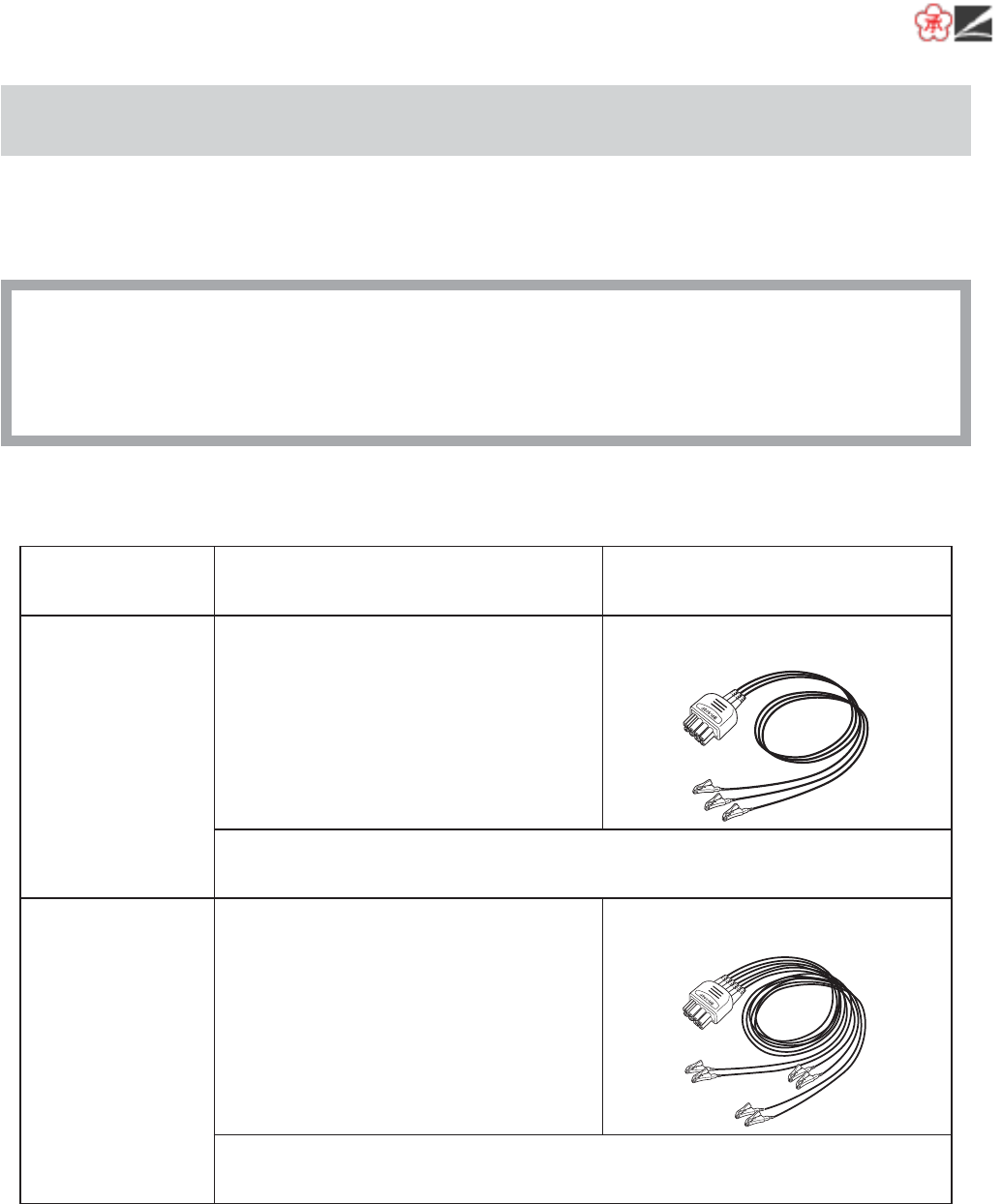

Selecting Electrode Lead ..................................................................................... 37

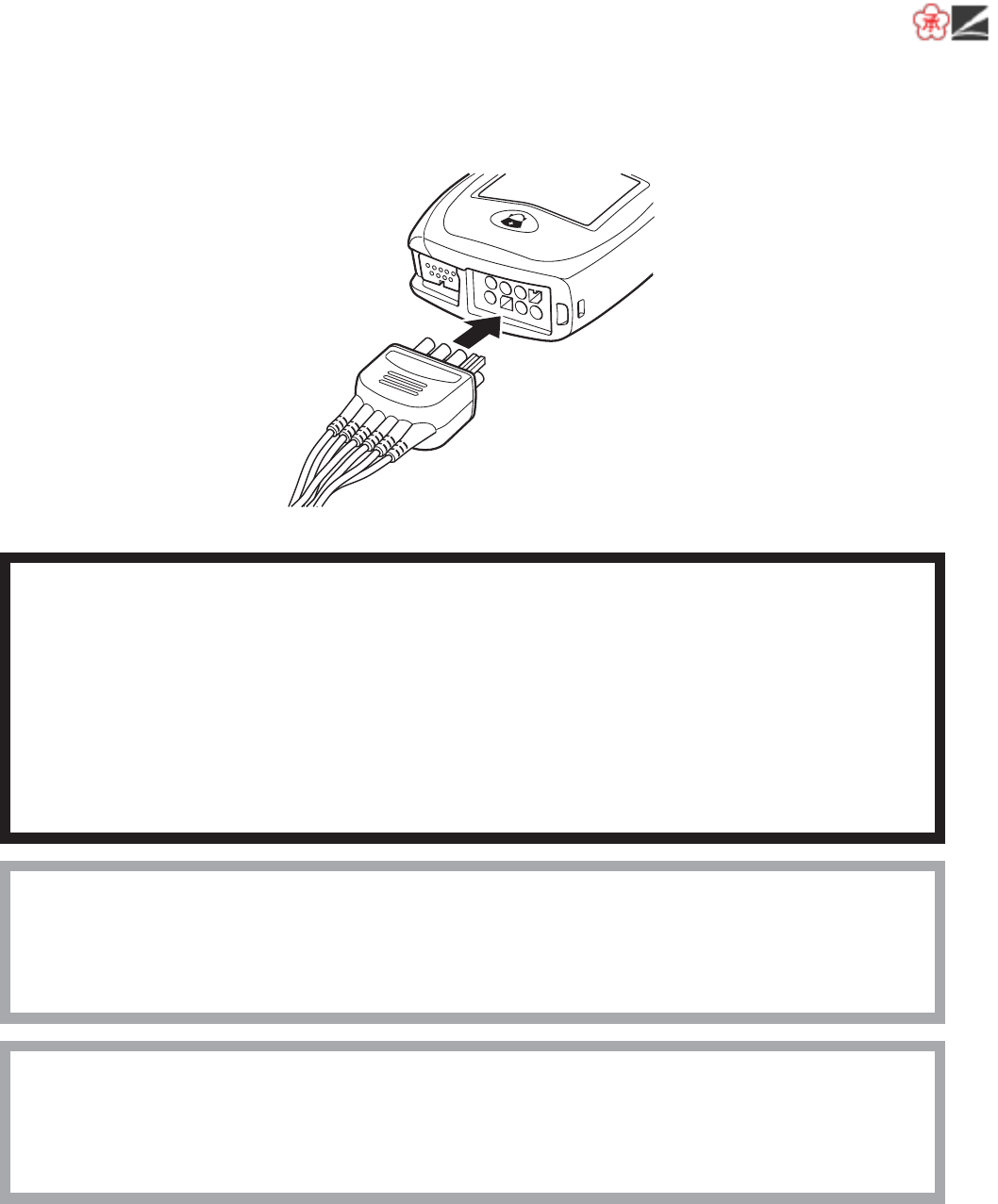

Connecting the Electrode Lead to the Transmitter ............................................... 38

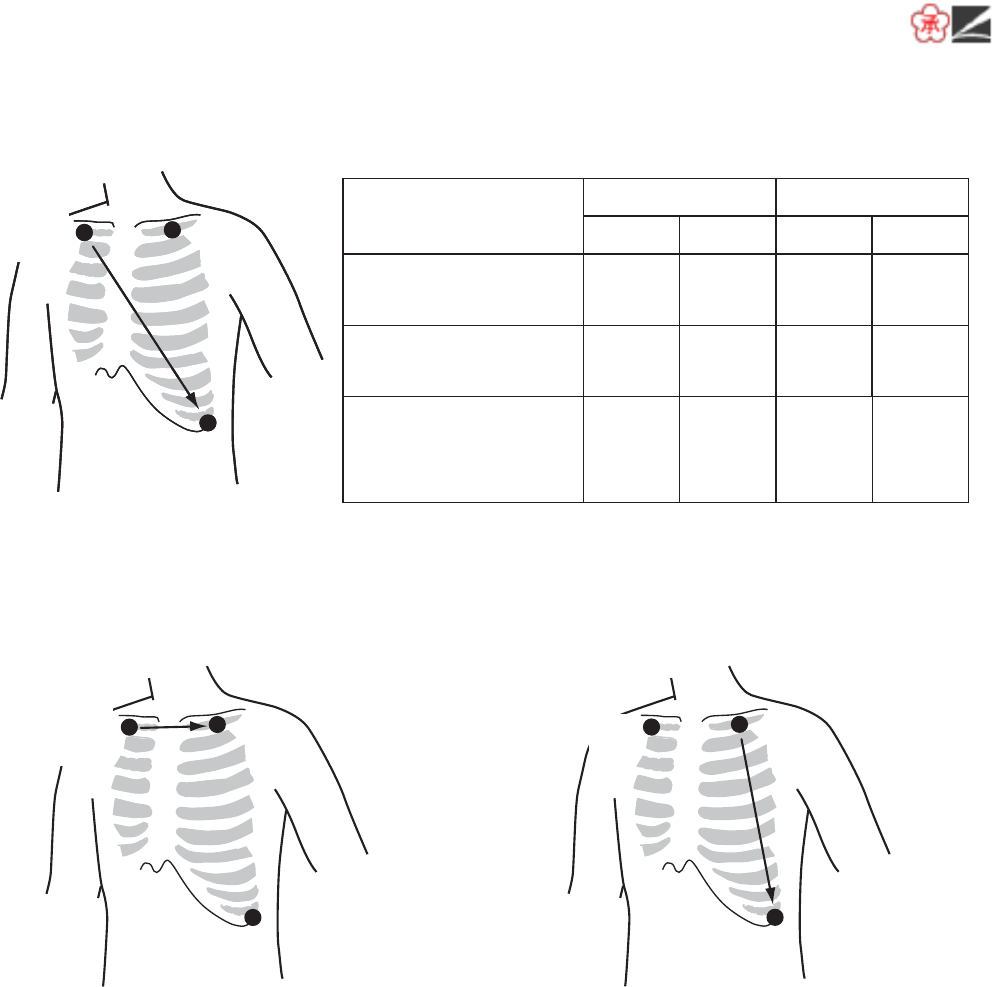

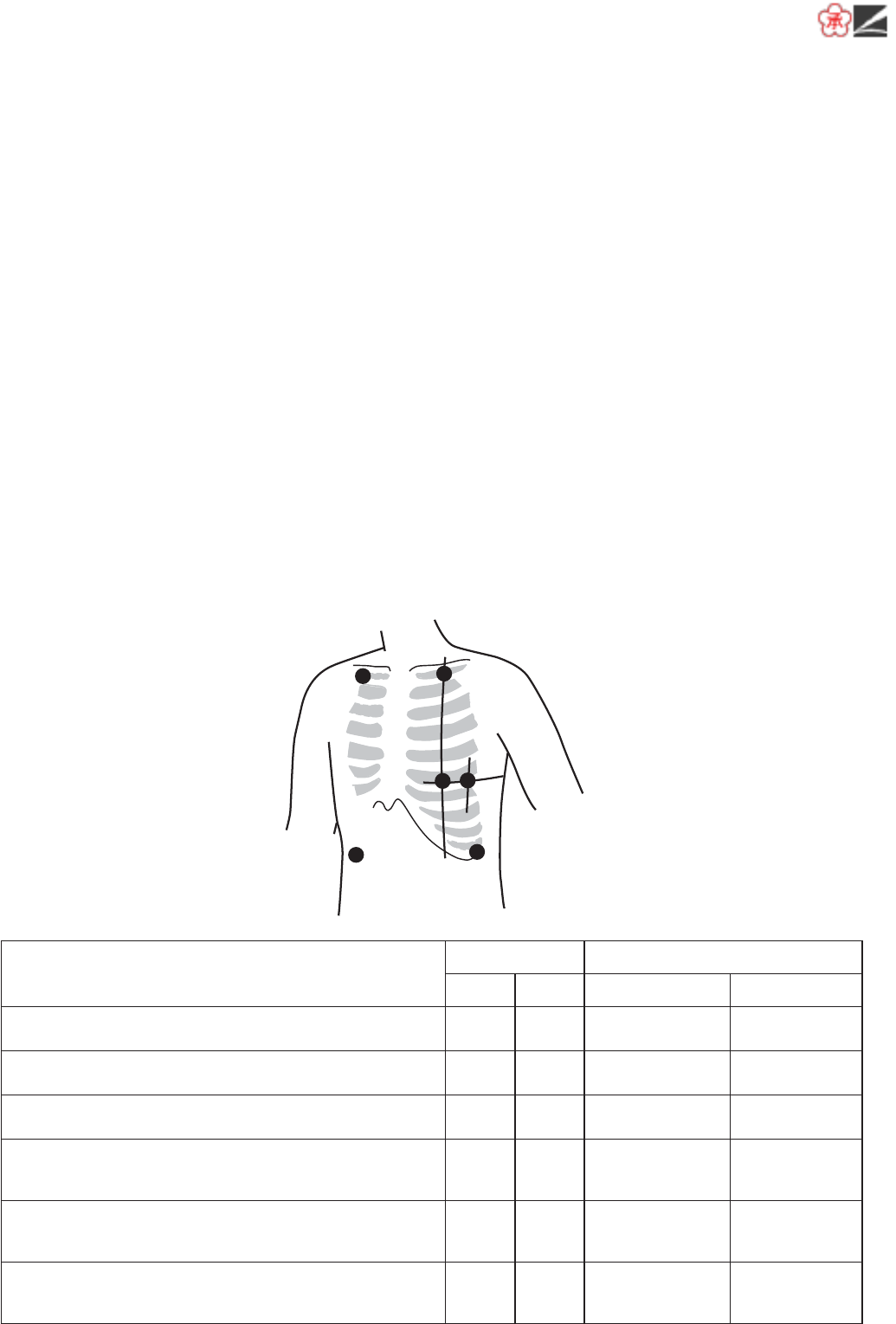

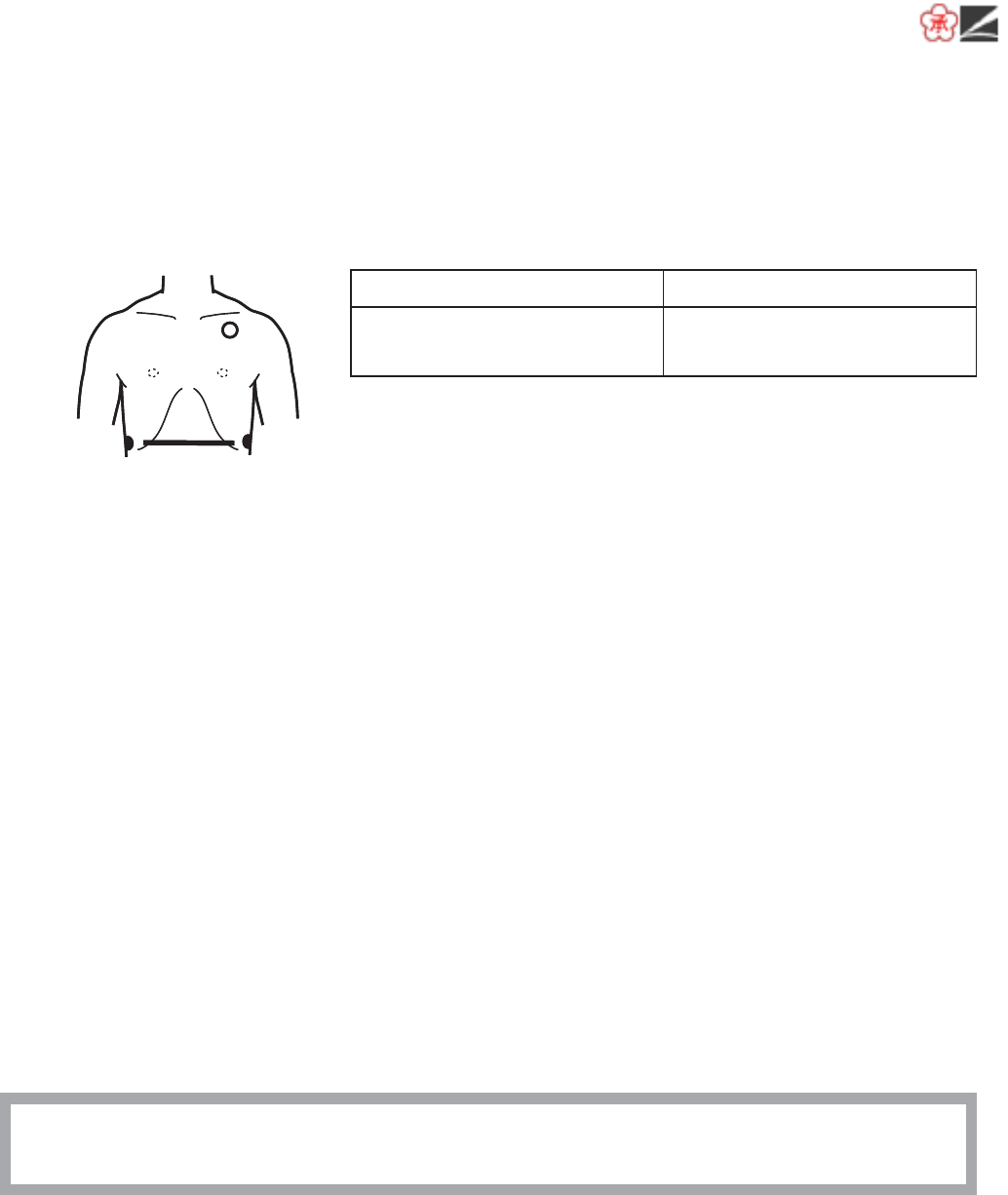

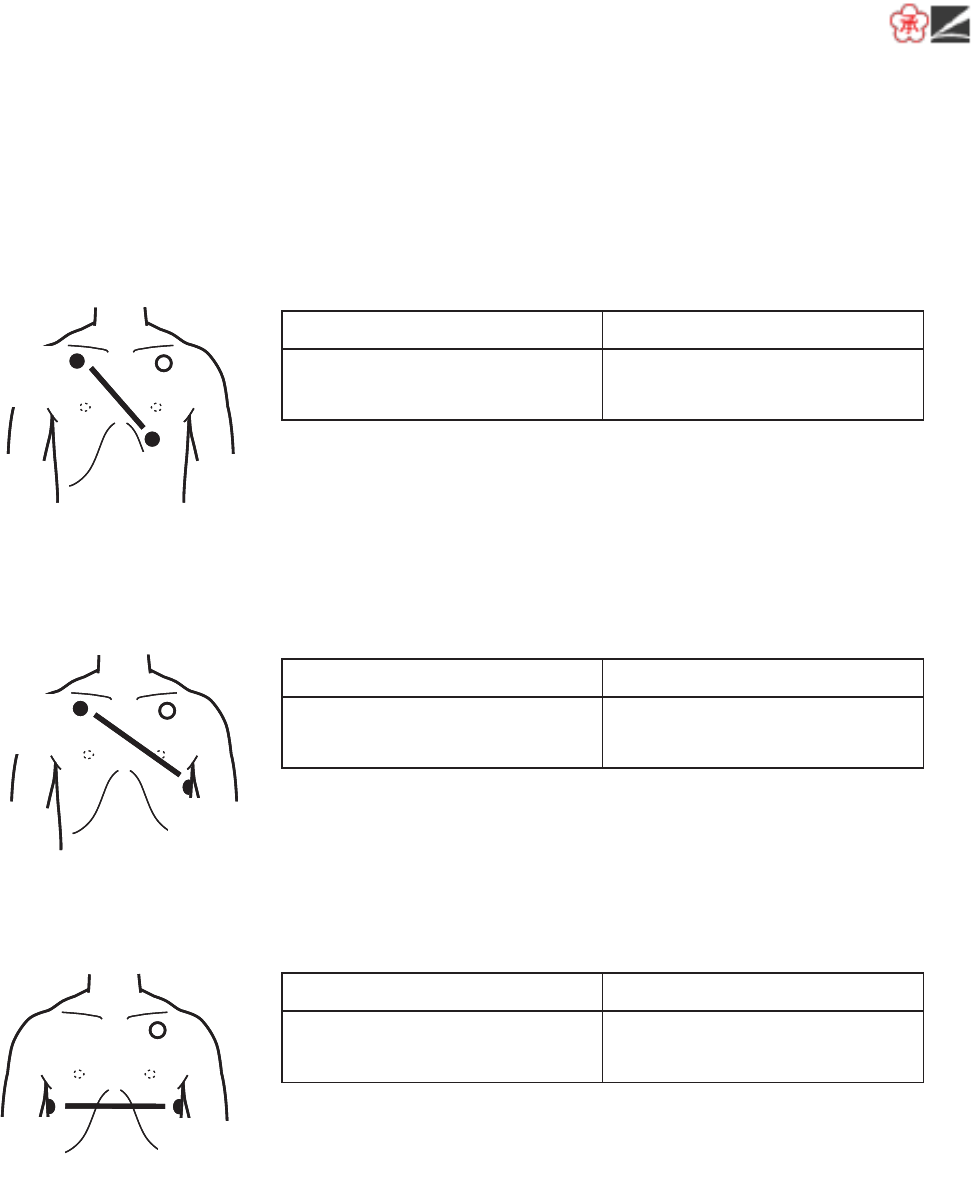

Electrode Position ................................................................................................ 39
Attaching Electrodes to the Patient and Connecting the Electrode Leads to
Disposable Electrodes ......................................................................................... 43
Checking ECG on the Transmitter Screen ............................................................ 44
Attaching the SpO2 Probe .......................................................................................... 44

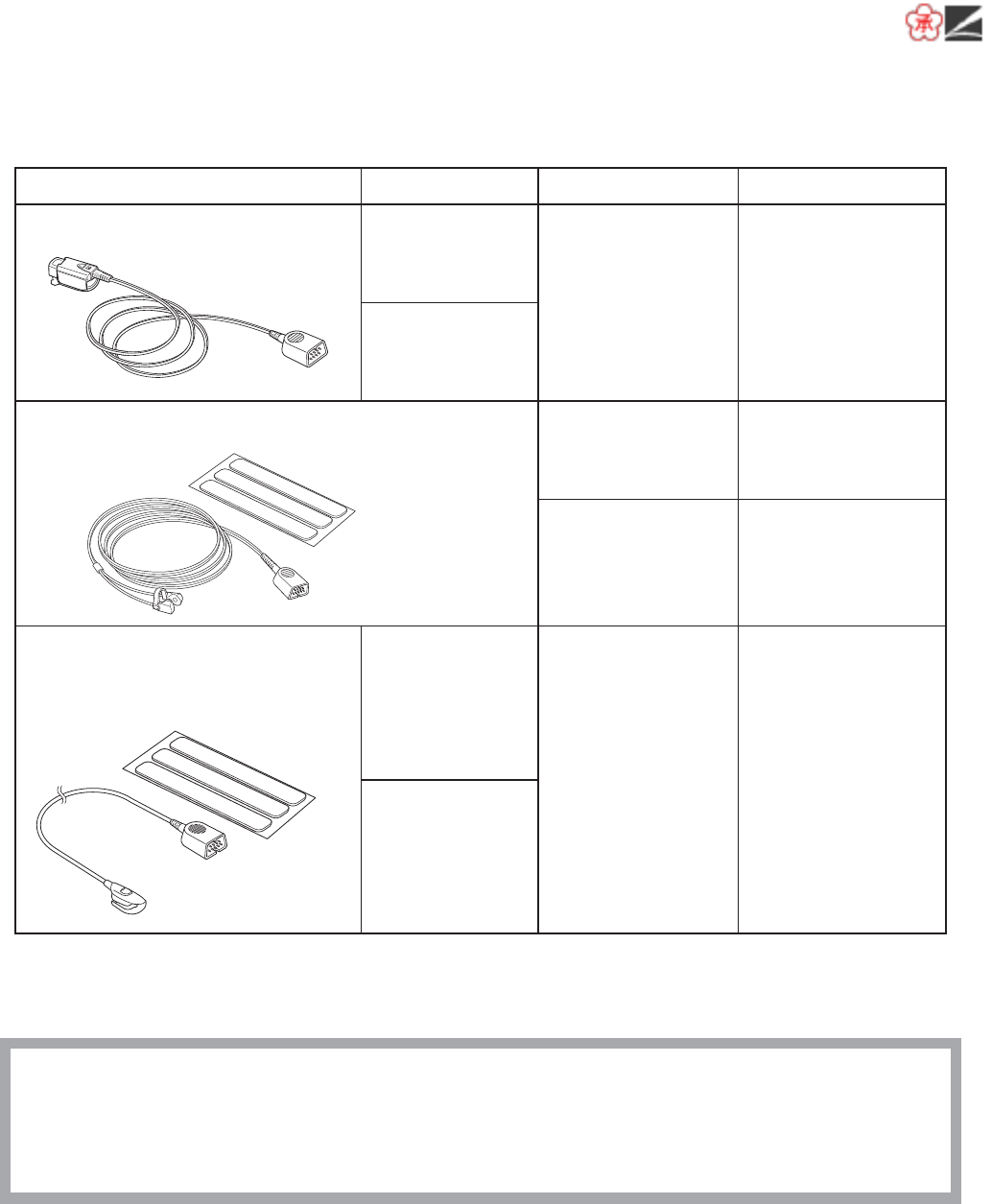

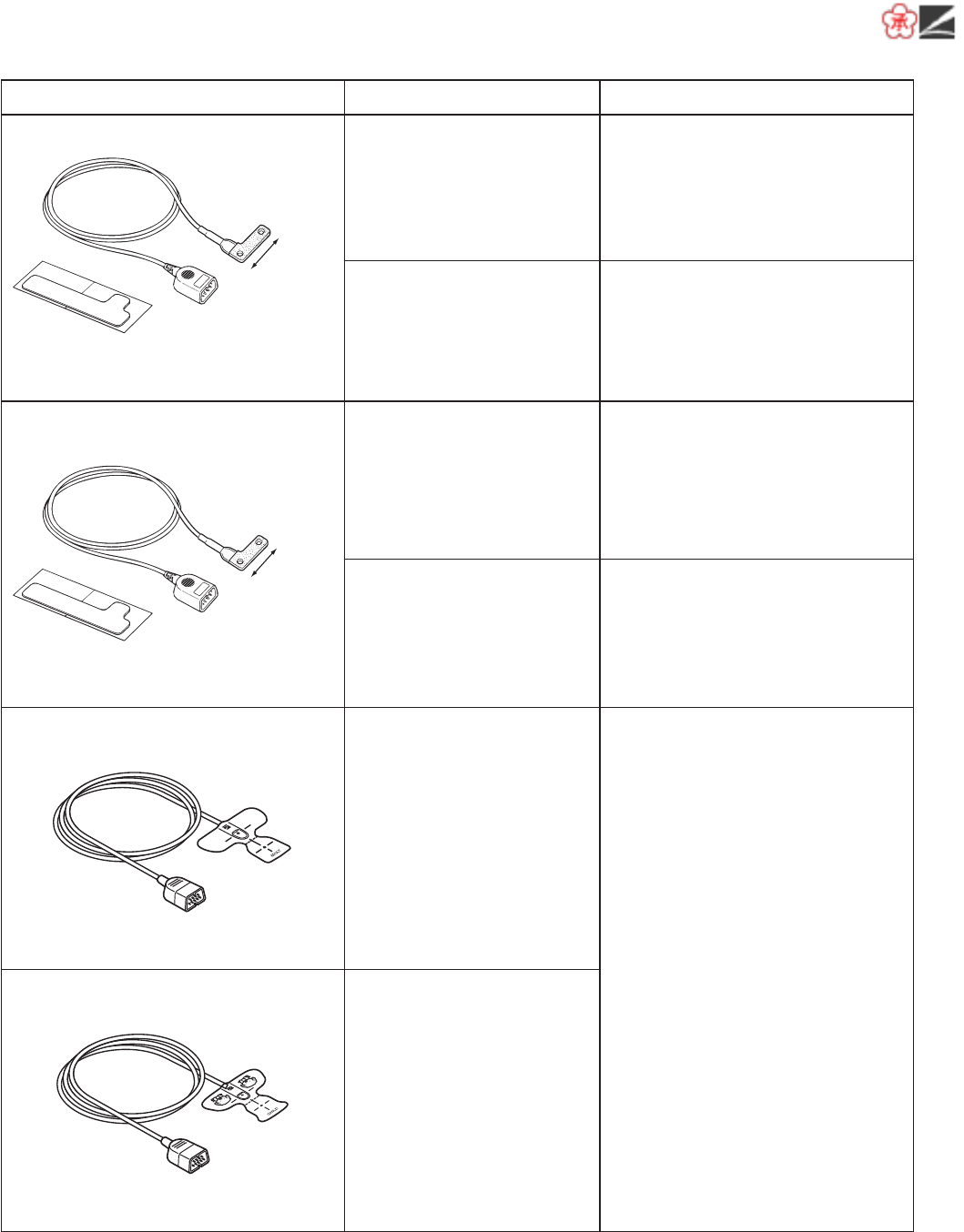

Selecting the SpO2 Probe .................................................................................... 44

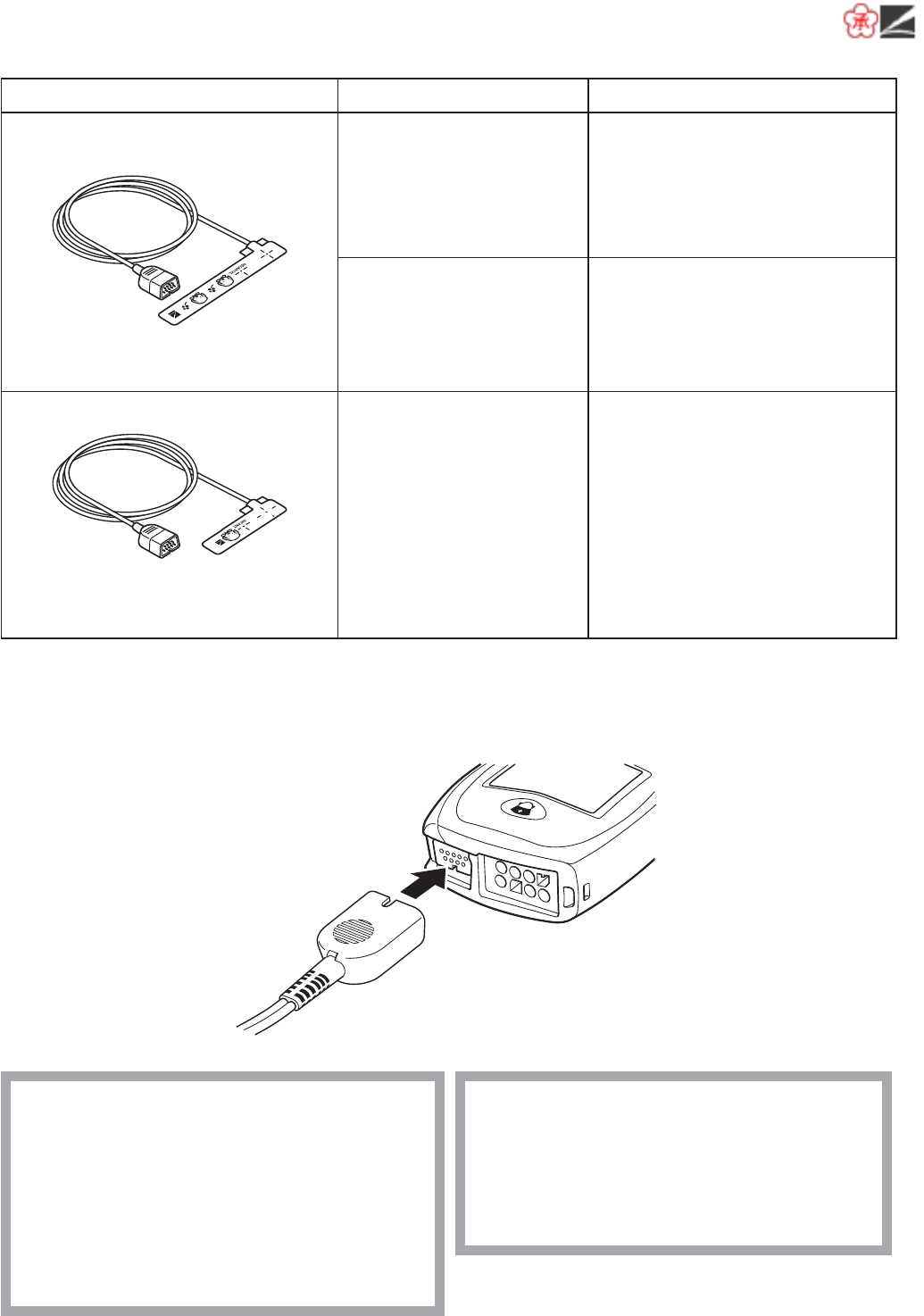

Connecting the SpO2 Probe to the Transmitter .................................................... 47
Attaching the Probe to the Patient ........................................................................ 48
Locking the Keys on the Transmitter ................................................................................ 50
Monitoring ........................................................................................................................ 51

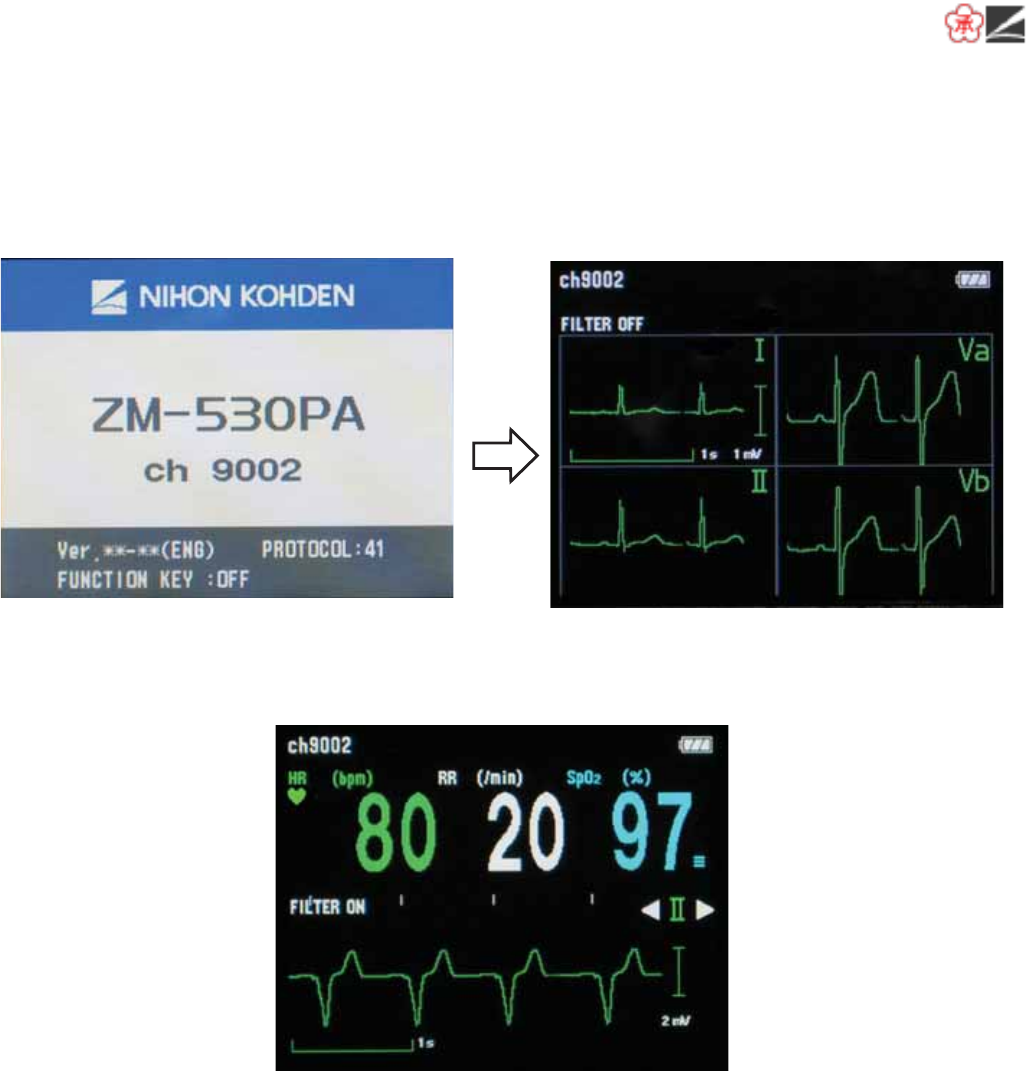

Screen Descriptions ................................................................................................... 51

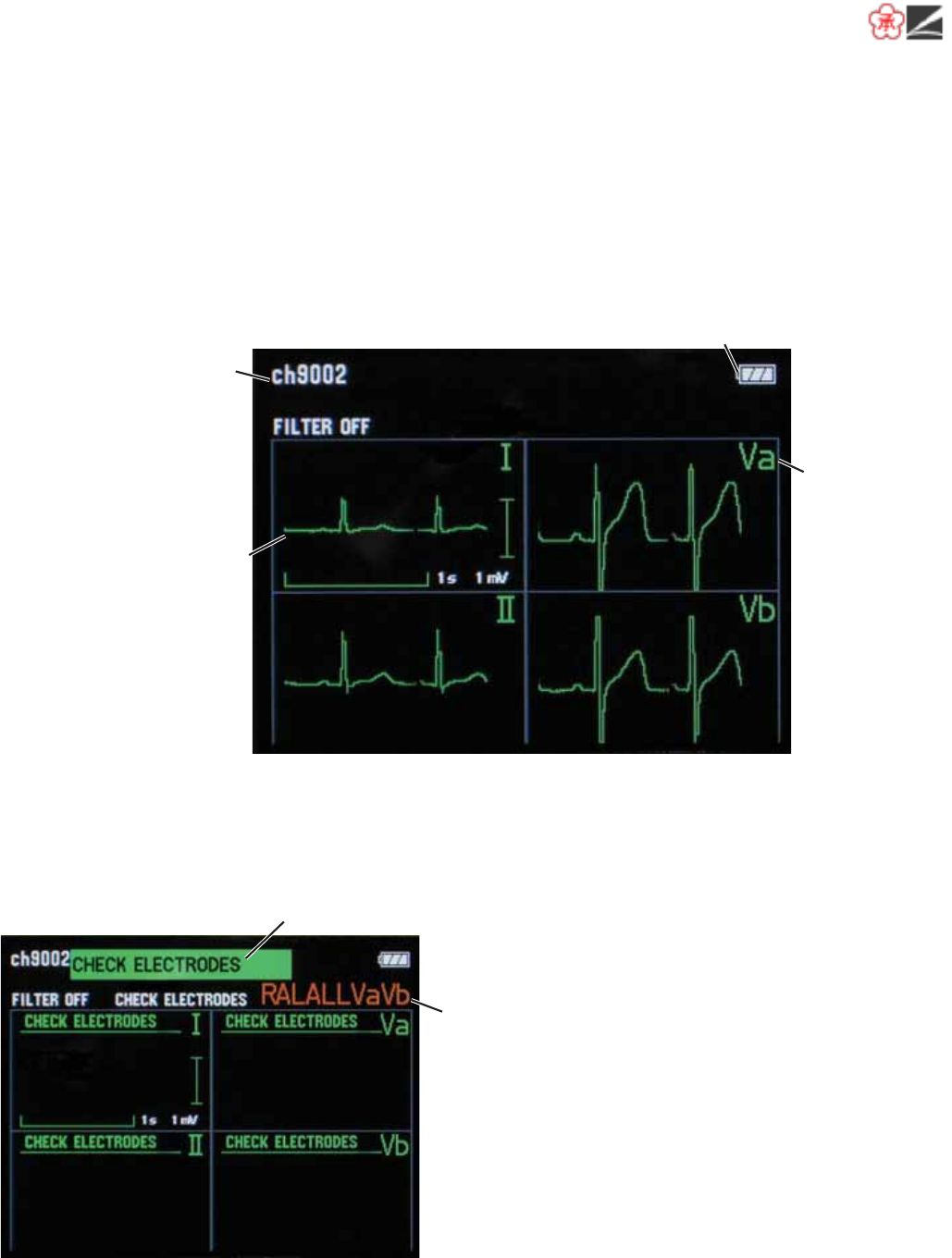

Check Electrodes Screen ..................................................................................... 53

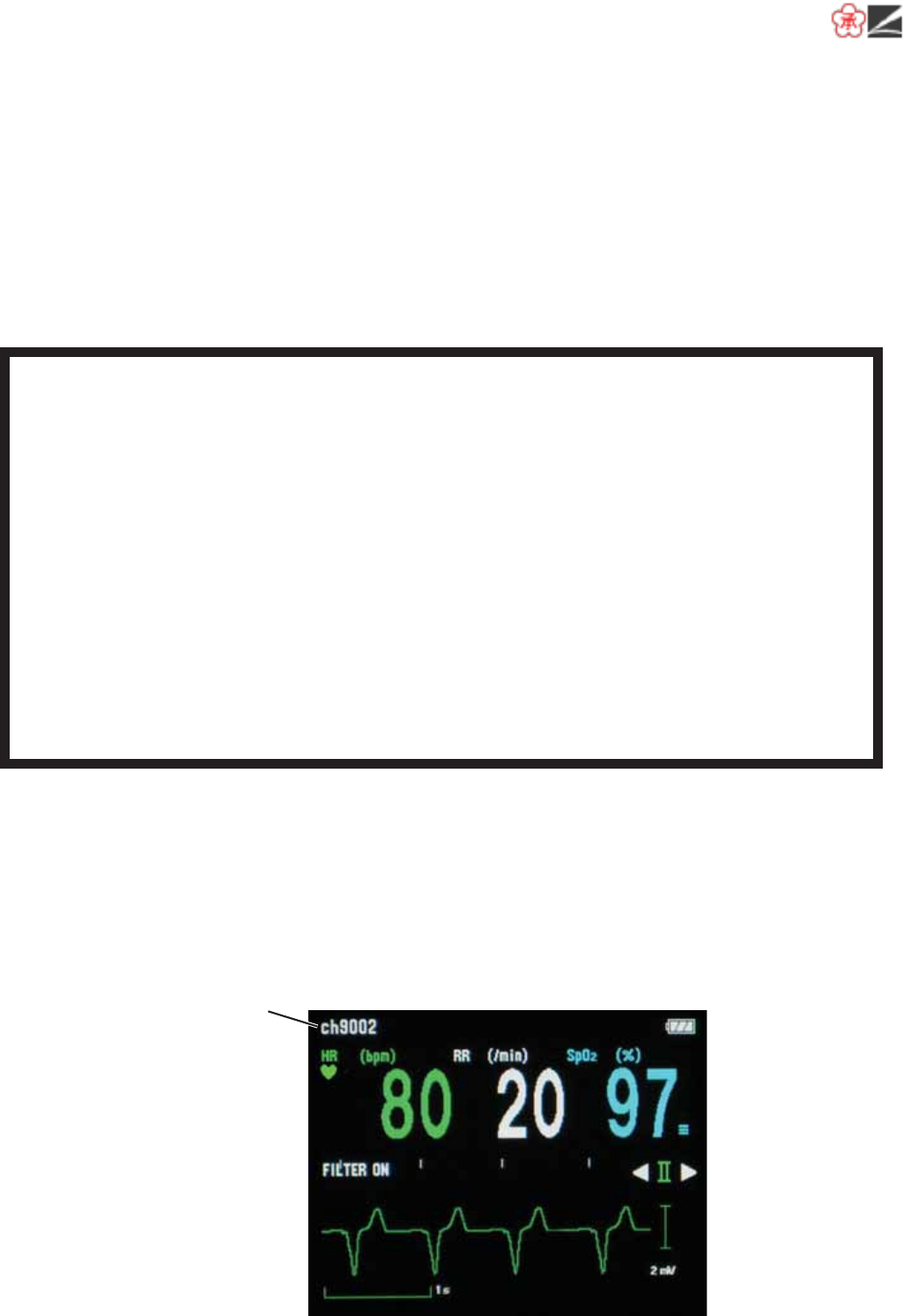

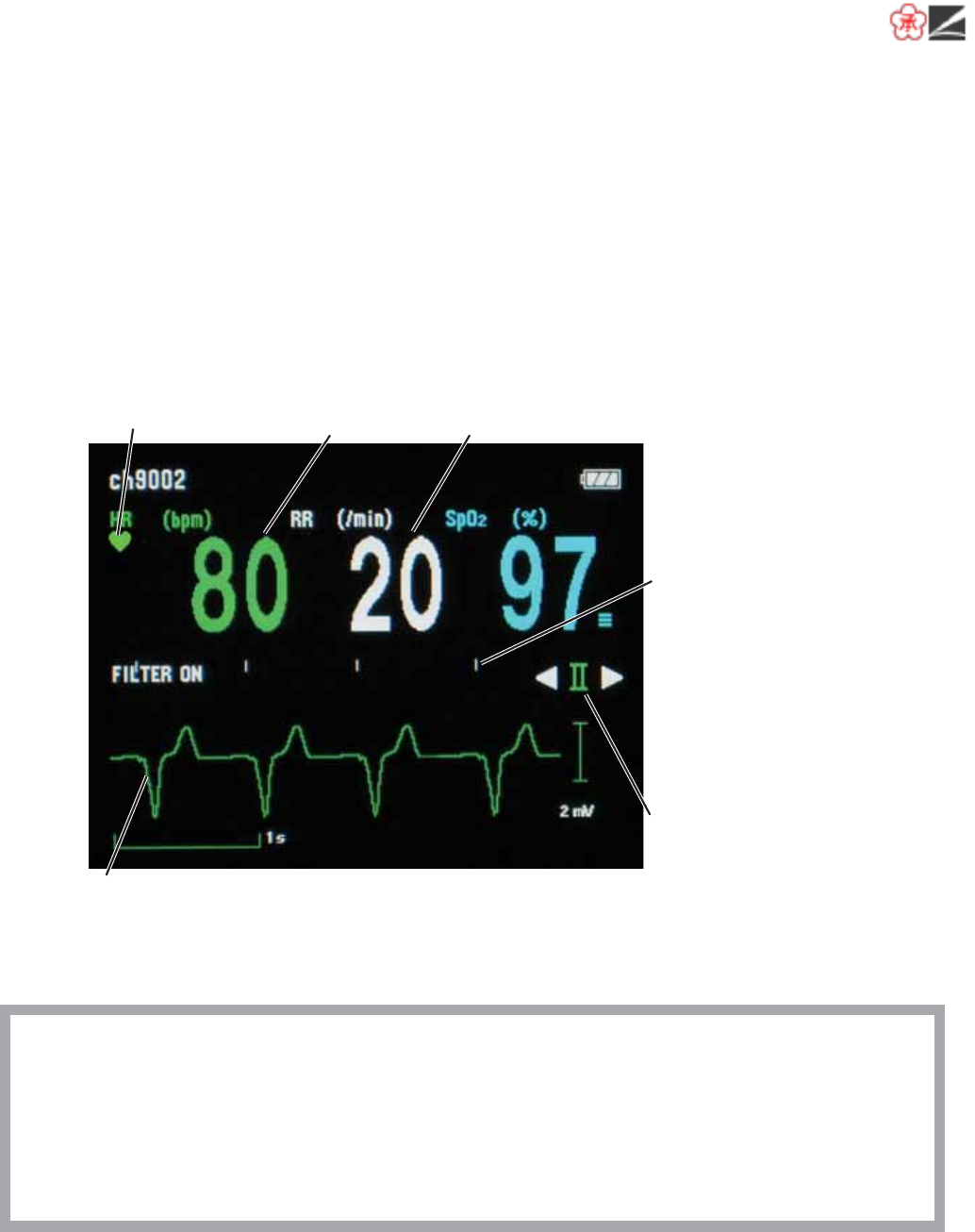

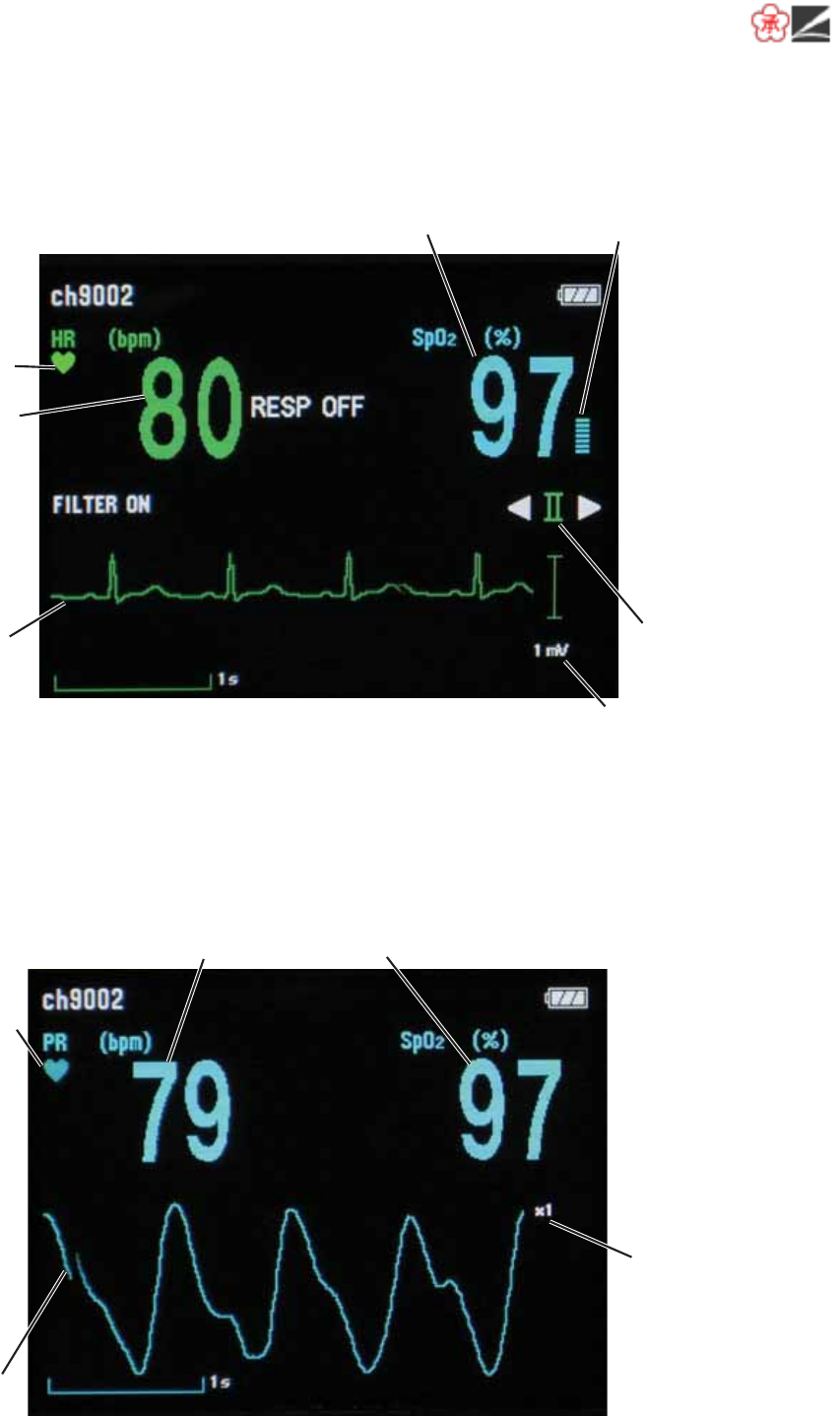

Numeric and Waveform Screen ........................................................................... 54

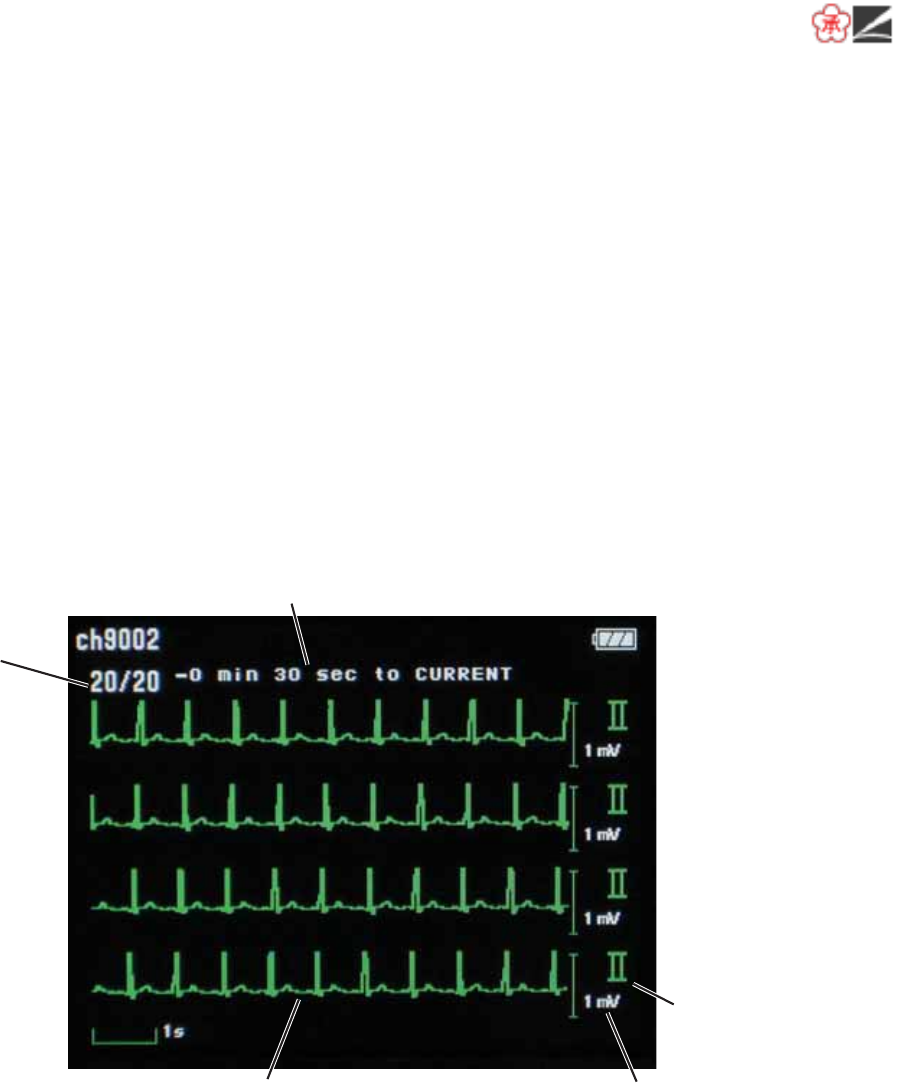

Waveform Review Screen .................................................................................... 55

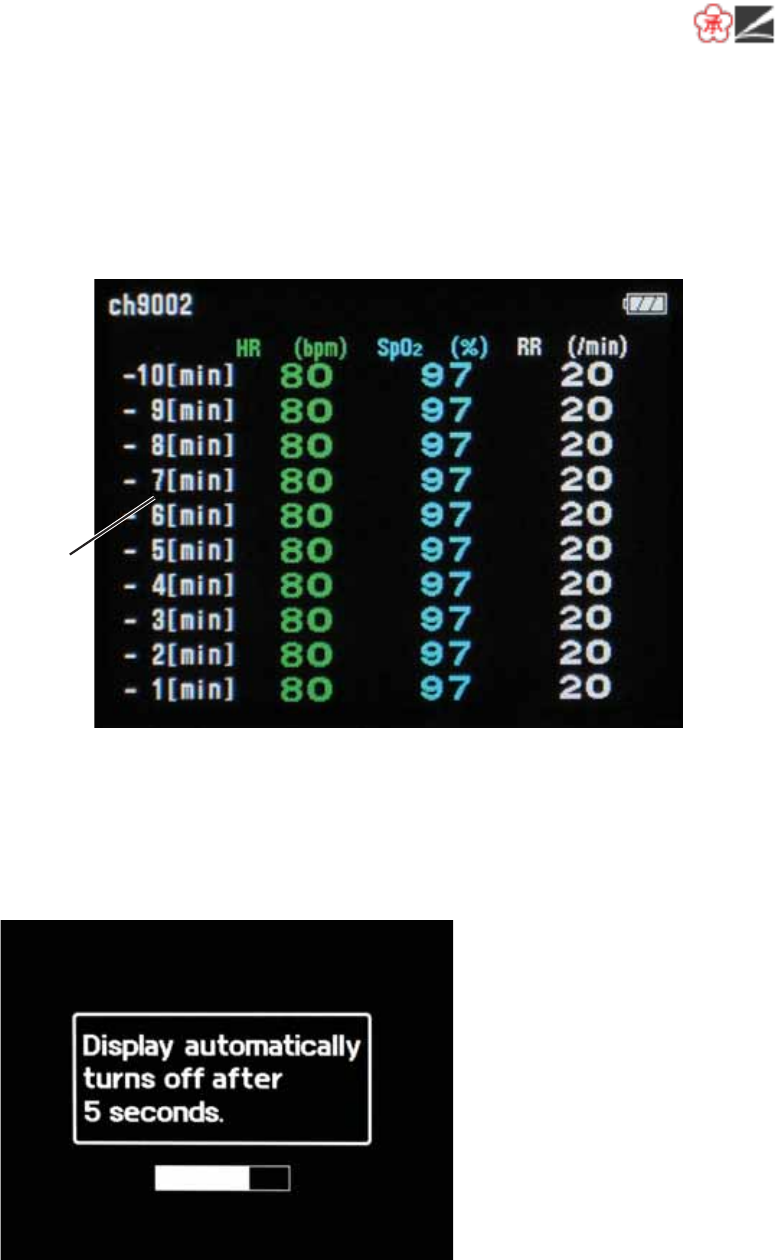

Numeric Review Screen ....................................................................................... 56
Display Off ............................................................................................................ 56
Basic Monitoring Operation ....................................................................................... 57

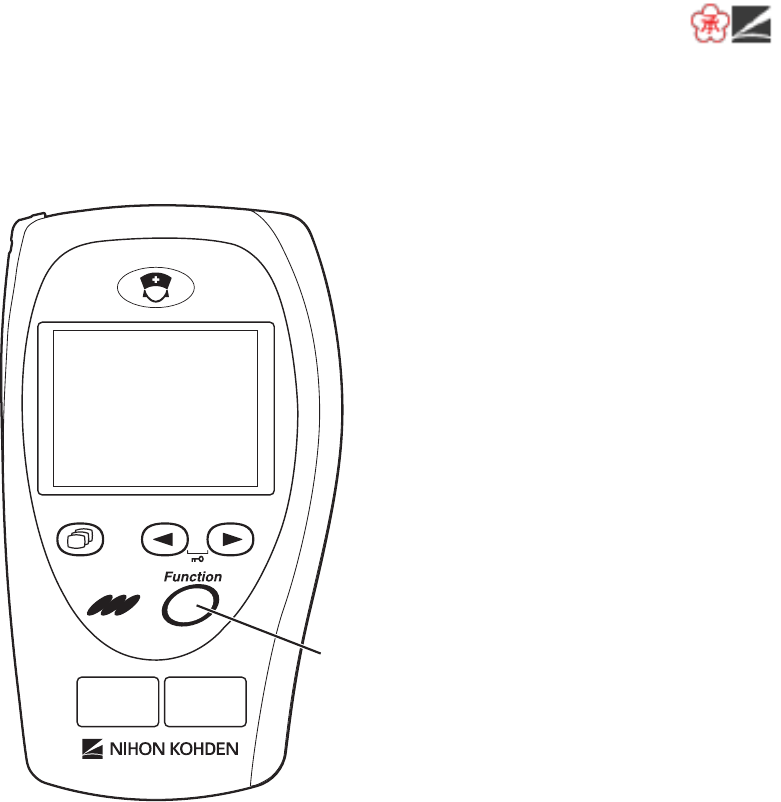

Using the Function Key ........................................................................................ 57

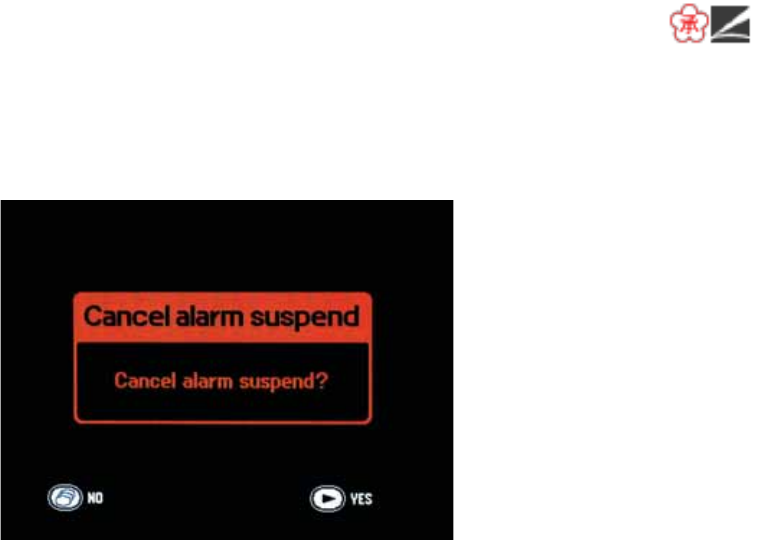

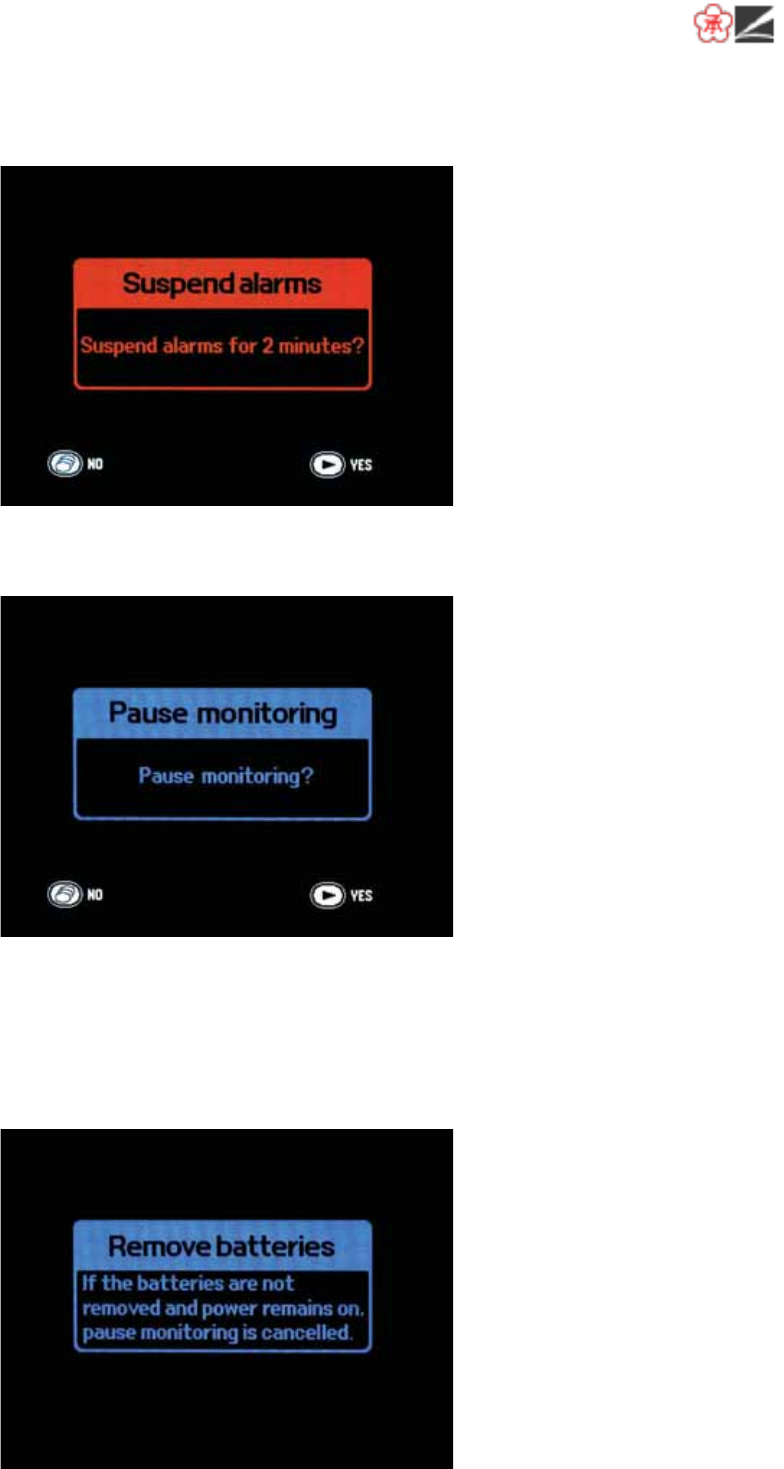

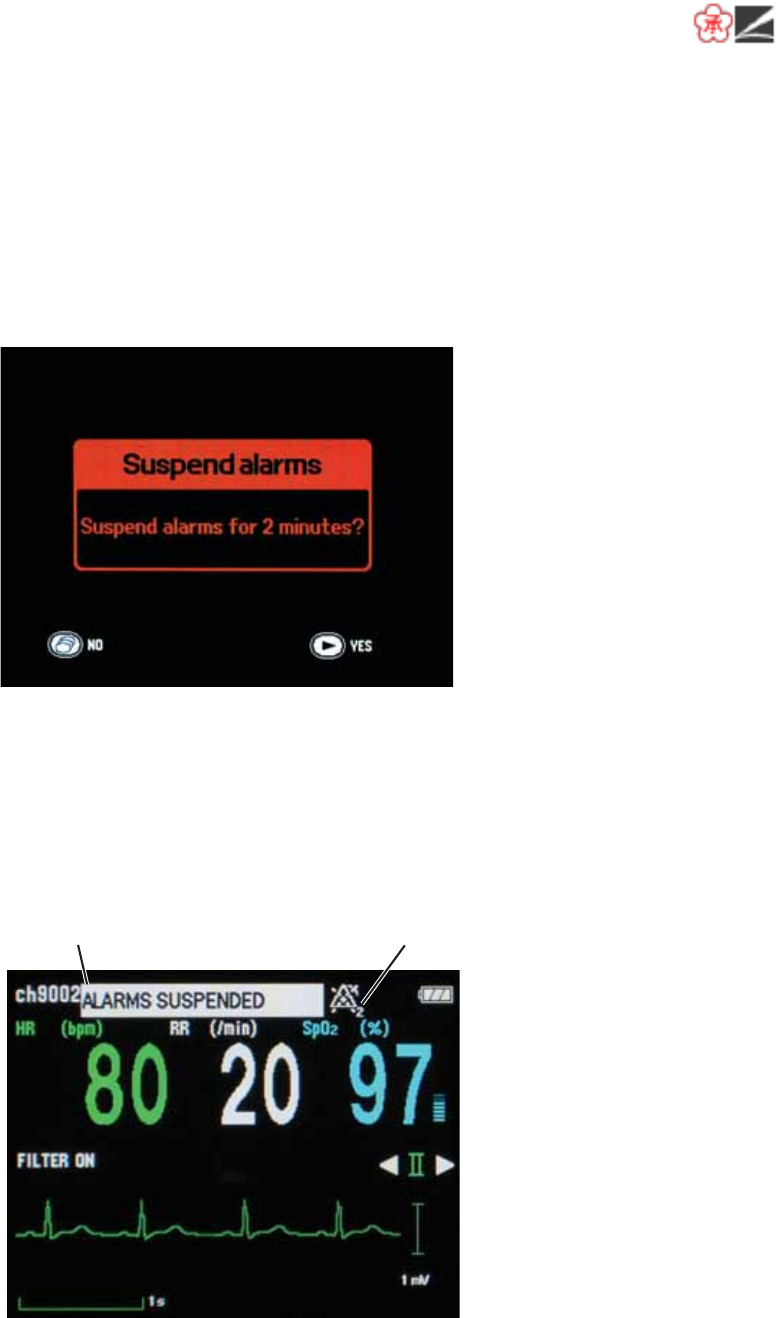

Suspending Alarms on the Receiving Monitor ..................................................... 58
Pause Monitoring ................................................................................................. 59
Resume Monitoring after Pause ........................................................................... 61

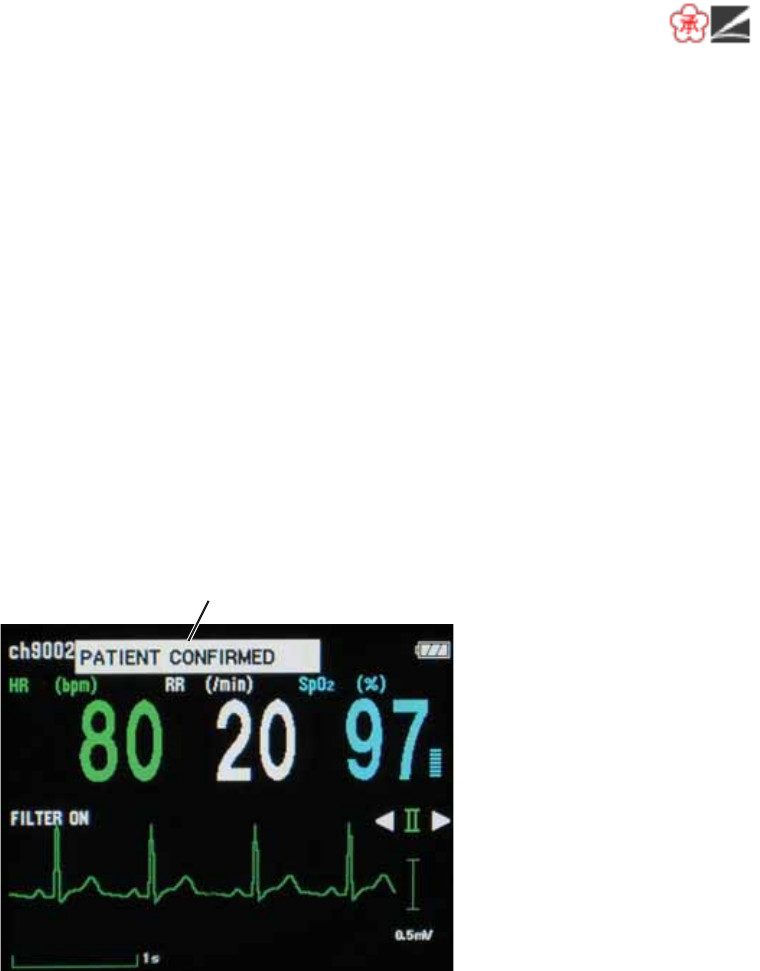

Confirming Patient ................................................................................................ 61

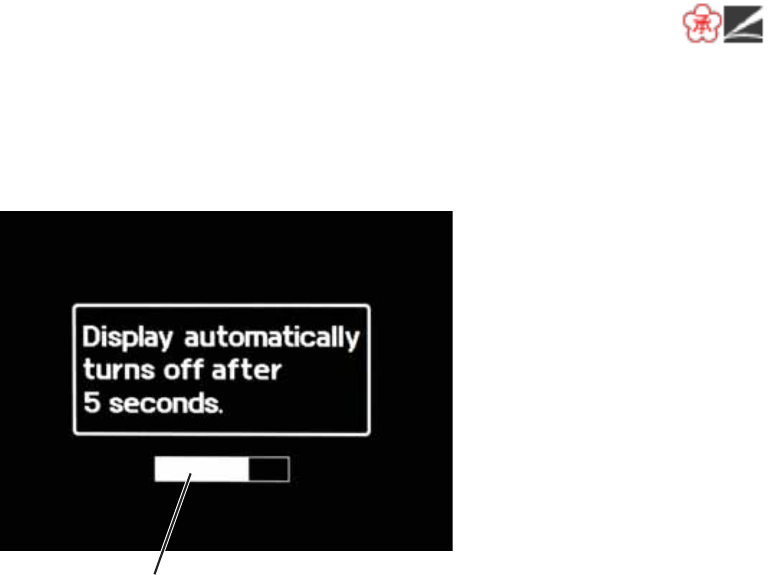

Turning the Display Off ......................................................................................... 62
Turning the Display On after It was Turned Off ..................................................... 62
ECG and Respiration Monitoring ............................................................................... 63
Turning ECG Measurement On/Off ...................................................................... 66
Turning Respiration Measurement On/Off ............................................................ 66
Electrode Detachment .......................................................................................... 66

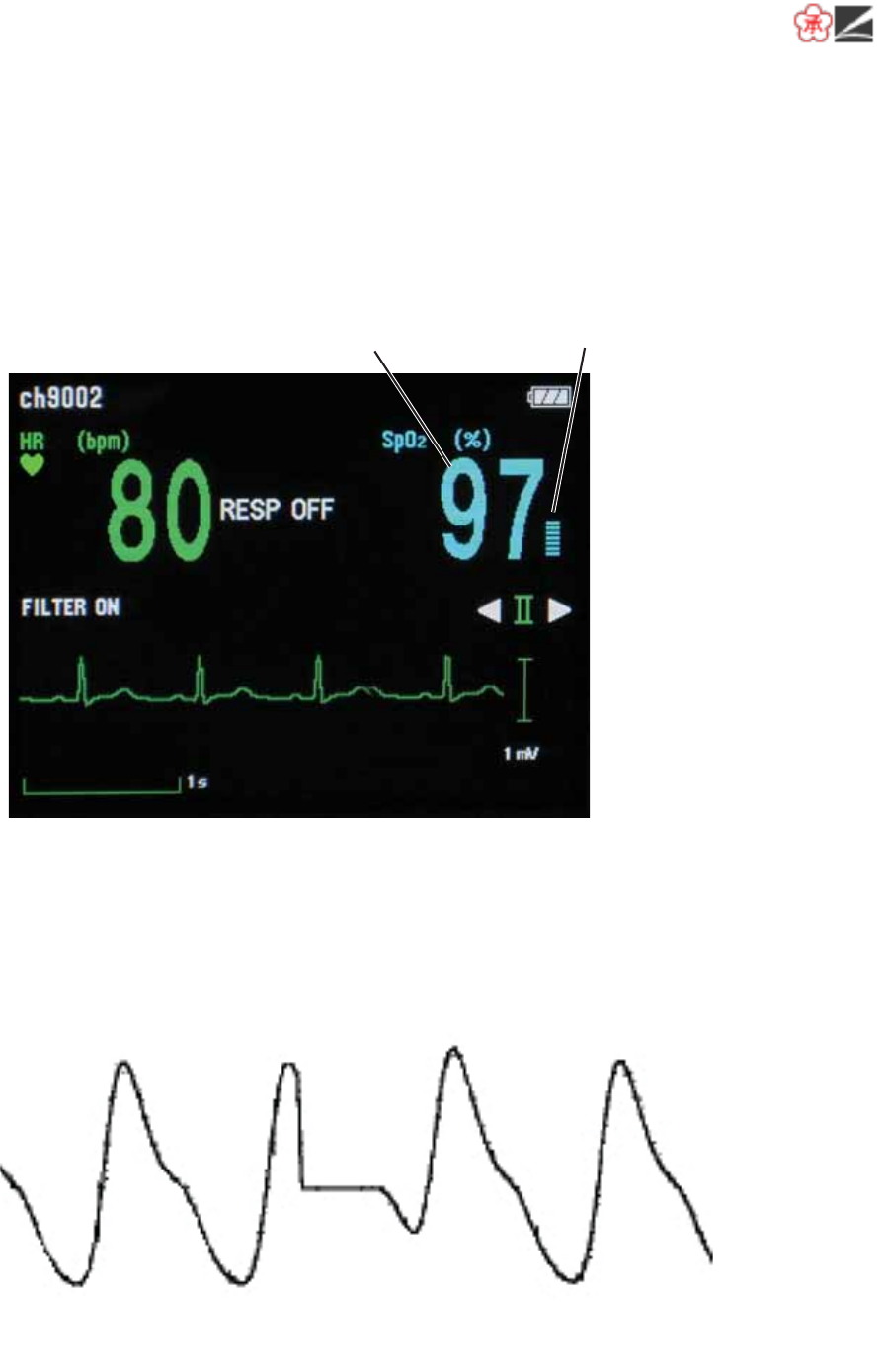

SpO2 Monitoring ......................................................................................................... 67
Indications and Messages ............................................................................................... 71
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA C.3
Indication ................................................................................................................... 71
Messages .................................................................................................................. 71
Message Display Priority ...................................................................................... 74
Troubleshooting ............................................................................................................... 75
Transmitter ................................................................................................................. 75
ECG/Respiration ........................................................................................................ 76
SpO2 ......................................................................................................................... 77
Maintenance ....................................................................................................................78
1. External Check ................................................................................................. 78
2. Transmitter Channel ......................................................................................... 78
3. Transmitting/Receiving Signal .......................................................................... 79
4. Display .............................................................................................................. 79

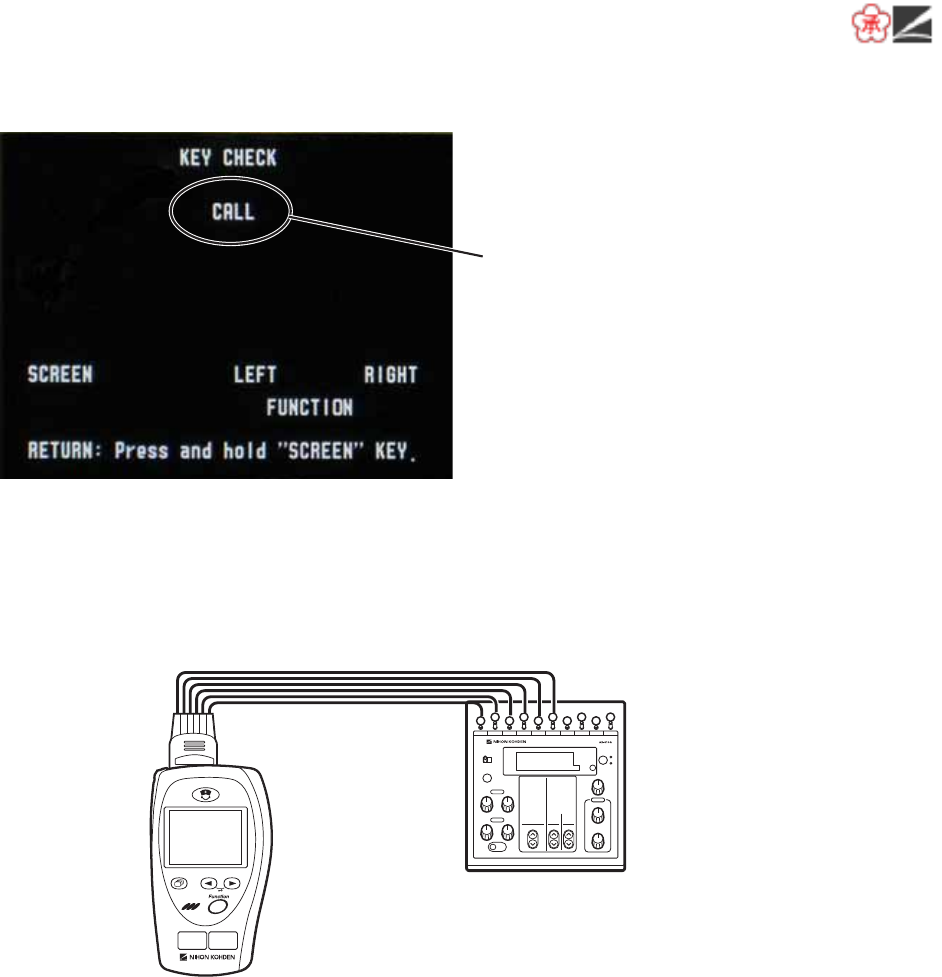

5. Key Operation ................................................................................................... 81
6. ECG Check....................................................................................................... 82
7. Respiration Check ............................................................................................ 83
8. SpO2 Check ...................................................................................................... 83
Maintenance Check Sheet ................................................................................... 85
Lifetime and Disposal ...................................................................................................... 86
Disposing of Used Batteries ...................................................................................... 86
Battery Lifetime .................................................................................................... 86
Disposal ............................................................................................................... 86
Disposing of Electrodes and SpO2 Probes ................................................................ 86
Disposing of Transmitter ............................................................................................. 86
Cleaning, Disinfection and Sterilization ........................................................................... 87
Transmitter and Electrode Leads ............................................................................... 87
Cleaning ............................................................................................................... 87
Disinfection ........................................................................................................... 87
SpO2 Probe ................................................................................................................ 88
Periodic Replacement Schedule ..................................................................................... 88
Repair Parts Availability Policy ........................................................................................ 88
Specifications ..................................................................................................................89
ZM-520PA/530PA ....................................................................................................... 89
Measuring Parameters ......................................................................................... 89
Transmitting Data ................................................................................................. 89
Display.................................................................................................................. 89
Displayed Data ..................................................................................................... 89
ECG ..................................................................................................................... 89
Respiration Measurement .................................................................................... 91
SpO2 Measurement (ISO 9919: 2005 compliance) .............................................. 91
Transmitter ........................................................................................................... 93
Power Requirements ............................................................................................ 93
Dimension and Weight ......................................................................................... 94
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
C.4 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Environment ......................................................................................................... 94
Safety Standards .................................................................................................. 94
Electromagnetic Compatibility .............................................................................. 95
Electromagnetic Emissions .................................................................................. 95
Electromagnetic Immunity .................................................................................... 96
Recommended Separation Distances between Portable and Mobile RF
Communications Equipment ................................................................................ 98
Recovery Time after Defibrillation ........................................................................ 98

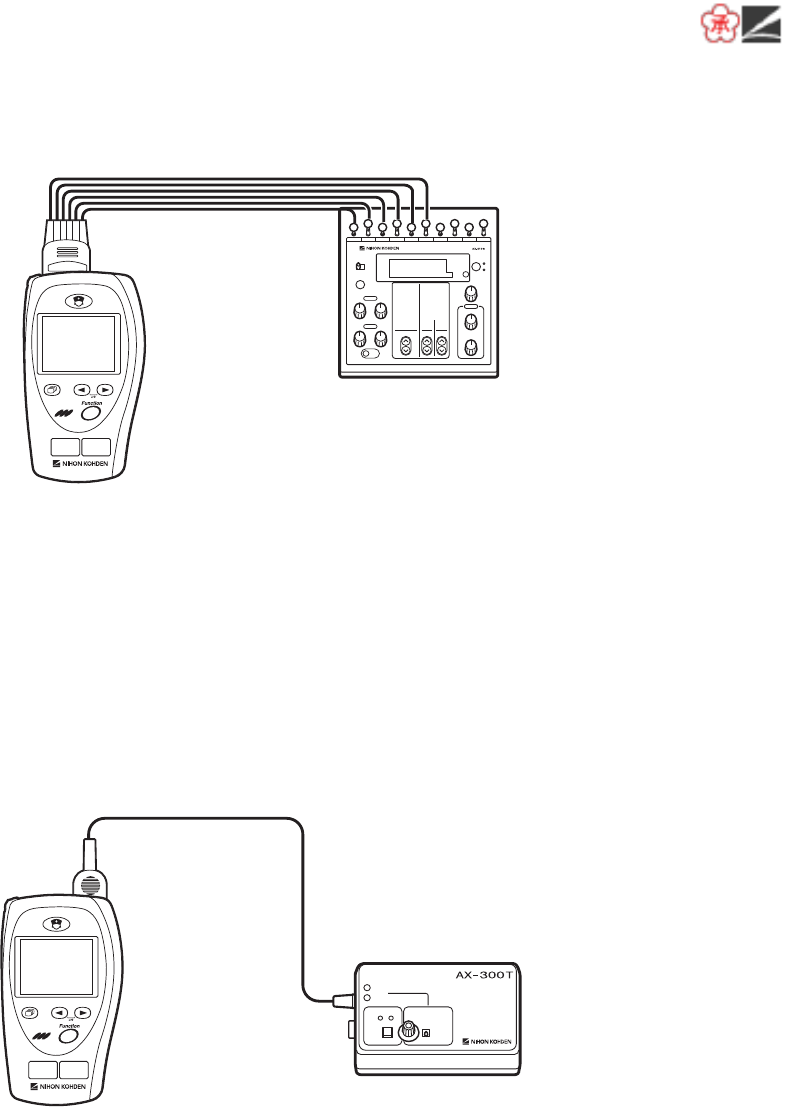

System Composition for EMC Test ....................................................................... 98
ZM-521PA/531PA ....................................................................................................... 99
Measuring Parameters ......................................................................................... 99
Transmitting Data ................................................................................................. 99
Display.................................................................................................................. 99
Displayed Data ..................................................................................................... 99
ECG ..................................................................................................................... 99
Respiration Measurement .................................................................................. 101
SpO2 Measurement (ISO 9919: 2005 compliance) ............................................ 101
Transmitter ......................................................................................................... 103
Power Requirements .......................................................................................... 103
Dimension and Weight ....................................................................................... 104
Environment ....................................................................................................... 104
Safety Standards ................................................................................................ 104
Electromagnetic Compatibility ............................................................................ 105
Electromagnetic Emissions ................................................................................ 105
Electromagnetic Immunity .................................................................................. 106
Recommended Separation Distances between Portable and Mobile RF
Communications Equipment .............................................................................. 108
Recovery Time after Defibrillation ...................................................................... 108
System Composition for EMC Test ..................................................................... 108
Standard Accessories.................................................................................................... 109
Options .......................................................................................................................... 110
Transmitter ......................................................................................................... 110
ECG/RESP ......................................................................................................... 110
SpO2 .................................................................................................................. 111
Transmission Frequencies ............................................................................................. 112
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA i
GENERAL HANDLING PRECAUTIONS
This device is intended for use only by qualified medical personnel.
Use only Nihon Kohden approved products with this device. Use of non-
approved products or in a non-approved manner may affect the performance
specifications of the device. This includes, but is not limited to, batteries,
recording paper, pens, extension cables, electrode leads, input boxes and AC
power.
Please read these precautions thoroughly before attempting to operate the instrument.
1. To safely and effectively use the instrument, its operation must be fully understood.
2. When installing or storing the instrument, take the following precautions:
(1) Avoid moisture or contact with water, extreme atmospheric pressure, excessive humidity
and temperatures, poorly ventilated areas, and dust, saline or sulphuric air.
(2) Place the instrument on an even, level floor. Avoid vibration and mechanical shock, even
during transport.
(3) Avoid placing in an area where chemicals are stored or where there is danger of gas
leakage.
(4) The power line source to be applied to the instrument must correspond in frequency and
voltage to product specifications, and have sufficient current capacity.
(5) Choose a room where a proper grounding facility is available.
3. Before Operation
(1) Check that the instrument is in perfect operating order.
(2) Check that the instrument is grounded properly.
(3) Check that all cords are connected properly.
(4) Pay extra attention when the instrument is in combination with other instruments to avoid
misdiagnosis or other problems.
(5) All circuitry used for direct patient connection must be doubly checked.
(6) Check that battery level is acceptable and battery condition is good when using battery-
operated models.
4. During Operation
(1) Both the instrument and the patient must receive continual, careful attention.
(2) Turn power off or remove electrodes and/or transducers when necessary to assure the
patient’s safety.
(3) Avoid direct contact between the instrument housing and the patient.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
ii Operator’s Manual ZM-520PA/521PA/530PA/531PA
5. To Shutdown After Use
(1) Turn power off with all controls returned to their original positions.
(2) Remove the cords gently; do not use force to remove them.
(3) Clean the instrument together with all accessories for their next use.
6. The instrument must receive expert, professional attention for maintenance and repairs.
When the instrument is not functioning properly, it should be clearly marked to avoid
operation while it is out of order.
7. The instrument must not be altered or modified in any way.
8. Maintenance and Inspection:
(1) The instrument and parts must undergo regular maintenance inspection at least every 6
months.
(2) If stored for extended periods without being used, make sure prior to operation that the
instrument is in perfect operating condition.
(3) Technical information such as parts list, descriptions, calibration instructions or other
information is available for qualified user technical personnel upon request from your
Nihon Kohden representative.
9. When the instrument is used with an electrosurgical instrument, pay careful attention to
the application and/or location of electrodes and/or transducers to avoid possible burn to
the patient.
10. When the instrument is used with a defibrillator, make sure that the instrument
is protected against defibrillator discharge. If not, remove patient cables and/or
transducers from the instrument to avoid possible damage.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA iii
WARRANTY POLICY
Nihon Kohden Corporation (NKC) shall warrant its products against all defects in materials and
workmanship for one year from the date of delivery. However, consumable materials such as
recording paper, ink, stylus and battery are excluded from the warranty.
NKC or its authorized agents will repair or replace any products which prove to be defective
during the warranty period, provided these products are used as prescribed by the operating
instructions given in the operator’s and service manuals.
No other party is authorized to make any warranty or assume liability for NKC’s products.
NKC will not recognize any other warranty, either implied or in writing. In addition, service,
technical modification or any other product change performed by someone other than NKC or its
authorized agents without prior consent of NKC may be cause for voiding this warranty.
Defective products or parts must be returned to NKC or its authorized agents, along with an
explanation of the failure. Shipping costs must be pre-paid.
This warranty does not apply to products that have been modified, disassembled, reinstalled or
repaired without Nihon Kohden approval or which have been subjected to neglect or accident,
damage due to accident, fire, lightning, vandalism, water or other casualty, improper installation
or application, or on which the original identification marks have been removed.
In the USA and Canada other warranty policies may apply.
CAUTION
United States law restricts this product to sale by or on the order of a physician.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
iv Operator’s Manual ZM-520PA/521PA/530PA/531PA
Equipment Authorization Requirement
This device complies with Part 15 of the FCC (Federal Communications Commission) Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device complies with Part 95 Subpart H of the FCC Rules to be used in wireless medical
telemetry service.
Operation of this equipment requires the prior coordination with a frequency coordinator
designated by FCC for the Wireless Medical Telemetry Service.
CAUTION
To comply with the FCC radio frequency (RF) exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device, exceeding the RF exposure requirements and void
user’s authority to operate this device.
NOTE
• Use this device only indoors.
• This device has been tested and complies with FCC radiation exposure limits set
forth for an uncontrolled environment. The RF transmission power from the antenna
conforms to the general public FCC RF Exposure Guidelines in Supplement C to
OET65 limit of Specific Absorption Rate (SAR) 1.6 W/kg. The maximum SAR value
measured from this device was extremely smaller than 1.6 W/kg. This device must not
be located together with or operated in conjunction with any other unspecified antenna
or transmitter.
• The devices require registration and deployment by an authorized frequency
coordinator. The ASHE (American Society for Healthcare Engineering) has been
designated by the FCC to manage the WMTS frequencies. This device has frequency
bands which may not be used in some areas. For details, contact your Nihon Kohden
representative. For details on the guidelines, refer to the ASHE home page.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA v
EMC RELATED CAUTION
This equipment and/or system complies with the International Standard IEC 60601-
1-2 for electromagnetic compatibility for medical electrical equipment and/or system.
However, an electromagnetic environment that exceeds the limits or levels stipulated
in the IEC 60601-1-2, can cause harmful interference to the equipment and/or
system or cause the equipment and/or system to fail to perform its intended function
or degrade its intended performance. Therefore, during the operation of the
equipment and/or system, if there is any undesired deviation from its intended
operational performance, you must avoid, identify and resolve the adverse
electromagnetic effect before continuing to use the equipment and/or system.
The following describes some common interference sources and remedial actions:
1. Strong electromagnetic interference from a nearby emitter source such as an
authorized radio station or cellular phone:
Install the equipment and/or system at another location if it is interfered with by an
emitter source such as an authorized radio station. Keep the emitter source such
as cellular phone away from the equipment and/or system.
2. Effect of direct or indirect electrostatic discharge:
Make sure all users and patients in contact with the equipment and/or system are
free from direct or indirect electrostatic energy before using it.
3. Electromagnetic interference with any radio wave receiver such as radio or
television:
If the equipment and/or system interferes with any radio wave receiver, locate the
equipment and/or system as far as possible from the radio wave receiver.
4. Electromagnetic interference with any radio wave receiver such as radio or
television:
If the equipment and/or system interferes with any radio wave receiver, locate the
equipment and/or system as far as possible from the radio wave receiver.
5. Interference of lightning:
When lightning occurs near the location where the equipment and/or system is
installed, it may induce an excessive voltage in the equipment and/or system.
In such a case, disconnect the AC power cord from the equipment and/or
system and operate the equipment and/or system by battery power, or use an
uninterruptible power supply.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
vi Operator’s Manual ZM-520PA/521PA/530PA/531PA
6. Use with other equipment:
When the equipment and/or system is adjacent to or stacked with other
equipment, the equipment and/or system may affect the other equipment. Before
use, check that the equipment and/or system operates normally with the other
equipment.
7. Use of unspecified accessory, transducer and/or cable:
When an unspecified accessory, transducer and/or cable is connected to this
equipment and/or system, it may cause increased electromagnetic emission
or decreased electromagnetic immunity. The specified configuration of this
equipment and/or system complies with the electromagnetic requirements with
the specified configuration. Only use this equipment and/or system with the
specified configuration.
8. Use of unspecified configuration:
When the equipment and/or system is used with the unspecified system
configuration different than the configuration of EMC testing, it may cause
increased electromagnetic emission or decreased electromagnetic immunity.
Only use this equipment and/or system with the specified configuration.
9. Measurement with excessive sensitivity:
The equipment and/or system is designed to measure bioelectrical signals with
a specified sensitivity. If the equipment and/or system is used with excessive
sensitivity, artifact may appear by electromagnetic interference and this may
cause mis-diagnosis. When unexpected artifact appears, inspect the surrounding
electromagnetic conditions and remove this artifact source.
If the above suggested remedial actions do not solve the problem, consult your
Nihon Kohden representative for additional suggestions.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA vii
Conventions Used in this Manual and Instrument
Warnings, Cautions and Notes
Warnings, cautions and notes are used in this manual to alert or signal the reader to specific
information.
WARNING
A warning alerts the user to the possible injury or death associated with the use or
misuse of the instrument.
CAUTION
A caution alerts the user to possible injury or problems with the instrument
associated with its use or misuse such as instrument malfunction, instrument failure,
damage to the instrument, or damage to other property.
NOTE
A note provides specific information, in the form of recommendations, prerequirements,
alternative methods or supplemental information.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
viii Operator’s Manual ZM-520PA/521PA/530PA/531PA
Explanations of the Symbols in this Manual and Instrument
The following symbols found in this manual/instrument bear the respective descriptions as given.
On Panel
Symbol Description Symbol Description
Change screen Defibrillation proof type BF
applied part
Attention, consult operator’s
manual
Defibrillation proof type CF
applied part
Moves cursor, scrolls data Serial number
Direction for attaching battery
cover Date of manufacture
Direction for inserting battery RF transmitter
Non-ionizing radiation
Direct current cCSAus mark
Call key
On LCD
Symbol Description Symbol Description
Batteries are fully charged Batteries are almost empty
Replace battery
Batteries are getting low Alarm suspended
Batteries are low QRS/pulse sync mark
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 1
Intended Use
General
The ZM-520PA and ZM-521PA transmitter transmits ECG and respiration from a patient to a
Nihon Kohden monitor for continuous monitoring. The front LCD displays ECG, numeric values
of monitoring parameters, messages and battery condition.* It also displays the compressed
waveform and numeric data of the latest 10 minutes.
The ZM-530PA and ZM-531PA transmitter transmits ECG, respiration and pulse waveforms
and SpO2 from a patient to a Nihon Kohden monitor for continuous monitoring. The front LCD
displays ECG (or pulse wave), numeric values of monitoring parameters, messages and battery
condition.* It also displays the compressed waveform and numeric data of the latest 10 minutes.
* Essential performance of this transmitter.
The difference between the ZM-520PA/530PA and ZM-521PA/531PA is the transmission
frequency range.
ZM-520PA/530PA: 608.0250 MHz (channel number 9002) to 613.9750 MHz (channel number
9478)
ZM-521PA/531PA: 1395.0250 MHz (channel number E002) to 1399.9750 MHz (channel number
E398)
1427.0250 MHz (channel number E502) to 1431.9750 MHz (channel number
E898)
The transmitter channel can be changed with a QI-901PK channel writer.
Read the operator’s manual for the receiving monitor together with this manual before use.
WARNING
Do not diagnose a patient based only on data acquired by the transmitter. Overall
judgement must be performed by a physician who understands the features,
limitations and characteristics of the transmitter and by reading the biomedical
signals acquired by other instruments.
WARNING
Do not use the same transmitter for more than one patient at the same time. Do not
connect different sensors from different patients to the same transmitter.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
2 Operator’s Manual ZM-520PA/521PA/530PA/531PA
CAUTION
• Do not use the same channel for different patients. If the same channel is used
for two patients, the two patients’ data will be lost due to mutual modulation
interference, or another patient’s data may appear on the receiving monitor screen.
• Do not use two transmitters with adjacent channels in the same hospital. If
transmitters with adjacent channels are used, their radio waves interfere with each
other.
CAUTION
Signal loss and artifact may occur because of the multipath cancellation* when using
a transmitter.
* Multipath Cancellation (Standing Wave Interference):
When a radio wave reflects off a surface, there may be some points in the room where the
reflected and direct waves are exactly out of phase. At these points in the room, the reflected
and direct waves cancel each other out so that the signal strength is decreased. Locations where
signal loss occurs are called “null spots”. If the transmitter is moving or nearby people or
objects are moving, null spots can occur anytime and anywhere.
NOTE
• To prevent interference between channels, assign a channel administrator in the
hospital and only he or she should manage channel assignment.
• Use Nihon Kohden parts and accessories to assure maximum performance from your
instrument.
• For stable signal reception, it is recommended to use a diversity antenna system on
the receiving monitor. Otherwise, spike noise from transient fading of electric field
strength (for example, people moving) may interfere with the transmitter signal and
may be mistaken as an arrhythmia on the receiving monitor.
• For details on antennas and antenna construction, contact your Nihon Kohden
representative. You can also refer to the Telemetry System Installation Guide.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 3
Receiving Monitor
Any Nihon Kohden receiving monitor (central monitor with multiple patient receiver) can receive
signals from this transmitter as long as the protocol version and channel setting are the same on
the receiving monitor and transmitter.
NOTE
• For details on the receiving monitor and upgrade information, contact your Nihon
Kohden representative.
• The transmitter does not give any alarm other than a “no battery” alarm. Alarms must
be managed on the receiving monitor.
• To use protocol 51, the ORG-9100A/ORG-9110A multiple patient receiver software
version 03-03 or later is required. For the protocol setting, refer to the “Changing
SYSTEM SETUP Settings” section.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
4 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Panel Description
Top Panel
For attaching a strap.
ECG/RESP socket
Connects the electrode lead for
measuring ECG and/or respiration by
the impedance method.
ZM-530PA/531PA only
SpO2 socket
Connects the SpO2 probe.
WARNING
Before defibrillation, all persons must
keep clear of the bed and must not
touch the patient or any equipment or
cord connected to the patient. Failure
to follow this warning may cause
electrical shock or injury.
WARNING
When performing defibrillation,
discharge as far as possible from
electrodes, patches and any gel,
cream or medicine on the chest of the
patient. If there is a possibility that the
defibrillator paddle could touch these
materials, remove them from the
patient. If the defibrillator paddle
directly contacts these materials, the
discharged energy may cause skin
burn to the patient.
WARNING
When the transmitter is used with an
electrosurgical unit (ESU), firmly attach
the entire area of the ESU return plate.
Otherwise, the current from the ESU
flows into the electrodes of the
transmitter, causing electrical burn
where the electrodes are attached. For
details, refer to the ESU manual.
CAUTION
Do not shake or swing the transmitter
while holding the leads or cables
connected to the transmitter. The
transmitter may come off and injure
someone or damage surrounding
instruments.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 5
Front Panel
1
3
4
6
7
5
2
No. Name Description
1 CALL key When this key is pressed, a “peep” sounds at the transmitter,
and “CALL” message appears at the monitor. Depending on
the settings on the monitor, an ECG waveform is recorded when
this key is pressed.
2 LCD Displays numeric values, ECG or pulse wave, messages and
battery status. For details, refer to the “Screen Descriptions”
section.
3 Screen key Toggles the screen in the following order.
After power on: Start up → Check electrodes → Numeric and
waveform → Waveform review → Numeric review → Display
off → Check electrodes …
After auto display off: Numeric and waveform → Waveform
review → Numeric review → Display off → Check electrodes
→ Numeric and waveform …
On a SETUP or CHECK screen, this key cancels changing
setting or exits the screen.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
6 Operator’s Manual ZM-520PA/521PA/530PA/531PA
1
3
4
6
7
5
2
No. Name Description
4 Infrared receiver Used for upgrading the transmitter software.
5 Channel number label Indicates the channel number of the transmitter.
6 Lead/Scroll keys On the numeric and waveform screen, these keys change the
ECG lead.
On the waveform review screen, these keys scroll data.
On a SETUP screen, these keys move the cursor.
7 Function key Depending on the setting on the transmitter, this key suspends
alarms, pauses monitoring on the receiving monitor or transmits
“Patient confirmed” message.
On a SETUP screen, this key registers the selected setting and
moves the cursor to the next setting item.
On a CHECK screen, this key starts or stops the maintenance
test.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 7
Rear Panel
Refer to the “Explanations
of the Symbols in this
Manual and Instrument”
section.
Refer to the WARNING
below.
Refer to the WARNING
below.
Refer to the “Explanations
of the Symbols in this
Manual and Instrument”
section.
ZM-530PA/531PA only
Battery case:
Contains two alkaline dry
cell batteries (AA TYPE).
WARNING
Close the battery case cover during operation. If the transmitter is used with the
battery case cover open, anyone who touches the opened battery case may receive
an electrical shock when defibrillation is performed. Touching the opened battery
case may cause electrostatic discharge and intermittently interfere with the waveform
or data.
WARNING
This transmitter is not waterproof. If detergent or liquid spills into the transmitter, stop
using it and contact your Nihon Kohden representative. If a wet transmitter is used,
the patient or operator may receive an electrical shock or injury.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
8 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Important Safety Information
General
WARNING
Never use the transmitter in the
presence of any flammable anesthetic
gas or high concentration oxygen
atmosphere. Failure to follow this
warning may cause explosion or fire.
WARNING
Never use the transmitter in a
hyperbaric oxygen chamber. Failure to
follow this warning may cause
explosion or fire.
WARNING
Do not take this transmitter into the
MRI test room. This transmitter is not
designed to be used during MRI tests.
WARNING
When performing MRI test, remove all
electrodes and probe from the patient
which are connected to this transmitter.
Failure to follow this warning may
cause skin burn on the patient. For
details, refer to the MRI manual.
WARNING
Before defibrillation, all persons must
keep clear of the bed and must not
touch the patient or any equipment or
cord connected to the patient. Failure
to follow this warning may cause
electrical shock or injury.
WARNING
When performing defibrillation,
discharge as far as possible from
electrodes, patches and any gel,
cream or medicine on the chest of the
patient. If there is a possibility that the
defibrillator paddle could touch these
materials, remove them from the
patient. If the defibrillator paddle
directly contacts these materials, the
discharged energy may cause skin
burn to the patient.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 9
WARNING
When the transmitter is used with an
electrosurgical unit (ESU), firmly attach
the entire area of the ESU return plate.
Otherwise, the current from the ESU
flows into the electrodes of the
transmitter, causing electrical burn
where the electrodes are attached. For
details, refer to the ESU manual.
WARNING
This transmitter is not waterproof. If
detergent or liquid spills into the
transmitter, stop using it and contact
your Nihon Kohden representative. If a
wet transmitter is used, the patient or
operator may receive an electrical
shock or injury.
WARNING
Close the battery case cover during
operation. If the transmitter is used with
the battery case cover open, anyone
who touches the opened battery case
may receive an electrical shock when
defibrillation is performed. Touching the
opened battery case may cause
electrostatic discharge and
intermittently interfere with the
waveform or data.
WARNING
Do not use the same transmitter for
more than one patient at the same
time. Do not connect different sensors
from different patients to the same
transmitter.
WARNING
When the signal is unstable, keep the
patient under close observation. When
the signal is unstable, the monitoring
and alarm are not reliable and the
receiving monitor cannot detect a
sudden change of the patient’s
condition. This may cause critical
changes in the patient condition to be
overlooked. Install an appropriate
antenna system to ensure stable signal
condition.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
10 Operator’s Manual ZM-520PA/521PA/530PA/531PA
WARNING
Do not diagnose a patient based only
on data acquired by the transmitter.
Overall judgement must be performed
by a physician who understands the
features, limitations and characteristics
of the transmitter and by reading the
biomedical signals acquired by other
instruments.
CAUTION
Only use Nihon Kohden specified
electrodes, electrode leads and SpO2
probes. Otherwise, the maximum
performance from the transmitter
cannot be guaranteed.
CAUTION
Do not reuse disposable parts and
accessories.
CAUTION
The measurement values and
displayed waveforms on the transmitter
and receiving monitor may be different
due to timing delay of the display or
difference in detection settings.
CAUTION
Do not shake or swing the transmitter
while holding the leads or cables
connected to the transmitter. The
transmitter may come off and injure
someone or damage surrounding
instruments.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 11
CAUTION
Signal loss and artifact may occur
because of the multipath cancellation*
when using a transmitter.
* Multipath Cancellation (Standing Wave
Interference):
When a radio wave reflects off a surface,
there may be some points in the room where
the reflected and direct waves are exactly
out of phase. At these points in the room, the
reflected and direct waves cancel each other
out so that the signal strength is decreased.
Locations where signal loss occurs are called
“null spots”. If the transmitter is moving or
nearby people or objects are moving, null
spots can occur anytime and anywhere.
CAUTION
Turn off the power of mobile phones,
small wireless devices and other
devices which produce strong
electromagnetic interference around a
patient (except for devices allowed by
the hospital administrator). Radio
waves from devices such as mobile
phones or small wireless devices may
be mistaken as pulse waves or
respiration waves and the displayed
data may be incorrect.
CAUTION
• Do not use the same channel
for different patients. If the same
channel is used for two patients, the
two patients’ data will be lost due to
mutual modulation interference, or
another patient’s data may appear
on the receiving monitor screen.
• Do not use two transmitters with
adjacent channels in the same
hospital. If transmitters with adjacent
channels are used, their radio waves
interfere with each other.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
12 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Output Signal
WARNING
Do not use the output signal from the receiving monitor as the synchronization signal
for other equipment such as IABP, MRI, echocardiography or defibrillator. There may
be time delay between the monitor and the other equipment caused by waveform
transmission delay and spike noise may interfere on the output signal and be
mistaken as a trigger.
Battery
WARNING
Do not use NiMH batteries for this
transmitter. Some operating
environments may cause NiMH
batteries to produce gas and explode.
CAUTION
Battery replacement must be
performed by the operator. When
replacing the batteries of a transmitter
that is currently used for a patient,
disconnect the electrode leads from
the transmitter before replacing
batteries or do not touch the patient
during replacement.
CAUTION
When the transmitter is not in use,
remove the batteries. When the
batteries are installed, battery power is
consumed even when measurement is
not performed.
CAUTION
Do not handle the batteries with wet
hands.
CAUTION
Refer to the battery manual for details
on handling the batteries.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 13
Transmitter Channel Management
WARNING
The following actions must be taken to properly receive the transmitter signal of the
correct patient on the receiving instrument. Otherwise, there may be signal loss or
signals may mix causing a serious accident, such as monitoring a different patient.
• Assign a channel administrator in the hospital and only he or she should manage
channel assignment.
• The channel administrator must manage the channels in the facility so that there is
no signal interference.
• When the transmitter channel is changed, the channel administrator must check
that the channel on the receiving monitor is also changed and the signal is
properly received.
• The channel administrator must replace the channel number label on the
transmitter with the new one after changing the channel.
For Patients Using Implantable Pacemaker
WARNING
Interaction Between Minute Ventilation Rate-Adaptive Pacemakers and Cardiac
Monitoring and Diagnostic Equipment*
The bioelectric impedance measurement sensor of a minute ventilation rate-adaptive
implantable pacemaker may be affected by transmitter which is connected to the
same patient. If this occurs, the pacemaker may pace at its maximum rate and the
transmitter may give incorrect data to the monitor. If this occurs, disconnect the
electrode leads from the patient or change the setting on the pacemaker by referring
to the pacemaker’s manual. For more details, contact your pacemaker representative
or Nihon Kohden representative.
* Minute ventilation is sensed in rate-adaptive pacemakers by a technology known as bioelectric
impedance measurement (BIM). Many medical devices in addition to pacemakers use this
technology. When one of these devices is used on a patient with an active, minute ventilation
rate-adaptive pacemaker, the pacemaker may erroneously interpret the mixture of BIM signals
created in the patient, resulting in an elevated pacing rate.
For more information, see the FDA web site.
http://www.fda.gov/cdrh/safety.html
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
14 Operator’s Manual ZM-520PA/521PA/530PA/531PA
ECG Monitoring
WARNING
After attaching the electrode to the
patient and connecting the electrode
lead to the transmitter, check that
electrodes are attached to the patient
and check that the electrode lead is
connected to the transmitter properly.
When the electrodes are removed from
the patient, do not touch the metal part
of the electrode with bare hands or let
the metal part of the electrode contact
the metal part of the bed or any other
conductive parts. Failure to follow this
warning may cause electrical shock or
injury to the patient by discharged
energy.
WARNING
The transmitter detects the pacemaker
pulse and rejects the pacemaker pulse
from the heart rate count. However, all
of the pacemaker pulse might not be
rejected. If the pacemaker pulse is not
rejected, the pacemaker pulse is
detected as QRS and false heart rate
may be indicated. Keep pacemaker
patients under close observation.
* For the pacemaker pulse rejection capability
of ZM-520PA/521PA/530PA/531PA
transmitter refer to the “Specifications -
ECG” section.
WARNING
The pacemaker pulse can be
overlooked or detected as QRS. You
cannot confirm the pacemaker
operation only from the detected
pacemaker pulse.
CAUTION
Only use Nihon Kohden specified
electrodes and electrode leads. When
other type of electrodes or electrode
leads are used, the “CHECK
ELECTRODES” message may be
displayed and ECG monitoring may
stop.
CAUTION
When the “ELECTRODE OFF” or
“CHECK ELECTRODES” message is
displayed on the receiving monitor,
ECG is not monitored properly and the
ECG alarm does not function. Check
the electrode, electrode leads, and if
necessary, replace with new ones.
CAUTION
Hold the connector of the electrode
lead when connecting/disconnecting
the electrode lead. If you disconnect
the electrode lead by pulling the lead, it
damages the electrode lead.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 15
SpO2 Monitoring
WARNING
SpO2 measurement may be incorrect
in the following cases.
• When the patient’s
carboxyhemoglobin or
methemoglobin increases
abnormally.
• When dye is injected in the blood.
• When using an electrosurgical unit.
• During CPR.
• When measuring at a site with
venous pulse.
• When there is body movement.
• When the pulse wave is small
(insufficient peripheral circulation).
WARNING
When monitoring SpO2 of a patient
who is receiving photodynamic therapy,
the light from the finger probe sensor
may cause a burn. Photodynamic
therapy uses a photosensitizing agent
that has a side effect of
photosensitivity.
The SpO2 probe manufactured by Nihon
Kohden have two wavelengths with peaks in the
range of 650 and 950 nm. The maximum light
intensity is less than 5.5 mW.
WARNING
• When using the TL-201T finger
probe, do not fasten the probe and
cable to the finger by wrapping
with tape. This may cause burn,
congestion or pressure necrosis from
poor blood circulation.
• When using probes other than the
TL-201T finger probe, to avoid poor
circulation, do not wrap the tape too
tight. Check the blood circulation
condition by observing the skin color
and congestion at the skin peripheral
to the probe attachment site. Even
for short-term monitoring, there may
be burn or pressure necrosis from
poor blood circulation, especially on
neonates or low birth weight infants
whose skin is delicate. Accurate
measurement cannot be performed
on a site with poor peripheral
circulation.
WARNING
Check the circulation condition by
observing the skin color at the
measurement site and pulse waveform.
Change the measurement site every 8
hours for disposable probes and every
4 hours for reusable probes (every 8
hours for TL-631T series probe). The
skin temperature may increase at the
attached site by 2 or 3°C (4 or 5°F)
and cause a burn or pressure necrosis.
When using the probe on the following
patients, take extreme care and
change the measurement site more
frequently according to symptoms and
degree.
• Patient with a fever
• Patient with insufficient peripheral
circulation
• Neonate or low birth weight infant
with delicate skin
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
16 Operator’s Manual ZM-520PA/521PA/530PA/531PA
WARNING
When not monitoring SpO2, disconnect
the SpO2 cable from the transmitter.
Otherwise, noise from the probe
sensor may interfere and incorrect data
is displayed on the screen.
CAUTION
Refer to the probe instruction manual
for details.
CAUTION
The disposable probe is not sterilized.
Use the disposable probe only for a
single patient. Never reuse the
disposable probe for another patient
because it causes cross infection.
CAUTION
Do not attach the probe to the same
limb that is used for NIBP
measurement or an IBP catheter. The
SpO2 measurement may be incorrect.
CAUTION
While a patient is on medication which
causes vasodilation, the pulse
waveform may change and in rare
cases the SpO2 value might not be
displayed.
CAUTION
Normal external light does not affect
monitoring but strong light such as a
surgical light or sunlight may affect
monitoring. If affected, cover the
measuring site with a blanket.
CAUTION
When a message indicates a faulty
probe, stop monitoring and replace the
probe with a new one.
CAUTION
Do not use a damaged or
disassembled probe. It causes
incorrect measurement and may injure
the patient.
CAUTION
Do not use a probe which is
deteriorated by aging. Accurate
measurement cannot be performed.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 17
CAUTION
If the attachment site is dirty with blood
or bodily fluids, clean the attachment
site before attaching the probe. If there
is nail polish on the attachment site,
remove the polish. Otherwise, the
amount of transmitted light decreases,
and measured value may be incorrect
or measurement cannot be performed.
CAUTION
If the skin gets irritated or redness
appears on the skin from the probe,
change the attachment site or stop
using the probe. Take extreme care for
the patients with delicate skin.
CAUTION
Failure to follow these instructions may
cause cable discontinuity, short circuit,
skin burn on the patient from the probe
temperature increase due to the short
circuit of the probe cable, and incorrect
measurement data. If the probe is
broken, replace it with a new one.
• Do not immerse any part of
the probe cable other than the
disposable probe in chemical
solutions or water.
• Do not pull or bend the probe cable.
• Do not let caster feet run over the
probe cable.
CAUTION
When the probe is attached on an
appropriate site with sufficient
circulation and the error message
confirming the probe attachment
repeatedly appears, the probe may be
deteriorated. Replace it with a new
one.
Maintenance
CAUTION
This transmitter is not waterproof. If
detergent or liquid spills into the
transmitter, stop cleaning or
disinfecting it and contact your Nihon
Kohden representative. The transmitter
needs to be checked for safety and
function before use.
CAUTION
Do not immerse the electrode lead
connector in liquid.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
18 Operator’s Manual ZM-520PA/521PA/530PA/531PA
CAUTION
Never disassemble or repair the
transmitter. If there is any problem with
the transmitter, contact your Nihon
Kohden representative.
CAUTION
Dispose of Nihon Kohden products
according to your local laws and your
facility’s guidelines for waste disposal.
Otherwise, it may affect the
environment. If there is a possibility
that the product may have been
contaminated with infection, dispose of
it as medical waste according to your
local laws and your facility’s guidelines
for medical waste. Otherwise, it may
cause infection.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 19
Preparation on Transmitter
Batteries
Handling Batteries
WARNING
Do not use NiMH batteries for this
transmitter. Some operating
environments may cause NiMH
batteries to produce gas and explode.
CAUTION
Refer to the battery manual for details
on handling the batteries.
CAUTION
When the transmitter is not in use,
remove the batteries. When the
batteries are installed, battery power is
consumed even when measurement is
not performed.
CAUTION
Do not handle the batteries with wet
hands.
NOTE
Remove the batteries from the transmitter before disposing of it.
Battery Lifetime
Use two AA(LR6) type alkaline dry cell batteries. With new Nihon Kohden recommended
alkaline batteries, the transmitter can continuously measure for the following number of days at
room temperature. Operation time depends on the thickness of the SpO2 probe attachment site.
Transmitter Operating time (Measuring parameters)
ECG, Resp, SpO2ECG, Resp
ZM-520PA/530PA 2.5 days 3.5 days
ZM-521PA/531PA 2.0 days 2.5 days
Recommended Batteries
Alkaline primary: Nihon Kohden Medipower (equivalent to Panasonic LR6 (G))
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
20 Operator’s Manual ZM-520PA/521PA/530PA/531PA
NOTE
• Use Nihon Kohden Medipower to ensure specified performance. Outdated,
mismatched or poor-quality batteries can give unacceptable performance (e.g.,
insufficient low battery indication). The use of fresh high-quality alkaline batteries is
strongly recommended.
• When the display is turned on, it reduces the battery power. Instruct the patient not to
turn on the display during monitoring.
Installing (Replacing) Batteries
CAUTION
Battery replacement must be performed by the operator. When replacing the
batteries of a transmitter that is currently used for a patient, disconnect the electrode
leads from the transmitter before replacing batteries or do not touch the patient
during replacement.
If electrode leads are attached to the patient and the person replacing batteries touches the patient
during battery replacement, excess patient leakage current may flow into the patient.
NOTE
• Replace all batteries at the same time.
• Do not use different types of batteries together.
• Insert the batteries with the correct polarity (+ and –).
1. Open the battery case cover.
2. Insert two new batteries into the battery case
observing the correct polarity.
The transmitter is automatically turned on
when the batteries are installed.
ii
i
ii
i
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 21
NOTE
Insert the (–) end of the battery first and press it against the spring. If you try to force
the (+) end of the battery in first, it will deform the spring and damage the battery and
transmitter.
3. Close the cover.
Situations Requiring Battery Replacement
Replace the batteries when any of the following occurs:
• The transmitter displays the “BATTERY WEAK” message or “ ” icon.
• The transmitter generates a constant alarm (continuous “peep” sound).
• The transmitter LCD does not display anything when the power is turned on.
• The receiving monitor displays a battery replacement message.
Battery Level Indication
The following icons on the LCD indicate the battery level. When “PROTOCOL” on the SYSTEM
SETUP screen is set to 51, the battery level indication is transmitted to the receiving monitor. To
use protocol 51, the ORG-9100A/ORG-9110A multiple patient receiver software version 03-03 or
later is required.
Indication Battery level Message on the receiving monitor
Batteries are fully charged.
There is no message on the monitor.
Batteries are getting low.
Batteries are low.
Batteries are almost empty.
Replace batteries.
Message requiring battery replacement is
displayed.
No indication Dead batteries No signal can be transmitted to the monitor.
There is no indication on the monitor.
i
ii
i
ii
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
22 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Attaching a Strap to the Transmitter
NOTE
Do not attach the clip to hard objects such as thick cloth or a zipper. It will break the clip.
Attach a strap to the transmitter and fasten the clip to the patient’s clothes or bed sheets.
If the transmitter falls off, the transmitter may be damaged and the batteries may come out. If
the patient touches the battery terminal when putting the batteries back in the transmitter, excess
patient leakage current may flow into the patient.
If the transmitter falls into water or a toilet, stop using the transmitter and contact your Nihon
Kohden representative.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 23

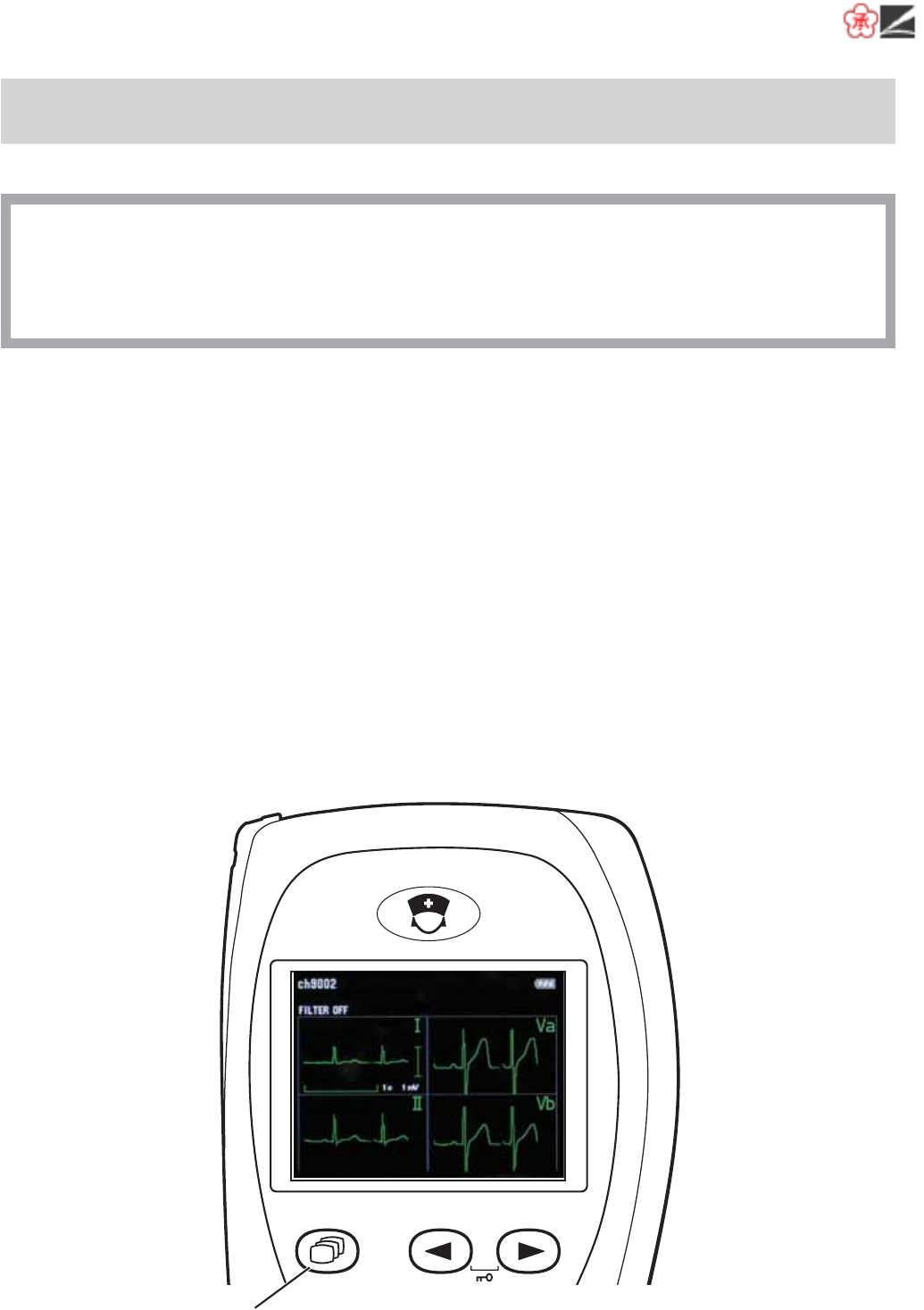

Turning On the Transmitter
When the batteries are installed correctly, the power is turned on. A one second “peep” sounds and
the startup screen appears, then the check electrodes screen appears. (There is no “peep” sound
when there is no battery power.)
After checking that the ECG is stable on the check electrodes screen, press the Screen key to
display the numeric and waveform screen.
For details on the screen, refer to the “Screen Descriptions” section.
Check Items Before Use
Before turning on the transmitter power, check the following to confirm that the transmitter can be
used in normal and safe condition.
Appearance
• There are no damaged or dirty parts on the outside of the transmitter (LCD, keys, sockets,
battery case cover, battery case, etc.).
• The transmitter is completely dry.
• The electrodes, electrode lead and SpO2 probe are not broken.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
24 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Batteries
• The battery polarity is correct.
• The battery case spring is firmly attached and the battery is not loose.
• The battery case cover is firmly closed.
Channel Setting
• The transmitter channel matches the receiving monitor channel.
• There is no nearby transmitter with the same channel.
Other
• When performing defibrillation, set the hum filter to ON on the receiving monitor. The
waveform recovery may become slow due to electrode polarization when the hum filter is set to
OFF.
Check Items After Power On
After turning on the power, check the following.
Power On
• The transmitter generates a one second “peep” sound and the startup screen appears.
• The transmitter displays the check electrodes screen.
• The transmitter is not too hot.
• The transmitter does not display the “BATTERY WEAK” message.
• The transmitter does not interfere with the operation of other medical instruments.
Daily Check
• The “signal loss” message is not displayed on the receiving monitor when the transmitter is
inside the receiving range of the monitor.
• The battery replacement message is not displayed on the monitor.
• The keys on the transmitter function properly.
• The LCD brightness is appropriate. To adjust brightness, refer to the “Changing SYSTEM
SETUP Settings” section.
Check Items After Use
To use the transmitter in safe and optimum condition for next time, check the following.
Before Turning Power Off
• Temporarily changed settings are changed back to the previous settings.
• There was no malfunction on the transmitter.
Storage
• ECG electrode leads and SpO2 probe are cleaned and disinfected.
• If the transmitter got wet, liquid is wiped off and the transmitter is thoroughly dried.
• There are enough consumables, such as disposable electrodes.
• The transmitter power is turned off by removing batteries from the transmitter.
• Dead batteries are disposed of properly.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 25
Turning Off the Transmitter
To turn off the power, remove batteries. When the power is turned off, the saved waveform and
numeric data are deleted.
Changing the Transmitter Channel
The channel of the transmitter can be changed with an optional QI-901PK channel writer.
WARNING
The following actions must be taken to properly receive the transmitter signal of the
correct patient on the receiving instrument. Otherwise, there may be signal loss or
signals may mix causing a serious accident, such as monitoring a different patient.
• Assign a channel administrator in the hospital and only he or she should manage
channel assignment.
• The channel administrator must manage the channels in the facility so that there is
no signal interference.
• When the transmitter channel is changed, the channel administrator must check
that the channel on the receiving monitor is also changed and the signal is
properly received.
• The channel administrator must replace the channel number label on the
transmitter with the new one after changing the channel.
NOTE
• The software version of the QI-901PK channel writer must be 02-01 or later to change
the channel on the transmitter.
• The channel writer must be used outside the patient environment.
The channel is displayed in the upper left corner of the screen.
Channel
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
26 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Changing Parameter and System Setup Settings
The initial settings on the PARAMETER SETUP and SYSTEM SETUP screens can only be
changed before monitoring. Changing these settings during monitoring interrupts monitoring.
NOTE
Changing Parameter and System Setup settings must be done by qualified personnel.
Changing PARAMETER SETUP Settings
Parameter Setup Setting List
The factory default settings are underlined.
Setting item Description Settings
ECG ELECTRODES Select the electrode lead type. IEC, AHA
LEAD TYPE Select the type of ECG leads. AUTO, 6 LEADS
ECG
MEASUREMENT
Turn ECG monitoring on or off. When electrodes
are attached to the patient and ECG leads are
connected, ECG monitoring starts even when this
setting is set to OFF.
If this setting is set to OFF, the same setting on the
receiving monitor must also be set to OFF.
NOTE
When “PROTOCOL” on the transmitter is set
to 51 and the receiving monitor is able to
receive protocol 51, ECG measurement on
the receiving monitor is automatically set to
OFF when this setting is set to OFF on the
transmitter.
To use protocol 51, the ORG-9100A/ORG-
9110A multiple patient receiver software
version 03-03 or later is required.
ON, OFF
RESP
MEASUREMENT
Turn respiration monitoring on or off.
When this setting is set to OFF, the same setting on
the receiving monitor is automatically set to OFF.
ON, OFF
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 27
Setting item Description Settings
SpO2 RESPONSE
Select the SpO2 response mode.
FAST: Select this for special applications
that require a fast response. FAST is
suitable for detecting short apnea.
NORMAL: For normal monitoring.
SLOW: Select this when you need to suppress a
rapid change in SpO2.
FAST, NORMAL,
SLOW
Displaying the PARAMETER SETUP Screen
1. Turn off the transmitter by removing one
battery.
2. While pressing the Function key, turn on the
transmitter (install the battery). The MENU
screen appears.
3. Press the
▼
key to move the cursor to
“PARAMETER SETUP”.
4. Press the Function key to enter PARAMETER
SETUP. The current settings are highlighted.
5. Change settings:
• To move the cursor and select the setting
item, press the
▼
or
▼
key then press the
Function key.
• To select and register the setting, press the
▼
or
▼
key then press the Function key.
• To cancel changing the setting of the
selected item, press the Screen key.
6. When changing settings on the PARAMETER
SETUP screen is complete, press the Screen
key to return to the MENU screen.
7. Press the
▼
or
▼
key to move the cursor to “EXIT”.
8. Press the Function key. The numeric and waveform screen appears.

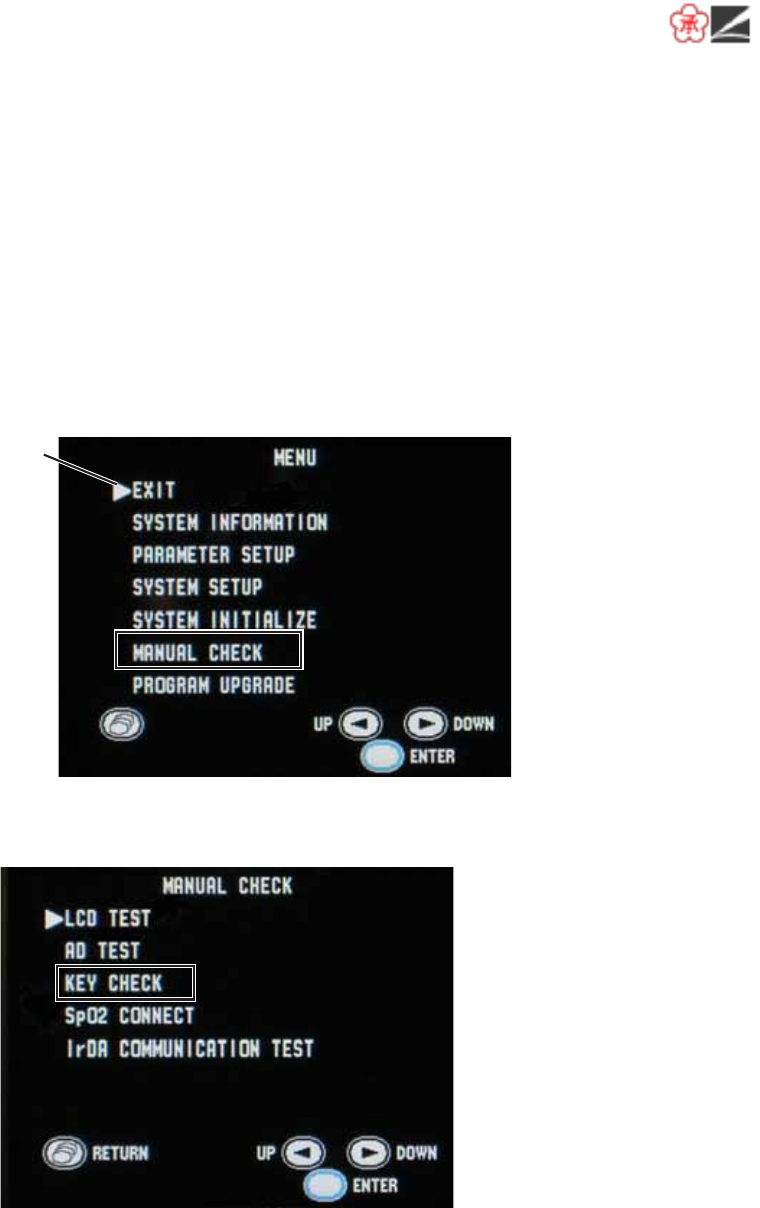

Cursor
MENU screen
Cursor
MENU screen
Setting item
PARAMETER SETUP screen - page 1
Setting
Cursor Setting item
PARAMETER SETUP screen - page 1
Setting
Cursor
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
28 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Changing Parameter Setup Settings
ECG ELECTRODES
Select the electrode lead type.
1. On the PARAMETER SETUP screen, press
the
▼
key to move the cursor to “ECG
ELECTRODES”.
2. Press the Function key. The cursor moves to
the selection item.
3. Press the
▼
key to select “IEC” or “AHA”.
4. Press the Function key to register the
selected setting. The cursor returns to “ECG
ELECTRODES”.
LEAD TYPE
Select the type of ECG leads. In normal use, select “AUTO”. When using DIN type lead with 6
electrodes, select “6 LEADS”.
1. On the PARAMETER SETUP screen, press the
▼
key to move the cursor to “LEAD TYPE”.
2. Press the Function key.
3. Press the
▼
key to select “AUTO” or “6 LEADS”.
4. Press the Function key to register the selected setting. The cursor returns to “LEAD TYPE”.
Setting item
Cursor Setting item
Cursor
Selected setting
Cursor Selected setting
Cursor
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 29
ECG MEASUREMENT
Turn ECG monitoring on or off. When electrodes are attached to the patient and ECG leads are
connected, ECG monitoring starts even when this setting is set to OFF.
If this setting is set to OFF, the same setting on the receiving monitor must also be set to OFF.
NOTE
When “PROTOCOL” on the transmitter is set to 51 and the receiving monitor is able to
receive protocol 51, ECG measurement on the receiving monitor is automatically set
to OFF when this setting is set to OFF on the transmitter. To use protocol 51, the ORG-
9100A/ORG-9110A multiple patient receiver software version 03-03 or later is required.
1. On the PARAMETER SETUP screen, press the
▼
key to move the cursor to “ECG
MEASUREMENT”.
2. Press the Function key.
3. Press the
▼
key to select “ON” or “OFF”.
4. Press the Function key to register the selected setting. The cursor returns to “ECG
MEASUREMENT”.
RESP MEASUREMENT
Turn respiration monitoring on or off. When this setting is set to OFF, the same setting on the
receiving monitor is automatically set to OFF.
1. On the PARAMETER SETUP screen, press the
▼
key to move the cursor to “RESP
MEASUREMENT”.
2. Press the Function key.
3. Press the
▼
key to select “ON” or “OFF”.
4. Press the Function key to register the selected setting. The cursor returns to “RESP
MEASUREMENT”.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
30 Operator’s Manual ZM-520PA/521PA/530PA/531PA
SpO2 RESPONSE
Select the SpO2 response mode.
FAST: Select this for special applications that require a fast response. FAST is suitable for
detecting short apnea.
NORMAL: For normal monitoring.
SLOW: Select this when you need to suppress a rapid change in SpO2.
1. On the PARAMETER SETUP screen, press
the
▼
key to move the cursor to “SpO2
RESPONSE”. “SpO2 RESPONSE” is on the
second page of the PARAMETER SETUP
screen.
2. Press the Function key.
3. Press the
▼
key to select “FAST”,
“NORMAL” or “SLOW”.
4. Press the Function key to register the
selected setting. The cursor returns to “SpO2
RESPONSE”.
PARAMETER SETUP screen - page 2PARAMETER SETUP screen - page 2
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 31
Changing SYSTEM SETUP Settings
System Setup Setting List
The factory default settings are underlined.
Setting Item Description Settings
PROTOCOL
Select the transmitting protocol.
51: New protocol. A central monitor with ORG-
9100A/9110A multiple patient receiver whose
software version 03-03 or later can receive this
protocol.
41: Old protocol. A central monitor with ORG-
9100A/9110A/9700A multiple patient receiver can
receive this protocol.
NOTE
When 51 is set, the receiving monitor must be able
to receive protocol 51. Otherwise, signals from the
transmitter cannot be received. To use protocol
51, the ORG-9100A/ORG-9110A multiple patient
receiver software version 03-03 or later is required.
51, 41
BRIGHTNESS Select the screen brightness. DARK,
BRIGHT
FUNCTION KEY
Select the function of the Function key.
SUSPEND ALARM & PAUSE:
Suspends alarm on the receiving monitor for 2
minutes. Pauses monitoring on the transmitter
and receiving monitor.
SUSPEND ALARM:
Suspends alarm on the receiving monitor for 2
minutes.
CONFIRM:
Displays the “PATIENT CONFIRMED” message
on the transmitter screen and transmits the
message to the receiving monitor.
OFF: No function.
NOTE
“SUSPEND ALARM & PAUSE” and “CONFIRM” can
only be set when PROTOCOL is set to 51. To use
protocol 51, the ORG-9100A/ORG-9110A multiple
patient receiver software version 03-03 or later is
required.
SUSPEND
ALARM
& PAUSE,
SUSPEND
ALARM,
CONFIRM,
OFF
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
32 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Setting Item Description Settings
AUTO RESUME
AFTER PAUSE Select the interval to resume monitoring after PAUSE.
10 s, 30 s, 1
min, 2 min, 3
min, OFF
Displaying the SYSTEM SETUP Screen
1. Turn off the transmitter by removing one
battery.
2. While pressing the Function key, turn on the
transmitter (insert the battery). The MENU
screen appears.
3. Press the
▼
key to move the cursor to
“SYSTEM SETUP”.
4. Press the Function key to enter SYSTEM
SETUP. The current settings are highlighted.
5. Change settings.
• To move the cursor and select the setting
item, press the
▼
or
▼
key then press the
Function key.
• To select and register the setting, press the
▼
or
▼
key then press the Function key.
• To cancel changing the setting of the
selected item, press the Screen key.
The SYSTEM SETUP screen has two pages.
To display the second page, press the
▼
key
when the cursor is at “BRIGHTNESS”.
6. When changing settings on the SYSTEM
SETUP screen is complete, press the Screen
key to return to the MENU screen.
7. Press the
▼
or
▼
key to move the cursor to
“EXIT”.
8. Press the Function key. The numeric and
waveform screen appears.
Cursor
MENU screen
Cursor
MENU screen
Setting item
SYSTEM SETUP screen - page 1
Setting
Setting item
SYSTEM SETUP screen - page 1
Setting
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 33
Changing System Setup Settings
PROTOCOL
Select the transmitting protocol. For differences between protocols, refer to the table below.
51: New protocol. A central monitor with ORG-9100A/9110A multiple patient receiver
whose software version 03-03 or later can receive this protocol.
41: Old protocol. A central monitor with ORG-9100A/9110A/9700A multiple patient receiver
can receive this protocol.
NOTE
When 51 is set, the receiving monitor must be able to receive protocol 51. Otherwise,
signals from the transmitter cannot be received.
Differences Between Protocols
Function Protocol 41 Protocol 51
Setting ECG MEASUREMENT to OFF on
the transmitter automatically turns off the
ECG measurement setting on the receiving
monitor
No (ECG measurement
must be turned off on
the receiving monitor)
Yes
Pause monitoring on the receiving monitor
from the transmitter No Yes
Transmit “PATIENT CONFIRMED” message No Yes
Display battery level of the transmitter on the
receiving monitor No Yes
Transmit SpO2 messages
Some messages (refer
to the “Indication and
Message List” section)
All messages
Transmit RESP message No Yes
1. Press the
▼
key to move the cursor to
“PROTOCOL”.
2. Press the Function key.
3. Press the
▼
key to select “51” or “41”.
Setting
Cursor Setting
Cursor
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
34 Operator’s Manual ZM-520PA/521PA/530PA/531PA
NOTE
FUNCTION KEY (on the second page of
the SYSTEM SETUP screen) can be set to
“SUSPEND ALARM & PAUSE” or “CONFIRM”
only when PROTOCOL is “51”. If PROTOCOL
is changed to “41”, FUNCTION KEY is
automatically changed to “OFF”.
4. Press the Function key to register the selected
setting. The cursor returns to “PROTOCOL”.
BRIGHTNESS
Select the screen brightness.
1. Press the
▼
key to move the cursor to “BRIGHTNESS”.
2. Press the Function key.
3. Press the
▼
key to select “DARK” or “BRIGHT”.
4. Press the Function key to register the selected setting. The cursor returns to
“BRIGHTNESS”.
FUNCTION KEY
Select the function of the Function key. For details on using these functions, refer to “Basic
Monitoring Operation” in the “Monitoring” section.
SUSPEND ALARM & PAUSE: Suspends alarm on the receiving monitor for 2 minutes. Pauses
monitoring on the transmitter and receiving monitor.
SUSPEND ALARM: Suspends alarm on the receiving monitor for 2 minutes.
CONFIRM: Displays the “PATIENT CONFIRMED” message on the
transmitter screen and transmits the message to the receiving
monitor.
OFF: No function.
NOTE
“SUSPEND ALARM & PAUSE” and “CONFIRM” can only be set when PROTOCOL is set
to 51.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 35
1. On the SYSTEM SETUP screen, press the
▼
key to move the cursor to “FUNCTION
KEY”. “FUNCTION KEY” is on the second
page of the SYSTEM SETUP screen.
2. Press the Function key.
3. Press the
▼
key to select the function.
4. Press the Function key to register the selected
setting. The cursor returns “FUNCTION
KEY”.
AUTO RESUME AFTER PAUSE
Select the interval to resume monitoring after PAUSE. When one of the following conditions is
met, monitoring resumes on the receiving monitor. When OFF is selected, monitoring does not
automatically resume.
• Heart rate is properly monitored for the selected interval
• SpO2 is properly monitored for the selected interval
1. Press the
▼
key to move the cursor to “AUTO RESUME AFTER PAUSE”. “AUTO
RESUME AFTER PAUSE” is on the second page of the SYSTEM SETUP screen.
2. Press the Function key.
3. Press the
▼
key to select interval.
4. Press the Function key to register the selected setting. The cursor returns to “AUTO
RESUME AFTER PAUSE”.
SYSTEM SETUP screen - page 2SYSTEM SETUP screen - page 2
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
36 Operator’s Manual ZM-520PA/521PA/530PA/531PA

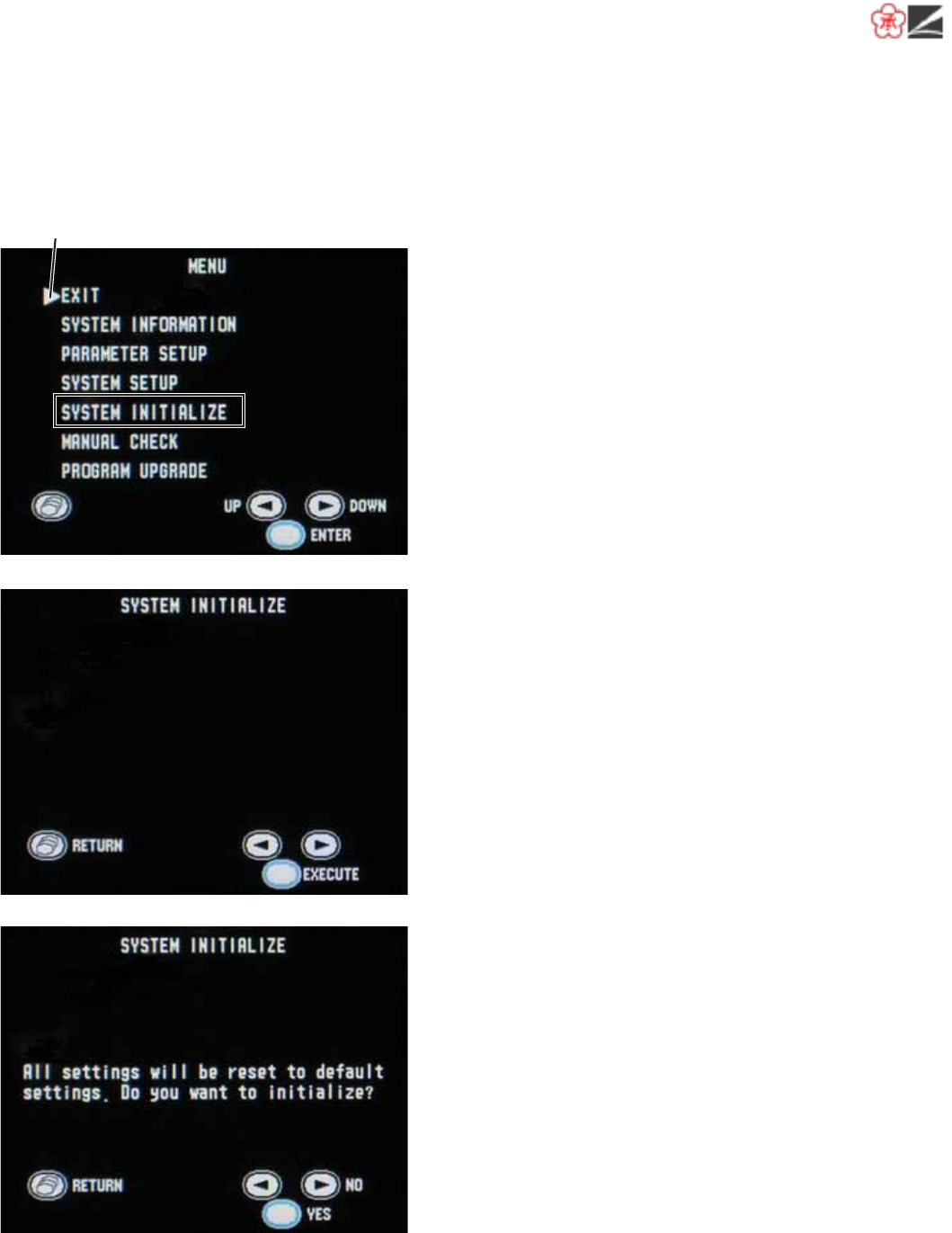

Initializing Settings
Do the following procedure to initialize all settings, except for channel, to the factory default
settings.
1. Turn off the transmitter by removing a battery.
2. While pressing the Function key, turn on the
transmitter (put back the battery). The MENU
screen appears.
3. Press the
▼
key to move the cursor to
“SYSTEM INITIALIZE”.
4. Press the Function key to enter SYSTEM
INITIALIZE screen.
5. Press the Function key to initialize settings.
The confirmation message appears.
To return to the MENU screen without
initializing, press the Screen key.
6. Press the Function key to initialize settings.
To cancel initializing, press the
▼
key. The
screen returns to the MENU screen.
CursorCursor
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 37
Attaching Electrodes and SpO2 Probe to the Patient
Attaching Electrodes
Selecting Electrode Lead
CAUTION
Only use Nihon Kohden specified electrodes and electrode leads. When other type of
electrodes or electrode leads are used, the “CHECK ELECTRODES” message may
be displayed and ECG monitoring may stop.
The following electrodes and leads can be used on the transmitter (option).
No. of
Electrodes Disposable Electrodes Electrode Lead
3
(I, II, III)
Vitrode F-150M, F-150S, L-150,
L-150X
BR-903PA (AHA, clip type)
Disposable Electrode with DIN type lead, Vitrode V-090M3, V-09IO3,
V-120S3, N-03IS3
6
(I, II, III, aVR,
aVL, aVF, 2 from
V1 to V6)
Vitrode F-150M, F-150S, L-150,
L-150X
BR-906PA (AHA, clip type)
Disposable Electrode with DIN type lead, Vitrode V-040M4, V-04IO4,
V-060M6, V-06IO6
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
38 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Connecting the Electrode Lead to the Transmitter
Connect the electrode lead to the ECG/RESP socket on the transmitter.
WARNING
After attaching the electrode to the patient and connecting the electrode lead to the
transmitter, check that electrodes are attached to the patient and check that the
electrode lead is connected to the transmitter properly. When the electrodes are
removed from the patient, do not touch the metal part of the electrode with bare
hands or let the metal part of the electrode contact the metal part of the bed or any
other conductive parts. Failure to follow this warning may cause electrical shock or
injury to the patient by discharged energy.
CAUTION
Do not shake or swing the transmitter while holding the leads or cables connected to
the transmitter. The transmitter may come off and injure someone or damage
surrounding instruments.
CAUTION
Hold the connector of the electrode lead when connecting/disconnecting the
electrode lead. If you disconnect the electrode lead by pulling the lead, it damages
the electrode lead.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 39
Electrode Position
Follow the physician’s instructions for electrode placement when available.
For ECG monitoring, electrodes are attached only on the chest to allow patient movement
and obtain continuous stable ECG. The following leads are examples. When also monitoring
respiration, refer to the “Electrode Position for Respiration Monitoring” section.
NOTE
The optimum electrode positions for ECG measurement are not always optimum for
respiration measurement. Select positions that are suitable for both ECG and respiration
measurement or positions which give priority to either ECG or respiration measurement.
Electrode Positions for ECG Monitoring
Six Electrodes
The 6-electrode method with lead II and lead V5 is effective for monitoring myocardial ischemia.
You can improve monitoring accuracy considerably by adding lead V4 to this combination.
Va and Vb can be at any position of the standard 12 leads V1 to V6, but V4 and V5 are most
appropriate for myocardial ischemic monitoring.
RA/R LA/L
RL/RF LL/F
Va/Ca
Vb/Cb
Electrode Position Symbol Lead Color
AHA IEC AHA IEC
Left infraclavicular fossa LA L Black Yellow
Right infraclavicular fossa RA R White Red
Below lowest rib on the left anterior axillary line LL F Red Green
Right anterior axillary line at the same level as
LL/F RL RF Green Black
Fifth intercostal space on the left midclavicular
line (V4 position of standard 12 leads) Va Ca Brown-blue White-brown
Left anterior axillary line at the same level as Va
(V5 position of standard 12 leads) Vb Cb Brown-orange White-black
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
40 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Lead Position
Standard limb leads
Monopolar limb leads
Monopolar chest leads
Lead
I
Lead I Lead II Lead III
aVR lead aVL lead aVF lead
V1
to V
6
lead
s
to
V1 to V6 leads
RA
RA
RA RA RA
RA
RA
LA
LA
LA
LA
LA
LA
LA
LL
LL
LL
LL LL
LL
LL
N (RL)
N (RL)
N (RL) N (RL) N (RL)
N (RL)
N (RL)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 41
Three Electrodes
• Lead MII, which is similar to standard lead II, used when ECG measurement has priority
Electrode Position Symbol Lead Color
AHA IEC AHA IEC
Left infraclavicular
fossa LA L Black Yellow
Right infraclavicular
fossa RA R White Red
Below lowest rib
on the left anterior
axillary line
LL F Red Green
• Lead MI, which is similar to standard
lead I
Change F/LL and L/LA of lead MII.
R/RA
(−)
L/LA
(N)
F/LL
(+)
• Lead MIII, which is similar to standard
lead III
Change R/RA and L/LA of lead MII.
L/LA
(N)
R/RA
(−)
F/LL
(+)
If the electrode positions above are not available due to chest surgery, attach the electrodes to the
root of the limbs or below the clavicles for stable ECG monitoring.
L/LA
(N)
R/RA
(−)
F/LL
(+)
L/LA
(N)
R/RA
(−)
F/LL
(+)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
42 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Electrode Positions for Respiration Monitoring
Place the R/RA and F/LL electrodes so that the lungs are between the electrodes.
Position 1
In this position, respiration measurement is available; however, there is a difference in amplitude
between different patients.
R or RA F or LL
Right infraclavicular fossa Fifth intercostal space on the
left midclavicular line, V4
Position 2
In this position, the waveform amplitude is usually large and the ECG lead is similar to Lead MII.
This position can be generally recommended.
R or RA F or LL
Right infraclavicular fossa Fifth intercostal space on the
left midaxillary line, V6
Position 3
In this position, the respiration waveform is optimum, but the ECG lead is unusual.
R or RA F or LL
Right midaxillary at the
horizontal level of V6
Fifth intercostal space on the
left midaxillary line, V6
R/RA
(−)
F/LL
(+)
N
R/RA
(−)
F/LL
(+)
N
R/RA
(−)
F/LL
(+)
N
R/RA
(−)
F/LL
(+)
N
N
R/RA
(−)
F/LL
(+)
N
R/RA
(−)
F/LL
(+)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 43
Position 4
In this position, the respiration measurement is influenced by the impedance variation of the
abdomen, so the cardiac pulse wave included in the respiration wave is reduced. Note that the
waveform is inverted in phase compared with the chest movement (the waveform goes down
during inspiration). It is difficult to measure the ECG at the same time.
R or RA F or LL
Lowest rib on the right
anterior axillary line
Lowest rib on the left anterior
axillary line
Attaching Electrodes to the Patient and Connecting the Electrode Leads to
Disposable Electrodes
Prepare the Patient Skin
Shave off excessive body hair.
To reduce skin impedance, clean the electrode site with cream or with a cotton pad moistened
with alcohol. Thoroughly dry the skin with a clean cotton pad.
NOTE
• For a patient with frequent body movement, rub the sites with skinPure skin
preparation gel. However, do not use skinPure skin preparation gel on sensitive skin.
• Do not place electrodes on a wound or on an inflamed, wrinkled or uneven skin
surface.
Attaching Electrodes to the Patient
CAUTION
Do not reuse disposable parts and accessories.
NOTE
• To maintain good contact between the electrode and skin, check that the paste of the
disposable electrode is not dry.
• When contact between the disposable electrode and skin becomes poor, replace
electrodes with new ones immediately. Otherwise, contact impedance between the skin
and the electrode increases and accurate ECG and respiration waveforms cannot be
obtained.
N
R/RA
(−)
F/LL
(+)
N
R/RA
(−)
F/LL
(+)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
44 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Refer to the electrode operator’s manual for details.

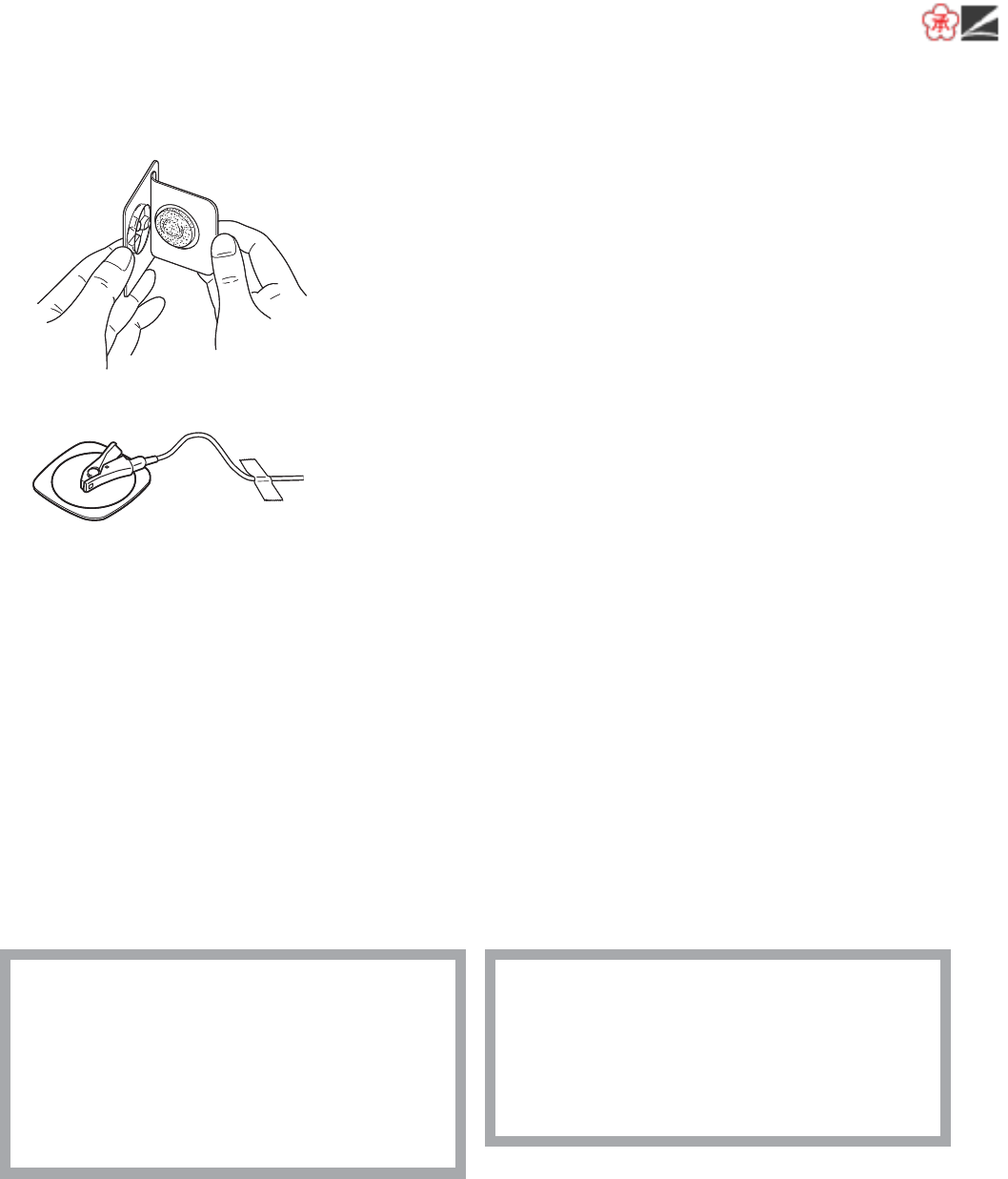

1. Carefully remove the backing paper from the
electrode. Avoid touching the adhesive surface.
2. Place the electrode on the previously cleaned skin. Pay
attention to the electrode lead color and symbol.
3. Clip the electrode lead to the electrode.
4. Fasten the electrode lead wire with surgical tape
with an extra length of wire between the tape and the
electrode. This lessens the movement of electrode
leads by body movement and helps stable monitoring.
Checking ECG on the Transmitter Screen
After attaching electrodes and connecting ECG leads, check that the electrodes are properly
attached to the patient and the ECG waveform is acquired on the check electrodes screen. For
details on the screen, refer to the “Screen Descriptions” section.
Attaching the SpO2 Probe
Selecting the SpO2 Probe
Select an appropriate probe for the patient.
CAUTION
Only use Nihon Kohden specified
electrodes, electrode leads and SpO2
probes. Otherwise, the maximum
performance from the transmitter
cannot be guaranteed.
CAUTION
Do not use a damaged or
disassembled probe. It causes
incorrect measurement and may injure
the patient.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 45
Reusable Probes
When using a TL-201T finger probe, choose the appropriate cable length for attachment.
Probe Cable Length Patient Attachment Site
Finger probe TL-201T
0.6 m
Adult or child
20 kg or more
Finger
1.6 m
Multi-site probe TL-220T
Attachment tape
Adult or infant
3 kg or more
Finger or toe
Neonate
3 kg or less
Instep and sole
Finger probe
TL-631T1, TL-631T3
Attachment tape
TL-631T1:
0.6 m
Adult or child
20 kg or more
Finger or toe
TL-631T3:
1.6 m
Disposable Probes
CAUTION
The disposable probe is not sterilized. Use the disposable probe only for a single
patient. Never reuse the disposable probe for another patient because it causes
cross infection.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
46 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Probe Patient Attachment Site
TL-051S, TL-052S
40 mm
Cable length TL-051S: 0.8 m
TL-052S: 1.6 m
Adult
50 kg or more
Finger
Neonate
3 kg or less
Instep and sole
TL-061S, TL-062S
35 mm
Cable length TL-061S: 0.8 m
TL-062S: 1.6 m
Adult or child
15 to 50 kg
Finger
Infant
3 to 15 kg
Toe
TL-271T, TL-271T3
Cable length TL-271T: 0.8 m
TL-271T3: 1.6 m
Adult
30 kg or more
Finger or toe
TL-272T, TL-272T3
Cable length TL-272T: 0.8 m
TL-272T3: 1.6 m
Child
10 to 50 kg
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 47
Probe Patient Attachment Site
TL-273T, TL-273T3
Cable length TL-273T: 0.8 m
TL-273T3: 1.6 m
Neonate
3 kg or less
Instep and sole
Adult
40 kg or more
Finger or toe
TL-274T, TL-274T3
Cable length TL-274T: 0.8 m
TL-274T3: 1.6 m
Infant
3 to 20 kg
Finger or toe
Connecting the SpO2 Probe to the Transmitter
Connect the probe to the SpO2 socket on the transmitter.
CAUTION
Do not shake or swing the transmitter
while holding the leads or cables
connected to the transmitter. The
transmitter may come off and injure
someone or damage surrounding
instruments.
CAUTION
Do not use a damaged or
disassembled probe. It causes
incorrect measurement and may injure
the patient.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
48 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Attaching the Probe to the Patient
Attach the probe to the patient by referring to the probe’s manual. Make sure that the light emitter
and photo detector of the probe face each other at the attachment site.
WARNING
• When using the TL-201T finger
probe, do not fasten the probe and
cable to the finger by wrapping
with tape. This may cause burn,
congestion or pressure necrosis from
poor blood circulation.
• When using probes other than the
TL-201T finger probe, to avoid poor
circulation, do not wrap the tape too
tight. Check the blood circulation
condition by observing the skin color
and congestion at the skin peripheral
to the probe attachment site. Even
for short-term monitoring, there may
be burn or pressure necrosis from
poor blood circulation, especially on
neonates or low birth weight infants
whose skin is delicate. Accurate
measurement cannot be performed
on a site with poor peripheral
circulation.
WARNING
Check the circulation condition by
observing the skin color at the
measurement site and pulse waveform.
Change the measurement site every 8
hours for disposable probes and every
4 hours for reusable probes (every 8
hours for TL-631T series probe). The
skin temperature may increase at the
attached site by 2 or 3°C (4 or 5°F)
and cause a burn or pressure necrosis.
When using the probe on the following
patients, take extreme care and
change the measurement site more
frequently according to symptoms and
degree.
• Patient with a fever
• Patient with insufficient peripheral
circulation
• Neonate or low birth weight infant
with delicate skin
WARNING
When monitoring SpO2 of a patient
who is receiving photodynamic therapy,
the light from the finger probe sensor
may cause a burn. Photodynamic
therapy uses a photosensitizing agent
that has a side effect of
photosensitivity.
The SpO2 probe manufactured by Nihon
Kohden have two wavelengths with peaks in the
range of 650 and 950 nm. The maximum light
intensity is less than 5.5 mW.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 49
CAUTION
If the attachment site is dirty with blood
or bodily fluids, clean the attachment
site before attaching the probe. If there
is nail polish on the attachment site,
remove the polish. Otherwise, the
amount of transmitted light decreases,
and measured value may be incorrect
or measurement cannot be performed.
CAUTION
When the probe is attached on an
appropriate site with sufficient
circulation and the error message
confirming the probe attachment
repeatedly appears, the probe may be
deteriorated. Replace it with a new
one.
CAUTION
If the skin gets irritated or redness
appears on the skin from the probe,
change the attachment site or stop
using the probe. Take extreme care for
the patients with delicate skin.
CAUTION
Do not use a probe which is
deteriorated by aging. Accurate
measurement cannot be performed.
CAUTION
Refer to the probe instruction manual
for details.
CAUTION
The disposable probe is not sterilized.
Use the disposable probe only for a
single patient. Never reuse the
disposable probe for another patient
because it causes cross infection.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
50 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Locking the Keys on the Transmitter
To prevent the patient from pressing the keys on the transmitter during monitoring, you can lock
the keys.
Press the
▼
and
▼
keys at the same time and hold for more than 3 seconds. The key lock screen
appears.
When there is no key operation for one minute after locking the keys, the display turns off.
To unlock the keys:
Press the
▼
and
▼
keys at the same time and hold for more than 3 seconds.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 51
Monitoring
CAUTION
The measurement values and displayed waveforms on the transmitter and receiving
monitor may be different due to timing delay of the display or difference in detection
settings.
NOTE
Do not let the transmitter continuously contact the patient’s skin directly. The transmitter
heats up by 2 or 3°C (4 or 5°F) during operation and it may cause low temperature burn
to the patient.
Screen Descriptions
When the transmitter is turned on, the startup screen appears, then the check electrodes screen to
check the electrode attachment appears.
The screen changes in the following order each time the Screen key is pressed.
Check electrodes → numeric and waveform → waveform review → numeric review → display
off → check electrodes . . .
Screen key
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
52 Operator’s Manual ZM-520PA/521PA/530PA/531PA
The screen automatically turns off when there is no key operation for 2 minutes on the check
electrodes screen or 1 minute on other screens.
When the display is off and the Screen key is pressed, the numeric and waveform screen appears.
NOTE
When the screen before the display off is check electrodes screen and the Screen key is
pressed within 5 minutes after the display off, the check electrodes screen appears.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 53
Check Electrodes Screen
You can check whether the electrodes are properly attached to the patient and the ECG waveform
is acquired.
When 6 leads are used, I, II, Va and Vb lead waveforms are displayed.
When 3 leads are used, only II lead waveform is displayed.
Filter: off
Sweep speed: 12.5 mm/s
Waveform sensitivity: 0.5 cm/1 mV
ECG waveform
Battery level
Lead
Channel number
Detached
electrode position
Message
When electrodes are
detached, the “CHECK
ELECTRODES”
message and detached
electrode position appear
on the screen.
NOTE
When ECG measurement is set to OFF on the PARAMETER SETUP screen, the check
electrodes screen does not appear.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
54 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Numeric and Waveform Screen
Numeric values and waveforms of the monitoring parameters are displayed. You can change the
ECG lead with the
▼
and
▼
keys.
Heart rate
QRS sync mark
Pulse bar graph
SpO2
ECG waveform
Filter: on
Sweep speed: 12.5 mm/s
Waveform sensitivity: auto
Waveform
sensitivity
ECG lead
When ECG and respiration measurement is turned off
Pulse rate
Pulse sync mark
SpO2
Pulse wave
sensitivity
Pulse waveform
Sweep speed: 12.5 mm/s
Waveform sensitivity: auto
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 55
NOTE
The pulse wave amplitude varies according to the ratio of the pulsation component to the
entire transmitted IR signal. When the pulsation component ratio is 1%, the pulse wave
amplitude is about 5 mm at ×1 sensitivity on the screen.
Waveform Review Screen
ECG full disclosure for up to 10 minutes can be saved and reviewed. When ECG measurement is
turned off and SpO2 is monitored, the pulse waveform is saved.
When ECG lead is changed on the numeric and waveform screen, the ECG full disclosure of the
changed lead is saved.
The saved data is deleted when the transmitter is turned off.
ECG lead
Displayed
page
Compressed ECG waveform
7.5 s × 4 traces per page, total of 20 pages
Older data
Newer data
Time range of the displayed waveform
(time before the waveform review screen is displayed)
Waveform sensitivity
To scroll the waveform, press the
▼
or
▼
key. The waveform is scrolled by 30 seconds.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
56 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Numeric Review Screen
Numeric data of heart rate (or pulse rate when ECG is turned off), SpO2 and respiration rate for up
to 10 minutes are saved at 1 minute intervals.
The saved data is deleted when the transmitter is turned off.
Time before the numeric
review screen is displayed
Older data
Newer data
Display Off
The display can be turned off any time. To turn off the display, press the Screen key several times
until the following screen appears then wait 5 seconds.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 57
Basic Monitoring Operation
Using the Function Key
Function key
One of the following functions can be assigned to the Function key on the SYSTEM SETUP
screen. Refer to the “Changing SYSTEM SETUP Settings” section.
SUSPEND ALARM: Suspends alarms on the receiving monitor before they occur for 2 minutes.
PAUSE: Pauses monitoring on the transmitter and receiving monitor.
CONFIRM: Transmits the signal that the patient is confirmed and displays the
“PATIENT CONFIRMED” message on the transmitter.
NOTE
To use the Function key for PAUSE or CONFIRM, you must set “PROTOCOL” on the
SYSTEM SETUP screen of the transmitter to 51 and the receiving monitor must be able
to receive protocol 51. To use protocol 51, the ORG-9100A/ORG-9110A multiple patient
receiver software version 03-03 or later is required.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
58 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Suspending Alarms on the Receiving Monitor
When the FUNCTION KEY is set to “SUSPEND ALARM” or “SUSPEND ALARM & PAUSE”
on the SYSTEM SETUP screen, alarms can be suspended for 2 minutes on the receiving monitor
before they occur.
To suspend alarms:
1. Press the Function key. The “Suspend alarms” confirmation screen appears.
2. Press the
▼
key to suspend alarms.
To cancel suspending alarms and return to the previous screen, press the Screen key.
When the alarms are suspended, the “ALARMS SUSPENDED” message and alarm suspended
icon with the remaining minutes in alarm suspension appear on the transmitter screen.
Message Icon
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 59
To cancel suspending alarms during 2 minute alarm suspension:
1. Press the Function key while the “ALARMS SUSPENDED” message is displayed. The
confirmation screen appears.
2. Press the
▼
key to cancel alarm suspension.
Press the Screen key to not cancel alarm suspension.
Pause Monitoring
When the FUNCTION KEY is set to “SUSPEND ALARM & PAUSE” on the SYSTEM SETUP
screen, you can pause monitoring on the receiving monitor from the transmitter when the patient
cannot be monitored, such as during X-ray examination.
NOTE
To use the Function key for PAUSE, you must set “PROTOCOL” on the SYSTEM SETUP
screen of the transmitter to 51 and the receiving monitor must be able to receive protocol
51. To use protocol 51, the ORG-9100A/ORG-9110A multiple patient receiver software
version 03-03 or later is required.
Monitoring on the receiving monitor resumes when one of the following conditions is met.
When OFF is selected for “AUTO RESUME AFTER PAUSE” on the SYSTEM SETUP screen,
monitoring does not automatically resume.
• Heart rate is properly monitored on the transmitter for the interval selected for “AUTO
RESUME AFTER PAUSE”.
• SpO2 is properly monitored on the transmitter for the interval selected for “AUTO RESUME
AFTER PAUSE”.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
60 Operator’s Manual ZM-520PA/521PA/530PA/531PA
To pause monitoring:
1. Press the Function key. The “Suspend alarms” confirmation screen appears.
2. Press the Function key for 3 seconds to display the “Pause monitoring” confirmation screen.
3. Press the
▼
key to pause monitoring.
To cancel pause monitoring, press the Screen key.
4. Wait about 5 seconds until the “Turn power off” screen appears.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 61
5. Turn off the transmitter.
If the transmitter is not turned off and monitoring continues for the interval set for “AUTO
RESUME AFTER PAUSE” on the SYSTEM SETUP screen, pause monitoring is cancelled
and monitoring continues.
Resume Monitoring after Pause
To resume monitoring after pause, check that the electrodes, electrode leads and probe are
attached to the patient then turn on the transmitter.
Confirming Patient
When the FUNCTION KEY is set to “CONFIRM” on the SYSTEM SETUP screen, pressing
the Function key sends a signal to the receiving monitor to indicate that the patient or patient
condition is confirmed by medical staff.
Message
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
62 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Turning the Display Off
The display can be turned off any time. To turn off the display, press the Screen key several times
until the following screen appears then wait 5 seconds.
5 second time bar until the display turns off
Turning the Display On after It was Turned Off
Press the Screen key. The numeric and waveform screen appears. If the screen is turned off on the
“Keys locked” screen, the “Keys locked” screen appears.
When the Screen key is pressed within 5 minutes after the display was turned off, the previous
screen appears.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 63
ECG and Respiration Monitoring
When the electrodes are attached and the ECG leads are connected, the heart rate, ECG
waveform, respiration rate and respiration waveform appear on the receiving monitor. Refer to the
operator’s manual of the receiving monitor for details.
When 6 leads are used on this transmitter, up to 8 leads (I, II, III, aVR, aVL, aVF, Va and Vb) of
ECG waveforms can be displayed on the receiving monitor. The heart rate is also measured.
When 3 leads are used, one channel ECG waveform of lead II can be displayed on the receiving
monitor. Refer to the operator’s manual of the monitor for details.
Pacing marks
White pacing marks
are displayed at
the points where
a pacing spike is
detected.
Heart rate
QRS sync mark Respiration rate
ECG lead
You can change the
ECG lead with the
▼
and
▼
keys.
ECG waveform Filter: on
Sweep speed: 12.5 mm/s
Waveform sensitivity: auto
CAUTION
Turn off the power of mobile phones, small wireless devices and other devices which
produce strong electromagnetic interference around a patient (except for devices
allowed by the hospital administrator). Radio waves from devices such as mobile
phones or small wireless devices may be mistaken as pulse waves or respiration
waves and the displayed data may be incorrect.
NOTE
• ECG cannot be monitored on a neonate using this transmitter.
• When performing defibrillation, set the hum filter to ON on the receiving monitor. The
waveform recovery may become slow due to electrode polarization when the hum filter
is set to OFF.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
64 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Use with a Pacemaker
When monitoring a pacemaker patient, the transmitter detects pacemaker pulse and rejects the
pacemaker pulse from the heart rate count.
WARNING
Interaction Between Minute Ventilation Rate-Adaptive Pacemakers and Cardiac
Monitoring and Diagnostic Equipment*
The bioelectric impedance measurement sensor of a minute ventilation rate-adaptive
implantable pacemaker may be affected by transmitter which is connected to the
same patient. If this occurs, the pacemaker may pace at its maximum rate and the
transmitter may give incorrect data to the monitor. If this occurs, disconnect the
electrode leads from the patient or change the setting on the pacemaker by referring
to the pacemaker’s manual. For more details, contact your pacemaker representative
or Nihon Kohden representative.
* Minute ventilation is sensed in rate-adaptive pacemakers by a technology known as bioelectric
impedance measurement (BIM). Many medical devices in addition to pacemakers use this
technology. When one of these devices is used on a patient with an active, minute ventilation
rate-adaptive pacemaker, the pacemaker may erroneously interpret the mixture of BIM signals
created in the patient, resulting in an elevated pacing rate.
For more information, see the FDA web site.
http://www.fda.gov/cdrh/safety.html
WARNING
The transmitter detects the pacemaker pulse and rejects the pacemaker pulse from
the heart rate count. However, all of the pacemaker pulse might not be rejected. If
the pacemaker pulse is not rejected, the pacemaker pulse is detected as QRS and
false heart rate may be indicated. Keep pacemaker patients under close observation.
* For the pacemaker pulse rejection capability of ZM-520PA/521PA/530PA/531PA transmitter
refer to the “Specifications - ECG” section.
WARNING
The pacemaker pulse can be overlooked or detected as QRS. You cannot confirm
the pacemaker operation only from the detected pacemaker pulse.
NOTE
• If an electric blanket is used and incorrect heart rate is displayed on the monitor, turn
off the pacing spike detection on the monitor.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 65
• Turn the pacing spike detection to ON on the receiving monitor when monitoring a
pacemaker patient. Pacing pulse is detected by the transmitter and transmitted to the
monitor. If the pacing spike detection is turned OFF, QRS and pacemaker spike might
not be distinguished and pacemaker failure might not be recognized.
Use with an Electrosurgical Unit
For use with an electrosurgical unit (ESU), this transmitter has a circuit to protect the patient from
skin burn and to reduce ESU interference on the ECG waveform. However, the effectiveness of
this circuit depends on electrode position and transmitter setup. With an ESU, pay attention to the
following points.
WARNING
When the transmitter is used with an electrosurgical unit (ESU), firmly attach the
entire area of the ESU return plate. Otherwise, the current from the ESU flows into
the electrodes of the transmitter, causing electrical burn where the electrodes are
attached. For details, refer to the ESU manual.
NOTE
Noise generated from an electrosurgical unit may interfere on an ECG waveform, but will
not damage it.
• Measure with 3-electrode lead
Use the minimum number of electrodes. Use new electrodes.
• Minimize noise
1. Select an ECG lead where the active ECG electrodes are located as far from the incision as
possible.
2. Position the + and – electrodes as close as possible.
3. Select the leads where the angle (θ) between the active electrodes and the incision is as small
as possible.
4. Set the electrosurgical return plate as close to the incision as possible.
Make small
Incision
Return plate
As far as possible from electrode and
as near as possible to incision.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
66 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Turning ECG Measurement On/Off
ECG measurement can be turned on or off on the PARAMETER SETUP screen. When electrodes
are attached to the patient and ECG leads are connected, ECG monitoring starts even when ECG
is turned off.
When PROTOCOL on the SYSTEM SETUP screen is set to 51:
ECG measurement on the receiving monitor is automatically set to off.
NOTE
ECG measurement on the transmitter cannot be turned on or off from the receiving
monitor.
When PROTOCOL on the SYSTEM SETUP screen is set to 41:
If ECG measurement is turned off on the transmitter, ECG measurement on the receiving monitor
must also be turned off.
Turning Respiration Measurement On/Off
Respiration measurement can be turned on or off on the PARAMETER SETUP screen. If
respiration measurement is turned off, respiration measurement on the receiving monitor is also
turned off.
Electrode Detachment
In the following conditions, the “CHECK ELECTRODES” message is displayed on the
transmitter and receiving monitor.
• Electrode is detached from skin.
• Electrode lead is disconnected from the electrode.
• Polarization voltage between the electrode and skin is excessively high.
In these cases, check the cause and if necessary, replace electrodes with new ones.
CAUTION
When the “ELECTRODE OFF” or “CHECK ELECTRODES” message is displayed on
the receiving monitor, ECG is not monitored properly and the ECG alarm does not
function. Check the electrode, electrode leads, and if necessary, replace with new
ones.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 67
SpO2 Monitoring
The SpO2 monitoring is only available on the ZM-530PA/531PA transmitter.
When monitoring starts, SpO2 and the pulse waveform are sent to the receiving monitor and SpO2
and the pulse level bar graph are displayed on the transmitter screen. When ECG is not measured,
the pulse waveform and pulse rate are also displayed.
Pulse bar graphSpO2
NOTE
During SpO2 monitoring, the transmitter constantly checks the light intensity of the probe
and adjusts the light intensity to maintain optimum measurement condition. During
adjustment, the pulse wave becomes flat for about 0.5 seconds.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
68 Operator’s Manual ZM-520PA/521PA/530PA/531PA
WARNING
SpO2 measurement may be incorrect
in the following cases.
• When the patient’s
carboxyhemoglobin or
methemoglobin increases
abnormally.
• When dye is injected in the blood.
• When using an electrosurgical unit.
• During CPR.
• When measuring at a site with
venous pulse.
• When there is body movement.
• When the pulse wave is small
(insufficient peripheral circulation).
WARNING
Check the circulation condition by
observing the skin color at the
measurement site and pulse waveform.
Change the measurement site every 8
hours for disposable probes and every
4 hours for reusable probes (every 8
hours for TL-631T series probe). The
skin temperature may increase at the
attached site by 2 or 3°C (4 or 5°F)
and cause a burn or pressure necrosis.
When using the probe on the following
patients, take extreme care and
change the measurement site more
frequently according to symptoms and
degree.
• Patient with a fever
• Patient with insufficient peripheral
circulation
• Neonate or low birth weight infant
with delicate skin
WARNING
When monitoring SpO2 of a patient
who is receiving photodynamic therapy,
the light from the finger probe sensor
may cause a burn. Photodynamic
therapy uses a photosensitizing agent
that has a side effect of
photosensitivity.
The SpO2 probe manufactured by Nihon
Kohden have two wavelengths with peaks in the
range of 650 and 950 nm. The maximum light
intensity is less than 5.5 mW.
WARNING
When not monitoring SpO2, disconnect
the SpO2 cable from the transmitter.
Otherwise, noise from the probe
sensor may interfere and incorrect data
is displayed on the screen.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 69
CAUTION
Turn off the power of mobile phones,
small wireless devices and other
devices which produce strong
electromagnetic interference around a
patient (except for devices allowed by
the hospital administrator). Radio
waves from devices such as mobile
phones or small wireless devices may
be mistaken as pulse waves or
respiration waves and the displayed
data may be incorrect.
CAUTION
Failure to follow these instructions may
cause cable discontinuity, short circuit,
skin burn on the patient from the probe
temperature increase due to the short
circuit of the probe cable, and incorrect
measurement data. If the probe is
broken, replace it with a new one.
• Do not immerse any part of
the probe cable other than the
disposable probe in chemical
solutions or water.
• Do not pull or bend the probe cable.
• Do not let caster feet run over the
probe cable.
CAUTION
Normal external light does not affect
monitoring but strong light such as a
surgical light or sunlight may affect
monitoring. If affected, cover the
measuring site with a blanket.
CAUTION
When the probe is attached on an
appropriate site with sufficient
circulation and the error message
confirming the probe attachment
repeatedly appears, the probe may be
deteriorated. Replace it with a new
one.
CAUTION
When a message indicates a faulty
probe, stop monitoring and replace the
probe with a new one.
CAUTION
While a patient is on medication which
causes vasodilation, the pulse
waveform may change and in rare
cases the SpO2 value might not be
displayed.
CAUTION
Do not attach the probe to the same
limb that is used for NIBP
measurement or an IBP catheter. The
SpO2 measurement may be incorrect.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
70 Operator’s Manual ZM-520PA/521PA/530PA/531PA
NOTE
• In order to maintain sufficient blood circulation, keep the measurement site warm by
covering it with a blanket or something similar. Warming the site is effective, especially
for a patient with a small pulse amplitude.
• When monitoring a patient who has an IABP and SpO2 cannot be measured, monitor
the patient on a wired monitor. If the monitor has a sensitivity mode, set the mode to
“MAX”.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 71
Indications and Messages
Indication
Indication Cause Countermeasure
Batteries are fully charged.
—
Batteries are getting low.
Batteries are low.
Batteries are almost empty. Replace batteries.
Alarms on the receiving monitor
were suspended by pressing the
Function key on the transmitter.
Alarms resume when the suspend interval
elapses. To cancel alarm suspension, press
the Function key again.
Messages
When PROTOCOL on the SYSTEM SETUP screen is set to 51, all messages are transmitted.
When PROTOCOL is set to 41, the messages marked with * are not transmitted.
Message Cause Countermeasure
ALARMS
SUSPENDED
Alarms on the receiving monitor is
suspended by pressing the Function
key on the transmitter.
Alarms resume when the 2 minute
suspend interval elapses. To cancel
alarm suspension, press the Function
key again.
BATTERY
WEAK Dead batteries. Replace batteries.
CANNOT
DETECT
PULSE*
Poor blood circulation for measuring
the SpO2 value.
Check the patient condition, probe
attachment or change the attachment
site.
The probe is attached too tightly and
is obstructing the blood circulation. Reattach the probe.
The probe is not attached to the
patient properly.
Attach the probe to the patient
properly.
“LIGHT INTERFERENCE”,
“CHECK PROBE SITE” or
“DETECTING PULSE” message is
displayed for more than 30 seconds.
Refer to the cause and
countermeasure for each message in
this Messages table and remove the
cause.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
72 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Message Cause Countermeasure
CANNOT
MEASURE*
Contact between the disposable
electrode and skin becomes poor.
Replace electrodes with new ones
immediately.
CHECK
ELECTRODES
Electrode lead is disconnected from
the electrode.
Firmly connect the electrode lead to
the electrode.
Electrode lead is disconnected from
the transmitter.
Firmly connect the electrode lead to
the transmitter.
Electrode lead discontinuity. Replace the electrode lead with a
new one.
Electrode is not firmly attached to
the skin. Replace the electrode with a new
one.
Polarization voltage is abnormally
high.
CHECK PROBE
The probe is not attached to the
patient properly.
Attach the probe to the patient
properly.
The probe is not attached at the
appropriate site.
Attach the probe to an appropriate
site indicated in the probe manual.
The probe is disconnected from the
transmitter.
Connect the probe cable to the
transmitter.
The probe is past its expiration date. Replace the probe with a new one.
CHECK PROBE
SITE*
The probe is not attached at the
appropriate site.
Attach the probe to an appropriate
site indicated in the probe manual.
The probe is deteriorated. Replace the probe with a new one.
The probe is past its expiration date.
DETECTING
PULSE
Searching for the correct pulse wave
for SpO2 monitoring. Wait until the pulse wave is detected.
The SpO2 value cannot be obtained
because the waveform is unstable. Attach the probe to the patient
properly.
The probe is not attached to the
patient properly.
LIGHT
INTERFERENCE
The SpO2 measurement site is under
fluorescent light, surgical light,
sunlight, or other strong light.
Cover the measurement site with a
blanket or cloth.
Considerable body movement.
When the message is displayed
frequently, check the patient condition
and, if necessary, change the
attachment site.
The probe is not attached to the
patient properly.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 73
Message Cause Countermeasure
PATIENT
CONFIRMED*
Function key is pressed and the
“PATIENT CONFIRMED” signal is
transmitted to the receiving monitor.
(When “PATIENT” is assigned as
the function for the Function key on
the SYSTEM SETUP screen.)
—
PROBE
FAILURE*
The probe is past its expiration date. Replace the probe with a new one.
Probe is damaged or short-circuited.
Transmitter failure. Contact your Nihon Kohden
representative.
SpO2 MODULE
ERROR* Transmitter failure. Contact your Nihon Kohden
representative.
SYS OUT OF
RANGE
The maximum blood pressure
cannot be measured even when the
cuff inflation pressure exceeded 280
mmHg when using adult cuff.
Measure by palpation or auscultation.
WEAK PULSE*
Poor peripheral circulation. Check the patient condition and
change the probe attachment site.
The probe is attached too tightly and
is obstructing the blood circulation.
Check the probe attachment
condition and if necessary, reattach
the probe.
RESP OFF
“RESP MEASUREMENT” on the
PARAMETER SETUP screen is set
to OFF.
If respiration monitoring is necessary,
set “RESP MEASUREMENT” to
ON.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
74 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Message Display Priority
When more than one message condition occurs on the transmitter, only the message with the
highest priority is displayed.
Priority Message
Highest PATIENT CONFIRMED
PROBE FAILURE
CHECK ELECTRODES
SpO2 MODULE ERROR
CHECK PROBE
CHECK PROBE SITE
CANNOT DETECT PULSE
LIGHT INTERFERENCE
CANNOT MEASURE
DETECTING PULSE
WEAK PULSE
ALARMS SUSPENDED
Lowest BATTERY WEAK
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 75
Troubleshooting
If a problem occurs, use the following to find and fix it. If the problem still remains after checking
the following, contact your Nihon Kohden representative.
Transmitter
Problem Cause Countermeasure
Nothing is displayed
on the LCD after
turning the power on.
Batteries are not installed
correctly. The battery polarity is
wrong.
Install the batteries correctly.
Batteries are completely
discharged.
Replace the batteries with new ones.
LCD is difficult to
see (too dark or too
light).
LCD brightness is not
appropriate.
Change the LCD brightness on the
SYSTEM SETUP screen. Refer to
the “Changing SYSTEM SETUP
Settings” section.
Nothing is displayed
on the receiving
monitor after turning
the transmitter power
on.
The channel of the transmitter
and monitor does not match.
Set the correct channel on the
monitor.
The software version of the
multiple patient receiver or
central monitor is old.
Upgrade the multiple patient receiver
or central monitor software to receive
signal from the transmitter. Contact
your Nihon Kohden representative.
Protocol on the transmitter and
monitor does not match.
Set the same protocol on the
transmitter and monitor.
Protocol on the transmitter is
set to 51 but the monitor cannot
receive protocol 51.
Set the protocol on the transmitter
to 41. Refer to the “System Setup
Setting List” section.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
76 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Problem Cause Countermeasure
Signal receiving
condition is poor.
Another transmitter with the
same channel is used nearby.
Turn the transmitter power off. If the
monitor still receives a signal, there
is a high probability that another
transmitter of the same channel is
used nearby. Follow the instruction
of your channel administrator and use
another transmitter with a different
channel.
Signals of another patient are
mixing.
Follow the instructions of your
channel administrator and use
another transmitter of a different
channel.
The transmitter is damaged. Contact your Nihon Kohden
representative.
ECG/Respiration
Problem Cause Countermeasure
The heart rate is
unstable.
Pacing detection setting on the
monitor is not correct.
Turn off the pacing detection setting
on the receiving monitor. When
monitoring a pacemaker patient, turn
on pacing detection.
The “CHECK
ELECTRODES”
message appears
on the receiving
monitor.
Electrode lead is disconnected
from the electrode.
Firmly connect the electrode lead to
the electrode.
Electrode lead discontinuity. Replace the electrode lead with a
new one.
Electrode is not firmly attached
to the skin.
Replace the electrode with a new
one.
Polarization voltage is
abnormally high.
Use Nihon Kohden specified
electrodes.
ECG baseline is
thick (AC hum).
The gel on the electrode is dried
out.
Replace the electrode with a new
one.
The gel on the electrode is
coming off.
An electric blanket is used. Cover the blanket with a shield cover.
The hum filter is set to OFF on
the monitor.
Set the filter to ON.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 77
Problem Cause Countermeasure
The heart rate of a
patient who is using
an electric blanket
is unstable on the
receiving monitor.
Pacing pulse detection is turned
ON on the receiving monitor.
Turn OFF the pacing pulse detection
on the receiving monitor.
No heart rate or ECG
is displayed.
“ECG MEASUREMENT” on the
PARAMETER SETUP screen is
set to OFF.
If ECG monitoring is necessary, set
“ECG MEASUREMENT” to ON.
Respiration
waveform
measurement is
unstable.
The gel on the electrode is dried
out.
Replace the electrode with a new
one.
The gel on the electrode is
coming off.
No respiration rate is
displayed.
“RESP MEASUREMENT” on
the PARAMETER SETUP screen
is set to OFF.
If respiration monitoring is necessary,
set “RESP MEASUREMENT” to
ON.
SpO2
Problem Cause Countermeasure
SpO2 data is unstable
and not reliable.
The probe size is not appropriate
for the patient.
Use the appropriate probe for the
patient.
Probe attachment condition
is poor. The probe is partly
detached from the skin. External
light is entering the probe.
Firmly attach the probe according to
the procedure in the probe operator’s
manual.
Measurement site is dirty. Patient
is wearing nail polish.
Remove dirt and nail polish.
The probe is attached to the
same limb that is used for NIBP
measurement.
Attach the probe to the opposite limb.
Avoid a site where blood circulation
condition changes greatly.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
78 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Maintenance
To use the transmitter in safe and optimum condition, perform maintenance check every six
months.
The following units are necessary for some checking items.
• AX-400G Vital Sign Simulator
• AX-300T SpO2 Checker
• Receiving monitor
CAUTION
Never disassemble or repair the transmitter. If there is any problem with the
transmitter, contact your Nihon Kohden representative.
NOTE
• The measurement accuracy of the above units must be managed to perform accurate
maintenance check.
• For details on the operation of the above units, refer to the manuals provided with
these units.
A maintenance check sheet is provided at the end of this section. Make a copy of this check sheet
before performing maintenance check.
1. External Check
• There is no damage or dirt on the outside of the transmitter.
• The battery case cover is not damaged, the spring is firmly attached and the battery case cover
can be closed firmly.
• No keys are damaged.
• No electrode leads are damaged.
• There are no blood or chemicals on the transmitter.
• The springs in the battery compartment are not damaged or detached.
• Terminals in the battery case are not corroded.
2. Transmitter Channel
• The channel number label on the transmitter is not torn or removed.
• The channel of the transmitter matches the label.
The transmitter channel is displayed in the upper left corner of the screen. The channel number
also appears on the startup screen.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 79
Channel numbers
Startup screen Numeric and waveform screen
3. Transmitting/Receiving Signal
Use the AX-400G vital sign simulator and receiving monitor.
1. Connect the vital sign simulator to the transmitter.
AX-400G
2. Place the transmitter 2 to 3 m from the receiving monitor.
3. Set the channel on the receiving monitor to the channel of the transmitter.
4. Turn on the transmitter and vital sign simulator.
5. Check that the ECG of the transmitter appears on the receiving monitor.
6. Turn off the transmitter.
7. Check that the ECG disappears from the receiving monitor.

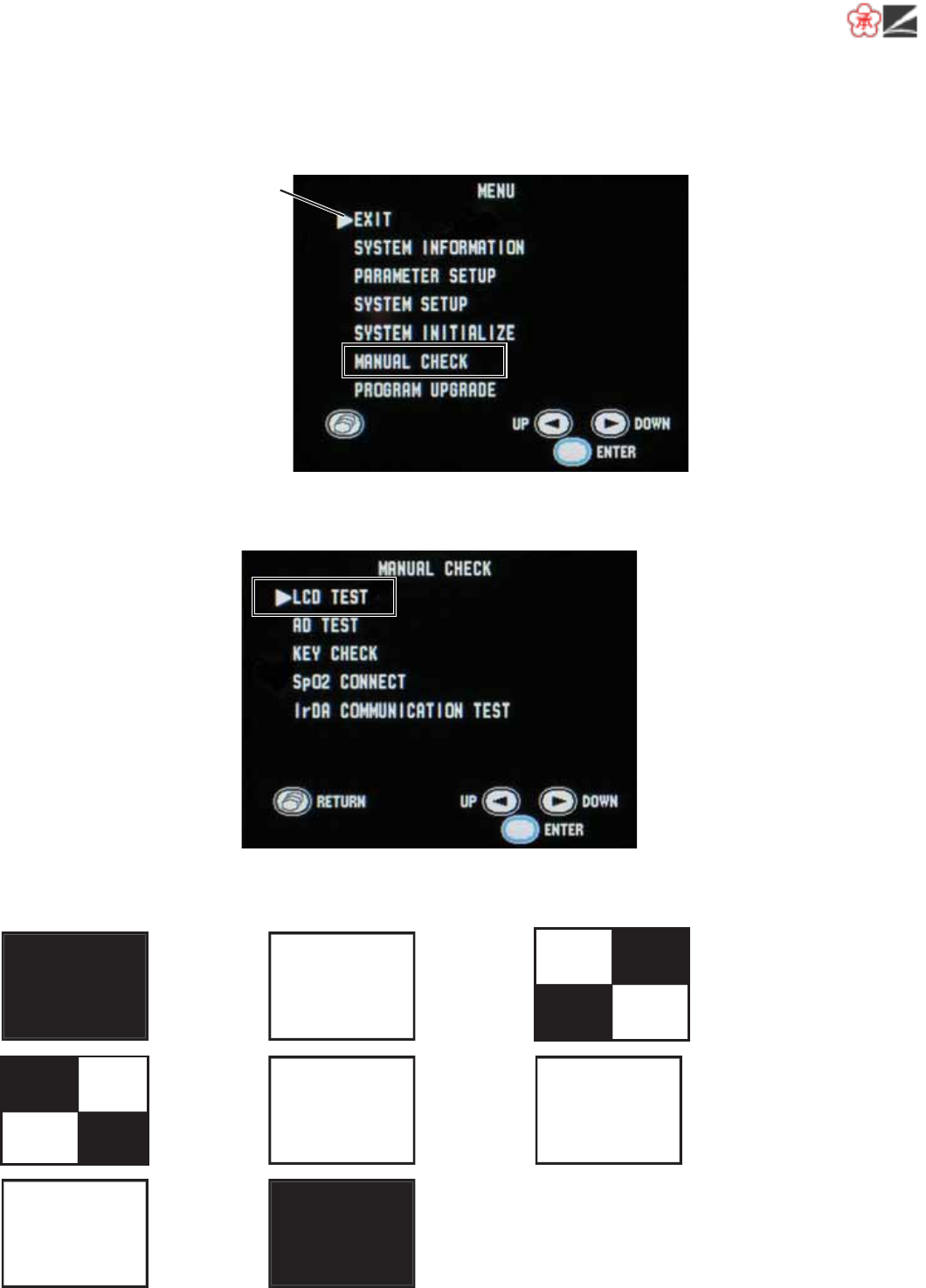

4. Display
Check that there are no dots missing on the screen.
1. Turn off the transmitter.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
80 Operator’s Manual ZM-520PA/521PA/530PA/531PA
2. While pressing the Function key, turn on the transmitter. The MENU screen appears.
3. Press the
▼
key to move the cursor to “MANUAL CHECK” and press the Function key.
Cursor
4. Press the
▼
or
▼
key to move the cursor to “LCD TEST” and press the Function key.
5. Each time the
▼
key is pressed, the screen changes as below. Check that no dots are missing.
→ → →
→ red → green →
blue → →. . .
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 81
6. Press the Screen key to return to the MANUAL CHECK screen.
7. Press the Screen key again to return to the MENU screen.
5. Key Operation
1. Turn off the transmitter.
2. While pressing the Function key, turn on the transmitter. The MENU screen appears.
3. Press the
▼
key to move the cursor to “MANUAL CHECK” and press the Function key.
Cursor
4. Press the
▼
or
▼
key to move the cursor to “KEY CHECK” and press the Function key.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
82 Operator’s Manual ZM-520PA/521PA/530PA/531PA
5. Press each key one at a time and check that the pressed key is highlighted on the screen.
When the CALL key is
pressed, the key name is
highlighted.
6. After checking, press and hold the Screen key to return to the MANUAL CHECK screen.
6. ECG Check
1. Connect the vital sign simulator to the transmitter.
AX-400G
2. Place the transmitter 1 m from the receiving monitor.
3. Turn on the transmitter and vital sign simulator.
4. Check that the ECG of the transmitter appears on the receiving monitor.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 83
7. Respiration Check
1. Connect the vital sign simulator to the transmitter.
AX-400G
2. Place the transmitter 1 m from the receiving monitor.
3. Turn on the transmitter and vital sign simulator.
4. Check that the respiration waveform of the transmitter appears on the receiving monitor.
8. SpO2 Check
1. Connect the SpO2 checker to the transmitter.
AX-300T
2. Place the transmitter 1 m from the receiving monitor.
3. Turn on the transmitter and SpO2 checker.
4. Check that the pulse bar graph appears on the transmitter screen.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
84 Operator’s Manual ZM-520PA/521PA/530PA/531PA
5. Check that SpO2 and pulse rate on the transmitter is within the following range.
SpO2 on the SpO2 Checker Range
SpO297% 95 to 99%SpO2 (±2 digit)
80% 78 to 82%SpO2 (±2 digit)
70% 67 to 73%SpO2 (±3 digit)
Pulse rate 60 beats/min 57 to 62 beats/min (±3%/±1 beat/min)
120 beats/min 115 to 124 beats/min (±3%/±1 beat/min)
NOTE
The above range includes the error margin of the SpO2 checker. Therefore, the range is
±1 digit outside the SpO2 measuring accuracy of the transmitter in the “Specifications”
section.
6. Check that the SpO2 and pulse waveform of the transmitter appear on the receiving monitor.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 85
Maintenance Check Sheet
Hospital/Organization:
Service Personnel:
Instrument Name: Transmitter
Instrument Model: ZM-520PA/ZM-521PA/ZM-530PA/ZM-531PA
Instrument Serial Number:
Hardware Revision Number:
Software Revision Number:
1. External Check OK No
2. Transmitter Channel OK No
3. Transmitting/Receiving Signal OK No
4. Display OK No
5. Key Operation OK No
6. ECG Check OK No
7. Respiration Check OK No
8. SpO2 Check OK No
Overall Judgement
□ OK
□ Can be used but needs maintenance.
□ Maintenance required. Cannot be used.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
86 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Lifetime and Disposal
CAUTION
Dispose of Nihon Kohden products according to your local laws and your facility’s
guidelines for waste disposal. Otherwise, it may affect the environment. If there is a
possibility that the product may have been contaminated with infection, dispose of it
as medical waste according to your local laws and your facility’s guidelines for
medical waste. Otherwise, it may cause infection.
Disposing of Used Batteries
Battery Lifetime
Replace the batteries when the battery replacement indication appears on the transmitter. When
using rechargeable batteries, recharge them.
Disposal
NOTE
Remove the batteries before disposing of the transmitter.
Before disposing of the batteries, check with your local solid waste officials for details in your
area for proper disposal. It may be illegal to dispose of these batteries in the municipal waste
stream.
Disposing of Electrodes and SpO2 Probes
Refer to the manual for each item.
Disposing of Transmitter
Remove the batteries from the transmitter and dispose of the transmitter following your local laws
for disposal.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 87
Cleaning, Disinfection and Sterilization
Transmitter and Electrode Leads
CAUTION
This transmitter is not waterproof. If detergent or liquid spills into the transmitter, stop
cleaning or disinfecting it and contact your Nihon Kohden representative. The
transmitter needs to be checked for safety and function before use.
NOTE
The transmitter cannot be sterilized. Sterilizing the transmitter may damage it.
Before cleaning or disinfecting, remove the batteries from the transmitter. Be careful not to let any
liquid get inside the transmitter.
Cleaning
Wipe the transmitter and electrode leads with a soft cloth moistened with ethanol for disinfection
(76.9 to 81.4% by vol) or neutral detergent diluted with water. After cleaning, dry them
completely.
Use cotton swab moistened with neutral detergent diluted with water to clean inside the battery
compartment.
Disinfection
CAUTION
Do not immerse the electrode lead connector in liquid.
Wipe the outside surface of the transmitter and electrode lead with a non-abrasive cloth moistened
with any of the disinfectants listed below. For details on the disinfectants, refer to the instruction
provided with the disinfectants. Use the recommended concentration.
Disinfectant Concentration (%)
Glutaraldehyde solution 2.0
Alkyldiaminoethylglycine hydrochloride 0.5
Benzalkonium chloride 0.2
Benzethonium chloride solution 0.2
Chlorhexidine gluconate solution 0.5
Phtharal 0.55
Phenol 1.56
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
88 Operator’s Manual ZM-520PA/521PA/530PA/531PA
SpO2 Probe
Refer to the probe manual.
Periodic Replacement Schedule
To maintain the performance of the instrument, the following part must be periodically replaced.
Name Code no. Expected life span
Silicon seal (for battery case cover) 6114-918705 1 year
Repair Parts Availability Policy
Nihon Kohden Corporation (NKC) shall stock repair parts (parts necessary to maintain the
performance of the instrument) for a period of 8 years from the date of delivery. In that period
NKC or its authorized agents will repair the instrument. This period may be shorter than 8 years if
a board or part necessary for the faulty section is not available.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 89
Specifications
ZM-520PA/530PA
Measuring Parameters
Measuring waveforms: ECG, respiration in impedance method, pulse
Measuring numeric data: Heart rate, respiration rate, SpO2, pulse rate
Transmitting Data
Waveform data: ECG, respiration, pulse wave
Numeric data: SpO2, pulse rate
Status information: Battery replacement, battery level*, alarm suspended,
pause monitoring*, patient confirmed*, ECG lead, pacing
detection, electrode detachment, electrode impedance*,
ECG off*, respiration method (impedance)*, SpO2 status,
respiration status*, channel ID, time constant (3.2 s), type
of transmitter, transmitter code number*, transmitter serial
number*
* The items marked with * are transmitted only when the protocol is “51”.
Display
Display size: 2.2 inch TFT color LCD
Viewing area: 44.16 (H) × 33.12 (V) mm
Resolution: 320 (H) × 240 (V) dots
Displayed Data
Numeric and waveform screen: ECG (one waveform from lead I, II, III, Va or Vb), heart
rate, pulse rate, respiration rate, SpO2, message, battery
level, QRS/pulse sync mark, pulse bar graph, ECG lead
Waveform review screen: ECG or pulse wave of past 10 minutes
Numeric review screen: Heart rate or pulse rate, respiration rate and SpO2 at 1
minute interval for past 10 minutes
Check electrodes screen: ECG for checking electrode attachment
ECG
ECG measurement
Channels: 4
Input dynamic range: ±10 mV or more
Electrode offset potential tolerance: ±500 mV or more
Input impedance: 5 MΩ or more
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
90 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Common mode rejection ratio: 95 dB or more
IEC 60601-2-27: 2005 50.102.10 complied
Pacing pulse detection: amplitude ±2 to 700 mV, duration 0.1 to 2 ms
IEC 60601-2-27: 2005 complied
Based upon pacemaker pulse rejection capability
Defibrillation-proof: ECG input protected against 400 Ws/DC 5 kV
IEC 60601-2-27 17.101 complied
ECG recovery time after defibrillation: within 10 s
Electrode condition: Displays CHECK ELECTRODES message
Tall T-wave rejection capability: Complies with the heights of T-waves from 0 to 1.2 mV
IEC 60601-2-27: 2005 50.102.17 complied
Heart rate averaging: Calculated by using the most recent 8 beats.
Heart rate meter accuracy and response to irregular rhythm:
Ventricular bigeminy (Test waveform name: aami3a*):
80 bpm
Slow alternating ventricular bigeminy (Test waveform
name: aami3b*): 60 bpm
Rapid alternating ventricular bigeminy (Test waveform
name: aami3c*): 108 bpm
Bidirectional systoles (Test waveform name: aami3d*):
88 bpm
* The test waveforms can be download at http://www.
physionet.org
Response time of heart rate meter to change in heart rate:
HR change from 80 to 120 bpm: 4 to 8 seconds
HR change from 80 to 40 bpm: 11 to 15 seconds
Pacemaker pulse rejection capability, without overshoot:
Complies with the amplitudes of pacemaker pulses ±2 to
±700 mV and widths 0.1 to 2 ms (specified in IEC 60601-2-
27: 2005 50.102.13)
Pacemaker pulse rejection capability, with overshoot:
Overshoot amplitudes and time constants of ±0.12 mV/100
ms to ±2 mV/4 ms (As defined by method B of IEC 60601-
2-27: 2005 50.102.13, this corresponds to the pacemaker
pulses amplitudes and widths of ±4 mV/2 ms to amplitudes
±80 mV/0.1 ms.)
ECG display and heart rate count
Frequency characteristic: filter on: 1 to 18 Hz, filter off: 0.05 to 60 Hz
Heart rate detection method: Average
QRS detection: 70 to 120 ms: amplitude ≥ 0.5 mV, rate 30 to 200 beats/min
40 to 120 ms: amplitude ≥ 0.5 mV, rate 30 to 250 beats/min
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 91
Heart rate counting range: 0, 15 to 300 beats/min
Heart rate counting accuracy*: ±2 beats/min, (0, 15 to 300 beats/min)
* Essential performance of this transmitter
Respiration Measurement
Measuring method: Impedance method
Measuring lead: Between R and F
Impedance range: 220 to 2000 Ω
Excitor current: 54 to 93 µAp-p, 48 kHz
Respiration rate measuring accuracy*: ±2 counts/min (at 0 to 150 counts/min)
Respiration rate counting range: 0 to 150 counts/min
* Essential performance of this transmitter
SpO2 Measurement (ISO 9919: 2005 compliance)
Measuring range: 0 to 100%SpO2
Declared range: 70 to 100%SpO2
Minimum display range: 1%SpO2
Display update cycle: Every 3 seconds
Measuring accuracy (rms)*: Accuracy assurance temperature: 18 to 40ºC
Total accuracy including probe: 80%SpO2 ≤ %SpO2 ≤ 100%SpO2: ±2%SpO2
70%SpO2 ≤ %SpO2 < 80%SpO2: ±3%SpO2
under 70%SpO2: not specified
Accuracy of the transmitter: 80%SpO2 ≤ %SpO2 ≤ 100%SpO2: ±1%SpO2
50%SpO2 ≤ %SpO2 < 80%SpO2: ±2%SpO2
under 50%SpO2: not specified
Pulse rate declared range: 30 to 300 bpm
Pulse rate display range: 30 to 300 bpm
Pulse rate accuracy (rms)*: ±3% ±1 bpm
* Essential performance of this transmitter
NOTE
• The SpO2 measuring accuracy was tested using the TL-201T, TL-260T, TL-271T and
TL-631T SpO2 probes. The testing was performed during induced hypoxia on healthy
volunteers (Ethnicity: 10 Caucasians, 2 Africans, 1 Asian and 3 Indians), (Skin: 8 light,
4 medium, 4 dark), (Age: 21 to 34), (5 women and 11 men) under the condition of no
motion. Arterial blood was sampled and measured by a CO-oximeter. The difference
between SpO2 measured by the SpO2 probe and functional SaO2 measured by a
CO-oximeter was calculated using the root-mean-square (rms) method according
to ISO 9919: 2005. This measurement accuracy figure represents 2/3 of all test
measurements.
• A pulse oximeter tester that generates simulated signals can be used to check the
difference from the design specification, but it cannot be used as a replacement for
human signals for testing accuracy.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
92 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Response time:
Selectable from “Slow”, “Normal” and “Fast”.

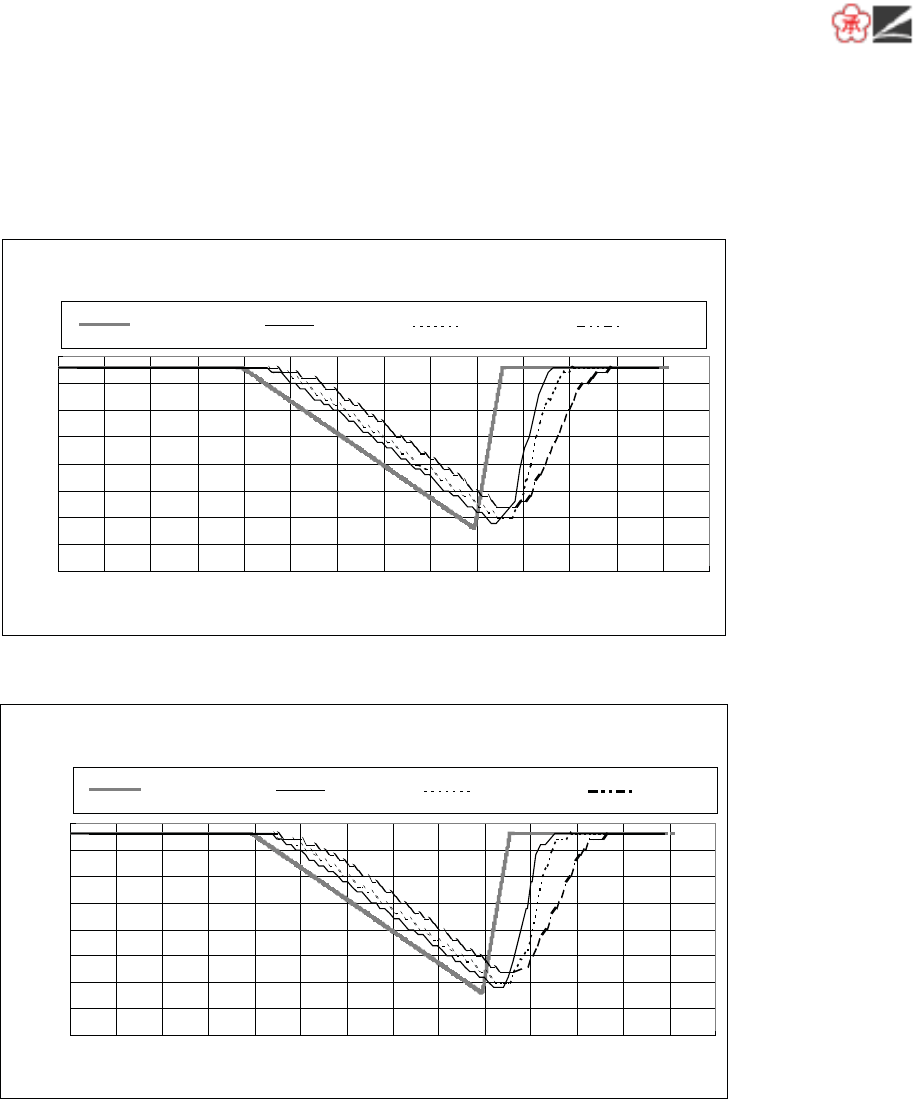

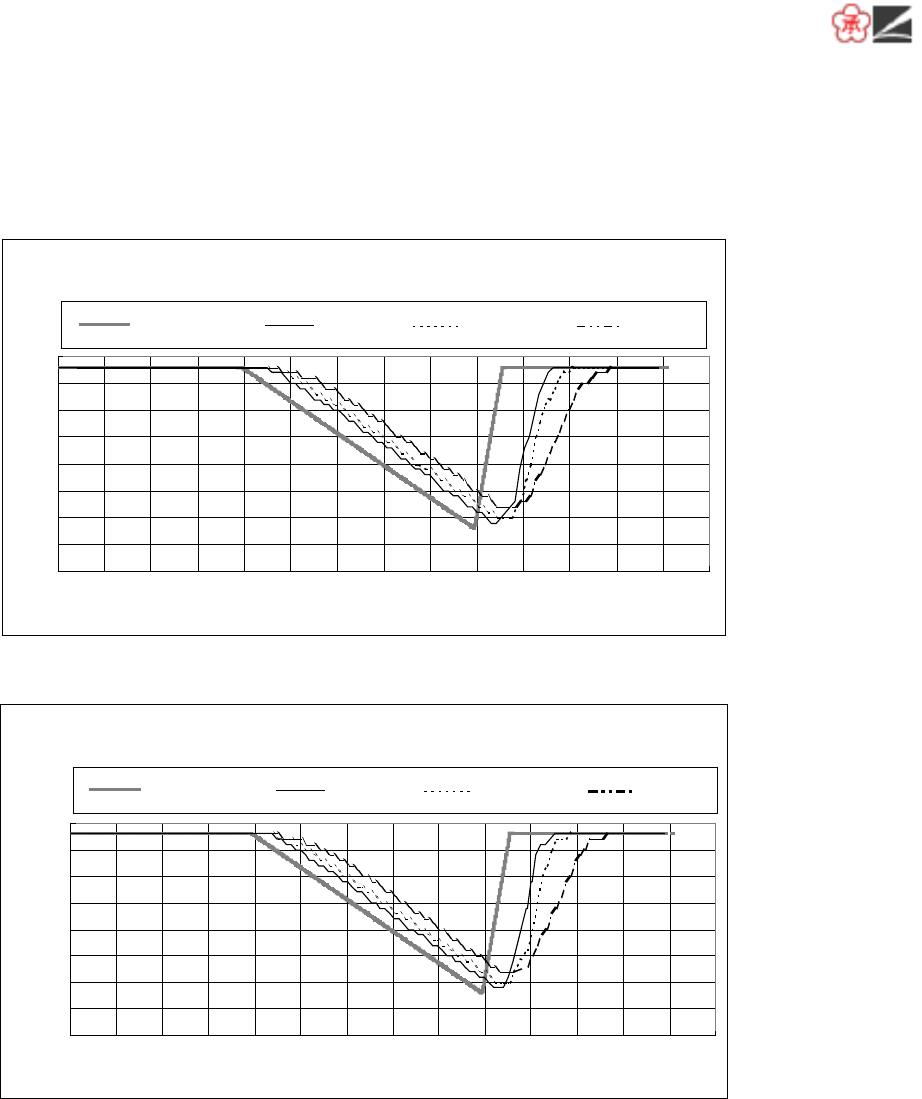

The following graphs show the response time example when
SpO2 changes 0.6%/s.
Pulse Rate = 70 bpm
60
65
70
75
80
85
90
95
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Time (seconds)
SpO
2
(%)
SpO
2
Reference
SpO
2
Fast SpO
2
Normal SpO
2
Slow
60
65
70
75
80
85
90
95
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
SpO
2
Reference
SpO
2
Fast SpO
2
Normal
Pulse Rate = 140 bpm
Time (seconds)
SpO
2
(%)
SpO
2
Slow

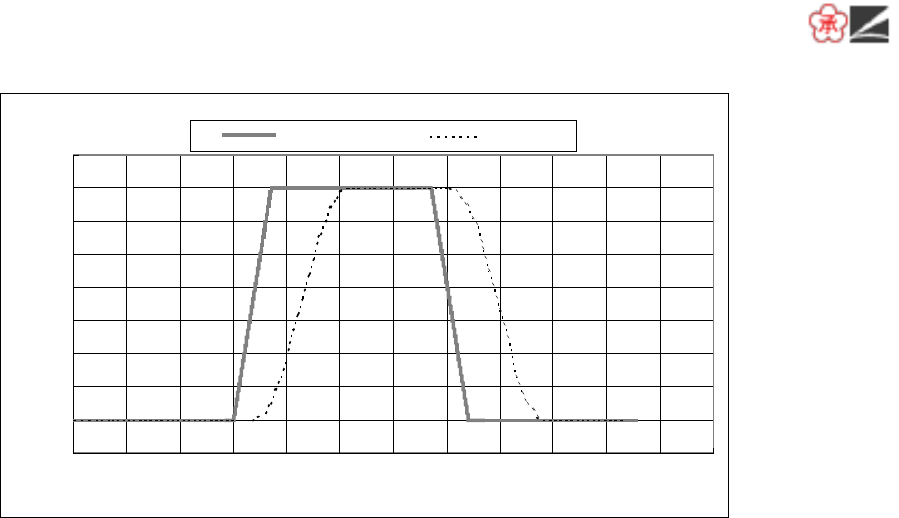

The following graph shows the response time example when pulse rate changes 10 bpm/s.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 93
SpO
2
=97
60
70
80
90
100
110
120
130
140
150
0 102030405060708090100110120
Time (seconds)
PR (bpm)
PR Reference
PR
Transmitter
FCC regulation: FCC part 95 Subpart H
Wireless Medical Telemetry Service (WMTS)
Field strength limits: ≤ 200 mV/m (at 3 m)
Undesired emissions: ≤ 960 MHz: ≤ 200 μV/m (at 3 m)
≥ 960 MHz: ≤ 500 μV/m (at 3 m)
Antenna: Internal
Transmission channel: Indicated on the transmitter
Transmission frequency range: 608.0250 to 613.9750 MHz
Channel spacing: 50 kHz or 37.5 kHz (12.5 kHz when interleaved)
Modulation: FSK (frequency shift keying)
Type of emission: F1D
Occupied bandwidth: 12 to 18 kHz
Effective radiated power: 1.0 mW
Power Requirements
Rated voltage: 3.0 V
Shutdown voltage: 1.4 to 1.75 V
Operating voltage: Shutdown voltage to 3.2 V
Battery type: Two AA (LR6) type alkaline dry cell primary batteries
Battery lifetime (with alkaline batteries, at room temperature):
ZM-520PA: approximately 3.5 day
ZM-530PA: approximately 2.5 day (measuring ECG, respiration and
SpO2)
approximately 3.5 day (measuring ECG and respiration)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
94 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Dimension and Weight
Dimension: 78 W × 137 H × 36 D (mm)
Weight: about 230 g (excluding batteries and other accessories)
about 280 g (including batteries, excluding other
accessories)
Environment
Operating environment
Temperature: 5 to 40°C (41 to 104°F)
Humidity: 30 to 85% (noncondensing)
Atmospheric pressure: 700 to 1060 hPa
Storage and transport environment
Temperature: −20 to +65°C (−4 to +149°F)
Humidity: 10 to 95%
Atmospheric pressure: 700 to 1060 hPa
Water resistance
Water does not get inside the transmitter when immersed in water up to 30 cm deep for 3 minutes.
Safety Standards
Safety standard: CAN/CSA-C22.2 No. 601-1 M90
CAN/CSA-C22.2 No. 601-1. 1S1-94
CAN/CSA-C22.2 No. 601-1. 1B-90
CAN/CSA-C22.2 No. 60601-2-49-04
CAN/CSA-C22.2 No. 60601-2-27-06
IEC 60601-1: 1988
IEC 60601-1 Amendment 1: 1991
IEC 60601-1 Amendment 2: 1995
IEC 60601-2-27: 2005
IEC 60601-2-49: 2001
ISO 9919: 2005
UL 60601-1: 2003
Type of protection against electrical shock:
INTERNALLY POWERED EQUIPMENT
Degree of protection against electrical shock:
ECG and impedance method respiration:
DEFIBRILLATION-PROOF TYPE CF APPLIED PART
SpO2: DEFIBRILLATION-PROOF TYPE BF APPLIED
PART
Degree of protection against harmful ingress of water:
IPX0 (non-protected)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 95
Degree of safety of application in the presence of a FLAMMABLE ANAESTHETIC MIXTURE
WITH AIR, OR WITH OXYGEN OR NITROUS OXIDE:
Equipment not suitable for use in the presence of
FLAMMABLE ANAESTHETIC MIXTURE WITH
AIR, OR WITH OXYGEN OR NITROUS OXIDE
Mode of operation: CONTINUOUS OPERATION
ME EQUIPMENT type: HAND-HELD and PORTABLE
Electromagnetic Compatibility
IEC 60601-1-2: 2001
IEC 60601-1-2 Amendment 1: 2004
Electromagnetic Emissions
This Model ZM-520PA/530PA is intended for use in the electromagnetic environment specified
below. The customer or the user of the ZM-520PA/530PA should assure that it is used in such an
environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1 The ZM-520PA/530PA uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any interference
in nearby electronic equipment.
RF emissions
CISPR 11
Class B The ZM-520PA/530PA is suitable for use in all
establishments, including domestic establishments.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
96 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Electromagnetic Immunity
This Model ZM-520PA/530PA is intended for use in the electromagnetic environment specified
below. The customer or the user of the ZM-520PA/530PA should assure that it is used in such an
environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic
environment - guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
±1 kV for input/
output lines
Not applicable
—
Surge
IEC 61000-4-5
±1 kV differential
mode
±2 kV common mode
Not applicable
—
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5% UT (>95% dip in
UT) for 0.5 cycles
40% UT (60% dip in
UT) for 5 cycles
70% UT (30% dip in
UT) for 25 cycles
<5% UT (>95% dip in
UT) for 5 s
Not applicable
—
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic fields
should be at levels characteristic
of a typical location in a
typical commercial or hospital
environment.
NOTE: UT is the AC mains voltage prior to application of the test level.
Avoiding Electromagnetic Interference (Impedance Respiration)
Impedance respiration measurement is very sensitive and affected by electromagnetic
interference. Technological limitations do not allow immunity levels higher than 1 V/m for
radiated RF electromagnetic fields. Electromagnetic fields with field strengths above 1 V/m
may cause measurement error. Do not use electrically radiating equipment near the impedance
respiration measurements.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 97
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic environment
- guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3 Vrms
3 V/m 80 MHz to
2.5 GHz
(1 V/m 80 MHz
to 2.5 GHz for
respiration)
Portable and mobile RF communications
equipment should be used no closer
to any part of the ZM-520PA/530PA,
including cables, than the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = 1.2 P
d = 1.2 P 80 MHz to 800 MHz
d = 2.3 P 800 MHz to 2.5 GHz
(d = 3.5 P 80 MHz to 800 MHz for
respiration
d = 7.0 P 800 MHz to 2.5 GHz for
respiration)
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters,
as deter mined by an electromagnetic
site survey*1, should be less than the
compliance level in each frequency
range*2.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
*1 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which
the ZM-520PA/530PA is used exceeds the applicable RF compliance level above, the ZM-520PA/530PA
should be observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orienting or relocating the ZM-520PA/530PA.
*2 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 1 V/m for respiration
and 3 V/m for all other functions.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
98 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Recommended Separation Distances between Portable and Mobile RF
Communications Equipment
The ZM-520PA/530PA is intended for use in an electromagnetic environment in which radiated
RF disturbances are controlled. The customer or the user of the ZM-520PA/530PA can help
prevent electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment (transmitters) and the ZM-520PA/530PA as recommended
below, according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
(W)
Separation distance according to frequency of transmitter (m)
150 kHz to 80 MHz
d = 1.2 P
80 MHz to 800 MHz
d = 1.2 P
(For respiration:
d = 3.5 P)
800 MHz to 2.5 GHz
d = 2.3 P
(For respiration:
d = 7.0 P)
0.01 0.12 0.12 (0.35*) 0.23 (0.7*)
0.1 0.38 0.38 (1.1*) 0.73 (2.2*)
1 1.2 1.2 (3.5*) 2.3 (7.0*)
10 3.8 3.8 (11*) 7.3 (22*)
100 12 12 (35*) 23 (70*)
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
(* For respiration)
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Recovery Time after Defibrillation
The transmitter returns to the normal operating mode within 10 seconds after defibrillation. The
stored settings are not affected.
System Composition for EMC Test
The ZM-520PA/530PA bedside monitor is tested to comply with IEC 60601-1-2: 2001 with the
following composition.
Units Cable Length
ZM-520PA/530PA transmitter —
BR-906P ECG electrode lead 0.8 m
TL-201T finger probe 1.6 m
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 99
ZM-521PA/531PA
Measuring Parameters
Measuring waveforms: ECG, respiration in impedance method, pulse
Measuring numeric data: Heart rate, respiration rate, SpO2, pulse rate
Transmitting Data
Waveform data: ECG, respiration, pulse wave
Numeric data: SpO2, pulse rate
Status information: Battery replacement, battery level*, alarm suspended,
pause monitoring*, patient confirmed*, ECG lead, pacing
detection, electrode detachment, electrode impedance*,
ECG off*, respiration method (impedance)*, SpO2 status,
respiration status*, channel ID, time constant (3.2 s), type
of transmitter, transmitter code number*, transmitter serial
number*
* The items marked with * are transmitted only when the protocol is “51”.
Display
Display size: 2.2 inch TFT color LCD
Viewing area: 44.16 (H) × 33.12 (V) mm
Resolution: 320 (H) × 240 (V) dots
Displayed Data
Numeric and waveform screen: ECG (one waveform from lead I, II, III, Va or Vb), heart
rate, pulse rate, respiration rate, SpO2, message, battery
level, QRS/pulse sync mark, pulse bar graph, ECG lead
Waveform review screen: ECG or pulse wave of past 10 minutes
Numeric review screen: Heart rate or pulse rate, respiration rate and SpO2 at 1
minute interval for past 10 minutes
Check electrodes screen: ECG for checking electrode attachment
ECG
ECG measurement
Channels: 4
Input dynamic range: ±10 mV or more
Electrode offset potential tolerance: ±500 mV or more
Input impedance: 5 MΩ or more
Common mode rejection ratio: 95 dB or more
IEC 60601-2-27: 2005 50.102.10 complied
Pacing pulse detection: amplitude ±2 to 700 mV, duration 0.1 to 2 ms
IEC 60601-2-27: 2005 complied
Based upon pacemaker pulse rejection capability
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
100 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Defibrillation-proof: ECG input protected against 400 Ws/DC 5 kV
IEC 60601-2-27 17.101 complied
ECG recovery time after defibrillation: within 10 s
Electrode condition: Displays CHECK ELECTRODES message
Tall T-wave rejection capability: Complies with the heights of T-waves from 0 to 1.2 mV
IEC 60601-2-27: 2005 50.102.17 complied
Heart rate averaging: Calculated by using the most recent 8 beats.
Heart rate meter accuracy and response to irregular rhythm:
Ventricular bigeminy (Test waveform name: aami3a*):
80 bpm
Slow alternating ventricular bigeminy (Test waveform
name: aami3b*): 60 bpm
Rapid alternating ventricular bigeminy (Test waveform
name: aami3c*): 108 bpm
Bidirectional systoles (Test waveform name: aami3d*):
88 bpm
* The test waveforms can be download at http://www.
physionet.org
Response time of heart rate meter to change in heart rate:
HR change from 80 to 120 bpm: 4 to 8 seconds
HR change from 80 to 40 bpm: 11 to 15 seconds
Pacemaker pulse rejection capability, without overshoot:
Complies with the amplitudes of pacemaker pulses ±2 to
±700 mV and widths 0.1 to 2 ms (specified in IEC 60601-2-
27: 2005 50.102.13)
Pacemaker pulse rejection capability, with overshoot:
Overshoot amplitudes and time constants of ±0.12 mV/100
ms to ±2 mV/4 ms (As defined by method B of IEC 60601-
2-27: 2005 50.102.13, this corresponds to the pacemaker
pulses amplitudes and widths of ±4 mV/2 ms to amplitudes
±80 mV/0.1 ms.)
ECG display and heart rate count
Frequency characteristic: filter on: 1 to 18 Hz, filter off: 0.05 to 60 Hz
Heart rate detection method: Average
QRS detection: 70 to 120 ms: amplitude ≥ 0.5 mV, rate 30 to 200 beats/min
40 to 120 ms: amplitude ≥ 0.5 mV, rate 30 to 250 beats/min
Heart rate counting range: 0, 15 to 300 beats/min
Heart rate counting accuracy*: ±2 beats/min, (0, 15 to 300 beats/min)
* Essential performance of this transmitter
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 101
Respiration Measurement
Measuring method: Impedance method
Measuring lead: Between R and F
Impedance range: 220 to 2000 Ω
Excitor current: 54 to 93 µAp-p, 48 kHz
Respiration rate measuring accuracy*: ±2 counts/min (at 0 to 150 counts/min)
Respiration rate counting range: 0 to 150 counts/min
* Essential performance of this transmitter
SpO2 Measurement (ISO 9919: 2005 compliance)
Measuring range: 0 to 100%SpO2
Declared range: 70 to 100%SpO2
Minimum display range: 1%SpO2
Display update cycle: Every 3 seconds
Measuring accuracy (rms)*: Accuracy assurance temperature: 18 to 40ºC
Total accuracy including probe: 80%SpO2 ≤ %SpO2 ≤ 100%SpO2: ±2%SpO2
70%SpO2 ≤ %SpO2 < 80%SpO2: ±3%SpO2
under 70%SpO2: not specified
Accuracy of the transmitter: 80%SpO2 ≤ %SpO2 ≤ 100%SpO2: ±1%SpO2
50%SpO2 ≤ %SpO2 < 80%SpO2: ±2%SpO2
under 50%SpO2: not specified
Pulse rate measuring range: 30 to 300 bpm
Pulse rate display range: 30 to 300 bpm
Pulse rate accuracy (rms)*: ±3% ±1 bpm
* Essential performance of this transmitter
NOTE
• The SpO2 measuring accuracy was tested using the TL-201T, TL-260T, TL-271T and
TL-631T SpO2 probes. The testing was performed during induced hypoxia on healthy
volunteers (Ethnicity: 10 Caucasians, 2 Africans, 1 Asian and 3 Indians), (Skin: 8 light,
4 medium, 4 dark), (Age: 21 to 34), (5 women and 11 men) under the condition of no
motion. Arterial blood was sampled and measured by a CO-oximeter. The difference
between SpO2 measured by the SpO2 probe and functional SaO2 measured by a
CO-oximeter was calculated using the root-mean-square (rms) method according
to ISO 9919: 2005. This measurement accuracy figure represents 2/3 of all test
measurements.
• A pulse oximeter tester that generates simulated signals can be used to check the
difference from the design specification, but it cannot be used as a replacement for
human signals for testing accuracy.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
102 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Response time:
Selectable from “Slow”, “Normal” and “Fast”.
The following graphs show the response time example when
SpO2 changes 0.6%/s.
Pulse Rate = 70 bpm
60
65
70
75
80
85
90
95
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Time (seconds)
SpO
2
(%)
SpO
2
Reference
SpO
2
Fast SpO
2
Normal SpO
2
Slow
60
65
70
75
80
85
90
95
100
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
SpO
2
Reference
SpO
2
Fast SpO
2
Normal
Pulse Rate = 140 bpm
Time (seconds)
SpO
2
(%)
SpO
2
Slow
The following graph shows the response time example when pulse rate changes 10 bpm/s.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 103
SpO
2
=97
60
70
80
90
100
110
120
130
140
150
0 102030405060708090100110120
Time (seconds)
PR (bpm)
PR Reference
PR
Transmitter
FCC regulation: FCC part 95 Subpart H
Wireless Medical Telemetry Service (WMTS)
Field strength limits: ≤ 740 mV/m (at 3 m)
Undesired emissions: ≤ 960 MHz: ≤ 200 μV/m (at 3 m)
≥ 960 MHz: ≤ 500 μV/m (at 3 m)
Antenna: Internal
Transmission channel: Indicated on the transmitter
Transmission frequency range: 1395.0250 to 1399.9750 MHz
1427.0250 to 1431.9750 MHz
Channel spacing: 50 kHz or 37.5 kHz (12.5 kHz when interleaved)
Modulation: FSK (frequency shift keying)
Type of emission: F1D
Occupied bandwidth: 12 to 18 kHz
Effective radiated power: 5.0 mW
Can be changed to 1.0 mW if required
Power Requirements
Rated voltage: 3.0 V
Shutdown voltage: 1.4 to 1.75 V
Operating voltage: Shutdown voltage to 3.2 V
Battery type: Two AA (LR6) type alkaline dry cell primary batteries
Battery lifetime (with alkaline batteries, at room temperature):
ZM-521PA: approximately 2.5 day
ZM-531PA: approximately 2 day (measuring ECG, respiration and
SpO2)
approximately 2.5 day (measuring ECG and respiration)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
104 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Dimension and Weight
Dimension: 78 W × 137 H × 36 D (mm)
Weight: about 230 g (excluding batteries and other accessories)
about 280 g (including batteries, excluding other
accessories)
Environment
Operating environment
Temperature: 5 to 40°C (41 to 104°F)
Humidity: 30 to 85% (noncondensing)
Atmospheric pressure: 700 to 1060 hPa
Storage and transport environment
Temperature: −20 to +65°C (−4 to +149°F)
Humidity: 10 to 95%
Atmospheric pressure: 700 to 1060 hPa
Water resistance
Water does not get inside the transmitter when immersed in water up to 30 cm deep for 3 minutes.
Safety Standards
Safety standard: CAN/CSA-C22.2 No. 601-1 M90
CAN/CSA-C22.2 No. 601-1. 1S1-94
CAN/CSA-C22.2 No. 601-1. 1B-90
CAN/CSA-C22.2 No. 60601-2-49-04
CAN/CSA-C22.2 No. 60601-2-27-06
IEC 60601-1: 1988
IEC 60601-1 Amendment 1: 1991
IEC 60601-1 Amendment 2: 1995
IEC 60601-2-27: 2005
IEC 60601-2-49: 2001
ISO 9919: 2005
UL 60601-1: 2003
Type of protection against electrical shock:
INTERNALLY POWERED EQUIPMENT
Degree of protection against electrical shock:
ECG and impedance method respiration:
DEFIBRILLATION-PROOF TYPE CF APPLIED PART
SpO2: DEFIBRILLATION-PROOF TYPE BF APPLIED PART
Degree of protection against harmful ingress of water:
IPX0 (non-protected)
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 105
Degree of safety of application in the presence of a FLAMMABLE ANAESTHETIC MIXTURE
WITH AIR, OR WITH OXYGEN OR NITROUS OXIDE:
Equipment not suitable for use in the presence of
FLAMMABLE ANAESTHETIC MIXTURE WITH
AIR, OR WITH OXYGEN OR NITROUS OXIDE
Mode of operation: CONTINUOUS OPERATION
ME EQUIPMENT type: HAND-HELD and PORTABLE
Electromagnetic Compatibility
IEC 60601-1-2: 2001
IEC 60601-1-2 Amendment 1: 2004
Electromagnetic Emissions
This Model ZM-521PA/531PA is intended for use in the electromagnetic environment specified
below. The customer or the user of the ZM-521PA/531PA should assure that it is used in such an
environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1 The ZM-521PA/531PA uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any interference
in nearby electronic equipment.
RF emissions
CISPR 11
Class B The ZM-521PA/531PA is suitable for use in all
establishments, including domestic establishments.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
106 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Electromagnetic Immunity
This Model ZM-521PA/531PA is intended for use in the electromagnetic environment specified
below. The customer or the user of the ZM-521PA/531PA should assure that it is used in such an
environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic
environment - guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
±1 kV for input/
output lines
Not applicable
—
Surge
IEC 61000-4-5
±1 kV differential
mode
±2 kV common mode
Not applicable
—
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5% UT (>95% dip in
UT) for 0.5 cycles
40% UT (60% dip in
UT) for 5 cycles
70% UT (30% dip in
UT) for 25 cycles
<5% UT (>95% dip in
UT) for 5 s
Not applicable
—
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic fields
should be at levels characteristic
of a typical location in a
typical commercial or hospital
environment.
NOTE: UT is the AC mains voltage prior to application of the test level.
Avoiding Electromagnetic Interference (Impedance Respiration)
Impedance respiration measurement is very sensitive and affected by electromagnetic
interference. Technological limitations do not allow immunity levels higher than 1 V/m for
radiated RF electromagnetic fields. Electromagnetic fields with field strengths above 1 V/m
may cause measurement error. Do not use electrically radiating equipment near the impedance
respiration measurements.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 107
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic environment
- guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3 Vrms
3 V/m 80 MHz to
2.5 GHz
(1 V/m 80 MHz
to 2.5 GHz for
respiration)
Portable and mobile RF communications
equipment should be used no closer
to any part of the ZM-521PA/531PA,
including cables, than the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = 1.2 P
d = 1.2 P 80 MHz to 800 MHz
d = 2.3 P 800 MHz to 2.5 GHz
(d = 3.5 P 80 MHz to 800 MHz for
respiration
d = 7.0 P 800 MHz to 2.5 GHz for
respiration)
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters,
as deter mined by an electromagnetic
site survey*1, should be less than the
compliance level in each frequency
range*2.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
*1 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which
the ZM-521PA/531PA is used exceeds the applicable RF compliance level above, the ZM-521PA/531PA
should be observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orienting or relocating the ZM-521PA/531PA.
*2 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 1 V/m for respiration
and 3 V/m for all other functions.
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
108 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Recommended Separation Distances between Portable and Mobile RF
Communications Equipment
The ZM-521PA/531PA is intended for use in an electromagnetic environment in which radiated
RF disturbances are controlled. The customer or the user of the ZM-521PA/531PA can help
prevent electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment (transmitters) and the ZM-521PA/531PA as recommended
below, according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
(W)
Separation distance according to frequency of transmitter (m)
150 kHz to 80 MHz
d = 1.2 P
80 MHz to 800 MHz
d = 1.2 P
(For respiration:
d = 3.5 P)
800 MHz to 2.5 GHz
d = 2.3 P
(For respiration:
d = 7.0 P)
0.01 0.12 0.12 (0.35*) 0.23 (0.7*)
0.1 0.38 0.38 (1.1*) 0.73 (2.2*)
1 1.2 1.2 (3.5*) 2.3 (7.0*)
10 3.8 3.8 (11*) 7.3 (22*)
100 12 12 (35*) 23 (70*)
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
(* For respiration)
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Recovery Time after Defibrillation
The transmitter returns to the normal operating mode within 10 seconds after defibrillation. The
stored settings are not affected.
System Composition for EMC Test
The ZM-521PA/531PA bedside monitor is tested to comply with IEC 60601-1-2: 2001 with the
following composition.
Units Cable Length
ZM-521PA/531PA transmitter —
BR-906P ECG electrode lead 0.8 m
TL-201T finger probe 1.6 m
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 109
Standard Accessories
Name Model Q’ty Supply Code No.
Strap — 1 Y233
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
110 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Options
CAUTION
Only use Nihon Kohden specified electrodes, electrode leads and SpO2 probes.
Otherwise, the maximum performance from the transmitter cannot be guaranteed.
Transmitter
Channel writer, QI-901PK
ECG/RESP
Name Purpose Length (m) Code No. Q’ty Supply Code No.
Electrode
lead
3 electrodes AHA,
clip type 0.8 BR-903PA 1K911A
6 electrodes BR-906PA K912A
Disposable
electrodes,
Vitrode
General –
L-150 30 × 5 G203
L-150X G207
F-150M 3 × 50 G210D
General with DIN type
lead
1.0 V-090M3 3 × 30 G272A
1.5 V-09IO3 G278A
1.0 V-040M4 4 × 10 G272B
1.5 V-04IO4 G273A
1.0 V-060M6 6 × 10 G272C
1.5 V-06IO6 G274A
For neonates and
premature infants
For NICU
– F-150S 3 × 50 G210C
For neonates and
premature infants
For NICU with DIN
type lead
60 cm
V-120S3 3 × 40 G271A
N-03IS3 3 × 10 G300A
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 111
SpO2
Name Cable
Length
Model/
Code No. Q’ty Supply
Code No.
Finger probe (reusable) 0.6 m TL-201T
1
P225H
1.6 m P225F
Multi-site probe (reusable) 1.6 m TL-220T P225G
Finger probe (reusable) 0.6 m TL-631T1 P311A
1.6 m TL-631T3 P311C
SpO2 probe (for adult, disposable) 0.8 m TL-271T
24
P203A
1.6 m TL-271T3 P203E
SpO2 probe (for child, disposable) 0.8 m TL-272T P203B
1.6 m TL-272T3 P203F
SpO2 probe (for neonate/adult,
disposable)
0.8 m TL-273T P203C
1.6 m TL-273T3 P203G
SpO2 probe (for child/infant,
disposable)
0.8 m TL-274T P203D
1.6 m TL-274T3 P203H
SpO2 probe (for adult/neonate,
disposable)
0.8 m TL-051S
5
P228A
1.6 m TL-052S P228B
SpO2 probe (for child/infant,
disposable)
0.8 m TL-061S P229A
1.6 m TL-062S P229B
COTTONY tape
—
340703 20 P259
Foam tape for TL-051S/052S/
061S/062S —
4 × 25 packages P260
Attachment tape for TL-
220T/631T 3 × 30 packages P263
Probe fastener YS-093P2 30 P267
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
112 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission Frequencies
Channel: 9002 to 9478
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
608.0250 9002 608.4375 9035 608.8500 9068
608.0375 9003 608.4500 9036 608.8625 9069
608.0500 9004 608.4625 9037 608.8750 9070
608.0625 9005 608.4750 9038 608.8875 9071
608.0750 9006 608.4875 9039 608.9000 9072
608.0875 9007 608.5000 9040 608.9125 9073
608.1000 9008 608.5125 9041 608.9250 9074
608.1125 9009 608.5250 9042 608.9375 9075
608.1250 9010 608.5375 9043 608.9500 9076
608.1375 9011 608.5500 9044 608.9625 9077
608.1500 9012 608.5625 9045 608.9750 9078
608.1625 9013 608.5750 9046 608.9875 9079
608.1750 9014 608.5875 9047 609.0000 9080
608.1875 9015 608.6000 9048 609.0125 9081
608.2000 9016 608.6125 9049 609.0250 9082
608.2125 9017 608.6250 9050 609.0375 9083
608.2250 9018 608.6375 9051 609.0500 9084
608.2375 9019 608.6500 9052 609.0625 9085
608.2500 9020 608.6625 9053 609.0750 9086
608.2625 9021 608.6750 9054 609.0875 9087
608.2750 9022 608.6875 9055 609.1000 9088
608.2875 9023 608.7000 9056 609.1125 9089
608.3000 9024 608.7125 9057 609.1250 9090
608.3125 9025 608.7250 9058 609.1375 9091
608.3250 9026 608.7375 9059 609.1500 9092
608.3375 9027 608.7500 9060 609.1625 9093
608.3500 9028 608.7625 9061 609.1750 9094
608.3625 9029 608.7750 9062 609.1875 9095
608.3750 9030 608.7875 9063 609.2000 9096
608.3875 9031 608.8000 9064 609.2125 9097
608.4000 9032 608.8125 9065 609.2250 9098
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 113
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
608.4125 9033 608.8250 9066 609.2375 9099
608.4250 9034 608.8375 9067 609.2500 9100
609.2625 9101 609.7125 9137 610.1625 9173
609.2750 9102 609.7250 9138 610.1750 9174
609.2875 9103 609.7375 9139 610.1875 9175
609.3000 9104 609.7500 9140 610.2000 9176
609.3125 9105 609.7625 9141 610.2125 9177
609.3250 9106 609.7750 9142 610.2250 9178
609.3375 9107 609.7875 9143 610.2375 9179
609.3500 9108 609.8000 9144 610.2500 9180
609.3625 9109 609.8125 9145 610.2625 9181
609.3750 9110 609.8250 9146 610.2750 9182
609.3875 9111 609.8375 9147 610.2875 9183
609.4000 9112 609.8500 9148 610.3000 9184
609.4125 9113 609.8625 9149 610.3125 9185
609.4250 9114 609.8750 9150 610.3250 9186
609.4375 9115 609.8875 9151 610.3375 9187
609.4500 9116 609.9000 9152 610.3500 9188
609.4625 9117 609.9125 9153 610.3625 9189
609.4750 9118 609.9250 9154 610.3750 9190
609.4875 9119 609.9375 9155 610.3875 9191
609.5000 9120 609.9500 9156 610.4000 9192
609.5125 9121 609.9625 9157 610.4125 9193
609.5250 9122 609.9750 9158 610.4250 9194
609.5375 9123 609.9875 9159 610.4375 9195
609.5500 9124 610.0000 9160 610.4500 9196
609.5625 9125 610.0125 9161 610.4625 9197
609.5750 9126 610.0250 9162 610.4750 9198
609.5875 9127 610.0375 9163 610.4875 9199
609.6000 9128 610.0500 9164 610.5000 9200
609.6125 9129 610.0625 9165 610.5125 9201
609.6250 9130 610.0750 9166 610.5250 9202
609.6375 9131 610.0875 9167 610.5375 9203
609.6500 9132 610.1000 9168 610.5500 9204
609.6625 9133 610.1125 9169 610.5625 9205
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
114 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
609.6750 9134 610.1250 9170 610.5750 9206
609.6875 9135 610.1375 9171 610.5875 9207
609.7000 9136 610.1500 9172 610.6000 9208
610.6125 9209 611.0625 9245 611.5125 9281
610.6250 9210 611.0750 9246 611.5250 9282
610.6375 9211 611.0875 9247 611.5375 9283
610.6500 9212 611.1000 9248 611.5500 9284
610.6625 9213 611.1125 9249 611.5625 9285
610.6750 9214 611.1250 9250 611.5750 9286
610.6875 9215 611.1375 9251 611.5875 9287
610.7000 9216 611.1500 9252 611.6000 9288
610.7125 9217 611.1625 9253 611.6125 9289
610.7250 9218 611.1750 9254 611.6250 9290
610.7375 9219 611.1875 9255 611.6375 9291
610.7500 9220 611.2000 9256 611.6500 9292
610.7625 9221 611.2125 9257 611.6625 9293
610.7750 9222 611.2250 9258 611.6750 9294
610.7875 9223 611.2375 9259 611.6875 9295
610.8000 9224 611.2500 9260 611.7000 9296
610.8125 9225 611.2625 9261 611.7125 9297
610.8250 9226 611.2750 9262 611.7250 9298
610.8375 9227 611.2875 9263 611.7375 9299
610.8500 9228 611.3000 9264 611.7500 9300
610.8625 9229 611.3125 9265 611.7625 9301
610.8750 9230 611.3250 9266 611.7750 9302
610.8875 9231 611.3375 9267 611.7875 9303
610.9000 9232 611.3500 9268 611.8000 9304
610.9125 9233 611.3625 9269 611.8125 9305
610.9250 9234 611.3750 9270 611.8250 9306
610.9375 9235 611.3875 9271 611.8375 9307
610.9500 9236 611.4000 9272 611.8500 9308
610.9625 9237 611.4125 9273 611.8625 9309
610.9750 9238 611.4250 9274 611.8750 9310
610.9875 9239 611.4375 9275 611.8875 9311
611.0000 9240 611.4500 9276 611.9000 9312
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 115
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
611.0125 9241 611.4625 9277 611.9125 9313
611.0250 9242 611.4750 9278 611.9250 9314
611.0375 9243 611.4875 9279 611.9375 9315
611.0500 9244 611.5000 9280 611.9500 9316
611.9625 9317 612.4125 9353 612.8625 9389
611.9750 9318 612.4250 9354 612.8750 9390
611.9875 9319 612.4375 9355 612.8875 9391
612.0000 9320 612.4500 9356 612.9000 9392
612.0125 9321 612.4625 9357 612.9125 9393
612.0250 9322 612.4750 9358 612.9250 9394
612.0375 9323 612.4875 9359 612.9375 9395
612.0500 9324 612.5000 9360 612.9500 9396
612.0625 9325 612.5125 9361 612.9625 9397
612.0750 9326 612.5250 9362 612.9750 9398
612.0875 9327 612.5375 9363 612.9875 9399
612.1000 9328 612.5500 9364 613.0000 9400
612.1125 9329 612.5625 9365 613.0125 9401
612.1250 9330 612.5750 9366 613.0250 9402
612.1375 9331 612.5875 9367 613.0375 9403
612.1500 9332 612.6000 9368 613.0500 9404
612.1625 9333 612.6125 9369 613.0625 9405
612.1750 9334 612.6250 9370 613.0750 9406
612.1875 9335 612.6375 9371 613.0875 9407
612.2000 9336 612.6500 9372 613.1000 9408
612.2125 9337 612.6625 9373 613.1125 9409
612.2250 9338 612.6750 9374 613.1250 9410
612.2375 9339 612.6875 9375 613.1375 9411
612.2500 9340 612.7000 9376 613.1500 9412
612.2625 9341 612.7125 9377 613.1625 9413
612.2750 9342 612.7250 9378 613.1750 9414
612.2875 9343 612.7375 9379 613.1875 9415
612.3000 9344 612.7500 9380 613.2000 9416
612.3125 9345 612.7625 9381 613.2125 9417
612.3250 9346 612.7750 9382 613.2250 9418
612.3375 9347 612.7875 9383 613.2375 9419
612.3500 9348 612.8000 9384 613.2500 9420
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
116 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
Transmission
Frequency
(MHz)
Channel No.
612.3625 9349 612.8125 9385 613.2625 9421
612.3750 9350 612.8250 9386 613.2750 9422
612.3875 9351 612.8375 9387 613.2875 9423
612.4000 9352 612.8500 9388 613.3000 9424
613.3125 9425 613.5375 9443 613.7625 9461
613.3250 9426 613.5500 9444 613.7750 9462
613.3375 9427 613.5625 9445 613.7875 9463
613.3500 9428 613.5750 9446 613.8000 9464
613.3625 9429 613.5875 9447 613.8125 9465
613.3750 9430 613.6000 9448 613.8250 9466
613.3875 9431 613.6125 9449 613.8375 9467
613.4000 9432 613.6250 9450 613.8500 9468
613.4125 9433 613.6375 9451 613.8625 9469
613.4250 9434 613.6500 9452 613.8750 9470
613.4375 9435 613.6625 9453 613.8875 9471
613.4500 9436 613.6750 9454 613.9000 9472
613.4625 9437 613.6875 9455 613.9125 9473
613.4750 9438 613.7000 9456 613.9250 9474
613.4875 9439 613.7125 9457 613.9375 9475
613.5000 9440 613.7250 9458 613.9500 9476
613.5125 9441 613.7375 9459 613.9625 9477
613.5250 9442 613.7500 9460 613.9750 9478
Channel: E002 to E398
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1395.0250 E002 1395.4625 E037 1395.9000 E072
1395.0375 E003 1395.4750 E038 1395.9125 E073
1395.0500 E004 1395.4875 E039 1395.9250 E074
1395.0625 E005 1395.5000 E040 1395.9375 E075
1395.0750 E006 1395.5125 E041 1395.9500 E076
1395.0875 E007 1395.5250 E042 1395.9625 E077
1395.1000 E008 1395.5375 E043 1395.9750 E078
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 117
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1395.1125 E009 1395.5500 E044 1395.9875 E079
1395.1250 E010 1395.5625 E045 1396.0000 E080
1395.1375 E011 1395.5750 E046 1396.0125 E081
1395.1500 E012 1395.5875 E047 1396.0250 E082
1395.1625 E013 1395.6000 E048 1396.0375 E083
1395.1750 E014 1395.6125 E049 1396.0500 E084
1395.1875 E015 1395.6250 E050 1396.0625 E085
1395.2000 E016 1395.6375 E051 1396.0750 E086
1395.2125 E017 1395.6500 E052 1396.0875 E087
1395.2250 E018 1395.6625 E053 1396.1000 E088
1395.2375 E019 1395.6750 E054 1396.1125 E089
1395.2500 E020 1395.6875 E055 1396.1250 E090
1395.2625 E021 1395.7000 E056 1396.1375 E091
1395.2750 E022 1395.7125 E057 1396.1500 E092
1395.2875 E023 1395.7250 E058 1396.1625 E093
1395.3000 E024 1395.7375 E059 1396.1750 E094
1395.3125 E025 1395.7500 E060 1396.1875 E095
1395.3250 E026 1395.7625 E061 1396.2000 E096
1395.3375 E027 1395.7750 E062 1396.2125 E097
1395.3500 E028 1395.7875 E063 1396.2250 E098
1395.3625 E029 1395.8000 E064 1396.2375 E099
1395.3750 E030 1395.8125 E065 1396.2500 E100
1395.3875 E031 1395.8250 E066 1396.2625 E101
1395.4000 E032 1395.8375 E067 1396.2750 E102
1395.4125 E033 1395.8500 E068 1396.2875 E103
1395.4250 E034 1395.8625 E069 1396.3000 E104
1395.4375 E035 1395.8750 E070 1396.3125 E105
1395.4500 E036 1395.8875 E071 1396.3250 E106
1396.3375 E107 1396.7875 E143 1397.2375 E179
1396.3500 E108 1396.8000 E144 1397.2500 E180
1396.3625 E109 1396.8125 E145 1397.2625 E181
1396.3750 E110 1396.8250 E146 1397.2750 E182
1396.3875 E111 1396.8375 E147 1397.2875 E183
1396.4000 E112 1396.8500 E148 1397.3000 E184
1396.4125 E113 1396.8625 E149 1397.3125 E185
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
118 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1396.4250 E114 1396.8750 E150 1397.3250 E186
1396.4375 E115 1396.8875 E151 1397.3375 E187
1396.4500 E116 1396.9000 E152 1397.3500 E188
1396.4625 E117 1396.9125 E153 1397.3625 E189
1396.4750 E118 1396.9250 E154 1397.3750 E190
1396.4875 E119 1396.9375 E155 1397.3875 E191
1396.5000 E120 1396.9500 E156 1397.4000 E192
1396.5125 E121 1396.9625 E157 1397.4125 E193
1396.5250 E122 1396.9750 E158 1397.4250 E194
1396.5375 E123 1396.9875 E159 1397.4375 E195
1396.5500 E124 1397.0000 E160 1397.4500 E196
1396.5625 E125 1397.0125 E161 1397.4625 E197
1396.5750 E126 1397.0250 E162 1397.4750 E198
1396.5875 E127 1397.0375 E163 1397.4875 E199
1396.6000 E128 1397.0500 E164 1397.5000 E200
1396.6125 E129 1397.0625 E165 1397.5125 E201
1396.6250 E130 1397.0750 E166 1397.5250 E202
1396.6375 E131 1397.0875 E167 1397.5375 E203
1396.6500 E132 1397.1000 E168 1397.5500 E204
1396.6625 E133 1397.1125 E169 1397.5625 E205
1396.6750 E134 1397.1250 E170 1397.5750 E206
1396.6875 E135 1397.1375 E171 1397.5875 E207
1396.7000 E136 1397.1500 E172 1397.6000 E208
1396.7125 E137 1397.1625 E173 1397.6125 E209
1396.7250 E138 1397.1750 E174 1397.6250 E210
1396.7375 E139 1397.1875 E175 1397.6375 E211
1396.7500 E140 1397.2000 E176 1397.6500 E212
1396.7625 E141 1397.2125 E177 1397.6625 E213
1396.7750 E142 1397.2250 E178 1397.6750 E214
1397.6875 E215 1398.1375 E251 1398.5875 E287
1397.7000 E216 1398.1500 E252 1398.6000 E288
1397.7125 E217 1398.1625 E253 1398.6125 E289
1397.7250 E218 1398.1750 E254 1398.6250 E290
1397.7375 E219 1398.1875 E255 1398.6375 E291
1397.7500 E220 1398.2000 E256 1398.6500 E292
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 119
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1397.7625 E221 1398.2125 E257 1398.6625 E293
1397.7750 E222 1398.2250 E258 1398.6750 E294
1397.7875 E223 1398.2375 E259 1398.6875 E295
1397.8000 E224 1398.2500 E260 1398.7000 E296
1397.8125 E225 1398.2625 E261 1398.7125 E297
1397.8250 E226 1398.2750 E262 1398.7250 E298
1397.8375 E227 1398.2875 E263 1398.7375 E299
1397.8500 E228 1398.3000 E264 1398.7500 E300
1397.8625 E229 1398.3125 E265 1398.7625 E301
1397.8750 E230 1398.3250 E266 1398.7750 E302
1397.8875 E231 1398.3375 E267 1398.7875 E303
1397.9000 E232 1398.3500 E268 1398.8000 E304
1397.9125 E233 1398.3625 E269 1398.8125 E305
1397.9250 E234 1398.3750 E270 1398.8250 E306
1397.9375 E235 1398.3875 E271 1398.8375 E307
1397.9500 E236 1398.4000 E272 1398.8500 E308
1397.9625 E237 1398.4125 E273 1398.8625 E309
1397.9750 E238 1398.4250 E274 1398.8750 E310
1397.9875 E239 1398.4375 E275 1398.8875 E311
1398.0000 E240 1398.4500 E276 1398.9000 E312
1398.0125 E241 1398.4625 E277 1398.9125 E313
1398.0250 E242 1398.4750 E278 1398.9250 E314
1398.0375 E243 1398.4875 E279 1398.9375 E315
1398.0500 E244 1398.5000 E280 1398.9500 E316
1398.0625 E245 1398.5125 E281 1398.9625 E317
1398.0750 E246 1398.5250 E282 1398.9750 E318
1398.0875 E247 1398.5375 E283 1398.9875 E319
1398.1000 E248 1398.5500 E284 1399.0000 E320
1398.1125 E249 1398.5625 E285 1399.0125 E321
1398.1250 E250 1398.5750 E286 1399.0250 E322
1399.0375 E323 1399.4625 E357 1399.8875 E391
1399.0500 E324 1399.4750 E358 1399.9000 E392
1399.0625 E325 1399.4875 E359 1399.9125 E393
1399.0750 E326 1399.5000 E360 1399.9250 E394
1399.0875 E327 1399.5125 E361 1399.9375 E395
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
120 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1399.1000 E328 1399.5250 E362 1399.9500 E396
1399.1125 E329 1399.5375 E363 1399.9625 E397
1399.1250 E330 1399.5500 E364 1399.9750 E398
1399.1375 E331 1399.5625 E365
1399.1500 E332 1399.5750 E366
1399.1625 E333 1399.5875 E367
1399.1750 E334 1399.6000 E368
1399.1875 E335 1399.6125 E369
1399.2000 E336 1399.6250 E370
1399.2125 E337 1399.6375 E371
1399.2250 E338 1399.6500 E372
1399.2375 E339 1399.6625 E373
1399.2500 E340 1399.6750 E374
1399.2625 E341 1399.6875 E375
1399.2750 E342 1399.7000 E376
1399.2875 E343 1399.7125 E377
1399.3000 E344 1399.7250 E378
1399.3125 E345 1399.7375 E379
1399.3250 E346 1399.7500 E380
1399.3375 E347 1399.7625 E381
1399.3500 E348 1399.7750 E382
1399.3625 E349 1399.7875 E383
1399.3750 E350 1399.8000 E384
1399.3875 E351 1399.8125 E385
1399.4000 E352 1399.8250 E386
1399.4125 E353 1399.8375 E387
1399.4250 E354 1399.8500 E388
1399.4375 E355 1399.8625 E389
1399.4500 E356 1399.8750 E390
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 121
Channel: E502 to E898
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1427.0250 E502 1427.4500 E536 1427.8750 E570
1427.0375 E503 1427.4625 E537 1427.8875 E571
1427.0500 E504 1427.4750 E538 1427.9000 E572
1427.0625 E505 1427.4875 E539 1427.9125 E573
1427.0750 E506 1427.5000 E540 1427.9250 E574
1427.0875 E507 1427.5125 E541 1427.9375 E575
1427.1000 E508 1427.5250 E542 1427.9500 E576
1427.1125 E509 1427.5375 E543 1427.9625 E577
1427.1250 E510 1427.5500 E544 1427.9750 E578
1427.1375 E511 1427.5625 E545 1427.9875 E579
1427.1500 E512 1427.5750 E546 1428.0000 E580
1427.1625 E513 1427.5875 E547 1428.0125 E581
1427.1750 E514 1427.6000 E548 1428.0250 E582
1427.1875 E515 1427.6125 E549 1428.0375 E583
1427.2000 E516 1427.6250 E550 1428.0500 E584
1427.2125 E517 1427.6375 E551 1428.0625 E585
1427.2250 E518 1427.6500 E552 1428.0750 E586
1427.2375 E519 1427.6625 E553 1428.0875 E587
1427.2500 E520 1427.6750 E554 1428.1000 E588
1427.2625 E521 1427.6875 E555 1428.1125 E589
1427.2750 E522 1427.7000 E556 1428.1250 E590
1427.2875 E523 1427.7125 E557 1428.1375 E591
1427.3000 E524 1427.7250 E558 1428.1500 E592
1427.3125 E525 1427.7375 E559 1428.1625 E593
1427.3250 E526 1427.7500 E560 1428.1750 E594
1427.3375 E527 1427.7625 E561 1428.1875 E595
1427.3500 E528 1427.7750 E562 1428.2000 E596
1427.3625 E529 1427.7875 E563 1428.2125 E597
1427.3750 E530 1427.8000 E564 1428.2250 E598
1427.3875 E531 1427.8125 E565 1428.2375 E599
1427.4000 E532 1427.8250 E566 1428.2500 E600
1427.4125 E533 1427.8375 E567 1428.2625 E601
1427.4250 E534 1427.8500 E568 1428.2750 E602
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
122 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1427.4375 E535 1427.8625 E569 1428.2875 E603
1428.3000 E604 1428.7500 E640 1429.2000 E676
1428.3125 E605 1428.7625 E641 1429.2125 E677
1428.3250 E606 1428.7750 E642 1429.2250 E678
1428.3375 E607 1428.7875 E643 1429.2375 E679
1428.3500 E608 1428.8000 E644 1429.2500 E680
1428.3625 E609 1428.8125 E645 1429.2625 E681
1428.3750 E610 1428.8250 E646 1429.2750 E682
1428.3875 E611 1428.8375 E647 1429.2875 E683
1428.4000 E612 1428.8500 E648 1429.3000 E684
1428.4125 E613 1428.8625 E649 1429.3125 E685
1428.4250 E614 1428.8750 E650 1429.3250 E686
1428.4375 E615 1428.8875 E651 1429.3375 E687
1428.4500 E616 1428.9000 E652 1429.3500 E688
1428.4625 E617 1428.9125 E653 1429.3625 E689
1428.4750 E618 1428.9250 E654 1429.3750 E690
1428.4875 E619 1428.9375 E655 1429.3875 E691
1428.5000 E620 1428.9500 E656 1429.4000 E692
1428.5125 E621 1428.9625 E657 1429.4125 E693
1428.5250 E622 1428.9750 E658 1429.4250 E694
1428.5375 E623 1428.9875 E659 1429.4375 E695
1428.5500 E624 1429.0000 E660 1429.4500 E696
1428.5625 E625 1429.0125 E661 1429.4625 E697
1428.5750 E626 1429.0250 E662 1429.4750 E698
1428.5875 E627 1429.0375 E663 1429.4875 E699
1428.6000 E628 1429.0500 E664 1429.5000 E700
1428.6125 E629 1429.0625 E665 1429.5125 E701
1428.6250 E630 1429.0750 E666 1429.5250 E702
1428.6375 E631 1429.0875 E667 1429.5375 E703
1428.6500 E632 1429.1000 E668 1429.5500 E704
1428.6625 E633 1429.1125 E669 1429.5625 E705
1428.6750 E634 1429.1250 E670 1429.5750 E706
1428.6875 E635 1429.1375 E671 1429.5875 E707
1428.7000 E636 1429.1500 E672 1429.6000 E708
1428.7125 E637 1429.1625 E673 1429.6125 E709
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 123
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1428.7250 E638 1429.1750 E674 1429.6250 E710
1428.7375 E639 1429.1875 E675 1429.6375 E711
1429.6500 E712 1430.1000 E748 1430.5500 E784
1429.6625 E713 1430.1125 E749 1430.5625 E785
1429.6750 E714 1430.1250 E750 1430.5750 E786
1429.6875 E715 1430.1375 E751 1430.5875 E787
1429.7000 E716 1430.1500 E752 1430.6000 E788
1429.7125 E717 1430.1625 E753 1430.6125 E789
1429.7250 E718 1430.1750 E754 1430.6250 E790
1429.7375 E719 1430.1875 E755 1430.6375 E791
1429.7500 E720 1430.2000 E756 1430.6500 E792
1429.7625 E721 1430.2125 E757 1430.6625 E793
1429.7750 E722 1430.2250 E758 1430.6750 E794
1429.7875 E723 1430.2375 E759 1430.6875 E795
1429.8000 E724 1430.2500 E760 1430.7000 E796
1429.8125 E725 1430.2625 E761 1430.7125 E797
1429.8250 E726 1430.2750 E762 1430.7250 E798
1429.8375 E727 1430.2875 E763 1430.7375 E799
1429.8500 E728 1430.3000 E764 1430.7500 E800
1429.8625 E729 1430.3125 E765 1430.7625 E801
1429.8750 E730 1430.3250 E766 1430.7750 E802
1429.8875 E731 1430.3375 E767 1430.7875 E803
1429.9000 E732 1430.3500 E768 1430.8000 E804
1429.9125 E733 1430.3625 E769 1430.8125 E805
1429.9250 E734 1430.3750 E770 1430.8250 E806
1429.9375 E735 1430.3875 E771 1430.8375 E807
1429.9500 E736 1430.4000 E772 1430.8500 E808
1429.9625 E737 1430.4125 E773 1430.8625 E809
1429.9750 E738 1430.4250 E774 1430.8750 E810
1429.9875 E739 1430.4375 E775 1430.8875 E811
1430.0000 E740 1430.4500 E776 1430.9000 E812
1430.0125 E741 1430.4625 E777 1430.9125 E813
1430.0250 E742 1430.4750 E778 1430.9250 E814
1430.0375 E743 1430.4875 E779 1430.9375 E815
1430.0500 E744 1430.5000 E780 1430.9500 E816
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
124 Operator’s Manual ZM-520PA/521PA/530PA/531PA
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1430.0625 E745 1430.5125 E781 1430.9625 E817
1430.0750 E746 1430.5250 E782 1430.9750 E818
1430.0875 E747 1430.5375 E783 1430.9875 E819
1431.0000 E820 1431.4375 E855 1431.8750 E890
1431.0125 E821 1431.4500 E856 1431.8875 E891
1431.0250 E822 1431.4625 E857 1431.9000 E892
1431.0375 E823 1431.4750 E858 1431.9125 E893
1431.0500 E824 1431.4875 E859 1431.9250 E894
1431.0625 E825 1431.5000 E860 1431.9375 E895
1431.0750 E826 1431.5125 E861 1431.9500 E896
1431.0875 E827 1431.5250 E862 1431.9625 E897
1431.1000 E828 1431.5375 E863 1431.9750 E898
1431.1125 E829 1431.5500 E864
1431.1250 E830 1431.5625 E865
1431.1375 E831 1431.5750 E866
1431.1500 E832 1431.5875 E867
1431.1625 E833 1431.6000 E868
1431.1750 E834 1431.6125 E869
1431.1875 E835 1431.6250 E870
1431.2000 E836 1431.6375 E871
1431.2125 E837 1431.6500 E872
1431.2250 E838 1431.6625 E873
1431.2375 E839 1431.6750 E874
1431.2500 E840 1431.6875 E875
1431.2625 E841 1431.7000 E876
1431.2750 E842 1431.7125 E877
1431.2875 E843 1431.7250 E878
1431.3000 E844 1431.7375 E879
1431.3125 E845 1431.7500 E880
1431.3250 E846 1431.7625 E881
1431.3375 E847 1431.7750 E882
1431.3500 E848 1431.7875 E883
1431.3625 E849 1431.8000 E884
1431.3750 E850 1431.8125 E885
1431.3875 E851 1431.8250 E886
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
Operator’s Manual ZM-520PA/521PA/530PA/531PA 125
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
Transmission
Frequency
(MHz)
Channel
No.
1431.4000 E852 1431.8375 E887
1431.4125 E853 1431.8500 E888
1431.4250 E854 1431.8625 E889
ᚑ㒙ጊޓᖘᏆ ᛚ⌀ᨩޓ⌬
