Thank you for your purchase of an WR-1 wireless remote controller.

Read both this manual and the documentation provided with your

camera before using the product, and keep these instructions where

they will be read by all who use the product.

Controller Settings

Unless otherwise noted, the explanations in this manual assume

that default settings are used.

Symbols and Conventions

To make it easier to ﬁ nd the information you need, the following

symbols and conventions are used:

This icon marks cautions, information that should be read be-

fore use to prevent damage to the product.

This icon marks notes, information that should be read before

using the product.

This icon marks references to other pages in this manual.

The 1, 3, 4, and 2 symbols represent up, down, left, and right on

the multi selector.

Illustrations

Instructions referring to cameras with ten-pin remote terminals are

accompanied by illustrations of the D800, those referring to cameras

with accessory terminals by illustrations of the D7100.

Before proceeding, conﬁ rm that the package contains the following:

WR-1 wireless remote controller

User’s Manual (this manual)

Warranty

Soft case

MC-37 cable (for ten-pin remote terminals)

MC-38 cable (for accessory terminals)

Batteries are not included.

❑

Principal Features

Basic

Conﬁ gure one unit as a transmitter and a second as a receiver, and

attach the receiver to a camera. Pressing the shutter-release button

on the transmitter will release the camera shutter.

Pressing the shutter-release button on

the transmitter…

…releases the shutter on the cameras

connected to the receivers.

Advanced

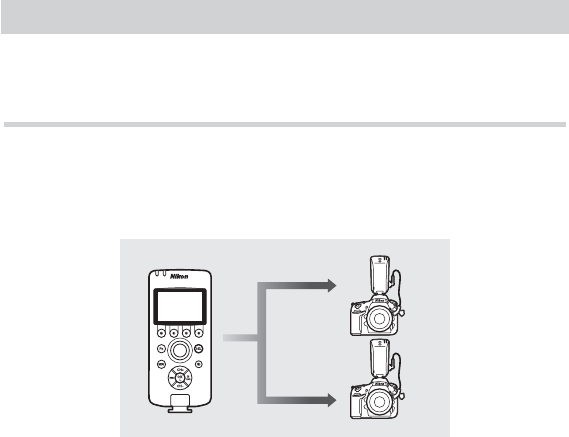

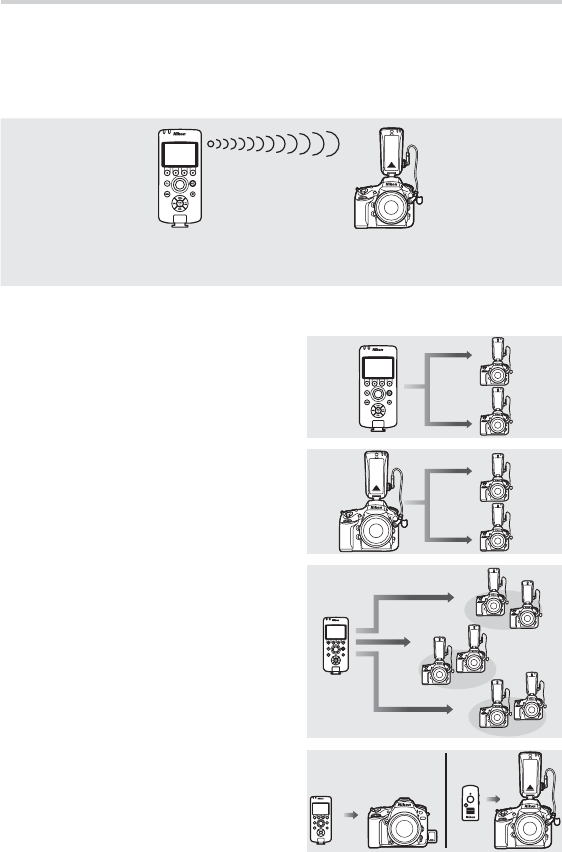

Simultaneous release: Release the shut-

ters on multiple cameras simultane-

ously (0 12).

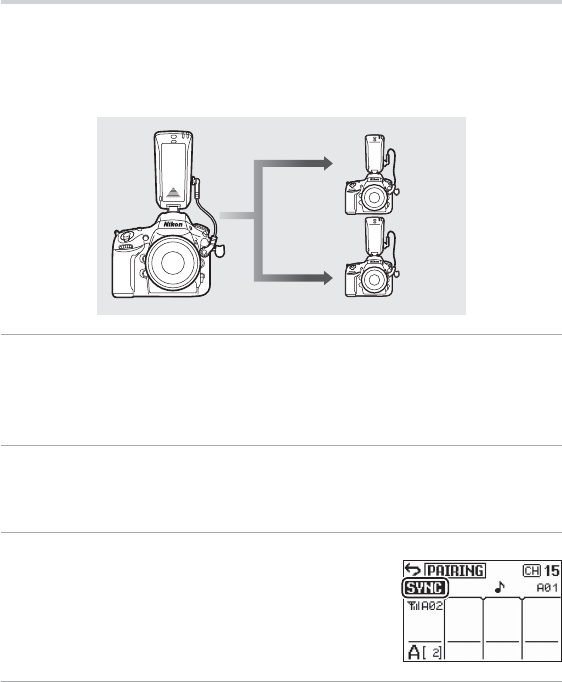

Synchronized release: Synchronize the

shutters of one or more remote

cameras with the shutter on a mas-

ter camera (0 13).

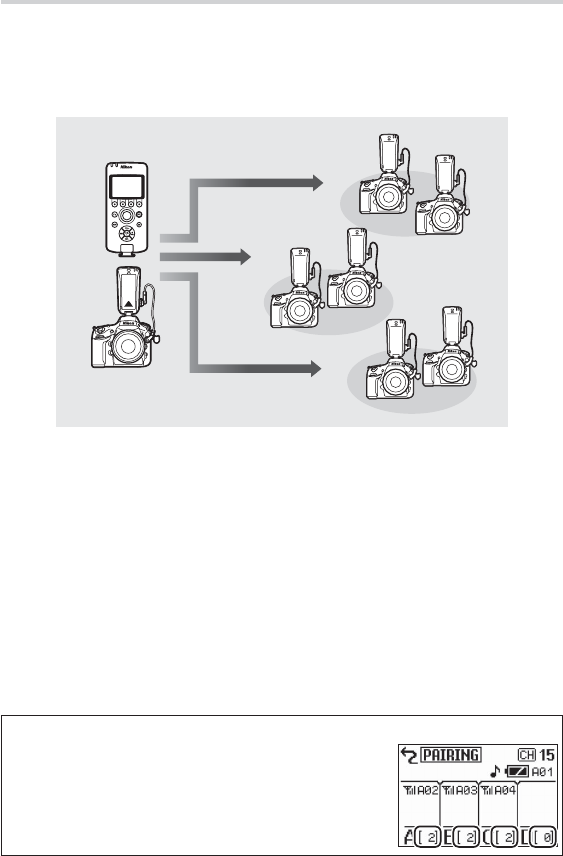

Groups: Divide remote cameras into

groups and control each group sep-

arately (0 14).

The WR-R10/WR-T10: The WR-1 can be

used with WR-R10 units as receivers

or a WR-T10 as a transmitter (0 15).

Wireless Regulation Data

Trade Name:

Model: WR-1

FCC ID: CGJ4149EA

IC: 4634A-4149EA

Compliance Statement

This device complies with Part 15 of the

FCC Rules and with RSS-210 of Industry

Canada. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful in-

terference, and

(2) this device must accept any interfer-

ence received, including interference

that may cause undesired operation.

Ce dispositif est déclaré conforme à la

Partie 15 de la Réglementation FCC et

à la norme RSS-210 d’Industrie Canada.

Son fonctionnement est soumis aux deux

conditions suivantes:

(1) cet appareil ne doit pas causer d’inter-

férences nuisibles, et

(2) cet appareil doit accepter les interfé-

rences reçues, y compris celles sus-

ceptibles de causer un fonctionne-

ment indésirable.

Modiﬁ cations not expressly approved by

Nikon Corporation could void the user’s

authority to operate the equipment.

This equipment has been tested and

found to comply with the limits for a

Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are de-

signed to provide reasonable protection

against harmful interference in a residen-

tial installation. This equipment gener-

ates, uses and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio com-

munications. However, there is no guar-

antee that interference will not occur in

a particular installation. If this equipment

does cause harmful interference to radio

or television reception, which can be de-

termined by turning the equipment oﬀ

and on, the user is encouraged to try to

correct the interference by one or more

of the following measures:

Reorient or relocate the receiving an-

tenna.

Increase the separation between the

equipment and receiver.

Connect the equipment into an outlet

on a circuit diﬀ erent from that to which

the receiver is connected.

Consult the dealer or an experienced

radio/TV technician for help.

Radiofrequency radiation exposure information:

The radiated output power of the device

is far below the FCC radio frequency ex-

posure limits.

Nevertheless, the device shall be used in

such a manner that the potential for hu-

man contact during normal operation is

minimized.

FCC CAUTION

Changes or modiﬁ cations not expressly

approved by Nikon Corporation could

void the user’s authority to operate the

equipment.

Nikon Inc., 1300 Walt Whitman Road,

Melville, New York

11747-3064, U.S.A. Tel.: 631-547-4200

•

iii

Notices for Customers in Europe

EC Declaration of Conformity

Nikon WR-1

Manufacturer: Nikon Corporation

A copy of the original DoC for this prod-

uct as it relates to R&TTE can be found at

the following website:

http://imaging.nikon.com/support/pdf/

DoC_WR-1.pdf

R&TTE Directive

This product conforms to the regulations

governing radio-frequency devices in the

following countries and can not be used

in other jurisdictions. Nikon accepts no

responsibility for the use of this device in

countries other than those listed below.

AT BE BG CY CZ DK EE FI

FR DE GR HU IE IT LV LT

LU MT NL PL PT RO SK SI

ES SE GB IS LI NO CH TR

Notice for Customers in Singapore

Trade Name:

Model: WR-1

This device complies with radio-fre-

quency regulations. The content of cer-

tiﬁ cation labels not aﬃ xed to the device

is given below.

Complies with

IDA Standards

DA103423

For Your Safety

To prevent damage to your Nikon product or injury to yourself or to others, read the fol-

lowing safety precautions in their entirety before using this product. Keep these safety

instructions where all those who use the product will read them.

The consequences that could result from failure to observe the precautions listed in this

section are indicated by the following symbol:

This icon marks warnings, information that should be read before using this

Nikon product to prevent possible injury.

WARNINGS

Do not disassemble. Failure to observe this precaution could result in ﬁ re, electric

shock, or other injury. Should the product break open as the result of a fall or other

accident, remove the batteries and take the product to a Nikon-authorized service

representative for inspection.

Keep out of reach of children. Failure to observe this precaution could result in injury.

In addition, note that small parts constitute a choking hazard. Should a child swal-

low any part of this product, consult a physician immediately.

Cut power immediately in the event of malfunction. Should you notice smoke or an un-

usual smell coming from the product, immediately turn the product oﬀ . Continued

operation could result in injury. Once the product has cooled, remove the batteries

and take the product to a Nikon-authorized service representative for inspection.

Do not use in the presence of ﬂ ammable gas. Failure to observe this precaution could

result in explosion or ﬁ re.

Keep dry. Do not immerse in or expose to water or rain. Failure to observe this pre-

caution could result in ﬁ re or electric shock.

Do not handle with wet hands. Failure to observe this precaution could result in elec-

tric shock.

Do not remain in contact with the camera or controller for extended periods while the products

are on or in use. Parts of the product become hot. Leaving the product in direct con-

tact with the skin for extended periods may result in low-temperature burns.

Do not expose to high temperatures. Do not leave the product in a closed vehicle under

the sun or in other areas subject to extremely high temperatures. Failure to observe

this precaution could result in ﬁ re or in damage to the casing or internal parts.

Follow the instructions of hospital and airline personnel. This product emits radio fre-

quency radiation that could interfere with medical or navigational equipment.

Turn the product oﬀ during takeoﬀ and landing and when so directed by airline

or hospital staﬀ .

Observe proper precautions when handling batteries. Batteries may leak, rupture, or over-

heat if improperly handled. Observe the following precautions when handling bat-

teries for use in this product:

Turn the product oﬀ before replacing the batteries.

Use only AA alkaline or NiMH batteries. Do not combine old and new batteries or

batteries of diﬀ erent makes or types.

Be sure to insert in the correct orientation.

Do not attempt to recharge non-rechargeable batteries. When recharging NiMH

batteries, follow instructions, use compatible chargers only, and charge each pair

as a set.

Do not short or disassemble batteries or attempt to remove or otherwise damage

the battery insulation or casing.

Do not transport or store with metal objects such as necklaces or hairpins. For

transport, place batteries in a plastic bag or other container to insulate the ter-

minals.

Do not expose to ﬂ ame or to excessive heat, immerse in or expose to water, or

subject to physical force.

Batteries are prone to leakage when fully discharged. To prevent damage to the

product, be sure to remove the batteries and disconnect the product from the

camera when no charge remains or if the product will not be used for an ex-

tended period.

Should liquid from damaged batteries comes in contact with clothing, eyes, or

skin, immediately rinse the aﬀ ected area with plenty of water.

Discontinue use immediately should you notice any changes in the battery, such

as discoloration or deformation.

Dispose of used batteries in accord with local regulations. Prior to disposal, insu-

late the terminals with tape. Fire, overheating, or rupture may result should metal

objects come into contact with the terminals.

•

Notices

No part of this manual may be reproduced, transmitted, transcribed, stored in a re-

trieval system, or translated into any language in any form, by any means, without

Nikon’s prior written permission.

Nikon reserves the right to change the speciﬁ cations of the hardware and software

described in this manual at any time and without prior notice.

Nikon will not be held liable for any damages resulting from the use of this product.

While every eﬀ ort has been made to ensure that the information in this manual is

accurate and complete, we would appreciate it were you to bring any errors or omis-

sions to the attention of the Nikon representative in your area (address provided sepa-

rately).

This product, which contains encryption software developed in the United States, is

controlled by the United States Export Administration Regulations and may not be ex-

ported or re-exported to any country to which the United States embargoes goods.

The following countries are currently subject to embargo: Cuba, Iran, North Korea, Su-

dan, and Syria.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Notices for Customers in Europe

This symbol indicates that electrical and electronic equipment is to be col-

lected separately.

The following apply only to users in European countries:

This product is designated for separate collection at an appropriate collec-

tion point. Do not dispose of as household waste.

Separate collection and recycling helps conserve natural resources and prevent nega-

tive consequences for human health and the environment that might result from

incorrect disposal.

For more information, contact the retailer or the local authorities in charge of waste

management.

•

vii

Table of Contents

Principal Features ..............................................................................................................i

Wireless Regulation Data ...............................................................................................ii

For Your Safety ..................................................................................................................iv

Notices .................................................................................................................................vi

Introduction

Parts of the WR-1 ..............................................................................................................1

The Display .........................................................................................................................2

Inserting Batteries

Connecting WR-1 Units

Using the WR-1: The Basics

Step 1: Position the Tx/Rx/OFF Switches ..................................................................8

Step 2: Set the Units to the Same Channel .............................................................8

Step 3: Pair the Units .......................................................................................................9

Step 4: Group the Units ............................................................................................... 10

Step 5: Take Pictures ..................................................................................................... 10

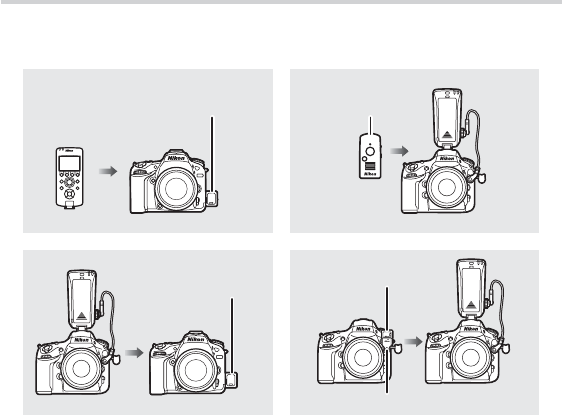

Controlling Multiple Cameras 1

Simultaneous Release .................................................................................................. 12

Synchronized Release .................................................................................................. 13

Groups ............................................................................................................................... 14

The WR-R10/WR-T10 ..................................................................................................... 15

viii

Menus 1

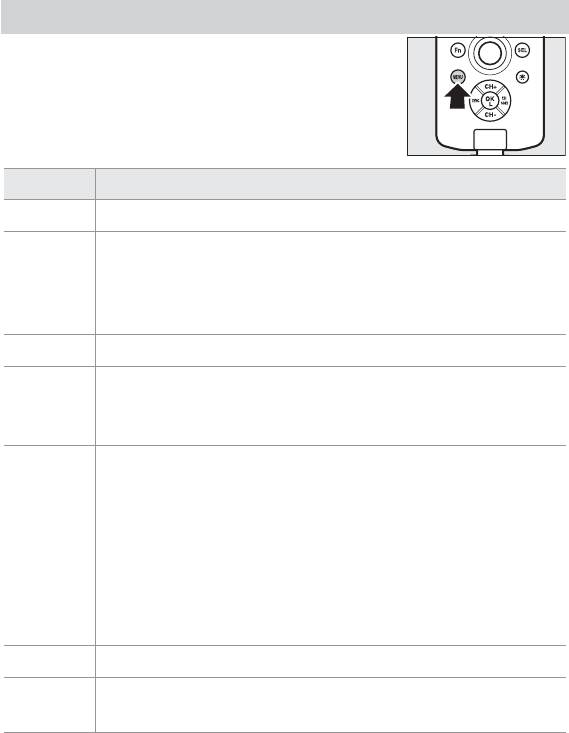

Using the Menus ............................................................................................................ 17

SPECIAL ............................................................................................................................. 18

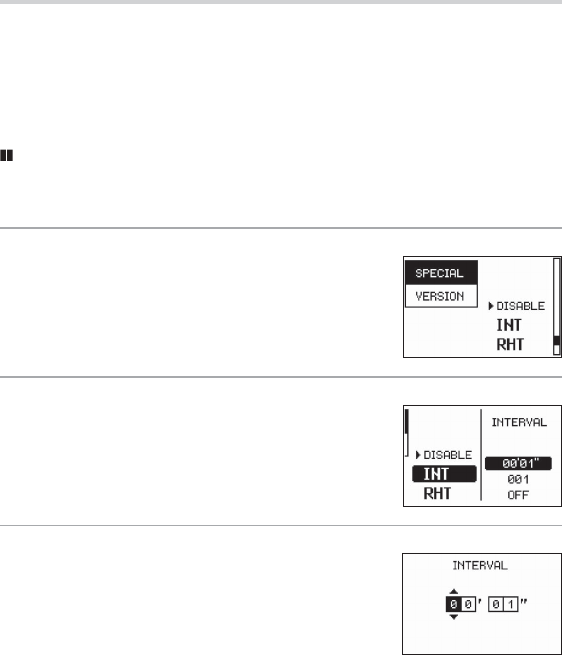

Interval Timer Photography ................................................................................. 18

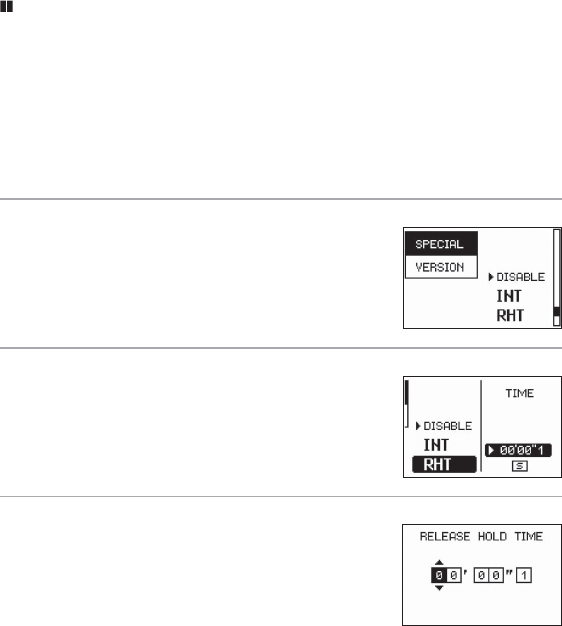

Release Hold Time ................................................................................................... 20

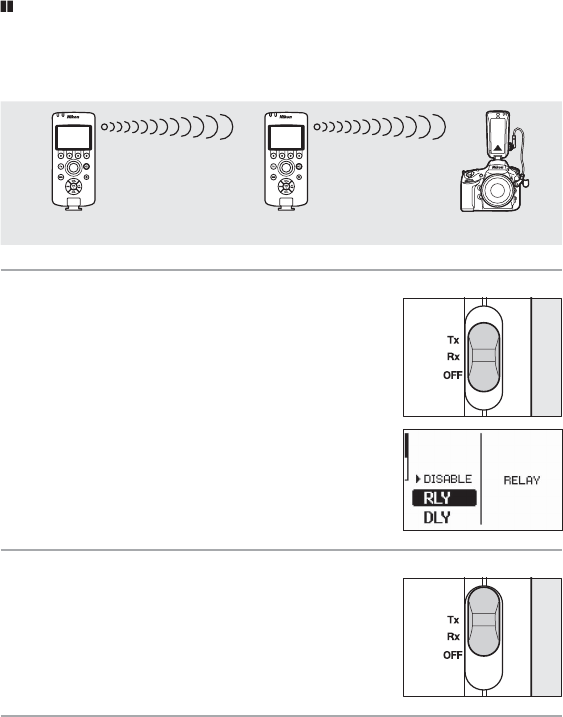

Relay ............................................................................................................................. 21

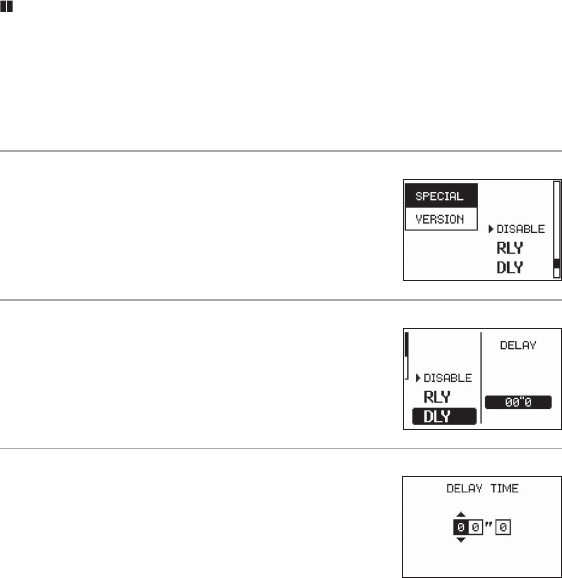

Release Delay ............................................................................................................ 22

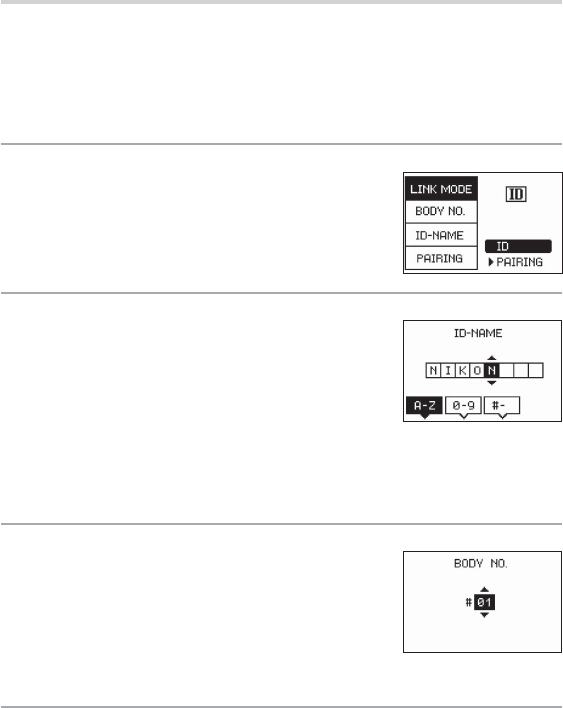

ID Mode............................................................................................................................. 23

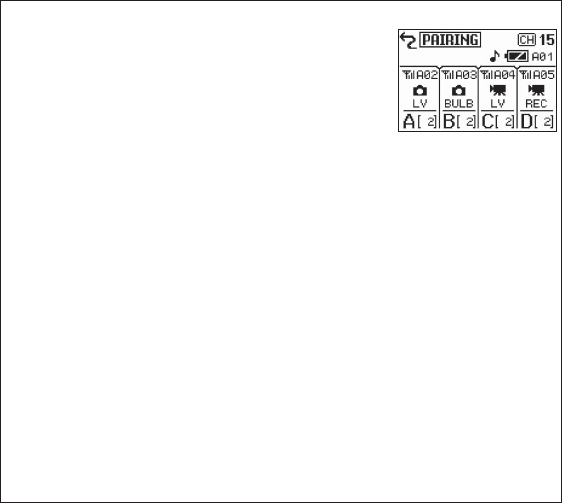

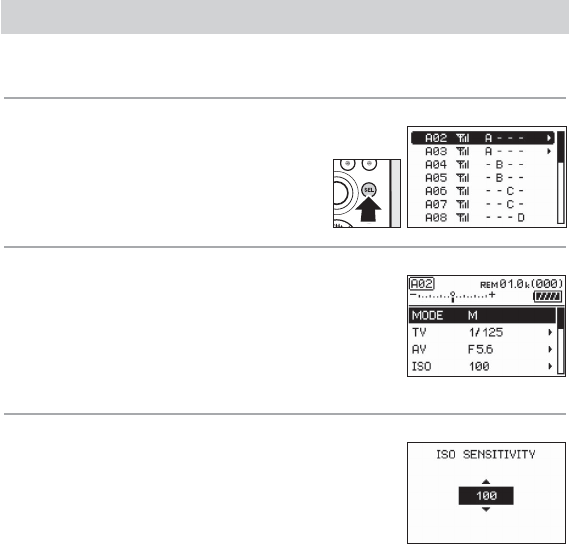

Viewing and Changing Camera Settings (D7100 Only) 2

Troubleshooting 2

Speciﬁ cations 2

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing prod-

uct support and education, continually-updated information is avail-

able online at the following sites:

For users in the U.S.A.: http://www.nikonusa.com/

For users in Europe and Africa: http://www.europe-nikon.com/support/

For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/

Visit these sites to keep up-to-date with the latest product informa-

tion, tips, answers to frequently-asked questions (FAQs), and general

advice on digital imaging and photography. Additional information

may be available from the Nikon representative in your area. See the

following URL for contact information: http://imaging.nikon.com/

•

Introduction

This section oﬀ ers an overview of product controls and displays.

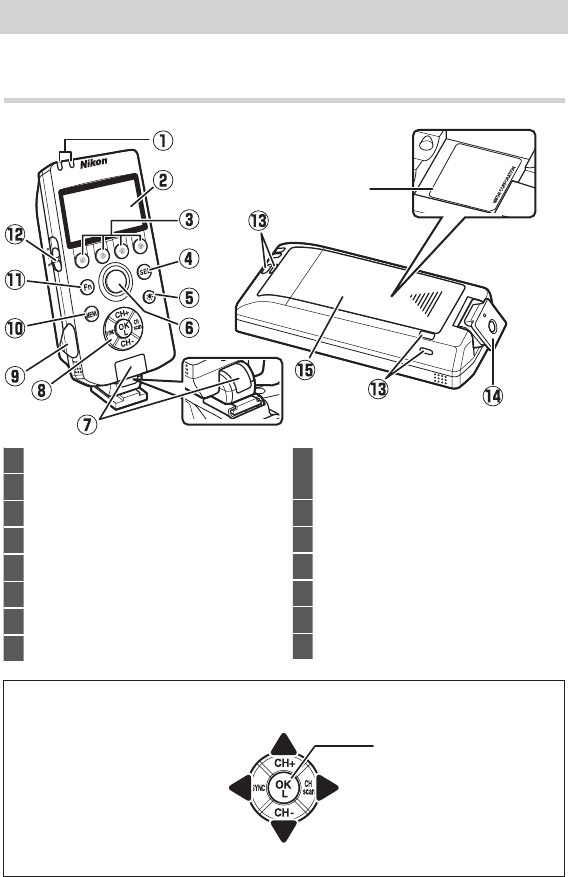

Parts of the WR-1

The Multi SelectorA

1LED (red/green) ...................................9

2Display .....................................................2

3Group buttons (A, B, C, D)............... 10

4SEL (device) button .................11, 24

5y (illuminator) button ...................3

6Shutter-release button .................. 10

7Release .....................................................7

8Multi selector

9Ten-pin terminal cover .....................6

Ten-pin remote terminal..................6

10 MENU (menu) button ................... 16

11 Fn (function) button ...................... 11

12 Tx/Rx/OFF switch ..............................8

13 Strap eyelet

14 Mounting foot ......................................7

15 Battery-chamber cover ....................4

H1104

Sample

ES04007A

MADE IN Japan

2-1A01

The number following

the hyphen inside battery

chamber is product serial

number.

Move cursor up

Move cursor down

Select highlighted item

Select highlighted item or

display sub-menu

Cancel and return

to previous menu

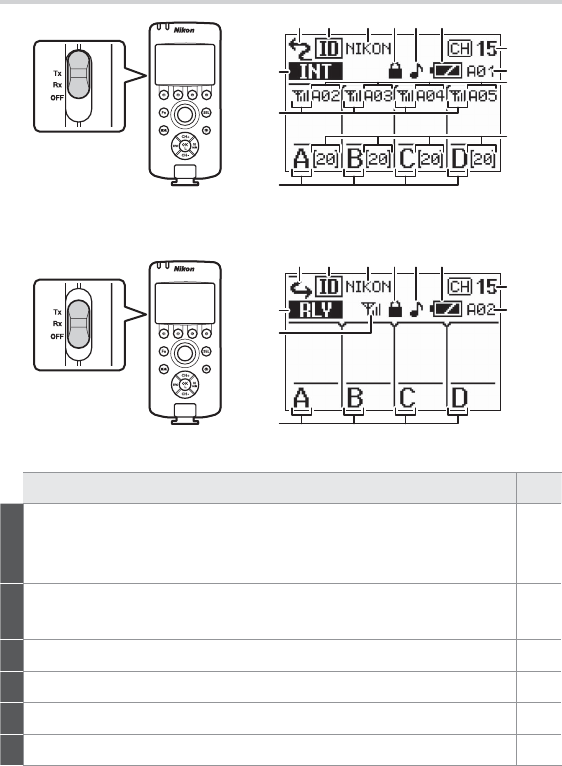

The Display

1 3 4 5 62

Tx/Rx/OFF switch set to Tx (transmitter)

1 3 4 5 62

Tx/Rx/OFF switch set to Rx (receiver)

Description

1If Tx/Rx/OFF switch is set to Tx, a is displayed and unit functions

as transmitter; if switch is set to Rx, b is displayed and unit func-

tions as receiver.

2Indicates whether unit links to other units via pairing (j)

or ID (i).

9, 23

3ID mode name. Not displayed in pairing mode. 23

4Displayed when controls are locked. 3

5Indicates whether beeps will sound. 16

6Battery level. Displayed only when unit is not connected to camera. 5

Description

7Current channel. 8

8Last three digits of unit serial number (or, if unit has been assigned

unit ID, current body number of from #01 to #20).

1, 23

9Last three digits of unit serial number (or, if unit has been assigned

unit ID, current body number) of selected receiver in each group.

10 Number of receivers in each group (up to 20). 14

11 Currently selected group (A, B, C, or D). 10

12 Wireless signal strength. —

13 Feature selected in transmitter mode.

INT: Interval timer

RHT: Release hold time

SYNC: Synchronized release

•

Feature selected in receiver mode.

RLY: Relay photography

DLY: Release delay

•

The y Button

Pressing the y button illuminates the display and control backlights

for about 20 seconds, making the unit easier to use in the dark.

Control Lock

To prevent accidental operation of the multi selector and the group,

MENU, and SEL buttons, press and hold the z button until f appears

in the display to indicate that these controls are locked (disabled).

Press and hold the z button again to re-enable the controls.

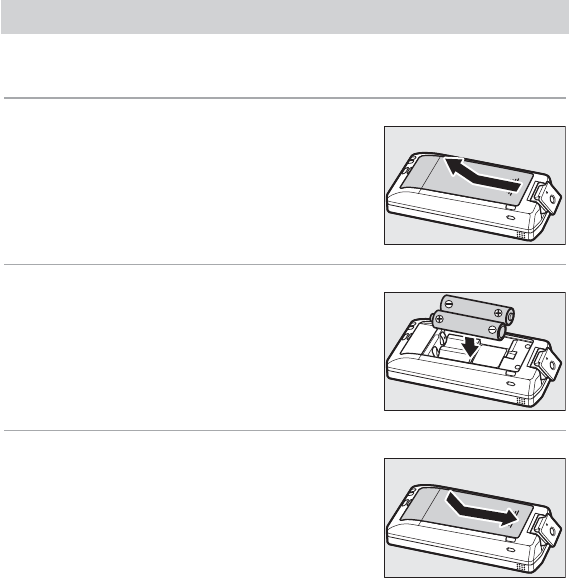

Inserting Batteries

The WR-1 is powered by two AA alkaline or nickel-metal hydride

(NiMH) batteries. To insert batteries:

1 Open the battery-chamber cover.

Unlatch and open the battery-chamber

cover.

H1104

Sample

ES04007A

MADE IN Japan

2 Insert the batteries.

Insert two AA batteries in the orientation

shown.

3 Close the battery-chamber cover.

Be sure the cover is securely latched.

H1104

Sample

ES04007A

MADE IN Japan

Units Connected to Cameras

When connected to a camera (0 6), WR-1 units are powered by the

camera; batteries are not required.

Standby Mode

If no operations are performed for the length of time selected for

STBY p (0 16), transmitters will enter standby and their displays will

turn oﬀ to save power. Units that are connected to a camera will turn

oﬀ automatically when the camera is turned oﬀ .

Receiver Units

To save power when receivers are not connect-

ed to a camera, slide the Tx/Rx/OFF switches to

OFF when the devices are not in use.

Battery LevelA

The battery level for units not connected to

cameras is displayed as shown at right; be sure

the batteries have suﬃ cient charge (units con-

nected to cameras do not display the battery

level). Battery level is shown as follows:

c: Charge remaining.

d: Batteries low. Ready spare batteries.

e: Batteries exhausted. Replace batteries.

•

To ensure that the display is as accurate as possible, select the correct

battery type in the BATTERY menu (0 17). Choose from LR6 (alkaline)

and HR6 (NiMH).

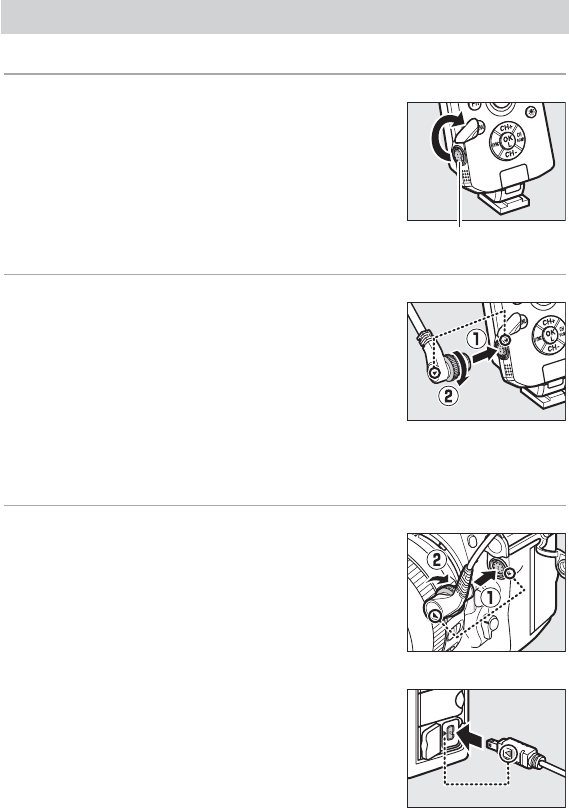

Connecting WR-1 Units

Connect the units to the cameras they will be used to control.

1 Open the ten-pin terminal cover.

Open the terminal cover as shown.

Ten-pin terminal

2 Connect the supplied ten-pin or accessory terminal cable.

Use the supplied MC-37 cable when connect-

ing receivers to cameras with ten-pin remote

terminals, the MC-38 when connecting re-

ceivers to cameras with accessory terminals.

Keeping the 1 mark on the cable’s ten-pin

connector aligned with the white w mark

next to the ten-pin terminal, insert the connector as shown and

tighten the screw to lock it in place.

3 Connect the cable to the camera.

If the camera is equipped with a ten-pin re-

mote terminal, align the 1 mark on the

MC-37 connector with the white w mark next

to the camera ten-pin remote terminal and

insert the connector as shown. Tighten the

screw to lock the cable in place.

If the camera is equipped with an accessory

terminal, align the 1 mark on the MC-38 con-

nector with the 1 mark next to the camera

accessory terminal and insert the connector

as shown.

Fixing Units in PlaceA

The WR-1 can be mounted on the camera acces-

sory shoe as shown at right.

Once the unit is in place, it can be angled as

shown at right.

To remove the WR-1, angle it as shown in Figure 1 or 2, and then press

the release (q) and slide the unit oﬀ the accessory shoe (w). The unit

can only be removed when angled as shown.

Figure 1 Figure 2

If desired, the WR-1 can be mounted on a tripod or an optional SK-7

bracket. Using the SK-7 places the WR-1 at the same level as the cam-

era and allows pictures to be taken using the camera’s built-in ﬂ ash

or optional ﬂ ash units and other accessories to be mounted on the

camera accessory shoe.

The Accessory Shoe

The camera’s built-in ﬂ ash can not be used when the WR-1 is mounted

on the accessory shoe. If the ﬂ ash pops up automatically, select P, S, A,

or M mode and then lower the ﬂ ash to prevent it ﬁ ring.

Using the WR-1: The Basics

The instructions that follow describe how to control a single camera

using two WR-1 units, one functioning as a transmitter and the other

as a receiver.

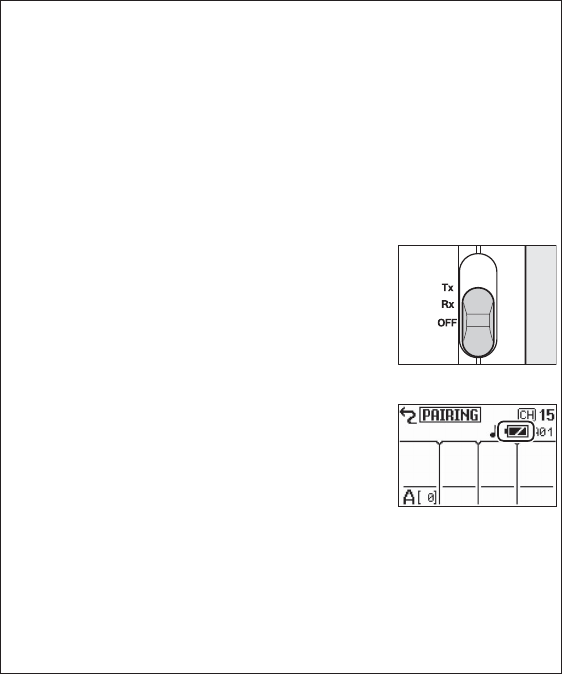

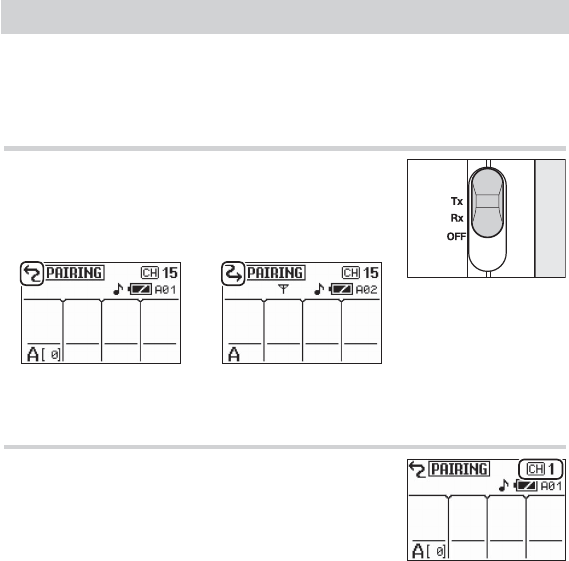

Step 1: Position the Tx/Rx/OFF Switches

Slide the Tx/Rx/OFF switch for the transmitter

to Tx and the switch for the receiver to Rx. The

units will turn on and display the information

shown below.

Tx (transmitter) Rx (receiver)

Step 2: Set the Units to the Same Channel

Press 1 or 3 to choose from channels 1 to 15.

Transmitters must be set to the same channel

as the receivers they control.

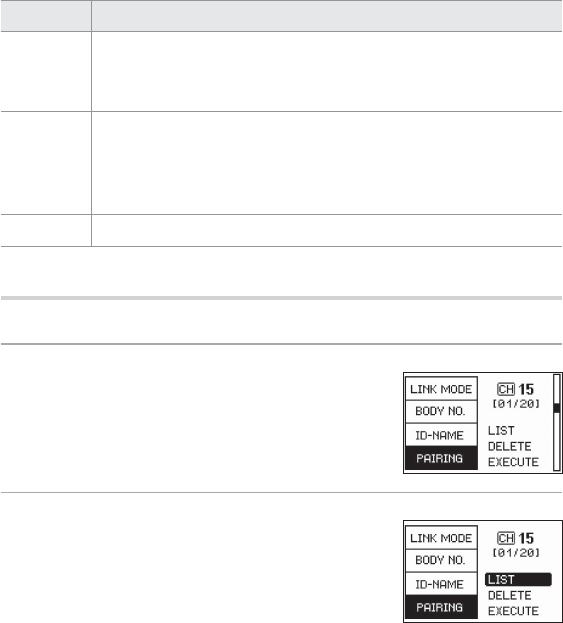

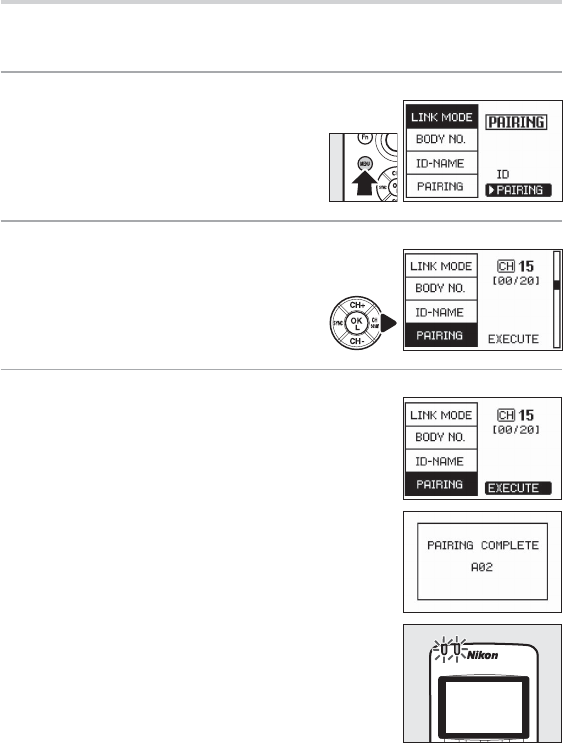

Step 3: Pair the Units

Follow the steps below to pair the units. Units can be paired only

with other devices on the same channel.

1 Set the units to pairing mode.

Press the MENU button to display

the menus, then highlight PAIRING

in the LINK MODE menu and press

z. Repeat for the second unit.

2 Display the PAIRING menus.

Highlight PAIRING and press 2. Re-

peat for the second unit.

3 Select EXECUTE on both units.

Place the units close together, then highlight

EXECUTE and press z on both devices si-

multaneously.

If pairing is successful, the message at right

will be displayed and the LED will ﬂ ash al-

ternately red and green. If the message NO

RESPONSE is displayed, repeat Step 3.

The menus will be displayed when pairing is

complete. Press the MENU buttons to close

the menus.

LED

Step 4: Group the Units

Each receiver can be placed in any of four groups (A, B, C, and D). A

transmitter can then be used to control the diﬀ erent groups sepa-

rately by selecting the appropriate group before operating the

transmitter controls. Transmitters will only control receivers in the

selected group.

To choose a group, use the group buttons. The

group name appears in the display.

Group buttons

Step 5: Take Pictures

The shutter-release button on the transmitter

performs the same functions as the camera

shutter-release button whether pressed half-

way or all the way down. See the camera man-

ual for details.

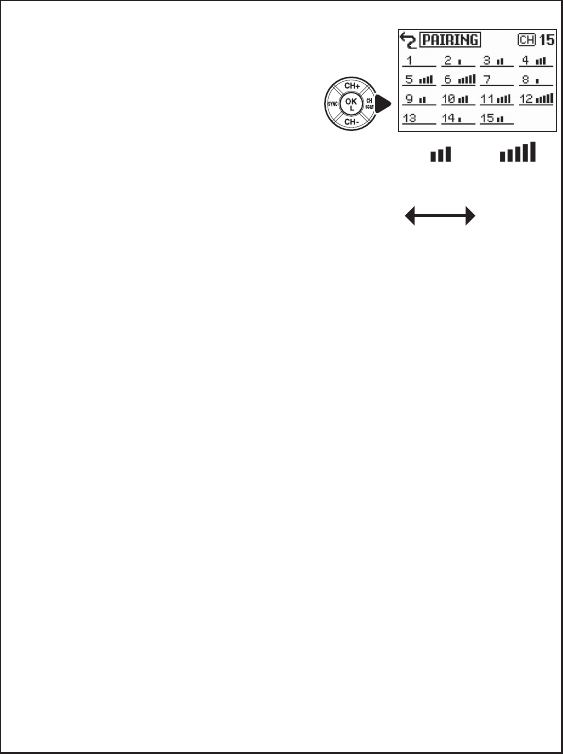

Traﬃ c LevelA

The traﬃ c on each channel can be

gauged by pressing 2 for about a sec-

ond. The traﬃ c level for each channel

is shown by an icon; choosing a low-

traﬃ c channel improves performance.

Note that the display varies depend-

ing on when it was last updated; when

multiple WR-1 units are used, their

displays will not necessarily show the

same traﬃ c levels.

(No icon)

No traﬃ c Heavy

traﬃ c

Erasing Pairing Data

Selecting DELETE in the WR-1 PAIRING menu lists the devices with

which the unit is paired, identiﬁ ed by the last three digits of their serial

numbers. Highlight a device and press z. A conﬁ rmation dialog will

be displayed; highlight YES and press z to erase the pairing data for

the selected device.

ID Mode

In ID mode, connections between WR-1 units can be established

based on the unit name rather than device pairing (0 23).

The Fn Button

The transmitter Fn button performs the same function as the Fn but-

ton on the camera to which the receiver is connected (D4, D800/800E,

D600, D7100, and D5200 cameras only; for the latest information on

supported cameras, visit the websites listed on page viii). For more

information, see the camera manual.

Device Selection

To control a speciﬁ c receiver, press the SEL button on the transmitter

and highlight the receiver in the device selection menu.

Controlling Multiple Cameras

This section describes the ways in which multiple receivers can be

used to control more than one camera at a time.

Simultaneous Release

If the transmitter and receivers are paired (0 9), on the same chan-

nel (0 8), and in the same group (0 10), pressing the transmitter

shutter-release button all the way down will simultaneously release

the shutters on all cameras to which receivers have been attached.

Synchronized Release

To synchronize the shutters of one or more remote cameras with the

shutter on a master camera, attach the receivers to the remote cam-

eras and the transmitter to the master camera. The master camera

must be equipped with a ten-pin remote terminal.

1 Connect the controllers.

Connect the transmitter (set to Tx) to the master camera (any cam-

era with a ten-pin remote terminal) and the receivers (set to Rx) to

the remote cameras.

2 Conﬁ gure the controllers.

Pair all controllers and set them to the same channel and group

(0 8, 9, 10).

3 Set the transmitter to SYNC mode.

Press 4 on the transmitter to enable sync

mode and conﬁ rm that k appears in the

display.

4 Take pictures.

The shutters on all cameras will be released when the shutter-re-

lease button on the master camera is pressed all the way down.

Groups

Remote cameras can be divided into up to four groups (A, B, C, and

D). The cameras in each group can be controlled separately by us-

ing the transmitter group buttons to select the desired group before

pressing the shutter-release button.

Group SizeA

The transmitter shows the number of receivers

in the current group.

The WR-R10/WR-T10

WR-1 units can be used with WR-R10 and WR-T10 wireless remote

controllers (available separately).

WR-T10WR-R10

WR-R10 WR-R10

WR-A10

WR-1 units must be in pairing mode before they can be paired with

WR-R10 or WR-T10 wireless remote controllers; pairing instructions

for the WR-1 are identical to those given on page 9, while those for

the WR-R10/WR-T10 can be found in the manual provided with the

devices. When selecting channels, note that the WR-R10/WR-T10

support channels 5, 10, and 15 only; set the WR-1 to the same chan-

nel as the WR-R10/WR-T10. Neither the WR-R10 nor WR-T10 oﬀ er

group selection. Select Group A when using a WR-1 with WR-R10

units; when a WR-T10 is used, it will control receivers in all groups.

Menus

The menus contain the items listed below. To

display the menus, press the MENU button.

Item

Description

LINK MODE Choose whether to link to other units via pairing or ID.

BODY NO. Select unit ID (body number) of from #01 to #20 (0 23). Unit IDs

are required for ID mode, but also simplify task of organizing units

in pairing mode. ID replaces last three digits of serial number in

unit display.

ID-NAME Enter ID mode name (0 23).

PAIRING Pair unit with other devices (0 9), delete pairing data (0 11), or

select LIST to view all devices with which unit is currently paired,

identiﬁ ed by last three digits of their serial numbers.

mHighlight items and press 2 to enable or mute audio feedback;

items for which feedback is enabled are indicated by checks.

Press 4 to exit when settings are complete.

BUTTON: Beep sounds when control is used.

RELEASE: When D600, D7100, D5200, or D3200 is connected,

beep sounds when shutter on camera selected with SEL but-

ton is released.

WARNING: Beep sounds twice when error occurs (0 26).

•

LCD oAdjust display contrast.

STBY pChoose how long transmitter display remains on when no opera-

tions are performed (0 5).

Item

Description

BATTERY To ensure accuracy of battery level display, select option that

matches type of battery inserted in device. Choose from LR6 (AA

alkaline) and HR6 (rechargeable AA NiMH).

SPECIAL Use transmitter for interval timer photography (INT; 0 18) or

choose transmitter release hold time (RHT; 0 20), or conﬁ gure

receiver as relay (RLY; 0 21) or choose receiver release delay

(DLY; 0 22). To disable above functions, select DISABLE.

VERSION View unit ﬁ rmware version.

Using the Menus

Follow the steps below to select options in the menus.

1 Select an item.

Press 1 or 3 to highlight items and press 2

to view options for the highlighted item.

2 Select an option.

Press 1 or 3 to highlight the desired option

and press z to select.

SPECIAL

The SPECIAL menu is used to conﬁ gure transmitters for interval tim-

er photography and to choose the maximum duration for bulb pho-

tography, or to conﬁ gure receivers to relay transmitter commands

to a second receiver and to choose the delay before the shutter is

released in response to transmitter commands.

Interval Timer Photography

Conﬁ gure transmitters to release the shutters of remote cameras au-

tomatically at preset intervals.

1 Select SPECIAL on the transmitter.

Press the MENU button on the transmitter to

display the menus, then highlight SPECIAL

and press 2.

2 Select INT.

In the transmitter SPECIAL menu, highlight

INT and press 2 to display the options shown

at right.

3 Choose the interval.

Highlight INTERVAL and press 2. The op-

tions shown at right will be displayed; press

4 or 2 to highlight minutes or seconds and

1 or 3 to change. Choose an interval longer

than the slowest anticipated shutter speed

(maximum 60 minutes) and allow time for the camera to record

images, as the camera may be forced to skip intervals if the time

allotted is too short. Press z to return to the interval timer menu

when settings are complete.

4 Choose the number of intervals.

Highlight NUM OF SHOTS and press 2. The

options shown at right will be displayed;

press 1 or 3 to choose the number of inter-

vals. Press z to return to the interval timer

menu when settings are complete.

5 Choose the starting trigger.

Highlight START WITH RELEASE and press 2.

Highlight one of the following options and

press z.

ON: Interval timer photography starts when

the transmitter shutter-release button is

pressed.

OFF: Interval timer photography starts automatically after the

delay selected for INTERVAL.

•

Pairing

Pairing can not be performed while interval timer photography is en-

abled.

Interrupting Interval Timer Photography

To end interval timer photography before all pictures are taken, select

DISABLE in the SPECIAL menu, press the transmitter shutter-release

button or press 4 on the multi selector, or turn oﬀ the transmitter.

Release Hold Time

Choose how the remote cameras respond when the transmitter

shutter-release button is held all the way down.

TIME: The transmitter shutter-release button can be used for long

time-exposures; shooting ends automatically after a selected

time.

SINGLE SHOOT: Only one picture will be taken regardless of how

long the button is pressed.

1 Select SPECIAL on the transmitter.

Press the MENU button on the transmitter to

display the menus, then highlight SPECIAL

and press 2.

2 Select RHT.

In the transmitter SPECIAL menu, highlight

RHT and press 2 to display the options

shown at right.

3 Choose an option.

TIME: Highlight TIME and press 2. The op-

tions shown at right will be displayed; press

4 or 2 to highlight minutes or seconds and

1 or 3 to choose the maximum shooting

time for long time-exposures (up to 60 min-

utes). Press z to exit when settings are complete.

SINGLE SHOOT: Highlight SINGLE SHOOT and press z.

•

Relay

Receivers can be conﬁ gured to relay transmitter commands to an-

other receiver, increasing transmitter range and allowing signals to

be transmitted around obstacles.

Transmitter Relay Receiver

1 Conﬁ gure the relay.

On the unit that will act as the relay, slide the

Tx/Rx/OFF switch to Rx. Press the MENU button

to display the menus, then highlight SPECIAL

and press 2. Highlight RLY and press z to

conﬁ gure the unit to act as a relay.

2 Conﬁ gure the remaining units.

Slide the Tx/Rx/OFF switch on one of the re-

maining units to Tx to conﬁ gure it as a trans-

mitter, and the switch on the other unit to Rx

to conﬁ gure it as a receiver.

3 Take photographs.

Position the units. When the shutter-release button on the trans-

mitter is pressed all the way down, the relay unit will pass the sig-

nal to the receiver, and the receiver will release the shutter on the

camera to which it is connected.

Release Delay

Choose how long a receiver waits to release the shutter after the

transmitter shutter-release button is pressed all the way down. Dif-

ferent delays can be used for di erent receivers, allowing shutter

release to be staggered over a series of cameras using a single trans-

mitter.

1 Select SPECIAL on the receiver.

Press the MENU button on a receiver to dis-

play the menus, then highlight SPECIAL and

press 2.

2 Select DLY.

In the receiver SPECIAL menu, highlight DLY

and press 2 to display the options shown at

right.

3 Choose the delay.

Highlight DELAY and press 2. The options

shown at right will be displayed; press 4 or

2 to highlight a digit and 1 or 3 to choose

a delay (maximum 60.0 seconds). Press z to

return to exit when settings are complete.

Repeat Steps 1–3 for the remaining receivers as required.

ID Mode

While in pairing mode pairing is used to establish links between units

before shooting begins (0 9), in ID mode units automatically link

to others with the same name. Note that ID mode is available with

WR-1 units only; pairing must be used to link with WR-R10/WR-T10

wireless remote controllers.

1 Select ID mode.

Press the MENU button to display the menus.

Highlight LINK MODE and press 2, then

highlight ID and press z to select ID mode.

2 Choose a name.

Highlight ID-NAME and press 2 to display

the text-entry dialog shown at right. Enter a

name of up to eight characters using 4 or 2

to position the cursor and 1 or 3 to enter

characters; to choose the character type, use

the group buttons (press A for the letters A–Z, B for the numbers

0–9, and C for symbols). Press z to proceed when entry is com-

plete.

3 Choose a unit ID.

The unit ID (body number) is used to diﬀ eren-

tiate between receivers with the same name:

each unit with the same name must have

a unique unit ID. Highlight BODY NO. and

press 2 to display the dialog shown at right.

Choose a unit ID between 01 and 20 and press z.

4 Conﬁ gure the remaining units.

Repeat Steps 1–3 to conﬁ gure the remaining units, using the name

selected in Step 2 and a unique unit ID for each unit.

Viewing and Changing Camera Settings (D7100 Only)

When receivers are attached to D7100 cameras, camera settings can

be viewed and changed in the transmitter display.

1 Display the device list.

Press the transmitter SEL button to

display a list of the cameras to which

receivers are currently connected.

2 View camera settings.

Cameras that support remote setting display

and adjustment are indicated by a r icon.

Highlight a supported camera and press 2 to

view camera settings. Press 1 or 3 to scroll

the display.

3 Adjust camera settings.

Settings that can be adjusted remotely are

indicated by a r icon. Highlight a setting and

press 2 to view options, then select an op-

tion and press z to transmit the selecting

option to the camera.

Receiver StatusA

The status of receivers that are connected to

D7100 cameras is shown as follows:

g (still image mode): The transmitter shutter-

release button can be used to take photo-

graphs.

•

h (movie mode): The transmitter shutter-release button can be used

to begin and end movie recording. REC ﬂ ashes while recording is in

progress.

LV (live view): The transmitter shutter-release button can be used for

live view photography.

BULB (bulb photography): The shutter on the remote camera stays open

while the transmitter shutter-release button is pressed all the way

down.

TIME (time photography): The shutter on the remote camera opens

when the transmitter shutter-release button is pressed all the way

down and closes when the button is pressed all the way down a

second time.

To view the other receivers in the same group, press and hold the

transmitter group button while pressing 1 or 3.

•

Troubleshooting

If wireless remote controllers fail to function as expected, check the

list of common problems below before consulting your retailer or

Nikon representative.

The unit does not turn on (no indicators appear in the display):

If the unit is not connected to a camera, conﬁ rm that the batteries are

inserted in the correct orientation (0 4). If the problem persists, replace

the batteries with fresh batteries or with fully charged rechargeable bat-

teries.

If the unit is connected to a camera, conﬁ rm that the cable is correctly

connected and that the camera is on (0 6).

The camera does not respond to the transmitter shutter-release button:

Conﬁ rm that the receiver is on the same channel and in the same group

as the transmitter (0 8, 10).

If PAIRING is selected for LINK MODE, select PAIRING > LIST and conﬁ rm

that the transmitter is listed, indicating that the transmitter and receiver

are paired. If the transmitter is not listed, pair the devices as described

on page 9.

If ID (supported with WR-1 units only) is selected for LINK MODE, con-

ﬁ rm that all units have the same name (0 23).

Conﬁ rm that the receiver is connected to the camera (0 6).

The shutter can not be released. Check the camera.

The unit beeps twice and the camera shutter is not released:

The shutter can not be released. Check the camera.

Check that the receivers do not share the same body number.

NOT DETECTED: No paired or linked units in the selected group can be de-

tected on the selected channel.

NO RESPONSE: Reattempt pairing after placing the units closer together and

conﬁ rming that they are on the same channel (0 8, 9).

#00 IS DUPLICATED: The current unit ID (body number) is shared by other

receivers with the same name. Select a unique unit ID (0 23).

•

Precautions for Use

Controllers must be securely attached to the camera to prevent

camera malfunction. Remove units that are not in use; carrying a

camera in a bag or by the strap with a WR-1 attached risks damage

to the camera or the WR-1 in the event that the camera is exposed

to strong physical shocks or vibration.

Transmitter and camera shutter-release buttons can not be used

when cameras other than the D7100 are in remote control (ML-L3)

release mode.

Compatibility

Wireless remote controllers can not be used with D1-series cameras or

the MB-D100. They can be used with the F100, D2X, D2Xs, D2Hs, and

D200, but the shutter can not be released with the F100 in self-timer

mode, while the D2X, D2Xs, D2Hs, and D200 will temporarily display

O if the exposure meters are activated after the unit is attached.

•

Speciﬁ cations

Wireless Remote Controller WR-1

Type

Type WR-1

Supported cameras

Supported cameras SLR cameras with ten-pin remote or accessory terminals

Wireless

Channels

Channels 1 (2.405 GHz), 2 (2.410 GHz), 3 (2.415 GHz), 4 (2.420 GHz),

5 (2.425 GHz), 6 (2.430 GHz), 7 (2.435 GHz), 8 (2.440 GHz),

9 (2.445 GHz), 10 (2.450 GHz), 11 (2.455 GHz),

12 (2.460 GHz), 13 (2.465 GHz), 14 (2.470 GHz), and

15 (2.475 GHz)

Range (line of sight)

Range (line of sight) Approximate range between WR-1 units at height of about

1.2 m (4 ft) is 120 m (394 ft); varies with weather conditions

and presence or absence of obstacles

Maximum number of

units

Up to 20 units (including a maximum of 3 transmitters) can

be used at a time

Power source

Power source Power is supplied by camera if connected; when not con-

nected to camera, unit is powered by two AA alkaline or

nickel-metal hydride (NiMH) batteries

Power consumption

Power consumption Approximately 1 W maximum

Operating environment

Operating environment Temperature: –20 °C – +50 °C (–4 °F – +122 °F)

Humidity: 85% or less (no condensation)

•

Approximate dimensions

(W × H × D)

(W × H × D) 50 × 115 × 27.5 mm (2.0 × 4.5 × 1.1 in.)

Weight

Weight Approximately 90 g (3.2 oz), body only

User's Manual

Wireless Remote Controller

Printed in Japan

SB3B01(11)

6MBJ0811-01

No reproduction in any form of this manual, in whole or in part (except

for brief quotation in critical articles or reviews), may be made without

written authorization from NIKON CORPORATION.

Nikon 4149EA Wireless Remote Controller User Manual
