Nine Eagles Electronic Technology 2714507001 Eagle Jet User Manual jet english

Shanghai Nine Eagles Electronic Technology Co., Ltd. Eagle Jet jet english

users manual

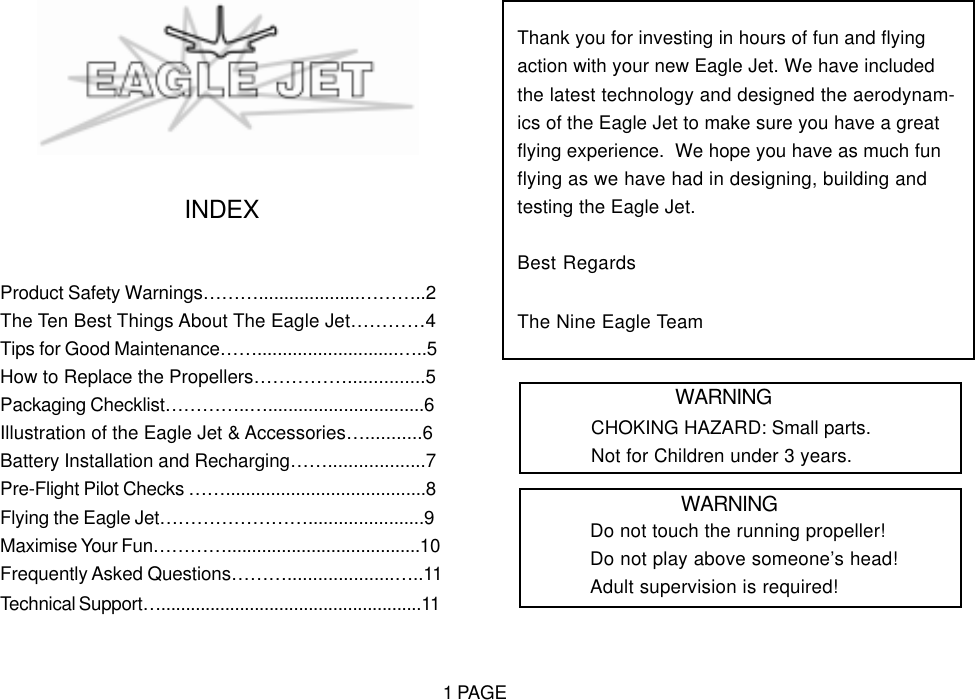

INDEXProduct Safety Warnings………....................………..2The Ten Best Things About The Eagle Jet…………4Tips for Good Maintenance……............................…..5How to Replace the Propellers……………...............5Packaging Checklist…………..…...............................6Illustration of the Eagle Jet & Accessories…...........6Battery Installation and Recharging……...................7Pre-Flight Pilot Checks ……........................................8Flying the Eagle Jet…………………….......................9Maximise Your Fun………….......................................10Frequently Asked Questions……….....................…..11Technical Support….....................................................11Thank you for investing in hours of fun and flyingaction with your new Eagle Jet. We have includedthe latest technology and designed the aerodynam-ics of the Eagle Jet to make sure you have a greatflying experience. We hope you have as much funflying as we have had in designing, building andtesting the Eagle Jet.Best RegardsThe Nine Eagle TeamWARNINGCHOKING HAZARD: Small parts.Not for Children under 3 years.WARNINGDo not touch the running propeller!Do not play above someone’s head!Adult supervision is required!1 PAGE

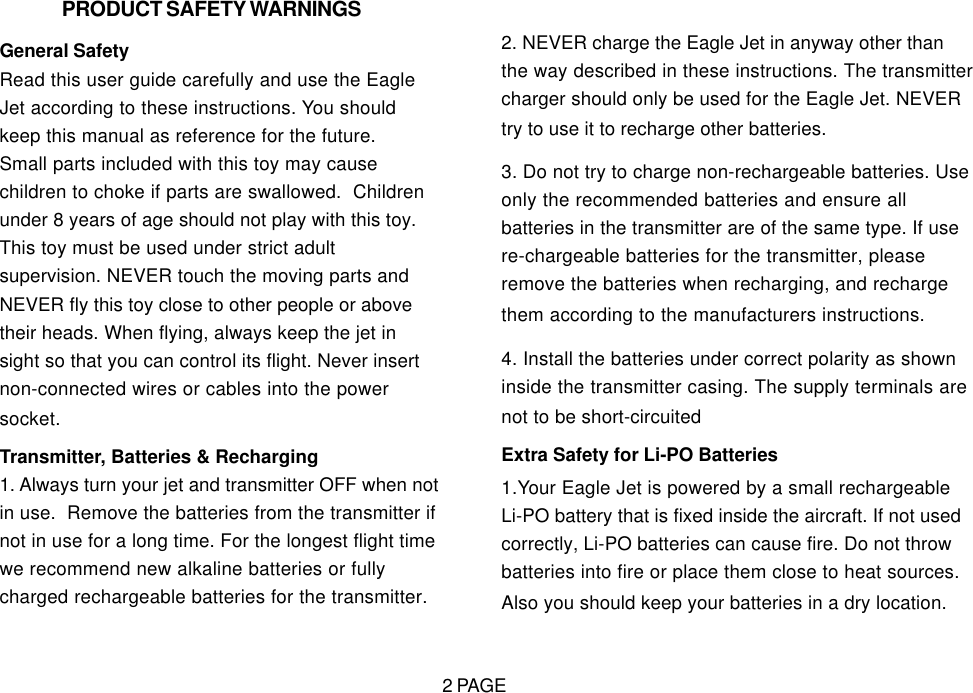

PRODUCT SAFETY WARNINGSGeneral SafetyRead this user guide carefully and use the EagleJet according to these instructions. You shouldkeep this manual as reference for the future.Small parts included with this toy may causechildren to choke if parts are swallowed. Childrenunder 8 years of age should not play with this toy.This toy must be used under strict adultsupervision. NEVER touch the moving parts andNEVER fly this toy close to other people or abovetheir heads. When flying, always keep the jet insight so that you can control its flight. Never insertnon-connected wires or cables into the powersocket.Transmitter, Batteries & Recharging1. Always turn your jet and transmitter OFF when notin use. Remove the batteries from the transmitter ifnot in use for a long time. For the longest flight timewe recommend new alkaline batteries or fullycharged rechargeable batteries for the transmitter.2. NEVER charge the Eagle Jet in anyway other thanthe way described in these instructions. The transmittercharger should only be used for the Eagle Jet. NEVERtry to use it to recharge other batteries.3. Do not try to charge non-rechargeable batteries. Useonly the recommended batteries and ensure allbatteries in the transmitter are of the same type. If usere-chargeable batteries for the transmitter, pleaseremove the batteries when recharging, and rechargethem according to the manufacturers instructions.4. Install the batteries under correct polarity as showninside the transmitter casing. The supply terminals arenot to be short-circuitedExtra Safety for Li-PO Batteries1.Your Eagle Jet is powered by a small rechargeableLi-PO battery that is fixed inside the aircraft. If not usedcorrectly, Li-PO batteries can cause fire. Do not throwbatteries into fire or place them close to heat sources.Also you should keep your batteries in a dry location.2 PAGE

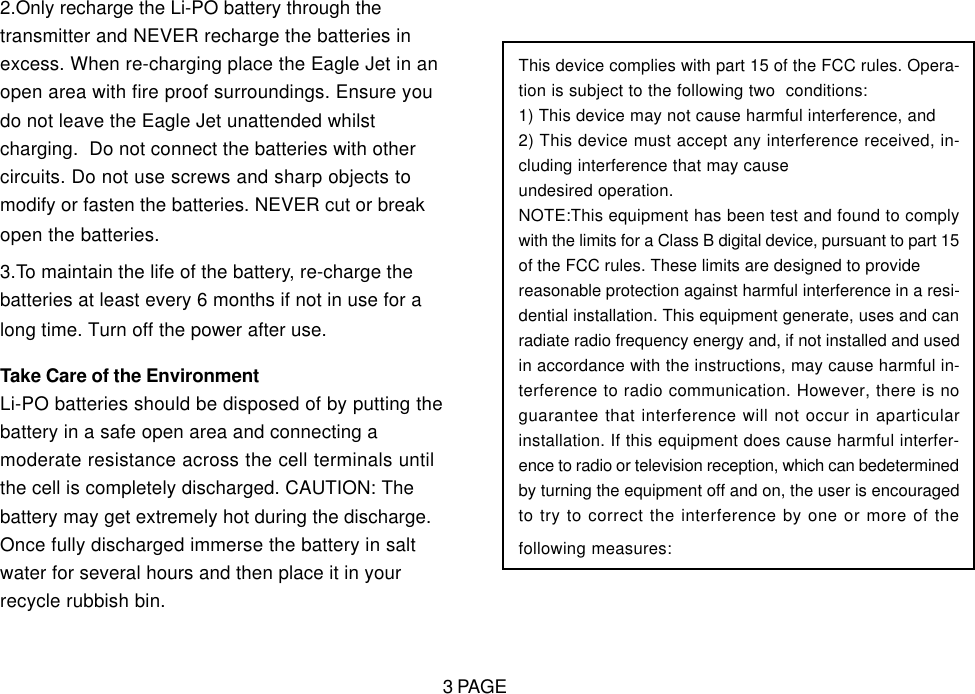

2.Only recharge the Li-PO battery through thetransmitter and NEVER recharge the batteries inexcess. When re-charging place the Eagle Jet in anopen area with fire proof surroundings. Ensure youdo not leave the Eagle Jet unattended whilstcharging. Do not connect the batteries with othercircuits. Do not use screws and sharp objects tomodify or fasten the batteries. NEVER cut or breakopen the batteries.3.To maintain the life of the battery, re-charge thebatteries at least every 6 months if not in use for along time. Turn off the power after use.Take Care of the EnvironmentLi-PO batteries should be disposed of by putting thebattery in a safe open area and connecting amoderate resistance across the cell terminals untilthe cell is completely discharged. CAUTION: Thebattery may get extremely hot during the discharge.Once fully discharged immerse the battery in saltwater for several hours and then place it in yourrecycle rubbish bin.This device complies with part 15 of the FCC rules. Opera-tion is subject to the following two conditions:1) This device may not cause harmful interference, and2) This device must accept any interference received, in-cluding interference that may causeundesired operation.NOTE:This equipment has been test and found to complywith the limits for a Class B digital device, pursuant to part 15of the FCC rules. These limits are designed to providereasonable protection against harmful interference in a resi-dential installation. This equipment generate, uses and canradiate radio frequency energy and, if not installed and usedin accordance with the instructions, may cause harmful in-terference to radio communication. However, there is noguarantee that interference will not occur in aparticularinstallation. If this equipment does cause harmful interfer-ence to radio or television reception, which can bedeterminedby turning the equipment off and on, the user is encouragedto try to correct the interference by one or more of thefollowing measures:3 PAGE

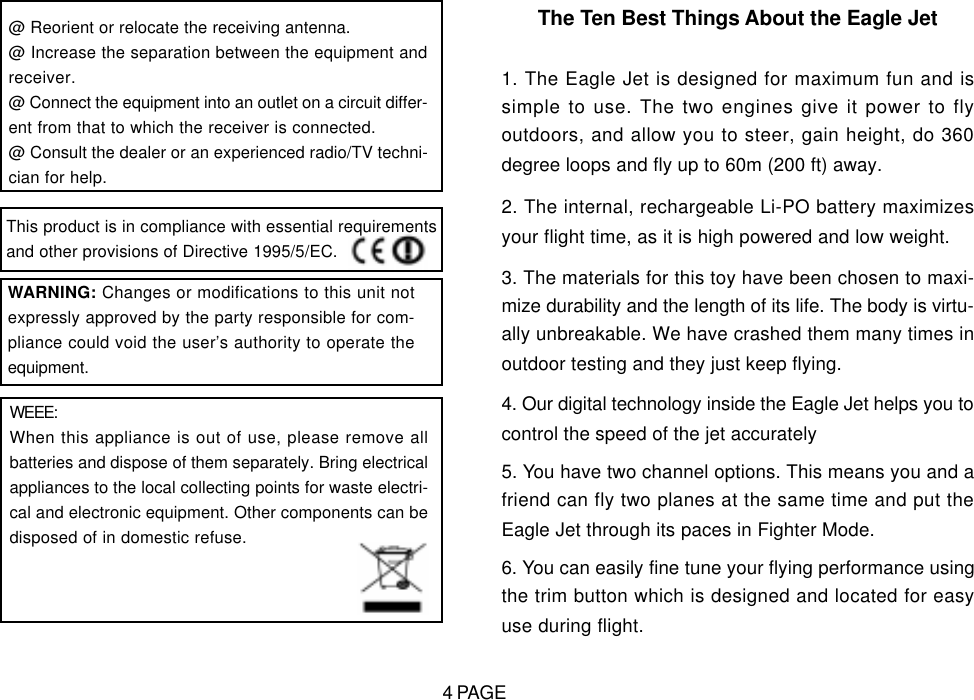

@ Reorient or relocate the receiving antenna.@ Increase the separation between the equipment andreceiver.@ Connect the equipment into an outlet on a circuit differ-ent from that to which the receiver is connected.@ Consult the dealer or an experienced radio/TV techni-cian for help.WARNING: Changes or modifications to this unit notexpressly approved by the party responsible for com-pliance could void the user’s authority to operate theequipment.WEEE:When this appliance is out of use, please remove allbatteries and dispose of them separately. Bring electricalappliances to the local collecting points for waste electri-cal and electronic equipment. Other components can bedisposed of in domestic refuse.The Ten Best Things About the Eagle Jet1. The Eagle Jet is designed for maximum fun and issimple to use. The two engines give it power to flyoutdoors, and allow you to steer, gain height, do 360degree loops and fly up to 60m (200 ft) away.2. The internal, rechargeable Li-PO battery maximizesyour flight time, as it is high powered and low weight.3. The materials for this toy have been chosen to maxi-mize durability and the length of its life. The body is virtu-ally unbreakable. We have crashed them many times inoutdoor testing and they just keep flying.4. Our digital technology inside the Eagle Jet helps you tocontrol the speed of the jet accurately5. You have two channel options. This means you and afriend can fly two planes at the same time and put theEagle Jet through its paces in Fighter Mode.6. You can easily fine tune your flying performance usingthe trim button which is designed and located for easyuse during flight.This product is in compliance with essential requirementsand other provisions of Directive 1995/5/EC.4 PAGE

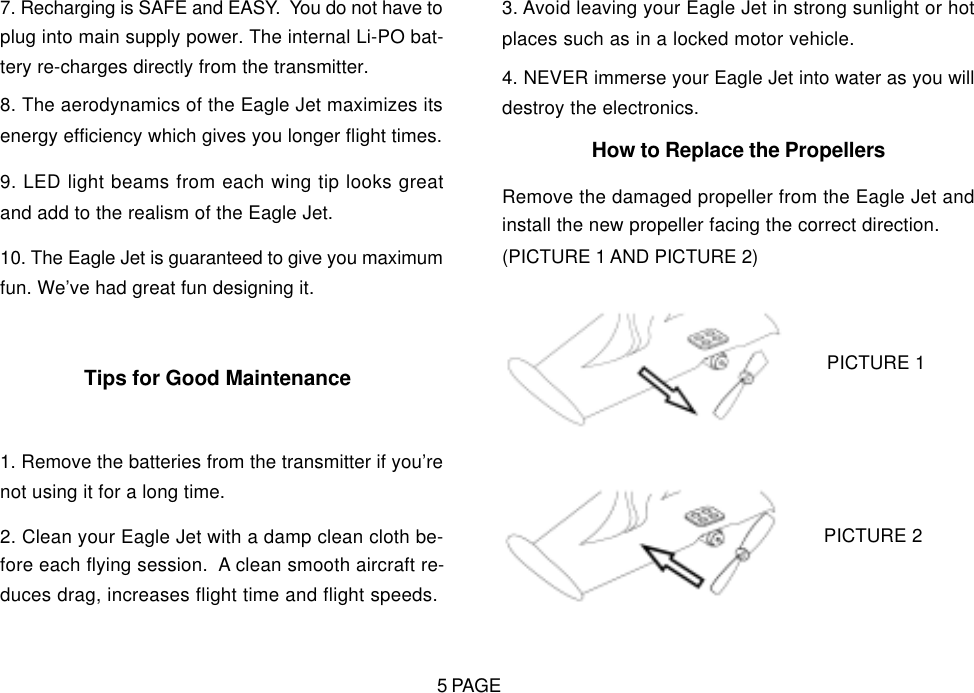

7. Recharging is SAFE and EASY. You do not have toplug into main supply power. The internal Li-PO bat-tery re-charges directly from the transmitter.8. The aerodynamics of the Eagle Jet maximizes itsenergy efficiency which gives you longer flight times.9. LED light beams from each wing tip looks greatand add to the realism of the Eagle Jet.10. The Eagle Jet is guaranteed to give you maximumfun. We’ve had great fun designing it.Tips for Good Maintenance1. Remove the batteries from the transmitter if you’renot using it for a long time.2. Clean your Eagle Jet with a damp clean cloth be-fore each flying session. A clean smooth aircraft re-duces drag, increases flight time and flight speeds.3. Avoid leaving your Eagle Jet in strong sunlight or hotplaces such as in a locked motor vehicle.4. NEVER immerse your Eagle Jet into water as you willdestroy the electronics.How to Replace the PropellersRemove the damaged propeller from the Eagle Jet andinstall the new propeller facing the correct direction.(PICTURE 1 AND PICTURE 2)PICTURE 1PICTURE 25 PAGE

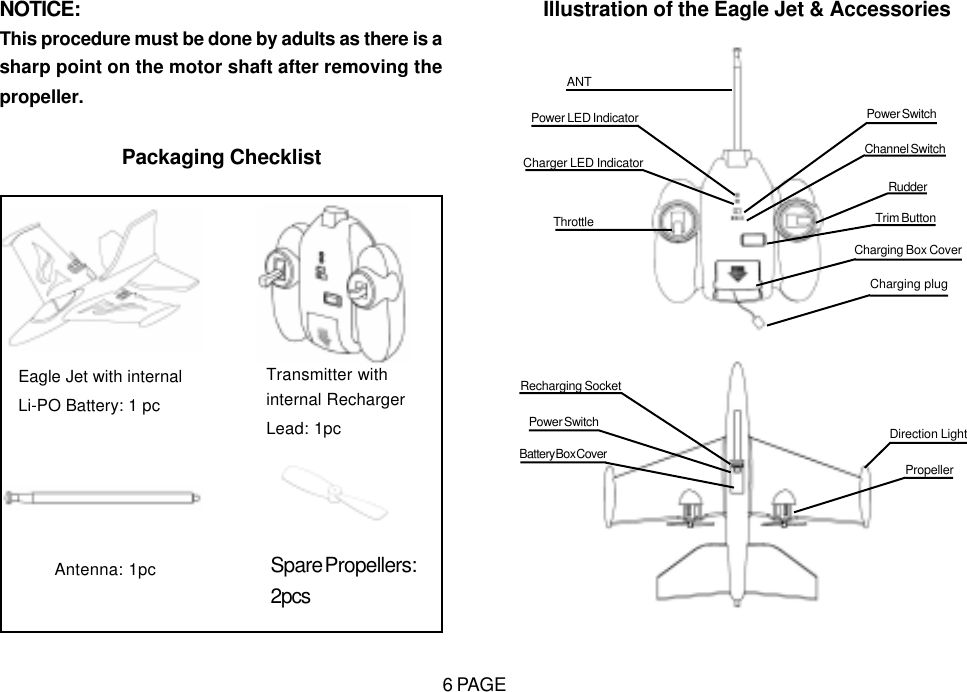

NOTICE:This procedure must be done by adults as there is asharp point on the motor shaft after removing thepropeller.Packaging ChecklistEagle Jet with internalLi-PO Battery: 1 pcTransmitter withinternal RechargerLead: 1pcAntenna: 1pc Spare Propellers:2pcsIllustration of the Eagle Jet & AccessoriesPower LED IndicatorCharger LED IndicatorThrottlePower SwitchChannel SwitchRudderTrim ButtonCharging Box CoverCharging plugRecharging SocketDirection LightPropellerPower SwitchBattery Box Cover6 PAGEANT
Battery Requirements for the Eagle Jet:Battery Requirements for the transmitterPower supply: DCPower: DC 3.7V, 5.2WBattery: 1 X 3.7V Li-PO, rechargeable(included inside the Eagle Jet)Power supply: DCPower: DC9V, 2.8WBattery: 6 x 1.5V, “AA”/LR6/AM3 Alkaline battery (notincluded), alternatively you could use 1.5V “AA” re-chargeable batteries which are more environmentallyfriendly and a less costly option.Battery Installation and Recharging1. Use the screwdriver to turnanti-clockwise to open the bat-tery cover.(PICTURE 1)PICTURE 1PICTURE 3PICTURE 22. Install 6pcs of “AA” alkalinebatteries with correctpolarities.(PICTURE 2)3. Close the battery cover byscrewing it clockwise with thescrewdriver.(PICTURE 3)7 PAGE

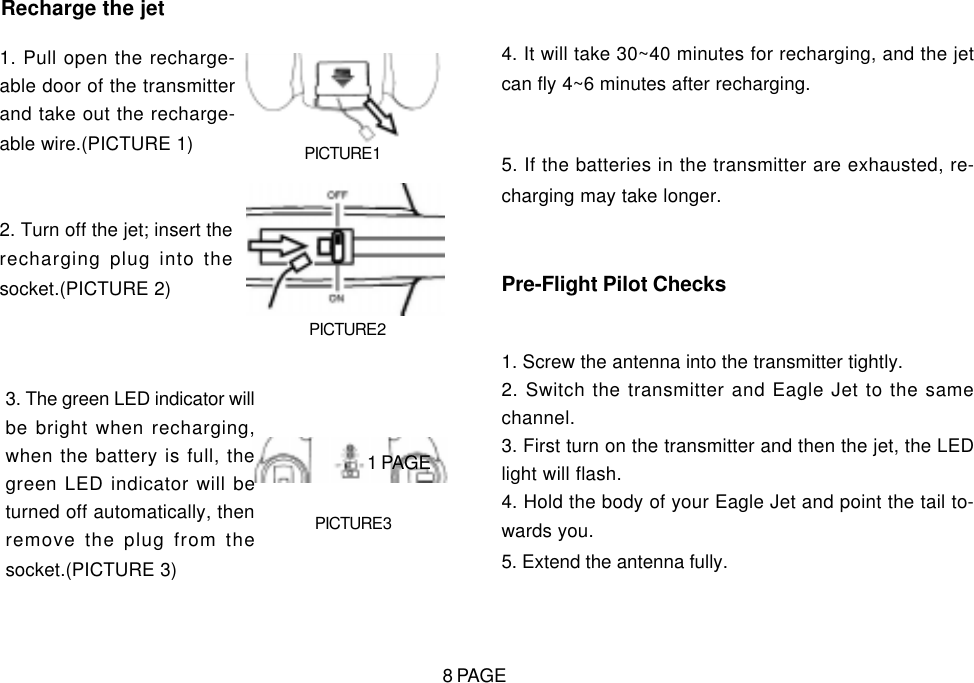

Recharge the jet1. Pull open the recharge-able door of the transmitterand take out the recharge-able wire.(PICTURE 1) PICTURE 12. Turn off the jet; insert therecharging plug into thesocket.(PICTURE 2)PICTURE 23. The green LED indicator willbe bright when recharging,when the battery is full, thegreen LED indicator will beturned off automatically, thenremove the plug from thesocket.(PICTURE 3)PICTURE 34. It will take 30~40 minutes for recharging, and the jetcan fly 4~6 minutes after recharging.5. If the batteries in the transmitter are exhausted, re-charging may take longer.Pre-Flight Pilot Checks1. Screw the antenna into the transmitter tightly.2. Switch the transmitter and Eagle Jet to the samechannel.3. First turn on the transmitter and then the jet, the LEDlight will flash.4. Hold the body of your Eagle Jet and point the tail to-wards you.5. Extend the antenna fully.1 PAGE8 PAGE

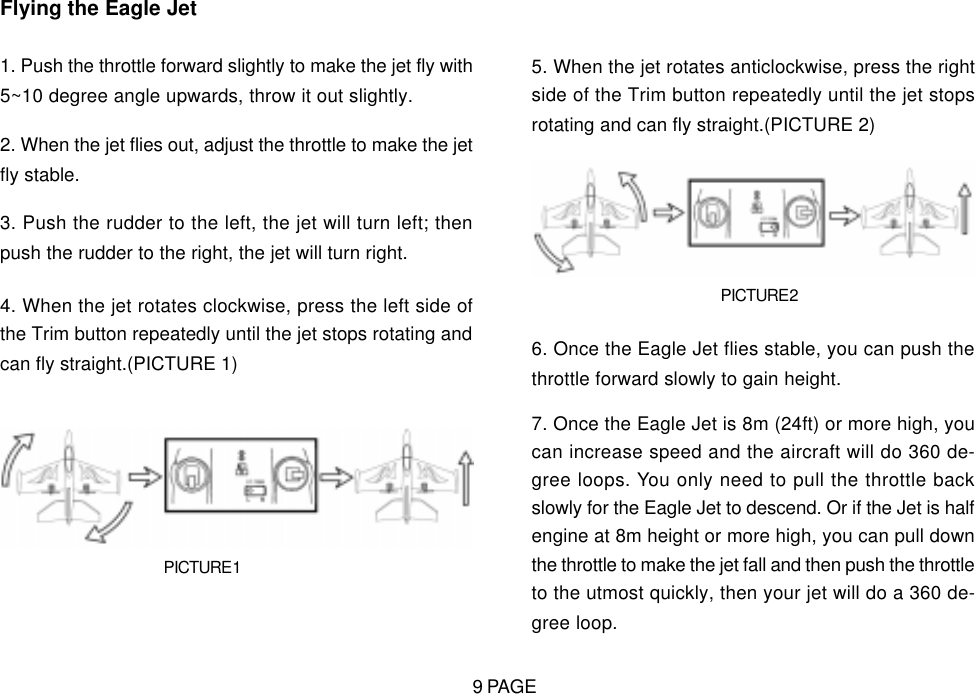

Flying the Eagle Jet1. Push the throttle forward slightly to make the jet fly with5~10 degree angle upwards, throw it out slightly.2. When the jet flies out, adjust the throttle to make the jetfly stable.3. Push the rudder to the left, the jet will turn left; thenpush the rudder to the right, the jet will turn right.4. When the jet rotates clockwise, press the left side ofthe Trim button repeatedly until the jet stops rotating andcan fly straight.(PICTURE 1)PICTURE 15. When the jet rotates anticlockwise, press the rightside of the Trim button repeatedly until the jet stopsrotating and can fly straight.(PICTURE 2)PICTURE 26. Once the Eagle Jet flies stable, you can push thethrottle forward slowly to gain height.7. Once the Eagle Jet is 8m (24ft) or more high, youcan increase speed and the aircraft will do 360 de-gree loops. You only need to pull the throttle backslowly for the Eagle Jet to descend. Or if the Jet is halfengine at 8m height or more high, you can pull downthe throttle to make the jet fall and then push the throttleto the utmost quickly, then your jet will do a 360 de-gree loop.9 PAGE

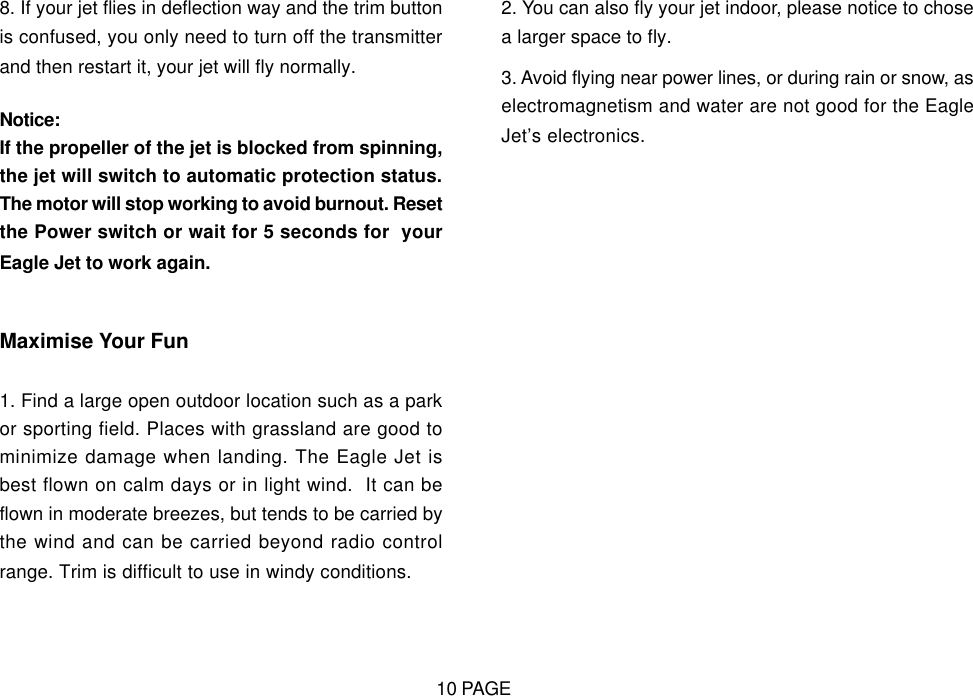

8. If your jet flies in deflection way and the trim buttonis confused, you only need to turn off the transmitterand then restart it, your jet will fly normally.Notice:If the propeller of the jet is blocked from spinning,the jet will switch to automatic protection status.The motor will stop working to avoid burnout. Resetthe Power switch or wait for 5 seconds for yourEagle Jet to work again.Maximise Your Fun1. Find a large open outdoor location such as a parkor sporting field. Places with grassland are good tominimize damage when landing. The Eagle Jet isbest flown on calm days or in light wind. It can beflown in moderate breezes, but tends to be carried bythe wind and can be carried beyond radio controlrange. Trim is difficult to use in windy conditions.2. You can also fly your jet indoor, please notice to chosea larger space to fly.3. Avoid flying near power lines, or during rain or snow, aselectromagnetism and water are not good for the EagleJet’s electronics.10 PAGE

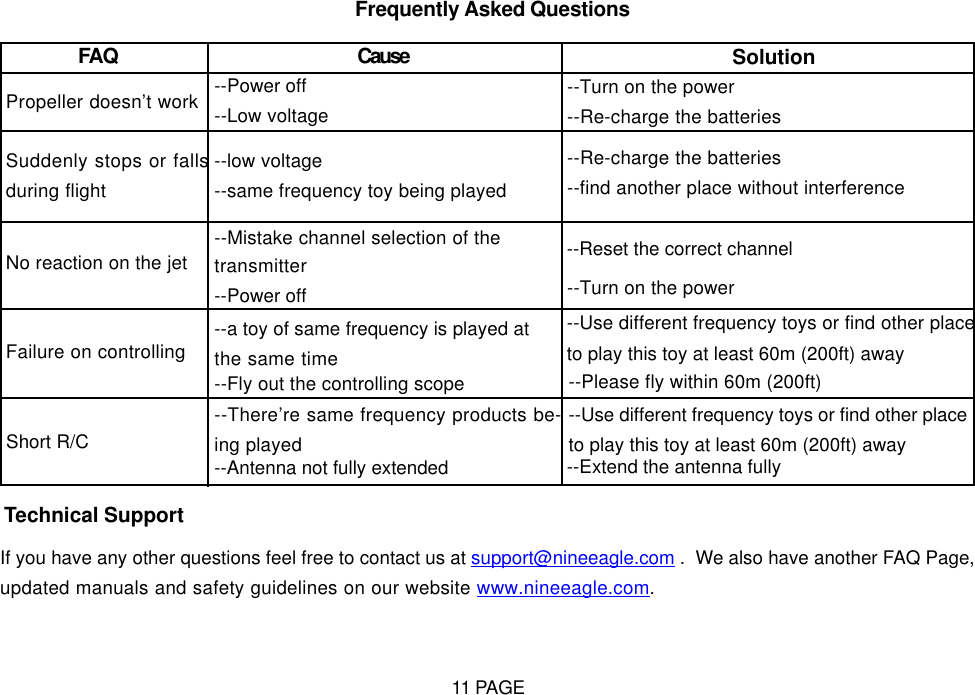

Frequently Asked QuestionsTechnical SupportIf you have any other questions feel free to contact us at support@nineeagle.com . We also have another FAQ Page,updated manuals and safety guidelines on our website www.nineeagle.com.FAQ Cause SolutionPropeller doesn’t workSuddenly stops or fallsduring flightNo reaction on the jetFailure on controllingShort R/C--Power off--Low voltage--low voltage--same frequency toy being played--Mistake channel selection of thetransmitter--Power off--a toy of same frequency is played atthe same time--Fly out the controlling scope--There’re same frequency products be-ing played--Antenna not fully extended--Turn on the power--Re-charge the batteries--Re-charge the batteries--find another place without interference--Reset the correct channel--Turn on the power--Use different frequency toys or find other placeto play this toy at least 60m (200ft) away--Please fly within 60m (200ft)--Use different frequency toys or find other placeto play this toy at least 60m (200ft) away--Extend the antenna fully11 PAGE
