Nine Eagles Electronic Technology SR12316899 Radio Control User Manual X6 2011 04 25

Shanghai Nine Eagles Electronic Technology Co., Ltd. Radio Control X6 2011 04 25

Users Manual

X6Operation and Instruction of 6-channel TX

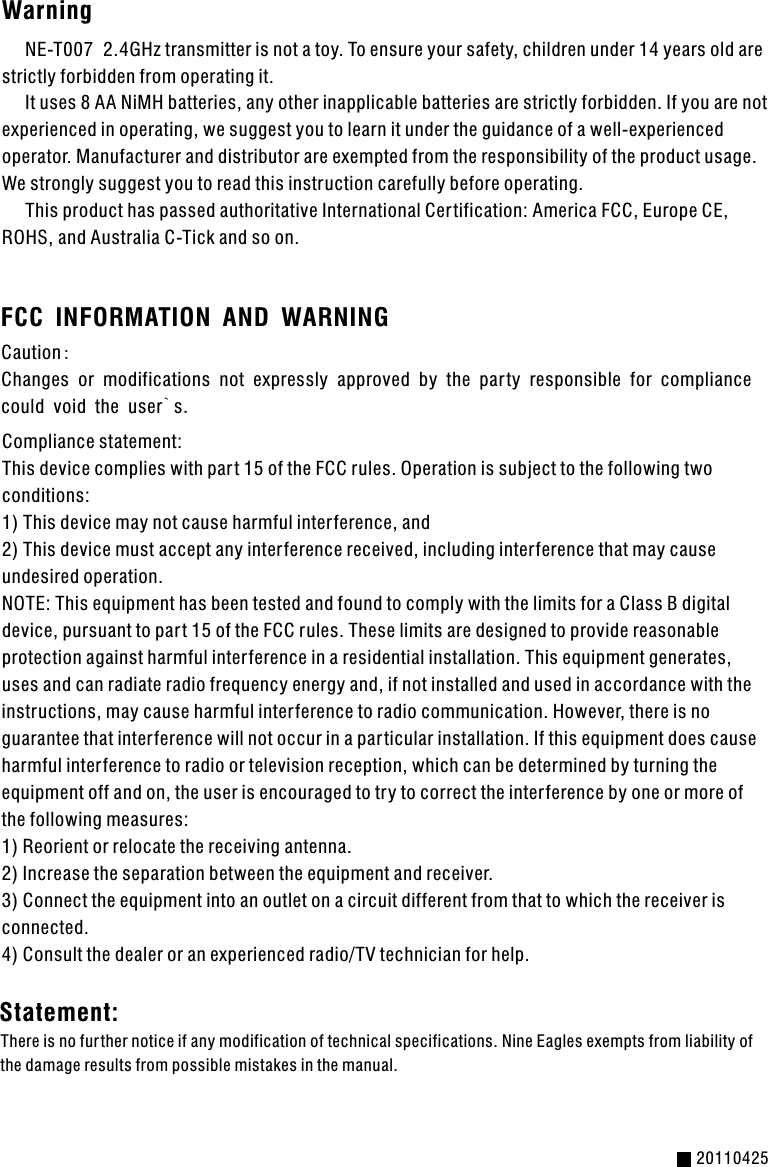

Warning      NE-T007  2.4GHz transmitter is not a toy. To ensure your safety, children under 14 years old are strictly forbidden from operating it.     It uses 8 AA NiMH batteries, any other inapplicable batteries are strictly forbidden. If you are not experienced in operating, we suggest you to learn it under the guidance of a well-experienced operator. Manufacturer and distributor are exempted from the responsibility of the product usage. We strongly suggest you to read this instruction carefully before operating.     This product has passed authoritative International Certification: America FCC, Europe CE, ROHS, and Australia C-Tick and so on.Caution:Changes or modifications not expressly approved by the par ty responsible for compliance could void the user`s.Compliance statement:This device complies with par t 15 of the FCC rules. Operation is subject to the following two  conditions:1) This device may not cause harmful interference, and2) This device must accept any interference received, including inter ference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to par t 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful inter ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter ference to radio communication. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful inter ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1) Reorient or relocate the receiving antenna.2) Increase the separation between the equipment and receiver.3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4) Consult the dealer or an experienced radio/TV technician for help.20110425FCC INFORMATION AND WARNINGThere is no fur ther notice if any modification of technical specifications. Nine Eagles exempts from liability of the damage results from possible mistakes in the manual. Statement:

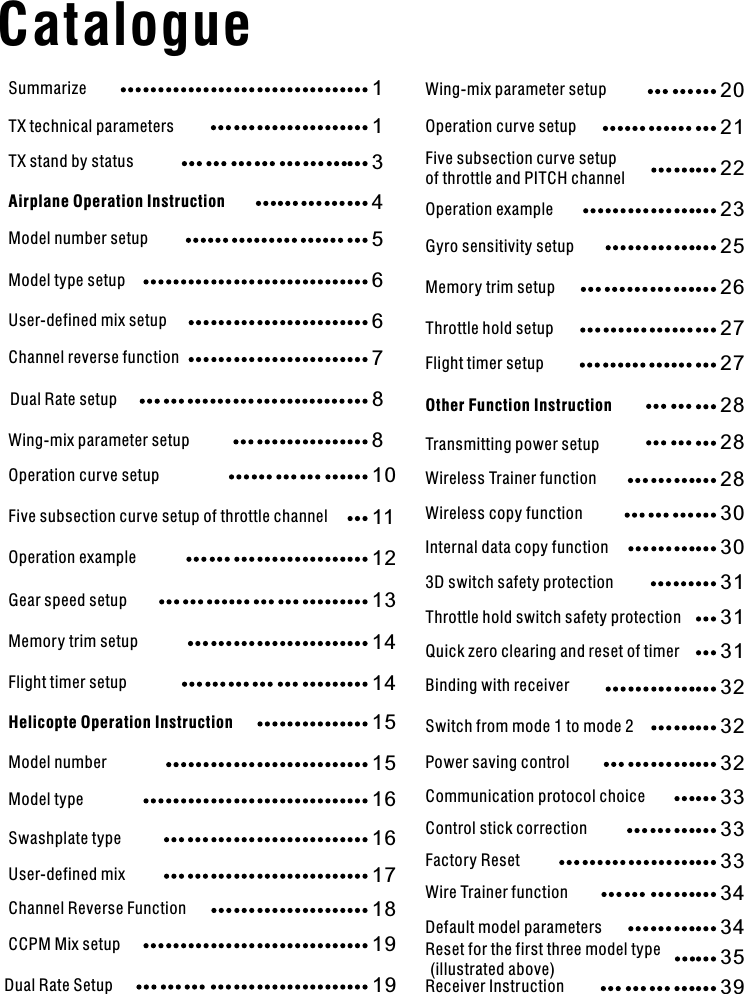

CatalogueSummarize 1TX technical parameters 1TX stand by status 3Airplane Operation Instruction 4Model number setup 5Model type setup 6User-defined mix setup 6Channel reverse function 7 Dual Rate setup 8Wing-mix parameter setup 8Operation curve setup 10Five subsection curve setup of throttle channel 11Operation example   12Gear speed setup 13 Memory trim setup 14 Flight timer setup 14Helicopte Operation Instruction 15Model number 15 Model type 16 Swashplate type 16User-defined mix 17 Channel Reverse Function 18 CCPM Mix setup 19Dual Rate Setup 19Wing-mix parameter setup 20 Operation curve setup 21 Five subsection curve setup of throttle and PITCH channel 22Operation example 23Gyro sensitivity setup 25 Memory trim setup 26 Throttle hold setup 27 Flight timer setup 27Other Function Instruction 28 Wireless Trainer function 28 Wireless copy function 30 Internal data copy function 30 3D switch safety protection 31 Throttle hold switch safety protection 31  Quick zero clearing and reset of timer 31Binding with receiver 32 Switch from mode 1 to mode 2 32Power saving control 32 Communication protocol choice 33Control stick correction 33Factory Reset 33Wire Trainer function 34Default model parameters  34Reset for the first three model type (illustrated above) 35Receiver Instruction  39 Transmitting power setup 28

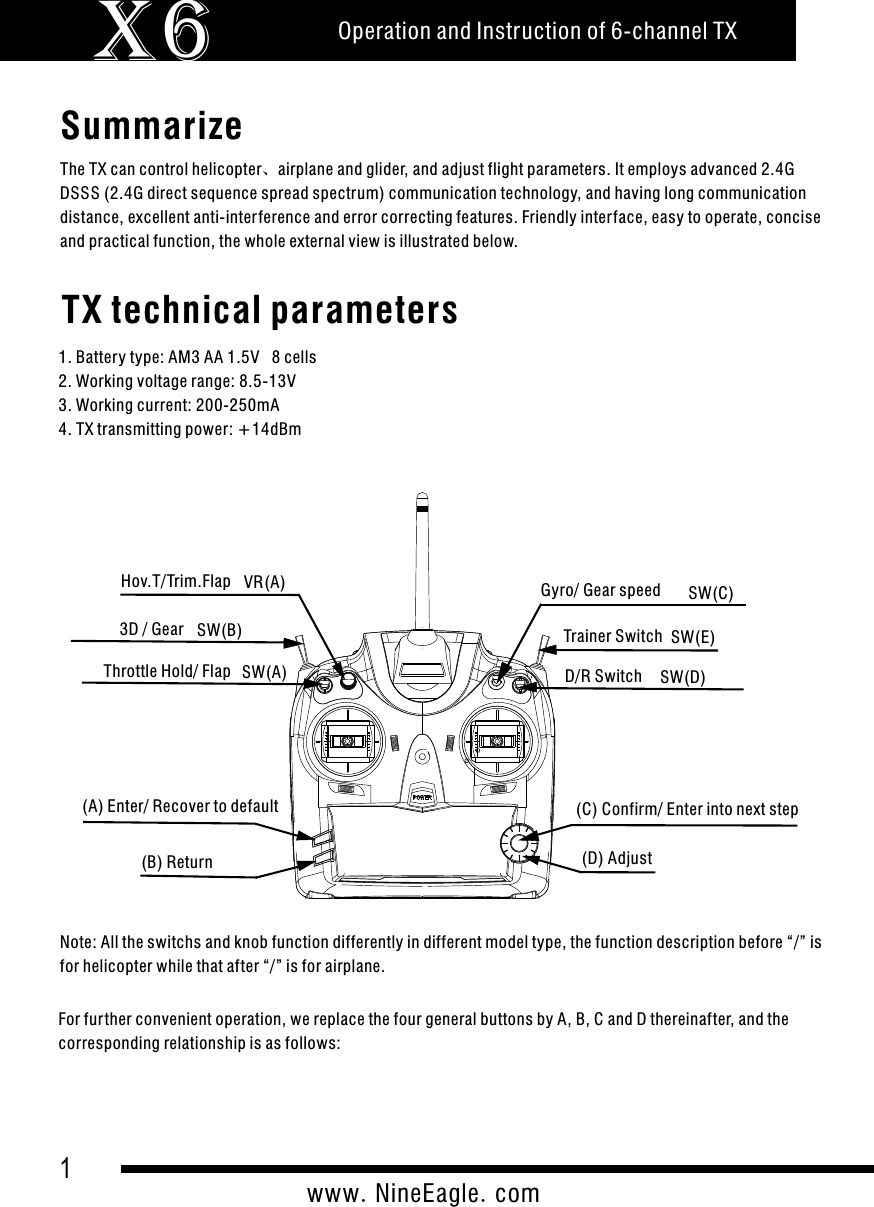

1www.NineEagle.comOperation and Instruction of 6-channel TXX6SummarizeThe TX can control helicopter、airplane and glider, and adjust flight parameters. It employs advanced 2.4G DSSS (2.4G direct sequence spread spectrum) communication technology, and having long communication distance, excellent anti-interference and error correcting features. Friendly interface, easy to operate, concise and practical function, the whole external view is illustrated below.TX technical parameters1. Battery type: AM3 AA 1.5V   8 cells2. Working voltage range: 8.5-13V3. Working current: 200-250mA4. TX transmitting power: +14dBmGyro/ Gear speed Trainer SwitchD/R Switch(C) Confirm/ Enter into next step(D) AdjustSW(C)SW(E)SW(D)Hov.T/Trim.Flap 3D / GearThrottle Hold/ Flap(A) Enter/ Recover to default (B) ReturnSW(A)SW(B)VR(A)Note: All the switchs and knob function differently in different model type, the function description before “/” is for helicopter while that after “/” is for airplane.For fur ther convenient operation, we replace the four general buttons by A, B, C and D thereinafter, and the corresponding relationship is as follows:

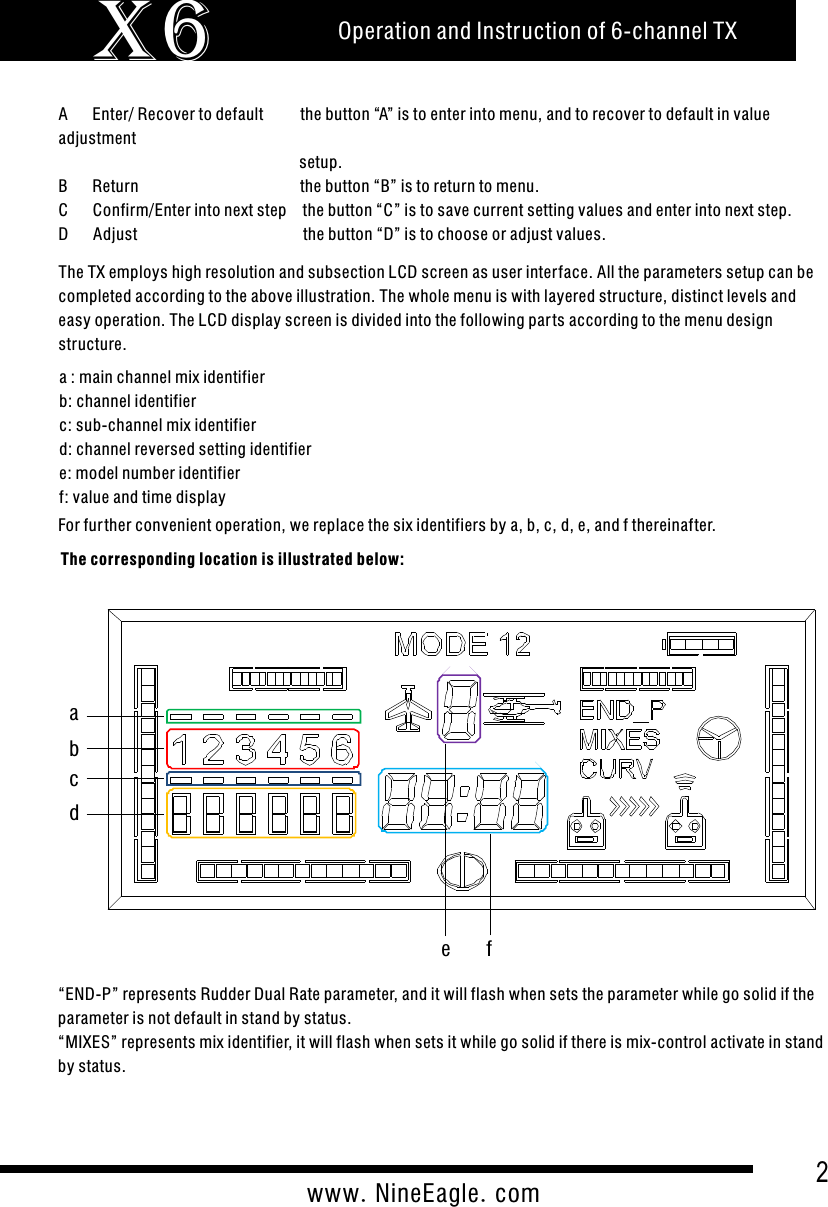

2www.NineEagle.comOperation and Instruction of 6-channel TXX6A      Enter/ Recover to default         the button “A” is to enter into menu, and to recover to default in value adjustment                                                                      setup.B      Return                                       the button “B” is to return to menu.C      Confirm/Enter into next step    the button “C” is to save current setting values and enter into next step.D      Adjust                                        the button “D” is to choose or adjust values.The TX employs high resolution and subsection LCD screen as user interface. All the parameters setup can be completed according to the above illustration. The whole menu is with layered structure, distinct levels and easy operation. The LCD display screen is divided into the following par ts according to the menu design structure.a : main channel mix identifier b: channel identifier     c: sub-channel mix identifier        d: channel reversed setting identifiere: model number identifierf: value and time displayFor fur ther convenient operation, we replace the six identifiers by a, b, c, d, e, and f thereinafter.The corresponding location is illustrated below: abcdef“END-P” represents Rudder Dual Rate parameter, and it will flash when sets the parameter while go solid if the parameter is not default in stand by status.“MIXES” represents mix identifier, it will flash when sets it while go solid if there is mix-control activate in stand by status.

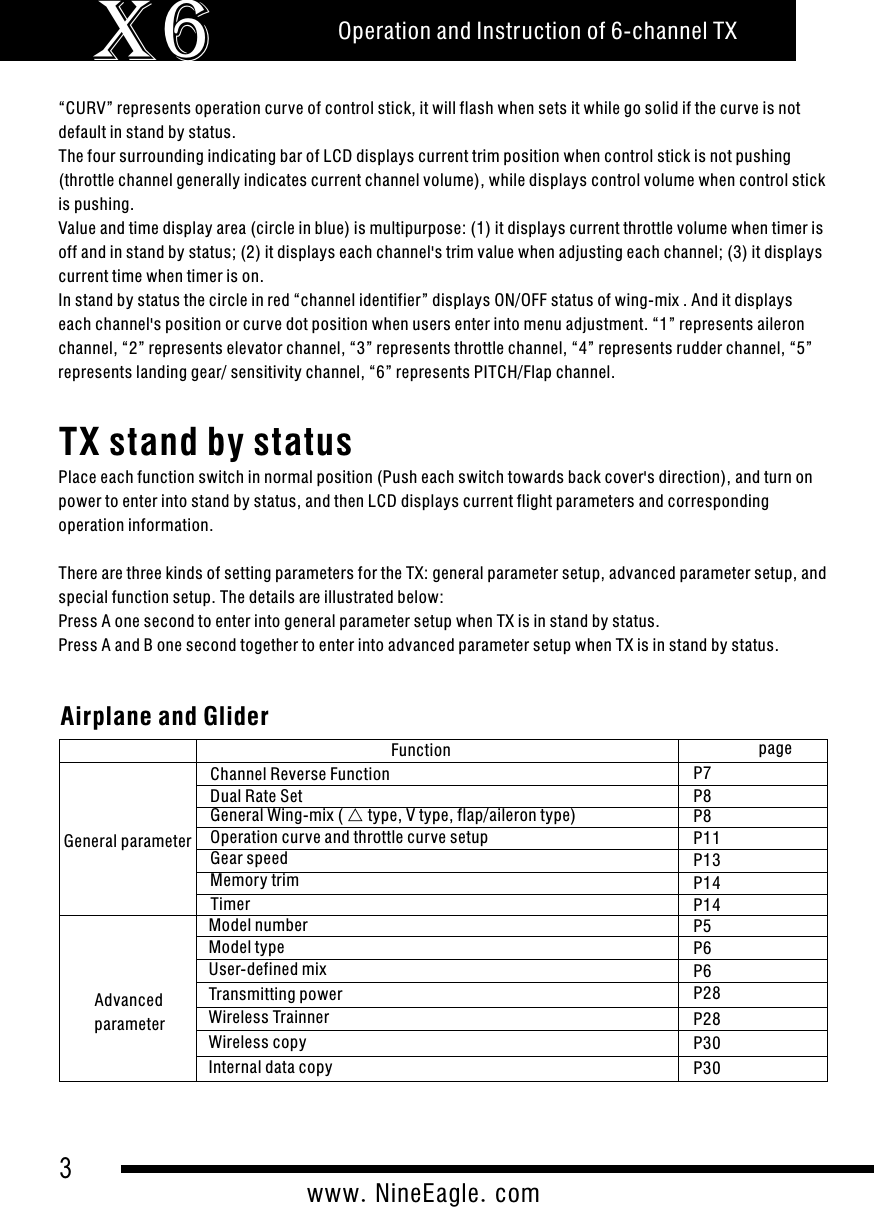

3www.NineEagle.comOperation and Instruction of 6-channel TXX6“CURV” represents operation curve of control stick, it will flash when sets it while go solid if the curve is not default in stand by status.The four surrounding indicating bar of LCD displays current trim position when control stick is not pushing (throttle channel generally indicates current channel volume), while displays control volume when control stick is pushing.Value and time display area (circle in blue) is multipurpose: (1) it displays current throttle volume when timer is off and in stand by status; (2) it displays each channel's trim value when adjusting each channel; (3) it displays current time when timer is on.In stand by status the circle in red “channel identifier” displays ON/OFF status of wing-mix . And it displays each channel's position or curve dot position when users enter into menu adjustment. “1” represents aileron channel, “2” represents elevator channel, “3” represents throttle channel, “4” represents rudder channel, “5” represents landing gear/ sensitivity channel, “6” represents PITCH/Flap channel.TX stand by statusPlace each function switch in normal position (Push each switch towards back cover's direction), and turn on power to enter into stand by status, and then LCD displays current flight parameters and corresponding operation information.There are three kinds of setting parameters for the TX: general parameter setup, advanced parameter setup, and special function setup. The details are illustrated below:Press A one second to enter into general parameter setup when TX is in stand by status.Press A and B one second together to enter into advanced parameter setup when TX is in stand by status.Airplane and GliderFunction pageGeneral parameterChannel Reverse FunctionDual Rate SetGeneral Wing-mix ( △ type, V type, flap/aileron type)Operation curve and throttle curve setupGear speed Memory trimTimerAdvanced parameterModel numberModel typeUser-defined mixTransmitting powerWireless TrainnerWireless copyInternal data copyP7P8P8P11P13P14P14P5P6P6P28P28P30P30

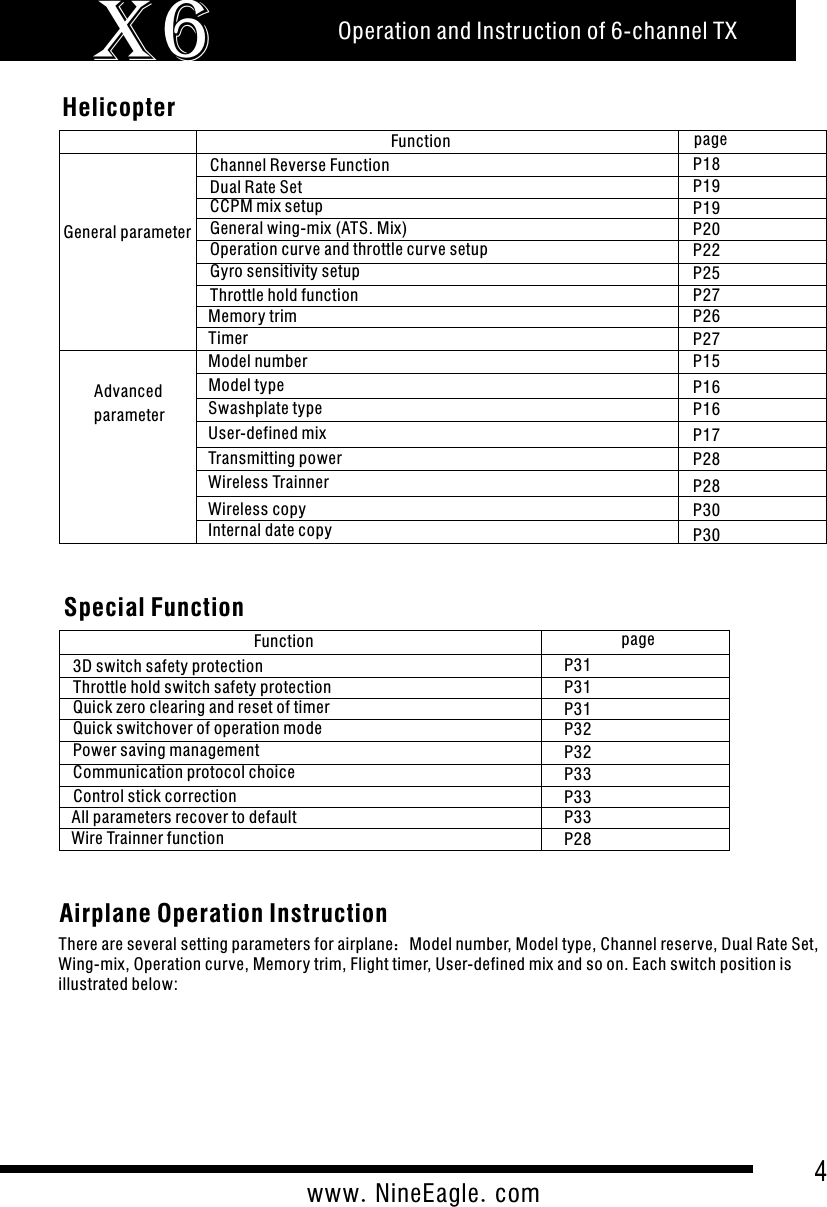

4www.NineEagle.comOperation and Instruction of 6-channel TXX6HelicopterFunction pageGeneral parameterChannel Reverse FunctionDual Rate SetCCPM mix setupGeneral wing-mix (ATS. Mix)Operation curve and throttle curve setupGyro sensitivity setupThrottle hold functionAdvanced parameterMemory trimTimerModel numberModel typeSwashplate typeUser-defined mix Transmitting power P18Wireless TrainnerWireless copyInternal date copySpecial FunctionFunction page3D switch safety protection Throttle hold switch safety protectionQuick zero clearing and reset of timerQuick switchover of operation modePower saving managementCommunication protocol choice Control stick correctionAll parameters recover to defaultWire Trainner functionAirplane Operation InstructionThere are several setting parameters for airplane:Model number, Model type, Channel reserve, Dual Rate Set, Wing-mix, Operation curve, Memory trim, Flight timer, User-defined mix and so on. Each switch position is illustrated below:P19P19P20P22P25P27P26P27P15P16P16P17P28P28P30P30P31P31P31P32P32P33P33P33P28

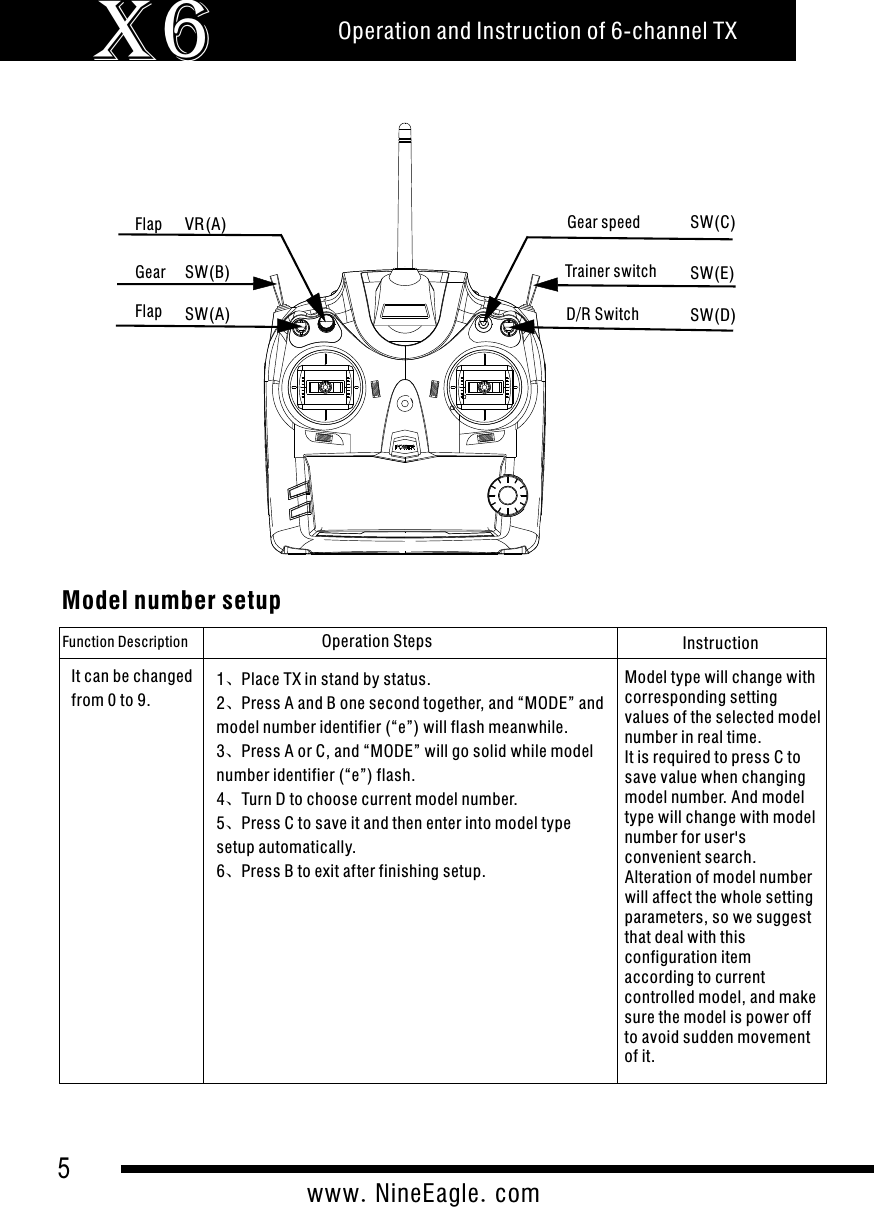

5www.NineEagle.comOperation and Instruction of 6-channel TXX6Gear speedTrainer switch D/R SwitchSW(C)SW(E)SW(D) FlapGearFlap VR(A)SW(B)SW(A)Model number setupFunction Description Operation Steps InstructionIt can be changedfrom 0 to 9.1、Place TX in stand by status.2、Press A and B one second together, and “MODE” and model number identifier (“e”) will flash meanwhile.3、Press A or C, and “MODE” will go solid while model number identifier (“e”) flash.4、Turn D to choose current model number.5、Press C to save it and then enter into model type setup automatically.6、Press B to exit after finishing setup.Model type will change with corresponding setting values of the selected model number in real time.It is required to press C to save value when changing model number. And model type will change with model number for user's convenient search.Alteration of model number will affect the whole setting parameters, so we suggest that deal with this configuration item according to current controlled model, and make sure the model is power off to avoid sudden movement of it.

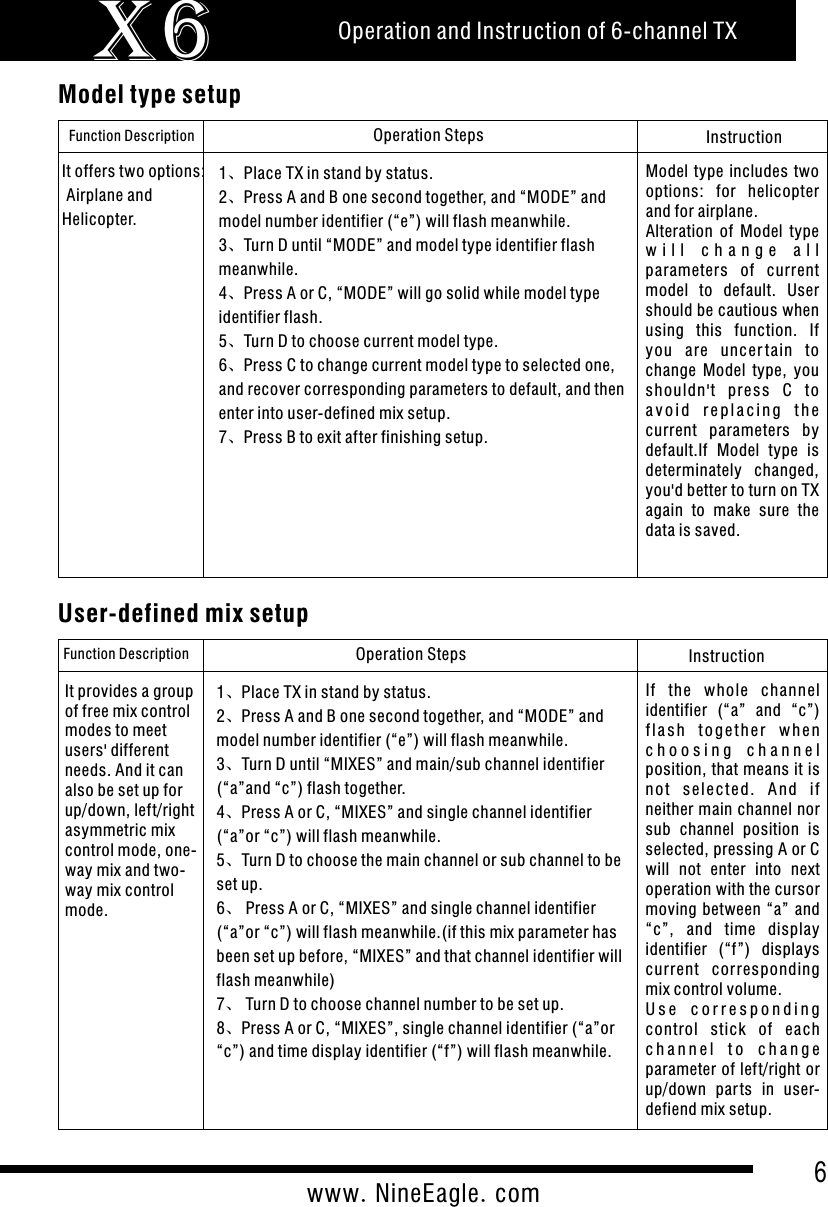

6www.NineEagle.comOperation and Instruction of 6-channel TXX6Model type setupFunction Description Operation Steps InstructionIt offers two options: Airplane and Helicopter.1、Place TX in stand by status.2、Press A and B one second together, and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn D until “MODE” and model type identifier flash meanwhile.4、Press A or C, “MODE” will go solid while model type identifier flash.5、Turn D to choose current model type.6、Press C to change current model type to selected one, and recover corresponding parameters to default, and then enter into user-defined mix setup.7、Press B to exit after finishing setup.Model  type includes  two options:  for  helicopter and for airplane.Alteration  of  Model  type w i l l   c h a n g e   a l l  parameters  of  current model  to  default.  User should be cautious when using  this  function.  If you  are  uncer tain  to change  Model  type,  you shouldn't  press  C  to a v o i d  r e p l a c i n g  t h e current  parameters  by default.If  Model  type  is determinately  changed, you'd better to turn on TX again  to  make  sure  the data is saved.User-defined mix setupFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press A and B one second together, and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn D until “MIXES” and main/sub channel identifier (“a”and “c”) flash together.4、Press A or C, “MIXES” and single channel identifier (“a”or “c”) will flash meanwhile.5、Turn D to choose the main channel or sub channel to be set up.6、 Press A or C, “MIXES” and single channel identifier (“a”or “c”) will flash meanwhile.(if this mix parameter has been set up before, “MIXES” and that channel identifier will flash meanwhile)7、 Turn D to choose channel number to be set up.8、Press A or C, “MIXES”, single channel identifier (“a”or “c”) and time display identifier (“f”) will flash meanwhile.If  the  wh ole  channel identifier  (“a”  and  “c”) f l a s h  t og e t h e r  w h e n c h o o s i n g   c h a n n e l  position, that means it is not  sel e cted.  And  if neither main channel nor sub  channel  position  is selected, pressing A or C will  not  enter  into  next operation with the cursor moving  between  “a”  and “c”,  and  time  display identifier  (“f”)  displays cur rent  cor responding mix control volume.U s e   c o r r e s p o n d i n g  control  stick  of  each c h a n n e l   t o   c h a n g e  parameter of left/right or up/down  par ts  in  user-defiend mix setup.It provides a group of free mix control modes to meet users' different needs. And it can also be set up for up/down, left/right asymmetric mix control mode, one-way mix and two-way mix control mode.

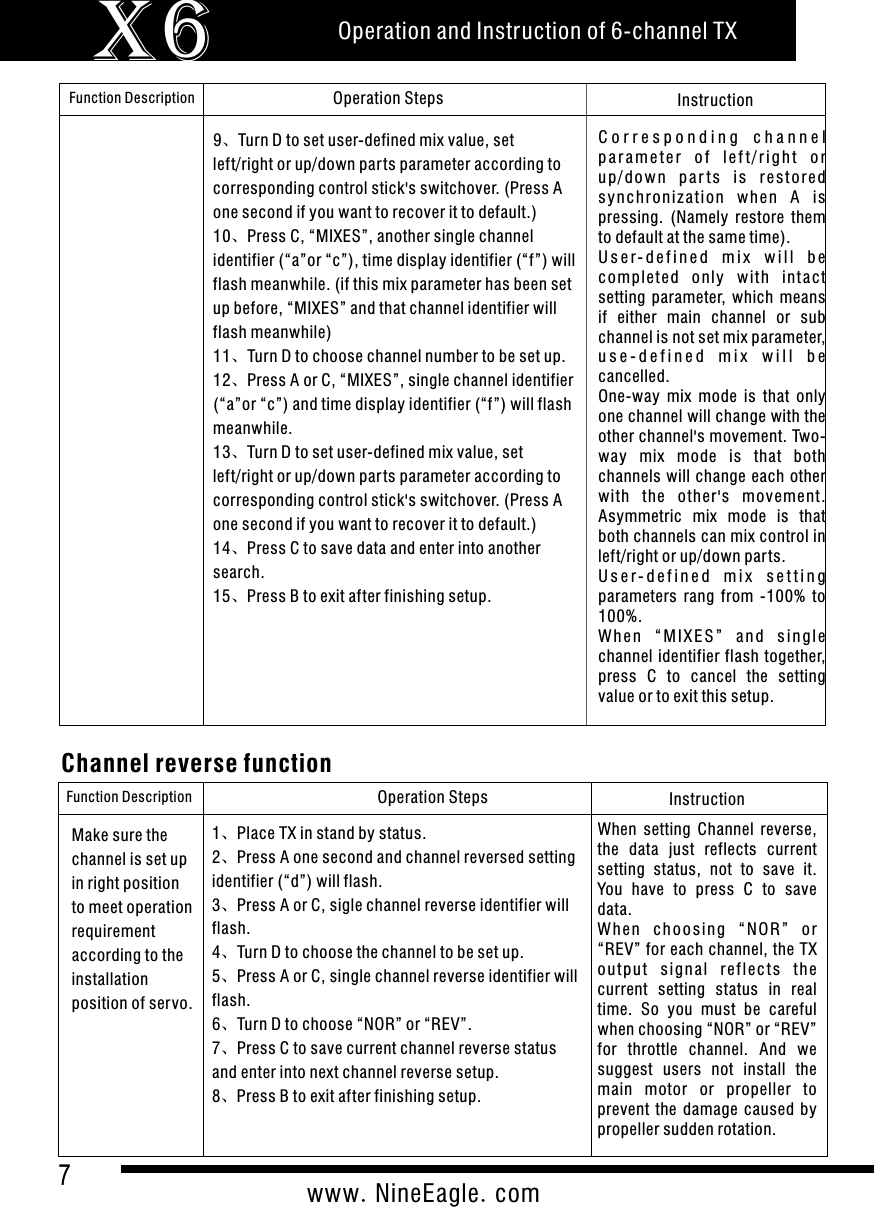

7www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction9、Turn D to set user-defined mix value, set left/right or up/down par ts parameter according to corresponding control stick's switchover. (Press A one second if you want to recover it to default.)10、Press C, “MIXES”, another single channel identifier (“a”or “c”), time display identifier (“f”) will flash meanwhile. (if this mix parameter has been set up before, “MIXES” and that channel identifier will flash meanwhile)11、Turn D to choose channel number to be set up.12、Press A or C, “MIXES”, single channel identifier (“a”or “c”) and time display identifier (“f”) will flash meanwhile.13、Turn D to set user-defined mix value, set left/right or up/down par ts parameter according to corresponding control stick's switchover. (Press A one second if you want to recover it to default.)14、Press C to save data and enter into another search.15、Press B to exit after finishing setup.C o r r e s p o n d i n g   c h a n n e l  p a r a m e t e r  o f  l e f t / r i g h t  o r up/down  par t s  is  r estored sync h roni z ation  whe n  A  is pressing.  (Namely  restore  them to default at the same time). U s e r - d e f i n e d  m i x  w i l l  b e com ple ted  o nly  w ith  i ntac t setting  parameter, which  means if  either  main  channel  or  sub channel is not set mix parameter, u s e - d e f i n e d   m i x   w i l l   b e  cancelled.One-way  mix  mode  is  that  only one channel will change with the other channel's movement. Two- way  mix  mode  is  that  both channels will change each other with  the  other's  movement. Asymmetric  mix  mode  is  that both channels can mix control in left/right or up/down par ts.U s e r - d e f i n e d  m i x   s e t t i n g  parameters  rang  from  -100%  to 100%.W h e n  “ M I X E S ”  a nd  si n g le channel identifier flash together, press  C  to  cancel  the  setting value or to exit this setup.Channel reverse functionFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Press A or C, sigle channel reverse identifier will flash.4、Turn D to choose the channel to be set up.5、Press A or C, single channel reverse identifier will flash.6、Turn D to choose “NOR” or “REV”.7、Press C to save current channel reverse status and enter into next channel reverse setup.8、Press B to exit after finishing setup.When  setting  Channel  reverse, the  data  just  reflects  current setting  status,  not  to  save  it. You  have  to  press  C  to  save data.When  choosing  “NOR”  o r “REV” for each channel, the TX outp u t  sig n a l  r e flect s  the current  setting  status  in  real time.  So  you  must  be  careful when choosing “NOR” or “REV” for  throttle  channel.  And  we suggest  users  not  install  the main  motor  or  propeller  to prevent  the  damage  caused  by propeller sudden rotation.Make sure the channel is set up in right position to meet operation requirement according to the installation position of servo.

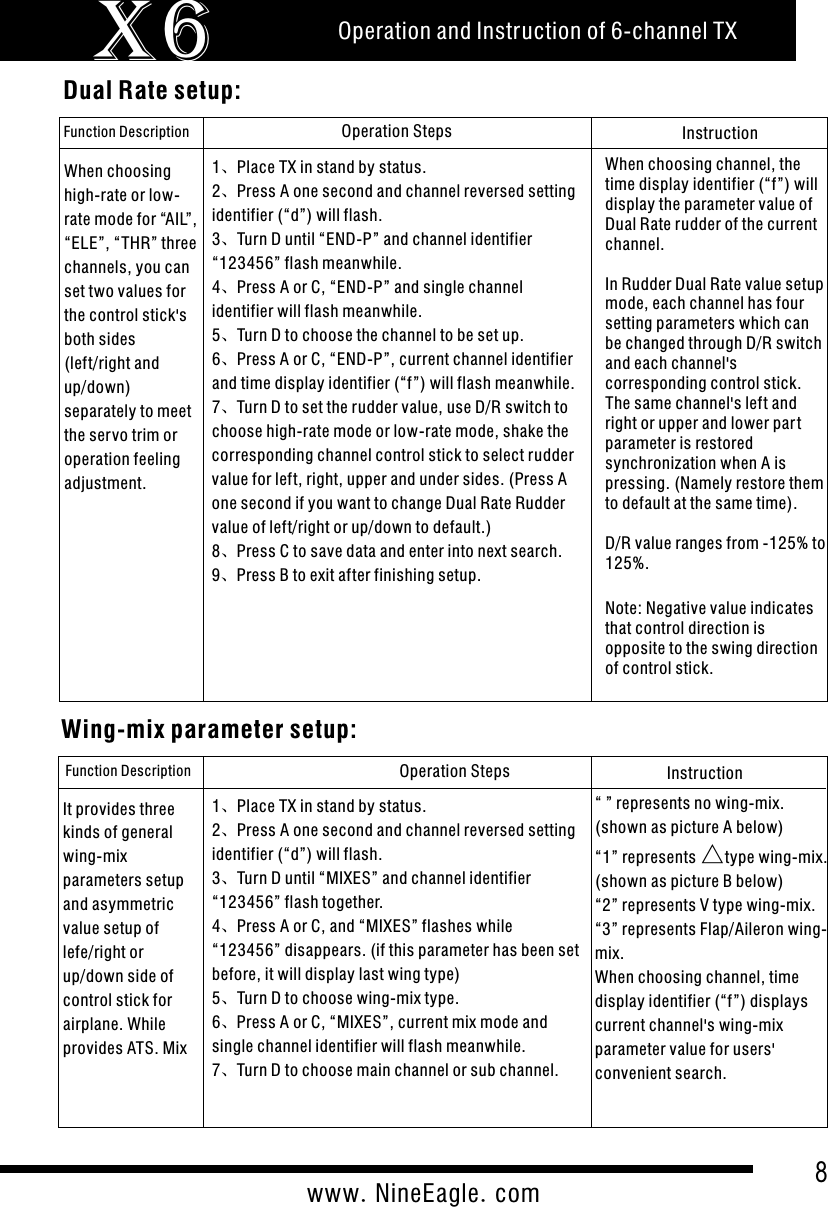

8www.NineEagle.comOperation and Instruction of 6-channel TXX6 Dual Rate setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn D until “END-P” and channel identifier “123456” flash meanwhile.4、Press A or C, “END-P” and single channel identifier will flash meanwhile.5、Turn D to choose the channel to be set up.6、Press A or C, “END-P”, current channel identifier and time display identifier (“f”) will flash meanwhile.7、Turn D to set the rudder value, use D/R switch to choose high-rate mode or low-rate mode, shake the corresponding channel control stick to select rudder value for left, right, upper and under sides. (Press A one second if you want to change Dual Rate Rudder value of left/right or up/down to default.)8、Press C to save data and enter into next search.9、Press B to exit after finishing setup.When choosing channel, the time display identifier (“f”) will display the parameter value of Dual Rate rudder of the current channel.In Rudder Dual Rate value setup mode, each channel has four setting parameters which can be changed through D/R switch and each channel's corresponding control stick. The same channel's left and right or upper and lower par t parameter is restored synchronization when A is pressing. (Namely restore them to default at the same time). D/R value ranges from -125% to 125%.Note: Negative value indicates that control direction is opposite to the swing direction of control stick.When choosing high-rate or low-rate mode for “AIL”, “ELE”, “THR” three channels, you can set two values for the control stick's both sides (left/right and up/down) separately to meet the servo trim or operation feeling adjustment.Wing-mix parameter setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn D until “MIXES” and channel identifier “123456” flash together.4、Press A or C, and “MIXES” flashes while “123456” disappears. (if this parameter has been set before, it will display last wing type)5、Turn D to choose wing-mix type.6、Press A or C, “MIXES”, current mix mode and single channel identifier will flash meanwhile.7、Turn D to choose main channel or sub channel.“ ” represents no wing-mix.(shown as picture A below)“1” represents △type wing-mix.(shown as picture B below)“2” represents V type wing-mix.“3” represents Flap/Aileron wing-mix.When choosing channel, time display identifier (“f”) displays current channel's wing-mix parameter value for users' convenient search.It provides three kinds of general wing-mix parameters setup and asymmetric value setup of lefe/right or up/down side of control stick for airplane. While provides ATS. Mix

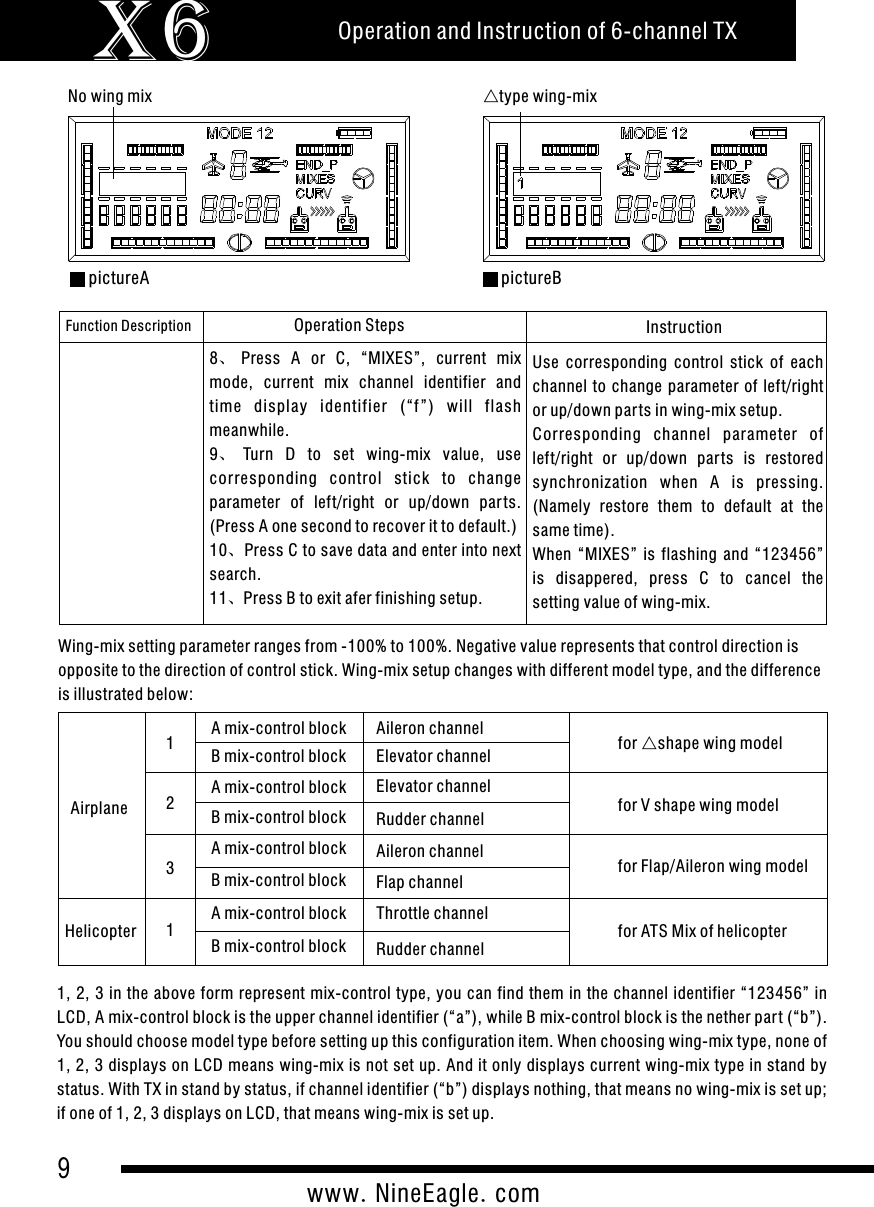

9www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction8、Press  A  or  C,  “MIXES”,  current  mix mode,  current  mix  channel  identifier  and time  display  identifier  (“f ”)  will  flash meanwhile.9、Turn  D  to  set  wing-mix  value,  use corresponding  control  stick  to  change parameter  of  left/right  or  up/down  par ts. (Press A one second to recover it to default.)10、Press C to save data and enter into next search.11、Press B to exit afer finishing setup.Use  corresponding  control  stick  of  each channel  to  change  parameter of left/right or up/down parts in wing-mix setup.Corresponding  channel  parameter  of left/right  or  up/down  par ts  is  restored synchronization  when  A  is  pressing. (Namely  restore  them  to  default  at  the same time). When  “MIXES”  is  flashing  and  “123456” is  disappered,  press  C  to  cancel  the setting value of wing-mix.Wing-mix setting parameter ranges from -100% to 100%. Negative value represents that control direction is opposite to the direction of control stick. Wing-mix setup changes with different model type, and the difference is illustrated below:Airplane123A mix-control blockB mix-control block A mix-control blockB mix-control blockA mix-control blockB mix-control block Aileron channel Elevator channel Elevator channelRudder channel Aileron channel Flap channel for △shape wing model for V shape wing modelfor Flap/Aileron wing modelHelicopter 1A mix-control blockB mix-control block Throttle channel Rudder channel for ATS Mix of helicopter 1, 2, 3 in  the above form represent mix-control type, you can  find them in the  channel  identifier “123456” in LCD, A mix-control block is the upper channel identifier (“a”), while B mix-control block is the nether par t (“b”). You should choose model type before setting up this configuration item. When choosing wing-mix type, none of 1, 2, 3 displays on LCD means wing-mix is not set up. And it only displays current wing-mix type in stand by status. With TX in stand by status, if channel identifier (“b”) displays nothing, that means no wing-mix is set up; if one of 1, 2, 3 displays on LCD, that means wing-mix is set up.No wing mixpictureA△type wing-mixpictureB

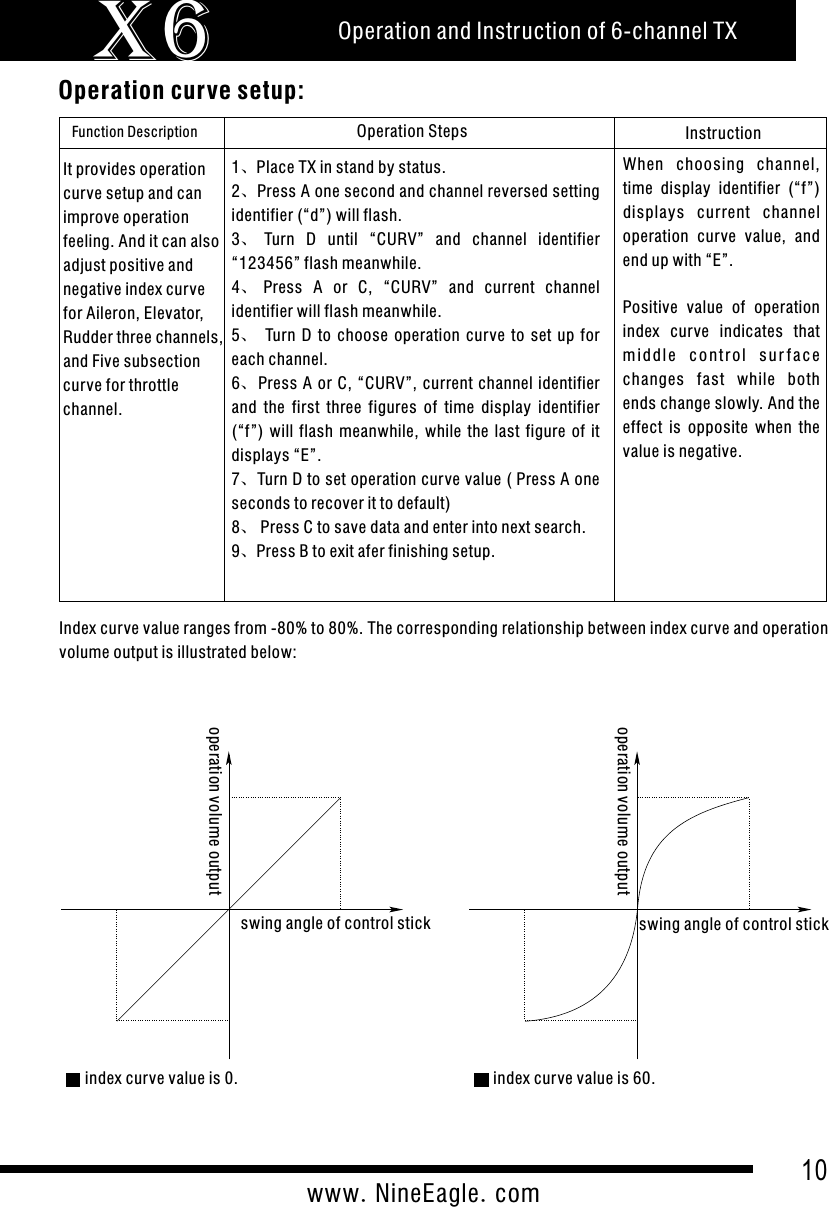

Operation and Instruction of 6-channel TXX610www.NineEagle.comOperation curve setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press  A  or  C,  “CURV”  and  current  channel identifier will flash meanwhile.5、  Turn  D  to  choose  operation  curve  to  set  up  for each channel.6、Press A or C,  “CURV”, current channel identifier and  the  first  three  figures  of  time  display  identifier (“f”)  will  flash  meanwhile,  while  the  last  figure  of  it displays “E”.7、Turn D to set operation curve value ( Press A one seconds to recover it to default)8、 Press C to save data and enter into next search.9、Press B to exit afer finishing setup.When  choosing  channel, time  display  identifier  (“f”) displays  current  channel operation  curve  value,  and end up with “E”.Positive  value  of  operation index  curve  indicates  that m i d d l e  c o n t r o l  s u r f ace changes  fast  while  both ends change slowly. And the effect  is  opposite  when  the value is negative.It provides operation curve setup and can improve operation feeling. And it can also adjust positive and negative index curve for Aileron, Elevator, Rudder three channels, and Five subsection curve for throttle channel.Index curve value ranges from -80% to 80%. The corresponding relationship between index curve and operation volume output is illustrated below:operation volume outputswing angle of control stickindex curve value is 0.operation volume outputswing angle of control stickindex curve value is 60.

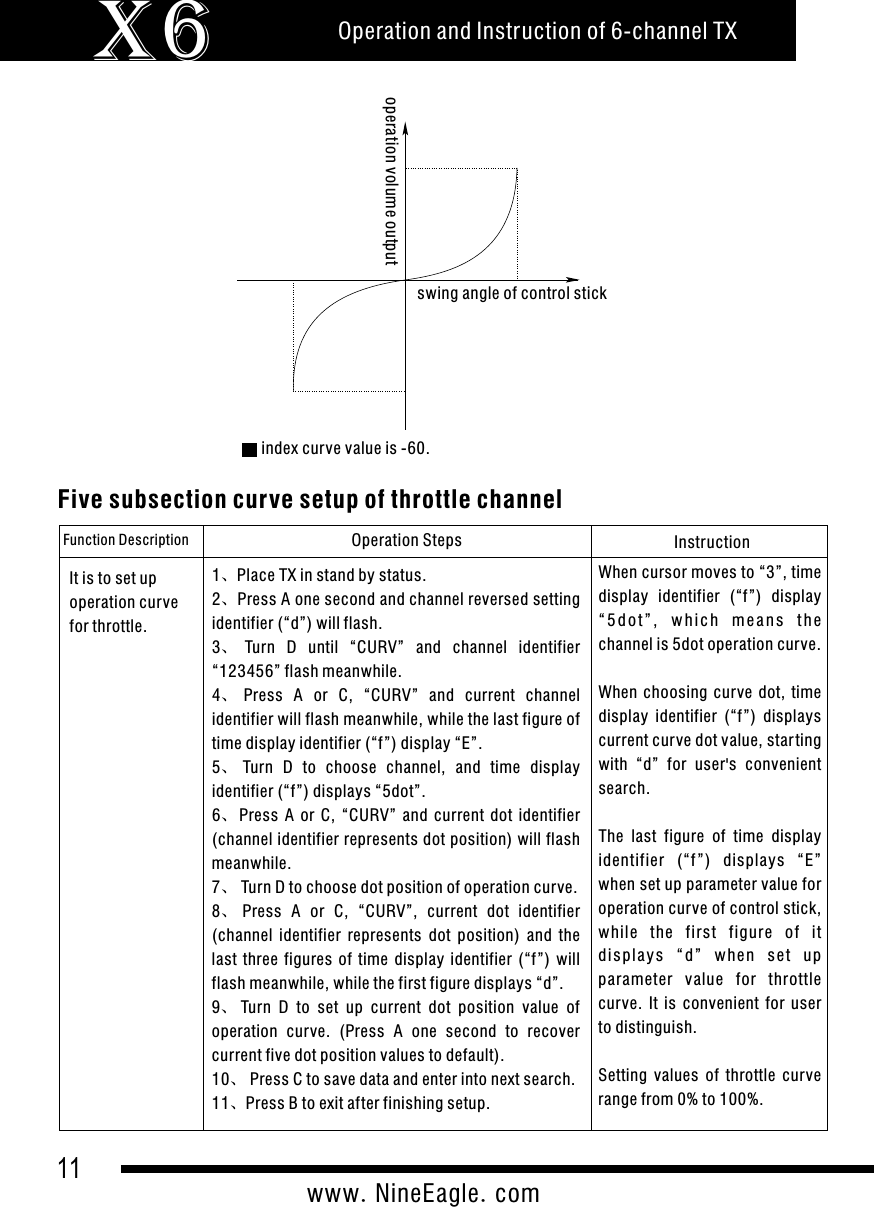

11www.NineEagle.comOperation and Instruction of 6-channel TXX6operation volume outputswing angle of control stickindex curve value is -60.Five subsection curve setup of throttle channel Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press  A  or  C,  “CURV”  and  current  channel identifier will flash meanwhile, while the last figure of time display identifier (“f”) display “E”.5、Turn  D  to  choose  channel,  and  time  display identifier (“f”) displays “5dot”.6、Press  A  or  C,  “CURV”  and  current  dot  identifier (channel identifier represents dot position) will flash meanwhile.7、 Turn D to choose dot position of operation curve.8、Press  A  or  C,  “CURV”,  current  dot  identifier (channel  identifier  represents  dot  position)  and  the last  three  figures  of  time  display  identifier  (“f”)  will flash meanwhile, while the first figure displays “d”.9、Turn  D  to  set  up  current  dot  position  value  of operation  curve.  (Press  A  one  second  to  recover current five dot position values to default).10、 Press C to save data and enter into next search.11、Press B to exit after finishing setup.When cursor moves to “3”, time display  identifier  (“f”)  display “ 5 d o t ” ,  w h i c h  m e a n s  t h e channel is 5dot operation curve.When  choosing  curve  dot,  time display  identifier  (“f”)  displays current curve dot value, star ting with  “d”  for  user's  convenient search.The  last  figure  of  time  display identifier  (“f ”)  displays  “E” when set up parameter value for operation curve of control stick, while  the  first  figure  of  it dis p lays  “d”  w h en  set  up parameter  value  for  throttle curve.  It  is  convenient  for  user to distinguish. Setting  values  of  throttle  curve range from 0% to 100%.It is to set up operation curve for throttle.

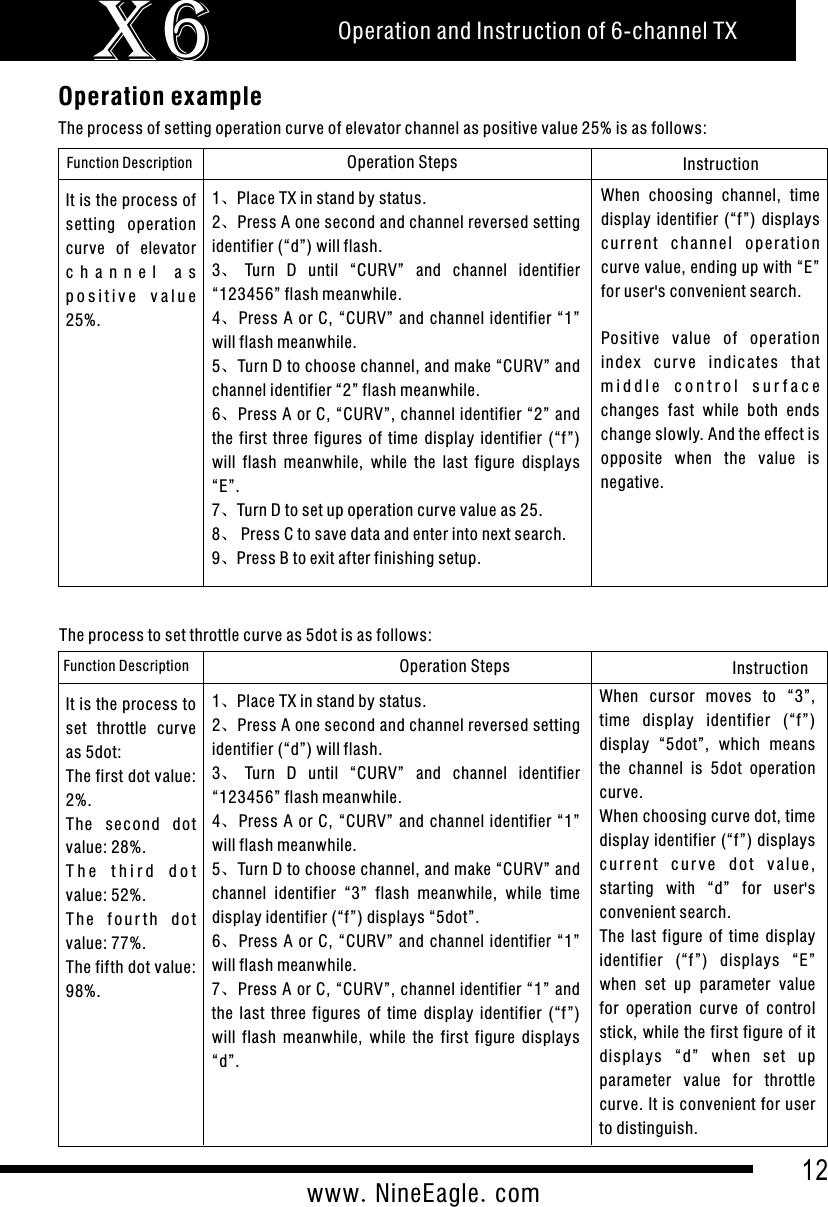

Operation and Instruction of 6-channel TXX612www.NineEagle.comOperation example Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.5、Turn D to choose channel, and make “CURV” and channel identifier “2” flash meanwhile.6、Press A or C, “CURV”, channel identifier “2” and the  first  three  figures  of  time  display  identifier  (“f”) will  flash  meanwhile,  while  the  last  figure  displays “E”.7、Turn D to set up operation curve value as 25.8、 Press C to save data and enter into next search.9、Press B to exit after finishing setup.When  choosing  channel,  time display  identifier  (“f”) displays cur rent  channe l  operat i o n curve value, ending up with “E” for user's convenient search.Positive  value  of  operation in dex  cur ve  ind icates  that m i d d l e  c o n t r o l   s u r f a c e  changes  fast  while  both  ends change slowly. And the effect is opposite  when  the  value  is negative.It is the process of setting  operation curve  of  elevator c h a n n e l   a s  p o s i t i v e   v a l u e  25%.The process of setting operation curve of elevator channel as positive value 25% is as follows:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.5、Turn D to choose channel, and make “CURV” and channel  identifier  “3”  flash  meanwhile,  while  time display identifier (“f”) displays “5dot”.6、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.7、Press A or C, “CURV”, channel identifier “1” and the  last  three  figures  of  time  display  identifier  (“f”) will  flash  meanwhile,  while  the  first  figure  displays “d”.When  cursor  moves  to  “3”, time  display  identifier  (“f”) display  “5dot”,  which  means the  channel  is  5dot  operation curve.When choosing curve dot, time display identifier (“f”) displays c u r r e n t  c u r v e  do t  v a l ue , star ting  with  “d”  for  user's convenient search.The  last  figure  of  time  display identifier  (“f”)  displays  “E” when  set  up  parameter  value for  operation  curve  of  control stick, while the first figure of it displays  “d”  when  set  up parameter  value  for  throttle curve. It is convenient for user to distinguish. It is the process to set  throttle  curve as 5dot:The first dot value: 2%.The  second  dot value: 28%.T h e   t h i r d   d o t  value: 52%.T h e  f o u r t h  d o t value: 77%.The fifth dot value: 98%.The process to set throttle curve as 5dot is as follows:

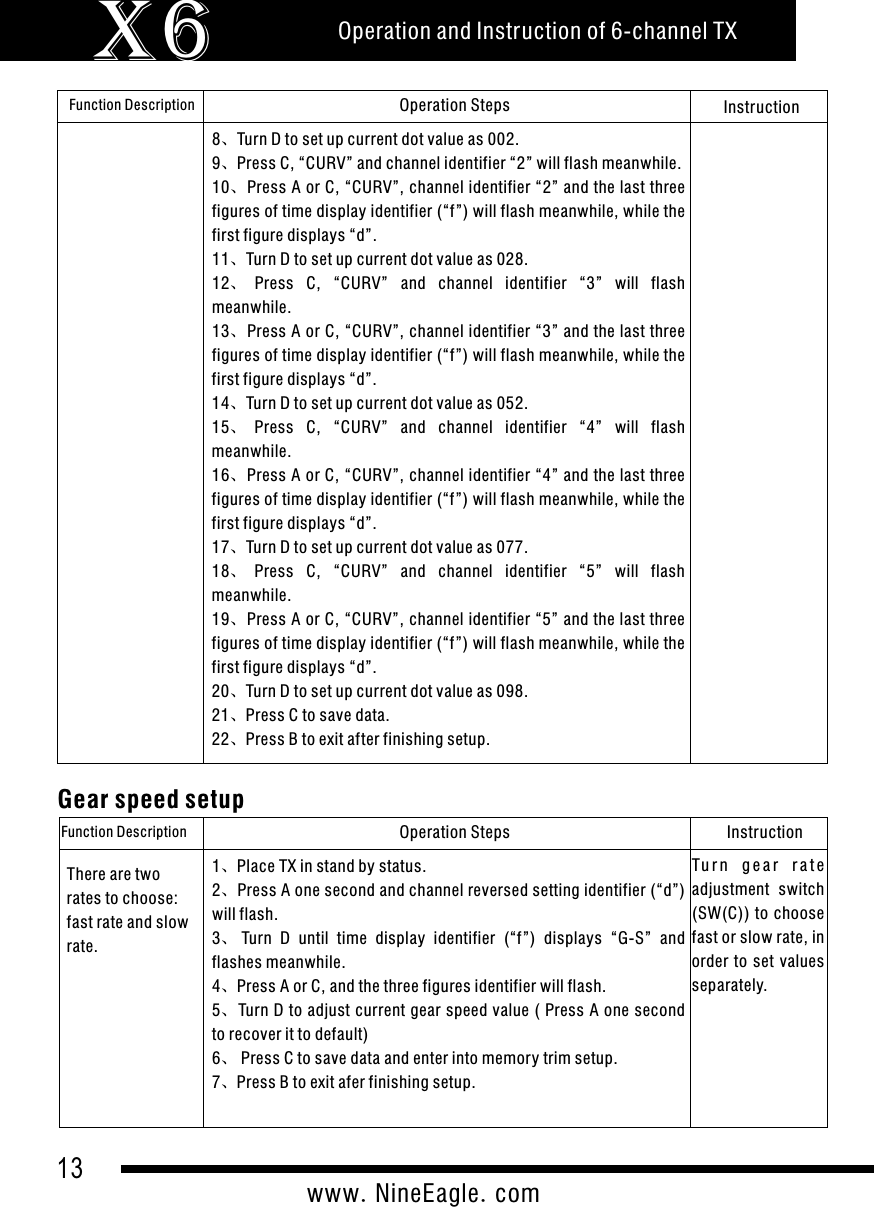

13www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction8、Turn D to set up current dot value as 002.9、Press C, “CURV” and channel identifier “2” will flash meanwhile.10、Press A or C, “CURV”, channel identifier “2” and the last three figures of time display identifier (“f”) will flash meanwhile, while the first figure displays “d”.11、Turn D to set up current dot value as 028.12、Press  C,  “CURV”  and  channel  identifier  “3”  will  flash meanwhile.13、Press A or C, “CURV”, channel identifier “3” and the last three figures of time display identifier (“f”) will flash meanwhile, while the first figure displays “d”.14、Turn D to set up current dot value as 052.15、Press  C,  “CURV”  and  channel  identifier  “4”  will  flash meanwhile.16、Press A or C, “CURV”, channel identifier “4” and the last three figures of time display identifier (“f”) will flash meanwhile, while the first figure displays “d”.17、Turn D to set up current dot value as 077.18、Press  C,  “CURV”  and  channel  identifier  “5”  will  flash meanwhile.19、Press A or C, “CURV”, channel identifier “5” and the last three figures of time display identifier (“f”) will flash meanwhile, while the first figure displays “d”.20、Turn D to set up current dot value as 098.21、Press C to save data.22、Press B to exit after finishing setup.Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  time  display  identifier  (“f”)  displays  “G-S”  and flashes meanwhile.4、Press A or C, and the three figures identifier will flash.5、Turn D to adjust current gear speed value ( Press A one second to recover it to default)6、 Press C to save data and enter into memory trim setup.7、Press B to exit afer finishing setup.Gear speed setupThere are two rates to choose: fast rate and slow rate.Tu r n  g e a r  r a t e  adjustment  switch (SW(C)) to choose fast or slow rate, in order  to set  values separately.

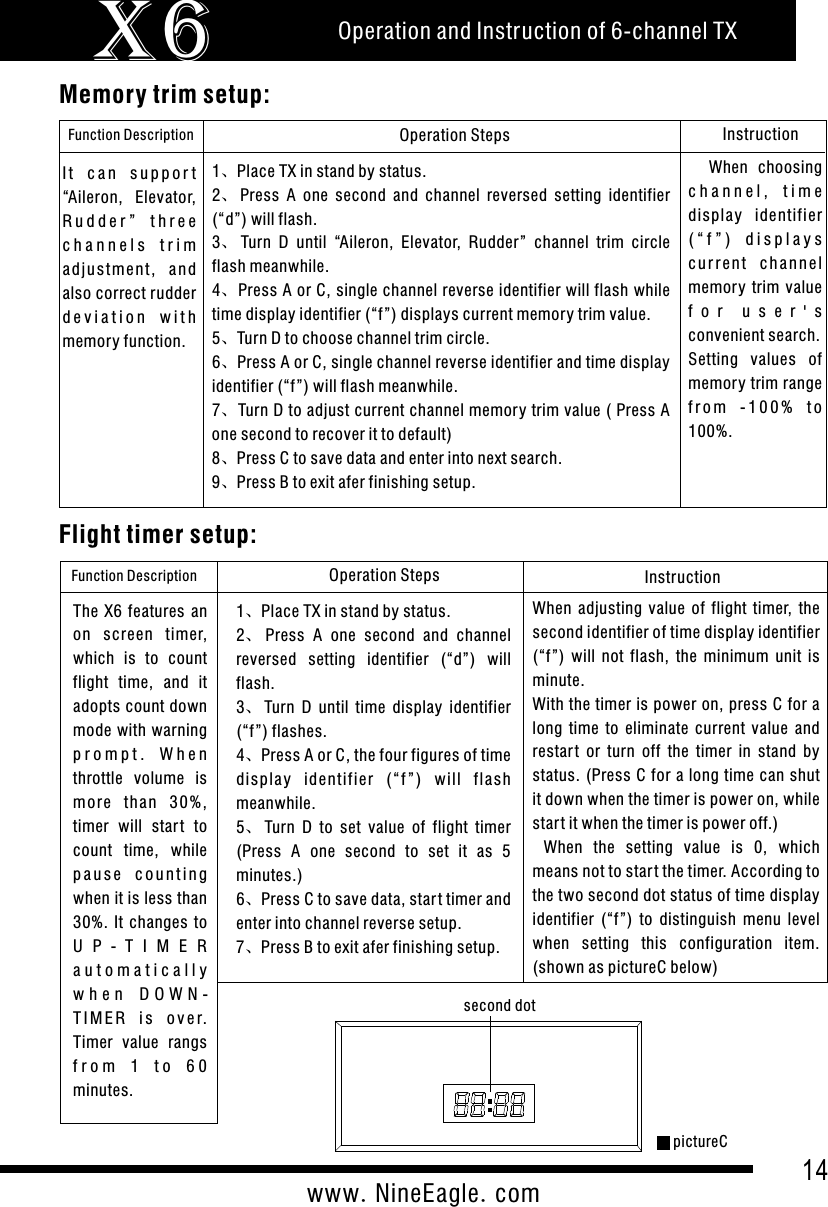

Operation and Instruction of 6-channel TXX614www.NineEagle.com Memory trim setup: Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting  identifier (“d”) will flash.3、Turn  D  until  “Aileron,  Elevator,  Rudder”  channel  trim  circle flash meanwhile.4、Press A or C, single channel reverse identifier will flash while time display identifier (“f”) displays current memory trim value.5、Turn D to choose channel trim circle.6、Press A or C, single channel reverse identifier and time display identifier (“f”) will flash meanwhile.7、Turn D to adjust current channel memory trim value ( Press A one second to recover it to default)8、Press C to save data and enter into next search.9、Press B to exit afer finishing setup.    When  choosing c h a n n e l ,   t i m e  display  identifier ( “ f ” )   d i s p l a y s  c u r r e n t  c h a n ne l memory  trim  value f o r   u s e r ' s  convenient search.Setting  values  of memory trim range f r o m   - 1 0 0 %  t o 100%.        I t  c a n  s u p p o r t “Aileron,  Elevator, R u d d e r ”   t h r e e  c h a n n e l s   t r i m  adju s t ment,  a n d also correct rudder d e v i a t i o n   w i t h  memory function. Flight timer setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel reversed  setting  identifier  (“d”)  will flash.3、Turn  D  until  time  display  identifier (“f”) flashes.4、Press A or C, the four figures of time display  ident ifier  (“f ” )  will  f lash meanwhile.5、Turn  D  to  set  value  of  flight  timer (Press  A  one  second  to  set  it  as  5 minutes.)6、Press C to save data, star t timer and enter into channel reverse setup.7、Press B to exit afer finishing setup.When  adjusting  value  of  flight  timer,  the second identifier of time display identifier (“f”)  will  not  flash,  the  minimum  unit  is minute.With the timer is power on, press C for a long  time  to  eliminate  current  value  and restar t  or  turn  off  the  timer  in  stand  by status. (Press C for a long time can shut it down when the timer is power on, while star t it when the timer is power off.)  When  the  setting  value  is  0,  which means not to star t the timer. According to the two second dot status of time display identifier  (“f”)  to  distinguish  menu  level when  setting  this  configuration  item. (shown as pictureC below)         The  X6  features  an on  screen  timer, which  is  to  count flight  time,  and  it adopts count down mode with warning p r o m p t .   W h e n  throttle  volume  is more  t han  30% , timer  will  star t  to count  time,  while p a u s e  c o u n t i n g when it is less than 30%.  It  changes  to U P - T I M E R  a u t o m a t i c a l l y  w h e n   D O W N -T I M E R  i s  o v e r.  Timer  value  rangs f r o m   1   t o   6 0  minutes.pictureCsecond dot

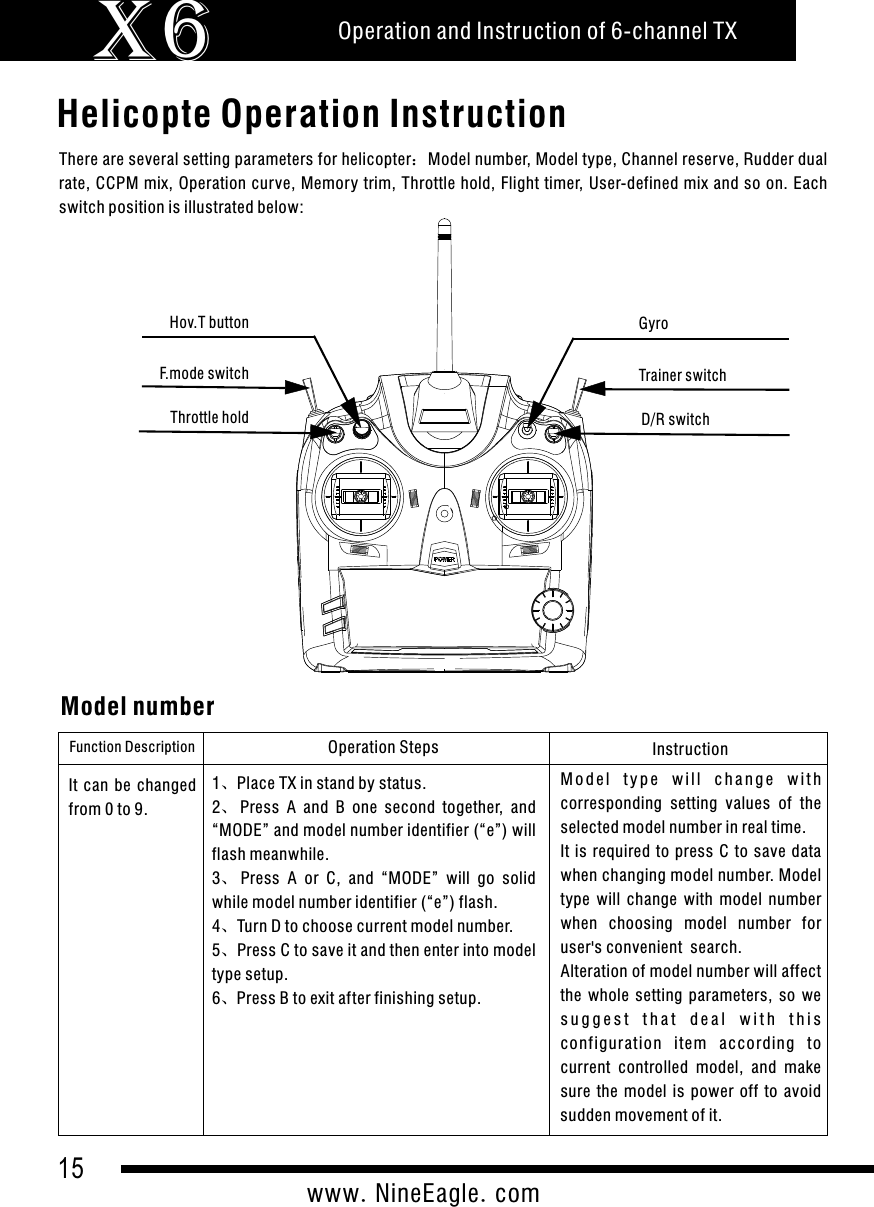

15www.NineEagle.comOperation and Instruction of 6-channel TXX6Helicopte Operation InstructionThere are several setting parameters for helicopter:Model number, Model type, Channel reserve, Rudder dual rate, CCPM mix, Operation curve, Memory trim, Throttle hold, Flight timer, User-defined mix and so on. Each switch position is illustrated below:GyroHov.T buttonTrainer switchD/R switchF.mode switchThrottle hold Model numberFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Press  A  or  C,  and  “MODE”  will  go  solid while model number identifier (“e”) flash.4、Turn D to choose current model number.5、Press C to save it and then enter into model type setup.6、Press B to exit after finishing setup.M o d e l   t y p e  w i l l  c h a n g e   w i t h    corresponding  setting  values  of  the selected model number in real time.It  is  required  to press  C  to  save  data when changing model number. Model type  will  change  with  model  number when  choosing  model  number  for user's convenient  search.Alteration of model number will affect the  whole  setting  parameters,  so  we s u g g e s t   t h a t   d e a l   w i t h   t h i s  configuration  item  according  to current  controlled  model,  and  make sure  the  model  is  power  off  to  avoid sudden movement of it.        It  can  be  changed from 0 to 9.

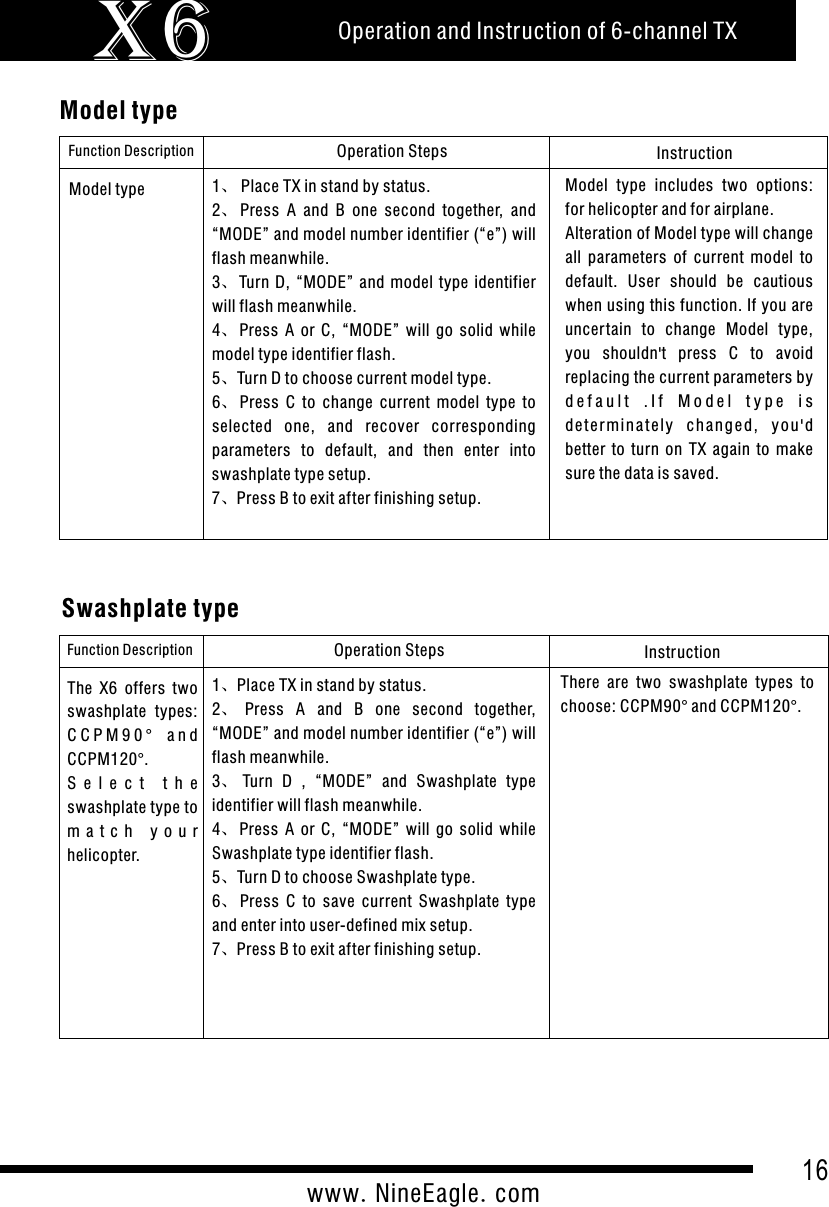

Operation and Instruction of 6-channel TXX616www.NineEagle.com Model typeFunction Description Operation Steps Instruction1、 Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn  D,  “MODE”  and  model  type  identifier will flash meanwhile.4、Press  A  or  C,  “MODE”  will  go  solid  while model type identifier flash.5、Turn D to choose current model type.6、Press  C  to  change  current  model  type  to selected  one,  and  recover  corresponding parameters  to  default,  and  then  enter  into swashplate type setup.7、Press B to exit after finishing setup.Model  type  includes  two  options: for helicopter and for airplane.Alteration of Model type will change all  parameters  of  current  model  to default.  User  should  be  cautious when using this function. If you are uncer tain  to  change  Model  type, you  shouldn't  press  C  to  avoid replacing the current parameters by d e f a u l t   . I f   M o d e l   t y p e   i s  deter min a t e ly  change d ,  y o u 'd better  to  turn  on  TX  again  to  make sure the data is saved.        Model type Swashplate typeFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  and  B  one  second  together,   “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn  D  ,  “MODE”  and  Swashplate  type identifier will flash meanwhile.4、Press  A  or  C,  “MODE”  will  go  solid  while Swashplate type identifier flash.5、Turn D to choose Swashplate type.6、Press  C  to  save  current  Swashplate  type and enter into user-defined mix setup.7、Press B to exit after finishing setup.There  are  two  swashplate  types  to choose: CCPM90° and CCPM120°.        The  X6  offers  two swashplate  types: C C P M 9 0 °   a n d  CCPM120°.S e l e c t   t h e  swashplate type to m a t c h   y o u r  helicopter.

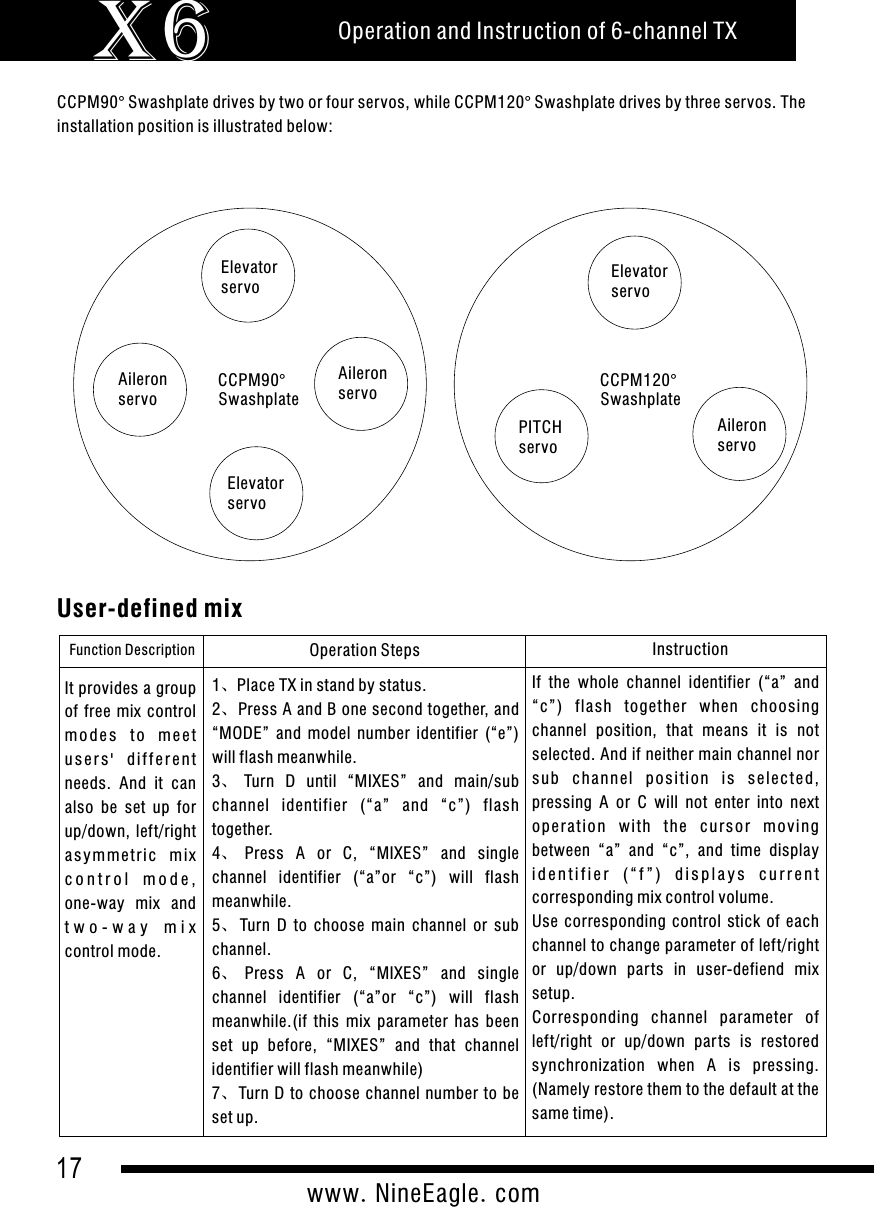

17www.NineEagle.comOperation and Instruction of 6-channel TXX6CCPM90° Swashplate drives by two or four servos, while CCPM120° Swashplate drives by three servos. The installation position is illustrated below:SwashplateElevator servo Aileron servoPITCH servo      CCPM90° Aileron servoElevator servo SwashplateCCPM120° Aileron servoElevator servo  User-defined mixFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press A and B one second together, and “MODE”  and  model  number  identifier  (“e”) will flash meanwhile.3、Turn  D  until  “MIXES”  and  main/sub channel  identifier  (“a”  and  “c”)  flash together.4、Press  A  or  C,  “MIXES”  and  single channel  identifier  (“a”or  “c”)  will  flash meanwhile.5、Turn  D  to  choose  main  channel  or  sub channel.6、Press  A  or  C,  “MIXES”  and  single channel  identifier  (“a”or  “c”)  will  flash meanwhile.(if  this  mix  parameter  has  been set  up  before,  “MIXES”  and  that  channel identifier will flash meanwhile)7、Turn  D to choose  channel number  to  be set up.If  the  whole  channel  identifier  (“a”  and “c”)  flash  together  when  choosing channel  position,  that  means  it  is  not selected. And if neither main channel nor sub  cha nnel  pos itio n  i s  s elec ted, pressing  A  or  C  will  not  enter  into  next ope rati on  wit h  t he  cur sor  mo v ing between  “a”  and  “c”,  and  time  display i d e n t i f i e r  ( “ f ” )  d i s p l a y s  c u r r e n t  corresponding mix control volume.Use  corresponding  control  stick  of  each channel to change parameter of left/right or  up/down  par ts  in  user-defiend  mix setup.Corresponding  channel  parameter  of left/right  or  up/down  par ts  is  restored synchronization  when  A  is  pressing. (Namely restore them to the default at the same time). It provides a group of  free  mix  control m o d e s  t o  m e e t u s e rs '  d i f fe r e nt needs.  And  it  can also  be  set  up  for up/down, left/right asym m e tric  mix c o n t r o l   m o d e ,  one-way  mix  and t w o - w a y   m i x  control mode.

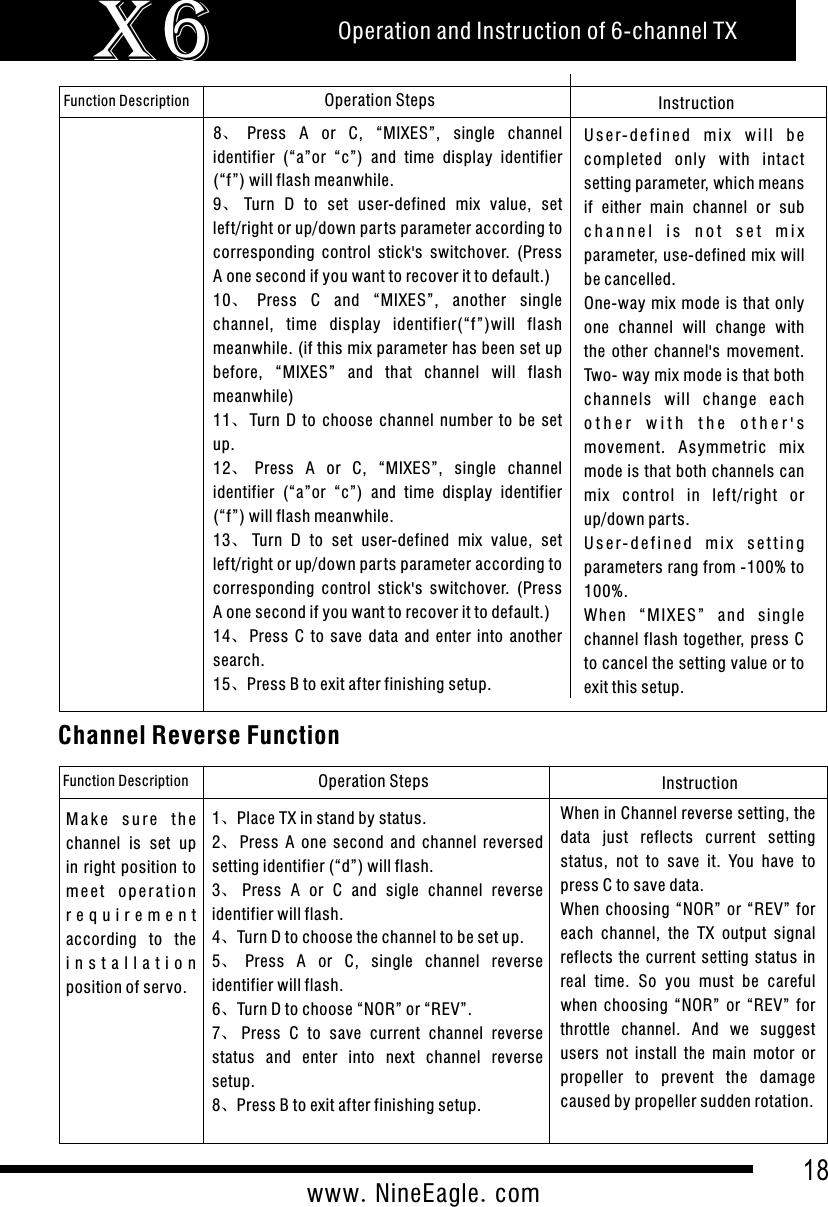

Operation and Instruction of 6-channel TXX618www.NineEagle.comFunction Description Operation Steps Instruction8、Press  A  or  C,  “MIXES”,  single  channel identifier  (“a”or  “c”)  and  time  display  identifier (“f”) will flash meanwhile.9、Turn  D  to  set  user-defined  mix  value,  set left/right or up/down par ts parameter according to corresponding  control  stick's  switchover.  (Press A one second if you want to recover it to default.)10、Press  C  and  “MIXES”,  another  single channel,  time  display  identifier(“f”)will  flash meanwhile. (if this mix parameter has been set up before,  “MIXES”  and  that  channel  will  flash meanwhile)11、Turn  D  to  choose  channel  number  to  be  set up.12、Press  A  or  C,  “MIXES”,  single  channel identifier  (“a”or  “c”)  and  time  display  identifier (“f”) will flash meanwhile.13、Turn  D  to  set  user-defined  mix  value,  set left/right or up/down par ts parameter according to corresponding  control  stick's  switchover.  (Press A one second if you want to recover it to default.)14、Press  C  to  save  data  and  enter  into  another search.15、Press B to exit after finishing setup.U s e r- d e f i n e d  m i x  w i l l  b e completed  only  with  intact setting parameter, which means if  either  main  channel  or  sub c h a n n e l   i s   n o t   s e t   m i x  parameter, use-defined mix will be cancelled.One-way  mix mode is that only one  channel  will  change  with the  other  channel's  movement. Two- way mix mode is that both channels  will  change  each o t h e r   w i t h   t h e   o t h e r ' s  movement.  Asymmetric  mix mode is that both channels can mix  control  in  lef t/right  or up/down par ts.U s e r- d e f i n e d  m i x  s e t t i n g parameters rang from -100% to 100%.Whe n  “ M IXES ”  a nd  sin g le channel  flash together,  press C to cancel the setting value or to exit this setup. Channel Reverse FunctionFunction Description Operation Steps InstructionWhen in Channel reverse setting, the data  just  reflects  current  setting status,  not  to  save  it.  You  have  to press C to save data.When  choosing  “NOR”  or  “REV”  for each  channel,  the  TX  output  signal reflects the current setting  status  in real  time.  So  you  must  be  careful when  choosing  “NOR”  or  “REV”  for throttle  channel.  And  we  suggest users  not  install  the  main  motor  or propeller  to  prevent  the  damage caused by propeller sudden rotation.M a k e  s u r e   t h e channel  is  set  up in right  position  to m e e t  o p e r a t i o n r e q u i r e m e n t  according  to  the i n s t a l l a t i o n  position of servo.1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed setting identifier (“d”) will flash.3、Press  A  or  C  and  sigle  channel  reverse identifier will flash.4、Turn D to choose the channel to be set up.5、Press  A  or  C,  single  channel  reverse identifier will flash.6、Turn D to choose “NOR” or “REV”.7、Press  C  to  save  current  channel  reverse status  and  enter  into  next  channel  reverse setup.8、Press B to exit after finishing setup.

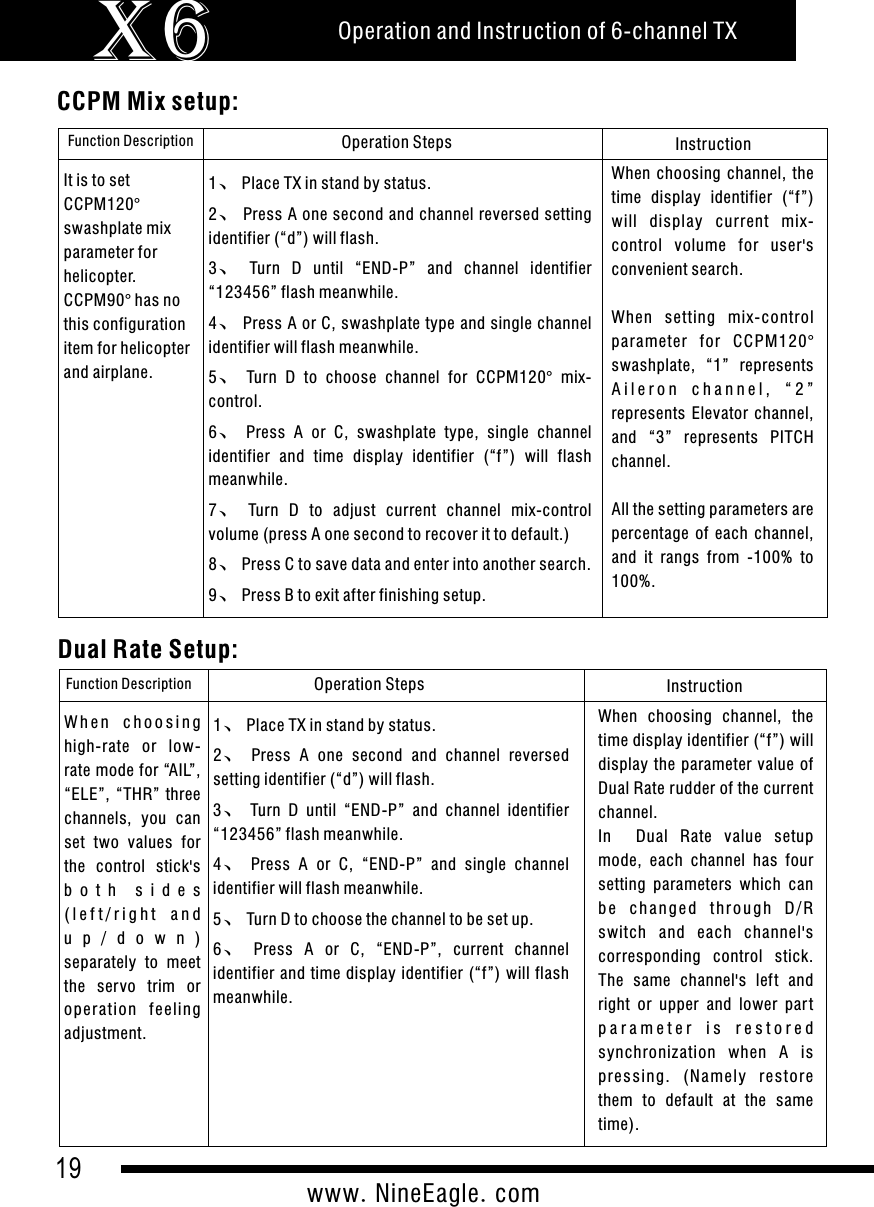

19www.NineEagle.comOperation and Instruction of 6-channel TXX6 CCPM Mix setup:Function Description Operation Steps InstructionWhen  choosing  channel,  the time  display  identifier  (“f”) will  display  cur rent  mix-control  volume  for  user's convenient search.When  setting  mix-control parameter  for  CCPM120° swashplate,  “1”  represents A i l e r o n   c h a n n e l ,   “ 2 ”  represents  Elevator  channel, and  “3”  represents  PITCH channel.All the setting parameters are percentage  of  each  channel, and  it  rangs  from  -100%  to 100%.It is to set CCPM120° swashplate mix parameter for helicopter. CCPM90° has no this configuration item for helicopter and airplane.1、Place TX in stand by status.2、Press A one second and channel reversed setting identifier (“d”) will flash.3、Turn  D  until  “END-P”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, swashplate type and single channel identifier will flash meanwhile.5、Turn  D  to  choose  channel  for  CCPM120°  mix-control.6、Press  A  or  C,  swashplate  type,  single  channel identifier  and  time  display  identifier  (“f”)  will  flash meanwhile.7、Turn  D  to  adjust  current  channel  mix-control volume (press A one second to recover it to default.)8、Press C to save data and enter into another search.9、Press B to exit after finishing setup. Dual Rate Setup:Function Description Operation Steps InstructionWhen  choosing  channel,  the time display identifier (“f”) will display  the  parameter value  of Dual Rate rudder of the current channel.In    Dual  Rate  value  setup mode,  each  channel  has  four setting  parameters  which  can b e  ch a n g e d  t h r o ug h  D/ R switch  and  each  channel's corresponding  control  stick. The  same  channel's  left  and right  or  upper  and  lower  par t p a r a m e t e r   i s   r e s t o r e d  synchronization  when  A  is pr essing.  ( Namel y  re store them  to  default  at  the  same time). W h e n  c h o o s i n g  high-rate  or  low-rate mode for “AIL”, “ELE”,  “THR”  three channels,  you  can set  two  values  for the  control  stick's b o t h   s i d e s  ( l e f t / r i g h t   a n d  u p / d o w n )  separately  to  meet the  servo  trim  or op eration  fee ling adjustment.1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed setting identifier (“d”) will flash.3、Turn  D  until  “END-P”  and  channel  identifier “123456” flash meanwhile.4、Press  A  or  C,  “END-P”  and  single  channel identifier will flash meanwhile.5、Turn D to choose the channel to be set up.6、Press  A  or  C,  “END-P”,  current  channel identifier and  time display identifier  (“f”)  will flash meanwhile.

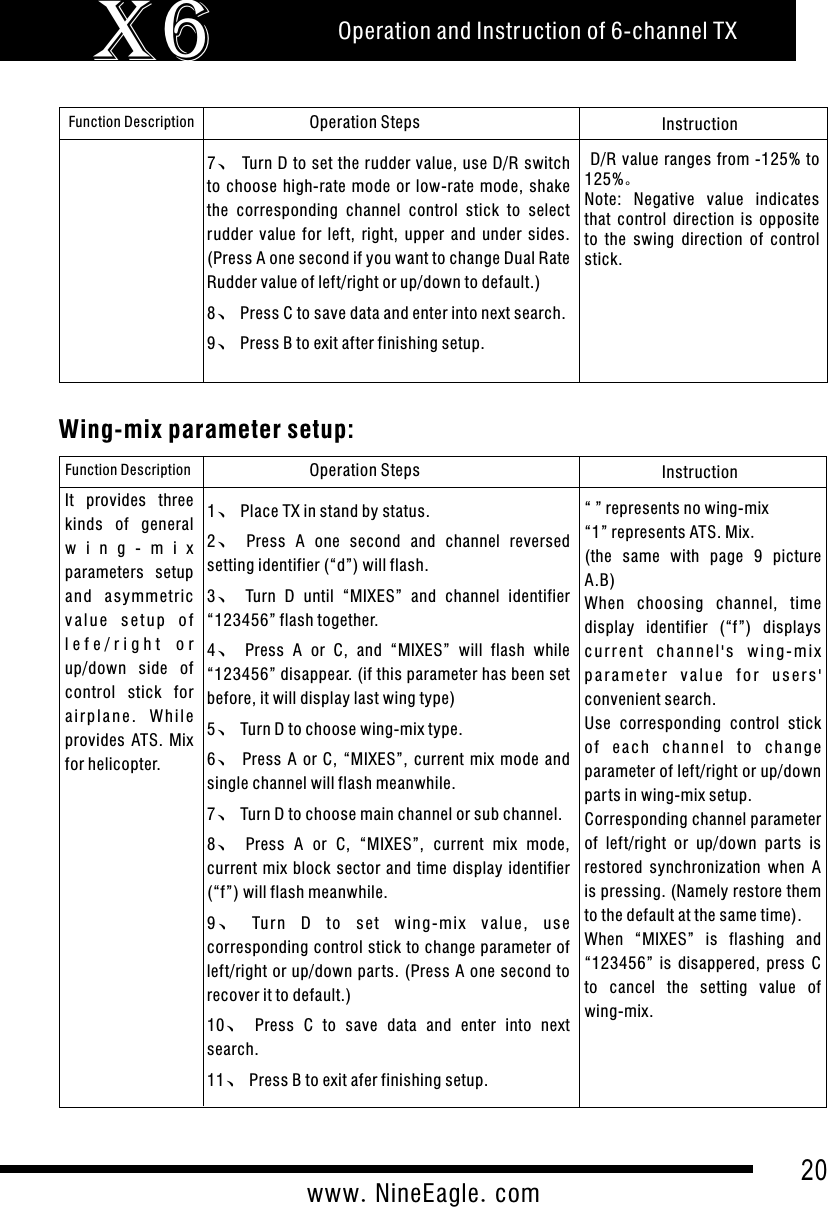

Operation and Instruction of 6-channel TXX620www.NineEagle.comFunction Description Operation Steps Instruction7、Turn D to set the rudder value, use D/R switch to  choose  high-rate  mode  or low-rate  mode,  shake the  corresponding  channel  control  stick  to  select rudder  value  for  left,  right,  upper  and  under  sides. (Press A one second if you want to change Dual Rate Rudder value of left/right or up/down to default.)8、Press C to save data and enter into next search.9、Press B to exit after finishing setup. D/R value  ranges from -125% to 125%。Note:  Negative  value  indicates that  control  direction  is  opposite to  the  swing  direction  of  control stick. Wing-mix parameter setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed setting identifier (“d”) will flash.3、Turn  D  until  “MIXES”  and  channel  identifier “123456” flash together.4、Press  A  or  C,  and  “MIXES”  will  flash  while “123456” disappear. (if this parameter has been set before, it will display last wing type)5、Turn D to choose wing-mix type.6、Press  A  or  C,  “MIXES”,  current  mix  mode  and single channel will flash meanwhile.7、Turn D to choose main channel or sub channel.8、Press  A  or  C,  “MIXES”,  current  mix  mode, current mix block  sector  and  time  display identifier (“f”) will flash meanwhile.9、Turn  D  to  set  win g -mix  valu e ,  u se corresponding control stick to change parameter of left/right or up/down par ts. (Press A one second to recover it to default.)10、Press  C  to  save  data  and  enter  into  next search.11、Press B to exit afer finishing setup.“ ” represents no wing-mix “1” represents ATS. Mix.(the  same  with  page  9  picture A.B)When  choosing  channel,  time display  identifier  (“f”)  displays c u r r e n t  c h a nn e l ' s  w i n g - m ix p a r a m e t e r  v a l u e  f o r  u s e r s ' convenient search.Use  corresponding  control  stick of  e a c h  channel  t o  change parameter of left/right or up/down par ts in wing-mix setup.Corresponding channel parameter of  left/right  or  up/down  par ts  is restored  synchronization  when  A is pressing. (Namely restore them to the default at the same time). When  “MIXES”  is  flashing  and “123456”  is  disappered,  press  C to  cancel  the  setting  value  of wing-mix.It  provides  three kinds  of  general w i n g - m i x  parameters  setup and  asymmetric v a lu e  s e t u p  o f l e f e / r i g h t   o r  up/down  side  of control  stick  for a i r p la n e .  W h i le provides  ATS.  Mix for helicopter.

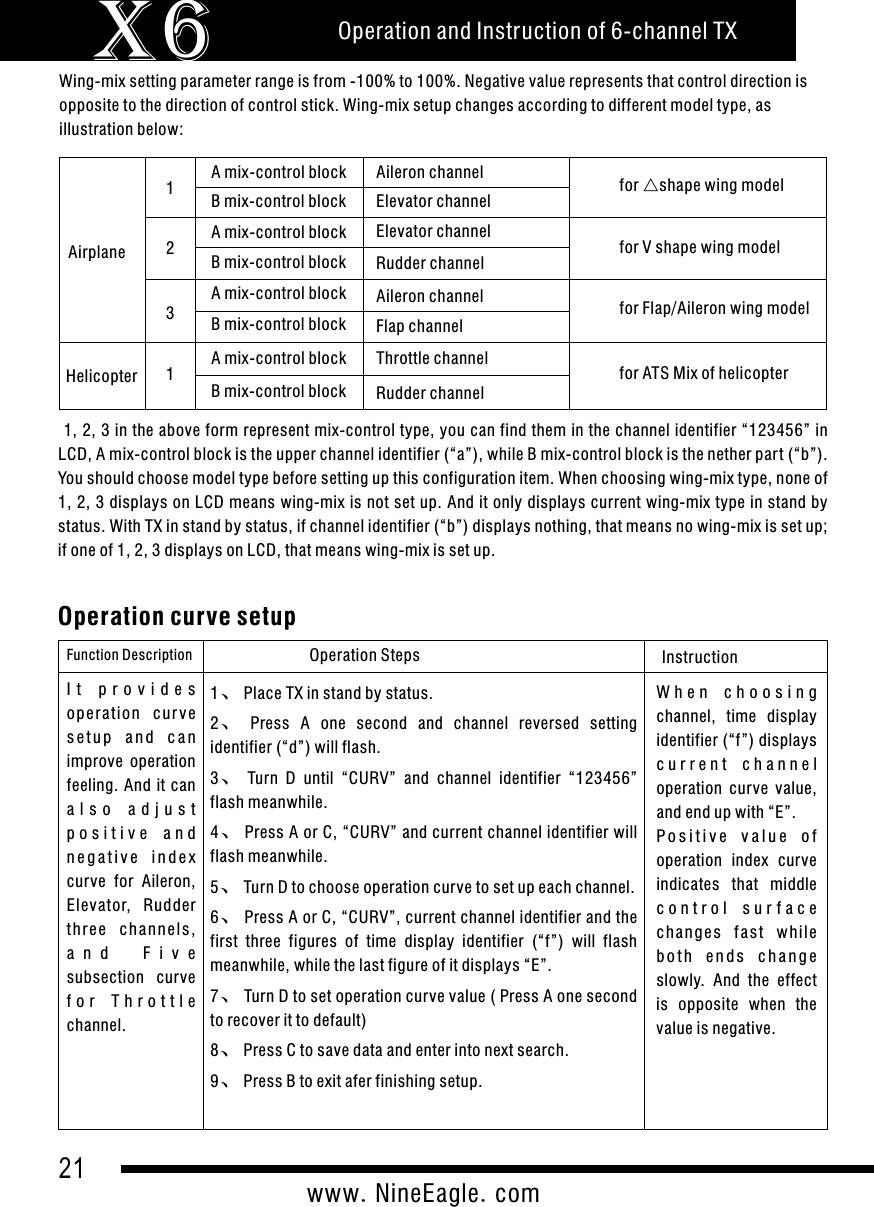

21www.NineEagle.comOperation and Instruction of 6-channel TXX6Wing-mix setting parameter range is from -100% to 100%. Negative value represents that control direction is opposite to the direction of control stick. Wing-mix setup changes according to different model type, as illustration below:Airplane123A mix-control blockB mix-control block A mix-control blockB mix-control blockA mix-control blockB mix-control block Aileron channel Elevator channel Elevator channelRudder channel Aileron channel Flap channel for △shape wing model for V shape wing modelfor Flap/Aileron wing modelHelicopter 1A mix-control blockB mix-control block Throttle channel Rudder channel for ATS Mix of helicopter  1, 2, 3 in the above form represent mix-control type, you can find them in the channel identifier “123456” in LCD, A mix-control block is the upper channel identifier (“a”), while B mix-control block is the nether par t (“b”). You should choose model type before setting up this configuration item. When choosing wing-mix type, none of 1, 2, 3 displays on LCD means wing-mix is not set up. And it only displays current wing-mix type in stand by status. With TX in stand by status, if channel identifier (“b”) displays nothing, that means no wing-mix is set up; if one of 1, 2, 3 displays on LCD, that means wing-mix is set up. Operation curve setupFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier  “123456” flash meanwhile.4、Press A or C, “CURV” and current channel identifier will flash meanwhile.5、Turn D to choose operation curve to set up each channel.6、Press A or C, “CURV”, current channel identifier and the first  three  figures  of  time  display  identifier  (“f”)  will  flash meanwhile, while the last figure of it displays “E”.7、Turn D to set operation curve value ( Press A one second to recover it to default)8、Press C to save data and enter into next search.9、Press B to exit afer finishing setup.W h e n   c h o o s i n g  channel,  time  display identifier (“f”) displays c u r r e n t   c h a n n e l  operation  curve  value, and end up with “E”.P o s i t i v e   v a l u e   o f  operation  index  curve indicates  that  middle c o n t r o l   s u r f a c e  cha n ges  fas t  w hile b o t h  e n d s  c h a n g e slowly.  And  the  effect is  opposite  when  the value is negative.I t   p r o v i d e s  ope rat ion  cu r ve s e t u p  a n d  c a n  improve  operation feeling. And  it  can a l s o   a d j u s t  p o s i t i v e   a n d  n e g a t i v e   i n d e x curve  for  Aileron, Elevator,  Rudder three  chann e l s , a n d   F i v e  subsection  curve f o r   T h r o t t l e  channel.

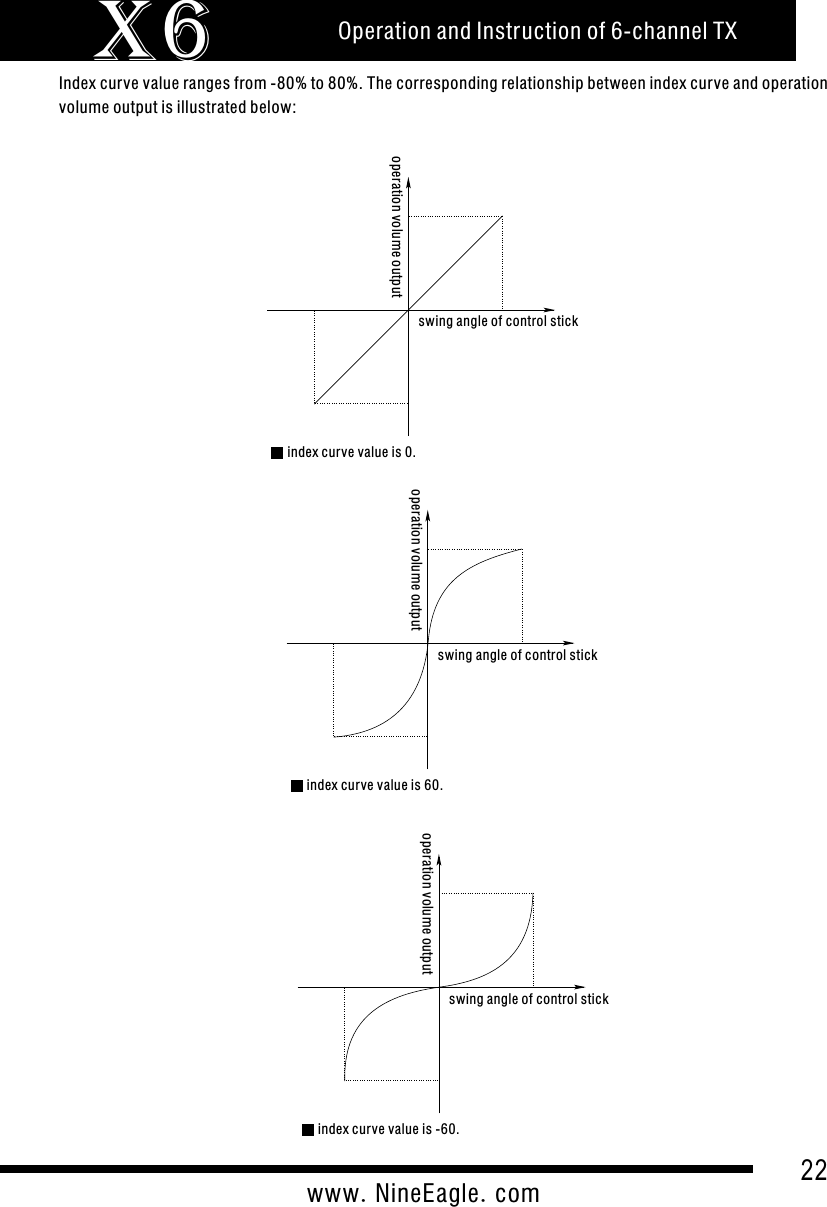

Operation and Instruction of 6-channel TXX622www.NineEagle.comIndex curve value ranges from -80% to 80%. The corresponding relationship between index curve and operation volume output is illustrated below:operation volume outputswing angle of control stickindex curve value is 0.operation volume outputswing angle of control stickindex curve value is 60.operation volume outputswing angle of control stickindex curve value is -60.

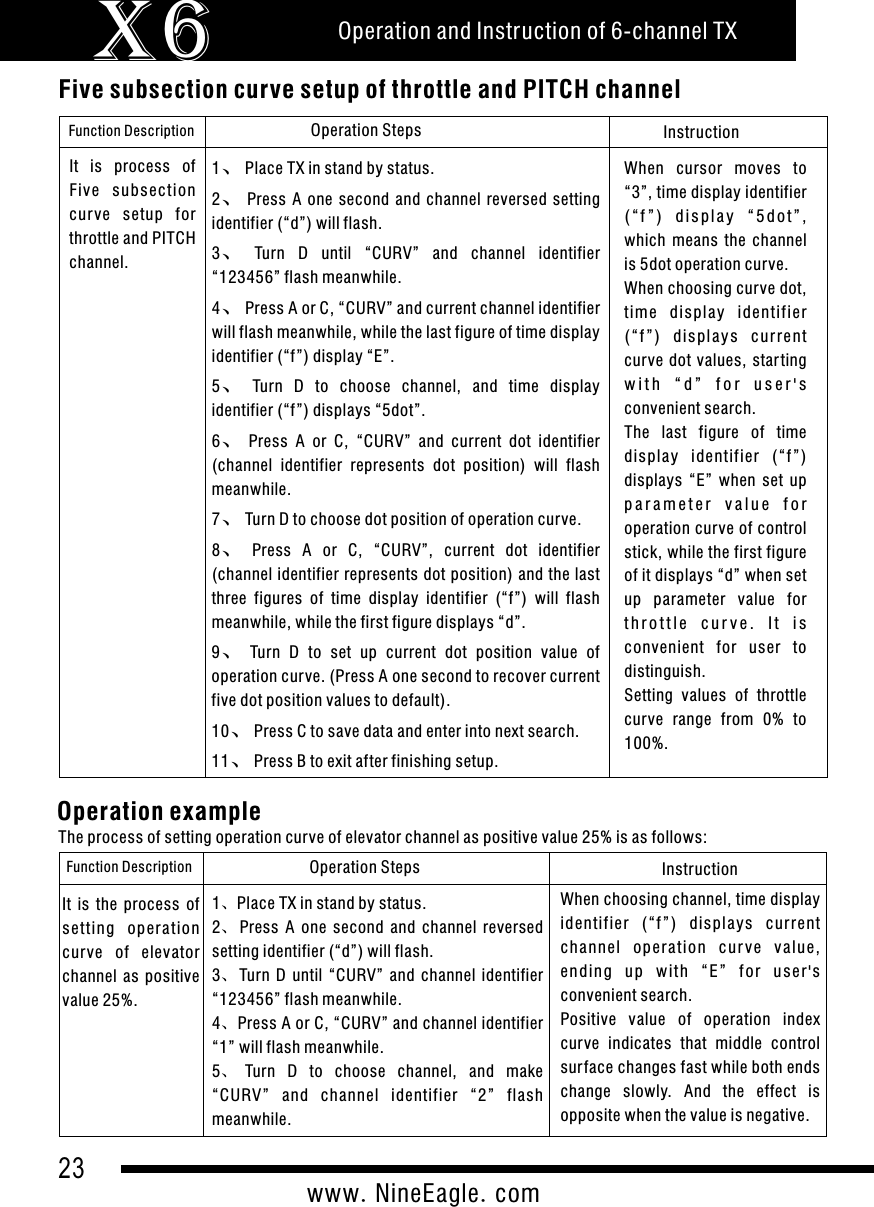

23www.NineEagle.comOperation and Instruction of 6-channel TXX6 Five subsection curve setup of throttle and PITCH channelFunction Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, “CURV” and current channel identifier will flash meanwhile, while the last figure of time display identifier (“f”) display “E”.5、Turn  D  to  choose  channel,  and  time  display identifier (“f”) displays “5dot”.6、Press  A  or  C,  “CURV”  and  current  dot  identifier (channel  identifier  represents  dot  position)  will  flash meanwhile.7、Turn D to choose dot position of operation curve.8、Press  A  or  C,  “CURV”,  current  dot  identifier (channel identifier represents dot position) and the last three  figures  of  time  display  identifier  (“f”)  will  flash meanwhile, while the first figure displays “d”.9、Turn  D  to  set  up  current  dot  position  value  of operation curve. (Press A one second to recover current five dot position values to default).10、Press C to save data and enter into next search.11、Press B to exit after finishing setup.When  cursor  moves  to “3”, time display identifier ( “ f ” )  d i s p l a y  “ 5 d o t ” , which  means  the  channel is 5dot operation curve.When choosing curve dot, ti me  d ispla y  id entif ier (“f ”)  dis pla ys  cur r ent curve  dot values,  star ting w i t h   “ d ”   f o r   u s e r ' s  convenient search.The  last  figure  of  time display  identifier  (“f ”) displays  “E”  when  set  up p a r a m e t e r   v a l u e  f o r  operation curve of control stick, while the first figure of it displays “d” when set up  parameter  value  for t h r o t t l e  c u r v e .   I t  i s convenient  for  user  to distinguish. Setting  values  of  throttle curve  range  from  0%  to 100%.It  is  process  of Five  subsection cur ve  setup  for throttle and PITCH channel.Operation exampleThe process of setting operation curve of elevator channel as positive value 25% is as follows:Function Description Operation Steps InstructionWhen choosing channel, time display identifier  (“f ”)  displays  c ur rent chann el  o peration  cu r ve  va lue , end ing  up  wit h  “ E”  for  u s er' s convenient search.Positive  value  of  operation  index curve  indicates  that  middle  control sur face changes fast while both ends change  slowly.  And  the  effect  is opposite when the value is negative.It  is  the  process  of se tting  ope ration curve  of  elevator channel  as  positive value 25%.1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.5、Turn  D  to  choose  channel,  and  make “CURV”  and  channel  identifier  “2”  flash meanwhile.

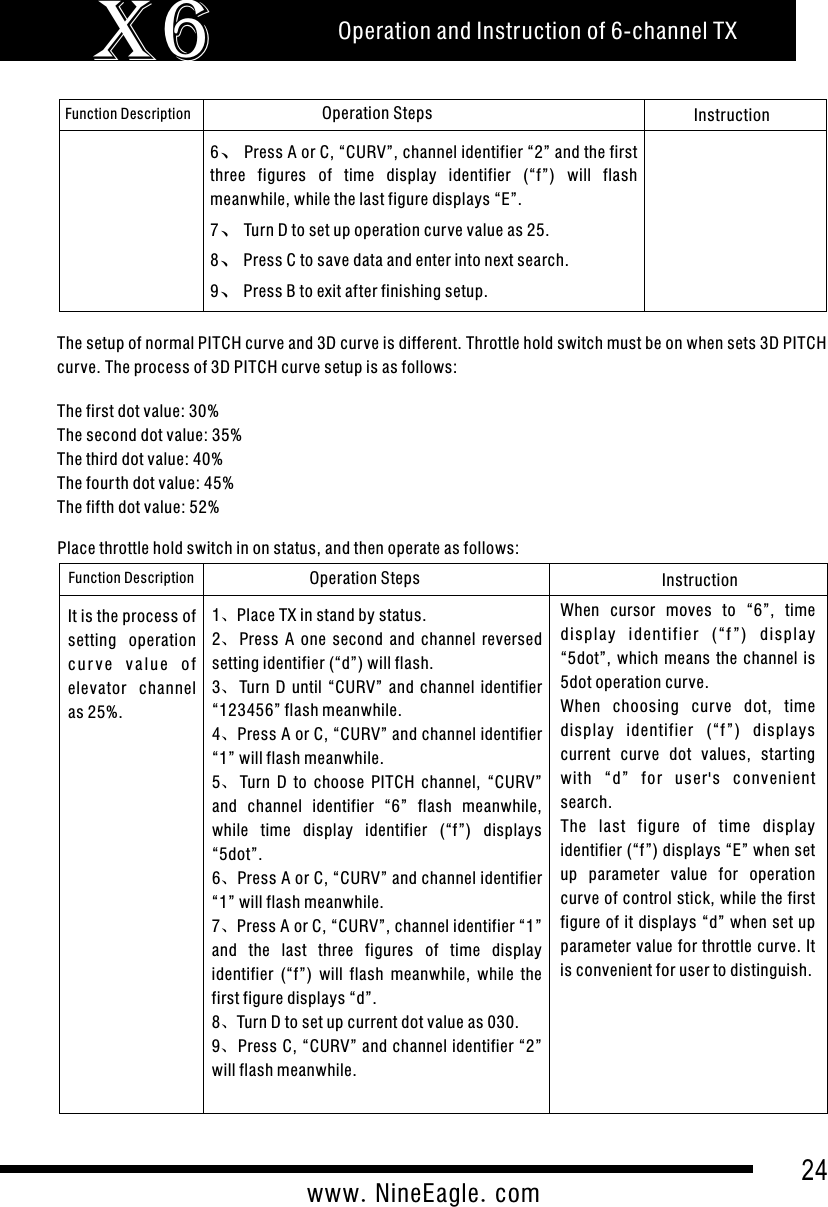

24www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction6、Press A or C, “CURV”, channel identifier “2” and the first three  figures  of  time  display  identifier  (“f”)  will  flash meanwhile, while the last figure displays “E”.7、Turn D to set up operation curve value as 25.8、Press C to save data and enter into next search.9、Press B to exit after finishing setup.The setup of normal PITCH curve and 3D curve is different. Throttle hold switch must be on when sets 3D PITCH curve. The process of 3D PITCH curve setup is as follows:The first dot value: 30%The second dot value: 35%The third dot value: 40%The four th dot value: 45%The fifth dot value: 52%Place throttle hold switch in on status, and then operate as follows:Function Description Operation Steps InstructionWhen  cursor  moves  to  “6”,  time display  identifier  (“ f ” )  dis pla y “5dot”,  which  means the channel  is 5dot operation curve.When  choosing  curve  dot,  time display  identifier  (“f”)  displays current  curve  dot  values,  star ting with  “d”  for  user's  convenient search.The  last  figure  of  time  display identifier (“f”) displays “E” when set up  parameter  value  for  operation curve of control stick, while the first figure of it displays “d” when set up parameter value for throttle curve. It is convenient for user to distinguish. It is the process of setting  operation c u r v e  v a l ue  of elevator  channel as 25%.1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed setting identifier (“d”) will flash.3、Turn  D  until  “CURV”  and  channel  identifier “123456” flash meanwhile.4、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.5、Turn  D  to  choose  PITCH  channel,  “CURV” and  channel  identifier  “6”  flash  meanwhile, while  time  display  identifier  (“f”)  displays “5dot”.6、Press A or C, “CURV” and channel identifier “1” will flash meanwhile.7、Press A or C, “CURV”, channel identifier “1” and  the  last  three  figures  of  time  display identifier  (“f”)  will  flash  meanwhile,  while  the first figure displays “d”.8、Turn D to set up current dot value as 030.9、Press C, “CURV” and channel identifier “2” will flash meanwhile.

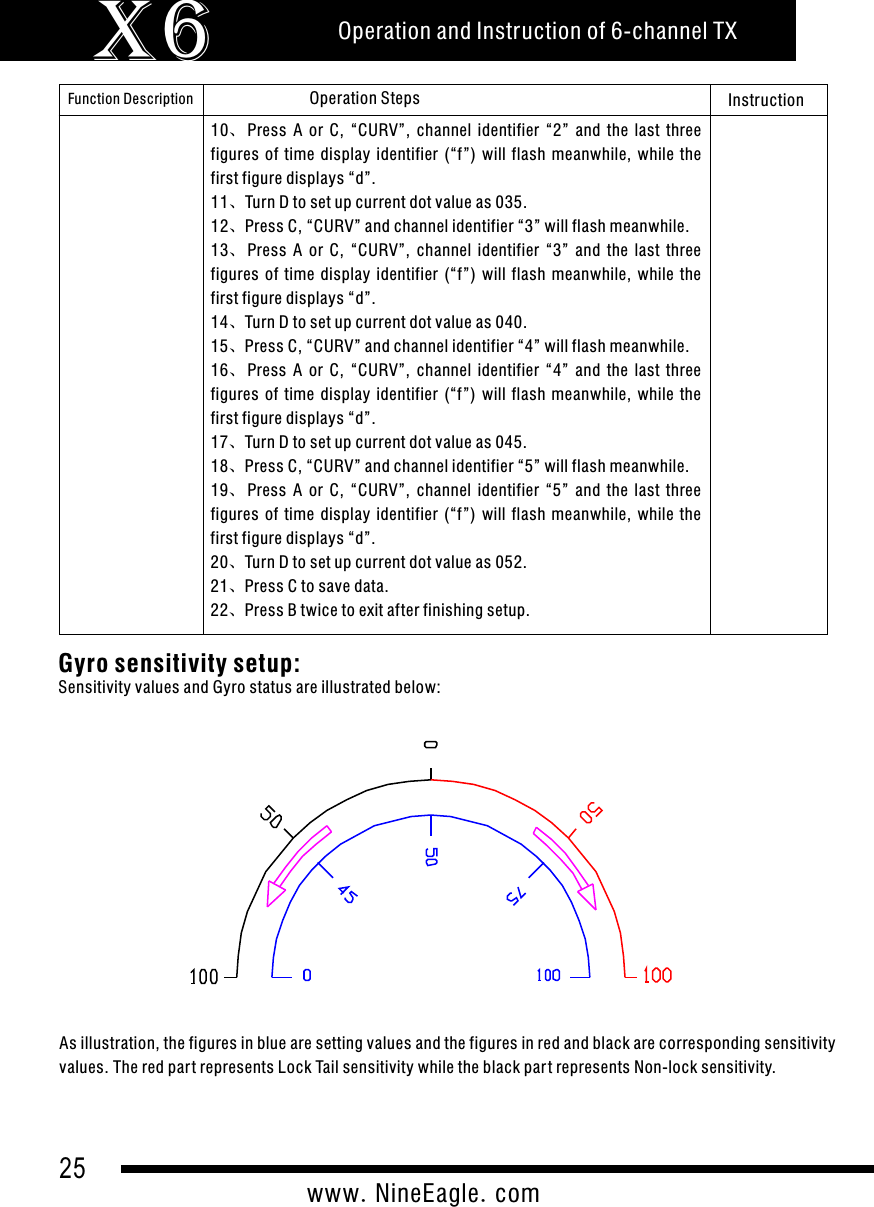

25www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction10、Press  A  or  C,  “CURV”,  channel  identifier  “2”  and  the  last  three figures  of  time  display  identifier  (“f”)  will  flash  meanwhile,  while  the first figure displays “d”.11、Turn D to set up current dot value as 035.12、Press C, “CURV” and channel identifier “3” will flash meanwhile.13、Press  A  or  C,  “CURV”,  channel  identifier  “3”  and  the  last  three figures  of  time  display  identifier  (“f”)  will  flash  meanwhile,  while  the first figure displays “d”.14、Turn D to set up current dot value as 040.15、Press C, “CURV” and channel identifier “4” will flash meanwhile.16、Press  A  or  C,  “CURV”,  channel  identifier  “4”  and  the  last  three figures  of  time  display  identifier  (“f”)  will  flash  meanwhile,  while  the first figure displays “d”.17、Turn D to set up current dot value as 045.18、Press C, “CURV” and channel identifier “5” will flash meanwhile.19、Press  A  or  C,  “CURV”,  channel  identifier  “5”  and  the  last  three figures  of  time  display  identifier  (“f”)  will  flash  meanwhile,  while  the first figure displays “d”.20、Turn D to set up current dot value as 052.21、Press C to save data.22、Press B twice to exit after finishing setup.Gyro sensitivity setup:Sensitivity values and Gyro status are illustrated below: As illustration, the figures in blue are setting values and the figures in red and black are corresponding sensitivity values. The red par t represents Lock Tail sensitivity while the black par t represents Non-lock sensitivity.

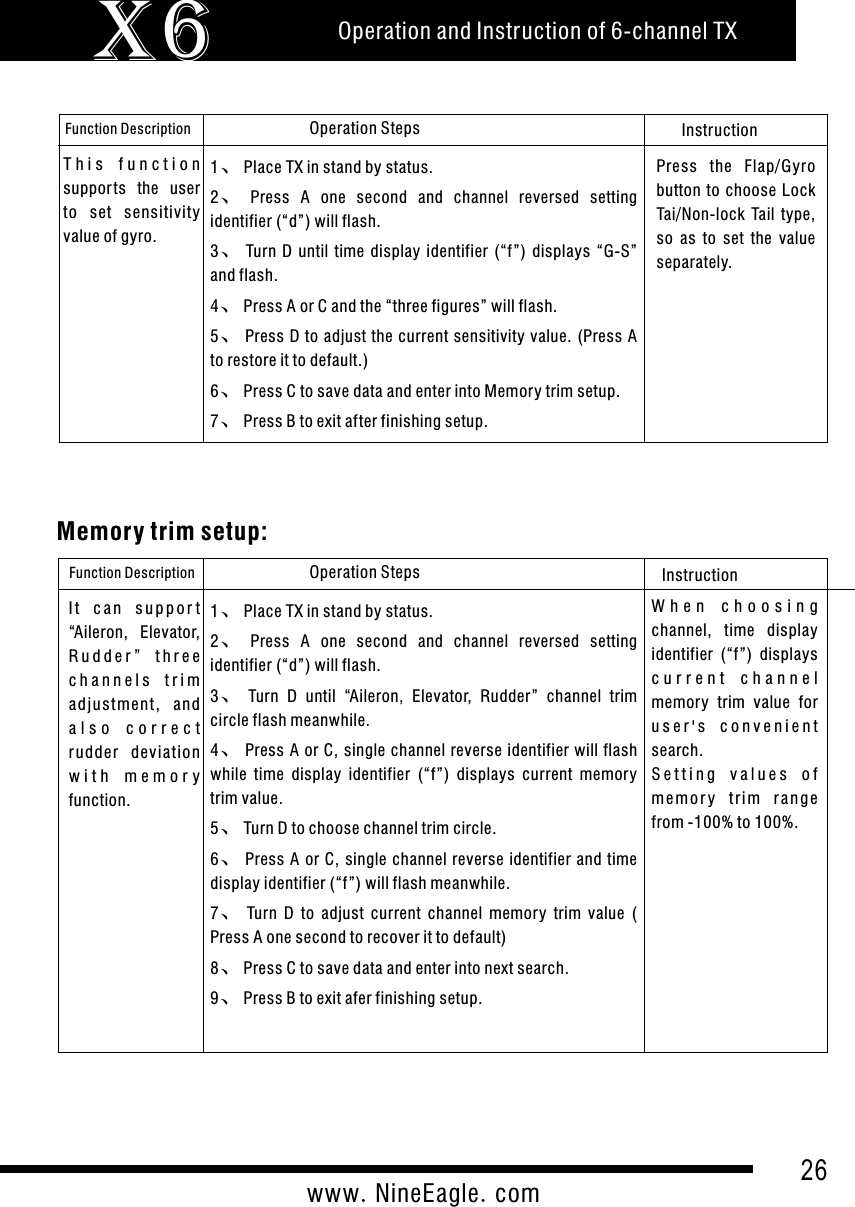

26www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting identifier (“d”) will flash.3、Turn  D until  time  display  identifier  (“f”)  displays  “G-S” and flash.4、Press A or C and the “three figures” will flash.5、Press D to adjust the current sensitivity value. (Press A to restore it to default.)6、Press C to save data and enter into Memory trim setup.7、Press B to exit after finishing setup.Press  the  Flap/Gyro button to  choose  Lock Tai/Non-lock  Tail  type, so  as  to  set  the  value separately.T h i s   f u n c t i o n  suppor ts  the  user to  set  sensitivity value of gyro. Memory trim setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting identifier (“d”) will flash.3、Turn  D  until  “Aileron,  Elevator,  Rudder”  channel  trim circle flash meanwhile.4、Press A or C, single channel reverse identifier will flash while  time  display  identifier  (“f”)  displays  current  memory trim value.5、Turn D to choose channel trim circle.6、Press A or C, single channel reverse  identifier and  time display identifier (“f”) will flash meanwhile.7、Turn  D  to  adjust  current  channel  memory  trim  value  ( Press A one second to recover it to default)8、Press C to save data and enter into next search.9、Press B to exit afer finishing setup.W h e n   c h o o s i n g  channel,  time  display identifier  (“f”)  displays c u r r e n t   c h a n n e l  memory  trim  value  for u s e r ' s  c o n v e n i e n t  search.S e t t i n g   v a l u e s   o f  m e m o r y  t r i m  r a n g e from -100% to 100%.I t  c a n  s u p p o r t “Aileron,  Elevator, R u d d e r ”   t h r e e c h a n n e l s   t r i m  adjustme nt,  an d a l s o   c o r r e c t  r udder  d eviation w i t h   m e m o r y  function.

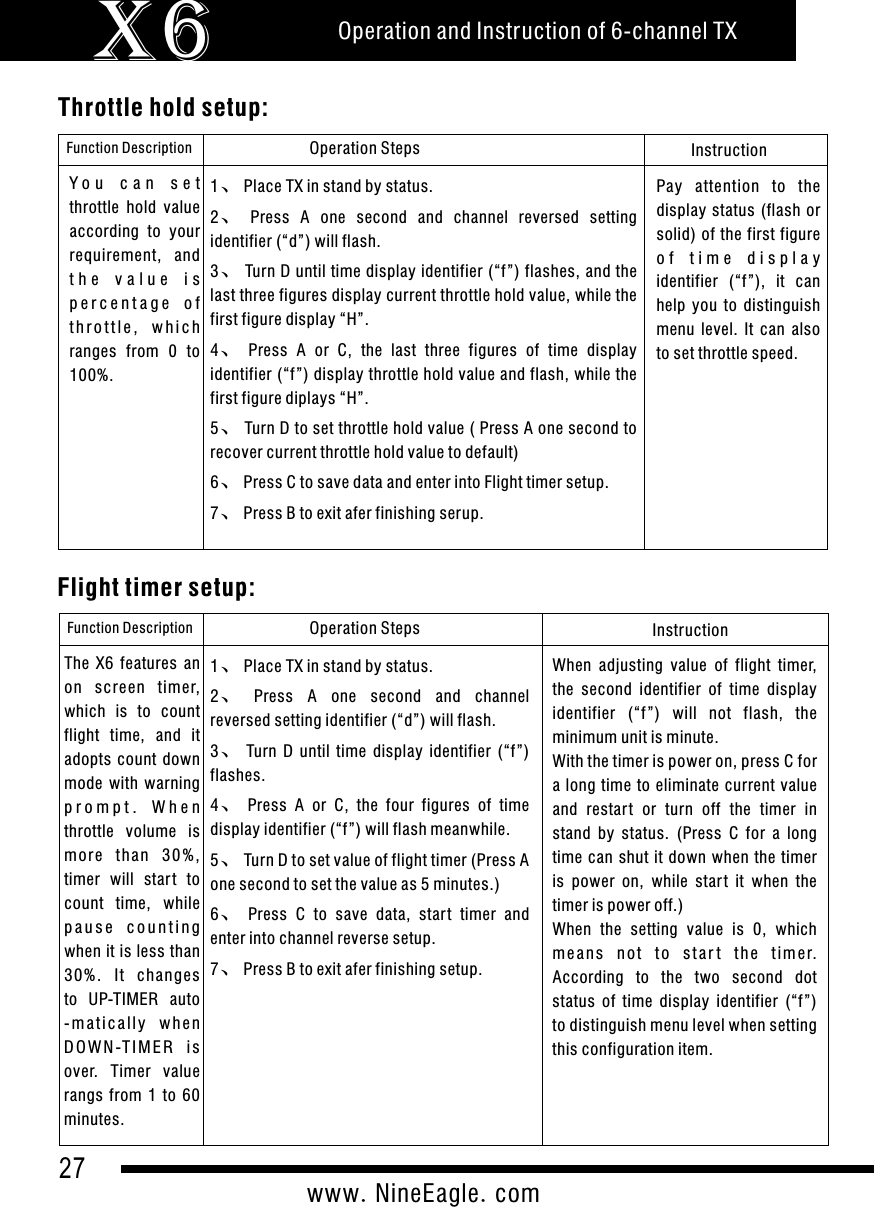

27www.NineEagle.comOperation and Instruction of 6-channel TXX6 Throttle hold setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel  reversed  setting identifier (“d”) will flash.3、Turn D until time display identifier (“f”) flashes, and the last three figures display current throttle hold value, while the first figure display “H”.4、Press  A  or  C,  the  last  three  figures  of  time  display identifier (“f”) display throttle hold value and flash, while the first figure diplays “H”.5、Turn D to set throttle hold value ( Press A one second to recover current throttle hold value to default)6、Press C to save data and enter into Flight timer setup.7、Press B to exit afer finishing serup.Pay  attention  to  the display  status  (flash  or solid) of the first figure o f   t i m e   d i s p l a y  identifier  (“f”),  it  can help  you  to  distinguish menu  level.  It  can  also to set throttle speed.Y o u   c a n   s e t  throttle  hold  value according  to  your requirement,  and t h e   v a l u e   i s  p e r c e n t a g e   o f  t h r o t t l e ,  w h i c h ranges  from  0  to 100%. Flight timer setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  one  second  and  channel reversed setting identifier (“d”) will flash.3、Turn  D  until  time  display  identifier  (“f”) flashes.4、Press  A  or  C,  the  four  figures  of  time display identifier (“f”) will flash meanwhile.5、Turn D to set value of flight timer (Press A one second to set the value as 5 minutes.)6、Press  C  to  save  data,  star t  timer  and enter into channel reverse setup.7、Press B to exit afer finishing setup.When  adjusting  value  of  flight  timer, the  second  identifier  of  time  display identifier  (“f”)  will  not  flash,  the minimum unit is minute.With the timer is power on, press C for a long time  to eliminate current value and  restar t  or  turn  off  the  timer  in stand  by  status.  (Press  C  for  a  long time can shut it down when the  timer is  power  on,  while  star t  it  when  the timer is power off.)When  the  setting  value  is  0,  which m e a n s  n o t  t o  st a r t  th e  t im e r. According  to  the  two  second  dot status  of  time  display  identifier  (“f”) to distinguish menu level when setting this configuration item.  The  X6  features  an on  screen  timer, which  is  to  count flight  time,  and  it adopts  count  down mode  with  warning p r o m p t .   W h e n  throttle  volume  is mor e  t h an  30%, timer  will  star t  to count  time,  while p a u s e  c o u n t i n g when it is less than 30%.  It  changes       to  UP-TIMER  auto     - m a t ic a l l y  w h en D O W N -T I ME R  i s over.  Timer  value rangs  from  1  to  60 minutes.

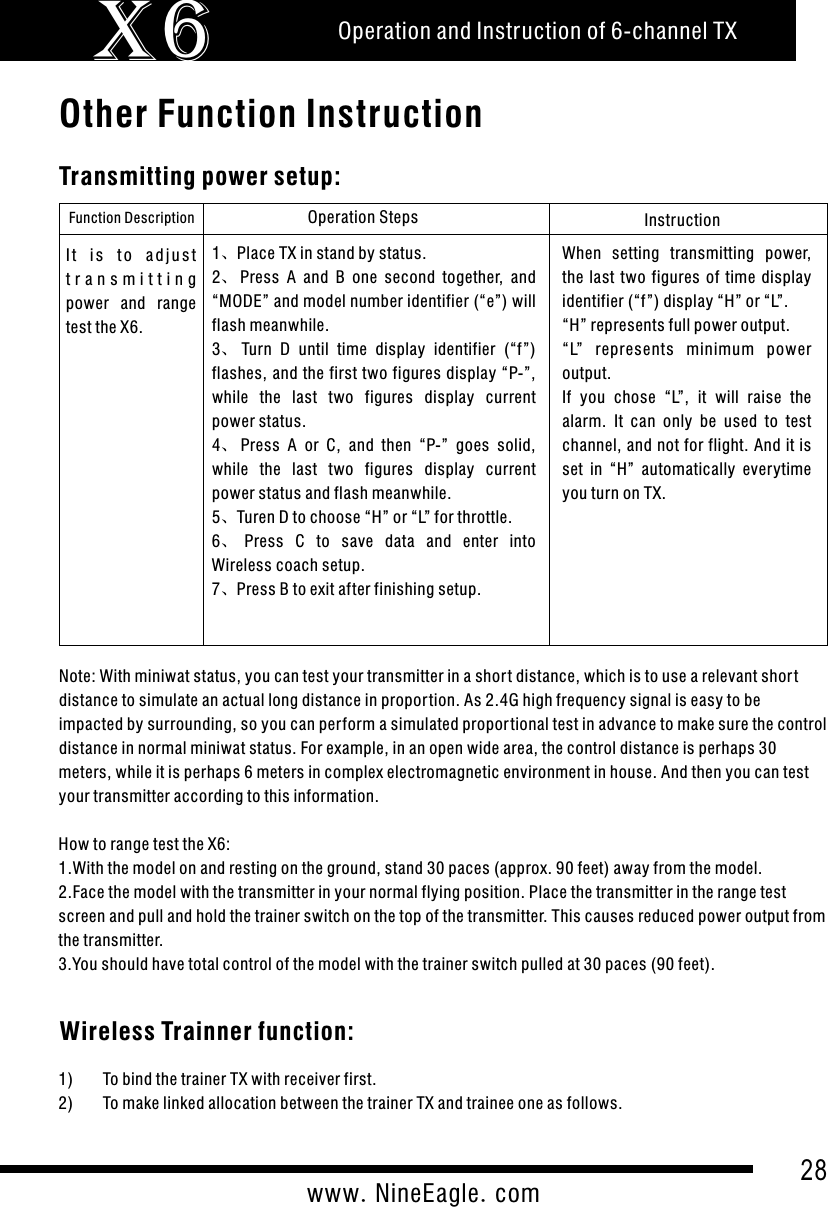

28www.NineEagle.comOperation and Instruction of 6-channel TXX6Other Function Instruction Transmitting power setup:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn  D  until  time  display  identifier  (“f”) flashes, and the first two figures display “P-”, while  the  last  two  figures  display  current power status.4、Press  A  or  C,  and  then  “P-”  goes  solid, while  the  last  two  figures  display  current power status and flash meanwhile.5、Turen D to choose “H” or “L” for throttle.6、Press  C  to  save  data  and  enter  into Wireless coach setup.7、Press B to exit after finishing setup.When  setting  transmitting  power, the  last  two  figures  of  time  display identifier (“f”) display “H” or “L”.“H” represents full power output.“L”  represents  minimum  power output.If  you  chose  “L”,  it  will  raise  the alarm.  It  can  only  be  used  to  test channel, and not for flight. And it is set  in  “H”  automatically  everytime you turn on TX.        I t  i s  t o  a d j u s t t r a n s m i t t i n g  power  and  range test the X6.Note: With miniwat status, you can test your transmitter in a shor t distance, which is to use a relevant shor t distance to simulate an actual long distance in propor tion. As 2.4G high frequency signal is easy to be impacted by surrounding, so you can perform a simulated propor tional test in advance to make sure the control distance in normal miniwat status. For example, in an open wide area, the control distance is perhaps 30 meters, while it is perhaps 6 meters in complex electromagnetic environment in house. And then you can test your transmitter according to this information.How to range test the X6:1.With the model on and resting on the ground, stand 30 paces (approx. 90 feet) away from the model.2.Face the model with the transmitter in your normal flying position. Place the transmitter in the range test screen and pull and hold the trainer switch on the top of the transmitter. This causes reduced power output from the transmitter.3.You should have total control of the model with the trainer switch pulled at 30 paces (90 feet). Wireless Trainner function:1) To bind the trainer TX with receiver first.2) To make linked allocation between the trainer TX and trainee one as follows.

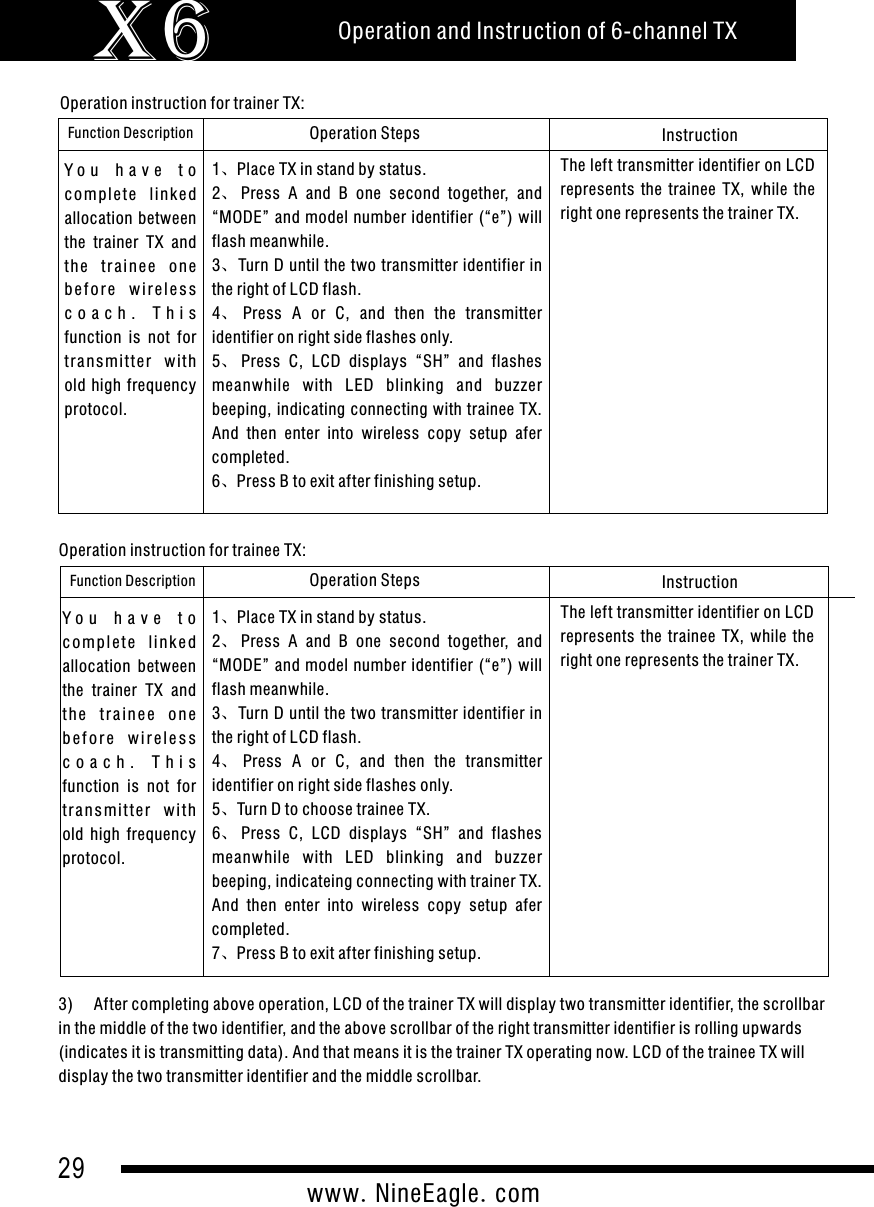

29www.NineEagle.comOperation and Instruction of 6-channel TXX6Operation instruction for trainer TX:Function Description Operation Steps InstructionThe left transmitter identifier on LCD represents  the  trainee  TX,  while  the right one represents the trainer TX.Y o u   h a v e   t o  comple t e  linked allocation between the  trainer  TX  and the  t r a i n e e  o n e b e f o re  wi r e l es s c o a c h .   T h i s  function  is  not  for tran s mitt e r  w i th old  high frequency protocol.1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn D until the two transmitter identifier in the right of LCD flash.4、Press  A  or  C,  and  then  the  transmitter identifier on right side flashes only.5、Press  C,  LCD  displays  “SH”  and  flashes meanwhile  with  LED  blinking  and  buzzer beeping, indicating connecting with trainee TX. And  then  enter  into  wireless  copy  setup  afer completed.6、Press B to exit after finishing setup.Operation instruction for trainee TX:Function Description Operation Steps InstructionThe left transmitter identifier on LCD represents  the  trainee  TX,  while  the right one represents the trainer TX.Y o u   h a v e   t o  c o m p l e t e  li n k e d allocation  between the  trainer  TX  and t h e  t r a i n ee  o n e b e f o r e  w i r e l e s s c o a c h .   T h i s  function  is  not  for transmitter  with old  high  frequency protocol.1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn D until the two transmitter identifier in the right of LCD flash.4、Press  A  or  C,  and  then  the  transmitter identifier on right side flashes only.5、Turn D to choose trainee TX.6、Press  C,  LCD  displays  “SH”  and  flashes meanwhile  with  LED  blinking  and  buzzer beeping, indicateing connecting with trainer TX. And  then  enter  into  wireless  copy  setup  afer completed.7、Press B to exit after finishing setup.3)     After completing above operation, LCD of the trainer TX will display two transmitter identifier, the scrollbar in the middle of the two identifier, and the above scrollbar of the right transmitter identifier is rolling upwards (indicates it is transmitting data). And that means it is the trainer TX operating now. LCD of the trainee TX will display the two transmitter identifier and the middle scrollbar.

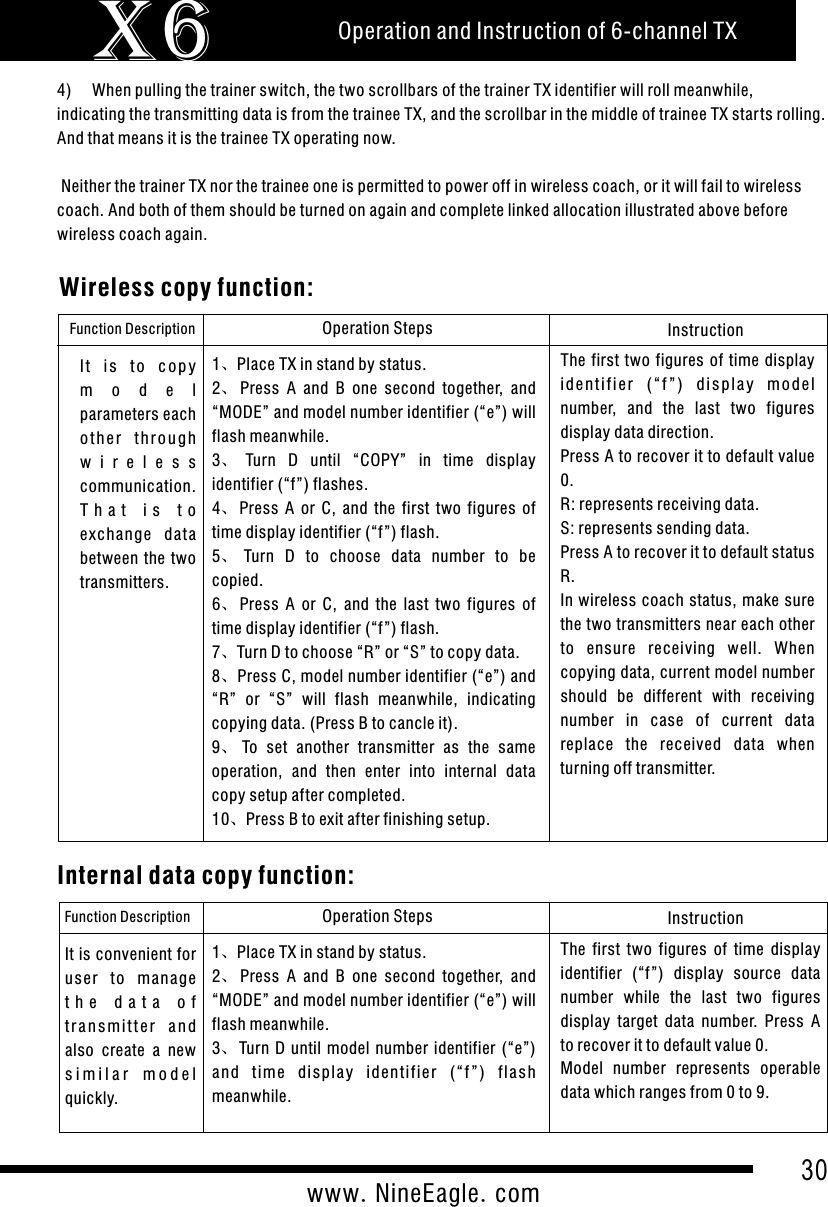

30www.NineEagle.comOperation and Instruction of 6-channel TXX64)     When pulling the trainer switch, the two scrollbars of the trainer TX identifier will roll meanwhile, indicating the transmitting data is from the trainee TX, and the scrollbar in the middle of trainee TX star ts rolling. And that means it is the trainee TX operating now. Neither the trainer TX nor the trainee one is permitted to power off in wireless coach, or it will fail to wireless coach. And both of them should be turned on again and complete linked allocation illustrated above before wireless coach again. Wireless copy function:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn  D  until  “COPY”  in  time  display identifier (“f”) flashes.4、Press  A  or  C,  and  the  first  two  figures  of time display identifier (“f”) flash.5、Turn  D  to  choose  data  number  to  be copied.6、Press  A  or  C,  and  the  last  two  figures  of time display identifier (“f”) flash.7、Turn D to choose “R” or “S” to copy data.8、Press C, model number identifier (“e”) and “R”  or  “S”  will  flash  meanwhile,  indicating copying data. (Press B to cancle it).9、To  set  another  transmitter  as  the  same operation,  and  then  enter  into  internal  data copy setup after completed.10、Press B to exit after finishing setup.The  first  two figures  of time display id e n t i f i e r  ( “ f ”)  d i splay  m o d e l number,  and  the  last  two  figures display data direction. Press A to recover it to default value 0.R: represents receiving data.S: represents sending data.Press A to recover it to default status R.In wireless coach status, make sure the two transmitters near each other to  ensure  receiving  well.  When copying data, current model number should  be  different  with  receiving number  in  case  of  current  data replace  the  received  data  when turning off transmitter.        I t  i s  to  c op y m o d e l  parameters each o t h e r  t h ro u g h w i r e l e s s  communication. T h a t   i s   t o  exchange  data between  the two transmitters. Internal data copy function:Function Description Operation Steps Instruction1、Place TX in stand by status.2、Press  A  and  B  one  second  together,  and “MODE” and model number identifier (“e”) will flash meanwhile.3、Turn  D  until  model  number  identifier  (“e”) and  t ime  d isplay  i dent ifi er  (“f ”)  fl ash meanwhile.The  first  two  figures  of  time  display identifier  (“f”)  display  source  data number  while  the  last  two  figures display  target  data  number.  Press  A to recover it to default value 0.Model  number  represents  operable data which ranges from 0 to 9.It is convenient for user  to  manage t h e   d a t a   o f  t r a n sm i t t e r  a n d also  create  a  new s i m i l a r   m o d e l  quickly.

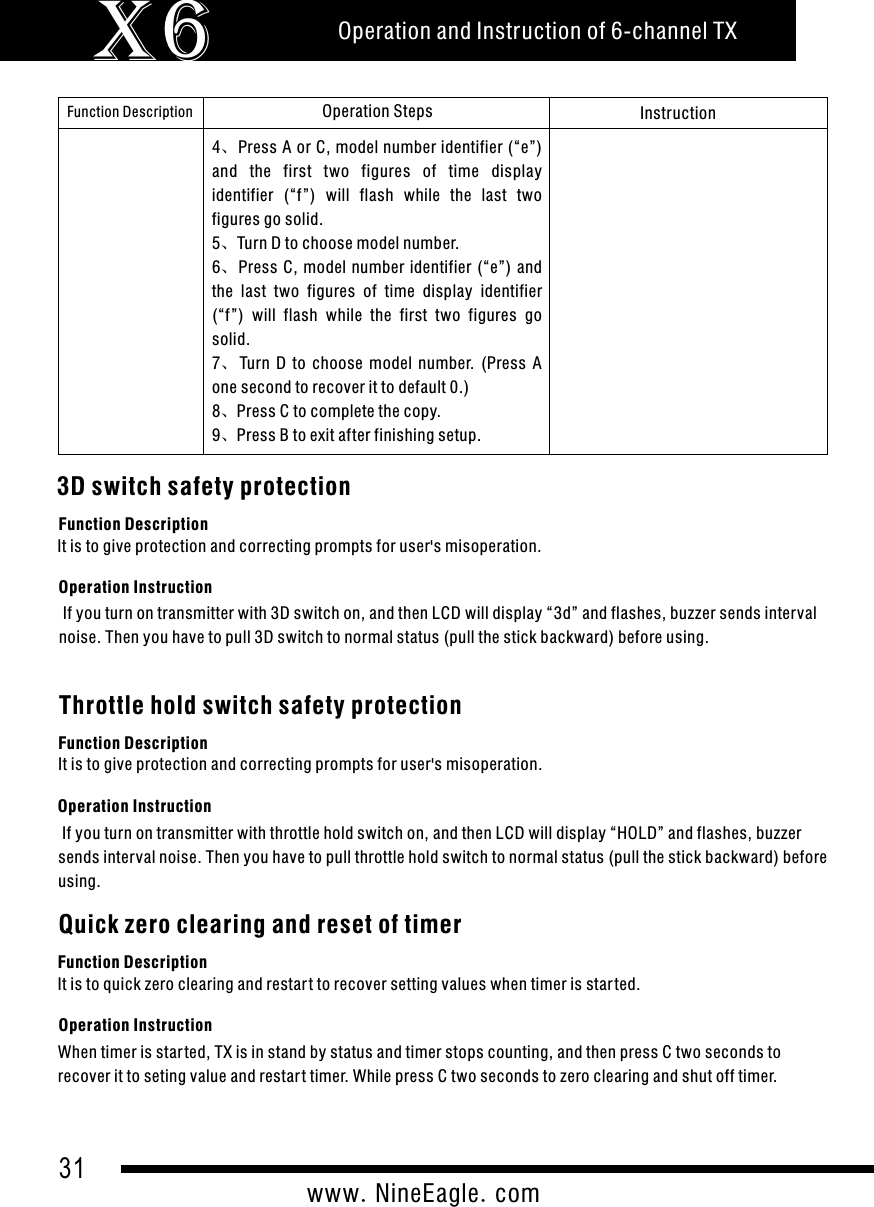

31www.NineEagle.comOperation and Instruction of 6-channel TXX6Function Description Operation Steps Instruction4、Press A or C, model number identifier (“e”) and  the  first  two  figures  of  time  display identifier  (“f”)  will  flash  while  the  last  two figures go solid.5、Turn D to choose model number.6、Press C, model number identifier (“e”)  and the  last  two  figures  of  time  display  identifier (“f”)  will  flash  while  the  first  two  figures  go solid.7、Turn  D  to  choose  model  number.  (Press  A one second to recover it to default 0.)8、Press C to complete the copy.9、Press B to exit after finishing setup. 3D switch safety protectionFunction Description It is to give protection and correcting prompts for user's misoperation.Operation Instruction If you turn on transmitter with 3D switch on, and then LCD will display “3d” and flashes, buzzer sends interval noise. Then you have to pull 3D switch to normal status (pull the stick backward) before using. Throttle hold switch safety protectionFunction Description It is to give protection and correcting prompts for user's misoperation.Operation Instruction If you turn on transmitter with throttle hold switch on, and then LCD will display “HOLD” and flashes, buzzer sends interval noise. Then you have to pull throttle hold switch to normal status (pull the stick backward) before using. Quick zero clearing and reset of timerFunction Description  It is to quick zero clearing and restar t to recover setting values when timer is star ted.Operation InstructionWhen timer is started, TX is in stand by status and timer stops counting, and then press C two seconds to recover it to seting value and restar t timer. While press C two seconds to zero clearing and shut off timer.

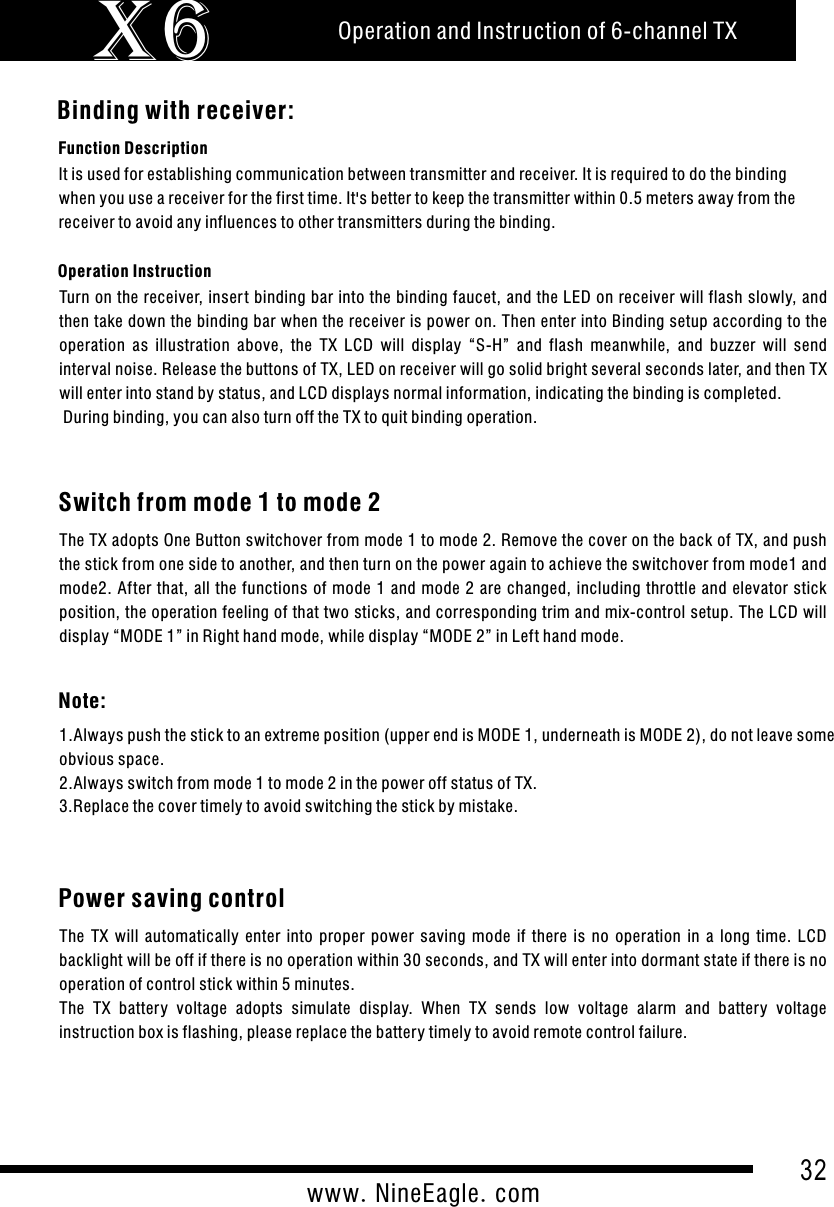

32www.NineEagle.comOperation and Instruction of 6-channel TXX6Binding with receiver:Function DescriptionOperation InstructionTurn on the receiver, inser t binding bar into the binding faucet, and the LED on receiver will flash slowly, and then take down the binding bar when the receiver is power on. Then enter into Binding setup according to the operation  as  illustration  above,  the  TX  LCD  will  display  “S-H”  and  flash  meanwhile,  and  buzzer  will  send interval noise. Release the buttons of TX, LED on receiver will go solid bright several seconds later, and then TX will enter into stand by status, and LCD displays normal information, indicating the binding is completed. During binding, you can also turn off the TX to quit binding operation.It is used for establishing communication between transmitter and receiver. It is required to do the binding when you use a receiver for the first time. It's better to keep the transmitter within 0.5 meters away from the receiver to avoid any influences to other transmitters during the binding.Switch from mode 1 to mode 2The TX adopts One Button switchover from mode 1 to mode 2. Remove the cover on the back of TX, and push the stick from one side to another, and then turn on the power again to achieve the switchover from mode1 and mode2. After  that, all the  functions of mode  1 and  mode  2 are  changed, including  throttle and  elevator stick position, the operation feeling of that two sticks, and corresponding trim and mix-control setup. The LCD will display “MODE 1” in Right hand mode, while display “MODE 2” in Left hand mode.Note:1.Always push the stick to an extreme position (upper end is MODE 1, underneath is MODE 2), do not leave some obvious space.2.Always switch from mode 1 to mode 2 in the power off status of TX.3.Replace the cover timely to avoid switching the stick by mistake.Power saving controlThe  TX  will  automatically  enter  into  proper  power  saving  mode  if  there  is  no  operation  in  a  long  time.  LCD backlight will be off if there is no operation within 30 seconds, and TX will enter into dormant state if there is no operation of control stick within 5 minutes.The  TX  battery  voltage  adopts  simulate  display.  When  TX  sends  low  voltage  alarm  and  battery  voltage instruction box is flashing, please replace the battery timely to avoid remote control failure.

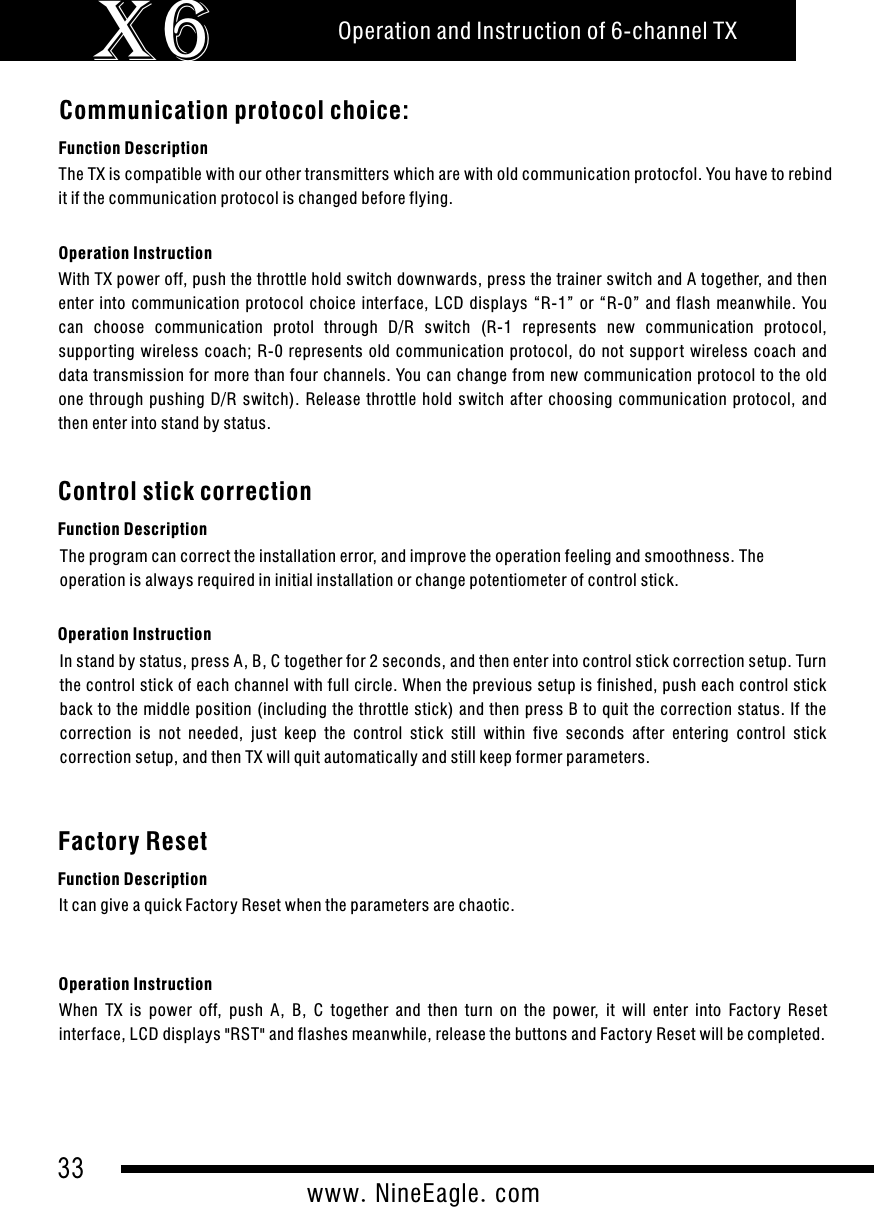

33www.NineEagle.comOperation and Instruction of 6-channel TXX6Communication protocol choice:Function DescriptionOperation InstructionWith TX power off, push the throttle hold switch downwards, press the trainer switch and A together, and then enter  into  communication  protocol  choice  interface,  LCD  displays  “R-1”  or  “R-0”  and  flash  meanwhile.  You can  choose  communication  protol  through  D/R  switch  (R-1  represents  new  communication  protocol, suppor ting  wireless  coach;  R-0  represents  old  communication  protocol,  do  not  suppor t  wireless  coach  and data transmission for more than four channels. You can change from new communication protocol to the old one  through  pushing  D/R  switch).  Release  throttle  hold  switch  after  choosing  communication  protocol,  and then enter into stand by status.The TX is compatible with our other transmitters which are with old communication protocfol. You have to rebind it if the communication protocol is changed before flying.Control stick correctionFunction DescriptionOperation InstructionIn stand by status, press A, B, C together for 2 seconds, and then enter into control stick correction setup. Turn the control stick of each channel with full circle. When the previous setup is finished, push each control stick back to the middle position (including the throttle stick) and then press B to quit the correction status. If the correction  is  not  needed,  just  keep  the  control  stick  still  within  five  seconds  after  entering  control  stick correction setup, and then TX will quit automatically and still keep former parameters.The program can correct the installation error, and improve the operation feeling and smoothness. The operation is always required in initial installation or change potentiometer of control stick.Factory ResetFunction DescriptionOperation InstructionWhen  TX  is  power  off,  push  A,  B,  C  together  and  then  turn  on  the  power,  it  will  enter  into  Factory  Reset inter face, LCD displays "RST" and flashes meanwhile, release the buttons and Factory Reset will be completed.It can give a quick Factory Reset when the parameters are chaotic.

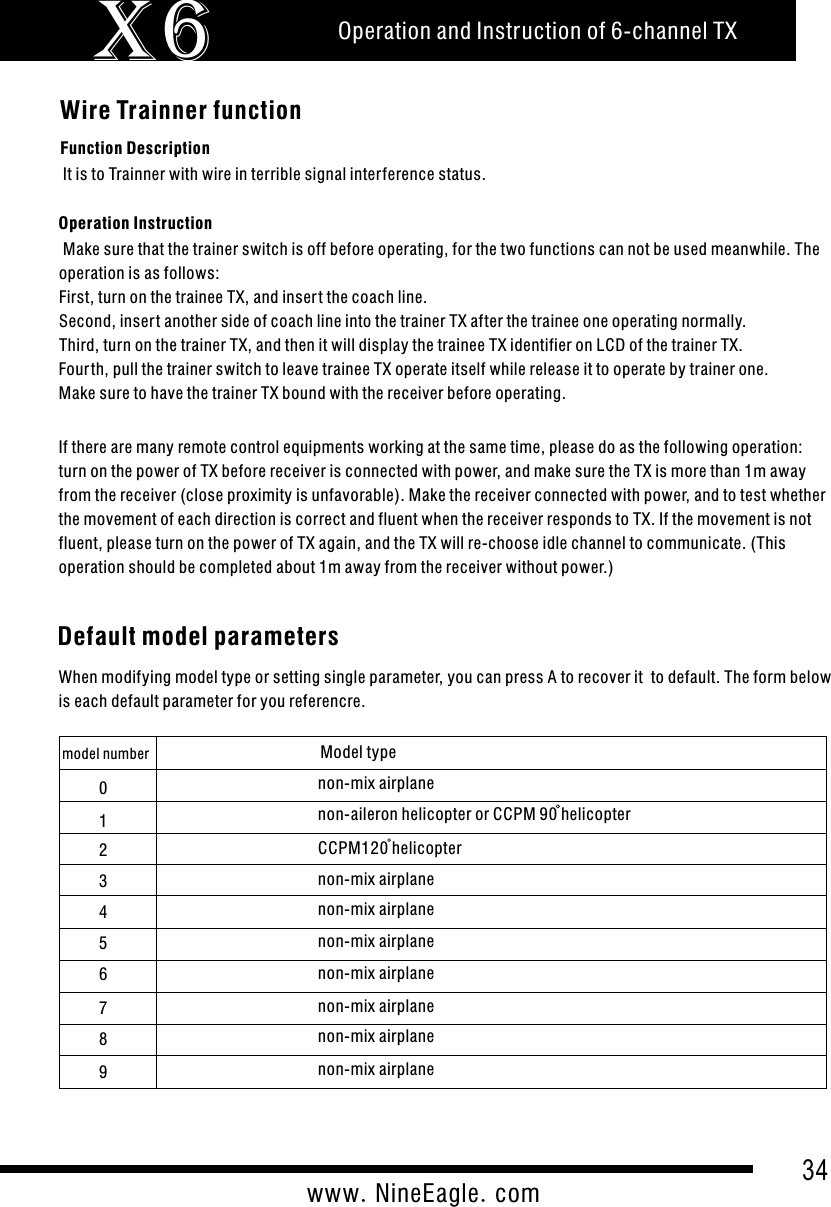

34www.NineEagle.comOperation and Instruction of 6-channel TXX6Wire Trainner functionFunction DescriptionOperation Instruction Make sure that the trainer switch is off before operating, for the two functions can not be used meanwhile. The operation is as follows:First, turn on the trainee TX, and inser t the coach line.Second, inser t another side of coach line into the trainer TX after the trainee one operating normally.Third, turn on the trainer TX, and then it will display the trainee TX identifier on LCD of the trainer TX.Four th, pull the trainer switch to leave trainee TX operate itself while release it to operate by trainer one.Make sure to have the trainer TX bound with the receiver before operating.If there are many remote control equipments working at the same time, please do as the following operation: turn on the power of TX before receiver is connected with power, and make sure the TX is more than 1m away from the receiver (close proximity is unfavorable). Make the receiver connected with power, and to test whether the movement of each direction is correct and fluent when the receiver responds to TX. If the movement is not fluent, please turn on the power of TX again, and the TX will re-choose idle channel to communicate. (This operation should be completed about 1m away from the receiver without power.) It is to Trainner with wire in terrible signal interference status.Default model parameters When modifying model type or setting single parameter, you can press A to recover it  to default. The form below is each default parameter for you referencre.model number Model type012345678non-mix airplanenon-aileron helicopter or CCPM 90 helicopterCCPM120 helicopternon-mix airplanenon-mix airplanenon-mix airplanenon-mix airplanenon-mix airplanenon-mix airplane9non-mix airplane

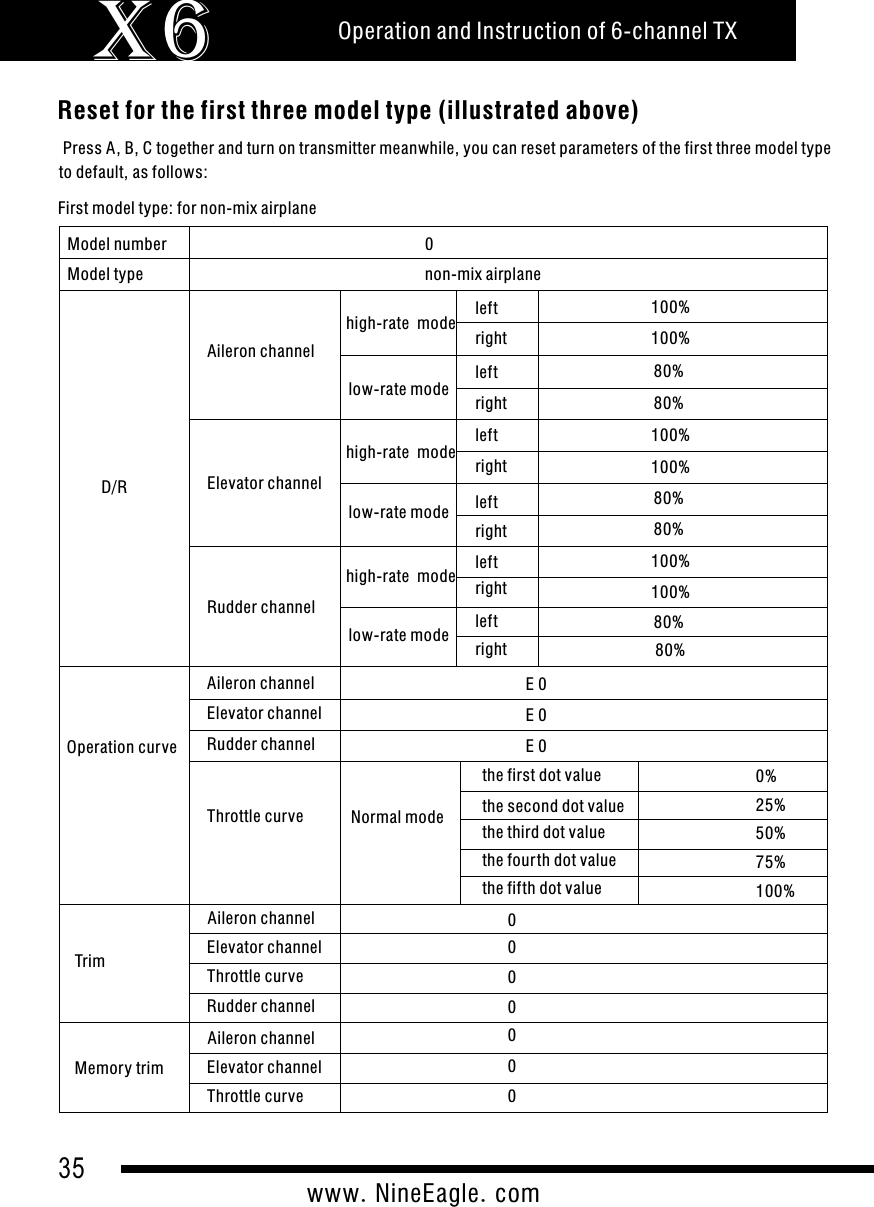

35www.NineEagle.comOperation and Instruction of 6-channel TXX6Reset for the first three model type (illustrated above) Press A, B, C together and turn on transmitter meanwhile, you can reset parameters of the first three model type to default, as follows:First model type: for non-mix airplaneModel numberModel typeAileron channel0non-mix airplanelow-rate modehigh-rate mode leftrightleftright100%100%80%80%Elevator channel high-rate modelow-rate modeleftrightleftright100%100%80%80%Rudder channelhigh-rate modelow-rate modeleftrightleftright100%100%80%80%D/ROperation curveAileron channelElevator channelRudder channelThrottle curveE 0E 0E 0Normal modethe first dot value 0%the second dot valuethe third dot valuethe four th dot valuethe fifth dot value25%50%75%100%TrimAileron channelElevator channelRudder channelThrottle curve0000Memory trimAileron channelElevator channelThrottle curve000

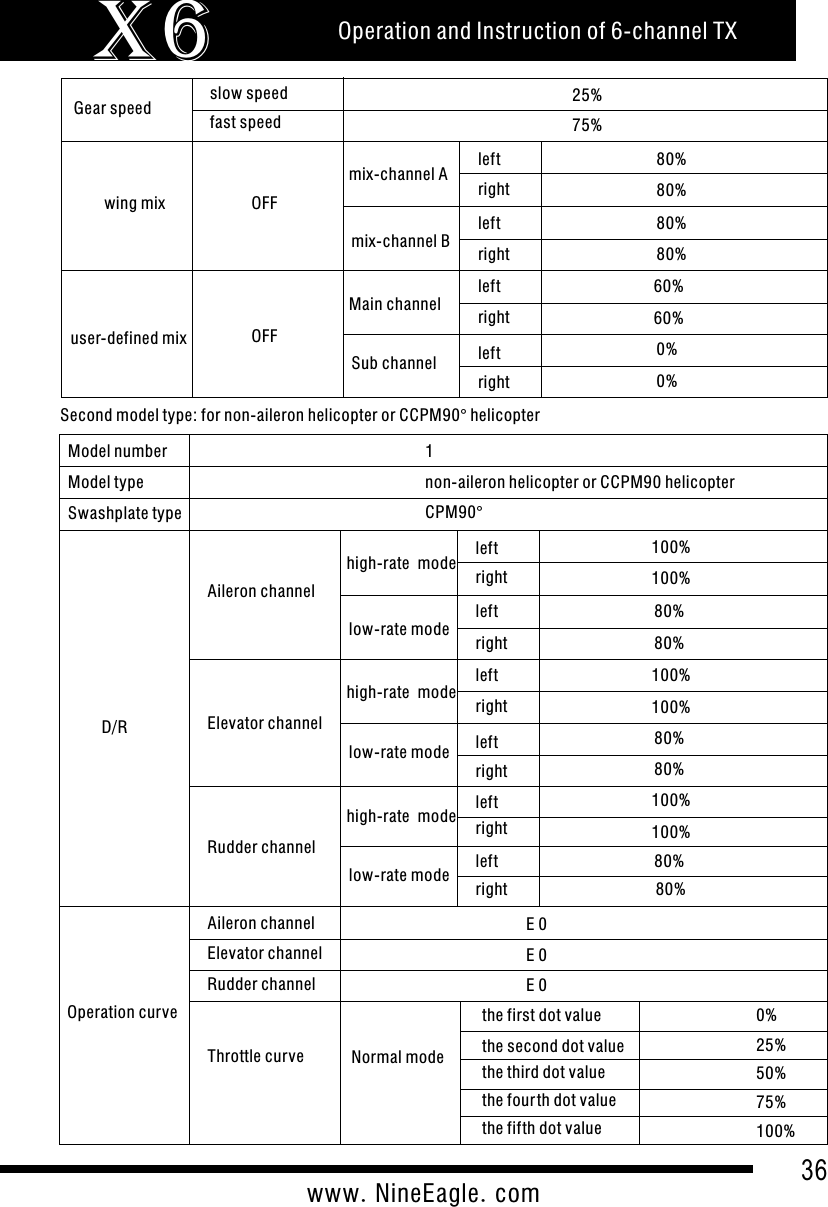

36www.NineEagle.comOperation and Instruction of 6-channel TXX6Gear speedOFF25%75%mix-channel Bmix-channel A leftrightleftright80%80%Main channelSub channelleftrightleftright60%60%0%0%user-defined mixslow speedfast speedwing mix 80%80%OFFSecond model type: for non-aileron helicopter or CCPM90° helicopterModel numberModel typeAileron channel1non-aileron helicopter or CCPM90 helicopterlow-rate modehigh-rate mode leftrightleftright100%100%80%80%Elevator channel high-rate modelow-rate modeleftrightleftright100%100%80%80%Rudder channelhigh-rate modelow-rate modeleftrightleftright100%100%80%80%D/ROperation curveAileron channelElevator channelRudder channelThrottle curveE 0E 0E 0Normal modethe first dot value 0%the second dot valuethe third dot valuethe four th dot valuethe fifth dot value25%50%75%100%Swashplate type CPM90°

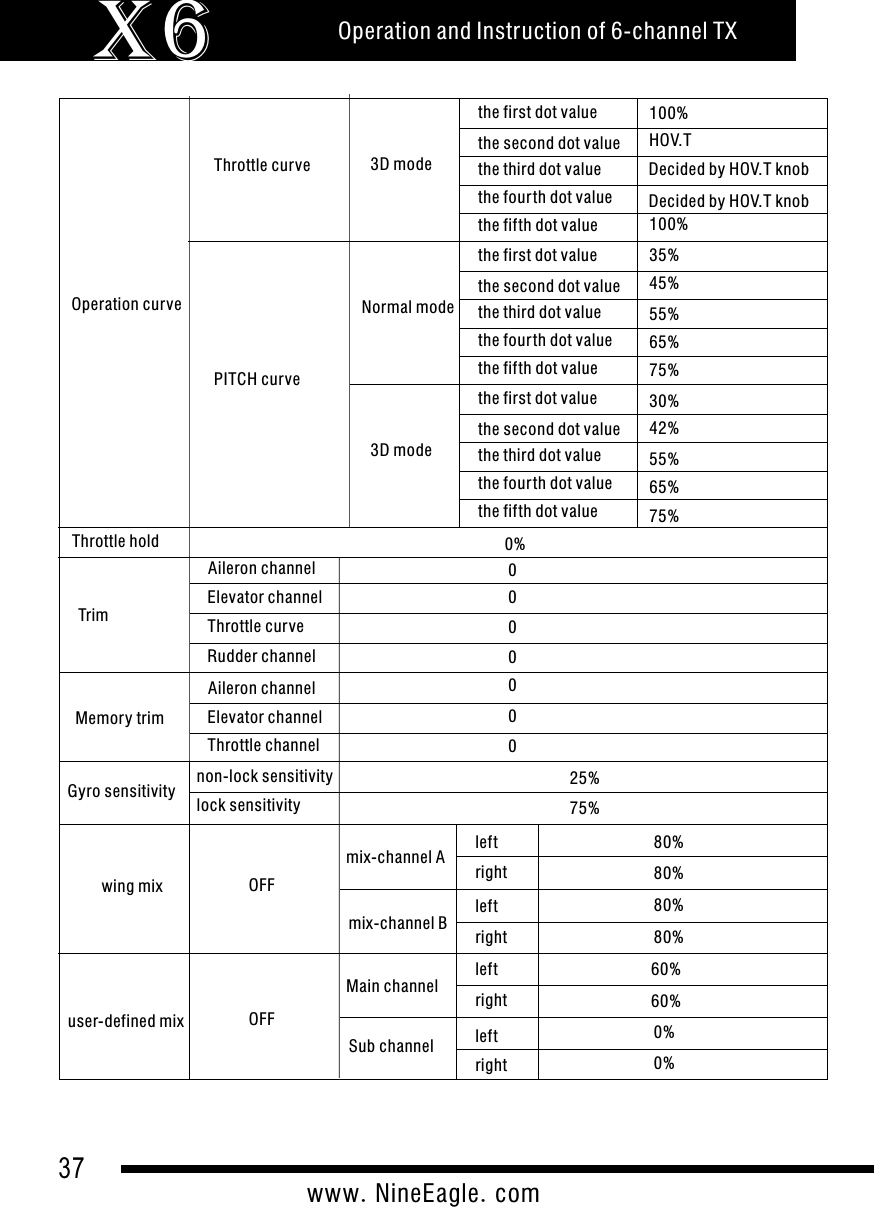

37www.NineEagle.comOperation and Instruction of 6-channel TXX6Throttle curve 3D modethe first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot value100%Operation curveHOV.T Decided by HOV.T knobDecided by HOV.T knob100%the first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot value3D modethe first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot valuePITCH curveNormal mode35%45%55%65%75%30%42%55%65%75%Throttle hold 0%TrimAileron channelElevator channelRudder channelThrottle curve0000Memory trimAileron channelElevator channelThrottle channel000Gyro sensitivityOFF25%75%mix-channel Bmix-channel A leftrightleftright80%80%Main channelSub channelleftrightleftright60%60%0%0%user-defined mixnon-lock sensitivitylock sensitivitywing mix 80%80%OFF

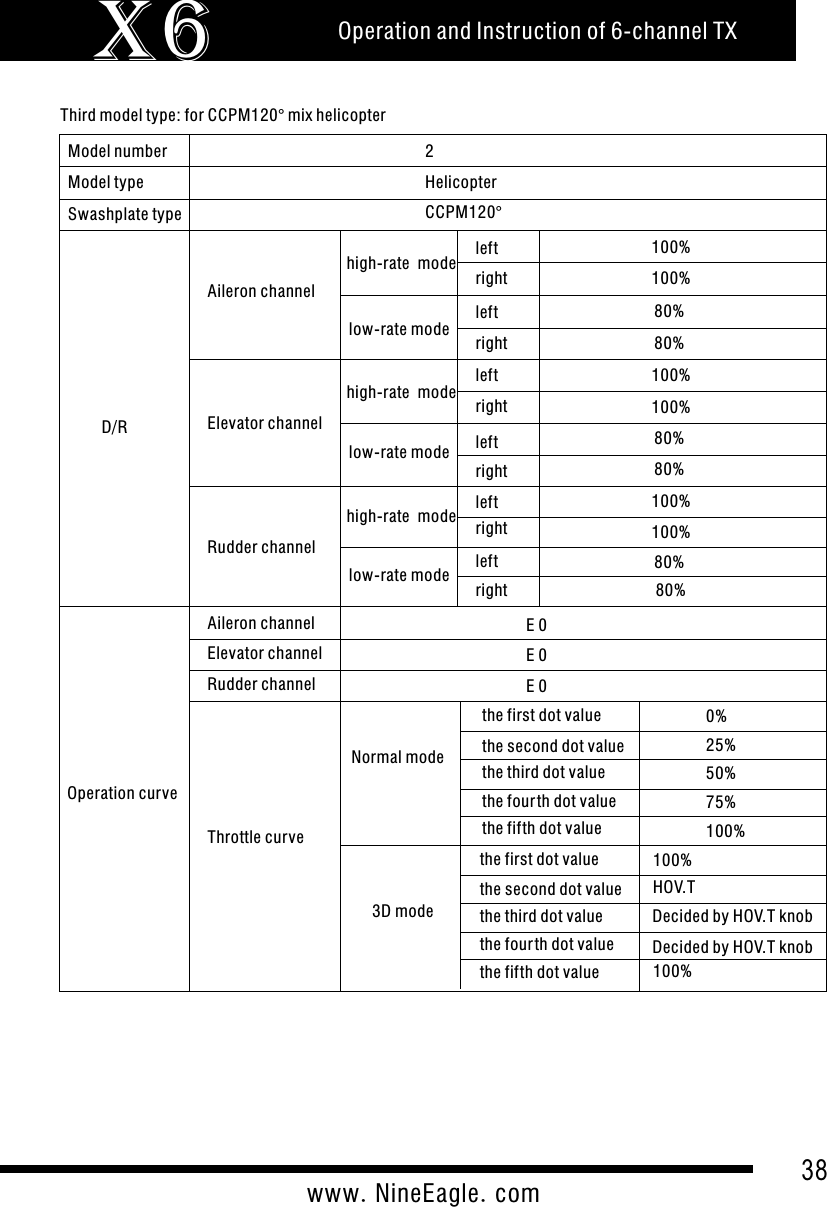

38www.NineEagle.comOperation and Instruction of 6-channel TXX6Third model type: for CCPM120° mix helicopterModel numberModel typeAileron channel2Helicopterlow-rate modehigh-rate mode leftrightleftright100%100%80%80%Elevator channel high-rate modelow-rate modeleftrightleftright100%100%80%80%Rudder channelhigh-rate modelow-rate modeleftrightleftright100%100%80%80%D/ROperation curveAileron channelElevator channelRudder channelThrottle curveE 0E 0E 0Normal modethe first dot value 0%the second dot valuethe third dot valuethe four th dot valuethe fifth dot value25%50%75%100%Swashplate type CCPM120°3D modethe first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot value100%HOV.T Decided by HOV.T knobDecided by HOV.T knob100%

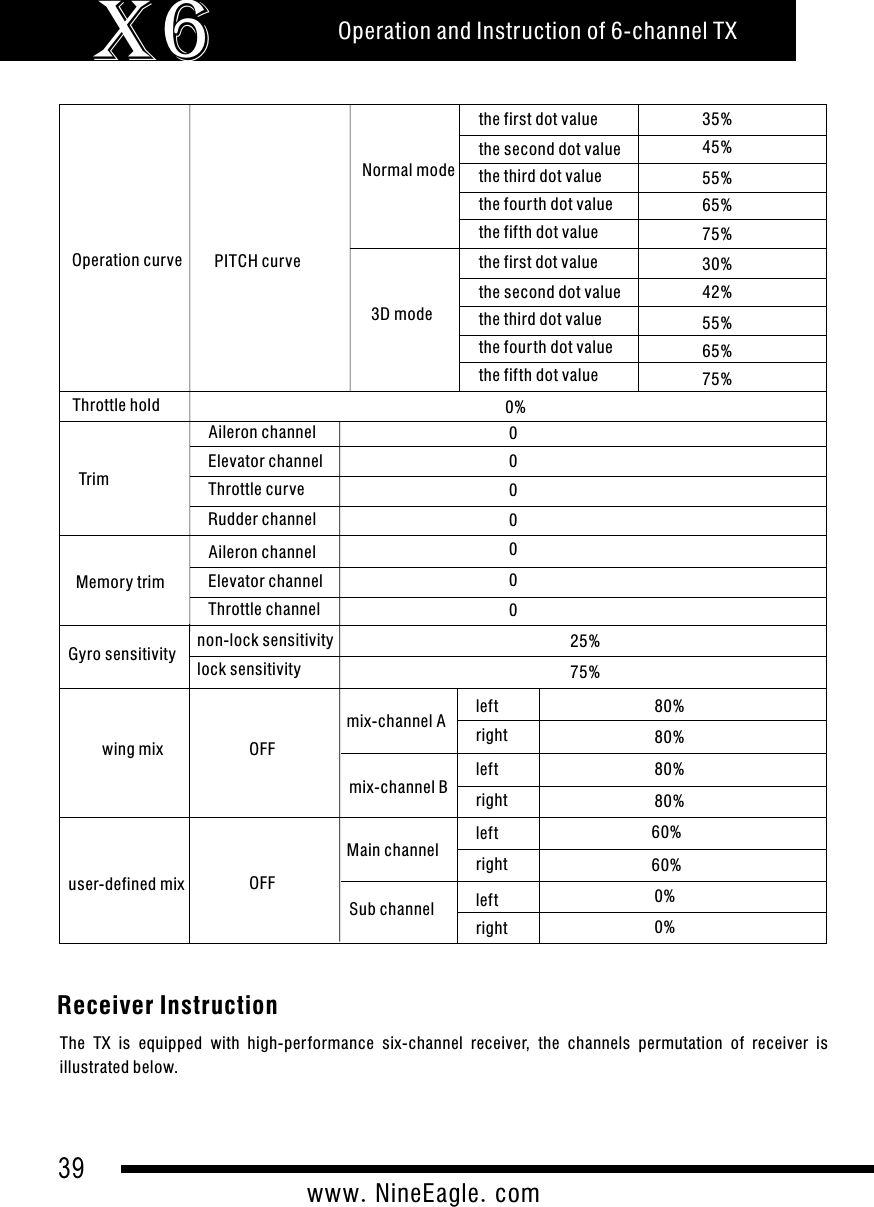

39www.NineEagle.comOperation and Instruction of 6-channel TXX6Operation curvethe first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot value3D modethe first dot valuethe second dot valuethe third dot valuethe four th dot valuethe fifth dot valuePITCH curveNormal mode35%45%55%65%75%30%42%55%65%75%Throttle hold 0%TrimAileron channelElevator channelRudder channelThrottle curve0000Memory trimAileron channelElevator channelThrottle channel000Gyro sensitivityOFF25%75%mix-channel Bmix-channel A leftrightleftright80%80%Main channelSub channelleftrightleftright60%60%0%0%user-defined mixnon-lock sensitivitylock sensitivitywing mix 80%80%OFFReceiver InstructionThe  TX  is  equipped  with  high-per formance  six-channel  receiver,  the  channels  permutation  of  receiver  is illustrated below.

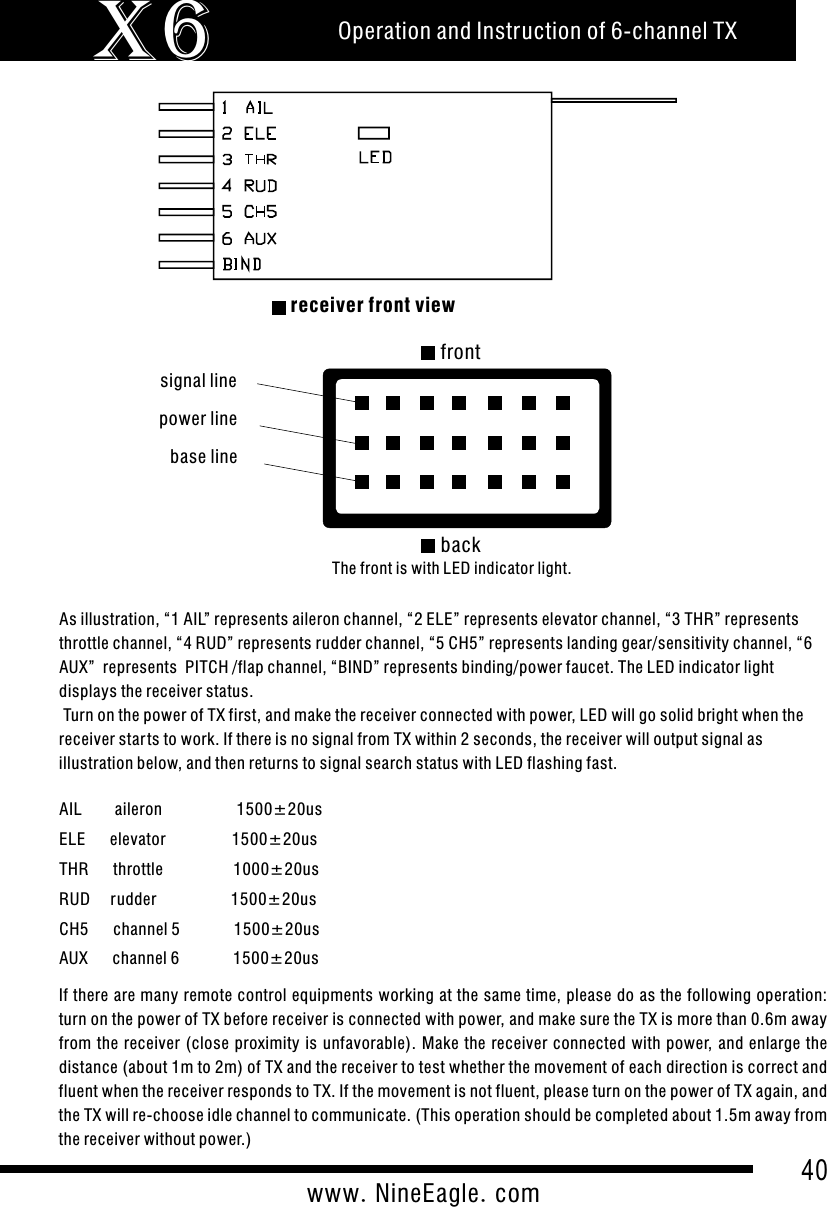

40www.NineEagle.comOperation and Instruction of 6-channel TXX6   receiver front viewpower linesignal linebase linefront backThe front is with LED indicator light.As illustration, “1 AIL” represents aileron channel, “2 ELE” represents elevator channel, “3 THR” represents throttle channel, “4 RUD” represents rudder channel, “5 CH5” represents landing gear/sensitivity channel, “6 AUX”  represents  PITCH /flap channel, “BIND” represents binding/power faucet. The LED indicator light displays the receiver status. Turn on the power of TX first, and make the receiver connected with power, LED will go solid bright when the receiver star ts to work. If there is no signal from TX within 2 seconds, the receiver will output signal as illustration below, and then returns to signal search status with LED flashing fast.AIL        aileron                  1500±20usELE      elevator                1500±20usTHR      throttle                 1000±20usRUD     rudder                  1500±20usCH5      channel 5           1500±20usAUX      channel 6           1500±20usIf there are many remote control equipments working at the same time, please do as the following operation: turn on the power of TX before receiver is connected with power, and make sure the TX is more than 0.6m away from the receiver  (close  proximity is unfavorable). Make the  receiver  connected with power, and  enlarge  the distance (about 1m to 2m) of TX and the receiver to test whether the movement of each direction is correct and fluent when the receiver responds to TX. If the movement is not fluent, please turn on the power of TX again, and the TX will re-choose idle channel to communicate. (This operation should be completed about 1.5m away from the receiver without power.)
