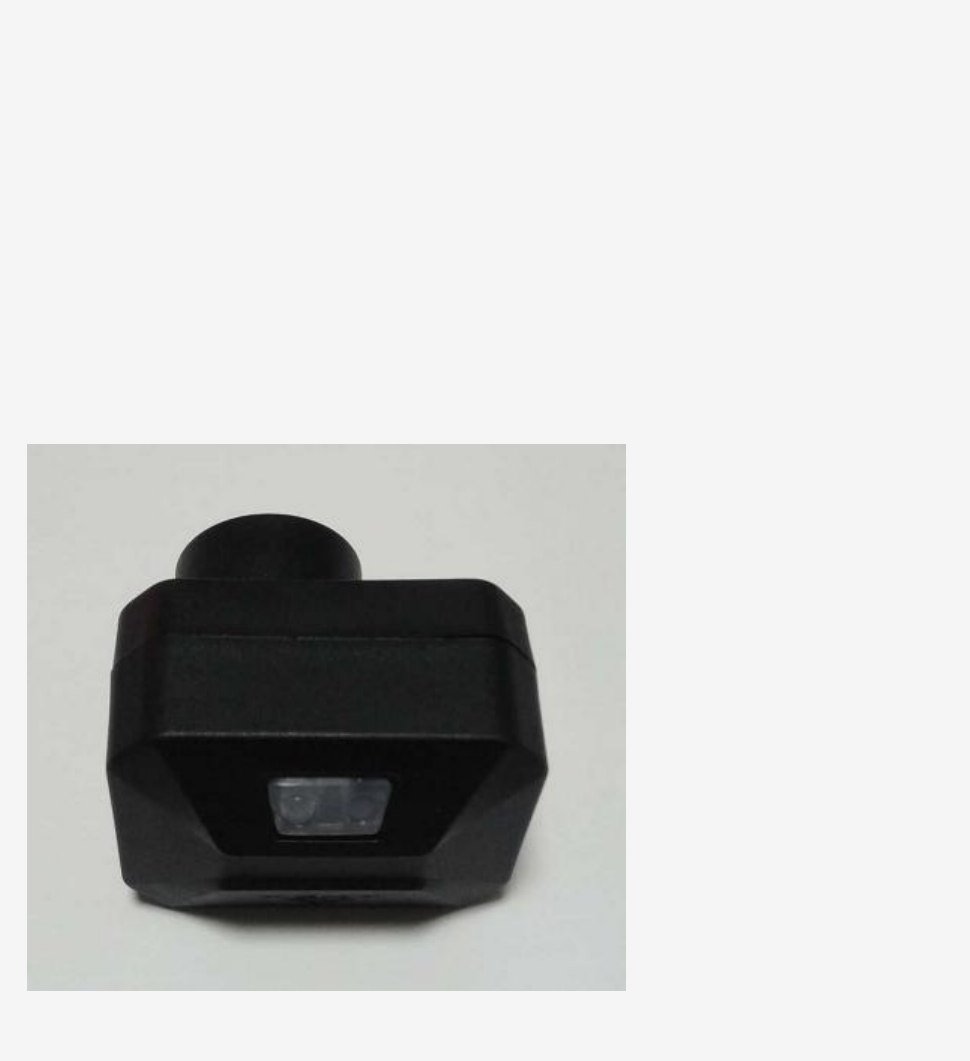

Ningbo Chima wh CM-CMT Receiver of Electric Winch Wireless Controller User Manual
Ningbo Chima winch co.,ltd. Receiver of Electric Winch Wireless Controller
User Manual
Electric winch wireless controller instructions
A, Features Overview
The wireless receiver operates at 315 MHz and has a control range of more than 25 meters. It is used
for wireless control of electric winch
B, The wireless remote control parameters
1, Working voltage: DC7-18V.
2, The working current: 7mA ± 3mA
3, Receiving frequency : 315MHz
C, Installation and function
1,Disconnect Power to the winch
2,Confirm that the plug is the correct type for this winch and plug it in
3.Select an area for the receiver on the vehicle close enough to the winch to allow cable
connection
4.Investigate the chosen area to make sure no components will be damaged by installation.
5.Permanently (optional) mount the remote control receiver to the vehicle using appropriate
hardware (not included).
6.Preare the winch for operation as explained in its manual
7.Reconnect winch’s power
8.Release the clutch handle and pull out about 10 feet of wire rope Leave the wire rope
laying on the ground and stay clear of the wire rope and hook
9.Reengage the clutch handle
10.Watch the spool and wire rope and briefly, press the out button on the remote control to
verify that the cable feeds out
WARNING! If the cable does not feed out ,check and correct the winch’s wiring. Retest
after correction.
11.Watch the spool and wire rope and briefly press the in button on the remote control to
verify that the cable retracts
WARNING! If the cable does not feed out ,check and correct the winch’s wiring .Retest
BOTH functions after correction.
12.If the remote operates the winch properly, it is ready for use.
13.After use, disconnect control box from winch to prevent accidental operation
D,WARNING!
To prevent serious injury
1.Disconnect control box from winch before service and after every use.
WINCH CAN OPERATE SUDDENLY AT ANY TIME WHILE CONNECTED.
2.Stand clear of winch, fairlead, and wire rope while connected. Keep bystanders away.
3.Only operate controls when winch and entire wire rope is within view.
4.Use with vehicle mounted recovery winches only. Do not use for any other application.
5.Confirm control box mounting location has no wire or components that can be damaged
drilling.
6.Read winch manual before use.
