Ningbo Pdlux Electronic Technology PD-V19 Microwave Sensor User Manual PD V19

Ningbo Pdlux Electronic Technology CO.,LTD. Microwave Sensor PD V19

Users Manual

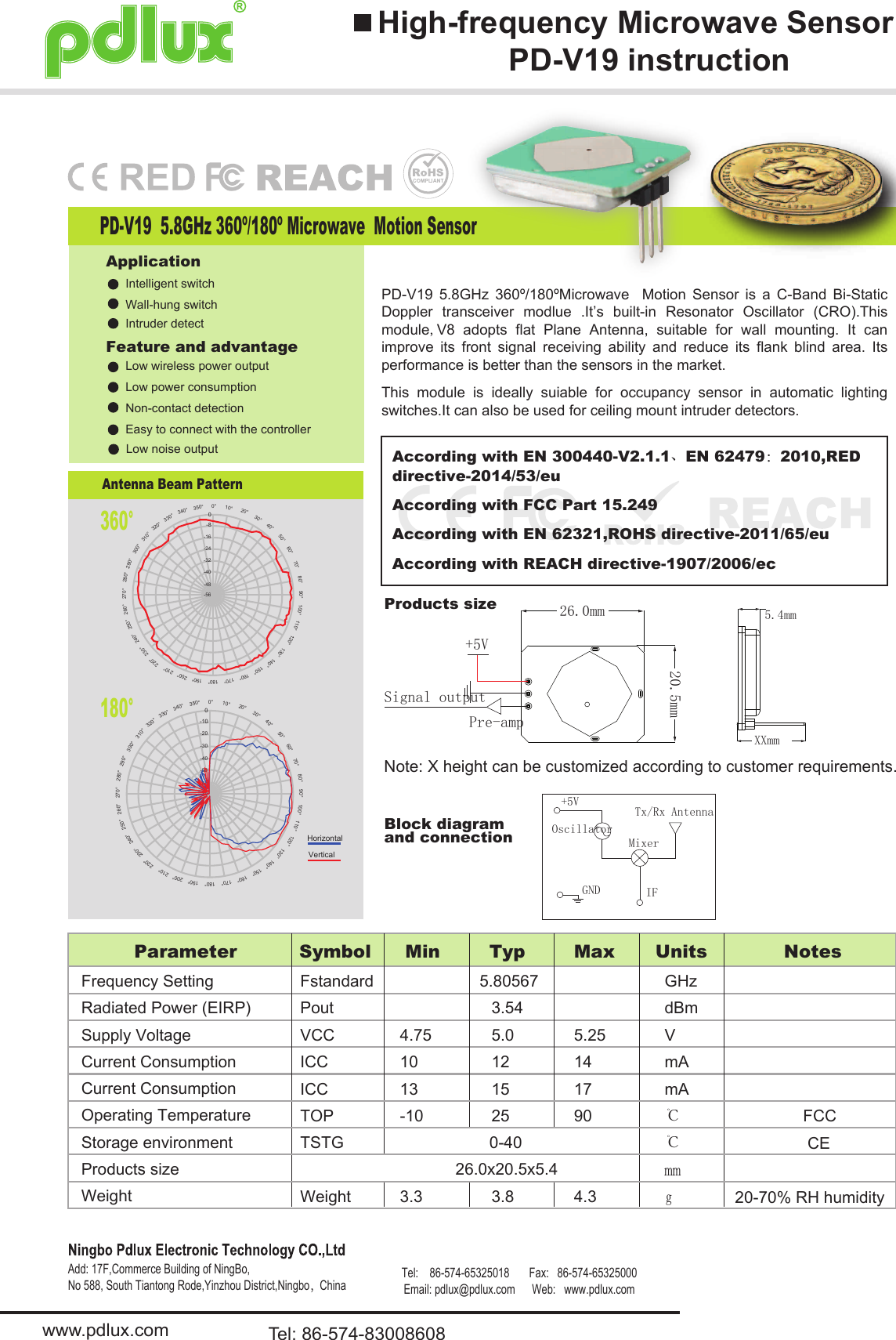

High-frequency Microwave SensorPD-V19 instructionwww.pdlux.com Tel: 86-574-83008608Add: 17F,Commerce Building of NingBo,No 588, South Tiantong Rode,Yinzhou District,Ningbo,ChinaApplicationFeature and advantage Intelligent switchIntruder detectLow wireless power outputLow power consumptionNon-contact detectionEasy to connect with the controllerWall-hung switchLow noise outputAntenna Beam PatternThis  module  is  ideally  suiable  for  occupancy  sensor  in  automatic  lighting switches.It can also be used for ceiling mount intruder detectors.0°10°20°30°40°50°60°70°80°90°100°110°120°130°140°150°160°170°180°190°200°210°220°230°240°250°260°270°280°290°300°310°320°330°340°350°-70-60-50-40-30-20-100HorizontalVertical0°10°20°30°40°50°60°70°80°90°100°110°120°130°140°150°160°170°180°190°200°210°220°230°240°250°260°270°280°290°300°310°320°330°340°350°-56-48-40-32-24-16-80360°180°Products sizeBlock diagram and connection+5VIFTx/Rx AntennaGNDMixerOscillatorPD-V19  5.8GHz  360º/180ºMicrowave    Motion  Sensor  is  a  C-Band  Bi-Static Doppler  transceiver  modlue  .It’s  built-in  Resonator  Oscillator  (CRO).This module,V8  adopts  flat  Plane  Antenna,  suitable  for  wall  mounting.  It  can improve  its  front  signal  receiving  ability  and  reduce  its  flank  blind  area.  Its performance is better than the sensors in the market.PD-V19  5.8GHz 360º/180º Microwave  Motion Sensor5.4mmXXmm20.5mm26.0mm+5VSignal outputPre-ampAccording with FCC Part 15.249According with EN 62321,ROHS directive-2011/65/euAccording with REACH directive-1907/2006/ecAccording with EN 300440-V2.1.1、EN 62479:2010,RED directive-2014/53/euProducts sizeRadiated Power (EIRP)Supply VoltageCurrent ConsumptionCurrent ConsumptionOperating TemperatureWeightParameterFrequency SettingStorage environmentSymbolFstandardPoutVCCICCICCTOPTSTGWeightMin4.751013-103.3Typ5.805673.545.01215253.8Max5.251417904.3UnitsGHzdBmVmAmA℃℃mmgNotesFCCCE20-70% RH humidity0-4026.0x20.5x5.4Note: X height can be customized according to customer requirements.Tel:    86-574-65325018       Fax:   86-574-65325000 Email: pdlux@pdlux.com      Web:   www.pdlux.com

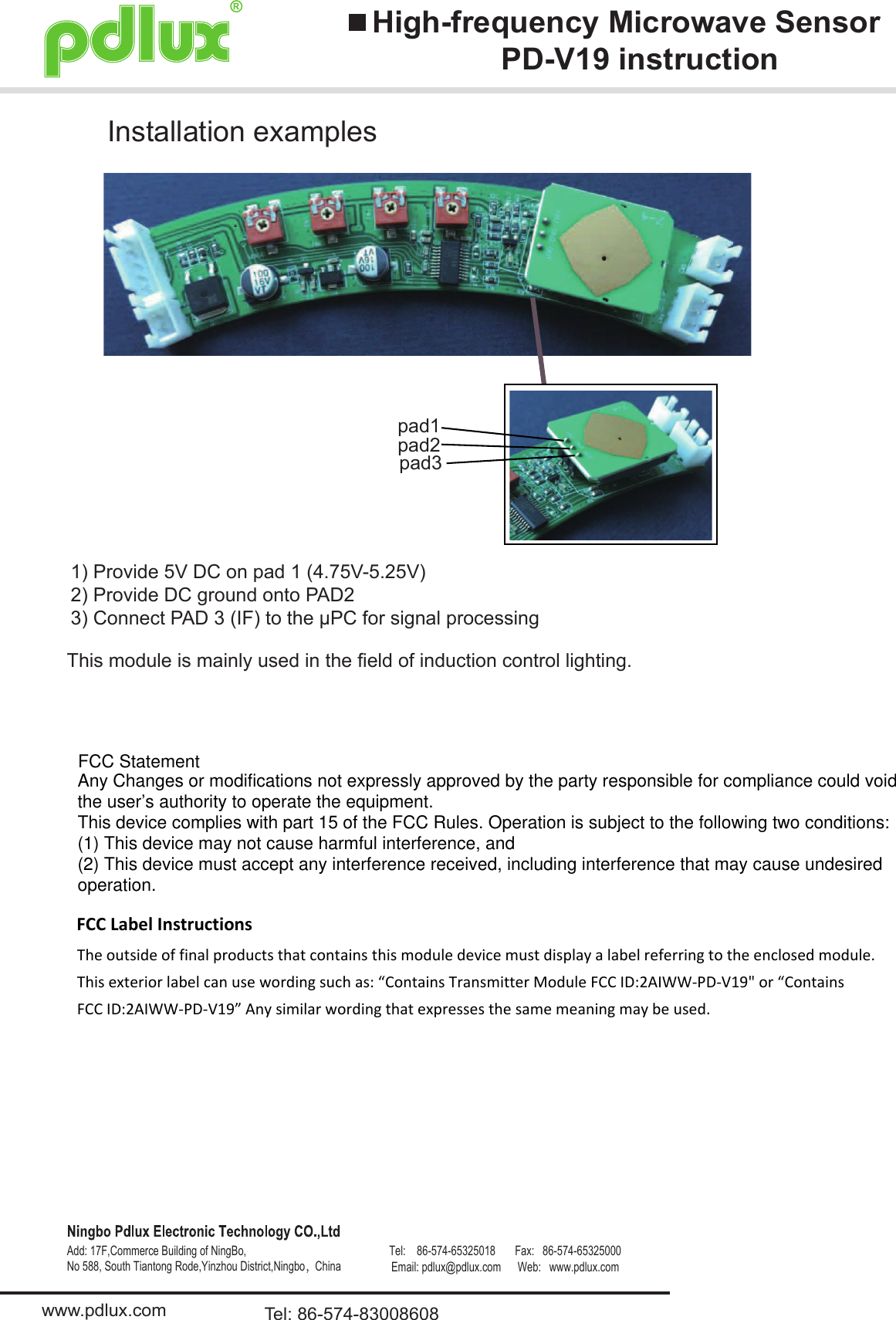

High-frequency Microwave SensorPD-V19 instructionwww.pdlux.com Tel: 86-574-83008608Add: 17F,Commerce Building of NingBo,No 588, South Tiantong Rode,Yinzhou District,Ningbo,China                                                                                                            pad1pad2pad3This module is mainly used in the field of induction control lighting.Installation examples1) Provide 5V DC on pad 1 (4.75V-5.25V)2) Provide DC ground onto PAD23) Connect PAD 3 (IF) to the μPC for signal processingAny Changes or modifications not expressly approved by the party responsible for compliance could voidthe user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesiredoperation.FCC StatementFCC Label InstructionsThe outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: “Contains Transmitter Module FCC ID:2AIWW-PD-V19" or “Contains FCC ID:2AIWW-PD-V19” Any similar wording that expresses the same meaning may be used. Tel:    86-574-65325018       Fax:   86-574-65325000 Email: pdlux@pdlux.com      Web:   www.pdlux.com
