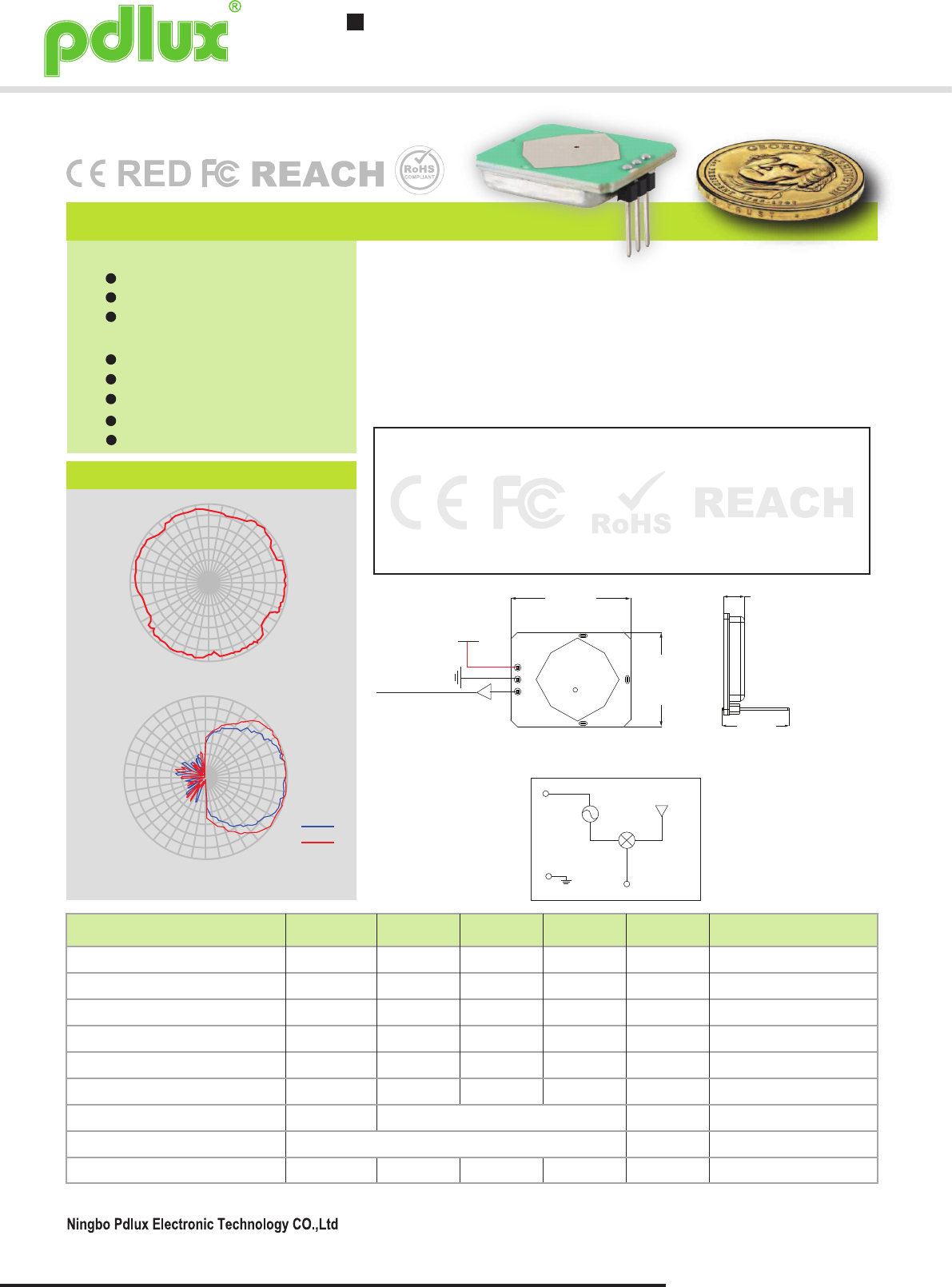

Ningbo Pdlux Electronic Technology PD-V19 Microwave Sensor User Manual PD V19
Ningbo Pdlux Electronic Technology CO.,LTD. Microwave Sensor PD V19
Users Manual
High-frequency Microwave Sensor
PD-V19 instruction
www.pdlux.com Tel: 86-574-83008608
Add: 17F,Commerce Building of NingBo,
No 588, South Tiantong Rode,Yinzhou District,Ningbo，China
Application
Feature and advantage
Intelligent switch
Intruder detect
Low wireless power output
Low power consumption
Non-contact detection
Easy to connect with the controller
Wall-hung switch
Low noise output
Antenna Beam Pattern
This module is ideally suiable for occupancy sensor in automatic lighting
switches.It can also be used for ceiling mount intruder detectors.
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
100°
110°
120°
130°
140°
150°
160°
170°
180°
190°
200°
210°
220°
230°
240°
250°
260°
270°
280°
290°
300°
310°
320°
330°
340°
350°
-70
-60
-50
-40
-30
-20
-10
0
Horizontal
Vertical
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
100°
110°
120°
130°
140°
150°
160°
170°
180°
190°
200°
210°
220°
230°
240°
250°
260°
270°
280°
290°
300°
310°
320°
330°
340°
350°
-56
-48
-40
-32
-24
-16
-8
0
360°
180°
Products size
Block diagram
and connection
+5V
IF
Tx/Rx Antenna
GND
Mixer
Oscillator
PD-V19 5.8GHz 360º/180ºMicrowave Motion Sensor is a C-Band Bi-Static
Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This
module,V8 adopts flat Plane Antenna, suitable for wall mounting. It can
improve its front signal receiving ability and reduce its flank blind area. Its
performance is better than the sensors in the market.
PD-V19 5.8GHz 360º/180º Microwave Motion Sensor
5.4mm
XXmm
20.5mm
26.0mm
+5V
Signal output
Pre-amp
According with FCC Part 15.249
According with EN 62321,ROHS directive-2011/65/eu
According with REACH directive-1907/2006/ec
According with EN 300440-V2.1.1、EN 62479：2010,RED
directive-2014/53/eu
Products size
Radiated Power (EIRP)
Supply Voltage
Current Consumption
Current Consumption
Operating Temperature
Weight
Parameter
Frequency Setting
Storage environment
Symbol
Fstandard
Pout
VCC
ICC
ICC
TOP
TSTG
Weight
Min
4.75
10
13
-10
3.3
Typ
5.80567
3.54
5.0
12
15
25
3.8
Max
5.25
14
17
90
4.3
Units
GHz
dBm
V
mA
mA
℃
℃
ｍｍ
ｇ
Notes
FCC
CE
20-70% RH humidity
0-40
26.0x20.5x5.4
Note: X height can be customized according to customer requirements.
Tel: 86-574-65325018 Fax: 86-574-65325000
Email: pdlux@pdlux.com Web: www.pdlux.com
High-frequency Microwave Sensor
PD-V19 instruction
www.pdlux.com Tel: 86-574-83008608
Add: 17F,Commerce Building of NingBo,
No 588, South Tiantong Rode,Yinzhou District,Ningbo，China
pad1
pad2
pad3
This module is mainly used in the field of induction control lighting.

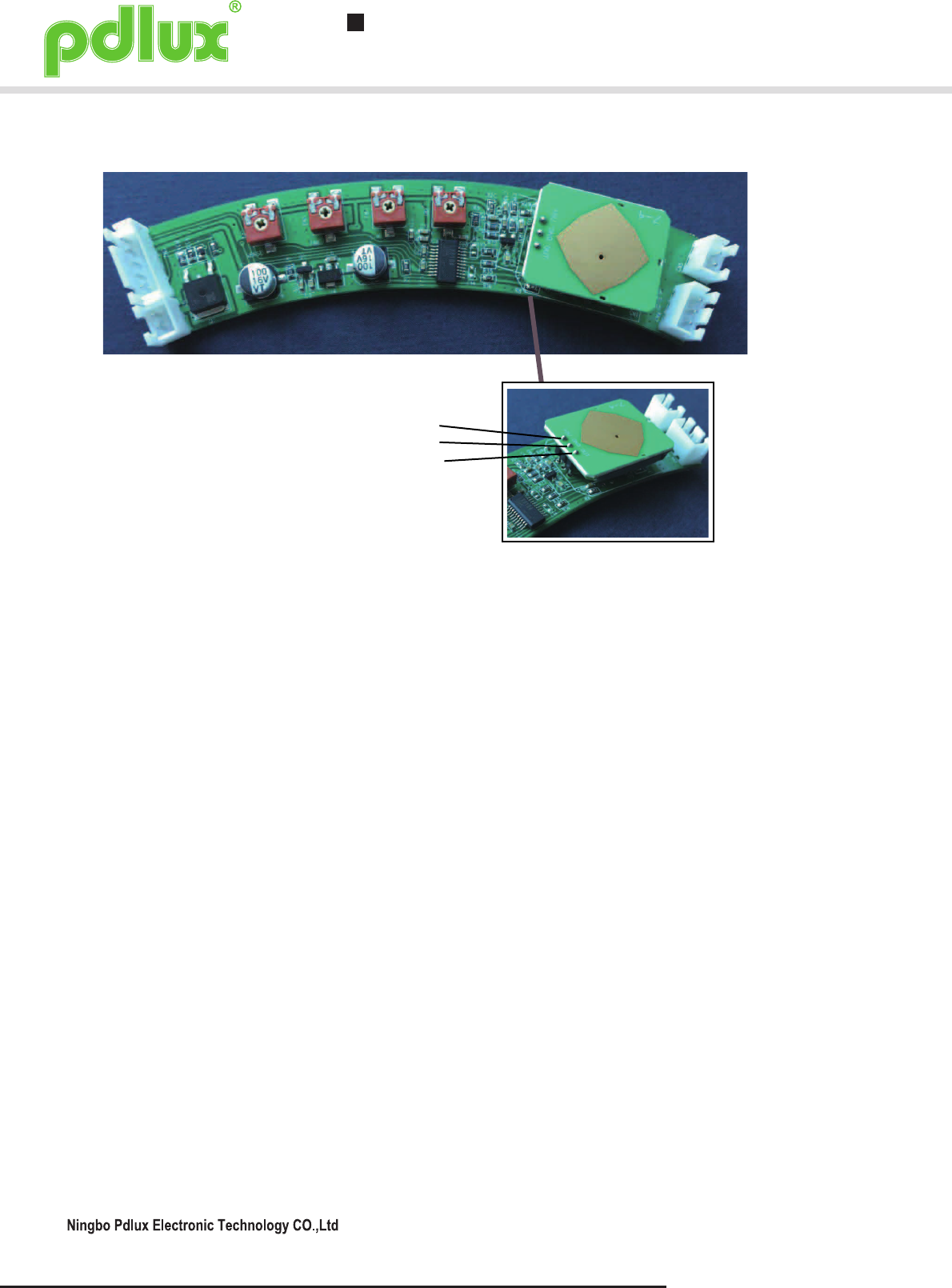

Installation examples
1) Provide 5V DC on pad 1 (4.75V-5.25V)
2) Provide DC ground onto PAD2
3) Connect PAD 3 (IF) to the μPC for signal processing
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Statement
FCC Label Instructions
The outside of final products that contains this module device must display a label referring to the enclosed module.
This exterior label can use wording such as: “Contains Transmitter Module FCC ID:2AIWW-PD-V19" or “Contains
FCC ID:2AIWW-PD-V19” Any similar wording that expresses the same meaning may be used.
