Ningbo Polinata Electronics Co., Ltd. Speaker Box Manual
Manual
![](/img.php?id=2964020&img=bg1.png)
M-5500
INSTRUCTION MANUAL
![](/img.php?id=2964020&img=bg2.png)
![](/img.php?id=2964020&img=bg3.png)

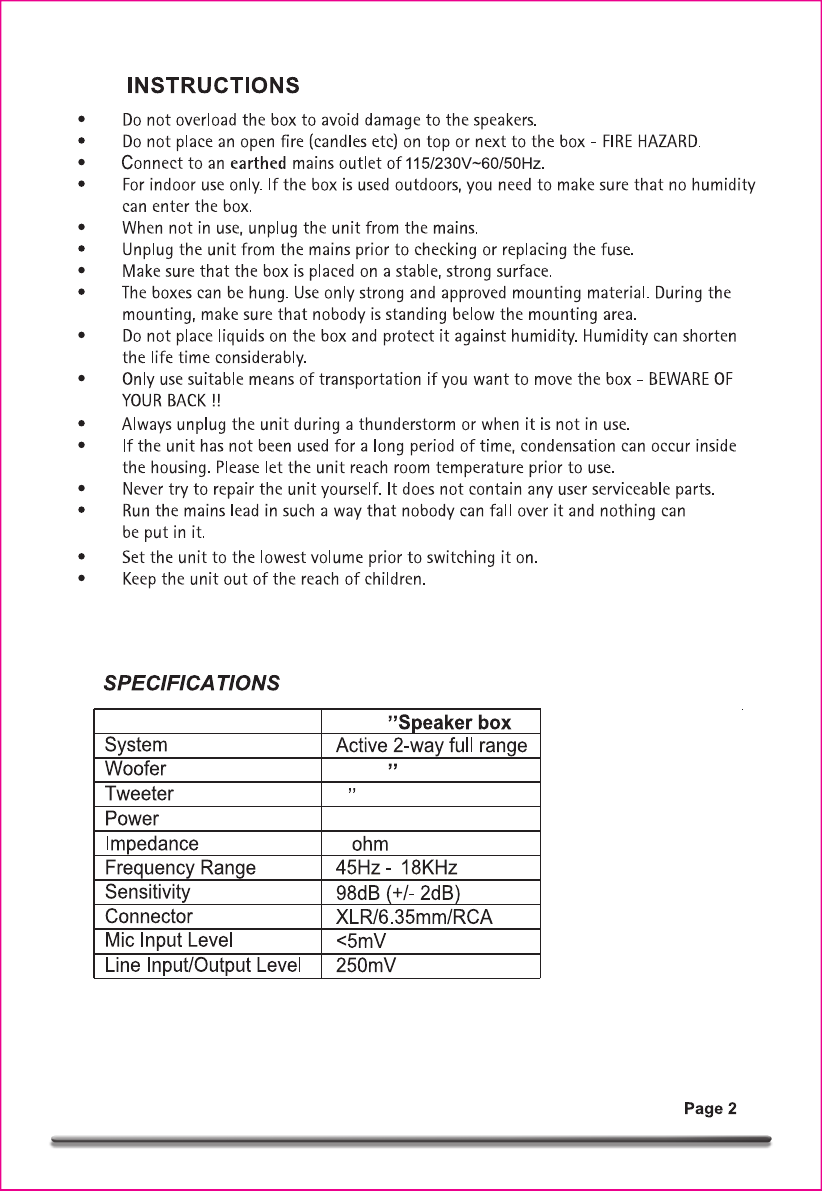

1
4500 W
8
2x15
2x15
![](/img.php?id=2964020&img=bg4.png)
1.MP3 level control
2.MIC input level control
3.Line input level control
4.Volume control
5.Treble control for high frequencies
6.Bass control for low frequencies
7.USB input
8.LCD screen & Mp3 control
9.MP3 ON/OFF
10.XLR microphone input
11.6.35mm microphone input
12.RCA phone(R+L) line input
13.XLR line input
14.6.35mm line output
15.XLR line output
16.Clip LED indicator
17.Power LED indicator
18.Speaker out 8 Ohm
19.Main power switch
20.Fused IEC mains inlet
21.SD card input
22.MODE:USB/SD/BT/FM convertor
:Play / Pause
SCAN:Long press to auto search under FM radio
:Repeat one / Repeat all / Random
:PRE/NEXT under FM mode
Long hold to search lower/
higher station manually
:Short press to tune to saved station
:Previous Song
Long press for fast rewind
:Next Song
Long press for fast forward
23.LED Light Switch(ON/OFF)
24.115/230V Switch
MP3 L EVE L
MIC L EVE L
LIN E LEV EL
VOL UME
TRE BLE
BAS S
MP3 DIGI TAL DIS PLAY WITH REM OTE CONTR OL
MIC
INPUT
LIN E
INPUT
LIN E
OUT
SPEAKE R OUT
8 Ω
AC 115V/230V 60/50Hz
ON
OFF
CLIP POWER
USB
SD
16 17
18
19
20
21
22
15
9
10
11
12
13
14
MODE SCA N
OFF ON
LED
115V 230V
24
23
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
