Nokia Bell G240WG 7368 ISAM ONT User Manual 7368 ISAM ONT G 240W C Product Guide
Nokia Shanghai Bell Co. Ltd. 7368 ISAM ONT 7368 ISAM ONT G 240W C Product Guide
Product_Guide
![](/img.php?id=4042739&img=bg1.png)
Nokia — Proprietary and confidential
Use pursuant to applicable agreements
7368 Intelligent Services Access
Manager ONT
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA
Issue: 01
7368 ISAM ONT G-240W-G Product Guide
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2.png)
2
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Nokia is a registered trademark of Nokia Corporation. Other products and company
names mentioned herein may be trademarks or tradenames of their respective
owners.
The information presented is subject to change without notice. No responsibility is
assumed for inaccuracies contained herein.
© 2018 Nokia.
Contains proprietary/trade secret information which is the property of Nokia and must
not be made available to, or copied or used by anyone outside Nokia without its
written authorization. Not to be used or disclosed except in accordance with
applicable agreements.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3.png)
7368 ISAM ONT G-240W-G Product Guide Preface
Issue: 01 3FE-47555-AAAA-TCZZA 3
1Preface
This preface provides general information about the documentation set for optical
network terminals (ONTs).
1.1 Scope
This documentation set provides information about safety, features and functionality,
ordering, hardware installation and maintenance, and software installation
procedures for the current release.
1.2 Audience
This documentation set is intended for planners, administrators, operators, and
maintenance personnel involved in installing, upgrading, or maintaining the ONTs.
1.3 Required knowledge
The reader must be familiar with general telecommunications principles.
1.4 Acronyms and initialisms
The expansions and optional descriptions of most acronyms and initialisms appear
in the glossary.
1.5 Assistance and ordering phone numbers
Nokia provides global technical support through regional call centers. Phone
numbers for the regional call centers are available at the following URL:
http://support.alcatel-lucent.com.
For ordering information, contact your Nokia sales representative.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4.png)
Preface
4
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
1.6 Nokia quality processes
Nokia’s ONT quality practices are in compliance with TL 9000 requirements. These
requirements are documented in the Fixed Networks Quality Manual
3FQ-30146-6000-QRZZA. The quality practices adequately ensure that technical
requirements and customer end-point requirements are met. The customer or its
representatives may be allowed to perform on-site quality surveillance audits, as
agreed upon during contract negotiations
1.7 Safety information
For safety information, see the appropriate safety guidelines chapter.
1.8 Documents
Documents are available using ALED or OLCS.
Procedure 1 To download a ZIP file package of the customer documentation
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Downloads: Electronic Delivery.
4Choose Documentation from the drop-down menu and click Next.
5Select the image from the drop-down menu and click Next.
6Follow the on-screen directions to download the file.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5.png)
7368 ISAM ONT G-240W-G Product Guide Preface
Issue: 01 3FE-47555-AAAA-TCZZA 5
Procedure 2 To access individual documents
Individual PDFs of customer documents are also accessible through the Nokia Customer Support
website.
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Manuals and Guides to display a list of customer documents by title and part
number. You can filter this list using the Release drop-down menu.
4Click on the PDF to open or save the file.
1.9 Special information
The following are examples of how special information is presented in this document.
Danger — Danger indicates that the described activity or
situation may result in serious personal injury or death; for
example, high voltage or electric shock hazards.
Warning — Warning indicates that the described activity or
situation may, or will, cause equipment damage or serious
performance problems.
Caution — Caution indicates that the described activity or
situation may, or will, cause service interruption.
Note — A note provides information that is, or may be, of
special interest.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6.png)
Preface
6
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
1.9.1 Procedures with options or substeps
When there are options in a procedure, they are identified by letters. When there are
required substeps in a procedure, they are identified by roman numerals.
Procedure 3 Example of options in a procedure
At step 1, you can choose option a or b. At step 2, you must do what the step indicates.
1This step offers two options. You must choose one of the following:
aThis is one option.
bThis is another option.
2You must perform this step.
Procedure 4 Example of required substeps in a procedure
At step 1, you must perform a series of substeps within a step. At step 2, you must do what the
step indicates.
1This step has a series of substeps that you must perform to complete the step. You must
perform the following substeps:
iThis is the first substep.
ii This is the second substep.
iii This is the third substep.
2 You must perform this step.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg7.png)
7368 ISAM ONT G-240W-G Product Guide Preface
Issue: 01 3FE-47555-AAAA-TCZZA 7
1.10 Multiple PDF document search
You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a
common term. Adobe Reader displays the results in a single display panel. The
results are grouped by PDF file, and you can expand the entry for each file.
Procedure 5 To search multiple PDF files for a common term
1Open Adobe Acrobat Reader.
2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel appears.
3Enter the search criteria.
4Click on the All PDF Documents In radio button.
5Select the folder in which to search using the drop-down menu.
6Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each document
by clicking on the + symbol.
Note — The PDF files in which you search must be in the same
folder.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8.png)
Preface
8
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9.png)
7368 ISAM ONT G-240W-G Product Guide
Issue: 01 3FE-47555-AAAA-TCZZA 9
Table of contents
1 Preface.............................................................................................3
1.1 Scope ..........................................................................................................3
1.2 Audience......................................................................................................3
1.3 Required knowledge....................................................................................3
1.4 Acronyms and initialisms.............................................................................3
1.5 Assistance and ordering phone numbers....................................................3
1.6 Nokia quality processes...............................................................................4
1.7 Safety information........................................................................................4
1.8 Documents ..................................................................................................4
1.9 Special information......................................................................................5
1.9.1 Procedures with options or substeps...........................................................6
1.10 Multiple PDF document search ...................................................................7
2 ETSI ONT safety guidelines.........................................................17
2.1 Safety instructions .....................................................................................17
2.1.1 Safety instruction boxes ............................................................................17
2.1.2 Safety-related labels..................................................................................18
2.2 Safety standards compliance ....................................................................19
2.2.1 EMC, EMI, and ESD compliance...............................................................19
2.2.2 Equipment safety standard compliance.....................................................19
2.2.3 Environmental standard compliance .........................................................20
2.2.4 CE RED RF Radiation Exposure Statement .............................................20
2.2.5 Laser product standard compliance ..........................................................20
2.2.6 Resistibility requirements compliance .......................................................20
2.2.7 Acoustic noise emission standard compliance..........................................20
2.3 Electrical safety guidelines ........................................................................21
2.3.1 Power supplies ..........................................................................................21
2.3.2 Cabling ......................................................................................................21
2.3.3 Protective earth .........................................................................................21
2.4 ESD safety guidelines ...............................................................................22
2.5 Laser safety guidelines..............................................................................22
2.5.1 Laser classification ....................................................................................22
2.5.1.1 Laser warning labels..................................................................................22
2.5.2 Laser classification ....................................................................................24
2.5.3 Transmit optical output ..............................................................................25
2.5.4 Normal laser operation ..............................................................................25
2.5.5 Location class............................................................................................25
2.6 Environmental requirements......................................................................25
3 ETSI environmental and CRoHS guidelines...............................27
3.1 Environmental labels .................................................................................27
3.1.1 Overview....................................................................................................27
3.1.2 Environmental related labels .....................................................................27
3.1.2.1 Products below Maximum Concentration Value (MCV) label....................27
3.1.2.2 Products containing hazardous substances above Maximum
Concentration Value (MCV) label..............................................................28
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga.png)
10
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3.2 Hazardous Substances Table (HST).........................................................29
3.3 Other environmental requirements............................................................29
3.3.1 ONT environmental requirements .............................................................29
3.3.2 Storage......................................................................................................29
3.3.3 Transportation ...........................................................................................30
3.3.4 Stationary use............................................................................................30
3.3.5 Thermal limitations ....................................................................................30
3.3.6 Material content compliance......................................................................30
3.3.7 End-of-life collection and treatment...........................................................31
4 G-240W-G unit data sheet............................................................33
4.1 G-240W-G part numbers and identification...............................................33
4.2 G-240W-G general description..................................................................34
4.2.1 Configuring the G-240W-G to function as a single port ONT ....................36
4.2.2 Support for CFM over S-tunnel..................................................................36
4.2.3 TR-069 parameter support ........................................................................37
4.2.3.1 Host object support....................................................................................37
4.2.3.2 Port forwarding support .............................................................................37
4.2.3.3 Optical parameters support .......................................................................38
4.2.3.4 Object support for Wi-Fi parameters .........................................................38
4.2.3.5 Statistics and troubleshooting support.......................................................38
4.2.3.6 Diagnostic parameter support ...................................................................38
4.2.3.7 Timing parameter support .........................................................................39
4.2.4 Independent TR69 session with Saas.......................................................39
4.2.5 TR69 authentication using TLS and CA certificates..................................39
4.2.6 TR-104 parameter extension support for voice service.............................39
4.2.7 TR-104 voice-related alarms .....................................................................40
4.2.8 TR-104 parameters for FX line testing ......................................................40
4.2.9 TR-111 support..........................................................................................40
4.2.10 TR-181 parameter support ........................................................................40
4.2.11 Mobile offload support ...............................................................................42
4.2.12 Support for soft GRE tunnels.....................................................................42
4.2.12.1 GRE...........................................................................................................42
4.2.12.2 Soft GRE ...................................................................................................43
4.3 G-240W-G software and installation feature support ................................44
4.4 G-240W-G interfaces and interface capacity.............................................44
4.4.1 G-240W-G connections and components .................................................44
4.5 G-240W-G LEDs .......................................................................................47
4.6 G-240W-G detailed specifications.............................................................49
4.7 G-240W-G GEM ports and T-CONTs........................................................50
4.8 G-240W-G performance monitoring statistics ...........................................51
4.9 G-240W-G functional blocks......................................................................53
4.10 G-240W-G standards compliance .............................................................55
4.10.1 Energy-related products standby and off modes compliance....................55
4.10.2 FCC statement ..........................................................................................56
4.10.3 FCC Radiation Exposure Statement .........................................................56
4.11 G-240W-G special considerations.............................................................56
4.11.1 Wi-Fi service..............................................................................................57
4.11.1.1 Wi-Fi physical features ..............................................................................57
4.11.1.2 Wi-Fi standards and certifications .............................................................57
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bgb.png)
7368 ISAM ONT G-240W-G Product Guide
Issue: 01 3FE-47555-AAAA-TCZZA 11
4.11.1.3 Wi-Fi GUI features.....................................................................................57
4.11.2 G-240W-G ONT considerations and limitations ........................................57
5 Install a G-240W-G indoor ONT ...................................................59
5.1 Purpose .....................................................................................................59
5.2 General......................................................................................................59
5.3 Prerequisites..............................................................................................59
5.4 Recommended tools..................................................................................59
5.5 Safety information......................................................................................60
5.6 Procedure..................................................................................................61
6 Replace a G-240W-G indoor ONT................................................65
6.1 Purpose .....................................................................................................65
6.2 General......................................................................................................65
6.3 Prerequisites..............................................................................................65
6.4 Recommended tools..................................................................................65
6.5 Safety information......................................................................................66
6.6 Procedure..................................................................................................67
7 Configure a G-240W-G indoor ONT.............................................71
7.1 General......................................................................................................71
7.2 HGU mode GUI configuration....................................................................71
7.2.1 Login..........................................................................................................71
7.2.2 Device and connection status....................................................................72
7.2.3 Network configuration................................................................................89
7.2.4 Security configuration..............................................................................115
7.2.5 Application configuration .........................................................................127
7.2.6 Maintenance............................................................................................137
7.2.7 RG troubleshooting counters...................................................................152
7.3 SFU mode configuration..........................................................................154
7.3.1 Switch from default HGU mode to SFU mode.........................................154
7.3.2 Login........................................................................................................156
7.3.3 Device and connection status..................................................................157
7.3.4 Maintenance............................................................................................158
8 ONT configuration file over OMCI.............................................163
8.1 Purpose ...................................................................................................163
8.2 Supported configuration file types ...........................................................163
8.2.1 Filename conventions..............................................................................165
8.3 ONT configuration file over OMCI ...........................................................165
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bgc.png)
12
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bgd.png)
7368 ISAM ONT G-240W-G Product Guide
Issue: 01 3FE-47555-AAAA-TCZZA 13
List of figures
2 ETSI ONT safety guidelines.........................................................17
Figure 1 PSE certification ........................................................................................19
Figure 2 Laser product label....................................................................................23
Figure 3 Laser classification label............................................................................23
Figure 4 Laser warning labels..................................................................................24
Figure 5 Sample laser product safety label on the ONT equipment........................25
3 ETSI environmental and CRoHS guidelines...............................27
Figure 6 Products below MCV value label...............................................................28
Figure 7 Products above MCV value label ..............................................................28
Figure 8 Recycling/take back/disposal of product symbol.......................................31
4 G-240W-G unit data sheet............................................................33
Figure 9 Soft GRE-based architecture.....................................................................43
Figure 10 G-240W-G indoor ONT physical connections ...........................................45
Figure 11 G-240W-G ONT without fiber cover ..........................................................46
Figure 12 G-240W-G ONT with fiber cover ...............................................................46
Figure 13 G-240W-G indoor ONT LEDs....................................................................48
Figure 14 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and
without RF video........................................................................................53
Figure 15 G-240W-G ONT hardware block ...............................................................54
5 Install a G-240W-G indoor ONT ...................................................59
Figure 16 G-240W-G ONT with connections and key mounting holes......................62
6 Replace a G-240W-G indoor ONT................................................65
Figure 17 G-240W-G indoor ONT connections .........................................................67
7 Configure a G-240W-G indoor ONT.............................................71
Figure 18 Web login window......................................................................................72
Figure 19 Device Information window........................................................................73
Figure 20 LAN status window....................................................................................75
Figure 21 WAN status window...................................................................................77
Figure 22 WAN status IPv6 window ..........................................................................78
Figure 23 Home networking information window.......................................................80
Figure 24 Optics module status window....................................................................81

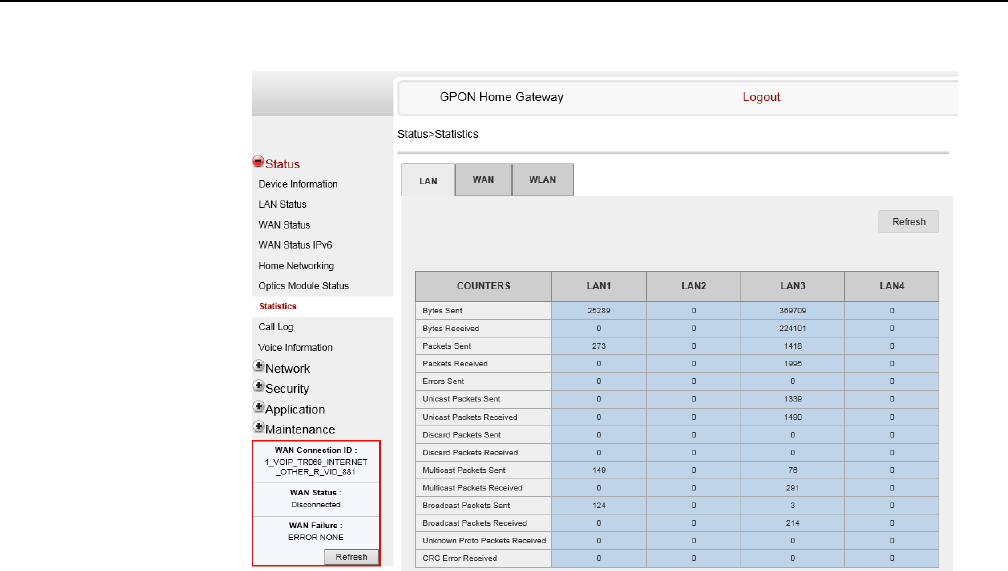

Figure 25 LAN ports Statistics window ......................................................................83

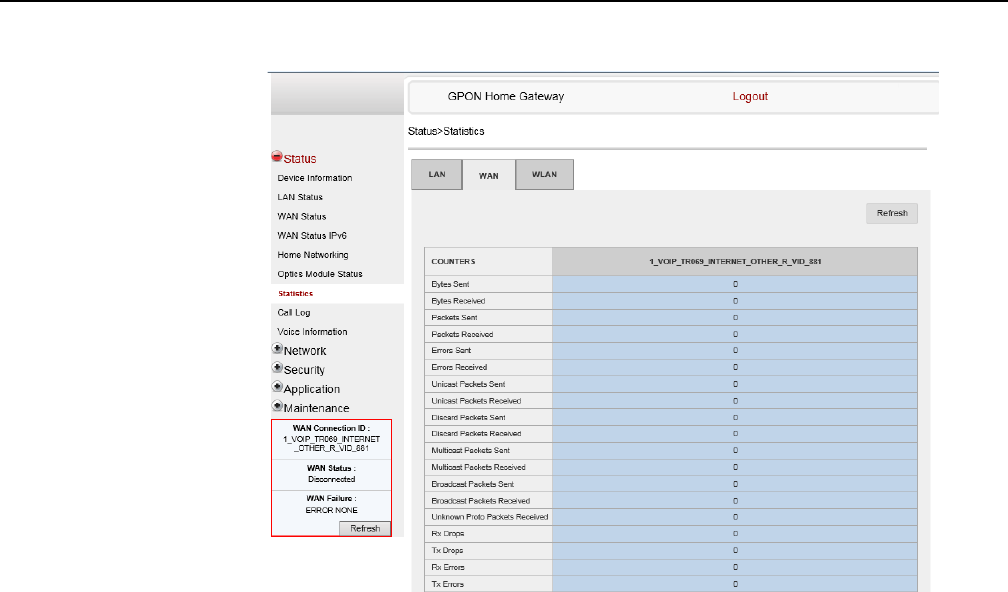

Figure 26 WAN ports statistics window .....................................................................84

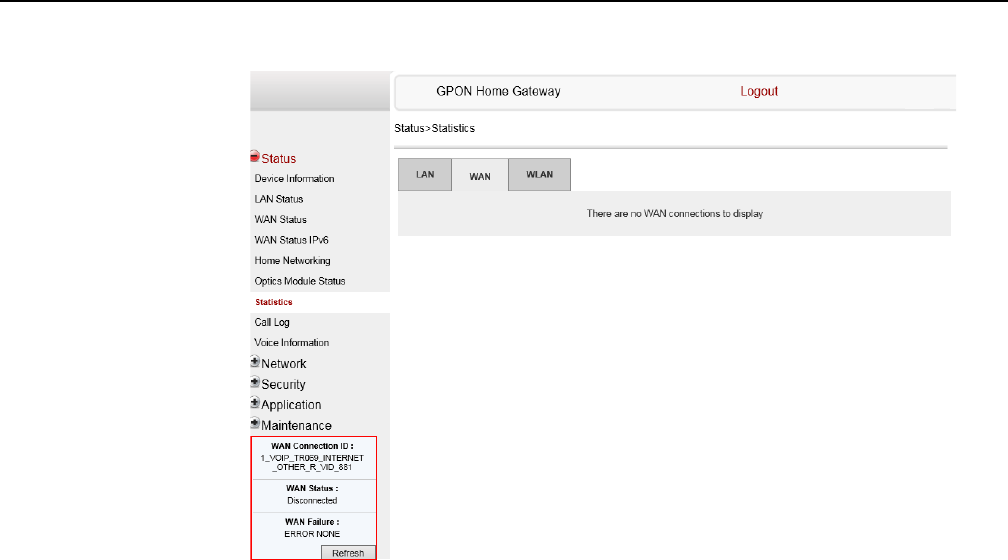

Figure 27 WAN ports statistics message...................................................................85

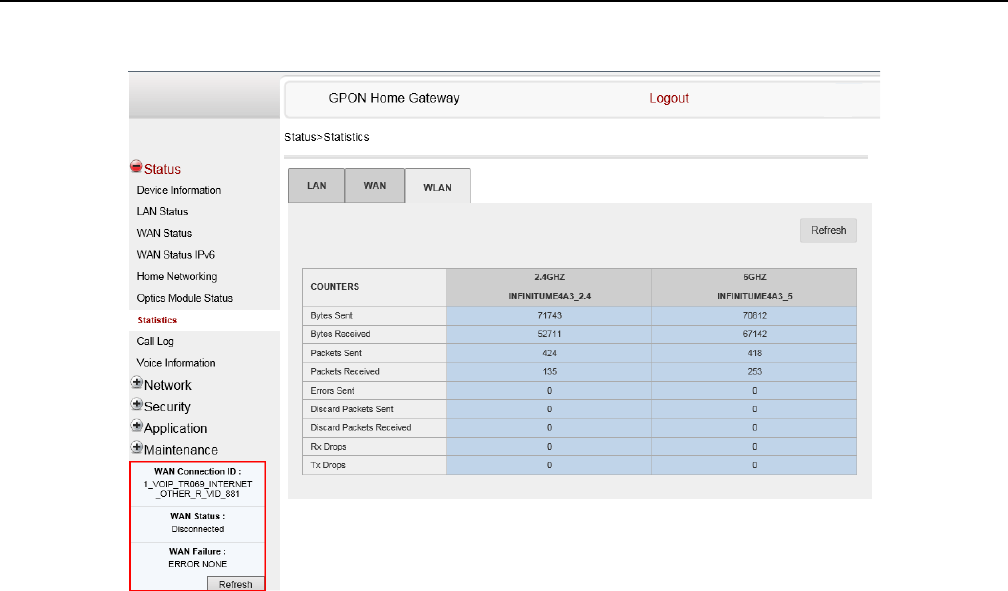

Figure 28 WLAN ports statistics window ...................................................................86
Figure 29 WLAN ports statistics message.................................................................87
Figure 30 Voice Information window..........................................................................88
Figure 31 LAN network window.................................................................................90
Figure 32 LAN IPv6 network window.........................................................................92
Figure 33 WAN network window................................................................................94
Figure 34 WAN DHCP window..................................................................................96
Figure 35 WiFi 2.4G network window........................................................................97
Figure 36 WiFi 5G network window .........................................................................100
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bge.png)
14
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 37 Wireless Schedule window......................................................................102
Figure 38 Routing network window..........................................................................103
Figure 39 DNS network window ..............................................................................105
Figure 40 TR-069 network window..........................................................................106
Figure 41 GRE Tunnel window................................................................................107
Figure 42 QoS Config window (L2)..........................................................................109
Figure 43 QoS Config window (L3)..........................................................................110
Figure 44 US Classifier Policy window ....................................................................112
Figure 45 US Classifier window...............................................................................113
Figure 46 US Classifier Rules window.....................................................................114
Figure 47 Firewall window .......................................................................................116
Figure 48 MAC filter window....................................................................................117
Figure 49 IP filter window ........................................................................................119
Figure 50 URL Filter window ...................................................................................120

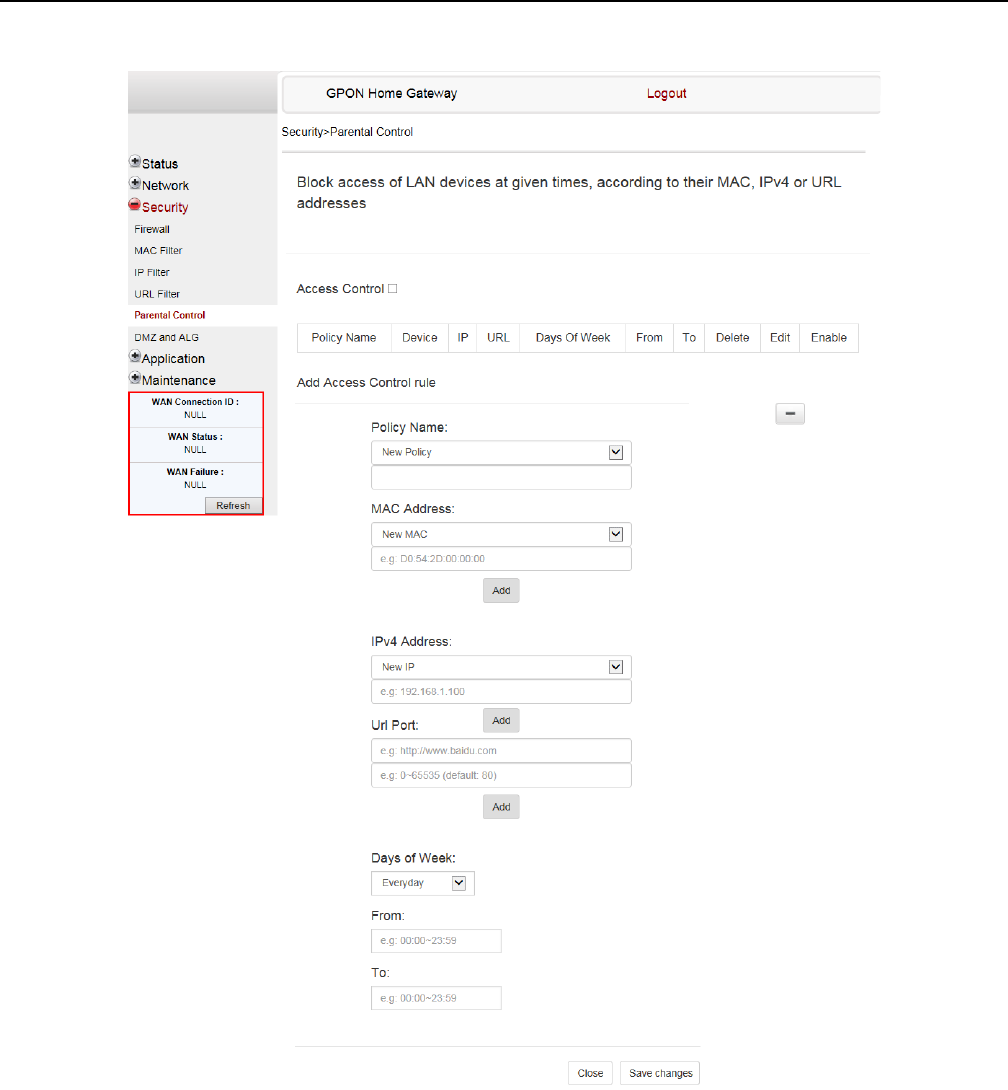

Figure 51 Parental Control window..........................................................................123
Figure 52 DMZ and ALG window.............................................................................125
Figure 53 Access Control window ...........................................................................126
Figure 54 Port forwarding window ...........................................................................128
Figure 55 Port Triggering window............................................................................129
Figure 56 DDNS window .........................................................................................131
Figure 57 NTP window ............................................................................................132
Figure 58 USB window ............................................................................................134
Figure 59 UPnP and DLNA window.........................................................................135
Figure 60 Voice setting window...............................................................................136
Figure 61 Password window....................................................................................139
Figure 62 Speed Test window .................................................................................140
Figure 63 LOID Config window................................................................................141
Figure 64 SLID configuration window......................................................................142
Figure 65 Device management window...................................................................143
Figure 66 Backup and Restore window...................................................................144
Figure 67 Firmware upgrade window ......................................................................145
Figure 68 Reboot window........................................................................................146
Figure 69 Factory default window............................................................................147
Figure 70 Diagnose window ....................................................................................148
Figure 71 Log window..............................................................................................149
Figure 72 PPPoE Diagnostics window ....................................................................151
Figure 73 PPPoE diagnostics results ......................................................................152
Figure 74 RG Troubleshooting Counters window....................................................153
Figure 75 Web login window....................................................................................156
Figure 76 Device Information window......................................................................157
Figure 77 Password window....................................................................................159
Figure 78 LOID configuration window......................................................................160
Figure 79 SLID configuration window......................................................................161
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bgf.png)
7368 ISAM ONT G-240W-G Product Guide
Issue: 01 3FE-47555-AAAA-TCZZA 15
List of tables
2 ETSI ONT safety guidelines.........................................................17
Table 1 Safety labels..............................................................................................18
4 G-240W-G unit data sheet............................................................33
Table 2 Identification of G-240W-G indoor ONTs...................................................33
Table 3 G-240W-G power supply...........................................................................34
Table 4 Support for TR-181 parameter categories.................................................41
Table 5 G-240W-G indoor ONT interface connection capacity ..............................44
Table 6 G-240W-G indoor ONT physical connections ...........................................47
Table 7 G-240W-G indoor ONT LED descriptions .................................................48
Table 8 G-240W-G indoor ONT physical specifications .........................................49
Table 9 G-240W-G indoor ONT power consumption specifications.......................50
Table 10 G-240W-G indoor ONT environmental specifications ...............................50
Table 11 G-240W-G indoor ONT capacity for GEM ports and T-CONTs.................50
Table 12 Package P ONTs ONTENET performance monitoring statistics...............51
Table 13 Package P ONTs ONTL2UNI performance monitoring statistics ..............51
Table 14 Package P ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP
performance monitoring statistics..............................................................52
Table 15 Package P ONTs PONONTTC aggregate performance monitoring
statistics.....................................................................................................52
Table 16 G-240W-G ONT considerations and limitations ........................................57
7 Configure a G-240W-G indoor ONT.............................................71
Table 17 Device Information parameters .................................................................73
Table 18 LAN status parameters..............................................................................75
Table 19 WAN status parameters ............................................................................77
Table 20 WAN status IPv6 parameters ....................................................................79
Table 21 Home networking parameters ...................................................................80
Table 22 Optics module status parameters..............................................................82
Table 23 Voice Information parameters ...................................................................88
Table 24 LAN network parameters...........................................................................90
Table 25 LAN IPv6 network parameters...................................................................92
Table 26 WAN network parameters .........................................................................94
Table 27 WAN DHCP parameters............................................................................96
Table 28 WiFi 2.4G network parameters..................................................................97
Table 29 WiFi 5G network parameters...................................................................100
Table 30 Routing network parameters ...................................................................104
Table 31 DNS network parameters ........................................................................105
Table 32 TR-069 network parameters....................................................................106
Table 33 GRE Tunnel parameters..........................................................................107
Table 34 QoS Config parameters...........................................................................110
Table 35 US Classifier Policy parameters..............................................................112
Table 36 US Classifier parameters.........................................................................113
Table 37 US Classifier Rules parameters ..............................................................115
Table 38 Firewall parameters.................................................................................116
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg10.png)
16
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 39 MAC filter parameters..............................................................................118
Table 40 IP filter parameters ..................................................................................119
Table 41 URL Filter parameters .............................................................................121
Table 42 Parental control parameters ....................................................................124
Table 43 DMZ and ALG parameters ......................................................................125
Table 44 Access control parameters......................................................................126
Table 45 Port forwarding parameters.....................................................................128
Table 46 Port triggering parameters.......................................................................129
Table 47 DDNS parameters ...................................................................................131
Table 48 NTP parameters ......................................................................................132
Table 49 USB parameters......................................................................................134
Table 50 Voice setting parameters.........................................................................136
Table 51 Password parameters..............................................................................139
Table 52 LOID configuration parameters ...............................................................141
Table 53 SLID configuration parameters................................................................142
Table 54 Device management parameters ............................................................143
Table 55 PPPoE diagnostics results parameters ...................................................152
Table 56 RG Troubleshooting Counters parameters..............................................153
Table 57 Device Information parameters ...............................................................158
Table 58 Password parameters..............................................................................159
Table 59 SLID configuration parameters................................................................161
8 ONT configuration file over OMCI.............................................163
Table 60 Supported configuration files...................................................................164
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg11.png)
7368 ISAM ONT G-240W-G Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 17
2 ETSI ONT safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the optical network terminals (ONTs).
2.1 Safety instructions
This section describes the safety instructions that are provided in the ONT customer
documentation and on the equipment.
2.1.1 Safety instruction boxes
The safety instruction boxes are provided in the ONT customer documentation.
Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg12.png)
ETSI ONT safety guidelines
18
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with ONTs. It
does not provide safety-related instructions.
2.1.2 Safety-related labels
The ONT equipment is labeled with the specific safety instructions and compliance
information that is related to a variant of the ONT. Observe the instructions on the
safety labels.
Table 1 provides sample safety labels on the ONT equipment.
Table 1 Safety labels
Figure 1 shows the PSE certification.
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
ESD warning Caution: This assembly contains an electrostatic sensitive device.
Laser classification Class 1 laser product
PSE marking These power supplies are Japan PSE certified and compliant with
Japan VCCI emissions standards.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg13.png)
7368 ISAM ONT G-240W-G Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 19
Figure 1 PSE certification
2.2 Safety standards compliance
This section describes the ONT compliance with the European safety standards.
2.2.1 EMC, EMI, and ESD compliance
The ONT equipment complies with the following EMC, EMI, and ESD requirements:
•EN 300-328 v1.9.1 wide band data transmission standards for 2.4GHz bands
•EN 300-386 V1.5.1: Electromagnetic Compatibility and Radio Spectrum Matters
(ERM): Telecommunications Network Equipment; Electromagnetic Compatibility
(EMC) requirements; Electrostatic Discharge (ESD) requirements
•EN 55022 (2006): Class B, Information Technology Equipment, Radio
Disturbance Characteristics, limits and methods of measurement
•EN 55024 (2010): Information Technology Equipment, Immunity Characteristics,
limits and methods of measurement
•European Council Directive 2004/108/EC
•EN 300-386 V1.4.1: 2008
•EN 55022:2006 Class B (ONTs)
2.2.2 Equipment safety standard compliance
The ONT equipment complies with the requirements of EN 60950-1, Safety of
Information Technology Equipment for use in a restricted location (per R-269).
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in
a domestic environment, it may cause radio interference. Install and use the equipment according
to the instruction manual.
Warning
19841
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg14.png)
ETSI ONT safety guidelines
20
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2.2.3 Environmental standard compliance
The ONT equipment complies with the EN 300 019 European environmental
standards.
2.2.4 CE RED RF Radiation Exposure Statement
This device complies with CE RED radiation exposure limits set forth for an
uncontrolled environment. To comply with CE RED RF exposure compliance
requirements, this grant is applicable only for mobile configurations. The antennas
used for the transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
2.2.5 Laser product standard compliance
For most ONTs, the ONT equipment complies with EN 60825-1 and IEC 60825-2 for
laser products. If there is an exception to this compliance regulation, you can find this
information in the standards compliance section of the unit data sheet in this Product
Guide.
2.2.6 Resistibility requirements compliance
The ONT equipment complies with the requirements of ITU Recommendation K.21
for resistibility of telecommunication equipment installed in customer premises to
over voltage and overcurrents.
2.2.7 Acoustic noise emission standard compliance
The ONT equipment complies with EN 300 753 acoustic noise emission limit and test
methods.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg15.png)
7368 ISAM ONT G-240W-G Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 21
2.3 Electrical safety guidelines
This section provides the electrical safety guidelines for the ONT equipment.
2.3.1 Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
2.3.2 Cabling
The following are the guidelines regarding cables used for the ONT equipment:
•All cables must be approved by the relevant national electrical code.
•The cables for outdoor installation of ONTs must be suitable for outdoor use.
• POTS wiring run outside the subscriber premises must comply with the
requirements of local electrical codes. In some markets, the maximum allowed
length of the outside run is 140 feet (43 m). If the outside run is longer, NEC
requires primary protection at both the exit and entry points for the wire.
2.3.3 Protective earth
Earthing and bonding of the ONTs must comply with the requirements of local
electrical codes.
Note 1 — The ONTs comply with the U.S. National Electrical
Code. However, local electrical authorities have jurisdiction
when there are differences between the local and U.S.
standards.
Note 2 — The ONTs comply with BS EN 61140.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg16.png)
ETSI ONT safety guidelines
22
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2.4 ESD safety guidelines
The ONT equipment is sensitive to ESD. Operations personnel must observe the
following ESD instructions when they handle the ONT equipment.
During installation and maintenance, service personnel must wear wrist straps to
prevent damage caused by ESD.
2.5 Laser safety guidelines
Observe the following instructions when you perform installation, operations, and
maintenance tasks on the ONT equipment.
Only qualified service personnel who are extremely familiar with laser radiation
hazards should install or remove the fiber optic cables and units in this system.
Observe the following danger for laser hazard. Eyes can be damaged when they are
exposed to a laser beam. Take necessary precautions before you plug in the optical
modules.
2.5.1 Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
2.5.1.1 Laser warning labels
The following figures show the labels related to laser product, classification and
warning.
Caution — This equipment is ESD sensitive. Proper ESD
protections should be used when you enter the TELCO Access
portion of the ONT.
Danger — There may be invisible laser radiation at the fiber
optic cable when the cable is removed from the connector.
Avoid direct exposure to the laser beam.
Danger — Possibility of equipment damage. Risk of eye
damage by laser radiation.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg17.png)
7368 ISAM ONT G-240W-G Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 23
Figure 2 shows a laser product label.
Figure 2 Laser product label
Figure 3 shows a laser classification label. Laser classification labels may be
provided in other languages.
Figure 3 Laser classification label
Figure 4 shows a laser warning label and an explanatory label for laser products.
Labels and warning may be provided in other languages. The explanatory label
provides the following information:
•a warning that calls attention to the invisible laser radiation
•an instruction against staring into the beam or viewing directly with optical
instruments
•wavelength
•normal output power
•maximum output power
18455
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg18.png)
ETSI ONT safety guidelines
24
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 4 Laser warning labels
2.5.2 Laser classification
The ONT is classified as a Class 1 laser product based on its transmit optical output.
For Class 1 laser products, lasers are safe under reasonably foreseeable conditions
of operation, including the use of optical instruments for intrabeam viewing.
Figure 5 shows a sample laser product safety label on the ONT equipment.
INVISIBLE LASER RADIATION
DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Wavelength(s): xxxx nm
Normal output power: xx m W
Max output power: yyy m W
Laser Warning Label Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE
WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1
RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg19.png)
7368 ISAM ONT G-240W-G Product Guide ETSI ONT safety guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 25
Figure 5 Sample laser product safety label on the ONT equipment
2.5.3 Transmit optical output
The maximum transmit optical output of an ONT is +5 dBm.
2.5.4 Normal laser operation
In normal operation, fiber cable laser radiation is always off until it receives signal
from the line terminal card.
Eyes can be damaged when they exposed to a laser beam. Operating personnel
must observe the instructions on the laser explanatory label before plugging in the
optical module.
2.5.5 Location class
Use cable supports and guides to protect the receptacles from strain.
2.6 Environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
Danger — Risk of eye damage by laser radiation.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1a.png)
ETSI ONT safety guidelines
26
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
During operation in the supported temperature range, condensation inside the ONT
caused by humidity is not an issue. To avoid condensation caused by rapid changes
in temperature and humidity, Nokia recommends:
•The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
•If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of
condensation.
•When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1b.png)
7368 ISAM ONT G-240W-G Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 27
3 ETSI environmental and CRoHS
guidelines
This chapter provides information about the ETSI environmental China Restriction of
Hazardous Substances (CRoHS) regulations that govern the installation and
operation of the optical line termination (OLT) and optical network termination (ONT)
systems. This chapter also includes environmental operation parameters of general
interest.
3.1 Environmental labels
This section describes the environmental instructions that are provided with the
customer documentation, equipment, and location where the equipment resides.
3.1.1 Overview
CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold
and imported in the territory of the mainland of the People’s Republic of China. EIP
refers to products and their accessories manufactured by using electronic
information technology, including electronic communications products and such
subcomponents as batteries and cables.
3.1.2 Environmental related labels
Environmental labels are located on appropriate equipment. The following are
sample labels.
3.1.2.1 Products below Maximum Concentration Value
(MCV) label
Figure 6 shows the label that indicates a product is below the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). Products with this label are recyclable. The label may be found in this
documentation or on the product.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1c.png)
ETSI environmental and CRoHS guidelines
28
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 6 Products below MCV value label
3.1.2.2 Products containing hazardous substances above
Maximum Concentration Value (MCV) label
Figure 7 shows the label that indicates a product is above the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). The number contained inside the label indicates the Environment-Friendly
User Period (EFUP) value. The label may be found in this documentation or on the
product.
Figure 7 Products above MCV value label
18986
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1d.png)
7368 ISAM ONT G-240W-G Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 29
Together with major international telecommunications equipment companies, Nokia
has determined it is appropriate to use an EFUP of 50 years for network
infrastructure equipment and an EFUP of 20 years for handsets and accessories.
These values are based on manufacturers' extensive practical experience of the
design, manufacturing, maintenance, usage conditions, operating environments,
and physical condition of infrastructure and handsets after years of service. The
values reflect minimum values and refer to products operated according to the
intended use conditions. See “Hazardous Substances Table (HST)” for more
information.
3.2 Hazardous Substances Table (HST)
This section describes the compliance of the OLT and ONT equipment to the CRoHS
standard when the product and subassemblies contain hazardous substances
beyond the MCV value. This information is found in this user documentation where
part numbers for the product and subassemblies are listed. It may be referenced in
other OLT and ONT documentation.
In accordance with the People’s Republic of China Electronic Industry Standard
Marking for the Control of Pollution Caused by Electronic Information Products
(SJ/T11364-2006), customers may access the Nokia Hazardous Substance Table,
in Chinese, from the following location:
http://www.nokia-sbell.com/wwwroot/images/upload/private/1/media/ChinaRoHS.p
df
3.3 Other environmental requirements
Observe the following environmental requirements when handling the P-OLT or ONT
equipment.
3.3.1 ONT environmental requirements
See the ONT technical specification documentation for more information about
temperature ranges.
3.3.2 Storage
According to ETS 300-019-1-1 - Class 1.1, storage of OLT equipment must be in
Class 1.1, weather-protected, temperature-controlled locations.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1e.png)
ETSI environmental and CRoHS guidelines
30
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3.3.3 Transportation
According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must
be in packed, public transportation with no rain on packing allowed.
3.3.4 Stationary use
According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment
must be in a temperature-controlled location, with no rain allowed, and with no
condensation allowed.
3.3.5 Thermal limitations
When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The
thermal limitations for OLT operation in a CO or CEV are:
•operating temperature: 5°C to 40°C (41°F to 104°F)
•short-term temperature: –5°C to 50°C (23°F to 122°F)
•operating relative humidity: 5% to 85%
•short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg
3.3.6 Material content compliance
European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium,
hexavalent chromium, and certain flame retardants in electrical and electronic
equipment. This Directive applies to electrical and electronic products placed on the
EU market after 1 July 2006, with various exemptions, including an exemption for
lead solder in network infrastructure equipment. Nokia products shipped to the EU
after 1 July 2006 comply with the EU RoHS Directive.
Nokia has implemented a material/substance content management process. The
process is described in: Nokia process for ensuring RoHS Compliance
(1AA002660031ASZZA). This ensures compliance with the European Union
Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS2). With the process equipment is
assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC)
on Technical documentation for the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg1f.png)
7368 ISAM ONT G-240W-G Product Guide ETSI environmental and CRoHS guidelines
Issue: 01 3FE-47555-AAAA-TCZZA 31
3.3.7 End-of-life collection and treatment
Electronic products bearing or referencing the symbol shown in Figure 8, when put
on the market within the European Union (EU), shall be collected and treated at the
end of their useful life, in compliance with applicable EU and local legislation. They
shall not be disposed of as part of unsorted municipal waste. Due to materials that
may be contained in the product, such as heavy metals or batteries, the environment
and human health may be negatively impacted as a result of inappropriate disposal.
Figure 8 Recycling/take back/disposal of product symbol
At the end of their life, the OLT and ONT products are subject to the applicable local
legislations that implement the European Directive 2012/19EU on waste electrical
and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member
states of the European Union.
In compliance with legal requirements and contractual agreements, where
applicable, Nokia will offer to provide for the collection and treatment of Nokia
products bearing the logo shown in Figure 8 at the end of their useful life, or products
displaced by Nokia equipment offers. For information regarding take-back of
equipment by Nokia, or for more information regarding the requirements for
recycling/disposal of product, contact your Nokia account manager or Nokia take
back support at sustainability.global@nokia.com.
Note — In the European Union, a solid bar under the symbol for
a crossed-out wheeled bin indicates that the product was put on
the market after 13 August 2005.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg20.png)
ETSI environmental and CRoHS guidelines
32
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg21.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 33
4 G-240W-G unit data sheet
4.1 G-240W-G part numbers and identification
4.2 G-240W-G general description
4.3 G-240W-G software and installation feature support
4.4 G-240W-G interfaces and interface capacity
4.5 G-240W-G LEDs
4.6 G-240W-G detailed specifications
4.7 G-240W-G GEM ports and T-CONTs
4.8 G-240W-G performance monitoring statistics
4.9 G-240W-G functional blocks
4.10 G-240W-G standards compliance
4.11 G-240W-G special considerations
4.1 G-240W-G part numbers and identification
Table 2 provides part numbers and identification information for the G-240W-G
indoor ONT.
Table 2 Identification of G-240W-G indoor ONTs
Ordering kit
part number Provisioning
number Description CLEI CPR ECI/
Bar
code
3FE 47536 AA
(Customer-specific
variant)
3FE 47555 AA GPON indoor ONT, 2 POTS, 4 10/100/1000 Base-T Ethernet
interfaces, WiFi 802.11n 2x2 and 802.11 ac 3x3, maximum
power excluding antenna, customer-specific pre configuration
file, SC/APC, AC/DC power adapter with LED, US plug, and
customer logo.
———
3FE 47536 AB
(Customer-specific
variant)
3FE 47555 BA GPON indoor ONT, 2 POTS, 4 10/100/1000 Base-T Ethernet
interfaces, WiFi 802.11n 2x2 and 802.11 ac 3x3, maximum
power excluding antenna, customer-specific pre configuration
file, SC/APC, AC/DC power adapter with LED, US plug, and
customer logo.
———
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg22.png)
G-240W-G unit data sheet
34
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 3 provides the power supply information for the G-240W-G ONT. For more
information on power supplies, see the 7368 ISAM ONT Power Supply and UPS
Guide.
Table 3 G-240W-G power supply
4.2 G-240W-G general description
G-240W-G indoor ONTs provide the subscriber interface for the network by
terminating the PON interface and converting it to user interfaces that directly
connect to subscriber devices. The ONT is compatible with all existing subscriber
equipment, including analog phones with both tone and rotary dial capabilities,
cordless phones, modems, fax machines, and caller ID boxes (Type I, Type II, and
Type III).
3FE 47536 AC
(Customer-specific
variant)
3FE 47555 CA GPON indoor ONT, 2POTS, 4 10/100/1000 Base-T Ethernet
interfaces, WiFi 802.11n 2x2 and 802.11 ac 3x3, maximum
power excluding antenna, customer-specific pre configuration
file, SC/APC, AC/DC power adapter with LED, US plug, and
customer logo.
———
Ordering kit
part number Provisioning
number Description CLEI CPR ECI/
Bar
code
(2 of 2)
ONT part numbers Power model Power
information Customer category or
country compliance
tested for
Notes
Kit: 3FE 47536 AA
EMA: 3FE 47555 AA
Mass Power
RD1203000-C55-2
0MG
36 Watt AC/DC
power adapter ETSI, IEC 60950-1 2-pin US
input plug
with LED
MSA-C3000CS12.
0-40W-US
1L43-US1230
36 Watt AC/DC
power adapter 2-pin US
input plug
with LED
Kit: 3FE 47536 AB
EMA: 3FE 47555 BA
Mass Power
RD1203000-C55-2
0MG
36 Watt AC/DC
power adapter 2-pin US
input plug
with LED
MSA-C3000CS12.
0-40W-US
1L43-US1230
36 Watt AC/DC
power adapter 2-pin US
input plug
with LED
Kit: 3FE 47536 AC
EMA: 3FE 47555 CA
Mass Power
RD1203000-C55-2
0MG
36 Watt AC/DC
power adapter 2-pin US
input plug
with LED
MSA-C3000CS12.
0-40W-US
1L43-US1230
36 Watt AC/DC
power adapter 2-pin US
input plug
with LED
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg23.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 35
G-240W-G indoor ONTs provide the following functions:
•Single fiber GPON interface with 1.244Gbit/s upstream and 2.488Gbit/s
downstream data rates
•Advanced data features such as VLAN tag manipulation, classification, and
filtering.
•Traffic classification and QoS capability
•Analog Telephone Adapter (ATA) function integrated based on SIP (RFC3261),
with various CLASS services supported, including Caller ID, Call Waiting, Call
Forwarding, and Call Transfer
•5 REN per line
•Multiple voice Codec
•MDI/MDIX auto-negotiation
•Line Rate L2 traffic
•Internal Switch
•UPnP IGD2.0 support
•Bridged mode or routed mode per LAN port
•Optics that support received signal strength indication (RSSI)
•Internal DHCP server, with configurable DHCP pool and gateway
•WPS on wireless authorization support
•802.11ac support
•2.4GHz/5GHz dual band concurrency, both with configurable Wi-Fi tx power from
100mW to 500mW, in 100mW increments (as constrained by local regulations).
•antenna gain: 2.4G and 5G WiFi: 3dBi
•Enhanced ONT; SSH-Telnet-FTP and http server are disabled from the WAN side
•Concurrent 802.11n 2x2 MIMO in 2.4GHz and 802.11ac 3x3 MIMO in 5GHz
•64/128 WEP encryption
•WPA, WPA-PSK/TKIP
•WPA2, WPA2-PSK/AES
•support for multiple SSIDs (private and public instances); contact your Nokia
representative for further details.
•WLAN on/off push button
•WPS/PBC button (for 2.4G and 5G)
•Ethernet-based Point-to-Point (PPPoE)
•Network Address Translation (NAT)
•Network Address Port Translation (NAPT)
•ALG and UPnP port forwarding
•DMZ
•IP/MAC filter
•Multi-level firewall
•DNS server
•DHCP client/server
•support HT20/HT40 for 802.11b/g/n, and HT20/40/80 for 802.11AC
•support for up to 32 simultaneous wireless connections
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg24.png)
G-240W-G unit data sheet
36
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
•External USB HD (Hard Drive) support, accessible to all LAN devices
•support for AIS with DOWN MEP
4.2.1 Configuring the G-240W-G to function as a single
port ONT
In addition to functioning as a residential gateway, the G-240W-G ONT can be
configured to function as a single port ONT.
In the custom configuration, the ONT reports to the OLT as one PPTP port. The
physical Ethernet port of the ONT is managed by the RGW using the TR-069
protocol, rather than by the ONT/OMCI.
To enable the ONT to function as a single port ONT, the value of the parameter:
InternetGatewayDevice.DeviceInfo.X_ALU-COM_PortReport2OLT.PPTP
must be set to
PPTP_one
A custom pre-configuration file is required to operate the G-240W-G as a single-port
ONT. Contact your Nokia support engineer to arrange for a custom pre-configuration
file.
4.2.2 Support for CFM over S-tunnel
The G-240W-G ONT supports Connectivity Fault Management (CFM) over S-tunnel.
This feature eliminates the need for creating many UP MEPs to handle CFM frames
with each inner VLAN tag. The UP MEP can be configured using the CLI. Down MEP
over S-tunnel is not supported.
To configure the S-tunnel, type the following commands:
configure vlan id stacked:1025:0 mode cross-connect in-qos-prof-name
name:Default_TC0 mac-mcast-ctrl
configure vlan id stacked:1026:0 mode residential-bridge in-qos-prof-name
name:Default_TC0 mac-mcast-ctrl
To configure the UP MEP, type the following commands:
configure cfm domain 5 name string:MD1 level 1
configure cfm domain 5 association 1 vlan stacked:1025:0 name string:MA1
configure cfm domain 5 association 1 mep 2 location user:1/1/1/1/1/1/1
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg25.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 37
The current design does not support the propagation of AIS frames with VLAN
information from the received packet. As a result, when a downstream AIS frame is
received for UP MEP over S-tunnel, the propagated AIS packet will not contain the
VLAN information.
4.2.3 TR-069 parameter support
The G-240W-G ONT supports the following TR-069 features:
•Host object
•Port forwarding
•Optical parameters
•Object support for Wi-Fi parameters
•Statistics and troubleshooting
•Diagnostic parameter
•Timing parameter
4.2.3.1 Host object support
The ONT provides host object support for:
InternetGatewayDeviceLANDevice.Hosts.Host.
4.2.3.2 Port forwarding support
The ONT supports the port forwarding of objects via TR-069:
•Application Name
•WAN Port
•LAN Port
•Internal Client
•Protocol
•Enable Mapping
•WAN Connection List
These are the same port forwarding parameters supported in the GUI. For more
information, see Table 45 in the chapter “Configure a G-240W-G indoor ONT”.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg26.png)
G-240W-G unit data sheet
38
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4.2.3.3 Optical parameters support
The ONT supports the reading of optical parameters via TR-069:
•laser bias current
•voltage
•temperature
•received signal levels
•lower thresholds
These are the same optical parameters supported in the GUI. For more information,
see Table 22 in the chapter “Configure a G-240W-G indoor ONT”.
4.2.3.4 Object support for Wi-Fi parameters
The ONT supports the status retrieval and configuration of the following Wi-Fi
parameters via TR-069:
•channel
•SSID
•password for WPA and WEP
•Tx power (transmission rate in percentage of maximum transmit power)
•WPS
These are the same TR-069 object parameters that are supported in the GUI. For
more information, see Tables 28 and 29 in the chapter “Configure a G-240W-G
indoor ONT”.
4.2.3.5 Statistics and troubleshooting support
The ONT supports TR-069 statistics and troubleshooting for LAN, WAN, and WiFi.
For more information, see the Procedure “Statistics retrieval” in the chapter
“Configure a G-240W-G indoor ONT”.
4.2.3.6 Diagnostic parameter support
The ONT supports the following TR-069 diagnostic parameters:
•TR-143
•IP ping
•traceroute
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg27.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 39
These are the same diagnostic parameters supported in the GUI. For more
information, see Procedure “Diagnose WAN connections” in the chapter “Configure
a G-240W-G indoor ONT”.
4.2.3.7 Timing parameter support
The ONT supports TR-069 timing parameters.
4.2.4 Independent TR69 session with Saas
The prime communication between the Nokia Motive cloud solution and the
G-240W-G ONT is TR-069.
To keep the Nokia solution independent from the ACS solution of the carrier, the
ONT can establish an independent TR-069 session with the Saas.
The Saas WiFi Care URL and credentials can be programmed from the ACS solution
of the carrier, or they can be incorporated in a pre-configuration file.
4.2.5 TR69 authentication using TLS and CA certificates
G-240W-G ONTs support TLS, as well as ACS authentication using SHA-256
pre-installed certificates.
If the URL is set to the https://... format, by default, the connection will use TLS
without authentication mode. The ONT can also authenticate the ACS using a
pre-installed CA certificate.
4.2.6 TR-104 parameter extension support for voice
service
A proprietary attribute has been added to the TR-104 Voice Service object structure
to enable the ACS to configure the name of the embedded GSIP XML file to be
selected.
The TR-104 Voice Service Object is:
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.
The proprietary attribute is: X_ALU-COM_XML_File_Name_Path.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg28.png)
G-240W-G unit data sheet
40
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4.2.7 TR-104 voice-related alarms
The G-240W-G ONT supports the following four TR-104 voice-related alarms on a
per FXS port basis.
These alarms all represent SIP registration failures with an alarm level of MAJOR.
•SIPREGDNS: domain name could not be resolved
•SIPREGAUTH: authentication failed
•SIPREGTO: re-transmissions timed out
•SIPREGERFRSP: error response from the registration server
4.2.8 TR-104 parameters for FX line testing
New attributes have been added to the TR-104 Voice Service object structure to
enable the ACS to perform line tests. The ONT supports the following electrical line
tests:
•hazardous potential
•foreign electrical motive force
•resistive faults
•receiver off-hook test
•ringers test
4.2.9 TR-111 support
The G-240W-G ONT supports TR-111, which extends the WAN Management
Protocol defined in TR-069 to enhance the ability to remotely manage LAN devices.
The device-gateway association enables an ACS to identify the associated gateway
through which a device is connected.
A connect request via the NAT gateway enables an ACS to initiate a TR-069 session
with a device that is operating behind a NAT gateway.
4.2.10 TR-181 parameter support
TR-181 parameter support has been introduced or enhanced for the parameter
categories and functions listed in Table 4.
For details about which parameters are supported, see your Nokia representative.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg29.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 41
Table 4 Support for TR-181 parameter categories
Parameter category Functionality
Diagnostics Bulk data: collection, reports, HTTP, and encoding
DNS
IP ping
TR-143 uploading and downloading
IPv6
Periodic statistics
Self test
WiFi neighboring
End user functional features Bridging port
Captive portal
Device information, including: processor, data model, and vendor log
Device interface
DHCPv4 and DCHPv6 client and server
Ethernet interface
Firewall
Hosts
Interface stack
IP interface configuration
End user functional features Management server
NAT
Neighbor discovery
Optical interface
PPP interface
QoS classification, QoS queue, and QoS shaper
Routing and route information
Timing
Remote access
User
WiFi: AP configuration, radio configuration, and SSID configuration
Statistics and status monitoring Bridging statistics
Device information processes
WiFi radio statistics
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2a.png)
G-240W-G unit data sheet
42
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4.2.11 Mobile offload support
As part of the E2E solution supported by the ISAM 7750 service router, the
G-240W-G ONT offers Mobile Offload support using a combination of EAP-SIM and
ITU-T 802.11.
EAP-SIM is an authentication method that uses the user credentials on the SIM card
and EAP to authenticate the user with the Wi-Fi network, removing the need for user
input (username and password).
A dedicated public mobile offload SSID in the ONT enables mobile subscribers to
connect to the Internet. Encryption is supported by 802.11, providing seamless Wi-Fi
authentication for SIM-based user equipment.
The ONT acts as the RADIUS client and sends the encapsulated EAP messages to
the AAA server via the WLAN Gateway, which acts as the RADIUS proxy server. The
interaction between the ONT and the AAA server provides subscriber management
for authenticated mobile users without adding authentication load to the 3G network.
4.2.12 Support for soft GRE tunnels
This section describes the support for soft GRE tunnels for integration with the 7750
Service Router WLAN gateway. The Nokia 7750 Service Router WLAN GW can
accept soft GRE tunnels from any IP Source Address, in a preconfigured Subnet or
Access Control List, or MPLS label.
4.2.12.1 GRE
Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a
wide variety of network layer protocols inside virtual point-to-point links over an
Internet Protocol network. GRE provides a secure path for transporting packets
through a public network. In essence, GRE creates a private P2P connection, similar
to a VPN, between clients and servers. GRE is the preferred transport mechanism
between the Carrier Wi-Fi access network and the WLAN GW.
WiFi Access point configuration
Access point associated device
Radio configuration
SSID configuration
Parameter category Functionality
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2b.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 43
GRE works by encapsulating a payload (an inner packet that needs to be delivered
to a destination network) inside an outer IP packet. GRE tunnel endpoints send
payloads through GRE tunnels by routing encapsulated packets through intervening
IP networks. The inner packets are not parsed along the way; only the outer IP
packets are parsed as they are forwarded towards the GRE tunnel endpoint, where
the GRE encapsulation is removed, and the payload is forwarded to its final
destination.
4.2.12.2 Soft GRE
In soft GRE, only one side of the tunnel needs to be configured; the other end learns
the remote IP addresses of all remote tunnel endpoints by examining the incoming
GRE packets.
GRE tunnels can be automatically created when devices attach to the AP,
eliminating the need for each AP to be explicitly provisioned on the WLAN Gateway.
Because this soft GRE is stateless and the tunnel contexts are created based on
need, the WLAN Gateway does not need to maintain states for unused tunnels,
which improves scalability.
The operator can restrict the traffic going through the GRE tunnel based on the
SSIDs or LAN ports.
Figure 9 shows the soft GRE architecture.
Figure 9 Soft GRE-based architecture
DHCP
server
Motive
Access Network
Security
Diag.
Qos
Viurs
scanner
Parental
Cntl
BW on
Demand
Basic
vCPE
VSR
Home
Network
VLAN: 100
Soft-GRE
Tunnel
TR-069 VLAN: 881
IPTV VLAN: 981
Mgmt
IPTV
Network
BRG
25265
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2c.png)
G-240W-G unit data sheet
44
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
For more information about soft GRE architecture and configuration procedures, see
the 7368 Configuration, Management, and Troubleshooting guide.
4.3 G-240W-G software and installation feature
support
For information on installing or replacing the G-240W-G, see:
•Install a G-240W-G indoor ONT
•Replace a G-240W-G indoor ONT
For information on the following topics, see the 7368 ISAM ONT Product Overview
Guide:
•ONT and MDU general descriptions of features and functions
•Ethernet interface specifications
•POTS interface specifications
•RSSI specifications
•Wi-Fi specifications
•ONT optical budget
•SLID entry via Ethernet port
•ONT management using an ONT interface
4.4 G-240W-G interfaces and interface capacity
Table 5 describes the supported interfaces and interface capacity for G-240W-G
indoor ONTs.
Table 5 G-240W-G indoor ONT interface connection capacity
Note
(1) The G-240W-G ONTs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.
4.4.1 G-240W-G connections and components
Figure 10 shows the physical connections for G-240W-G indoor ONTs,
ONT type
and model Maximum capacity
POTS 10/ 100
BASE-T 10/ 100/ 1000
BASE-T RF video
(CATV) MoCA VDSL2 E1/T1 Local craft GPON
SC/APC
G-240W-G
(1) 2— 4 — — ——— 1
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2d.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 45
Figure 10 G-240W-G indoor ONT physical connections
Figure 11 shows the G-240W-G ONT without the fiber cover.
28302
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
Wall
mounting
hole
Wall
mounting
hole
POTS
ports (2)
(RJ-11)
Ethernet
ports (4)
(RJ-45)
USB
ports (2)
Wi-Fi security
buttons
Reset
button
Power
Fiber optic
port
Wireless
on/off
button
On/off
button
ON/OFFPOWER
LED
RESET
WPS
WLAN
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2e.png)
G-240W-G unit data sheet
46
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 11 G-240W-G ONT without fiber cover
Figure 12 shows the G-240W-G ONT with the fiber cover.
Figure 12 G-240W-G ONT with fiber cover
28303
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
ON/OFFPOWER
LED
RESET
WPS
WLAN
Fiber optic connector
(without cover)
28304
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
ON/OFFPOWER
LED
RESET
WPS
WLAN
Fiber optic connector
(covered)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg2f.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 47
Table 6 describes the physical connections for G-240W-G indoor ONTs.
Table 6 G-240W-G indoor ONT physical connections
Note
(1) The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power
connector.
4.5 G-240W-G LEDs
Figure 13 shows the G-240W-G indoor ONT LEDs.
Connection (1) Description
POTS ports This connection is provided through RJ-11 ports. Up to two POTS connections are
supported.The POTS ports support voice services.
Ethernet ports This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000
Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and
in-band video services on all four interfaces.
USB ports This connection is provided through 2 USB ports. The ONT supports external USB hard
drives that can be made accessible to all LAN devices.
WPS button The Wi-Fi Protected Setup button is labeled as WPS. This button enables and disables
WLAN data encryption.
WLAN button Wi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled using
the WLAN button.
LED On/Off
button This button, located on the side of the ONT, turns all LED indicators on or off.
Reset button Pressing the Reset button for less than 10 seconds reboots the ONT; pressing the Reset
button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.
Power input This connection is provided through the power connector. A power cable fitted with a barrel
connector is used to make the connection.
On/Off button This button turns the ONT on or off.
Fiber optic port This port provides the connection for the fiber optic cable.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg30.png)
G-240W-G unit data sheet
48
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 13 G-240W-G indoor ONT LEDs
Table 7 provides LED descriptions for G-240W-G indoor ONTs.
Table 7 G-240W-G indoor ONT LED descriptions
USB
1 and 2
Power WLAN
LAN
1 to 4
28310
TEL1
TEL2
LAN1
LAN2
LAN3
LAN4
USB1
USB2
POWE R
WPS
WLAN
LED
RESET
ON/OFF
TEL
1 and 2
Reset
WPSLED On/Off
Indicator LED color and
behavior LED behavior description
Power Green solid
Red solid
Off
Power on
Light failed on startup (for example corrupt flash), or self test failed on startup, or self test failed
during regular operation or when executed over OMCI
Power off
Link Green solid
Off
GPON link between ONT and OLT is operating normally
GPON link is down or no link connected
Auth Off
Green solid
Green flashing
No fiber connected or no Rx power
ONT has been configured on the OLT and is in service (UP)
ONT is attempting to range with OLT
ONT is ranged but not configured on OLT
ONT is configured on OLT but admin is down and ONT is OOS
ONT is in service and subsequently un-configured on the OLT
ONT is in service while services are being configured
ONT is in service but admin is down and ONT is OOS
LAN 1 to 4 Green solid
Green flashing
Off
Ethernet is linked
LAN activity is present (in either direction)
ONT power is off or Ethernet is not connected
TEL 1 to 2 Green solid
Green flashing
Off
Phone is off hook
Phone is in ‘call in’ or ‘talking’ condition
All phones are on hook
VOIP Green solid
Off
VOIP service is built up and can provide service
VOIP service is not built up or out of service
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg31.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 49
4.6 G-240W-G detailed specifications
Table 8 lists the physical specifications for G-240W-G indoor ONTs.
Table 8 G-240W-G indoor ONT physical specifications
Table 9 lists the power consumption specifications for G-240W-G indoor ONT.
WPS Green solid
Green flashing
Red solid
Off
WiFi protected setup link is up (negotiation and auto-configuration successful)
WiFi protected setup link activity (negotiation and auto-configuration ongoing)
WiFi protected setup processing exception or multiple peers using WPS simultaneously
WiFi protected setup link down or no link connected (negotiation has not started or has failed)
WLAN Off
Green solid
Green flashing
WLAN link is disabled
WLAN link is enabled
Traffic is passing via WLAN link
USB Green solid
Green flashing
Off
At least one USB device is connected
There is traffic activity on at least on USB device
No USB device is connected
INTERNET Green solid
Green flashing
Off
HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP, or static,
and no traffic has been detected; b) the session is dropped due to idle timeout but the PON
link is still present.
PPPoE or DHCP connection in progress
HSI WAN is not connected: a) there is no physical interface connection; b) the device is in
bridged mode without an assigned IP address; c) the session has been dropped for reasons
other than idle timeout.
Indicator LED color and
behavior LED behavior description
(2 of 2)
Description Specification
Length 9.6 in. (244 mm)
Width 1.4 in. (35.5 mm)
Height 7.6 in. (192 mm)
Weight [within ± 0.5 lb (0.23 kg)]
(net weight of ONT)
1.23 lb (0.558 kg)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg32.png)
G-240W-G unit data sheet
50
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 9 G-240W-G indoor ONT power consumption specifications
Table 10 lists the environmental specifications for G-240W-G indoor ONT.
Table 10 G-240W-G indoor ONT environmental specifications
4.7 G-240W-G GEM ports and T-CONTs
Table 11 lists the maximum number of supported T-CONTs and GEM ports. See the
appropriate release Customer Release Notes for the most accurate list of supported
devices.
Table 11 G-240W-G indoor ONT capacity for GEM ports and T-CONTs
Mnemonic Maximum
power (Not to
exceed)
Condition Minimum
power Condition
G-240W-G 19.35 W 2 POTS off-hook, 4
10/100/1000 Base-T
Ethernet, Wi-Fi operational
2.33 W 2 POTS on-hook, other
interfaces/services not
provisioned
Mounting
method Temperature range and humidity Altitude
On desk or wall
mounted Operating: 23°F to 113°F (-5°C to 45°C)
ambient temperature
10% to 90% relative humidity,
non-condensing
Contact your Nokia technical support
representative for more information
Storage: -4°F to 158°F (-20°C to 70C)
ONT or MDU Maximum Notes
Package P ONTs
GEM ports per indoor or outdoor ONT 124 124 are present; 122 are available, and 2 are
reserved for multicast and debugging
T-CONTs per indoor or outdoor ONT 32 32 are present; 31 are available, and 1 is
reserved for OMCI
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg33.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 51
4.8 G-240W-G performance monitoring statistics
The following section identifies the supported performance monitoring statistics for
G-240W-G ONTs. A check mark indicates the statistic is supported on that ONT. An
empty cell indicates the statistic is not supported. The following tables are
categorized by supported alarm types:
•Table 12 provides statistics for ONTENET type counters
•Table 13 provides statistics for ONTL2UNI type counters
•Table 14 provides statistics for PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, and PONONTTCVOIP type counters
•Table 15 provides statistics for PONONTTC aggregate type counters
Table 12 Package P ONTs ONTENET performance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
Table 13 Package P ONTs ONTL2UNI performance monitoring statistics
Note — If you have trouble accessing G-240W-G ONTs
performance monitoring statistics using TL1, please contact
your Nokia support representative for more information about
how to access and retrieve performance monitoring type
counters.
ONT ONTENET statistics
FCSE
EC
LC
RBO
SCF
MCF
DT
IMTE
CSE
AE
IMRE
FTL
TBO
SQE
G-240W-G (1) ✓✓✓✓✓✓✓✓✓✓✓✓✓✓
ONT ONTL2UNI statistics
FRAMES
BYTES
MCFRAMES
DSDRPDFRMS
USDRPDFRMS
USFRAMES
DSFRAMES
USBYTES
DSBYTES
USMCFRAMES
DSMCFRAMES
G-240W-G
(1)
✓✓✓✓✓✓✓✓✓✓✓
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg34.png)
G-240W-G unit data sheet
52
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
Table 14 Package P ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP perfor-
mance monitoring statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
Table 15 Package P ONTs PONONTTC aggregate performance monitor-
ing statistics
Note
(1) A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window
is 5 seconds
ONT PONONTTC, PONONTMCTC, PONONTTCHSI, PONONTTCCES,
PONONTTCFLOW, PONONTTCVOIP statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-240W-G (1) ✓✓✓✓✓
ONT PONONTTC (aggregate) statistics
TXBLOCKS
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
G-240W-G (1) ✓✓✓✓✓
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg35.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 53
4.9 G-240W-G functional blocks
G-240W-G indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi)
service. Wi-Fi service on these ONTs is compliant with the IEEE 802.11 standard
and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these
ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two
RJ-11 POTS ports. These ONTs also feature fiber optic, USB, and power
connectors.
Figure 14 shows the functional blocks for G-240W-G indoor ONT.
Figure 14 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see
Figure 15.
BOB
LED
USB
I2C/RX/TX_SD,TX_PD
2*USB 2.0
SerDes
LED_CLK/DAT Shift
Register
RD/
Antenna
WIFI
11b/g/n
TransformSLIC
4*RJ-45
2x2
11b/g/n
Protection
RD/
Antenna
NAND
FLASH
SOC
WIFI
11ac
3x3
11ac
DDR3
I2C
EEPROM PCIE0
PCIE1
GE3GE2GE1GE0
2*RJ-11
28301
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg36.png)
G-240W-G unit data sheet
54
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 15 G-240W-G ONT hardware block
ONT SoC technology consists of five key elements:
•GPON MAC
The Gigabit Passive Optical Network Media Access Control (GPON MAC)
element on the SoC terminates the GPON interface using an optical diplexer. This
interface supports GPON as described in G.984.3 (GPON TC Layer) ITU
specification.
•Ethernet MAC
The SoC provides up to four GE MACs.
•DSP interface
The Digital Signal Processor (DSP) provides voice processing for 2 POTS lines
with 3-way calling. The DSP has a dedicated 64 kbyte instruction cache and
shares a 32 kbyte data cache with the Control Processor. It provides up to 4
network processor cores, each at 800MHz.
•Control Processor
The Control Processor features an integral memory management unit that
supports a dedicated 64 kbyte instruction cache and shares a single 32 kbyte data
cache with the DSP. The Control Processor and DSP also include a single
channel Data Management Application (DMA) controller with a 4 kbyte read
ahead low-latency Dynamic Random Access Memory (DRAM) access port.
•Switch matrix
The Switch matrix provides an integrated data channel between the four GE
MACs, the GPON MAC, the DSP, the control processor, and the other integrated
elements such as flash memory, DRAM, and the local bus controller.
Control
processor
Ethernet
MACs
Ethernet ports GPON
POTS ports
DSP
GPON
MAC
SoC
19421
SoC Bridge
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg37.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 55
These ONTs can also interact with additional hardware components to support
functionality not provided by the SoC technology.
4.10 G-240W-G standards compliance
G-240W-G indoor ONTs are compliant with the following standards:
•802.1p marking and VLAN based pbit is supported
•EN 300-328 v1.9.1 wide band data transmission standards for 2.4GHz bands
•G.711 support for FAX and modem connection
•G.984 support GPON interface (framing)
•G.984.2 support for Amd1, class B+
•G.984.3 support for activation and password functions
•G.984.3 support for AES with operator enable/disable on per port-ID level
•G.984.3 support for FEC in both upstream and downstream directions
•G.984.3 support for multicast using a single GEM Port-ID for all video traffic
•G984.4 and G.983.2 support for ONT management and provisioning
•CE marking for European standards for health, safety, and environmental
protection
•FCC marking for US standards for health, safety, and environmental protection
4.10.1 Energy-related products standby and off modes
compliance
Hereby, Nokia declares that the G-240W-G ONTs are in compliance with the
essential requirements and other relevant provisions of Directive 2009/125/EC
together with Commission Regulation (EC) No 1275/2008 and Commission
Regulation (EC) No 801/2013.
The G-240W-G ONTS qualify as equipment with high network availability (HiNA)
functionality. Since the main purpose of G-240W-G ONTs is to provide network
functionality with HiNA 7 days /24 hours, the modes Off/Standby, Power
Management, and Networked Standby are inappropriate.
For information about the type and number of network ports, see “G-240W-G
interfaces and interface capacity” in this chapter.
For information about power consumption, see “G-240W-G detailed specifications”
in this chapter.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg38.png)
G-240W-G unit data sheet
56
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4.10.2 FCC statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
4.10.3 FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter. End-users and installers must
be provided with antenna installation instructions and consider removing the
no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that
may cause undesired operation.
4.11 G-240W-G special considerations
G-240W-G is a package P ONT.
Caution — Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg39.png)
7368 ISAM ONT G-240W-G Product Guide G-240W-G unit data sheet
Issue: 01 3FE-47555-AAAA-TCZZA 57
4.11.1 Wi-Fi service
G-240W-G indoor ONTs feature Wi-Fi service as well as voice and data services.
Wi-Fi is a wireless networking technology that uses radio waves to provide wireless
HSI and network connections. This ONT complies with the IEEE 802.11 standards,
which the Wi-Fi Alliance defines as the basis for Wi-Fi technology.
4.11.1.1 Wi-Fi physical features
G-240W-G indoor ONTs have the following physical features that assist in providing
Wi-Fi service:
•WLAN button for enabling and disabling Wi-Fi service
•5 internal antennas: 2 for 2.4G and 3 for 5G
•one Wi-Fi Protected Setup (WPS) push button for both 2.4G and 5G controlling
4.11.1.2 Wi-Fi standards and certifications
The Wi-Fi service on G-240W-G indoor ONTs supports the following IEEE standards
and Wi-Fi Alliance certifications:
•certified for IEEE 802.11ac/b/g/n/standards
•WPA support including WPA-PSK
•certified for WPA2-Personal and WPA2-Enterprise
4.11.1.3 Wi-Fi GUI features
G-240W-G indoor ONTs have HTML-based Wi-Fi configuration GUIs.
4.11.2 G-240W-G ONT considerations and limitations
Table 16 lists the considerations and limitations for Package P G-240W-G ONTs.
Table 16 G-240W-G ONT considerations and limitations
Considerations and limitations
Call History Data collection (ONTCALLHST) is supported, except for the following parameters:
RTP packets (discarded), far-end RTCP and RTCP-XR participation, RTCP average and peak round trip delay,
MOS, average jitter, number of jitter-buffer over-runs and under runs.
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3a.png)
G-240W-G unit data sheet
58
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Some voice features are configurable on a per ONT basis, including Call Waiting, Call Hold, 3-Way Calling, and
Call Transfer.
The following voice features / GSIP parameters are configurable on a per-Client/ per-ONT basis (not
per-Subscriber):
•Enable Caller ID and Enable Caller Name ID
•Digitmap and the associated Interdigit and Critical timers and Enter key parameters
•Warmline timer is enabled per subscriber, but the warmline timer value is configured per ONT and must
have a lower value than the Permanent time
•Miscellaneous timers: Permanent, Timed-release, Reanswer, Error-tone, and CW-alert timers
•Features / functions: Message waiting mode, WMWI refresh interval, DTMF volume level
•Service Codes for the following features: CCW, Call Hold and Warmline
Considerations and limitations
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3b.png)
7368 ISAM ONT G-240W-G Product Guide Install a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 59
5 Install a G-240W-G indoor ONT
5.1 Purpose
5.2 General
5.3 Prerequisites
5.4 Recommended tools
5.5 Safety information
5.6 Procedure
5.1 Purpose
This chapter provides the steps to install a G-240W-G indoor ONT.
5.2 General
The steps listed in this chapter describe mounting and cabling for G-240W-G indoor
ONTs.
5.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
5.4 Recommended tools
You need the following tools for the installation:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
•optical power meter
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3c.png)
Install a G-240W-G indoor ONT
60
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
•drill and drill bits
•paper clip
5.5 Safety information
Read the following safety information before installing the unit.
Danger 1 — Hazardous electrical voltages and currents can
cause serious physical harm or death. Always use insulated
tools and follow proper safety precautions when connecting or
disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and
have no live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access
cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the G-240W-G unit data
sheet for the temperature ranges for these ONTs.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3d.png)
7368 ISAM ONT G-240W-G Product Guide Install a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 61
5.6 Procedure
Use this procedure to install a G-240W-G indoor ONT.
1Place the indoor ONT unit:
aOn the flat surface, such as a desk; go to step 3.
bOn a wall, go to step 2.
2Mount the G-240W-G indoor ONT on a wall.
The G-240W-G indoor ONT must be mounted in a horizontal position, as indicated by the wall
mounting key holes in Figure 16.
If possible, mount the ONT on a wall stud.
Figure 16 shows the ONT with the connections and the key mounting holes.
Note — The G-240W-G cannot be stacked with another ONT or with
other equipment. The ONT mounting requirements are:
•allow a minimum 100 mm clearance above the top cover
•allow a minimum 50 mm clearance from the side vents
•do not place any heat source directly above the top cover or below the
bottom cover
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3e.png)
Install a G-240W-G indoor ONT
62
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 16 G-240W-G ONT with connections and key mounting holes
iAttach the wall mounting keyholes on the ONT.
ii Attach the ONT to the wall.
3Review the connection locations, as shown in Figure 16.
4Connect the Ethernet cables to the RJ-45 ports; see Figure 16 for the location of the RJ-45
ports.
5Route the POTS cables directly to the RJ-11 ports as per local practices.
The POTS port to the left is labeled 1 for Line 1 while the port on the right is labeled 2 for Line
2, as shown in Figure 16.
28302
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
Wall
mounting
hole
Wall
mounting
hole
POTS
ports (2)
(RJ-11)
Ethernet
ports (4)
(RJ-45)
USB
ports (2)
Wi-Fi security
buttons
Reset
button
Power
Fiber optic
port
Wireless
on/off
button
On/off
button
ON/OFFPOWER
LED
RESET
WPS
WLAN
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg3f.png)
7368 ISAM ONT G-240W-G Product Guide Install a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 63
6Connect the fiber optic cable with SC/APC adapter into the SC/APC connector; see Figure 16
for the location of the SC/APC connector.
7Install the power supply according to manufacturer specifications.
8Connect the power cable to the power connector.
9Power up the ONT unit by using the power switch.
10 If used, enable the Wi-Fi service.
iLocate the WLAN button on the ONT; see Figure 16 for location of the WLAN button.
ii Press the WLAN button to change the status of the Wi-Fi service.
11 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368 Hardware and
Cabling Installation Guide.
12 Activate and test the services; see the 7368 Hardware and Cabling Installation Guide.
13 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend radius
in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber
optic pigtail cable.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12VDC, 3A.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg40.png)
Install a G-240W-G indoor ONT
64
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
14 If necessary, reset the ONT.
iLocate the Reset button on a G-240W-G indoor ONT as shown in Figure 16.
ii Insert the end of a straightened paper clip or other narrow object into the hole in the
Reset button to reset the ONT.
15 STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg41.png)
7368 ISAM ONT G-240W-G Product Guide Replace a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 65
6 Replace a G-240W-G indoor ONT
6.1 Purpose
6.2 General
6.3 Prerequisites
6.4 Recommended tools
6.5 Safety information
6.6 Procedure
6.1 Purpose
This chapter provides the steps to replace G-240W-G indoor ONTs.
6.2 General
The steps listed in this chapter describe mounting and cabling for G-240W-G indoor
ONTs.
6.3 Prerequisites
You need the following items before beginning the installation:
•all required cables
6.4 Recommended tools
You need the following tools for replacing the ONT:
•#2 Phillips screwdriver
•1/4 in. (6 mm) flat blade screwdriver
•wire strippers
•fiber optic splicing tools
•RJ-45 cable plug crimp tool
•voltmeter or multimeter
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg42.png)
Replace a G-240W-G indoor ONT
66
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
•optical power meter
•drill and drill bits
6.5 Safety information
Read the following safety information before replacing the unit.
Danger 1 — Hazardous electrical voltages and currents can
cause serious physical harm or death. Always use insulated
tools and follow proper safety precautions when connecting or
disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and
have no live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access
cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — Observe the following:
•The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local
authorities and practices take precedent when there is
conflict between the local standard and the NEC or CEC.
•The indoor ONT must be installed by qualified service
personnel.
•Indoor ONTs must be installed with cables that are suitably
rated and listed for indoor use.
•See the detailed specifications in the G-240W-G unit data
sheet for the ONT temperature ranges for these ONTs.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg43.png)
7368 ISAM ONT G-240W-G Product Guide Replace a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 67
6.6 Procedure
Use this procedure to replace a G-240W-G indoor ONT.
1Deactivate the ONT services at the P-OLT.
If you are using the SLID feature, this step is not required. The ONT and the services can
remain in service (IS).
iUse the RTRV-ONT command to verify the ONT status and th associated services.
Record the serial number or the SLID of the ONT displayed in the command output.
Example:
RTRV-ONT::ONT-1-1-1-1-1;
ii If the ONT is in service, place the ONT in OOS state.
Example:
ED-ONT::ONT-1-1-1-1-1;
2If used, disable the Wi-Fi service by pressing the WLAN button; see Figure 17 for the location
of the WLAN button.
Figure 17 G-240W-G indoor ONT connections
28302
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
Wall
mounting
hole
Wall
mounting
hole
POTS
ports (2)
(RJ-11)
Ethernet
ports (4)
(RJ-45)
USB
ports (2)
Wi-Fi security
buttons
Reset
button
Power
Fiber optic
port
Wireless
on/off
button
On/off
button
ON/OFFPOWER
LED
RESET
WPS
WLAN
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg44.png)
Replace a G-240W-G indoor ONT
68
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3Power down the unit by using the on/off power switch.
4Disconnect the POTS, Ethernet, and power cables from the ONT; see Figure 17 for the
connector locations on the G-240W-G indoor ONT.
5Disconnect the fiber optic cables.
iUnplug the fiber optic cable with SC/APC connector from the ONT; see Figure 17 for
the location of the fiber optic port.
ii Attach a fiber dust cover to the end of the SC/APC connector.
6Replace the ONT with a new unit:
aOn a flat surface, such as a desk, substitute the new ONT for the old ONT on a flat
surface, horizontally resting on its four feet.
bOn a wall.
iRemove the old ONT from the wall.
ii Attach the wall mount adapter bracket (shipped with the ONT) to the two wall
mounting key holes on the new ONT.
iii Attach the new ONT to the wall.
7Connect the Ethernet cables directly to the RJ-45 ports; see Figure 17 for the location of the
RJ-45 ports.
8Connect the POTS cables directly to the RJ-11 ports as per local practices; see Figure 17 for
the location of the RJ-11 ports.
The RJ-11 port to the left is labeled 1 for Line 1 while the port on the right is labeled 2 for Line
2.
9If required, have approved service personnel who are trained to work with optic fiber clean
the fiber optic connection. See the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide for more information about fiber optic handling, inspection, and
cleaning.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Danger — Fiber optic cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg45.png)
7368 ISAM ONT G-240W-G Product Guide Replace a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 69
10 Connect the fiber optic cable with SC/APC adapter into the SC/APC connector. Figure 17
shows the location of the SC/APC connector.
11 Install the power supply according to manufacturer specifications.
12 Connect the power cable to the power connector.
13 Power up the unit by using the power switch.
14 If used, enable the Wi-Fi service by pressing the WLAN button; see Figure 17 for the location
of the WLAN button.
15 If used, configure the SLID; see the 7368 ISAM ONT Configuration, Management, and
Troubleshooting Guide for more information.
16 Verify the ONT LEDs, voltage status, and optical signal levels; see the 7368 Hardware and
Cabling Installation Guide.
17 Activate and test the services; see the 7368 Hardware and Cabling Installation Guide.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend radius
in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber
optic pigtail cable.
Note — Observe the following:
•Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of
12 VDC, 3 A.
Note — A new SLID or the old SLID may be used with the replacement
ONT. If a new SLID is used, the new SLID must also be programmed at
the P-OLT using TL1 or a network manager. If the old SLID is used, no
changes need to be made at the P-OLT; see the operations and
maintenance documentation for the OLT for more details.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg46.png)
Replace a G-240W-G indoor ONT
70
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
18 If necessary, reset the ONT.
iLocate the Reset button on a G-240W-G indoor ONT as shown in Figure 17.
ii Insert the end of a straightened paper clip or other narrow object into the hole in the
Reset button to reset the ONT.
19 STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg47.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 71
7 Configure a G-240W-G indoor ONT
7.1 General
7.2 HGU mode GUI configuration
7.3 SFU mode configuration
7.1 General
Please refer to the configuration information provided with your OLT for the software
configuration procedure for a G-240W-G ONT.
For HTTP configuration procedures, please refer to the 7368 ISAM ONT
Configuration, Management, and Troubleshooting Guide.
7.2 HGU mode GUI configuration
Use the procedures below to use the web-based GUI for the G-240W-G in HGU
mode. This mode is preset at delivery.
A home gateway unit (HGU) is a home networking device, used as a gateway to
connect devices in the home through fiber to the Internet. An HGU provides a variety
of features for the home network including routing and firewall capability. By using
the HGU, users can connect all smart equipment in their home, including personal
computers, set-top boxes, mobile phones, and other consumer electronics devices,
to the Internet.
7.2.1 Login
Use the procedure below to login to the web-based GUI for the G-240W-G.
Procedure 6 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this IP address
using your web browser after connecting your PC to one of Ethernet ports of the ONT. The
static IP address of your PC must be in the same 192.168.1.x subnet as the ONT.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg48.png)
Configure a G-240W-G indoor ONT
72
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Enter your username and password in the Log in window, as shown in Figure 18.
The default user name is userAdmin. The default password is a random number, which is
included in the ONT kit.
Figure 18 Web login window
3Click Login. The Device Information screen appears.
4STOP. This procedure is complete.
7.2.2 Device and connection status
G-240W-G ONTs support the retrieval of a variety of device and connection
information, including:
•device information
•LAN status
•WAN status
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 5 s and the default values for the username and password
will be recovered at startup.
Note — To help protect the security of your Internet connection, the
application displays a pop-up reminder to change both the Wi-Fi
password and the ONT password.
To increase password security, use a minimum of 10 characters,
consisting of a mix of numbers and upper and lower case letters.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg49.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 73
•WAN status IPv6
•Home networking information
•optics module status
•statistics retrieval
•voice information
Procedure 7 Device information retrieval
1Select Status > Device Information from the top-level menu in the GPON Home Gateway
window, as shown in Figure 19.
Figure 19 Device Information window
Table 17 describes the fields in the Device Information window.
Table 17 Device Information parameters
Note — Upon login, the GPON Home Gateway window displays the
WAN status block on the bottom left part of each window. This block
shows the WAN connection ID, the WAN status, and any WAN errors.
This block is accurate upon login, but it is static; click the Refresh button
to update the information.
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4a.png)
Configure a G-240W-G indoor ONT
74
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Lot Number Production date of the ONT
Device Running Time Amount of time the device has run since
last reset in hours, minutes, and seconds
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4b.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 75
Procedure 8 LAN status retrieval
1Select Status > LAN Status from the top-level menu in the GPON Home Gateway window,
as shown in Figure 20.
Figure 20 LAN status window
Table 18 describes the fields in the LAN status window.
Table 18 LAN status parameters
Field Description
Wireless Information
Wireless Status Indicates whether the wireless is on or off
Wireless Channel Wireless channel number
SSID Name Name of each SSID
Wireless Encryption Status Encryption type used on the wireless connection
Wireless Rx Packets Number of packets received on the wireless connection
Wireless Tx Packets Number of packets transmitted on the wireless connection
Wireless Rx Bytes Number of bytes received on the wireless connection
Wireless Tx Bytes Number of bytes transmitted on the wireless connection
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4c.png)
Configure a G-240W-G indoor ONT
76
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Power Transmission (mW) Power of the wireless transmission, in mW
Ethernet Information
Ethernet Status Indicates whether the Ethernet connection is on or off
Ethernet IP Address IP address of the Ethernet connection
Ethernet Subnet Mask Subnet Mask of the Ethernet connection
Ethernet MAC Address MAC address of the Ethernet connection
Ethernet Rx Packets Number of packets received on the Ethernet connection
Ethernet Tx Packets Number of packets transmitted on the Ethernet connection
Ethernet Rx Bytes Number of bytes received on the Ethernet connection
Ethernet Tx Bytes Number of bytes transmitted on the Ethernet connection
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4d.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 77
Procedure 9 WAN status retrieval
1Select Status > WAN Status from the top-level menu in the GPON Home Gateway window,
as shown in Figure 21.
Figure 21 WAN status window
Table 19 describes the fields in the WAN status window.
Table 19 WAN status parameters
Field Description
WAN connection list Drop-down menu listing all WAN connections. The connection shown is the
connection for which WAN status will be shown.
Access Type
Connection Mode Connection mode of the WAN connection
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
WAN Link Status Whether the WAN link is up or down
BRAS Connection Status Whether the BRAS connection is connecting or disconnected
PON Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4e.png)
Configure a G-240W-G indoor ONT
78
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 10 WAN status IPv6 retrieval
1Select Status > WAN Status IPv6 from the top-level menu in the GPON Home Gateway
window, as shown in Figure 22.
Figure 22 WAN status IPv6 window
Table 20 describes the fields in the WAN status IPv6 window.
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg4f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 79
Table 20 WAN status IPv6 parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Field Description
WAN connection list Drop-down menu listing all WAN connections. The connection
shown is the connection for which WAN status will be shown.
Enable/Disable Select this checkbox to enable the WAN connection
VLAN VLAN ID
WAN Link Status Whether the WAN link is up or down
PON Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection
Rx Packets Number of packets received on the WAN connection
Tx Dropped Number of packets dropped on the transmit WAN connection
Rx Dropped Number of packets dropped on the receive WAN connection
Err Packets Number of errored packets on the WAN connection
Auto Configure
IPv6 address IPv6 address that identifies the device and its location
IPv6 Prefix IPv6 prefix
IPv6 Gateway IPv6 gateway address
Netmask Network mask
Gateway Gateway address
Primary DNS Primary Domain Name Server
Second DNS Secondary Domain Name Server
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg50.png)
Configure a G-240W-G indoor ONT
80
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 11 Home networking information retrieval
1Select Status > Home Networking from the top-level menu in the GPON Home Gateway
window, as shown in Figure 23.
Figure 23 Home networking information window
Table 21 describes the fields in the Home networking window.
Table 21 Home networking parameters
Field Description
Local Interface
Ethernet Table displays the number of Ethernet connections and their settings
Wireless (2.4GHz) Table displays the number of wireless connections and their settings
Wireless (5GHz)
Wireless Settings (2.4GHz)
Network Name Name of the wireless network
Access Point Hexadecimal address of the wireless access point
Wireless Settings (5GHz)
Network Name Name of the wireless network
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg51.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 81
2Click Delete to delete a particular local device connection.
3Click Refresh to update the displayed information.
4STOP. This procedure is complete.
Procedure 12 Optics module status retrieval
1Select Status > Optics Module Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 24.
Figure 24 Optics module status window
Table 22 describes the fields in the Optics module status window.
Access Point Hexadecimal address of the wireless access point
Local Devices
Table entry Each entry indicates the status (active or inactive), connection type, device name, IP
address, hardware address, and IP address allocation of each connected local device.
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg52.png)
Configure a G-240W-G indoor ONT
82
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 22 Optics module status parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
Procedure 13 Statistics retrieval
1Select Status > Statistics from the top-level menu in the GPON Home Gateway window.
Statistics are available for LAN ports, WAN ports, and WLAN ports.
Figure 25 shows the statistics for the LAN ports.
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical
Measurements) Laser bias current, measured in uA
Optics Module Voltage (ONT ANI-ONT-Side Optical
Measurements) Optics module voltage, measured in V
Optics Module Temperature (ONT ANI-ONT-Side Optical
Measurements) Optics module temperature, measured in C
Rx Optics Signal Level at 1490 nm (ONT ANI-ONT-Side
Optical Measurements) Received optics signal level at 1490 nm,
measured in dBm
Tx Optics Signal Level at 1310 nm (ONT ANI-ONT-Side
Optical Measurements) Transmitted optics signal level at 1310 nm,
measured in dBm
Lower (ONT ANI-ONT-Side Optical Measurements-Optical
Threshold) Lower optical threshold, measured in dBm
Upper (ONT ANI-ONT-Side Optical Measurements-Optical
Threshold) Upper optical threshold, measured in dBm
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg57.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 87
Figure 29 WLAN ports statistics message
2STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg58.png)
Configure a G-240W-G indoor ONT
88
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 14 Voice information retrieval
1Select Status > Voice Information from the top-level menu in the GPON Home Gateway
window, as shown in Figure 30.
Figure 30 Voice Information window
Table 23 describes the fields in the Voice Information window.
Table 23 Voice Information parameters
Field Description
Line Choose a line from the drop-down menu. The default is
Line 1.
Line Status Depending on the line chosen, the line options are:
•Up
•Initializing
•Registering
•Unregistering
•Error
•Testing
•Quiescent
•Disabled
The default is Disabled
Soft Switch(1) Proxy IP address; blank if the line is not registered
Phone Number(1) Phone number configured for a telephone line 1;
+13290611266
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg59.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 89
Note
(1) This field is only visible at the adminGPON level; it is not visible at the userAdmin level.
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
7.2.3 Network configuration
G-240W-G ONTs also support network configuration, including:
•LAN
•LAN IPv6
•WAN
•WAN DHCP
•WiFi 2.4G
•WiFi 5G
•Wireless schedule
•Routing
•DNS
•TR-069
•GRE tunnel
•QoS
•US (upstream) classification
Register Status The default is Registered
Blank if no voice service is provisioned
Register Error Code SIP standard error code for the register status; for
example, 401, 403, 503
This field is blank if the register is set to OK
Register Error Reason SIP standard error reason for the register status
This field is blank if the register is set to OK
User Agent IP IP address of the user agent
ExternalIPAddress in WANIPConnection or
WANPPPConnection
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5a.png)
Configure a G-240W-G indoor ONT
90
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 15 LAN networking configuration
1Select Network > LAN from the top-level menu in the GPON Home Gateway window, as
shown in Figure 31.
Figure 31 LAN network window
Table 24 describes the fields in the LAN network window.
Table 24 LAN network parameters
Field Description
Port Mode
All Ports to Bridge Mode Select this checkbox to set all ports to Bridge mode
Port 1 - 4 Drop-down port mode for each port: Route mode or Bridge mode
IPv4 Address IP Address of the ONT
Subnet Mask Subnet mask of the ONT
DHCP Enable Select this checkbox to enable DHCP
DHCP Start IP Address Starting DHCP IP address
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5b.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 91
2Select the mode for each port.
3Click Save.
4Enter the DHCP configuration information.
5Click Save.
6Enter the Static DHCP information.
7Click Add.
You can also use this panel to delete a Static DHCP MAC address or IPv4 address.
8STOP. This procedure is complete.
DHCP End IP Address Ending DHCP IP address
DHCP Lease Time DHCP lease time (in min)
Primary DNS Primary DNS identifier
Secondary DNS Secondary DNS identifier
Static DHCP Entry
MAC Address MAC address for the static DHCP
IPv4 Address IPv4 address for the static DHCP
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5c.png)
Configure a G-240W-G indoor ONT
92
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 16 LAN IPv6 networking configuration
1Select Network > LAN_IPv6 from the top-level menu in the GPON Home Gateway window,
as shown in Figure 32.
Figure 32 LAN IPv6 network window
Table 25 describes the fields in the LAN IPv6 network window.
Table 25 LAN IPv6 network parameters
Field Description
IPv6 LAN Host Configuration
DNS Server Choose a DNS server from the drop-down menu.
Interface This field appears if you selected the Wan Connection option for the “prefix
config” field. Choose a WAN connection interface from the drop-down menu.
LAN Prefix This field appears if you selected the “Static” option for the “prefix config” field.
Type a connection.
Enable Select this checkbox to enable the LAN connection
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5d.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 93
2Choose a DNS server, prefix config, and interface.
3Select or enter the DHCP configuration information.
4Enter the maximum and minimum intervals for RA messages.
5Click Save/Apply.
6STOP. This procedure is complete.
Prefix Config Choose a prefix config option from the drop-down menu, either
WANConnection (prefix will be obtained from the WAN) or Static (enables you
to enter the prefix).
WAN Interface Choose a WAN interface from the drop-down menu
WAN Prefix Choose a WAN prefix from the drop-down menu
DHCPv6 Server
Enable Select this checkbox to enable the DHCPv6 Server connection
DHCPv6 Server Pool
LAN Prefix This field appears if you selected the “Static” option for the “prefix config” field.
Type a connection.
RouterAdvertisement
LAN Prefix This field appears if you selected the “Static” option for the “prefix config” field.
Type a connection.
Whether the address info
through DCHP Select this checkbox to enable address information retrieval through DHCP.
Whether other info obtained
through DHCP Select this checkbox to enable retrieval of other information through DHCP.
Maximum interval for
periodic RA messages Enter the maximum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Minimum interval for
periodic RA messages Enter the minimum interval (in seconds) for periodic Router Advertisement
messages. The interval range is from 4 to 1800.
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5e.png)
Configure a G-240W-G indoor ONT
94
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 17 WAN networking configuration
1Select Network > WAN from the top-level menu in the GPON Home Gateway window, as
shown in Figure 33.
Figure 33 WAN network window
Table 26 describes the fields in the WAN network window.
Table 26 WAN network parameters
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu to set the
connection parameters
Connection Type Choose a connection type: IPoE or PPPoE
IP mode Choose an IP mode from the drop-down menu: IPv4 or IPv6
Enable/Disable Select this checkbox to enable the WAN connection
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg5f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 95
2Configure a specific WAN connection.
3Click Save.
4STOP. This procedure is complete.
NAT Select this checkbox to enable NAT
Service Select the checkboxes to enable service types for this connection
Enable VLAN Select this checkbox to enable VLAN
VLAN ID Enter the VLAN ID
VLAN PRI Enter the VLAN PRI
WAN IP Mode Choose an IP mode from the drop-down menu
Connection Type Choose a connection type from the drop-down menu
Username Enter the username
Password Enter the password
Keep Alive Time Enter the Keep Alive Time (from 5 to 60 seconds)
Keep Alive Retry The number of keep alive time retires (1 to 10); this field cannot be
modified in regular user mode
Echo Value The echo value: the keep alive time value multiplied by the number
of retries; this field cannot be modified in regular user mode
DHCPv6 Enable
Request Address
Request Prefix
Request Option
Auto Configured Enable
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg60.png)
Configure a G-240W-G indoor ONT
96
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 18 WAN DHCP configuration
1Select Network > WAN DHCP from the top-level menu in the GPON Home Gateway window,
as shown in Figure 34.
Figure 34 WAN DHCP window
Table 27 describes the fields in the WAN DHCP window.
Table 27 WAN DHCP parameters
2Configure a WAN DHCP option.
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu
DHCP Option 50
Persistent Select this checkbox to enable DHCP Option 50 persistent
Enable DHCP Option 60 Select this checkbox to enable DHCP Option 60 (vendor class identifier)
Enable DHCP Option 61 Select this checkbox to enable DHCP Option 61 (client identifier)
Enable DHCP Option 77 Select this checkbox to enable DHCP Option 77
Enable DHCP Option 90 Select this checkbox to enable DHCP Option 90
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg61.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 97
3Click Save.
4STOP. This procedure is complete.
Procedure 19 WiFi 2.4G networking configuration
1Select Network > WiFi 2.4G from the top-level menu in the GPON Home Gateway window,
as shown in Figure 35.
Figure 35 WiFi 2.4G network window
Table 28 describes the fields in the WiFi 2.4G network window.
Table 28 WiFi 2.4G network parameters
Field Description
Enable Select this checkbox to enable WiFi
(1 of 3)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg62.png)
Configure a G-240W-G indoor ONT
98
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Mode Choose a Wi-Fi mode from the drop-down menu:
•auto (b/g/n)
•b
•g
•n
•b/g
Bandwidth Choose from:
•20 MHz
•40 MHz
•20/40 MHz
Channel Choose a channel from the drop-down menu or choose Auto to have the channel
automatically assigned
Transmitting Power Choose a percentage for the transmitting power from the drop-down menu:
•Low (25%)
•Medium (50%)
•High (75%)
•Maximum (100%)
WMM Choose Enable or Disable from the drop-down menu to enable or disable WiFi
multi-media
Total MAX Users Enter the number of total MAX users
SSID Configuration
SSID Select Choose the SSID from the drop-down menu
SSID Name Enter the SSID name
Enable SSID Enable or disable SSID from this drop-down menu
SSID Broadcast Enable or disable SSID broadcast from this drop-down menu
MAX Users Enter the number of MAX users
Encryption Mode Choose an encryption mode from the drop-down menu:
•OPEN
•WEP
•WPA/WPA2 Personal
•WPA/WPA2 Enterprise (1) (2)
WPA Version Choose a WPA version from the drop-down menu:
•WPA1
•WPA2
•WPA1/WPA2
WPA Encryption
Mode Choose a WPA encryption mode from the drop-down menu:
•TKIP
•AES
•TKIP/AES
WPA Key Enter the WPA key
Enable WPS Enable or disable WPS from this drop-down menu
Field Description
(2 of 3)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg63.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 99
Notes
(1) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options are no longer available: WPA
version, WPA encryption mode, WPA key, Enable WPS, WPS mode.
(2) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options become available: Primary
RADIUS server, port and password; Secondary RADIUS server, port, and password; RADIUS accounting port.
2Configure the WiFi connection.
3If you have enabled and configured WPS, click WPS connect.
4Click Save.
5STOP. This procedure is complete.
WPS Mode Choose a WPS mode from the drop-down menu: PBC (Push Button Connect) or PIN
(Personal Identification Number)
Field Description
(3 of 3)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg64.png)
Configure a G-240W-G indoor ONT
100
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 20 WiFi 5G networking configuration
1Select Network > WiFi 5G from the top-level menu in the GPON Home Gateway window, as
shown in Figure 36.
Figure 36 WiFi 5G network window
Table 29 describes the fields in the WiFi 5G network window.
Table 29 WiFi 5G network parameters
Field Description
Enable Select this checkbox to enable WiFi
Bandwidth Choose from:
•20 MHz
•40 MHz
•80 MHz
Channel Choose a channel from the drop-down menu or choose Auto to have the
channel automatically assigned
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg65.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 101
Notes
(1) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options are no longer available: WPA
version, WPA encryption mode, WPA key, Enable WPS, WPS mode.
(2) When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options become available: Primary
RADIUS server, port and password; Secondary RADIUS server, port, and password; RADIUS accounting port.
2Configure the WiFi connection.
3If you have enabled and configured WPS, click WPS connect.
Transmitting Power Choose a percentage for the transmitting power from the drop-down menu:
•Low (20%)
•Medium (40%)
•High (60%)
•Maximum (100%)
WMM Choose Enable or Disable from the drop-down menu to enable or disable WiFi
multi-media
Enable MU-MIMO Choose Enable or disable MU-MIMO from this drop-down menu
The default is Enable, which enables users and wireless terminals to
communicate with each other.
MU-MIMO may decrease Wi-Fi performance for clients who do not support it,
in which case Nokia recommends that you choose Disable.
Total MAX Users Enter the total number of MAX users
DFS re-entry Choose Enable or Disable from the drop-down menu to enable or disable DFS
re-entry
SSID Configuration
SSID Select Choose the SSID from the drop-down menu
SSID Name Change the name of the selected SSID
Enable SSID Choose Enable or disable SSID from this drop-down menu
SSID Broadcast Choose Enable or disable SSID broadcast from this drop-down menu
MAX Users Enter the number of MAX users
Encryption Mode Choose an encryption mode from the drop-down menu:
•OPEN
•WEP
•WPA/WPA2 Personal
•WPA/WPA2 Enterprise (1) (2)
WPA Key Enter the WPA key
Enable WPS Choose Enable or disable WPS from this drop-down menu
WPS Mode Choose a WPS mode from the drop-down menu: PBC (Push Button Connect)
or PIN (Personal Identification Number)
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg66.png)
Configure a G-240W-G indoor ONT
102
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4Click Save.
5STOP. This procedure is complete.
Procedure 21 Wireless scheduling
1Select Network > Wireless Schedule from the top-level menu in the GPON Gateway window,
as shown in Figure 37.
Figure 37 Wireless Schedule window
2Select the Schedule Function checkbox to turn the wireless signal off for the configured
period.
3Click the plus sign (+) to add a scheduling rule.
A separate panel displays for configuring wireless schedule rules.
4Enter a start time and end time for the period in which you want the wireless signal off.
5Choose Everyday or Individual Days from the drop-down menu.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg67.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 103
6If you chose Individual Days, select the checkboxes for the desired days.
The Recurrence Pattern shows the rules created to date.
7If desired, click the plus sign (+) to add more rules.
8Click Save Changes.
9STOP. This procedure is complete.
Procedure 22 Routing configuration
1Select Network > Routing from the top-level menu in the GPON Home Gateway window, as
shown in Figure 38.
Figure 38 Routing network window
Table 30 describes the fields in the Routing network window.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg68.png)
Configure a G-240W-G indoor ONT
104
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 30 Routing network parameters
2Enter the routing information.
3Click Add.
4STOP. This procedure is complete.
Field Description
Enable Routing Select this checkbox to enable routing
Destination IP Address Enter the destination IP address
Destination Netmask Enter the destination network mask
Gateway Enter the gateway address
IPv4 Interface Choose a WAN connection previously created in the
WAN network window from the drop-down menu
Forwarding Policy Choose a forwarding policy from the drop-down menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg69.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 105
Procedure 23 DNS configuration
1Select Network > DNS from the top-level menu in the GPON Home Gateway window, as
shown in Figure 39.
Figure 39 DNS network window
Table 31 describes the fields in the DNS network window.
Table 31 DNS network parameters
2Select the Enabled checkbox and click Save to enable the DNS proxy.
3Enter the domain name and IPv4 address and click Add.
Field Description
DNS Proxy Select the Enabled checkbox to enable the DNS
proxy
Domain Name Domain name
IPv4 Address Domain IP address
Origin Domain Origin domain name
New Domain New domain name
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6a.png)
Configure a G-240W-G indoor ONT
106
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
4If required, associate an origin domain with a new domain, click Add.
5STOP. This procedure is complete.
Procedure 24 TR-069 configuration
1Select Network > TR-069 from the top-level menu in the GPON Home Gateway window, as
shown in Figure 40.
Figure 40 TR-069 network window
Table 32 describes the fields in the TR-069 network window.
Table 32 TR-069 network parameters
2Configure TR-069 by entering the required information.
Field Description
Periodic Inform Enable Select this checkbox to enable periodic inform updates
Periodic Inform Interval(s) Time between periodic inform updates, in seconds
URL URL of the auto-configuration server
Username Username used to log in to the auto-configuration server
Password Password used to log in to the auto-configuration server
Connect Request Username Username used to log in to the ONT
Connect Request Password Password used to log in to the ONT
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6b.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 107
3Click Save.
4STOP. This procedure is complete.
Procedure 25 GRE Tunnel configuration
1Select Network > GRE Tunnel from the top-level menu in the GPON Home Gateway window,
as shown in Figure 41.
Figure 41 GRE Tunnel window
Table 33 describes the fields in the GRE Tunnel window.
Table 33 GRE Tunnel parameters
Field Description
Tunnel Name Choose Create new GRE Tunnel, or Choose an existing tunnel from the
drop-down menu.
The tunnel name is automatically assigned by the system.
Up to 3 GRE tunnels are supported.
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6c.png)
Configure a G-240W-G indoor ONT
108
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Configure the GRE tunnel by entering or selecting the required information.
3Click Save.
4STOP. This procedure is complete.
Procedure 26 QoS configuration
1Select Network > QoS Config from the top-level menu in the Home Gateway window.
Figure 42 shows the window for configuring QoS L2 (Layer 2 packet sizes).
WAN Interface Choose a WAN interface from the drop-down menu.
GRE tunnels can only be created on HSI-enabled WAN interfaces.
Primary Remote End
Secondary Remote End (optional)
Enter an IP address or FQDN that is unique in the system.
If the primary remote endpoint is down or unreachable, the secondary
remote endpoint becomes active, if configured.
The secondary remote endpoint remains active until it becomes
unreachable, in which case the primary remote endpoint becomes active
again. Revertive mode is not supported.
If both endpoints are unreachable, the GRE tunnel is declared down.
Connected Remote End This field displays the current data traffic path for the GRE tunnel.
Failover mechanism This feature is automatically selected by the system.
Traffic timeout to start pings Enter the traffic timeout in seconds (0 to 100).
No. of retries before unreachable Enter the number of retries before the tunnel is declared down (2 to 1024).
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6e.png)
Configure a G-240W-G indoor ONT
110
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 43 QoS Config window (L3)
Table 34 describes the fields in the QoS Config window.
Table 34 QoS Config parameters
Field Description
Type Choose a QoS service layer type from the drop-down menu L2 or L3.
Source MAC Enter the source MAC
Select the Exclude checkbox to exclude the source MAC
Interface Choose an interface from the drop-down menu
DSCP Mark Enter the value for the DSCP mark (range: 0-63); valid only for L3 Criteria
802.1p Mark Enter the value for the 802.1p (range: 0-7)
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg6f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 111
2Choose a QoS type from the drop-down menu: L2 or L3.
3Configure a QoS policy.
4Click Add to add a QoS policy.
5STOP. This procedure is complete.
Procedure 27 Upstream (US) Classifier configuration
The US Classifier feature is used to create policies, classifiers, and classifier rules for upstream
traffic handling. This feature is available to admin users (super users) only.
A policy defines an action to be performed on a set of LAN or WAN packets. A policy can be
created at any time and then subsequently assigned to one or more classifiers.
A classifier is used to select key fields for which the classifier rules will be written. A classifier can
be created at any time and then subsequently assigned to one or more classifier rules.
A classifier rule is used to assign actions to a group of packets based on a set of parameters. A
classification rule must be created against a pre-defined classifier.
Up to 16 policies can be created, with up to 8 classifiers and 32 classifier rules.
1Select Network > US Classifier from the top-level menu in the GPON Home Gateway
window, and select the Policy tab, as shown in Figure 44.
All classifier policies are displayed in the policy table in the window.
Forwarding Policy Enter the number for the forwarding policy (range: 1-7)
Additional fields for L3
Protocol Choose a protocol from the drop-down menu, or select the Exclude checkbox
Application Choose an application from the drop-down menu
Source IP and
Source IP Mask Enter the values for the source IP and IP mask, or select the Exclude checkbox
Destination IP and
Destination IP Mask Enter the values for the destination IP and IP mask, or select the Exclude checkbox
Source Port and
Source Port Max Enter the values for the source port and port max (highest port number) or select the
Exclude checkbox
Destination Port and
Destination Port Max Enter the values for the destination port and port max (highest port number), or select
the Exclude checkbox
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg70.png)
Configure a G-240W-G indoor ONT
112
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 44 US Classifier Policy window
Table 35 describes the fields in the US Classifier Policy window.
Table 35 US Classifier Policy parameters
2Select a tunnel interface.
3Enter a VLAN ID and priority level.
Field Description
Tunnel Type The tunnel type is set to GRE and cannot be modified.
Tunnel Interface Choose a tunnel interface from the drop-down menu: No Tunnel, GRE
Tunnel, or LAN traffic.
VLAN ID Enter a VLAN ID (0-4094).
VLAN Tag This field is not configurable. The VLAN tag is set to 8100 (hexadecimal).
VLAN Priority Enter a VLAN priority level (0 to 7). A lower number indicates a higher
priority.
IP TOS/DSCP This field is not configurable. All tunnel packets are generated with a
default DSCP value (usually 0).
Drop Select this checkbox to drop the packets
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg71.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 113
4Click Save.
5To delete a policy, click the Delete option for the applicable policy in the policy table.
A policy can only be deleted if it is not associated with any classifier rules.
6Select Network > US Classifier from the top-level menu in the GPON Home Gateway
window, and select the Classifier tab, as shown in Figure 45.
All classifiers are displayed in the classifier table in the window.
Figure 45 US Classifier window
Table 36 describes the fields in the US Classifier window.
Table 36 US Classifier parameters
Field Description
Interface Choose an interface from the drop-down menu; for example, None, LAN,
2.4G SSID, or 5G SSID.
Source MAC Click to enter a source MAC
Destination MAC Click to enter a destination MAC
Source IP Click to enter a source IP
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg72.png)
Configure a G-240W-G indoor ONT
114
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
7Configure the US classifier.
At least one field must be selected to create a classifier. A maximum of four fields may be
selected to create a classifier; this includes the interface field.
8Click Save.
9To delete a classifier, click the Delete option for the applicable classifier in the classifier table.
A classifier can only be deleted if it is not associated with any classifier rules.
10 Select the Classifier Rules tab, as shown in Figure 46.
All classifier rules are displayed in the classifier rules table in the window.
Figure 46 US Classifier Rules window
Destination IP Click to enter a destination IP
Source Port Click to enter a source port
Destination Port Click to enter a destination port
Protocol Click to enter a protocol
Priority Choose a priority level from 1 to 8. The lower the number, the higher the
priority. No more than 1 classifier can be created with the same priority.
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg73.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 115
Table 37 describes the fields in the US Classifier Rules window.
Table 37 US Classifier Rules parameters
11 Configure the classifier rule.
12 Click Save.
13 To delete a classifier rule, click the Delete option for the applicable classifier rule in the
classifier rules table.
14 STOP. This procedure is complete.
7.2.4 Security configuration
G-240W-G ONTs also supports security configuration, including:
•firewall
•MAC filter
•IP filter
•URL filter
•parental control
•DMZ and ALG
•access control
Field Description
Policy Choose a policy from the drop-down menu
Classifier Choose a classifier from the drop-down menu
Interface Choose an interface from the drop-down menu; for example, None, LAN,
2.4G SSID, 5G SSID.
Source MAC Enter a source MAC
Destination MAC Enter a destination MAC
Source IP Enter a source IP
Destination IP Enter a destination IP
Source Port Enter a source port
Destination Port Enter a destination port
IP Protocol Type Enter a value between 0 and 254
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg74.png)
Configure a G-240W-G indoor ONT
116
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 28 Firewall configuration
1Select Security > Firewall from the top-level menu in the GPON Home Gateway window, as
shown in Figure 47.
Figure 47 Firewall window
Firewall security applies only to services provided by the ONT. Internet access from the LAN
side is not affected by this firewall.
Four security options are available: High, Low, Off, and Advanced.
High—Traffic denied inbound and minimally permit common services outbound
Low—All outbound traffic and pinhole-defined inbound traffic is allowed
Off—All inbound and outbound traffic is allowed
Advanced—Advanced firewall configuration applies as specified
Table 38 describes the fields in the firewall window.
Table 38 Firewall parameters
Field Description
Security Level Choose the security level from the drop-down menu: High, Low, Off, or
Advanced
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg75.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 117
2Configure the firewall.
3Click Save.
4STOP. This procedure is complete.
Procedure 29 MAC filter configuration
1Select Security > Mac Filter from the top-level menu in the GPON Home Gateway window,
as shown in Figure 48.
Figure 48 MAC filter window
Table 39 describes the fields in the MAC filter window.
Level Advance Choose Advanced to configure the DMZ and IP filter
Attack Protection
(Protection against DoS or
DDoS attacks)
Choose Enable or Disable attack protection from the drop-down menu. The
default is Enable.
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg76.png)
Configure a G-240W-G indoor ONT
118
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 39 MAC filter parameters
2Click Refresh to update the information.
3Configure a MAC filter.
4Click Add.
5STOP. This procedure is complete.
Field Description
Ethernet Interface
MAC Filter Mode Choose the MAC filter mode from the drop-down menu: Blocked or Allowed
LAN Port LAN port range
MAC Address Choose a MAC address from the drop-down menu or enter the address in the text field
Wi-Fi SSID
MAC Filter Mode Choose the MAC filter mode from the drop-down menu: Blocked or Allowed
SSID Select Choose the SSID from the drop-down menu
Enable Select this checkbox to enable the MAC filter
MAC Address Choose a MAC address from the drop-down menu or enter the address in the text field
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg77.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 119
Procedure 30 IP filter configuration
1Select Security > IP filter from the top-level menu in the GPON Home Gateway window, as
shown in Figure 49.
Figure 49 IP filter window
Table 40 describes the fields in the IP filter window. If the firewall level is not set to advanced,
the IP filter rules are not available.
Table 40 IP filter parameters
Field Description
Mode Choose an IP filter mode from the drop-down menu:
•Drop for upstream
•Drop for downstream
Internal Client Choose an internal client from the drop-down menu:
•Customer setting - uses the IP address input below
•IP - uses the connecting devices' IP to the ONT
Local IP Address Local IP address
Source Subnet Mask Source subnet mask
Remote IP Address Remote IP address
Destination Subnet Mask Destination subnet mask
Protocol Choose an application protocol or all from the drop-down menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg78.png)
Configure a G-240W-G indoor ONT
120
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Configure the IP filter.
3Click Add.
4STOP. This procedure is complete.
Procedure 31 URL filter configuration
1Select Security > URL Filter from the top-level menu in the GPON Home Gateway window,
as shown in Figure 50.
Figure 50 URL Filter window
Table 41 describes the fields in the URL Filter window.
Note — You cannot use URL filtering for HTTPS. The URL is encrypted
when using HTTPS.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg79.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 121
Table 41 URL Filter parameters
2Configure the URL Filter.
3Click Add Filter.
4STOP. This procedure is complete.
Field Description
Enable URL filter Select the checkbox to enable the URL filter
URL filter type Select the radio button to block the URL or allow the URL
URL List
URL Address Type the URL address
Port - default to 80 Type the port number; the default is 80
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg7c.png)
Configure a G-240W-G indoor ONT
124
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 42 Parental control parameters
2Select the Access Control checkbox.
3Click on the plus sign (+) to add a policy.
A separate panel displays for configuring the policy name, IP address of the device, and
dates and times for the policy.
4Configure the parental control policy.
5Click Enable to activate the policy.
6STOP. This procedure is complete.
Field Description
Access Control Select this checkbox to enable access control
Add Access Control rule
Policy Name Enter a name for the parental control policy or choose a policy from the list
MAC Address Enter the MAC address or choose a MAC address from the list
IPv4 Address Enter the IPv4 address for the device or choose an IPv4 address from the list
Url Port Enter the URL port for the device
Days of week Choose Every Day, or Individual Days and select the checkboxes for the days of the week
for which the policy applies
From Enter the times for the policy to be in effect
To
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg7d.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 125
Procedure 33 DMZ and ALG configuration
1Select Security > DMZ and ALG from the top-level menu in the GPON Home Gateway
window, as shown in Figure 52.
Figure 52 DMZ and ALG window
Table 43 describes the fields in the DMZ and ALG window.
Table 43 DMZ and ALG parameters
2Configure ALG.
3Click Save ALG.
4Configure DMZ.
Field Description
ALG Config Select the checkboxes to enable the protocols to be supported by the ALG: FTP,
TFTP, SIP, H323, RTSP, L2TP, IPSEC, PPTP
DMZ Config
WAN Connection List Choose a WAN connection from the drop-down menu
Enable DMZ Select this checkbox to enable DMZ on the chosen WAN connection
DMZ IP Address Choose Customer Setting and enter the DMZ IP address or choose the IP address
of a connected device from the drop-down menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg7e.png)
Configure a G-240W-G indoor ONT
126
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
5Click Save DMZ.
6STOP. This procedure is complete.
Procedure 34 Access control configuration
This procedure describes how to configure the access control level (ACL).
1Select Security > Access Control from the top-level menu in the GPON Home Gateway
window, as shown in Figure 53.
Figure 53 Access Control window
Table 44 describes the fields in the Access Control window.
Table 44 Access control parameters
Note 1 — ACL takes precedence over the firewall policy.
Note 2 — The trusted network object will be shared for all WAN
connections; it is not applied individually to a WAN connection.
Field Description
WAN Choose a connection from the drop-down menu
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg7f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 127
2Select a WAN connection from the drop-down menu.
3Click to enable or disable Trusted Network.
4Select an access control level for each of the four protocols: ICMP, SSH, HTTP, and TR-069
for both the WAN and the LAN side.
5Click Save.
6Optionally, add one or more subnet trusted networks.
The maximum number of entries is 32.
You can also use the Source IP fields to delete a previously created entry for a subnet trusted
network.
7STOP. This procedure is complete.
7.2.5 Application configuration
G-240W-G ONTs also supports application configuration, including:
•port forwarding
•port triggering
•DDNS
•NTP
•USB
•UPnP and DLNA
•voice setting
Trusted Network Enable Click the checkbox to enable or disable
ICMP, SSH, HTTP, TR-069 Select an access control level for each protocol:
WAN side: Allow, Deny, or Trusted Network Only
LAN side: Allow or Deny
Trusted Network
Source IP Start Enter a start IP address for the new subnet trusted network
Source IP End Enter an end IP address for the new subnet trusted network
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg80.png)
Configure a G-240W-G indoor ONT
128
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 35 Port forwarding configuration
1Select Application > Port forwarding from the top-level menu in the GPON Home Gateway
window, as shown in Figure 54.
Figure 54 Port forwarding window
Table 45 describes the fields in the port forwarding window.
Table 45 Port forwarding parameters
2Configure port forwarding.
Field Description
Application Name Choose an application name from the drop-down menu
WAN Port WAN port range
LAN Port LAN port range
Internal Client Choose a connected device from the drop-down menu and enter the associated IP
address
Protocol Choose the port forwarding protocol from the drop-down menu:
•TCP
•UDP
•TCP/UDP
Enable Mapping Select this checkbox to enable mapping
WAN Connection List Choose a WAN connection from the drop-down menu
Note: only active devices are shown on this menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg81.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 129
3Click Add.
4STOP. This procedure is complete.
Procedure 36 Port triggering
1Select Application > Port Triggering from the top-level menu in the GPON Gateway window,
as shown in Figure 55.
Figure 55 Port Triggering window
Table 46 describes the fields in the Port Triggering window.
Table 46 Port triggering parameters
Field Description
Application Name Choose an application name from the drop-down menu
Open Port Enter the open port range
Triggering Port Enter the triggering port range
Expire Time Enter the expiration time in seconds
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg82.png)
Configure a G-240W-G indoor ONT
130
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Configure port triggering.
3Click Add.
4STOP. This procedure is complete.
Open Protocol Choose the open port protocol from the drop-down menu:
•TCP
•UDP
•TCP/UDP
Trigger Protocol Choose the triggering port protocol from the drop-down
menu:
•TCP
•UDP
•TCP/UDP
Enable Triggering Select this checkbox to enable port triggering
WAN Connection List Choose a WAN connection from the drop-down menu
Note: only active devices are shown on this menu
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg83.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 131
Procedure 37 DDNS configuration
1Select Application > DDNS from the top-level menu in the GPON Home Gateway window, as
shown in Figure 56.
Figure 56 DDNS window
Table 47 describes the fields in the DDNS window.
Table 47 DDNS parameters
2Configure DDNS.
Field Description
WAN Connection List Choose a WAN connection from the drop-down menu
Enable DDNS Select this checkbox to enable DDNS on the chosen WAN connection
ISP Choose an ISP from the drop-down menu.
Domain Name Domain name
Username Username
Password Password
DDNS Status Displays the status of the DDNS: Synchronized, Synchronization failed,
or blank if no update message has been received from the ISP.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg84.png)
Configure a G-240W-G indoor ONT
132
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3Click Save.
4STOP. This procedure is complete.
Procedure 38 NTP configuration
1Select Application > NTP from the top-level menu in the GPON Home Gateway window, as
shown in Figure 57.
Figure 57 NTP window
Table 48 describes the fields in the NTP window.
Table 48 NTP parameters
Field Description
Enable NTP Service Select this checkbox to enable NTP service
Current Time Enter the current local date and time
Primary Time Server Choose a time server from the drop-down menu or choose Customer setting and
enter the address of the time server.
Secondary Time Server Choose a time server from the drop-down menu or choose Customer setting and
enter the address of the time server.
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg85.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 133
2Configure NTP.
3Click Save.
4STOP. This procedure is complete.
Procedure 39 USB configuration
You can connect USB storage devices and USB printers to the USB ports of the device. The USB
menu enables you to configure FTP, SFTP, and Samba servers for your USB storage devices.
You can also use the USB menu to enable and disable USB printer sharing across clients on the
LAN.
The USB connected devices are shown in overview table on the bottom of the USB window.
The device incorporates a CUPS server to enable USB printer sharing across the LAN by using
the RAW print-through protocol. When a USB printer is connected to the device, it can be
configured on LAN clients by referring to
http://<hostname>:631/printers/<printer_name>
Third Time Server Choose a time server from the drop-down menu or choose Customer setting and
enter the address of the time server.
Interval Time Interval at which to get the time from the time server, in seconds
Time Zone Choose the local time zone from the drop-down menu
Field Description
(2 of 2)
Note — Due to image size limitations, some OLTs may not be able to
support the Samba server feature.
For this reason, two types of ONT software images are available: the
Premium Image supports the FTP, SFTP, and Samba features; the
Advanced Image supports the FTP and SFTP features but does not
support the Samba server feature.
For more information, contact your Nokia representative.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg86.png)
Configure a G-240W-G indoor ONT
134
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
as a shared printer, where <hostname> refers to the DNS name or the IP address of the device
and the <printer_name> is displayed in the connected USB device table of the USB page. The
USB printer driver must be installed on the LAN client to execute print jobs. When an error
prevents the print job from being completed, a generic error message is returned to the LAN client.
Up to four print jobs at a time are supported.
1Select Application > USB from the top-level menu, as shown in Figure 58.
Figure 58 USB window
Table 49 describes the fields in the USB window.
Table 49 USB parameters
2Configure USB.
Field Description
Enable FTP server Select this checkbox to enable using an FTP server
Username Username for the FTP server
Password Password for the FTP server
Re-enter Password Password for the FTP server
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg87.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 135
3Click Save.
4STOP. This procedure is complete.
Procedure 40 UPnP and DLNA configuration
1Select Application > UPnP and DLNA from the top-level menu in the GPON Home Gateway
window, as shown in Figure 59.
Figure 59 UPnP and DLNA window
2Select the Enable UPnP/DLNA checkbox to enable UPnP/DLNA.
3Click Save/Apply.
4STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg88.png)
Configure a G-240W-G indoor ONT
136
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 41 Voice setting
1Select Application > Voice Setting from the top-level menu in the GPON Home Gateway
window, as shown in Figure 60.
Figure 60 Voice setting window
Table 50 describes the fields in the Voice Setting window.
Table 50 Voice setting parameters
Field Description
Voice Setting
Outbound Proxy Enter the SIP outbound proxy
Outbound Proxy Port Enter the outbound proxy port
Proxy Server Enter the proxy server
Proxy Server Port Enter the proxy server port
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg89.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 137
2Configure voice setting.
3Click Save.
4STOP. This procedure is complete.
7.2.6 Maintenance
G-240W-G ONTs also supports maintenance tasks, including:
•change password
•test WAN speed
•configure LOID
•configure SLID
•manage device
•backup and restore
•upgrade firmware
•reboot device
•restore factory defaults
•diagnose WAN connections
Registrar Server Enter the registrar server
Registrar Server Port Enter the registrar server port
UserAgentDomain Enter the user agent domain
UserAgentPort Enter the user agent port
DigitMap A string of characters with a length limit of 1024 bytes. A dial plan can consist of
several dial plan tokens. Each token is a component of the overall dial plan.
DTMF Mode Choose InBand, RFC2833, Info, or Auto from the drop-down menu
FaxT38 Choose False or True from the drop-down menu
Line Setting
POTS line Choose a POTS line from the drop-down menu
Enable Choose Enabled or Disabled from the drop-down menu
Directory Number Enter a directory number
AuthUserName Enter an authorized user name
AuthPassword Enter a password for the user
URI The Uniform Resource Identifier of the SIP URL
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8a.png)
Configure a G-240W-G indoor ONT
138
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
•view log
•diagnose PPPoE connection
Procedure 42 Password configuration
A password must adhere to the password rules, which are as follows:
•the password may consist of uppercase letters, lowercase letters, digital numbers, and
the following special characters ! # + , - / @ _ : = ]
•the password length must be from 8 to 24 characters
•the first character must be a digital number or a letter
•the password must contain at least two types of characters: numbers, letters, or special
characters
•the same character must not appear more than 8 times in a row
When the password meets the password rules, the application displays the message “Your
password has been changed successfully”.
When the password does not meet the password rules, the application displays a message to
indicate which password rule has not been followed, for example:
•the password is too short
•the password is too long
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8b.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 139
•the first character cannot be a special character
•there are not enough character classes
1Select Maintenance > Password from the top-level menu in the GPON Home Gateway
window, as shown in Figure 61.
Figure 61 Password window
Table 51 describes the fields in the password window.
Table 51 Password parameters
2Configure the new password.
Field Description
Original Password Current password
New Password New password (must adhere to the password rules described above)
Re-enter password Must match the new password entered above exactly
Prompt message Password prompt message
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8c.png)
Configure a G-240W-G indoor ONT
140
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3Click Save.
4STOP. This procedure is complete.
Procedure 43 WAN speed test
1Select Maintenance > Speed Test from the top-level menu in the GPON Home Gateway
window, as shown in Figure 62.
Figure 62 Speed Test window
2Click Start to start the speed test.
Enter the URL for the test server in the pop-up window.
3STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8d.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 141
Procedure 44 LOID configuration
1Select Maintenance > LOID Config from the top-level menu in the GPON Home Gateway
window, as shown in Figure 63.
Figure 63 LOID Config window
Table 52 describes the fields in the LOID configuration window.
Table 52 LOID configuration parameters
2Configure the LOID.
3Click Save/Apply.
4STOP. This procedure is complete.
Field Description
LOID Type the LOID; the maximum number of characters is 24
If the password is null, this field may be left blank
Password Type the password; the maximum number of characters is 12
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8e.png)
Configure a G-240W-G indoor ONT
142
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 45 SLID configuration
1Select Maintenance > SLID Configuration from the top-level menu in the GPON Home
Gateway window, as shown in Figure 64.
Figure 64 SLID configuration window
Table 53 describes the fields in the SLID configuration window.
Table 53 SLID configuration parameters
2Configure the new SLID.
Field Description
Current SLID Displays current SLID
Enter new SLID Input new SLID
SLID Mode Choose a SLID mode from the drop-down menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg8f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 143
3Click Save.
4STOP. This procedure is complete.
Procedure 46 Device management
1Select Maintenance > Device Management from the top-level menu in the GPON Home
Gateway window, as shown in Figure 65.
Figure 65 Device management window
Table 54 describes the fields in the Device management window.
Table 54 Device management parameters
Field Description
Host Name Choose a host from the drop-down menu
Host Alias Enter an alias for the chosen host
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg90.png)
Configure a G-240W-G indoor ONT
144
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Configure an alias for a specific host.
3Click Add.
4STOP. This procedure is complete.
Procedure 47 Backup and restore
1Select Maintenance > Backup and Restore from the top-level menu in the GPON Home
Gateway window, as shown in Figure 66.
Figure 66 Backup and Restore window
2Click Choose file and select a backup file.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg91.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 145
3Click Import Config File to restore the ONT to the saved backup or click Export Config File to
export the current ONT configuration to the backup file.
4STOP. This procedure is complete.
Procedure 48 Upgrade firmware
1Select Maintenance > Firmware Upgrade from the top-level menu in the GPON Home
Gateway window, as shown in Figure 67.
Figure 67 Firmware upgrade window
2Click Choose file and select the firmware file.
3Click Upgrade to upgrade the firmware.
4STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg92.png)
Configure a G-240W-G indoor ONT
146
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 49 Reboot ONT
1Select Maintenance > Reboot Device from the top-level menu in the GPON Home Gateway
window, as shown in Figure 68.
Figure 68 Reboot window
2Click Reboot to reboot the ONT.
3STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg93.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 147
Procedure 50 Restore factory defaults
1Select Maintenance > Factory Default from the top-level menu in the GPON Home Gateway
window, as shown in Figure 69.
Figure 69 Factory default window
2Click Factory Default to reset the ONT to its factory default settings.
3STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg94.png)
Configure a G-240W-G indoor ONT
148
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 51 Diagnose WAN connections
1Select Maintenance > Diagnose from the top-level menu in the GPON Home Gateway
window, as shown in Figure 70.
Figure 70 Diagnose window
2Choose a WAN connection to diagnose from the drop-down menu.
3Enter the IP address or domain name.
4Select the test type: ping, traceroute, or both.
5Enter the number of ping attempts to perform (1 - 1000); the default is 4.
6Enter a ping packet length (64-1024); the default is 64.
7Enter the maximum number of trace hops (1-255); the default is 30.
8Click Start Test. Results will be displayed at the bottom of the window.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg95.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 149
9Click Cancel to cancel the test.
10 STOP. This procedure is complete.
Procedure 52 View log files
1Select Maintenance > Log from the top-level menu in the GPON Home Gateway window, as
shown in Figure 71.
Figure 71 Log window
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg96.png)
Configure a G-240W-G indoor ONT
150
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Choose a write level from the drop-down menu to determine which types of events are
recorded in the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
3Choose a reading level from the drop-down menu to determine which types of events to
display from the log file:
•Emergency
•Alert
•Critical
•Error
•Warning
•Notice
•Informational
•Debug
4The log file is displayed at the bottom of the window.
5STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg97.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 151
Procedure 53 Diagnose PPPoE connections
1Select Maintenance > PPPoE Diagnostics from the top-level menu in the GPON Home
Gateway window, as shown in Figure 72.
Figure 72 PPPoE Diagnostics window
2Click Check to view the results for the PPPoE diagnostics, as shown in Figure 73.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg98.png)
Configure a G-240W-G indoor ONT
152
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Figure 73 PPPoE diagnostics results
Table 55 describes the fields on the PPPoE diagnostics results window.
Table 55 PPPoE diagnostics results parameters
3STOP. This procedure is complete.
7.2.7 RG troubleshooting counters
The Troubleshooting Counters feature enables service providers and end users to
monitor the performance of their broadband connection.
Field Description
PON Reports whether the PON link is up or down
PPPoE Reports whether the PPPoE IPv4 or IPv6 connection is up, connecting, down, not
configured, or not found
Internet For each Internet connection, reports whether the connection succeeded, failed (missing
DNS address), or was not found; also reports failures due to packet loss higher than the
threshold of 30
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg99.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 153
Tests are run to retrieve upstream and downstream throughput, latency, and DNS
response time. The Troubleshooting Counters window also displays upstream and
downstream packet loss and Internet status.
Procedure 54 Retrieve Residential Gateway (RG) troubleshooting counters
1Select RG Troubleshooting Counters from the left menu in the GPON Home Gateway
window.
The RG Troubleshooting Counters window appears; see Figure 74.
Figure 74 RG Troubleshooting Counters window
Table 56 describes the fields in the RG Troubleshooting Counters window.
Table 56 RG Troubleshooting Counters parameters
Field Description
WAN Connection List Choose a WAN connection from the list
US Throughput This test is used to determine the upstream throughput/speed
Click US Speed Test to specify the time for the upstream test
The default is weekly, performed at idle to a public server
DS Throughput This test is used to determine the downstream throughput/speed
Click DS Speed Test to specify the time for the downstream test
The default is weekly, performed at idle to a public server
US Packet Loss The number of upstream packages lost
DS Packet Loss The number of downstream packages lost
Internet Status Whether the broadband connections is active (UP) or not (DOWN)
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9a.png)
Configure a G-240W-G indoor ONT
154
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
2Configure the test times if desired.
3Click Refresh to update the data.
4STOP. This procedure is complete.
7.3 SFU mode configuration
HGU is the default mode for the G-240W-G ONT, but you can use SFU mode to view
device status information, change the password, authenticate the LOID, and change
the SLID.
7.3.1 Switch from default HGU mode to SFU mode
To switch from the default HGU mode to using SFU mode, use the procedure below.
Procedure 55 Switching to SFU mode
1Power up the G-240W-G ONT.
2Change the Operator ID (OPID) to XXXX to enable the ONT to switch to SFU mode, as
described in “Modifying the operator ID”.
3Reboot the ONT.
4STOP. This procedure is complete.
Latency This test is used to determine the lowest round-trip time in milliseconds by
pinging the target server multiple times
Click Latency Test to specify the time for the test
The default is weekly, performed at idle to a public server
DNS Response Time This test is used to determine the lowest round-trip time in milliseconds by
sending a request to the target DNS server
Click DNS Response Test to specify the time for the test
The default is weekly, performed at idle to a public server
Field Description
(2 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9b.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 155
Procedure 56 Modifying the operator ID
1Register the ONT with the OLT.
2Check the original OPID.
Use the T&D command on the ONT console (ri tool dump) to check the current OPID.
3Using an XML editor, create a file called OntConfig.xml with the following content:
<OperatorObject version=”1.0”>
<OperatorID=”abcd”>
</OperatorObject>
where: abcd is the correct operator ID, for example ALCL for HGU mode with TR-069 or TR-104 voice
management, ALCO for HGU mode with OMCI V1 or V2 voice management, or XXXX for generic SFU mode.
4Use a TFTP client tool to transfer the OntConfig.xml file to the OLT’s ONT directory and
change the filename to the software version number, for example, 3FE123456789.xml.
See the OLT documentation for the location of the ONT directory.
5Use a TL1 command to configure ONUSWCRTL:
ENT-ONTSWCTRL::1::::HWVER=hwver,VARNT=,PLNDSWVER=UNPLANNED,
PLNDSWVERCONF=UNPLANNED,DLDSWVER=swver;
where:
hwver is the EQPTVERNUM, for example EQPTVERNUM=3FE12345AAAA.
swver is the software version number used as the filename in step 2, for example 3FE123456789.xml.
See the TL1 Commands and Messages Guide for the 7342 or 7360 for more information
about the ENT-ONTSWCTRL command.
6Download the xml file to update the operator ID:
ED-ONT::ONT-1/1/3/1/19::::DLSW=AUTO;
7Restart the ONT, then connect to the LAN and use the T&D command on the ONT console
(ri tool dump) to check the OPID.
8Use a TL1 command to disable further downloads:
ED-ONT::ONT-1/1/3/1/19::::DLSW=DISABLED;
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9c.png)
Configure a G-240W-G indoor ONT
156
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
To enable auto download again, use the DEL-ONTSWCTRL command. See the TL1
Commands and Messages Guide for the 7342 or 7360 for more information about the
DEL-ONTSWCTRL command.
9STOP. This procedure is complete.
7.3.2 Login
Use the procedure below to login to the web-based GUI for the G-240W-G ONT.
Procedure 57 Login to web-based GUI
1Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears.
The default gateway IP address is http://192.168.1.254. You can connect to this IP address
using your web browser after connecting your PC to one of Ethernet ports of the ONT. The
static IP address of your PC must be in the same subnet as the ONT.
2Enter your username and password in the Log in window, as shown in Figure 75.
The default username is adminadmin. The default password is ALC#FGU.
Figure 75 Web login window
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the
factory defaults, except for the LOID and SLID.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9d.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 157
3Click Login.
4STOP. This procedure is complete.
7.3.3 Device and connection status
G-240W-G ONTs support the retrieval of a variety of device information.
Procedure 58 Device information retrieval
1Select Status > Device Information from the top-level menu in the GPON Home Gateway
window, as shown in Figure 76.
Figure 76 Device Information window
Table 57 describes the fields in the Device Information window.
Note — If you forget the current username and password, press the
reset button for 5 s and the default values for the username and password
will be recovered at startup.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9e.png)
Configure a G-240W-G indoor ONT
158
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 57 Device Information parameters
2Click Refresh to update the displayed information.
3STOP. This procedure is complete.
7.3.4 Maintenance
G-240W-G ONTs also support maintenance tasks, including:
•password change
•LOID configuration
•SLID configuration
Procedure 59 Password configuration
A password must adhere to the password rules, which are as follows:
•the password may consist of uppercase letters, lowercase letters, digital numbers, and
the following special characters ! # + , - / @ _ : = ]
•the password length must be from 8 to 24 characters
•the first character must be a digital number or a letter
•the password must contain at least two types of characters: numbers, letters, or special
characters
•the same character must not appear more than 8 times in a row
When the password meets the password rules, the application displays the message “Your
password has been changed successfully”.
Field Description
Device Name Name on the ONT
Vendor Name of the vendor
Serial Number Serial number of the ONT
Hardware version Hardware version of the ONT
Boot version Boot version of the ONT
Software version Software version of the ONT
Chipset Chipset of the ONT
Device Running Time Amount of time the device has run since
last reset in hours, minutes, and seconds
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bg9f.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 159
When the password does not meet the password rules, the application displays a message to
indicate which password rule has not been followed, for example:
•the password is too short
•the password is too long
•the first character cannot be a special character
•there are not enough character classes
1Select Maintenance > Password from the top-level menu in the GPON Home Gateway
window, as shown in Figure 77.
Figure 77 Password window
Table 58 describes the fields in the password window.
Table 58 Password parameters
2Configure the new password.
Field Description
New Password New password (must adhere to the password rules described above)
Re-enter Password Must match the new password entered above exactly
Prompt Message Password prompt message
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga0.png)
Configure a G-240W-G indoor ONT
160
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
3Click Save.
4STOP. This procedure is complete.
Procedure 60 LOID configuration
1Select Maintenance > LOID Config from the top-level menu in the GPON Home Gateway
window, as shown in Figure 78.
Figure 78 LOID configuration window
2Enter the LOID.
3Enter the password, if applicable.
4Click Save/Apply.
5STOP. This procedure is complete.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga1.png)
7368 ISAM ONT G-240W-G Product Guide Configure a G-240W-G indoor ONT
Issue: 01 3FE-47555-AAAA-TCZZA 161
Procedure 61 SLID configuration
1Select Maintenance > SLID Configuration from the top-level menu in the GPON Home
Gateway window, as shown in Figure 79.
Figure 79 SLID configuration window
Table 59 describes the fields in the SLID configuration window.
Table 59 SLID configuration parameters
2Configure the new SLID.
3Click Save.
4STOP. This procedure is complete.
Field Description
Current SLID Displays current SLID
Input New SLID Enter new SLID
SLID Mode Choose a SLID mode from the drop-down menu
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga2.png)
Configure a G-240W-G indoor ONT
162
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga3.png)
7368 ISAM ONT G-240W-G Product Guide ONT configuration file over OMCI
Issue: 01 3FE-47555-AAAA-TCZZA 163
8 ONT configuration file over OMCI
8.1 Purpose
8.2 Supported configuration file types
8.3 ONT configuration file over OMCI
8.1 Purpose
This procedure describes how to use configuration files over OMCI to configure
ONTs. Some advantages include:
•flexibility to change the ONT default behavior by downloading configuration file
•flexibility to update a deployed ONT by downloading updated parameters
•ability to securely download any configuration file to an ONT
•ability to avoid using embedded configuration files in ONT software
8.2 Supported configuration file types
Table 60 describes the configuration file types that are supported from 7368 ISAM
ONT R05.02.00 and later.
Note — This feature is supported for use with the 7360 ISAM
FX and the 7342 ISAM FTTU.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga4.png)
ONT configuration file over OMCI
164
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Table 60 Supported configuration files
File Index Description Details Supported ONTs/DPU
PRE ONT
pre-configuration file The XML-based PRECONFIG file controls the working
mechanics of the ONT for various services. The
default behavior of different ONTs may vary based on
the factory settings.
The pre-configuration file includes the factory default
value for the residential gateway.
Note: the pre-configuration file does not work with SFU
ONTs; therefore, this feature applies only to
Residential Gateway ONTs.
The pre-configuration file can be used as is, but Nokia
provides its customers with the flexibility to customize
the pre-configuration file.
This pre-configuration file enables operators to change
the default behavior by downloading a customized
pre-configuration based on customer inputs.
This PRE XML file includes a custom OPERID.
The Nokia defined index for the PRECONFIG file is:
"PRE"
HGU ONTs:
G-240G-C,G-240W-A,
G-240W-B, G-240W-C,
G-240W-G, I-240W-A
CFG ONT configuration
delta file The XML-based CFG file updates the configurable
parameters (the PRE settings) in the existing PRE file
of a deployed ONT, where required.
This configuration file enables operators to change the
deployed behavior by downloading customized
updates in the CFG file.
This file is used only to modify the parameters in the
PRE file; it is not used for service provisioning.
No OPERID is required, because the update is based
on the OPERID used for the PRE file.
The Nokia defined index for the PRECONFIG DELTA
file is: "CFG"
XML Voice XML file The Voice XML file provides an alternate method for
securely downloading voice parameters from the OLT,
rather than using FTP (OMCIv1/OMCIv2) or HTTPS
(TR-069). Downloading this file makes the applicable
changes in the voice parameters.
This file enables operators to change the voice
behavior by downloading the updated voice XML file.
Nokia recommends using this procedure, rather than
embedded voice XML files.
The Nokia defined index for the Voice XML file is:
"XML"
(1 of 2)
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga5.png)
7368 ISAM ONT G-240W-G Product Guide ONT configuration file over OMCI
Issue: 01 3FE-47555-AAAA-TCZZA 165
8.2.1 Filename conventions
Nokia provides the raw configuration files, which must be saved by the operator in a
TAR file to be uploaded. TAR file names must be unique.
The filenames of the raw configuration files may not adhere to the naming
conventions outlined below. In this case, the files must be renamed to adhere to the
naming conventions before the operator generates the TAR file. Filenames are not
case-sensitive.
ABCXXXXVER
where
ABC is the file index type (PRE, CFG, XML, GFT)
XXXX is the operator ID
For PRE and CFG, a valid operator ID is required
For XML and GFT, any characters may be used
VER is the file version (from 001 to 999)
Note: you cannot update the configuration using two files with the same name.
8.3 ONT configuration file over OMCI
Use this procedure to configure ONTs using configuration files via OMCI.
GFT G.fast-related
configuration file This text-based json script file controls the default
behavior of the G.Fast ONT.
This file includes the provisioning parameters of the
G.fast transports layer; it does not include VLAN or
QoS provisioning.
While the ONT functions well with the default values;
they can optionally be customized.
While default values can work in VDSL mode, a
download file is required for the device to function as a
G.fast ONT.
The Nokia defined index for the G.fast file is: "GFT"
HGU ONTs:
G-240G-C,G-240W-A,
G-240W-B, G-240W-C,
G-240W-G, I-240W-A
File Index Description Details Supported ONTs/DPU
(2 of 2)
Warning — Executing the following procedure will trigger the
ONT to reboot, which will impact ongoing services.
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga6.png)
ONT configuration file over OMCI
166
7368 ISAM ONT G-240W-G Product Guide
3FE-47555-AAAA-TCZZA Issue: 01
Procedure 62 Configuring an ONT using a configuration file via OMCI
1Generate the TAR file to be uploaded to the OLT.
Using the raw configuration file(s) provided by Nokia, generate the TAR file as follows:
iOn a Linux platform, rename the raw configuration file to adhere to the naming
convention, as described in section 8.2.
ii Tar the ABCXXXXVER raw configuration file:
tar -cf ABCXXXXVER.tar ABCXXXXVER
Where
ABCXXXXVER
Is the name of the file created in step i.
This creates two files: ABCXXXXVER and ABCXXXXVER.tar.
iii Rename ABCXXXXVER to ABCXXXXVER.org
iv Remove the “.tar” extension from ABCXXXXVER.tar file.
2Upload the ABCXXXXVER TAR file to the /ONT/ directory in the OLT.
A maximum of 250 files can be kept in the OLT file system.
3Using OLT commands, download the TAR file to the ONT.
For OLT commands, refer to the 7360 ISAM FX CLI Command Guide for 100_320Gbps FD
NT and FX NT, or the 7342 ISAM FTTU Operation and Maintenance Using TL1 and CLI.
Please note:
•pri-cfgfile-pland/dnload or sec-cfgfile-pland/dnload can be 1 to 14
characters.
•pri-cfgfile-pland and pri-cfgfile-dnload should be the same name.
Examples
Note: X can be 1 or 2 unless specified:
iIf pland-cfgfileX= Disabled and dnload-cfgfileX= Disabled ,
no file will be downloaded to the ONT.
ii If pland-cfgfileX=FILENAME1 and dnload-cfgfileX= Disabled ,
FILENAME1 will be downloaded and FILENAME1 will be made active. An ONT reboot
is required.
iii If pland-cfgfileX=Disabled and dnload-cfgfileX= FILENAME2
Release 05.08.01a | August 2018 | Edition 01
![](/img.php?id=4042739&img=bga7.png)
7368 ISAM ONT G-240W-G Product Guide ONT configuration file over OMCI
Issue: 01 3FE-47555-AAAA-TCZZA 167
FILENAME2 will be downloaded and FILENAME2 will be made passive. An ONT reboot
is not required.
iv If pland-cfgfileX=FILENAME3 and dnload-cfgfileX= FILENAME 4, the OLT
reports an error because the filenames are not the same.
vConfigure equipment interface … pland-cfgfile1=XMLXXXXXX1 and
dnload-cfgfile1 XMLXXXXXX1
Configure equipment interface … pland-cfgfile2=XMLXXXXXX2 and
dnload-cfgfile2 XMLXXXXXX2
Although the OLT permits the above two steps without reporting an error, Nokia does
not recommend executing them, because the ONT may exhibit unexpected behavior.
vi If pland-cfgfileX=Auto and dnload-cfgfileX= Auto
The OLT will download the XML file from "sw-ctr-list" (configure equipment ont
sw-ctrl)
4STOP. This procedure is complete.
The ONT will distribute the configuration files to the different services based on the active
indication from the OLT and on the Nokia defined index.
The ONT automatically reboots to apply the configuration files. After the ONT reboots and reports
the active version, the OLT completes the file download procedure.
Operators must check the committed file from the OLT to verify whether the corresponding file has
been applied. If an error occurs, contact Nokia for support.
